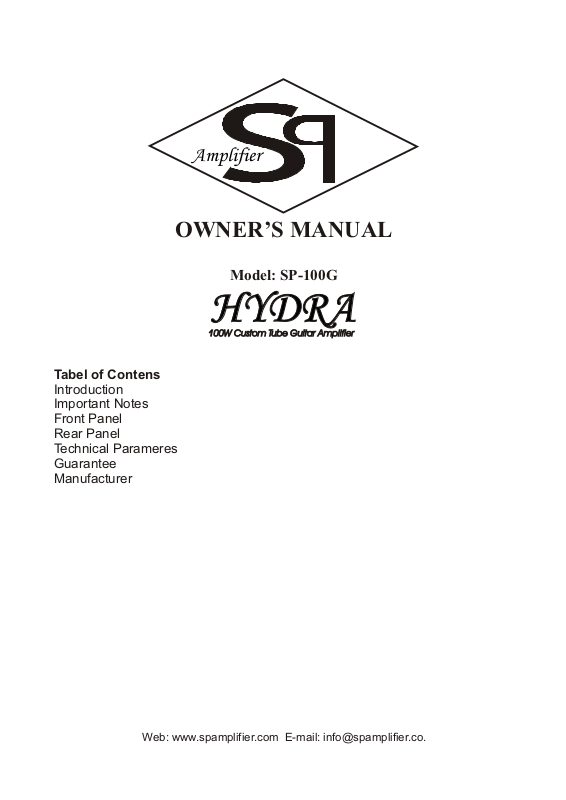

Page 1
Tabel of Contens
Introduction
Important Notes
Front Panel
Rear Panel
Technical Parameres
Guarantee
Manufacturer
Amplifier
OWNER’S MANUAL
Model: SP-100G
HYDRAHYDRA
100W Custom Tube Guitar Amplifier 100W Custom Tube Guitar Amplifier
Web: www.spamplifier.com E-mail: [email protected].
Page 2
Introduction
First of all, thank you for choosing our product. We hope,you will have some fun on it!
So let’s ROCK!
Important notes
The amp works under 500V high voltage! Risk of electric shock. Do not open (Lose Warranty)!
Do not remove the cover (or back). No user serviceable parts inside. Before making any connections,
make sure that all the devices are turned off. This will help prevent damage or malfunction.
Make sure about your cabinet’s OHM size!
If you have any problem, please contact us!

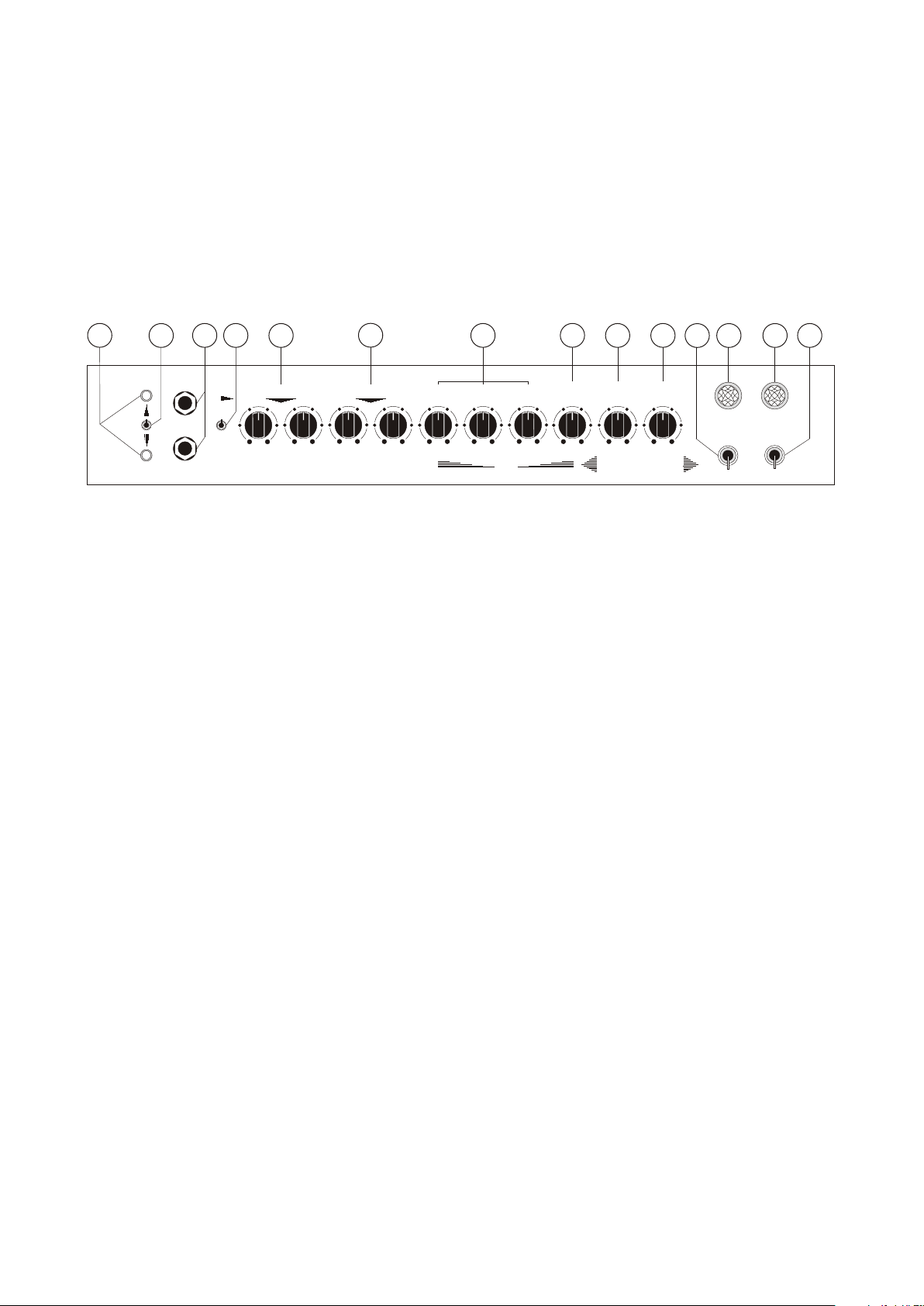

Front Panel
55
00
GAINGAIN
6
DRIVEDRIVE
1010
55
00
SUST.SUST.
7
HIGHHIGH
00
1010
MIDMID
55
1010
BASSBASS
55
00
00
1010
TONETONE
8
COLORCOLOR
55
00
1010
MAST.1MAST.1
00
HYDRAHYDRA
100W Custom Tube Guitar Amplifier 100W Custom Tube Guitar Amplifier
55
1010
1
CLEANCLEAN
CH.CH.
DRIVEDRIVE
2
TUNERTUNER
INPUTINPUT
GUITARGUITAR
3
BRIGHTBRIGHT
4
55
00
GAINGAIN
5
CLEANCLEAN
1010
00
VOL.VOL.
55
1010
10
MAST.2MAST.2
55
00
11
STANDBYSTANDBY
1010
9
55
1010
12
13
POWERPOWER
1, Channel signal (LED):
Clean channel is green, Drive channel is red.
2, Channel switch:
Change between Clean and Drive channel, can be controlled by footswitch.
3, Input jacks:
One for the guitar and one for the tuner.
4, Bright switch:
Gives some high to the clean sound.
5, Clean channel controlls:
Gain and Volume knobs.
6, Drive channel controlls:
Gain and Sustain knobs (changes the intensity of the drive channel).
7, Tone controlls:
Low, Mid, Bass equaliser knobs.
8, Color controll:
If you turn it to the left it cuts the High-mids and add some Low-mids. Turning it to the right,
it cuts the High-mids and add some Low-mid to the sound.
9, Master 1.:
The firs drive channel’s master knob.
10, Master 2.:
Usefull for solo boost.
11, Standby switch
12, Standby lamp
13, Power switch
14, Power lamp
14
Page 3

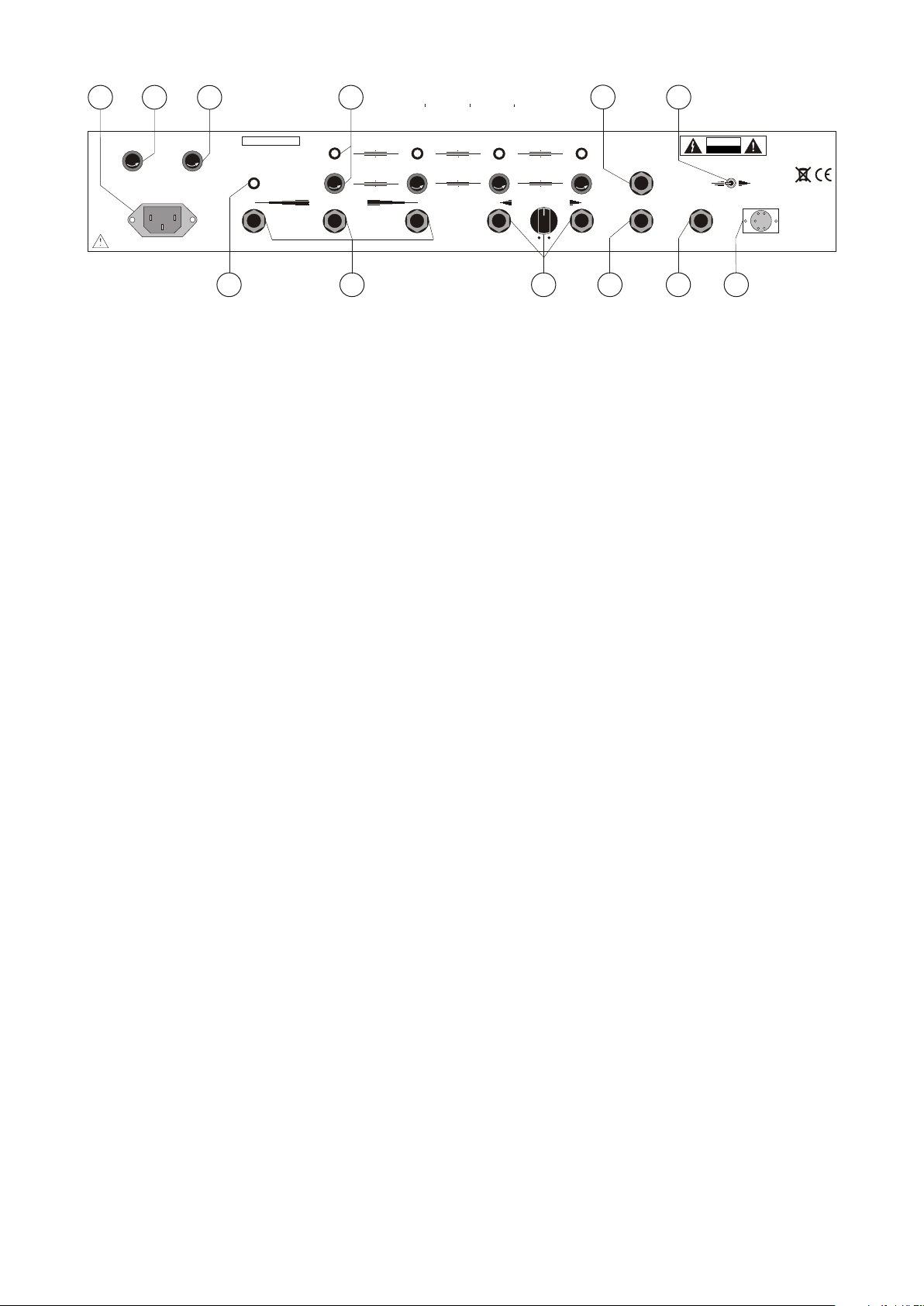

Rear Panel
1
WARNING!:WARNING!:
DO NOT OBSTRUCTDO NOT OBSTRUCT
VENTILATION GRILLESVENTILATION GRILLES
MAIN FUSEMAIN FUSE
T 4AT 4A
FUSE
MAIN INPUTMAIN INPUT
230V 50Hz 230V 50Hz
WARNING!:WARNING!:
RISK OF HAZARDOUS ENERGYRISK OF HAZARDOUS ENERGY
AVIS!:AVIS!:
ENERGY ELECTRIQUE DANGEREUSEIENERGY ELECTRIQUE DANGEREUSEI
V.4V.4
FUSE
RETURNRETURN
5
PRE AMP.OUTPRE AMP.OUT
POW.AMP.INPOW.AMP.IN
10 11
Model: SP-100GModel: SP-100G
V.1V.1
FUSE
SPEAKERSPEAKER
8 Ohm8 Ohm
4
POWER TUBE CONTROLLPOWER TUBE CONTROLL
V.2V.2
FUSE
CONNECT
CONNECT
SPEAKER
SPEAKER
BEFOREBEFORE
USEUSE
16 Ohm16 Ohm
8
500mA500mA
V.3V.3
FUSE
SENDSEND
EFFECTSEFFECTS
00
1010
9
2
HT FUSEHT FUSE
T 1AT 1A
FUSE
3
SER.NO.SER.NO.
Manufactured by SP Enginering
Manufactured by SP Enginering
Hungary
Hungary
SPEAKER CONTROLLSPEAKER CONTROLL
SPEAKER
SPEAKER
CONNECT
CONNECT
LIGHT Off!LIGHT Off!
4 Ohm4 Ohm
7
6
100W100W
POWERPOWER
LINE OUTLINE OUT
1, Main input:
230V / 50Hz
2, Main fuse:
T 4 Amper
3, Output transzformer fuse:
T 1 Amper.
4, PTP System:
Power Tube Protection with leds and fuses: 500mAmper
5, Preamp out
6, Half Power Switch
7, Speaker Controll System:
If the speaker doesn’t connected, the led is lighting and the amps doesn’t works.
8, Speaker Outputs:
4-8-16 Ohms
9, Effect Loop
10, Poweramp in
11, Line out
12, Footswitch connector
CAUTIONCAUTION
RISK OF ELECTRIC SHOCKRISK OF ELECTRIC SHOCK
DO NOT OPENDO NOT OPEN
12
WARNING!:WARNING!:
TO REDUCE THE RISK OR FIRE OR ELECTRIC SHOCK
TO REDUCE THE RISK OR FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE THIS APPARATUS MUST BE EARTHED.
MOISTURE THIS APPARATUS MUST BE EARTHED.
CAUTION!:CAUTION!:
SHOCK DO NOT REMOVE COVER. NO USER
SHOCK DO NOT REMOVE COVER. NO USER
SEVICEABLE PARTS INSIDE. REFER SERVICING TO
SEVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
QUALIFIED SERVICE PERSONNEL.
50W50W
POWERPOWER
FOOTSW.FOOTSW.
SHOCK HAZARD. DO NOT OPEN. SHOCK HAZARD. DO NOT OPEN.
TO REDUCE THE RISK OR ELECTRICTO REDUCE THE RISK OR ELECTRIC
Technical parameters:
Power: 100W RMS on 4-8-16 Ohm
Tubes: 6x12AX7LPS and 4x6L6WXT
Main input: 230V/50Hz
Main Fuse: T4Amper
Power Fuse: T1Amper
Input impedance: 1M Ohm
Effect send impedance: 10k Ohm
Effect return impedance: 1M Ohm
Preamp Out: 250-750mV
Poweramp In: 2-2,5V Vss
Dimension:
640x225x250mm
Wight: 19kg
Guarantee:
We give 3 years of warranty for free. The tubes are under 15 days guarantee!
Manufactura:
SP Amplifier
H-1119 Budapest, Major u.39. Hungary
Phone: 0036-20-9166-399
E-mail: [email protected]
Web: www.spamplifier.com
