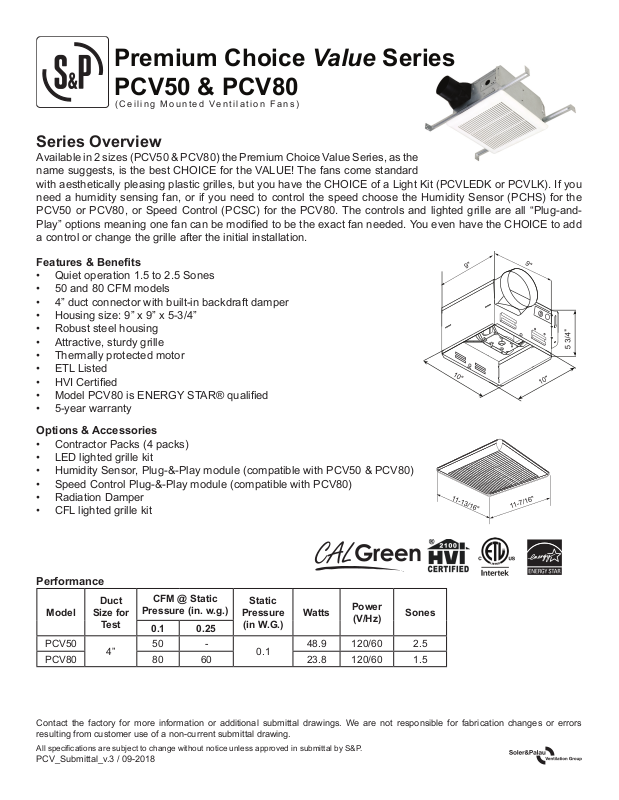

Premium Choice Value Series
PCV50 & PCV80
(Ceiling Mounted Ventilation Fans)
Series Overview
Available in 2 sizes (PCV50 & PCV80) the Premium Choice Value Series, as the
name suggests, is the best CHOICE for the VALUE! The fans come standard
with aesthetically pleasing plastic grilles, but you have the CHOICE of a Light Kit (PCVLEDK or PCVLK). If you
need a humidity sensing fan, or if you need to control the speed choose the Humidity Sensor (PCHS) for the
PCV50 or PCV80, or Speed Control (PCSC) for the PCV80. The controls and lighted grille are all “Plug-and-
Play” options meaning one fan can be modied to be the exact fan needed. You even have the CHOICE to add
a control or change the grille after the initial installation.
Features & Benets
• Quiet operation 1.5 to 2.5 Sones
• 50 and 80 CFM models
• 4” duct connector with built-in backdraft damper
• Housing size: 9” x 9” x 5-3/4”
• Robust steel housing
• Attractive, sturdy grille
• Thermally protected motor
• ETL Listed
• HVI Certied
• Model PCV80 is ENERGY STAR® qualied
• 5-year warranty
Options & Accessories
• Contractor Packs (4 packs)
• LED lighted grille kit
• Humidity Sensor, Plug-&-Play module (compatible with PCV50 & PCV80)
• Speed Control Plug-&-Play module (compatible with PCV80)
• Radiation Damper
• CFL lighted grille kit
Performance
Duct
Model
PCV50
PCV80 80 60 23.8 120/60 1.5
Contact the factory for more information or additional submittal drawings. We are not responsible for fabrication changes or errors
resulting from customer use of a non-current submittal drawing.
All specications are subject to change without notice unless approved in submittal by S&P.
PCV_Submittal_v.3 / 09-2018
Size for
Test
4”
CFM @ Static
Pressure (in. w.g.)
0.1 0.25
50 -
Static
Pressure
(in W.G.)
0.1
Watts
48.9 120/60 2.5
Power
(V/Hz)
Sones
