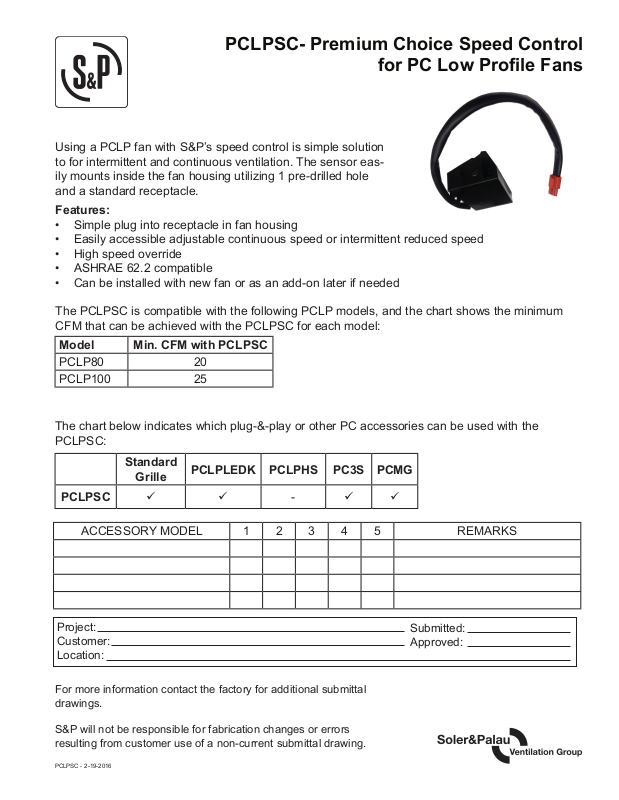

PCLPSC- Premium Choice Speed Control
for PC Low Prole Fans
Using a PCLP fan with S&P’s speed control is simple solution
to for intermittent and continuous ventilation. The sensor easily mounts inside the fan housing utilizing 1 pre-drilled hole
and a standard receptacle.
Features:
• Simple plug into receptacle in fan housing
• Easily accessible adjustable continuous speed or intermittent reduced speed
• High speed override
• ASHRAE 62.2 compatible
• Can be installed with new fan or as an add-on later if needed
The PCLPSC is compatible with the following PCLP models, and the chart shows the minimum
CFM that can be achieved with the PCLPSC for each model:
Model Min. CFM with PCLPSC
PCLP80 20
PCLP100 25
The chart below indicates which plug-&-play or other PC accessories can be used with the
PCLPSC:
PCLPSC
Standard
Grille
PCLPLEDK PCLPHS PC3S PCMG
-
ACCESSORY MODEL 1 2 3 4 5 REMARKS
Project:
Customer:
Location:
Submitted:
Approved:
For more information contact the factory for additional submittal
drawings.
S&P will not be responsible for fabrication changes or errors
resulting from customer use of a non-current submittal drawing.
PCLPSC - 2-19-2016
