Dimensions

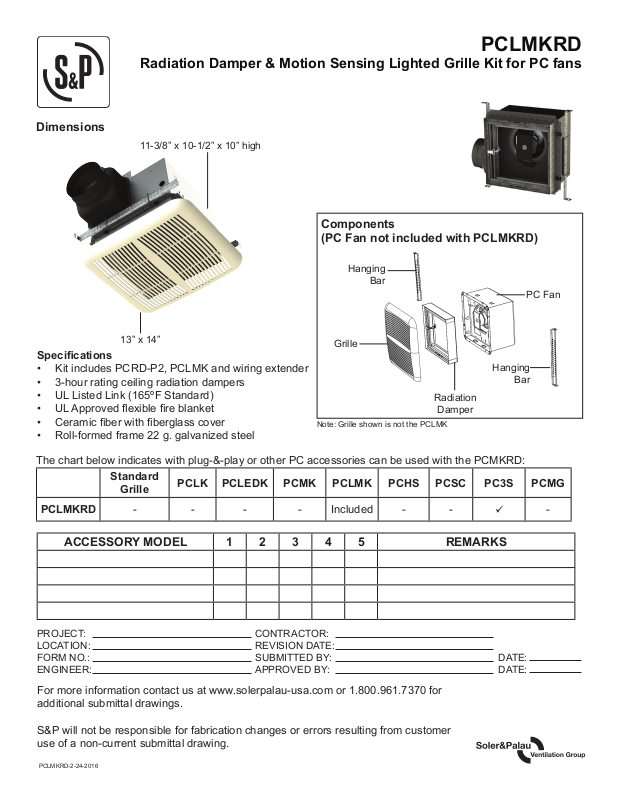

PCLMKRD
Radiation Damper & Motion Sensing Lighted Grille Kit for PC fans
11-3/8” x 10-1/2” x 10” high
Components
(PC Fan not included with PCLMKRD)
Hanging
Bar
PC Fan
13” x 14”
Grille
Specications
• Kit includes PCRD-P2, PCLMK and wiring extender
• 3-hour rating ceiling radiation dampers
• UL Listed Link (165ºF Standard)
• UL Approved exible re blanket
• Ceramic ber with berglass cover
Radiation
Damper
Note: Grille shown is not the PCLMK
Hanging
Bar
• Roll-formed frame 22 g. galvanized steel
The chart below indicates with plug-&-play or other PC accessories can be used with the PCMKRD:
Standard
Grille
PCLMKRD - - - - Included - -
PCLK PCLEDK PCMK PCLMK PCHS PCSC PC3S PCMG
ACCESSORY MODEL 1 2 3 4 5 REMARKS
-
PROJECT: CONTRACTOR:
LOCATION: REVISION DATE:
FORM NO.: SUBMITTED BY: DATE:
ENGINEER: APPROVED BY: DATE:
For more information contact us at www.solerpalau-usa.com or 1.800.961.7370 for
additional submittal drawings.
S&P will not be responsible for fabrication changes or errors resulting from customer
use of a non-current submittal drawing.
PCLMKRD-2-24-2016
