Dimensions (inches)
13"

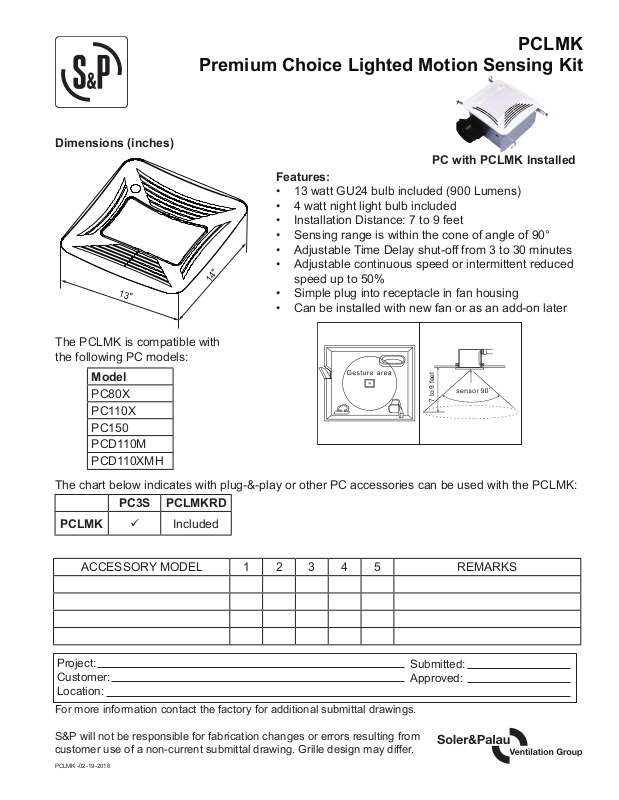

PCLMK
Premium Choice Lighted Motion Sensing Kit
PC with PCLMK Installed
Features:
• 13 watt GU24 bulb included (900 Lumens)
• 4 watt night light bulb included
• Installation Distance: 7 to 9 feet
• Sensing range is within the cone of angle of 90°
• Adjustable Time Delay shut-off from 3 to 30 minutes
"
4
1
• Adjustable continuous speed or intermittent reduced
speed up to 50%
• Simple plug into receptacle in fan housing
• Can be installed with new fan or as an add-on later
The PCLMK is compatible with
the following PC models:
Model
PC80X
7 to 9 feet
PC110X
PC150
PCD110M
PCD110XMH
The chart below indicates with plug-&-play or other PC accessories can be used with the PCLMK:
PC3S PCLMKRD
PCLMK
Included
ACCESSORY MODEL 1 2 3 4 5 REMARKS
Project:
Customer:
Location:
For more information contact the factory for additional submittal drawings.
S&P will not be responsible for fabrication changes or errors resulting from
customer use of a non-current submittal drawing. Grille design may dier.
PCLMK -02-19-2016
Submitted:
Approved:
