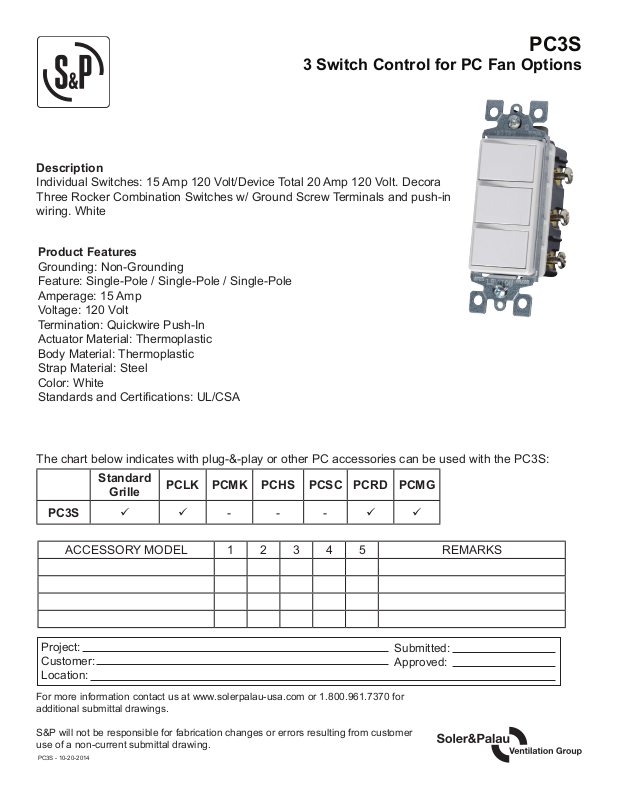

3 Switch Control for PC Fan Options
Description
Individual Switches: 15 Amp 120 Volt/Device Total 20 Amp 120 Volt. Decora
Three Rocker Combination Switches w/ Ground Screw Terminals and push-in
wiring. White
Product Features
Grounding: Non-Grounding
Feature: Single-Pole / Single-Pole / Single-Pole
Amperage: 15 Amp
Voltage: 120 Volt
Termination: Quickwire Push-In
Actuator Material: Thermoplastic
Body Material: Thermoplastic
Strap Material: Steel
Color: White
Standards and Certications: UL/CSA
PC3S
The chart below indicates with plug-&-play or other PC accessories can be used with the PC3S:
PC3S
Standard
Grille
PCLK PCMK PCHS PCSC PCRD PCMG
- - -
ACCESSORY MODEL 1 2 3 4 5 REMARKS
Project:
Customer:
Location:
For more information contact us at www.solerpalau-usa.com or 1.800.961.7370 for
additional submittal drawings.
S&P will not be responsible for fabrication changes or errors resulting from customer
use of a non-current submittal drawing.
PC3S - 10-20-2014
