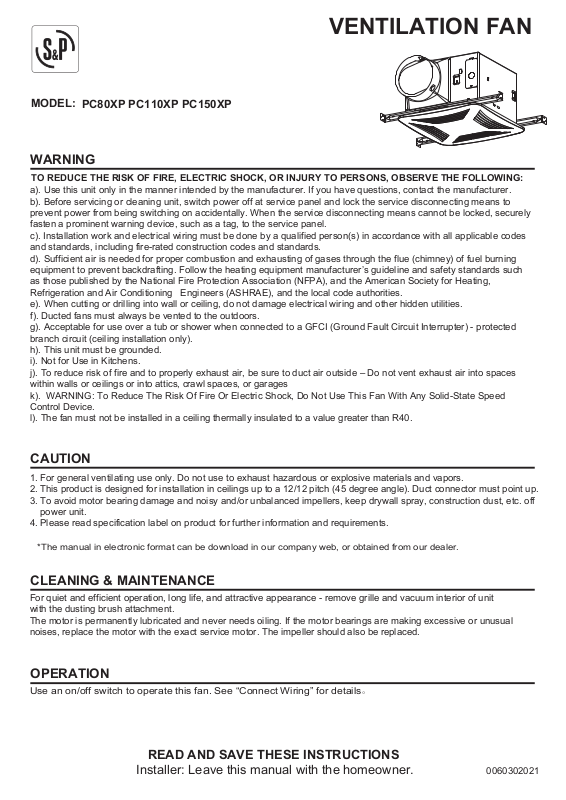

Page 1
VENTILATION FAN
MODEL:
PC80XP PC110XP PC150XP
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a). Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b). Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to
prevent power from being switching on accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
c). Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and standards.
d). Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
e). When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
f). Ducted fans must always be vented to the outdoors.
g). Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected
branch circuit (ceiling installation only).
h). This unit must be grounded.
i). Not for Use in Kitchens.
j). To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces
within walls or ceilings or into attics, crawl spaces, or garages
k). WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed
Control Device.
l). The fan must not be installed in a ceiling thermally insulated to a value greater than R40.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off
power unit.
4. Please read specification label on product for further information and requirements.
*The manual in electronic format can be download in our company web, or obtained from our dealer.
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive appearance - remove grille and vacuum interior of unit
with the dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual
noises, replace the motor with the exact service motor. The impeller should also be replaced.
OPERATION
Use an on/off switch to operate this fan. See “Connect Wiring” for details。
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
0060302021
Page 2

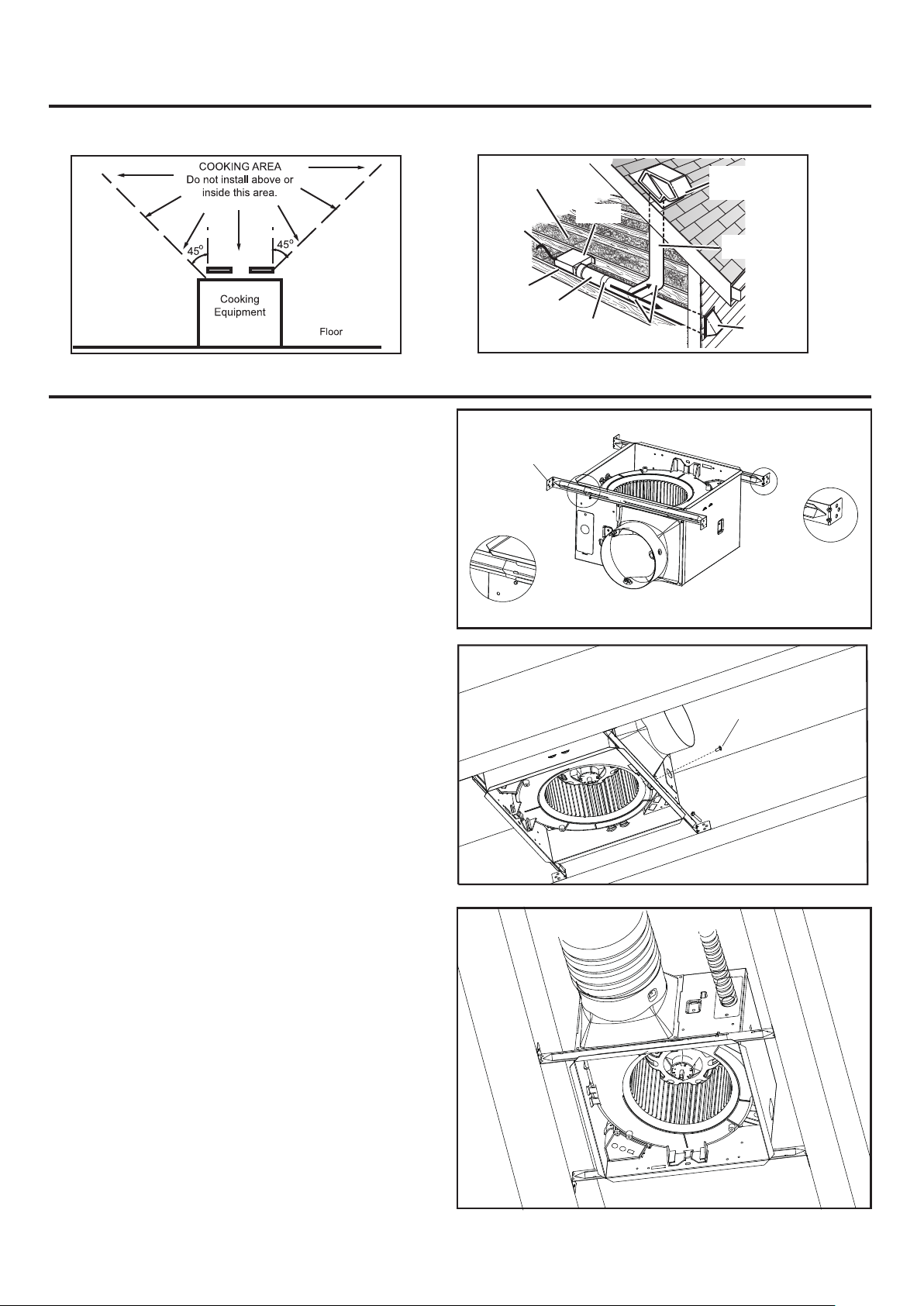

PLAN THE INSTALLATION
1. Do not use in a cooking area. 2. Two ways to connect ductwork to a factory-shipped unit.
ASSEMBLY INSTRUCTIONS
1.Sliding hanger bars have been provided, which allow the
housing to be positioned accurately anywhere between the
framing. The bars span up to 24 in. and can be used on all
types of framing: I-joist, standard joist, and truss construction.
Slide hanger bars onto housing and adjust as needed to fit
between framing.
INSULATION*
(Place around and
over Fan Housing.)
POWER
CABLE*
Seal gaps
around
Housing.
* Purchase
separately
Hanger Bar
ROUND
DUCT*
FAN
HOUSING
Seal duct
joints with
tape.
ROUND
ELBOW(S) *
ROOF CAP*
(with built-in
damper)
Keep duct
runs short
WALL CAP*
(with built-in
damper)
2.Extend the hanger bars to the width of the framing. Position
the ventilator with the bottom edge of the hanger bar tabs are
flush with the bottom edge of the framing, holding the ventilator
in place.Secure hanger bars to framing using one screw on
each end of hanger bar.Select a proper hole and secure the
hanger bars together using one screw.
3.INSTALL ROUND DUCTWORK
Connect the round ductwork (not included) to the
damper/duct connector,and run the ductwork to a
roof or wall cap (not included). Using tape (not included),
secure all the ductwork connections so that they are air tight.
The ducting from this fan to the outside of building has a
strong effect on the air flow, noise and energy use of the fan.
Use the shortest, straightest duct routing possible for best
performance, and avoid installing the fan with smaller ducts
than recommended. Insulation around the ducts can reduce
energy loss and inhibit mold growth. Fans installed with existing
ducts may not achieve their rated air flow.
screw
2
Page 3

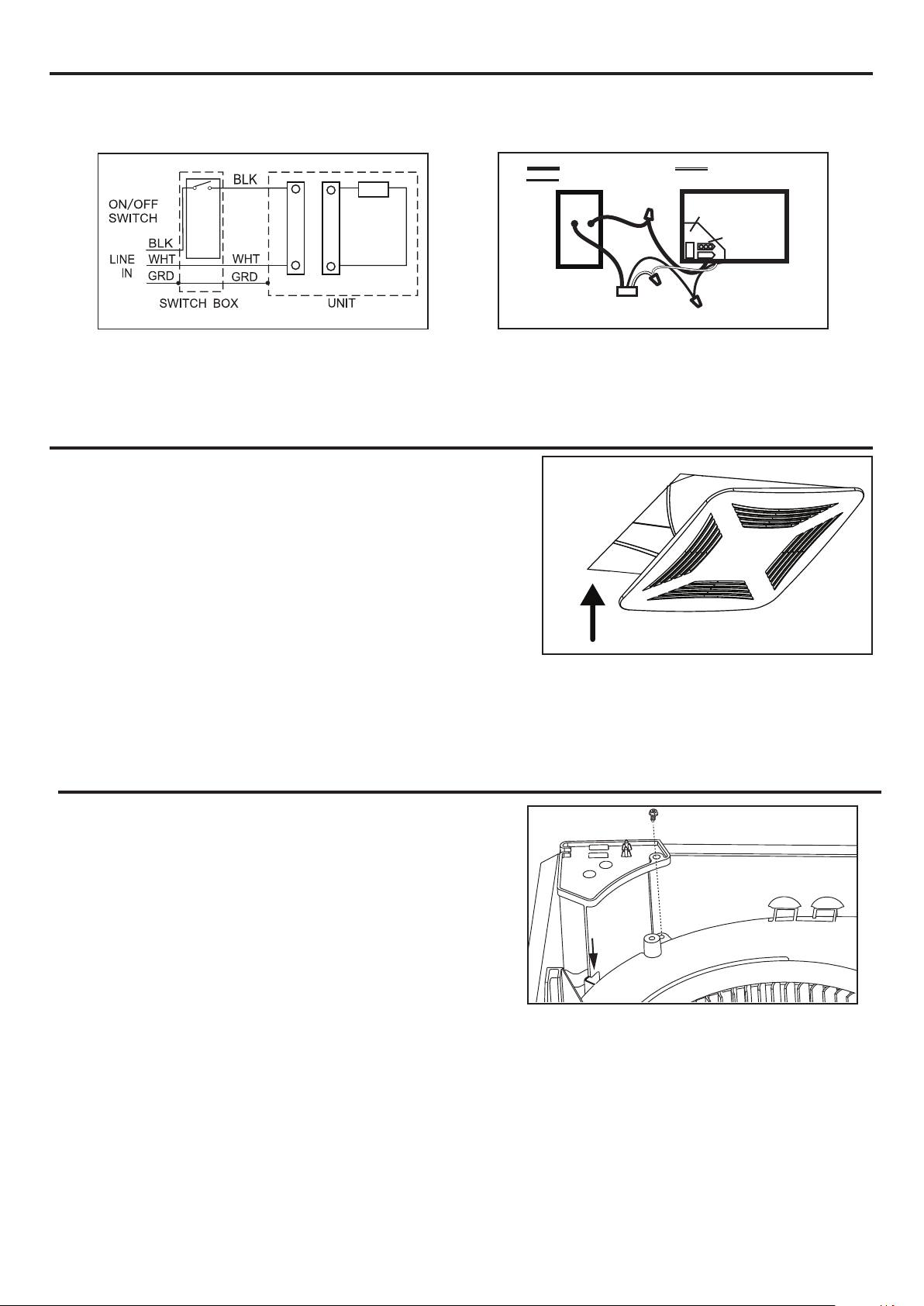

CONNECT ELECTRICAL WIRING
Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the
wiring plate. Refer to the wiring diagram, and connect the wires as shown.
FAN
INSTALL GRILLE
Install ceiling material to complete the ceiling construction and cut around
the fan housing.
To attach the grille assembly to the fan housing, pinch the grille springs on
the sides of the grille assembly and position the grille into the housing with
the grille springs in the appropriate slots. Push the grille assembly towards
the ceiling to secure.
FAN
SWITCH
BLACK (BLK)
GROUND (GRD)
SWITCH BOX
POWER SUPPLY
120V AC
WIRE
PANEL
WHITE (WHT)
UNIT
FAN
RECEPTACLE
OPTION FUNCTION
If adding a Plug and Play Module (PCHSP – Humidity Sensor/ PCSCP –
Speed Control/ PCMHKP – Motion/Humidity Sensor, etc.), align the
module as shown in the diagram to the right. Secure the module to the
housing with the screw and connect the plug to the corresponding plug on
the wire panel at the opposite corner of the fan housing (replace the
standard fan grille with a motion sensing/lighted grille and make the
additional plug connections as necessary). Refer to the individual module
accessory IOMs for more details and wiring instructions
Screw
3
Page 4

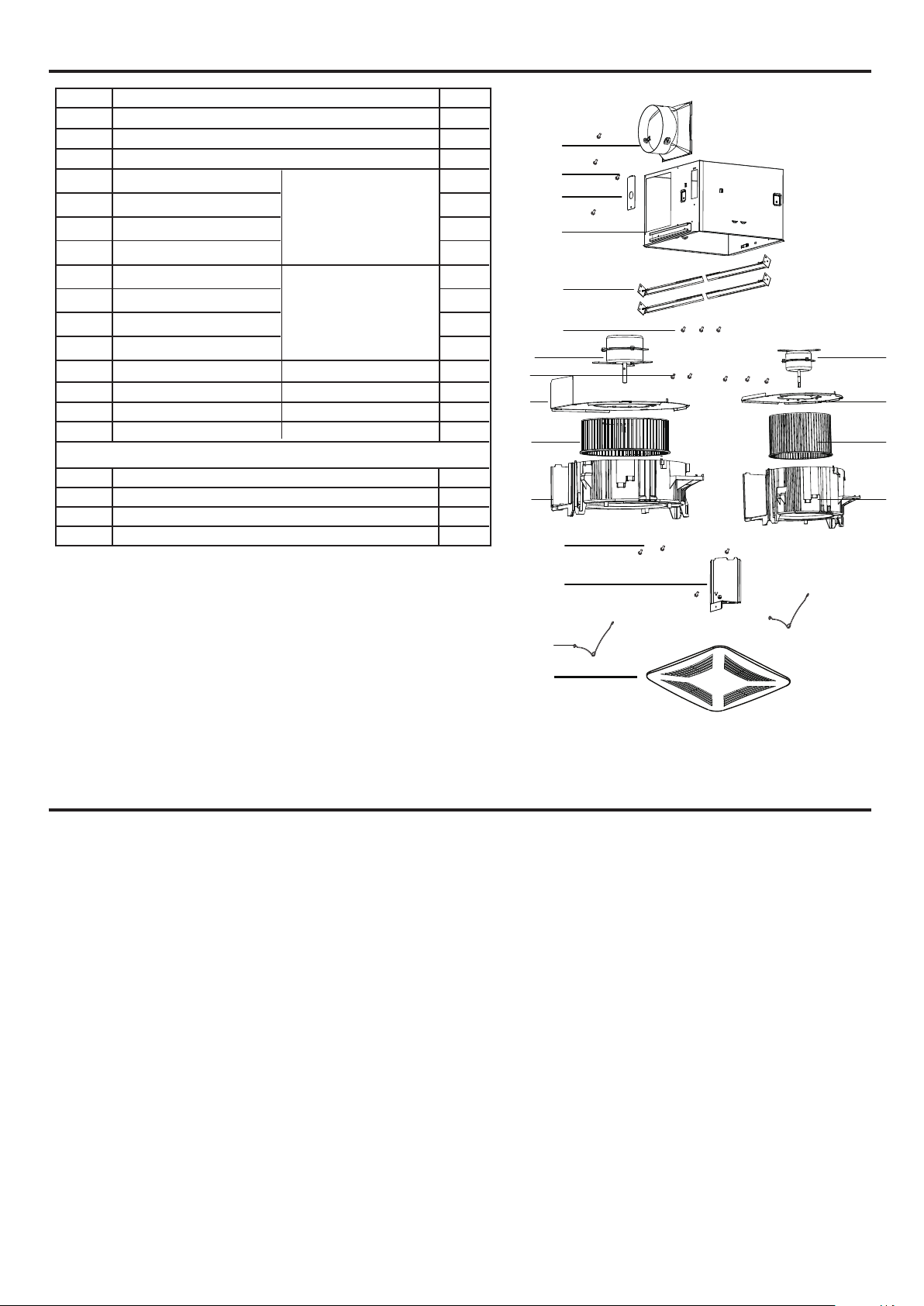

SERVICE PARTS
PART PART NAME Qty.
1 Grille Assembly (includes part 2)
Grille Spring
2
3
Wire Panel / Harness Assemblye
Blower
4a
Blower Wheel
5a
Motor Plate
6a
Motor
7a
Blower
4b
Blower Wheel
5b
Motor Plate
6b
7b Motor
Hanger Bar Kit
8
Housing
9
Wiring plate
10
Damper / Duct Connector
11
Screw
a
Screw
b
Screw
c
Screw
d
PC80XP
PC110XP
PC150XP
1
2
1
1
1
1
1
1
1
1
1
4
1
1
1
3
5
3
6
7a
6a
5a
4a
11
d
10
9
8
c
7b
b
6b
5b
4b
a
* Blower Assembly includes part 4,5,6,7,b,c,
WARNING: Ensure that the fan is switched off from the supply
mains before replacing.
3
2
1
WARRANTY
S&P USA Ventilation Systems, LLC. & S&P Canada Ventilation Products, Inc. warrants to the original end user of its
products that our exhaust fans will be free from defects in materials and workmanship for a period of Five (5) years from
the date of original purchase. 6 years warranty for motor and 5 years warranty for the remaining fan parts. THERE ARE
NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OF SUITABILITY FOR A PARTICULAR PURPOSE.
During this five year period, S&P will, at its option, repair returned products or parts, or provide replacement products or
parts, without charge, for any product or part which is found to be defective under normal use.
This warranty does not cover normal maintenance and service or any parts that have been subject to misuse, negligence,
accident, improper maintenance or repair, faulty installation or installation contrary to recommended installation instructions.
S&P’s obligation to repair or replace, at S&P’s option, shall be the purchaser’s sole and exclusive remedy under this
warranty. No labor or materials are covered by this warranty. S&P shall not be liable for incidental damages arising out of
or in connection with product use or performance.
To make a warranty claim, visit http://www.solerpalau-usa.com/sp-form/claims.html.
S&P USA Ventilation Systems,LLC.
6393 Powers Avenue Jacksonville, FL 32217
P. 904-731-4711
F. 904-737-8322
www.spvg-northamerica.com
S&P Canada Ventilation Products, Inc.
6710 Maritz Drive Unit #7
Mississauga, ON L5W 0A1 - Canada
T. 416-744-1217 F. 416-744-0887
www.solerpalaucanada.com
4
