1 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

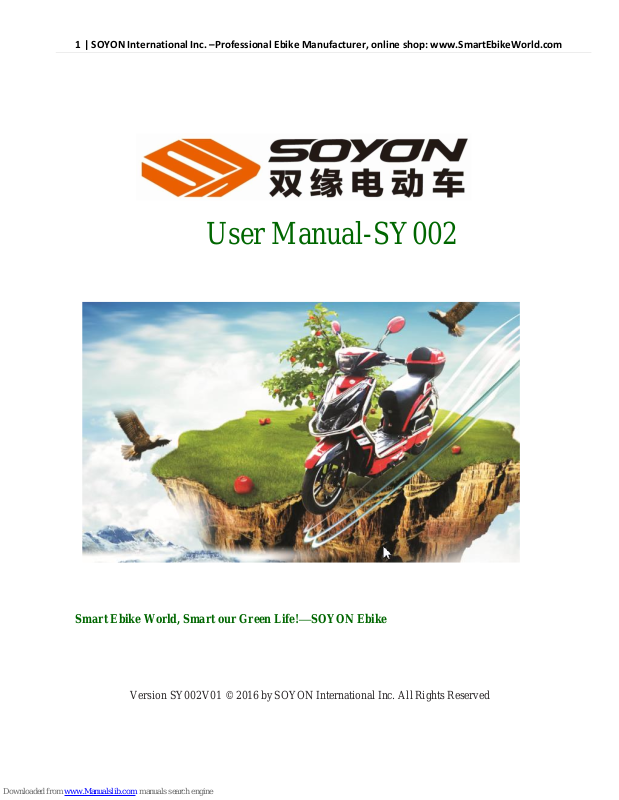

User Manual-SY002
Smart Ebike World, Smart our Green Life!—SOYON Ebike
Version SY002V01 © 2016 by SOYON International Inc. All Rights Reserved
Page 2
2 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com
Contents
Feature:
.............................................................................................................................................................. 3
SAFTY INFO
........................................................................................................................................................ 4
E-bike MTO Label ............................................................................................................................................... 4
Specifications ...................................................................................................................................................... 5
Charging the Ebike Battery ................................................................................................................................ 6
Circuit Breaker..................................................................................................................................................... 6
Brake and Tire ..................................................................................................................................................... 7
Folding Pedals and Stand .................................................................................................................................... 7
Ignition ................................................................................................................................................................ 9
Remote Lock System ......................................................................................................................................... 10
Left-hand controls
............................................................................................................................................... 11
Right-hand Controls .......................................................................................................................................... 12
Instrument ........................................................................................................................................................ 13
Ebike Registration ............................................................................................................................................. 14
Connect With Us! .............................................................................................................................................. 15
Page 3
3 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com
Feature:
LED Lights
Big luxury LED headlight with long distance light, high brightness, energy saving and durable, improving your
safety in mixed traffic.
LCD Dashboard Gauges
High resolution liquid crystal display for meter, speed and battery power.
Hydraulic Shock Absorber
Unique control mode and soft start, low noise, provides for a much more comfortable ride at a variety of road
conditions.
Hydraulic Disk Brake System
EABS Brake (Electric Absorption Braking System) provides a good friction-grip when activated and helps to reduce
the weight of the e-bike and improve its performance.
500 Watt Brushless Motor
High efficiency when working within its range.
Saving energy and extend travel range
Large torque, 35% more than the general
Page 4
4 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com
SAFTY INFO
“Thank you for purchasing our SOYON Ebike!”
Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website:
www.mto.gov.on.ca
1. Please follow the local laws for the Ebike.
2. DO NOT switch on ignition until properly seated and ready to ride.
3. DO NOT open batteries.
4. DO NOT ride on roadways where the posted speed limit is in excess of 60 km/h.
5. DO NOT ride on sidewalks or pedestrian-only pathways.
6. DO NOT operate the bike at speeds in excess of 32 km/h.
E-bike MTO Label
All electric bicycles are required to have this sticker on the bike to be a legal vehicle.
Page 5
5 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com
Specifications
Items
Description
1
Brand Name
SOYON
2
Product Name
Ebike
3
Model
SY002
4
Color
Red
5
Dashboard Gauges
Digital
6
Brake(Front/Rear)
Front: Hydraulic Disk Brake
Rear: Hydraulic Disk Brake
7
Input Voltage
110V
8
Output Voltage
65-68V
9
Battery Capacity
60V 20AH
10
Battery Type
GEL Sealed Lead Acid Cell Battery
11
Charge Time
3-10H
12
Controller
60V
13
Motor/Engine Type
Brushless, 500W
14
Max. Speed
32KM/H
15
Travel Range
60-70KM
16
Wheel Size
16/2.80 Tubeless
17
Lock System
Remote Starter /Remote Alarm / Key Ignition Lock
/ Steer Lock / Motor Lock
18
Lighting System
LED Headlight, Turning Signals, Brake Light, Tail
Light, Indicator Light
19
Frame Material
Steel
20
Storage
Lockable Rear Box (optional), Lockable Under-Seat
Storage
Specifications
Page 6
6 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

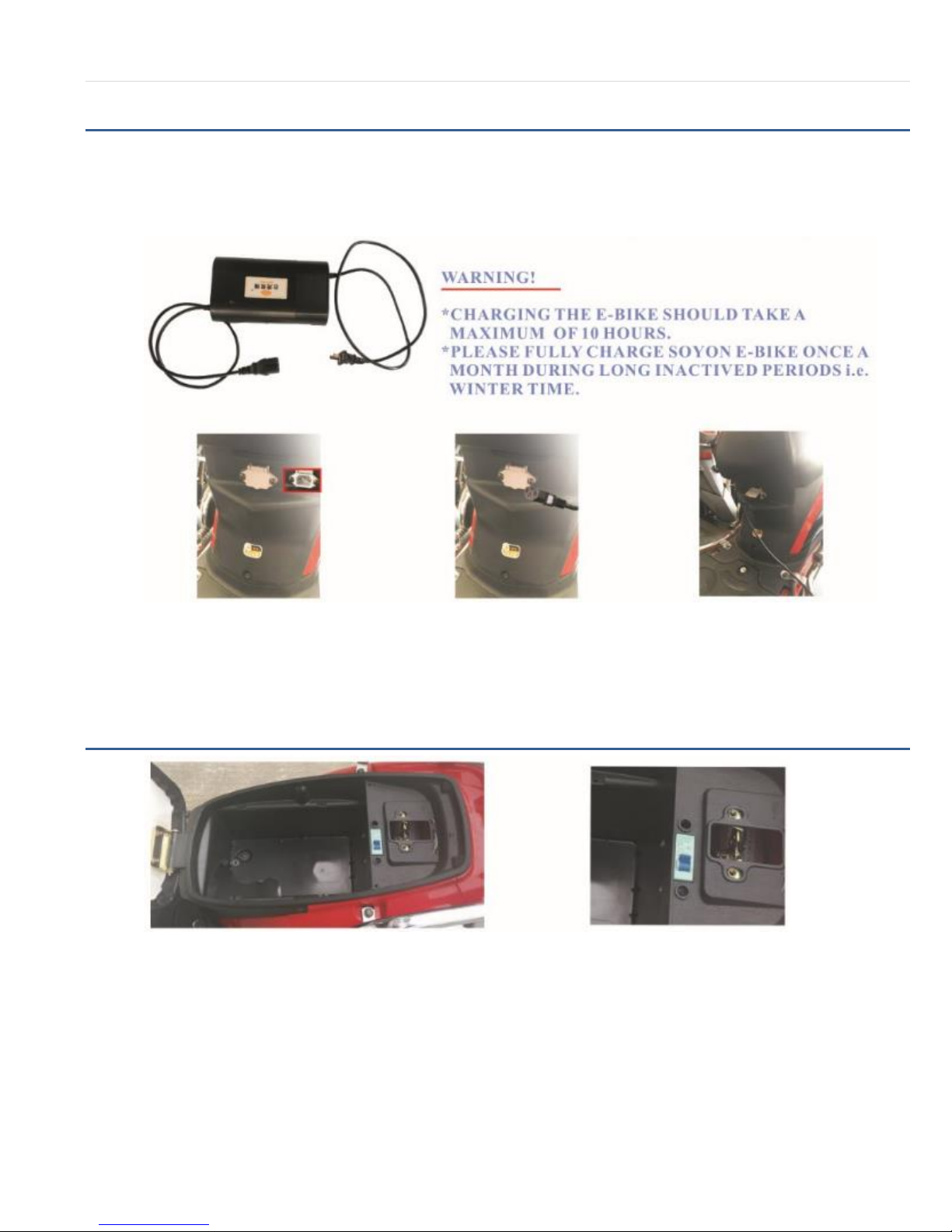

Charging the Ebike Battery
When you charge the Ebike, please confirm that the charging indicator turns red. When the battery is fully charged,
the charging indicator will turn green.
It takes 8-10 hours to fully charge the bike from 0% battery life to 100% battery life.
Circuit Breaker
The circuit breaker is a switch to control the power running through the bike from the battery. Please make sure the
switch is on for charging battery.
Page 7
7 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

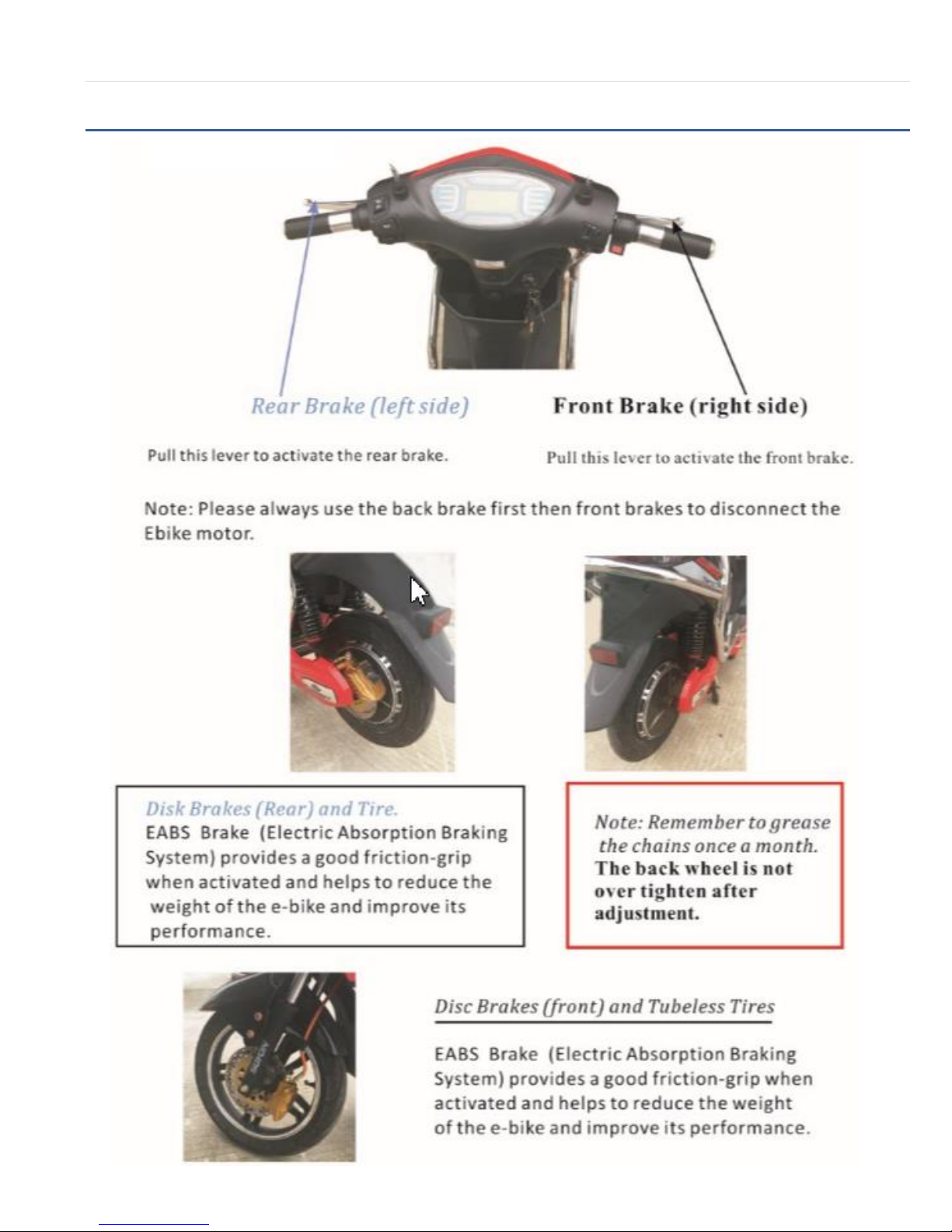

Brake and Tire
Page 8
8 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

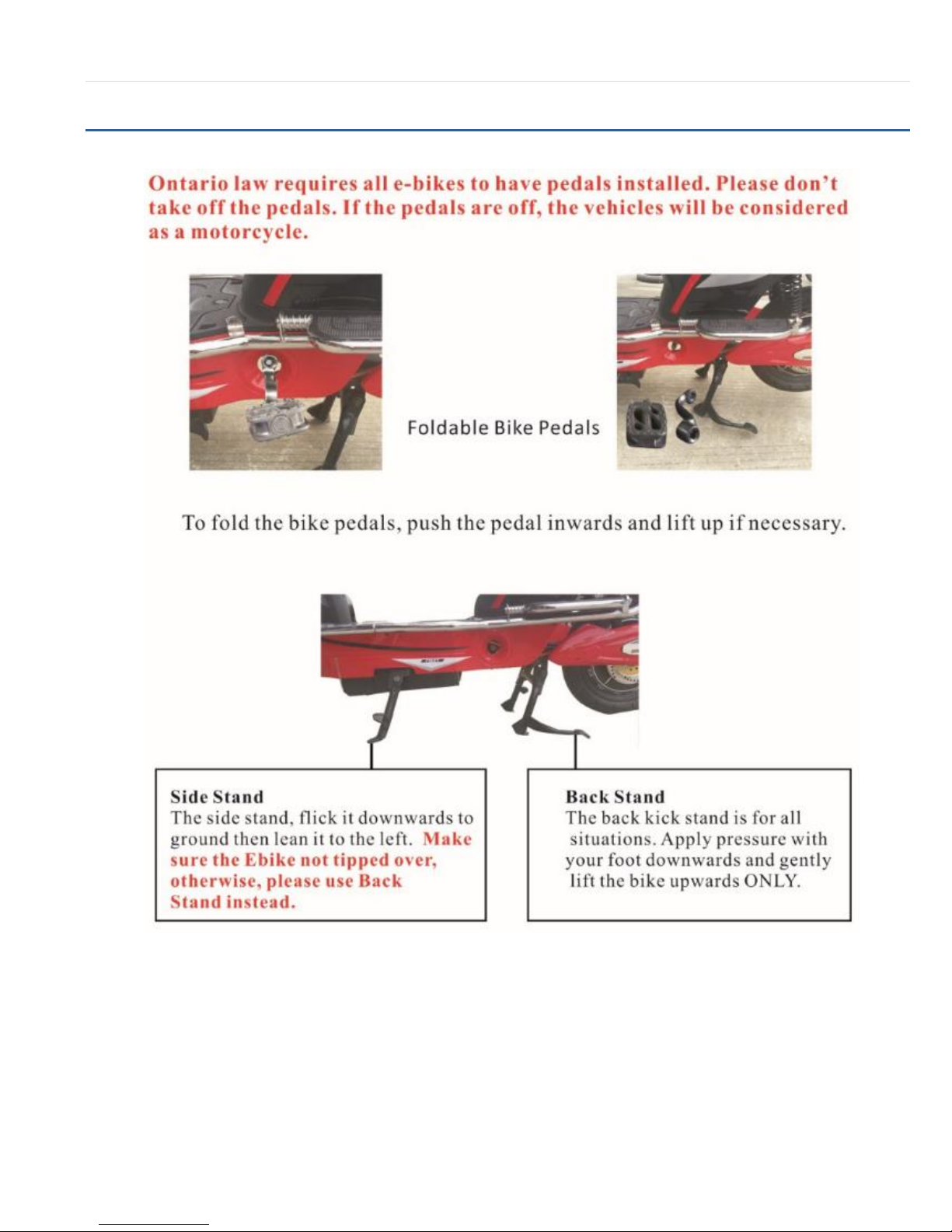

Folding Pedals and Stand
Page 9
9 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

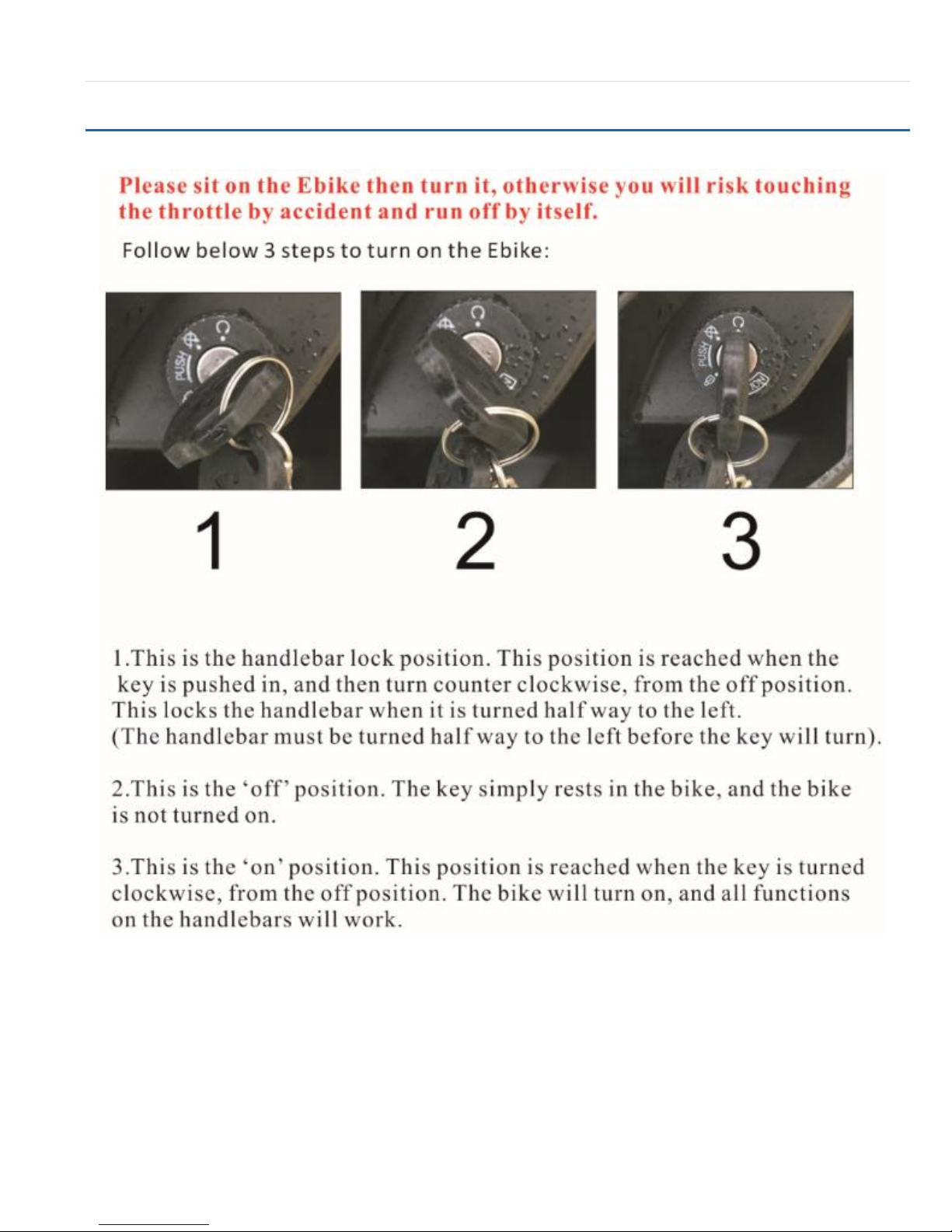

Ignition
Page 10
10 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

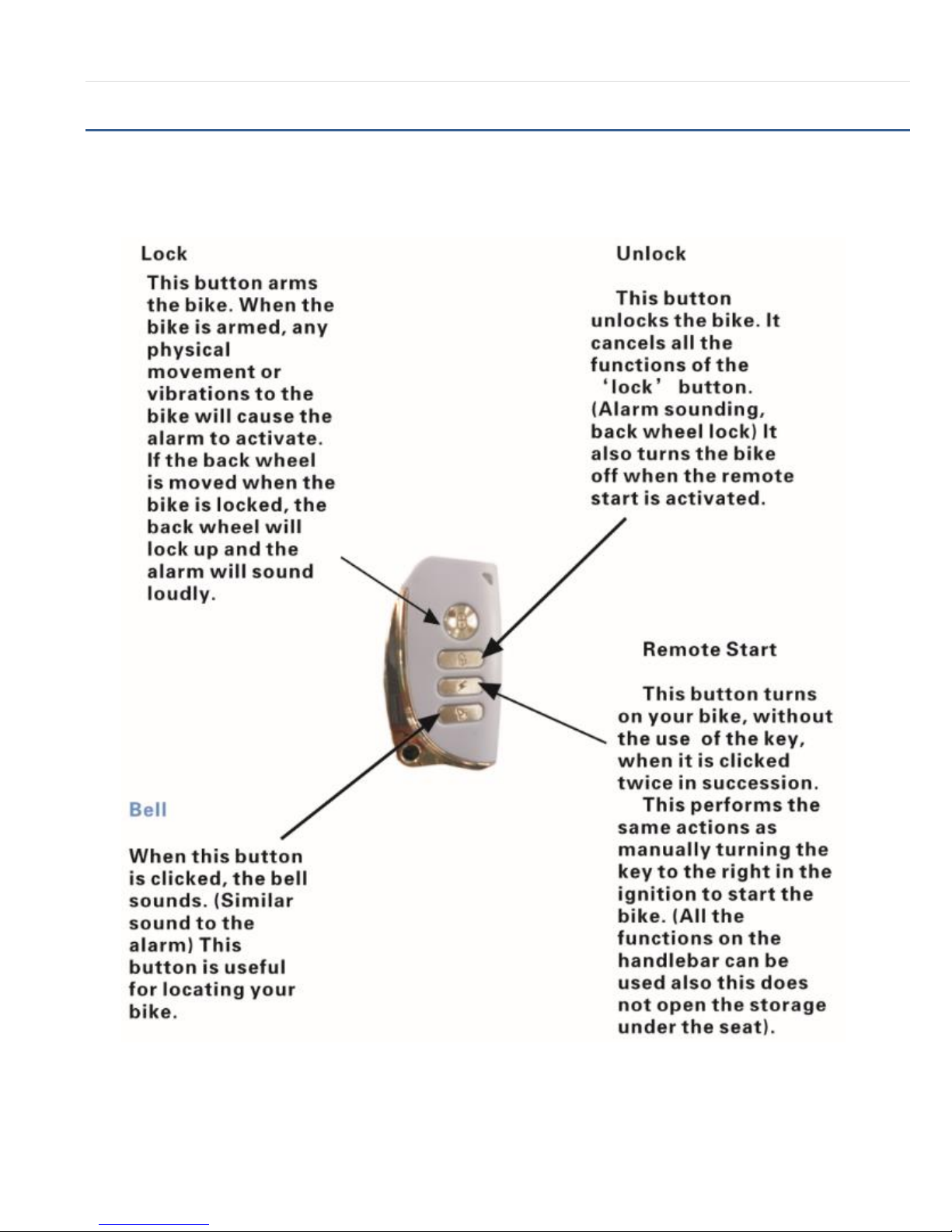

Remote Lock System
If the bike is turned on using the remote start, it can only be turned off using the ‘unlock’ button on the
remote.
Page 11
11 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

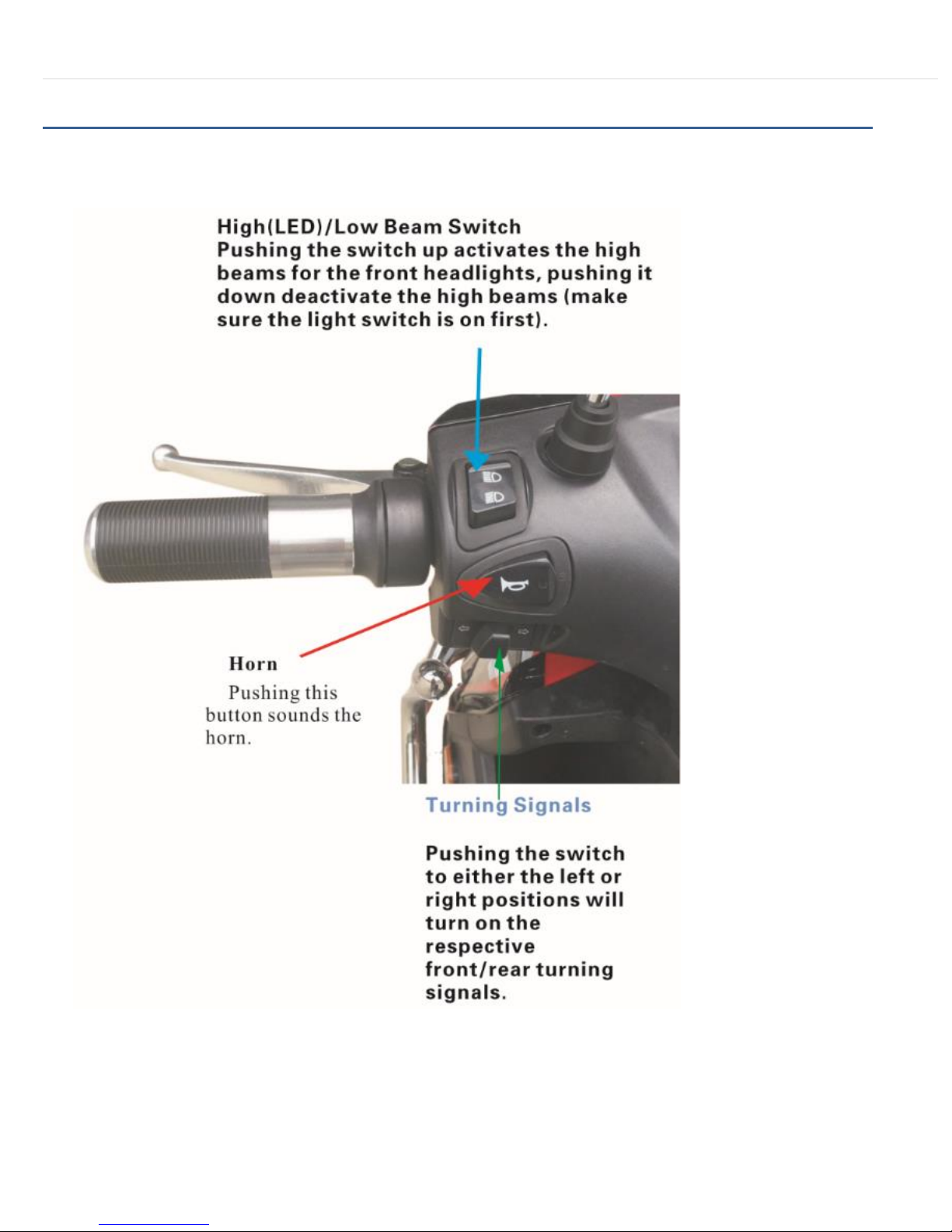

Left-hand controls
Page 12
12 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

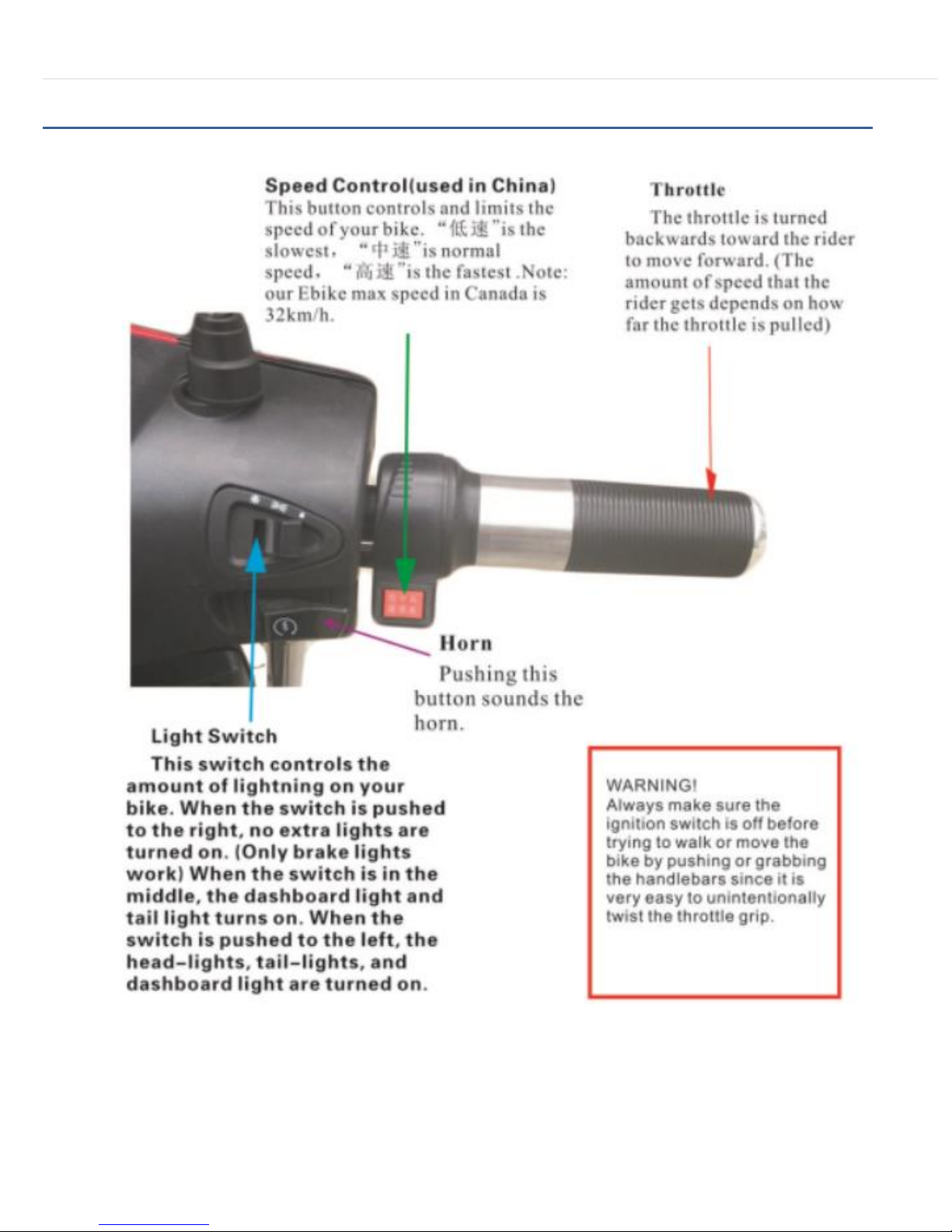

Right-hand Controls
Always
Page 13
13 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com

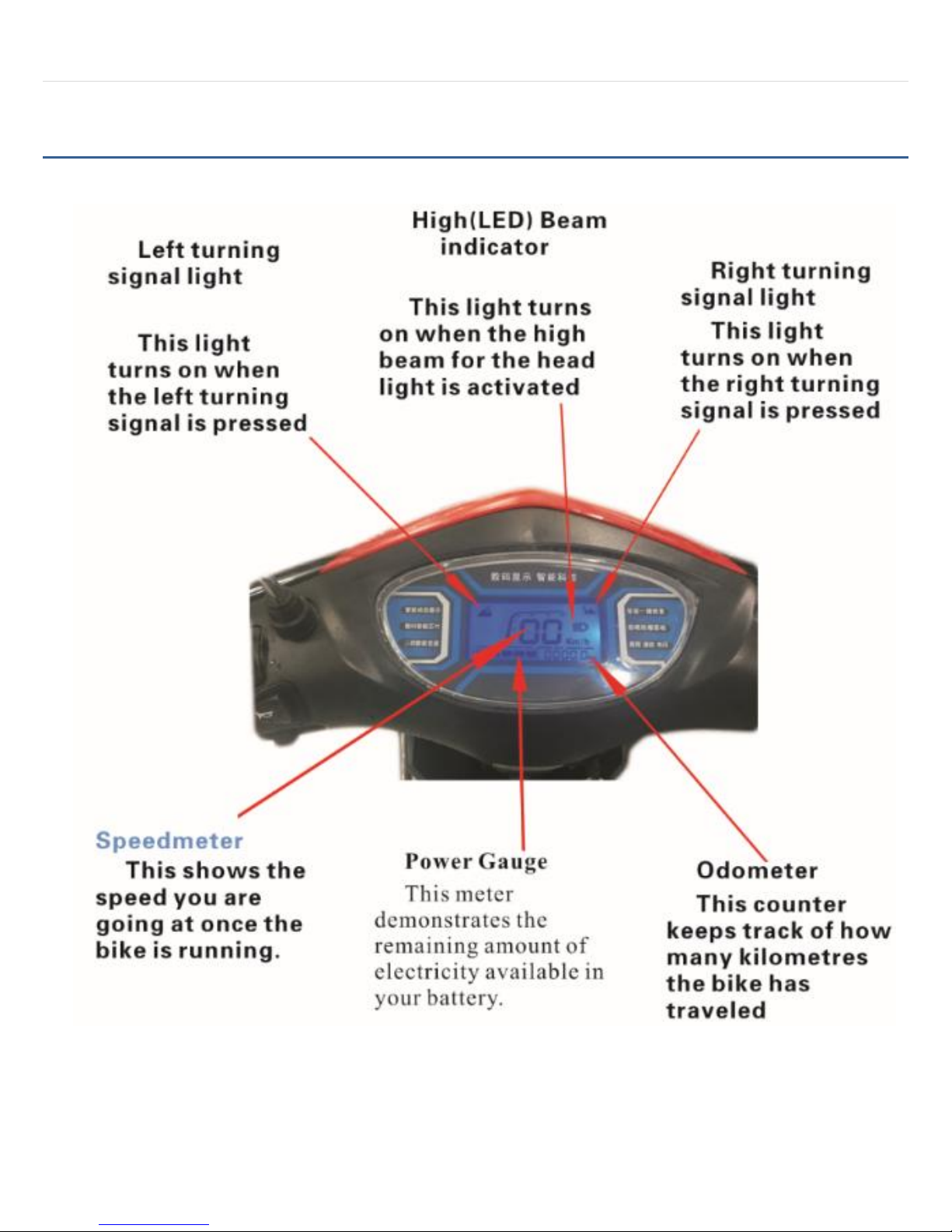

Instrument
High resolution liquid crystal display for meter, speed and battery power.
Page 14
14 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com
Ebike Registration
Please register your account at www.SmartEbikeWorld.com . If you
buy it in store, you still can setup account. Please know that your
account is coupon ID too. Anyone uses it for Ebike purchase, the buyer
will save $100 and you will have $50 rebate after the order processed
successfully 3 months later. More sharing your SOYON Ebike account
ID, you can make money from your share.
Thank you for your Business!
You can find our SOYON Ebike at below Websites:
www.SmartEbikeWorld.com
www.SOYON.ca
www.SHUNYO.ca
Page 15
15 | SOYON International Inc. –Professional Ebike Manufacturer, online shop: www.SmartEbikeWorld.com
Connect With Us!
https://www.facebook.com/SoyonEbike
https://ca.linkedin.com/in/SoyonEbike
Email: [email protected]
Please visit website www.SmartEbikeWorld.com for new e-bike models,
special deals and more!
Welcome to our showroom address:
8 Glen Watford Dr. Unit G55, Toronto ON, M1S 2C1
