SY-K7VTA-B

Motherboard

****************************************************

AMD® Athlon/Duron

Processor supported

VIA KT133 AGP/PCI Motherboard

200 MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Manual

Page 2

SOYO™ SY-K7VTA-B

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for identification purposes only. The registered trademarks and copyrights belong to their respective companies.

All rights reserved. This manual has been copyrighted by Soyo Computer Inc. No part of this manual may be reproduced, transmitted, transcribed, translated into any other language, or stored in a retrieval system, in any form or by any means, such as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to amend the manual or revise the specifications of the product described in it from time to time without obligation to notify any person of such revision or amend. The information contained in this manual is provided to our customers for general use. Customers should be aware that the personal computer field is subject to many patents. All of our customers should ensure that their use of our products does not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up and installing the Motherboard. Information in this guide has been carefully checked for reliability; however, to the correctness of the contents there is no guarantee given. The information in this document is subject to amend without notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: March 2001 Version 1.1 K7VTA-B SERIAL

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER RECYCLED PAPER

100%

Page 3

Table of Contents SY-K7VTA-B

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION .............................1

1-1 INTRODUCTION...........................................................1

1-2 KEY FEATURES............................................................1

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS ........5

1-4 SY-K7VTA-B MOTHERBOARD LAYOUT ...................6

1-5 SY-K7VTA-B MOTHERBOARD COMPONENTS.........7

1-6 MICROPROCESSOR......................................................9

1-7 MEMORY.....................................................................10

1-8 CHIPSET ......................................................................12

1-9 I/O INTERFACE CONTROLLER.................................15

1-10 HARDWARE MONITOR..............................................17

1-11 WAKE ON LAN TECHNOLOGY.................................18

CHAPTER 2 HARDWARE INSTALLATION..................................19

2-1 PREPARATIONS ..........................................................19

2-2 UNPACKING THE MOTHERBOARD .........................20

2-3 INSTALLATION GUIDE..............................................21

2-3.1 CPU Installation.........................................................22

2-3.2 SDRAM Memory Module Installation.......................... 25

2-3.3 Motherboard Connector..............................................27

2-3.4 Jumper Setting ............................................................ 40

2-3.5 CMOS Clearing (JP5)................................................. 41

2-3.6 Power On................................................................... 42

2-3.7 Quick BIOS Setup....................................................... 43

2-3.8 Troubleshooting at First Start .....................................44

2-3.9 Power Off................................................................... 47

CHAPTER 3 BIOS SETUP UTILITY ..............................................48

3-1 SOYO COMBO SETUP.................................................51

Page 4

Table of Contents SY-K7VTA-B

3-2 STANDARD CMOS SETUP..........................................54

3-3 ADVANCED BIOS FEATURES.....................................57

3-4 ADVANCED CHIPSET FEATURES..............................61

3-5 INTEGRATED PERIPHERALS.....................................66

3-6 POWER MANAGEMENT SETUP ................................71

3-7 PNP/PCI CONFIGURATION SETUP.............................75

3-8 PC HEALTH STATUS....................................................78

3-9 LOAD FAIL-SAFE DEFAULTS.....................................80

3-10 LOAD OPTIMIZED DEFAULTS...................................81

3-11 SUPERVISOR PASSWORD...........................................82

3-12 USER PASSWORD........................................................83

3-13 IDE HDD AUTO DETECTION .....................................84

3-14 BOOT MENU................................................................85

CHAPTER 4 DRIVER INSTALLATION...........................................86

Page 5

Motherboard Description SY-K7VTA-B

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-K7VTA-B AGP/PCI/ISA Motherboard is a high-performance Socket 462 ATX form-factor system board. The SY-K7VTA-B uses VIA Chipset technology and supports Socket 462 class processors. This Motherboard is fully compatible with industry standards and adds many technical enhancements.

1-2 KEY FEATURES

Ø CPU SUPPORT

The SY-K7VTA-B supports THE FOLLOWING AMD CPUs:

n AMD

AthlonTM (750MHz~1GHz+)

n AMD

DuronTM (600MHz~850MHz+) New released AMD Socket 462 CPUs will very likely be supported by the SY-K7VTA-B as well.

Ø CPU SETTINGS

The SY-K7VTA-B provides the user with a very complete and convenient CPU setting environment. The CPU settings are all adjusted through the special SOYO COMBO page in the BIOS, therefore rendering the use of jumpers obsolete.

n CPU Frequency

The SY-K7VTA-B supports an incredible wide range of CPU frequency settings: 600,650,700,750,800,850,900,950,1000+MHz. This gives the SY-K7VTA-B an overwhelming overclocking potential.

Page 6

Motherboard Description SY-K7VTA-B

n CPU Multiplier

Ø EXPANDABILITY

The SY-K7VTA-B provides all the standard expansion slots, and many more additional expansion features:

u Expansion slots

n 1 x 32-bit bus master AGP slot n 5 x 32-bit bus master PCI slots n 1 x 16-bit ISA slots

u Enhanced IO

n Floppy disk controller n 2x EIDE controllers with support for up to 4 Ultra DMA

33/66/100 devices

n Standard/EPP/ECP parallel port n 2x 16550 compatible serial ports n IrDA compatible infrared port n 4x USB (Universal Serial Bus) connectors n PS/2 mouse connector n PS/2 keyboard connector

Page 7

Motherboard Description SY-K7VTA-B

Ø ADVANCED FUNCTIONS

The SY-K7VTA-B supports advanced functions such as:

n Wake-On-LAN Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector is provided by the SY-K7VTA-B to support this function).

n Multiple boot The SY-K7VTA-B supports booting from devices such as CD-ROM, FLOPPY DRIVE & HDD, LS120, SCSI, ZIP. n Power on by modem or alarm If the SY-K7VTA-B system is in suspend mode, it can be switched back on through the modem or RTC alarm function. This opens a lot of possibilities, such as remote access that switches the system on only after the modem receives a call.

Ø FAIL SAFE

The SY-K7VTA-B comes with added functionality to make managing the system easy and safe

u Hardware Monitor

The integrated Hardware Monitor IC and Hardware doctor software enables the user to monitor system voltages, temperatures and FAN speeds. This makes sure that the user is in full control of the system

u Power Failure Resume Function

This function can be set in the BIOS, and determines whether the system will automatically turn on again after a power failure. This function is indispensable for server systems that need to always be on line.

Ø NORTON SOFTWARE PACKAGE Ø COMPLIANCE

The SY-K7VTA-B complies with all important industry standards. The following underlines the reliability of the SY-K7VTA-B, a motherboard to trust.

n PC99, ACPI compliant

Page 8

Motherboard Description SY-K7VTA-B

Ø USER FRIENDLY

n SOYO Combo Setup n Jumperless design n You can set up the following options trough the BIOS setting

 CPU FSB frequency  CPU multiplier by H/W switch  CPU Vcore voltage  PCI clock  AGP Clock  SDRAM Clock

Ø Voice Doctor

If the system does not boot-up properly, the Voice Doctor will inform the user by voice through internal/external speaker at what point in boot-up sequence the problem arises. Below are the possible errors the user may encounter:

1. The Processor might be damage or not installed properly

2. The memory module might be damage or not installed properly

3. VGA card might be damage or not inserted properly

4. No Keyboard connected

5. Defective HD-Driver (IDE)

6. Floppy might error

Page 9

Motherboard Description SY-K7VTA-B

Ø HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while unpacking:

Ø Before handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

Ø Remove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

Ø Check the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears damaged. If there is damage to the board, contact your dealer immediately.

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other system components. Electrostatic discharge can easily damage the components. Note that you must take special precautions when handling the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following precautions:

Ø Do not remove the anti-static packaging until you are ready to install. Ø Ground yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion slot covers or other unpainted portions of the computer chassis.)

Ø Frequently ground yourself while working or use a grounding strap. Ø Handle the Motherboard by its edges and avoid touching its

components.

Page 10

Motherboard Description SY-K7VTA-B

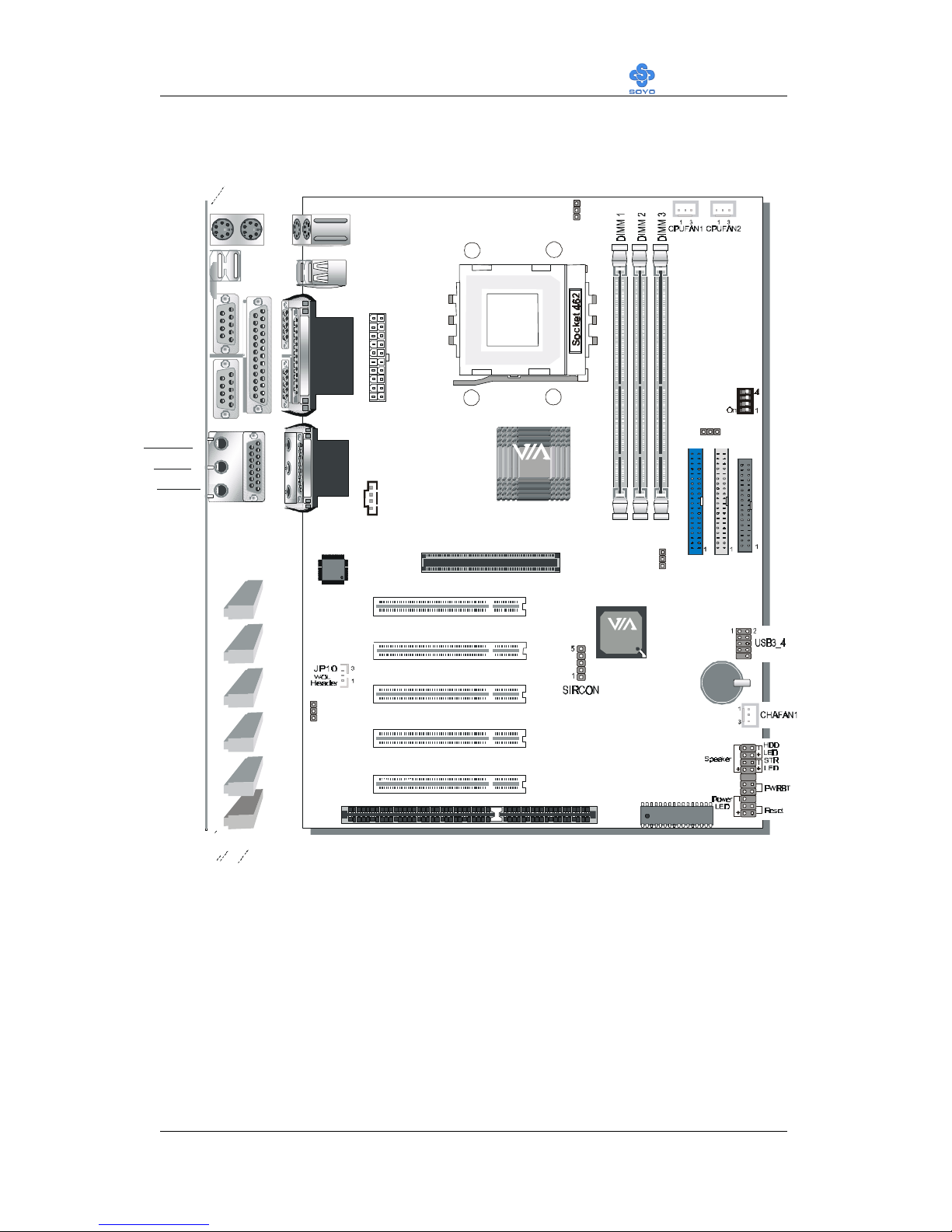

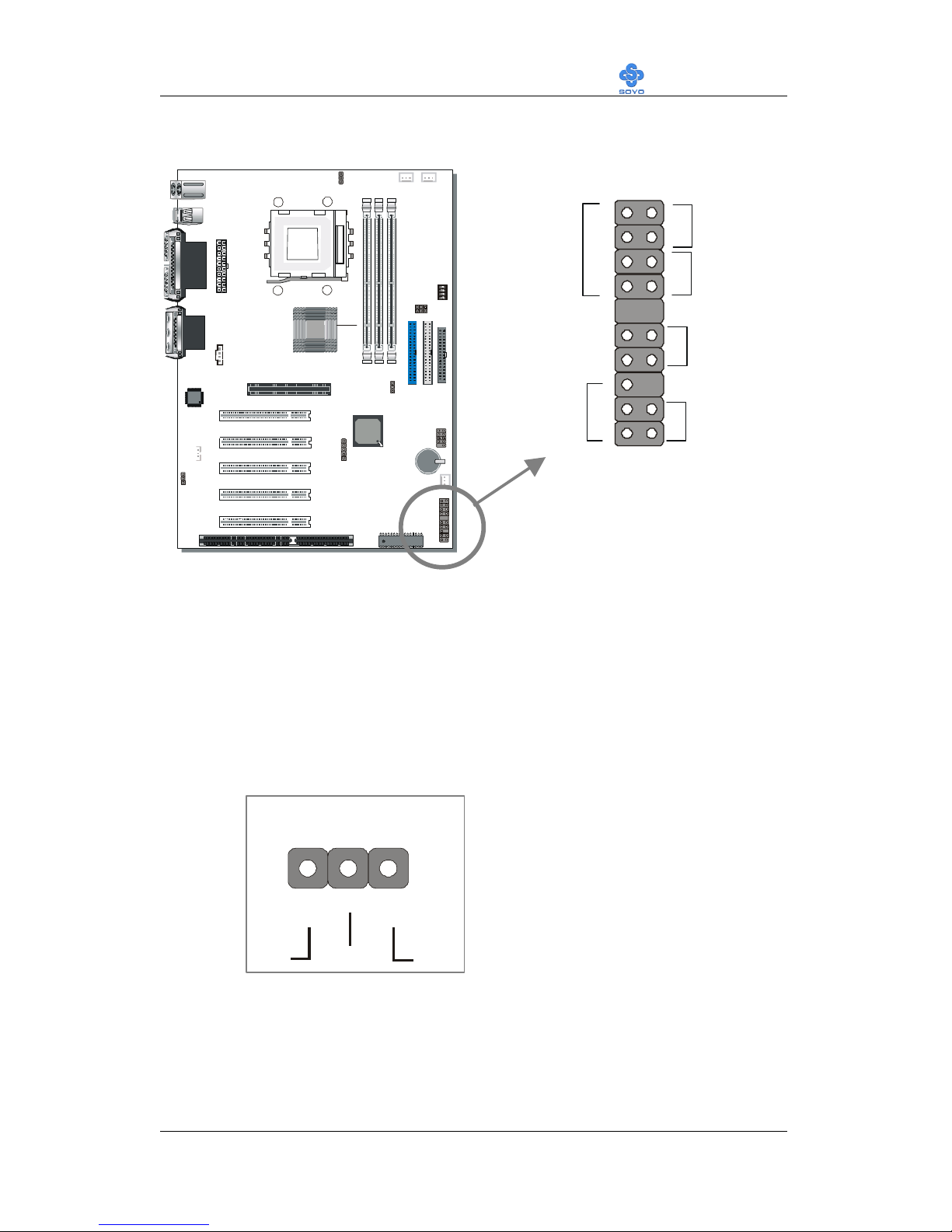

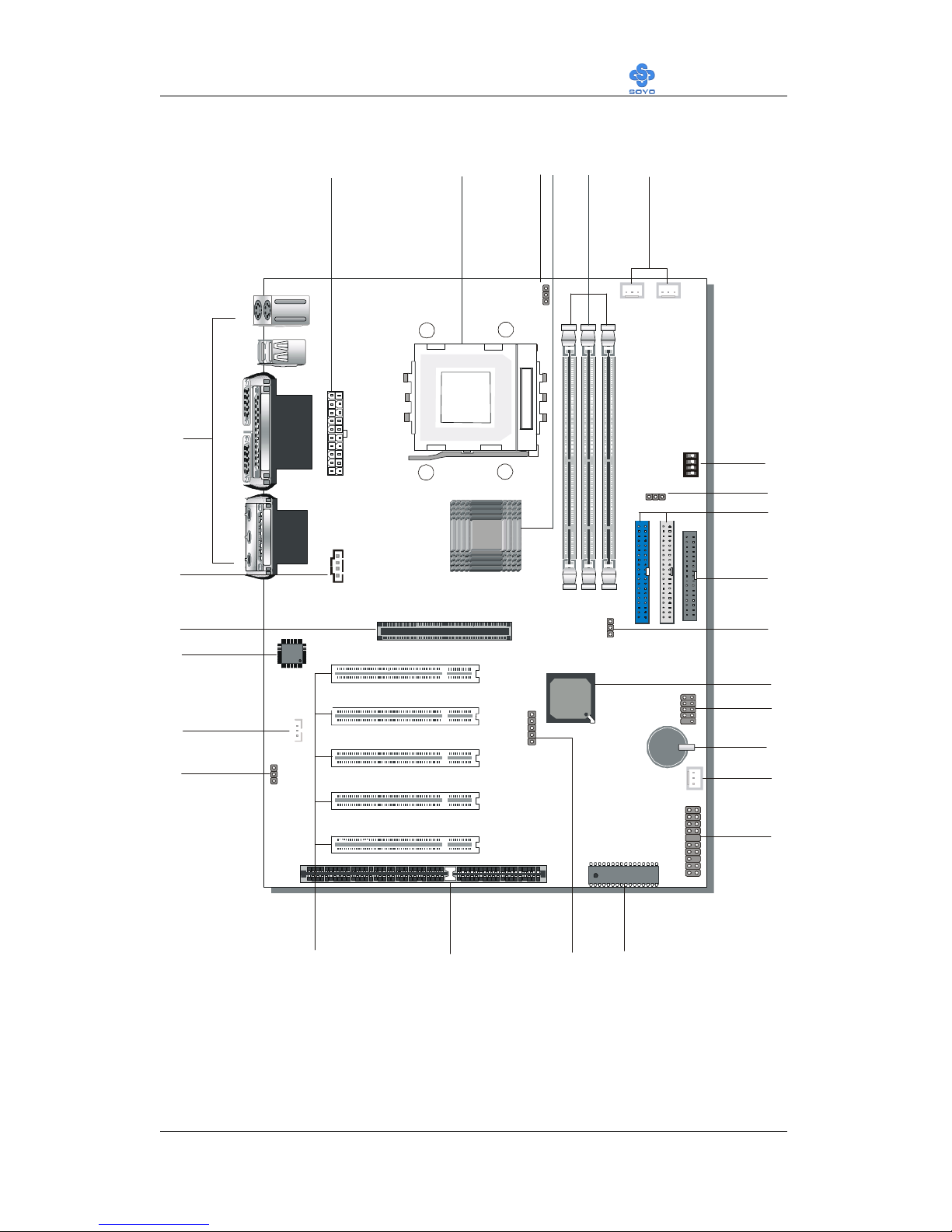

1-4 SY-K7VTA-B MOTHERBOARD LAYOUT

Back Panel SY-K7VTA-B Platform

PRT

PS/2 KB Connector

PS/2 Mouse

Connector

ATX Power

LINE-OUT

LINE-IN

MIC-IN

GAME

COM1

COM2

USB 1_2

SDRAM

VT8363

AGP Slot

Lithium

Battery

JP5

1 3

JP7

1 3

CDIN1

ISA Slot

PCI Slot #5

Flash BIOS

PCI Slot #1

PCI Slot #4

PCI Slot #3

PCI Slot #2

IDE 1

IDE 2

FLP

Sigmatel STAC9721

VT82C686B

RJ1

Page 11

Motherboard Description SY-K7VTA-B

1-5 SY-K7VTA-B MOTHERBOARD COMPONENTS

SDRAM

Page 12

Motherboard Description SY-K7VTA-B

A ATX Power Supply Connector B Socket 462 Connector C Ratio adjustment setting Jumper D Via VT8363 North Bridge chip E DIMM Banks

F CPU Cooling Fan Connector G Ratio adjustment setting switch H Ratio adjustment setting Jumper

I Bus Mastering E-IDE/ATAPI Ports

J Floppy Disk Drive (FDD) Port K CMOS Clear Jumper

L Via VT82C686B South Bridge Chip

M USB3_4 Connectors

N 3V Lithium Battery

O Chassis Cooling Fan

P Front panel connectors Q Flash BIOS

R Serial Infrared (IrDA) Device Header

S 16-bit ISA Slot

T 32-bit PCI Mastering Slots U Voice Doctor Language Setting Jumper V Wake-On-LAN (WOL) Header

W AC97 Codec Chip

X 32-bit AGP 1X/2X/4X Slot Y CD In Connector Z Back panel Connectors

Page 13

Motherboard Description SY-K7VTA-B

1-6 MICROPROCESSOR

The motherboard supports a single Socket 462 processor. The processor’s VID pins automatically program the voltage regulator on the motherboard to the required processor voltage. In addition, the front side bus speed (200 MHz ) is automatically selected. The motherboard supports all current Socket 462 processor speeds, voltages, and bus frequencies.

1-6.1 Microprocessor Packaging

The CPU is packaged in a 462 pin PGA package. A fan must be used to ensure adequate cooling.

1-6.2 Second Level Cache

The second-level cache is located on the substrate of the CPU package. The cache includes Athlon-256KB / Duron-64KB of synchronous pipelined burst static RAM. All supported onboard memory can be cached.

1-6.3 Microprocessor Upgrades

The motherboard can be upgraded with Socket 462 processors that run at higher speeds. When upgrading the processor, use the BIOS configuration mode to change the processor speed.

Page 14

Motherboard Description SY-K7VTA-B

1-7 MEMORY

1-7.1 Main Memory

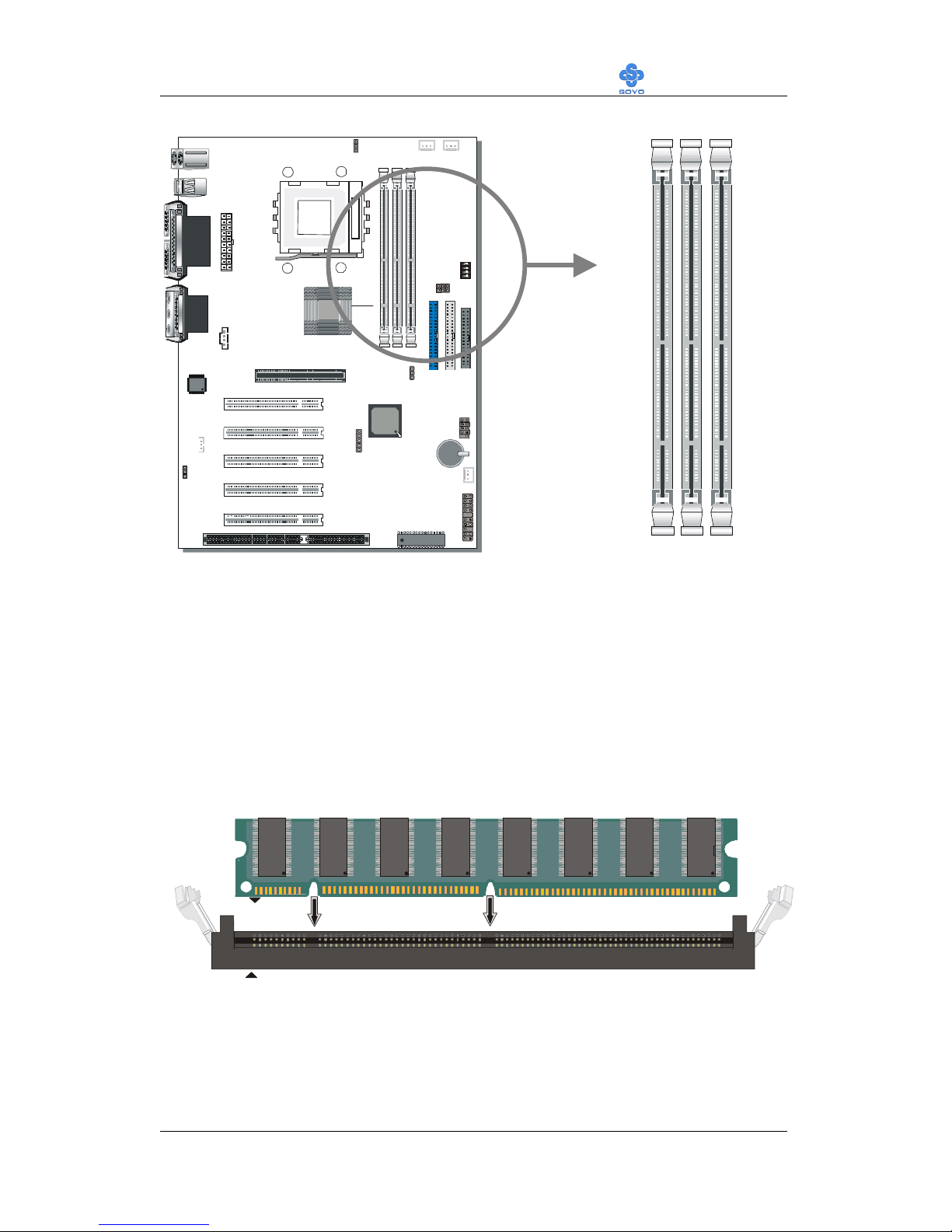

The motherboard has three DIMM sockets. SDRAM can be installed in one, two, or three sockets. Using the serial presence detect (SPD) data structure, programmed into an E²PROM on the DIMM, the BIOS can determine the SDRAM’s size and speed. Minimum DIMM memory size is 8 MB; maximum DIMM memory size is 256/512 MB. Memory size and speed can vary between sockets. The motherboard supports the following memory features:

 DRAM interface synchronous with host CPU (66/100/133MHz) or

AGP (66MHz) for more flexible configuration

 DRAM interface may be faster than CPU by 33 MHz to allow use

of PC133 memory modules

 DRAM interface may be slower than CPU by 33 MHz to allow use

of older memory modules with newer CPUs

 Concurrent CPU, AGP, and PCI access  Supports SDRAM and VCM SDRAM memory types  Different DRAM types may be used in mixed combinations  Different DRAM timing for each bank  Dynamic Clock Enable (CKE) control for SDRAM power

reduction in high speed system.

 Mixed 1M/2M/4M/8M/16M/32MxN DRAMs  The K7VTA-B supports 3 DIMMs or 6 banks at 133MHz for

1.5GB (max memory)

 Flexible row and column addresses  64-bit data width and 3.3V DRAM interface  Programmable I/O drive capability for MA, command, and MD

signals

 Supports PC100 and PC133 SDRAM  Two-bank interleaving for 16Mbit SDRAM support  Two-bank and four bank interleaving for 64Mbit SDRAM support  Independent SDRAM control for each bank

Page 15

Motherboard Description SY-K7VTA-B

 Seamless DRAM command scheduling for maximum DRAM bus

utilization (e.g., precharge other banks while accessing the current bank)

 Four cache lines (32quadwords) of CPU to DRAM write buffers  Four cache lines 32 quadwords of CPU to DRAM read prefetch

buffers

 Read around write capability for non-stalled CPU read  Burst read and write operation  BIOS shadow at 16KB increment  Decoupled and burst DRAM refresh with staggered RAS timing  CAS before RAS or self refresh

Page 16

Motherboard Description SY-K7VTA-B

1-8 CHIPSET

Ø VT8363

The KT133 chip set consists of the VT8363 system controller (552 pin BGA) and the VT82C686B PCI to ISA bridge (352 pin BGA). The system controller provides superior performance between the CPU, DRAM, AGP bus, and PCI bus with pipelined, burst, and concurrent operation. The VT8363 support six banks of DRAMs up to 1.5GB. The DRAM controller supports standard Synchronous DRAM (SDRAM) and Virtual Channel SDRAM (VC SDRAM), in a flexible mix / match manner. The Synchronous DRAM interface allows zero wait state bursting between the DRAM and the data buffers at 66/100/133 MHz. The six banks of DRAM can be composed of an arbitrary mixture of 1M / 2M / 4M / 8M / 16M / 32MxN DRAMs. The VT8363 system controller also supports full AGP v2.0 capability for maximum bus utilization including 1x, 2x and 4x mode transfers, SBA (SideBand Addressing), Flush/fence commands, and pipelined grants. An eight level request queue plus a four level post-write request queue with thirty-two and sixteen quadwords of read and write data FIFO’s respectively are included for deep pipelined and split AGP transactions. A single-level GART TLB with 16 full associative entries and flexible CPU / AGP / PCI remapping control is also provided for operation under protected mode operating environments. Both Windows-95 VXD and Windows-98 / Windows 2000 miniport drivers are supported for interoperability with major AGP-based 3D and DVD-capable multimedia accelerators. The VT8363 supports two 32-bit 3.3 / 5V system buses (one AGP and one PCI) that are synchronous / pseudo-synchronous to the CPU bus. The chip also contains a built-in bus-to-bus bridge to allow simultaneous concurrent operations on each bus. Five levels (doublewords) of post write buffers are included to allow for concurrent CPU and PCI operation. For PCI master operation, forty-eight levels (doublewords) of post write

Page 17

Motherboard Description SY-K7VTA-B

buffers and sixteen levels (doublewords) of prefetch buffers are included for concurrent PCI bus and DRAM/cache accesses. The chip also supports enhanced PCI bus commands such as Memory-Read-Line, Memory-Read-Multiple and Memory-Write-Invalid commands to minimize snoop overhead. In addition, advanced features are supported such as snoop ahead, snoop filtering, L1/L2 write-back forward to PCI master, and L1/L2 write-back merged with PCI post write buffers to minimize PCI master read latency and DRAM utilization. Delay transaction and read caching mechanisms are also implemented for further improvement of overall system performance.

Ø VT82C686B

The VT82C686B PSIPC (PCI Super-I/O integrated Peripheral Controller) is a high integration, high performance, power-efficient, and high compatibility device that supports AMD and non-AMD based processor to PCI bus bridge functionality to make a complete Microsoft PC99compliant PCI/ISA system In addition to complete ISA extension bus functionality, the VT82C686B includes standard AMDligent peripheral controllers:

1) Master mode enhanced IDE controller with dual channel DMA engine

and interlaced dual channel commands. Dedicated FIFO coupled with scatter and gather master mode operation allows high performance transfers between PCI and IDE \devices. In addition to standard PIO and DMA mode operation, the VT82C686B also supports the UltraDMA-33 standard to allow reliable data transfer rates up to 33MB/sec throughput. The VT82C686B also supports the UltraDMA-66 standard. The IDE controller is SFF-8038I v1.0 and Microsoft Windows-family compliant.

2) Universal Serial Bus controller that is USB v1.1 and Universal HCI

v1.1 compliant. The VT82C686B includes the root hub with four function ports with integrated physical layer transceivers. The USB controller allows hot plug and play and isochronous peripherals to be inserted into the system with universal driver support. The controller also implements legacy keyboard and mouse support so that legacy

Page 18

Motherboard Description SY-K7VTA-B

software can run transparently in non-USB-aware operating system environment.

3) Keyboard controller with PS2 mouse support.

4) Real Time Clock with 256 byte extended CMOS. In addition to the

standard ISA RTC functionality, the integrated RTC also includes the date alarm, century field, and other enhancements for compatibility with the ACPI standard.

5) Hardware monitoring subsystem for managing system/ motherboard

voltage levels, temperatures, and fan speeds

6) Full System Management Bus (SMBus) interface.

7) Two 16550-compatible serial I/O ports with infrared communications

port option. A third serial port is available to be dedicated to the IR interface.

8) Integrated PCI-mastering dual full-duplex direct-sound AC97-link-

compatible sound system. Hardware soundblaster-pro and hardwareassisted FM blocks are included for Windows DOS box and real-mode DOS compatibility. Loopback capability is also implemented for directing mixed audio streams into USB and 1394 speakers for high quality digital audio

9) Two game ports and One MIDI port

10) ECP/EPP-capable parallel port

11) Standard floppy disk drive interface

12) Distributed DMA capability for support O ISA legacy DMA over

the PCI bus. Serial IRQ is also supported for docking and non-docking application.

13) Plug and Play controller that allows complete steerability of all PCI

interrupts and internal interrupts/ DMA channels to any interrupt channel. One additional steerable interrupt channel is provided to allow plug and play and reconfigurability of onboard peripherals for Windows family compliance.

The VT82C686B also enhances the functionality of the standard ISA peripherals. The integrated interrupt controller supports both edge and

Page 19

Motherboard Description SY-K7VTA-B

level triggered interrupts channel by channel. The integrated DMA controller supports type F DMA in addition to standard ISA DMA modes. Compliant with the PCI2.2 specification, the VT83C686A supports delayed transactions and remote power management so that slower ISA peripherals do not block the traffic of the PCI bus. Special circuitry is built in to allow concurrent operation without causing dead lock even in a PCIto PCI bridge environment. The chip also includes eight levels (doublewords) of line buffers from the PCI bus to the ISA bus to further enhance overall system performance.

1-9 I/O INTERFACE CONTROLLER

The motherboard uses the VT82C686B Super-I/O controller which features:

Ø Supports 2 serial ports, IR port, parallel port, and floppy disk

controller functions

Ø Two UARTs for Complete Serial Ports

 Even, odd, stick or no parity bit generation and detection  Programmable baud rate generator  High speed baud rate (230Kbps, 460Kbps) support  Independent transmit/receiver FIFOs  Modem Control  Plug and play with 96 base IO address and 12 IRQ options

Ø One dedicated IR port

 Third serial port dedicated to IR function  IR function either through the two complete serial ports or the

third dedicated port

 Infrared-IrDA (HPSIR) and ASK (Amplitude Shift Keyed) IR

Ø Multi-mode parallel port

 Standard mode, ECP and EPP support  Plug and play with 192 base IO address, 12 IRQ and 4 DMA

options

Ø Floppy Disk Controller

 16bytes of FIFO

Page 20

Motherboard Description SY-K7VTA-B

 Data rates up to 1Mbps  Perpendicular recording driver support  Two FDDs with drive swap support  Plug and play with 48 base IO address, 12 IRQ and 4 DMA

options

The Setup program provides configuration option for the I/O controller.

1-9.1 Serial Ports

The motherboard has two 9-pin D-Sub serial port connectors located on the back panel. The NS16C5450-compatible UARTs support data transfers at speeds up to 115.2 Kbits/sec with BIOS support.

1-9.2 Parallel Port

The connector for the multimode bi-directional parallel port is a 25-pin DSub connector located on the back panel of the motherboard. In the Setup program, there are four options for parallel port operation:

l Compatible (standard mode) l Bi-directional (PS/2 compatible) l Bi-directional EPP. A driver from the peripheral manufacturer is

required for operation.

l Bi-directional high-speed ECP

1-9.3 Diskette Drive Controller

The I/O controller is software compatible with the 82077 diskette drive controller and supports both PC-AT and PS/2 modes. In the Setup program, the diskette drive interface can be configured for the following diskette drive capacities and sizes.

l 360 KB, 5.25-inch l 1.2 MB, 5.25-inch l 720 KB, 3.5-inch l 1.2 MB. 3.5-inch (driver required) l 1.25-1.44 MB, 3.5-inch l 2.88 MB, 3.5-inch

Page 21

Motherboard Description SY-K7VTA-B

1-9.4 PS/2 Keyboard and Mouse Interface

PS/2 keyboard and mouse connectors are located on the back panel of the motherboard. The +5 V lines to keyboard and mouse connectors are protected with a fuse that prevents motherboard components from being damaged when an over-current condition occurs.

Note

The mouse and keyboard can be plugged into either PS/2 connector. Power to the computer should be turned off before a keyboard or mouse is connected or disconnected.

The keyboard controller contains code, which provides the traditional keyboard and mouse control functions, and also supports Power On/Reset password protection. Power On/Reset password can be specified in the BIOS Setup program.

The keyboard controller also supports the hot-key sequence <Ctrl><Alt><Del>, software reset. This key sequence resets the computer’s software by jumping to the beginning of the BIOS code and running the Power On Self Test (POST).

1-9.5 Infrared Support

On the front panel I/O connector, there are six pins that support Hewlett Packard HSDL-1000 compatible infrared (IR) transmitters and receivers. In the Setup program, Serial Port B can be direct4d to a connected IR device. (In this case, the Serial Port B connector on the back panel cannot be used.) The IR connection can be used to transfer files to or from portable devices like laptops, PDAs, and printers. The Infrared Data Association (IrDA) specification supports data transfers of 115Kbits/sec at a distance of 1 meter.

1-10 HARDWARE MONITOR

The optional hardware monitor subsystem provides low-cost instrumentation capabilities. The features of the hardware monitor

Page 22

Motherboard Description SY-K7VTA-B

subsystem include:

Ø An integrated ambient temperature sensor Ø Fan speed sensors, which monitor the fan 1 and fan 2 connector. Ø Power supply voltage monitoring to detect levels above or below

acceptable values When suggested ratings for temperature, fan speed, or voltage are exceeded, an interrupt is activated. The hardware monitor component connects to the SMBus.

1-11 WAKE ON LAN TECHNOLOGY

Wake on LAN technology enables remote wakeup of the computer through a network. Wake on LAN technology requires a PCI add-in network interface card (NIC) with remote wakeup capabilities. The remote wakeup connector on the NIC must be connected to the onboard Wake on LAN connector. The NIC monitors network traffic at the Ethernet interface; upon detecting a Magic Packet, the NIC asserts a wakeup signal that powers up the computer. This feature uses the Wake on LAN connector.

CAUTION

For Wake on LAN, the 5-V standby line for the power supply must be capable of delivering +5V ±5 % at 720 mA. Failure to provide adequate standby current when implementing Wake on LAN can damage the power supply.

Page 23

BIOS Setup Utility SY-K7VTA-B

Chapter 2

HARDWARE INSTALLATION

Congratulations on your purchase of SY-K7VTA-B Motherboard. You are about to install and connect your new Motherboard.

Note: Do not unpack the Motherboard from its protective antistatic packaging until you have made the following preparations.

2-1 PREPARATIONS

Gather and prepare all the following hardware equipment to complete the installation successfully:

1. Socket 462 processor with built-in CPU cooling fan (boxed type).

Note: This Motherboard supports non-boxed type CPUs. The heavier

CPU cooling fan requires the installation of a CPU support stand.

2. DIMM memory module (s)

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. PS/2 Keyboard

6. Pointing Device (PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Page 24

BIOS Setup Utility SY-K7VTA-B

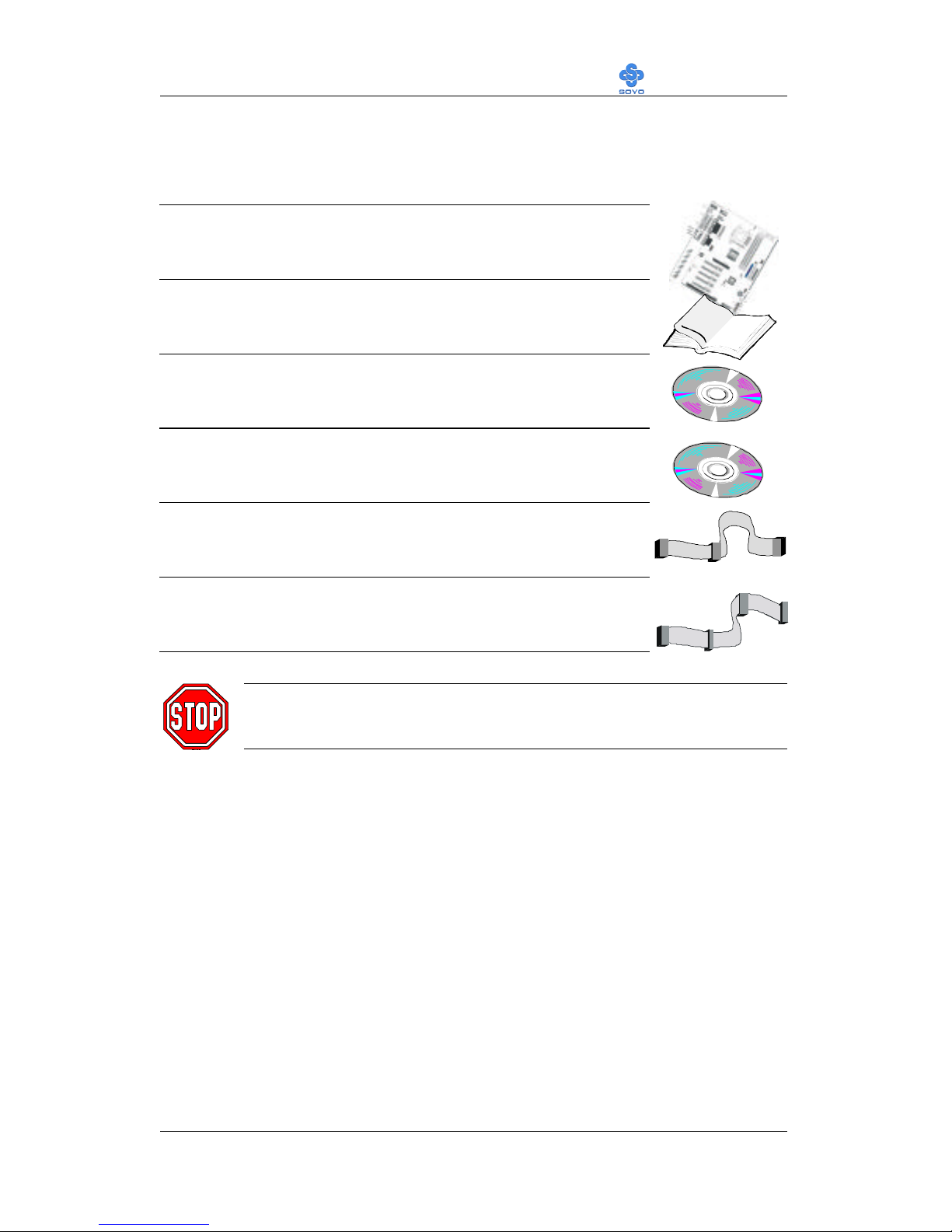

2-2 UNPACKING THE MOTHERBOARD

When unpacking the Motherboard, check for the following items:

u The SY-K7VTA-B KT133 AGP/PCI Motherboard

u The Quick Start Guide

u The Installation CD-ROM

u SOYO Bonus Pack CD-ROM

u One IDE Device ATA 66 Flat Cable

u One Floppy Disk Drive Flat Cable

Warning: Do not unpack the Motherboard from its anti-static packaging until you are ready to install it.

Like most electronic equipment, your Motherboard may be damaged by electrostatic discharge. To avoid permanent damage to components ground yourself while working by using a grounding strap. Otherwise, ground yourself frequently by touching the unpainted portion of the computer chassis to drain the static charges. Handle the Motherboard carefully, hold it by the edges. You are now ready to start the installation.

Page 25

BIOS Setup Utility SY-K7VTA-B

2-3 INSTALLATION GUIDE

We will now begin the installation of the Motherboard. Please follow the step-by-step procedure designed to lead you to a complete and correct installation.

Warning: Turn off the power to the Motherboard, system chassis, and peripheral devices before performing any work on the Motherboard or system.

BEGIN THE INSTALLATION

Page 26

BIOS Setup Utility SY-K7VTA-B

2-3.1 CPU Installation

Your SY-K7VTA-B motherboard comes with a CPU retention set kit. The retention set is used to hold the processor attached to the Socket 462 CPU connector on the motherboard.

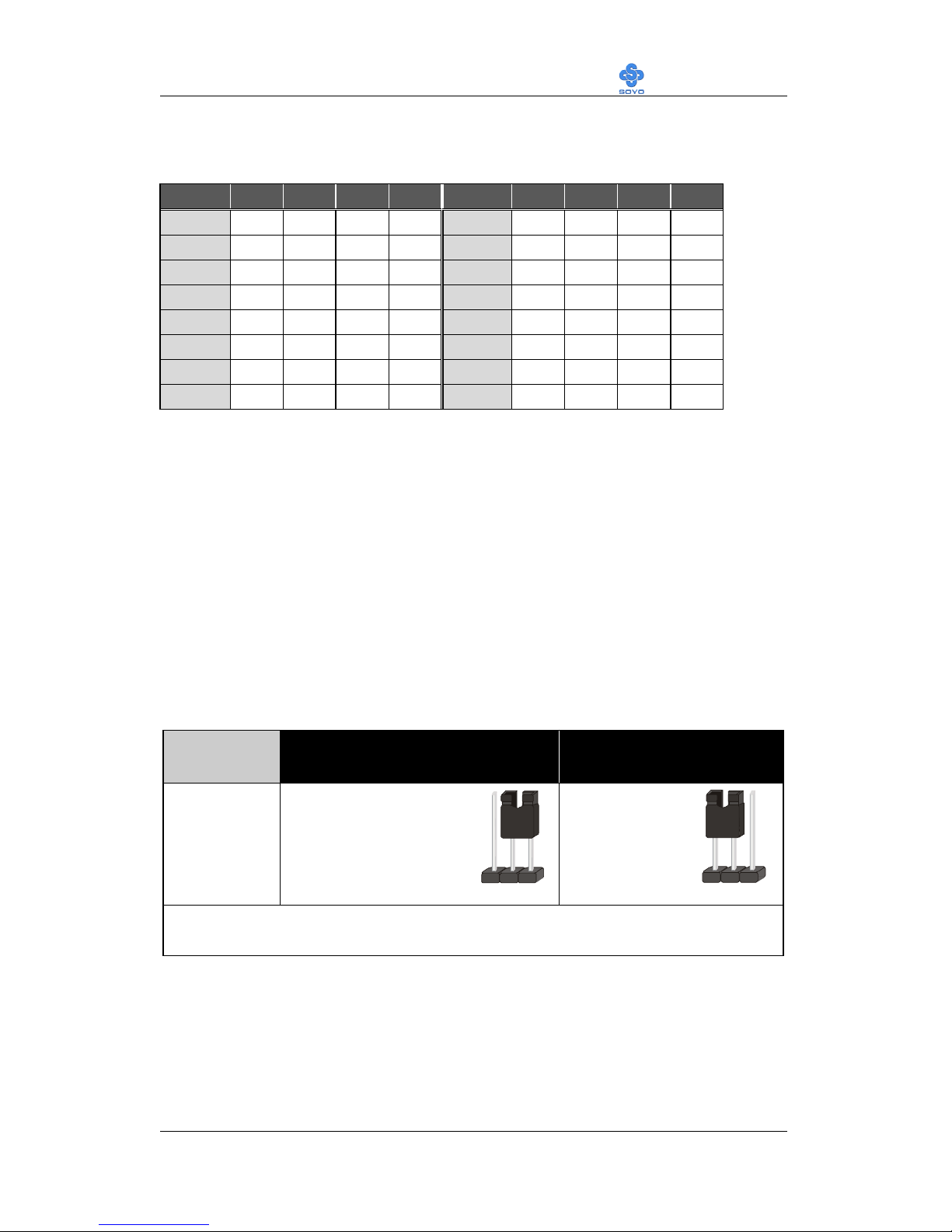

Mark your CPU Frequency:

Record the working frequency of

your CPU that should be clearly marked on the CPU cover.

FSB 100MHz (Athlon/Duron) Athlon

750MHz (100 x 7.5) 800MHz (100 x 8.0) 850MHz (100 x 8.5) 900MHz (100 x 9.0) 950MHz (100 x 9.5) 1000MHz (100 x 10.0)

Duron

600MHz (100 x 6.0) 650MHz (100 x 6.5) 700MHz (100 x 7.0)

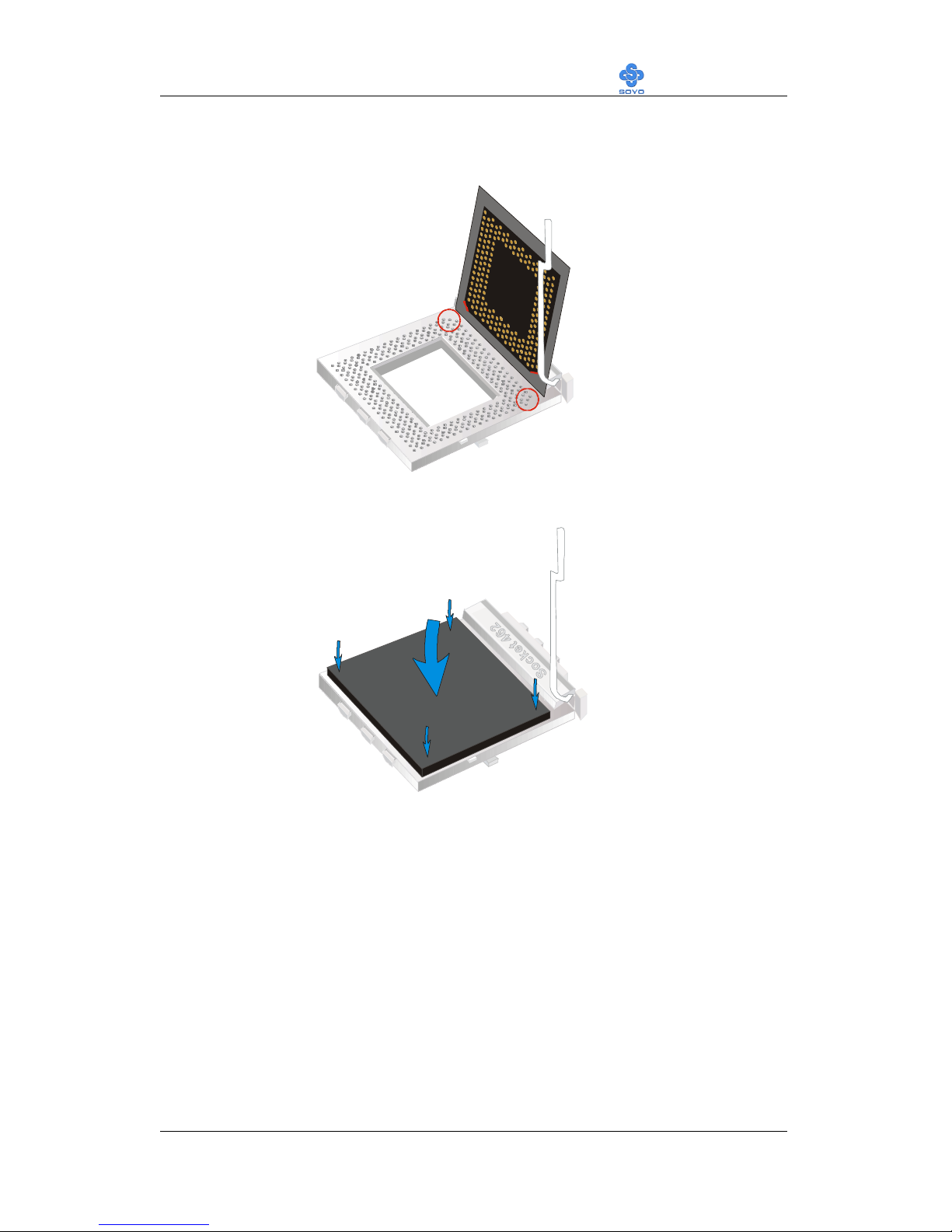

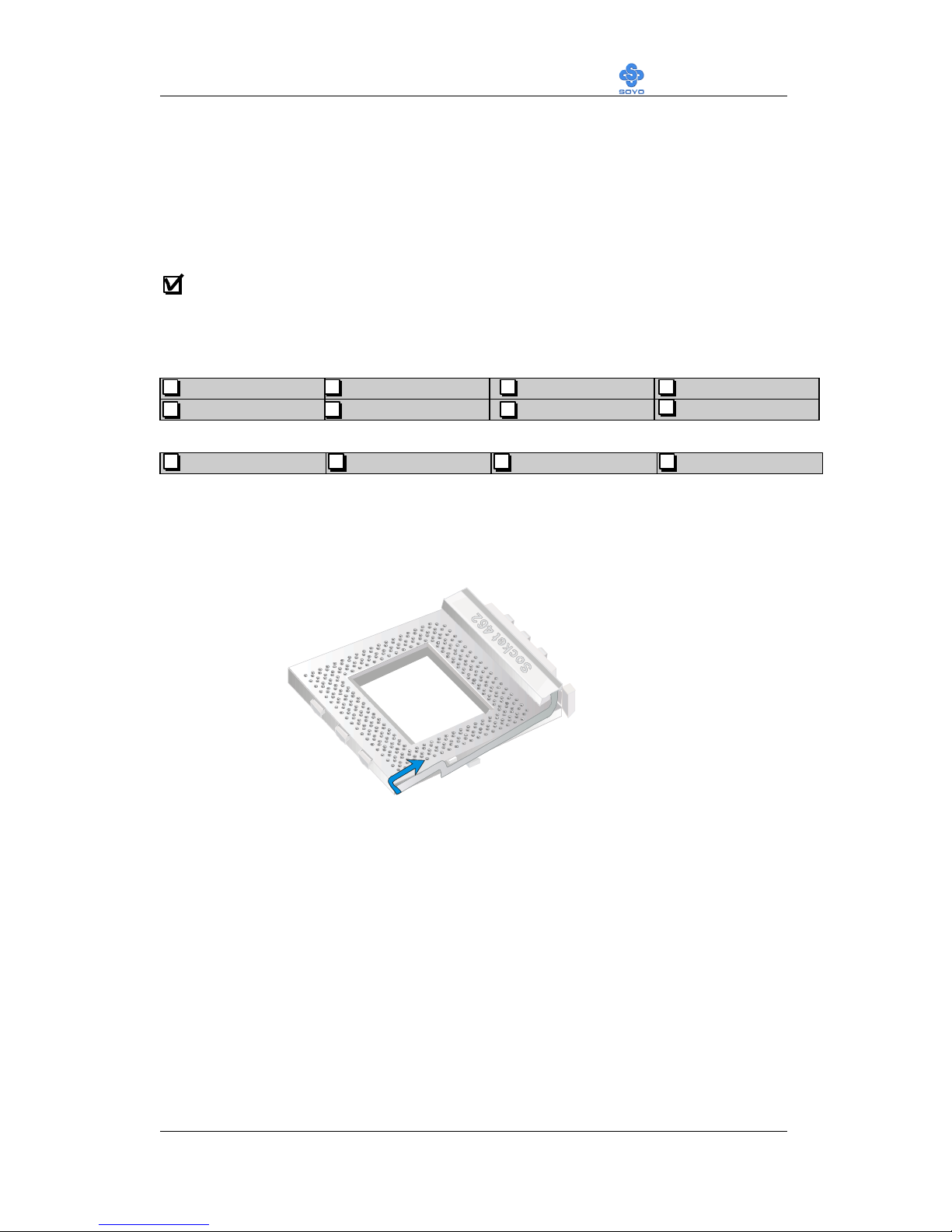

Follow these instructions to install your Socket 462 processor correctly.

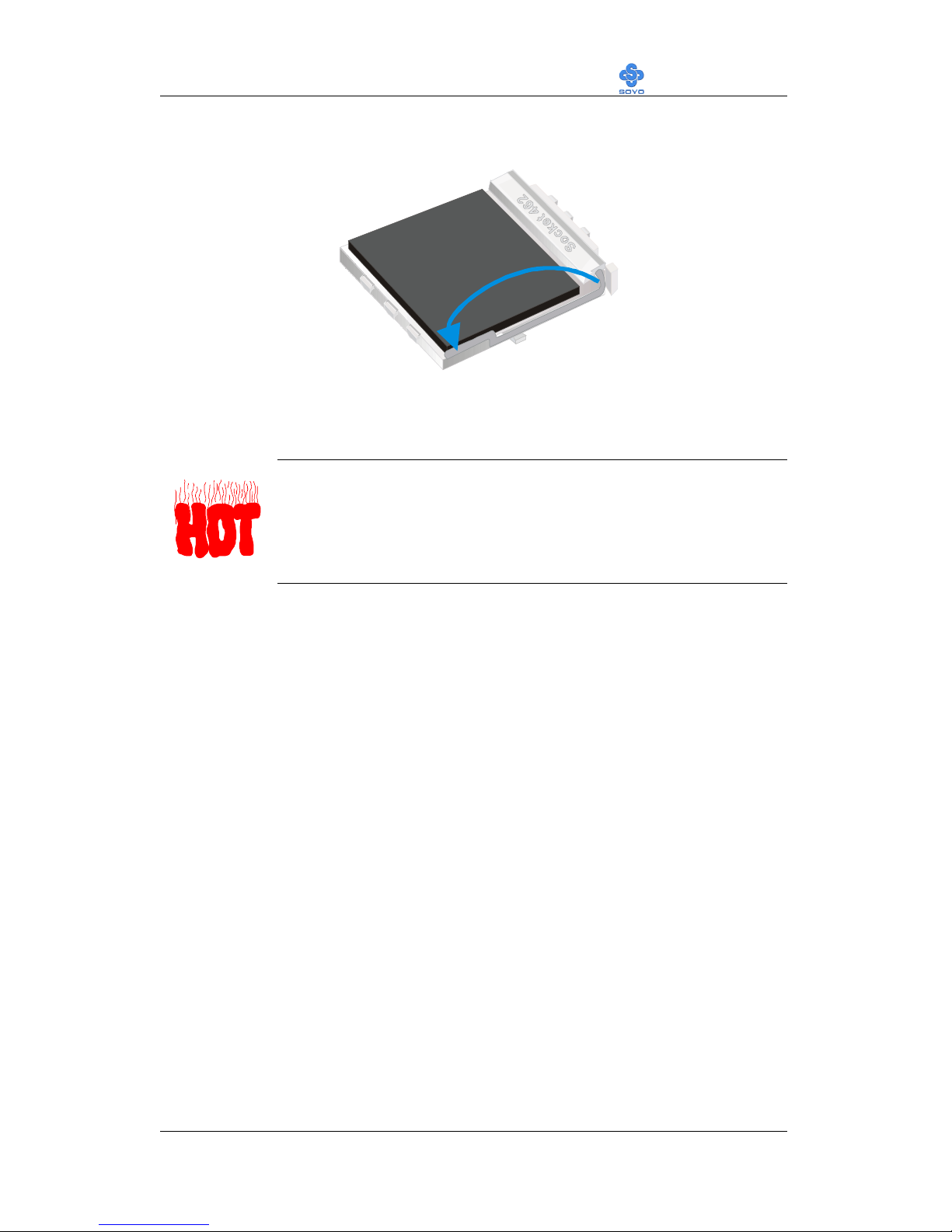

1. Lift the socket handle up to a vertical position.

Page 27

BIOS Setup Utility SY-K7VTA-B

2. Align the blunt edge of the CPU with the matching pinhole

distinctive edge on the socket.

3. Seat the processor in the socket completely and without forcing.

Page 28

BIOS Setup Utility SY-K7VTA-B

4. Then close the socket handle to secure the CPU in place.

Remember to connect the CPU Cooling Fan to the appropriate power connector on the Motherboard. The fan is

a key component that will ensure system stability. The fan prevents overheating, therefore prolonging the life of your CPU.

Page 29

BIOS Setup Utility SY-K7VTA-B

2-3.2 SDRAM Memory Module Installation

Your board comes with two DIMM sockets, providing support for up to

1.5GB of main memory using unbuffered and registered DIMM modules from 8MB to 512MB. On this motherboard, DRAM speed can be set independent from the CPU front side bus speed. Depending on the DRAM clock speed setting in the BIOS setup (Chapter 3), appropriate memory modules must be used. For 66MHz DRAM speed, use PC66 memory; for 100MHz DRAM speed, use PC100 memory; for 133MHz DRAM speed, use PC133 memory.

SDRAM

Page 30

BIOS Setup Utility SY-K7VTA-B

Memory Configuration Table

Number of Memory

Modules

DIMM 1 DIMM 2 DIMM 3

RAM Type

SDRAM/VCM SDRAM

Memory Module Size

(MB)

32/64/128/256/512 MB

Page 31

BIOS Setup Utility SY-K7VTA-B

2-3.3 Motherboard Connector

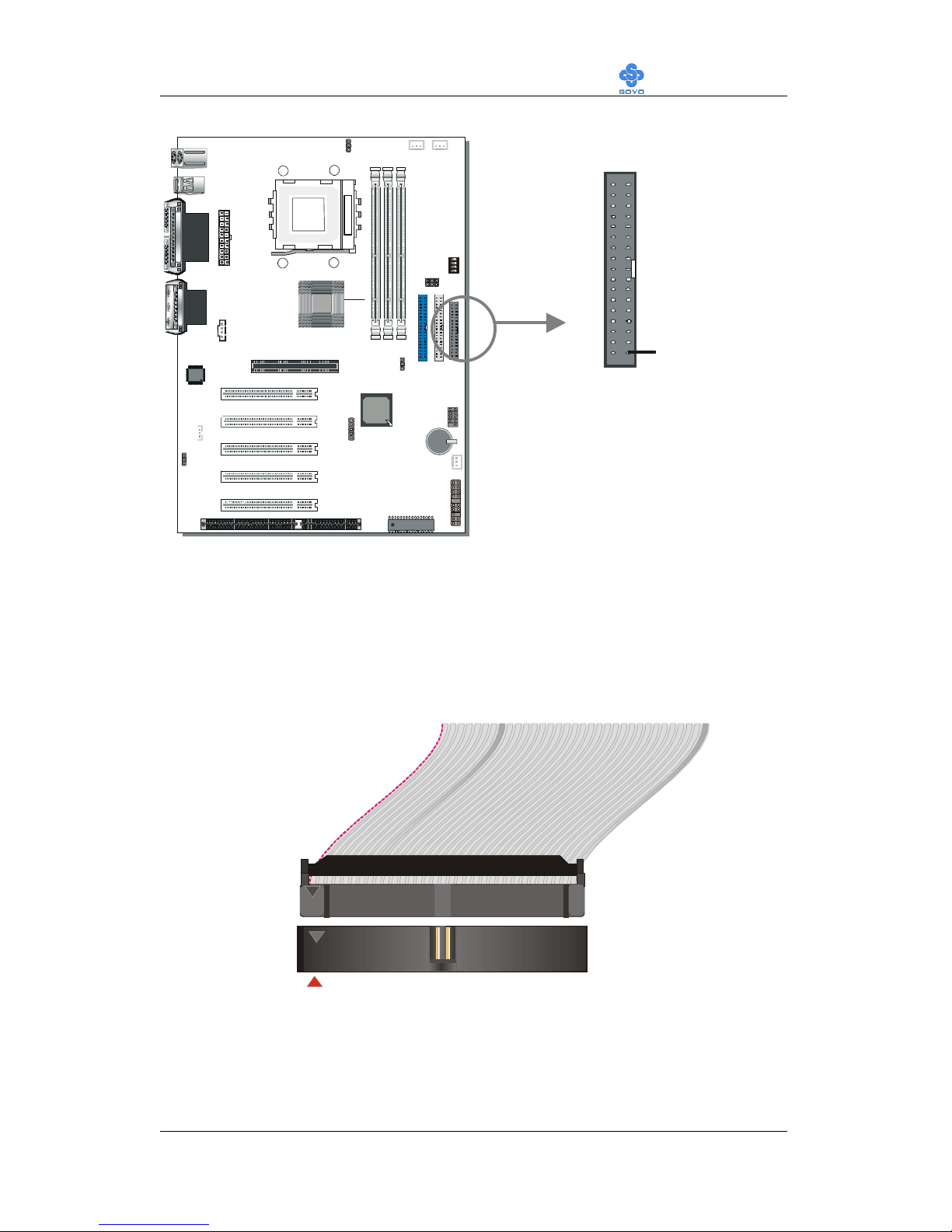

2-3.3.1 IDE Device Installation (HDD, CD-ROM)

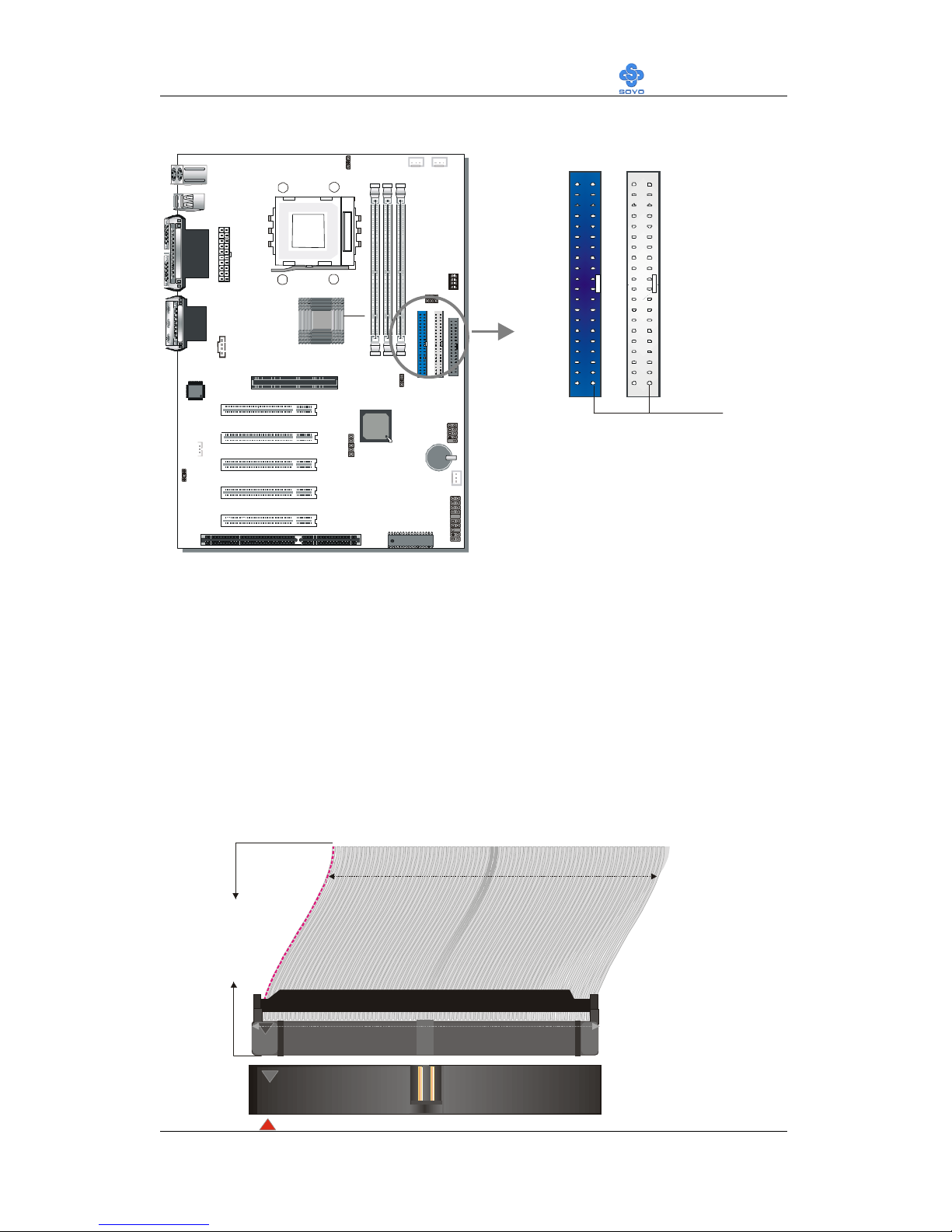

This Motherboard offers two primary and secondary IDE device connectors (IDE1, IDE2). It can support up to four high-speed Ultra DMA 33/66/100HDD or CD-ROM.

Connect one side of the ATA66/100 flat cable to the IDE device (HDD or CD-ROM) and plug the other end to the primary (IDE1) or secondary (IDE2) directionally keyed IDE connector on the Motherboard. The ATA66/100 cable is backward compatible with ATA33 HDDs. This Motherboard can support up to four HDDs.

SDRAM

IDE 1

IDE 2

Pin-1

Primary IDE

Secondary

IDE

40-pin

ATA 66/100

Flat Cable

80-Conductor

Page 32

BIOS Setup Utility SY-K7VTA-B

2-3.3.2 Floppy Drive Installation

The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,

1.44 MB, 2.88 MB, and LS-120. Connect one side of the 34-pin flat cable to the floppy drive and plug the other end to the floppy drive connector on the Motherboard. This Motherboard can support up to 2 floppy drives.

SDRAM

FDC

Pin -1

Floppy Drive

Connector

Page 33

BIOS Setup Utility SY-K7VTA-B

2-3.3.3 Front Panel Connections

Plug the computer case's front panel devices to the corresponding headers on the Motherboard.

1. Power LED

Please install according to the following pin assignment: pin 1,3 are for Power LED.

SDRAM

Power LED

Pin Assignment

LED

GND

NCNC

Speaker

_ _

Reset

PWRBT

Power LED

HDD LED

STR LED

Page 34

BIOS Setup Utility SY-K7VTA-B

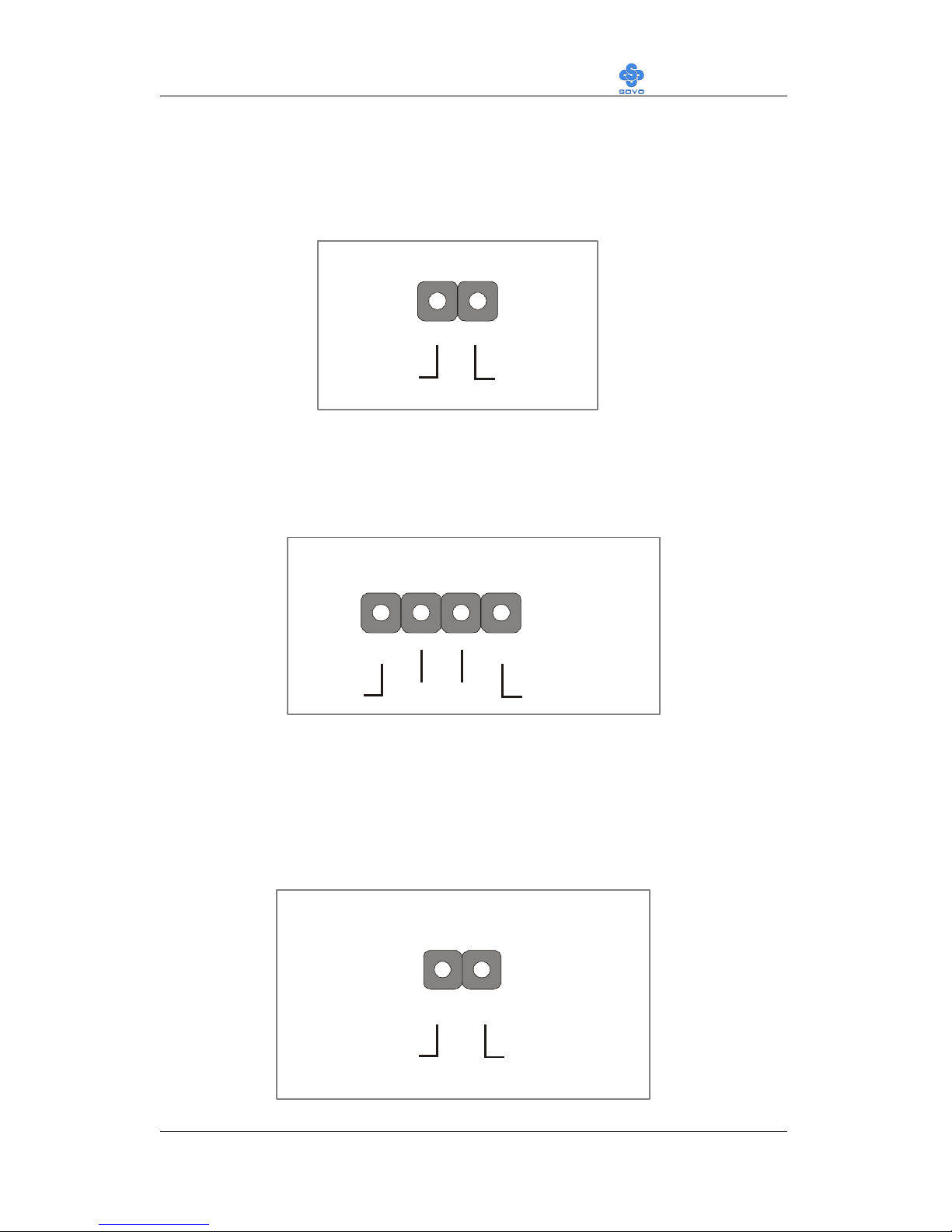

2. Reset

Plug the Reset push-button cable into the 2-pin Reset header on the Motherboard. Pushing the Reset button on the front panel will cause the system to restart the boot-up sequence.

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker header on the Motherboard.

4. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE LED header on the Motherboard. This will cause the LED to light up when an IDE (HDD, CD-ROM) device is active.

PWRBT Pin Assignment

PW-BT

GND

Speaker Pin Assignment

VCC

Speaker out

NC NC

HDD LED Pin Assignment

LED

GND

Page 35

BIOS Setup Utility SY-K7VTA-B

5. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT header for turning On or Off your ATX power supply.

6. STR LED

The STR LED is connected to the Voltage that feeds the DIMM sockets. Therefore the following table applies:

Suspend to RAM Normal Operation Power Off

STR LED ON ON OFF

PWRBT Pin Assignment

Power On/Off

GND

STR LED Pin Assignment

LED Anode

LED Cathode

Page 36

BIOS Setup Utility SY-K7VTA-B

2-3.3.4 Back Panel Connections

All external devices such as the PS/2 keyboard, PS/2 mouse, printer, modem, USB can be plugged directly onto the Motherboard back panel.

Only after you have fixed and locked the Motherboard to the computer case can you start connecting the external peripheral devices.

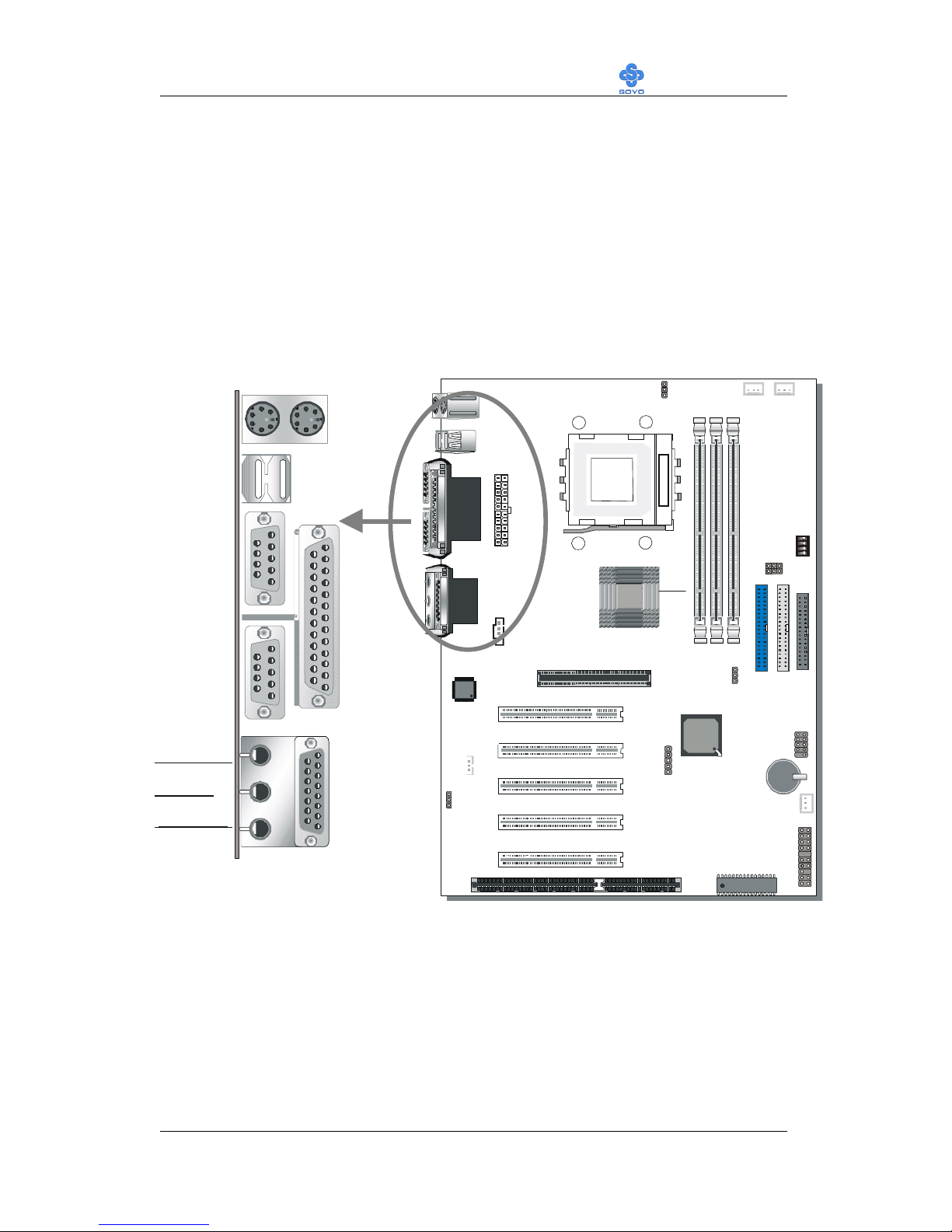

When connecting an external device, use the following figure to locate and identify which back panel connector to plug the device to.

SDRAM

PRT

USB 1

USB2

PS/2 KB

Connector

PS/2 Mouse

Connector

LINE-OUT LINE-IN

MIC JACK

JOYSTICK

COM2

COM 1

Page 37

BIOS Setup Utility SY-K7VTA-B

1. Onboard Serial Ports COM1/COM2

External peripherals that use serial transmission scheme include:

- serial mouse,

- and modem. Plug the serial device cables directly into the COM1/COM2 9-pin male connectors located at the rear panel of the Motherboard.

2. Parallel Port PRT

This parallel port is used to connect the printer or other parallel devices. Plug the parallel device cable into the 25-pin female connector located at the rear panel of the Motherboard.

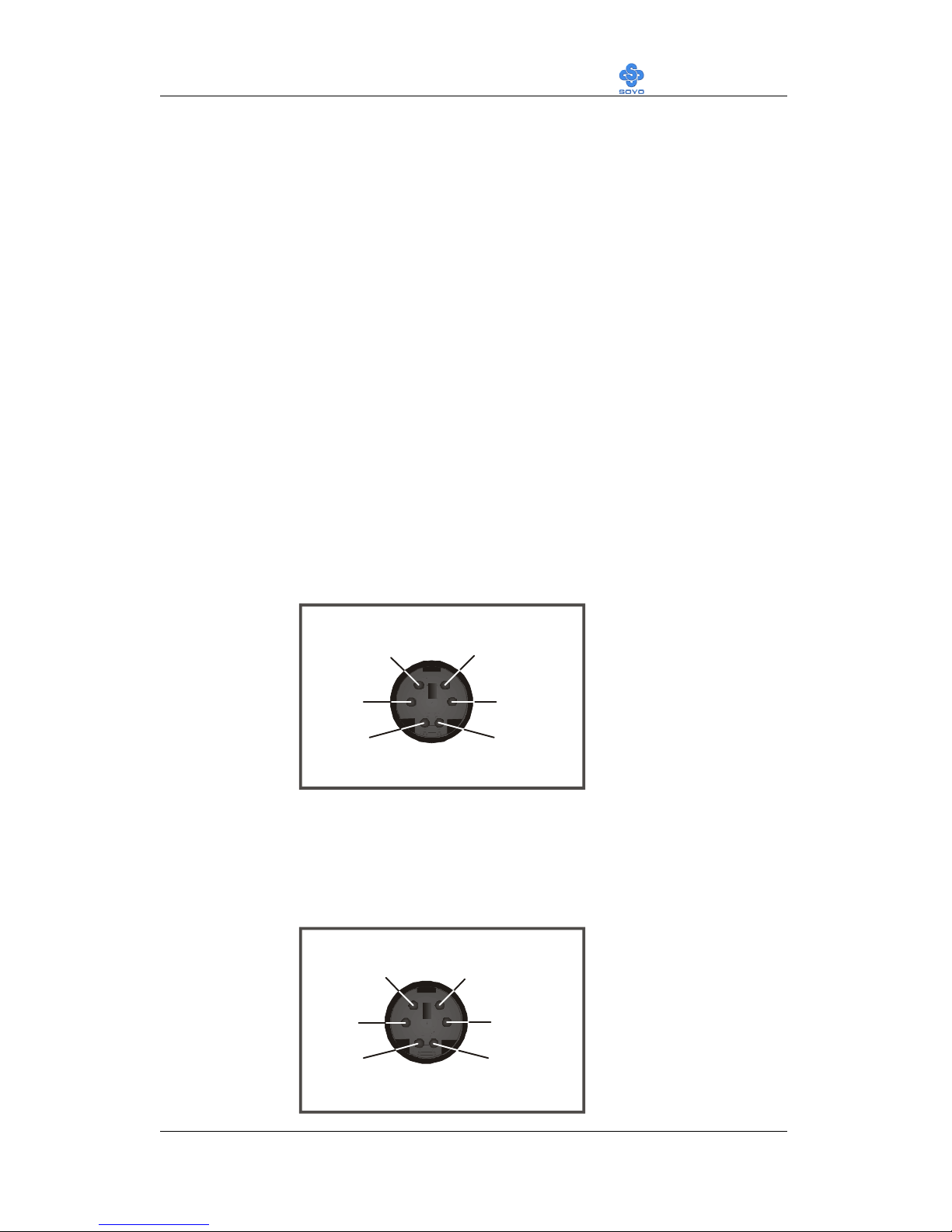

3. PS/2 Keyboard

Plug the keyboard jack directly into the 6-pin female PS/2 keyboard connector located at the rear panel of the Motherboard.

4. PS/2 Mouse

Similarly, plug the mouse jack directly into the 6-pin female PS/2 mouse connector.

Pin5

KBD Clock

Pin6

Pin3

GND

Pin1

KBD DATA

Pin2

Pin4

VCC

Pin6

Pin5

Mouse Clock

Pin4 VCC

Pin3

GND

Pin2

Pin1

Mouse DATA

Page 38

BIOS Setup Utility SY-K7VTA-B

5. Universal Serial Bus USB1/USB2/(USB3, USB4)

This Motherboard provides four USB ports for your additional devices. Plug the USB device jack into the available USB connector USB1 or USB2.

- Standard device drivers come with the Win98 for commonly used

USB devices.

- With Win95, use the flow UHCI specifications. To use USB devices

under Win95, usually you have to install the device that driver comes

with the USB device you have purchased.

USB3 and 4 are available. To make use of these USB ports, purchase a USB cable from your dealer. The lay-out of USB3 and 4 is as follows:

6. Onboard Joystick port/audio

This Motherboard provides Joystick port and audio.

- Attach the joystick cable to the 15-pin JOYSTICK port at the rear

panel of you motherboard.

- This Motherboard features three built-in audio-stereo ports (labeled

line-in, line-out, and mic jack) convenient to directly plug-in all your

external audio devices.

5 7

GND

(+)Data

(-)Data

+5V

GND

(+)Data

(-)Data

+5V

USB4

USB3

Page 39

BIOS Setup Utility SY-K7VTA-B

2-3.3.5 Other Connections

1. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the WakeOn-LAN (WOL) function to the JP10 header on the Motherboard. This WOL function lets users wake up the connected computer through the LAN card.

Please install according to the following pin assignment:

Wake-On-LAN

JP10 Pin Assignment

RING

GND

5VSB1

Page 40

BIOS Setup Utility SY-K7VTA-B

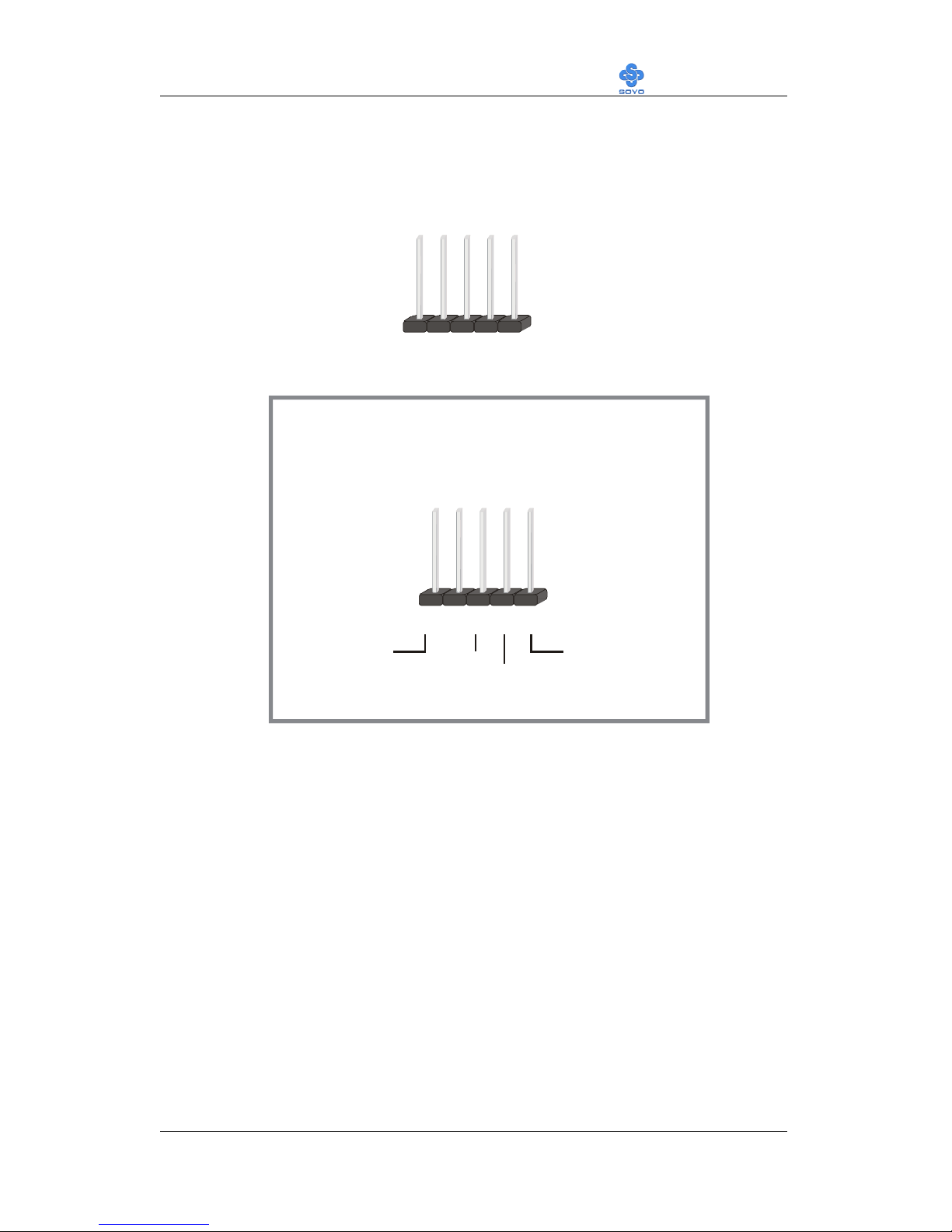

2. Infrared (SIRCON)

Plug the 5-pin infrared device cable to the SIRCON header. This will enable the infrared transfer function. This Motherboard meets both the ASKIR and HPSIR specifications.

Please install according to the following pin assignment:

3. Other Display Cards

Insert other types of VGA cards into the PCI or ISA expansion slots according to card specifications.

Standard Infrared

(SIRCON) Connector

SIRCON Pin Assignment

+5V

IRRX

GND

IRTX

Page 41

BIOS Setup Utility SY-K7VTA-B

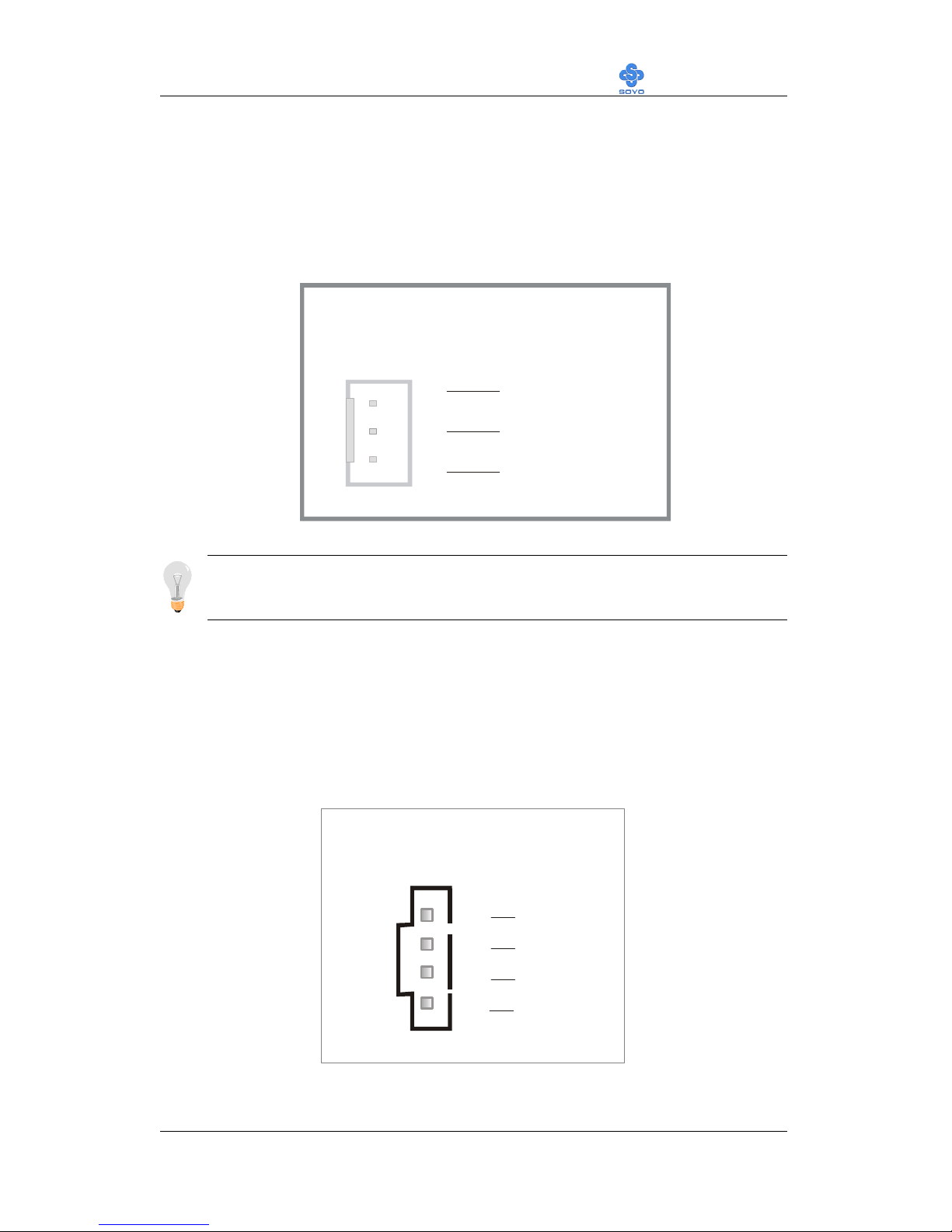

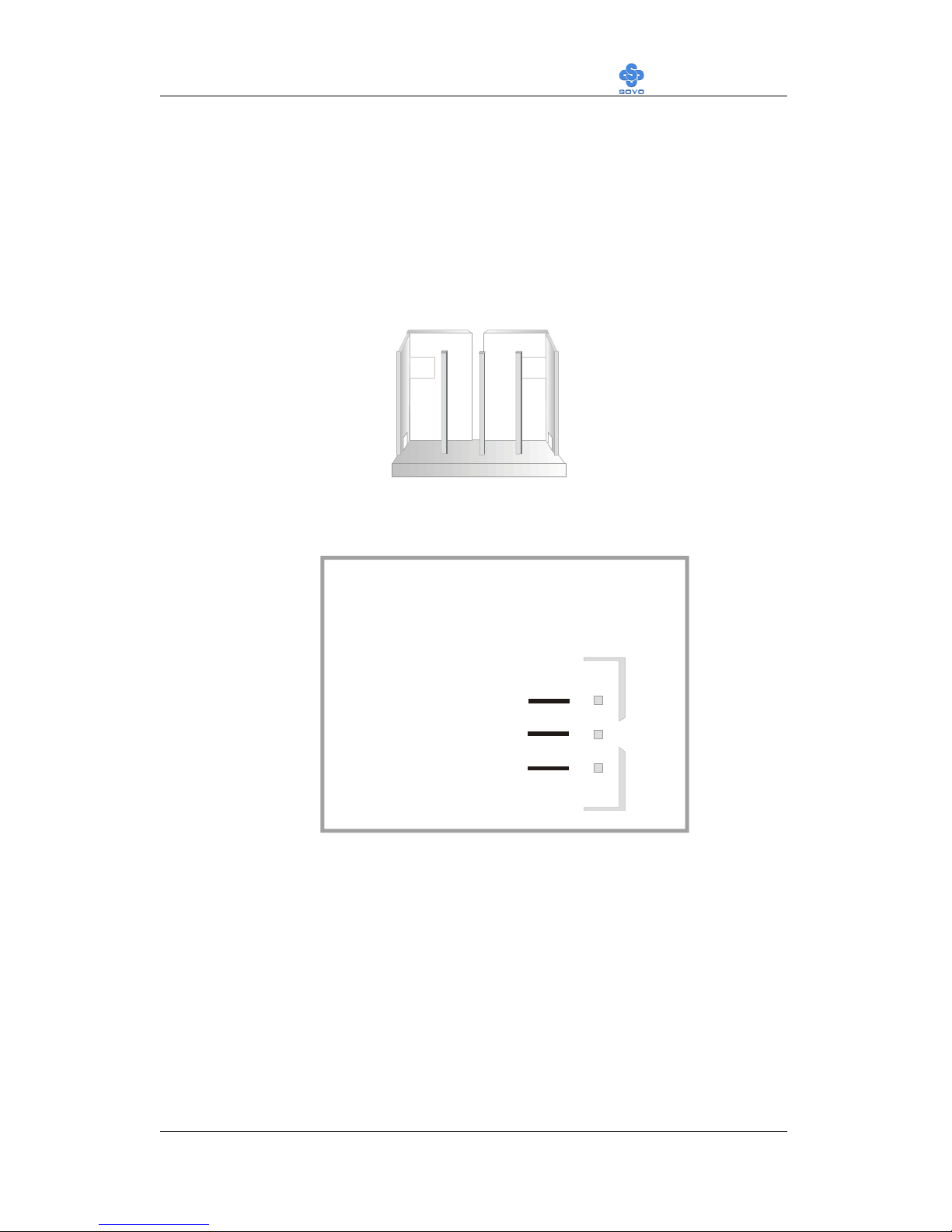

4. Cooling Fan Installation

(1) CPU Cooling Fan

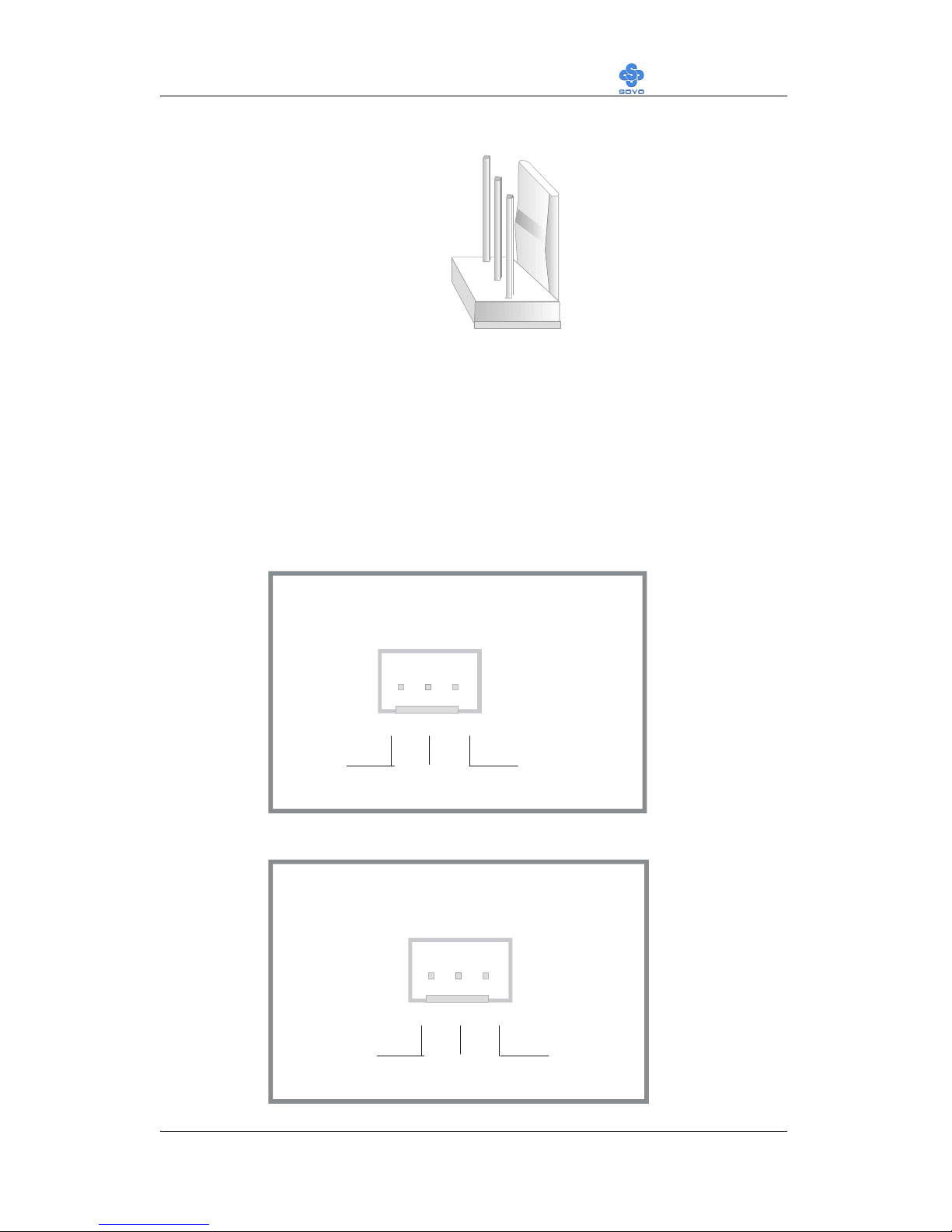

After you have seated the CPU properly on the processor, attach the 3-pin fan cable to the CPUFAN connector on the Motherboard. The fan will stop when the system enters into Suspend Mode. (Suspend mode can be enabled from the BIOS Setup Utility, [POWER MANAGEMENT] menu.) To avoid damage to the system, install according to the following pin assignment:

CPU Cooling Fan

CPUFAN Pin Assignment

SENSOR

12VGND

132

CPU Cooling Fan

CPUFAN2 Pin Assignment

12V

GND

132

Page 42

BIOS Setup Utility SY-K7VTA-B

(2) Chassis Cooling Fan

Some chassis also feature a cooling fan. This Motherboard features a CHAFAN connector to provide 12V power to the chassis fan. Connect the cable from the chassis fan to the CHAFAN 3-pin connector. Install according to the following pin assignment:

Note: CPUFAN must be installed for this Motherboard, CHAFAN is optional.

5. CD Line-in (CDIN1)

This Motherboard provides two CD-Line in connectors. Please connect the 4-pin audio cable from your CD-ROM drive to either CDIN1. (It fits in only one, depending on the cable that came with your CD-ROM drive) Please install according to the following pin assignment:

CD-IN: CDIN1

Left

Right

GND GND

SENSOR

12V

GND1

Chassis Cooling Fan

CHAFAN1 Pin Assignment

Page 43

BIOS Setup Utility SY-K7VTA-B

2-3.3.6 AGP VGA Card

Insert the AGP VGA card into the AGP slot. Then connect the monitor information cable to the AGP card back plane external connector. Follow the manufacturer's instructions to perform the AGP VGA drivers installation.

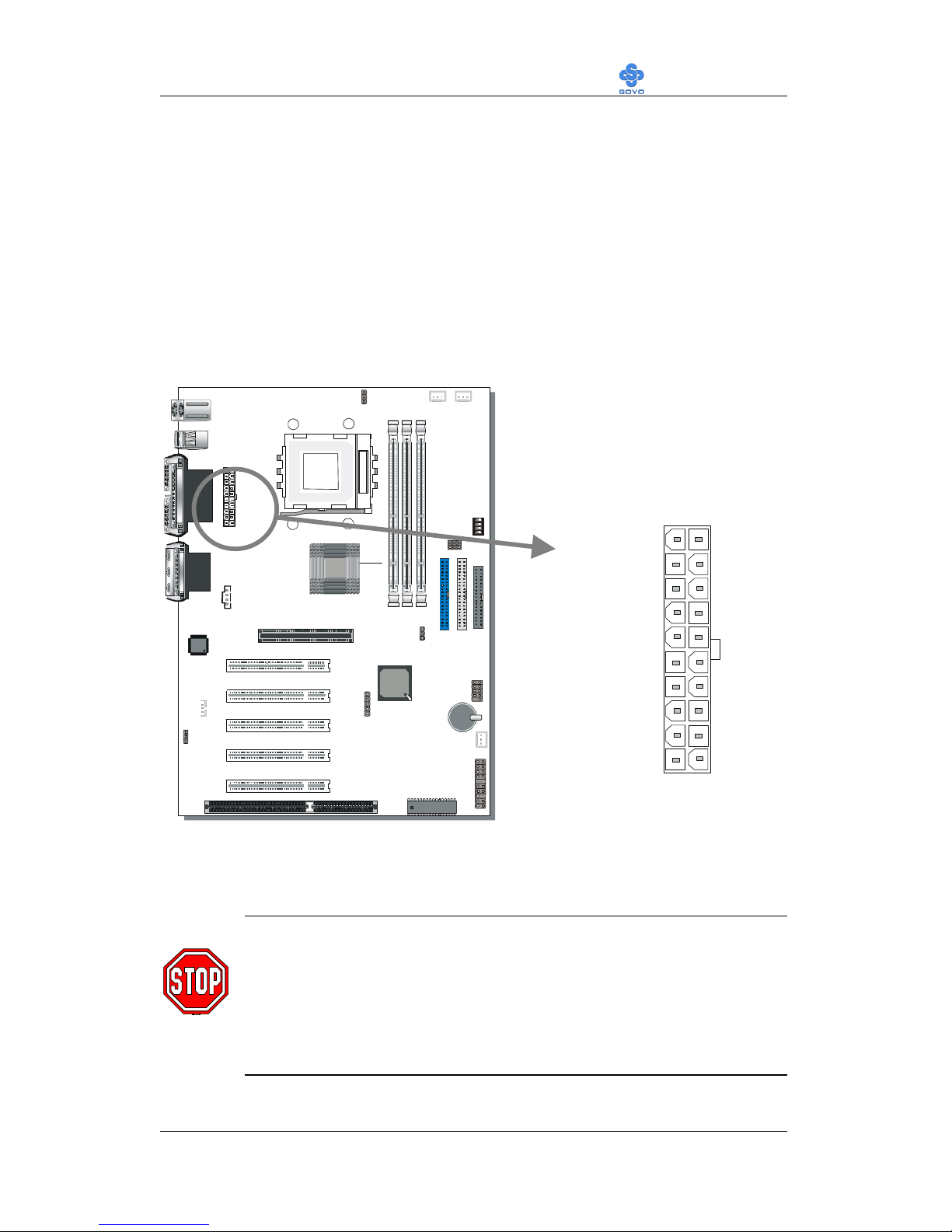

2-3.3.7 ATX Power Supply

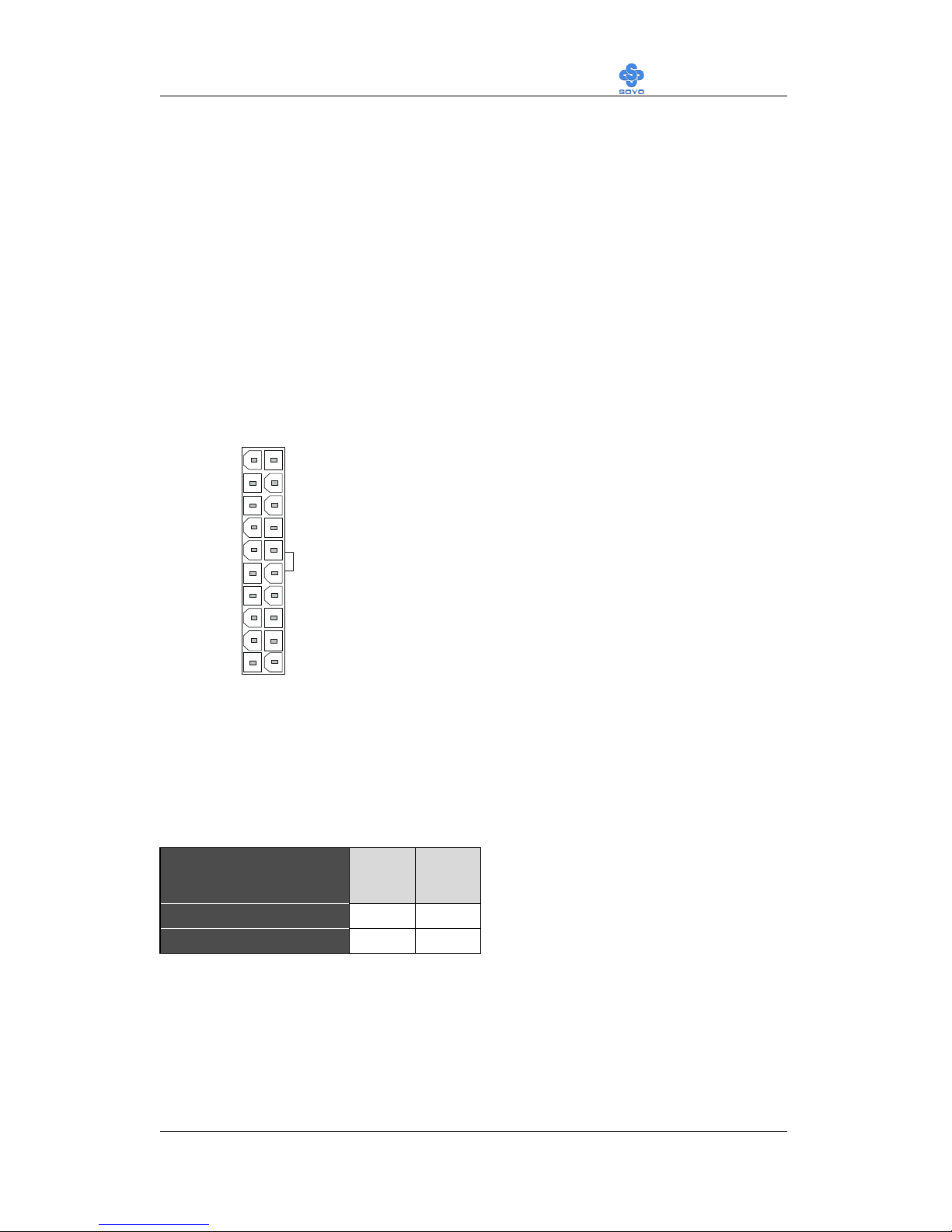

Plug the connector from the power directly into the 20-pin male ATX PW connector on the Motherboard, as shown in the following figure.

Warning: Follow these precautions to preserve your Motherboard from any remnant currents when connecting to ATX power supply:

Turn off the power supply and unplug the power cord of the ATX power supply before connecting to ATX PW connector.

SDRAM

ATX Power

Page 44

BIOS Setup Utility SY-K7VTA-B

3.3V

-12V

GND

PS-ON

GND

-5V

3.3V

GND

PW-OK

5VSB

12V

ATX Power

The Motherboard requires a power supply with at least 200 Watts and a "power good" signal. Make sure the ATX power supply can take at least 720 mA * load on the 5V Standby lead (5VSB) to meet the standard ATX specification.

* Note: If you use the Wake-On-LAN (WOL) function, make sure the ATX power supply can support at least 720 mA on the 5V Standby lead (5VSB). Please install the ATX power according to the following pin assignment:

Ø Pay special care to the directionality.

2-3.4 Jumper Setting

Ratio Adjustment Setting (RJ1)

Refer to the following table to set the Frequency Multiplier of your CPU.

Frequency

Multiplier Setting

J2 J3

Auto

1-2 1-2

Manual

2-3 2-3

Page 45

BIOS Setup Utility SY-K7VTA-B

If you set ratio to manual and configure the RJ1 jumper to the settings that match your CPU speed as follow table.

RJ1 1 2 3 4 RJ1 1 2 3 4

5 on

off

on on 9

off off

on on

5.5 on

off

9.5

off off

off

6 on

off off

on 10

off off off

6.5 on

off off off

10.5

off off off off

off

on on on 11 on on on on

7.5

off

on on

off

11.5 on on on

off

on 12 on on

off

8.5

off

off off

12.5 on on

off off

Note: SOYO does not guarantee system stability if the user over clocks the system. Any malfunctions due to over-clocking are not covered by the warranty.

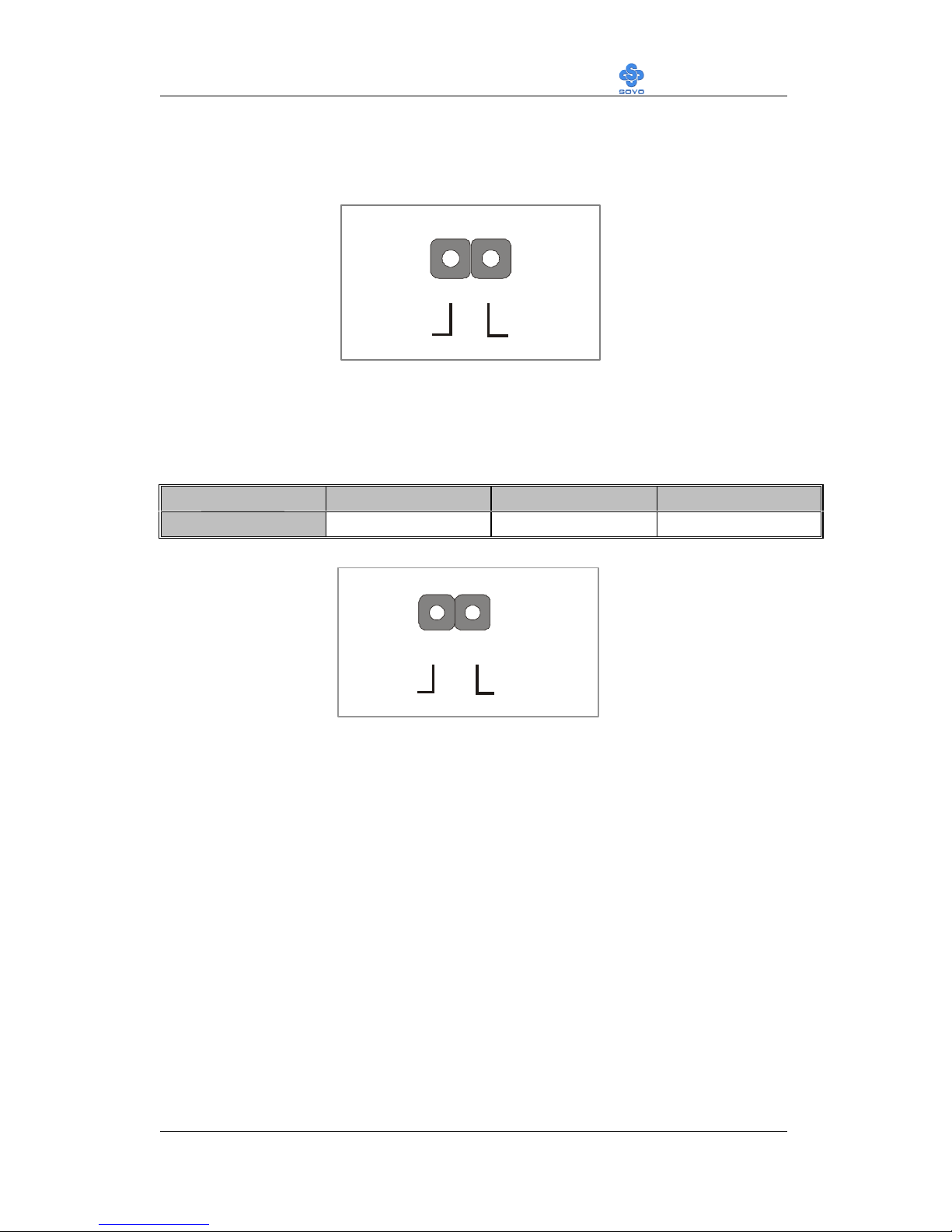

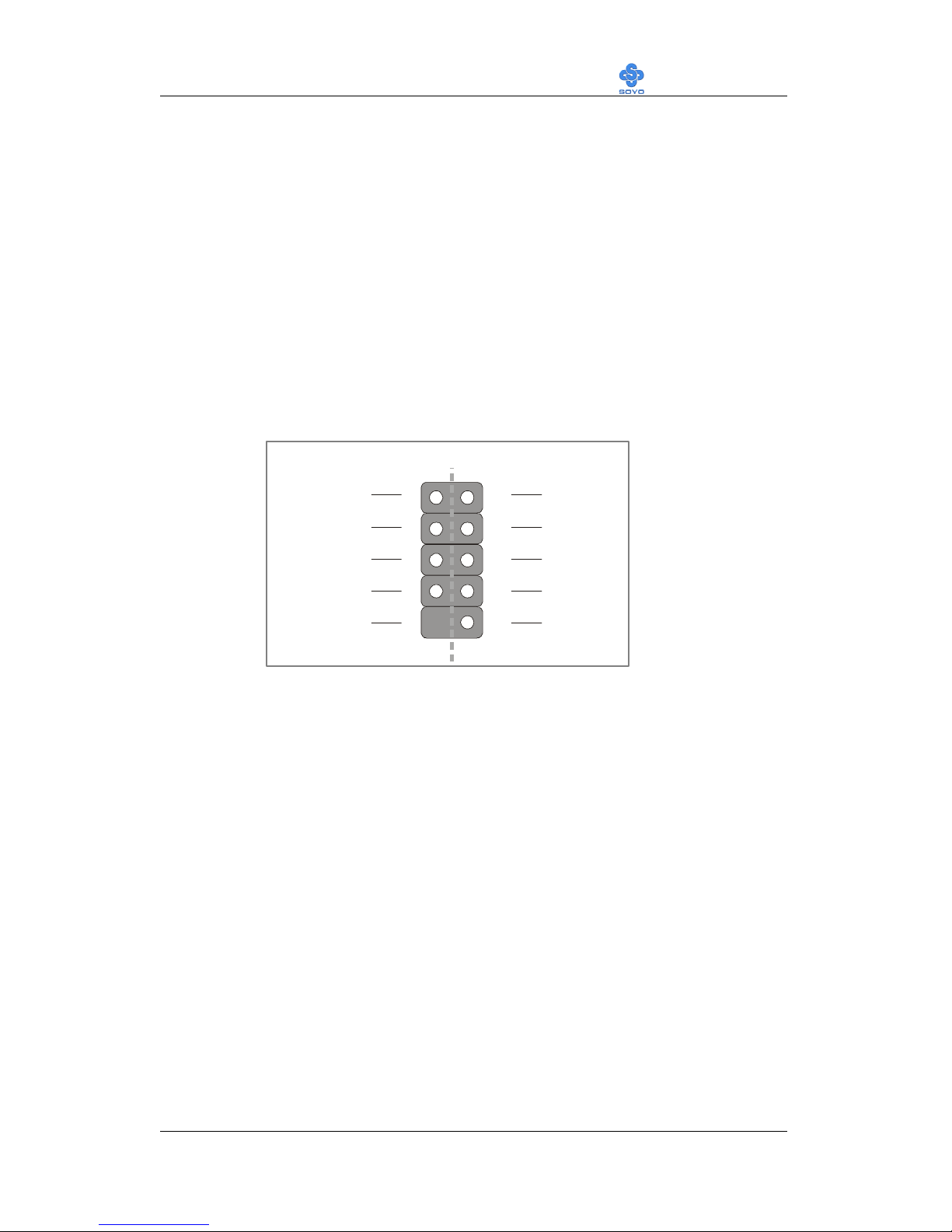

2-3.5 CMOS Clearing (JP5)

After you have turned off your computer, clear the CMOS memory by momentarily shorting pins 2-3 on jumper JP5, for a few seconds. Then restore JP5 to the initial 1-2 jumper setting in order to recover and retain the default settings. Jumper JP5 can be easily identified by its white colored cap.

CMOS

Clearing

Clear CMOS Data Retain CMOS Data

JP5 Setting

Short pin 2-3 for at least 5 seconds to clear the CMOS

Short pin 1-2 to retain new settings

Note: You must unplug the ATX power cable from the ATX power connector when performing the CMOS Clear operation.

123

Page 46

BIOS Setup Utility SY-K7VTA-B

2-3.6 Power On

You have now completed the hardware installation of your Motherboard successfully.

1. Turn the power on

2. To enter the BIOS Setup Utility, press the <DEL> key while the system

is performing the diagnostic checks,

Note: If you have failed to enter the BIOS, wait until the boot up sequence is completed. Then push the RESET button and press <DEL> key again at the beginning of boot-up, during diagnostic checks.

Repeat this operation until you get the following screen.

3. The BIOS Setup screen appears:

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

4Soyo Combo Feature 4PC Health Status 4Standard CMOS Features Load Fail - Safe Defaults 4Advanced BIOS Features Load Optimized Defaults 4Advanced Chipset Features Set Supervisor Password 4Integrated Peripherals Set User Password 4Power Management Setup Save & Exit Setup 4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Page 47

BIOS Setup Utility SY-K7VTA-B

2-3.7 Quick BIOS Setup

This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings are software configurable with the BIOS [SOYO COMBO SETUP]. The [SOYO COMBO SETUP] menu combines the main parameters that you need to configure, all in one menu, for a quick setup in BIOS. After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the system diagnostic checks to enter the Award BIOS Setup program. The CMOS SETUP UTILITY will display on screen. Follow these steps to configure the CPU settings.

Step 1. Select [STANDARD CMOS SETUP]

Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to “Auto”.

Step 2. Select [LOAD SETUP DEFAULT]

Select the “LOAD SETUP DEFAULT” menu and type “Y” at the prompt to load the BIOS optimal setup.

Step 3. Select [SAVE & EXIT SETUP]

Press <Enter> to save the new configuration to the CMOS memory, and continue the boot sequence.

Page 48

BIOS Setup Utility SY-K7VTA-B

2-3.8 Troubleshooting at First Start

Video (no display) related issues

I built a new computer system using a Soyo board and nothing happens when turning it on, no video and no beeps from the PC speaker. What is happening and how can it be fixed?

No screen and no beeps mean that your CPU and motherboard do not work at all. It could be that the CPU is not seated correctly or that a component on the M/B is grounded (shorted) with the case. Also make sure to check the voltage setting switch (110V/220V) on the back of the power supply. To isolate the problem do the following:

1. Press and hold down on the “Ins” (insert) key while turning on the computer until you get video. If you do not get video then,

2. Double-check jumpers setting on you motherboard and remove all add-on cards, unplug all hard-disk and floppy-disk drive cables and see if you can hear some beeps. If you still do not get any beeps, then try putting the motherboard on the table (to isolate it from the case) with the CPU and speaker only, and give it one more try.

I hear a series of beeps and I do not get anything from my monitor. What could be wrong?

The following lists some basic beep codes and their possible meanings:

• One long beep and 3 very short beeps - The video card is not

detected by the motherboard. Please re-seat your video card. If you are using an AGP card, please push your AGP card down real hard. You may have to push VERY hard without the AGP card mounting screw. Make sure not to insert the card the other way around.

• Continuous beeps – One or more of the memory modules is not

seated correctly in its socket.

Page 49

BIOS Setup Utility SY-K7VTA-B

My PCI VGA card works fine with my system, but when I put in a new AGP card, it does not give me any video. Is my AGP slot bad?

This is a common problem with AGP video cards. The reason is that your AGP card did not get seated into the AGP slot fully and firmly. Please push your AGP card down into the socket real hard, it should snap twice. You may have to unscrew the AGP card to allow the card to go further down. Do take care not to damage the card by using too much force.

I get distorted video my AGP card right after I save my bios. Why is that?

The cause is likely that your AGP card is not running at the correct bus speed. To fix this, please clear the CMOS via JP5 and if it still does not work, please upgrade your motherboard bios to the latest version.

BIOS Issues

Where can I find the BIOS revision of my mainboard?

It will be displayed on the up-left corner on the screen during boot-up. It will show as your board type followed by the revision number, such as 5EH_2CA1 (meaning revision 2CA1 for the SY-5EH board) or 6BA+ IV_2AA2 which means SY-6BA+ IV motherboard with 2AA2 bios.

Where can I find the latest BIOS of my motherboard?

Please go to the technical support page of one of the SOYO websites (Taiwan: www.soyo.com.tw), and look up your motherboard to find the latest BIOS revision.

Hard disk, floppy drive, CD-ROM etc

When I boot up my new computer I got "floppy boot failure" and the LED on the floppy stays on

Make sure the red wire of floppy ribbon cable goes to Pin1 on the floppy drive side (don't trust the "key lock" or "notch") and use the end-connector of the cable (don't use middle one).

Modem issues

I get an "I/O Conflict" message when I turn on my system and I can not get my modem to work

Page 50

BIOS Setup Utility SY-K7VTA-B

What you need to do is to disable 'COM2' (or UART2 or serial port 2) in the bios under integrated peripheral setup.

I have installed my modem drivers several times and I still cannot get my modem to work. Why?

If you are sure that the modem driver has been installed correctly, then you need to install the south bridge driver from the SOYO CD, this is because Windows does not properly recognize relatively new chipsets.

Audio Issues

I do not get any sound from my sound card. What could be wrong?

Please make sure the speaker is connected to the speaker out port on your sound card.

In Device Manager, I keep getting yellow exclamation signs on my sound port even though I have installed my sound driver several times and I could not get my sound card to work. What is wrong?

It is likely that you did not have the correct driver installed. If you are sure that the correct sound driver has been installed, then please install the 'south bridge' driver for the motherboard.

The sound is working in my system, but when I play CD music from the CD-ROM, I do not get any sound. What is wrong?

This is because the 3-wire audio cable from the CD-ROM to the sound card is not connected or it is loose.

The sound from my sound card is distorted when Windows starts. What is wrong?

First, if you are using an ISA sound card, please make sure the IRQ needed for the sound card is set to 'Legacy ISA' in the bios. In other words, if your ISA sound card takes IRQ5, then set IRQ5 to 'Legacy ISA'. Next, install the 'south bridge' driver for the motherboard.

The sound and everything else works fine except that the recorder and microphone do not work. What is wrong?

Page 51

BIOS Setup Utility SY-K7VTA-B

This is because the recorder and microphone in the Windows are not enabled. Please go to sound properties and enable them.

Lock up (freeze)

When I boot up my system, everything works fine. It sees my CPU and memory, detects my hard drive, floppy drive and CD-ROM but locks up at "Verify DMI pool data... ", and it won’t go any further. What should I do?

Please clear the CMOS via JP5 then choose 'load setup default' in the bios and save the bios and exit. Next, unplug all other add-on cards except the video card and floppy drive controller, and see if it can boot from floppy. Then put back the peripherals one by one to identify which one causes the lockup. If you are running a Cyrix CPU, make sure the 'linear burst function' is enabled in the bios.

I can not get my board to run properly.

Please make sure you have the latest bios and driver from the SOYO web site at: http://www.soyo.com

2-3.9 Power Off

There are two possible ways to turn off the system:

1. Use the Shutdown command in the Start Menu of Windows 95/98

to turn off your computer.

2. Press the mechanical power-button and hold down for over 4

seconds, to shutdown the computer. If you press the power-button for

less than 4 seconds, then your system will enter into Suspend Mode.

You are now ready to configure your system with the BIOS setup program. Go to Chapter 3: BIOS SETUP

Page 52

BIOS Setup Utility SY-K7VTA-B

Chapter 3

BIOS SETUP UTILITY

This Motherboard's BIOS setup program uses the ROM PCI/ISA BIOS program from Award Software Inc. To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the Award

BIOS Setup Utility.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

4SOYO COMBO Feature 4PC Health Status 4Standard CMOS Features Load Fail - Safe Defaults 4Advanced BIOS Features Load Optimized Defaults 4Advanced Chipset Features Set Supervisor Password 4Integrated Peripherals Set User Password 4Power Management Setup Save & Exit Setup 4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Selecting items

l Use the arrow keys to move between items and select fields. l From the Main Menu press arrow keys to enter the selected submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected fields.

Some fields let you enter values directly.

Page 53

BIOS Setup Utility SY-K7VTA-B

Hot Keys: Function keys give you access to a group of commands

throughout the BIOS utility.

Function Command Description

General Help

Gives the list of options available for each item.

Previous Values

Restore the old values. These are the values that the user started the current session with.

Load FailSafe Defaults

Loads all items with the most conservative values.

Load Optimized Defaults

Loads all options with the optimize values.

F10

Save Saves your changes and reboots the system.

[Esc] Exit

Returns at anytime and from any location to the Main Menu.

[Enter]

Select

Will display a overlapping window with all options for the current item.

[+/–/PU/PD] Value

Using the +, –, Page Up and Page Down keys the user can toggle the value of the current item.

Page 54

BIOS Setup Utility SY-K7VTA-B

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to save data to CMOS and exit the setup utility. This option saves all your changes and causes the system to reboot.

Type [Y] to save the changes and exit or [N] to return to the Main Menu and keep current values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to abandon all data and exit setup, therefore ignoring all your changes.

Type [Y] to abandon changes and exit or [N] to return to the Main Menu and keep current values.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

Esc

F10

: Quit : Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item : Change Color

Time, Date, Hard Disk Type…

SAVE to CMOS and EXIT

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

Esc

F10

: Quit : Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item : Change Color

Time, Date, Hard Disk Type…

Quit Without Saving (Y/N)? _

Page 55

BIOS Setup Utility SY-K7VTA-B

3-1 SOYO COMBO SETUP

This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings are software configurable with the BIOS

[SOYO COMBO SETUP].

After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the system diagnostic checks to enter the Award BIOS Setup program. The CMOS SETUP UTILITY will display on screen. Then, select the [SOYO COMBO SETUP] option from the main menu and press the <Enter> key.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

SOYO COMBO Feature

Auto Detect DIMM/PCI Clk Enabled Spread Spectrum Modulated Disabled

Item Help

CPU Host/PCI Clock Default CPU Vcore Select Default CPU L2 Cache ECC Checking Enabled BIOS Write Protection Enabled Quick Power On Self Test Enabled

First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device LS120 Boot Other Device Enabled

OnChip Sound Auto

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

The [SOYO COMBO SETUP] menu combines the main parameters that you need to configure, all in one menu, for a quick setup in BIOS.

Page 56

BIOS Setup Utility SY-K7VTA-B

3-1.1

Setting Description Note

Disabled For EMI test purpose.

Auto Detect DIMM/PCI Clk

Enabled Default Disabled Default

Spread Spectrum Modulated

Enabled When using Spread Spectrum

Modulated 1.5% or 6% for FCC or DOC testing.

Default 109/36 MHz

Default

101/33 MHz 110/36 MHz 102/34 MHz 111/37 MHz 100/33 MHz 113/37 MHz 103/34 MHz 115/38 MHz 105/35 MHz 117/39 MHz

CPU Host/PCI Clock

107/35 MHz 120/40 MHz

This item lists the CPU host clock and the PCI bus clock. It is a read only item.

Default +0.200V Default +0.025V +0.225V +0.050V +0.250V +0.075V -0.025V +0.100V -0.050V +0.125V -0.075V +0.150V -0.100V

CPU Vcore Select

+0.175V

This function adjust the CPU voltage.

3-1.2 L2 Cache Memory

Setting Description Note

Disabled

CPU L2 Cache ECC Checking

Enabled

This option activates the CPU L2 cache ECC checking function.

Default

Page 57

BIOS Setup Utility SY-K7VTA-B

3-1.3 BIOS Write Protection

Setting Description Note

Disabled

BIOS Write Protection

Enabled

When set to enabled, the BIOS can only be programmed through AWDFLASH, making sure that any virus is unable to program the system BIOS. Set to disable the BIOS can be programmed the traditional way.

Default

3-1.4 Quick Power On Self Test

Setting Description Note

Disabled

Quick Power On Self Test

Enabled Provides a fast POTS at boot-up. Default

3-1.5 System Boot Control Settings

System Boot Control Settings

Setting Description Note

Floppy LS/ZIP HDD-0 SCSI CDROM HDD-1 HDD-2 HDD-3 LAN

First /Second/Third Boot Device

Disabled

Select Your Boot Device Priority

Disabled

Boot Other Device

Enabled

Select Your Boot Device Priority

Default

Disabled

OnChip Sound

Auto

This item allows you to control the onboard AC 97 audio.

Default

Page 58

BIOS Setup Utility SY-K7VTA-B

3-2 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu and press [Enter] key.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

Standard CMOS Features

Date (mm:dd:yy) Tue, Jan 4 2000 Time (hh:mm:ss) 1 : 22 : 12

Item Help

4 IDE Primary Master Maxtor 82160D2 4 IDE Primary Slave None 4 IDE Secondary Master None 4 IDE Secondary Slave NEC

Drive A 1.44M, 3.5 in. Drive B None Floppy 3 Mode Support Disabled

Video EGA/VGA Halt On All Errors

Base Memory 640K Extended Memory 64512K Total Memory 65536K

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

This screen allows you to modify the basic CMOS settings. After you have completed the changes, press [Esc] key to return to the Main Menu.

3-2.1 Date & Time

Display Setting Please Note

Date

mm/dd/yyyy Type the current date You can also the

PUp/PDn keys to toggle

Time

hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed as 15:15:00

Page 59

BIOS Setup Utility SY-K7VTA-B

3-2.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already installed.

Primary (Secondary) Master & Slave

Setting Description Note

IDE HDD AutoDetection

Press Enter

To auto-detect the HDD’s size, head… on this channel

Auto BIOS detects hard disk type

automatically.

Default

User User defines the type of hard disk.

IDE Primary Slave (User Type)

None Auto BIOS detects hard disk mode

automatically.

Default

Normal Normal IDE hard disk <528MB LBA Enhanced IDE hard disk >528MB

Access Mode

Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or mode, ask your hard disk provider or previous user for details.

3-2.3 Floppy Drives

Floppy Drives Setting Description Note

360KB, 5.25 in.

1.2MB, 5.25 in. 720KB, 3.5 in.

1.44MB, 3.5 in. Default

2.88MB, 3.5 in.

Drives A & B

None Not installed Disabled Default

Floppy 3-Mode Support

Drive A Drive B Both

Supports 3-mode floppy diskette: 740KB/1.2MB/

1.44MB on selected disk drive.

Special disk drive commonly used in Japan

Page 60

BIOS Setup Utility SY-K7VTA-B

3-2.4 Others Optional

Setting Description Note

EGA/VGA Default CGA 40 CGA 80

Video

MONO (Monochrome)

Select the video mode.

ALL Errors Default No Errors All, But Keyboard All, But Diskette

Halt On

All, But Disk/Key

When the BIOS detects system errors, this function will stop the system. Select which type of error will cause the system halt.

Page 61

BIOS Setup Utility SY-K7VTA-B

3-3 ADVANCED BIOS FEATURES

Select the [Advanced BIOS Features] option from the Main Menu and press [Enter] key.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

Advanced BIOS Features

Virus Warning Disabled

CPU Internal Cache Enabled

Item Help

External Cache Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up NumLock Status On Gate A20 Option Fast

Typematic Rate Setting Disabled

x Typematic Rate (Chars/Sec) 6 x Typematic Delay (Msec) 250

Security Option Setup

OS Select For DRAM > 64MB Non-OS2

HDD S.M.A.R.T. Capability Disabled

Video BIOS Shadow Enabled

C8000-CBFFF Shadow Disabled

CC000-CFFFF Shadow Disabled

D0000-D3FFF Shadow Disabled

D4000-D7FFF Shadow Disabled

D8000-DBFFF Shadow Disabled

DC000-DFFFF Shadow Disabled 6

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

After you have completed the changes, press [Esc] key and follow the instructions on your screen to save your settings or exit without saving.

Page 62

BIOS Setup Utility SY-K7VTA-B

3-3.1 Virus Warning

Setting Description Note

Disabled Default

Virus Warning

Enabled

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.

3-3.2 Cache Memory Options

Setting Description Note

Disabled

CPU Internal Cache

Enabled Enables the CPU's internal

cache.

Default

Disabled

External Cache

Enabled Enables the external

memory.

Default

3-3.3 Floppy Driver Settings

Setting Description Note

Disabled Default

Swap Floppy Drive

Enabled Changes the sequence of A and B

drives.

3-3.4 Boot Up Floppy Seek

Setting Description Note

Disabled

Boot Up Floppy Seek

Enabled

Seeks disk drives during boot up. Disabling speeds boot up.

Default

Page 63

BIOS Setup Utility SY-K7VTA-B

3-3.5 Boot Up NumLock Status

Setting Description Note

On Puts numeric keypad in

NumLock mode at boot-up.

Default

Boot Up NumLock Status

Off Puts numeric keypad in arrow key

mode at boot-up.

3-3.6 Gate A20 Options

Setting Description Note

Normal Lets chipset control GateA20.

Gate A20 Options

Fast A pin in the keyboard controller

controls GateA20.

Default

3-3.7 Typematic Settings

Typematic Settings Setting Description Note

Disabled Keystrokes repeat at a rate

determined by the keyboard.

Default

Typematic Rate Setting

Enabled When enables , the

typematic rate and typematic delay can be selected.

The following [Typematic Rate] and [Typematic Delay] fields are active only if [Typematic Rate Setting] is set to [Enabled]

Typematic Rate

6 (Char/sec) 8 (Char/sec) 10 (Char/sec) 12 (Char/sec) 15 (Char/sec) 20 (Char/sec) 24 (Char/sec) 30 (Char/sec)

Choose the rate at which a character is repeated when holding down a key.

Default

Typematic Delay

250 (msec) 500 (msec) 750 (msec) 1000 (msec)

Choose how long after you press a key down the character begins repeating.

Default

Page 64

BIOS Setup Utility SY-K7VTA-B

3-3.8 Security Option

Use this feature to prevent unauthorized system boot-up or use of BIOS Setup. The following table describes the security settings.

Setting Description

System Each time the system is booted, the

password prompt appears.

Security Option

Setup If a password is set, the password prompt

only appears when you attempt to enter the BIOS Setup program.

3-3.9 Other Control Options

Other Control Options

Setting Description Note

OS2 When using an OS2 operating

system.

OS Select for DRAM>64MB

Non-OS2 When using another,

non-OS2 operating system.

Default

Disabled Default

HDD S.M.A.R.T. Capability

Enabled Enable this field when your HDD

supports the S.M.A.R.T. function. Consult your HDD provider for details.

Disabled Enabled

Video BIOS Shadow

The BIOS is shadowed in a 16K segment if it is enabled and if it has BIOS present. These 16 segments can be shadowed from ROM to RAM. BIOS shadow copies BIOS code from slower ROM to faster RAM. BIOS can then execute from RAM.

Default

Page 65

BIOS Setup Utility SY-K7VTA-B

3-4 ADVANCED CHIPSET FEATURES

Caution: Change these settings only if you are already familiar with the Chipset.

The [Advanced Chipset Features] option changes the values of the chipset registers. These registers control the system options in the computer.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

Advanced Chipset Features

DRAM Timing By SPD Disabled

DRAM Clock 100MHz

Item Help

SDRAM Cycle Length 3 Bank Interleave Disabled Memory Hole Disabled PCI Master Dipeline Req Enabled P2C/C2P Concurrency Enabled Fast R-W Turn Around Disabled System BIOS Cacheable Disabled Video RAM Cacheable Disabled AGP Aperture Size 64M AGP-4X Mode Enabled AGP Driving Control Auto

x AGP Driving Value DA

OnChip USB Enabled USB Keyboard Support Disabled CPU to PCI Write Buffer Enabled PCI Dynmic Bursting Enabled PCI Master 0 WS Write Enabled PCI Delay Transaction Enabled PCI#2 Access #1 Retry Enabled AGP Master 1 WS Write Disabled AGP Master 1 WS Read Disabled

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Page 66

BIOS Setup Utility SY-K7VTA-B

After you have completed the changes, press [Esc] and follow the instructions on your screen to save your settings or exit without saving. The following table describes each field in the Advanced Chipset Features Menu and how to configure each parameter.

3-4.1 CHIPSET FEATURES SETUP

CHIPSET FEATURES

Setting Description Note

Disabled

DRAM Timing By SPD

Enabled

If enable the DRAM will auto detect the DRAM timing

Default

100MHz Default

DRAM Clock

133MHz

This item allows you to control the DRAM speed.

SDRAM Cycle Length

3 2

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer.

Default

Disabled Default

Bank Interleave

Enabled

Increase DRAM performance.

Disabled Default

Memory Hole

Enabled Some interface cards will map

their ROM address to this area. If this occurs, select [Enabled] in this field.

Disabled

PCI master Pipeline Req

Enabled

Disabled/Enabled PCI Master Pipeline Req.

Default

Disabled

P2C/C2P Concurrency

Enabled

This item allows you to enable/disable the PCI to CPU, CPU to PCI concurrency.

Default

Page 67

BIOS Setup Utility SY-K7VTA-B

CHIPSET FEATURES SETUP (Continued)

CHIPSET FEATURES

Setting Description Note

Disabled Default

Fast R-W Turn Around

Enabled

This item controls the DRAM timing. It allows you to enable/ disable the fast read/write turn around.

Disabled Default

System BIOS Cacheable

Enabled The ROM area F0000H-FFFFFH is

cacheable.

Disabled Default

Video RAM Cacheable

Enabled

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer

64M Default

AGP Aperture Size

4M, 8M, 16M, 32M, 128M, 256M.

Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation.

Disabled

AGP-4X Mode

Enabled

This item allows you to enable / disable the AGP-4X Mode.

Default

Auto Default

AGP Driving Control

Manual

This item allows you to adjust the AGP driving force. Choose Manual to key in a AGP Driving Value in the next selection. This field is recommended to set in Auto for avoiding any error in your system.

AGP Driving Value

Min=0000 ~ Max=00FF

This item allows you to adjust the AGP driving force.

Page 68

BIOS Setup Utility SY-K7VTA-B

CHIPSET FEATURES SETUP (Continued)

CHIPSET FEATURES

Setting Description Note

Disabled

OnChip USB

Enabled

This should be enabled if your system has a USB installed on the system board and you want to use it. Even when so equipped, if you add a higher performance controller, you will need to disable this feature.

Default

Disabled Default

USB Keyboard Support

Enabled Select Enabled if your system

contains a Universal Serial Bus (USB) controller and you have a USB keyboard.

Disabled

CPU to PCI Write Buffer

Enabled

When this field is Enabled, writes from the CPU to the PCI bus are buffered, to compensate for the speed differences between the CPU and the PCI bus. When Disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another write cycle.

Default

Disabled

PCI Dynmic Bursting

Enabled

When Enabled, every write transaction goes to the write buffer. Burstable transactions then burst on the PCI bus and nonburstable transactions don’t.

Default

Disabled

PCI Master 0 WS Write

Enabled

When Enabled, writes to the PCI bus are executed with zero wait states.

Default

Page 69

BIOS Setup Utility SY-K7VTA-B

CHIPSET FEATURES SETUP (Continued)

CHIPSET FEATURES

Setting Description Note

Disabled

PCI Delay Transaction

Enabled

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1.

Default

Disabled

PCI#2 Access #1 Retry

Enabled

When disabled, PCI#2 will not be disconnected until access finishes (difault). When enabled, PCI#2 will be disconnected if max retries are attempted without success.

Default

Disabled Default

AGP Master 1 WS Write

Enabled When Enabled, writes to the

AGP(Accelerated Graphics Port) are executed with one wait states.

Disabled Default

AGP Master 1 WS Read

Enabled When Enabled, read to the AGP

(Accelerated Graphics Port) are executed with one wait states.

Page 70

BIOS Setup Utility SY-K7VTA-B

3-5 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already familiar with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of the chipset registers. These registers control the system options in the computer. The following screen shows setup default settings.

CMOS Setup Utility – Copyright ( C ) 1984-2000 Award Software

Integrated Peripherals

OnChip IDE Channel0 Enabled 5

OnChip IDE Channel1 Enabled

Item Help

IDE Prefetch Mode Enabled

Primary Master PIO Auto

Primary Slave PIO Auto

Secondary Master PIO Auto

Secondary Slave PIO Auto

Primary Master UDMA Auto

Primary Slave UDMA Auto

Secondary Master UDMA Auto

Secondary Slave UDMA Auto

Init Display First PCI Slot

IDE HDD Block Mode Enabled

Onboard FDD Controller Enabled

Onboard Serial Port 1 3F8/IRQ4

Onboard Serial Port 2 2F8/IRQ3

UART 2 Mode Standard

x IR Function Duplex Half x TX,RX inverting enable No, Yes

Onboard Parallel Port 378/IRQ7

Onboard Parallel Mode Normal

x ECP Mode Use DMA 3 x Parallel Port EPP Type Epp1.9

Onboard Legacy Audio Enabled

Sound Blaster Disabled

SB I/O Base Address 220H

SB IRQ Select IRQ 5

SB DMA Select DMA 1

MPU-401 Disabled

MPU-401 I/O Address 330-333H

Game Port (200-207H) Enabled 6

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Page 71

BIOS Setup Utility SY-K7VTA-B

The following tables describe each field in the INTEGRATED PERIPHERALS Menu and provide instructions on how to configure the IDE controls, FDC controls, and the onboard serial and parallel ports.

3-5.1 IDE Device Controls

IDE Controls Setting Description Note

Disabled Turn off the on-board IDE

On-Chip PCI IDE

Ø Primary Ø Secondary

Enabled Use the on-board IDE Default

Disabled

IDE Prefetch Mode

Enabled

The onboard IDE drive interfaces supports IDE prefetching for faster drive accesses. If you install a primary and/or secondary add-in IDE interface, set this field to Disabled if the interface does not support prefetching.

Default

mode 0-4 0 is the slowest speed

4 is the fastest speed

IDE

Ø Primary Master PIO Ø Primary Slave PIO Ø Secondary Master PIO

Ø Secondary Slave PIO

Auto For better performance and

stability, we suggest you use the Auto setting to set the HDD control timing.

Default

Disabled

IDE

Ø Primary Master UDMA Ø Primary Slave UDMA Ø Secondary Master UDMA Ø Secondary Slave UDMA

Auto Select Auto to enable Ultra

DMA Mode support.

Default

3-5.2 Keyboard Controls

Keyboard Controls Setting Description Note

PCI Slot Default

Init Display First

AGP

Choose which card – AGP Display card or PCI VGA card – to initialize first.

Page 72

BIOS Setup Utility SY-K7VTA-B

3-5.3 IDE HDD Block Mode

Setting Description Note

Disabled

IDE HDD Block Mode

Enabled Invokes multi-sector

transfer instead of one sector per transfer. Not all HDDs support this function.

Default

3-5.4 FDD Controls

FDD Controls Setting Description Note

Disabled Turn off the on-board

floppy controller

Onboard FDD controller

Enabled Use the on-board floppy

controller

Default

3-5.5 Onboard Serial Ports

Onboard Serial Ports

Setting Description Note

Disabled 3F8/IRQ4 Default

(port 1)

2F8/IRQ3 Default

(port 2) 3E8/IRQ4 2E8/IRQ3

Onboard Serial Port 1 / Serial Port 2

Auto

Choose serial port 1 & 2's I/O address. Do not set port 1 & 2 to the same address except for Disabled or Auto.

Standard Default HPSIR

UART 2 Mode

ASKIR

The second serial port offers these InfraRed interface modes.

If [UART Mode Select] is set to [IrDA]/[ASKIR]

Half Default

IR Function Duplex

Full

Choose [Half] or [Duplex] to set UR2 in half duplex mode or full duplex mode respectively. Refer to your IR device specifications to select the suitable mode.

Page 73

BIOS Setup Utility SY-K7VTA-B

Onboard Serial Ports(Continued)

Onboard Serial Ports

Setting Description Note

No,Yes Default

TX,RX inverting enable

No, No/ Yes, No/ Yes, Yes.

This item allow you to enable the TX, RX inverting which depends on different H/W requirement. This field is not recommended to change its default setting for avoiding any error in your system

3-5.6 Onboard Parallel Ports

Onboard Parallel Ports

Setting Description Note

Disabled 378/IRQ7 Default 3BC/IRQ7

Onboard Parallel Port

278/IRQ5

Choose the printer I/O address.

Normal Default EPP ECP

Parallel Port Mode

ECP+EPP

The mode depends on your external device that connects to this port.

If [Parallel Port Mode] is set to [ECP] mode

3 Choose DMA3 Default

ECP Mode use DMA

1 Choose DMA1

If [Parallel Port Mode] is set to [EPP] mode

EPP 1.9 Select EPP port type 1.9

Parallel Port EPP TYPE

EPP 1.7 Select EPP port type 1.7 Default

Page 74

BIOS Setup Utility SY-K7VTA-B

3-5.7 Onboard Legacy Audio

This field controls the onboard legacy audio.

Setting Description Note

Disabled

Onboard Legacy Audio

Enabled

Set this item to Enabled if using software (like DOS games) that needs a ‘legacy’ audio device.

Default

Disabled Default

Sound Blaster

Enabled

Set this item to enabled if your onboard audio-chip is sound Blaster compatible.

220H Default

SB I/O Base Address

240H 260H 280H

Select the base address for your sound Blaster (SB) compatible Audio IC.

IRQ 5 Default

SB IRQ Select

IRQ7 IRQ9 IRQ10

Select the IRQ your SB Audio IC uses.

DMA1 Default

SB DMA Select

DMA0 DMA2 DMA3

Select the DMA channel your SB Audio IC uses.

Disabled Default

MPU-401

Enabled

Set this item to enabled to make use of MIPI.

330-333H Default

MPU-401 I/O Address

300-303H 310-313H 320-323H

Select the I/O address for your MIDI functionality.

Disabled

Game Port (200-207H)

Enabled

Set this item to enabled to make use of the game port.

Default

Page 75

BIOS Setup Utility SY-K7VTA-B

3-6 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power saving functions.

Power Management Setup

Power Management Press Enter Item Help ACPI Suspend Type S1 (POS) PM Control by APM Yes Video Off Option Suspend -> Off Video Off Method V/H SYNC+Blank MODE Use IRQ 3 Soft-Off by PWRBTN Instant-Off State After Power Failure Off Wake Up Events Press Enter

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Wake Up Events

VGA OFF Item Help LPT & COM LPT/COM HDD & FDD ON PCI Master OFF Wake up On LAN/Ring Disabled RTC Alarm Resume Disabled

Primary INTR ON IRQs Activity Monitoring Press Enter

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Page 76

BIOS Setup Utility SY-K7VTA-B

After you have completed the Power Management Setup, press [Esc] to return to the Main Menu.

3-6.1 Power Management Controls

Power Management Controls

Setting Description Note

User Define Lets you define the HDD and

system power down times.

Default

Doze timer

Standby timer

Suspend timer

HDD power down

Min Saving 1 Hour 1 Hour 1 Hour 15 Min

Power Management

Max Saving 1 Min 1 Min 1 Min 1 Min S1(POS) Default

ACPI Suspend Type

S3(STR)

The system will enter the S1 state during suspend. (Low latency wake up)

Yes Default

PM Control by APM

When enabled, an Advanced Power Management device will be activated to enhance the Max. Power Saving mode and stop the CPU internal clock. If Advance Power Management (APM) is installed on your system, selecting Yes gives better power savings.

Suspend --> Off

Default

Video Off Option

Always On All Modes -> Off

When enabled, this feature allows the VGA adapter to operate in a power saving mode.

V/H Sync+Blank

Default

Blank screen

Video Off Method

DPMS

Selects the method by which the monitor is blanked.

Page 77

BIOS Setup Utility SY-K7VTA-B

Power Management Controls (Continued)

Power Management Controls

Setting Description Note

3 Default

MODEM Use IRQ

3-11, NA

Assigns an IRQ# to the modem device.

Instant-off Default

Soft-Off by PWR-BTTN

Delay 4 Sec.

Turns off the system power 4 seconds after pushing the power button.

On The system will switch on when

power comes back after a power failure.

Off The system will remain off when

power comes back after a power failure.

Default

State After Power Failure

Auto The system will return to the state

it was in before the power failure when power returns. (i.e: If the system was on, it will switch on again, if it was off, it will remain off)

Wake Up Events

Press Enter Select items that will wake up your

system when in one of sleep modes. Press enter to go the select item page.

Wake Up Events

Setting Description Note

OFF Default

VGA

ON You can set the VGA awakens the

system.

LPT/COM Default

LPT & COM

NONE LPT COM

When On of LPT & COM, any activity from one of the listed system peripheral devices or IRQs wakes up the system.

Page 78

BIOS Setup Utility SY-K7VTA-B

Wake Up Events

Setting Description Note

OFF

HDD & FDD

ON When On of HDD & FDD, any

activity from one of the listed system peripheral devices wakes up the system.

Default

OFF Default

PCI Master

ON When On of PCI Master, any

activity from one of the listed system peripheral devices wakes up the system

Disabled Default

Wake up On LAN/Ring

Enabled

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem/LAN) awakens the system from a soft off state.

Disabled The system ignores the alarm. Default

RTC Alarm Resume

Enabled Set alarm to power on the system by

the date (1-31) or time (hh:mm:ss). If the date is set to [0], the system will self-power on by alarm everyday at the set time.

ON When set to On, any event occurring

at will awaken a system which has been powered down.

Default

Primary INTR

OFF

IRQs Activity Monitoring (Press Enter)

Disabled IRQ8 (RTC Alarm), IRQ9(IRQ2 Redir),

IRQ10( Reserved), IRQ11(Reserved), IRQ15 (Reserved)

Secondary IRQ3(COM2), IRQ4(COM1), IRQ5(LPT2),

IRQ6(Floppy Disk), IRQ7(LPT1), IRQ12(PS/2 Mouse), IRQ13(Coprocessor), IRQ14(HardDsik)

Page 79

BIOS Setup Utility SY-K7VTA-B

3-7 PNP/PCI CONFIGURATION SETUP

This option sets the Motherboard's PCI Slots.

PnP/PCI Configurations

PNP OS Installed NO Reset Configuration Data Disabled

Item Help

Resources Controlled By Auto (ESCD)

x IRQ Resources Press Enter x DMA Resources Press Enter

PCI/VGA Palette Snoop Disabled

Assign IRQ For VGA Enabled

Assign IRQ For USB Enabled

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: Starred (*) items will disappear when the [Resources Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc] and follow the instructions on your screen to save your settings or exit without saving.

Page 80

BIOS Setup Utility SY-K7VTA-B

3-7.1 PNP/PCI Configuration Controls

PNP/PCI Controls

Setting Description Note

Yes Set this field to [Yes] if you

are running Windows 95, which is PnP compatible.

PnP OS Installed

No If the OS you are running

does not support PnP configuration.

Default

(If there is any doubt, set this field to [No])

Disabled Retain PnP configuration

data in BIOS.

Default

Reset Configuration Data

Enabled Reset PnP configuration data

in BIOS.

Manual BIOS does not manage PCI/ISA PnP

card IRQ assignment. Requires to assign IRQ-# and DMA-# to PCI or ISA PnP manually. IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _ DMA-0,1,3,5,6,7 assigned to: _

Resources Controlled By

Auto (ESCD)

The Plug-and-Play BIOS

auto manages PCI/ISA PnP

card IRQ assignment

automatically.

Recommended

If [Resources Controlled By] is set to [Manual]

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to PCI/ISA PnP card.

IRQ-3,4,5,7,9,10, 11,12,14,15

DMA-0,1,3,5,6,7

IRQ-# and DMA-# assigned to:

Legacy ISA Choose IRQ-# and

DMA-# assigned to Legacy ISA card.

IRQ-3,4,5,7,9,10, 11,12,14,15

DMA-0,1,3,5,6,7

Under this item the user can assign an IRQ to a PCI slot. However, there under some conditions the IRQ will not be assigned as selected under this item:

1. IRQs 0, 1, 2, 6, 8, 13 can NOT be assigned, because they are fixed.

2. IRQs 5, 9, 10, 11 are available

3. IRQs 3,4,7,12,14 and 15 will only be assigned if they are free. See the table

below on how to free them:

Page 81

BIOS Setup Utility SY-K7VTA-B

PNP/PCI Configuration Setup (Continued)

PNP/PCI Setup

Setting Description Note

How to set the BIOS to release the IRQ to the PnP Interrupt pool:

Interrupt Line

PnP / PCI configuration Integrated Peripherals

IRQ 15 IRQ 15: PCI / ISA PnP On-Chip Secondary PCI IDE: disabled IRQ 14 IRQ 14: PCI / ISA PnP On-Chip Primary PCI IDE: disabled

IRQ 12 IRQ 12: PCI / ISA PnP

Interrupt 12 will be released by the PnP BIOS automatically if the PS/2 Mouse Port is not used.

IRQ 7 IRQ 7: PCI / ISA PnP Onboard parallel port: disabled IRQ 4 IRQ 4: PCI / ISA PnP Onboard Serial port 1: disabled IRQ 3 IRQ 3: PCI / ISA PnP Onboard Serial port 2: disabled

4. Your OS may reassign another interrupt to a PCI slot after BIOS passes control

to the OS, especially if you use Windows 95, 98 or NT.

Disabled Leave this field at Disabled. Default

PCI/VGA Palette Snoop

Enabled

Disabled BIOS will assign IRQ for

VGA/USB port.

Assign IRQ For VGA/USB

Enabled BIOS won’ t assign IRQ for

VGA/USB port.

Default

Page 82

BIOS Setup Utility SY-K7VTA-B

3-7.2 MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

LPT1

378H 7 ECP/EPP

COM1

3F8H 4

COM2

2F8H 3

Warning: If a default I/O address conflicts with other I/O cards such as sound card, you must change one of the I/O addresses to remedy to this address conflict. (I/O addresses can be adjusted from the BIOS Setup Utility)

3-8 PC HEALTH STATUS

This option sets the Motherboard's PC Health Status.

PC Health Status

Current CPU Temp. 38 º C / 100 º F Current System Temp. 31 º C / 87 º F

Item Help

Current CPUFAN Speed 5002 RPM Current CHSFAN Speed 0 RPM Vcore 1.60 V

2.5V 2.44 V

3.3V 3.30 V 5V 4.80 V 12V 11.94 V

Protect CPU Overheating Enabled

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: Starred (*) items will disappear when the [Resources Controlled By] option is set to [Auto].

Page 83

BIOS Setup Utility SY-K7VTA-B

3-8.1 CPU Device Monitoring

CPU Device Monitoring

Setting Description Note

Current CPU Temperature

°C/°F

Show the current status of CPU temperature.

Current Sys Temperature

°C/°F

Show the current status of the system temperature.

Current CPUFAN/ CHSFAN Speed

°C/°F

Show the current status of CPU Fan

Vcore, 2.5V,

3.3V, 5V, 12V

Show the current voltage status.

Disabled

Protect CPU Overheating

Enabled

If enable, this function protect user’s CPU from overheating in an event there’s a problem with the CPU FAN. The user should also plug the CPU FAN power on the CPU FAN1 pin. The system will auto shutdown if the power is plug in CPU FAN2 pin.

Default

Page 84

BIOS Setup Utility SY-K7VTA-B

3-9 LOAD FAIL-SAFE DEFAULTS

Select the [Load Fail-Safe Defaults] option from the Main Menu to load the system values you have previously saved. This option is recommended if you need to reset the system setup and to retrieve the old values.

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to return to the Main Menu and keep current values.

Warning: If you run into any problem after changing the BIOS configuration, please load the SETUP DEFAULTS for stable performance.

Load Fail - Safe Defaults (Y/N)? Y

Page 85

BIOS Setup Utility SY-K7VTA-B

3-10 LOAD OPTIMIZED DEFAULTS

Select the [Load Optimized Defaults] option from the Main Menu to load the system values you have previously saved. This option is recommended if you need to reset the system setup and to retrieve the old values.

Esc : Quit áâàß : Select Item F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to return to the Main Menu and keep current values.

Warning: If you run into any problem after changing the BIOS configuration, please load the SETUP DEFAULTS for stable performance.

Load Optimized Defaults (Y/N)? Y

Page 86

BIOS Setup Utility SY-K7VTA-B

3-11 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the [BIOS FEATURES SETUP] section, the password prevents access to the system or the setup program by unauthorized users. Follow this procedure to set a new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and press

[Enter]. Select the [Security Options] item and set the field to:

a. [System]: The password is required every time the system is

booted. This means only a person who knows the password can use this computer.

b. [Setup]: The password is required only when you attempt to

enter the BIOS Setup program.

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and

press [Enter]. The following prompt appear:

Warning: If you forget or lose the password, the only way to access the system is to set jumper JP5 to clear the CMOS RAM. All setup information is lost and you must run the BIOS setup program again.

Note: If you do not wish to use the password function, press [Enter] directly and the following message appears:

Enter Password:

Password Disabled!!

Page 87

BIOS Setup Utility SY-K7VTA-B

3. Enter your new password and press [Enter]. The following message

appears, prompting to confirm the new password:

4. Re-enter your password and then press [Enter] to exit to the Main

Menu.

This diagram outlines the password selection procedure:

3-12 USER PASSWORD

When the user password option is on, you are not allowed to change any setting in the [CMOS SETUP UTILITY] except for changing the user's password.

The password setting procedure is similar to that for the [SUPERVISOR PASSWORD] (Refer to section 3-9).

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP EXIT WITHOUT SAVING

Esc

F10

: Quit : Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item : Change Color

Time, Date, Hard Disk Type…

Enter Password:

∗∗∗∗∗

Password Disabled!!

Confirm Password:

∗∗∗∗∗

Press:

↔

Without entering password

Type the Password Press:

↔

After you confirm the

password, press

to exit

Type the Password

and Press: <Enter>

Press <Enter> without

entering the password

After you confirm the password,

press <Esc> to exit

Confirm Password:

Page 88

BIOS Setup Utility SY-K7VTA-B

3-13 IDE HDD AUTO DETECTION

This Main Menu function automatically detects the hard disk type and configures the [Standard CMOS Features] accordingly.

IDE Primary Master

IDE HDD Auto-Detection Press Enter

Item Help

IDE Primary Master Auto

Capacity 0 MB

Access Mode Auto

0 Cylinder 0 Head 0 Precomp 0 Landing Zone 0 Sector 0

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: This function is only valid for IDE type of hard disk drives.

Page 89

BIOS Setup Utility SY-K7VTA-B

3-14 BOOT MENU

Boot Menu enables user to boot-up on different boot device without going into the BIOS setup.

To enable boot Menu, press “ESC” after memory initialization, user will see a device menu, in which user can choose on which device they wish to boot from.

Boot Menu

== Select a Boot First device ==

Floppy Ls120

HDD-0 SCSI CDROM HDD-1 HDD-2 HDD-3 ZIP100 LAN

:Move ENTER:Accept F4:Exit

Page 90

Drivers installation SY-K7VTA-B

Chapter 4

DRIVER INSTALLATION

Your SY-K7VTA-B Motherboard comes with a CD-ROM labeled "SOYO CD." The SOYO CD contains the user's manual file for your new Motherboard, the drivers software available for installation, and a database in HTML format with information on SOYO Motherboards and other products.

Step 1. Insert the SOYO CD into the CD-ROM drive

The SOYO CD will auto-run, and the SOYO CD Start Up Menu will be as shown.

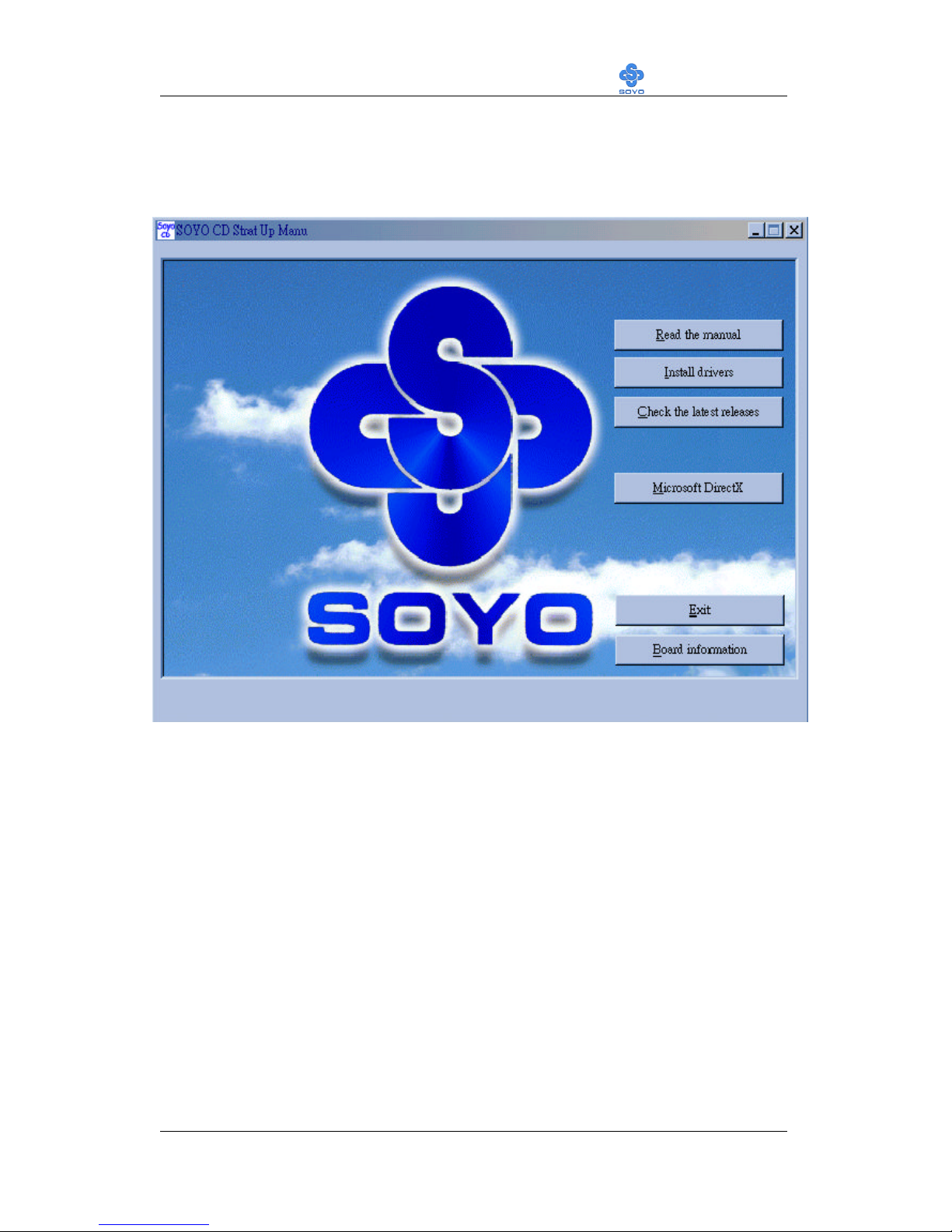

If you use Windows NT, the SOYO-CD will not detect your motherboard type. In that case the following dialog will pop up, please choose your motherboard and press OK. Now the SOYO-CD Start Up Menu will be shown.

(SOYO CD Start Up Program Menu)

7IWA-F 7IWA-F V1.0 6IWM/L 6IWM 6IWA

LI-7000 7IWB 7IWB V1.0 7IWM 7IWM/L V1

Please Select Your Board

Cancel

Page 91

Drivers installation SY-K7VTA-B

If you use Windows 95 or 98, the SOYO CD Start Up Program automatically detects which SOYO Motherboard you own and displays the corresponding model name.

The user's manual files included on the SOYO CD are in PDF (Postscript Document) format. In order to read a PDF file, the appropriate Acrobat Reader software must be installed in your system.

Note: The Start Up program automatically detects if the Acrobat Reader utility is already present in your system, and otherwise prompts you on whether or not you want to install it. You must install the Acrobat Reader utility to be able to read the user's manual file. Follow the instructions on your screen during installation, then once the installation is completed, restart your system and re-run the SOYO CD.

Page 92

Drivers installation SY-K7VTA-B

Step 2. Install Drivers

Click the Install Drivers button to display the list of drivers software that can be installed with your Motherboard. The Start Up program displays the drivers available for the particular model of Motherboard you own. We recommend that you only install those drivers.

(Driver Installation Menu)

A short description of all available drivers follows:

Ø VIA 4in1 driver package

The 4 in 1 driver package includes all drivers your motherboard needs. After selecting this driver package, one driver will be installed automatically (the IRQ remapping utility), the other three are installed if selected. By default all three drivers are selected. A description of the 4 drivers follows:

 Bus Master PCI IDE Driver

This driver will speed up the data-transfer rate to and from the harddisk.

 AGP VxD Driver

This driver must be installed in order to be able to make use of the on-board AGP Video functionality.

 VIA Chipset Functions Registry

driver revision:

VIA 4 in 1 driver package VIA Ac97 Codec Driver for Win 9x/NT/2000 K7VTA VIA hardware monitor for (Win 95/98)

Cancel

Page 93

Drivers installation SY-K7VTA-B

This driver will make the necessary changes to the Windows registry, in order to make sure that Windows has no problems recognizing your VIA chipset.

 IRQ remapping utility (This driver is installed automatically)

This utility will remap the IRQ lines to make sure that everything functions properly under Windows.

Ø VIA Ac97 Codec Driver for Win 9x/NT/2000

You have to install the drivers before installing any application for the Ac97 codec.

Ø K7VTA VIA hardware monitor for (Win 95/98)

Your motherboard comes with a hardware monitoring IC. By installing this utility Temperature, Fan speed and Voltages can be monitored. It is also possible to set alarms when current system values exceed or fall below pre-set values.

Select which driver you want to install and click OK, or click Cancel to abort the driver installation and return to the main menu.

Note: Once you have selected a driver, the system will automatically exit the SOYO CD to begin the driver installation program. When the installation is complete, most drivers require to restart your system before they can become active.

Step 3. Select which driver you want to install and click OK

Notice 1: Once you have selected a driver, the system will automatically exit

the SOYO CD to begin the driver installation program. When the installation is complete, most drivers require to restart your system before they can become active.

Notice 2: You may click Cancel to abort the driver installation and return to

the main menu.

Page 94

Drivers installation SY-K7VTA-B

Step 4. Check the Latest Releases

Click the 'Check the latest Releases' button to go the SOYO Website to automatically find the latest BIOS, manual and driver releases for your motherboard. This button will only work if your computer is connected to the internet through a network or modem connection. Make sure to get your modem connection up before clicking this button.

Page 95
