SOYO SY-5EHM Super 7, SY-5EH5 Super 7, Super 7 SY-5EHM, Super 7 SY-5EH5 User's Manual & Technical Reference

SY-5EHM/5EH5

Super 7

TM

Mainboard

************************************************

Pentium® Class CPU supported

ETEQ82C663 PCI/AGP Mainboard

AT Form Factor

************************************************

User's Guide

&

Technical Reference

SOYO™ SY-5EHM/5EH5

ii

About This Guide

This User's Guide is for assisting system manufacturers and end users in setting up
and installing the mainboard. Information in this guide has been carefully checked for
reliability; however, no guarantee is given as to the correctness of the contents. The
information in this document is subject to change without notice.

Copyright Notice

Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.

Trademarks

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.

Disclaimer

Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.

Product Rights

Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".

Edition: September 1998
Version 2.0
5EHM/5EH5 SERIAL

FC

C

Tested To Comply
With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER
RECYCLED PAPER

100%

Table of Contents SY-5EHM/5EH5

iii

Table of Contents

SY-5EHM/5EH5 MAINBOARD LAYOUT ............................................. 1

CHAPTER 1 INTRODUCTION........................................................... 2

1-1 KEY FEATURES ............................................................ 2

1-2 HANDLING THE MAINBOARD...................................... 5

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS......... 5

CHAPTER 2 HARDWARE SETUP.................................................... 6

2-1 PREPARATIONS......................................................6

2-2 UNPACKING THE MAINBOARD...............................7

2-3 INSTALLATION GUIDE.............................................8

CHAPTER 3 BIOS SETUP UTILITY................................................ 36

3-1 STANDARD CMOS SETUP......................................... 38

3-2 BIOS FEATURES SETUP............................................ 41

3-3 CHIPSET FEATURES SETUP..................................... 47

3-4 POWER MANAGEMENT SETUP................................ 50

3-5 PNP/PCI CONFIGURATION SETUP........................... 55

3-6 LOAD SETUP DEFAULTS ........................................... 58

3-7 LOAD BIOS DEFAULTS .............................................. 58

3-8 INTEGRATED PERIPHERALS .................................... 59

3-9 SUPERVISOR PASSWORD........................................ 63

3-10 USER PASSWORD...................................................... 64

3-11 IDE HDD AUTO DET1ECTION.................................... 65

CHAPTER 4 DRIVERS INSTALLATION.......................................... 66

Mainboard Features SY-5EHM/5EH5

1

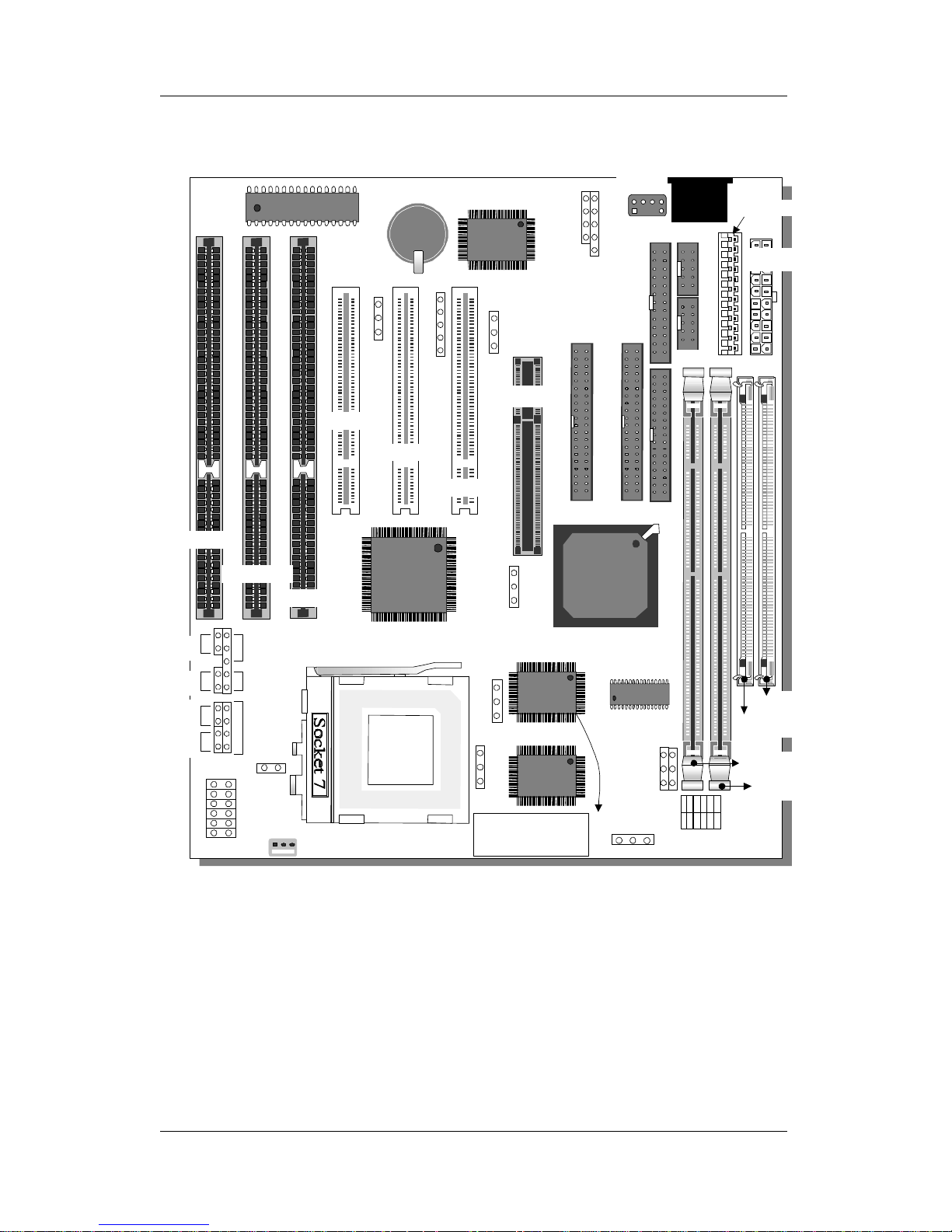

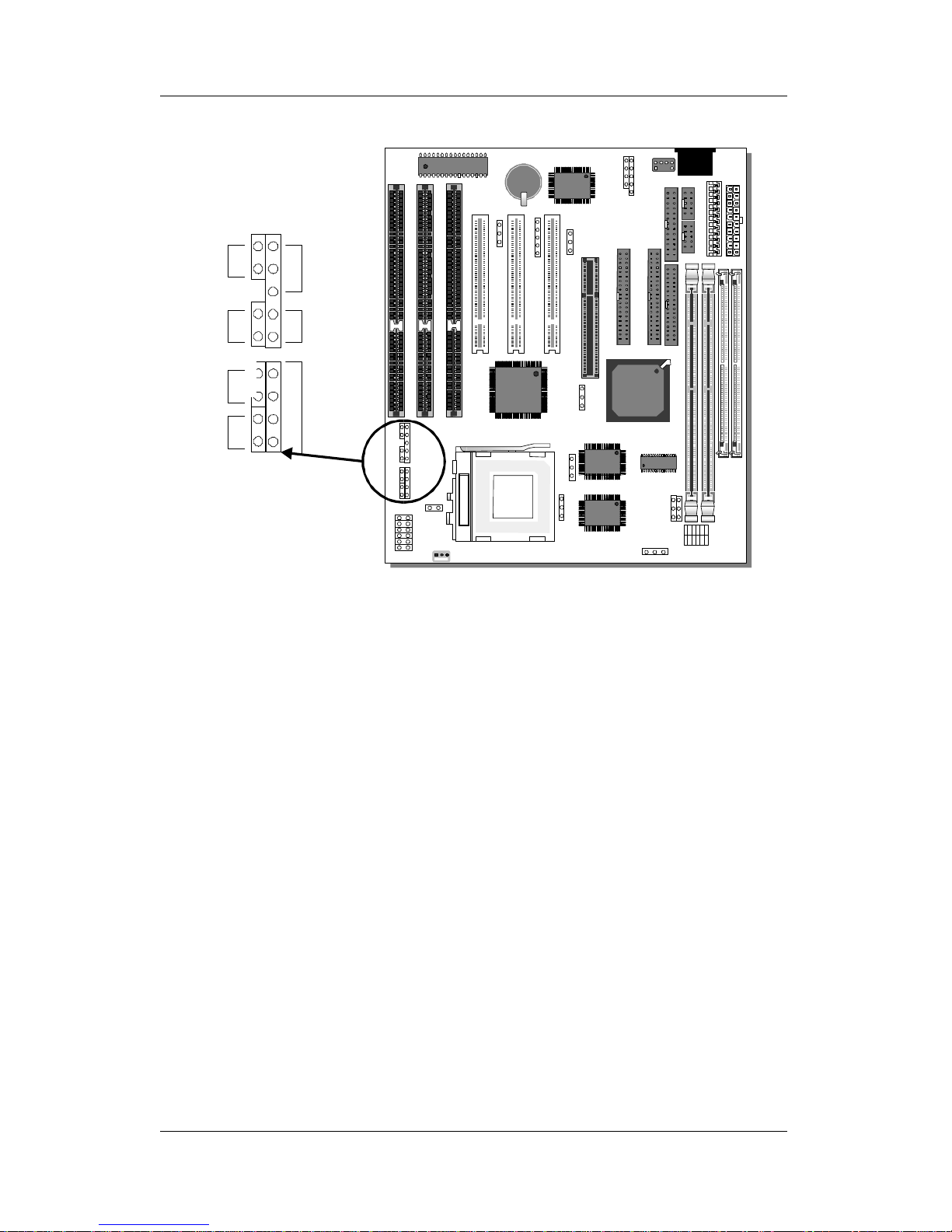

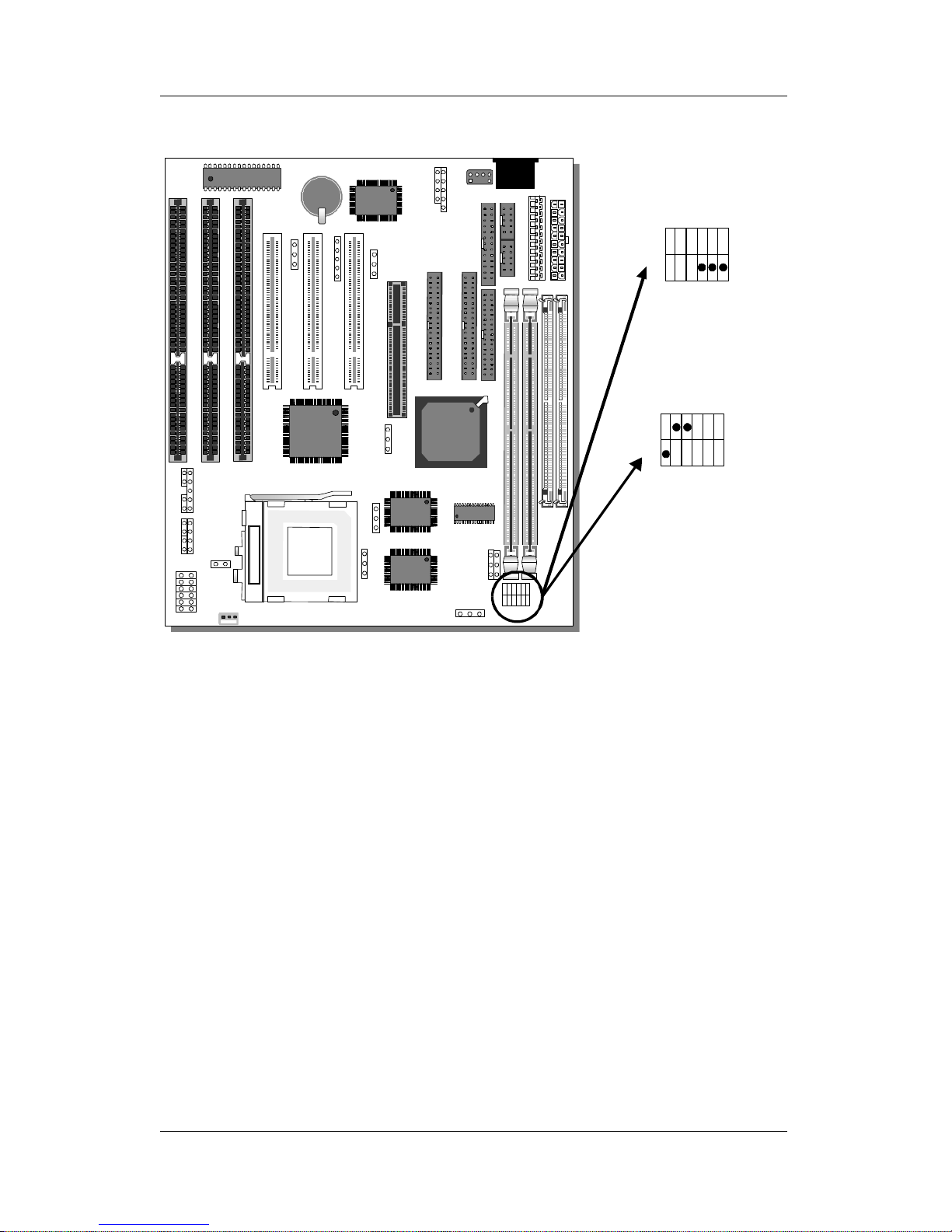

SY-5EHM/5EH5 Mainboard Layout

SY-5EHM/5EH5 Platform

Flash BIOS

JP44

1

3

IR1

5

1

JP5

1

3

AGP Slot

ISA Slot #1

ISA Slot #2

ISA Slot #3

IDE 1 IDE 2

PRT 1

COM 1

COM 2

FDC

KB

Connector

PS/2 Mouse
Connector

ATX Power

AT Power

1

1

1

1

1

1

1

3

1

4

5

9

SIMM 1

SIMM 2

3V

Lithium

Battery

6

5

4

3

2

1

EQ82C6629

1

USB1

RST

PW2

SPK

Keylock

Power
LED

Turbo

LED

HDD LED

_

+

ETEQ

EQ82C6638

SW1

11

9

7

5

3

1

JP30

P.B. SRAM

64Kx64

P.B. SRAM

64Kx64

(Optional)

TAG SRAM

5

3

1

1

3

1

3

1

3

JP10

JP4

JP37

JP9

JP22

JP7

DIMM 2

DIMM 1

SMC

FDC37C669Q

*

for model 5EHM only

(1 MB Cache) featuring

two P.B. SRAM.

JP12

PCI Slot #2

PCI Slot #1

PCI Slot #3

2
4
6
8
10
12

ETEQ

ON

Introduction SY-5EHM/5EH5

2

Chapter 1

INTRODUCTION

The SY-5EHM/5EH5 AGP/PCI mainboard is a high-performance AT
form-factor system board. SY-5EHM/5EH5 uses the ETEQ82C663
AGP/PCI Chipset technology and supports Pentium® class
processors. This mainboard is fully compatible with industry
standards and adds many technical enhancements.

1-1 KEY FEATURES

l CPU

Ø Supports Intel Pentium Processor P54C/P55C series

CPUs featuring speeds of 100-233 MHz

Ø Supports Cyrix 6x86/6x86L/6x86MX CPUs with PR150-

PR266 speeds and Cyrix M II-300-350 CPU

Ø Supports AMD K5 CPUs running at PR100-PR166 speeds,

AMD K6 CPUs running at speeds of 166-300 MHz speeds,
and AMD K6-2 266-350 CPU

Ø Features Socket 7 for CPU easy upgrade
Ø Supports P54C/P55C series SIMM Mode and CPU Stop

Clock

l L2 Cache Controller

Ø On-board 512KB(SY-5EH5) or 1MB (SY-5EHM) Level 2

Pipeline Burst SRAM Cache

l DRAM Controller

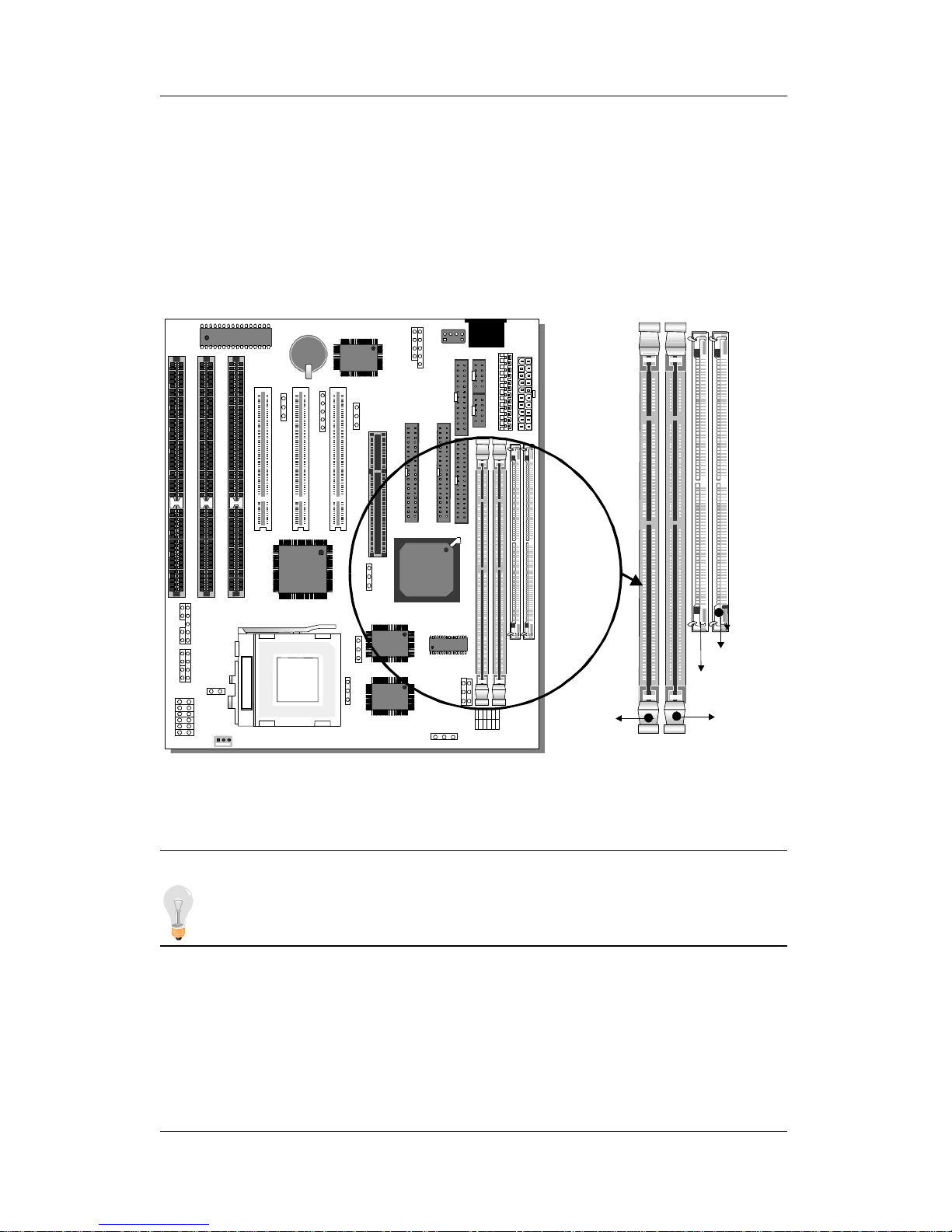

Ø Supports 2 strips of 168-pin SDRAM unbeffured DIMM

2 x 168-pin DIMM banks support 8/16/32/64/128/256 MB
unbuffered DIMM modules

Ø Support 2 strips of 72-pin FPM/EDO SIMM 2 x 72-pin

SIMM banks support 8/16/32/64 MB SIMM modules

Ø Memory configuration:

Introduction SY-5EHM/5EH5

3

u System memory: 8MB to 640MB with EDO/SDRAM

SY-5EHM/5EH5 PLATFORM FEATURES

Board Size 4-layer PCB, 19x30.5cm(7.5”x12”), AT Form Factor
Socket 7 Socket for Pentium® class CPUs

with Host Bus frequency of 66/100MH; Supports:

Ø Intel Pentium® Processors P54C/P55C (100-233MHz)
Ø Cyrix 6x86™ (PR166+-PR200+),

Cyrix 6x86 MX™ (PR166-PR266) and Cyrix M II™
(300~350)

Ø AMD K5™ (PR100-PR166), and AMD K6™ (166-300)

and AMD K6™-2 (266~350)

Chipset ETEQ82C663 PCI/AGP Bus Chipset

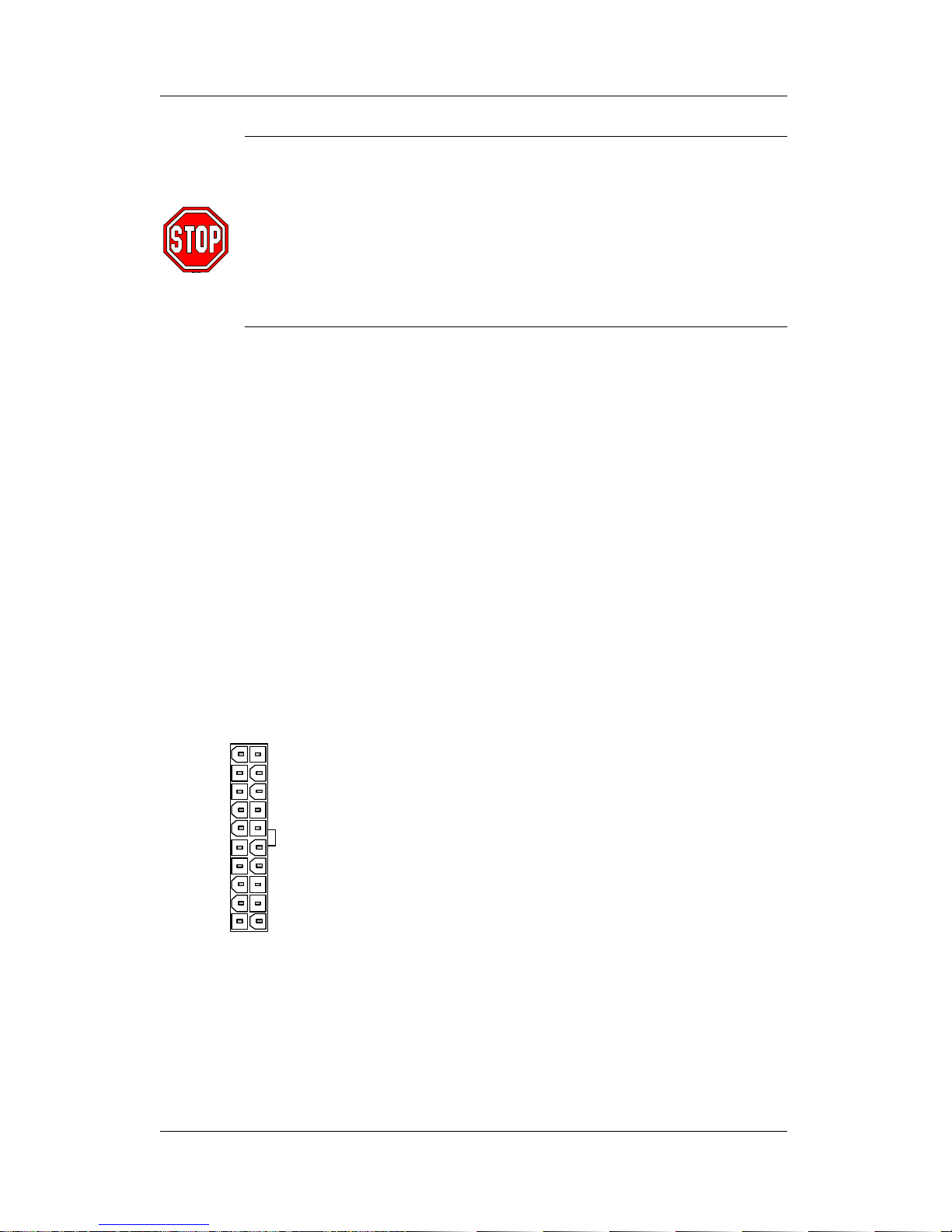

ATX Power 20-pin Male Connector

JP12 3-pin CPU Cooling Fan Connector
Memory DIMM Bank (DIMM1 & DIMM2)

Ø 168-pin Unbuffered EDO/SDRAM DIMM Module
Ø Supports 8~256MB DIMM in each Bank
Ø Supports ECC configuration

SIMM Bank (Bank1,2)

Ø 72-pin SIMM Modules

BIOS System BIOS built-in, Award BIOS

Ø APM, ACPI and "Plug-and-Play" function
Ø Supports multiple-boot function
Ø DMI utility

PCI Slots 3 x 32-bit Bus Mastering Slots
ISA Slots 3 x 16-bit ISA Slots
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports

Ø IDE1: Primary IDE Device Connector
Ø IDE2: Secondary IDE Device Connector
Ø Supports Ultra DMA/33

FDC 1 Floppy Disk Drive (FDD) Port

(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)

SIR 5-pin Serial Infrared Device Connector
Keylock 5-pin KeyLock Connector
Reset 2-pin Reset Switch Connector
Speaker 4-pin PC Speaker Connector
TB_LED 2-pin Turbo LED Connector
HDD_LED 2-pin IDE Device LED Connector
PWRBT ATX Power On/Off Switch 2-pin Connector

Introduction SY-5EHM/5EH5

4

JP5 CMOS Clear Jumper
JP7 CPU bus clock frequency Jumper
JP9, JP10 SDRAM frequency Jumpers
JP30 CPU Voltage Selection Jumper
JP22 CPU Burst Mode Jumper
JP37 DIMM Voltage Jumper
JP44 WOL (Wake-On-LAN) 3-pin Connector

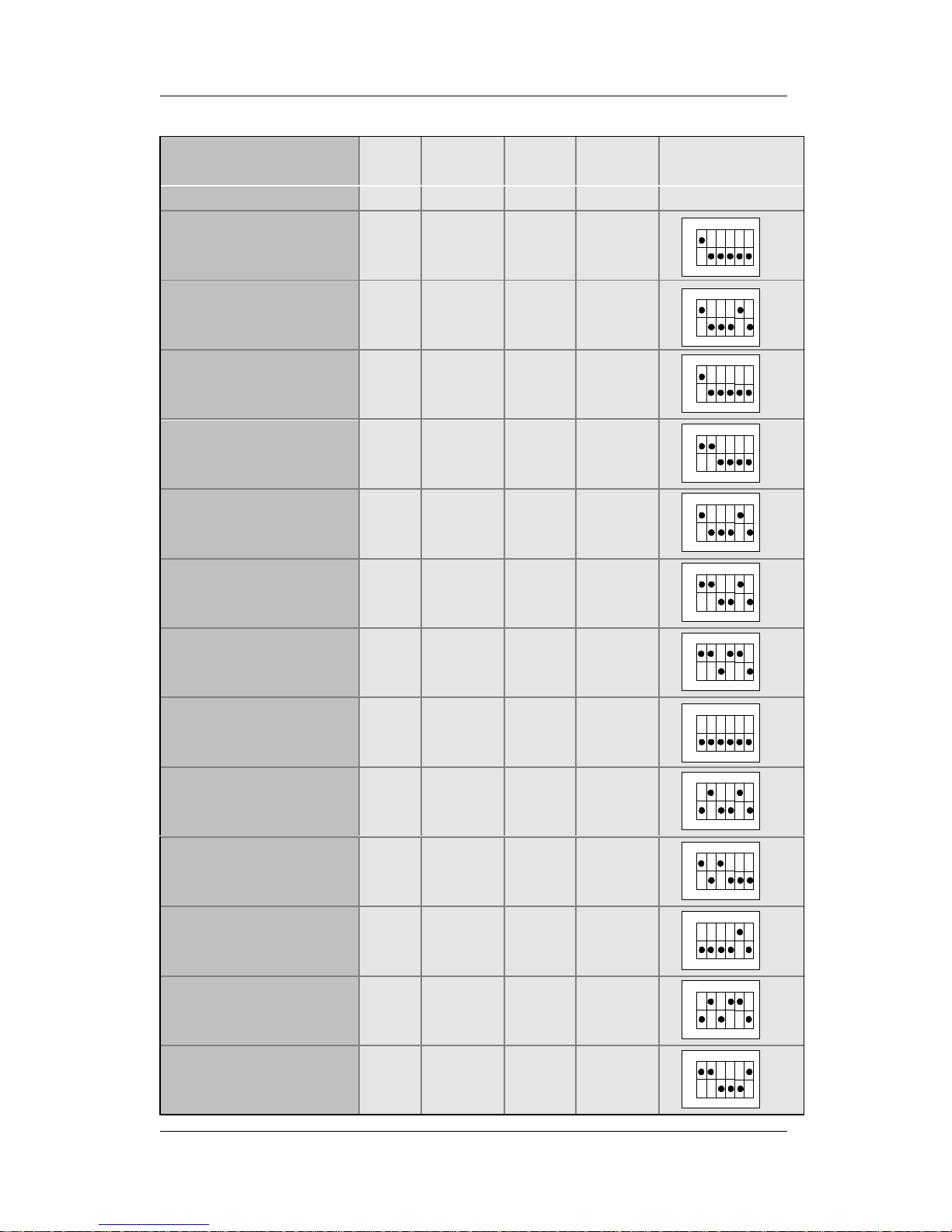

SW1 CPU frequency Settings Jumper

Introduction SY-5EHM/5EH5

5

1-2 HANDLING THE MAINBOARD

To avoid damage to your mainboard, follow these simple rules while
unpacking:

Ø Before handling the mainboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

Ø Remove the mainboard from its anti-static packaging. Hold the

mainboard by the edges and avoid touching its components.

Ø Check the mainboard for damage. If any chip appears loose,

press carefully to seat it firmly in its socket.

Warning: Do not apply power if the mainboard appears
damaged. If there is damage to the board, contact your
dealer immediately.

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the mainboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the mainboard in dry or air-conditioned
environment.

To protect your equipment from electrostatic discharge, take the
following precautions:

Ø Do not remove the anti-static packaging until you are ready to

install.

Ø Ground yourself before removing any system component from

its protective anti-static packaging. (To ground yourself, grasp
the expansion slot covers or other unpainted portions of the
computer chassis.)

Ø Frequently ground yourself while working or use a grounding

strap.

Hardware Setup SY-5EHM/5EH5

6

Chapter 2

HARDWARE SETUP

Congratulations on your purchase of SY-5EHM/5EH5 Super 7

TM

Mainboard. You are about to install and connect your new

mainboard.
Note: Do not unpack the mainboard from its protective

anti-static packaging until you have made the following

preparations.

2-1 Preparations

Gather and prepare all the following hardware equipment to
complete the installation successfully:

1. Pentium processor with CPU cooling fan.

2. DIMM memory module

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. Keyboard

6. Pointing Device (Serial or PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Hardware Setup SY-5EHM/5EH5

7

2-2 Unpacking the Mainboard

When unpacking the mainboard, check for the following items:

Ø The SY-5EHM/5EH5 ETEQ82C663 PCI/AGP Mainboard
Ø The Quick Start Guide *
Ø The Installation CD-ROM *
Ø The CPU Retention Set
Ø One IDE Device Flat Cable
Ø One Floppy Disk Drive Flat Cable

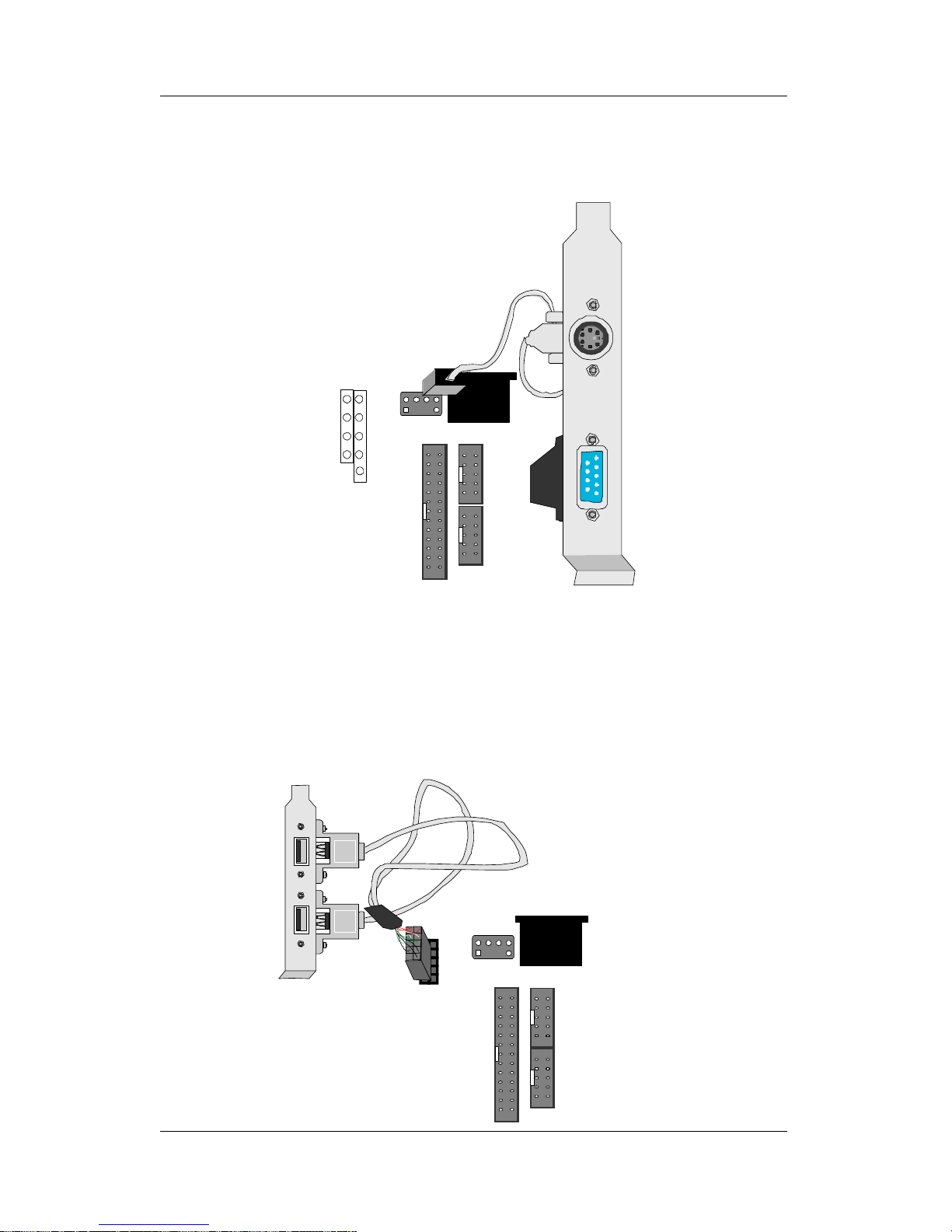

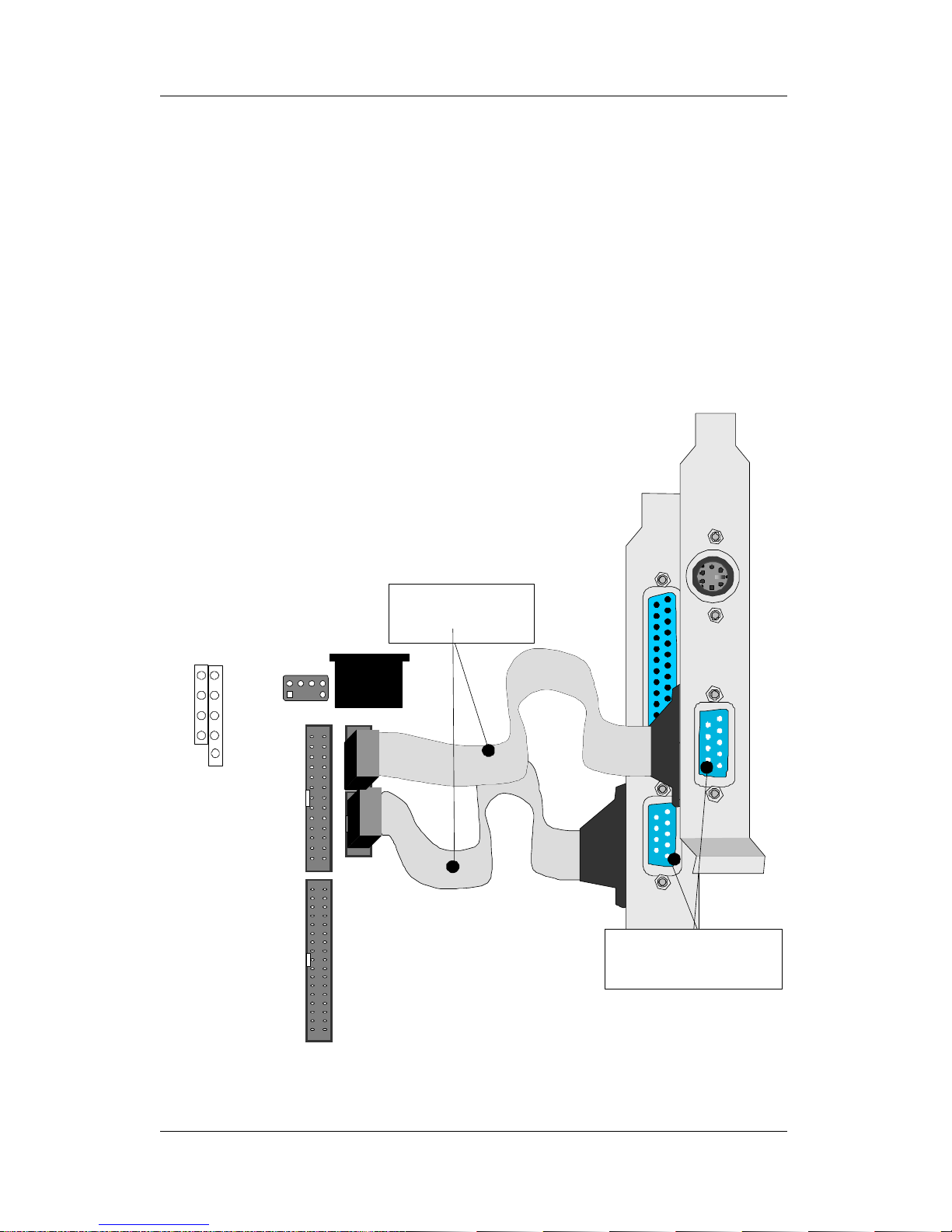

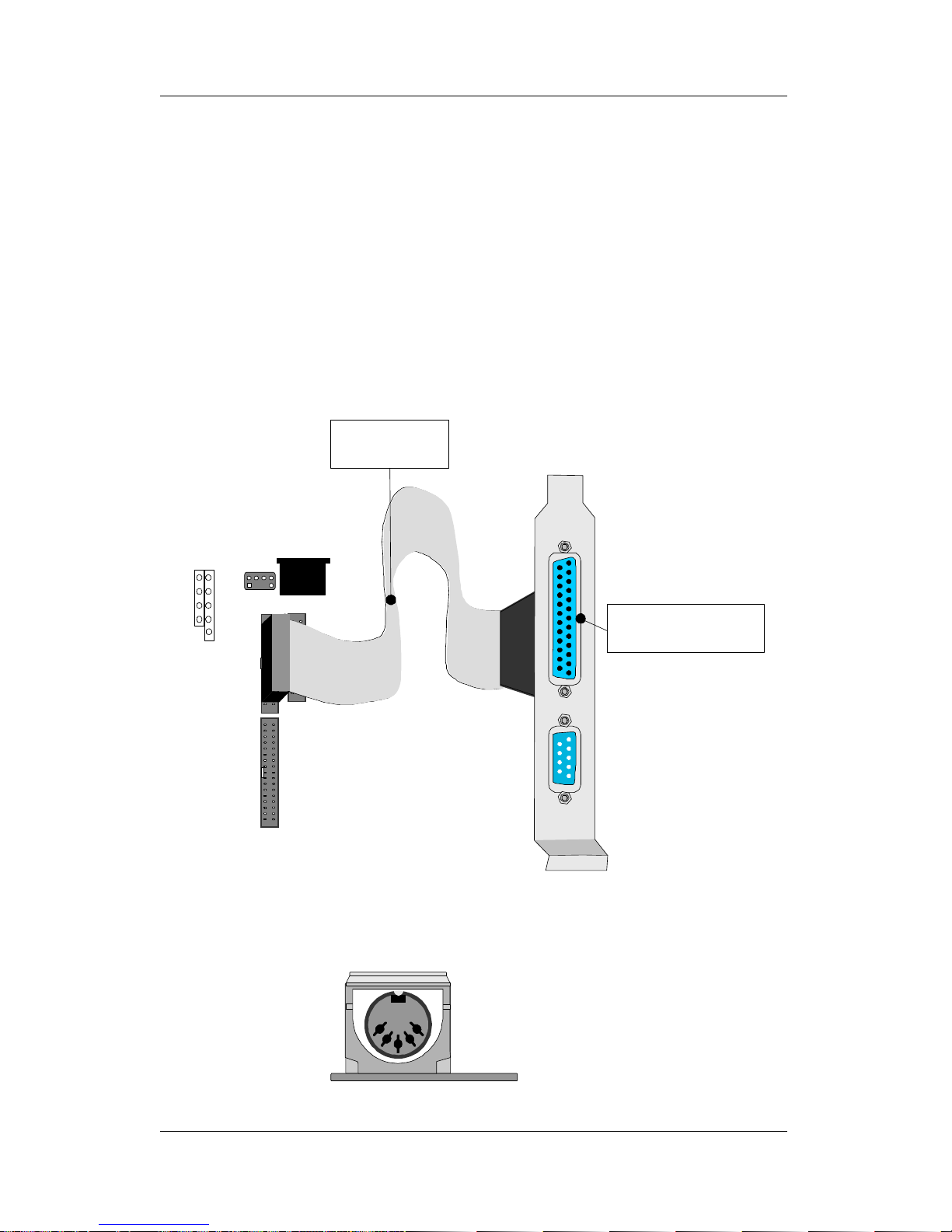

Ø One bracket with one 9-pin serial connector, attached with 9-

pin flat cable, and one 6-pin PS/2 mouse connector, attached
with 6-pin cable.

Ø One bracket with one 25-pin connector paraller connector

attached with 25-pin flat cable and one 9-pin serial connector
attached with 9-pin flat cable.

* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.

Warning: Do not unpack the mainboard from its anti-static
packaging until you are ready to install it.

Like most electronic equipment, your mainboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the mainboard carefully, holding it by the edges.
You are now ready to start the installation.

Hardware Setup SY-5EHM/5EH5

8

2-3 Installation Guide

We will now begin the installation of the mainboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.

Step 1. CPU Installation

Follow these instructions to install your Pentium® class processor
correctly.
Locate the CPU socket labeled Socket 7 on your mainboard and
note the distinctive pinhole arrangement.
Note the corresponding pinhole arrangement on the processor.

CPU

Socket 7

Blunt Edge Blunt Edge

Hardware Setup SY-5EHM/5EH5

9

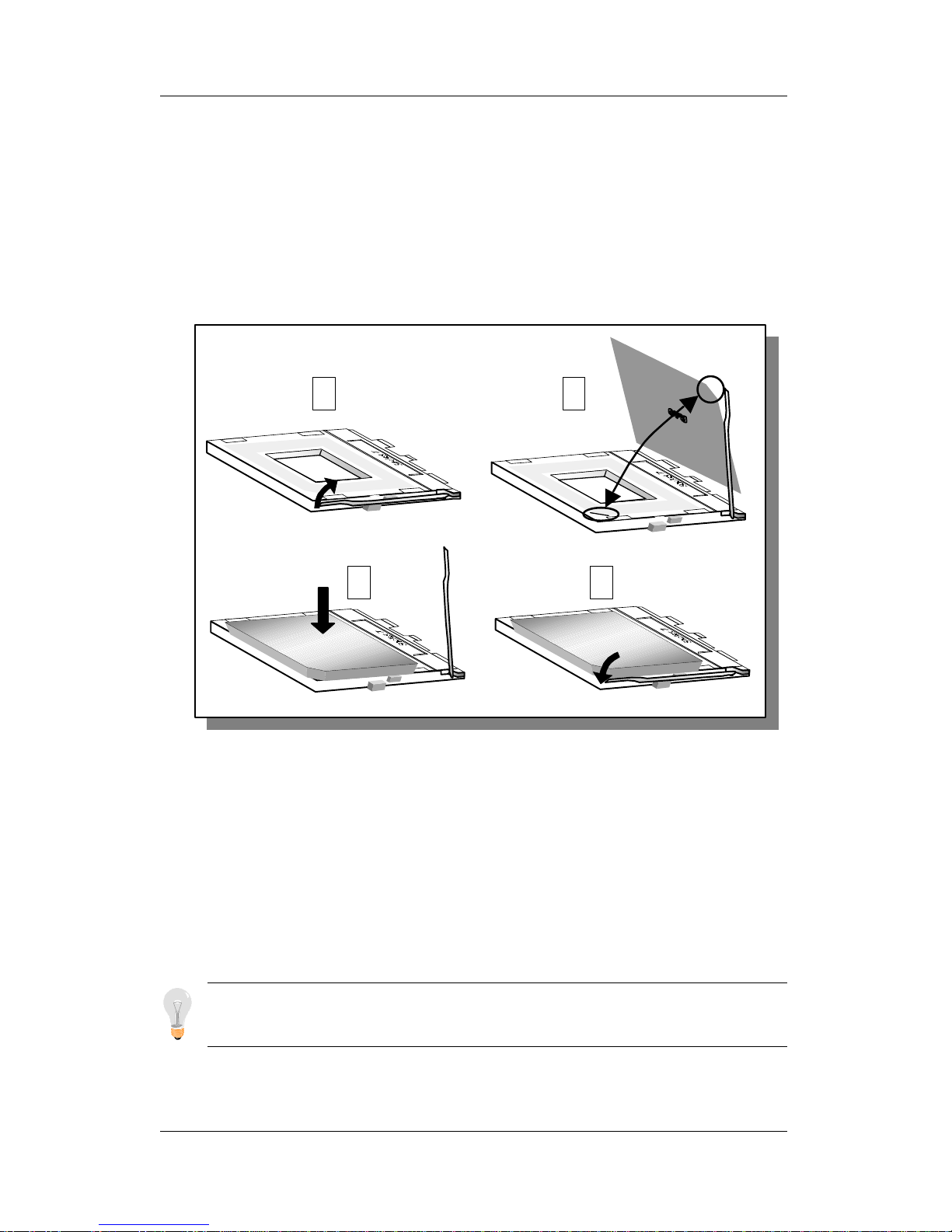

Follow these steps to install the CPU in the Socket 7:

1. Lift the socket handle up to a vertical position.

2. Align the blunt edge of the CPU with the matching pin-hole
distinctive edge on the socket.

3. Seat the processor in the socket completely and without forcing.

4. Then close the socket handle to secure the CPU in place.

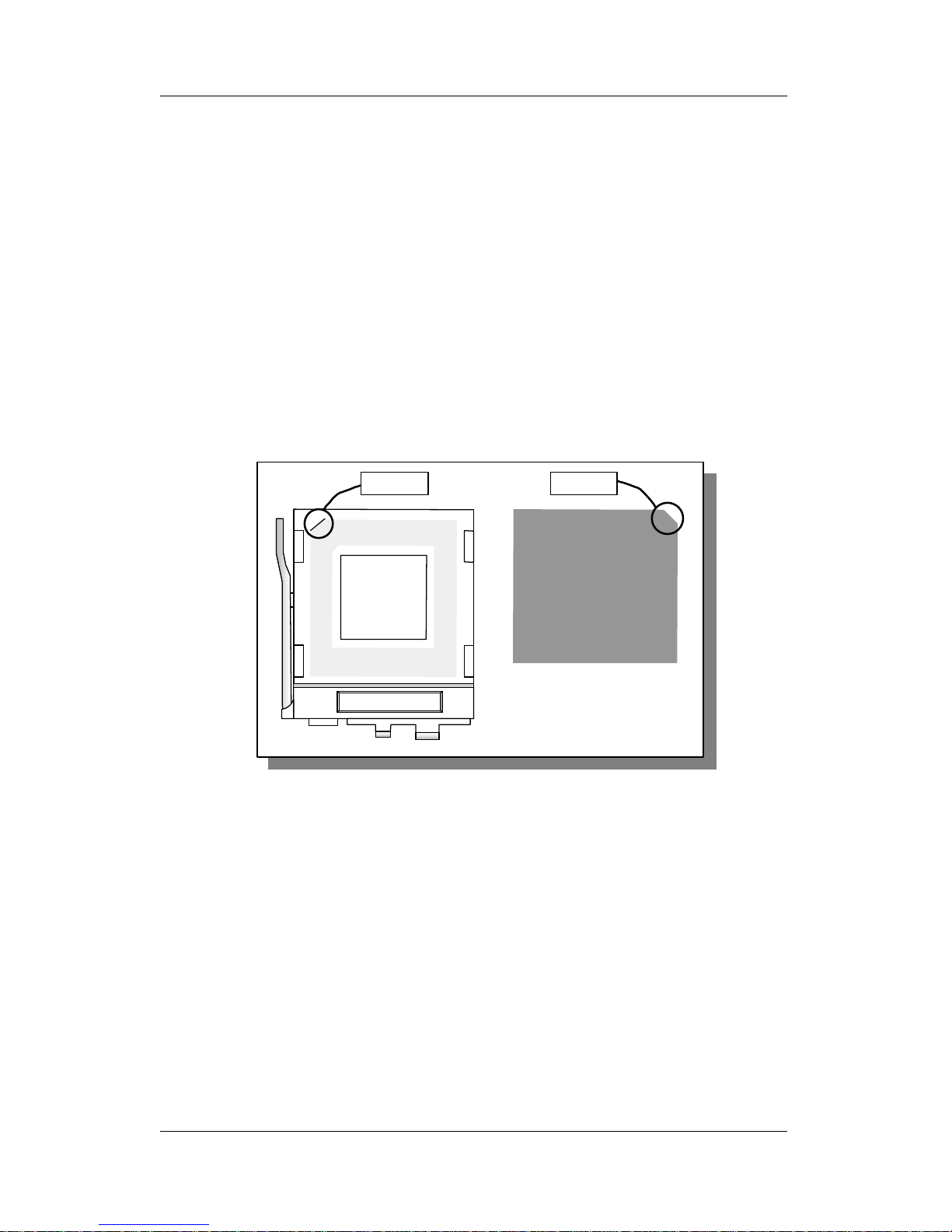

Step 2. CPU Fan (JP12) Installation

Your Pentium® processor kit comes with a cooling fan. Mount the fan
on the processor according to the instructions provided by the
manufacturer. The fan is a key component that will ensure system
stability. The fan prevents overheating, therefore prolonging the life
of your CPU.

Note: Remember to connect the fan to the appropriate power
source.

1 2

3 4

Hardware Setup SY-5EHM/5EH5

10

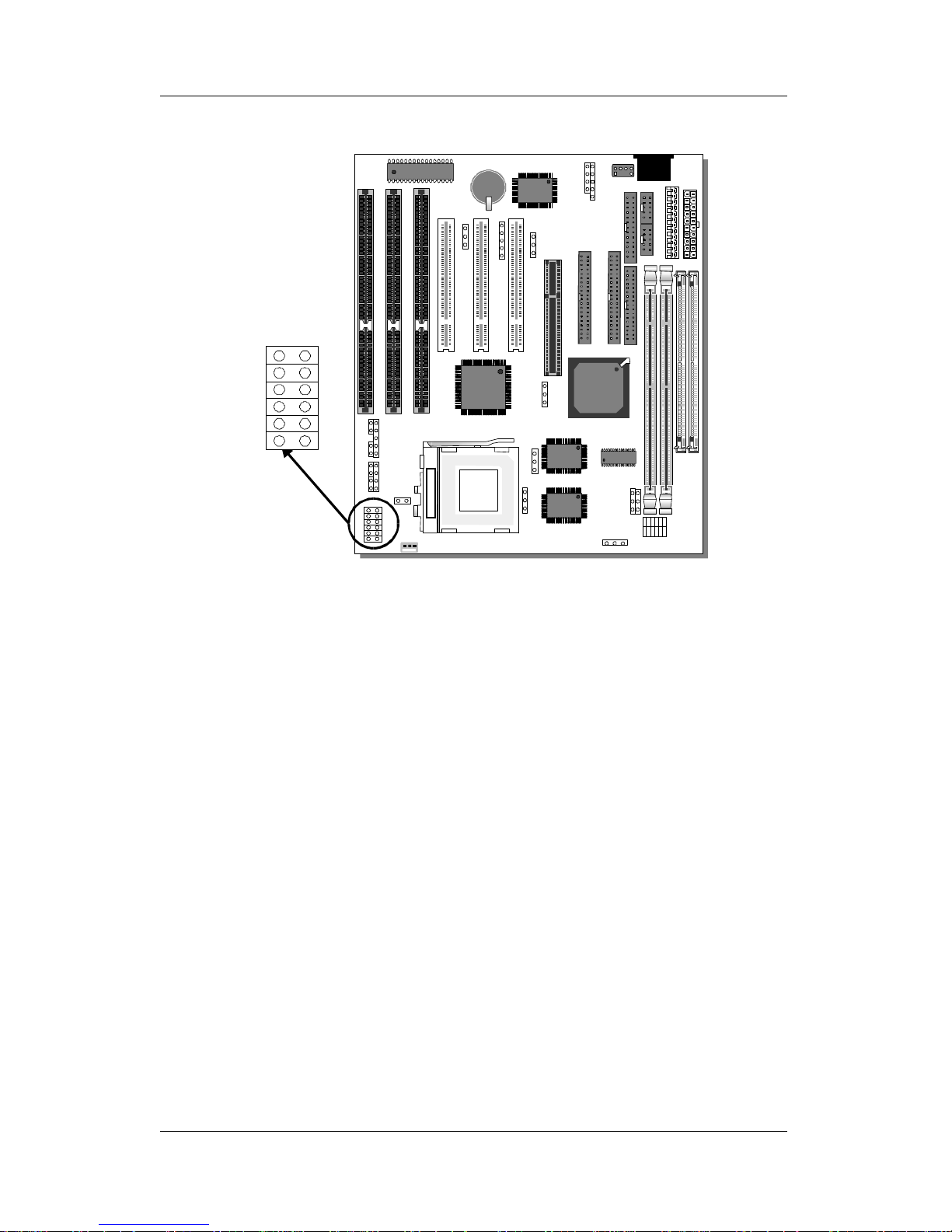

Step 3. CPU Voltage Setting (JP30)

Please verify the correct voltage with your dealer before installation.
Use the following tables to set JP30 to the proper "Voltage Value",
according to the specifications marked on your CPU: This
mainboard comes with pre-configured setting of CPU voltage.
However the voltage of your CPU maybe different with the default
setting.

l CPU VOLTAGE SETTING (JP30)
JP30 are the only jumpers that you need to set for your CPU voltage
on this mainboard.
There are two kinds of CPU voltages currently on the market
depending on the CPU manufacturer:

Ø Single Voltage (CPU: P54C, AMD-K5, Cyrix 6x86)
Ø Dual Voltage (CPU: P55C, AMD-K6, AMD-K6-2 Cyrix

6x86L,Cyrix 6x86MX, Cyrix M II)

Those processors may come in various voltages on different

6

5

4

3

2

1

*

11

9

7

5

3

1

JP30

2
4
6
8
10
12

CPU Voltage

Hardware Setup SY-5EHM/5EH5

11

markets. Therefore, always make sure you know the type of the
CPU you are installing and adjust the settings on JP30 accordingly.

This motherboard supports CPU voltages from 2.0 to 3.52V in 0.1V
increments. Use the following tables to set the CPU voltage jumpers
JP30 to match the voltage value of your CPU:

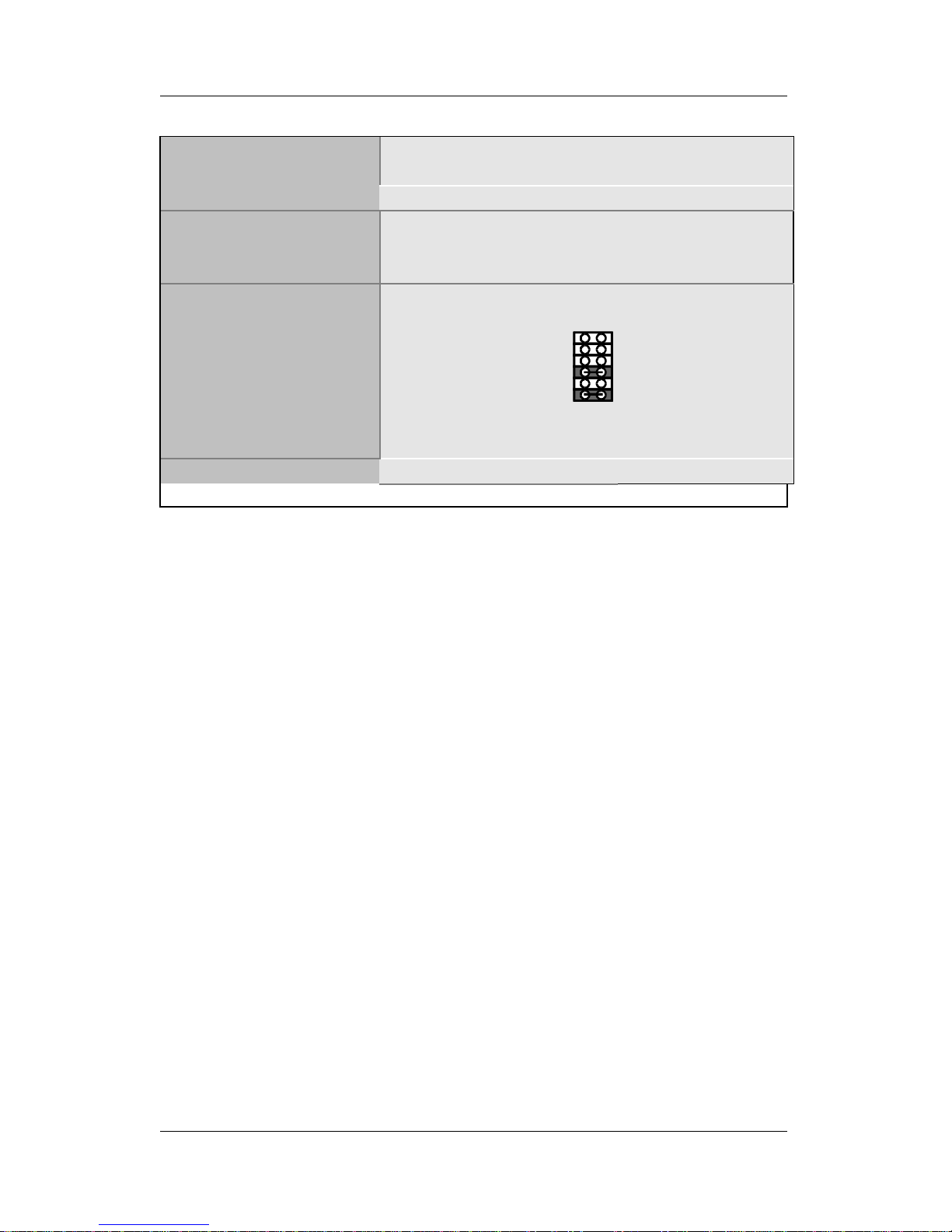

CPU Voltage Setting: JP30

Voltage Value 1-2 3-4 5-6 7-8 9-10 11-12

single3.5V* close open open open open close
single 3.3V close open open open close open

dual 3.2V close open open close open open
dual 3.1V close close close open open open
dual 3.0V close close open open open open
dual 2.9V close open close open open open
dual 2.8V close open open open open close
dual 2.7V open close close close open open
dual 2.6V open close open close open open
dual 2.5V open open close close open open
dual 2.4V open open open close close open
dual 2.3V open close close open open open
dual 2.2V open close open open close open
dual 2.1V open open close open close open
dual 2.0V open open open open open open

Hardware Setup SY-5EHM/5EH5

12

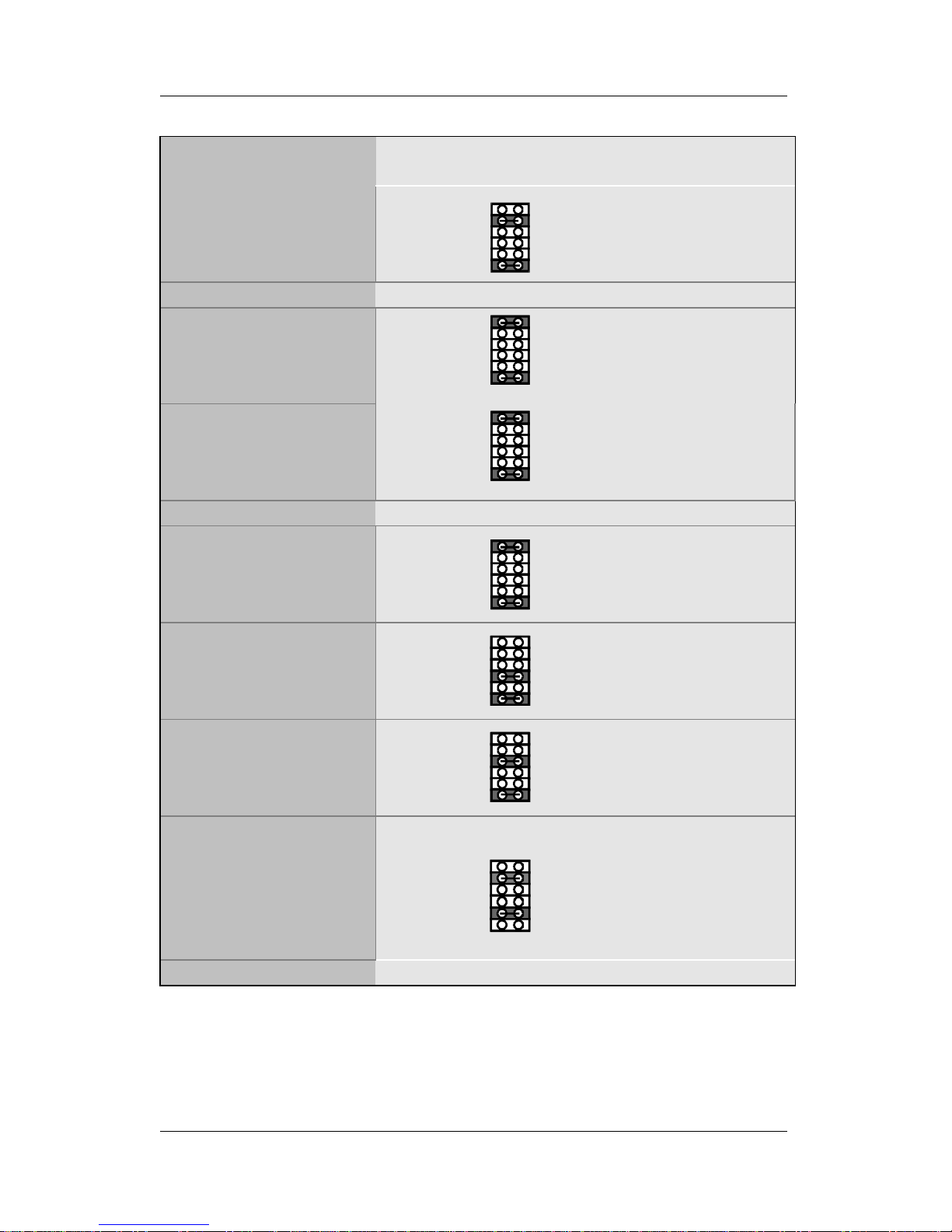

Voltage Settings for Various Processors
Processor

Voltage Setting

Voltage Value: JP30

Intel P54C - P100
Intel P54C - P133

VCORE:3.3V

VI/O:3.3V

Intel P54C - P166
Intel P54C - P200

VCORE:3.5V

VI/O:3.5V

Intel P55C - P166
Intel P55C - P200
Intel P55C - P233

VCORE:2.8V

VI/O:3.3V

AMD K5 - PR100
AMD K5 - PR133
AMD K5 - PR166

VCORE:3.5V

VI/O:3.5V

AMD K6 166
AMD K6 200

VCORE:2.9V

VI/O:3.3V

AMD K6 233

VCORE:3.2V

VI/O:3.3V

AMD K6 266
AMD K6 300
AMD K6-2 266
AMD K6-2 300
AMD K6-2 333
AMD K6-2 350

VCORE:2.2V

VI/O:3.3V

13579

11

2

4

6

8

10

12

13579

11

2

4

6

8

10

12

13579

11

2

4

6

8

10

12

13579

11

2

4

6

8

10

12

13579

11

2

4

6

8

10

12

13579

11

2

4

6

8

10

12

13579

11

2

4

6

8

10

12

Hardware Setup SY-5EHM/5EH5

13

Voltage Settings for Various Processors (continued)
Processor

Voltage Setting

Voltage Value: JP30

Cyrix 6x86(L) PR166+
Cyrix 6x86(L) PR200+

The Cyrix 6x86(L) come in several versions
with different voltages. Please ask your
dealer for the correct voltage.

Cyrix 6x86MX-PR166*
Cyrix 6x86MX-PR200*
Cyrix 6x86MX-PR233*
Cyrix 6x86MX-PR266*

Cyrix M II 300*
Cyrix M II 333*
Cyrix M II 350*

VCORE:2.9V

VI/O:3.3V

* Set the proper CPU voltage according to the marking on the CPU.

13579

11

2

4

6

8

10

12

Hardware Setup SY-5EHM/5EH5

14

Step 4. CPU Frequency Setting (SW1)

The SY-5EHM/5EH5 mainboard is designed to support most
Pentium® class processors currently on the market. Jumpers SW1 is
used to configure the mainboard frequency parameters to match the
working frequency of your CPU.

6

5

4

3

2

1

*

SW1

SW1

ON

ON

1

2

3

4

5

6

1

2

3

4

5

6

Host Bus Frequency

Frequency Multiplier

Hardware Setup SY-5EHM/5EH5

15

l CPU FREQUENCY SETTING (SW1)
Configure the SW1 jumpers to the settings that match your CPU

speed. Refer to the following tables to set the Frequency Multiplier
and Host Bus Frequency of your CPU:

Frequency Multiplier Host Bus Frequency

Multiplier 1 2 3

Host Bus

Frequency

4 5 6

1.5/3.5x off off off 66MHz off off off

2.0x* on off off 75MHz off on off

2.5x on on off 83MHz on on off

3.0x off on off 95MHz on off on

4.0x on off on 100MHz off off on

4.5x on on on 112MHz off on on

5.0x off on on 124MHz on off off

Example: If the working frequency of your CPU is 133MHz, then
select Multiplier=2.0x and Host Bus Frequency=66Mhz accordingly.

Also, as newer and higher frequency CPUs may not be listed in this
section, please refer to the tables CPU Frequency Settings for
Various Processors on page 8 for complementary information.

Hardware Setup SY-5EHM/5EH5

16

Please refer to the following table that gives you the correct
frequency settings for the specific brand and model of CPU you are
installing on this mainboard.

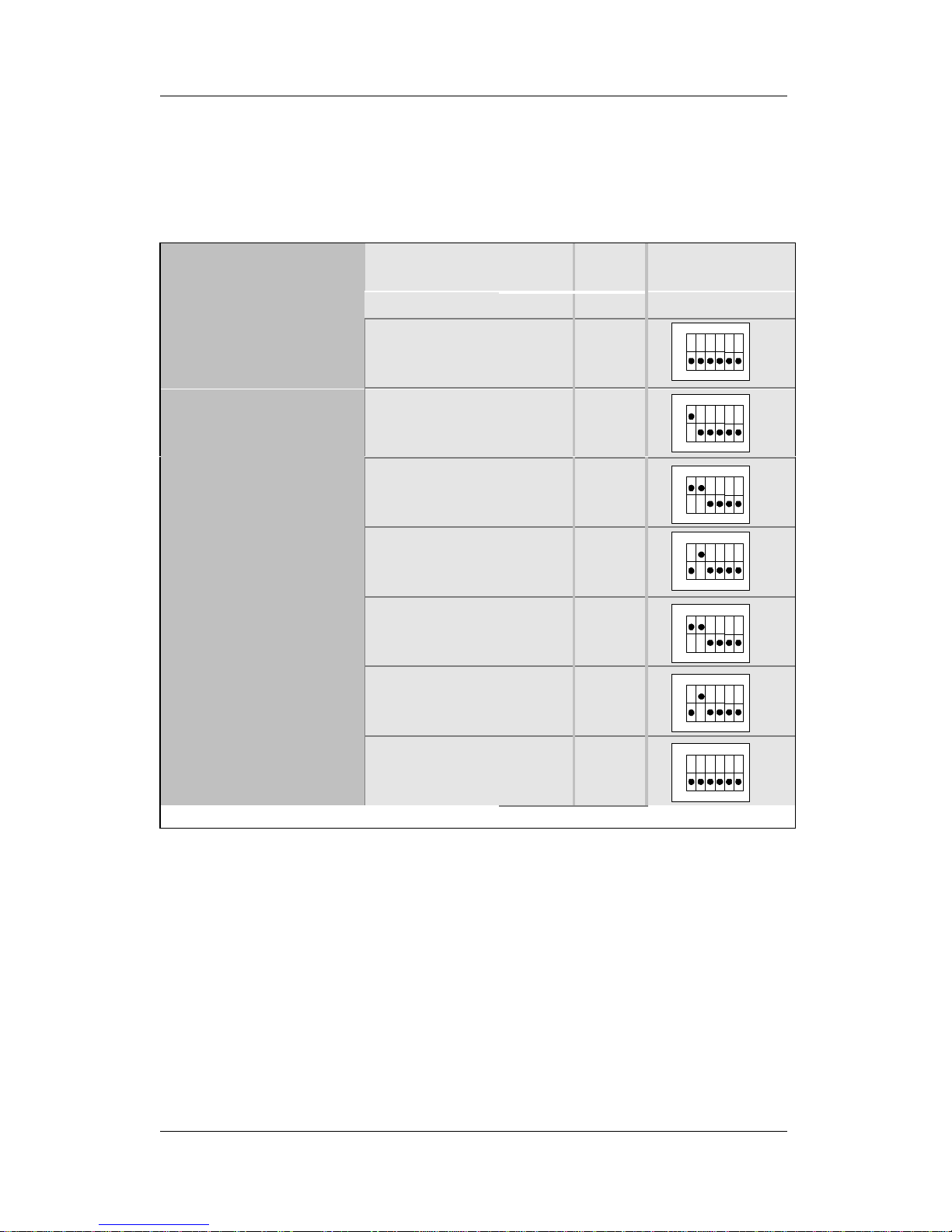

Frequency Settings for Intel® Processors
Processor

Frequency Setting

Ratio

Bus

Clock

AGP

Clock

PCI

Clock

Frequency

Setting: SW1

Intel P54C - P100 1.5 x 66MHz 66MHz 33MHz

Intel P54C - P133 2.0 x 66MHz 66MHz 33MHz

Intel P54C - P166 2.5 x 66MHz 66MHz 33MHz

Intel P54C - P200 3.0 x 66MHz 66MHz 33MHz

Intel P55C - P166 2.5 x 66MHz 66MHz 33MHz

Intel P55C - P200 3.0 x 66MHz 66MHz 33MHz

Intel P55C - P233 3.5 x 66MHz 66MHz 33MHz

* Set the proper CPU frequency according to the marking on the CPU.

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

Hardware Setup SY-5EHM/5EH5

17

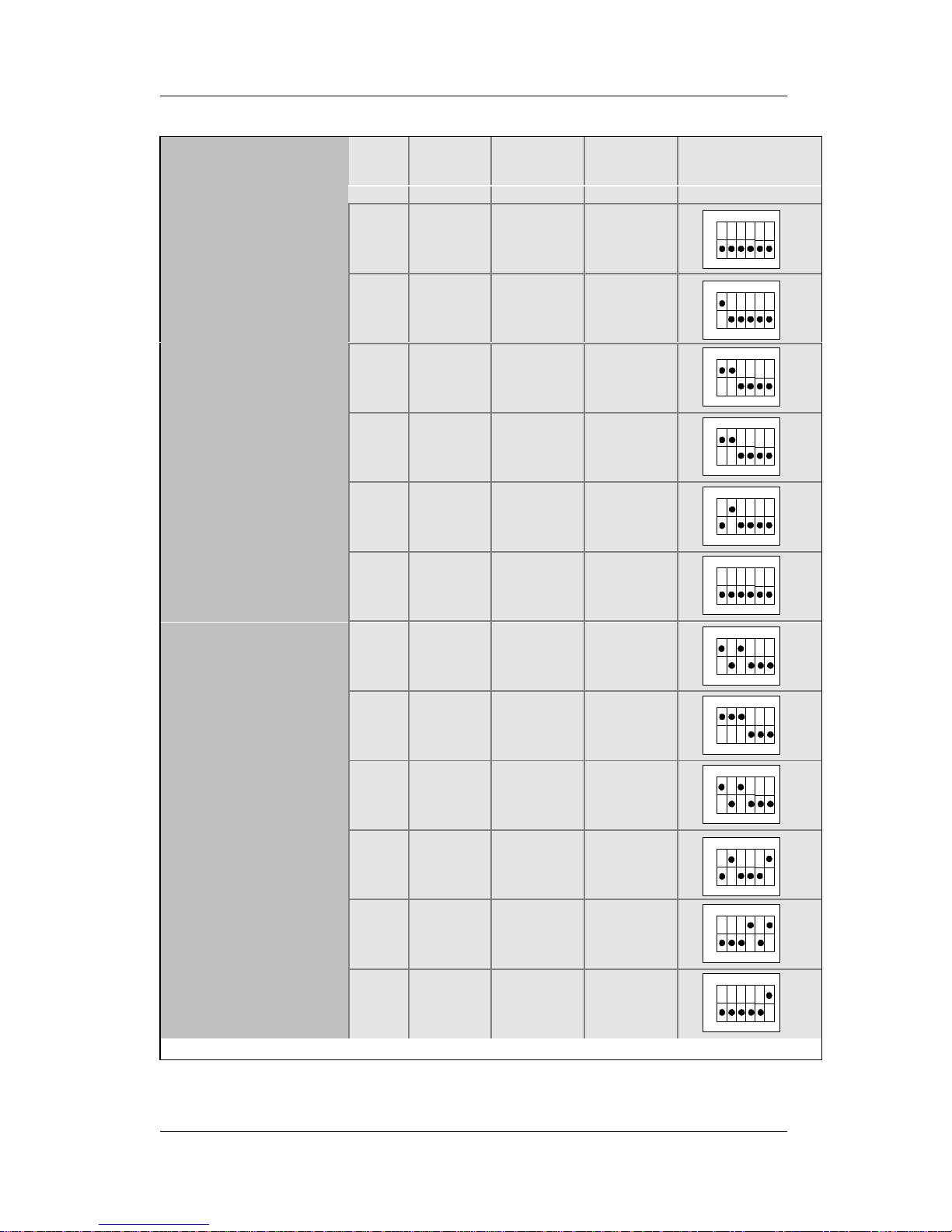

Frequency Settings for AMD™ Processors
Processor

Frequency Setting

Ratio

Bus

Clock

AGP

Clock

PCI

Clock

Frequency

Setting: SW1

AMD K5 - PR100 1.5 x 66MHz 66MHz 33MHz

AMD K5 - PR133 2.0 x 66MHz 66MHz 33MHz

AMD K5 - PR166 2.5 x 66MHz 66MHz 33MHz

AMD K6 - 166 2.5 x 66MHz 66MHz 33MHz

AMD K6 - 200 3.0 x 66MHz 66MHz 33MHz

AMD K6 - 233 3.5 x 66MHz 66MHz 33MHz

AMD K6 - 266 4.0 x 66MHz 66MHz 33MHz

AMD K6 - 300 4.5 x 66MHz 66MHz 33MHz

AMD K6-2 266 4.0 x 66MHz 66MHz 33MHz

AMD K6-2 300 3.0 x 100MHz 66MHz 33MHz

AMD K6-2 333 3.5 x 95MHz 63.4MHz 31.7MHz

AMD K6-2 350 3.5 x 100MHz 66MHz 33MHz
* Set the proper CPU frequency according to the marking on the CPU.

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

Hardware Setup SY-5EHM/5EH5

18

Frequency Settings for Cyrix™ Processors
Processor

Frequency Setting

Ratio

Bus

Clock

AGP

Clock

PCI

Clock

Frequency

Setting: SW1

Cyrix 6x86 - PR166+ 2.0 x 66MHz 66MHz 33MHz

Cyrix 6x86 - PR200+ 2.0 x 75MHz 75MHz 37.5MHz

Cyrix MX - PR166** 2.0 x 66MHz 66MHz 33MHz

Cyrix MX - PR200** 2.5 x 66MHz 66MHz 33MHz

Cyrix MX - PR200** 2.0 x 75MHz 75MHz 37.5MHz

Cyrix MX - PR233** 2.5 x 75MHz 75MHz 37.5MHz

Cyrix MX - PR266** 2.5 x 83MHz 55MHz 27.5MHz

Cyrix M II - 300** 3.5 x 66MHz 66MHz 33MHz

Cyrix M II - 300** 3.0 x 75MHz 75MHz 37.5MHz

Cyrix M II - 333** 4.0 x 66MHz 66MHz 33MHz

Cyrix M II - 333** 3.5 x 75MHz 75MHz 37.5MHz

Cyrix M II - 333** 3.0 x 83MHz 55MHz 27.5MHz

Cyrix M II - 333** 2.5 x 100MHz 66MHz 33MHz

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

1

2

3

4

5

6

ON

Hardware Setup SY-5EHM/5EH5

19

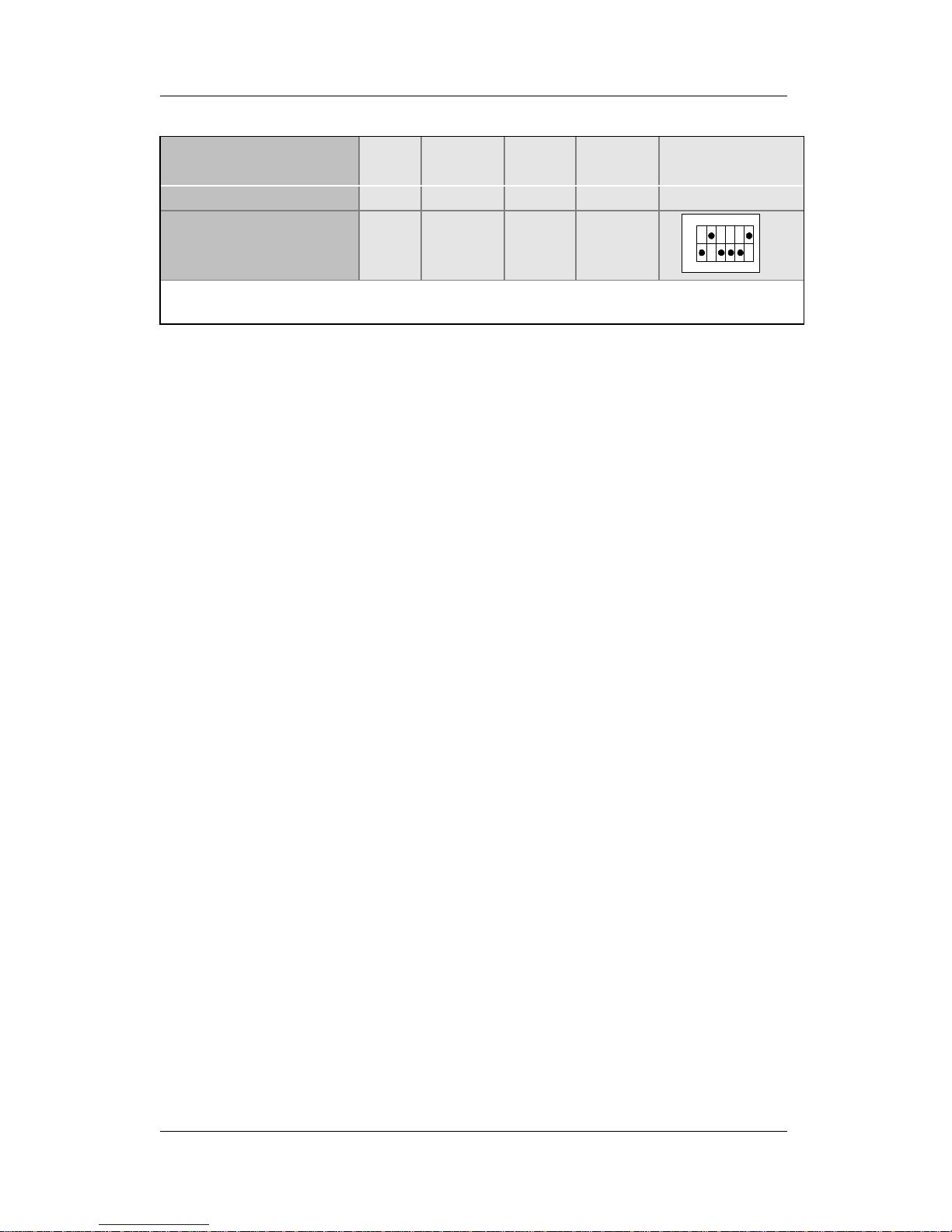

Frequency Settings for Cyrix™ Processors (Continued)
Processor

Frequency Setting

Ratio

Bus

Clock

AGP

Clock

PCI

Clock

Frequency

Setting: SW1

Cyrix M II - 350** 3.0 x 100MHz 66MHz 33MHz
** Set the proper CPU frequency according to the marking on the CPU.

Over specification is not guaranteed.

1

2

3

4

5

6

ON

Hardware Setup SY-5EHM/5EH5

20

Step 5. Set JP7,JP9,JP10 for SDRAM frequency

JP7 is used to indicate the frequency of the CPU bus clock to the
ETEQ chipset.
JP9 and JP10 are used to determine that the SDRAM is running at
the frequency of the CPU bus clock or the AGP clock.

CPU BUS

Clock

AGP BUS

Clock

JP10 JP7 JP9 SDRAM Clock

66MHz

66MHz

1-2

2-3

2-3

66MHz

75MHz

75MHz

1-2

2-3

2-3

75MHz

2-3

1-2

1-2

55MHz

83MHz 55MHz

1-2

1-2

2-3

83MHz

2-3

1-2

1-2

63.4MHz

95MHz 63.4MHz

1-2

1-2

2-3

95MHz

2-3

1-2

1-2

66MHz

100MHz 66MHz

1-2

1-2

2-3

100MHz

2-3

1-2

1-2

75MHz

112MHz 75MHz

1-2

1-2

2-3

112MHz

2-3

1-2

1-2

82.6MHz

124MHz 82.6MHz

1-2

1-2

2-3

124MHz

Note: Use 8ns or faster SDRAM modules (PC100 compliant) when
SDRAM is set to run at the frequency of 95/100 MHz.

Hardware Setup SY-5EHM/5EH5

21

Step 6. DRAM Module Installation

This mainboard supports two strips of 72-pin 5V FPM/EDO DRAM
(SIMM) from 4 to 64 MB and two strips 168-pin 3.3V/5V Unbuffered
DIMM modules from 8 to 256 MB. The mainboard requires SIMM
modules of at least 70ns access time.

This mainboard supports both EDO and SDRAM types of memory
modules.

Note:

(1) Do not install EDO type of DIMM modules if you already use

SDRAM in any DIMM bank..

l MEMORY CONFIGURATION
This mainboard features 2 x DIMM Banks for 168-pin 3.3V
unbuffered DIMM modules; 2 x SIMM Banks for 72-pin.

6

6

5

5

4

4

3

3

2

2

1

1

*

DIMM 2

DIMM1

SIMM1

SIMM2

Hardware Setup SY-5EHM/5EH5

22

Your board comes with one SIMM Bank (2 modules) and two DIMM
sockets, providing support for up to 512MB of main memory using
DIMM modules from 8MB to 256MB. For 66MHz host bus CPUs use
12ns or faster DIMM modules; for 83MHz host bus CPUs use 8ns
modules.

Memory Configuration Table

SIMM Bank DIMM BanksMEMORY

CONFIGURATION

Bank 1,2 DIMM 1 DIMM 2

RAM Type

FPM/EDO/BEDO

FPM/EDO/SDRAM FPM/EDO/SDRAM

Single RAM
Module Size (MB)

4/8/16/32/64 8/16/32/64/128/256 8/16/32/64/128/256

Note: 1. You must install two SIMM modules to complete the SIMM Bank

2. Do not use FPM or EDO type of SIMM/DIMM if you already use SDRAM.

3. Do not install SIMM Bank and DIMM 1 at the same time.

Step 7. IDE Device Installation (HDD, CD-ROM)

This mainboard offers two primary and secondary IDE device
connectors (IDE1, IDE2.) It can support up to four high-speed HDD
or CD-ROM.
Connect one side of the 40-pin flat cable to the IDE device (HDD or
CD-ROM) and plug the other end to the primary (IDE1) or secondary
(IDE2) directionally keyed IDE connector on the mainboard.
This mainboard can support up to four HDDs.

Step 8. Floppy Drive Installation

The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,

1.44 MB, 2.88 MB, and LS-120. In addition, this mainboard supports

a 3-mode (720KB/1.25MB/1.44MB) floppy commonly used in Japan.
Connect one side of the 34-pin flat cable to the floppy drive and plug
the other end to the floppy drive connector on the mainboard.
This mainboard can support up to 2 floppy drives.

Hardware Setup SY-5EHM/5EH5

23

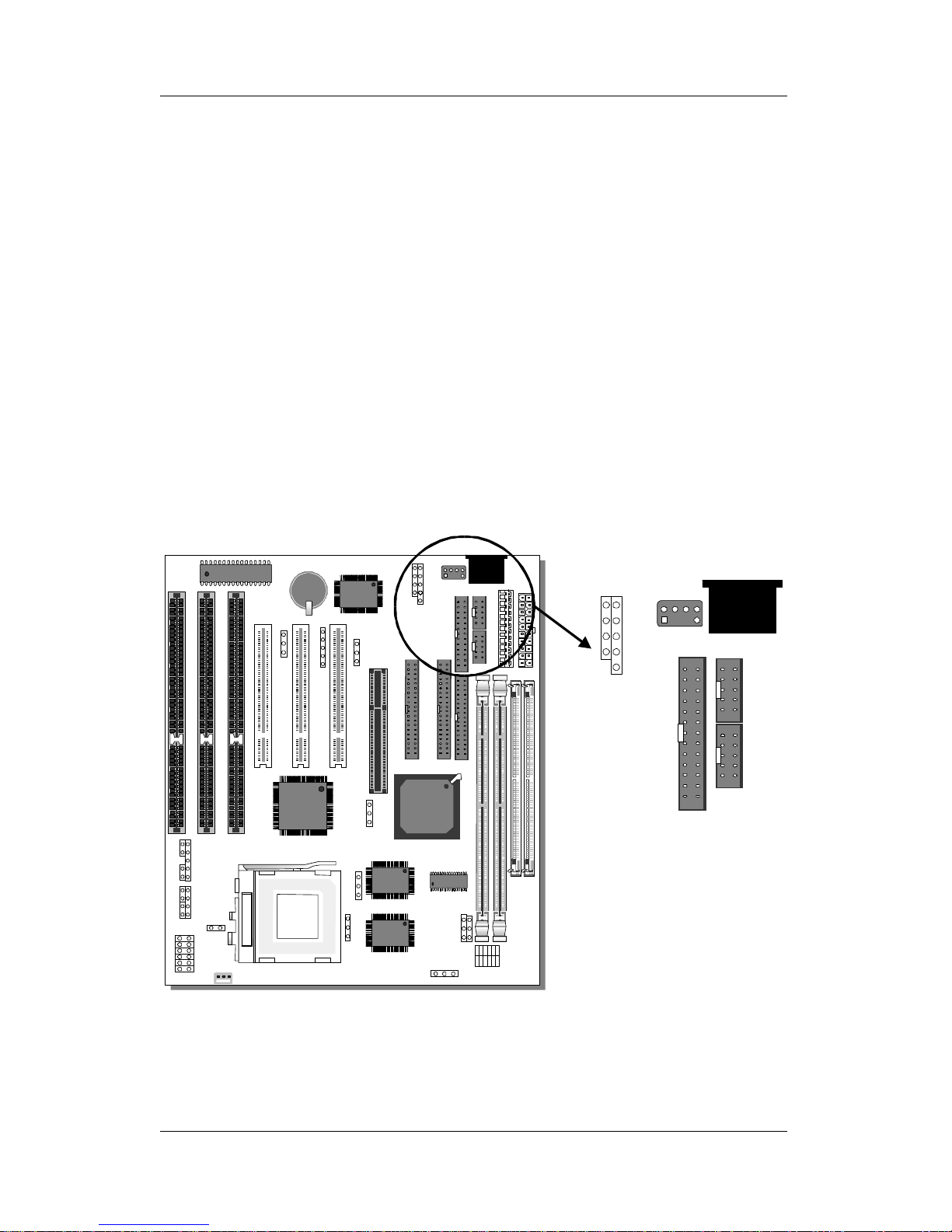

Step 9. Front Panel Connections

Plug the computer case's front panel devices to the corresponding
connectors on the mainboard.

1. Power LED & KeyLock

Plug the Power LED cable into the 5-pin Keylock connector.
Some systems may feature a KeyLock function with a front panel
switch for enabling or disabling the keyboard. Connect the KeyLock
switch to the 5-pin Keylock connector on the mainboard.
Please install according to the following pin assignment: pin 1,3 are
for Power LED and pin 4,5 are for Keylock.

2. Reset

Plug the Reset push-button cable into the 2-pin Reset connector on
the mainboard. Pushing the Reset button on the front panel will
cause the system to restart the boot-up sequence.

6

5

4

3

2

1

*

RST

PW2

SPK

Keylock

Power
LED

Turbo

LED

HDD
LED

_

+

Hardware Setup SY-5EHM/5EH5

24

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker
connector on the mainboard.

4. Turbo LED

Connecting the 2-pin Turbo LED cable to the corresponding Turbo
LED connector will cause the LED to light whenever the system is in
Turbo mode.
The manufacturer has permanently set this mainboard in Turbo
mode due to most hardware and software compliance to turbo
mode.

5. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE
LED connector on the mainboard. This will cause the LED to lighten
when an IDE (HDD, CD-ROM) device is active.

6. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT connector for
turning On or Off your ATX power supply.

Hardware Setup SY-5EHM/5EH5

25

Step 10. External Peripherals Connections

External devices such as the keyboard, printer, PS/2 mouse,
modem, USB can be connected to the Mainboard. Normally, you
can not plug your devices directly onto the Mainboard, except for the
keyboard that plugs directly into the back panel KB connector.
For other parallel (PRT1) and serial devices (COM1, COM2), first
install the external connectors that come with your Mainboard on the
computer case, then plug the other end of the flat cable to their
respective connectors.
Only after you have fixed and locked the Mainboard and external
connectors to the computer case can you start connecting the
external peripheral devices.

When connecting an external device, use the following figure to
locate and identify which back panel connector to plug the device or
flat cable to.

6

5

4

3

2

1

*

PRT 1

1

1

1

4

5

9

1

USB1

COM1

COM2

PS/2 Mouse

Connector

KB

Connector

Hardware Setup SY-5EHM/5EH5

26

1. Serial Ports COM1/COM2

External Devices that use the COM ports include serial mice and
modems. The COM port connectors are located on 2 separate
brackets panels, as shown on the figure below. Please plug their
respective 10 pin flat cable connectors into the COM1 and COM 2
serial port connectors on the mainboard.
The bracket panels should be fixed to one of the slots at the back of
the computer case using a screw, after having finished this you can
plug any serial device into the back panel connectors.

1

4

5

9

USB

KB

PS/2 Mouse

Connector

PRT 1

1

FDC

1

COM 1

COM 2

1

1

KB

Connector

9-pin male external

serial connector (2x)

9-pin serial

flat cables (2x)

Hardware Setup SY-5EHM/5EH5

27

Parallel Port PRT1

This parallel port is used to connect the printer or other parallel
devices.
Your Mainboard comes with one 25-pin female external parallel
connector with 25-pin flat cable.
Plug the 25-pin end of the flat cable into the PRT1 parallel connector
on the Mainboard, as shown in the figure below, then fix the bracket
to one of the slots at the back of the computer case using a screw.
After having finished this you can plug any parallel device into the
back panel connectors.

AT Keyboard

Plug the keyboard jack directly into the 5-pin female AT keyboard
connector located at the rear panel of the Mainboard.

AT Keyboard
Connector

1

4

5

9

USB

PRT 1

KB

Connector

PS/2 Mouse

Connector

1

FDC

1

COM 1

COM 2

1

1

25-pin female external

parallel connector

25-pin parallel

flat cable

Hardware Setup SY-5EHM/5EH5

28

PS/2 Mouse

Attach the mouse cable to the 6-pin male PS/2 mouse connector on
the Mainboard to enable PS/2 mouse function.

Universal Serial Bus (USB)

This mainboard provides a dual-row 10-pin header (one pin is empty)
to support two USB ports for your additional devices. Attach the
USB cable (Optional) to this header as shown in the diagram below.
The USB cable has two USB ports mounted on a bracket.

1

4

5

9

USB

PRT 1

PS/2 Mouse

Connector

1

COM 1

COM 2

1

1

KB

KB

Connector

USB

PRT 1

PS/2 Mouse

Connector

1

COM 1

COM 2

1

1

KB

Connector

Hardware Setup SY-5EHM/5EH5

29

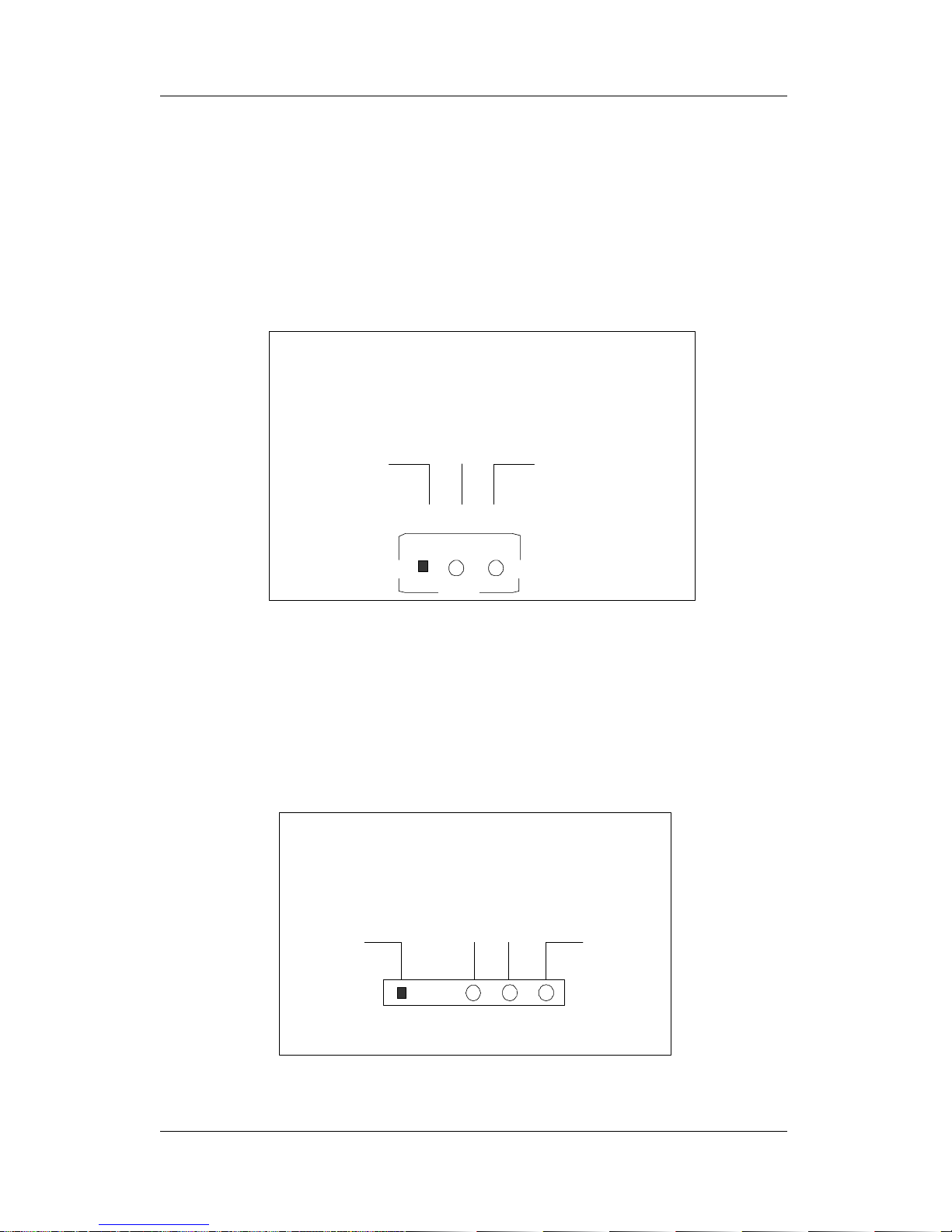

Step 11. Others Connector

1. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the
Wake-On-LAN (WOL) function to the JP44 connector on the
mainboard. This WOL function lets users wake up the connected
computer through the LAN card.
Please install according to the following pin assignment:

2. Infrared (IR)

Plug the 5-pin infrared device cable to the IR connector. This will
enable the infrared transfer function. This mainboard meets both the
ASKIR and HPSIR specifications.
Please install according to the following pin assignment:

Wake-On-LAN

JP44 Pin Assignment

5VSB

GND

MP_Wakeup

1

2

3

123

4

5

VCCIRRXGND

IRTX

Serial Infrared (SIR) Connector

SIR Pin Assignment

Hardware Setup SY-5EHM/5EH5

30

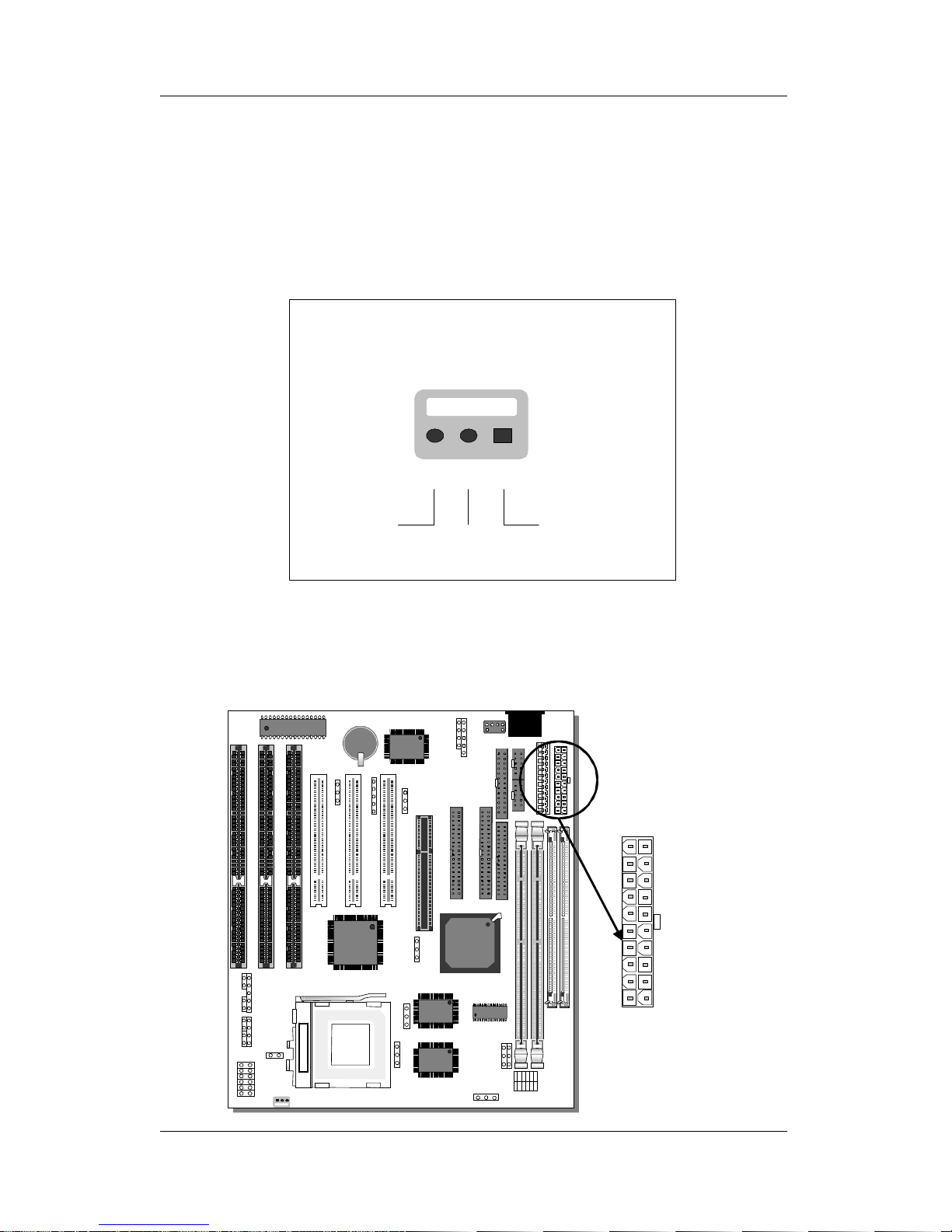

Step 12. CPU Cooling Fan Installation

After you have seated the CPU cooling fan properly on the
processor, attach the 3-pin fan cable to the JP12 connector on the
mainboard.
To avoid damage to the system, install according to the following pin
assignment:

Step 13. ATX Power Supply

Plug the connector from the power directly into the 20-pin male ATX
PW connector on the mainboard, as shown in the following figure.

CPU Cooling Fan: JP12

1

2

3

GND

12V

NC

6

5

4

3

2

1

*

ATX Power

Hardware Setup SY-5EHM/5EH5

31

Warning: Follow these precautions to preserve your
mainboard from any remnant currents when connecting to
ATX power supply:

Turn off the power supply and unplug the power cord
of the ATX power supply before connecting to ATX PW
connector.

The mainboard requires a power supply with at least 200 Watts and
a "power good" signal. Make sure the ATX power supply can take at
least 10 mA mp* load on the 5V Standby lead (5VSB) to meet the
standard ATX specification.

* Note: If you use the Wake-On-LAN (WOL) function, make sure the
ATX power supply can support at least 720 mAmp on the 5V
Standby lead (5VSB).
Please install the ATX power according to the following pin
assignment:

Ø Pay special care to the directionality.

Step 14. AT Power Supply

If you are using AT power, plug the dual 6-pin headers from the
power directly into the 12-pin male AT Power connector on the
mainboard. Make sure the black leads of the 6-pin AT power
headers are in the center.

ATX Power

12V

5VSB

PW-0K

GND

5V

GND

5V

GND

3.3V

3.3V

5V
5V

-5V
GND
GND
GND
PS-ON
GND

-12V

3.3V

Hardware Setup SY-5EHM/5EH5

32

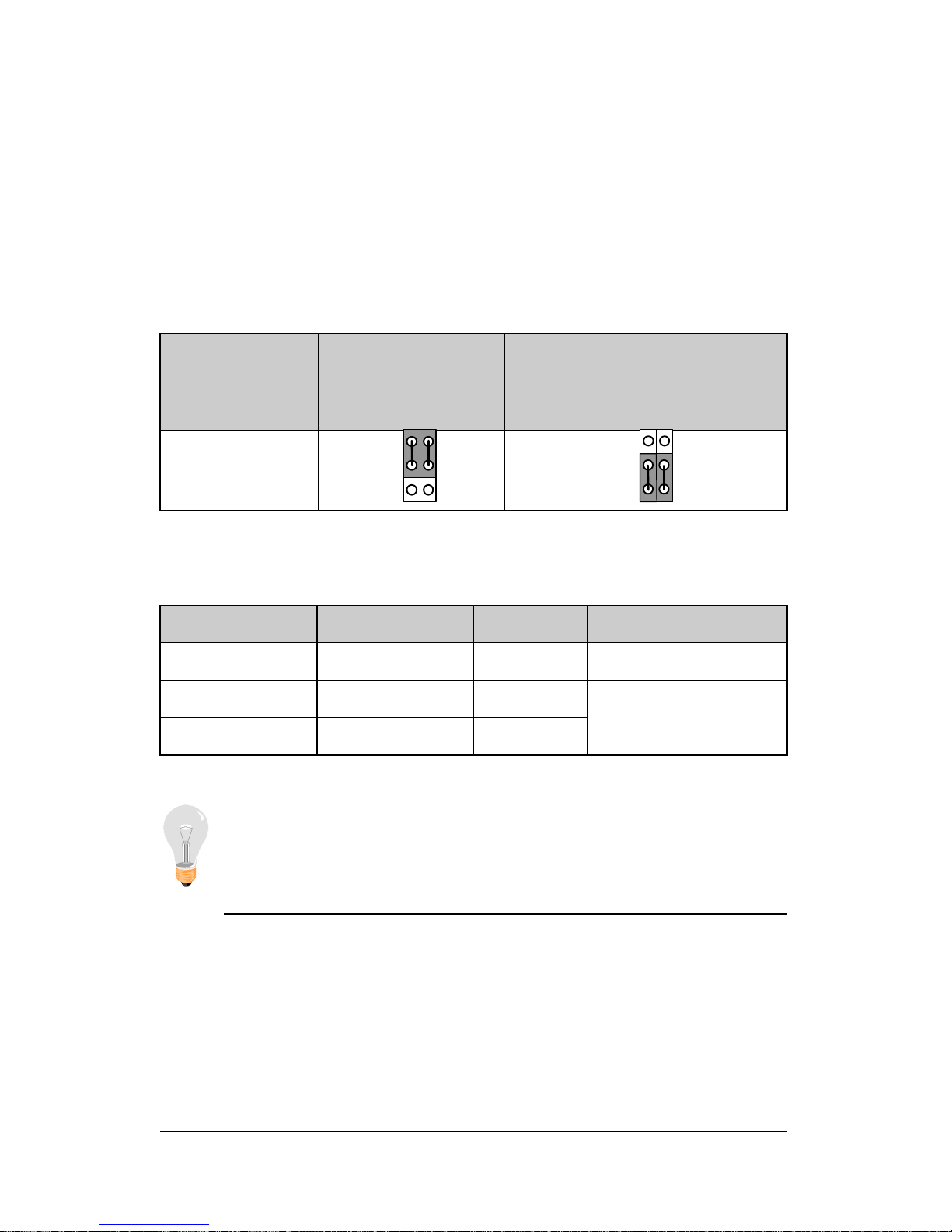

Step 15. CMOS Clearing (JP5)

After you have turned off your computer, clear the CMOS memory
by momentarily shorting pins 2-3 on jumper JP5, for a few seconds.
Then restore JP5 to the initial 1-2 jumper setting in order to recover
and retain the default settings.

CMOS Clearing Clear CMOS Data Retain CMOS Data

JP5 Setting

Short pin 2-3 for
a few seconds to
clear the CMOS

Short pin 1-2
to retain new
settings

Note: You must unplug the ATX power cable from the ATX power
connector when performing the CMOS Clear operation.

Step 16. Select the CPU Burst Mode (JP22)

There are two types of CPU burst modes according to manufacturer
design:

Ø Interleave Burst (CPU: Intel P54C/P55C, AMD

K5/K6/K6-2)

Ø Linear Burst (CPU: Cyrix 6x86/L/MX/M¢º)

Interleave LinearCPU Burst

Mode

Intel® P54C/P55C

AMD™ K5/K6/K6-2

Cyrix™ 6x86/L/MX/M

¢º

JP22 Setting

When using
Intel or AMD
CPUs.

When using
Cyrix type of
CPU.

If you are using a Cyrix™ 6x86/L/MX/M II series CPU, set the burst
mode to Linear by shorting pin 1-2 on jumper JP22, and follow the
following steps to select the correct Linear burst mode in BIOS:

1. During the boot-up initial sequence, press the [Delete] key to

enter the BIOS setup menu.

2. Select the [CHIPSET FEATURES SETUP] section in BIOS.

3. In the [CHIPSET FEATURES SETUP] sub-menu, set the [Linear

Burst] field to [Enabled].

4. Press [Esc] to return to the BIOS main menu.

32132

1

3

2

1

321

Hardware Setup SY-5EHM/5EH5

33

5. Then choose [Save & Exit Setup] to re-boot your computer.

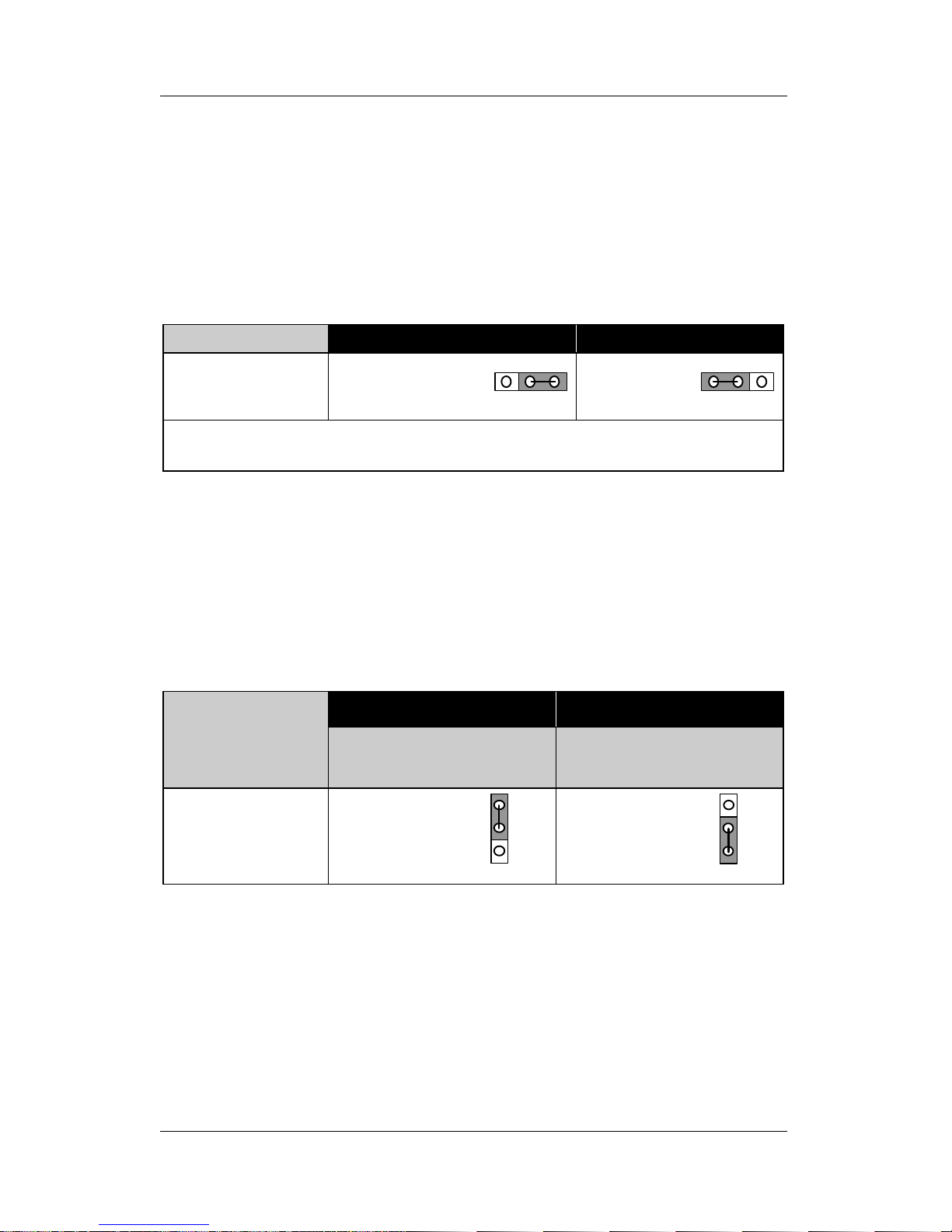

Step 17. Adjust the DIMM Voltage (JP37)

There are two kinds of DIMM voltages on the market: 3.3V and 5V
Most SDRAM DIMMs on the market feature a voltage value of 3.3V.

Set JP37 to the correct voltage value according to the DIMM
modules that you are using.

DIMM Voltage

3.3V

(Default)

5V

Check DIMM voltage

carefully before setting the

jumper

JP37 Setting

Step 18. MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

LPT1

378H 7 ECP + EPP

COM1

3F8H 4

COM2

2F8H 3

Warning: If a default I/O address conflicts with other I/O
cards such as sound card, you must change one of the I/O
addresses to remedy to this address conflict. (I/O addresses
can be adjusted from the BIOS Setup Utility)

64231564231

5

Hardware Setup SY-5EHM/5EH5

34

Step 19. CACHE CONFIGURATION

This mainboard has a built-in 1MB Level 2 Pipelined Burst cache
onboard to improve the system performance.

The cache size and RAM locations are specified as follows:

Cache Size Cache RAM TAG RAM

Cacheable

Range

1 MB

64K x 64

on U2,U3

32K x 8

on U5

WT: 256 MB
WB: 128MB

512 KB

64K x 64

on U2

32K x 8

on U5

WT: 128 MB

WB: 64 MB

Step 20. Power On

You have now completed the hardware installation of your
mainboard successfully.

1. Turn the power on

2. To enter the BIOS Setup Utility, press the <DEL> key while the

system is performing the diagnostic checks,

Note: If you have failed to enter the BIOS, wait until the boot
up sequence is completed. Then push the RESET button and
press <DEL> key again at the beginning of boot-up, during
diagnostic checks.

Repeat this operation until you get the following screen.

Hardware Setup SY-5EHM/5EH5

35

3. The BIOS Setup screen appears:

You are now ready to configure your system with the BIOS setup
program. Go to Chapter 3: BIOS SETUP

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc
F10

: Quit
: Save & Exit Setup

↑ ↓ → ←
(Shift) F2

: Select Item
: Change Color

Time, Date, Hard Disk Type…

BIOS Setup Utility SY-5EHM/5EH5

36

Chapter 3

BIOS SETUP UTILITY

This mainboard's BIOS setup program uses the ROM PCI/ISA BIOS
program from Award Software Inc.
To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the
Award BIOS Setup Utility.

Selecting items

l Use the arrow keys to move between items and select fields.
l From the Main Menu press arrow keys to enter the selected

submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected

fields. Some fields let you enter values directly.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc

F10

: Quit
: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

Time, Date, Hard Disk Type…

BIOS Setup Utility SY-5EHM/5EH5

37

Hot Keys: Function keys give you access to a group of commands

throughout the BIOS utility.

Function Command Description

F1

Help Gives the list of options available for each item.

Shift F2

Color Change the color of the display window.

F5

Old values Restore the old values. These are the values that

the user started the current session with.

F6

Load BIOS
Defaults

Loads all options with the BIOS Setup default
values.

F7

Load Setup
Defaults

Loads all options with the Power-On default values.

F10

Save & Exit
Setup

Saves your changes and reboots the system.

[Esc]

Quit Lets you return at anytime and from any location to

the Main Menu.

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to
save data to CMOS and exit the setup utility. This option saves all
your changes and causes the system to reboot.

Type [Y] to save the
changes and exit or [N] to
return to the Main Menu
and keep current values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to
abandon all data and exit setup, therefore ignoring all your changes.

Type [Y] to abandon
changes and exit or [N] to
return to the Main Menu
and keep current values.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc

F10

: Quit
: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

Time, Date, Hard Disk Type…

SAVE to CMOS and EXIT (Y/N)? _

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc

F10

: Quit
: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

Time, Date, Hard Disk Type…

Quit Without Saving (Y/N)? _

BIOS Setup Utility SY-5EHM/5EH5

38

3-1 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu
and press [Enter] key.

This screen allows you to modify the basic CMOS settings.
After you have completed the changes, press [Esc] key to return to
the Main Menu.

3-1.1 Date & Time

Display Setting Please Note

Date

mm/dd/yyyy Type the current date You can also the

PUp/PDn keys to
toggle

Time

hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed
as 15:15:00

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Date (mm:dd:yy)
Time (hh:mm:ss)

: Fri, May 29 1998
: 9 : 42 : 43

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master
Primary Slave
Secondary Master
Secondary Slave

: AUTO
: None
: None
: None

0
0
0
0

0
0
0
0

0
0
0
0

0
0
0
0

0
0
0
0

0
0
0
0

AUTO

- - - -

- - - -

- - - -

Base Memory:

Extended Memory:

Other Memory:

640K

3328K

128K

Drive A : 1.44M, 3.5 in.
Drive B : None
Floppy 3 Mode Support : Disabled

Video : EGA/VGA
Halt On : All Errors

Total Memory: 4096K

EscF1: Quit

: Help

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

PU/PD/+/-F3: Modify

: Toggle Calendar

BIOS Setup Utility SY-5EHM/5EH5

39

3-1.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already
installed.

Primary
(Secondary)
Master & Slave

Setting Description Note

Auto BIOS detects hard disk type

automatically.

Default

1-47 Selects standard hard disk type.

Type

User User defines the type of hard

disk.

Auto BIOS detects hard disk mode

automatically.

Default

Normal Normal IDE hard disk <528MB
LBA Enhanced IDE hard disk >528MB

Mode

Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or
mode, ask your hard disk provider or previous user for details.

3-1.3 Floppy Drives
Floppy Drives Setting Description Note

360KB, 5.25 in.

1.2MB, 5.25 in.
720KB, 3.5 in.

1.44MB, 3.5 in. Default

2.88MB, 3.5 in.

Drives A & B

None Not installed
Disabled Default

Floppy 3-Mode
Support

Drive A
Drive B
Both

Supports 3-mode
floppy diskette:
740KB/1.25MB/1.
44MB on selected
disk drive.

Special disk
drive commonly
used in Japan

BIOS Setup Utility SY-5EHM/5EH5

40

3-1.4 Video

Select the video mode: EGA/VGA (Default), CGA 40, CGA 80,
Mono (Monochrome).

3-1.5 Halt On

When the BIOS detects system errors, this function will stop the
system. Select which type of error will cause the system halt: All
Errors (Default), No Errors, All But Diskette, All But Keyboard, All
But Disk/Key.

BIOS Setup Utility SY-5EHM/5EH5

41

3-2 BIOS FEATURES SETUP

Select the [BIOS FEATURES SETUP] option from the Main Menu
and press [Enter] key.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Video BIOS Shadow
C8000-CBFFF Shadow
CC000-CFFFF Shadow
D0000-D3FFF Shadow
D4000-D7FFF Shadow
D8000-DBFFF Shadow
DC000-DFFFF Shadow

: Enabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled

ESC
F1
F5

: Quit
: Help
: Old Values

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

Virus Warning

CPU Internal Cache
External Cache
Quick Power On Self Test
Boot Sequence
Swap Floppy Drive
Boot Up NumLock Status
Gate A20 Option
Memory Parity /ECC Check
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
IDE Second Channel Control
PCI/VGA Palette Snoop
OS Select For DRAM > 64MB
Report No FDD For WIN 95

: Disabled
: Enabled
: Enabled
: Enabled
: A, C, SCSI
: Disabled
: On
: Fast
: Enabled
: Disabled
: 6
: 250
: Setup
: Enable
: Disabled
: Non-OS2
: No

F6F7: Load BIOS Defaults

: Load Setup Defaults

After you have completed the changes, press [Esc] key and follow
the instructions on your screen to save your settings or exit without
saving.

BIOS Setup Utility SY-5EHM/5EH5

42

3-2.1 Virus Warning

Setting Description Note

Disabled Default

Virus Warning

Enabled Enable this option to protect

the boot sectors and
partition tables of your hard
disk. Any attempt to write to
them will the system to halt
and display a warning
message.

3-2.2 Cache Memory Options

Setting Description Note

Disabled

CPU Internal Cache

Enabled Enables the CPU's

internal cache.

Default

Disabled

External Cache

Enabled Enables the external

memory.

Default

BIOS Setup Utility SY-5EHM/5EH5

43

3-2.3 System Boot Control Settings
System Boot

Control Settings

Setting Description Note

Disabled

Quick Power On
Self Test

Enabled Provides a fast POTS at

boot-up.

Default

A, C, SCSI
C, A, SCSI
C, CD-ROM, A
CD-ROM, C, A
D, A, SCSI
E, A, SCSI
F, A, SCSI
SCSI, A, C
SCSI, C, A
C only

Boot Sequence

LS/ZIP, C

Choose the boot
sequence adapted to
your needs, for example:
l [A, C, SCSI] means

the BIOS will look for an
operating system first in
drive A, then in drive C,
and eventually in SCSI
device.

Disabled Default

Swap Floppy
Drive

Enabled Changes the sequence

of A and B drives.

On Puts numeric keypad in

NumLock mode at boot­up.

Default

Boot Up
NumLock
Status

Off Puts numeric keypad in

arrow key mode at boot­up.

BIOS Setup Utility SY-5EHM/5EH5

44

System Boot Control Settings (continued)
System Boot

Control Settings

Setting Description Note

Normal

Gate A20 Option

Fast Allows RAM access

above 1MB using the fast
gate A20 line.

Default

Enabled This allows to perform a

redundancy check on the
parity bit in the data
strings. This method is
used for error detection
when the parity is not
found.

Default

Memory Parity
Check/ ECC
Check

Disabled

3-2.4 Typematic Settings
Typematic

Settings

Setting Description Note

Disabled Default

Typematic
Rate Setting

Enabled Enables to adjust the

keystroke repeat rate.

The following [Typematic Rate] and [Typematic Delay] fields are
active only if [Typematic Rate Setting] is set to [Enabled]

Typematic Rate
(Chars/Sec)

6 (Char/sec)
8 (Char/sec)
10 (Char/sec)
12 (Char/sec)
15 (Char/sec)
20 (Char/sec)
24 (Char/sec)
30 (Char/sec)

Choose the rate at which
a character is repeated
when holding down a
key.

Default

Typematic Delay
(Msec)

250 (msec)
500 (msec)
750 (msec)
1000 (msec)

Choose how long after
you press a key down the
character begins
repeating.

Default

BIOS Setup Utility SY-5EHM/5EH5

45

3-2.5 Other Control Options
Other Control

Options

Setting Description Note

Setup Use this feature to prevent

Unauthorized system boot-up
or use of BIOS Setup.
“Setup”, If a password is set,
the password prompt only
appears if you attempt to
enter the Setup program.

Default

Security
Option

System Each time the system is

booted the password prompt
appears.

Disabled Turn off the on-board IDE.

IDE Second
Channel
Control

Enabled Use a PS/2 mouse. Default

Disabled Default
Enabled

PCI/VGA
Palette Snoop

The color of the monitor may be altered
when using an MPEG card. Enable this
option to restore the monitor's normal
color.

OS2 When using an OS2

operating system.

OS Select for
DRAM>64MB

Non-OS2 When using another,

non-OS2 operating system.

Default

No Windows will reserve INT 6

for your FDD, whether it is
Disabled or not.

Default

Report No
FDD For WIN
95

Yes Windows will release IRQ line

6 (normally used by the
Floppy Disk Drive) after you
disable you on-board FDD
and set this field to [Yes].

BIOS Setup Utility SY-5EHM/5EH5

46

Other Control Options (Continued)
Other Control

Options

Setting Description Note

Disabled
Enabled

Video or
Adapter BIOS
Shadow

The BIOS is shadowed in a 16K segment
if it is enabled and if it has BIOS present.
These 16 segments can be shadowed
from ROM to RAM. BIOS shadow copies
BIOS code from slower ROM to faster
RAM.
BIOS can then execute from RAM.

Default

BIOS Setup Utility SY-5EHM/5EH5

47

3-3 CHIPSET FEATURES SETUP

Caution: Change these settings only if you are already
familiar with the Chipset.

The [CHIPSET FEATURES SETUP] option changes the values of
the chipset registers. These registers control the system options in
the computer.

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

ESC
F1
F5

: Quit
: Help
: Old Values

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

Bank 0/1 DRAM Timing

Bank 2/3 DRAM Timing
Bank 4/5 DRMA Timing
DRAM Read Pipeline
Cache Rd+ CPU Wt Pipeline
Linear Burst

Video BIOS Cacheable
System BIOS Cacheable
Memory Hole At 15Mb Addr.
AGP Aperture Size
AGP –2x Mode
On Chip USB
USB Keyboard Support
Spread Spectrum Modulated

: FP/EDO/60ns
: FP/EDO/60ns
: FP/EDO/60ns
: Enabled
: Disabled
: Disabled

: Enabled
: Enabled
: Disabled
: 64M
: Disabled
: Enable
: Disabled
: Disabled

F6F7: Load BIOS Defaults

: Load Setup Defaults

After you have completed the changes, press [Esc] and follow the
instructions on your screen to save your settings or exit without
saving.
The following table describes each field in the CHIPSET
FEATURES SETUP Menu and how to configure each parameter.

BIOS Setup Utility SY-5EHM/5EH5

48

CHIPSET FEATURES SETUP
CHIPSET

FEATURES

Setting Description Note

FP/EDO
70ns

Use the default setting Default

Bank 0/1 DRAM
Timing
Bank 2/3 DRAM
Timing
Bank 4/5 DRAM
Timing

Normal
Medium
Fast,
Turbo

Choose DRAM Timing.

Disabled

DRAM Read
Pipeline

Enabled Enhances system

performance

Default

Disabled

Cache Rd+CPU
Wt Pipeline

Enabled Enhances system

performance

Default

Disabled Use the default setting Default

Linear Burst

Enabled Linear mode SRAM support

for Cyrix type of CPU.

Disabled

Video BIOS
Cacheable

Enabled The ROM area A0000-

BFFFF is cacheable.

Default

Disabled

System BIOS
Cacheable

Enabled The ROM area F0000H-

FFFFFH is cacheable

Default

Disabled Some interface cards will

map their ROM address to
this area.

Default

Memory Hole
15Mb Addr.

Enabled

BIOS Setup Utility SY-5EHM/5EH5

49

CHIPSET FEATURES SETUP (Continued)
CHIPSET

FEATURES

Setting Description Note

AGP Aperture
Size

64M
4-256M

AGP could use the DRAM
as its video RAM. Choose
the JDRAM size that you
wish to allocate as video
RAM.

Default

Disabled Default

AGP-2X Mode

Enabled Enable only if your AGP card

supports 2x mode (faster)

Disabled

OnChip USB

Enabled Enable if you use a separate

USB controller card

Default

Disabled Default

USB Keyboard
Support

Enabled Enabled if you use an USB

Keyboard.

Disabled Use the default setting Default
Enabled When using Spread

Spectrum Modulated 1.5%
or 6% for FCC or DOC
testing.

Spread Spectrum
Modulated

V Show the current voltage

BIOS Setup Utility SY-5EHM/5EH5

50

3-4 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power
saving functions.

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

Primary INTR
IRQ3 (COM2)
IRQ4 (COM1)
IRQ5 (LPT2)
IRQ6 (Floppy Disk)
IRQ7 (LPT1)
IRQ8 (RTC Alarm)
IRQ9 (IRQ2 Redir)
IRQ10 (Reserved)
IRQ11 (Reserved)
IRQ12 (PS/2 Mouse)
IRQ13 (Coprocessor)
IRQ14 (Hard Disk)
IRQ15 (Reserved)

: ON
: Primary
: Primary
: Primary
: Primary
: Primary
: Disabled
: Secondary
: Secondary
: Secondary
: Primary
: Primary
: Primary
: Disabled

ESC
F1
F5

: Quit
: Help
: Old Values

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

ACPI function

Power Management
PM Control by APM
Video Off Option
Video Off Method
Modem Use IRQ
Sof-Off by PWR-BTTN

** PM Timers **
HDD Power Down
Doze Mode
Suspend Mode
** PM Events **
VGA
LPT & COM
HDD & FDD
DMA/ master
Modem Ring Resume
RTC Alarm Resume

: Disabled
: User Define
: Yes
: Suspend ->Off
: V/H SYNC+ Blank
: 3
: Instant – Off

: Disabled
: Disabled
: Disabled

: OFF
: LPT/COM
: ON
: OFF
: Disabled
: Disabled

F6F7: Load BIOS Defaults

: Load Setup Defaults

After you have completed the Power Management Setup, press
[Esc] to return to the Main Menu.

BIOS Setup Utility SY-5EHM/5EH5

51

3-4.1 Power Management Controls
Power

Management
Controls

Setting Description Note

Disabled Default

ACPI
function

Enabled Enabled if you use Windows

98 and want to use ACPI

User Define Lets you define the HDD and

system power down times.

Doze timer Standby timer Suspend timer

Min Saving 40 Min 40 Min 40 Min

Power
Management

Max Saving 20 Sec 20 Sec 20 Sec
Yes To use Advanced Power

Management (APM) you
must run [power.exe] under
DOS V6.0 or later version.

Default

PM Control
by APM

No
Suspend

->Off

The monitor will be switched
off in suspend mode,

Default

All Modes

->Off

Video Off
Option

Always On

the monitor will be switched
off in all power saving
modes

V/H
SYNC+Blank

Default

Blank screen

Video Off
Method

DPMS
Supported

Selects the method by which
the monitor is blanked.

3 Default

Modem Use
IRQ

3-11, NA

Assigns an IRQ# to the
modem device.

Instant - Off Default

Soft-Off by
PWRBTN

Delay 4 Sec

Select the Power Button
Mode.
Instant – Off : One push off.
Delay 4 Sec : Push for 4s to
switch off.

BIOS Setup Utility SY-5EHM/5EH5

52

3-4.2 PM Timers
PM Timers Setting Description Note

Disable Default

HDD Power
Down

1-15Min When the set time has

elapsed, BIOS sends a
command to the HDD to
power down. This turns off
the HDD motor.

Some older
model HDDs
may not support
this advanced
function.

The following [Doze Mode] field may be configured only if [Power
Management] is set to [User Define]

Disable Default

Doze Mode

10sec­1Hour

When the set time has
elapsed, BIOS sends a
command to the system to
enter Doze Mode.

System clock
drops to
33MHz.

The following [Suspend Mode] field may be configured only if
[Power Management] is set to [User Define]

Disable Default

Suspend
Mode

10sec­1Hour

In Suspend mode, the
CPU stops completely (no
instructions are executed.)

Only an SL­Enhanced (or
SMI) CPU can
enter this mode.

BIOS Setup Utility SY-5EHM/5EH5

53

3-4.3 PM Events
PM Events Setting Description Note

ON Enabled the power

managemnet.

VGA

OFF Default
LPT/COM Enabled the power

management timer.

Default

LPT & COM

COM
LPT
NONE

ON Enabled the power

management timers when the
event is detected on the Hard
Disk Drive and Floppy Disk
Drive device.

Default

HDD & FDD

OFF
ON The system will not have SIM

signal until the master is
finished while the master is
working.

DMA/master

OFF Default
Disabled Only work when the computer is

powered on. The system will
resume active when modem is
ringing.

Default

Modem Ring
Resume

Enabled The system will not resume

when modem is ringing.

Disabled The system ignores the alarm. Default

RTC Alarm
Resume

Enabled Set alarm to wake up the

system either by the date (1-31)
or time (hh:mm:ss), and if the
date is set to 0, it means that
the system will wake up by the
alarm everyday.

ON Use the default setting. Default

Primary INTR

OFF

BIOS Setup Utility SY-5EHM/5EH5

54

PM Events (Continued)
PM Events Setting Description Note

Primary IRQ3(COM2), IRQ4(COM1),

IRQ5(LPT2), IRQ6(Floppy
Disk), IRQ7(LPT1), IRQ12(PS/2
mouse), IRQ13(Coprocessor),
IRQ14(HardDsik)

IRQ#

Secondary IRQ9(IRQ2 Redir),

IRQ10( Reserved),
IRQ11(Reserved)

Disabled IRQ8 (RTC Alarm), IRQ15

(Reserved)

BIOS Setup Utility SY-5EHM/5EH5

55

3-5 PNP/PCI CONFIGURATION SETUP

This option sets the mainboard's PCI Slots.

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION SETUP

AWARD SOFTWARE, INC.

CPU to PCI Write Buffer
PCI Master Broken Timer
PCI IRQ Actived By
Assign IRQ For USB
Assign IRQ For VGA
Assign IRQ For ACPI

: Enabled
: Disabled
: Level
: Enabled
: Enabled
: IRQ10

ESC
F1
F5

: Quit
: Help
: Old Values

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

PNP OS Installed
Resources Controlled By
ACPI I/O Device Node
IRQ-3 assigned to
IRQ-4 assigned to
IRQ-5 assigned to
IRQ-7 assigned to
IRQ-9 assigned to
IRQ-10 assigned to
IRQ-11 assigned to
IRQ-12 assigned to
IRQ-14 assigned to
IRQ-15 assigned to
DMA-0 assigned to
DMA-1 assigned to
DMA-3 assigned to
DMA-5 assigned to
DMA-6 assigned to
DMA-7 assigned to

: No
: Manual
: Disabled
: Legacy ISA
: Legacy ISA
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP
: PCI/ISA PnP

F6F7: Load BIOS Defaults

: Load Setup Defaults

Note: Starred (*) items will disappear when the [Resources
Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc]
and follow the instructions on your screen to save your settings or
exit without saving.

BIOS Setup Utility SY-5EHM/5EH5

56

3-5.1 PNP/PCI Configuration Controls
PNP/PCI

Controls

Setting Description Note

Yes Use the default setting Disabled

PNP OS
Installed

NO
Manual BIOS does not manage PCI/ISA

PnP card IRQ assignment.
Requires to assign IRQ-# and DMA-# to PCI
or ISA PnP manually.
IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _
DMA-0,1,3,5,6,7 assigned to: _

Resources
Controlled By

Auto The Plug-and-Play BIOS

auto manages PCI/ISA

PnP card IRQ assignment

automatically.

Recommended

Disabled Retain PnP configuration

data in BIOS.

Default

Reset
Configuration
Data

Enabled Reset PnP configuration

data in BIOS.
Disabled Use the default setting Default

ACPI I/O
Device Node

Enabled

BIOS Setup Utility SY-5EHM/5EH5

57

3-5.2 PNP/PCI Configuration Setup
PNP/PCI

Setup

Setting Description Note

If [Resources Controlled By] is set to [Manual]

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to
PCI/ISA PnP card.

IRQ-3,4,5,7,9,10,
11,12,14,15

DMA-0,1,3,5,6,7

IRQ-# and
DMA-#
assigned to:

Legacy ISA Choose IRQ-# and

DMA-# assigned to
Legacy ISA card.

IRQ-3,4,5,7,9,10,
11,12,14,15

DMA-0,1,3,5,6,7

Disabled

CPU to PCI
write Buffer

Enabled Enable buffering of

CPU writes to the
PCI bus, the CPU
will not have to wait.

Default

Disabled Default

PCI Master
Broken Timer

Enabled Enable to allow for

slow PCI masters.

Disabled

Assign IRQ
For USB

Enabled Enable RSB IRQ Default
Disabled

Assign IRQ
For VGA

Enabled Enable if your VGA

card needs an
interrupt.

Default

IRQ10

Default

Assign IRQ
For ACPI

IRQ11
IRQ9

If you enable ACPI
on your system, set
this item to a free
interrupt for ACPI to
use.

BIOS Setup Utility SY-5EHM/5EH5

58

3-6 LOAD SETUP DEFAULTS

Select the [LOAD SETUP DEFAULTS] option from the Main Menu to
load the system values you have previously saved. This option is
recommended if you need to reset the system setup and to retrieve
the old values.

Type [Y] to use the Setup
Defaults followed by [Enter]
or otherwise [N] to return to
the Main Menu and keep
current values.

3-7 LOAD BIOS DEFAULTS

Select the [LOAD BIOS DEFAULTS] option from the Main Menu to
load the system default values. BIOS Defaults values are adjusted
to yield high performance.

Type [Y] to use the Setup
Defaults followed by [Enter]
or otherwise [N] to return to
the Main Menu and keep
current values.

Warning: If you run into any problems after loading BIOS
DEFAULTS, please load the SETUP DEFAULTS for stable
performance.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc
F10

: Quit
: Save & Exit Setup

↑ ↓ → ←
(Shift) F2

: Select Item
: Change Color

Time, Date, Hard Disk Type…

Load BIOS Defaults (Y/N)? _

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc
F10

: Quit
: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

Time, Date, Hard Disk Type…

Load SETUP Defaults (Y/N)? _

BIOS Setup Utility SY-5EHM/5EH5

59

3-8 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already
familiar with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of
the chipset registers. These registers control the system options in
the computer.

The following screen shows default settings.

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

Onboard Parallel Port
Parallel Port Mode
ECP Mode Use DMA
Parallel Port EPP Type

: 378
: Normal
: 3
: EPP1.9

ESC
F1
F5

: Quit
: Help
: Old Values

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

OnChip IDE First Channel
OnChip IDE Second Channel
IDE Prefetch Mode

IDE HDD Block Mode

IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Secondary Master UDMA
IDE Secondary Slave UDMA

Init Display First

Onboard FDC Controller
Onboard UART 1
Onboard UART 2
Onboard UART 2 Mode

: Enabled
: Enabled

: Enabled
: Enabled
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: PCI Slot

: Enabled
: 3F8/IRQ4
: 2F8/IRQ3
: Standard

F6F7: Load BIOS Defaults

: Load Setup Defaults

The following tables describe each field in the INTEGRATED
PERIPHERALS Menu and provide instructions on how to configure
the IDE controls, FDC controls, and the onboard serial and parallel
ports.

BIOS Setup Utility SY-5EHM/5EH5

60

3-8.1 IDE Device Controls
IDE Controls Setting Description Note

Disabled

Onchip IDE Primary
Channel

Enabled

Use the On-board IDE
Channel

Default

Disabled

Onchip IDE Second
Channel

Enabled

Turn off the On-board
IDE Channel

Default

Disabled

IDE Prefetch Mode

Enabled Enable to enhance

system performance.

Default

Disabled

IDE HDD Block Mode

Enabled Invokes multi-sector

transfer instead of one
sector per transfer. Not
all HDDs support this
function.

Default

The following fields may be configured only if [Internal PCI/IDE] is
set to [Both], [Primary], or [Secondary].

Mode 0-4 0 is the slowest speed

4 is the fastest speed

IDE

Ø Primary Master PIO
Ø Primary Slave PIO
Ø Secondary Master PIO

Ø

Secondary Slave PIO

Auto For better performance

and stability, we
suggest you use the
Auto setting to set the
HDD control timing.

Default

Disabled

IDE

Ø Primary Master UDMA
Ø Primary Slave UDMA
Ø Secondary Master UDMA
Ø Secondary Slave UDMA

Auto Select Auto to enable

Ultra DMA Mode
support.

Default

The following field may be configured only if [Internal PCI/IDE] is set
to [Both], [Primary], or [Secondary].

PCI Slot Select the VGA card

that connects to the
primary monitor.

Default

Init Display First

AGP

BIOS Setup Utility SY-5EHM/5EH5

61

3-8.2 FDC Controls
FDC Controls Setting Description Note

Disabled Turn off the on-board

floppy controller

Onboard FDC
controller

Enabled Use the on-board

floppy controller

Default

3-8.3 Onboard Serial Ports
Onboard Serial

Ports

Setting Description Note

Disabled
3F8/IRQ4 Default

(port 1)

2F8/IRQ3 Default

(port 2)
3E8/IRQ4
2E8/IRQ3

Onboard UART 1
Onboard UART 2

Auto

Choose serial port 1 &
2's I/O address.
Do not set port 1 & 2 to
the same address
except for Disabled or
Auto.

Standard Supports a serial

infrared IrDA.

Default
HPSIR Supports HP serial

infrared interface
format.

Onboard UART 2
Mode

ASKIR Supports a Sharp

serial interface format.

BIOS Setup Utility SY-5EHM/5EH5

62

3-8.4 Onboard Parallel Ports
IR Pins Controls Setting Description Note

Half Default

IR Duplex mode

Full

Select the IR mode
your IR module
supports

IR-RX2TX2 Default

Use IR Pins

IR-RX TX

3-8.5 Onboard Parallel Ports
Onboard Parallel

Ports

Setting Description Note

378 Default
Disabled
3BC

Onboard Parallel
Port

278

Choose the printer I/O
address.

ECP + EPP
Normal Default
EPP

Parallel Port Mode

ECP

The mode depends on
your external device
that connects to this
port.

If [Parallel Port Mode] is set to [ECP] or [ECP+EPP].

3 Choose DMA3 Default

ECP Mode Use DMA

1 Choose DMA1

If [Parallel Port Mode] is set to [EPP] or [ECP+EPP].

EPP1.9 Choose EPP Ver. 1.9 Default

Parallel Port EPP

Type (EPP Version)

EPP1.7 Choose EPP Ver. 1.7

BIOS Setup Utility SY-5EHM/5EH5

63

3-9 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the
[BIOS FEATURES SETUP] section, the password prevents access
to the system or the setup program by unauthorized users. Follow
this procedure to set a new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and
press [Enter]. Select the [Security Options] item and set the
field to:

a. [System]: The password is required every time the system

is booted. This means only a person who knows the
password can use this computer.

b. [Setup]: The password is required only when you attempt

to enter the BIOS Setup program.

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and
press [Enter]. The following prompt appear:

Warning: If you forget or lose the password, the only way
to access the system is to set jumper JP5 to clear the
CMOS RAM. All setup information is lost and you must run
the BIOS setup program again.

Note: If you do not wish to use the password function,
press [Enter] directly and the following message appears:

Enter Password:

Password Disabled!!

BIOS Setup Utility SY-5EHM/5EH5

64

3. Enter your new password and press [Enter]. The following
message appears, prompting to confirm the new password:

4. Re-enter your password and then press [Enter] to exit to the
Main Menu.

This diagram outlines the password selection procedure:

3-10 USER PASSWORD

When the user password option is on, you are not allowed to change
any setting in the [CMOS SETUP UTILITY] except for changing the
user's password.

The password setting procedure is similar to that for the
[SUPERVISOR PASSWORD] (Refer to section 3-9).

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc

F10

: Quit
: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

Time, Date, Hard Disk Type…

Enter Password:

Enter Password:

∗∗∗∗∗

Password Disabled!!

Confirm Password:

∗∗∗∗∗

Press:

↔

Without entering password

Type the Password
Press:

↔

After you confirm the

password, press

°

to exit

Type the Password

and Press: <Enter>

Press <Enter> without

entering the password

After you confirm the password,

press <Esc> to exit

Confirm Password:

BIOS Setup Utility SY-5EHM/5EH5

65

3-11 IDE HDD AUTO DETECTION

This Main Menu function automatically detects the hard disk type
and configures the STANDARD CMOS SETUP accordingly.

Note: This function is only valid for IDE type of hard disk drives.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master
Primary Slave
Secondary Master
Secondary Slave

: AUTO
: None
: None
: None

0
0
0
0

0
0
0
0

ESC :

0
0
0
0

Skip

0
0
0
0

0
0
0
0

0
0
0
0

AUTO

- - - -

- - - -

- - - -

Do you accept this drive C (Y/N)? _

Drivers Installation SY-5EHM/5EH5

66

Chapter 4

DRIVERS INSTALLATION

Your SY-5EHM/5EH5 Super 7™ Mainboard comes with a CD-ROM
labeled "SOYO CD." The SOYO CD contains the user's manual file
for your new Mainboard, the drivers software available for
installation, and a database in HTML format with information on
SOYO Mainboards and other products.

Step 1. Insert the SOYO CD into the CD-ROM drive

The SOYO CD will auto-run, and the SOYO CD Start Up Menu will
display as shown below.

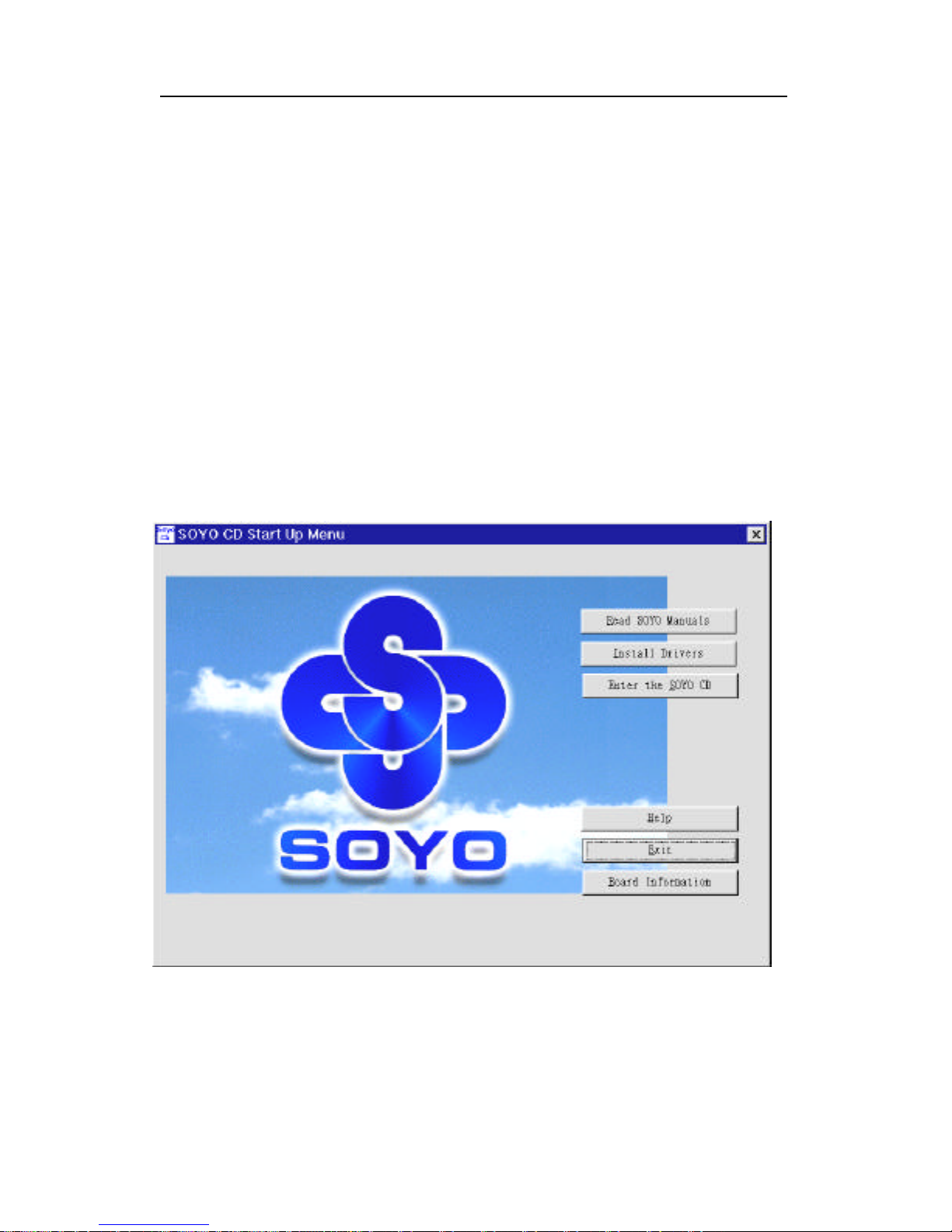

(SOYO CD Start Up Program Menu)

The SOYO CD Start Up Program automatically detects which SOYO
Mainboard you own and displays the corresponding model name.

Drivers Installation SY-5EHM/5EH5

67

Step 2. Iinstallation procedure for Windows 95/98

The following describes the best way of installing Windows 95 or Windows 98 on your
5EHM/5EH5 mainboard:

Ø The following BIOS default settings should not be changed:

1. The ‘USB Controller’ item under ‘Chipset features’ is set to enabled.

2. The ‘USB Assigned IRQ’ item under ‘PnP/PCI Configuration is set to enabled.
You MUST have these two items enabled for Windows 95/98 to run properly on your

system.

Ø Install Windows 95/98
Ø After installation of windows, you will need to install the ETEQ drivers. Follow the

instruction below.

Click the Install Drivers button to display the list of drivers that can be installed on your
mainboard. The start-up program displays the drivers available for the 5EHM/5EH5 and the
Windows version you use. For Windows 95 four drivers will be listed (see ‘Driver Installation
Menu’ below), for Windows 98 three drivers will be listed (the ACPI drivers will be left out).
We recommend you to install all drivers, and to do so in the right sequence (top to bottom).

If you want to see all the drivers available on the SOYO –CD, click the Display all drivers
on the SOYO CD button. Do NOT install drivers that are not suitable for you board,
otherwise your system may crash.

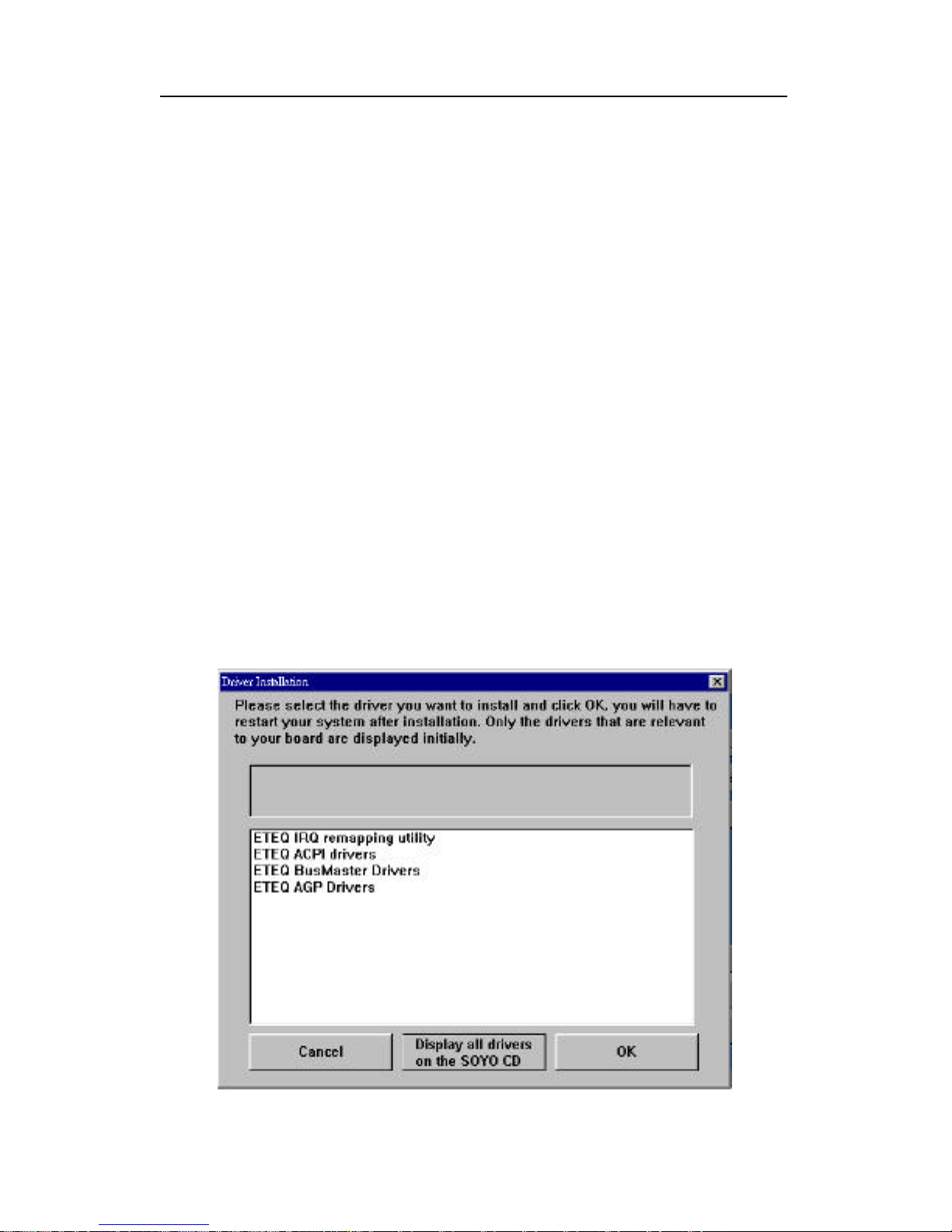

(Driver Installation Menu)

Drivers Installation SY-5EHM/5EH5

68

Select which driver you want to install and click OK, or click Cancel
to return to the main menu. When the installation program of a driver
starts running the SOYO-CD will exit. After finishing the installation,
restart the SOYO-CD and install the next driver.

Note: Once you have selected a driver, the system will automatically
exit the SOYO CD to begin the driver installation program. When the
installation is complete, most drivers require to restart your system
before they can become active.
