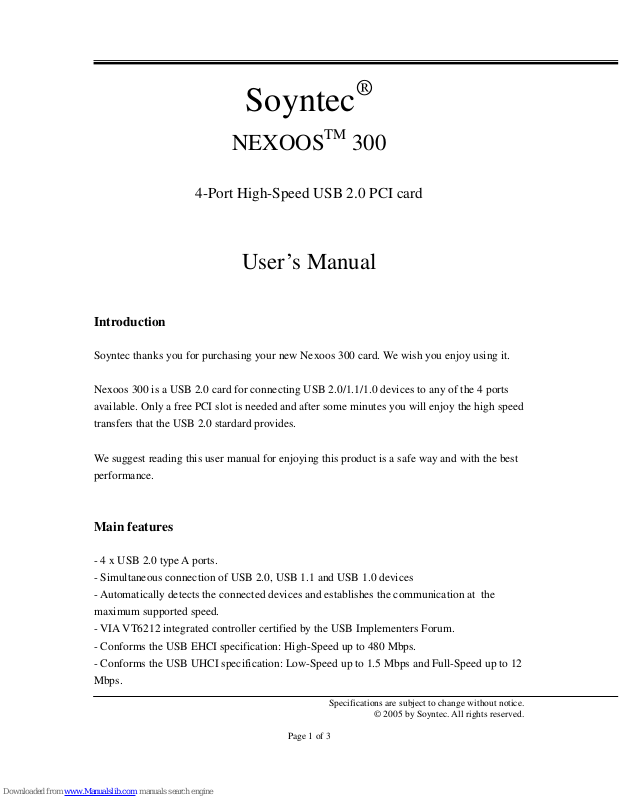

Soyntec®
TM
NEXOOS
4-Port High-Speed USB 2.0 PCI card
User’s Manual
Introduction
Soyntec thanks you for purchasing your new Nexoos 300 card. We wish you enjoy using it.
Nexoos 300 is a USB 2.0 card for connecting USB 2.0/1.1/1.0 devices to any of the 4 ports
available. Only a free PCI slot is needed and after some minutes you will enjoy the high speed
transfers that the USB 2.0 stardard provides.
We suggest reading this user manual for enjoying this product is a safe way and with the best
performance.
300
Main features
- 4 x USB 2.0 type A ports.
- Simultaneous connection of USB 2.0, USB 1.1 and USB 1.0 devices
- Automatically detects the connected devices and establishes the communication at the
maximum supported speed.
- VIA VT6212 integrated controller certified by the USB Implementers Forum.
- Conforms the USB EHCI specification: High-Speed up to 480 Mbps.
- Conforms the USB UHCI specification: Low-Speed up to 1.5 Mbps and Full-Speed up to 12
Mbps.
Specifications are subject to change without notice.
© 2005 by Soyntec. All rights reserved.
Page 1 of 3
Page 2
- Allows connection/disconnection of devices without turning off the computer.
- Advanced power management system.
- PCI 32 bit Bus interface with clock speed up to 33MHz.
- PCI v.2.2 / 2.1 compatible.
- Compatible with Windows XP / 2000 / 98SE / ME.
- Conforms to FCC Class A and CE Mark Class A.
Product contents
- 4-Port Hi-Speed USB 2.0 PCI card.
- CD with drivers.
- User manual.
USB card installation
Please note that in order to install the Nexoos 300 card you need a free PCI slot in the
computer motherboard.
Follow these steps to install the USB card:
1. Make sure that the computer is disconnected and that there is not supply voltage for
avoiding harm to the computer and USB card.
2. Disassemble the computer case and identify a free PCI slot.
3. Make sure that you are free of any static electricity and do not use any magnetic tool. Avoid
touching any contact point, memory or integrated circuit of the computer or USB card.
4. Remove the exterior protective plate of the free PCI slot and insert the card carefully.
5. Check that after inserting the card, all the computer components remain correctly inserted
and placed.
6. Assemble the computer case and connect all needed cables.
7. Switch on the computer and wait until the Operating System finish booting.
8. Recent Operating Systems do include compatible drivers for the VIA integrated controller
the Nexoos 300 network card as built-in and usually the installation is automatic. In some
cases the Operating System will show an installation wizard asking for drivers. In that case,
Specifications are subject to change without notice.
Page 2 of 3
© 2005 by Soyntec. All rights reserved.
Page 3
press the “Cancel” button of the installation wizard, insert the provided drivers CD and
execute the file “Setup.exe” for installing the drivers.
9. Reboot your computer and connect the USB devices to any of the 4 ports of the card.
Trademarks
All company, brand and product names are trademarks or registered trademarks of their
respective companies.
Specifications are subject to change without notice.
© 2005 by Soyntec. All rights reserved.
Page 3 of 3
