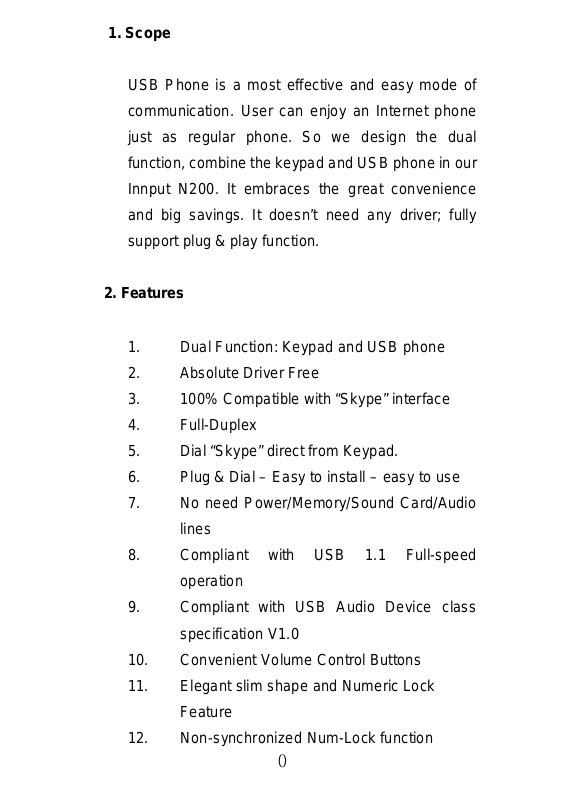

Page 1
1. Scope
USB Phone is a most effective and easy mode of
communication. User can enjoy an Internet phone
just as regular phone. So we design the dual
function, combine the keypad and USB phone in our
Innput N200. It embraces the great convenience
and big savings. It doesn’t need any driver; fully
support plug & play function.
2. Features
1. Dual Function: Keypad and USB phone
2. Absolute Driver Free
3. 100% Compatible with “Skype” interface
4. Full-Duplex
5. Dial “Skype” direct from Keypad.
6. Plug & Dial – Easy to install – easy to use
7. No need Power/Memory/Sound Card/Audio
lines
8. Compliant with USB 1.1 Full-speed
operation
9. Compliant with USB Audio Device class
specification V1.0
10. Convenient Volume Control Buttons
11. Elegant slim shape and Numeric Lock
Feature
12. Non-synchronized Num-Lock function
0
Page 2
13. Smart LED Indicators: Num Lock LED,
Phone ringer LED
3. System Requirements
1. PC with 200 MHz CPU or better with USB
interface
2. 64MB of RAM
3. Operating System: Windows 2000/XP
4. Network: LAN, ADSL, ISDN, 33.6K modem or
better
4. Use of the Innput N200
Run Skype
Download Skype software and install it
(www.skype.com), the version must be 1.0.0.106
or higher.
Run Skype and log in with skype account.
1
Page 3

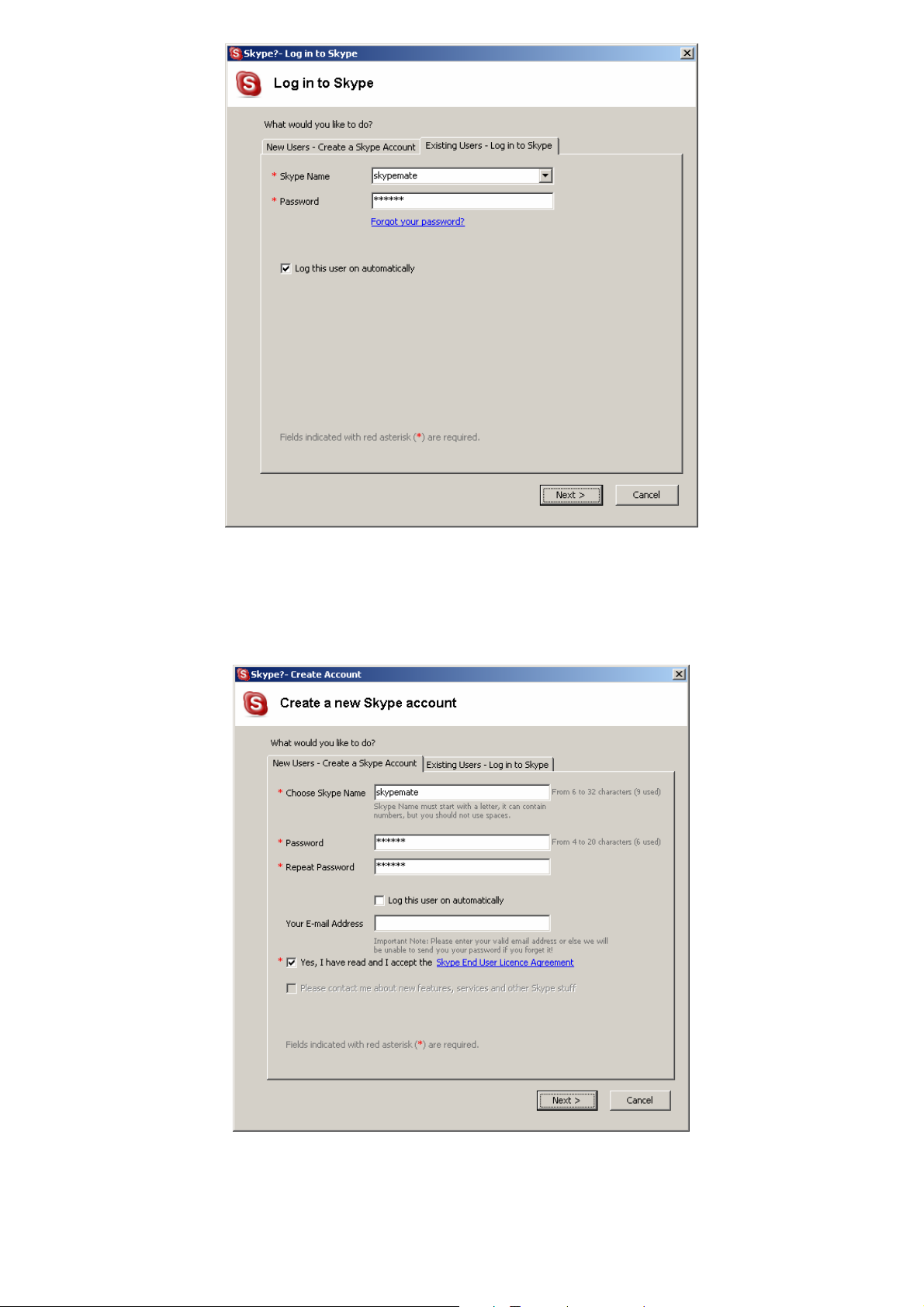

You can create a Skype account as shown below:
2
Page 4
After the software startup, the icon will appear to the
system tray as shown below:
That indicates the Skype has successfully
connected to Internet. If it hasn’t connected to
Internet, the icon will be shown as , now you
have to check whether PC is connected to Internet
successfully or not.
Connect the Innput N200 to PC
Connect the Innput N200 to your PC. The Found
New Hardware Wizard appears and the OS will
install the driver automatically. No other steps are
necessary.
3
Page 5
Call another Skype user (PC to PC)

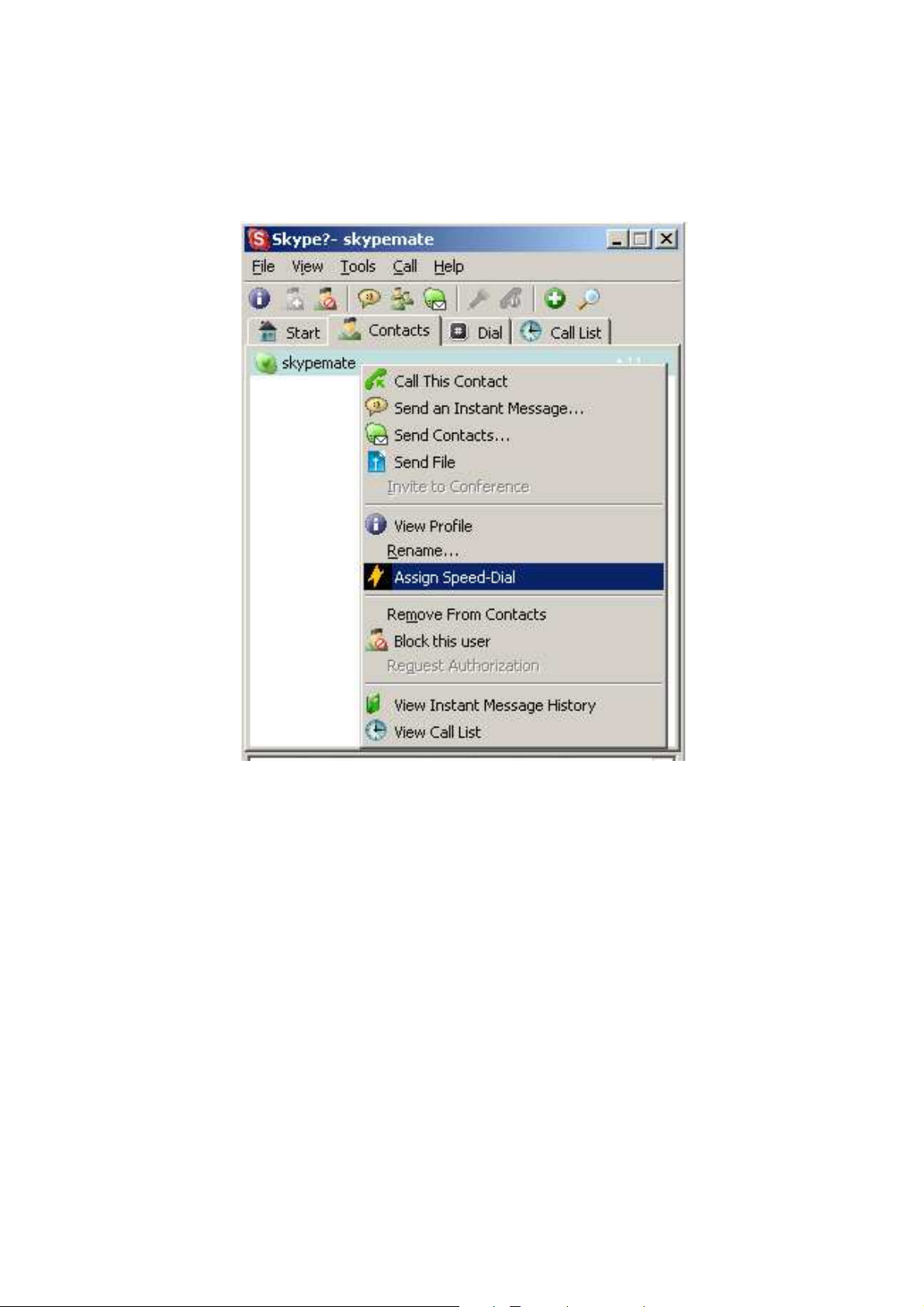

Add "skypemate" to Contacts
Assign Speed-Dial for it, example "11"
Input number and call out:
Press digital "1" and "1" on the USB Phone,
this number will be shown on Skype window,
then press “Enter” key on USB Phone to call
out.
Call to regular phone (PC to Phone)
Press "011"+"country code"+"phone number", and
then press “Enter”. Example: call to Taiwan, Taipei,
press 011886212345678, then press
4
Page 6
“Enter” key.
Note: If you want to use this function, you should buy
SkypeOut Credit first.
Answer a call
When a call in, the USB phone is ringing, press
to answer the call, press to refuse the call.
After answer the call, just lift the cover to start
conversation.
5
Page 7

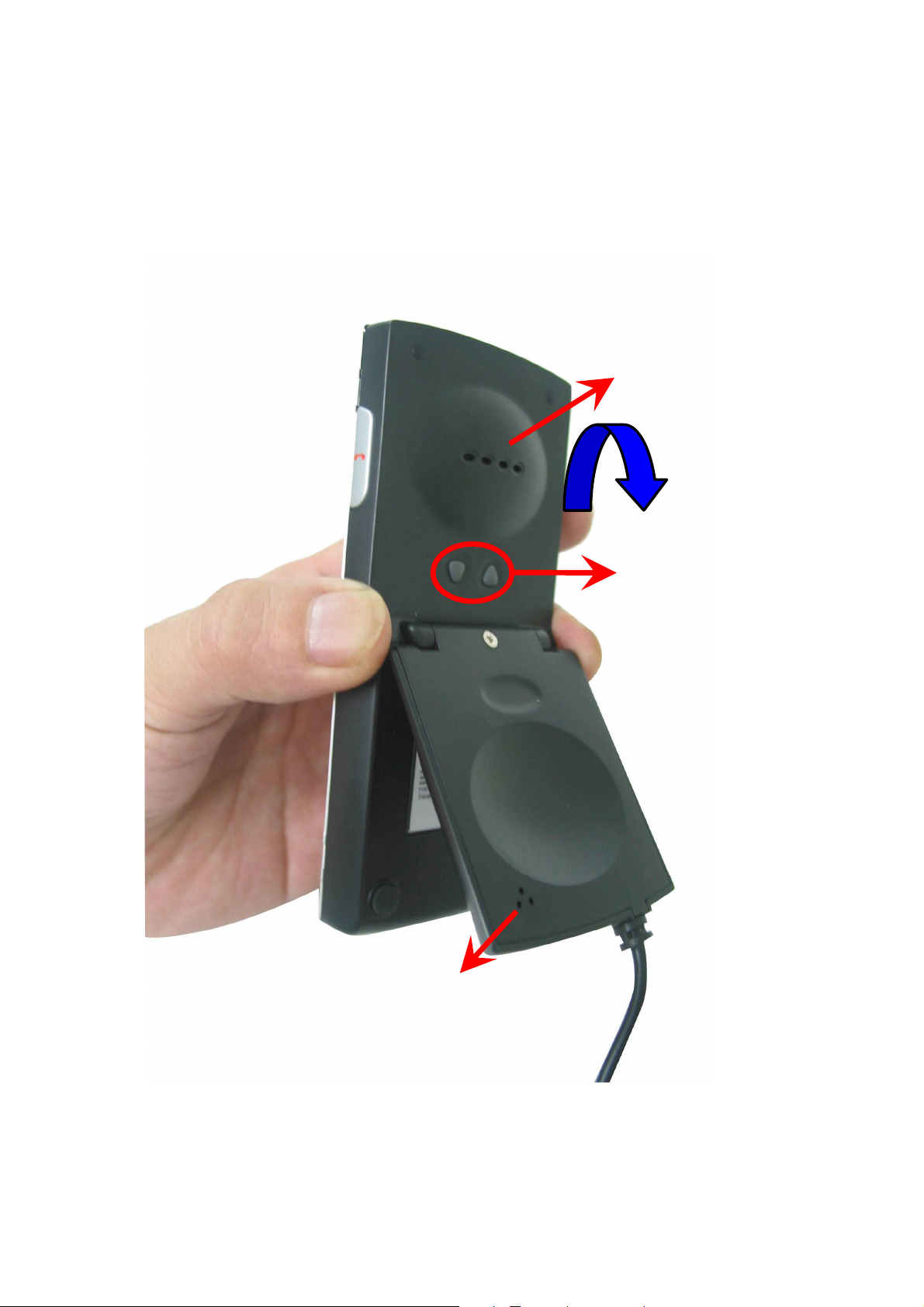

Speaker
Volume
Microphone
6
Page 8
Function keys
Key
Location
0~9 Keypad 0~9
. Keyboard .
BS Keyboard BackSpace
# Keyboard #
* Keypad *
Function Description
/ Keyboard /
- Keyboard Switch “Contacts” and “Type
Tab
number text”
+ Keyboard +
After dialing numbers, press the
Enter
“Enter” key to call out.
Volume up
Volume down
Answer the phone
Hang up
7
Page 9
Note:
To enable the hotkey “ ” function, you need to
set on Skype.
Enable the “ ” key:
1. Run the Skype software, click the
“Tools”->”Option”
2. Choose the “Hotkeys” option.
3. Click the “Enable global hotkeys” option.
8
Page 10

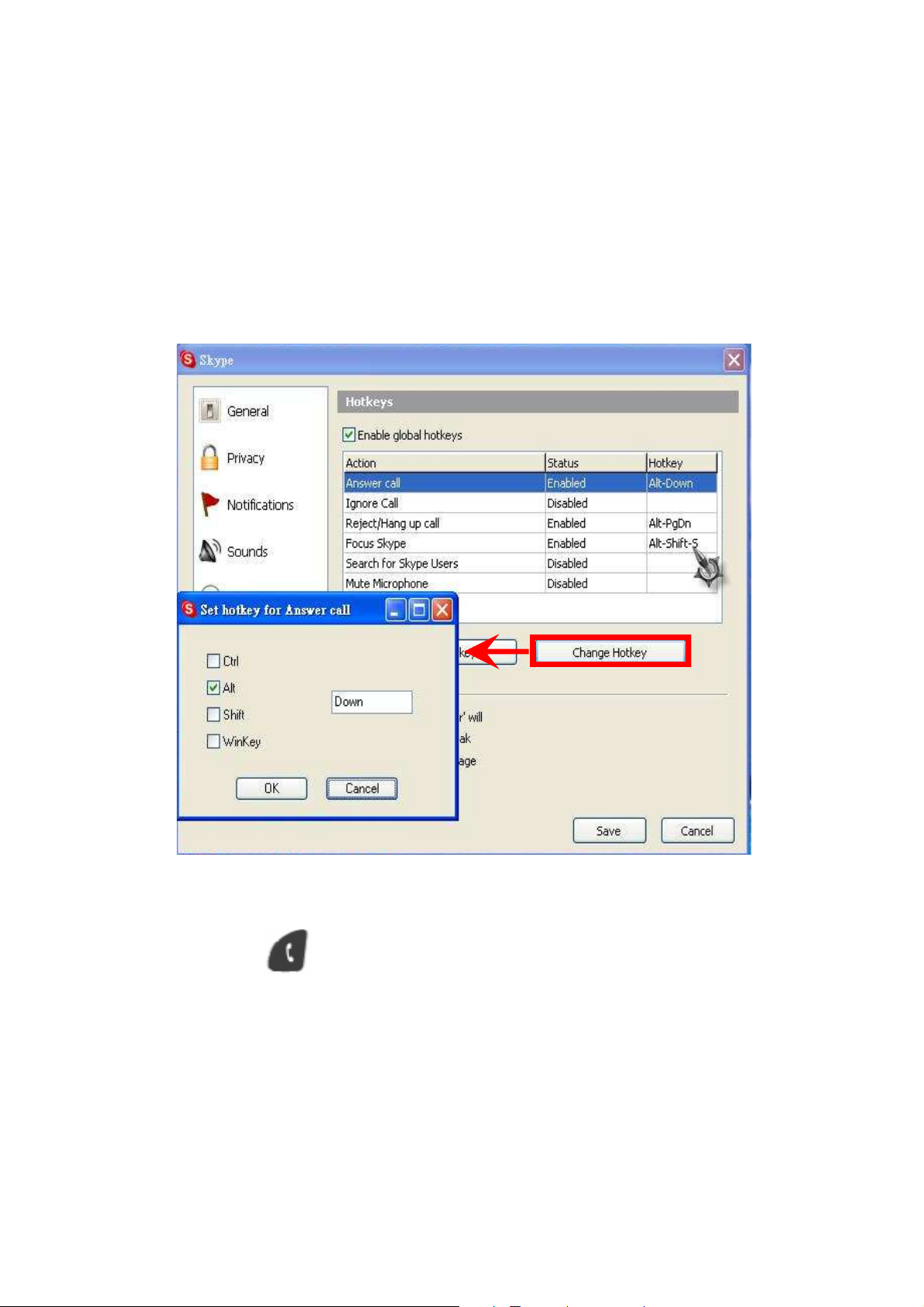

4. Choose the “Answer Call” option and click
the “Change Hotkey” button.
5. Click the “Alt”, and type “↓” in the text; Then click
“OK”.
6. Finally, click the “Enable Hotkey” button. The
“ ” hotkey will start to work.
9
Page 11
10
5. Electrical Specification
1. Fully compatible with Windows 2000/XP/Vista.
2. Fully Support plug and play and hot swapping.
3. Power consumption: 52mA
4. Key switch: membrane key switch with tactile
feeling.
5. Operation Force: 60
6. Total Travel: 1.0 mm
6. FAQ
Problem 1
The voice is played from the PC’s sound card instead
of the USB phone when I make/answer a call?
Solution

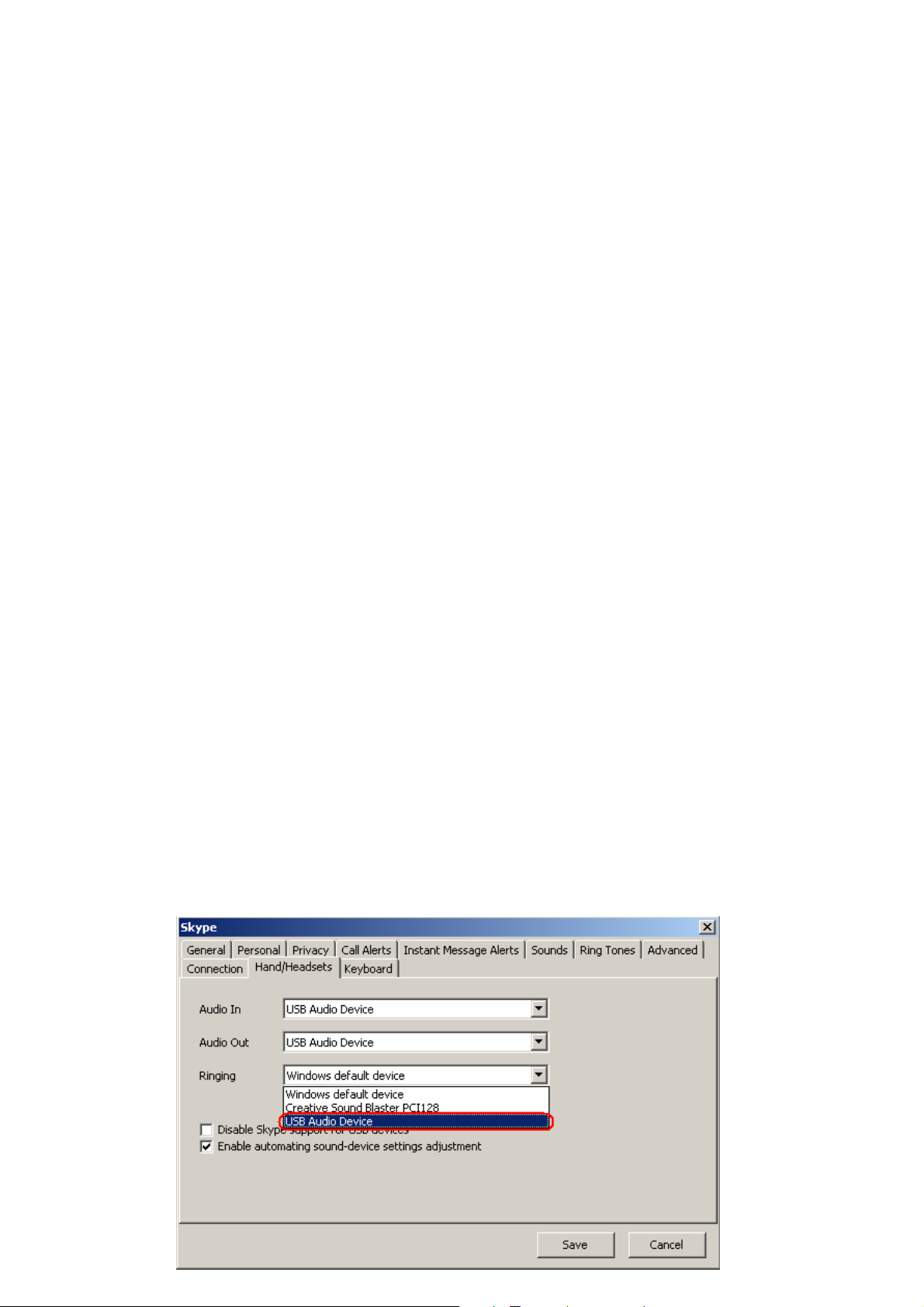

Open the Main window of Skype, click on
“File->Options”, and go to the table Hand/headsets,
set Audio In, Audio Out and Ringing to the USB
±5g
Audio Device.
Page 12
11
Problem 2
There is no voice comes out when play music?
Solution

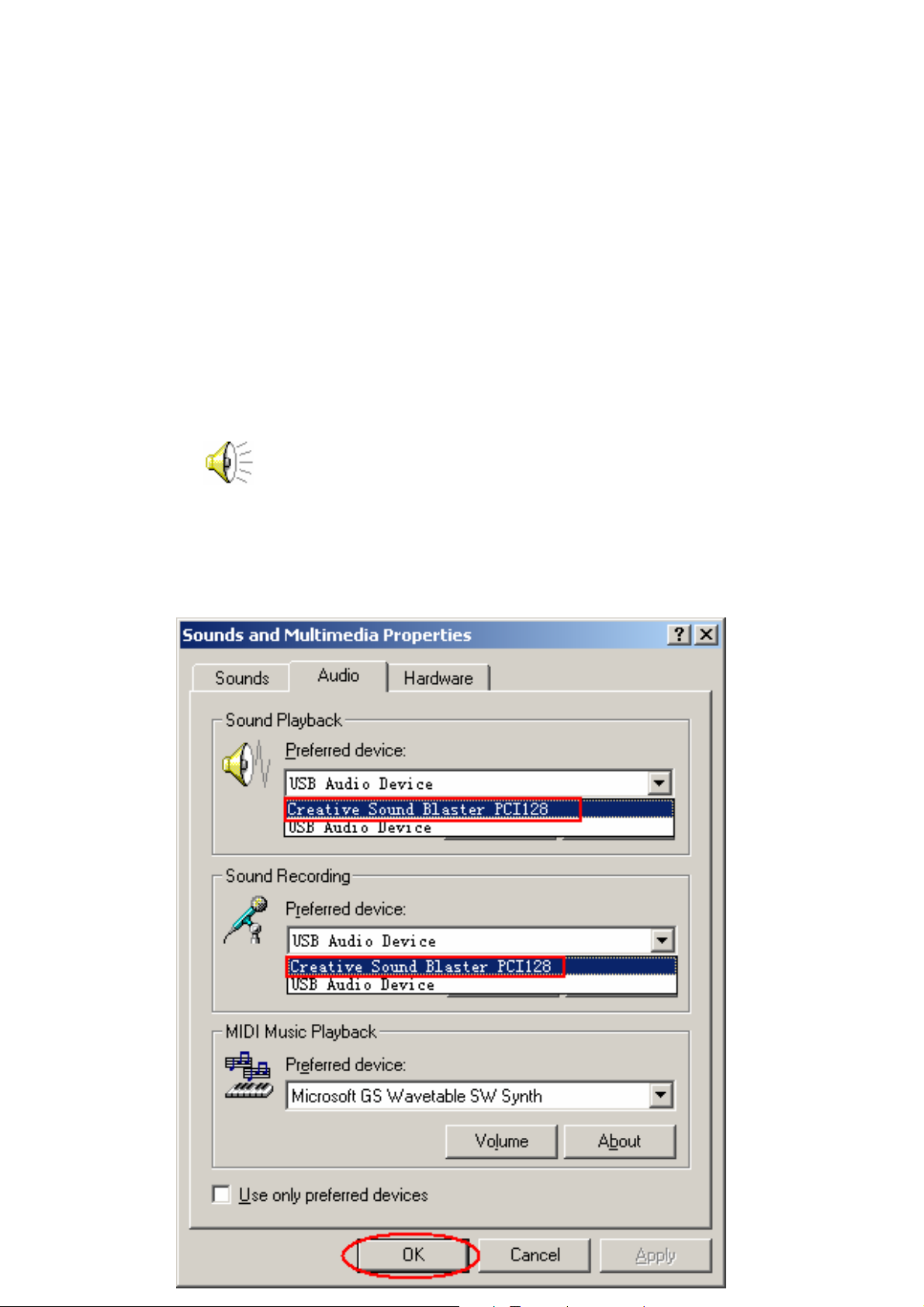

Please execute the “Control Panel->Sound and Video
( )->Audio”, set Sound Playback and Sound
Recording’s Preferred device to your sound card, it
shown as below:
Page 13
12
Problem 3
I connect the USB phone with USB hub, but it cannot
work.
Solution
You need to connect with a self-power USB hub. Our
USB phone cannot work with a bus-power USB hub,
because the bus-power USB hub cannot provide
enough power.
Problem 4
I can’t dial the extension by USB phone.
Solution
Because the Skype software didn’t support this
function by USB phone, so you need to click the
extension number onscreen.
