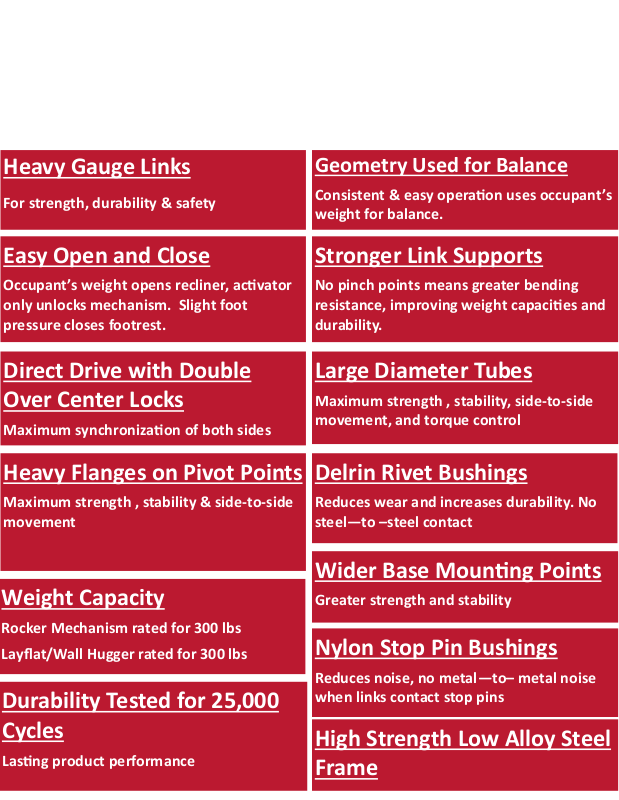

Heavy Gauge Links
Geometry Used for Balance
For strength, durability & safety
Easy Open and Close
Occupant’s weight opens recliner, acvator
only unlocks mechanism. Slight foot
pressure closes footrest.
Direct Drive with Double
Over Center Locks
Maximum synchronizaon of both sides
Heavy Flanges on Pivot Points
Consistent & easy operaon uses occupant’s
weight for balance.
Stronger Link Supports
No pinch points means greater bending
resistance, improving weight capacies and
durability.
Large Diameter Tubes
Maximum strength , stability, side-to-side
movement, and torque control
Delrin Rivet Bushings
Maximum strength , stability & side-to-side
movement
Weight Capacity
Rocker Mechanism rated for 300 lbs
Layat/Wall Hugger rated for 300 lbs
Durability Tested for 25,000
Cycles
Lasng product performance
Reduces wear and increases durability. No
steel—to –steel contact
Wider Base Mounng Points
Greater strength and stability
Nylon Stop Pin Bushings
Reduces noise, no metal—to– metal noise
when links contact stop pins
High Strength Low Alloy Steel
Frame
