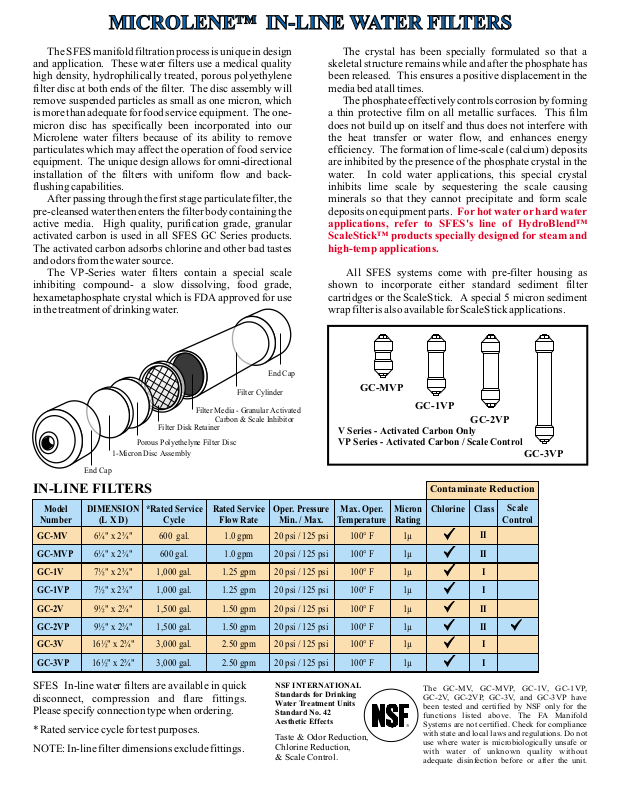

MICROLENE™ IN-LINE WATER FILTERSMICROLENE™ IN-LINE WATER FILTERS

The SFES manifold filtration process is unique in design and application. These water filters use a medical quality high density, hydrophilically treated, porous polyethylene filter disc at both ends of the filter. The disc assembly will remove suspended particles as small as one micron, which is more than adequate for food service equipment. The onemicron disc has specifically been incorporated into our Microlene water filters because of its ability to remove particulates which may affect the operation of food service equipment. The unique design allows for omni-directional installation of the filters with uniform flow and backflushing capabilities.

After passing through the first stage particulate filter, the pre-cleansed water then enters the filter body containingthe active media. High quality, purification grade, granular activated carbon is used in all SFES GC Series products. The activated carbon adsorbs chlorine and other bad tastes and odors from the watersource.

The VP-Series water filters contain a special scale inhibiting compound- a slow dissolving, food grade, hexametaphosphate crystal which is FDA approved for use in the treatment of drinkingwater.

The crystal has been specially formulated so that a skeletal structure remains while and after the phosphate has been released. This ensures a positive displacement in the media bed at all times.

The phosphate effectively controls corrosion byforming a thin protective film on all metallic surfaces. This film does not build up on itself and thus does not interfere with the heat transfer or water flow, and enhances energy efficiency. The formation of lime-scale (calcium) deposits are inhibited by the presence of the phosphate crystal in the water. In cold water applications, this special crystal inhibits lime scale by sequestering the scale causing minerals so that they cannot precipitate and form scale deposits on equipment parts. For hot water or hard water

applications, refer to SFES's line of HydroBlend™ ScaleStick™ products specially designed for steam and high-temp applications.

All SFES systems come with pre-filter housing as shown to incorporate either standard sediment filter cartridges or the ScaleStick. A special 5 micron sediment wrap filter is also availableforScaleStick applications.

Porous Polyethelyne Filter Disc

1-Micron Disc Assembly

End Cap

IN-LINE FILTERS

Model

Number

GC-MV

GC-MVP

GC-1V

GC-1VP

GC-2V

GC-2VP

GC-3V

GC-3VP

DIMENSION

(LXD)

6¼" x 2¾"

7½" x 2¾"

9½" x 2¾"

16½" x 2¾"

Filter Media - Granular Activated

Filter Disk Retainer

*Rated Service

Cycle

600 gal.

1,000 gal.

1,500 gal.

3,000 gal.

End Cap

Filter Cylinder

Carbon & Scale Inhibitor

Rated Service

Flow Rate

1.0 gpm

1.25 gpm

1.50 gpm

2.50 gpm

Oper. Pressure

Min. / Max.

20 psi / 125 psi

GC-MVP

GC-1VP

GC-2VP

V Series - Activated Carbon Only VP Series - Activated Carbon / Scale Control

Contaminate Reduction

Max. Oper.

Temperature

100° F

Micron

Rating

1µ

Chlorine Class

Scale

Control

GC-3VP

SFES In-line water filters are available in quick disconnect, compression and flare fittings. Please specify connectiontype when ordering.

* Rated servicecycle for testpurposes.

NOTE: In-line filterdimensions exclude fittings.

NSF INTERNATIONAL Standards for Drinking Water Treatment Units Standard No. 42 Aesthetic Effects

Taste & Odor Reduction, Chlorine Reduction, & Scale Control.

The GC-MV, GC-MVP, GC-1V, GC-1VP, GC-2V, GC-2VP, GC-3V, and GC-3VP have been tested and certified by NSF only for the functions listed above. The FA Manifold

Systems are not certified. Check for compliance with state and local laws and regulations. Do not use where water is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the unit.

Page 2

MICROLENE™ SYSTEM SPECIFICATIONSMICROLENE™ SYSTEM SPECIFICATIONS

Model

Number

FA-2VP SINGLE

FA-2VP TWIN

FA-2VP TRIPLE

FA-2VP QUAD

FA-3VP SINGLE

FA-3VP TWIN

FA-3VP TRIPLE

FA-3VP QUAD

* System height is measured from top of filter system to bottom of flush valve. Width is measured from inlet ball valve to outlet ball valve. Width does not include the optional prefilter housing.

DIMENSION

(WxHxD)

10½"x 22"x 4½

13½"x 22"x 4½

16½"x 22"x 4½

19½"x 22"x 4½

10½"x 29½"x 4½

13½"x 29½"x 4½

16½"x 29½"x 4½

19½"x 29½"x 4½

TOP

MANIFOLD

Max. Service

Flow Rate

1.50 gpm

3.00 gpm

4.50 gpm

6.00 gpm

2.50 gpm

5.0 gpm

7.50 gpm

10.0 gpm

OUT

Oper. Pressure

Min. / Max.

20 psi / 125 psi

Max. Oper.

Temperature

100° F

Micron

Rating

1µ

PREFILTER

CARTRIDGE

SCALESTICK™

OR SCALESTICK™

OPTIONAL

PREFILTER

HOUSING

FA-2VP-SINGLE

BOTTOM MANIFOLDBOTTOM MANIFOLD

FA-2VP-TWIN

FLUSH

LINE

FA-2VP-TRIPLE

FA-2VP-QUAD

APPLICATION GUIDELINES

ICE MACHINES

COFFEE BREWERS

POST MIX EQUIPMENT

FILTER SYSTEM

NOTE: These application guidelines are general estimates of correct system applications. These will vary widely in the field depending on the specific water requirements of different food service equipment. Please reference the individual equipment water requirementsbefore applying filtersystems.

200 lb. Cube 250 lb. Flake

Low Volume

12 Cup

400 lb. Cube 550 lb. Flake

Med. Volume

Brewer

550 lb. Cube 650 lb. Flake

High Volume

Brewer

50 gal. syrup

10 bag in box

800 lb. Cube

1100 lb. Flake

Brewing up

to 3.0 gpm

100 gal. syrup

20 bag in box

1200 lb. Cube 1500 lb. Flake

Brewing up

to 4.5 gpm

150 gal. syrup 30 bag in box

GC-1VP GC-2VP GC-3VP FA-2VP-TWIN FA-2VP-TRIPLE

1200+ lb.. Cube

1500+ lb. Flake

Brewing up

to 6.0 gpm

200 gal. syrup

40 bag in box

FA-2VP-QUAD
