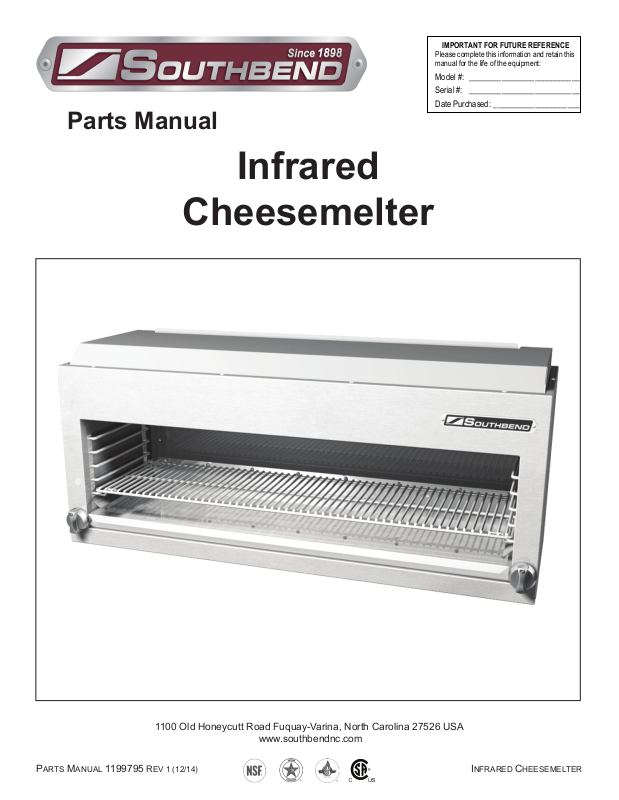

Page 1
Parts Manual
IMPORTANT FOR FUTURE REFERENCE
___________________________
___________________________
_____________________
Cheesemelter
Infrared
Please complete this information and retain this
manual for the life of the equipment:
Model #:
Serial #:
Date Purchased:
PARTS MANUAL 1199795 REV 1 (12/14)
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA
www.southbendnc.com
INFRARED CHEESEMELTER
Page 2
INFRARED CHEESEMELTER
Replacement parts may be ordered either through a Southbend Authorized Parts Distributer or a Southbend Authorized
Service Agency. It is recommended to verify parts numbs with a Southbend Authorized Parts Supplier or the Southbend
Parts/Service Department prior to ordering parts.
PARTS
The following tables and gures list serviceable parts. For parts that are not listed, contact a Southbend Authorized Parts
Distributor or a Southbend Authorized Service Agency.
Table of Contents
Page Number Description
3
5
Infrared Cheesemelter
Gas Supply
Copyright © 2014 by Southbend. All rights reserved. Published in the United States of America.
2
PAGE
OF 10
PARTS MANUAL 1199795 REV 1 (12/14)
Page 3
INFRARED CHEESEMELTER
Infrared Cheesemeleter
See drawing on following page
Key Part Number Description
1 1183202 BODY SIDE, LEFT
2 Service GREASE DRAWER
3 Service COVER
4 1183323 BODY SIDE, RIGHT
5 Service FRONT BODY
6 1187770 SHIELD, SPLASH
7 Service RACK, CHROME
8 1187785 RACK GUIDE, 5 POSITION
* Quantity of part used may depend on width of section (24”, 32”, 36”, 48”, 60” & 72”)
* Service means call a Southbend Parts/Service Department (919-729-1000)
** Not shown on drawing
PARTS MANUAL 1199795 REV 1 (12/14)
PAGE
3
OF 10
Page 4
Figure 1
Infrared Cheesemelter
INFRARED CHEESEMELTER
PAGE
4
OF 10
PARTS MANUAL 1199795 REV 1 (12/14)
Page 5
INFRARED CHEESEMELTER
Gas Supply
See drawing on following page
Key Part Number Description
1
2 1148301 NUT, BRASS JAM
3 1164085 VALVE ASSEMBLY, PILOT
4 1173524 TEE, 1/4 TUBE COMPR ALL DIRECT
5 1180558 ELBOW 3/8 CC BRASS
6 1182628 PILOT ASM
7 1183246 ASSEMBLY, BURNER
8 1183248 TUBE, BURNER SUPPLY, VERT
9 Service TUBE, BURNER SUPPLY, HORIZ
10 1183264 TUBE, FLEX 1/4” X 9”
11 Service ASSEMBLY, MANIFOLD
12 1183332 BRACKET, ORIFICE
13 1185152 TUBE 1/4”
14 Service TUBE, VALVE SUPPLY
15 1189600 KNOB, SECTIONAL
16 1190775 BRACKET, TAILPIPE
17
18
19 1183310 TUBE, FLEX 1/4” X 15”
* Quantity of part used may depend on width of section (24”, 32”, 36”, 48”, 60” & 72”)
* Service means call a Southbend Parts/Service Department (919-729-1000)
** Not shown on drawing
1008754 ORIFICE HOOD, DRILL # 54 (NATURAL)
1008764 ORIFICE HOOD, DRILL # 64 (PROPANE)
1195454 ASSEMBLY, MANIFOLD SUPPLY, NATURAL (RIGHT)
1195457 ASSEMBLY, MANIFOLD SUPPLY, PROPANE (RIGHT)
1195455 ASSEMBLY, MANIFOLD SUPPLY, NATURAL (LEFT)
1195449 ASSEMBLY, MANIFOLD SUPPLY, PROPANE (LEFT)
PARTS MANUAL 1199795 REV 1 (12/14)
PAGE
5
OF 10
Page 6
Figure 2
Gas Supply
INFRARED CHEESEMELTER
17
16
15
14
5
8
10
9
7
11
3
1
2
12
19
6
13
11
9
18
4
19
5
8
PAGE
6
OF 10
PARTS MANUAL 1199795 REV 1 (12/14)
Page 7
INFRARED CHEESEMELTER
Notes:
PARTS MANUAL 1199795 REV 1 (12/14)
PAGE
7
OF 10
Page 8
Notes:
INFRARED CHEESEMELTER
PAGE
8
OF 10
PARTS MANUAL 1199795 REV 1 (12/14)
Page 9
INFRARED CHEESEMELTER
Notes:
PARTS MANUAL 1199795 REV 1 (12/14)
PAGE
9
OF 10
Page 10
INFRARED CHEESEMELTER
INFRARED
CHEESEMELTER
A product with the Southbend name incorporates the best in durability and low maintenance. We all recognize, however,
that replacement parts and occasional professional service may be necessary to extend the useful life of this appliance.
When service is needed, contact a Southbend Authorized Service Agency, or your dealer. To avoid confusion, always
refer to the model number, serial number, and type of your appliance.
Southbend
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA
www.southbendnc.com
PAGE
10
OF 10
PARTS MANUAL 1199795 REV 1 (12/14)
