Southbend Range P32D-3240 PARTS LIST

Parts Manual
IMPORTANT FOR FUTURE REFERENCE
___________________________
___________________________
_____________________
Radiant Broilers
Please complete this information and retain this manual for the life of the equipment:
Model #:
Serial #:
Date Purchased:
PARTS MANUAL 1199793 REV 1 (12/14)
234R
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA
www.southbendnc.com
P32D-3240
RADIANT BROILER
RADIANT BROILER PARTS
Replacement parts may be ordered either through a Southbend Authorized Parts Distributer or a Southbend Authorized Service Agency. It is recommended to verify parts numbs with a Southbend Authorized Parts Supplier or the Southbend Parts/Service Department prior to ordering parts.
PARTS
The following tables and gures list serviceable parts. For parts that are not listed, contact a Southbend Authorized Parts
Distributor or a Southbend Authorized Service Agency.
Table of Contents
Page Number Description
3
5
6
8
234R Broiler

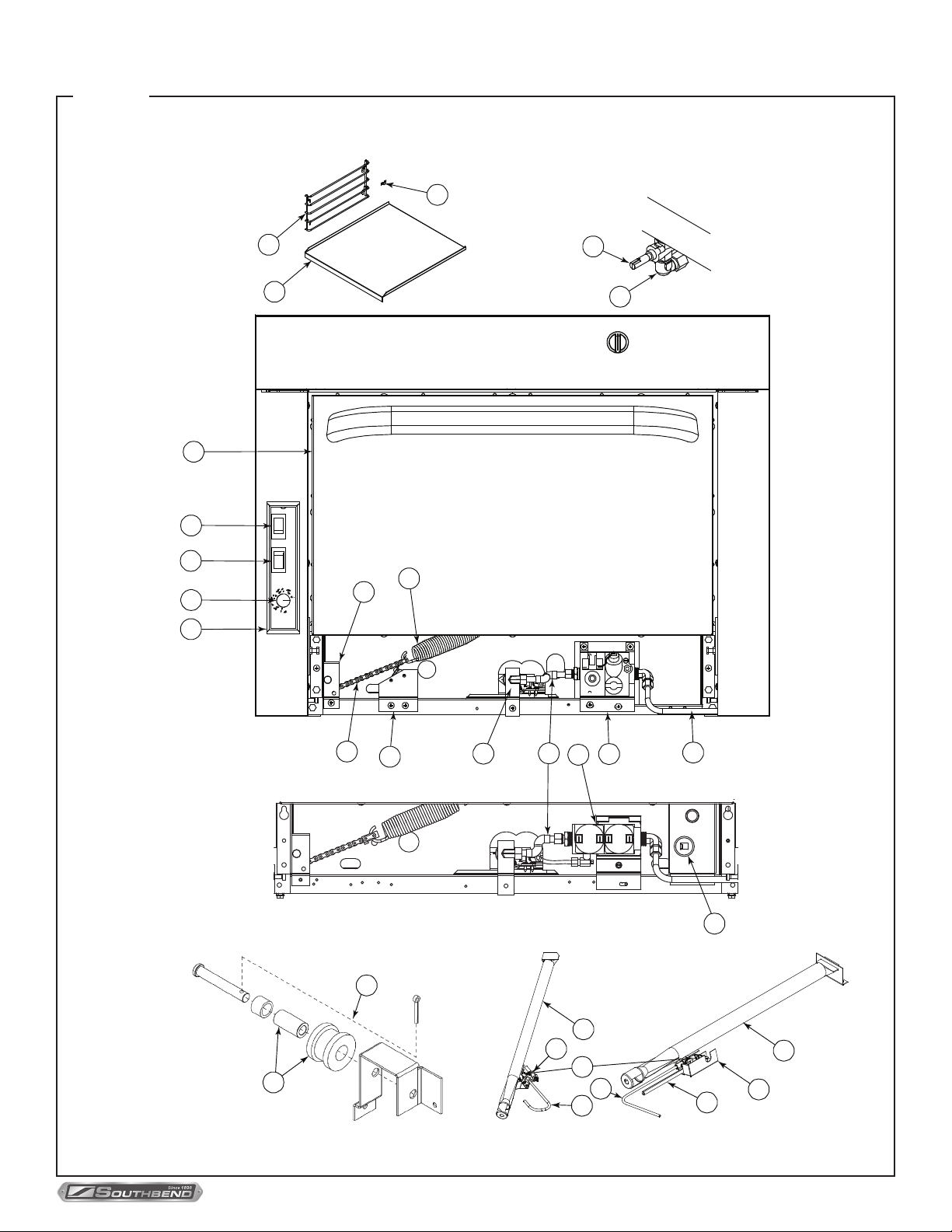

3240 Broiler with Oven Base

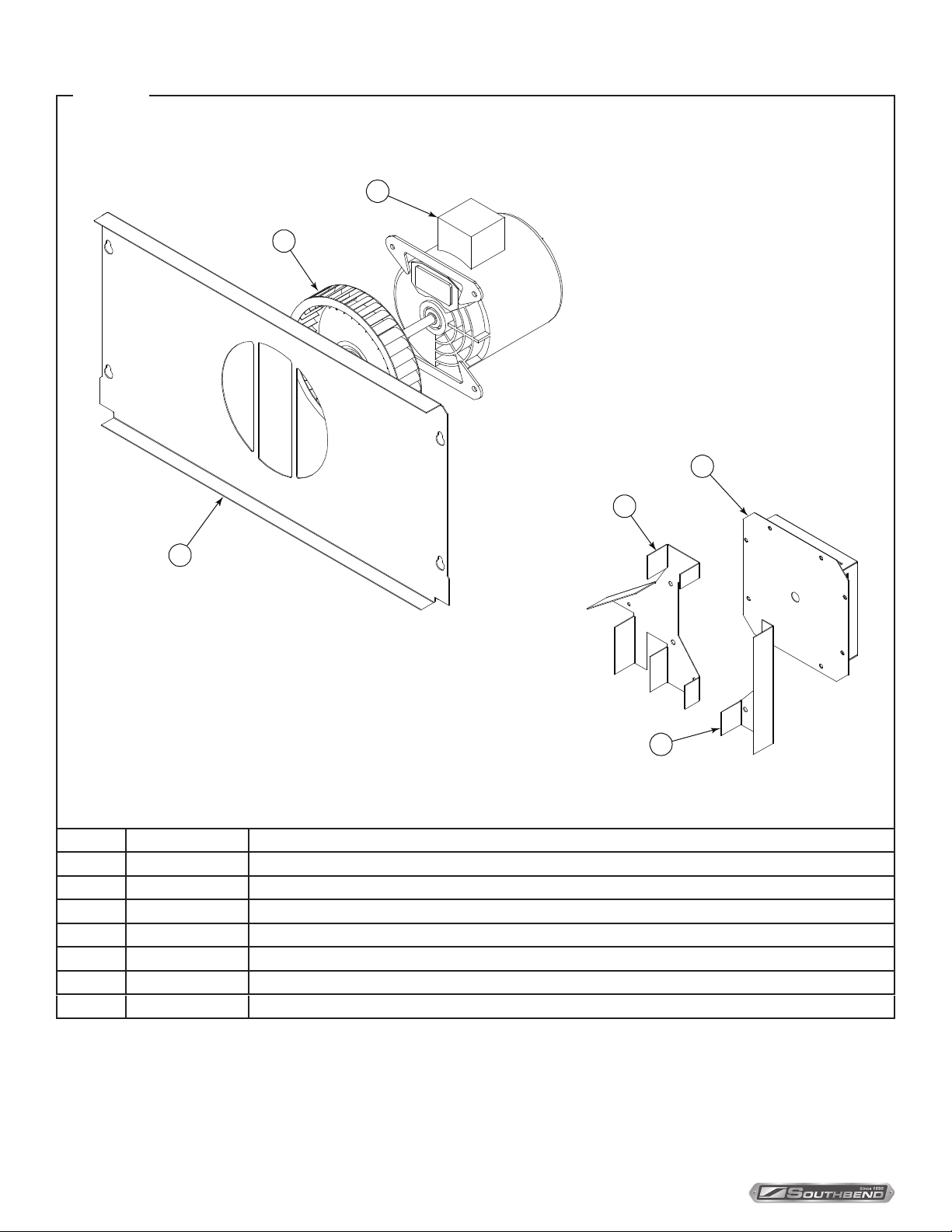

Oven Base Convection Oven Blower
Copyright © 2014 by Southbend. All rights reserved. Published in the United States of America.
PAGE
2
OF 47
PARTS MANUAL 1199793 REV 1 (12/14)
RADIANT BROILER PARTS
234R Broiler
See drawing on following page
Key Part Number Description
1 1160532 KNOB ASM, VALVE (OFF-HI-LOW)
2 1164093 PILOT SUPPLY TOP
3 1166150 FITTING 1/4 NPT X 3/8 CC ELBOW
4 1176014 VALVE, BURNER NATURAL
5 1176664 PILOT, NATURAL
6 1179080 VALVE EXTENSION NIPPLE
7 1184380 TUBE, LEFT BURNERS GAS SUPPLY
8 1184381 TUBE, RIGHT BURNERS GAS SUPPLY
9 1184384 PILOT ADJUST ASSEMBLY
10 1198098 TUBE, RIGHT PILOT SUPPLY, 234R
11 1198099 TUBE, LEFT PILOT SUPPLY, 234R
12 P5552 FITTING 1/8NPT X 1/4CC STRAIGHT
13 P9827 MANIFOLD, LEFT <1’ X 43.150> 4 HOLES
14 P9828 MANIFOLD, RIGHT <1’ X 43.150> 4 HOLES
15 1072997 PIPE ASM, SUPPLY
16 1164080 SA, SUPPLY MANIFOLD, NATURAL
17 1164081 SA, SUPPLY MANIFOLD, PROPANE
18 1-5371 CERAMIC 3 /3/4 X 4 1/4
19 1130399 BURNER WELD ASSEMBLY, HI GLOW
20 1176665 PILOT, PROPANE
21 1176015 VALVE BURNER PROPANE
PARTS MANUAL 1199793 REV 1 (12/14)
PAGE
3
OF 47

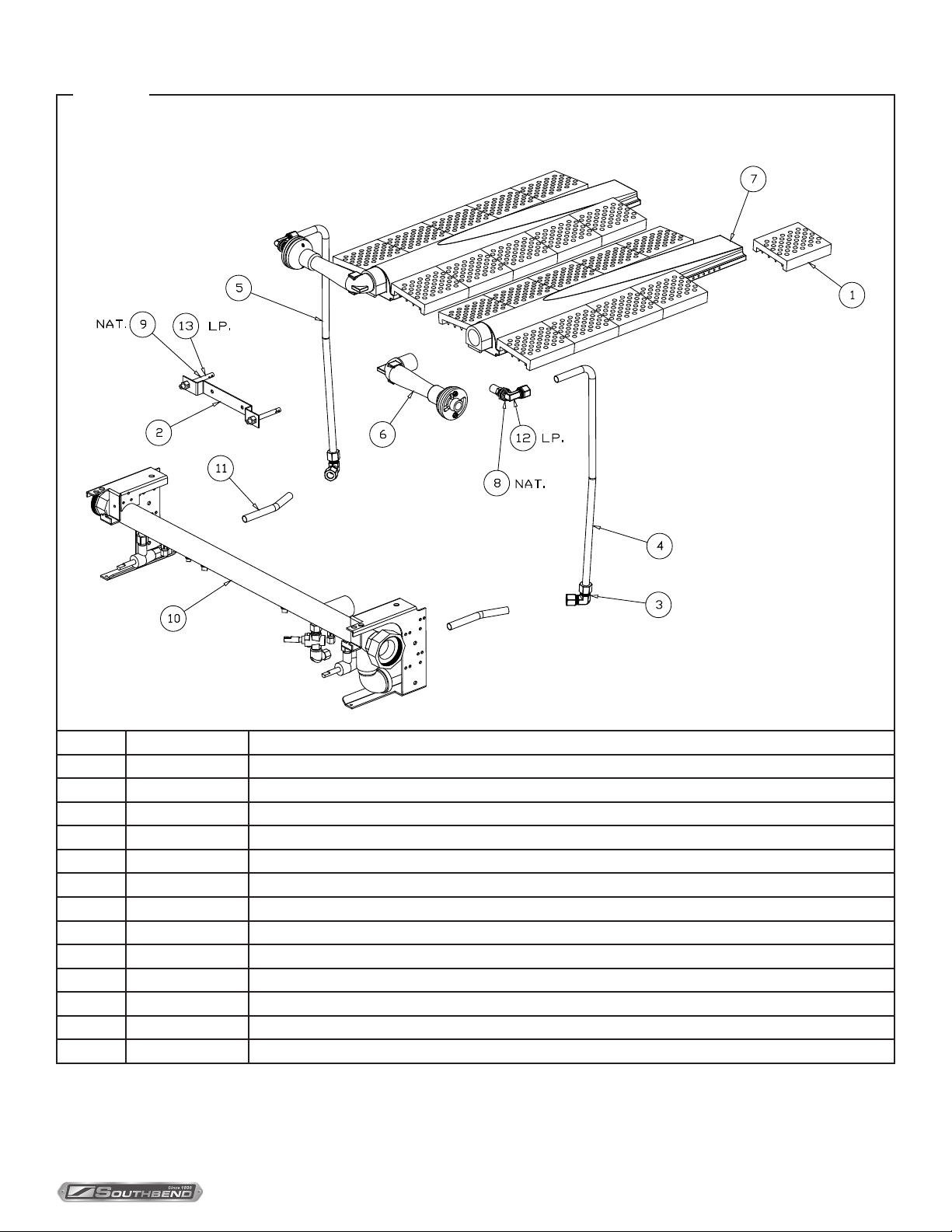

Figure 1
234R Broiler
RADIANT BROILER PARTS
PAGE
4
OF 47
PARTS MANUAL 1199793 REV 1 (12/14)
