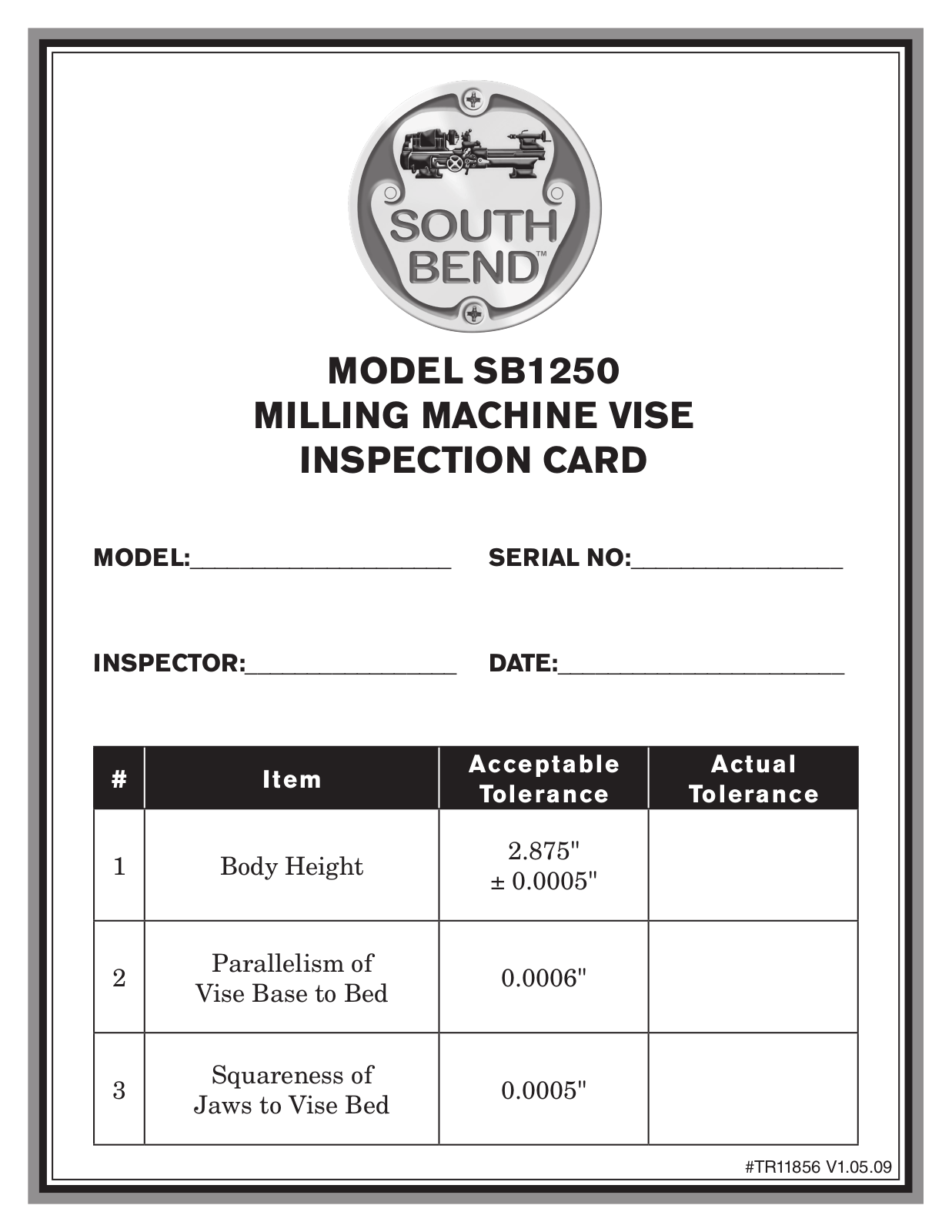

MODEL SB1250
MILLING MACHINE VISE
INSPECTION CARD
MODEL:_____________________
INSPECTOR:_________________
# Item
1 Body Height
Parallelism of
2
Vise Base to Bed
SERIAL NO:_________________
DATE:_______________________
Ac ce pt a bl e
Tolerance
2.875"
± 0.0005"
0.0006"
Ac tu al
Tolerance
3
Squareness of
0.0005"
Jaws to Vise Bed
#TR11856 V1.05.09
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PSB1250001 VISE BODY 11 PSB1250011 SET SCREW
2 PSB1250002 LEADSCREW 12 PSB1250012 SEMI-SPHERE SEGMENT
3 PSB1250003 THRUST BEARING 13 PSB1250013 FIXED JAW
4 PSB1250004 LOCK COLLAR 14 PSB1250014 CAP SCREW
5 PSB1250005 SET SCREW 15 PSB1250015 FLAT WASHER
6 PSB1250006 CHIP COVER 16 PSB1250016 JAW PLATE
7 PSB1250007 VISE NUT 17 PSB1250017 CAP SCREW
8 PSB1250008 VISE NUT CUP 18 PSB1250018 HANDLE SOCKET
9 PSB1250009 MOVABLE JAW 19 PSB1250019 HANDLE BAR
10 PSB1250010 ADJUSTMENT SCREW 20 PSB1250020 PIN

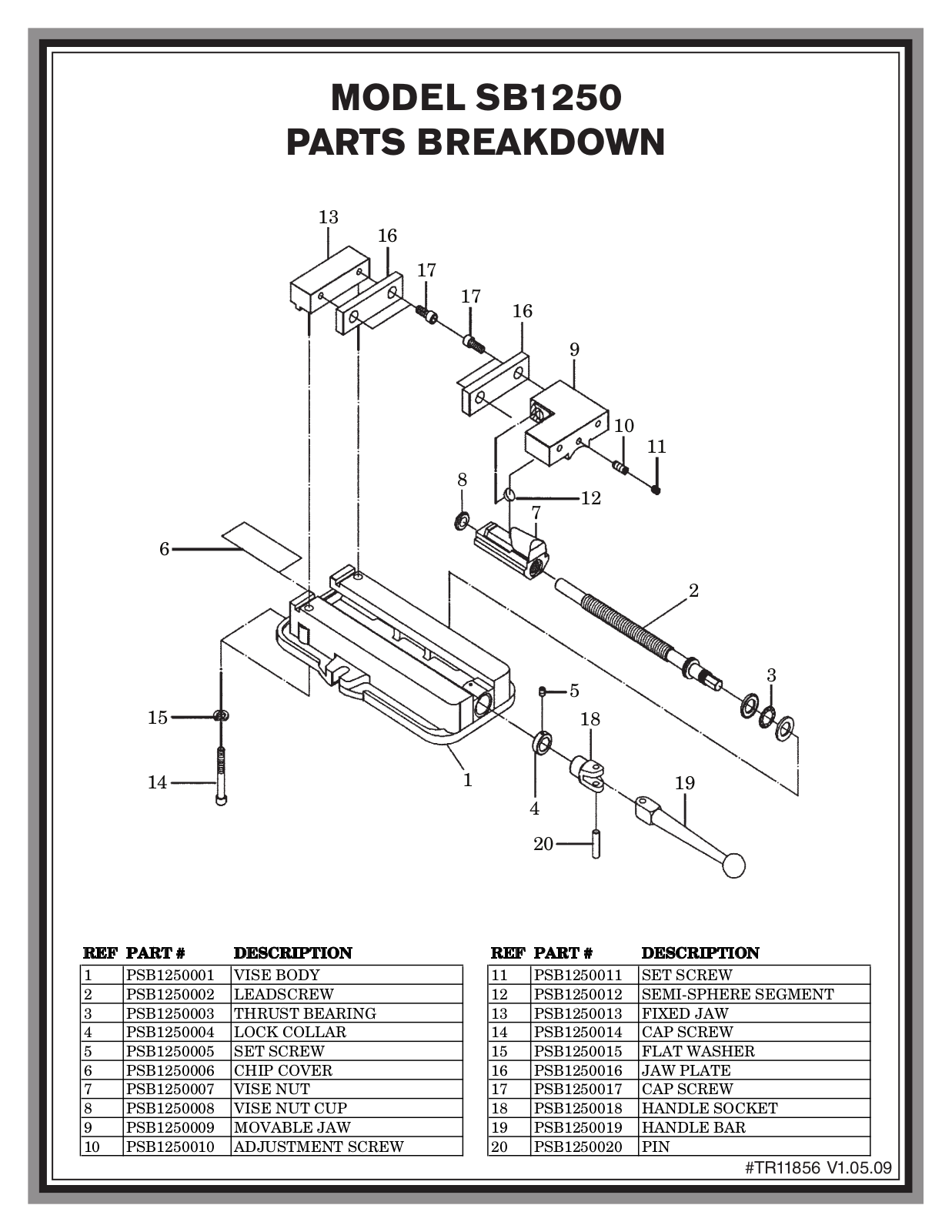

MODEL SB1250
PARTS BREAKDOWN
#TR11856 V1.05.09
