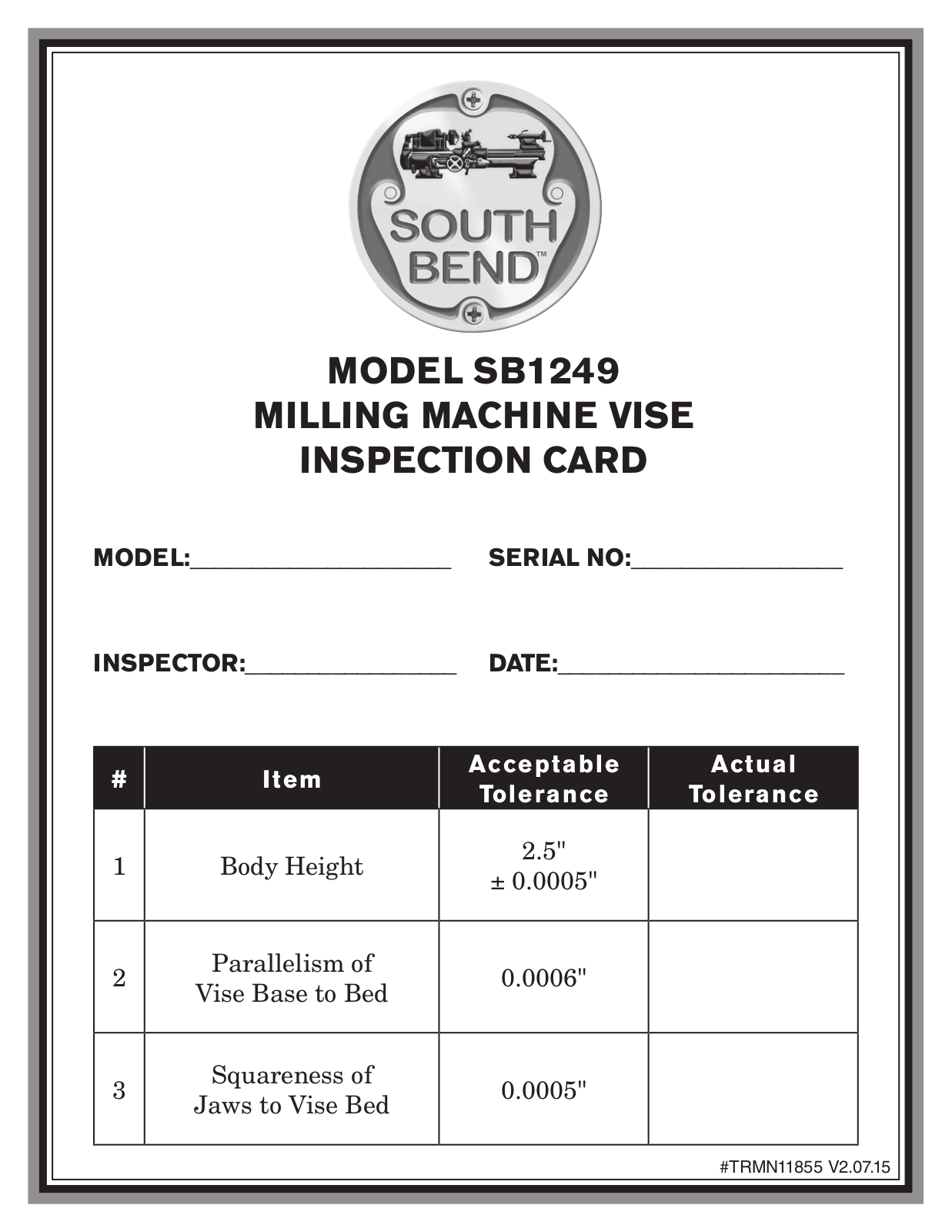

MODEL SB1249
MILLING MACHINE VISE
INSPECTION CARD
MODEL:_____________________
INSPECTOR:_________________
# Item
1 Body Height
Parallelism of
2
Vise Base to Bed
SERIAL NO:_________________
DATE:_______________________
Acceptable
Tolerance
2.5"
± 0.0005"
0.0006"
Actual
Tolerance
3
Squareness of
0.0005"
Jaws to Vise Bed
#TRMN11855 V2.07.15

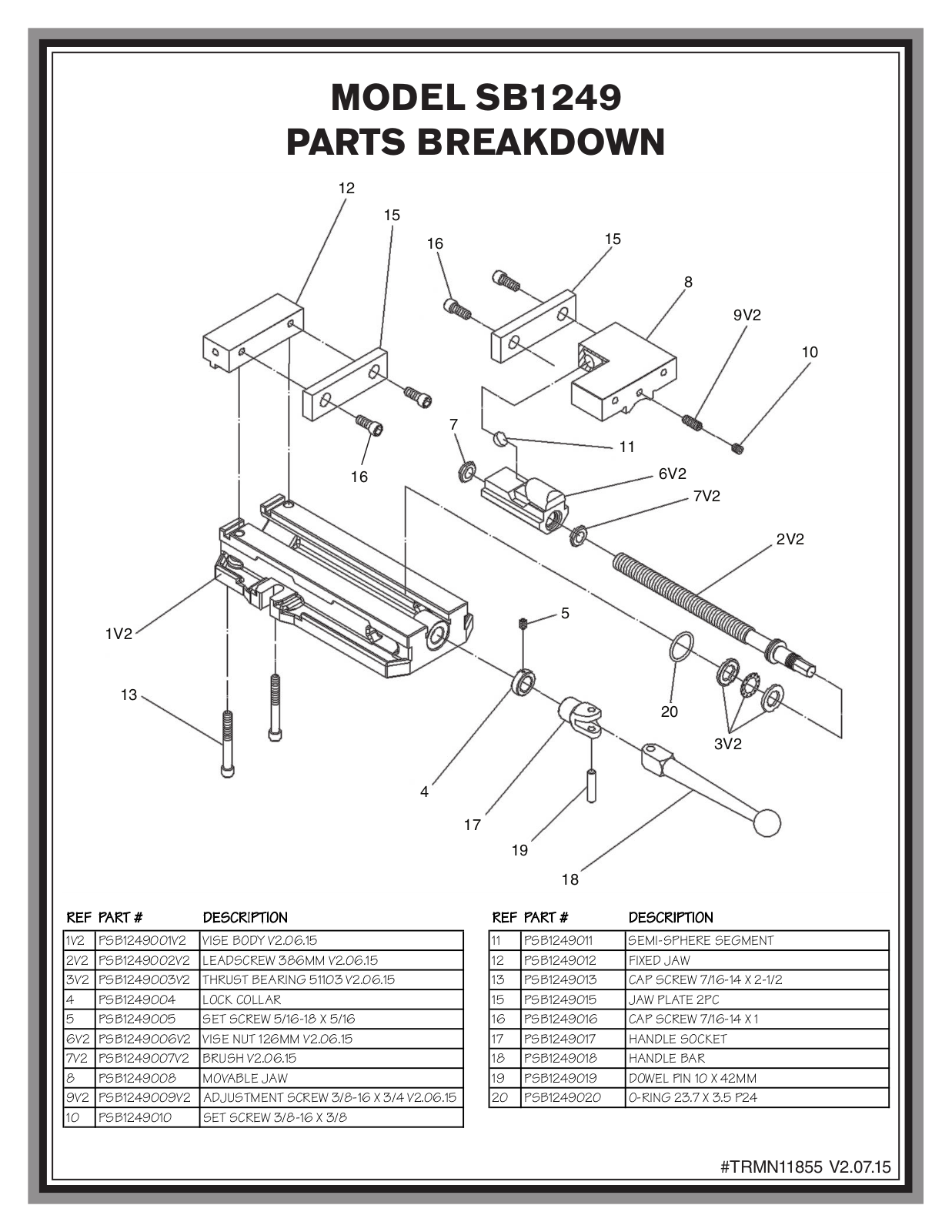

MODEL SB1249
PARTS BREAKDOWN
12
15
16
7
15
11
8
9V2
10
16
5
1V2
13
4
17
19
18
REF PART # DESCRIPTION REF PART # DESCRIPTION
1V2 PSB1249001V2 VISE BODY V2.06.15 11 PSB1249011 SEMI-SPHERE SEGMENT
2V2 PSB1249002V2 LEADSCREW 386MM V2.06.15 12 PSB1249012 FIXED JAW
3V2 PSB1249003V2 THRUST BEARING 51103 V2.06.15 13 PSB1249013 CAP SCREW 7/16-14 X 2-1/2
4 PSB1249004 LOCK COLLAR 15 PSB1249015 JAW PLATE 2PC
5 PSB1249005 SET SCREW 5/16-18 X 5/16 16 PSB1249016 CAP SCREW 7/16-14 X 1
6V2 PSB1249006V2 VISE NUT 126MM V2.06.15 17 PSB1249017 HANDLE SOCKET
7V2 PSB1249007V2 BRUSH V2.06.15 18 PSB1249018 HANDLE BAR
8 PSB1249008 MOVABLE JAW 19 PSB1249019 DOWEL PIN 10 X 42MM
9V2 PSB1249009V2 ADJUSTMENT SCREW 3/8-16 X 3/4 V2.06.15 20 PSB1249020 O-RING 23.7 X 3.5 P24
10 PSB1249010 SET SCREW 3/8-16 X 3/8
6V2
7V2
20
3V2
2V2
#TRMN11855 V2.07.15
