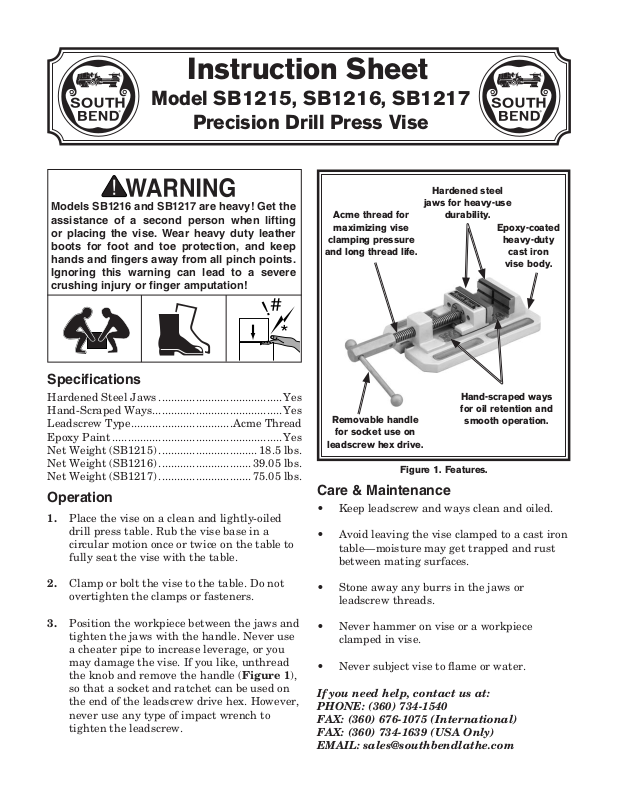

Instruction Sheet
Model SB1215, SB1216, SB1217
Precision Drill Press Vise
Models SB1216 and SB1217 are heavy! Get the
assistance of a second person when lifting
or placing the vise. Wear heavy duty leather
boots for foot and toe protection, and keep
hands and fingers away from all pinch points.
Ignoring this warning can lead to a severe
crushing injury or finger amputation!
Acme thread for
maximizing vise
clamping pressure
and long thread life.
Hardened steel
jaws for heavy-use
durability.
Epoxy-coated
heavy-duty
cast iron
vise body.
Specifications
Hardened Steel Jaws ........................................ Yes
Hand-Scraped Ways
Leadscrew Type
Epoxy Paint
Net Weight (SB1215)
Net Weight (SB1216)
Net Weight (SB1217)
....................................................... Yes
..........................................Yes
.................................Acme Thread
................................ 18.5 lbs.
.............................. 39.05 lbs.
.............................. 75.05 lbs.
Operation
1. Place the vise on a clean and lightly-oiled
drill press table. Rub the vise base in a
circular motion once or twice on the table to
fully seat the vise with the table.
2. Clamp or bolt the vise to the table. Do not
overtighten the clamps or fasteners.
3. Position the workpiece between the jaws and
tighten the jaws with the handle. Never use
a cheater pipe to increase leverage, or you
may damage the vise. If you like, unthread
the knob and remove the handle (Figure 1),
so that a socket and ratchet can be used on
the end of the leadscrew drive hex. However,
never use any type of impact wrench to
tighten the leadscrew.
Hand-scraped ways
for oil retention and
Removable handle
for socket use on
leadscrew hex drive.
Figure 1. Features.
smooth operation.
Care & Maintenance
• Keep leadscrew and ways clean and oiled.
• Avoid leaving the vise clamped to a cast iron
table—moisture may get trapped and rust
between mating surfaces.
• Stone away any burrs in the jaws or
leadscrew threads.
• Never hammer on vise or a workpiece
clamped in vise.
• Never subject vise to flame or water.
If you need help, contact us at:
PHONE: (360) 734-1540
FAX: (360) 676-1075 (International)
FAX: (360) 734-1639 (USA Only)
EMAIL: sales@southbendlathe.com
Model: SB1215, SB1216, SB1217 Parts
Item Part# Description
1 PSB1215001 DOWEL PIN 5 X 30MM
PSB1216001 DOWEL PIN 5 X 30MM
PSB1217001 DOWEL PIN 8 X 40MM
3 PSB1215003 NCL CAP SCREW M6-1 X 35
PSB1216003 NCL CAP SCREW M8-1.25 X 40
PSB1217003 NCL CAP SCREW M10-1.5 X 60
4 PSB1215004 NCL CAP SCREW M6-1 X 20
PSB1216004 NCL CAP SCREW M8-1.25 X 20
PSB1217004 NCL CAP SCREW M10-1.5 X 25
5 PSB1215005 NCL CAP SCREW M5-.8 X 10
6 PSB1215006 BRASS SCREW M2-.45 X 5
7 PSB1215007 SB1215 VISE ASSEMBLY
PSB1216007 SB1216 VISE ASSEMBLY
PSB1217007 SB1217 VISE ASSEMBLY
Item Part# Description
8 PSB1215008 SB1215 JAW SET
PSB1216008 SB1216 JAW SET
PSB1217008 SB1217 JAW SET
9 PSB1215009 SB1215 LEVER ASSEMBLY
PSB1216009 SB1216 LEVER ASSEMBLY
PSB1217009 SB1217 LEVER ASSEMBLY
10 PSB1217010 SOUTH BEND LOGO PLATE
6
10
5
4
4
8
9
1
3
Note: Replacement
castings and leadscrew
Figure 2. Parts list and diagram.
A
B
C
D
E
F
G
H
J
K
L
7
Vise Dimensions Table
SB1215 SB1216 SB1217
1
⁄2"
4"
5 3⁄8" 7 1⁄2" 9 7⁄8"
6 1⁄2" 9 1⁄8 " 11 1⁄2"
4"
11 1⁄4" 143⁄4" 193⁄16"
18 1⁄2" 243⁄16" 31 1⁄2"
4 1⁄2" 57⁄8" 8"
I
3" 3
1 5⁄8" 21⁄8" 2 1⁄2"
M20 x 4.0
Pitch
3
⁄16"
1
(30mm)
not available separately.
5
⁄8"
5 1⁄4" 7 7⁄8"
4 1⁄4" 7"
5
⁄8" 4"
M26 x 5.0
Pitch
1 3⁄16"
(30mm)
5
⁄8"
M26 x 5.0
Pitch
1 9⁄16"
(40mm)
Figure 3. Vise dimensions.
