19½" FLOOR DRILL PRESS

MODEL SB1125

OWNER'S MANUAL

South Bend Tools

A Tradition of Excellence

We stand behind our machines. If you have any service questions, parts requests or general questions about your purchase, feel free to contact us.

South Bend Tools P.O. Box 2027 Bellingham, WA 98227 Phone: (360) 734-1540 Fax: (360) 676-1075 (International) Fax: (360) 734-1639 (USA Only) Email: sales@southbendtools.com

For your convenience, any updates to this manual will be available to download free of charge

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control it during operation, and how to keep it in good working condition. We assume the reader has a basic understanding of how to operate this type of machine, but that the reader is not familiar with the controls and adjustments of this specific model. As with all machinery of this nature, learning the nuances of operation is a process that happens through training and experience. If you are not an experienced operator of this type of machinery, read through this entire manual, then learn more from an experienced operator, schooling, or research before attempting operations. Following this advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes happen or the machine design changes after the documentation process—so exactly match your machine. contact our

We highly value customer feedback on our manuals. If you have a moment, please share your experience using this manual. What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

P.O. Box 2027 Bellingham, WA 98227 Email: manuals@southbendtools.com

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

through our website at:

Customer Service

Table of Contents

INTRODUCTION

Identiﬁcation Description of Controls & Components Product Speciﬁcations

SAFETY

Understanding Risks of Machinery Basic Machine Safety Additional Drill Press Safety

PREPARATION

Preparation Overview Required for Setup Power Supply Requirements Unpacking Inventory Cleaning & Protecting Location Placing & Anchoring Machine Joining Drill Chuck & Arbor Assembly Test Run Spindle Break-In

OPERATION

Operation Overview Installing/Removing Arbor Installing/Removing Drill Bit Spindle Speed Calculating Spindle Speed for Drilling Adjusting Depth Stop Positioning Table

................................................................................ 7

............................................................ 13

.............................................................. 15

............................................................18

............................................................. 19

............................................................... 2

........................................................ 2

.........................................5

.................... 7

..........................................7

..............................9

.............................................................. 10

........................................10

............................................. 10

............................. 11

..........................................................13

.......................................14

..........................16

............................. 18

................................................21

.................................................................... 22

........................................... 22

................................ 23

............................24

.....................................................25

........................................28

...............................................28

..............3

............. 27

ACCESSORIES .............................................................. 29

MAINTENANCE

Maintenance Schedule Cleaning & Protecting Lubrication Machine Storage Checking V-Belts

SERVICE...........................................................................36

Adjusting Return Spring Tension

Replacing V-Belts...............................................37

Aligning Motor Pulley........................................39

Replacing Worklight Bulb

TROUBLESHOOTING

ELECTRICAL

Electrical Safety Instructions Wiring Diagram

Electrical Component Pictures..........................46

PARTS................................................................................ 47

Headstock

Control Box.........................................................49

Column Machine Labels

WARRANTY

...............................................................50

............................................................. 32

.......................................32

......................................................... 32

................................................35

...............................................35

..................... 36

................................. 40

................................................. 41

................................................................... 44

...........................44

.................................................45

........................................................... 47

.................................................. 52

..................................................................... 53

South Bend Tools

Model SB1125

INTRODUCTION

Identiﬁcation

BeltBelt

CoverCover

ControlControl

PanelPanel

INTRODUCTION

Belt Tension Belt Tension

KnobKnob

Belt Tension Belt Tension

LockLock

For Machines Mfd. Since 11/21

DownfeedDownfeed

HandleHandle

(1 of 3)(1 of 3)

QuillQuill

SpindleSpindle

BaseBase

Depth StopDepth Stop

Table Height Table Height

CrankCrank

MotorMotor

Spindle Return Spindle Return

SpringSpring

Table HeightTable Height Lock HandleLock Handle

ChuckChuck

TableTable

Table Rotation Table Rotation

Lock HandleLock Handle

ColumnColumn

For Your Own Safety, Read Instruction Manual Before Operating Drill Press a) Wear eye protection. b) Do not wear gloves, necktie, or loose clothing. c) Clamp workpiece or brace against column to prevent rotation. d) Use recommended speed for drill accessory and workpiece material.

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

-2-

Untrained users have an increased risk of seriously injuring themselves with this machine. Do not operate this machine until you have understood this entire manual and received proper training.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Description of Controls

INTRODUCTION

H. Master Power Switch: Turns incoming power

to control box ON (1) and OFF (0).

& Components

Refer to Figures 1–6 and the following descriptions to become familiar with the basic controls and components used to operate this machine.

A. RPM Digital Readout: Displays current

spindle speed.

B. Spindle Rotation Switch: Determines spindle

rotation direction spindle rotation.

C. EMERGENCY STOP Button: Stops spindle

rotation and prevents it from starting.

D. ON Button: Starts spindle rotation if spindle

rotation switch is in forward

position.

E. OFF Button: Stops spindle rotation.

F. Worklight Switch: Turns worklight ON and

OFF.

G. Spindle Speed Dial: Adjusts spindle speed

between 50–2,000 RPM.

/ and stops (O)

or reverse

Note: ON/OFF buttons will illuminate when

master power switch is in ON (1) position.

Figure Figure 2. Location of master power switch.. Location of master power switch.

I. Downfeed Handle (1 of 3): Moves

spindle down when pulled down. Spindle automatically returns to top position when released.

J. Spindle Return Spring: Automatically

returns quill into headstock.

Figure Figure 1. Control panel components.. Control panel components.

Figure Figure 3. Spindle travel components.. Spindle travel components.

-3-

South Bend Tools

Model SB1125

INTRODUCTION

For Machines Mfd. Since 11/21

K. Table Height Lock Handle: Loosens to allow

use of table height crank; tightens to lock table height.

L. Table Height Crank: Adjusts table up and

down.

Figure Figure 4. Table height controls.. Table height controls.

M. Table Rotation Lock Handle: Loosens to allow

table rotation; tightens to lock table rotation.

N. Belt Tension Knob: Adjusts motor position to

tension and release belt.

O. Belt Tension Lock: Locks motor position.

P. Depth Stop: Stops spindle travel at

predetermined depth.

Figure Figure 6. Belt tension components and depth stop.. Belt tension components and depth stop.

Figure Figure 5. Table rotation lock handle.. Table rotation lock handle.

-4-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Model SB1125

INTRODUCTION

Product Speciﬁcations

Product Specifications

P.O. Box 2027, Bellingham, WA 98227 U.S.A.

PHONE: (360) 734-1540 •

www.southbendtools.com

19‐1/2" Floor Drill Press

Product Dimensions

Weight.............................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height......................................................... 21-1/2 x 33 x 68-1/2 in.

Footprint (Length x Width)........................................................................................................... 17-1/2 x 25-1/2 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content..........................................................................................................................................................

Weight.............................................................................................................................................................

Length x Width x Height................................................................................................................... 36 x 30 x 76 in.

Must Ship Upright................................................................................................................................................ Yes

448 lbs.

Machine

514 lbs.

Electrical

Power Requirement......................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating...................................................................................................................................

Minimum Circuit Size..........................................................................................................................................

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length............................................................................................................................................ 80 in.

Power Cord Gauge.........................................................................................................................................

Plug Included........................................................................................................................................................

Included Plug Type.............................................................................................................................................. 6-15

Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection

Inverter (VFD) Type................................................................................................................................. KBVF-24D

Motors

Main

Horsepower...............................................................................................................................................

Phase....................................................................................................................................................

Amps.......................................................................................................................................................... 3.8A

Speed................................................................................................................................................ 1720 RPM

Type......................................................................................................................................................... TEFC

Power Transfer ..........................................................................................................................................

Bearings....................................................................................................

Sealed & Permanently Lubricated

3.8A 15A

14 AWG

Yes

1 HP

3-Phase

Belt

-5-

South Bend Tools

Model SB1125

Main Specifications

Operation Information

Type...........................................................................................................................................................

Swing..................................................................................................................................................

Spindle Taper.......................................................................................................................................... MT#3

Spindle Travel...................................................................................................................................... 5-1/2 in.

Max. Distance From Spindle to Column............................................................................................ 9-3/4 in.

Max. Distance From Spindle to Table..............................................................................................

Number of Spindle Speeds.................................................................................................................

Range of Spindle Speeds.......................................................................................................... 50 - 2000 RPM

Drilling Capacity (Mild Steel)........................................................................................................... 1-9/16 in.

Drill Chuck Type..................................................................................................................... JT6 Key Chuck

Drill Chuck Size.............................................................................................................................

Spindle Information

Distance From Spindle to Base...............................................................................................................

Quill Diameter.................................................................................................................................... 2.132 in.

Table Information

Table Swing......................................................................................................................................... 360 deg.

Table Swivel Around Center...................................................................................................... 0-30 deg. L/R

Table Swivel Around Column.............................................................................................................

Table Length............................................................................................................................................

Table Width.............................................................................................................................................. 16 in.

Table Thickness................................................................................................................................... 1-1/2 in.

Vertical Table Travel....................................................................................................................... 25-1/16 in.

Number of T-Slots...........................................................................................................................................

T-Slot Size...............................................................................................................................................

T-Slot Centers...................................................................................................................................... 6-1/4 in.

Floor-To-Table Height.......................................................................................................... 18-1/2 - 43-5/8 in.

INTRODUCTION

For Machines Mfd. Since 11/21

Floor

19-1/2 in.

31-1/2 in.

Variable

3/64–5/8 in.

45 in.

360 deg.

20 in.

5/8 in.

Construction

Table................................................................................................................................................... Cast Iron

Column......................................................................................................................................................

Spindle Housing................................................................................................................................

Head................................................................................................................................................... Cast Iron

Base.................................................................................................................................................... Cast Iron

Paint Type/Finish................................................................................................................................. Enamel

Other Related Information

Base Length.......................................................................................................................................

Base Width.........................................................................................................................................

Column Diameter...................................................................................................................................... 4 in.

Quill Flange/Collar Diameter............................................................................................................. 3-3/4 in.

Depth Stop Type.............................................................................................. Threaded Rod w/Positive Stop

Has Work Light...........................................................................................................................................

Light Socket Type......................................................................................................................................

Other

Country of Origin ........................................................................................................................................... Taiwan

Warranty ........................................................................................................................................................ 2 Years

Approximate Assembly & Setup Time .......................................................................................................... 1 Hour

Serial Number Location .............................................................................................................................. ID Label

ISO 9001 Factory ................................................................................................................................................. Yes

Steel

Cast Iron

25-1/2 in. 17-5/8 in.

Yes

LED

-6-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This responsibility includes proper installation in a safe environment, personnel training and usage authorization, regular inspection and maintenance, manual availability and comprehension, application of safety devices, integrity of cutting tools or accessories, and the usage of approved personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property damage from negligence, improper training, machine modiﬁcations, or misuse. Failure to read, understand, and follow the manual and safety labels may result in serious personal injury, including amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

Understanding Risks of Machinery

Death or catastrophic harm WILL occur.

Death or catastrophic harm COULD occur.

Moderate injury or ﬁre MAY occur.

Machine or property damage may occur.

Basic Machine Safety

equipment presents serious injury hazards to untrained users. To reduce the risk of injury, anyone who uses THIS item MUST read and understand this entire manual before starting.

Personal Protective Equipment:

servicing this item may expose the user to ﬂying debris, dust, smoke, dangerous chemicals, or loud noises. These hazards can result in eye injury, blindness, longterm respiratory damage, poisoning, cancer, reproductive harm or hearing loss. Reduce your risks from these hazards by wearing approved eye protection, respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves or bystanders. Only allow trained and properly supervised personnel to operate this item. Make sure safe operation instructions are clearly understood. If electrically powered, use padlocks and master switches, and remove start switch keys to prevent unauthorized use or accidental starting.

Guards/Covers:

moving parts during operation may cause severe entanglement, impact, cutting, or crushing injuries. Reduce this risk by keeping any included guards/covers/doors installed, fully functional, and positioned for maximum protection.

Accidental contact with

-7-

South Bend Tools

Model SB1125

Entanglement: Loose clothing, gloves, neckties,

rotate.

Chuck Keys or Adjusting Tools:

Tools used to

our Technical Support for assistance.

SAFETY

For Machines Mfd. Since 11/21

jewelry or long hair may get caught in moving parts, causing entanglement, amputation, crushing, or strangulation. Reduce this risk by removing/securing these items so they cannot contact moving parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the risk of accidental injury. Do not let a temporary influence or distraction lead to a permanent disability! Never operate when under the influence of drugs/alcohol, when tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment may result in electrocution; operating near highly ﬂammable materials may result in a ﬁre or explosion. Only operate this item in a dry location that is free from ﬂammable materials.

Electrical Connection: With electically powered

equipment, improper connections to the power source may result in electrocution or fire. Always adhere to all electrical requirements and applicable codes when connecting to the power source. Have all work inspected by a qualified electrician to minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it is connected to the power source greatly increases the risk of injury from accidental startup. Always disconnect power BEFORE any service or adjustments, including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/ rotating parts will become dangerous projectiles if left in place when the machine is started. Reduce this risk by developing the habit of always removing these tools immediately after using them.

Work Area:

the risks of accidental injury. Only operate this item in a clean, non-glaring, and welllighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning equipment has higher risks of causing serious personal injury compared to those that are properly maintained. To reduce this risk, always maintain this item to the highest standards and promptly repair/service a damaged or malfunctioning component. Always follow the maintenance instructions included in this documentation.

Unattended Operation:

equipment that is left unattended while running cannot be controlled and is dangerous to bystanders. Always turn the power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when cutting, may contain chemicals known to the State of California to cause cancer, respiratory problems, birth defects, or other reproductive harm. Minimize exposure to these chemicals by wearing approved personal protective equipment and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can become dangerous projectiles if not secured or if they hit another object during operation. Reduce the risk of this hazard by verifying that all fastening devices are properly secured and items attached to spindles have enough clearance to safely

-8-

Loose workpieces,

Difﬁcult Operations:

operations with which you are unfamiliar increases the risk of injury. If you experience difficulties performing the intended operation, STOP! Seek an alternative method to accomplish the same task, ask a qualified expert how the operation should be performed, or contact

Attempting difficult

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

To avoid loss of drilling control

speeds and feeds for each size/type of bit/cutting

likely to grab and spin/throw workpiece. Always

for sharpness, chips, or

cracks before each use. Replace dull, chipped, or

SAFETY

Additional Drill Press Safety

Serious injury or death can occur from getting clothing, jewelry, or long hair entangled in rotating spindle or bit/cutting tool. Contact with rotating bit/cutting tool can result in severe cuts or amputation of ﬁ ngers. Flying metal chips can cause blindness or eye injuries. Broken bits/cutting tools, unsecured workpieces, chuck keys, or other adjustment tools thrown from rotating spindle can strike nearby operator or bystanders with deadly force. To reduce the risk of these hazards, operator and bystanders MUST completely heed hazards and warnings below.

Eye/Face/Hand Protection. Flying chips

created by drilling can cause eye injuries or blindness. Always wear a face shield in addition to safety glasses. Always keep hands and fingers away from drill bit/cutting tool. Avoid awkward hand positions, where a sudden slip could cause hand to move into bit/cutting tool.

Avoiding Entanglement. DO NOT wear loose

clothing, gloves, or jewelry. Tie back long hair. Keep all guards in place and secure. Always allow spindle to stop on its own. DO NOT stop spindle using your hand or any other object.

Removing Adjustment Tools. Chuck key,

wrenches, and other tools left in spindle chuck or on machine can become deadly projectiles if thrown by rotating spindle. Remove all loose items or tools used on spindle immediately after use.

Workpiece Control. An unsecured workpiece

may unexpectedly shift, spin out of control, or be thrown if bit/cutting tool “grabs” during operation. Clamp workpiece to table or in table-mounted vise, or brace against column to prevent rotation. NEVER hold workpiece by hand during operation. NEVER start machine with bit/cutting tool touching workpiece; allow spindle to gain full speed before drilling.

Drilling Preparation.

or bit breakage, only drill into a flat surface that is approximately perpendicular to bit. Clear table of all objects before starting spindle. Never start spindle with bit pressed against workpiece.

Securing Table and Headstock. To avoid loss of

control leading to accidental contact with tool/ bit, tighten all table and headstock locks before operating drill press.

Correct Spindle Speed. Using wrong spindle speed

can cause bits/cutting tools to break and strike operator or bystanders. Follow recommended

tool and workpiece material.

Securing Bit/Cutting Tool. Firmly secure bit/

cutting tool in chuck so it cannot fly out of spindle during operation or startup.

Inspecting Bit/Cutting Tool. Damaged bits/cutting

tools may break apart during operation and hit operator or bystanders. Dull bits/cutting tools increase cutting resistance and are more

inspect bits/cutting tools

cracked bits/cutting tools immediately.

Like all machinery there is a potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

-9-

South Bend Tools

Model SB1125

PREPARATION

For Machines Mfd. Since 11/21

Preparation Overview Required for Setup

The purpose of the preparation section is to help you prepare your machine for operation. The list below outlines the basic process. Specific steps for each of these points will be covered in detail later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

Clean the machine and its components.

3. Identify an acceptable location for the

machine and move it to that location.

Either bolt machine to the floor or place it on

mounts.

Assemble the loose components and make

any necessary adjustments or inspections to ensure the machine is ready for operation.

Connect the machine to the power source.

7. Test run the machine to make sure it

functions properly and is ready for operation.

The items listed below are required to successfully set up and prepare this machine for operation.

For Lifting

• A forklift or other power lifting device rated for the weight of the machine.

• Lifting sling (rated for at least 650 lbs.).

For Power Connection

• A power source that meets the minimum circuit requirements for this machine. (Refer to the Power Supply Requirements section on Page 11 for details.)

• A qualified electrician to ensure a safe and code-compliant connection to the power source.

For Assembly

• Disposable Rags

• Cleaner Degreaser

• Safety Glasses (for each person)

• Disposable Gloves

• Open-End Wrench 13mm

• Another Person

• Mounting Hardware (As Needed)

• Acetone or Lacquer Thinner

• Block of Wood

• Hex Wrench 3⁄16"

-10-

Incorrect use of this machine can result in death or serious injury. For your own safety, read and understand this entire document before using.

Wear safety glasses during the entire setup process!

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed.

To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by a or qualified service personnel applicable electrical codes and safety standards.

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result—especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Note: The circuit requirements in this manual are for machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure the circuit is properly sized.

A power supply circuit includes all electrical equipment between the main breaker box or fuse panel in your building and the incoming power connections inside the machine. This circuit must be safely sized to handle the full-load current that may be drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Serious injury could occur if you connect

PREPARATION

Power Supply Requirements

Availability

Electrocution or fire may occur if machine is not correctly grounded and attached to the power supply. Use a qualified electrician to ensure a safe power connection.

n electrician

in accordance with

the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

Circuit Requirements

Nominal Voltage ........... 208V/220V/230V/240V

Cycle Phase

Circuit Rating....................................... 15 Amps

Plug/Receptacle (included)

.............................................................60 Hz

..............................................Single-Phase

...........NEMA 6-15

Full-Load Current Rating

Full-Load Rating ................................. 3.8 Amps

For your own safety and protection of property, consult an electrician if you are unsure about wiring practices or applicable electrical codes.

a dedicated circuit—where only one

-11-

South Bend Tools

Model SB1125

This machine must be grounded! In the event of grounding provides a path of least resistance for electric current electric shock.

This machine is equipped with a power cord that has grounding plug The plug receptacle (outlet) grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipmentgrounding wire to a live (current carrying) terminal.

Check with an electrician or qualiﬁ ed service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded.

If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. If you must use one, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle listed in the

Requirements

meet the following requirements:

PREPARATION

Grounding Requirements

certain types of malfunctions or breakdowns,

in order to reduce the risk of

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

6-15 RECEPTACLE

For Machines Mfd. Since 11/21

Current Carrying Prongs

6-15 PLUG

Grounding Prong

Figure Figure 7. NEMA 6-15 plug and receptacle.. NEMA 6-15 plug and receptacle.

DO NOT modify the included plug or use an adapter if it will not fit your receptacle. Instead, have a qualified electrician install the proper receptacle on a power supply circuit that is grounded and meets the requirements for this

-12-

machine.

Extension Cords

Circuit

for the applicable voltage, and

Minimum Gauge Size ............................16 AWG

Maximum Length (Shorter is Better)

....50 ft.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

This item was carefully packaged to prevent damage during transport. If you discover any damage, please immediately call Customer Service at need to file a freight claim, so save the containers and all packing materials for possible inspection by the carrier or its agent.

PREPARATION

Unpacking

(360) 734-1540 for advice. You may

Inventory

Wood Crate (Figure 8) Qty

A. Drill Press (not shown) .................................. 1

Downfeed Handles ......................................... 3

Downfeed Levers ............................................ 3

Table Height Crank Assembly ...................... 1

Arbor MT#3 x JT6 .......................................... 1

Drill Chuck JT6 3⁄64"–5⁄8" ................................1

Drill Chuck Key ............................................. 1

Drift Key ........................................................ 1

Hex Wrench 5mm .......................................... 1

Hex Wrench 4mm ......................................... 1

Hex Wrench 3mm .......................................... 1

JJ KK

NOTICE

If you cannot ﬁ nd an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Figure Figure 8. Loose items inventory.. Loose items inventory.

-13 -

South Bend Tools

Model SB1125

The unpainted surfaces are coated with a heavy-duty rust preventative that prevents corrosion during shipment and The beneﬁ t of this rust preventative is that it works very well. The downside is that it time-consuming

Be patient and do a careful job when and removing the rust preventative you spend doing this will reward you with smooth for the proper care of

Although there are many ways to successfully remove the rust preventative, the process works well in most situations

Before cleaning, gather the following:

• Disposable

• Cleaner/degreaser

• Safety glasses & disposable gloves

Note:

WD•40 can be used to remove rust preventative. Before using these products, though, test them on an inconspicuous area of a painted surface to make sure they will not damage it.

GAS

PREPARATION

Cleaning & Protecting

For Machines Mfd. Since 11/21

at the factory

to thoroughly remove.

-sliding parts and a better appreciation the unpainted surfaces.

rags

(certain citrus-based degreasers work extremely well and they have non-toxic fumes)

Automotive degreasers, mineral spirits, or

. The time

following

storage.

can be

cleaning

Avoid chlorine-based solvents, such as acetone or brake parts cleaner that may damage painted surfaces. Always follow the manufacturer’s instructions when using any type of cleaning product.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat all surfaces that have rust preventative

with a liberal amount of your cleaner or degreaser and let them soak for a few minutes.

3. Wipe off the surfaces. If your cleaner or

degreaser is effective, the rust preventative will wipe off easily.

Note: To clean off thick coats of rust

preventative on ﬂ at surfaces, such as beds or tables, use a PLASTIC paint scraper to scrape off the majority of the coating before wiping it off with your rag. (Do not use a metal scraper or it may scratch the surface.)

4. Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant or light oil to prevent rust.

-14-

Gasoline and petroleum products have low flash points and can explode or cause fire if used for cleaning. Avoid using these products to remove rust preventative.

Many cleaning solvents are toxic if inhaled. Minimize your risk by only using these products in a well ventilated area.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

Figure Figure 9.. T23692 Orange Power Degreaser.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Weight Load

equipment that may be installed on the machine,

Physical Environment

The physical environment where your machine is operated is important for safe operation and longevity of machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature 104°F; the relative humidity of is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate enough to perform operations safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

PREPARATION

Location

Physical Environment Electrical Installation Lighting Weight Load

Space Allocation

20–95% (non-condensing); or the environment

parts. For best results, operate this

or flammable

is outside the range of 41°–

is outside the range

Refer to the Machine Speciﬁcations for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional

and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

21½"

Children or untrained people may be seriously

33"

injured by this machine. Only install in an access restricted location.

Electrical

Connection

Min. 30"

Wall

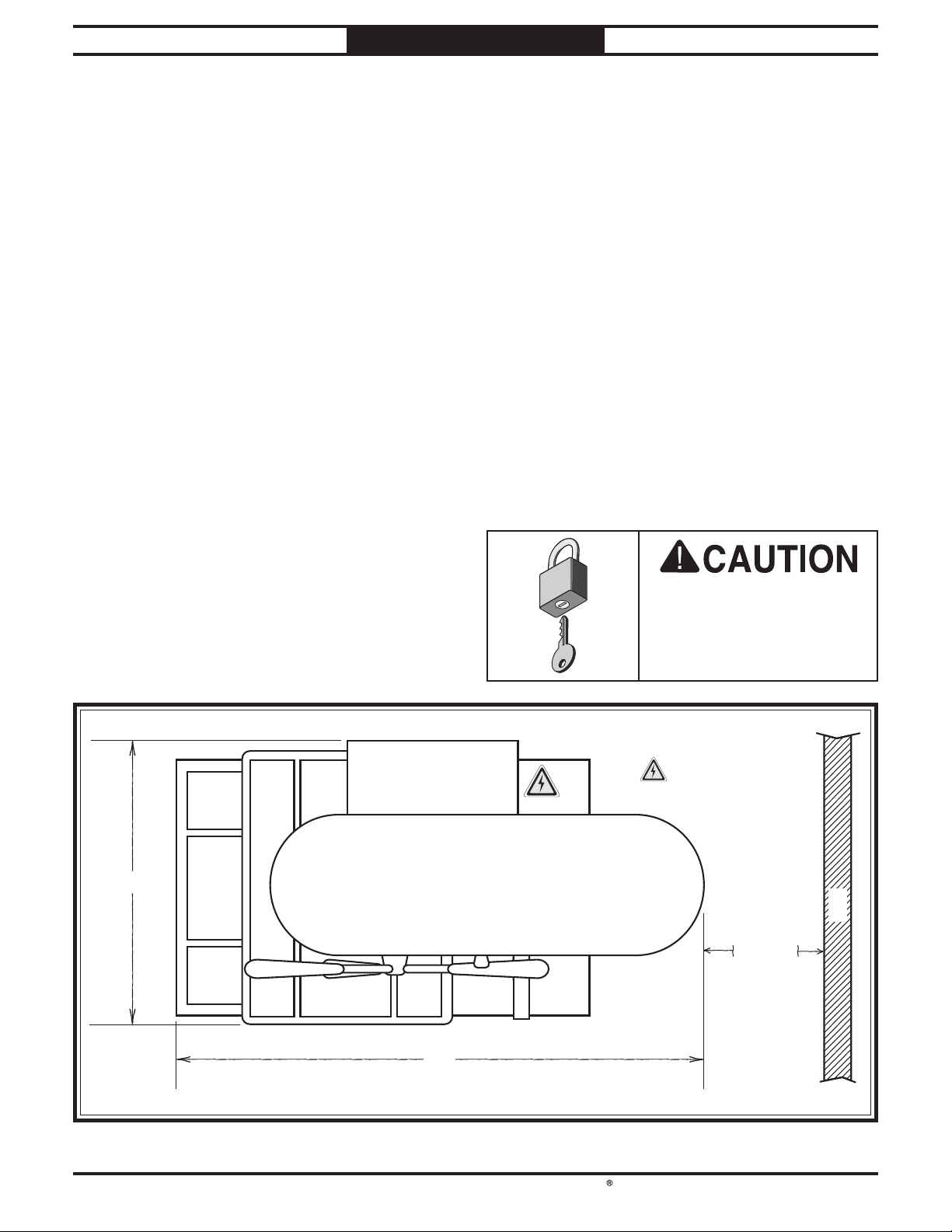

Figure 10. Minimum working clearances.Figure 10. Minimum working clearances.

-15 -

South Bend Tools

Model SB1125

PREPARATION

Placing & Anchoring Machine

Use a forklift to lift the machine off the pallet and onto a suitable location, then secure the machine to the shop ﬂoor.

Placing Machine

This machine and its parts are heavy! Serious personal injury may occur if safe moving methods are not used. To reduce the risk of a lifting or dropping injury, ask others for help and use power equipment.

For Machines Mfd. Since 11/21

4. Install table height crank assembly on table

height worm shaft, then tighten set screw to secure (see Figure 12).

To help balance table when moving, loosen

table height lock handle shown in Figure 12, then use table height crank to lower

table as close to base as possible.

Table Height Table Height

CrankCrank

AssemblyAssembly

Table Height Table Height

LockLock

To place machine:

1. Place shipping crate near final machine

mounting location.

Remove top and sides of crate from shipping

pallet.

Unbolt machine from pallet by removing

(4) hex nuts and fender washers shown in Figure 11, and remove shipping support braces.

x 4

Figure Figure 12. Table height crank assembly installed on . Table height crank assembly installed on

table height worm shaft.table height worm shaft.

6. Tighten table height lock handle.

7. Place lifting sling around headstock (see

Figure 13), and attach sling securely to forklift (or other power lifting equipment).

Figure 11. Location of hex nuts and flat washers.Figure 11. Location of hex nuts and flat washers.

-16 -

Figure 13. Lifting sling properly placed around Figure 13. Lifting sling properly placed around

headstock.headstock.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Anchoring machinery to the floor prevents tipping or shifting and reduces vibration that may occur during operation, resulting in a machine that runs slightly quieter and feels more solid.

If the machine will be installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may require that it be anchored to the floor.

If not required by any local codes, fastening the machine to the floor is an optional step. If you choose not to do this with your machine, we recommend placing it on machine mounts, as these provide an easy method for leveling and they have vibration-absorbing pads.

PREPARATION

Note: Be sure sling does not put pressure on

belt cover or belt cover can become damaged from force of sling while lifting.

Tighten all lock handles to keep moving

parts from shifting suddenly and unbalancing machine.

With another person to help to steady

machine, lift machine just enough to clear pallet and any floor obstacles, then place machine in its final position in its final position on shop floor.

Anchoring to Concrete Floors

Number of Mounting Holes ............................. 4

Diameter of Mounting Hardware

Lag shield anchors with lag screws (see below) are a popular way to anchor machinery to a concrete ﬂoor, because the anchors sit ﬂush with the ﬂoor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology speciﬁed by the code.

...............5⁄16"

Lag Screw

Flat Washer

Machine Base

Lag Shield Anchor

Concrete

Drilled Hole

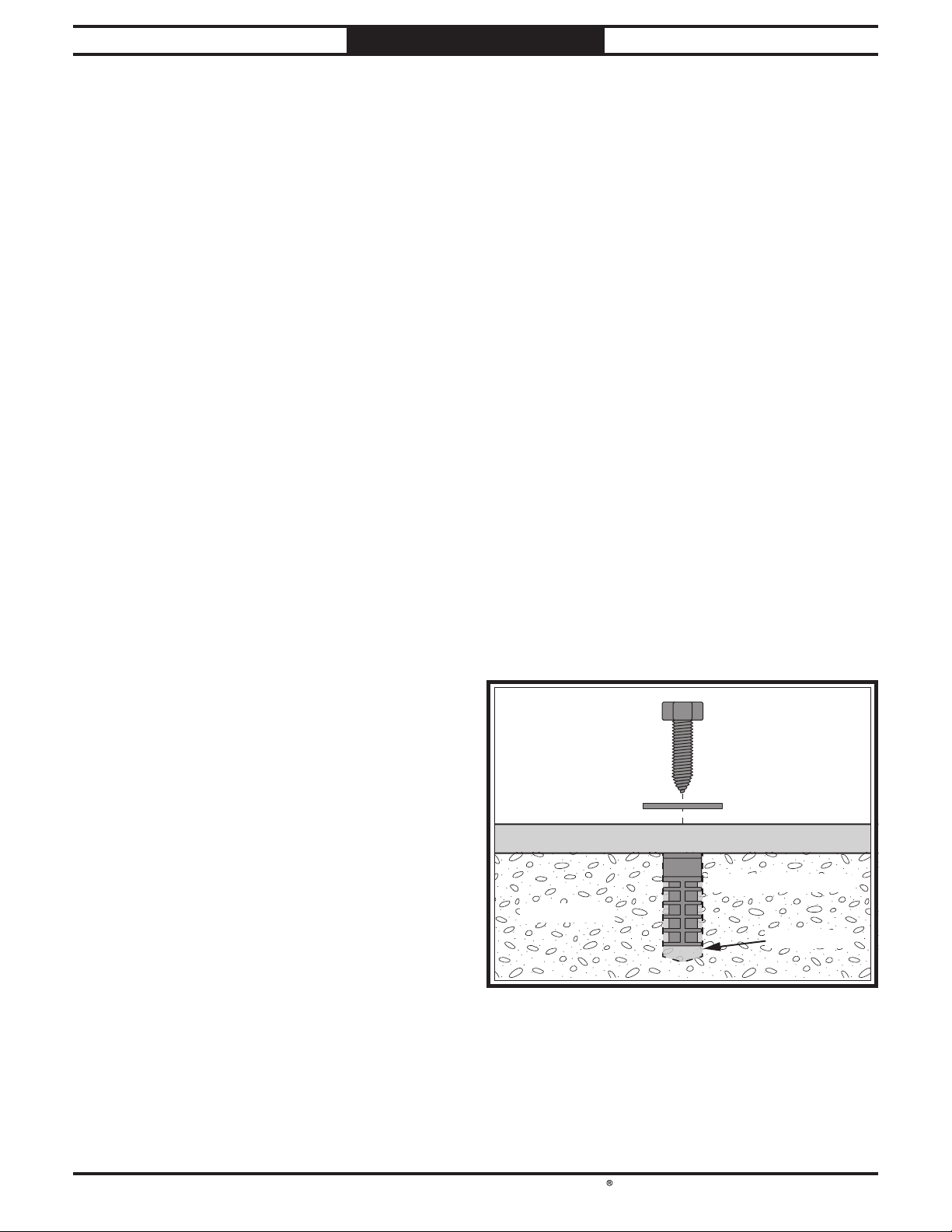

Figure 14. Popular method for anchoring machinery to Figure 14. Popular method for anchoring machinery to

a concrete floor.a concrete floor.

-17-

South Bend Tools

Model SB1125

An arbor is included for the drill chuck that comes with this machine. The following procedure describes how to install the arbor in the chuck.

After the arbor is installed in the drill chuck, it is very difficult to separate the assembly. If you would like to use a different chuck in the future, we recommend obtaining a new arbor.

IMPORTANT:

DO NOT install the drill chuck and arbor assembly into the spindle until AFTER the test run.

To join drill chuck and arbor:

5. Attempt to separate drill chuck and arbor by

hand —if they separate, repeat Steps 3–4.

PREPARATION

For Machines Mfd. Since 11/21

Joining Drill Chuck & Arbor

Use acetone or lacquer thinner to clean drill

chuck and arbor mating surfaces, especially the bore.

Retract chuck jaws completely into chuck.

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to Required for Setup on Page 10 and gather all listed items. To ensure the assembly process goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if applicable).

To assemble machine:

1. Thread (3) downfeed handles onto (3)

downfeed levers (see Figure 16).

Note: Lever end with notch should face away

from handle.

Thread (3) downfeed levers into hub on side

of headstock (see Figure 16).

Insert small end of arbor into chuck.

Hold assembly by the arbor and tap chuck

onto a block of wood with medium force, as illustrated below.

Figure 15. Joining drill chuck and arbor.Figure 15. Joining drill chuck and arbor.

HubHub

x 3

Figure Figure 16. Downfeed handles and levers installed.. Downfeed handles and levers installed.

-18 -

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Test Run

After all preparation steps have been completed, the machine and its safety features must be tested to ensure correct operation. If you discover a problem with the operation of the machine or its safety components, do not operate it further until you have resolved the problem.

PREPARATION

3. Turn spindle speed dial all the way

counterclockwise (see Figure 17).

. Turn spindle rotation switch to neutral (0)

position (see Figure 17).

Note: Refer to Troubleshooting on Page 41 for solutions to common problems that may occur. If you need additional help, contact our Tech Support at (360) 734-1540.

The test run consists of verifying the following:

• Motor powers up and runs correctly.

• Spindle rotates in correct direction.

• EMERGENCY STOP button disables the machine properly.

Serious injury or death can result from using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

Spindle Spindle

Rotation Rotation

SwitchSwitch

EMERGENCYEMERGENCY

STOP ButtonSTOP Button

Figure Figure 17. Control panel controls.. Control panel controls.

Turn master power switch to OFF (0)

position (see Figure 18).

SpindleSpindle

Speed DialSpeed Dial

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

1. Clear away all tools and objects used during

preparation and assembly.

Press EMERGENCY STOP button (see

Figure 17).

Master PowerMaster Power

SwitchSwitch

Figure Figure 18. Location of master power switch.. Location of master power switch.

6. Connect machine to power.

Turn master power switch to ON (1) position.

ON/OFF buttons will illuminate.

-19 -

South Bend Tools

Model SB1125

PREPARATION

For Machines Mfd. Since 11/21

Twist EMERGENCY STOP button clockwise

until it springs out (see Figure 19). This resets the switch so machine can start.

EMERGENCY STOP Button

Figure Figure 19. Resetting the switch.. Resetting the switch.

9. Turn spindle rotation switch clockwise to

forward rotation.

10. Press green ON (–) button to start spindle

rotation (see Figure 20). Verify motor starts up and runs smoothly without any unusual problems or noises.

13. Remove Phillips head screw shown in

Figure 21 to open motor junction box.

Motor Motor

Junction Junction

BoxBox

Figure Figure 21. Location of motor junction box and Phillips . Location of motor junction box and Phillips

head screw.head screw.

14. Swap any (2) incoming power wires labeled

U, V, and W in junction box (see Figure 22).

ON ButtonON Button

Figure Figure 20. Location of ON button.. Location of ON button.

11. Observe spindle rotation direction.

— If spindle rotates clockwise, as viewed

from below, proceed to Step 16.

— If spindle rotates counterclockwise, as

viewed from below, phase polarity of motor needs to be reversed. Proceed to Step 12.

DISCONNECT MACHINE FROM POWER!

12.

-20-

Figure Figure 22. U, V, and W wires.. U, V, and W wires.

Close motor junction box and reconnect

15.

machine to power. Repeat Steps 10–11.

Turn spindle rotation switch to neutral

16.

(0) position and allow spindle to come to a complete stop.

Turn spindle rotation switch

17.

counterclockwise to reverse setting, then press ON (–) button to start spindle rotation. Verify motor starts up and runs smoothly without any unusual problems or noises.

Verify speed controls by slowly turning

18.

spindle speed dial clockwise. Rotate dial back and forth to test variable-speed function.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

PREPARATION

19. Press EMERGENCY STOP button to stop

spindle rotation.

WITHOUT resetting EMERGENCY STOP

20.

button, try to start machine by pressing ON button. Machine should not start.

— If machine does not start, safety feature

of EMERGENCY STOP button is working correctly. Congratulations! Test run is complete. Continue to the next section to perform the Spindle Break-In and Inspections & Adjustments procedures.

— If machine does start, immediately turn it

OFF and disconnect power. Safety feature of EMERGENCY STOP button is NOT working correctly and must be replaced before further using machine. Contact Technical Support.

Spindle Break-In

To perform spindle break-in procedure:

Turn spindle rotation switch clockwise to

forward

Start spindle rotation and adjust speed

dial so RPM digital readout (see Figure

23) reads 50 RPM.

RPM RPM

Digital Digital

ReadoutReadout

Spindle Spindle

Rotation Rotation

SwitchSwitch

Figure Figure 23. Control panel controls.. Control panel controls.

3. Allow spindle to run for 10 minutes, then

stop spindle rotation.

rotation (see Figure 23).

SpindleSpindle

Speed DialSpeed Dial

You must complete this procedure to maintain the warranty. Failure to do this could cause rapid wear-and-tear of spindle bearings once they are placed under load.

The spindle break-in procedure distributes lubrication throughout the bearings to reduce the risk of early bearing failure if there are any "dry" spots or areas where lubrication has settled in the bearings. You must complete this procedure before placing operational loads on the spindle for the first time when the machine is new or if it has been sitting idle for longer than 6 months.

Always start the spindle break-in at the lowest speed to minimize wear if there are dry spots. Allow the spindle to run long enough to warm up and distribute the bearing grease, then incrementally increase spindle speeds and repeat this process at each speed until reaching the maximum spindle speed. Following the breakin procedure in this progressive manner helps minimize any potential wear that could occur before lubrication is fully distributed.

Turn spindle rotation switch

counterclockwise to reverse spindle at 50 RPM for another 10 minutes, then stop spindle rotation.

Repeat Steps 1–4 with spindle at 200 RPM.

Repeat Steps 1–4 with spindle at 400 RPM.

Remove and install drive belt for high speed

range (see Setting Spindle Speed on Page 25).

Repeat Steps 1–4 with spindle at 1000 RPM.

Repeat Steps 1–4 with spindle at 2000 RPM.

Congratulations, the Spindle Break-In is

now complete!

rotation, run

-21-

South Bend Tools

Model SB1125

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so they can more easily understand the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide for performing actual machine operations. To learn more about speciﬁ c operations and machining techniques, seek training from people experienced with this type of machine, and do additional research outside of this manual by reading "howto" books, trade magazines, or websites.

at all times. Entanglement

tation, or severe crushing

OPERATION

For Machines Mfd. Since 11/21

OPERATION

Operation Overview

Due to the generic nature of this overview,

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

To complete a typical operation, the operator does the following:

1. Examines workpiece to make sure it is

suitable for drilling.

2. Puts on required safety glasses and face

shield.

3. Firmly secures workpiece to table using a

vise or T-slot clamps.

4. Installs correct drill bit for operation.

5. Adjusts table to correct height, then locks it

in place.

6. Selects appropriate spindle speed according

to drilling speed chart located on Page 27 and adjusts drive belt to required pulley sheaves.

7. Connects machine to power, and starts

spindle rotation in proper direction for cutting tool installed.

8. Performs drilling operation.

To reduce risk of eye or face injury from flying chips, always wear safety glasses and a face shield when operating this machine.

Keep hair, clothing, and jewelry away from moving parts

can result in death, ampu-

injuries!

9. When ﬁnished, turns machine OFF and

disconnects it from power.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, South Bend Tools will not be held liable for accidents caused by lack of training.

-22-

For Machines Mfd. Since 11/21 Model SB1125

OPERATION

Installing/Removing Arbor

Usually, once the chuck and arbor have been properly mounted together, they are considered semi-permanent connections. If you would like to install a different chuck, we recommend getting a new arbor for that chuck.

Installing Arbor in Spindle

Items Needed Qty

Acetone or Lacquer Thinner ................. As Needed

Rubber Mallet

To install arbor in spindle:

1. DISCONNECT MACHINE FROM POWER!

Join chuck and arbor (refer to Joining Drill

Chuck & Arbor on Page 18).

.......................................................1

6. Strike face of chuck from below with rubber

mallet to seat arbor in spindle.

Check seat by gently pulling down on chuck.

Removing Arbor from Spindle

The arbor can be removed to install other Morse Taper #3 tooling in the spindle. A drift key is included to help remove the arbor or other tooling from the spindle.

Items Needed Qty

Towel or Cloth .......................................................1

Metal Hammer Drift Key

................................................................1

To remove arbor from spindle:

1. DISCONNECT MACHINE FROM POWER!

Rotate downfeed handles until drift key slot

is exposed in side of quill (see Figure 25).

......................................................1

Rotate chuck on arbor until chuck jaws

retract into drill chuck body.

Use acetone or lacquer thinner to clean

mating surfaces of arbor and spindle socket.

Slide arbor into spindle socket (see

Figure 24).

Spindle Spindle

(Hidden Inside (Hidden Inside

Quill)Quill)

Figure 24. Inserting arbor into spindle socket.Figure 24. Inserting arbor into spindle socket.

ArborArbor

Drift KeyDrift Key

SlotSlot

Figure 25. Location of drift key slot.Figure 25. Location of drift key slot.

3. Move table up until it is 1⁄4" below bottom

of chuck, and place a towel or cloth under chuck.

Rotate spindle until inner drift key slot is

aligned with outer slot (see Figure 26 on Page 24). You will see through the spindle

when the slots are properly aligned.

-23-

South Bend Tools

Model SB1125

OPERATION

Outer SlotOuter Slot

For Machines Mfd. Since 11/21

Installing Drill Bit

Item Needed Qty

Chuck Key .............................................................1

Inner SlotInner Slot

Figure 26. Example of inner and outer key slots Figure 26. Example of inner and outer key slots

aligned.aligned.

5. Insert drift key into drift key slot, and allow

quill to rise, trapping drift key.

Tap drift key with metal hammer (see

Figure 27) until arbor releases.

To install drill bit:

1. DISCONNECT MACHINE FROM POWER!

Open drill chuck wide enough to accept

shank of drill bit.

Insert drill bit as far as possible into chuck

WITHOUT allowing chuck jaws to touch fluted portion of bit, then hand-tighten chuck.

Note: Make sure small bits are not trapped

between edges of two jaws; if they are, reinstall drill bit or it will not be secure enough to use for drilling.

Tighten chuck firmly with chuck key (see

Figure 28), then remove chuck key from chuck.

Figure 27. Example of using drift key to remove arbor Figure 27. Example of using drift key to remove arbor

from spindle.from spindle.

7. Carefully retract quill back into headstock.

Installing/Removing Drill Bit

Any drill bit you install in the chuck must be tight enough that it will not come loose during operation.

-24-

Figure 28. Example of tightening chuck with chuck Figure 28. Example of tightening chuck with chuck

key. (Always remove chuck key after use.)key. (Always remove chuck key after use.)

Removing Drill Bit

Item Needed Qty

Rag ........................................................................1

To remove drill bit:

1. DISCONNECT MACHINE FROM POWER!

Use chuck key to open drill chuck, and catch

drill bit with rag to protect hands.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

OPERATION

Spindle Speed

Using the correct spindle speed is important for safe and satisfactory results, as well as maximizing tool life.

To set the spindle speed for your operation, you will need to: 1) Determine the best spindle speed for the cutting task, and 2) configure drive belt on the appropriate speed range pulleys, and

3) adjust the spindle speed dial to produce the

required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the cutting tool, as noted in the formula shown in Figure 29.

*Recommended

Cutting Speed (FPM) x 12

Tool Dia. (in inches) x 3.14

Spindle

Speed (RPM)

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account the applicable variables in order to determine the best spindle speed for the operation.

Setting Spindle Speed

The Model SB1125 has two speed ranges that operate between 50–2000 RPM. The speed range is determined by how the drive belt is installed on the motor and center pulleys (see Figure 30).

Center PulleyCenter Pulley

Motor PulleyMotor Pulley

Drive BeltDrive Belt

*Double if using carbide cutting tool

Figure 29. Spindle speed formula.Figure 29. Spindle speed formula.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

A recommended cutting speed is an ideal speed for cutting a type of material in order to produce the desired finish and optimize tool life. Refer to

Calculating Spindle Speed Drilling on Page 27 for a guide.

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, provide

excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed and they are a good educational resource.

Figure 30. Location of drive belt and speed pulleys.Figure 30. Location of drive belt and speed pulleys.

The high-speed range is obtained when the drive belt is positioned on the lower pulley sheaves, and the low-speed range is obtained when the drive belt is positioned on the upper pulley sheaves, as shown in Figure 31.

LOW

Motor Pulley

Center Pulley

LOW: 50–400 RPM

HIGH

Motor Pulley

Center Pulley

HIGH: 300–2000 RPM

Figure 31. Belt configuration chart.Figure 31. Belt configuration chart.

-25-

South Bend Tools

Model SB1125

OPERATION

For Machines Mfd. Since 11/21

To set spindle speed:

1. DISCONNECT MACHINE FROM POWER!

Lift belt tension lock, then use belt tension

knob to pull motor forward and release belt tension (see Figure 32).

Belt Tension Belt Tension

KnobKnob

Belt TensionBelt Tension

LockLock

Figure Figure 32. Location of belt tension lock and belt . Location of belt tension lock and belt

tension knob.tension knob.

3. Open belt cover.

5. After belt is properly positioned on pulleys,

use belt tension knob to push motor away from center pulley and engage belt tension.

Secure motor position with belt tension lock.

7. Refer to Checking V-Belts on Page 35 to

ensure belt does not need to be replaced.

Close belt cover.

9. Connect machine to power, turn machine

ON, and set spindle rotation direction.

Adjust spindle speed dial until desired RPM

10.

is displayed on spindle speed digital readout (see Figure 34).

Spindle Spindle

Speed Speed Digital Digital

ReadoutReadout

SpindleSpindle

Speed DialSpeed Dial

Use care when handling V-belts as they could pinch your fingers against a pulley. They may also get hot after extended use so wait to handle if machine has been in use.

4. Refer to belt configuration chart shown in

Figure 33 to configure belt on pulleys for selected speed range.

— If belt is worn or damaged, replace.

LOW

Motor Pulley

Center Pulley

LOW: 50–400 RPM

HIGH

Motor Pulley

Center Pulley

HIGH: 300–2000 RPM

Figure Figure 34. Spindle speed controls.. Spindle speed controls.

Figure 33. Belt configuration chart.Figure 33. Belt configuration chart.

-26-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

OPERATION

Calculating Spindle Speed for Drilling

The chart shown in Figure 35 is intended as a guide only. Always follow the manufacturer's speed recommendations if provided with your drill bits, cutters, or hole saws. Exceeding the recommended speeds may be dangerous to the operator or cause damage to the tooling.

The speeds shown here are intended to get you started. The optimum speed will always depend on various factors, including tool diameter, drilling pressure, material hardness, material quality, and desired finish.

Often, when drilling materials other than wood, some type of lubrication is necessary.

Lubrication Suggestions

Wood ............................................................... None

Plastics Brass Aluminum Mild Steel

Larger bits turning at slower speeds tend to grab the workpiece aggressively. This can result in the operator's hand being pulled into the bit or the workpiece being thrown with great force. Always clamp the workpiece to the table to prevent injuries.

................................................Soapy Water

.................................Water-Based Lubricant

..................... Paraffin-Based Lubricant

.............................. Oil-Based Lubricant

Twist/Brad Point Drill Bits Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

⁄16" – 3⁄16"

⁄64" – 3⁄8"

⁄64" – 5⁄8"

⁄16" – 1"

3000 2500 2500 2500 3000 2500

2000 1500 2000 1250 2500 1250

1500 750 1500 750 1500 600

750 500 1000 400 1000 350

Spade/Forstner Bits Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

⁄4" – 1⁄2"

⁄16" – 1"

1 1⁄8" – 1 7⁄8"

2" – 3"

2000 15000

1500 1250

1000 750

500 350

Hole Saws Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

⁄2" – 7⁄8"

1" – 1 7⁄8"

2" – 2 7⁄8"

3" – 3 7⁄8"

4" – 5"

500 500 600 600 600 500

400 400 500 500 500 400

300 300 400 400 400 300

200 200 300 300 300 200

100 100 200 200 200 100

Rosette Cutters Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

Carbide Insert Type

One-Piece Type

350 250

1800 500

Tenon/Plug Cutters Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

⁄8" – 1⁄2"

⁄8" – 1"

1200 1000

800 600

Figure 35. Drilling speed chart.Figure 35. Drilling speed chart.

-27-

South Bend Tools

Model SB1125

OPERATION

For Machines Mfd. Since 11/21

Adjusting Depth Stop

The Model SB1125 has a depth stop that allows you to drill repeat non-through holes to the same depth every time. The scale on front of the depth stop shows the depth in inches.

The depth stop consists of a threaded rod attached to the quill with a depth stop nut that can be lowered or raised against a stop bracket to control drilling depth. Figure 36 shows the various components of the depth stop.

Jam NutJam Nut

Depth Stop Depth Stop

NutNut

Stop BracketStop Bracket

Raising/Lowering Table

1. Loosen table height lock handle (see

Figure 37).

Raise or lower table by rotating table height

crank (see Figure 37), then tighten table height lock to secure.

Table Height Table Height Lock HandleLock Handle

Table Height Table Height

CrankCrank

Figure Figure 37. Table height controls.. Table height controls.

Rotating Table on Its Axis

1. Loosen table rotation lock handle (see

Figure 37).

Figure 36. Depth stop components.Figure 36. Depth stop components.

Tool Needed Qty

Open-End Wrench 3⁄4" ...........................................1

To adjust depth stop:

1. Lower drill bit to desired depth.

Thread depth stop nut down against stop

bracket.

Adjust jam nut down against depth stop nut

to secure position.

Positioning Table

The table moves vertically, rotates 30° left and right, and swivels around the column. Remove any loose objects from the table surface before adjusting the table position.

Rotate table left or right up to 30°, then

tighten table rotation lock handle to secure.

Swiveling Table Around Column

1. Loosen table height lock handle (see

Figure 38).

Table RotationTable Rotation

Lock HandleLock Handle

Figure Figure 38. Table rotation lock handle.. Table rotation lock handle.

2. Swivel table to desired location on column,

making sure to guide column rack with table, then tighten table height lock handle to secure position.

-28-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

Accessories

This section includes the most common accessories available for your machine, which are available through our exclusive dealer, Grizzly Industrial, Inc., at grizzly.com.

Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended by South Bend or Grizzly.

Refer to Grizzly’s website or latest catalog for additional recommended accessories.

H8203—Professional Drill Bit Sharpening Machine

This precision made Drill Bit Sharpening Machine is so simple to use, anyone can sharpen dull, smaller bits in three easy steps. Just set the drill bit in the collet, grind the taper relief angle, then grind the web thinning angle to reduce the center point width. It features a depth adjustment gauge, tapered diamond wheel, 90°–140° angle setting adjustment, and built-in collet tray. Collet sizes include

⁄32", 5⁄16", 3⁄8", 25⁄64", 7⁄16", 15⁄32", and 1⁄2". Patented in

the US!

⁄8", 5⁄32", 3⁄16", 1⁄4",

G3658—TiN-Coated 115-Pc. Drill Bit Set

Titanium nitride-coated bits last up to six times as long as uncoated bits. This 115-piece set features 29 fractional bits, from increments of number bits. Housed in a rugged steel case.

Figure Figure 40. G3658 TiN-Coated 115-Pc. Drill Bit Set.. G3658 TiN-Coated 115-Pc. Drill Bit Set.

G1076—58-Pc. Clamping Kit for 5⁄8" T-Slots

This clamping kit is among the best in the world. All the blocks, bolts, nuts, and hold-downs are case hardened. Each kit includes: (24) studs (four studs each: 3", 4", 6", 7", and 8" long), (12) step blocks (3 sizes), (6) T-nuts, (6) flange nuts, (4) coupling nuts, and (6) end hold-downs. This kit

⁄8" T-slots and includes 1⁄2"-13 studs. Racks

fits can be bolted to the wall or side of machine for easy access.

⁄64", letter bits from A–Z, and 60

⁄16"–1⁄2" in

Figure Figure 41. G1076 58-Pc. Clamping Kit for . G1076 58-Pc. Clamping Kit for 55⁄⁄88" T-Slots." T-Slots.

Figure Figure 39. H8203 Professional Drill Bit Sharpening . H8203 Professional Drill Bit Sharpening

Machine.Machine.

-29-

South Bend Tools

Model SB1125

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

For Machines Mfd. Since 11/21

SB1376—1⁄32"–5⁄8" Keyless Chuck, JT6

These keyless chucks are produced to the highest standards which has earned them the South Bend name. The jaws open and close with ultrasmooth motion and the cut-knurling lets you get a positive grip. Like all South Bend chucks, it comes with a 2-year warranty which assures the unit is free from factory defects.

H6572—Grease-Resistant Mat 3' x 3' x 3⁄4"

These black grease-resistant mats are engineered for proper back and leg support. The non-slip surface features a modular interlock design, which enables the user to create a custom floor. Mats measure 3' x 3' x

Figure Figure 44. H6572 Grease-Resistant Mat 3' x 3' x . H6572 Grease-Resistant Mat 3' x 3' x 33⁄⁄44".".

⁄4".

Figure Figure 42. SB1376 . SB1376 11⁄⁄3232""––55⁄⁄88" Keyless Chuck, JT6." Keyless Chuck, JT6.

H8140—7-Gallon Coolant Tank System

Add this complete tank system to any metal cutting machine for efficient cutting, reduced tool wear, and better finishes. Includes pump, switch, enclosed tank, coolant return hose, and flexible nozzle with magnetic base. Made in an ISO 9001 factory. Pump motor flow 3.17 gallons per minute; maximum capacity of 7 gallons.

⁄16 HP, 110V; maximum

T10169—Adjustable Circle Cutter

Produce precision circles in sheet metal, brass, wood, plastic, aluminum, and soft steel with this adjustable circle cutter. The diameter if adjustable up to 8" and includes HSS center and drill bit and double-ended tool bit. Always use the appropriate cutting speed for the circle diameter to prolong tool life.

Figure Figure 45. T10169 Adjustable Circle Cutter.. T10169 Adjustable Circle Cutter.

Figure Figure 43. H8140 7-Gallon Coolant Tank System.. H8140 7-Gallon Coolant Tank System.

-30-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

H2942—Magnetic Base w/Eye Shield 8" x 10" H2943—Magnetic Base w/Eye Shield 12" x 16"

Need a shield? This is just the thing for setting up extra protection. Powerful magnetic base allows placing the shield just about anywhere and the ball and socket joint allows a large range of positioning choices.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT® 12 Oz. Spray G2870—Boeshield® T-9 4 Oz. Spray G2871—Boeshield® T-9 12 Oz. Spray H3788—G96® Gun Treatment 12 Oz. Spray H3789—G96® Gun Treatment 4.5 Oz. Spray

Figure Figure 48. Recommended products for protecting . Recommended products for protecting

unpainted cast iron/steel parts on machinery.unpainted cast iron/steel parts on machinery.

Figure Figure 46. H2943 Magnetic Base w/Eye Shield . H2943 Magnetic Base w/Eye Shield

12" x 16".12" x 16".

G2500—20-Pc. Regular Sanding Drum Set

Use on your drill press, lathe, or hand drill. This kit consists of 5 drums in popular 1", 1" x 1", 1 with 3 grits for each drum.

⁄2" x 11⁄2", and 2" x 11⁄2" sizes. Comes

⁄2" x 1⁄2", 3⁄4" x

Basic Eye Protection

T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—“Kirova” Clear Safety Glasses T20452—“Kirova” Anti-Reﬂective S. Glasses T20456—DAKURA Safety Glasses, Black/Clear

T20502T20502

T20503T20503

T20456T20456

Figure 49. Assortment of basic eye protection.Figure 49. Assortment of basic eye protection.

T20452T20452

T20451T20451

Figure Figure 47. G2500 20-Pc. Regular Sanding Drum Set.. G2500 20-Pc. Regular Sanding Drum Set.

-31-

South Bend Tools

Model SB1125

MAINTENANCE

MAINTENANC E

Maintenance Schedule

Always disconnect machine from power before performing maintenance or serious personal injury may result.

For optimum performance from this machine, this maintenance schedule must be strictly followed.

For Machines Mfd. Since 11/21

Cleaning & Protecting

Cleaning the Model SB1125 is relatively easy. Vacuum excess metal or wood chips and wipe off remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it.

Protect the unpainted cast-iron table and base by wiping it clean after every use—this ensures moisture from wood dust does not remain on bare metal surfaces. Keep the table rust-free with regular applications of products like SLIPIT® or Boeshield® T-9 (see Figure 48 in Accessories).

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and ﬁx the problem before continuing operations:

• Loose mounting bolts.

• Worn switches/buttons/dial.

Worn or damaged wires.

•

• Damaged V-belt.

Any other unsafe condition.

•

Weekly

• Lubricate quill and column surfaces

(Page 33).

• Lubricate ball oilers (Page 34).

Monthly

• Check for V-belt tension, damage, or wear

(Page 35).

• Clean/vacuum dust buildup off motor.

• Lubricate quill and column racks (Page 34).

Lubrication

Since all bearings on the Model SB1125 are sealed and permanently lubricated, simply leave them until they need to be replaced. DO NOT lubricate them.

An essential part of lubrication if cleaning the parts before lubricating them. This step is critical because grime and chips build up on lubricated components, which makes them hard to move. Simply adding more lubricant will not result in smooth moving parts.

Clean components before lubricating them with recommended products like those in Figures 50–52 on Page 33.

-32-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

MAINTENANC E

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and waterresistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

Figure Figure 50. T26419 Syn-O-Gen Synthetic Grease . T26419 Syn-O- Gen Synthetic Grease

(NLGI#2 equivalent).(NLGI#2 equivalent).

Moly-D Oils

Moly-D oils are some of the best we've found for maintaining the critical components of machinery because they tend to resist run-off and maintain their lubricity under a variety of conditions—as well as reduce chatter or slip.

T26685—ISO 32 Moly-D Machine/Way Oil 1-Gal. T23963—ISO 32 Moly-D Machine/Way Oil 5-Gal.

T23963T23963

T27914—ISO 68 Moly-D Machine/Way Oil 1-Gal. T23962—ISO 68 Moly-D Machine/Way Oil 5-Gal.

T23962T23962

T27914T27914

Figure Figure 52. ISO 68 Moly-D Machine/Way Oil.. ISO 68 Moly-D Machine/Way Oil.

Quill & Column Surfaces

Lubrication Amount Frequency

Items Needed Qty

Mineral Spirits ...................................... As Needed

Shop Rags

Use downfeed handles to move quill all the way down to access the smooth outer surface (see Figure 53). Adjust table height as necessary to access entire length of column (see Figure 53). Clean both with mineral spirits and shop rags.

.....................T23962 or ISO 68 Equiv.

................................................... Thin Coat

................................ 8 Hrs. of Operation

.............................................. As Needed

T26685T26685

Figure Figure 51. ISO 32 Moly-D Machine/Way Oil.. ISO 32 Moly-D Machine/Way Oil.

Note: Avoid removing the grease from the quill

and column racks while cleaning.

Quill Quill

SurfaceSurface

ColumnColumn SurfaceSurface

Figure Figure 53. Location of quill and column surfaces.. Location of quill and column surfaces.

-33-

South Bend Tools

Model SB1125

MAINTENANC E

For Machines Mfd. Since 11/21

Ball Oilers

Lubrication .....................T23963 or ISO 32 Equiv.

Amount Frequency

Items Needed Qty

Mineral Spirits ...................................... As Needed

Shop Rags

This machine has two ball oilers, as shown in Figure 54. Use an oil gun fitted with a tip wide enough to seal the ball oiler inlet. We do not recommend using metal needle or lance-type tips, as they can push the ball too far into the oiler, break the spring seat, and lodge the ball in the oil galley.

................................................. 1–2 Pumps

................................ 8 Hrs. of Operation

.............................................. As Needed

Quill & Column Racks

Lubrication Amount Frequency

Items Needed Qty

Mineral Spirits ...................................... As Needed

Shop Rags Stiff Brushes

Use downfeed handles to move spindle all the way down to gain full access to quill rack (see Figure 55), then clean the teeth with mineral spirits, shop rags, and a brush.

........Model T26419 or NLGI#2 Equiv.

................................................... Thin Coat

.............................. 90 Hrs. of Operation

.............................................. As Needed

..........................................................2

QuillQuill

RackRack

Figure Figure 54. Location of ball oilers.. Location of ball oilers.

Push the tip of the oil gun against the ball oiler to create a seal, then pump the oil gun once or twice. If you see sludge coming out of the lubrication area, continue pumping the oil until the oil runs clear. When finished, wipe away excess oil.

Figure Figure 55. Location of quill rack.. Location of quill rack.

Next, clean the column rack teeth (see Figure

56) using the same method. When racks are dry,

use a clean brush to apply a thin coat of grease to the teeth, then raise and lower the quill and table to distribute the grease.

ColumnColumn

RackRack

Figure Figure 56. Location of column rack.. Location of column rack.

-34-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

MAINTENANC E

1. Put on safety glasses

Machine Storage

All machinery will develop serious rust problems and corrosion damage if it is not properly prepared for storage. If decommissioning this machine, use the steps in this section to ensure that it remains in good condition.

2. Coat rust preventative with cleaner/

degreaser, then let it soak for 5–10 minutes.

Wipe off surfaces. If cleaner/degreaser is

effective, rust preventative will wipe off easily.

Preparing Machine for Storage

Items Needed Qty

Mineral Spirits ...................................... As Needed

Shop Rags Rust Preventative Tarp/Plastic Sheet

To prepare machine for storage:

Disconnect all power sources to machine.

2. Thoroughly clean all unpainted, bare metal

surfaces, then coat them with light weight grease or rust preventative. Take care to ensure surfaces are completely covered but that grease or rust preventative is kept off of painted surfaces.

Note: If machine will be out of service for

short period of time, use way oil or good grade of medium-weight machine oil (not auto engine oil) in place of grease or rust preventative.

.............................................. As Needed

.................................As Needed

.................................................1

Repeat Steps 2–3 as necessary until clean.

Install/tension V-belts as described in

Replacing V-Belts on Page 37.

Perform Test Run and Spindle Break-In

beginning on Page 19.

Checking V-Belts

Inspect the V-belts regularly for tension and damage. Refer to Figure 57 for proper belt tension. Belt deflection should be approximately

⁄4" under moderate pressure. If belt deflection is more than (refer to Replacing V-Belts on Page 37).

⁄4", belt is worn and must be replaced

Spindle

Pulley

Loosen or remove V-belts so they do not

stretch while machine is not in use.

Completely cover machine with tarp or

plastic sheet that will keep out dust and resist liquid or moisture. If machine will be stored in/near direct sunlight, use cover that will block sun's rays.

Bringing Machine Out of Storage

Items Needed Qty

Safety Glasses .................................................1 Pr.

Cleaner/Degreaser Shop Rags

.............................................. As Needed

................................As Needed

¼" Deflection

Motor

Pulley

Figure 57. Correct belt deflection.Figure 57. Correct belt deflection.

Center

Pulley

-35-

South Bend Tools

Model SB1125

Service

Adjusting Return Spring Tension

SERVICE

Hold spring cover against side of headstock

so cover stays splined with locking lug, as shown in Figure 58, then loosen cap screw approximately

For Machines Mfd. Since 11/21

⁄4".

The spring tension for automatic quill recoil has been pre-set at the factory. In most cases, it will never need to be re-adjusted during the life of the machine. However, if the quill stops automatically recoiling, the spring may need to be adjusted for additional tension. If it does need adjustment, the spring housing is located on the left side of the headstock.

If return spring should come loose from the spring cover and rapidly unwind, laceration or impact injuries could occur. Always wear heavy leather gloves and safety glasses when adjusting return spring tension.

Items Needed Qty

Heavy Leather Gloves .....................................1 Pr.

Safety Glasses Shop Rags Hex Wrench 5mm

.................................................1 Pr.

.............................................. As Needed

.................................................1

IMPORTANT: Hold spring cover tightly

during Step 4, or force of spring will cause cover to spin out of your hands.

Spring Spring

CoverCover

Figure Figure 58. Location of spring cover and cap screw.. Location of spring cover and cap screw.

4. Wearing gloves, pull spring cover outward

just enough to disengage spring cover notch from roll pin shown in Figure 59.

To adjust return spring tension:

1. DISCONNECT MACHINE FROM POWER!

Wipe any oil off spring cover so it does not

slip in your fingers in following steps (see Figure 58).

-36-

Spring CoverSpring Cover

NotchNotch

Figure Figure 59. Location of spring cover notch and roll pin.. Location of spring cover notch and roll pin.

Rotate spring cover counterclockwise to

increase tension, or clockwise to reduce tension.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Engage next available spring cover notch

with roll pin (see Figure 60), and hold spring cover tightly to side of headstock.

SERVICE

Replacing V-Belts

The V-belts transfer power from the motor to the spindle. If either of the V-belts are worn or damaged in any way, the drill press will not operate optimally, and unnecessary wear on the moving parts will occur.

Replacing Drive Belt

The V-belt installed on the motor and center

Spring CoverSpring Cover

NotchesNotches

pulleys can be replaced by simply releasing the tension and replacing the old belt with a new one.

Item Needed Qty

Replacement Drive V-Belt (#PSB1125056) .........1

Figure Figure 60. Location of spring cover notches and roll . Location of spring cover notches and roll

pin.pin.

Tighten cap screw from Step 3 1⁄4".

Check tension adjustment by downfeeding

spindle. Spindle should return quickly when downward pressure is released.

— If spindle does not retract quickly, repeat

Steps 3–8, and re-check tension until return speed is accurate.

To replace drive belt:

1. DISCONNECT MACHINE FROM POWER!

Lift belt tension lock, then use belt tension

knob to pull motor forward and release belt tension (see Figure 61).

Belt Tension Belt Tension

KnobKnob

Belt TensionBelt Tension

LockLock

Figure Figure 61. Location of belt tension lock and belt . Location of belt tension lock and belt

tension knob.tension knob.

3. Open belt cover.

Use care when handling V-belts as they could pinch your fingers against a pulley. They may also get hot after extended use so wait to handle if machine has been in use.

-37-

South Bend Tools

Model SB1125

Remove old drive belt (see Figure 62).

SERVICE

Loosen set screw shown in Figure 63.

For Machines Mfd. Since 11/21

Drive BeltDrive Belt

Figure 62. Location of drive belt.Figure 62. Location of drive belt.

5. Install new drive belt on pulleys for desired

speed range (see Setting Spindle Speed on Page 25).

After belt is properly positioned on pulleys,

use belt tension knob to push motor away from center pulley and engage belt tension.

Drive BeltDrive Belt

Figure 63. Location of drive belt and center pulley set Figure 63. Location of drive belt and center pulley set

screw.screw.

4. Push center pulley towards spindle pulley

to release spindle V-belt tension (see Figure 64).

Remove old spindle V-belt (see Figure 64)

and replace with new one.

Secure motor position with belt tension lock.

8. Close belt cover.

Replacing Spindle V-Belt

Use the following steps to replace the spindle V-belt if it is worn, damaged, or if belt deflection is incorrect.

Items Needed Qty

Hex Wrench 4mm .................................................1

Replacement Spindle V-Belt (#PSB1125055)

To replace spindle V-belt:

1. Perform Steps 1–3 of Replacing Drive

Belt.

Remove drive belt (see Figure 63).

......1

SpindleSpindle

PulleyPulley

Figure 64. Location of spindle V-belt and pulleys.Figure 64. Location of spindle V-belt and pulleys.

6. Push center pulley towards motor pulley to

tension spindle V-belt and tighten set screw from Step 3.

Install drive belt on pulleys for desired

speed range (see Setting Spindle Speed on Page 25).

Center Center

PulleyPulley

Spindle Spindle

V-BeltV-Belt

-38-

Close belt cover.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

Aligning Motor Pulley

Pulley alignment is an important factor in power transmission and belt life. The pulleys should be parallel to each other and in the same plane (coplanar) for optimum performance.

SERVICE

Place straightedge against motor pulley and

center pulley (see Figure 66) and check that they are aligned. There should be no space anywhere between straightedge or pulleys.

The motor pulley alignment can be adjusted by loosening the set screws that secure it to the motor shaft.

Tools Needed Qty

Straightedge 12" ....................................................1

Hex Wrench

⁄32" ....................................................1

To align motor pulley:

1. DISCONNECT MACHINE FROM POWER!

Lift belt tension lock, then use belt tension

knob to pull motor forward and release belt tension (see Figure 65).

Belt Tension Belt Tension

KnobKnob

StraightedgeStraightedge

CenterCenter

PulleyPulley

Figure Figure 66. Checking pulley alignment.. Checking pulley alignment.

— If pulleys are aligned, no adjustment is

necessary. Proceed to Step 7.

— If pulleys are not aligned, proceed to

Step 5.

Loosen set screws on motor pulley (see

Figure 67).

MotorMotor

PulleyPulley

Belt TensionBelt Tension

LockLock

Figure Figure 65. Location of belt tension lock and belt . Location of belt tension lock and belt

tension knob.tension knob.

3. Open belt cover and remove drive belt.

x 2

Figure Figure 67. Location of set screws.. Location of set screws.

-39-

South Bend Tools

Model SB1125

SERVICE

For Machines Mfd. Since 11/21

6. Use straightedge to adjust motor pulley on

shaft until it aligns with center pulley, then tighten set screws.

Refer to Steps 4–7 of Setting Spindle

Speed on Page 25 to install drive belt for desired speed range.

Replacing Worklight Bulb

The worklight bulb on this machine is a 85–265V 7W two-pronged LED bulb.

Items Needed Qty

Phillips Head Screwdriver #2 ...............................1

Replacement Bulb (#PSB1125018)

To replace worklight bulb:

1. DISCONNECT MACHINE FROM POWER!

......................1

3. Remove burnt bulb from socket and replace

with new one (see Figure 69).

SocketSocket

BulbBulb

Figure Figure 69. Location of bulb and socket.. Location of bulb and socket.

Remove (3) Phillips head screws shown in

Figure 68 to remove worklight assembly from headstock.

x 3

Worklight Worklight AssemblyAssembly

Figure Figure 68. Location of worklight assembly screws.. Location of worklight assembly screws.

4. Push worklight assembly back into

headstock and secure with Phillips head screws removed in Step 2.

-40-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

TROUBLESHOOTING

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free to call us at (360) 734-1540.

Symptom Possible Cause Possible Solution

Machine does not start or a breaker trips immediately after startup.

Machine stalls or is underpowered.

Master power switch in OFF (0) position.

EMERGENCY STOP button depressed/at fault.

Blown machine fuse.

Incorrect power supply voltage or circuit size.

Power supply circuit breaker tripped or fuse blown.

Motor wires connected incorrectly.

Wiring broken, disconnected, or corroded.

ON/OFF switch at fault.

Spindle rotation switch at fault.

10.

VFD/inverter at fault.

11.

Motor or motor bearings at fault.

Dull bit/cutter.

Machine undersized for task.

Belt(s) slipping/pulleys misaligned.

Pulley slipping on shaft.

Motor overheated.

Extension cord too long.

Spindle rotation switch at fault.

Motor or motor bearings at fault.

Turn master power switch to ON (1) position.

Rotate EMERGENCY STOP button head to reset. Replace if at fault.

Replace fuse/ensure no shorts.

Ensure correct power supply voltage and circuit size (Page 11).

Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

Correct motor wiring connections.

Fix broken wires or disconnected/corroded connections.

Replace switch.

Test/replace switch.

10.

Test/replace VFD/inverter.

11.

Replace motor.

Sharpen bit/cutter or replace.

Use correct bit/cutter; reduce feed rate; reduce spindle speed (Page 25); use cutting ﬂuid if possible.

Clean/tension/replace belt(s) (Page 37); ensure pulleys are aligned (Page 39).

Tighten/replace loose pulley/shaft.

Clean motor, let cool, and reduce workload.

Move machine closer to power supply; use shorter extension cord.

Test/replace switch.

Replace motor.

Machine has vibration or noisy operation.

Motor or component loose.

V-belt(s) worn, loose, pulleys misaligned, or belt slapping cover.

Pulley loose.

Motor mount loose/broken.

Spindle loose, improperly installed, or damaged.

Workpiece loose.

Motor fan rubbing on fan cover.

Chuck or bit/cutter at fault.

Spindle bearings at fault.

10.

Motor bearings at fault.

Replace damaged or missing bolts/nuts or tighten if loose.

Inspect/replace belts with a new matched set (Page

37). Realign pulleys if necessary (Page 39).

Secure pulley on shaft.

Tighten/replace.

Tighten loose spindle; re-install spindle, ensuring mating surfaces are clean; replace spindle if damaged.

Use correct holding ﬁxture and reclamp workpiece.

Fix/replace fan cover; replace loose/damaged fan.

Replace unbalanced chuck; replace/resharpen bit/ cutter; use correct feed rate.

Test by rotating spindle; rotational grinding/loose shaft requires bearing replacement.

10.

Replace motor.

-41-

South Bend Tools

Model SB1125

TROUBLESHOOTING

For Machines Mfd. Since 11/21

Symptom Possible Cause Possible Solution

Spindle turns opposite way of spindle rotation switch setting.

Worklight does not illuminate.

RPM digital readout does not work/display is incorrect.

Lack of power at spindle.

Tool/arbor falls out or loose in spindle.

Motor connections wired out of phase.

Lens covered with dust.

Master power switch in OFF (0) position.

Bulb burnt out.

Wiring broken, disconnected, or corroded.

Worklight switch at fault.

Worklight at fault.

RPM sensor catching on pulley.

Wiring broken, disconnected, or corroded.

Digital readout circuit board at fault.

Wrong voltage.

V-belt(s) worn or loose.

Debris on tool/arbor or in spindle taper.

Excessive feed pressure.

Swap two incoming motor wires (Page 20).

Clean lens.

Turn master power switch to ON (1) position.

Replace bulb (Page 40).

Fix broken wires or disconnected/corroded connections.

Replace switch.

Replace worklight assembly.

Adjust position/replace if at fault.

Fix broken wires or disconnected/corroded connections.

Replace.

Ensure correct voltage (Page 11).

Check belt tension/replace belts with a new matched set (Page 37).

Clean tool/arbor and spindle taper; then re-install (Page 23).

Decrease feed pressure and allow chips to clear.

Breaking tools or bits/cutters.

Workpiece or tool vibrates or chatters during operation.

Table hard to move.

Spindle does not fully retract.

Spindle speed/feed rate too fast.

Taking too big of a cut at one time.

Improper cutting technique or type of cut for tool/machine.

Cutting tool too small.

Cutting tool getting too hot.

Spindle extended too far down during or at beginning of operation.

Table locks not tight.

Workpiece not secure.

Spindle speed/feed rate too fast.

Table locked.

Column dirty/needs lubrication.

Dirty or dry column rack and pinion.

Poorly adjusted return spring.

Debris on spindle/quill rack.

Worn return spring.

Reduce spindle speed (Page 25)/feed rate.

Decrease feed pressure and allow chips to clear.

Use right technique, tool, or machine for job.

Use larger cutting tool and slower feed rate.

Use cutting ﬂuid for appropriate application; reduce spindle speed (Page 25).

Fully retract spindle and raise table to increase rigidity.

Tighten table locks.

Properly clamp workpiece on table.

Reduce spindle speed (Page 25)/feed rate.

Disengage table locks.

Clean/lubricate (Page 33).

Clean away chips/debris. Lubricate rack and ball oilers (Page 34).

Increase return spring tension (Page 36).

Clean and lubricate spindle/quill rack (Page 34).

Replace return spring.

-42-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

TROUBLESHOOTING

Symptom Possible Cause Possible Solution

Spindle overheats.

Excessive runout or wobbling in chuck/drill bit.

Bad surface finish.

Drill bit drifts.

Machine operated at high speeds for extended period.

Debris between chuck-to-spindle mating surfaces.

Bit/cutter bent.

Bit/cutter installed incorrectly.

Spindle bearings worn.

Spindle speed/feed rate too fast.

Dull or incorrect cutting tool/bit.

Wrong rotation direction of cutting tool.

Workpiece not secure.

Spindle extended too far down during or at beginning of operation.

Dull/incorrectly sharpened drill bit.

Tool/bit/chuck incorrectly installed.

Wrong rotation direction of cutting tool.

Allow drill to cool; avoid operating at high speeds for extended periods.

Remove chuck, clean, deburr tapered chuck and spindle mating surfaces, reassemble (Page 23).

Replace with straight bit/cutter.

Install bit/cutter correctly (Page 24) or replace.

Replace spindle bearings.

Reduce spindle speed (Page 25)/feed rate.

Sharpen cutting tool or select one that better suits operation.

Reverse cutting tool rotation.

Properly clamp workpiece on table.

Fully retract spindle and raise table to increase rigidity.

Correctly sharpen/replace drill bit.

Correctly re-install tool/bit (Page 24)/chuck (Page 23).

Reverse cutting tool rotation.

Drill bit stuck in workpiece.

Workpiece thrown from table.

Drill bit slips in chuck.

Backside of workpiece splinters.

Workpiece squeezing drill bit, or feed rate too fast.

Spindle speed/feed rate too slow.

Workpiece not secure; tool/bit too large for feed speed.

Chuck jaws loose.

Scrap board not installed between table and workpiece.

Properly clamp workpiece on table; decrease feed rate.

Increase spindle speed (Page 25)/feed rate.

Properly clamp workpiece on table.

Tighten chuck jaws.

Install scrap board between table and workpiece.

-43-

South Bend Tools

Model SB1125

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modiﬁcations:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at (360) 734-1540.

ELECTRICAL

For Machines Mfd. Since 11/21

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may make changes to the electrical systems of future machines. Study this section carefully. If you see differences between your machine and what is shown in this section, call Technical Support at (360) 734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the machine is connected to the power source. Touching electriﬁed parts will result in personal injury including but not limited to severe burns, electrocution, or death. For your own safety, disconnect machine from the power source before servicing electrical components or performing any wiring tasks!

All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

Using aftermarket parts or modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or ﬁre.

The motor wiring shown in these diagrams is current at the time of printing, but it may not match your machine. Always use the wiring diagram inside the motor

to an improperly sized circuit will greatly increase the risk of ﬁre. To minimize this risk, only connect the machine to a power circuit that meets the minimum requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious personal injury, ﬁre, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components before completing the task.

Experiencing Difﬁculties: If you are

experiencing difﬁculties understanding the information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

-44-

WIRING DIAGRAM COLOR KEY

BLUE WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can see them in color at www.southbendtools.com.

RED

LIGHT BLUE

ORANGE

PINK

PURPLE

TURQUIOSE

WHITE

YEL LOW GREEN

YEL LOW

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

ELECTRICAL

Wiring Diagram

WARNING!

Motor 220V

Wire

Splice

SHOCK HAZARD!

Disconnect power before working on wiring.

VUW

Master

Power Switch

AUSPICIOUS A202

T R

VFD

KB KBVF-24D

VU W

MOTOR

GND

Control Box

AC LINE

WAG O

222412 2P

21 11

24 14

Fuse 2A 250V

A2 A1

22 12

SCHRACK

LED

Socket

LED 7W

110-240V

RPM Sensor

DRM DA-1805NO-3M

LED Bulb

RPM DRO

Circuit Board

RF MET2511-1

Worklight

Switch

RL3T125/55

RLEIL

4 3

CB-10

4 3

CB-10

Spindle Rotation

Switch

NHD NSS22- S620B

EMERGENCY

STOP Button

HONG-POU

HBS1-AGD22-22TS/A

RT424730

GND

A6012

Potentiometer

ON/OFF Switch

NHD NLB22-WI

2 1

CB-01

CB-10

4 3

CB-10

Ground

Hot

220 VAC

Hot

Control Panel

(From Behind)

6-15 Plug

-45-

South Bend Tools

Model SB1125

ELECTRICAL

Electrical Component Pictures

Figure Figure 70. Motor junction box wiring.. Motor junction box wiring.

For Machines Mfd. Since 11/21

Figure Figure 71. RPM sensor.. RPM sensor.

Figure Figure 72. Worklight wiring.. Worklight wiring.

-46-

Figure Figure 73. Control box wiring.. Control box wiring.

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

PARTS

Headstock

107

103

102

100

101

39 38

104

106

105

43-2

43-1

43-3

-47-

South Bend Tools

Model SB1125

PARTS

For Machines Mfd. Since 11/21

Headstock Parts List

REF PAR T # DE SCRIPT ION REF PART # DE SCR IPT ION

1 PSB1125001 HEADSTOCK 55 PS B1 125055 V-B ELT 1 7-360 COGGED

2 PSB1125002 EXT RETA IN IN G RIN G 20MM 56 PS B11 250 56 V- B EL T 1 7-36 0 COGGED

3 PSB1125003 RUBB ER FLAN GE 55 X 8 0 X 3 57 PSB 11250 57 MOTOR MOUNTIN G BRAC KET

4 PSB1125004 EXT RETAI NIN G RING 30MM 58 PSB 11250 58 MOTOR P IVOT SHAF T

5 PSB1125005 SPIN DLE PULLEY 59 P SB 1125059 EXT RETA IN ING RIN G 35MM

6 PSB1125006 SPINDLE LOCK NUT 1-5/16"-16 60 PSB1125060 EXT RETAINING RING 12M M

7 PSB1125007 CAP SCREW M8-1.25 X 30 61 PSB1125061 FENDER WASH ER 6MM

8 PSB1125008 LOCK WASH ER 8MM 62 PSB1125062 HEX B OLT 1/4-20 X 3/8

9 PSB1125009 PINION S HAFT 63 PSB1125063 HOLLOW HA N DLE 25 X 2 6, 9.5

10 PSB1125010 S TUD-DE 1/2 -13 X 3/ 4 64 PSB1125064 CAP SCREW M8-1.25 X 30

11 PSB1125011 KNOB 1/2-13, D1-1/16, TAPERED 65 PSB1125065 CAP SCREW M6-1 X 15

12 PSB1125012 DEPTH S TOP B RAC KET 66 PSB1125066 RPM SEN SOR MOUNTING BRA CKET

13 PSB1125013 CAP SCREW M6-1 X 30 67 PSB1125067 RPM SENSOR DRM DA-18 0 5NO-3M 24G 3W 118 "

14 PSB1125014 H EX N UT 1/2-20 TH IN 68 PSB1125068 RPM SENSOR S UPPORT

15 PSB1125015 TH REA DED DEPTH ROD 69 PSB1125069 PHLP HD SCR M3-.5 X 16

16 PSB1125016 SCALE 70 PSB1125070 CAP SCREW M6-1 X 15

17 PSB1125017 H EX NUT 1/2-20 TH IN 71 PSB1125071 FLAT WASHER 6.5 X 13 X 0.8MM

18 PSB1125018 BULB LED 7W 110-240V BI-PIN 72 PSB1125072 S ET S CREW M 8-1. 25 X 35

19 PSB1125019 PHLP HD SCR M3-.5 X 10 73 PSB1125073 HEX N UT M8 -1 .2 5

20 PSB1125020 PHLP HD SCR M5-.8 X 10 74 PSB1125074 PINION SUPPORT

21 PSB 1125021 LAM P MOUNTING BRA CKET 75 PSB1125075 TENSION SHAFT

22 PSB1 125022 WIRE SPLICE WA GO 222412 2P 76 PSB1125076 DRIF T KEY

24 PSB1125024 PHLP HD SCR M5-.8 X 10 77 PSB1125077 DRILL CHUC K JT6 X 3/ 64-5/8

25 PS B1125025 SPRING BASE 78 PSB1125078 DRILL CHUCK ARBOR M T#3 X JT6

27 PSB1125027 F LAT HD SCR M5-.8 X 1 0 79 PSB1125079 CAP SCREW M6-1 X 15

28 PSB1125028 RETURN S PRIN G COVER 80 PSB1125080 TENSION SH AF T LEVER

29 PSB 1125029 FLAT WASHER 6.5 X 13 X 0.8MM 81 PSB1125081 HEX NUT M10-1.5

30 PSB1125030 LOCK WAS HER 6MM 82 PSB1125082 HEX B OLT M10-1.5 X 45

31 PSB1125031 CAP SCREW M6-1 X 15 83 PSB1125083 FRICTION PA D

32 PSB1125032 S ET S CRE W M8 -1.25 X 8 84 PSB1125084 FLAT WASHER 5/16

33 PSB1125033 BUSHING 6 X 3MM 85 PSB1125085 HEX BOLT M8-1.25 X 20

34 PSB1125034 SET SC REW M10 -1.5 X 30 DOG-PT 86 PSB1125086 STRAIN RELIEF TYP E-1 9/16 "

35 PSB1125035 HEX NUT M10-1.5 87 PSB1125087 CORD CLAMP

36 PSB1125036 B ELT COVER 88 PSB1125088 CAP SCREW M8-1.25 X 15

37 PSB1125037 HEX N UT M8 -1 .25 89 PSB1125089 CAP SCREW M6-1 X 15

38 PSB1125038 H OLLOW HA N DLE 25 X 2 6, 9.5 90 PSB1125090 FLAT WASHER 6.5 X 16 X 2MM

39 PSB1125039 CAP SCREW M8-1.25 X 30 91 PSB1125091 F LAT COIL S PRING

40 PSB1125040 C ENTER PULLEY SHAFT 92 PSB1125092 B ALL B EARIN G 620 7ZZ

41 PSB1125041 HEX NUT 5/8 -11 93 PSB1125093 S PIN DLE M T#3

42 PSB1125042 KEY 6 X 6 X 40 RE 94 PSB1125094 INT RETAIN IN G RIN G 72MM

43 PSB1125043 MOTOR 1H P 22 0 V 3-PH 95 PSB1125095 S PIN DLE EN D CA P

43-1 PSB1125043-1 MOTOR F A N COVER 96 PSB1125096 BALL B EA RIN G 60 06Z Z

43-2 PSB1125043-2 MOT OR F A N 97 PSB1125097 B ALL B EARING 600 6ZZ

43-3 PSB1125043-3 M OTOR J UN CTION BOX 98 PSB1125098 BEARING HOUSING

44 PSB1125044 B ALL B EARING 620 4Z Z 99 PSB1125099 SPIN DLE TAPER SLEEVE

45 PSB1125045 MOTOR B RAC KET B ASE 100 PSB1125100 ROLL PIN 3 X 23

46 PSB1125046 CAP SCREW M8-1.25 X 20 101 PSB1125101 CENTER PULLEY

47 PSB1125047 MOTOR PUL LEY 102 PSB1125102 BA LL BEARING 620 4Z Z

48 PSB1125048 Q UILL 103 PSB1125103 IN T RETA IN ING RIN G 47MM

49 PSB1125049 FLAT WASHER 8MM 104 PSB1125104 SET S CREW 5/1 6-1 8 X 3/8

50 PS B 11 250 50 CAP SCREW M8-1.25 X 15 105 PSB1125105 BUSHING 6 X 3MM

52 PS B 11 250 52 CON TROL BOX M OUN TI N G B RA C KET 106 PSB1125106 LED PORT GT MET2429

53 PSB1 12 5053 PHLP HD SCR M5-.8 X 10 107 PSB1125107 DRILL CHUCK KEY 5/16" S TD 11T 9/16"

54 PS B11 250 54 PHLP HD SCR M5-.8 X 10

-48-

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

PARTS

Control Box

51-20

51-19

51-27

51-18

51-26

51-5

51-41

51-29

51-28

51-16

51-43

51-40

51-3

51-39

51-30

51-21

51-32

51-24

51-2

51-4

51-31

51-22

51-6

51-44

51-33

51-25

51-35

51-23

51-1

51-36

51-34

51-38

51-37

51-42

51-15

51-14

51-12

51-11

51-10

51-8

51-7

REF PART # DESCRIPT ION REF PA RT # DE SCR IPT ION

51 PSB1 12 5051 CON TROL B OX AS SEM B LY 51-24 PSB1125051-24 PHLP HD SCR M4-.7 X 10

51-1 PSB1125051-1 C ON TROL BOX 51-25 PSB1125051-25 DIN RAIL 35 X 35 X 7.5M M

51-2 PSB1125051-2 C ON TROL P A N EL 51-26 PSB1125051-26 PHLP HD SCR M3-.5 X 6

51-3 PSB1125051-3 SPINDLE ROTATION SWITCH NHD NSS22-S320B 51-27 PSB1125051-27 RP M DRO RF M ET2511 -1

51-4 PSB1125051-4 POTENTIOMETER K B A 6012 51-28 PSB1125051-28 PHLP HD SCR M5-.8 X 10

51-5 PSB1125051-5 E-STOP BUTTON HONG-POU HBS1-AGD22-22TS/A 51-29 PSB1125051-29 TACH OMETE R CORD 18 G 2W 12 "

51-6 PSB1125051-6 ON/OFF SWITCH NHD NLB22-WI 51 -30 PSB1125051-30 TERM IN AL EN D BRA CKET MIDA S M ET1517

51-7 PSB1125051-7 S TRAIN RELIEF TYPE -3 PG11 51 -31 PSB1125051-31 TE RMIN AL BLOCK PH OENIX PT2 .5

51-8 PSB1125051-8 POWE R CORD 14 G 3W 8 0 " 6 -1 5P 51- 32 PSB1125051-32 TERM IN AL JUMP ER PH OEN IX F B S2 .5

51-10 PSB1125051-10 STRA IN RELIEF TYPE -3 PG9 51 -33 PSB1125051-33 TERMIN AL END PLATE P HOEN IX D-ST2.5

51-11 PSB1125051-11 LED WORKLIGHT CORD 18 G 2W 35" 51-34 PSB1125051-34 FUSE HOLDER NHD HTF-1/EPF-1A

51-12 PSB1125051-12 STRA IN RELIEF TYP E-3 PG11 51-35 PSB1125051-35 FUSE 2A 250V

51-14 PSB1125051-14 S TRAIN RELIEF TYPE-3 P G11 51 -36 PSB1125051-36 RELAY SC HRA CK RT424730-2 30V

51-15 PSB1125051-15 MOTOR CORD 14 G 4W 33" 51 -37 PSB1125051-37 INVERTER/VFD KB KB VF-24D

51-16 PSB1125051-16 WORKLIGHT SWITCH MI DAS MET1 242 51- 38 PSB1125051-38 PHLP HD SCR M4-.7 X 10

51-18 PSB1125051-18 HEX N UT M4-. 7 51-39 PSB1125051-39 GROUND TERMIN AL BA R

51-19 PSB1125051-19 A IR F ILTER 3-1 /2" 51-40 PSB1125051-40 SIDE PANEL

51-20 PSB1125051-20 PHLP HD SCR M4-.7 X 10 51-41 PSB1125051-41 PHLP HD SCR M4-.7 X 10

51-21 PSB1125051-21 S PIN DLE S PE ED DI AL 51-42 PSB1125051-42 MASTER POWER SWITCH AUSPICIOUS A202

51-22 PSB1125051-22 E LECTRICAL MOUN TIN G BOA RD 51-43 PSB1125051-43 PHLP HD SCR M4-.7 X 6

51-23 PSB1125051-23 PHLP HD SCR M4-.7 X 10 51 -44 PSB1125051-44 WIRE SPLICE WAGO 222412 2P

-49-

South Bend Tools

Model SB1125

228

Column

223

222

224

209

227

226

225

PARTS

229

217

218

210

For Machines Mfd. Since 11/21

221

220

219

212

206

207

205

202

213

208

204

203

214

215

216

232

231

233

-50-

201

South Bend Tools

For Machines Mfd. Since 11/21 Model SB1125

PARTS

Column Parts List

REF PART # DE SCR IPT ION REF PAR T # DE SCR IPT ION

201 PSB1125201 BASE 218 PSB1125218 SPA CER 5 X 20 X 5

202 PSB1125202 C OLUM N B ASE 219 PSB1125219 WORM GEAR SHAFT

203 PSB1125203 LOCK WASH ER 12M M 220 PSB1125220 WORM GE A R

204 PSB 1125204 CAP SCREW M12-1.75 X 60 221 PSB1125221 SPACER 5 X 20 X 5

205 PSB 1125205 LOCK WAS HER 16MM 222 PSB1125222 FLAT WASHER 12MM

206 PSB 1125206 CAP SCREW M16-2 X 50 223 PSB1125223 ADJUSTABLE HANDLE M12-1.75 X 52, 70L

207 PSB 1125207 COLUM N 224 PSB1125224 TA BLE

208 PSB1125208 RA CK 225 PSB1125225 FLAT WASHER 12MM

209 PSB1125209 TAB LE ARM 226 PSB1125226 ADJUSTABLE HANDLE M12-1.75 X 70, 80L

210 PSB1125210 WORM SHAFT 227 PSB1125227 C OLUMN COLLAR

212 PSB1125212 TA B LE H EIGHT CRAN K 228 PSB1125228 BUSHING 8 X 3MM

213 PSB1125213 S ET S CREW 3/8-16 X 1 /2 229 PSB1125229 SET SCREW M10-1.5 X 10

214 PSB1125214 HE X N UT 3/8 -1 6 2 31 PSB1125231 H EX WRENCH 5MM

215 PSB1125215 HOLLOW HA N DLE 23 X 1 0 0, 9.7 2 32 PSB 1125232 HEX WRENCH 4MM

216 PSB1125216 CAP SCREW 3/8-1 6 X 4-5/16 233 PSB1125233 HEX WRENCH 3MM

217 PSB1125217 BALL OILER 1/8" N PT TH REA DED

-51-

South Bend Tools

Model SB1125

301

Machine Labels

PARTS

For Machines Mfd. Since 11/21

Lore

WARNING!

INJURY HAZARD Do not use machine if you have not read the manual. Visit southbendlathe.com or call 360-734-1540 to get a manual.

WARNING!

ENTANGLEMENT

HAZARD Remove or secure loose clothing, hair or jewelry to reduce the risk of serious injury or death.

309

SB1125

306

WARNING!

EYE INJURY

HAZARD Always wear ANSIapproved safety glasses or a face shield when using this equipment.

308

SINCE

1906

307

WARNING!

INJURY/SHOCK

HAZARD

To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

Change spindle speed or rotation direction ONLY when spindle is completely stopped.

SINCE

1906

Power Req.: 220V, 1-Ph, 60 Hz, 15A Motor: 1 HP, 220V, 3-Ph, 60 Hz Full-Load Current Rating: 3.8A Swing: 19-1/2" Dist. Spindle-to-Column: 9-3/4" Max. Dist. Spindle-to-Table: 25-5/16" Max. Dist. Spindle-to-Base: 45" Spindle Taper: MT#3 Spindle Travel: 5-1/2" Number of Spindle Speeds:Variable Spindle Speed Range: 50–2000 RPM Drilling Capacity (Steel): 1-9/16" Weight: 448 lbs.

Made in Taiwan to South Bend Specifications

302

WARNING!

PINCHING

HAZARD

Always keep this cover closed during operation.

303

NOTICE

304

MODEL SB1125

19-1/2" VARIABLE-SPEED

FLOOR DRILL PRESS

Serial No: MFG Date:

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses and a face shield.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before setting up, servicing, or changing bits.

5. Avoid entanglement with spindle—tie back long hair, roll up long sleeves, and DO NOT wear loose clothing, gloves, or jewelry.

6. Properly set up machine before starting.

7. Keep all guards and covers in place during operation.

8. Clamp workpiece to table to prevent unexpected rotation.

9. Avoid positioning hands where they could slip into rotating bits.

10. Always remove chuck keys and other tools before starting.

11. Never attempt to slow or stop spindle with hands or tools.

12. Use correct speeds for drill bits and workpiece material.

13. Do not operate when tired or under influence of drugs or alcohol.

14. Do not expose to rain or use in wet locations.

15. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

WARNING!

305

306

REF PART # DE SCR IPT ION REF PAR T # D E SCR IPT ION

301 PSB1125301 MAN UAL/EN TAN GLEMENT/EYE LABEL 306 PSB1125306 ELECTRICITY LAB EL

302 PSB1125302 DISCONNECT/PINCH LABEL 307 PSB1125307 TOUCH -UP P AIN T, S B LIGH T B LUE

303 PSB1125303 SPINDLE SPEED NOTICE LABEL 308 PSB1125308 SOUTH BEN D NAMEPLATE 62MM

304 PSB1125304 MACHIN E ID LABEL 309 PSB1125309 MODEL NUMBER LAB EL

305 PSB1125305 TOUCH-UP PAI N T, S B DARK BLUE

The safety labels provided with your machine are used to make the operator aware of the machine hazards and ways to prevent injury. The owner of this machine MUST maintain the original location and readability of these safety labels. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact South Bend Tools at (360) 734-1540 or www.southbendtools.com to order new labels.

-52-

WARRANTY

This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs. In no event shall we be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act, code, regulation, or standard of any domestic or foreign government, industry, or authority. In no event shall South Bend’s liability under this warranty exceed the original purchase price paid for this machine. Any legal actions brought against South Bend Tools shall be tried in the State of Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by law, including any merchantability or fitness, for any purpose, are hereby limited to the duration of this warranty.

Thank you for your business and continued support.

To take advantage of this warranty, register at can scan the QR code below to be automatically directed to our warranty registration page. Enter all applicable information for the product.

Warranty

https://www.grizzly.com/forms/warranty, or you

WARRANT Y

southbendtools.com

Printed In Taiwan #CS22121

South Bend SB1125 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Product Specifications

SAFETY

Understanding Risks of Machinery

Basic Machine Safety

Additional Drill Press Safety

PREPARATION

Preparation Overview Required for Setup

Power Supply Requirements

Unpacking

Inventory

Cleaning & Protecting

Location

Placing & Anchoring Machine

Joining Drill Chuck & Arbor

Assembly

Test Run

Spindle Break-In

OPERATION

Operation Overview

Installing/Removing Arbor

Installing/Removing Drill Bit

Spindle Speed

Calculating Spindle Speed for Drilling

Adjusting Depth Stop

Positioning Table

ACCESSORIES

MAINTENANCE

Maintenance Schedule

Cleaning & Protecting

Lubrication

Machine Storage

Checking V-Belts

Service

Adjusting Return Spring Tension

Replacing V-Belts

Aligning Motor Pulley

Replacing Worklight Bulb

TROUBLESHOOTING

ELECTRICAL

Electrical Safety Instructions

Wiring Diagram

Electrical Component Pictures

PARTS

Headstock

Control Box

Column

Machine Labels

WARRANTY
