South Bend SB1124F User guide

Download

9" X 48" 3 HP VARIABLE-SPEED

TURRET MILL W/DRO

MODEL SB1124F

***Keep for Future Reference***

OWNER'S MANUAL

South Bend Tools

A Tradition of Excellence

We stand behind our machines. If you have any service questions, parts requests or general questions about your purchase, feel free to contact us.

South Bend Tools P.O. Box 2027 Bellingham, WA 98227 Phone: (360) 734-1540 Fax: (360) 676-1075 (International) Fax: (360) 734-1639 (USA Only) Email: sales@southbendtools.com

For your convenience, any updates to this manual will be available to download free of charge

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control it during operation, and how to keep it in good working condition. We assume the reader has a basic understanding of how to operate this type of machine, but that the reader is not familiar with the controls and adjustments of this specific model. As with all machinery of this nature, learning the nuances of operation is a process that happens through training and experience. If you are not an experienced operator of this type of machinery, read through this entire manual, then learn more from an experienced operator, schooling, or research before attempting operations. Following this advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes happen or the machine design changes after the documentation process—so exactly match your machine. contact our

We highly value customer feedback on our manuals. If you have a moment, please share your experience using this manual. What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

P.O. Box 2027 Bellingham, WA 98227 Email: manuals@southbendtools.com

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

through our website at:

Customer Service

Table of Contents

INTRODUCTION ............................................................... 2

Left Front View Identiﬁcation Right Front View Identiﬁcation Description of Controls & Components Product Speciﬁcations

SAFETY

Understanding Risks of Machinery Basic Machine Safety Additional Milling Machine Safety

PREPARATION

Preparation Overview Required for Setup Power Supply Requirements Converting Voltage to 440V Unpacking Inventory Cleaning & Protecting Location Lifting & Moving Leveling & Mounting Anchoring to Floor Assembly Power Connection (220V) Power Connection (440V) Initial Lubrication Test Run Spindle Break-In Inspections & Adjustments

OPERATION

Operation Overview

Table Movement.................................................31

Head Movement Ram Movement Spindle Speed Spindle Downfeed Using Spindle Brake Loading/Unloading Tooling

............................................................................. 10

.............................................................. 13

..........................................................17

............................................................ 17

.............................................................. 19

............................................................22

............................................................. 26

.................................................................... 30

.................................................. 34

.....................................................35

.........................................7

........................................10

........................................13

............................................. 13

.......................................18

................................................20

......................................... 21

.............................................21

.............................................25

................................................29

........................................... 30

................................................. 33

..............................................38

..........................................42

............................2

.......................... 3

..............4

.................. 10

................... 12

............................. 14

..............................16

..................................24

...............................29

............................... 42

MAINTENANCE

Maintenance Schedule Cleaning & Protecting Lubrication Machine Storage

SERVICE........................................................................... 55

Coolant Reservoir...............................................55

Tramming Spindle

Adjusting Gibs....................................................59

Adjusting Leadscrew Backlash

TROUBLESHOOTING

ELECTRICAL

Electrical Safety Instructions Electrical Overview Electrical Cabinet Electrical Cabinet Wiring Diagram (220V) Electrical Cabinet Wiring Diagram (440V) Control Panel Main Motor Wiring Diagrams DRO Wiring Diagram Power Feed Wiring Diagram Electrical Component Photos

PARTS................................................................................ 74

Belt Housing.......................................................74

Gearbox Headstock Column, Knee & Ram Table One Shot Oiler Coolant System Electrical Cabinet

Control Box.........................................................89

Accessories Machine Labels (Front) Machine Labels (Side)

WARRANTY

..............................................................76

................................................................... 84

.............................................................48

.......................................48

......................................................... 50

................................................54

............................................. 57

......................... 60

................................................. 62

................................................................... 65

...........................65

............................................66

..............................................67

...... 68

...... 69

.....................................................70

........................... 71

........................................ 72

............................. 72

............................ 73

........................................................... 78

........................................ 81

...................................................86

..................................................87

..............................................88

.........................................................90

.....................................91

.......................................92

..................................................................... 93

ACCESSORIES

..............................................................44

South Bend Tools

Model SB1124F

Introduction

INTRODUCTION

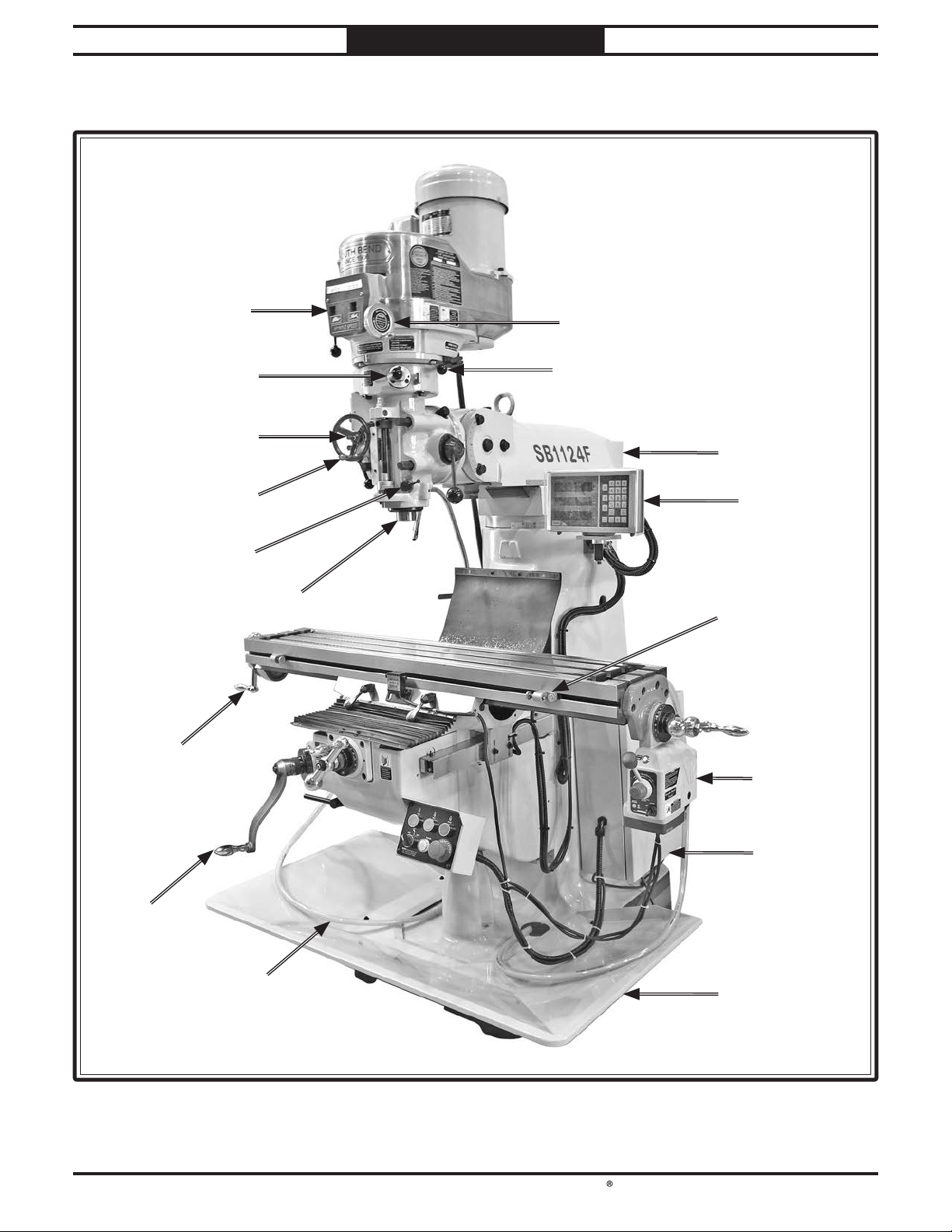

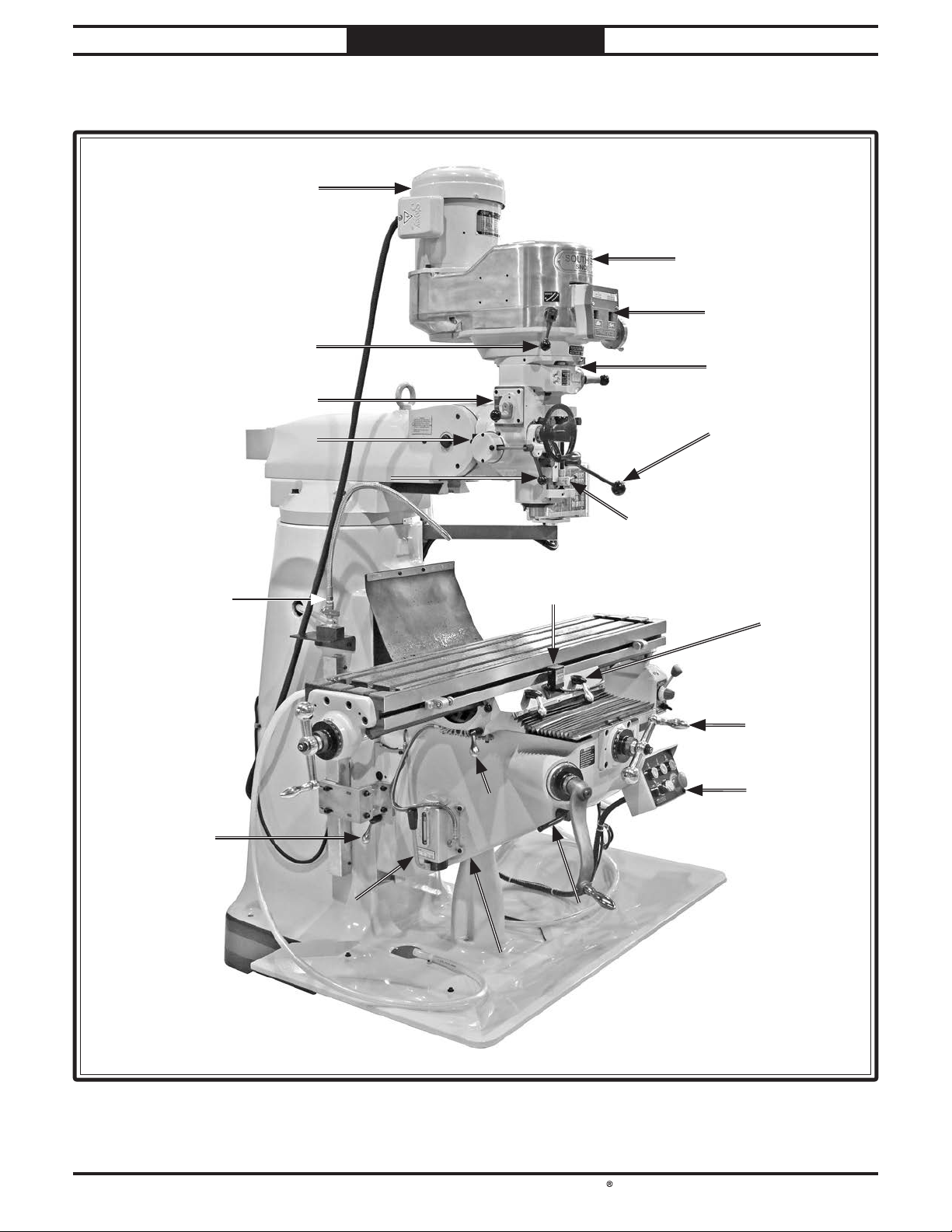

Left Front View Identiﬁcation

MotorMotor

Spindle Brake LeverSpindle Brake Lever

Auto DownfeedAuto Downfeed

Rate SelectorRate Selector

9090°° Positive Stop Positive Stop

Fine Downfeed Clutch LeverFine Downfeed Clutch Lever

For Machines Mfd. Since 11/22

Belt HousingBelt Housing

High-Range High-Range

Variable-Speed Variable-Speed

IndicatorIndicator

HeadstockHeadstock

Coarse Coarse

DownfeedDownfeed

LeverLever

Coolant Valve Coolant Valve

& Nozzle& Nozzle

Z-Axis Table Z-Axis Table

Lock (1 of 2)Lock (1 of 2)

One Shot One Shot

OilerOiler

X-Axis Limit X-Axis Limit

Y-AxisY-Axis

TableTable

LockLock

KneeKnee

SwitchSwitch

Knee Crank Knee Crank

Lock LeverLock Lever

Adjustable Adjustable

Downfeed StopDownfeed Stop

X-Axis Table X-Axis Table

Lock (1 of 2)Lock (1 of 2)

Y-Axis Ball Y-Axis Ball

HandleHandle

Control PanelControl Panel

-2-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

INTRODUCTION

Right Front View Identiﬁcation

Low-Range Low-Range

Variable-Speed Variable-Speed

IndicatorIndicator

Variable-Speed HandwheelVariable-Speed Handwheel

Manual/PowerManual/Power

Downfeed SelectorDownfeed Selector

Auto Downfeed Auto Downfeed

Direction PinDirection Pin

Fine Downfeed Fine Downfeed

HandwheelHandwheel

Quill Lock Quill Lock

LeverLever

Quill and SpindleQuill and Spindle

X-Axis Ball X-Axis Ball

Handle (1 of 2)Handle (1 of 2)

Spindle SpeedSpindle Speed

Range SelectorRange Selector

RamRam

DRODRO

X-Axis X-Axis

Limit Stop Limit Stop

(1 of 2)(1 of 2)

X-Axis X-Axis

Power FeedPower Feed

Knee Knee

CrankCrank

Coolant Return Coolant Return

HoseHose

ElectricalElectrical

BoxBox

Splash PanSplash Pan

-3-

South Bend Tools

Model SB1124F

INTRODUCTION

For Machines Mfd. Since 11/22

Description of Controls & Components

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

Refer to Figures 1–6 and the following descriptions to become familiar with the basic controls and components used to operate this machine.

Master Power Switch

Control Panel

Figure 2. Control panel. Control panel.

B. FWD Button: Starts spindle forward rotation

(clockwise looking down on headstock).

C. REV Button: Starts spindle reverse

rotation (counterclockwise looking down on headstock).

Stop Button: Stops spindle rotation.

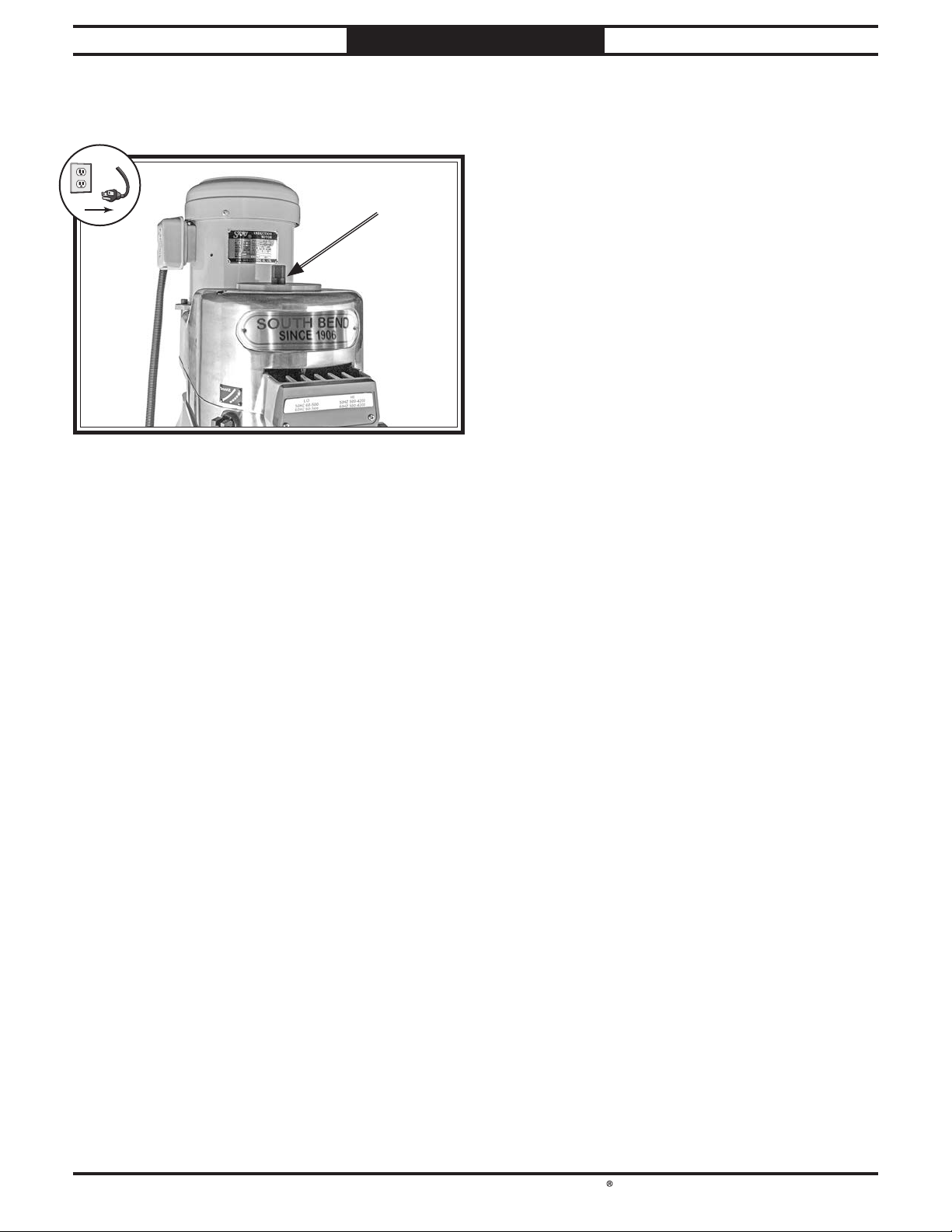

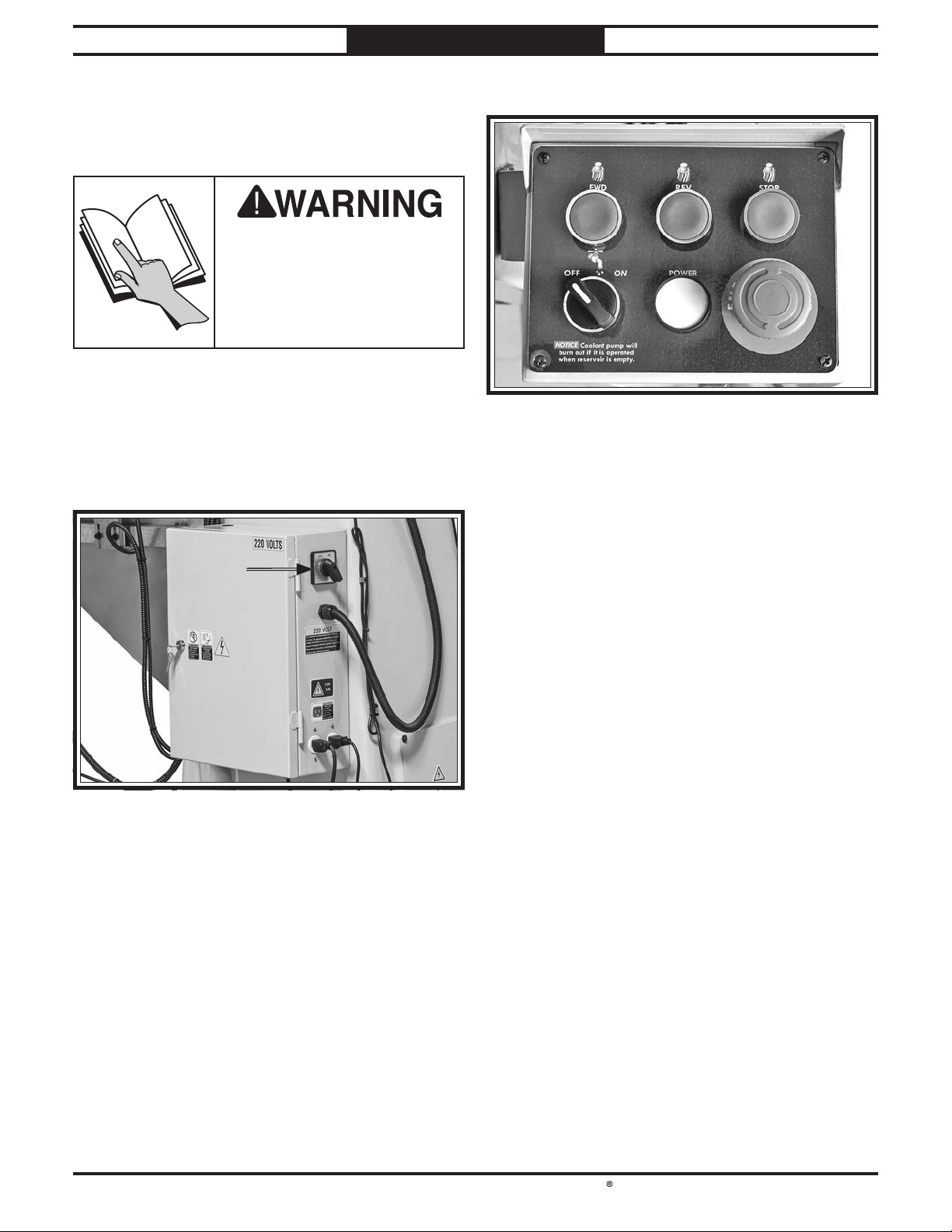

Figure 1. Location of master power switch. Location of master power switch.

A. Master Power Switch: Turns incoming power

ON and OFF.

E. Coolant Pump ON/OFF Switch: Turns

coolant pump ON and OFF.

POWER Light: Illuminates when power to

machine is enabled.

EMERGENCY STOP Button: Disables power

to control panel and stops all machine functions when pressed. To reset, twist button clockwise until it pops out.

-4-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

INTRODUCTION

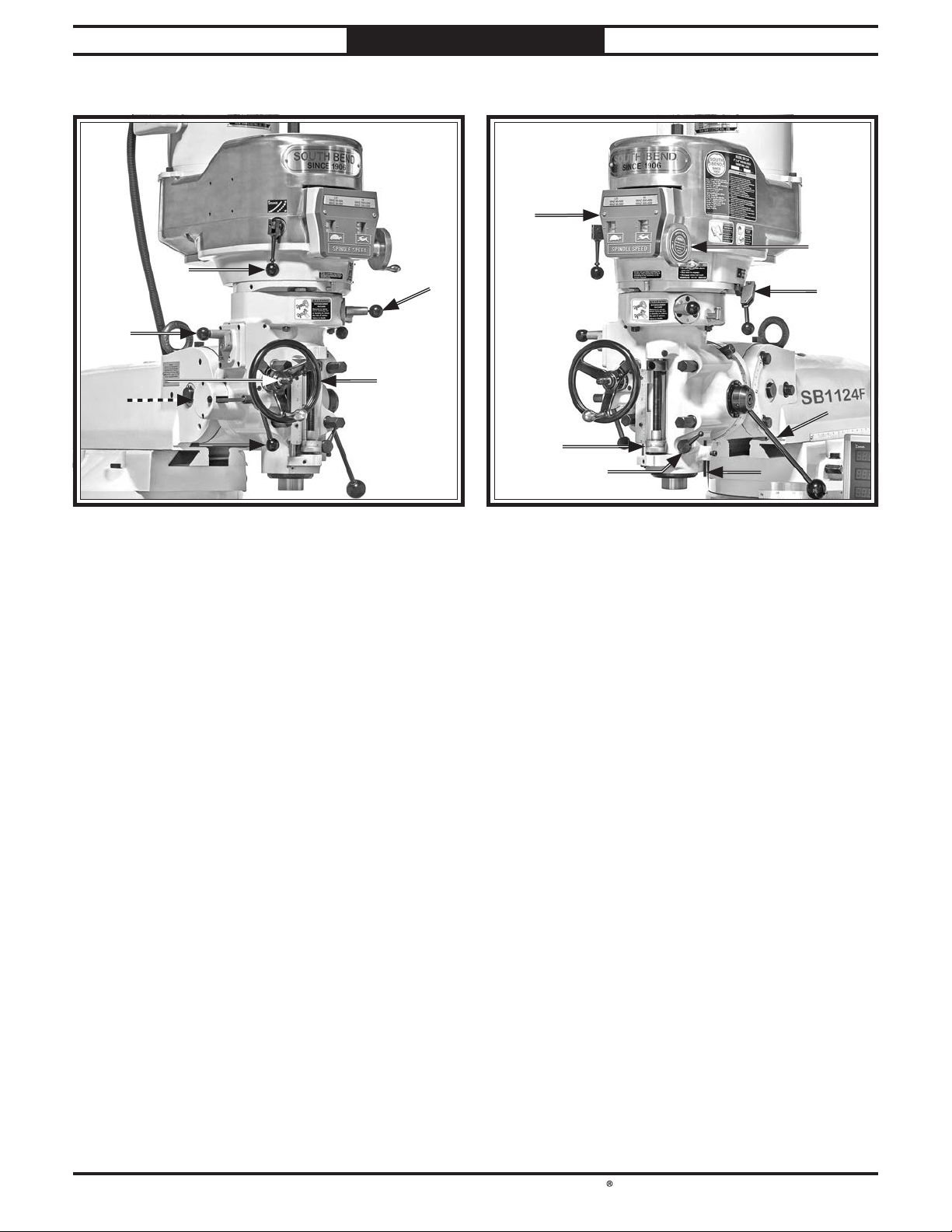

Headstock (Left)

Figure 3. Headstock controls (left). Headstock controls (left).

Headstock (Right)

Figure 4. Headstock controls (right). Headstock controls (right).

H. Spindle Brake Lever: Quickly stops spindle

AFTER power to spindle is turned OFF.

I. Manual/Power Downfeed Selector: Selects

between manual and power downfeed.

Fine Downfeed Handwheel: Manually

controls slow spindle downfeed for fine Z-axis control.

K. Fine/Auto Downfeed Clutch Lever: Engages

fine/auto-downfeed gears.

L. 90° Positive Stop: Stops headstock at 90° to

table following tilt procedure.

M. Auto-Downfeed Direction Pin: Starts, stops,

and reverses auto-downfeed direction.

N. Auto-Downfeed Rate Selector: Selects one of

the three auto-downfeed rates:

• 0.0015 in./rev.

• 0.003 in./rev.

• 0.006 in./rev.

O. Variable-Speed Indicators: Indicate spindle

speed in high and low ranges.

P. Variable Speed Handwheel: Selects desired

spindle speed within high or low range.

Spindle Speed Range Selector: Engages

back gear for low (60 RPM–500 RPM), and disengages back gear for high (500 RPM– 4200 RPM) spindle speed ranges.

Note: When engaged, back gear reverses

spindle rotation, causing spindle FWD/REV buttons to be reversed in low range.

R. Coarse Downfeed Lever: Quickly moves

quill downward manually and automatically retracts spindle to top position when released. Typically used for drilling operations.

S. Dial Indicator Rod: Used to hold dial test

indicator when tramming spindle.

T. Quill Lock Lever: Locks quill in vertical

position.

U. Adjustable Downfeed Stop: Limits depth of

quill travel. Dial is graduated in increments of 0.001". Typically used for repeat operations.

-5-

South Bend Tools

Model SB1124F

INTRODUCTION

For Machines Mfd. Since 11/22

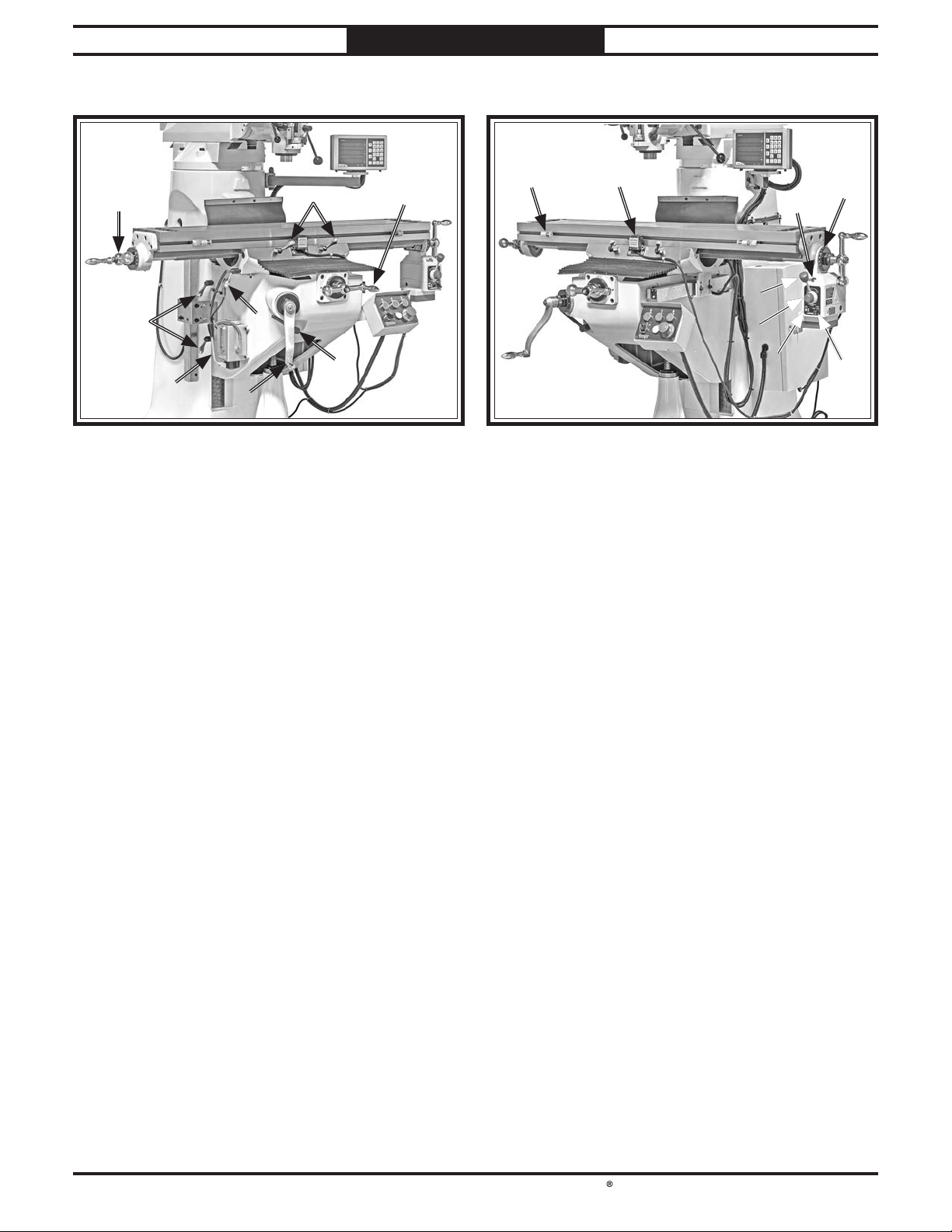

Table

ACAC

ABAB

AAAA

Figure 5. Table controls. Table controls.

V. X-Axis Table Locks: Tighten to prevent

X-axis table movement for increased rigidity during operations where X-axis should not move.

Y-Axis Ball Handle: Manually moves table

along Y-axis (front and back).

X. Knee Crank Lock Lever: Tightens to prevent

accidental movement of knee crank.

Y. Knee Crank: Manually moves table along

Z-axis (up and down).

VV WW

X-Axis Power Feed

ADAD

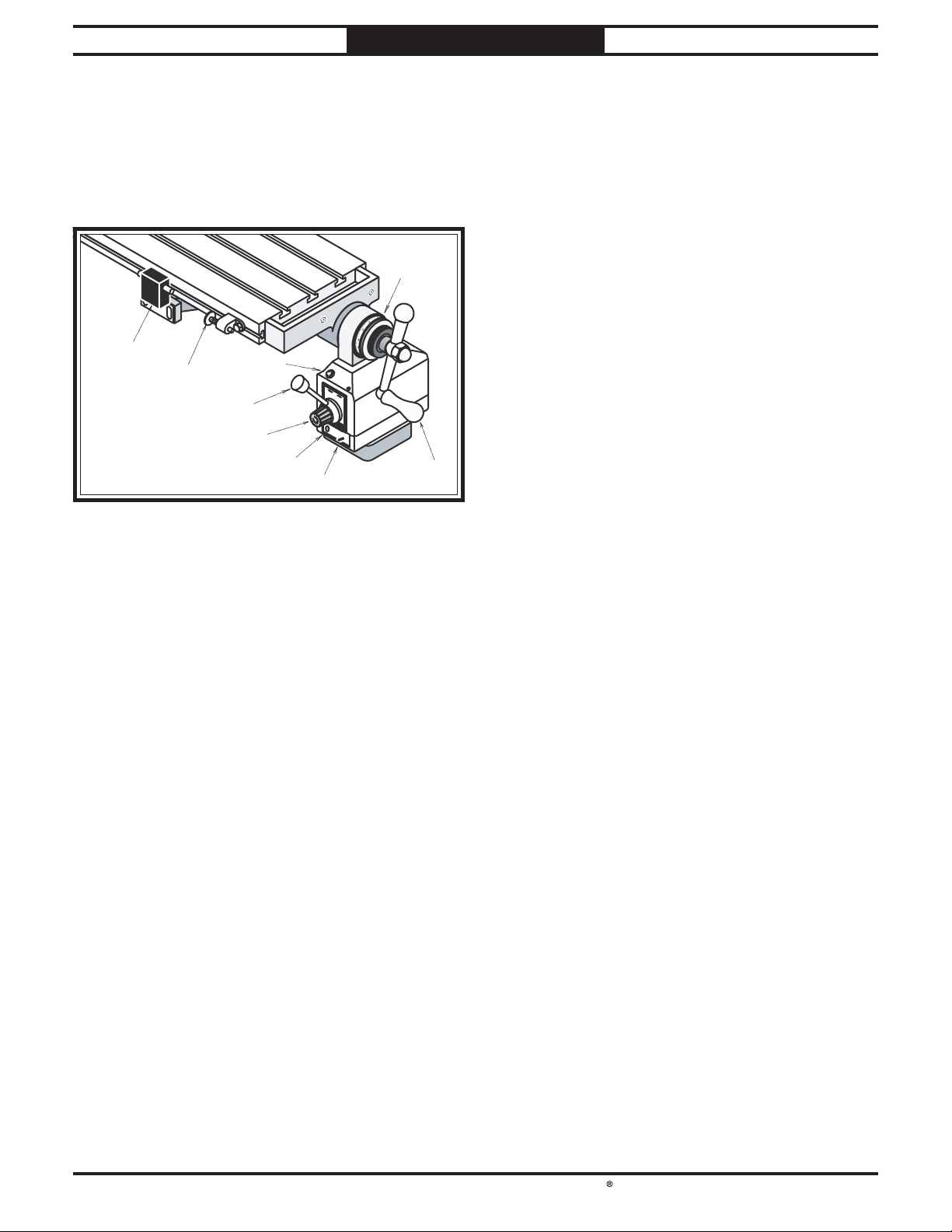

Figure 6. X-Axis power feed controls. X-Axis power feed controls.

AD. Limit Stop (1 of 2): Restricts table movement

by its positioning along front of table.

AE. Limit Switch: Stops table movement when

either of the switch side plungers are pressed by limit stops.

AF. Rapid Traverse Button: When pressed, moves

table at full speed when already in motion.

AG. Graduated Index Ring: Displays distance of

table travel in 0.001" increments, with one full revolution equal to 0.200" of table travel.

AEAE

AKAK

AJAJ

AIAI

AFAF

AGAG

AHAH

Z. Y-Axis Table Lock: Tightens to prevent

Y-axis table movement for increased rigidity during operations where Y-axis should not move.

AA. One Shot Oiler: Lubricates X-, Y-, and Z-axis

table ways.

AB. Z-Axis Table Locks: Tighten to prevent Z-axis

table movement for increased rigidity during operations where Z-axis should not move.

AC. X-Axis Ball Handle (1 of 2): Manually moves

table along X-axis (left and right).

-6-

AH. Power Feed ON/OFF Switch: Turns power

feed ON and OFF.

AI. Reset Button: Resets internal circuit breaker

if unit is overloaded and shuts down.

AJ. Speed Dial: Controls speed of power feed.

Rotating dial increases/decreases speed.

AK. Direction Lever: Selects direction of table

movement. Middle position is neutral.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

INTRODUCTION

Product Speciﬁcations

Model SB1124F

9" x 48" 3 HP Variable‐Speed Turret Mill With

DRO

Product Dimensions

Weight...........................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 64 x 57 x 84 in.

Footprint (Length x Width)....................................................................................................................... 24 x 36 in.

Space Required for Full Range of Movement (Width x Depth)............................................................... 95 x 63 in.

Shipping Dimensions

Type..........................................................................................................................................................

Content..........................................................................................................................................................

Weight........................................................................................................................................................... 2625 lbs.

Length x Width x Height................................................................................................................... 66 x 59 x 77 in.

2315 lbs.

Wood Crate

Machine

Electrical

Power Requirement.................................................................................................... 220V or 440V, 3-Phase, 60 hz

Prewired Voltage................................................................................................................................................

Full-Load Current Rating..............................................................................................

Minimum Circuit Size..................................................................................................... 15A at 220V, 15A at 440V

Connection Type.............................................................................. Cord at 220V, Permanent (Hardwire) at 440V

Power Cord Included.............................................................................................................................................. No

Recommended Power Cord.............................................................................

Plug Included..........................................................................................................................................................

Recommended Plug Type................................................................................................................... 15-20 for 220V

Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection

Motors

Main

Horsepower............................................................................................................................................... 3 HP

Phase....................................................................................................................................................

Amps...........................................................................................................................

Speed................................................................................................................................................ 1720 RPM

Type........................................................................................................................................ TEFC Induction

Power Transfer .......................................................................................................................................... Belt

Bearings................................................................................................

Coolant Pump

Horsepower............................................................................................................................................

Phase.................................................................................................................................................... 3-Phase

Amps.................................................................................................................. 0.4 A at 220V, 0.23A at 440V

Speed................................................................................................................................................ 3450 RPM

Type...................................................................................................................................................

Power Transfer ............................................................................................................................

Bearings.................................................................................................... Sealed & Permanently Lubricated

"S"-Type, 4-wire, 14 AWG, 300 VAC

Shielded & Permanently Lubricated

9.6A at 220V, 4.8A at 440V

8A at 220V, 4A at 440V

220V

3-Phase

1/8 HP

Induction

Direct Drive

-7-

South Bend Tools

Model SB1124F

Longitudinal Power Feed

Horsepower..........................................................................................................................................

Phase............................................................................................................................................

Amps.......................................................................................................................................................... 0.8A

Speed............................................................................................................................................. 0 - 160 RPM

Type................................................................................................................................................... Universal

Power Transfer .............................................................................................................................

Bearings....................................................................................................

Main Specifications

Operation Info

Spindle Travel.................................................................................................................................. 4-15/16 in.

Max Distance Spindle to Column........................................................................................................... 19 in.

Max Distance Spindle to Table......................................................................................................... 18-1/4 in.

Longitudinal Table Travel (X-Axis)..................................................................................................

Cross Table Travel (Y-Axis)..............................................................................................................

Vertical Table Travel (Z-Axis)................................................................................................................. 15 in.

Ram Travel............................................................................................................................................... 12 in.

Turret or Column Swivel (Left/Right)................................................................................................ 360 deg.

Head Tilt (Left/Right)......................................................................................................................

Head Tilt (Front/Back).....................................................................................................................

Drilling Capacity for Cast Iron................................................................................................................. 1 in.

Drilling Capacity for Steel...................................................................................................................... 3/4 in.

End Milling Capacity................................................................................................................................. 1 in.

Face Milling Capacity................................................................................................................................

INTRODUCTION

For Machines Mfd. Since 11/22

1/10 HP

Single-Phase

Gear Drive

Sealed & Permanently Lubricated

30-1/4 in. 11-1/4 in.

0 - 90 deg. 0 - 45 deg.

4 in.

Table Info

Table Length............................................................................................................................................

Table Width................................................................................................................................................ 9 in.

Table Thickness................................................................................................................................... 2-3/4 in.

Table Height (from Floor/Base)........................................................................................................ 42-1/2 in.

Table Weight Capacity.........................................................................................................................

Number of T-Slots...........................................................................................................................................

T-Slot Size............................................................................................................................................... 5/8 in.

T-Slots Centers.................................................................................................................................... 2-1/2 in.

Number of Longitudinal Feeds.......................................................................................................... Variable

X-Axis Table Power Feed Rate....................................................................................................

X/Y-Axis Travel per Handwheel Revolution.....................................................................................

Z-Axis Travel per Handwheel Revolution......................................................................................... 0.100 in.

Spindle Info

Spindle Taper.............................................................................................................................................. R-8

Number of Vertical Spindle Speeds................................................................................................... Variable

Range of Vertical Spindle Speeds............................................................................................

Quill Diameter.....................................................................................................................................

Quill Feed Rates.................................................................................................. 0.0015, 0.003, 0.006 in./rev.

Drawbar Thread Size............................................................................................................................ 7/16-20

Drawbar Length................................................................................................................................ 18-1/2 in.

Spindle Bearings.......................................

Construction

Spindle Housing/Quill..................................................................

Table.................................................................................................................... Precision-Ground Cast Iron

Head................................................................................................................................ Meehanite Cast Iron

Column/Base................................................................................................................... Meehanite Cast Iron

Paint Type/Finish..............................................................................................................................

Angular Contact P4 (ABEC-7) & Double-Shielded Ball Bearing

Chrome-Plated & Precision-Ground Steel

60 - 4200 RPM

48 in.

400 lbs.

0 - 3.34 FPM

0.200 in.

3-3/8 in.

Urethane

-8-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

INTRODUCTION

Other

Country of Origin ...........................................................................................................................................

Warranty ........................................................................................................................................................

Approximate Assembly & Setup Time .........................................................................................................

Serial Number Location ..............................................................................................................................

Sound Rating ....................................................................................................................................................

Taiwan

2 Years

2 Hours

ID Label

67 dB

Features

Fagor Digital Readout High-Quality, Low-Vibration TEFC Spindle Motor Auto-Downfeed Stop with Micro-Adjustable Stop Variable-Speed Longitudinal Power Feed Precision-Ground Table Surface Chromed Steel Quill Heavy-Duty Spindle Brake Japanese Nachi Bearings Table, Knee, and Ram are Equipped with Dual Locking Mechanisms Meehanite Castings Lever-Action, One-Shot Pump Lubrication System Powered Recycling Coolant System

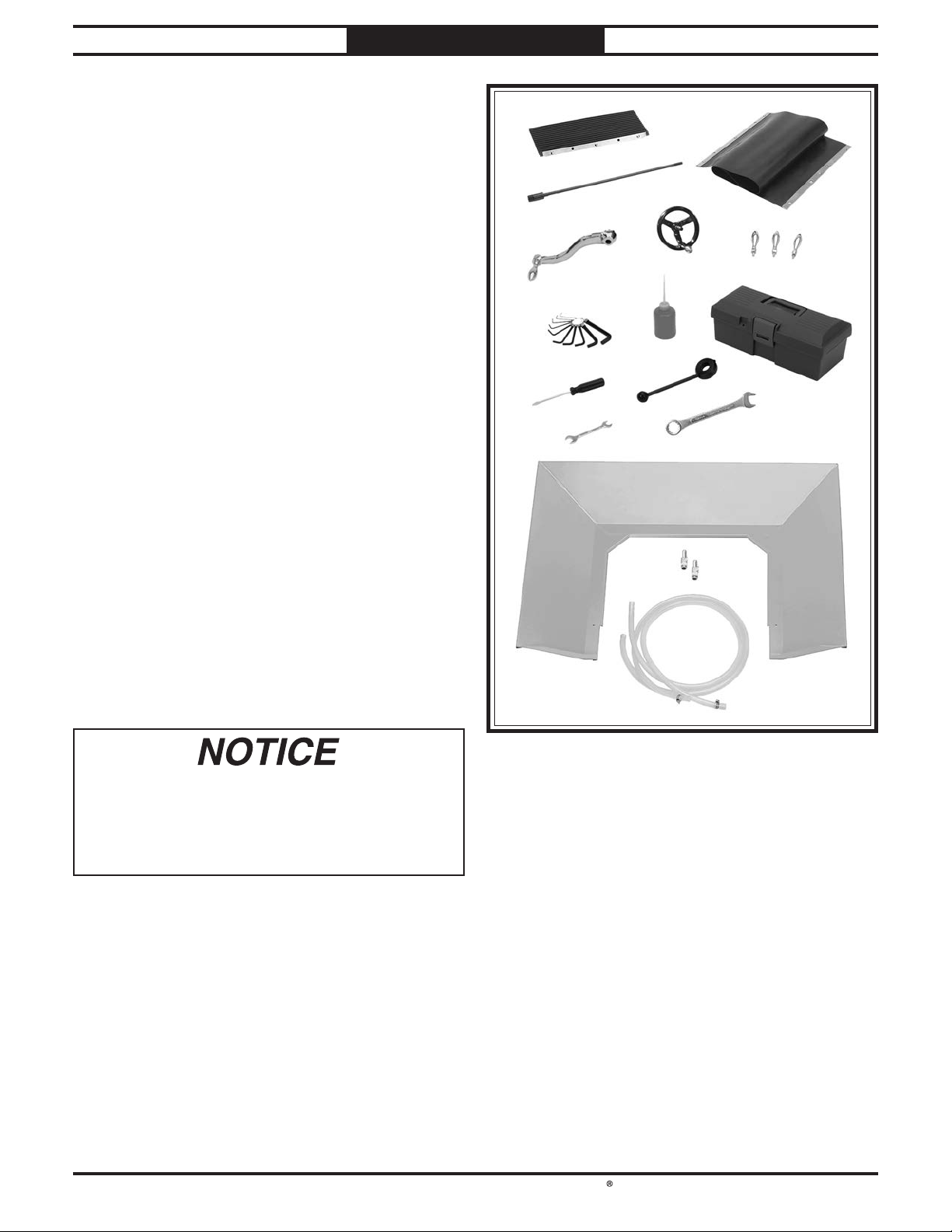

Included Accessories

10-Piece Hex Head Wrench Set (1.5 - 10mm) Open-Ends Wrench 10/12mm Combination Wrench 19mm Combination Screwdriver Oil Bottle Spare Key Set (Assorted Sizes) Toolbox

-9-

South Bend Tools

Model SB1124F

Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This responsibility includes proper installation in a safe environment, personnel training and usage authorization, regular inspection and maintenance, manual availability and comprehension, application of safety devices, integrity of cutting tools or accessories, and the usage of approved personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property damage from negligence, improper training, machine modiﬁ cations, or misuse. Failure to read, understand, and follow the manual and safety labels may result in serious personal injury, including amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

For Machines Mfd. Since 11/22

Understanding Risks of Machinery

Death or catastrophic harm WILL occur.

Death or catastrophic harm COULD occur.

Moderate injury or ﬁ re MAY occur.

Machine or property damage may occur.

Basic Machine Safety

equipment presents serious injury hazards to untrained users. To reduce the risk of injury, anyone who uses THIS item MUST read and understand this entire manual before starting.

Personal Protective Equipment:

servicing this item may expose the user to ﬂ ying debris, dust, smoke, dangerous chemicals, or loud noises. These hazards can result in eye injury, blindness, longterm respiratory damage, poisoning, cancer, reproductive harm or hearing loss. Reduce your risks from these hazards by wearing approved eye protection, respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves or bystanders. Only allow trained and properly supervised personnel to operate this item. Make sure safe operation instructions are clearly understood. If electrically powered, use padlocks and master switches, and remove start switch keys to prevent unauthorized use or accidental starting.

Guards/Covers:

moving parts during operation may cause severe entanglement, impact, cutting, or crushing injuries. Reduce this risk by keeping any included guards/covers/doors installed, fully functional, and positioned for maximum protection.

Accidental contact with

-10-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Entanglement: Loose clothing, gloves, neckties,

Chuck Keys or Adjusting Tools: Tools used to

SAFETY

jewelry or long hair may get caught in moving parts, causing entanglement, amputation, crushing, or strangulation. Reduce this risk by removing/securing these items so they cannot contact moving parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the risk of accidental injury. Do not let a temporary influence or distraction lead to a permanent disability! Never operate when under the influence of drugs/alcohol, when tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment may result in electrocution; operating near highly ﬂ ammable materials may result in a ﬁ re or explosion. Only operate this item in a dry location that is free from ﬂ ammable materials.

Electrical Connection: With electrically

powered equipment, improper connections to the power source may result in electrocution or fire. Always adhere to all electrical requirements and applicable codes when connecting to the power source. Have all work inspected by a qualified electrician to minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it is connected to the power source greatly increases the risk of injury from accidental startup. Always disconnect power BEFORE any service or adjustments, including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/ rotating parts will become dangerous projectiles if left in place when the machine is started. Reduce this risk by developing the habit of always removing these tools immediately after using them.

Work Area:

the risks of accidental injury. Only operate this item in a clean, non-glaring, and welllighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning equipment has higher risks of causing serious personal injury compared to those that are properly maintained. To reduce this risk, always maintain this item to the highest standards and promptly repair/service a damaged or malfunctioning component. Always follow the maintenance instructions included in this documentation.

Unattended Operation:

equipment that is left unattended while running cannot be controlled and is dangerous to bystanders. Always turn the power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when cutting, may contain chemicals known to the State of California to cause cancer, respiratory problems, birth defects, or other reproductive harm. Minimize exposure to these chemicals by wearing approved personal protective equipment and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can become dangerous projectiles if not secured or if they hit another object during operation. Reduce the risk of this hazard by verifying that all fastening devices are properly secured and items attached to spindles have enough clearance to safely rotate.

Loose workpieces,

Difﬁ cult Operations:

operations with which you are unfamiliar increases the risk of injury. If you experience difficulties performing the intended operation, STOP! Seek an alternative method to accomplish the same task, ask a qualified expert how the operation should be performed, or contact our Technical Support for assistance.

Attempting difficult

-11-

South Bend Tools

Model SB1124F

Understanding Controls:

Avoiding Entanglement:

Wear Face Shield:

Use Correct Spindle Speed:

Inspect Cutting Tool:

Properly Secure Cutter:

Power Disruption:

other components work as intended. Perform

You can be seriously injured or killed by getting clothing, jewelry, or long hair entangled with rotating cutter/spindle. You can be severely cut or have fingers amputated from contact with rotating cutters. You can be blinded or struck by broken cutting tools, metal chips, workpieces, or adjustment tools thrown from the rotating spindle with great force. To reduce your risk of serious injury when operating this machine, completely heed and understand the following:

SAFETY

For Machines Mfd. Since 11/22

Additional Milling Machine Safety

Make sure you understand the function and proper use of all controls before starting. This will help you avoid making mistakes that result in serious injury.

DO NOT wear loose clothing, gloves, or jewelry, and tie back long hair. Keep all guards in place and secure. Always allow spindle to stop on its own. DO NOT stop spindle using your hand or any other object.

Always wear a face shield in addition to safety glasses. This provides more complete protection for your face than safety glasses alone.

Follow recommended speeds and feeds for each size and type of cutting tool. This helps avoid tool breakage during operation and ensures best cutting results.

Clean Machine Safely: Metal chips or shavings

can be razor sharp. DO NOT clear chips by hand or compressed air that can force chips farther into machine—use a brush or vacuum instead. Never clear chips while spindle is turning.

Secure Workpiece To Table: Clamp workpiece

to table or secure in a vise mounted to table, so workpiece cannot unexpectedly shift or spin during operation. NEVER hold workpiece by hand during operation.

Properly Maintain Machine: Keep machine

in proper working condition to help ensure that it functions safely and all guards and

routine inspections and all necessary maintenance. Never operate machine with damaged or worn parts that can break or result in unexpected movement during operation.

Disconnect Power First: To reduce risk of

electrocution or injury from unexpected startup, make sure mill/drill is turned OFF, disconnected from power, and that all moving parts have come to a complete stop before changing cutting tools or starting any inspection, adjustment, or maintenance procedure.

Remove Chuck Key & Spindle Tools: Always

remove chuck key, drawbar wrench, and other tools used on the spindle immediately after use. This will prevent them from being thrown by the spindle upon startup.

sharpness, chips, or cracks before each use. Replace dull, chipped, or cracked cutting tools immediately.

tool or drill bit so it does not fly out of spindle during operation.

outage during operation, turn machine OFF to avoid a possible sudden startup once power is restored.

Inspect cutting tools for

Firmly secure cutting

In the event of a local power

-12-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PREPARATION

Preparation Overview Required for Setup

The purpose of the preparation section is to help you prepare your machine for operation. The list below outlines the basic process. Specific steps for each of these points will be covered in detail later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

Clean the machine and its components.

3. Identify an acceptable location for the

machine and move it to that location.

Level the machine and either bolt it to the

floor or place it on mounts.

Assemble the loose components and make

any necessary adjustments or inspections to ensure the machine is ready for operation.

Connect the machine to the power source.

7. Test run the machine to make sure it

functions properly and is ready for operation.

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so may result in serious personal injury or property damage.

The items listed below are required to successfully set up and prepare this machine for operation.

For Lifting

• A forklift or other power lifting device rated for the weight of the machine.

• Lifting straps w/safety hooks or chain (rated for at least 3000 lbs.)

For Power Connection

• A power source that meets the minimum circuit requirements for this machine. (Refer to Power Supply Requirements on Page 14 for details.)

• A qualified electrician to ensure a safe and code-compliant connection to the power source.

• 14AWG power cord with 15-20 plug (for 220V connection).

For Assembly

• Cleaner/Degreaser

• Disposable Shop Rags/Gloves

• Phillips Head Screwdriver #2

Precision Level 12"

•

• Thread-Sealing Tape or Pipe Sealant

• Two Assistants

• Safety Glasses for Each Person

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

-13 -

South Bend Tools

Model SB1124F

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed.

To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by a or qualified service personnel applicable electrical codes and safety standards.

Note: The circuit requirements in this manual are for machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure the circuit is properly sized.

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result—especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

A power supply circuit includes all electrical equipment between the main breaker box or fuse panel in your building and the incoming power connections inside the machine. This circuit must be safely sized to handle the full-load current that may be drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine can be converted to operate on a

Voltage Conversion

this have a verified ground and meet the requirements:

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

PREPARATION

For Machines Mfd. Since 11/22

Power Supply Requirements

Availability

in accordance with

Electrocution or fire may occur if machine is not correctly grounded and attached to the power supply. Use a qualified electrician to ensure a safe power connection.

n electrician

Circuit Information

For your own safety and protection of property, consult an electrician if you are unsure about wiring practices or applicable electrical codes.

a dedicated circuit—where only one

Circuit Requirements for 220V

Full-Load Current Rating

Full-Load Rating at 220V .................. 9.6 Amps

Full-Load Rating at 440V

-14-

.................. 4.8 Amps

Nominal Voltage ........... 208V/220V/230V/240V

Cycle Phase

Circuit Rating....................................... 15 Amps

Plug/Receptacle

.............................................................60 Hz

....................................................... 3-Phase

............................ NEMA 15-20

Circuit Requirements for 440V

440V power supply. To do this, follow the

instructions included in

manual. The intended 440V circuit must

following

Nominal Voltage ............................... 440V/480V

Cycle Phase

Circuit Rating....................................... 15 Amps

Connection

.............................................................60 Hz

....................................................... 3-Phase

..... Hardwire with Locking Switch

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

This machine must be grounded! In the event of grounding provides a path of least resistance for electric current electric shock.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipmentgrounding wire to a live (current carrying) terminal.

Check with an electrician or qualiﬁ ed service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded.

If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

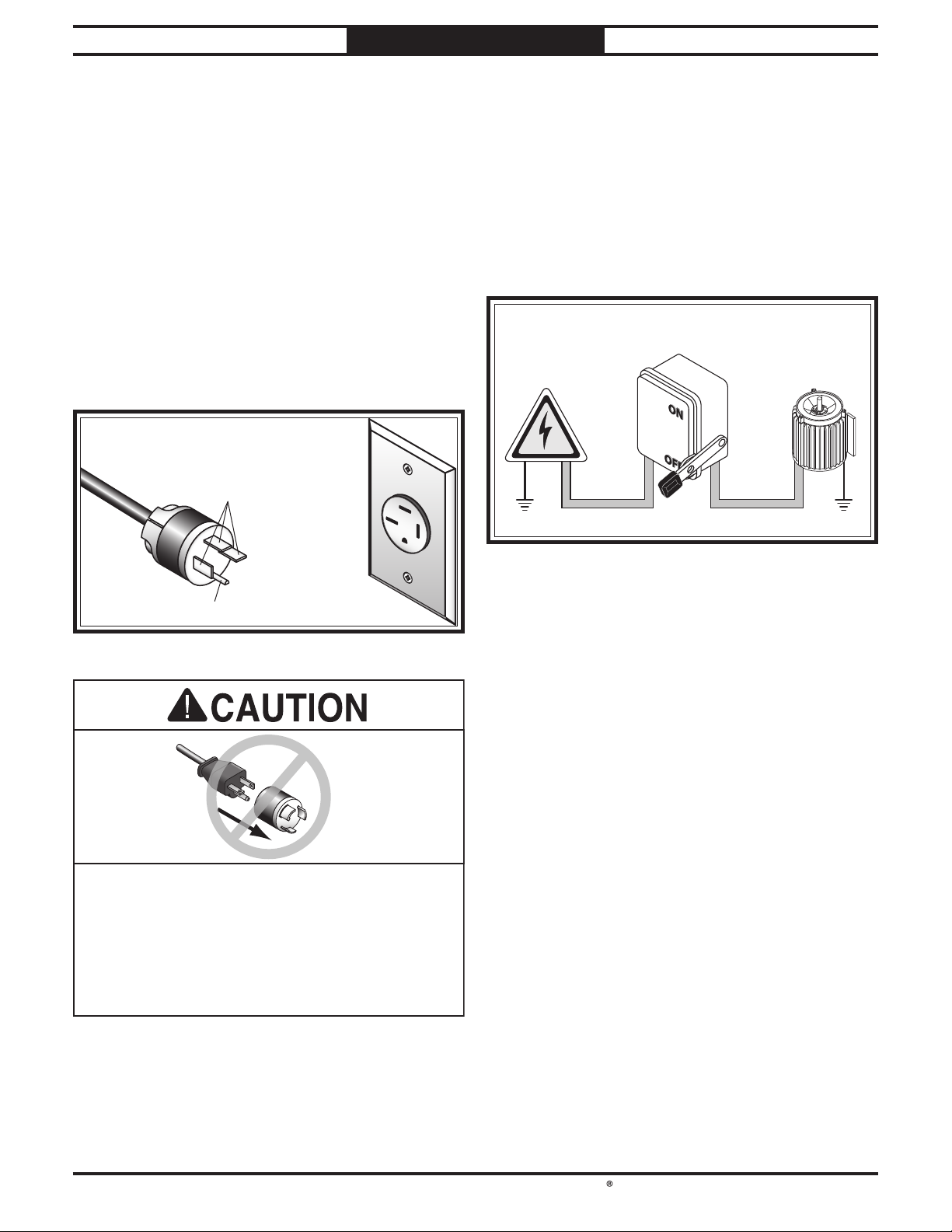

For 220V operation: Use the plug type listed in the

for this voltage. The listed plug (similar to the following figure) has an equipment-grounding wire to safely ground the machine.

into a matching installed and grounded in accordance with all local codes and ordinances.

For 440V operation: As specified in Circuit Requirements

hardwired to the power source, using a locking switch as a disconnecting means (see below). The machine must also be connected to a grounded metal permanent wiring system; or to a system having an equipment-grounding conductor. Due to the complexity and high voltage involved, this type of installation MUST be done by a qualified

PREPARATION

Grounding Requirements

certain types of malfunctions or breakdowns,

in order to reduce the risk of

Circuit Requirements

The plug must only be inserted

receptacle (outlet) that is properly

GROUNDED

15-20 RECEPTACLE

Current Carrying Blades

15-20 PLUG

for 440V, the machine must be

LOCKING

DISCONNECT SWITCH

Power Source

Conduit

Ground Ground

Figure Figure 8. Typical setup of a permanently connected . Typical setup of a permanently connected

machine.machine.

Conduit

Machine

Grounding Pin

Figure Figure 7. NEMA 15-20 plug and receptacle.. NEMA 15-20 plug and receptacle.

No adapter should be used with plug. If plug does not fit available receptacle, or if machine must be reconnected for use on a different type of circuit, reconnection must be performed by an electrician or qualified service personnel, and it must comply with all local codes and ordinances.

-15 -

South Bend Tools

Model SB1124F

We do not recommend using an extension cord with this machine. If you must use one, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle listed in the

Requirements

meet the following requirements:

PREPARATION

For Machines Mfd. Since 11/22

Phase Converters

DO NOT use a static phase converter to create 3-phase power—it can quickly decrease the life of electrical components on this machine. If you must use a phase converter, only use a rotary phase converter. See the Model G5844 in Accessories on Page 47.

Extension Cords (220V Only)

Circuit

for the applicable voltage, and

Items Needed Qty

Phillips Head Screwdriver #2 ...............................1

Hex Wrench 8mm TECO Overload Relay RHU-10/4.8K1

.................................................1

................. 1

To convert SB1124F to 440V operation:

1. DISCONNECT MACHINE FROM POWER!

2. Open electrical cabinet and locate

transformer (see Figure 9).

3. Move "R" wire from 220V terminal to 440V

terminal (see Figure 9).

0V 220V 380V 400V 440V

Transformer

LCE

LCPIC-TBSM-100400

110V 0V 24V 0V

Minimum Gauge Size ............................12 AWG

Maximum Length (Shorter is Better)

Converting Voltage to 440V

The Model SB1124F is prewired to run on 220V power, but it can be converted to 440V operation. This conversion consists of: 1) Disconnecting the machine from power, 2) rewiring the transformer for 440V operation, 3) replacing the overload relay, and 4) rewiring the motors for 440V operation.

All wiring changes must be inspected by a qualiﬁed electrician or service personnel before the saw is connected to the power source. If, at any time during this procedure you need assistance, call Grizzly Tech Support at (570) 546-9663.

-16 -

....50 ft.

Figure Figure 9. Moving "R" wire to 440V terminal.. Moving "R" wire to 440V terminal.

4. Remove overload relay and replace with

TECO RHU-10/4.8K1 overload relay (refer to wiring diagrams on Pages 68–69). Set amperage dial to 4.8A.

5. Close electrical cabinet.

6. Remove motor junction box covers on main

and coolant motors.

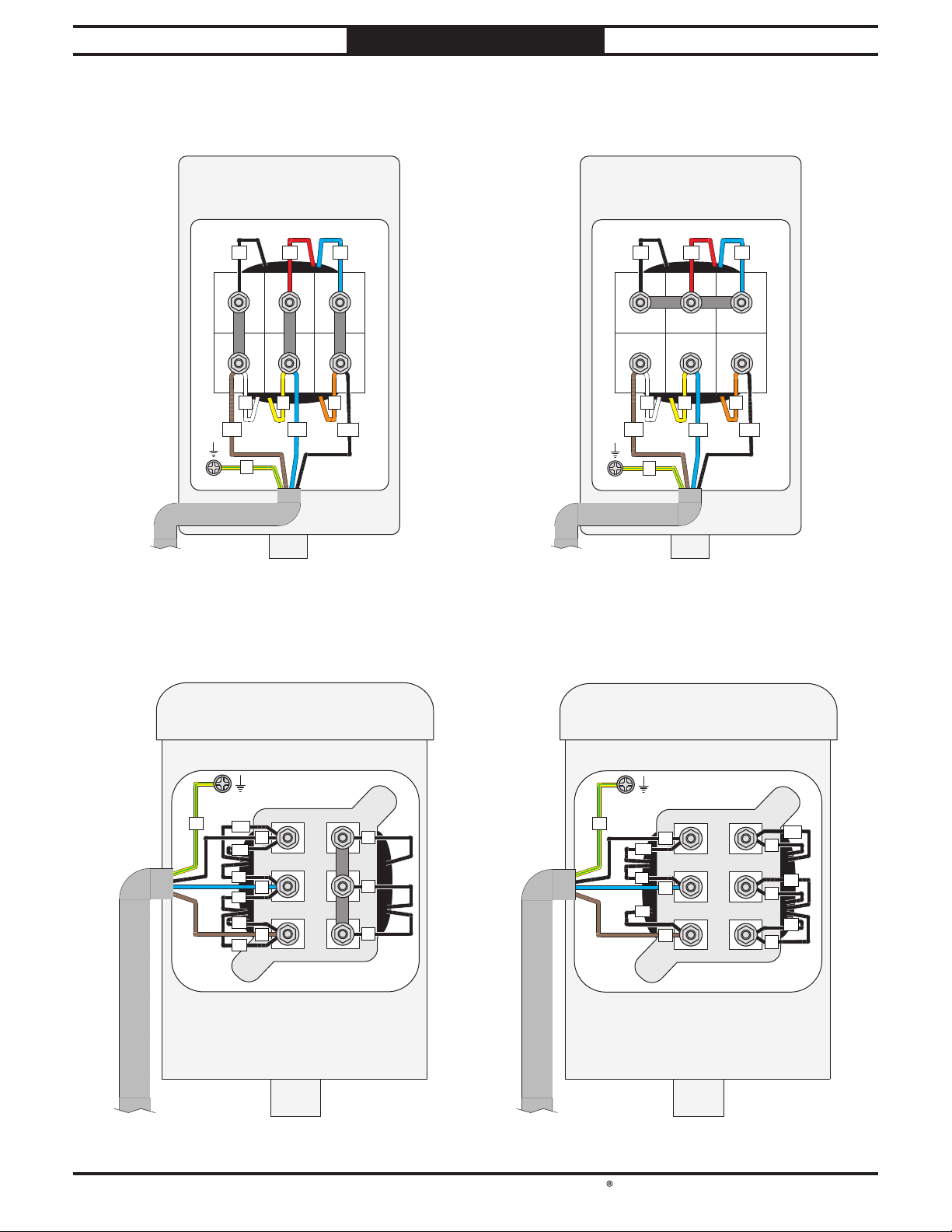

7. Rewire main motor and coolant pump for

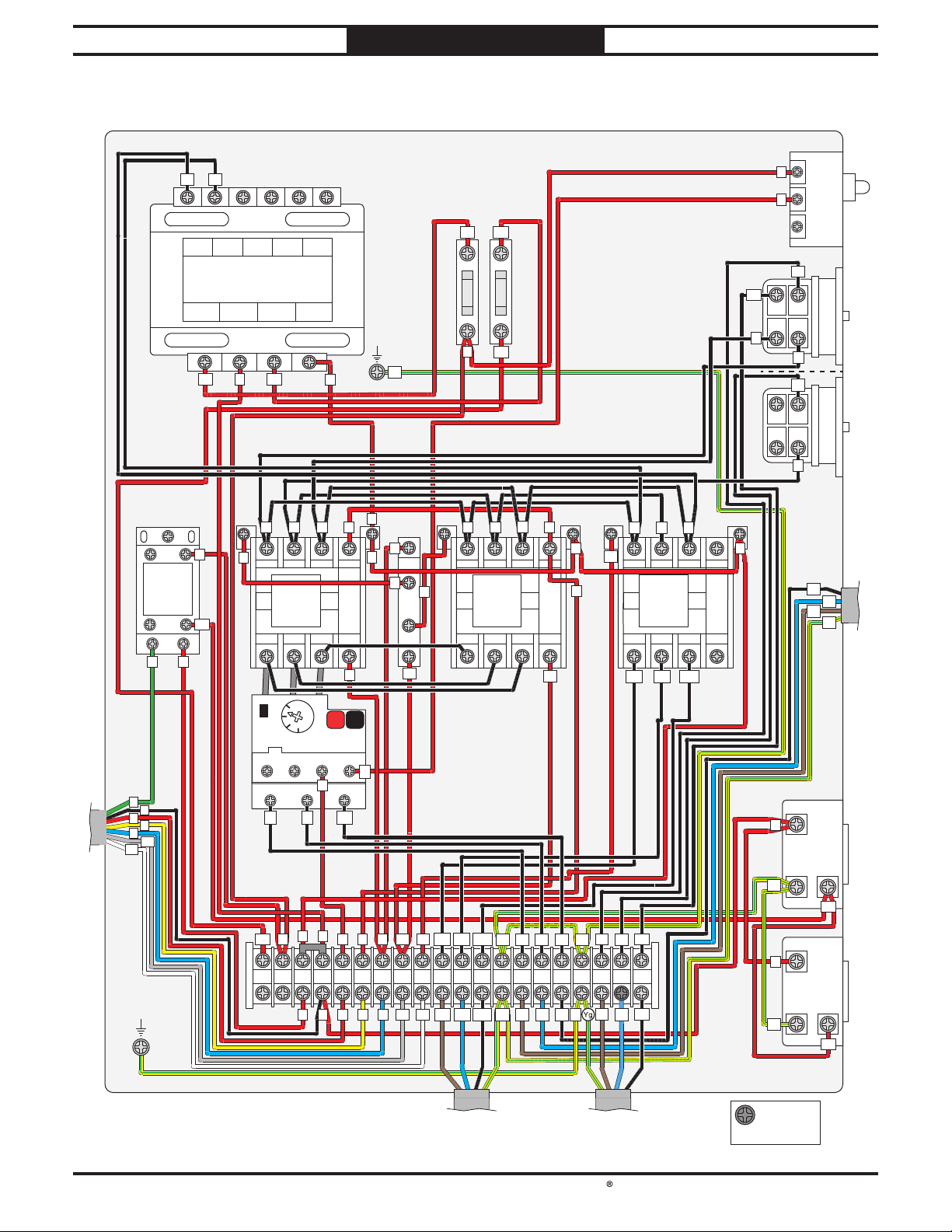

440V operation (refer to wiring diagrams on Page 71).

Note: If the diagram included on the motor

conflicts with the one in this manual, the motor may have changed since the manual was printed. Use the diagram provided on the motor.

8. Install junction box covers on main and

coolant motors.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

This item was carefully packaged to prevent damage during transport. If you discover any damage, please immediately call Customer Service at need to file a freight claim, so save the containers and all packing materials for possible inspection by the carrier or its agent.

PREPARATION

Unpacking

(360) 734-1540 for advice. You may

Inventory

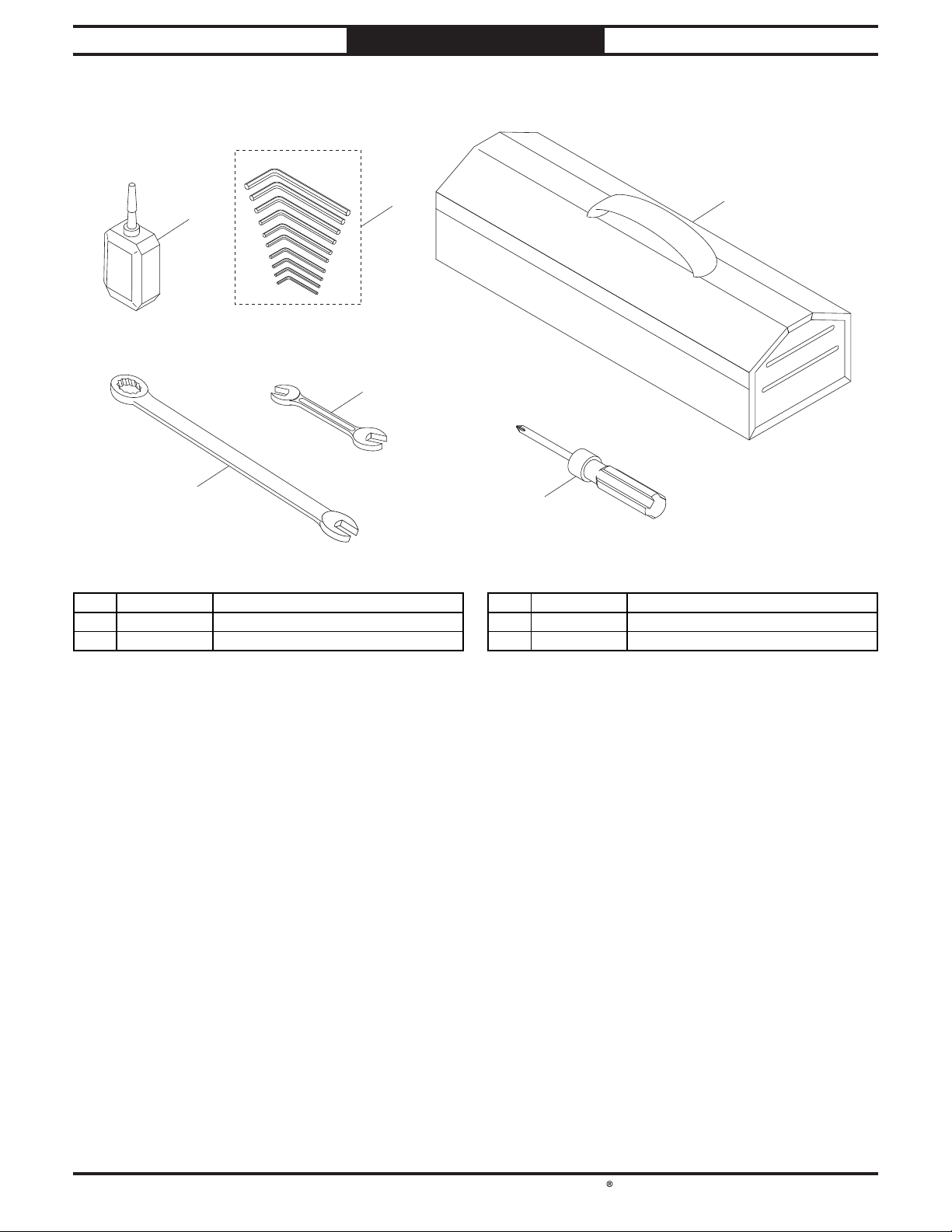

Inventory (Figure 10

A. Front Way Cover ............................................ 1

Rear Way Cover .............................................1

Drawbar 7⁄16"-20 x 18 1⁄2" ..................................1

Knee Crank ....................................................1

Fine Downfeed Handwheel............................ 1

Revolving Handles .........................................3

Hex Wrench 10-Pc. Set 1.5–10mm ................ 1

Oil Bottle ........................................................ 1

Tool Box .......................................................... 1

Combination Screwdriver .............................. 1

Coarse Downfeed Lever ................................. 1

Open-End Wrench 10/12mm ......................... 1

Combo Wrench 19mm .................................... 1

Splash Pan ...................................................... 1

Coolant Return Hose Pipe Fittings ............... 2

Coolant Return Hoses w/Clamps .................. 2

Spare Key Set (Not Shown) ........................... 1

) Qty

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packing materials while unpacking or they are pre-installed at the factory.

Figure Figure 10. Inventory.. Inventory.

-17-

South Bend Tools

Model SB1124F

The unpainted surfaces are coated with a heavy-duty rust preventative that prevents corrosion during shipment and The beneﬁ t of this rust preventative is that it works very well. The downside is that it time-consuming

Be patient and do a careful job when and removing the rust preventative you spend doing this will reward you with smooth for the proper care of

Although there are many ways to successfully remove the rust preventative, the process works well in most situations

Before cleaning, gather the following:

• Disposable

• Cleaner/degreaser

• Safety glasses & disposable gloves

Note:

WD•40 can be used to remove rust preventative. Before using these products, though, test them on an inconspicuous area of a painted surface to make sure they will not damage it.

GAS

Order online at

Call 1-800-523-477

PREPARATION

Cleaning & Protecting

For Machines Mfd. Since 11/22

at the factory

to thoroughly remove.

-sliding parts and a better appreciation the unpainted surfaces.

rags

(certain citrus-based degreasers work extremely well and they have non-toxic fumes)

Automotive degreasers, mineral spirits, or

. The time

following

storage.

can be

cleaning

Avoid chlorine-based solvents, such as acetone or brake parts cleaner that may damage painted surfaces. Always follow the manufacturer’s instructions when using any type of cleaning product.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat all surfaces that have rust preventative

with a liberal amount of your cleaner or degreaser and let them soak for a few minutes.

3. Wipe off the surfaces. If your cleaner or

degreaser is effective, the rust preventative will wipe off easily.

Note: To clean off thick coats of rust

preventative on ﬂ at surfaces, such as beds or tables, use a PLASTIC paint scraper to scrape off the majority of the coating before wiping it off with your rag. (Do not use a metal scraper or it may scratch the surface.)

4. Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant or light oil to prevent rust.

-18 -

Gasoline and petroleum products have low flash points and can explode or cause fire if used for cleaning. Avoid using these products to remove rust preventative.

Many cleaning solvents are toxic if inhaled. Minimize your risk by only using these products in a well ventilated area.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

www.grizzly.com

Figure Figure 11.. T23692 Orange Power Degreaser.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Weight Load

equipment that may be installed on the machine,

Physical Environment

The physical environment where your machine is operated is important for safe operation and longevity of machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature 104°F; the relative humidity of is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate enough to perform operations safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

PREPARATION

Location

Physical Environment Electrical Installation Lighting Weight Load

Space Allocation

20–95% (non-condensing); or the environment

parts. For best results, operate this

or flammable

is outside the range of 41°–

is outside the range

Refer to the Machine Speciﬁcations for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional

and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

Wall

30"

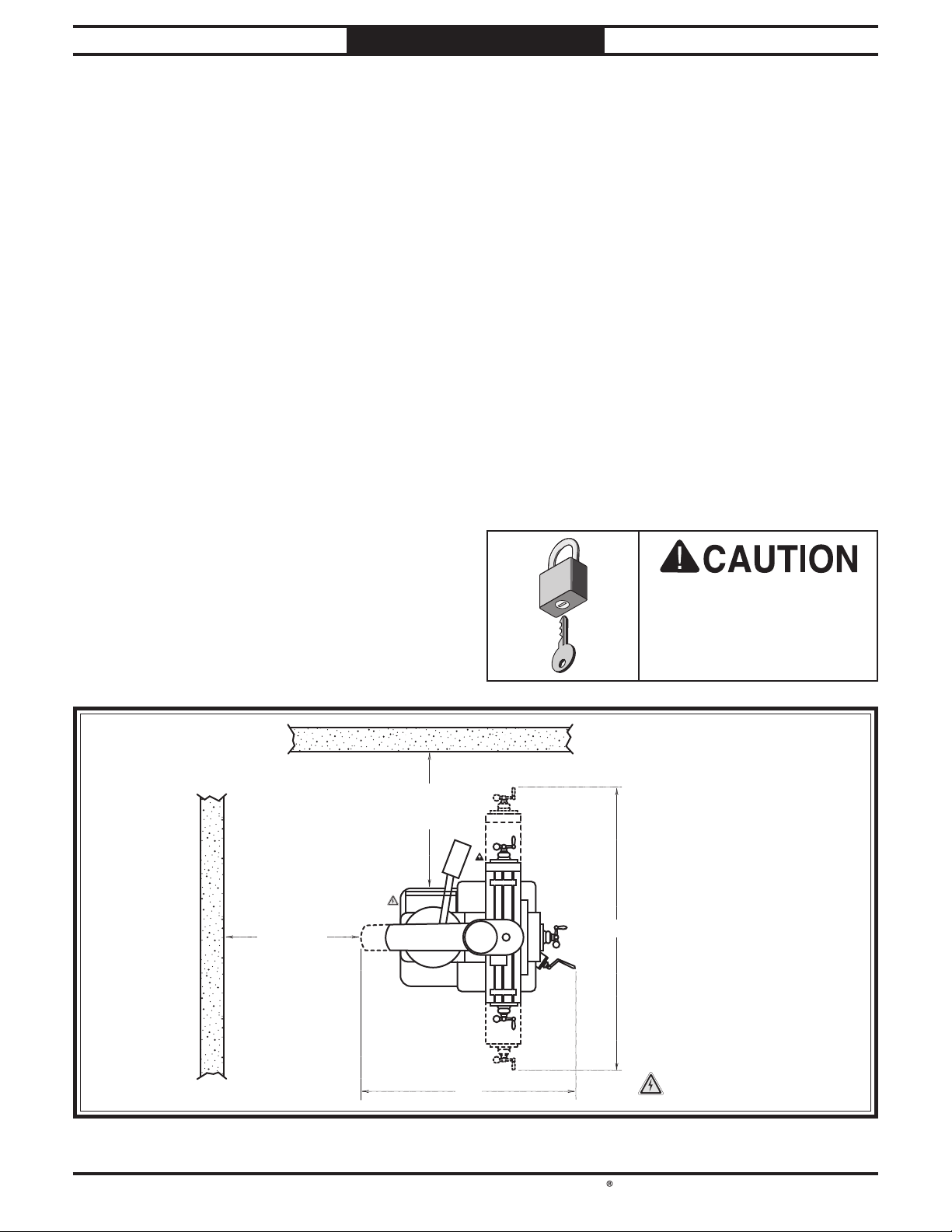

Minimum

Clearance

Children or untrained people may be seriously

Wall

30"

Minimum

Clearance

63"

injured by this machine. Only install in an access restricted location.

95"

Electrical

Connection

Figure Figure 12. Clearances.. Clearances.

-19 -

South Bend Tools

Model SB1124F

Lifting & Moving

PREPARATION

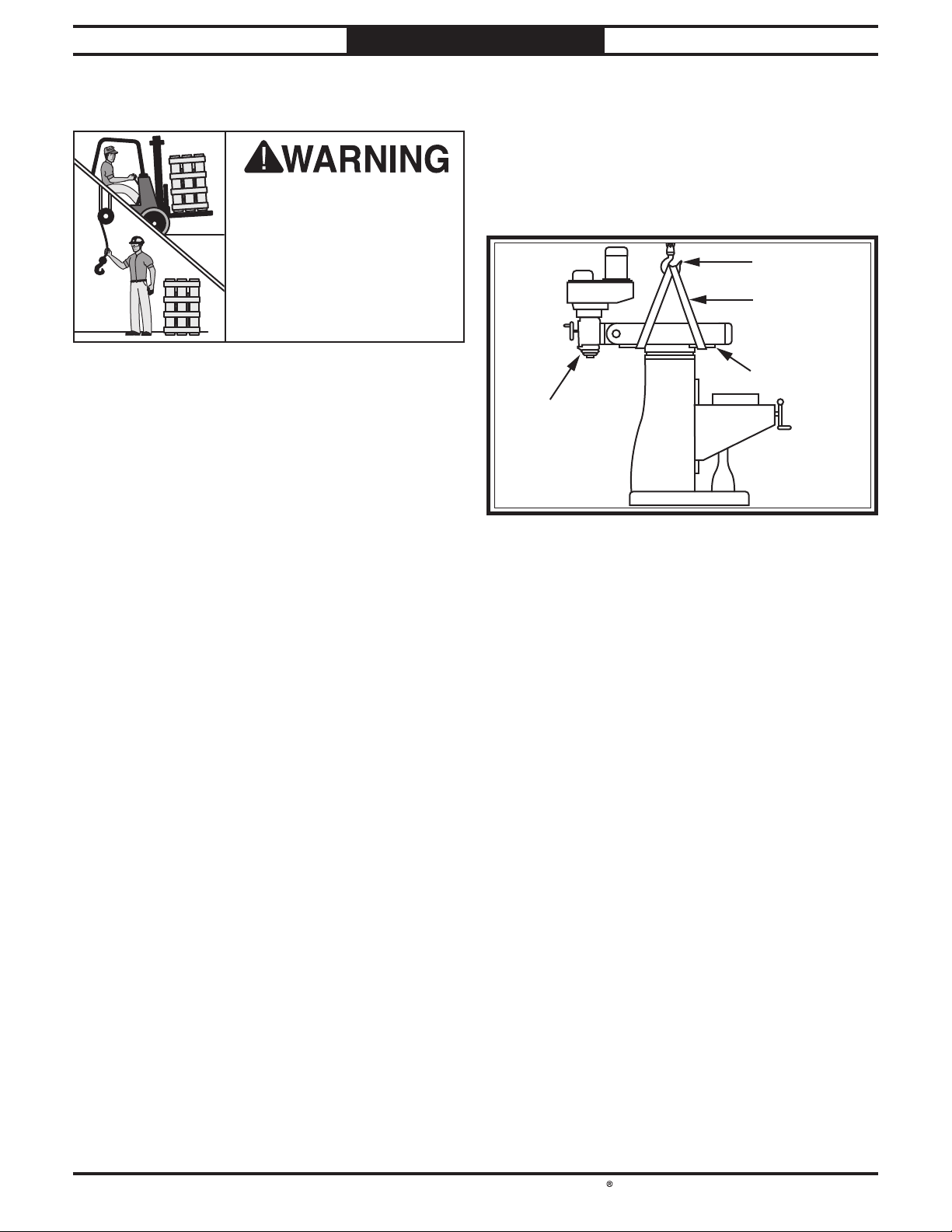

3. Place lifting web straps under ram and

connect them to safety hook, as illustrated in Figure 13.

For Machines Mfd. Since 11/22

This machine and its parts are heavy! Serious personal injury may occur if safe moving methods are not used. To reduce the risk of a lifting or dropping injury, ask others for help and use power equipment.

The method of lifting and moving the mill described below requires at least two other people for assistance, and a forklift with two lifting web straps rated for at least 3000 lbs. each.

IMPORTANT: Before lifting the mill, make sure the four turret lock bolts (two on either side of the ram) are torqued to 47 ft/lbs.

To lift and move mill:

1. Remove crate from shipping pallet, then

move pallet and mill to installation location.

Note: Place padding between straps and mill

to protect ram and ways, and to keep from cutting lifting straps.

Safety Hook

Lifting Straps

Padding (1 of 2)

Headstock Facing Backward

Figure Figure 13. Lifting mill using web straps.. Lifting mill using web straps.

4. Unbolt mill from shipping pallet.

5. With assistants steadying load to keep it

from swaying, lift mill a couple of inches.

Rotate ram 180° so headstock is facing

backward, then rotate head upright, as illustrated in Figure 13. (Refer to Ram

Movement on Page 34 and Headstock Movement on Page 33 for detailed

instructions).

Note: After re-positioning ram and

headstock, make sure they are locked in place to prevent unexpected movement during lifting and moving.

— If mill tips to one side, lower it to the

ground and adjust ram or table to balance load. Make sure to tighten lock levers and bolts before lifting mill again.

— If mill lifts evenly, continue to move it to

its permanent location.

Rotate ram 180° so headstock is facing

forward.

-20-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Leveling machinery helps precision components, such as bed ways, remain straight and ﬂ at during the lifespan of the machine. Components on an unleveled machine may slowly twist due to the dynamic loads placed on the machine during operation.

For best results, use a precision level that is at least 12" long and sensitive enough to show a distinct movement when a 0.003" shim (approximately the thickness of one sheet of standard newspaper) is placed under one end of the level.

See the ﬁ gure below for an example of a high precision level.

Generally, you can either bolt your machine to the ﬂ oor or mount it on machine mounts. Although not required, we recommend that you secure the machine to the ﬂ oor and level it while doing so. Because this is an optional step and ﬂ oor materials may vary, hardware for securing the machine to the ﬂ oor is not included.

PREPARATION

Leveling & Mounting

We strongly recommend securing your machine to the floor if it is hardwired to the power source. Consult with your electrician to ensure compliance with local codes.

Leveling

Anchoring to Floor

Number of Mounting Holes ..........................................4

Diameter of Mounting Hardware

Anchoring machine to the ﬂoor prevents tipping or shifting that may occur during operation with large/heavy workpieces.

If machine is installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may require that it be anchored to the ﬂoor.

Mounting to Concrete Floors

Lag shield anchors with lag screws (see below) are a popular way to anchor machinery to a concrete ﬂoor, because the anchors sit ﬂush with the ﬂoor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology speciﬁed by the code.

.............................1⁄2"

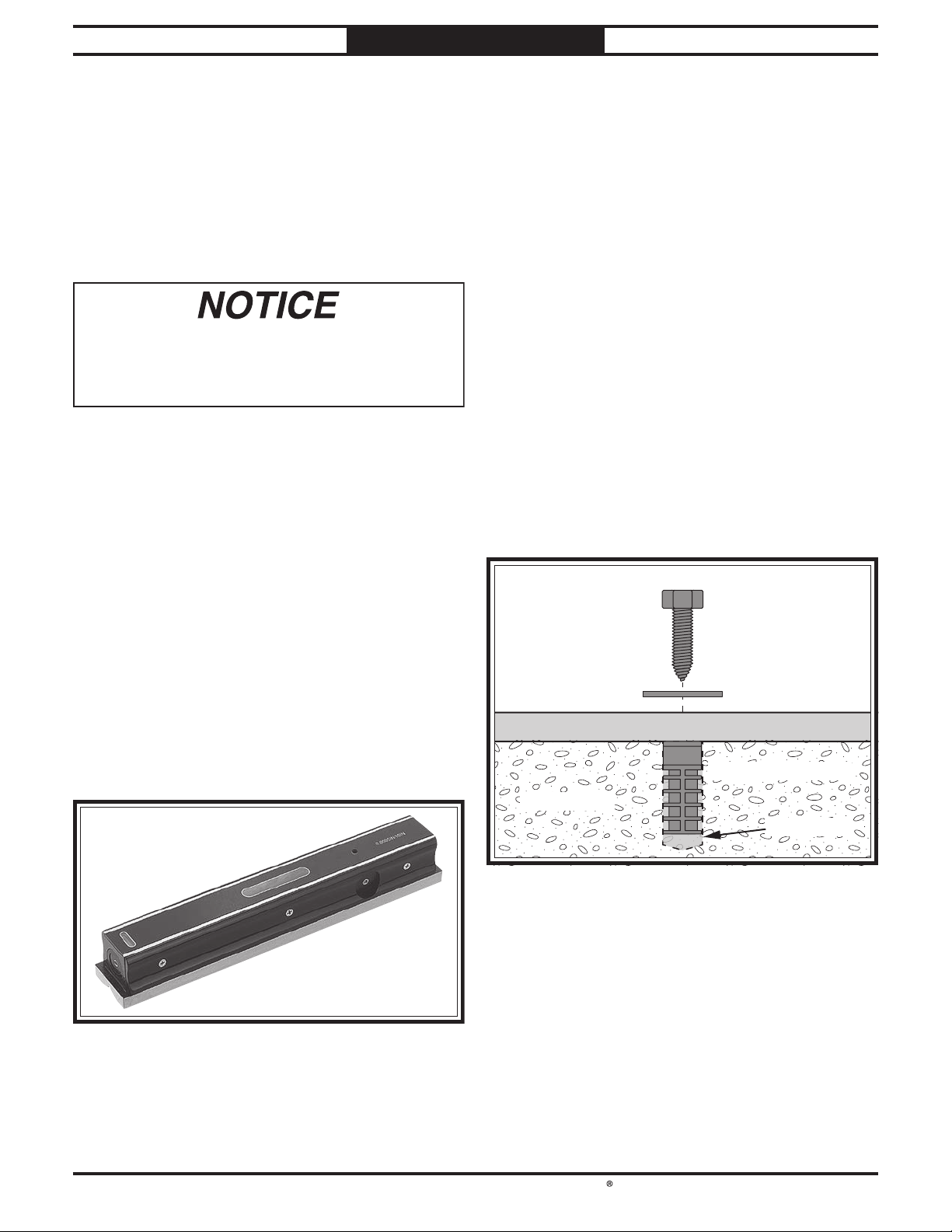

Figure Figure 14. Example of a precision level.. Example of a precision level.

Lag Screw

Flat Washer

Machine Base

Lag Shield Anchor

Concrete

Drilled Hole

Figure Figure 15. Popular method for anchoring machinery to . Popular method for anchoring machinery to

a concrete floor.a concrete floor.

-21-

South Bend Tools

Model SB1124F

PREPARATION

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to Required for Setup and gather all the items listed. To ensure the assembly process goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if applicable).

To assemble machine:

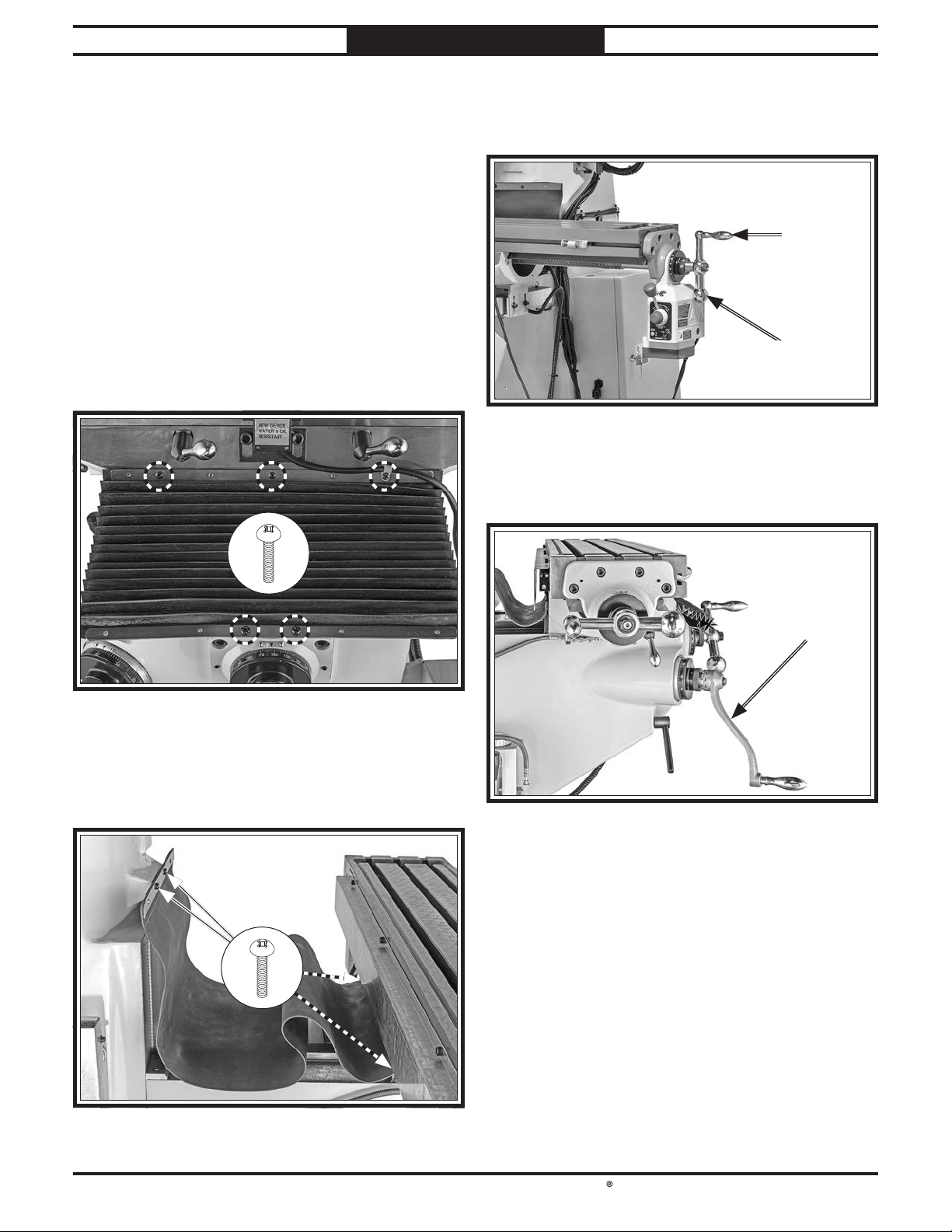

1. Remove (5) Phillips head screws from front

of saddle and knee (see Figure 16), position pleated way cover, and secure with removed screws.

For Machines Mfd. Since 11/22

3. Thread (1) revolving handle (see Figure

18) into small end of each ball handle and

tighten to secure.

Revolving Revolving

Handle Handle

(1 of 3)(1 of 3)

Ball Handle Ball Handle

(1 of 3)(1 of 3)

Figure Figure 18. Revolving handle installed in ball handle.. Revolving handle installed in ball handle.

Slide knee crank (see Figure 19) onto

Z-axis leadscrew, and ensure that teeth fully engage.

x 5

Figure Figure 16. Front way cover installed.. Front way cover installed.

2. Remove (4) Phillips head screws (see Figure

17) from column and back of table, position rear way cover, and secure with removed screws.

x 4

Knee CrankKnee Crank

Figure Figure 19. Knee crank installed.. Knee crank installed.

Figure Figure 17. Rear way cover installed.. Rear way cover installed.

-22-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PREPARATION

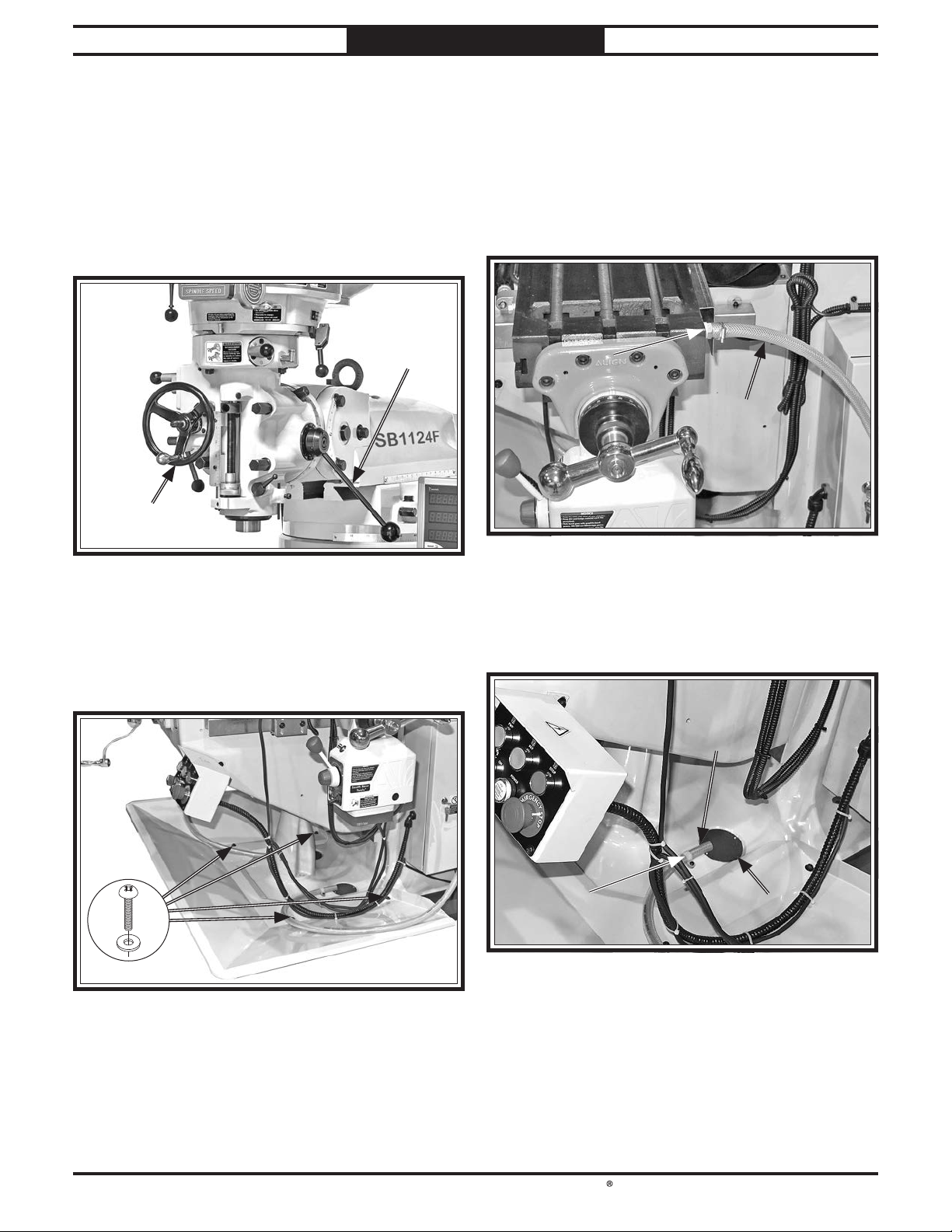

Install coarse downfeed lever and secure

with set screw (see Figure 20).

Install fine downfeed handwheel (see Figure

20).

Note: Ensure pins on back of coarse downfeed

lever and ﬁne downfeed handwheel are fully seated in hubs before use.

CoarseCoarse

DownfeedDownfeed

LeverLever

FineFine

DownfeedDownfeed

HandwheelHandwheel

Figure Figure 20. Coarse downfeed lever and fine downfeed . Coarse downfeed lever and fine downfeed

handwheel installed.handwheel installed.

7. Remove (4) Phillips head screws and flat

washers (see Figure 21) from base, slide splash pan into position, and secure with removed screws.

Apply thread-sealing tape or pipe sealant on

threads of (2) pipe fittings, and install them in coolant drain holes on back of table (see Figure 22).

Loosen hose clamps on coolant return hoses,

push hoses onto pipe fittings (see Figure

22), and tighten clamps.

Pipe Fitting Pipe Fitting

(1 of 2)(1 of 2)

CoolantCoolant

Return HoseReturn Hose

(1 of 2)(1 of 2)

Figure Figure 22. Coolant return hose connections.. Coolant return hose connections.

10.

Loosen hose clamps above coolant return

screens (see Figure 23), insert hoses so they will drain into screens, then tighten hose clamps.

CoolantCoolant

Return HoseReturn Hose

(1 of 2)(1 of 2)

x 4

Figure Figure 21. Splash pan installed.. Splash pan installed.

Hose Clamp Hose Clamp

(1 of 2)(1 of 2)

Figure Figure 23. Coolant return hose connected.. Coolant return hose connected.

CoolantCoolant

Return ScreenReturn Screen

-23-

South Bend Tools

Model SB1124F

PREPARATION

For Machines Mfd. Since 11/22

Power Connection (220V)

Electrocution or fire may occur if machine is ungrounded, incorrectly connected to power, or connected to an undersized circuit. Use a qualified electrician to ensure a safe power connection.

Before the machine can be connected to the power source, an electrical circuit and connection device must be prepared according to Power Supply Requirements on Page 14, and all previous setup instructions in this manual must be complete to ensure that the machine has been assembled and installed properly.

Connecting Plug to Power Cord

To connect a plug to a power cord, install a NEMA 15-20 plug on the end of the power cord, per the plug manufacturer's instructions. If no instructions are included, use the wiring diagram on Page 68.

Power Connection

Insert the power cord plug into a matching power supply receptacle. The machine is now connected to the power source.

Power Connection (440V)

Electrocution or fire may occur if machine is ungrounded, incorrectly connected to power, or connected to an undersized circuit. Use a qualified electrician to ensure a safe power connection.

Hardwiring to Power Source

Hardwire setups require power supply lines to be enclosed inside of a conduit, which is securely mounted and constructed in adherence to applicable electrical codes.

A hardwire setup for this machine must be equipped with a locking disconnect switch as a means to disconnect the power during adjustments or maintenance, which is a typical requirement for many lock-out/tag-out safety programs.

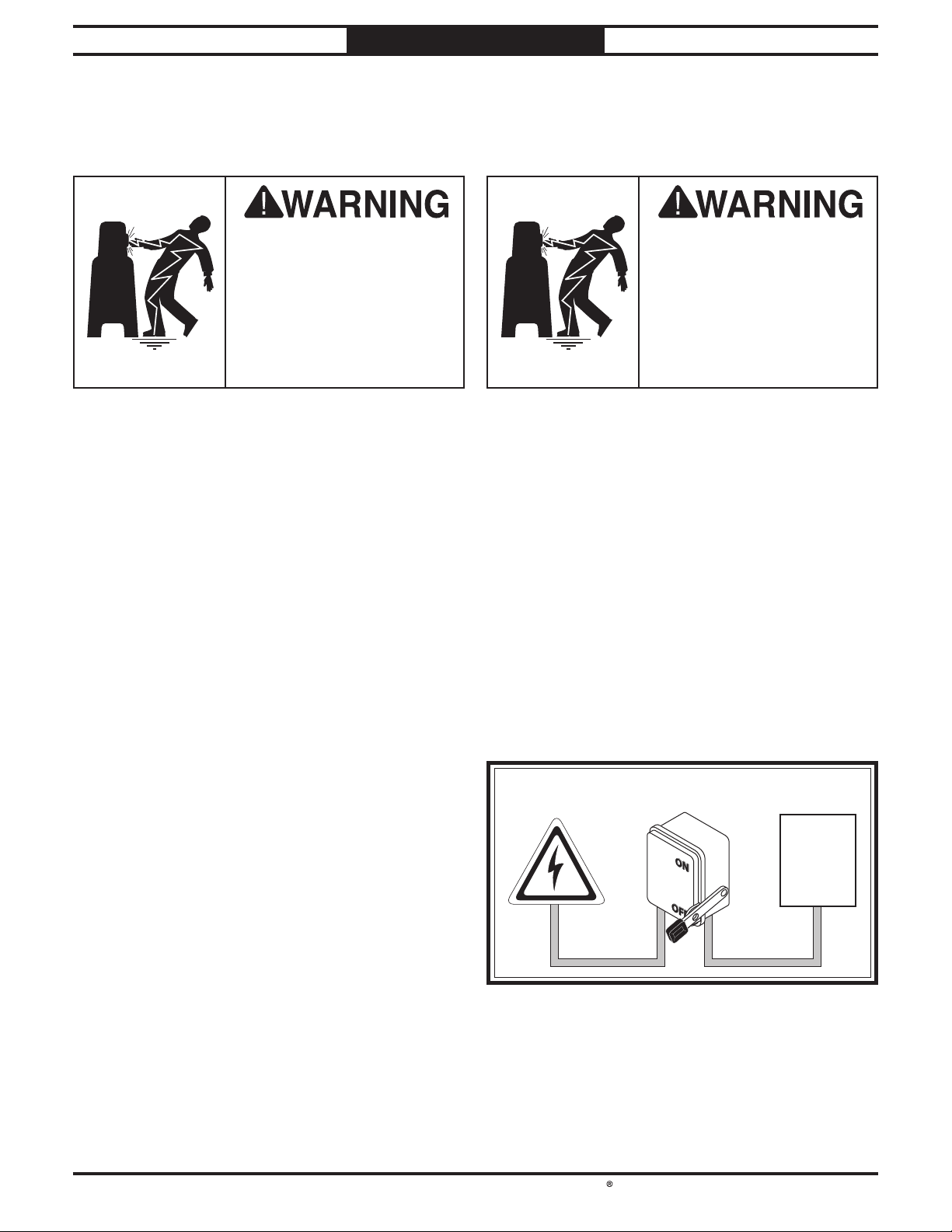

Figure 24 shows a simple diagram of a hardwire setup with a locking disconnect switch between the power supply and the machine.

Locking

Power Source

Disconnect Switch

Machine

If you need to disconnect the machine from power later, pull the plug completely out of the receptacle.

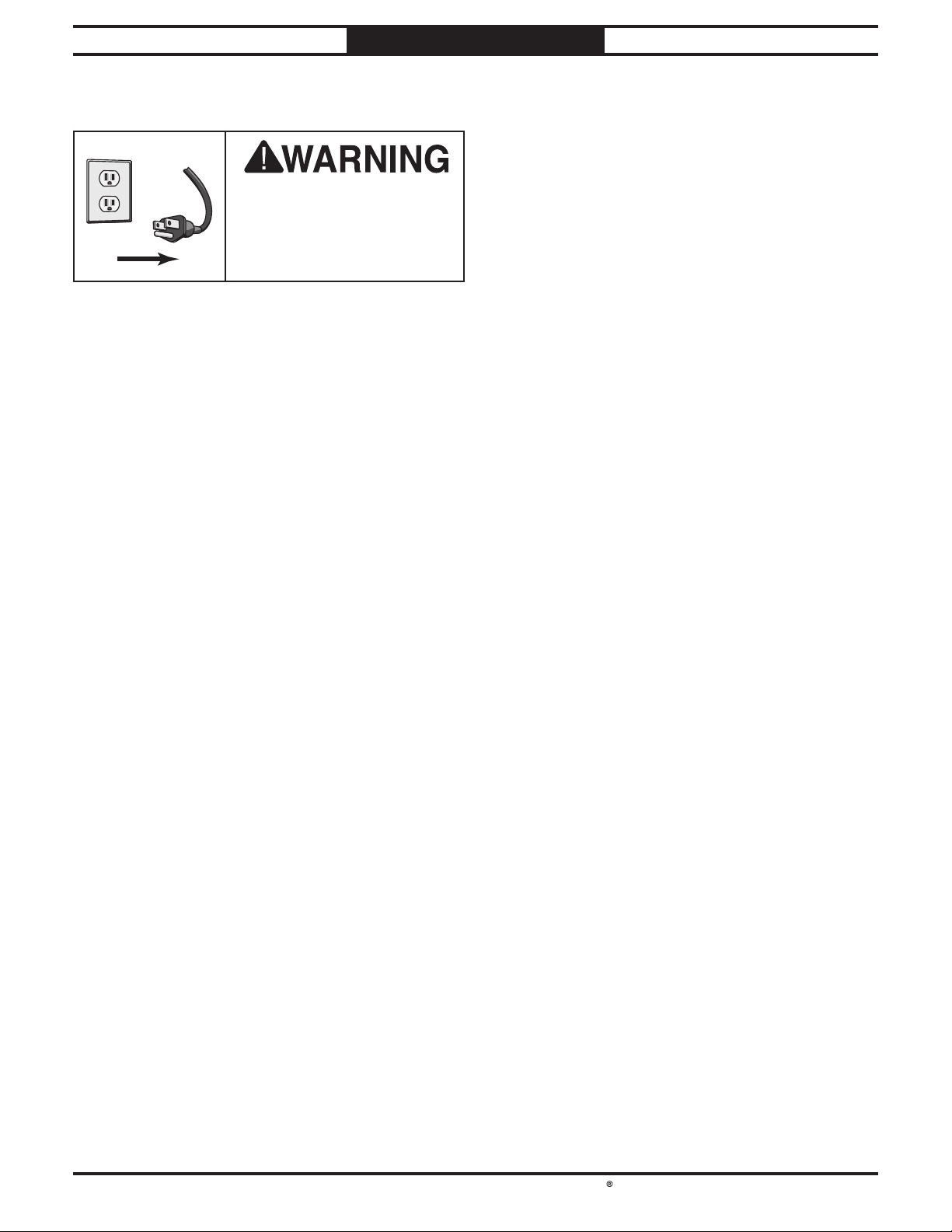

Note About Extension Cords: Using an incorrectly-sized extension cord may decrease the life of electrical components on your machine. If you must use an extension cord, refer to Extension Cords on Page 16 for more information.

-24-

Conduit Conduit

Figure Figure 24. Typical hardwire setup with a locking . Typical hardwire setup with a locking

disconnect switch.disconnect switch.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PREPARATION

Due to the complexity required for planning, bending, and installing the conduit necessary for a code-compliant hardwire setup, an electrician or other qualified person MUST perform this type of installation.

Connecting power supply wires to machine without first disconnecting power supply may result in serious injury or death.

Tool Needed Qty

Phillips Head Screwdriver #2 ...............................1

Conduit

............................................. As Necessary

To connect power supply wires to machine:

1. Open electrical cabinet.

2. Insert incoming power wires through strain

relief (see Figure 25) at bottom of electrical cabinet.

3. Connect ground wire to bottom of ground

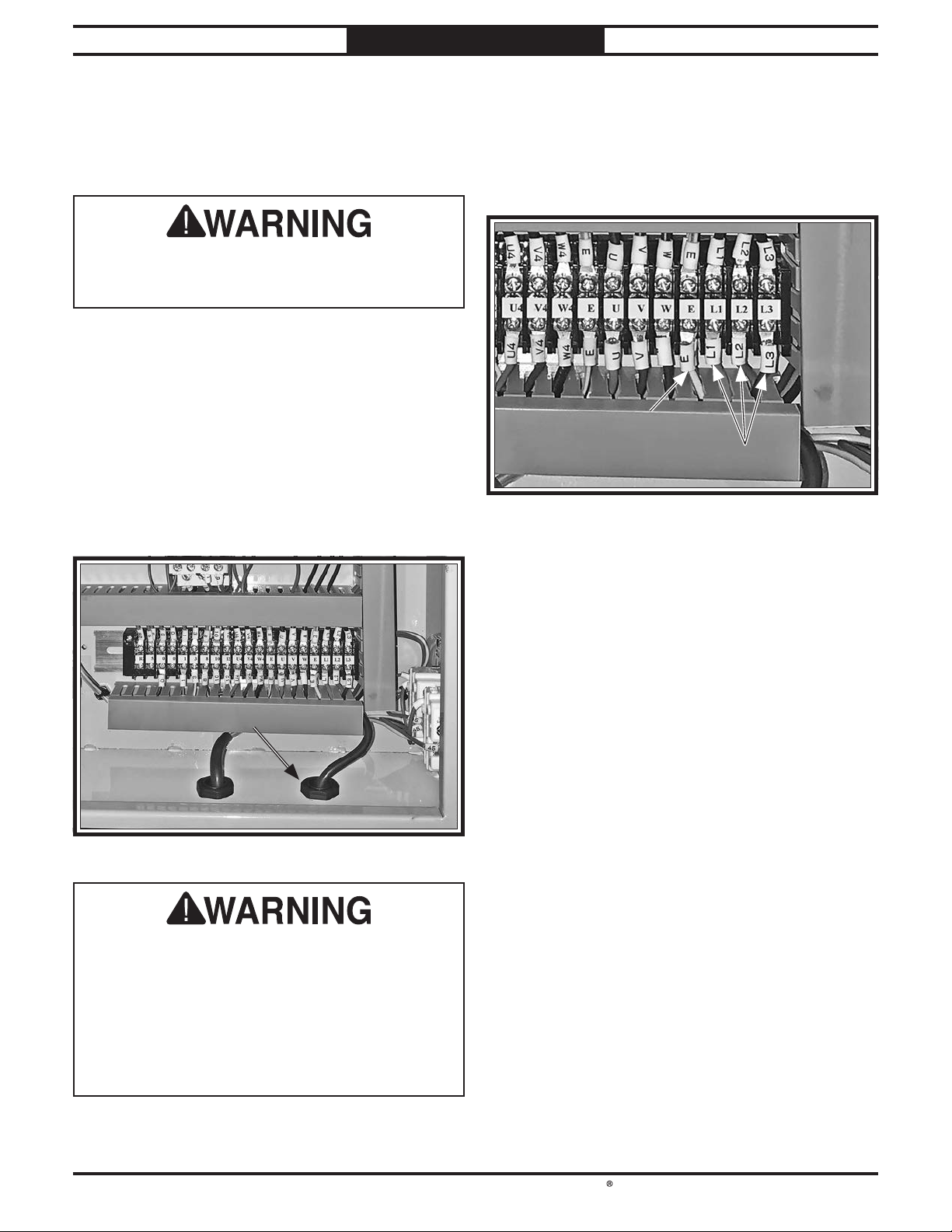

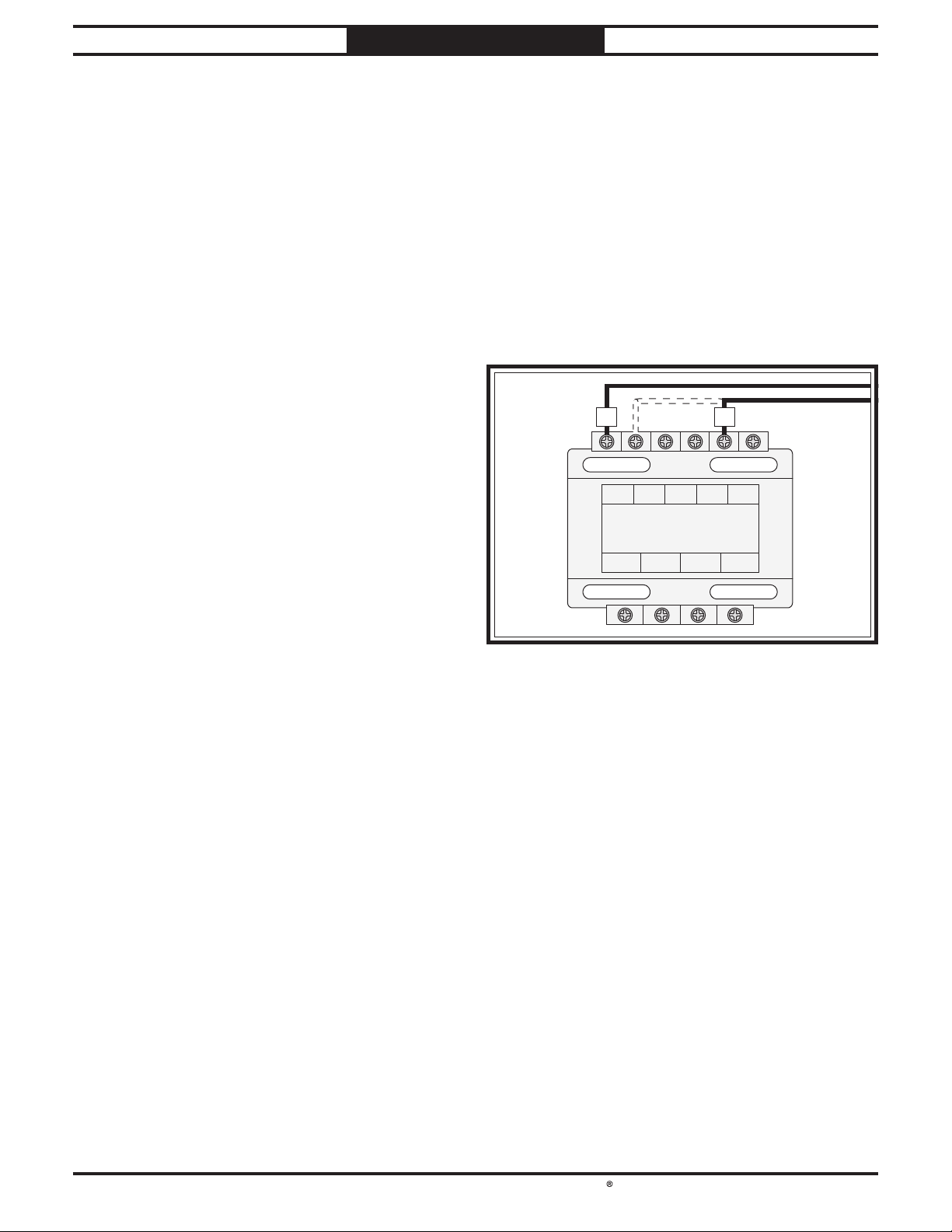

terminal "E", then connect incoming power wires to bottom of "L1", "L2", and "L3" terminals (see Figure 26). If using a phase converter, connect wild wire to "L2" terminal.

Ground TerminalGround Terminal

Incoming Power Incoming Power

TerminalsTerminals

Figure Figure 26. Incoming ground and power wire terminals.. Incoming ground and power wire terminals.

4. Shut off main power at power source circuit

breaker and attach wires to locking shut-off switch.

Incoming Power Strain ReliefIncoming Power Strain Relief

Figure Figure 25. Location of incoming power strain relief.. Location of incoming power strain relief.

During next step, make sure incoming ground wire is connected to correct terminal to ensure machine will be properly grounded (see "Ground Terminal" in Figure 26). An ungrounded or improperly grounded machine can cause electrocution if live electrical wires make contact with frame or other parts touched by operator.

Initial Lubrication

This machine was lubricated at the factory, but we strongly recommend that you inspect all lubrication points yourself before performing the Test Run and provide additional lubrication if necessary. Refer to Lubrication on Page 50 for specific details.

-25-

South Bend Tools

Model SB1124F

PREPARATION

For Machines Mfd. Since 11/22

Test Run

After all preparation steps have been completed, the machine and its safety features must be tested to ensure correct operation. If you discover a problem with the operation of the machine or its safety components, do not operate it further until you have resolved the problem.

Note: Refer to Troubleshooting on Page 62 for solutions to common problems. If you need additional help, contact our Tech Support at (360) 734-1540.

The test run consists of verifying the following:

• Motor powers up and runs correctly.

• Spindle turns in forward direction (clockwise when viewed from top of headstock).

• EMERGENCY STOP button works correctly.

• Electrical cabinet safety switch works correctly.

• Coolant system works correctly.

• Power feed unit works correctly.

Mill Test Run

1. Clear all setup tools away from machine.

2. Set spindle speed to low range (refer

to Setting Spindle Speed Range on Page 36).

Move downfeed selector to manual (forward)

position so spindle does not automatically downfeed during this test (refer to Spindle Downfeed on Page 38).

Rotate master power switch to OFF

position, move power feed ON/OFF switch to OFF position, rotate coolant pump ON/ OFF switch to OFF position, and press EMERGENCY STOP button.

Connect machine to power source.

6. Rotate master power switch to ON position.

POWER indicator light on control panel will illuminate.

Serious injury or death can result from using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

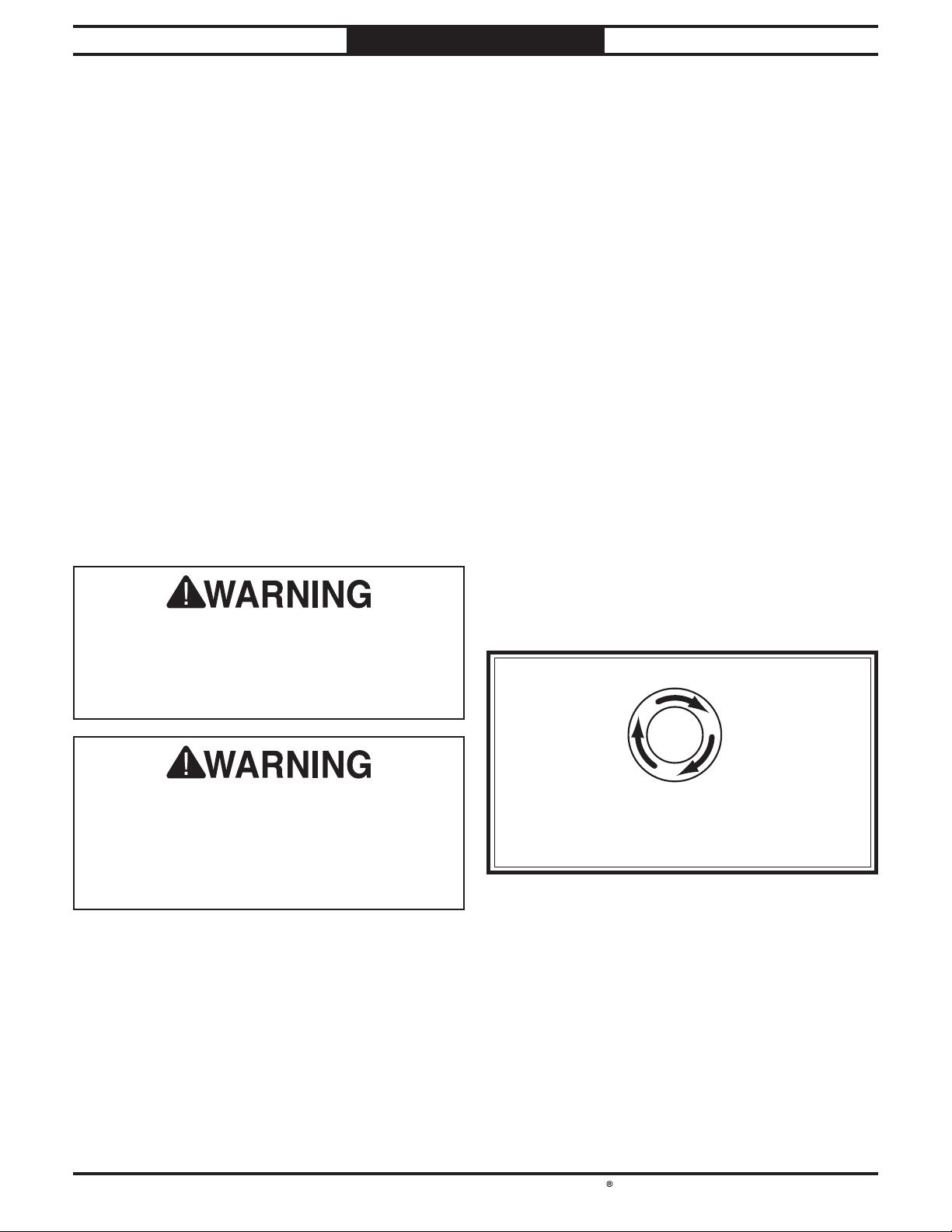

Twist EMERGENCY STOP button clockwise

until it springs out (see Figure 27). This resets switch so machine can start.

EMERGENCY STOP Button

Figure Figure 27. Resetting EMERGENCY STOP button.. Resetting EMERGENCY STOP button.

-26-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PREPARATION

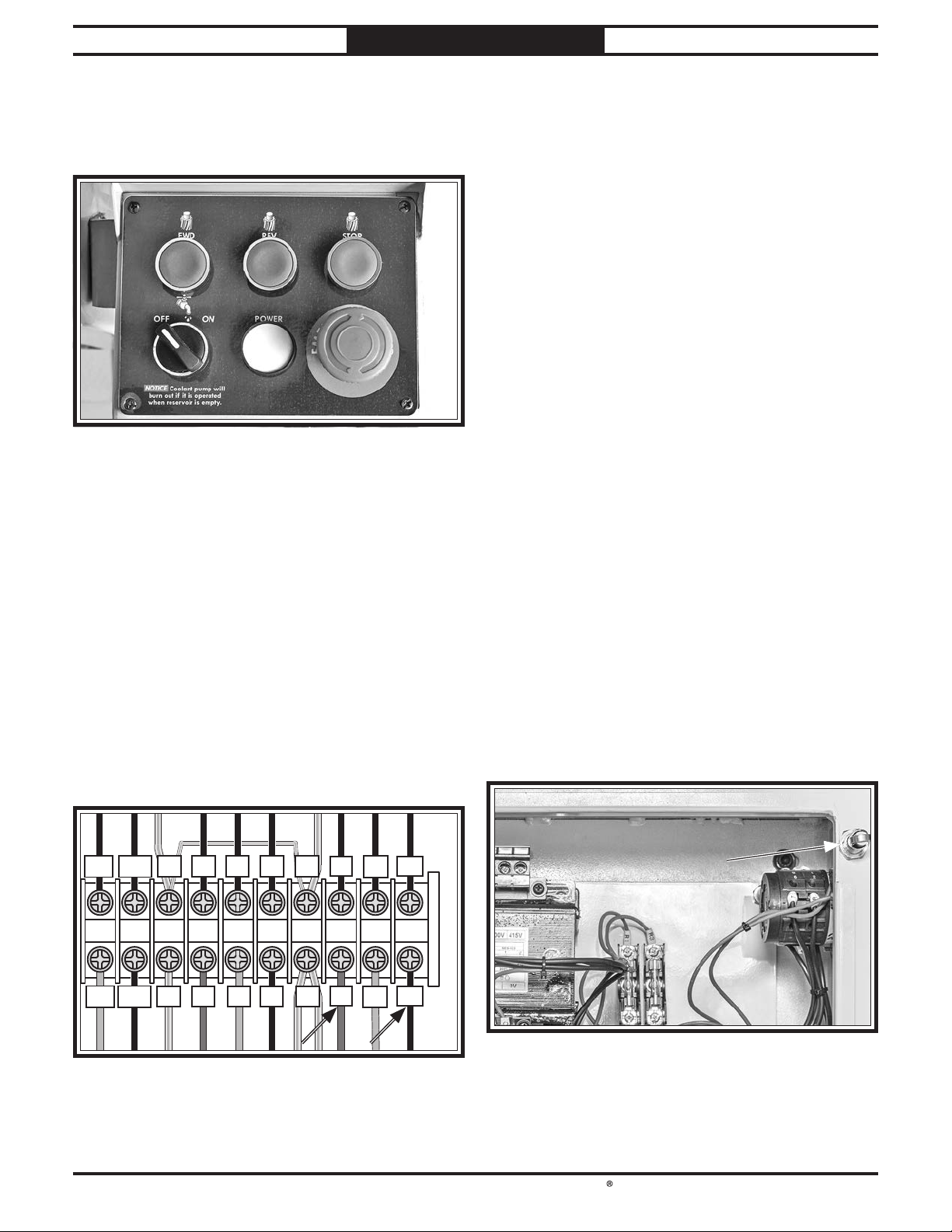

Press FWD button (see Figure 28) to begin

spindle rotation. Verify motor starts up and runs smoothly without any unusual problems or noises.

FWDFWD REVREV

Figure 28. Control panel. Control panel.

Verify direction of spindle rotation.

— If spindle rotates clockwise, as viewed

from top of headstock, proceed to Step 13.

— If spindle rotates counterclockwise, as

viewed from top of headstock, phase polarity of incoming power is reversed. Proceed to Step 10.

STOPSTOP

12. Repeat Steps 8–9.

Press STOP button (see Figure 28) and wait

13.

for spindle to come to a complete stop.

Press REV button (see Figure 28) to begin

14.

spindle rotation. Verify motor starts up and runs smoothly without any unusual problems or noises.

Press EMERGENCY STOP button to stop

15.

spindle rotation.

WITHOUT resetting EMERGENCY STOP

16.

button, try to start machine by pressing FWD/REV buttons. Machine should not start.

— If machine does not start, safety feature

of EMERGENCY STOP button is working correctly.

— If machine does start, immediately turn it

OFF and disconnect power. Safety feature of EMERGENCY STOP button is NOT working correctly and must be replaced before further using machine. Contact Technical Support.

DISCONNECT MACHINE FROM POWER!

10.

11. Open electrical cabinet door, swap wires at

L1 and L3 terminals, as shown in Figure 29, then close and lock electrical cabinet

door, and connect machine to power.

WVU

EWVU

V4 W4

V4 W4 E U V W E L1 L2 L3

Figure Figure 29. Location of L1 and L3 terminals.. Location of L1 and L3 terminals.

Reset EMERGENCY STOP button.

1 7.

18. Open electrical cabinet door until safety

switch (see Figure 30) in upper right-hand corner is fully extended.

Safety Safety

SwitchSwitch

Figure Figure 30. Electrical cabinet safety switch.. Electrical cabinet safety switch.

-27-

South Bend Tools

Model SB1124F

WITHOUT closing electrical cabinet door,

19.

try to start machine by pressing FWD/REV buttons. Machine should not start.

PREPARATION

For Machines Mfd. Since 11/22

2. Refer to Table Movement, beginning on

Page 31, to understand how power feed,

table locks, and limit switch function.

— If machine does not start, safety feature of

electrical cabinet safety switch is working correctly.

— If machine does start, immediately turn it

OFF and disconnect power. Safety feature of electrical cabinet safety switch is NOT working correctly and must be replaced before further using machine. Contact Technical Support.

Close and lock electrical cabinet door.

20.

Operating the coolant pump on this mill without the correct amount of coolant in the reservoir could damage it and void the warranty. ALWAYS make sure there is the correct amount of coolant in the reservoir before using the pump.

21. Check coolant level in reservoir, and add

coolant if necessary (refer to Checking/ Adding Coolant on Page 55).

Loosen X-axis table locks on front of table.

4. Make sure directional lever is in neutral

(middle) position, turn speed dial completely counterclockwise, then plug power feed into a 110V outlet.

Note: There are two 110V outlets on back of

electrical cabinet that can be used for power feed or other 110V accessories.

Move ON/OFF switch up to turn power feed

ON.

Move directional lever left, slowly turn

speed dial clockwise to increase speed, then confirm table is moving left.

Watch for table limit stop to press against

limit switch plunger and stop table movement.

— If power feed stops, then power feed limit

switch is working correctly. Proceed to Step 8.

Move coolant pump switch to ON position,

22.

open nozzle valve, verify coolant flows from nozzle, then move coolant pump switch to OFF position.

Power Feed Test Run

The mill comes with a power feed unit for X-axis table travel. Proper operation of the limit switch attached to the front middle of the table is critical for the safe use of this power feed unit. If the power feed does not operate as expected during the following steps, disconnect it from power and review Troubleshooting on Page 62.

To test run power feed:

1. Make sure all tools, cables, and other items

are well clear of table movement as you follow these steps.

— If power feed does not stop, then power

feed limit switch is not working correctly. Immediately turn machine OFF and disconnect power. Contact Tech Support before continuing with Test Run.

Move directional lever through neutral

(middle) position and all the way right. Table should begin moving right.

Confirm table stops moving when limit stop

presses against limit switch plunger.

— If power feed stops, then power feed limit

switch is working correctly. Proceed to Step 10.

— If power feed does not stop, then power

feed limit switch is not working correctly. Immediately turn machine OFF and disconnect power. Contact Tech Support before continuing with Test Run.

-28-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

The spindle break-in procedure distributes lubrication

reduce the

risk of early

if there are any "dry" spots or areas where lubrication has settled in the bearings. You

before

for the first time when the machine is new or if it has been sitting idle for longer than 6 months.

Always start the spindle break-in at the lowest speed to minimize wear if there Allow the spindle to run long enough to warm up and distribute the bearing grease, then incrementally increase spindle speeds and repeat this process at each speed until reaching the maximum spindle speed. Following the breakin procedure in this progressive manner helps minimize any potential wear that could occur before lubrication is fully distributed.

PREPARATION

10. Move directional lever to neutral (middle)

position, turn speed dial completely counterclockwise, and move ON/OFF switch down to turn power feed OFF.

Congratulations! The Test Run is complete. Continue to the next page to perform the

Spindle Break-In and Adjustments & Inspections procedures.

Spindle Break-In

throughout the bearings to

bearing failure

must complete this procedure

placing operational loads on the spindle

Run spindle in forward rotation at 60 RPM

for 5 minutes, turn spindle OFF, allow it to come to a complete stop, then repeat in reverse rotation.

Repeat Step 3 for following speeds,

progressing from lower to higher RPMs:

— 250, 400 RPM

Set spindle speed to high range, and repeat

Step 3 for following speeds, progressing from lower to higher RPMs:

— 500, 2500, 4000 RPM

Note: Make sure to turn spindle OFF and

allow it to come to a complete stop before changing directions or changing speeds.

Congratulations, the Spindle Break-In is now complete!

are dry spots.

DO NOT perform this procedure independently of Test Run section. Mill could be seriously damaged if controls are set differently than instructed in that section.

To perform spindle break-in procedure:

Successfully perform all steps in Test Run

section beginning on Page 26.

Set spindle speed to low range (refer to

Setting Spindle Speed Range on Page 36).

Note: When operating in low range, spindle

will rotate in reverse when FWD button is pressed; likewise, spindle will rotate in forward when REV button is pressed.

Inspections & Adjustments

The following list of adjustments were performed at the factory before the machine was shipped:

• Gib Adjustment ................................. Page 59

• Leadscrew Backlash

Adjustment .........................................Page 60

Be aware that machine components can shift during the shipping process. Pay careful attention to these adjustments during operation of the machine. If you ﬁnd that the adjustments are not set according to the procedures in this manual or your personal preferences, re-adjust them.

Since the head has been moved around for shipping purposes, you will need to tram it so that the spindle is perpendicular to the table. Refer to the Tramming Spindle section on Page 57 for detailed instructions.

-29-

South Bend Tools

Model SB1124F

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so they can more easily understand the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide for performing actual machine operations. To learn more about speciﬁ c operations and machining techniques, seek training from people experienced with this type of machine, and do additional research outside of this manual by reading "howto" books, trade magazines, or websites.

Operation

OPERATION

Operation Overview

For Machines Mfd. Since 11/22

To complete a typical operation, the operator does the following:

1. Examines workpiece to make sure it is

suitable for operation.

Firmly clamps workpiece to table or a mill

vise securely mounted to table.

Due to the generic nature of this overview,

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

To reduce risk of eye injury from flying chips, always wear approved safety glasses and a face shield when operating this

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, South Bend Tools will not be held liable for accidents caused by lack of training.

machine.

Installs correct cutting tool for operation.

4. Uses downfeed and table controls to correctly

position cutting tool and workpiece for operation. If power feed will be used during operation, operator confirms speed and length of table movement required.

Configures machine for correct spindle speed

of operation.

Puts on personal protective equipment, and

makes sure workpiece and table are clear of all tools, cords, and other items.

Turns machine ON, then starts spindle

rotation and performs operation.

Turns machine OFF.

-30-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

OPERATION

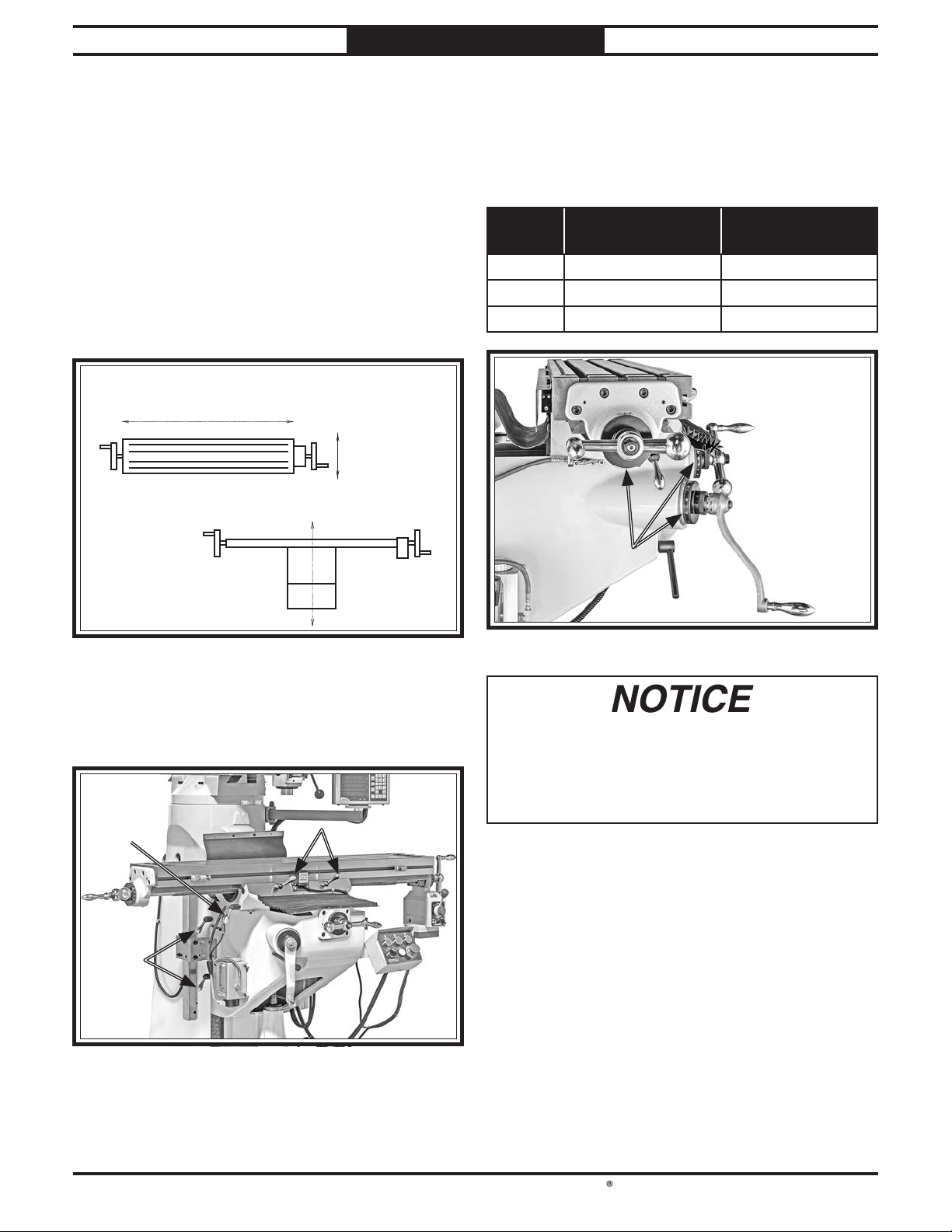

Table Movement

The mill table moves in three directions, as illustrated in Figure 31:

• X-axis (longitudinal)

• Y-axis (cross)

• Z-axis (vertical)

These movements are controlled by the table ball handles and the knee crank. Additionally, the table can be moved along the X-axis with the power feed.

X-Axis or Longitudinal Travel

(Left & Right)

Y-Axis or Cross Travel (In & Out)

Graduated Index Rings

The table ball handles and knee crank have graduated index rings (see Figure 33) that are used to accurately determine table movement in the increments listed in the table below:

Axis Individual

Increment

X 0.001" 0.200"

Y 0.001" 0.200"

Z 0.001" 0.100"

One Full

Revolution

Z-Axis or Vertical Elevation

(Up & Down)

Figure Figure 31. The directions of table movement. The directions of table movement.

Table Locks

Refer to Figure 32 for the locations of the locks used to secure the table in place.

Y-Axis Y-Axis

LockLock

Z-Axis Z-Axis

LocksLocks

X-Axis LocksX-Axis Locks

Index RingsIndex Rings

Figure Figure 33. Location of table index rings.. Location of table index rings.

Always keep the table locked in place unless table movement is required for your operation. Unexpected movement of the table during operations could cause damage to the cutter or workpiece.

Figure Figure 32. Locations of table locks.. Locations of table locks.

-31-

South Bend Tools

Model SB1124F

OPERATION

For Machines Mfd. Since 11/22

X-Axis Power Feed

The mill is equipped with a power feed unit for X-axis table movement. Refer to the illustration in Figure 34 and the descriptions below to understand the functions of the various components of the power feed system.

Figure Figure 34. Power feed system components.. Power feed system components.

A. Limit Switch: Stops table movement when

either of switch's side plungers are pressed by limit stops.

To confirm the power feed settings that you will be using during operation, we recommend that you use the power feed to move the table through the intended cutting path before starting the spindle rotation and taking the cut.

Tool Needed Qty

Hex Wrench 12mm .............................................. 1

To operate X-axis power feed:

1. Loosen X-axis table locks (refer to Figure 32

on Page 31).

Position limit stops along front table slot to

limit distance of table travel that is correct for your operation.

Note: Make sure cap screws ﬁrmly lock limit

stops in place once positioned.

Turn speed dial all the way counterclockwise

to slowest setting, move directional lever to neutral (middle) position, then move power feed ON/OFF switch up to turn power feed ON.

B. Limit Stop (1 of 2): Restricts table movement

when positioned along front of table.

C. Rapid Traverse Button: Moves table at full

speed when it is already in motion.

D. Directional Lever: Selects direction of table

movement. Middle position is neutral.

E. Speed Dial: Controls speed of power feed.

Turn dial clockwise to increase speed of table movement; turn counterclockwise to decrease speed.

F. Reset Button: Resets internal circuit breaker

if unit is overloaded and shuts down.

G. Power Feed ON/OFF Switch: Turns power

feed ON and OFF.

H. X-Axis Ball Handle (1 of 2): Manually moves

table.

With your hand poised over power switch in

case you need to suddenly turn unit OFF, move directional lever in desired direction of table travel.

Use speed dial to slowly bring speed of

movement up to desired rate.

When you are finished using power feed,

turn unit OFF, then rotate speed dial all the way clockwise, and move directional lever to neutral (middle) position to avoid unexpected table movement when you next turn power feed ON.

I. Graduated Index Ring: Displays distance of

table travel in 0.001" increments, with one full revolution equal to 0.200" of table travel.

-32-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

OPERATION

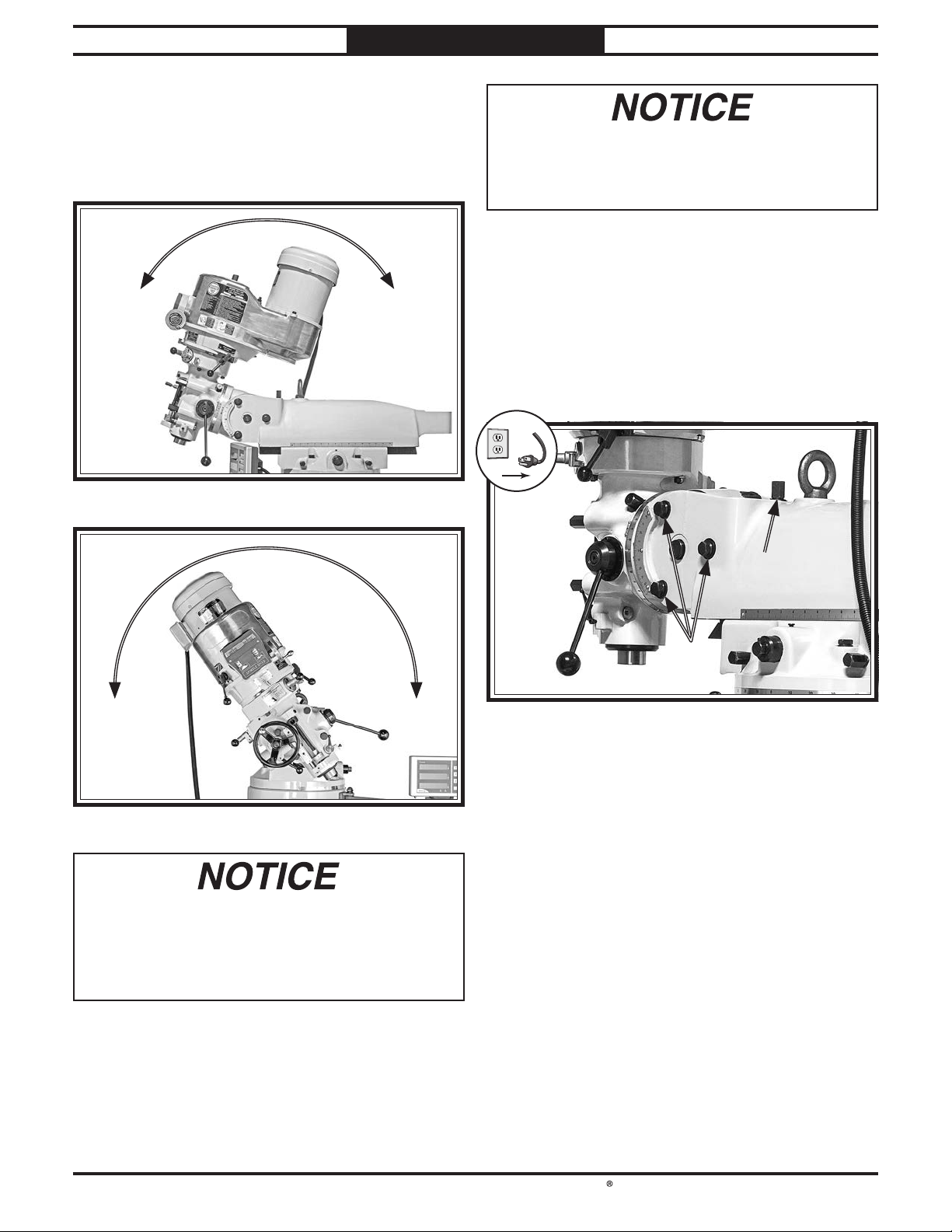

Head Movement

The mill head tilts 45° back and forth, and rotates 90° left and right, as shown in Figures 35–36.

45°45°

Figure Figure 35. Head tilts 45° back and forth.. Head tilts 45° back and forth.

90°90°

Always lock head firmly in place after tilting or rotating it. Unexpected movement of head during operations could cause damage to cutter or workpiece.

Tool Needed Qty

Wrench 19mm .......................................................1

Tilting Head

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (3) tilt lock bolts on right side of ram

adapter shown in Figure 37.

Tilt BoltTilt Bolt

Figure Figure 36. Head tilts 90° left and right.. Head tilts 90° left and right.

When returning head to 0° after tilting it, you will need to tram it to make sure spindle is precisely perpendicular to table to ensure proper milling accuracy. Refer to Tramming Spindle on Page 57.

LockLock

BoltsBolts

Figure Figure 37. Head tilting controls.. Head tilting controls.

Use one hand to apply pressure to head in

direction of tilt, then slowly rotate tilt bolt. Rotating this bolt clockwise will tilt head back.

When head is in correct position for

operation, tighten all (3) lock bolts.

-33-

South Bend Tools

Model SB1124F

OPERATION

For Machines Mfd. Since 11/22

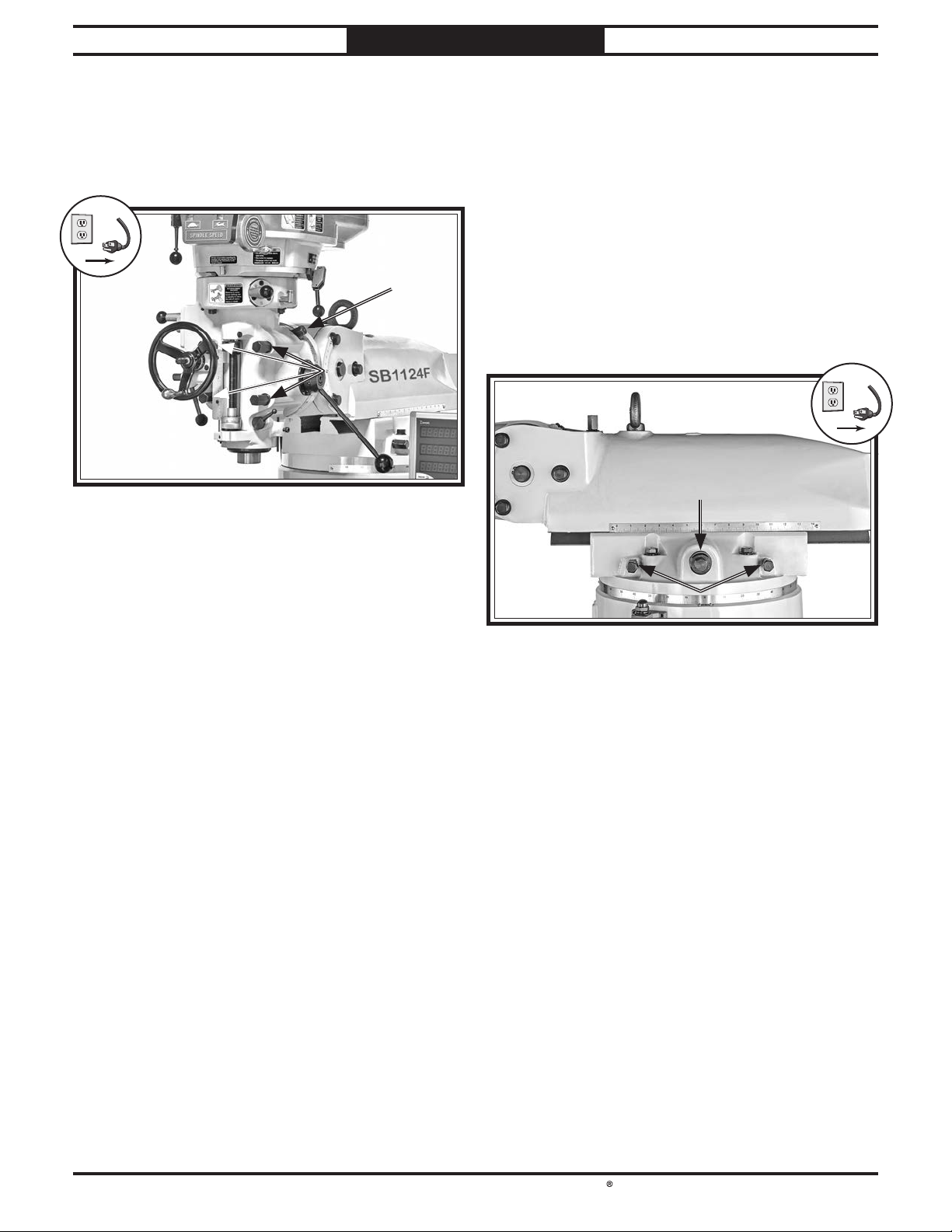

Rotating Head

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (4) rotation lock bolts on face of head

shown in Figure 38.

Rotation BoltRotation Bolt

Lock BoltsLock Bolts

Figure Figure 38. Head rotating controls.. Head rotating controls.

Use one hand to apply pressure to head

in direction of rotation, then slowly turn rotation bolt.

Tighten lock bolts when head is in desired

position.

Ram Movement

The ram travels back and forth 12" and rotates 360° in either direction around the turret.

Tool Needed Qty

Open-End Wrench or Socket 19mm ..................... 1

Moving Ram Forward/Backward

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (2) lock bolts on right side of ram (see

Figure 39).

Adjustment Adjustment

BoltBolt

Lock BoltsLock Bolts

Figure Figure 39. Ram movement controls.. Ram movement controls.

Make sure there are no obstructions to ram

travel, especially with spindle tool around workpiece, then slowly rotate adjustment bolt to move ram. Rotating bolt clockwise will move ram backward.

Tighten lock bolts after positioning ram.

-34-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

OPERATION

Spindle Speed

Always lock head firmly in place after tilting or rotating it. Unexpected movement of head during operations could cause damage to cutter or workpiece.

Rotating Ram

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (4) lock bolts on top of turret (see

Figure 40).

Note: There are (2) lock bolts on either side of

ram.

Lock BoltsLock Bolts

(2 of 4)(2 of 4)

RotationRotation

ScaleScale

Using the correct spindle speed is important for safe and satisfactory results, as well as maximizing tool life.

To set the spindle speed for your operation, you will need to: (1) Determine the best spindle speed for the cutting task, and (2) configure the mill controls to produce the required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the cutting tool, as noted in Figure 41:

*Recommended

Cutting Speed (FPM) x 12

Tool Dia. (in inches) x 3.14

Spindle

Speed (RPM)

*Double if using carbide cutting tool

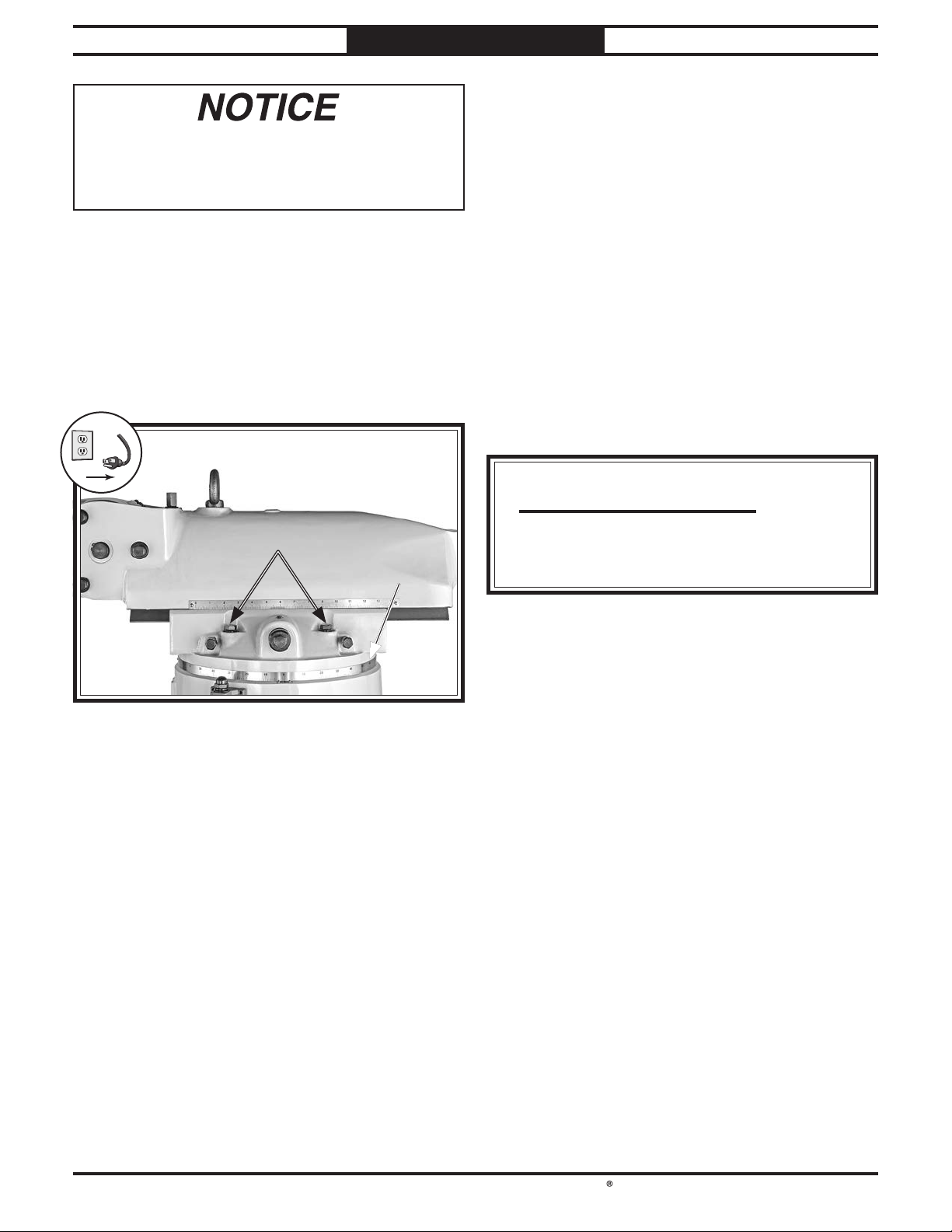

Figure Figure 40. Ram rotating controls.. Ram rotating controls.

Note: In next step, take care not to entangle or

stretch electrical cabling as ram moves around turret.

Push on head to manually rotate it. Use

rotation scale to determine correct position for operation, then tighten (4) lock bolts to secure ram in place.

Figure Figure 41. Spindle speed formula for milling.. Spindle speed formula for milling.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

The "Recommended Cutting Speed" varies depending on the type of workpiece material. It is the ideal speed for cutting that material in order to optimize tool life and produce a desirable finish.

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, provide excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed, and they are a good educational resource.

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account all applicable variables to determine the best spindle speed for the operation.

-35-

South Bend Tools

Model SB1124F

OPERATION

For Machines Mfd. Since 11/22

Setting Spindle Speed Range

Setting the spindle speed range involves using a lever to engage/disengage the spindle spline with the bull gear.

To avoid damage to spindle, gears, or cutting tools:

• Spindle rotation must be turned OFF and spindle must be at a complete stop BEFORE you change spindle speed range.

• Mill is designed to operate ONLY with spindle speed range selector in either high or low position. To avoid damaging moving parts inside headstock, never start spindle rotation without range selector detent pin firmly seated in either high or low position.

• When changing spindle speed range, direction of spindle rotation will reverse due to change in gear configuration. You will need to use opposite spindle direction buttons when choosing spindle rotation direction.

Note: You MUST properly perform Meshing

Spindle & Spindle Clutch procedure as instructed on Page 37 when using high spindle speed range.

To set spindle speed range:

1. Make sure spindle rotation is turned OFF

and spindle is at a complete stop.

Use chart below to find spindle speed range

that includes required spindle speed for your operation.

Spindle Speed Ranges

Low Range 60–575 RPM

High Range 575–4200 RPM

3. Press spindle speed range lever shown in

Figure 42 toward head to release detent pin from detent plate, move selector pin over opposite detent, then release selector.

HighHigh LowLow

Spindle SpeedSpindle Speed

Range SelectorRange Selector

Detent Detent

PlatePlate

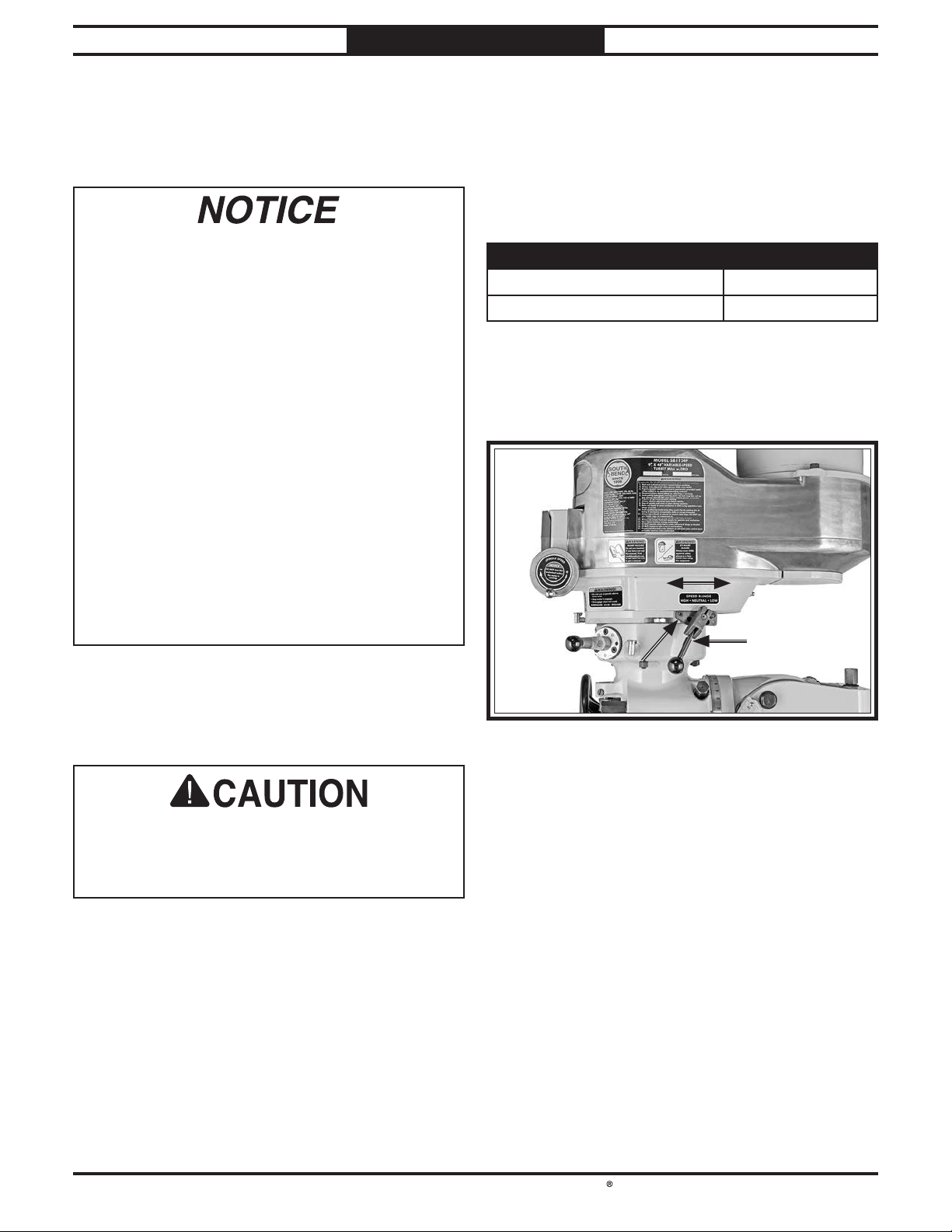

Figure Figure 42. Spindle speed range selector.. Spindle speed range selector.

When spindle speed range is changed, direction of spindle rotation will reverse. ALWAYS know which way spindle is rotating before beginning cutting operation.

-36-

— When selector is pointing to rear, and

front detent is engaged, low speed range is selected. Conversely, when lever is pointing toward front, and rear detent is engaged, high speed range is selected.

Note: If range selector is difﬁcult to move,

rotate spindle by hand to help mesh gears until selector moves freely.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Make sure selector detent pin is well seated

by attempting to move selector without pressing it toward head.

— If selector does not move, then detent pin

is well seated. Proceed to Step 5.

OPERATION

Setting Spindle Speed

The Model SB1124F uses a variable pulley system to set infinite speeds within the speed range selected.

— If selector does move, then detent pin is

not well seated. Reposition selector so pin is firmly seated in detent plate.

Perform Meshing Spindle & Spindle

Clutch

make sure front spindle pulley and pinion are properly seated in bull gear.

procedure as instructed below to

Meshing Spindle & Spindle Clutch

1. DISCONNECT MACHINE FROM POWER!

2. Set spindle speed range.

— If you hear/feel front pulley drop into

spindle clutch when you set spindle speed range, this procedure is complete, and you may continue with spindle speed setup.

— If you do not hear/feel front pulley drop

into spindle clutch when you set spindle speed range, proceed to Step 3.

Always make sure spindle rotation has started and is at a constant speed before using variable-speed handwheel to adjust spindle speed. Otherwise, moving parts inside belt housing could be damaged and void warranty.

To set spindle speed:

1. Select spindle speed range for your operation

(refer to Setting Spindle Speed Range on Page 36).

2. Start spindle rotation.

3. Slowly rotate variable-speed handwheel (see

Figure 43) until desired speed is displayed in speed indicator window for speed range selected.

Low-RangeLow-Range

Speed Speed

IndicatorIndicator

High-RangeHigh-Range

SpeedSpeed

IndicatorIndicator

Note: The following step takes experience and

patience to complete properly.

Firmly grasp spindle, then rotate it in a

back-and-forth motion until you hear/feel front pulley drop into spindle clutch.

— If you do not hear/feel front pulley drop

into spindle clutch, re-set spindle speed range selector to low range, then repeat Step 3 until you are certain front pulley is seated in spindle clutch.

Variable- Variable-

Speed Speed

HandwheelHandwheel

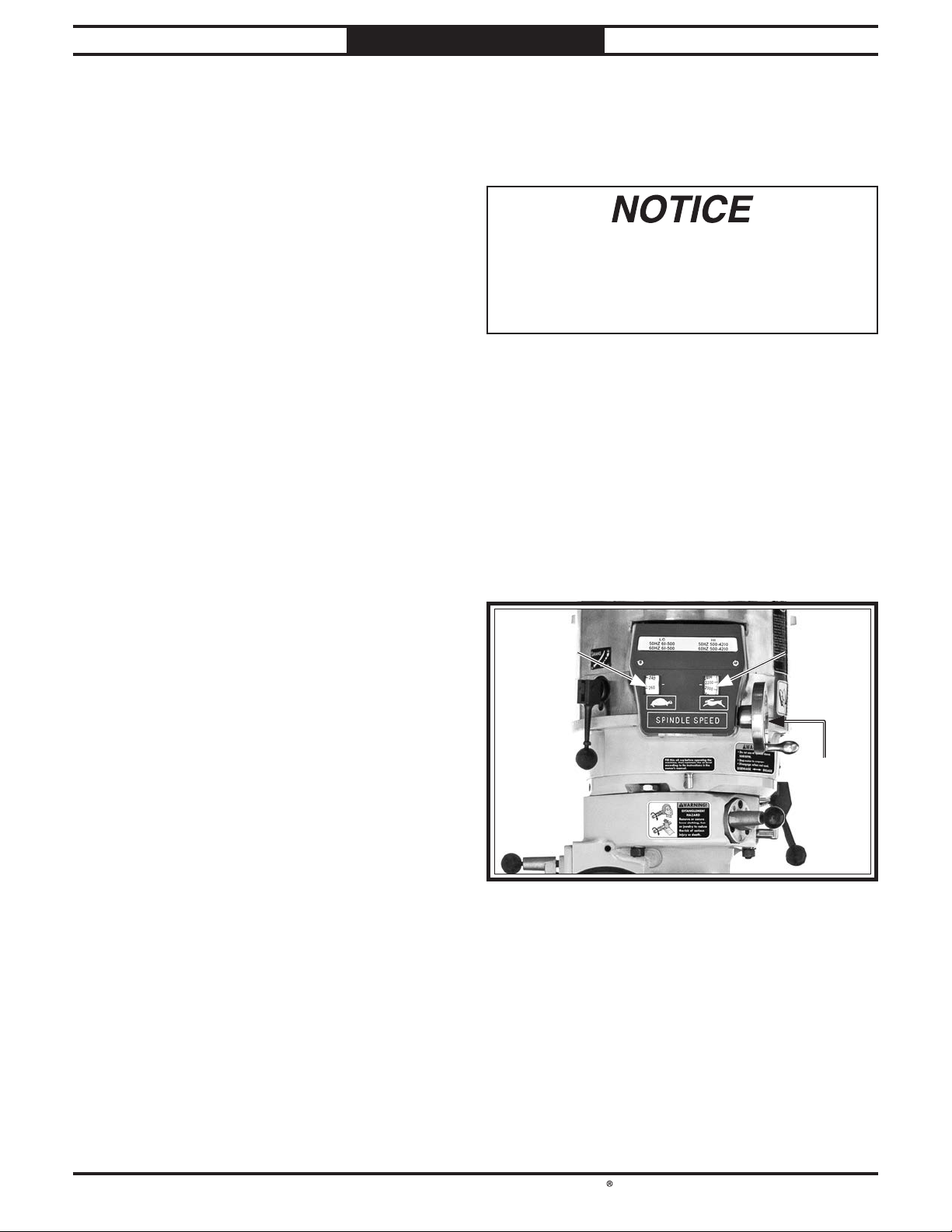

Figure Figure 43. Variable-speed handwheel and speed . Variable-speed handwheel and speed

indicator windows.indicator windows.

-37-

South Bend Tools

Model SB1124F

OPERATION

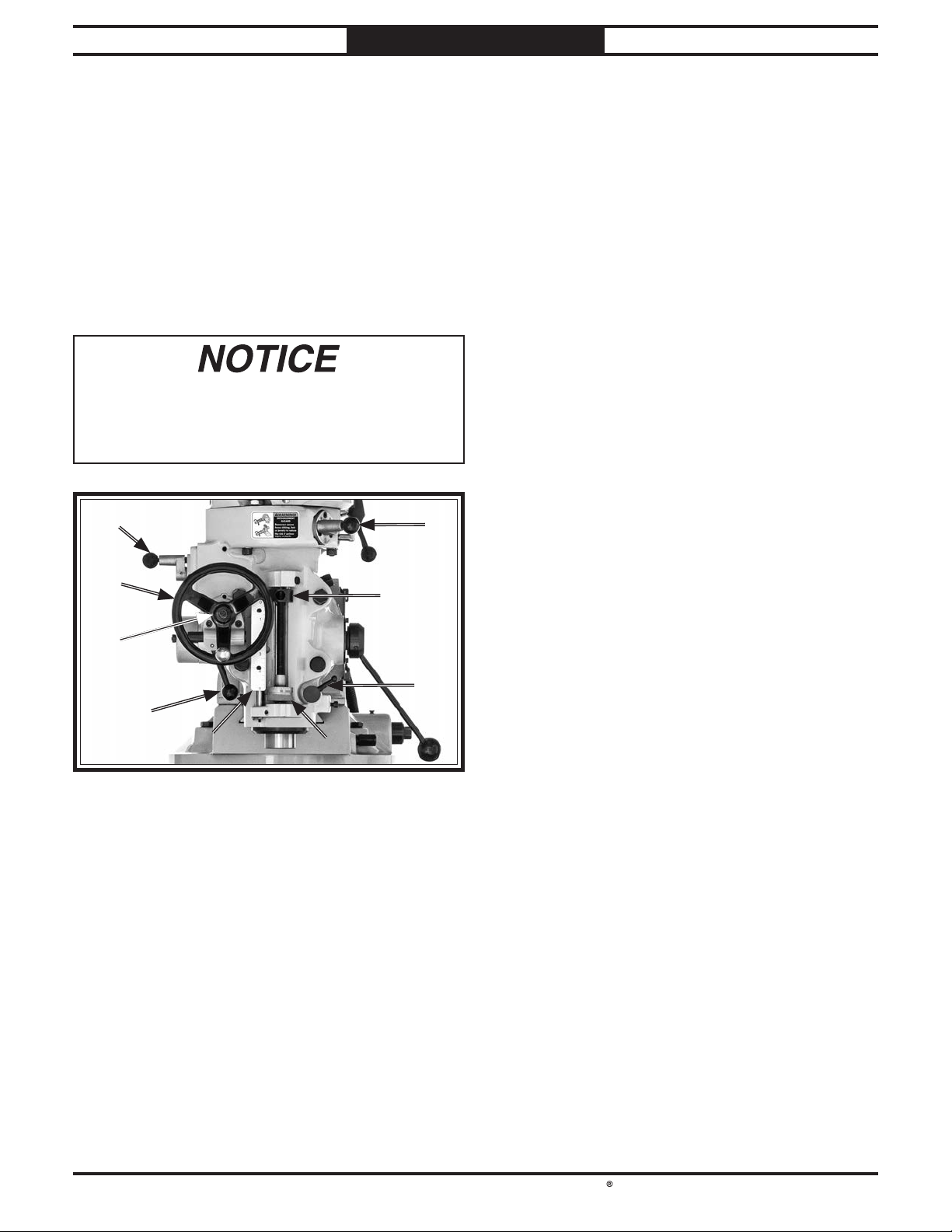

Spindle Downfeed

Spindle downfeed movement on the mill is controlled by three mechanisms: 1) The coarse downfeed lever, 2) the fine downfeed handwheel, and 3) the auto-downfeed system.

For Machines Mfd. Since 11/22

D. Quill Lock Lever: Locks quill in vertical

position.

E. Downfeed Stop & Locking Wheel: Sets depth

of spindle downfeed. The stop is threaded into position, and locking wheel is used to secure it in place.

Downfeed Controls

Refer to Figure 44 and the descriptions below to become familiar with the downfeed components that control spindle downfeed travel.

When spindle rotation is reversed, either by changing spindle speed range or by using spindle direction buttons, direction of spindle auto-downfeed will reverse.

Figure Figure 44. Fine downfeed controls.. Fine downfeed controls.

F. Downfeed Scale: Used with downfeed

stop and quill dog, shows depth of spindle downfeed in inches.

G. Fine/Auto Downfeed Clutch Lever: Engages

fine/auto-downfeed gears.

H. Auto-Downfeed Direction Pin: Starts, stops,

and reverses auto-downfeed direction.

I. Fine Downfeed Handwheel: Manually

controls fine spindle downfeed.

Setting Downfeed Stop

The downfeed stop (see Figure 44) sets the depth of spindle travel for repeat operations. The upper edge of the downfeed stop aligns with marks on the downfeed scale to help you set the approximate depth. However, the downfeed scale functions as a general guide only, and is not intended for low-tolerance, precision results.

To set the downfeed stop, rotate the stop until the upper edge aligns with the desired depth indicated on the scale, then tighten the locking wheel against the stop to secure it.

A. Auto-Downfeed Rate Selector: Selects one of

three auto-downfeed rates.

• 0.0015 in/rev

• 0.003 in/rev

• 0.006 in/rev

B. Downfeed Selector: Sets mill for manual

downfeed or auto-downfeed control.

C. Quill Dog: Moves with quill and spindle, and

disengages downfeed clutch lever when it meets either top or downfeed stop.

-38-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

OPERATION

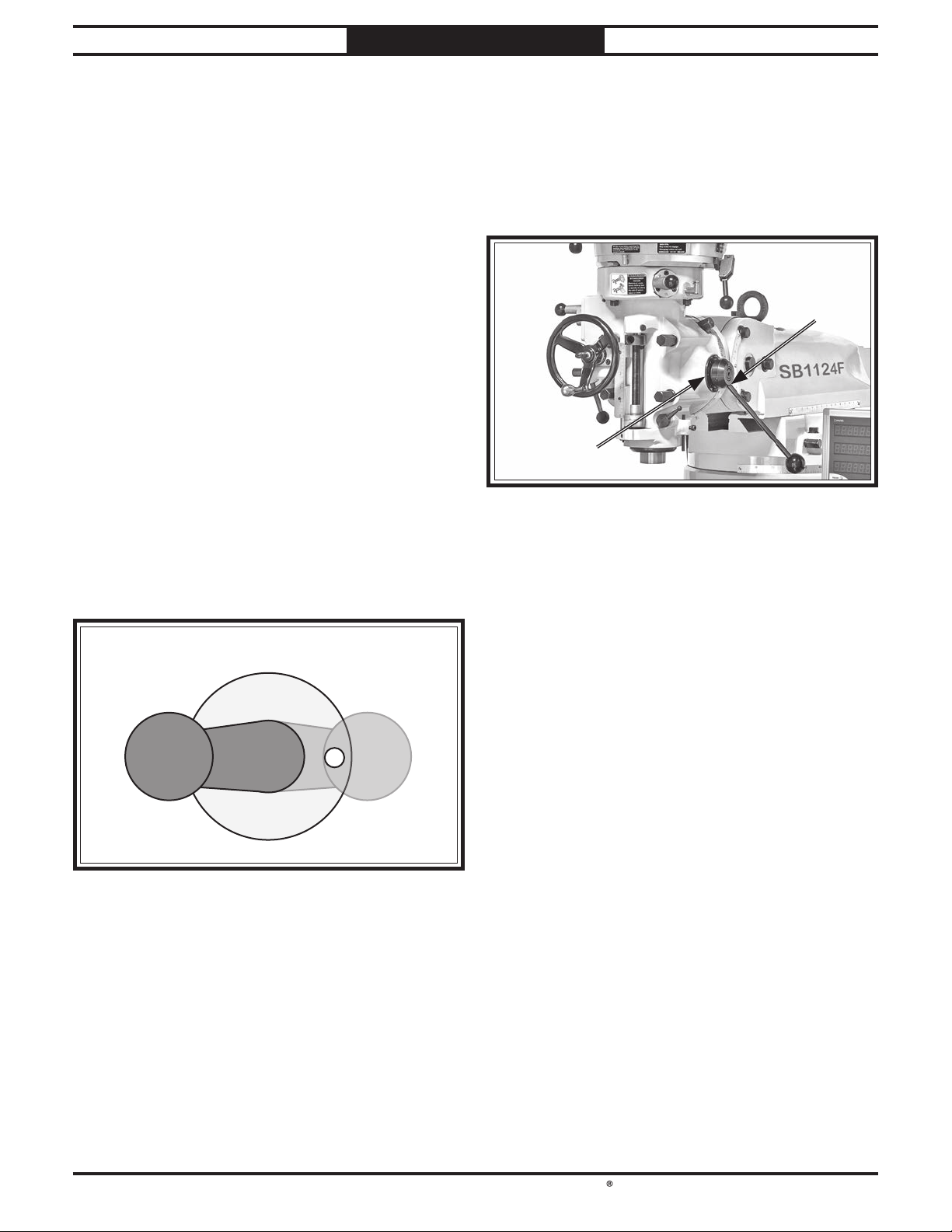

Using Coarse Downfeed

Coarse downfeed is typically used for drilling because it allows you to quickly lower the spindle with varying speed and pressure, and it automatically retracts the spindle to the top position when released.

To maintain control of upward spindle travel and the rotating bit in the workpiece, always continue holding the handle until the spindle returns to the top position. Letting go of the handle too soon will cause the spindle to retract too quickly and slam up into the headstock.

To use coarse downfeed:

1. DISCONNECT MACHINE FROM POWER!

2. Pull downfeed selector knob out, and rotate

it clockwise until selector pin under knob seats in forward manual (disengaged) position, as shown in Figure 45.

3. Make sure selector pin is firmly seated

in detent by attempting to move selector without pulling knob out.

Make sure pin in coarse downfeed handle

hub is engaged with one of the detents on downfeed sleeve (see Figure 46).

Handle Handle

HubHub

DetentsDetents

& Pin& Pin

Figure Figure 46. Coarse downfeed handle hub, detents, and . Coarse downfeed handle hub, detents, and

pin.pin.

Note: It may be necessary to turn spindle by

hand while moving selector to enable gears to mesh.

Manual

(Disengaged)

Figure Figure 45. Downfeed selector in manual (disengaged) . Downfeed selector in manual (disengaged)

position.position.

Auto-Downfeed

(Engaged)

Loosen quill lock lever so quill can move

easily.

Rotate coarse downfeed handle around hub

to control depth of spindle.

-39-

South Bend Tools

Model SB1124F

OPERATION

For Machines Mfd. Since 11/22

Using Fine Downfeed

Fine downfeed is used for precise Z-axis positioning of a cutter or end-mill when milling a flat surface across the face of a workpiece. In order to ensure the milled surface remains flat, the quill lock lever should be locked after each adjustment to ensure the spindle height cannot move until the entire milling operation is complete.

To use ﬁne downfeed:

1. DISCONNECT MACHINE FROM POWER!

2. Pull downfeed selector knob out, then rotate

selector clockwise until selector pin seats in forward manual (disengaged) position (see Figure 45).

Note: It may be necessary to turn spindle by

hand while moving selector to enable gears to mesh.

Using Auto-Downfeed System

When using the auto-downfeed system, the spindle will move in the direction you choose with the auto-downfeed direction pin. When the quill dog reaches the top or meets the downfeed stop, the downfeed clutch lever releases. Then, if the spindle was traveling upward, the movement simply stops. If the spindle was traveling downward, then the spindle moves back to the top at a rate controlled by the return spring on the left side of the head.

To use auto-downfeed system:

1. Make sure spindle rotation is turned OFF

and spindle is at a complete stop.

Pull downfeed selector knob out, rotate

selector clockwise, and seat pin in rear autodownfeed (engaged) position, as shown in Figure 47.

Set auto-downfeed direction pin (see Figure

44 on Page 38) in neutral (middle) position to disengage fine downfeed handwheel from auto-downfeed gears.

Position downfeed stop for spindle depth that

is correct for your operation, then secure it in place with locking wheel.

Use coarse downfeed lever to slightly lower

spindle until you can pull clutch lever out to left and it locks in place. This will engage fine handwheel with quill and spindle.

Rotate fine downfeed handwheel to raise

or lower spindle. When quill dog meets downfeed stop, clutch lever will disengage and spindle will return to top.

Manual

(Disengaged)

Figure Figure 47. Downfeed selector in auto-downfeed . Downfeed selector in auto-downfeed

(engaged) position.(engaged) position.

3. Position downfeed stop for spindle depth that

is correct for your operation, then secure it in place with locking wheel.

Auto-Downfeed

(Engaged)

-40-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

4. Position auto-downfeed direction pin for

spindle travel that is correct for your operation. It may be necessary to rock fine downfeed handwheel back and forth to move pin all the way in or out.

OPERATION

To avoid risk of gear damage, always start spindle rotation BEFORE using auto-downfeed rate selector.

Note: Direction pin has three positions: 1)

In for one downfeed direction, 2) middle for neutral or no movement, and 3) out for the reverse direction. The direction of spindle travel for in and out positions is relative to direction of spindle rotation. Keep in mind that spindle rotation and downfeed direction will reverse when spindle speed range is changed.

Make sure clutch lever is all the way right in

disengaged position so spindle will not travel when rotation is started.

Note: We recommend that you complete remaining steps without a cutting tool installed or a workpiece in place, and that the table be lower than maximum spindle downfeed travel. This will enable you to test and conﬁrm settings before beginning actual cutting operation.

To avoid damage to system gearing, never use auto-downfeed system with spindle speeds over 3000 RPM.

Select one of three downfeed rates (see

Figure 48) by pulling auto-downfeed rate selector knob out, positioning selector over appropriate detent, and releasing knob. Make sure pin is firmly seated by attempting to move selector without pulling knob out.

H = 0.006 in./rev. L = 0.0015 in./rev. M = 0.003 in./rev.

(Rates given in inches of travel

per revolution of the spindle)

Set machine for correct spindle speed, then

begin spindle rotation.

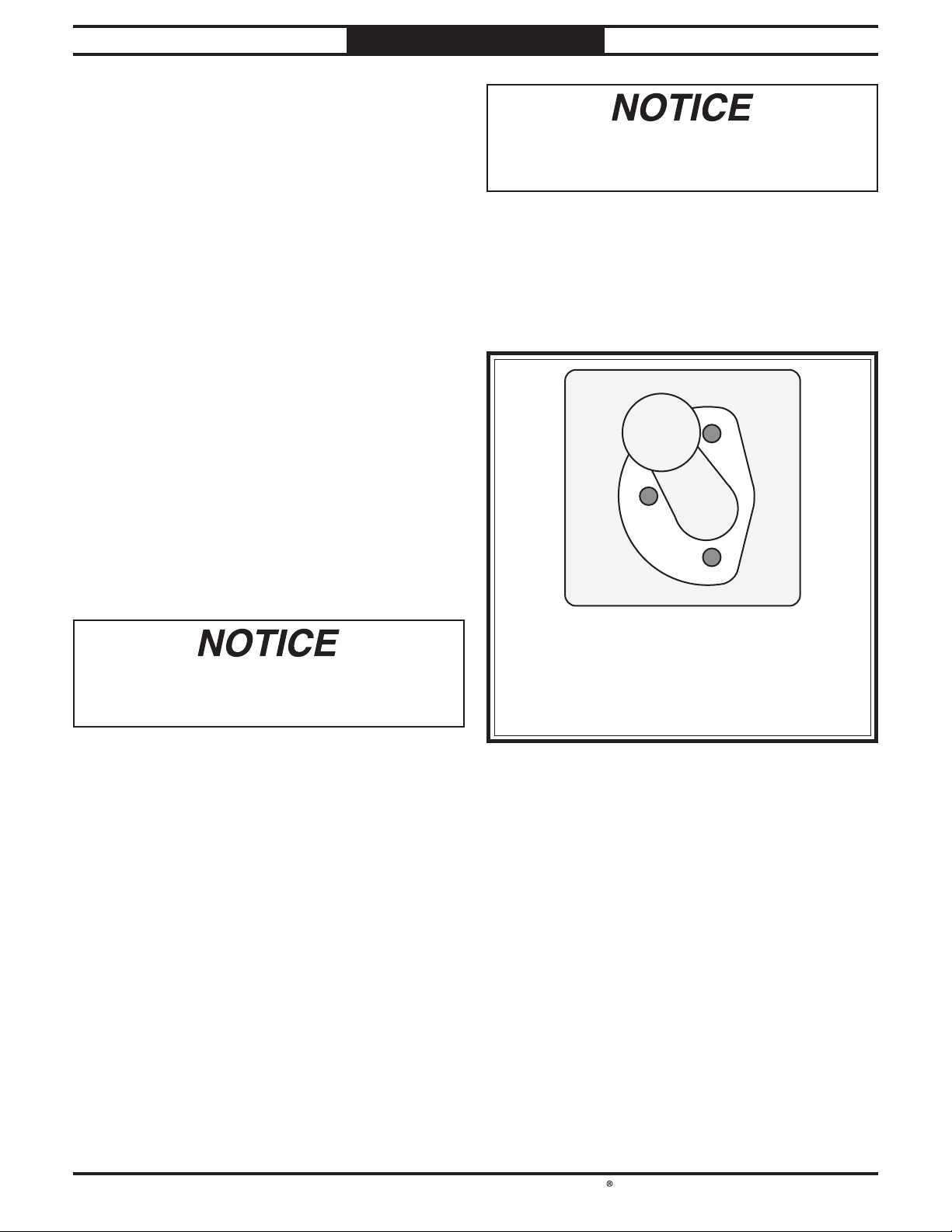

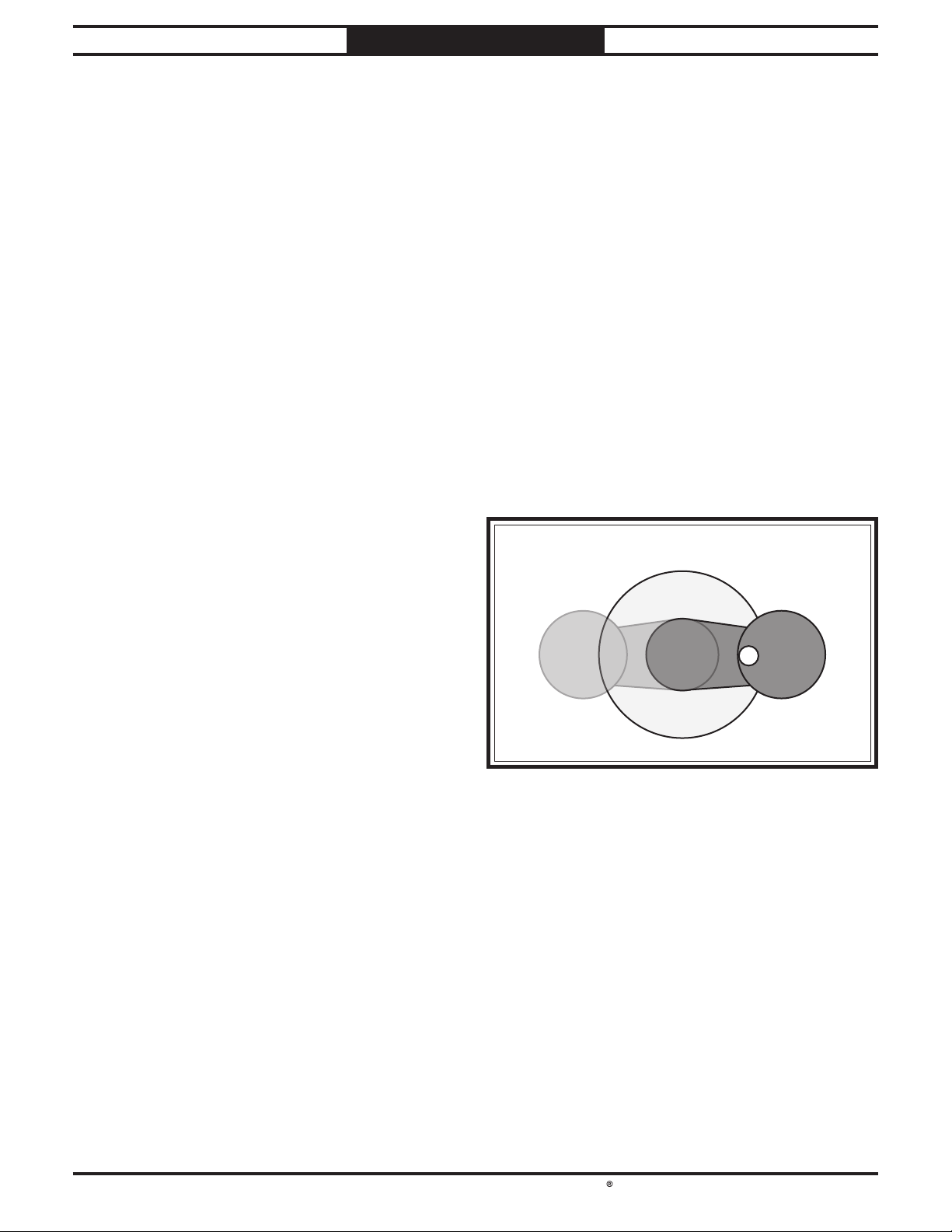

Figure Figure 48. Positions of auto-downfeed rate selector.. Positions of auto-downfeed rate selector.

Use coarse downfeed lever to lower spindle

slightly until you can pull clutch lever out to left, and it locks in place, which will start auto-downfeed spindle travel.

-41-

South Bend Tools

Model SB1124F

OPERATION

For Machines Mfd. Since 11/22

Using Spindle Brake

To avoid premature wear of brake system, use spindle brake ONLY after power to spindle has been turned OFF.

After turning spindle rotation OFF, move the brake lever (see Figure 49) back or forth to bring the spindle to a full stop.

BrakeBrake

LeverLever

Loading/Unloading Tooling

The SB1124F is equipped with an R8 spindle taper and a shown in Figure 50.

⁄16"-20 x 18 1⁄2" spindle drawbar, as

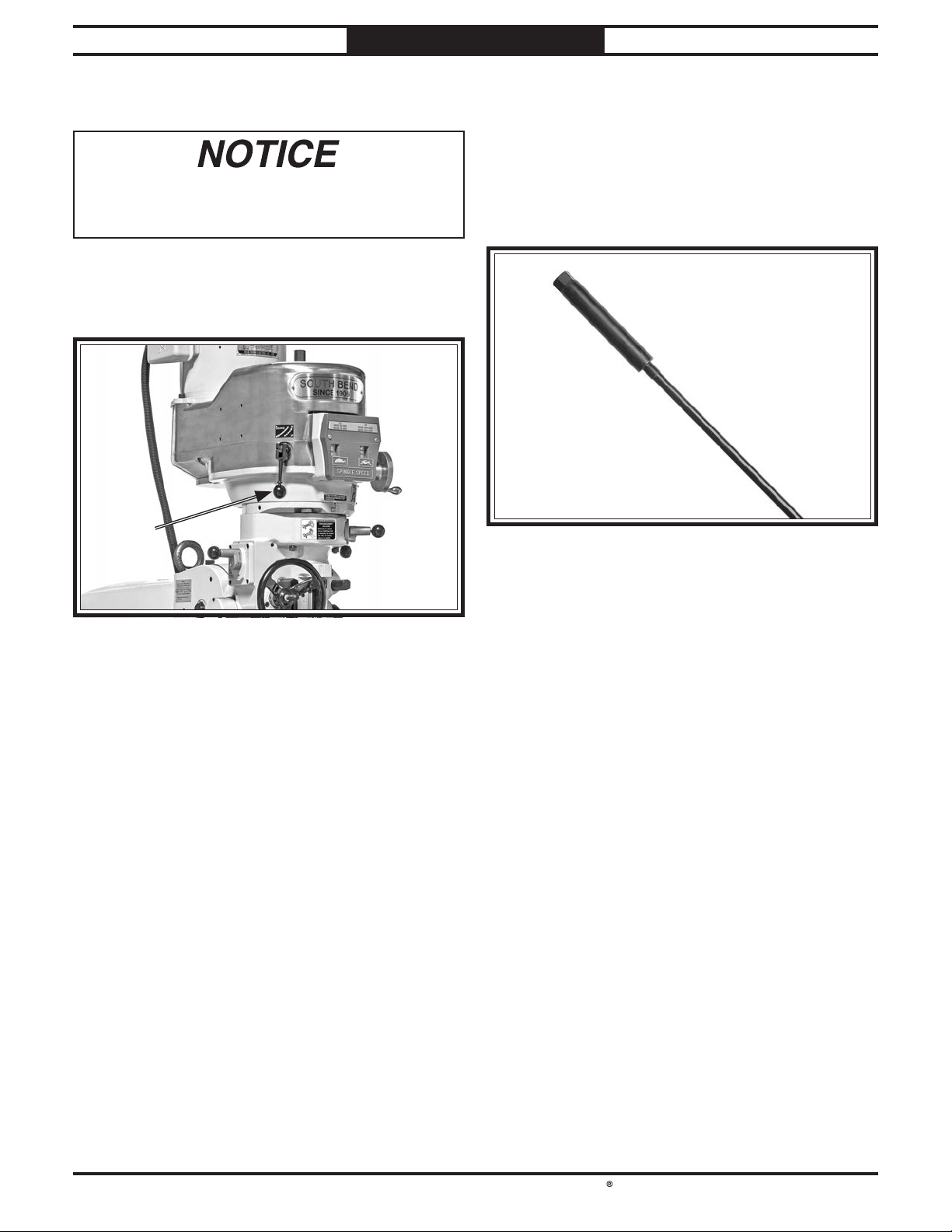

Figure Figure 50. Spindle drawbar.. Spindle drawbar.

Figure Figure 49. Brake lever location.. Brake lever location.

To evenly wear the brake shoes, alternate the direction you move the lever when braking.

Tool Needed Qty

Wrench 19mm .......................................................1

Loading Tooling

1. DISCONNECT MACHINE FROM POWER!

2. Clean any debris or surface substances from

inside spindle taper and mating surface of tooling.

Note: Debris or oil substances can prevent

tooling and spindle from properly mating. This condition can cause excessive vibration, poor cutting results, or tool/workpiece damage.

Place machine in low spindle speed range to

keep spindle from turning in following steps.

Align keyway of tool with protruding pin

inside spindle taper, then firmly push tool into spindle to seat it.

-42-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

OPERATION

5. With one hand holding tool in place, insert

drawbar into spindle from top of head, then thread it into tool (see Figure 51).

DrawbarDrawbar

Figure Figure 51. Drawbar loaded into spindle.. Drawbar loaded into spindle.

Tighten drawbar until it is snug. Avoid

overtightening, as it could make removing tool difficult.

Unloading Tooling

Tools Needed Qty

Wrench 19mm .......................................................1

Brass Hammer

DISCONNECT MACHINE FROM POWER!

2. Place mill in low spindle speed range to keep

spindle from turning in next step.

Note: Make sure drawbar has at least three threads engaged with tooling in next step to avoid damaging threads of drawbar or tool.

Loosen drawbar a couple of turns, then tap

top of it with brass hammer to knock tool loose at bottom of spindle.

Support tool with one hand, then completely

unthread drawbar.

......................................................1

-43-

South Bend Tools

Model SB1124F

order online at www.grizzly.com or call 1-800-523-4777

Accessories

ACCESSORIES

Accessories

This section includes the most common accessories available for your machine, which are available through our exclusive dealer, Grizzly Industrial, Inc., at grizzly.com.

Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended by South Bend or Grizzly.

For Machines Mfd. Since 11/22

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT

11 Oz. Spray

Refer to Grizzly's website or latest catalog for additional recommended accessories.

SB1365–South Bend Way Oil ISO-68 T26419—NLGI#2 Syn-O-Gen Synthetic Grease

Figure Figure 52. Recommended products for machine . Recommended products for machine

lubrication.lubrication.

Figure 53. Recommended products for protecting Figure 53. Recommended products for protecting

unpainted cast iron/steel parts on machinery.unpainted cast iron/steel parts on machinery.

T23962—ISO-68 Moly-D Way Oil, 5 Gal. T23963—ISO-32 Moly-D Machine Oil, 5 Gal. T26685—ISO-32 Moly-D Machine Oil, 1 Gal.

Moly-D oils are some of the best we've found for maintaining the critical components of machinery because they tend to resist run-off and maintain their lubricity under a variety of conditions—as well as reduce chatter or slip. Buy in bulk and save with 1- or 5-gallon quantities.

T23962T23962 T23963T23963 T26685T26685

Figure Figure 54. ISO-68 and ISO-32 machine oil.. ISO-68 and ISO-32 machine oil.

-44-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

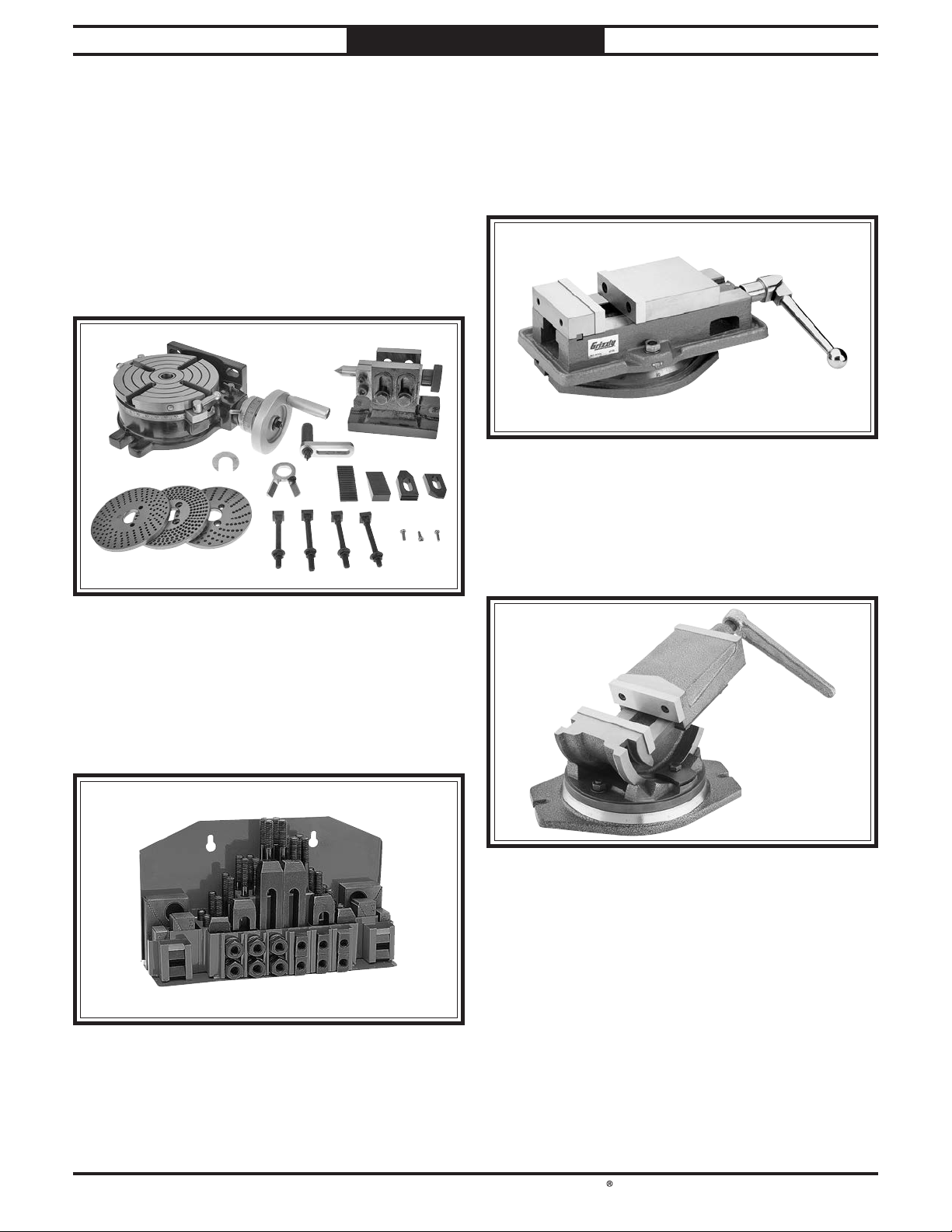

H7527— 6" Rotary Table w/Div. Plates

Use this 6" rotary table in either the horizontal or vertical position for a variety of milling applications, and with the set of dividing plates and adjustable tailstock, your milling applications are nearly unlimited. With 4-degree table movement per handle rotation and 20 second vernier scale, control is very accurate and

precise. Also includes a

⁄8" clamping set for the 4-slot table. Everything you need in one great set!

G7156—4" (3 5⁄8") Precision Milling Vise G7154—5" (4 1⁄2") Precision Milling Vise G7155—6" (5 5⁄8") Precision Milling Vise

Swiveling Milling Vises feature perfectly aligned,

precision-ground jaws, large Acme

screws and

easy to read 0°–360° scales.

Figure Figure 57. Precision Milling Vise.. Precision Milling Vise.

G7066—5" Tilting/Swiveling Milling Vise

This vise offers the ultimate in workpiece setup. Precision aligned jaws and easily accessible tilt and swivel clamps secure for positively worryfree operation.

Figure Figure 55. . H7527 6" Rotary Table w/Div. Plates.H7527 6" Rotary Table w/Div. Plates.

G1076—58-Pc. Clamping Kit

This clamping kit includes 24 studs, 6 step block pairs, 6 T-nuts, 6 flange nuts, 4 coupling nuts, and 6 end hold-downs. The rack is slotted so it can be mounted close to the machine for easy

access. Made for

Figure Figure 56. . G1076 G1076 Clamping Kit.Clamping Kit.

⁄8" T-slots.

Figure Figure 58. G7066 5" Tilting/Swiveling Milling Vise.. G7066 5" Tilting/Swiveling Milling Vise.

-45-

South Bend Tools

Model SB1124F

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

For Machines Mfd. Since 11/22

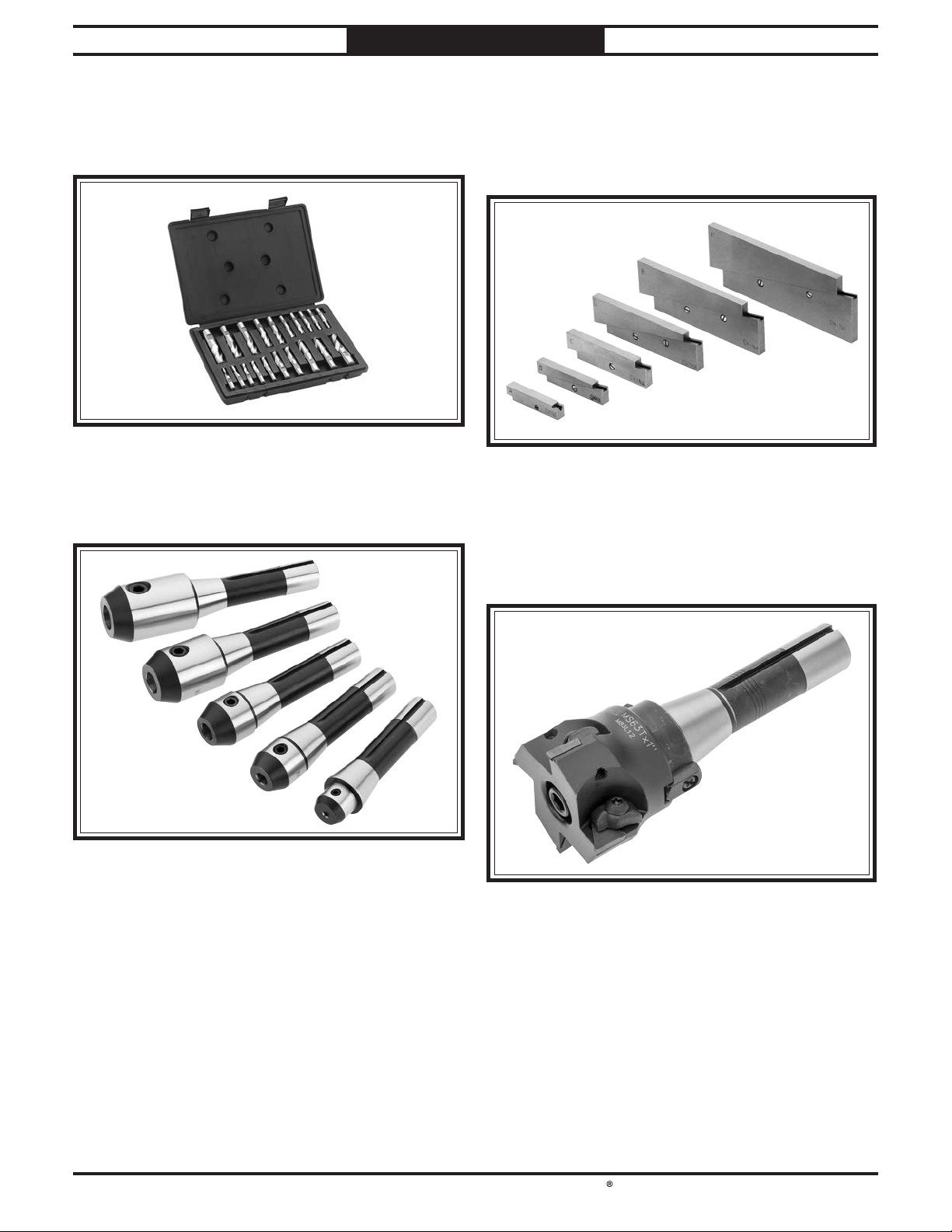

G9760—20-Pc. 2 & 4 Flute TiN End Mill Set

Includes these sizes and styles in two and four

flute styles:

/16", and 3/4".

/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8",

Figure 59. G9760 20-Pc. End Mill Set.G9760 20-Pc. End Mill Set.

T25702—5-Pc. R8 End Mill Holder Set

This set includes holders for

⁄4" end mills. Takes a 7⁄16"-20 drawbar.

⁄16", 3⁄8", 1⁄2", 5⁄8", and

G5680—Adjustable Parallel Set

Create any parallel from

⁄8" to 21⁄4" with this sixpiece adjustable parallel set. Features machined and ground faces and locking set screws. Protected in a vinyl pouch.

Figure 61. G5680 Adjustable Parallel Set. G5680 Adjustable Parallel Set.

G2861—Face Mill G4051—Replacement Carbide Inserts

This 2

⁄2" Face Mill accepts four carbide inserts

(included) and comes with an R8 arbor. It takes a

⁄16"-20 drawbar.

Figure Figure 60. T25702 5-Pc. R8 End Mill Holder Set.. T25702 5-Pc. R8 End Mill Holder Set.

Figure 62. G2861 Face Mill.

-46-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

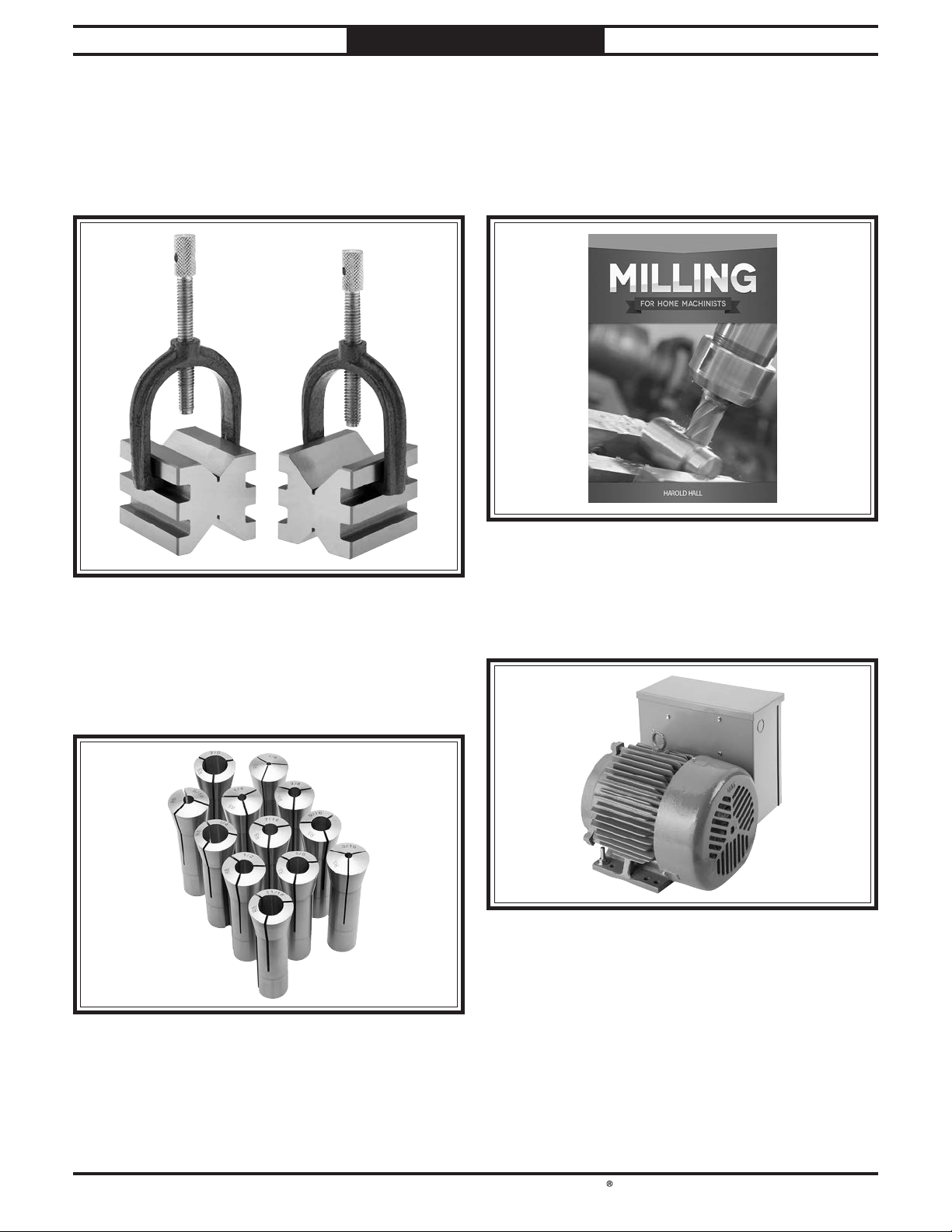

T23889—V-Block Set with Clamp-Double Slot

These clamping V-blocks feature double slots for extra clamping options. Hardened and ground

to ensure accuracy and durability. Capacity 1 diameter and each block measures 2" L x 1

⁄16" H.

x 1

⁄2"

⁄16" W

T25615—Milling for Home Machinists

This is a project-based course book that provides a complete introduction to milling and the use of the milling machine. It assumes no prior knowledge and works through the process of using a home shop mill from beginning to end.

Figure 65. T25615 Milling for Home Machinists.

Figure 63. T23889 V-Block Set.

SB1280—Precision R8 Collet Set

This set of 12 precision R8 collets includes sizes

from

⁄8"-7⁄8" and will take a 7⁄16"-20 drawbar. Each collet is hardened to 55-60 Rc, and is precision ground to a total runout of less than 0.00059".

G5844—Rotary Phase Converter 5 HP

This rotary phase converter allows you to operate 3-phase machinery from a single-phase power source at 100% power and 95% efficiency.

Figure Figure 66. G5844 Rotary Phase Converter 5 HP.. G5844 Rotary Phase Converter 5 HP.

Figure Figure 64. SB1280 Precision Collet Set.. SB1280 Precision Collet Set.

-47-

South Bend Tools

Model SB1124F

Maintenance

MAINTENANC E

Maintenance Schedule

Always disconnect machine from power before performing maintenance or serious personal injury may result.

For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Check/correct loose mounting bolts.

• Check/correct damaged or dull tools.

• Check/repair/replace worn or damaged wires.

• Clean/protect unpainted cast-iron surfaces.

• Clean dust or debris around machine.

• Resolve other unsafe conditions.

For Machines Mfd. Since 11/22

Daily After Operations

• Press EMERGENCY STOP button, turn master power switch to OFF position, and disconnect machine from power.

Vacuum/clean all chips and swarf from table,

• slides, and base.

Wipe down all unpainted or machined

• surfaces with a high-quality rust preventative.

Cleaning & Protecting

Regular cleaning is one of the most important steps in taking good care of this mill. Each operator is responsible for cleaning the machine immediately after using it or at the end of the day. We recommend that the cleaning routine be planned into the workflow schedule, so that adequate time is set aside to do the job right.

Typically, the easiest way to clean swarf from the ways and table is to use a wet/dry shop vacuum that is dedicated for this purpose only. The small chips leftover after vacuuming can be wiped up with a slightly oiled rag. Avoid using compressed air to blow off chips, as this may drive them deeper into moving surfaces and could cause sharp chips to fly into your face or hands.

Daily Before Operations

• Turn master power switch to OFF position, and press EMERGENCY STOP button to prevent spindle startup when connected to power.

Move fine downfeed clutch lever to right

• (disengaged) position to prevent spindle from unexpectedly auto-downfeeding when spindle rotation begins.

Ensure X-axis power feed is turned OFF to

• prevent unintentional table movement when connected to power.

Check table movement in all three axis

• directions for loose/tight gibs. Adjust gibs as necessary (see Page 59).

Perform lubrication tasks as directed in

• Lubrication (see Page 50).

Check coolant reservoir in base. Fill it

• or clean it out as instructed in Coolant Reservoir (see Page 55).

Besides the ways and elevation leadscrew, all other unpainted and machined surfaces should be wiped down daily to keep them rust-free and in top condition. This includes any surface that could be vulnerable to rust if left unprotected (this especially includes any parts that may be exposed to water-soluble cutting fluids). Typically with these parts, a thin film of oil is all that is necessary for protection.

Keep tables rust-free with ISO 68 way oil.

-48-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

MAINTENANC E

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

Day

Item

Inspection

Coolant

System

Gib

Adjustment

End of Day

South Bend Tools Monthly Maintenance Chart for Model SB1124F Milling Machine

Disconnected

From Power

Cleaned &

Protected

Lubrication

Quill

Table, Saddle,

Knee Ways

Speed Range

Bearing

Sleeve

Headstock

Gearing

Ram Ways

Table

Elevation

Leadscrew

Use this chart to keep track of the maintenance performed on the mill. Cross out

or initial the "Day" box for each item on the list. If the box is blacked out, mainte-

Power Feed

Gears

nance is not required for that item on that day.

Make copies of this page to use each month. Keep each chart as a maintenance

record for the mill.

Month/Year:

1906

SINCE

www.southbendtools.com

(360) 734-1540 • FAX: (360) 676-1075

-49-

South Bend Tools

Model SB1124F

MAINTENANC E

For Machines Mfd. Since 11/22

Lubrication

The mill has numerous moving metal-tometal contacts that require regular and proper lubrication to ensure efficient and long-lasting operation, and to protect your investment.

Other than the lubrication points covered in this section, all other bearings are internally lubricated and sealed at the factory. Simply leave them alone unless they need to be replaced.

Before performing any lubrication task, DISCONNECT MACHINE FROM POWER!

IMPORTANT: Before adding lubricant, clean the debris and grime from the oil cup or grease ﬁtting and the immediate area to prevent contamination of the oil cups, grease ﬁttings, or new lubricant.

Use the schedule and information in Figure 67 as a guide for lubrication tasks.

The following recommended lubrication schedule is based on light to medium mill usage. Keeping in mind that lubrication helps to protect the value and operation of the mill, you may need to perform the lubrication tasks more frequently, depending on your usage.

Frequency

Lubrication Task

Quill 3–4 hrs. 51

Quill Exterior 4–8 hrs. 51

Quill Rack & Pinion 40 hrs. 51

Table Ways (One-Shot Oiler)

Speed Range Bearing Sleeve

Headstock Gearing 40 hrs. 52

Ram Ways 40 hrs. 52

Table Leadscrews 40 hrs. 53

Power Feed Gears 160 hrs. 53

Figure Figure 67. Recommended lubrication tasks, schedules, . Recommended lubrication tasks, schedules,

and instruction page references.and instruction page references.

Items Needed Qty

Open-End Wrench 19mm .....................................1

Grease Gun Mineral Spirits Shop Rags Brush

............................................................1

...................................... As Needed

.............................................. As Needed

.....................................................................1

(Hours of

Operation)

4–8 hrs. 51

40 hrs. 52

Page

Ref.

-50-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

MAINTENANC E

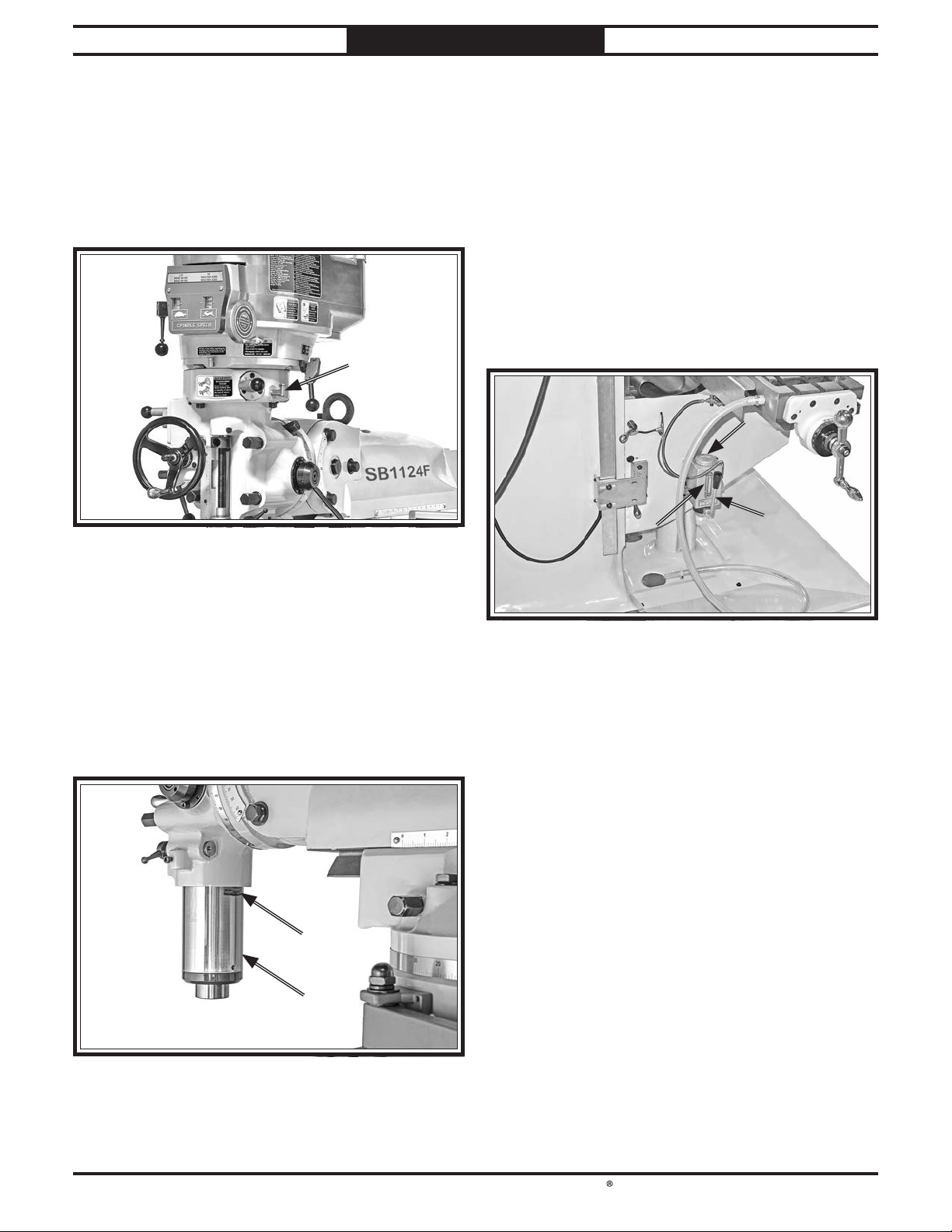

Quill

Oil Type ..................SB1365 or ISO 68 Equivalent

Oil Amount Check/Add Frequency

Lift the oil cup cap shown in Figure 68 and apply 4 drops of oil.

................................................. 4 Drops

..........3–4 hrs. of Operation

Quill Oil CupQuill Oil Cup

Figure Figure 68. Quill oil cup location.. Quill oil cup location.

Table Ways (One-Shot Oiler)

Oil Type ..................SB1365 or ISO 68 Equivalent

Oil Amount Check/Add Frequency

The one-shot oiler is connected to a series of aluminum tubes that carry the lubricant to wear points along the table horizontal and vertical ways. After using the oiler pump handle shown in Figure 70, move the table through all paths of movement to evenly distribute the lubricant. Use the sight glass on the side of the oiler to know when to re-fill the reservoir.

................... One Pull of Pump Handle

..........4–8 hrs. of Operation

Reservoir CapReservoir Cap

PumpPump

SightSight GlassGlass

HandleHandle

Quill Exterior

Oil Type ..................SB1365 or ISO 68 Equivalent

Oil Amount Check/Add Frequency

Fully extend the spindle to expose the quill (see Figure 69), then use an oily shop rag to apply a thin coat of lubricant to the smooth surface of the quill.

............................................. Thin Coat

..........4–8 hrs. of Operation

RackRack

QuillQuill

Figure Figure 70. Location of one-shot oiler controls.. Location of one-shot oiler controls.

Quill Rack & Pinion

Grease Type ......... T26419 or NLGI #2 Equivalent

Oil Amount Check/Add Frequency

Fully extend the spindle to expose the quill rack (see Figure 69), then use mineral spirits, shop rags, and a brush to clean the oil grease off the teeth of the rack & pinion. When dry, use a brush to apply a thin coat of grease to the teeth. Then move the quill up and down several times to evenly distribute the grease.

............................................. Thin Coat

............40 hrs. of Operation

Figure Figure 69. Quill lubrication points.. Quill lubrication points.

-51-

South Bend Tools

Model SB1124F

MAINTENANC E

For Machines Mfd. Since 11/22

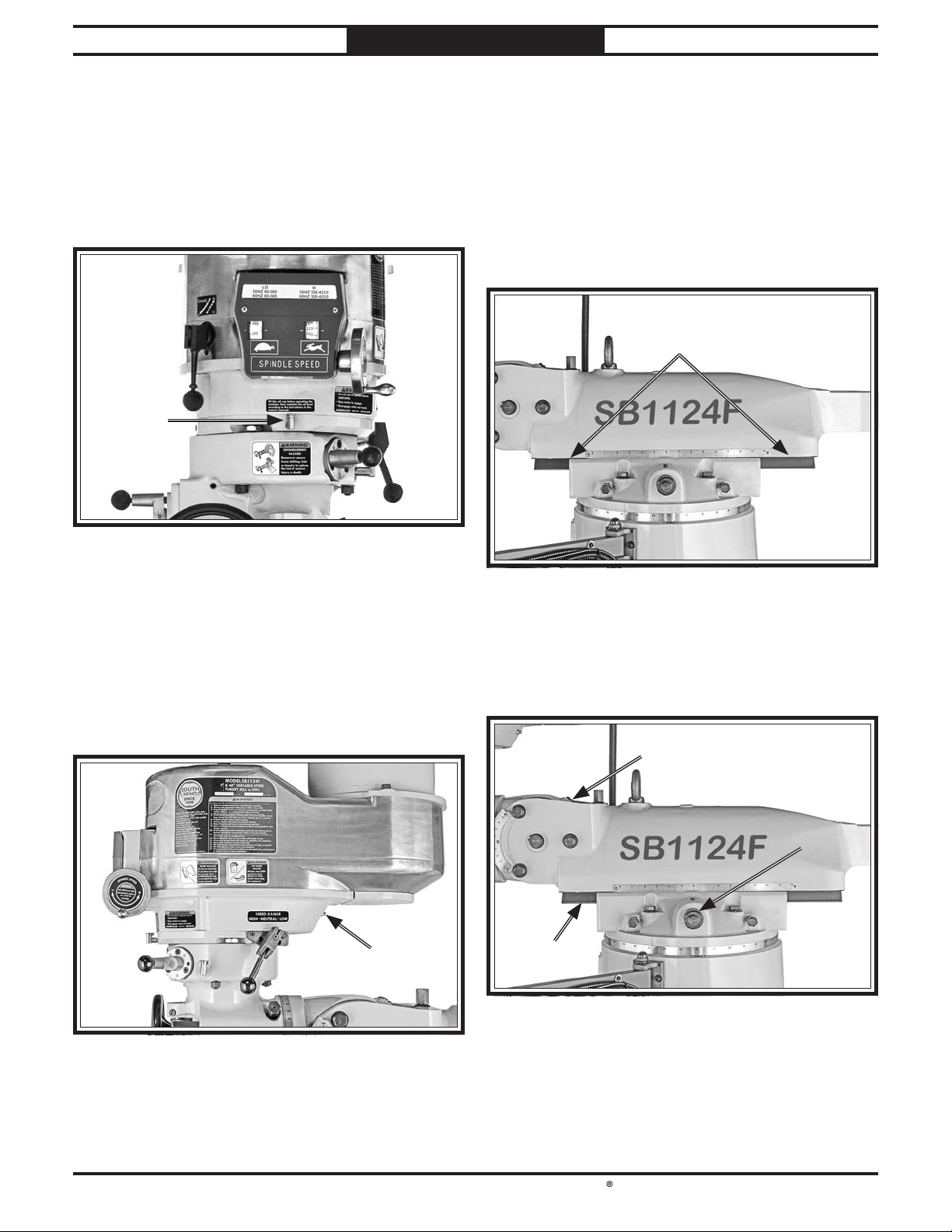

Speed Range Bearing Sleeve

Oil Type ..................SB1365 or ISO 68 Equivalent

Oil Amount Check/Add Frequency

Lift the oil cup cap shown in Figure 71 to fill the oil cup with lubricant.

Oil CupOil Cup

Figure Figure 71. Oil cup location for speed range bearing . Oil cup location for speed range bearing

.......................................... Fill Oil Cup

............40 hrs. of Operation

sleeve.sleeve.

Headstock Gearing

Grease Type ......... T26419 or NLGI #2 Equivalent

Grease Amount Check/Add Frequency

Add two pumps from a grease gun to the grease fitting shown in Figure 72.

...........Two Pumps of Grease Gun

............40 hrs. of Operation

Ram Ways

Oil Type ..................SB1365 or ISO 68 Equivalent

Oil Amount Check/Add Frequency

Move the ram back and forth as necessary to access the full length of the ways (see Figure

73), then use a clean shop rag to apply a thin coat of lubricant.

Figure Figure 73. Exposing ram ways for lubrication.. Exposing ram ways for lubrication.

............................................. Thin Coat

............40 hrs. of Operation

Ram WaysRam Ways

Head Tilt & Ram Pinions

The interaction between the cast iron surfaces of these devices (see Figure 74) produces a dry powder that provides an adequate lubrication.

Head Tilt RackHead Tilt Rack

& Pinion Gear& Pinion Gear

Figure Figure 72. Headstock gearing grease fitting location.. Headstock gearing grease fitting location.

-52-

Headstock GearingHeadstock Gearing

Grease FittingGrease Fitting

Ram PinionRam Pinion

GearGear

Ram RackRam Rack

Figure Figure 74. Locations of head tilt and ram pinions.. Locations of head tilt and ram pinions.

Do not apply any other lubricant, which could produce a stiff compound that may interfere with smooth movement.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

MAINTENANC E

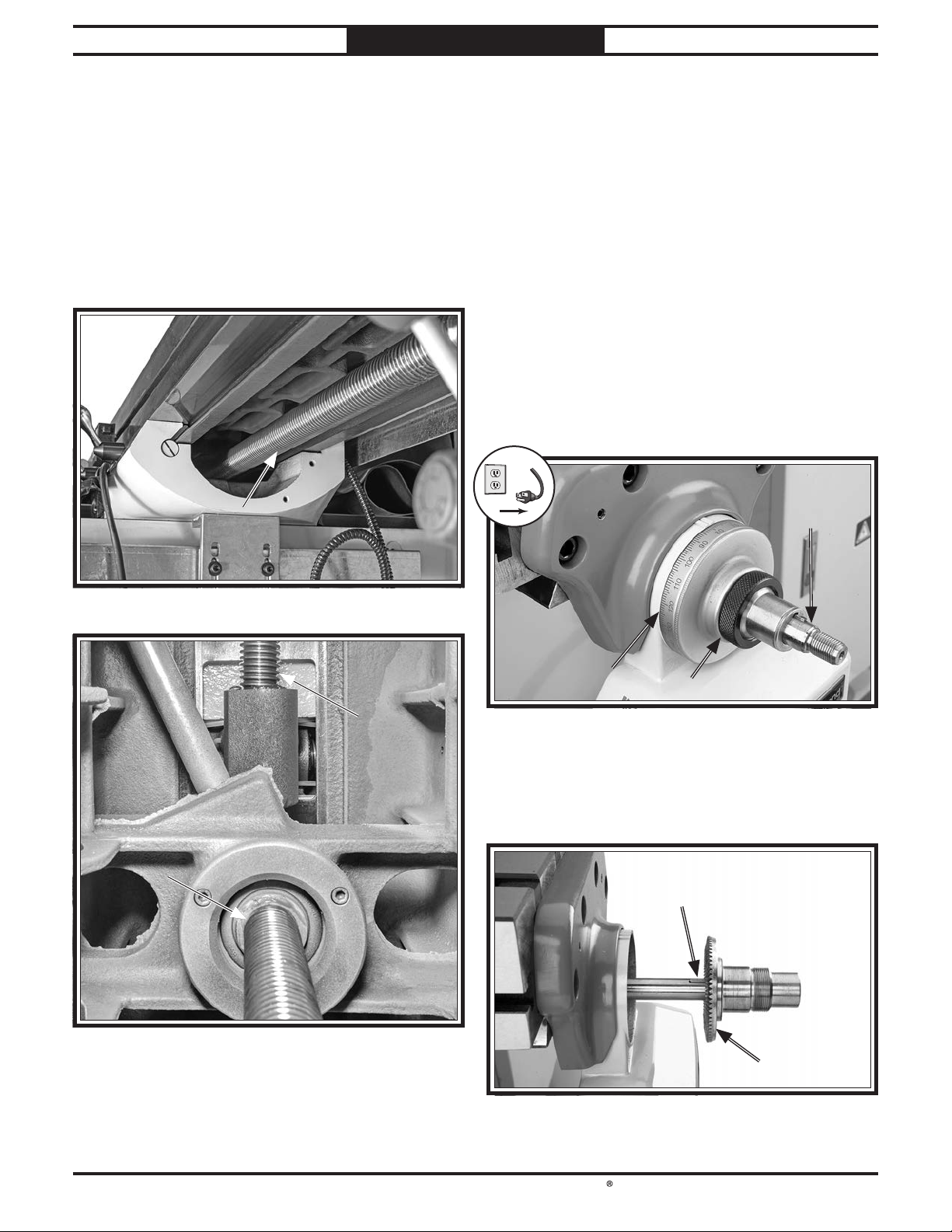

Table Leadscrews

Grease Type ......... T26419 or NLGI #2 Equivalent

Grease Amount Check/Add Frequency

Move the table as necessary to access the entire length of the X-, Y-, and Z-axis leadscrews (see Figures 75–76), then use mineral spirits, shop rags, and a brush to clean any debris and builtup grime off the threads.

...................................... Thin Coat

............40 hrs. of Operation

X-Axis X-Axis

LeadscrewLeadscrew

Power Feed Gears

Grease Type ......... T26419 or NLGI #2 Equivalent

Grease Amount Check/Add Frequency

Tool Needed Qty

Open-End Wrench 19mm .....................................1

To lubricate power feed gears:

1. DISCONNECT MACHINE FROM POWER!

2. Remove hex nut and ball handle from power

unit end of X-axis leadscrew (see Figure 77).

Unthread and remove knurled retaining

ring and graduated dial ring from end of leadscrew (see Figure 77).

...........Two Pumps of Grease Gun

............40 hrs. of Operation

LeadscrewLeadscrew

Figure Figure 75. Location of X-axis leadscrew.. Location of X-axis leadscrew.

Y-Axis Y-Axis

LeadscrewLeadscrew

Z-Axis Z-Axis

LeadscrewLeadscrew

Figure Figure 76. Location of Y- and Z-axis leadscrews.. Location of Y- and Z-axis leadscrews.

Graduated Graduated

Dial RingDial Ring

Figure Figure 77. Example of power feed ball handle . Example of power feed ball handle

4. Remove brass bevel gear from leadscrew,

then remove leadscrew alignment key (see Figure 78).

Retaining RingRetaining Ring

removed.removed.

Alignment KeyAlignment Key

When dry, use a clean brush to apply a thin coat of grease to the leadscrew threads, then move the table through the X-, Y-, and Z-axis paths to distribute the grease.

Brass Bevel GearBrass Bevel Gear

Figure Figure 78. Example of power feed brass gear and . Example of power feed brass gear and

leadscrew alignment key.leadscrew alignment key.

-53-

South Bend Tools

Model SB1124F

5. Brush a light coat of lubricant on teeth of bevel gear and smaller drive gear (see Figure 79).

MAINTENANC E

For Machines Mfd. Since 11/22

Machine Storage

The machine must be properly prepared if it will be stored for any period of time. Doing this will help prevent the development of rust and corrosion and ensure the mill remains in good condition for later use.

Note: When taking the machine out of storage, repeat the Test Run and the Spindle Break-In.

Preparing Mill for Storage

1. DISCONNECT MACHINE FROM POWER!

Drive GearDrive Gear

Bevel GearBevel Gear

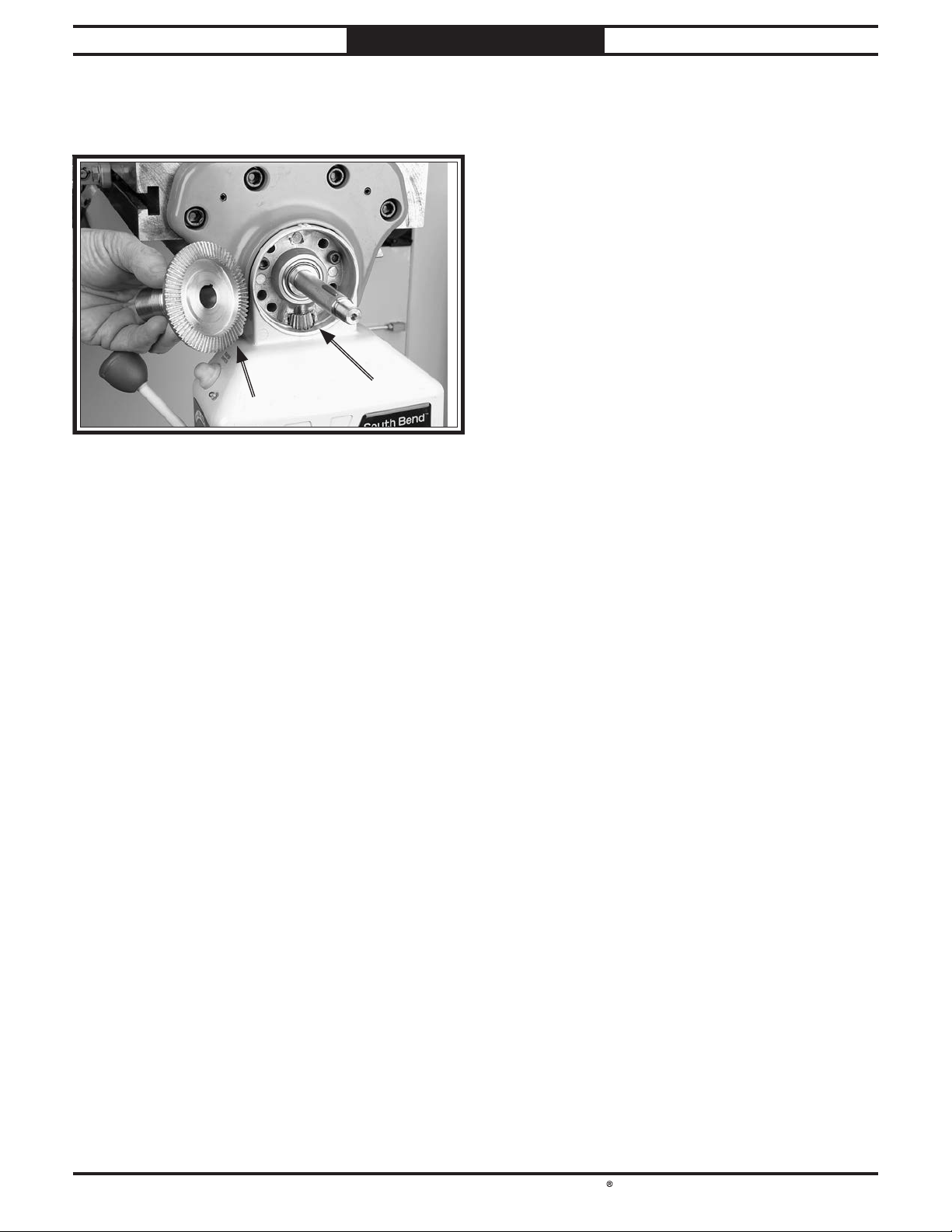

Figure Figure 79. Example of power feed brass gear and . Example of power feed brass gear and

drive gear.drive gear.

Replace leadscrew alignment key, then align

bevel gear keyway with key as you slide gear onto leadscrew and mesh its teeth with drive gear.

Install graduated dial ring and secure it with

knurled retaining ring—do not overtighten.

Slide ball handle onto leadscrew, align

keyway with leadscrew alignment key, then secure it with hex nut removed in Step 2.

Move table with power feed ball handle

to check gear movement and to distribute grease on gears. If movement is not smooth, repeat Steps 2–8 until it is.

2. Lubricate machine as directed in

Lubrication on Page 50.

Clean out coolant reservoir as directed in

Changing Coolant on Page 56.

Thoroughly clean all unpainted, bare metal

surfaces, then coat them with quality rust preventative. Take care to ensure these surfaces are completely covered but rust preventative is kept off painted surfaces.

Note: If machine will be out of service for only

a short period of time, use way oil in place of rust preventative.

Place a few moisture-absorbing desiccant

packs inside electrical cabinet.

Cover and place machine in a dry area that

is out of direct sunlight and away from hazardous fumes, paint, solvents, or gas. Fumes and sunlight can bleach or discolor paint and plastic parts.

-54-

Bringing Mill Out of Storage

1. Remove moisture-absorbing desiccant packs

from electrical box.

Refer to Cleaning & Protecting on Page

48.

Repeat Test Run and Spindle Break-In

procedures, beginning on Page 26.

Add coolant, as described in Adding/

Changing Coolant on Page 55.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Service

SERVICE

Coolant Reservoir

Hazards

As some coolant ages, it develops dangerous microbes which eventually proliferate and create a biological hazard. The risk of exposure to this hazard can be greatly reduced by cleaning out the coolant reservoir on a monthly basis or sooner, if needed based on your daily inspection.

The important thing to keep in mind when working with coolant is to minimize exposure to your skin, eyes, and respiratory system by wearing the proper personal protective equipment, which includes splash-resistant safety glasses, long-sleeve gloves, protective clothing, and a NIOSH-approved respirator.

BIOLOGICAL & POISON

HAZARD! Use the correct personal protection equipment when handling coolant. Follow federal, state, and ﬂuid manufacturer requirements for proper disposal.

Checking/Adding Coolant

Items Needed Qty

Hex Wrench 3mm .................................................1

Goggles Gloves Respirator New Coolant Disposable Shop Rags

To check/add coolant:

1. DISCONNECT MACHINE FROM POWER!

2. Clean away debris and grime from coolant

.......................................1 Pair Per Person

.........................................1 Pair Per Person

...........................................1 Per Person

.......................................... As Needed

........................... As Needed

drain screens (see Figure 80).

DrainDrain

ScreensScreens

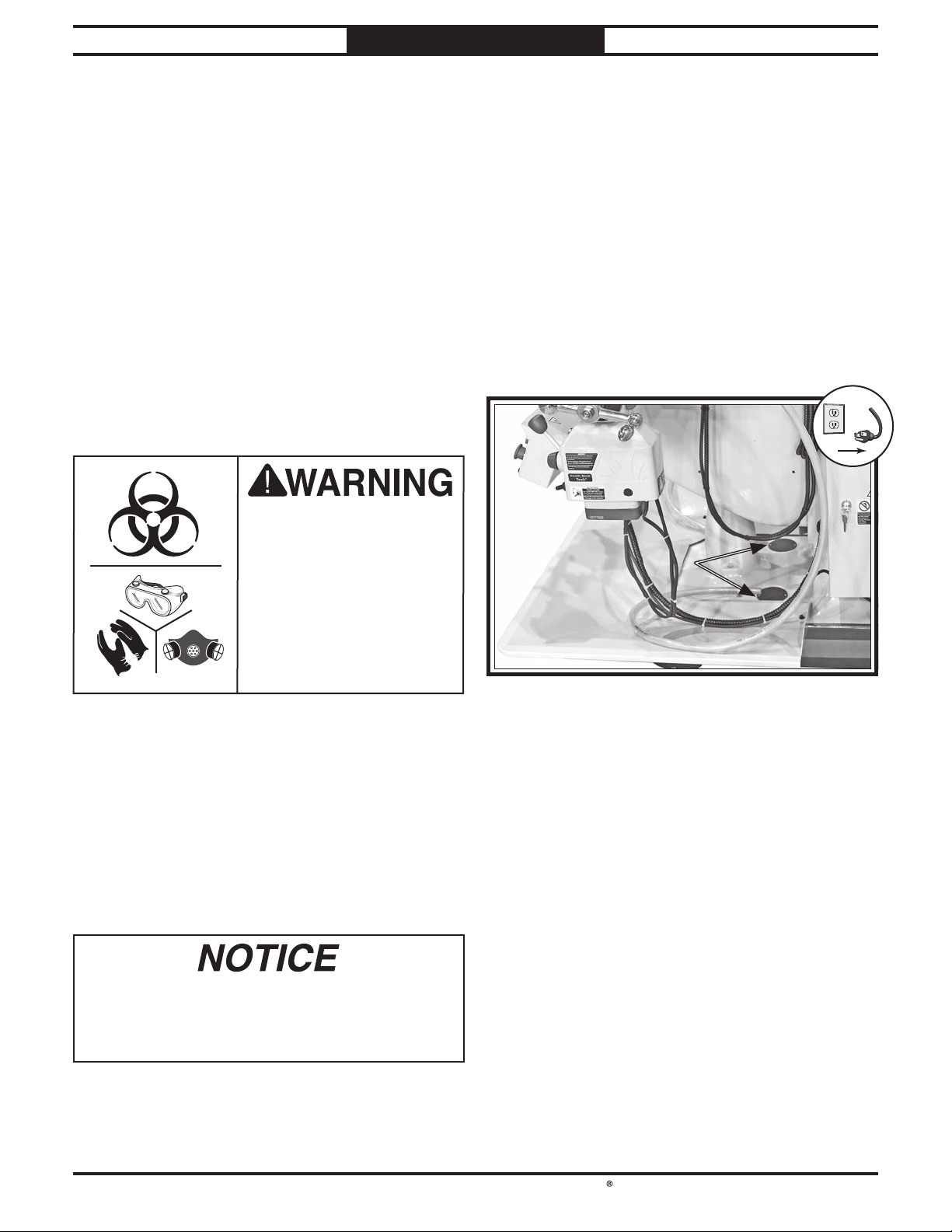

Figure Figure 80. Locations of coolant drain screens.. Locations of coolant drain screens.

A small amount of coolant is lost during normal operation. Check the coolant reservoir regularly and ﬁll it if necessary. We recommend changing the coolant every three months or sooner if it develops an unpleasant odor. However, be sure to follow the coolant manufacturer's instructions when checking, adding, or changing coolant.

The coolant reservoir holds approximately 20 liters of ﬂuid.

Running coolant pump without adequate coolant in reservoir may permanently damage coolant pump. This action is considered abusive and is not covered by warranty.

3. For a dip stick, use a clean, metal tool that

is narrow enough to fit through screen hole and long enough to measure coolant depth in reservoir. If level of coolant in reservoir is less than 2", add more fluid through screen to fill reservoir.

-55-

South Bend Tools

Model SB1124F

SERVICE

Changing Coolant

Items Needed Qty

Hex Wrench 5mm .................................................1

Catch Pan Empty Bucket 6-Gal. Rubber Hose (optional) Goggles Gloves Respirator New Coolant Disposable Shop Rags

To change coolant:

1. Put on personal protective equipment.

2. Place catch pan on table, position coolant

nozzle over pan, then use coolant pump to drain reservoir.

.............................................................. 1

............................................1

.........................................1

.......................................1 Pair Per Person

.........................................1 Pair Per Person

...........................................1 Per Person

............................... Approx. 20 Liters

........................... As Needed

For Machines Mfd. Since 11/22

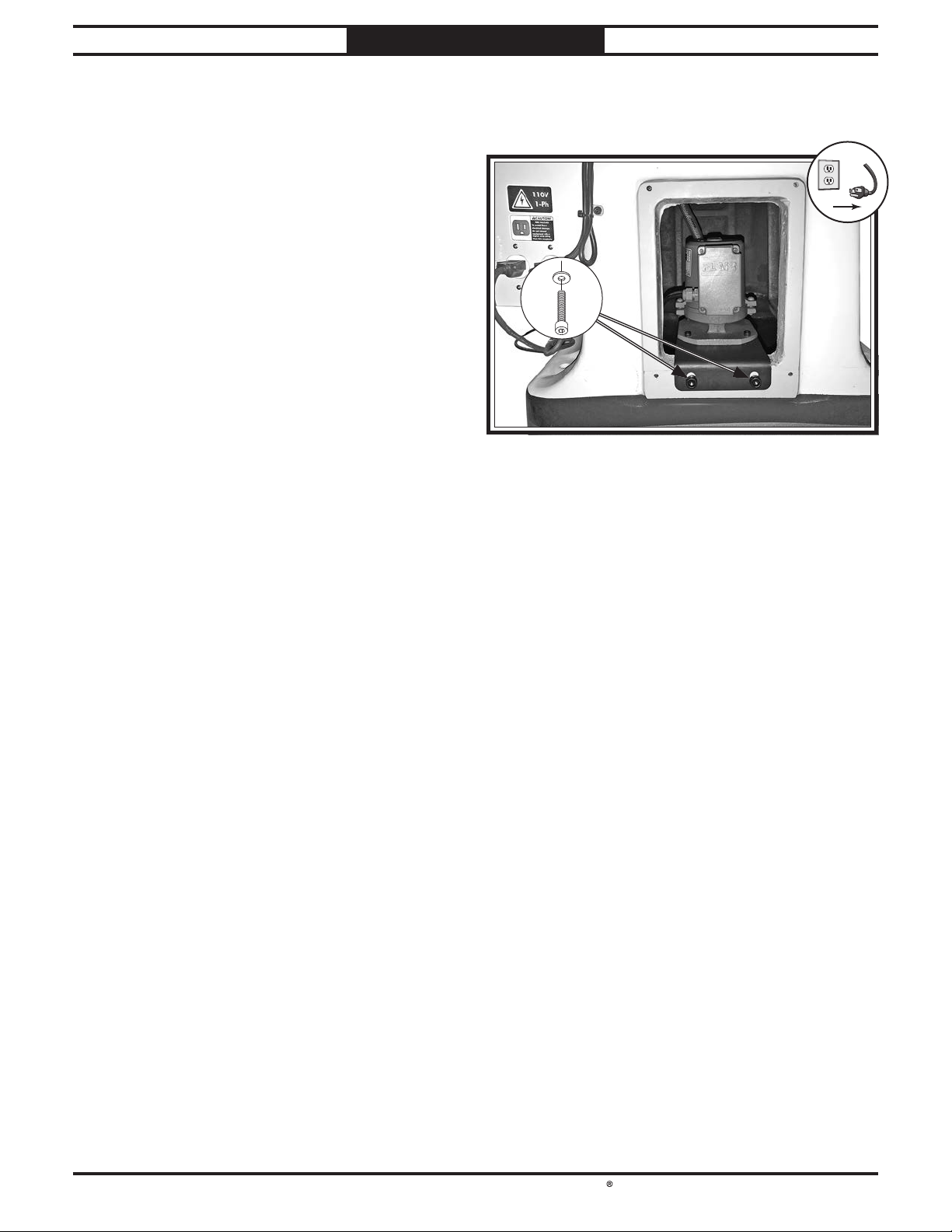

Remove (2) cap screws and flat washers

securing pump, and move it out of the way (see Figure 81).

x 2

Figure Figure 81. Location of coolant pump.. Location of coolant pump.

Note: When catch pan is full, empty it into

6-gallon bucket, then repeat process until reservoir is empty.

Tip: Alternately, slide rubber hose onto

coolant nozzle and point it into a 6-gallon bucket.

DISCONNECT MACHINE FROM POWER!

4. Remove coolant reservoir access panel from

rear of column.

6. Thoroughly clean out bottom of reservoir

and base of pump. Make sure interior is completely dry before adding new coolant.

Note: Use cleaning solvent that is compatible

with type of coolant. For instance, if you are using a water-base coolant, then use a waterbase cleaning solvent.

When reservoir and pump are clean and dry,

replace pump and access panel.

Clean away debris and grime from coolant

drain screens on base of mill (see Figure 80 on previous page), then pour coolant through one of the screens to fill reservoir.

-56-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Tramming Spindle

After positioning the head at an angle, and when your operation requires that the spindle axis be precisely perpendicular to the table, you must tram or align the spindle with the table to ensure the spindle is exactly 90° to the table.

SERVICE

Tools Needed Qty

Dial Test Indicator (with at least 0.0005" resolution) Indicator Holder (mounted on the quill/spindle) Precision Parallel Block (at least 9" in length)

......................... 1

.............................1

............................................1

This procedure involves mounting a dial test indicator to the quill or spindle, rotating it around the table, and adjusting the spindle axis (Z-axis) 90° to the table X- and Y-axes, as illustrated in Figure 82.

Spindle

Z-Axis

Y-Axis

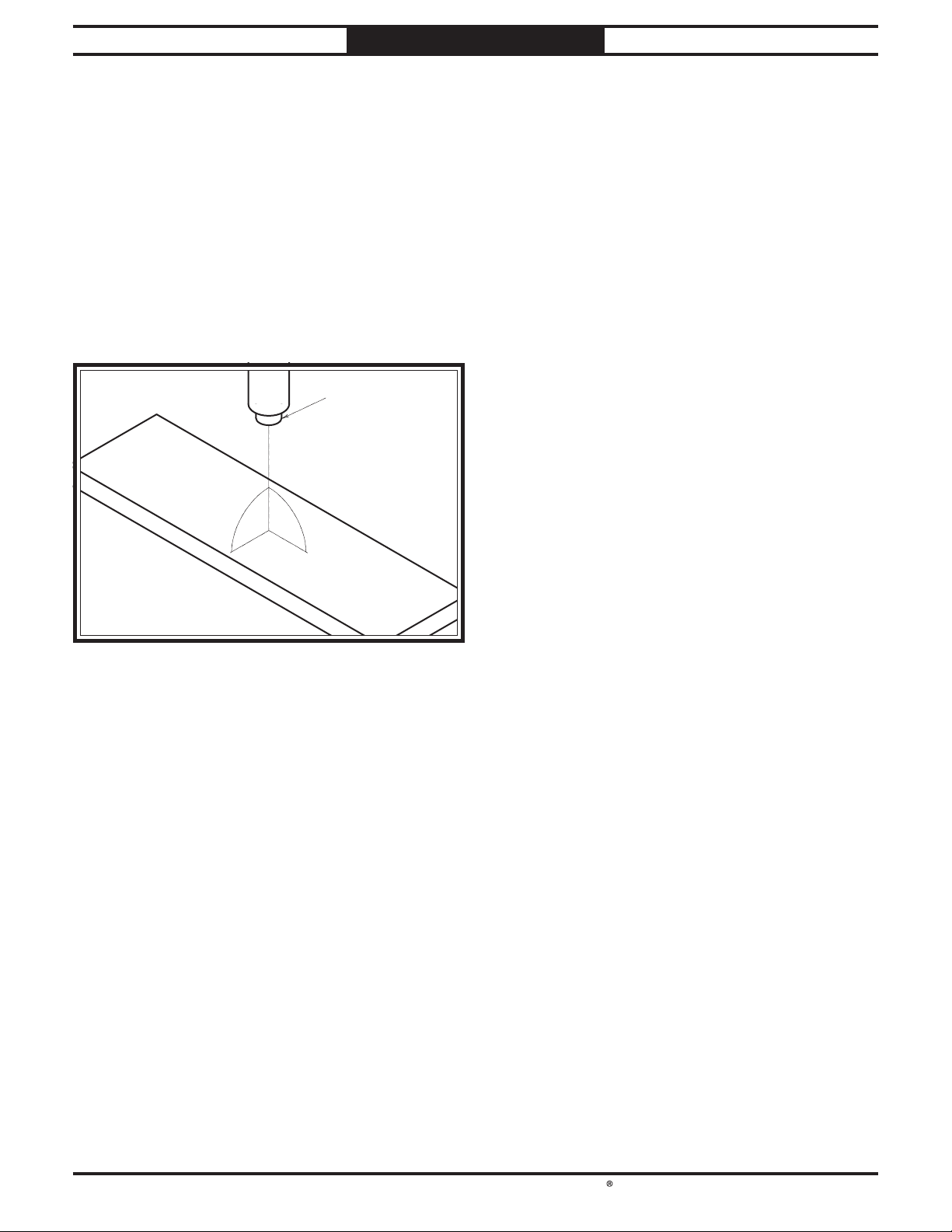

Figure Figure 82. Spindle axis perpendicular to the table X- . Spindle axis perpendicular to the table X-

and Y-axes.and Y-axes.

We encourage you to research the many variations of spindle tramming to find the one that works best for you. If you do not already have a preference for performing this operation, use the following widely-used procedure for accurately tramming the spindle to the table.

90º

X-Axis

Table

Note: A precision-ground plate can be substituted for the parallel blocks. Keep in mind that the farther the indicator point can be placed from the spindle axis, the more accurate the alignment measurements will be.

To tram spindle to table:

1. DISCONNECT MACHINE FROM POWER!

2. Prepare mill by performing following tasks:

• Stone table to remove all nicks and burrs, then clean off all debris. Verify table is clean by running your hand over the top of it.

• Position table for milling operation you intend to perform after tramming— preferably centered to saddle.

• Tighten any table, knee, quill, or ram locks that should be tight during intended milling operation.

Place parallel block underneath spindle.

Keep in mind that all workpiece top surfaces are not exactly parallel with the table top. You may choose to tram the spindle to the top surface of the workpiece after it is mounted instead of that of the table.

-57-

South Bend Tools

Model SB1124F

SERVICE

For Machines Mfd. Since 11/22

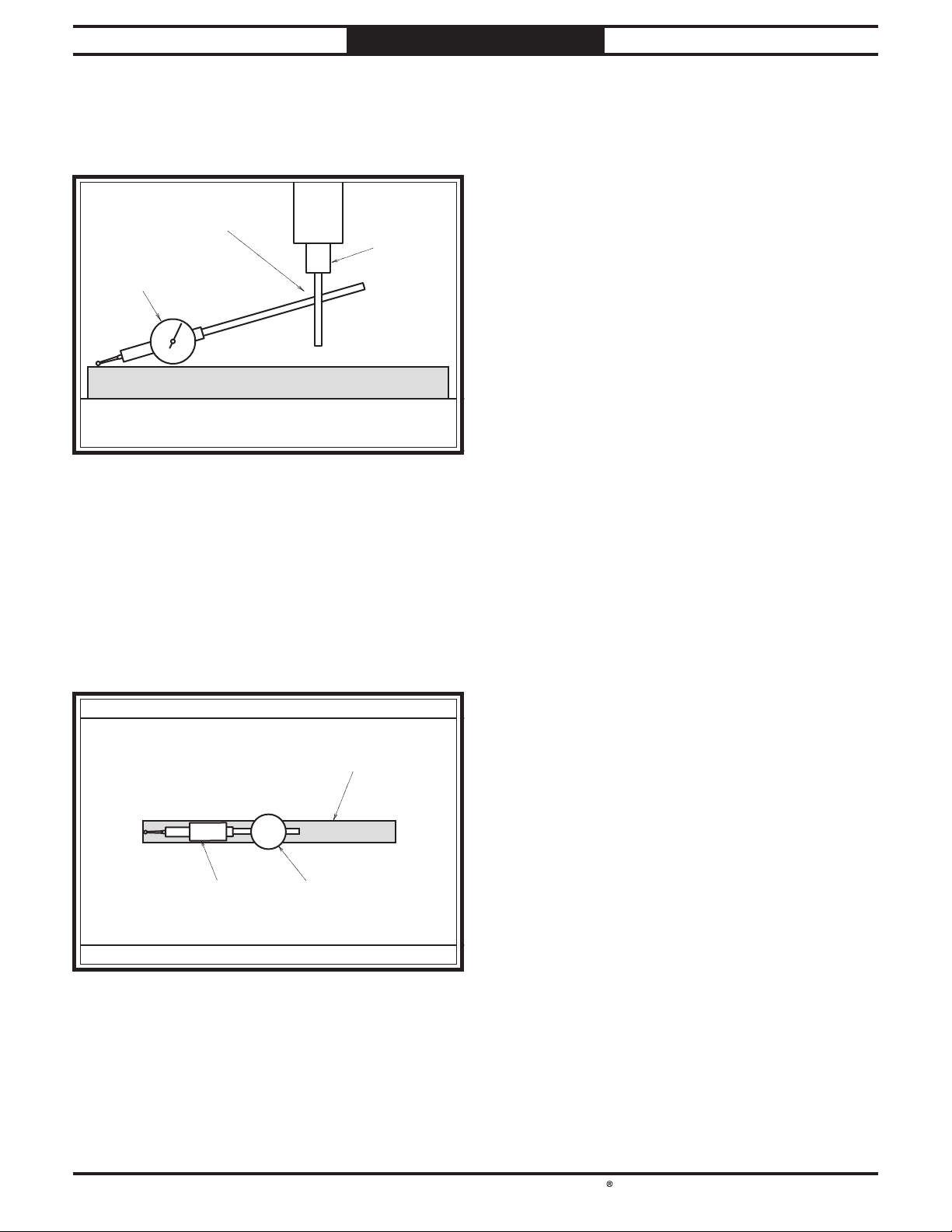

4. Install indicator holder into spindle or quill,

then mount indicator onto it so point is as parallel to block as possible, as illustrated in Figure 83.

Indicator Holder

Spindle

Dial Test Indicator

Parallel Block

Table

Figure Figure 83. Dial test indicator mounted.. Dial test indicator mounted.

To measure spindle alignment along X-axis,

place parallel block directly under spindle and indicator across length of table, as illustrated in Figure 84.

Note: Generally, the goal in next steps is to

get difference of indicator readings between end of parallel block down to 0.0005". However, acceptable variance will depend on requirements for your operation.

Rotate spindle by hand so indicator point

rests on one end of parallel block, as illustrated in Figure 84, then zero dial.

Rotate spindle so indicator point rests in

same manner on other end of block, then read dial.

— If indicator dial still reads zero or is

within acceptable variance, proceed to Step 8.

— If indicator dial has moved from zero

beyond acceptable variance, you will need to compensate for that amount by rotating head left or right. Repeat Steps 6–7 until you are satisfied with spindle axis alignment along table X-axis.

Note: If you must re-position quill or knee to

accommodate above step, then review tasks in Step 2 to make sure mill is properly prepared for tramming operation.

Table (Top View)

Parallel Block

Indicator

Figure Figure 84. Parallel block positioned for X-axis . Parallel block positioned for X-axis

measurement (top view).measurement (top view).

Spindle

Note: Keep one of the rotation lock bolts

snug so that head does not move loosely while you adjust it in small amounts.

Tighten rotation lock bolts.

Note: It is a good idea to repeat Steps 6–7 again

in case the head moved slightly during the process of re-tightening the lock bolts.

-58-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Place parallel block directly under spindle

and across width of table, as illustrated in Figure 85.

Rotate spindle so indicator point rests on

10.

parallel bar, as illustrated in Figure 85, then zero dial.

Table (Top View)

Indicator

SERVICE

Adjusting Gibs

Gibs are tapered lengths of metal between two dovetail sliding surfaces. Gibs control the gap between these surfaces and how they slide past one another. Correctly adjusting the gibs is critical to producing good milling results.

Tight gibs make table movement more accurate but stiff. Loose gibs make moving the table sloppy but easier to do. The goal of gib adjustment is to remove unnecessary sloppiness without causing the ways to bind.

Spindle

Parallel Block

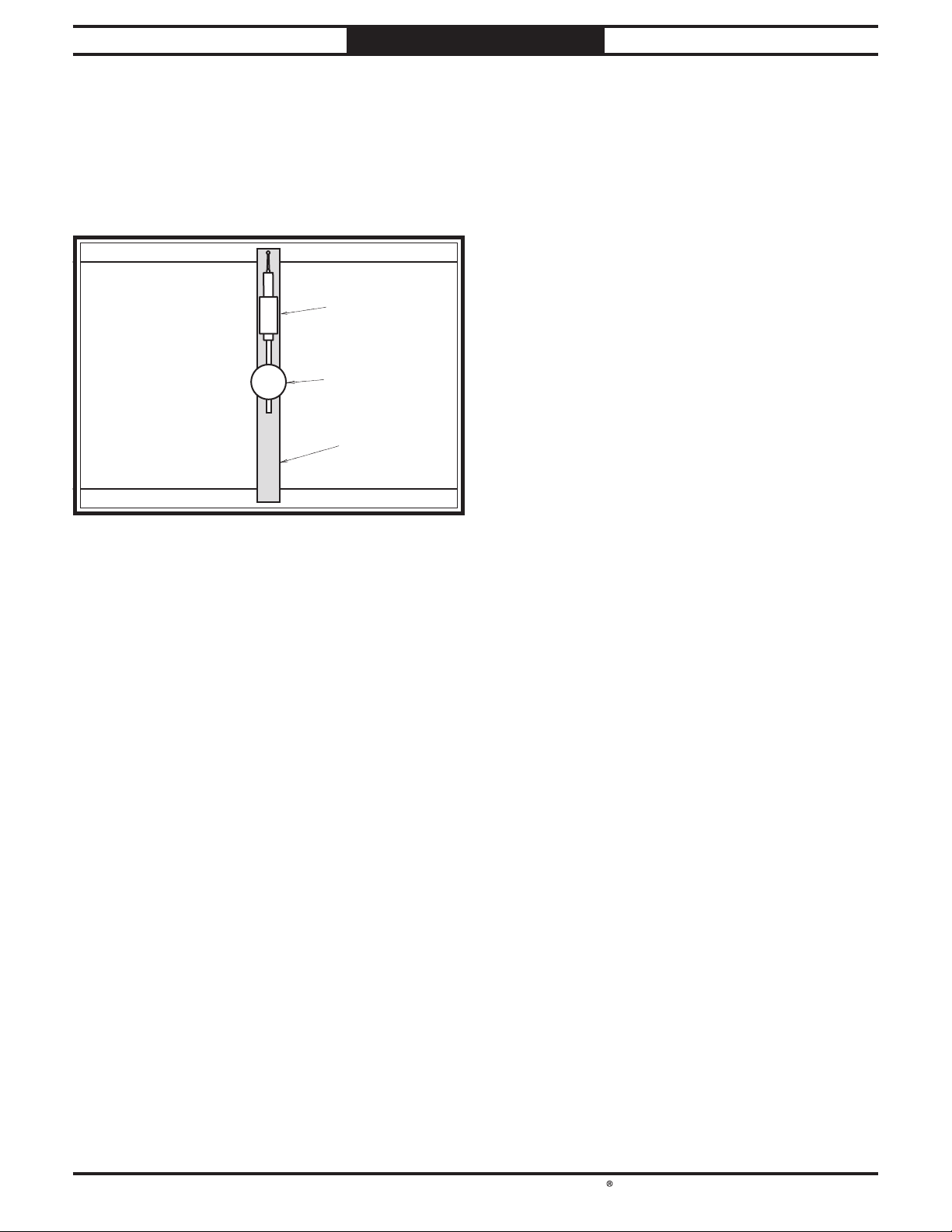

Figure Figure 85. Parallel block positioned for the Y-axis . Parallel block positioned for the Y-axis

measurement (top view).measurement (top view).

11. Rotate spindle so indicator point rests on

other end of bar in same manner, then read dial.

— If indicator dial still reads zero or is

within acceptable variance, spindle is precisely perpendicular to table in both X- and Y-axes, and tramming procedure is complete.

— If indicator dial has moved from zero

beyond acceptable variance, you will need to compensate for that amount by tilting head forward or back. Repeat Steps 10– 11 until you are satisfied with the spindle axis alignment along the table Y-axis.

Gibs are adjusted with a screw on each end of the gib, that move the tapered gib back-andforth to increase or decrease the friction pressure between the sliding surfaces. The process of properly adjusting the gibs requires trial-anderror and patience.

DISCONNECT MACHINE FROM POWER BEFORE ADJUSTING GIBS!

Make sure all table and knee locks are loose. Then loosen one gib adjustment screw and tighten the other the same amount to move the gib. Use the handwheel/crank to move table/ knee until you feel a slight drag in that path of movement.

Refer to Figures 86–88 on the next page to identify the locations of the table, saddle, and knee gibs, and one of the two adjustment screws for each.

Note: It will be necessary to remove small parts, such as way wipers and covers, to access gib adjustment screws.

Note: Keep one of the tilt lock bolts snug

so head does not move loosely while you adjust it in small amounts.

Re-tighten tilt lock bolts.

12.

Note: It is a good idea to repeat Steps 10–11

again in case the head moved slightly during the process of re-tightening the lock bolts.

-59-

South Bend Tools

Model SB1124F

SERVICE

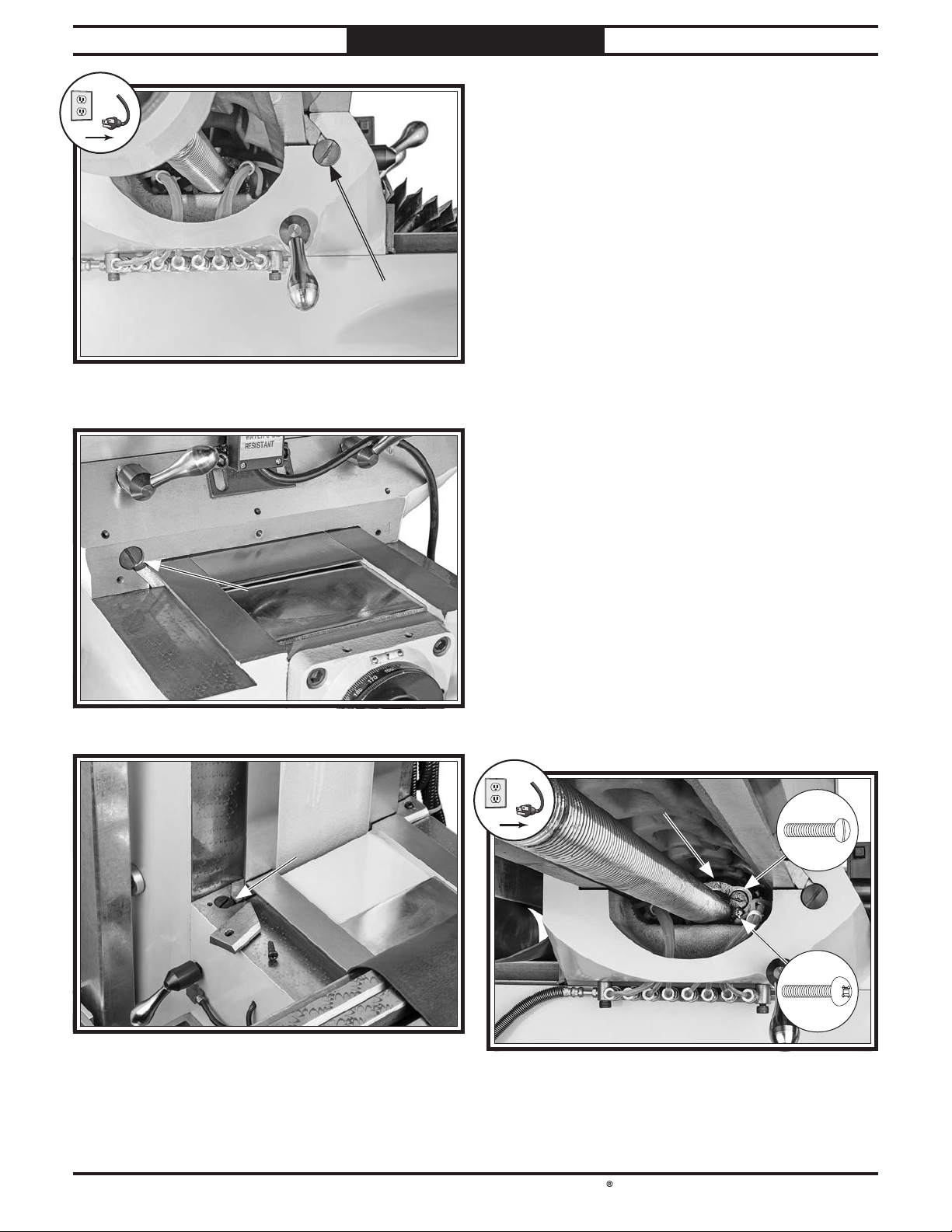

Table Gib & Table Gib &

Adjustment Screw Adjustment Screw

(1 of 2)(1 of 2)

For Machines Mfd. Since 11/22

Adjusting Leadscrew Backlash

Leadscrew backlash is the amount the leadscrew rotates before the attached device begins to move.

Although the mill is equipped with doublebronzed longitudinal and cross leadscrew nuts to minimize backlash, leadscrews will always have a certain amount of backlash that will increase with normal wear.

Figure Figure 86. Table gib and adjustment screw . Table gib and adjustment screw

underneath left side of table.underneath left side of table.

Saddle Gib &Saddle Gib &

Adjustment ScrewAdjustment Screw

Figure Figure 87. Saddle gib and adjustment screw.. Saddle gib and adjustment screw.

Knee Gib &Knee Gib & Adjustment Adjustment

ScrewScrew

Generally, 0.005"–0.010" leadscrew backlash is acceptable to ensure smooth movement and reduce the risk of premature thread wear. However, if you find it necessary to adjust leadscrew backlash, perform the procedures listed below.

Longitudinal Leadscrew Backlash

Tools Needed Qty

Phillips Head Screwdriver #2 ...............................1

Flat Head Screwdriver

To adjust longitudinal leadscrew backlash:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen Phillips head screw on leadscrew nut

accessed from underneath left side of table, as shown in Figure 89.

Leadscrew NutLeadscrew Nut

⁄4" ....................................1

Figure Figure 88. Knee gib and adjustment screw.. Knee gib and adjustment screw.

-60-

Figure Figure 89. Longitudinal leadscrew nut and adjustment . Longitudinal leadscrew nut and adjustment

screw, as viewed from underneath left side of table.screw, as viewed from underneath left side of table.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

3. Use flat head screwdriver to rotate

adjustment screw on leadscrew nut in small increments, then rotate X-axis ball handle to check amount of backlash.

When you are satisfied with adjustment,

tighten Phillips head screw.

SERVICE

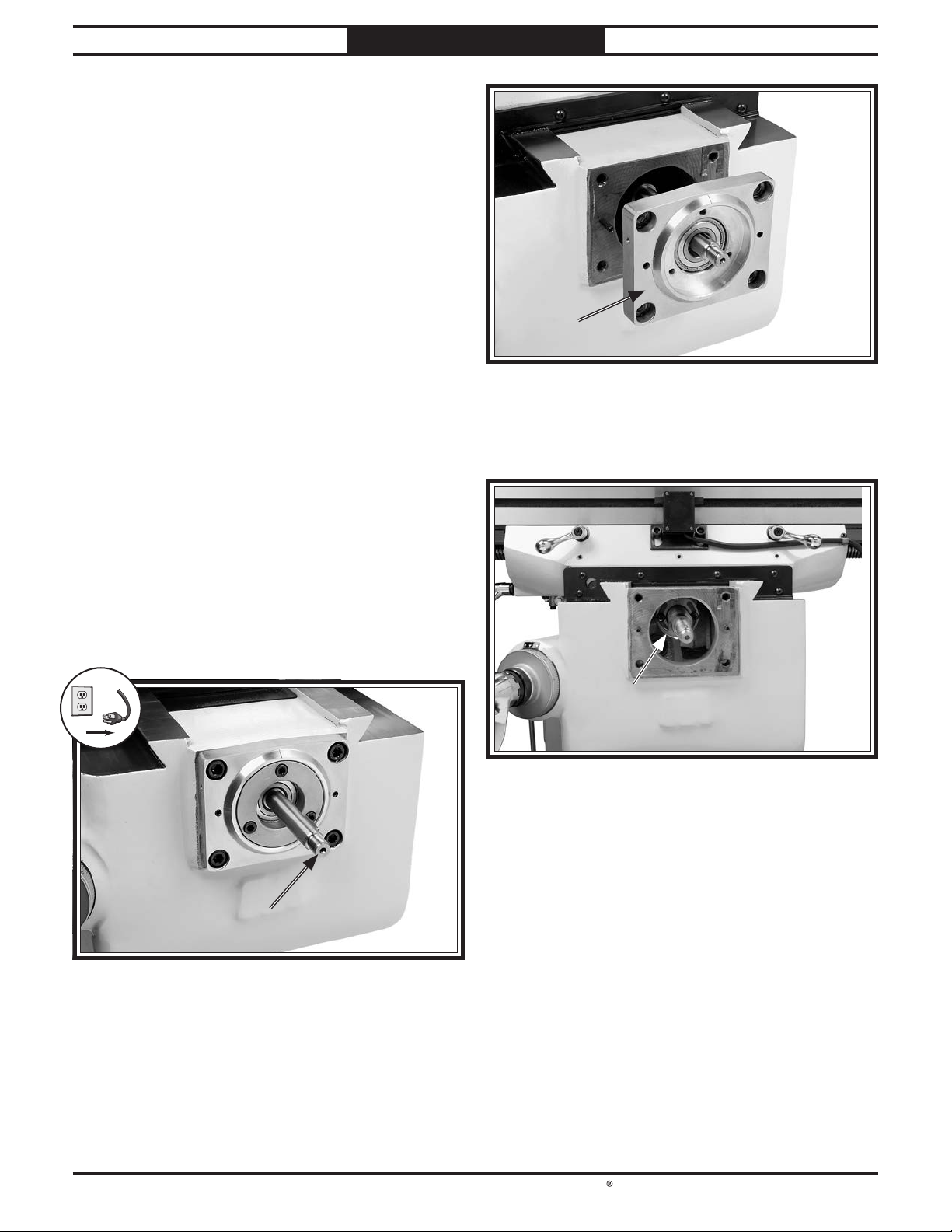

Cross Leadscrew Backlash

Tools Needed Qty

Hex Wrench 8mm .................................................1

Open-End Wrench 19mm Phillips Head Screwdriver #2 Flat Head Screwdriver Dead Blow Hammer or Rubber Mallet

.....................................1

...............................1

⁄4" ....................................1

................1

BearingBearing

HousingHousing

Figure Figure 91. Example of removing bearing housing from . Example of removing bearing housing from

cross leadscrew.cross leadscrew.

To adjust cross leadscrew backlash:

1. DISCONNECT MACHINE FROM POWER!

2. Remove hex nut and ball handle from cross

leadscrew.

Note: In next step, take care not to misplace leadscrew key as you remove parts.

Unthread and remove knurled retaining

ring, graduated dial ring, and leadscrew key, as shown in Figure 90.

Loosen Phillips head screw on leadscrew nut

shown in Figure 92.

Cross LeadscrewCross Leadscrew

Nut, Adjustment Screw, Nut, Adjustment Screw,

and Phillips Head Screw.and Phillips Head Screw.

Figure Figure 92. Example of cross leadscrew nut, . Example of cross leadscrew nut, adjustment screw, and Phillips head screw.adjustment screw, and Phillips head screw.

6. Re-install key onto leadscrew so you can use

ball handle in next step.

Cross LeadscrewCross Leadscrew

Figure Figure 90. Example of ball handle, rings, and key . Example of ball handle, rings, and key

removed from cross leadscrew.removed from cross leadscrew.

4. Remove (4) cap screws from bearing housing,

then slide it off leadscrew (see Figure 91).

Note: It may be necessary to use a dead blow

hammer or rubber mallet on housing to knock it loose.

Use flat head screwdriver to rotate

adjustment screw on leadscrew nut in small increments, then use ball handle to rotate leadscrew and check amount of backlash.

When you are satisfied with adjustment,

tighten Phillips head screw loosened in Step 5.

Re-install parts previously removed in

reverse order.

-61-

South Bend Tools

Model SB1124F

TROUBLESHOOTING

For Machines Mfd. Since 11/22

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free to call us at (360) 734-1540.

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Master power switch in OFF position.

EMERGENCY STOP button depressed/at fault.

Blown fuse.

Incorrect power supply voltage or circuit size.

Plug/receptacle at fault/wired incorrectly.

Electrical box open/door safety switch at fault.

Power supply circuit breaker tripped or fuse blown.

Motor wires connected incorrectly.

Thermal overload relay has tripped/ at fault.

10.

Contactor not energized/at fault.

11.

Wiring broken, disconnected, or corroded.

12.

FWD/REV buttons at fault.

13.

Motor or motor bearings at fault.

Turn master power switch to ON position.

Rotate EMERGENCY STOP button head to reset. Replace if at fault.

Replace fuse/ensure no shorts.

Ensure correct power supply voltage and circuit size (Page 14).

Test for good contacts; correct the wiring.

Close door/replace switch.

Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

Correct motor wiring connections (Page 71).

Reset. Adjust or replace if at fault.

10.

Test all legs for power; replace if necessary.

11.

Fix broken wires or disconnected/corroded connections.

12.

Replace buttons.

13.

Replace motor.

Main motor stalls or is underpowered.

Machine operates in reverse.

Wrong workpiece material.

Gearbox at fault.

Belt slipping/pulleys misaligned.

Motor wires connected incorrectly.

Plug/receptacle at fault/wired incorrectly.

Pulley slipping on shaft.

Machine undersized for task.

Motor overheated.

Extension cord too long.

10.

Contactor not energized/at fault.

11.

Motor or motor bearings at fault.

Power connections wired out of phase.

Use correct type/size of material.

Select appropriate gear ratio; replace broken or slipping gears.

Clean/tension/replace belt; ensure pulleys are aligned.

Correct motor wiring connections (Page 71).

Test for good contacts/correct wiring.

Tighten/replace loose pulley/shaft.

Use correct cutter/bit; reduce feed rate; reduce spindle RPM (Page 35); use cutting ﬂuid if possible (Page 56).

Clean motor, let cool, and reduce workload.

Move machine closer to power supply; use shorter extension cord (Page 16).

10.

Test all legs for power; repair/replace if at fault.

11.

Replace motor.

Swap L1 and L3 power supply wires (Page 68).

-62-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

TROUBLESHOOTING

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

Breaking tools or cutters.

Motor or component loose.

V-belt worn, loose, pulleys misaligned or belt slapping cover.

Pulley loose.

Spindle loose, improperly installed or damaged.

Workpiece loose.

Motor fan rubbing on fan cover.

Chuck or cutter at fault.

Motor bearings at fault.

Gearbox at fault.

Spindle speed/feed rate too fast for depth of cut, cutting tool size, or workpiece material.

Improper or no lubricant/cutting tool getting too hot.

Dull/incorrect cutting tool.

Cutting tool too small.

Spindle extended too far down during or at beginning of operation.

Taking too big of a cut.

Replace damaged or missing bolts/nuts or tighten if loose.

Inspect/replace belt. Re-align pulleys if necessary.

Secure pulley on shaft.

Tighten loose spindle, re-install spindle ensuring mating surfaces are clean, replace spindle if damaged.

Use the correct holding ﬁxture and reclamp workpiece.

Fix/replace fan cover; replace loose/damaged fan.

Replace unbalanced chuck; replace/resharpen cutter; use correct feed rate.

Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Rebuild gearbox for bad gear(s)/bearing(s).

Reduce spindle speed (Page 35); reduce feed rate; take lighter cut.

Use proper lubricant for operation (Page 56).

Sharpen/replace cutting tool.

Use larger cutting tool and slower feed rate.

Fully retract spindle and raise table (Page 31). This increases rigidity.

Reduce depth of cut and allow chips to clear.

Workpiece or tool vibrates or chatters during operation.

Table hard to move.

Table locks not tight.

Workpiece not secure.

Spindle speed/feed rate too fast.

Gibs too loose in table.

Bit chattering.

Spindle extended too far down.

Quill lock lever not tight.

Chuck/cutter at fault.

Table locks tightened down.

Chips loaded up on ways.

Ways and leadscrews need lubrication.

Gibs too tight.

Table limit stops interfering.

X/Y/Z-Axis leadscrews binding.

Tighten table locks (Page 31).

Properly clamp workpiece on table or in vise.

Reduce spindle speed (Page 35); reduce feed rate.

Tighten gibs (Page 59).

Replace/sharpen bit; index bit to workpiece; reduce feed rate.

Fully retract spindle and raise table (Page 31). This increases rigidity.

Tighten quill lock lever.

Replace unbalanced chuck; replace/resharpen cutter.

Release table locks (Page 31).

Frequently clean away chips during operations.

Lubricate ways and leadscrews (Page 50).

Adjust gibs (Page 59).

Adjust table limit stops out of the way (Page 32).

Clean and lubricate leadscrews (Page 50); adjust leadscrew backlash (Page 60) or reduce bearing preload.

-63-

South Bend Tools

Model SB1124F

TROUBLESHOOTING

For Machines Mfd. Since 11/22

Symptom Possible Cause Possible Solution

Tool loose in spindle.

Headstock hard to move.

Bad surface finish.

Cutting results not square.

Motor or spindle overheats.

Cutter/tooling loose.

Cutting tool not fully drawn up into spindle taper.

Debris on cutting tool or in spindle taper.

Taking too big of a cut.

Headstock lock bolt(s) at fault.

Gibs too tight.

Spindle speed/feed rate too fast.

Workpiece not secure.

Dull/incorrect cutting tool.

Wrong rotation direction of cutting tool.

Spindle extended too far down during or at beginning of operation.

Spindle not exactly 90° to table.

Table travel inconsistent.

Mill operated at maximum speed for extended period.

Fan cover clogged.

Poor spindle bearing lubrication.

Secure cutter/tooling.

Tighten drawbar (Page 42).

Clean cutting tool and spindle taper.

Lessen depth of cut and allow chips to clear.

Loosen/replace lock bolt(s) (Page 33).

Adjust gibs (Page 59).

Reduce spindle speed (Page 35); reduce feed rate.

Properly clamp workpiece on table or in vise.

Sharpen/replace cutting tool; select better tool for operation.

Check for proper direction of cutting tool rotation (Page 35).

Fully retract spindle and raise table (Page 31). This increases rigidity.

Tram spindle (Page 57).

Adjust gibs (Page 59).

Allow mill to cool; avoid operating at maximum speed for long times.

Clean motor, let cool, and reduce workload.

Lubricate spindle bearings (Page 50).

Lack of power at spindle.

Spindle does not return to highest position.

Power feed does not move table or slips.

Power feed operates at high speed only or is inconsistent.

DRO does not give reading.

DRO reading is incorrect.

Incorrect power supply voltage.

Poorly adjusted return spring.

Worn return spring.

Table locks tightened down.

Drive selector not engaged.

Table limit switch engaged/at fault.

Gears not meshing/teeth missing.

Motor shaft and gear shaft not engaged.

Rapid micro switch stuck.

Variable-speed dial doesn't work properly.

Wiring harness disconnected.

DRO not turned ON.

DRO not getting power.

Initial reading incorrect.

Sensors at fault.

Ensure power supply meets correct circuit requirements (Page 14).

Increase return spring tension.

Replace return spring.

Release table locks (Page 31).

Select speed, engage drive selector (Page 35).

Test/repair/replace.

Check gears and adjust/replace.

Replace clutch.

Lightly tap on it to lower it.

Test/repair/replace.

Reconnect wiring harness.

Turn DRO ON.

Inspect plugs and wiring connections. Replace/ repair as necessary.

Zero/reset DRO at beginning point.

Test/replace sensors as necessary.

-64-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modiﬁcations:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at (360) 734-1540.

ELECTRICAL

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may make changes to the electrical systems of future machines. Study this section carefully. If you see differences between your machine and what is shown in this section, call Technical Support at (360) 734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the machine is connected to the power source. Touching electriﬁed parts will result in personal injury including but not limited to severe burns, electrocution, or death. For your own safety, disconnect machine from the power source before servicing electrical components or performing any wiring tasks!

All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

Using aftermarket parts or modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or ﬁre.

The motor wiring shown in these diagrams is current at the time of printing, but it may not match your machine. Always use the wiring diagram inside the motor

to an improperly sized circuit will greatly increase the risk of ﬁre. To minimize this risk, only connect the machine to a power circuit that meets the minimum requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious personal injury, ﬁre, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components before completing the task.

Experiencing Difﬁculties: If you are

experiencing difﬁculties understanding the information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

WIRING DIAGRAM COLOR KEY

BLUE WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can see them in color at www.southbendtools.com.

RED

LIGHT BLUE

ORANGE

PINK

PURPLE

TURQUIOSE

WHITE

YEL LOW GREEN

YEL LOW

-65-

South Bend Tools

Model SB1124F

ELECTRICAL

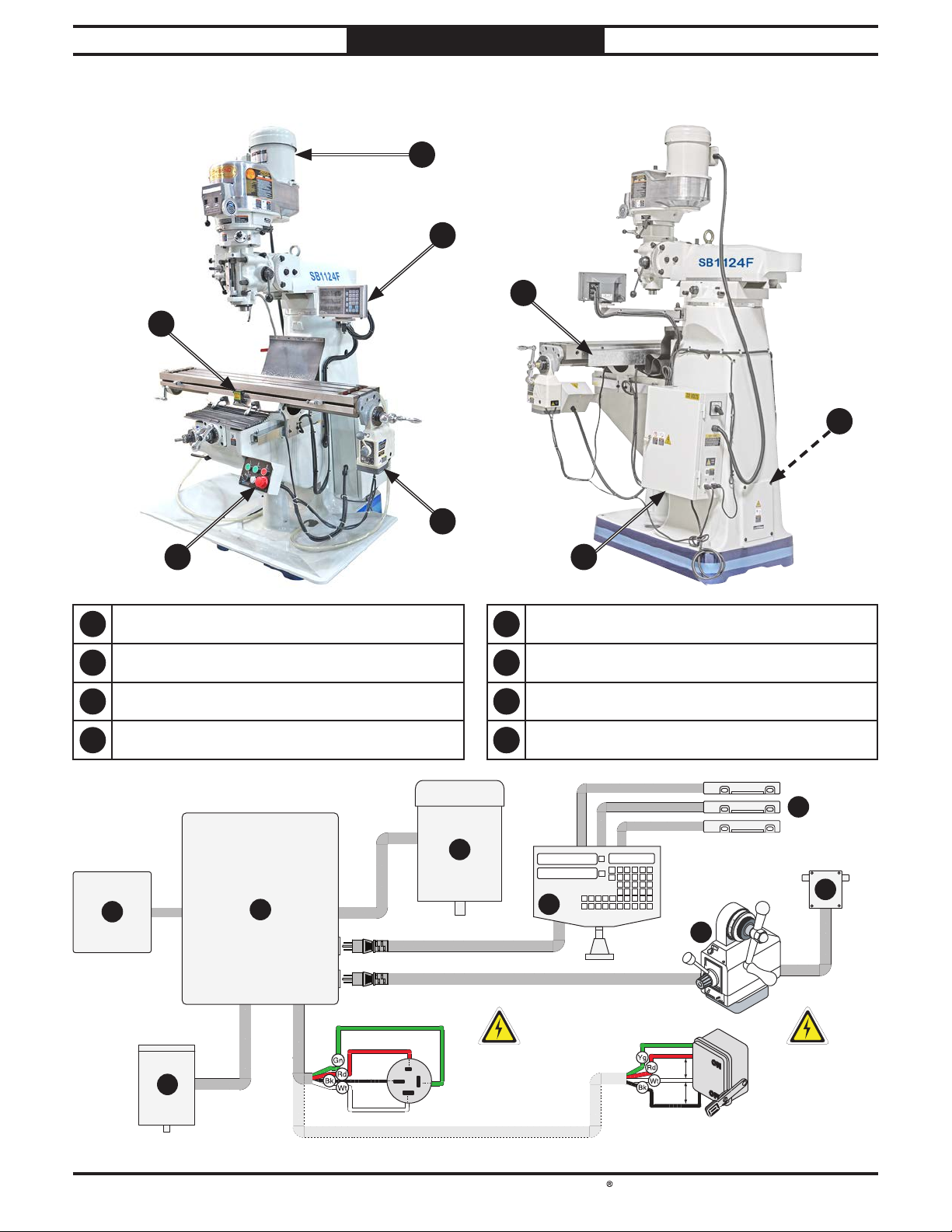

Electrical OverviewElectrical Overview

Electrical Overview

For Machines Mfd. Since 11/22

Main Motor (Page 71)

DRO (Page 72)

X-, Y-, Z-Axis Table Scales (Page 72)

Coolant Pump (Page 71)

Electrical Cabinet (Page 68–69)

Power Feed (Page 72)

Control Panel (Page 70)

Power Feed Limit Switch (Page 73)

X-Axis Scale

Y-Axis Scale

Z-Axis Scale

-66-

Ground

Hot

220 VAC

3-PHASE

15-20 PLUG

(as recommended)

Rewired for 440V

Ground

Hot

440 VAC

3-PHASE

DISCONNECT

SWITCH

(as recommended

)

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

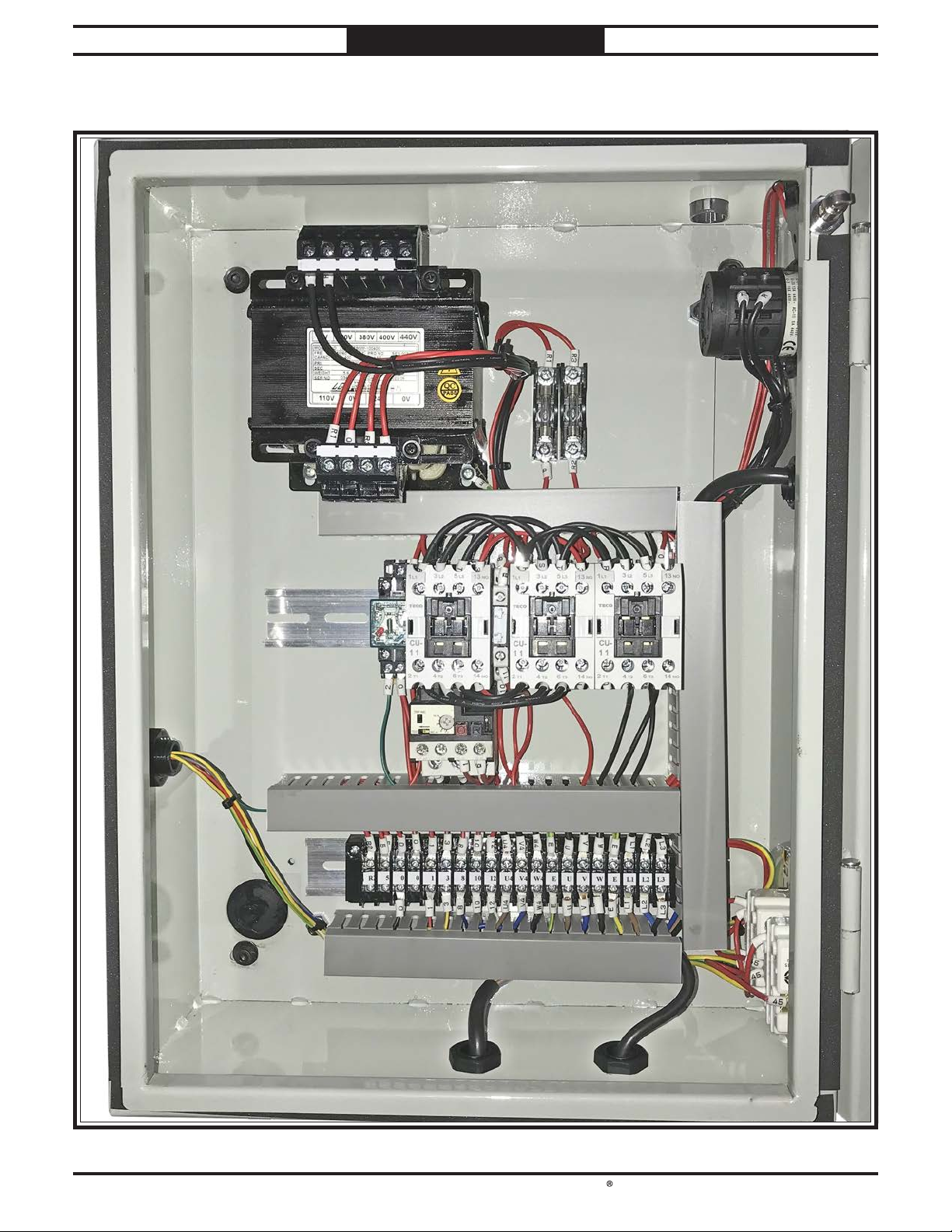

Electrical Cabinet Photo

ELECTRICAL

Electrical Cabinet

Figure Figure 93. Electrical cabinet wiring.. Electrical cabinet wiring.

-67-

South Bend Tools

Model SB1124F

ELECTRICAL

For Machines Mfd. Since 11/22

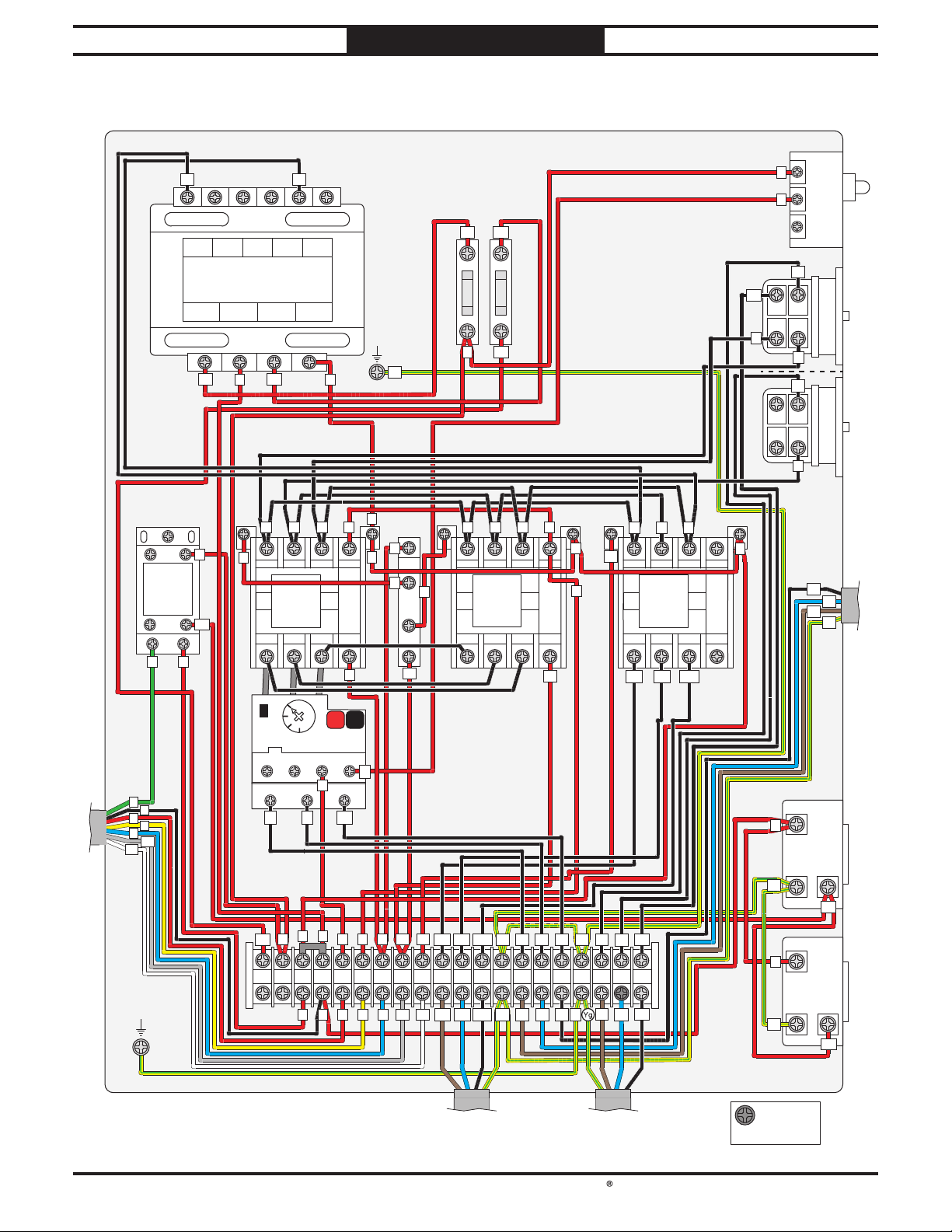

Wiring Diagram (220V)

Electrical Cabinet Wiring Diagram (220V)

Electrical Cabinet

Fuse

0V 220V 380V 400V 440V

Transformer

LCE

LCPIC-TBSM-100400

110V 0V 24V 0V

R1 R3

GND

COMNONC

SNZ AZ-130 9

15A 125V/250V

Safety Switch

KEDU

3 4

Master Power Switch

ZH-HD-2

CHIAO TIAN

CT-MBY2-CE

91 92

Relay

Omron

MY2N-J

5A/110V

01 02

1L1 5L3 13NO3L2

Contactor

2T1 6T3

TECO CU-11

110V

4T2

TRIP IND.

7.2

(To Control Panel) Page 70

TEST RCA

97NO

TECO OL Relay

RHU-10/10K1

98NO 95NC 96NC

97 NO

98 NO 95 NC

2T1 4T2 6T3

U V

96 NC

14NO

1L1 5L3 13NO3L2

Contactor

TECO

CU-11

110V

2T1 6T3

4T2

14NO

1L1 5L3 13NO3L2

Contactor

TECO

CU-11

110V

2T1 6T3

4T2

V4 W4

14NO

(To Main Motor) Page 71

120V Outlet

R31515

5-15P

R2 5 0 0 1 3 8 10 12 U4 V4 W4 E U V W E L1 L2 L3

GND

-68-

0 0

883

U4 V4 W4

WVU

120V Outlet

R31515

1210

U4 V4 W4

5-15P

(To Coolant Pump)

Page 71

(Incoming Power Wires)

Page 66

= For phase

converter wild

wire (if used)

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

ELECTRICAL

Wiring Diagram (440V)

Electrical Cabinet Wiring Diagram (440V)

Electrical Cabinet

0V 220V 380V 400V 440V

Transformer

LCE

LCPIC-TBSM-100400

110V 0V 24V 0V

Fuse

GND

Fuse

COMNONC

SNZ AZ-130 9

15A 125V/250V

Safety Switch

KEDU

3 4

Master Power Switch

ZH-HD-2

CHIAO TIAN

CT-MBY2-CE

91 92

Relay

Omron

MY2N-J

5A/110V

01 02

1L1 5L3 13NO3L2

Contactor

2T1 6T3

TECO CU-11

110V

4T2

TRIP IND.

4.8A

4.5

3.5

(To Control Panel) Page 70

TEST RCA

97NO

TECO OL Relay

RHU-10/4.8K1

98NO 95NC 96NC

97 NO

98 NO 95 NC

2T1 4T2 6T3

U V

14NO

96 NC

1L1 5L3 13NO3L2

Contactor

TECO

CU-11

110V

2T1 6T3

4T2

14NO

1L1 5L3 13NO3L2

Contactor

TECO

CU-11

110V

2T1 6T3

4T2

V4 W4

14NO

(To Main Motor) Page 71

120V Outlet

R31515

5-15P

R2 5 0 0 1 3 8 10 12 U4 V4 W4 E U V W E L1 L2 L3

GND

0 0

883

U4 V4 W4

WVU

120V Outlet

R31515

1210

U4 V4 W4

5-15P

(To Coolant Pump)

Page 71

(Incoming Power Wires)

Page 66

= For phase

converter wild

wire (if used)

-69-

South Bend Tools

Model SB1124F

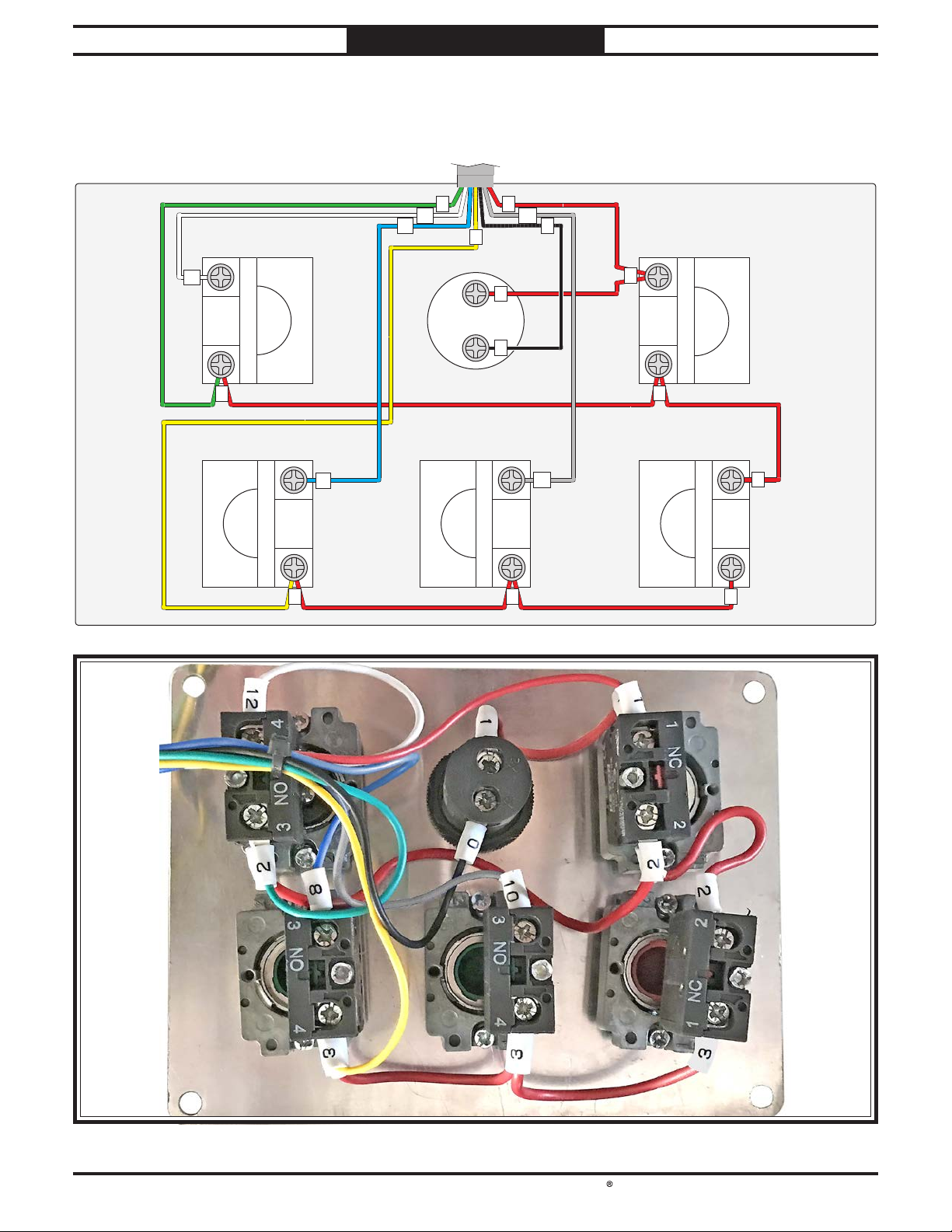

Control Panel Wiring

Control Panel

ELECTRICAL

(To Electrical Cabinet)

Pages 68-69

For Machines Mfd. Since 11/22

Coolant Pump

ON/OFF Switch

KB2-BE101

NO3 4

FWD Button

KEYON

KB2-BE101

NO3 4

KEYON

POWER Light

KEYON

KE-22DS

REV Button

KEYON

KB2-BE101

EMERGENCY

STOP Button

KEYON

KB2-BE102

NC1 2

STOP Button

NO3 4

KEYON

KB2-BE102

NC 21

-70-

Figure Figure 94. Control panel wiring.. Control panel wiring.

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

220V 440V

ELECTRICAL

Coolant Pump

Coolant Pump Wiring Diagrams

Coolant Pump

1 2 3

W2 U1 V2 U2 V1 W1

6 4 5

4 5

GND

(To Electrical Cabinet)

Page 68

(To Electrical Cabinet)

Page 69

Main Motor Wiring

Main Motor Wiring Diagrams

Coolant Pump

1 2 3

W2 U1 V2

U2 V1 W1

6 4 5

4 5

GND

Main Motor Main Motor

GND

(To Electrical Cabinet)

Page 68

E E

Page 69

GND

-71-

South Bend Tools

Model SB1124F

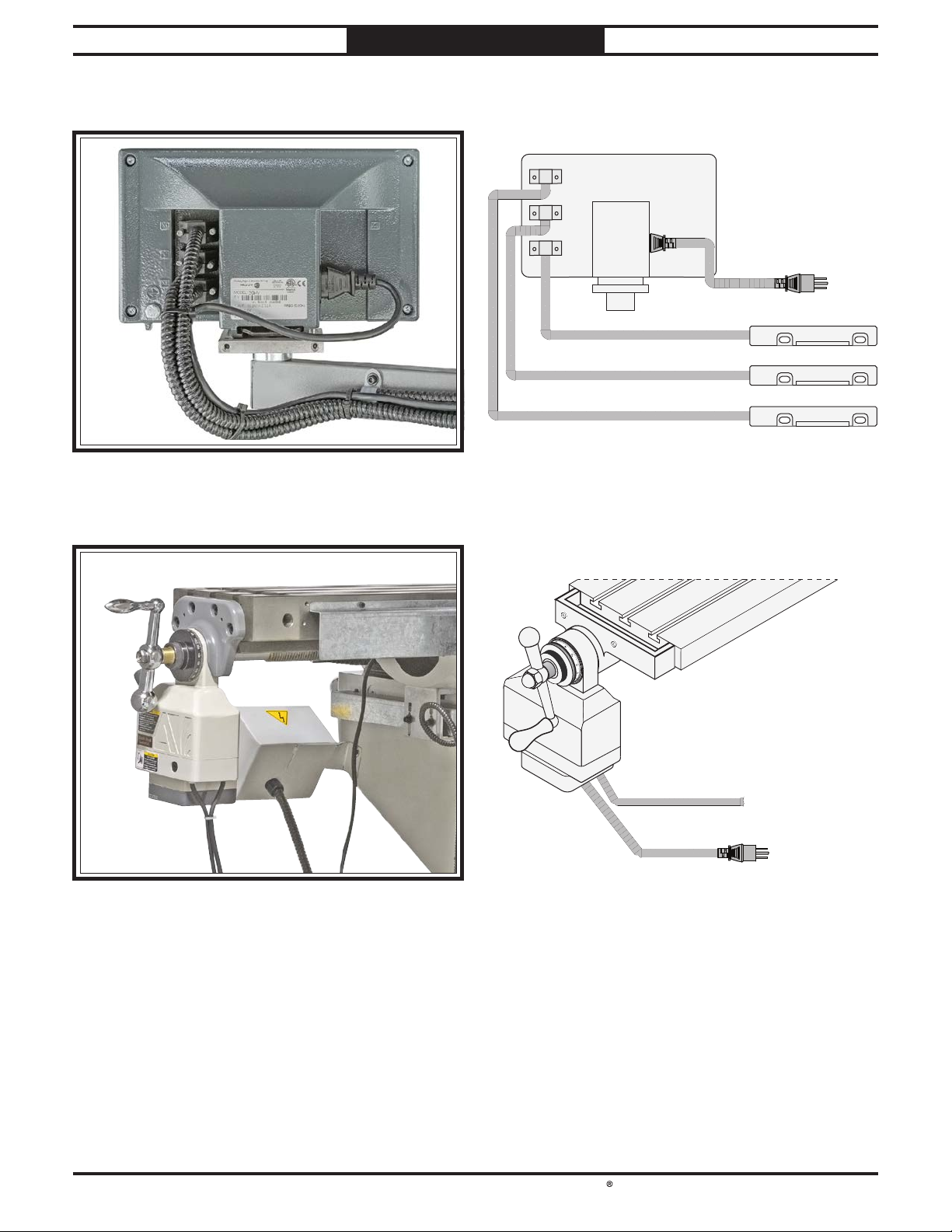

DRO Wiring

ELECTRICAL

DRO Wiring Diagram

For Machines Mfd. Since 11/22

Figure Figure 95. DRO wiring.. DRO wiring.

Power Feed Wiring

Power Feed Wiring Diagram

DRO

Fagor 30i-M

Power

Cord

Fagor MKT 23A

Z-Axis Scale

Y-Axis Scale

X-Axis Scale

Figure Figure 96. Power feed wiring.. Power feed wiring.

-72-

To Power Feed

Limit Switch

(Page 73)

Power

Cord

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

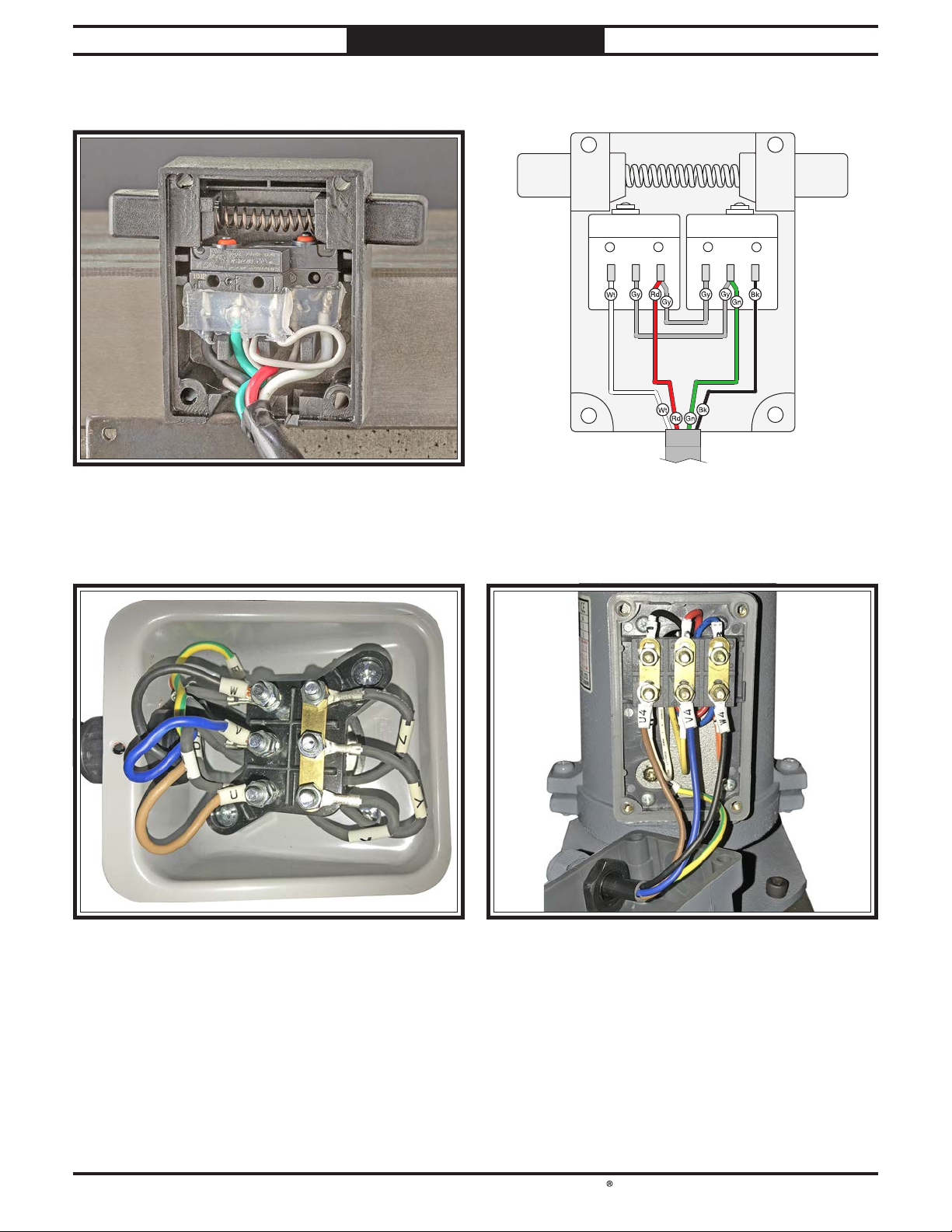

Limit Switch Wiring

ELECTRICAL

Power Feed Limit Switch Wiring Diagram

DC2 10.1A 250 VAC DC2 10.1A 250 VAC

1/C14/NO2/NC

Figure Figure 97. Power feed limit switch wiring.. Power feed limit switch wiring.

Electrical Component Photos

To Power Feed

(Page 72)

Figure Figure 98. Motor wiring (220V).. Motor wiring (220V).

Figure Figure 99. Coolant pump wiring (220V).. Coolant pump wiring (220V).

-73-

South Bend Tools

Model SB1124F

Parts

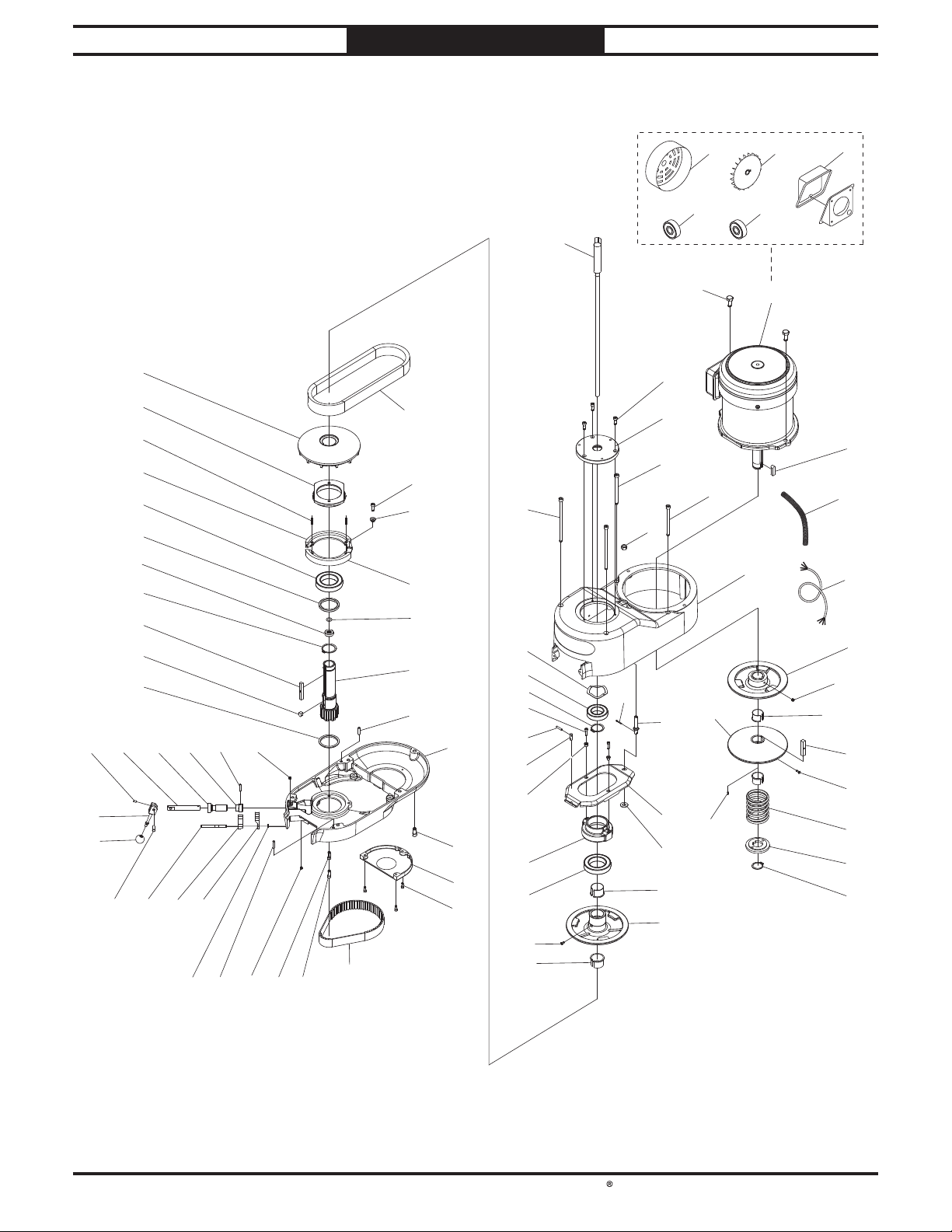

Belt Housing

PARTS

For Machines Mfd. Since 11/22

57-1 57-2 57-3

57-4 57-5

13 15 14

28 26

495051 52

4344

-74 -

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PARTS

Belt Housing Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PSB1124F0001 DRAWBAR 7/16-20 X 18-1/2 39 PSB1124F0039 DRIVE KEY

2 PSB1124F0002 DRAWBAR SPACER 40 PSB1124F0040 BRAKE SHOE

3 PSB1124F0003 O-RING 11.8 X 2.4 P12 41 PSB1124F0041 CLUTCH SPACER

4 PSB1124F0004 CAP SCREW 1/4-20 X 3/4 42 PSB1124F0042 EXTENSION SPRING 0.9 X 4.8 X 51

5 PSB1124F0005 UPPER BEARING COVER 43 PSB1124F0043 SET SCREW 1/4-20 X 1/4

6 PSB1124F0006 CAP SCREW 5/16-18 X 6 44 PSB1124F0044 DOWEL PIN 6 X 25

7 PSB1124F0007 BRAKE OPERATING FINGER 45 PSB1124F0045 BELT HOUSING BASE

8 PSB1124F0008 EXT RETAINING RING 6MM 46 PSB1124F0046 CAP SCREW 5/16-18 X 3/4

9 PSB1124F0009 HEX NUT 3/8-16 47 PSB1124F0047 MOTOR PULLEY COVER

10 PSB1124F0010 CAP SCREW 5/16-18 X 4 48 PSB1124F0048 CAP SCREW 10-24 X 1/2

11 PSB1124F0011 BELT HOUSING 49 PSB1124F0049 ROLL PIN 3 X 25

12 PSB1124F0012 WAVY WASHER 47MM 50 PSB1124F0050 LOCK COLLAR

13 PSB1124F0013 BALL BEARING 6007-2RS 51 PSB1124F0051 BRAKE SHAFT

14 PSB1124F0014 CAP SCREW 10-32 X 3/4 52 PSB1124F0052 GEAR SHIFT BUSHING

15 PSB1124F0015 EXT RETAINING RING 35MM 53 PSB1124F0053 GEAR SHIFT PIN

16 PSB1124F0016 ROLL PIN 4 X 22 54 PSB1124F0054 BRAKE SHIFTER

17 PSB1124F0017 SPEED CHANGE CHAIN STUD 55 PSB1124F0055 SET SCREW 10-32 X 1/4

18 PSB1124F0018 SPEED CHANGE PLATE PIVOT 56 PSB1124F0056 KNOB 1/4-20, D25, BALL

19 PSB1124F0019 PIVOT SLEEVE 57 PSB1124F0057 MOTOR 3HP 220V/440V 3-PH

20 PSB1124F0020 SPEED CHANGE PLATE PIVOT 57-1 PSB1124F0057-1 MOTOR FAN COVER

21 PSB1124F0021 FLAT WASHER 3/8 57-2 PSB1124F0057-2 MOTOR FAN

22 PSB1124F0022 COTTER PIN 2.5 X 16 STANDARD 57-3 PSB1124F0057-3 JUNCTION BOX

23 PSB1124F0023 BEARING BRACKET 57-4 PSB1124F0057-4 BALL BEARING 6206ZZ (FRONT)

24 PSB1124F0024 BALL BEARING 6010-2RS 57-5 PSB1124F0057-5 BALL BEARING 6205ZZ (REAR)

25 PSB1124F0025 VARIDISC 58 PSB1124F0058 HEX BOLT 3/8-16 X 1

26 PSB1124F0026 PLASTIC SLEEVE 59 PSB1124F0059 KEY 3/8 X 3/8 X 1-1/4

27 PSB1124F0027 KEY 7 X 7.9 X 60MM (BRONZE) 60 PSB1124F0060 UPPER MOTOR PULLEY PLATE

28 PSB1124F0028 FLAT HD CAP SCR M4-.7 X 8 61 PSB1124F0061 SET SCREW 1/4-20 X 1/4

29 PSB1124F0029 EXT RETAINING RING 40MM 62 PSB1124F0062 LOWER MOTOR PULLEY PLATE

30 PSB1124F0030 SPINDLE BELT PULLEY 63 PSB1124F0063 KEY 3/8 X 3/8 X 2

31 PSB1124F0031 BRAKE BEARING COVER 64 PSB1124F0064 PLASTIC SLEEVE

32 PSB1124F0032 BALL BEARING 6010-2RS 65 PSB1124F0065 FLAT HD CAP SCR M4-.7 X 12

33 PSB1124F0033 SPACER 66 PSB1124F0066 ROLL PIN 3 X 8

34 PSB1124F0034 SPINDLE PULLEY HUB 67 PSB1124F0067 PULLEY SPRING

35 PSB1124F0035 KEY 5/16 X 5/16 X 1 68 PSB1124F0068 SPRING COVER

36 PSB1124F0036 V-BELT 875VC-3630(Y) 69 PSB1124F0069 EXT RETAINING RING 30MM

37 PSB1124F0037 TIMING BELT 592-8M-28 70 PSB1124F0070 MOTOR CORD CONDUIT 96"

38 PSB1124F0038 BRAKE FINGER 71 PSB1124F0071 MOTOR WIRE 14G 4W 96"

-75-

South Bend Tools

Model SB1124F

129 130

133134135

141 142 143

153

158

160

162

164 165 166167 168 169

157

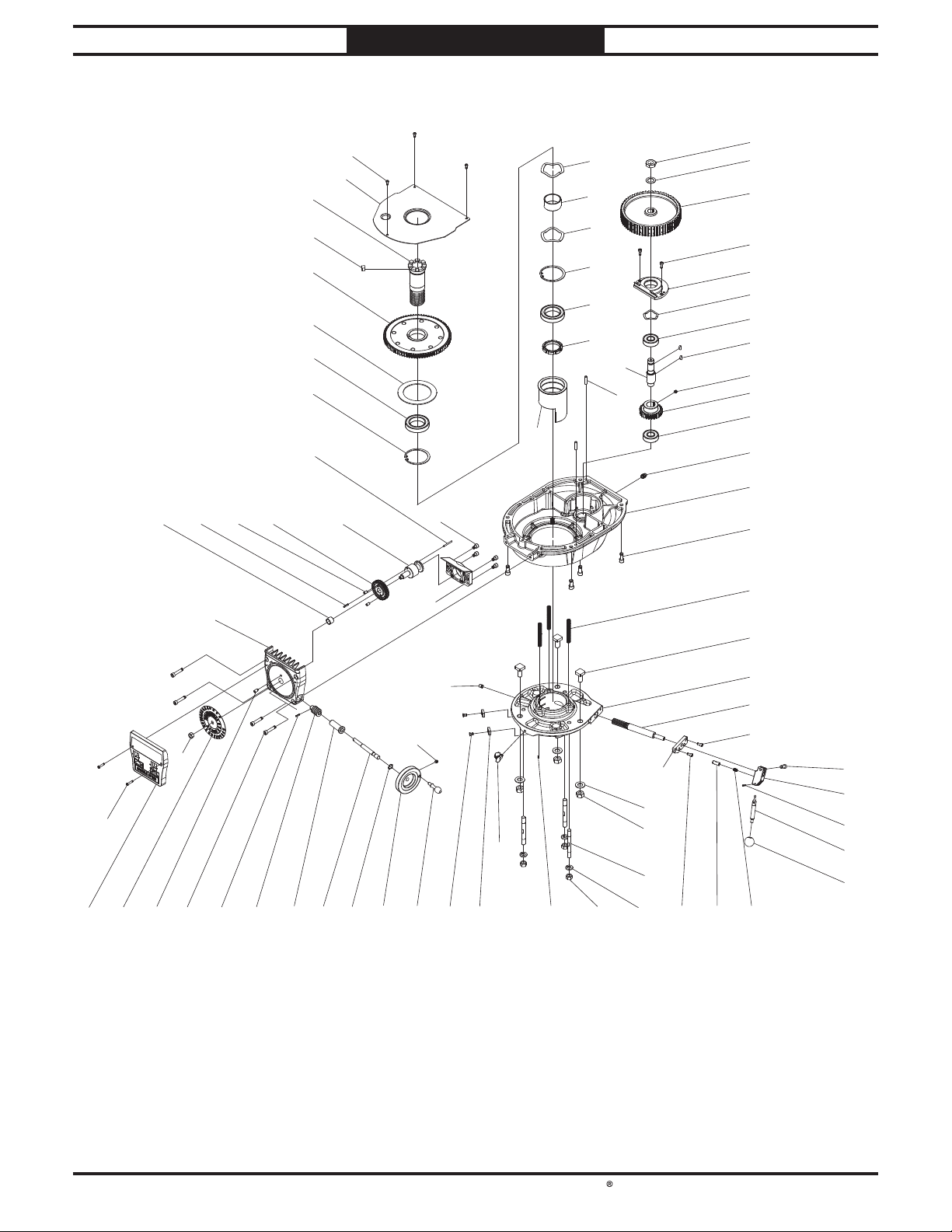

Gearbox

PARTS

For Machines Mfd. Since 11/22

159

144

156

154 155

103

104

105

111

106

109

149

101

150

102

151

152

110

107

108

107

109

106

136

121

123

113 171

114

115

116

117

118

122

120 119

118

170

124

125

112

127

163

161

120

126

131

140

138

137

132

128

139

141

146

145

144

147

148

-76-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PARTS

Gearbox Parts List

REF PART # DE SCR IPT ION REF PART # DE SCR IPT ION

101 PSB1124F0101 GEARB OX COVER 137 PSB1124F0137 HEX NUT 7/16-14

102 PSB1124F0102 BUTTON HD CAP SCR 10-24 X 3/8 138 PSB1124F0138 FLAT WASHER 7/16

103 PSB1124F0103 SPINDLE GEAR HUB 139 PSB1124F0139 BULL GEAR SHIFT PINION

104 PSB1124F0104 KEY 5/16 X 5/1 6 X 1/2 140 PSB1124F0140 H I-LOW DETEN T PLA TE

105 PSB1124F0105 S PINDLE BULL GEAR 141 PSB1124F0141 CAP SCREW 10-32 X 3/8

106 PSB1124F0106 BA LL B EA RIN G 6908-2RS 142 PSB1124F0142 HI-LOW DETENT PLUNGER

107 PSB1124F0107 WAVY WAS HER 47MM 143 PSB1124F0143 COMPRESSION SPRING 0.8 X 6.1 X 14

108 PSB1124F0108 SPACER 144 PSB1124F0144 ROLL PIN 3 X 16

109 PSB1124F0109 INT RETAIN IN G RIN G 62MM 145 PSB1124F0145 HI-LOW PIN ION B LOC K

110 PSB1124F0110 BEARING SLEEVE 146 PSB1124F0146 CAP SCREW 1/4-20 X 3/4

111 PSB1124F0111 B EARING SLEEVE WASHER 147 PSB1124F0147 HI-LOW SHIFT LEVER

112 PSB1124F0112 COMPRESSION SPRING 1.4 X 9.2 X 72.5 148 PSB1124F0148 KNOB 1/4-20, D25, BALL

113 PSB1124F0113 HEX N UT 5/8-18 149 PSB1124F0149 ROLL PIN 3 X 30

114 PSB1124F0114 BELT PULLEY GEAR 150 PSB1124F0150 SPEED CHANGE CHAIN DRUM

115 PSB1124F0115 CAP SCREW 10-24 X 1/2 151 PSB1124F0151 DRUM H OUSIN G

116 PSB1124F0116 BULL GEAR PINION B EARING CAP 152 PSB1124F0152 CAP SCREW 1/4-20 X 3/8

117 PSB1124F0117 WAVY WAS H ER 30 MM 153 PSB1124F0153 ROLL PIN 2.5 X 1 2

118 PSB1124F0118 BA LL B EA RIN G 6203-2RS 154 PSB1124F0154 ROLL PIN 5 X 1 0

119 PSB1124F0119 B ULL GEAR PIN ION 26T 155 PSB1124F0155 WORM GEAR 32T

120 PSB1124F0120 SET SCREW 1 /4-20 X 1 /4 156 PSB1124F0156 SPEED INDICATOR HOUSING

121 PSB1124F0121 BULL GEAR PINION SHAFT 157 PSB1124F0157 CAP SCREW 1/4-20 X 3/8

122 PSB1124F0122 WOODRUFF KEY 3/16 X 3/4 1 58 PSB1124F0158 SET SCREW 1/4-20 X 3/8

123 PSB1124F0123 DOWE L P I N 6 X 25 159 PSB1124F0159 BUSHING (BRONZE)

124 PSB1124F0124 GEARB OX HOUSIN G 160 PSB1124F0160 VARIABLE SPEED DIAL

125 PSB1124F0125 CAP SCREW 5/16-18 X 3/4 161 PSB1124F0161 HEX NUT 5/16-18

126 PSB1124F0126 S ET S CREW 5/16-24 X 3/8 162 PSB1124F0162 SPEED INDICATOR FACE PLATE

127 PSB1124F0127 T-B OLT 7/16 -14 X 1 163 PSB1124F0163 BUTTON HD CAP SCR 8 -32 X 3/4

128 PSB1124F0128 CLUTCH BASE 164 PSB1124F0164 WORM GEAR

129 PSB1124F0129 FLAT HD CAP SCR 10-32 X 3/8 165 PSB1124F0165 FLANGED BUSHING

130 PSB1124F0130 SQ UARE N UT 10-32 166 PSB1124F0166 WAVY WA S HER 10MM

131 PSB1124F0131 OIL CUP M6-1 90-DEG 167 PSB1124F0167 HANDWHEEL SHAFT

132 PSB1124F0132 STUD-DE 3/8-16 X 3-1/2, 11/16 168 PSB1124F0168 HA N DWHEEL 75D X 1 0 B X 4M M

133 PSB1124F0133 LOCK WASHER 10MM 169 PSB1124F0169 FIXED HANDLE 15 X 48, 6 X 5

134 PSB1124F0134 HEX NUT 3/8 -1 6 170 PSB1124F0170 GREA SE FITTIN G 1/8" PT STRA IGHT

135 PSB1124F0135 ROLL PIN 3 X 6 171 PSB1124F0171 FLAT WASHER 16 X 25 X 1.5MM

136 PSB1124F0136 SPANNER NUT

-77-

South Bend Tools

Model SB1124F

201

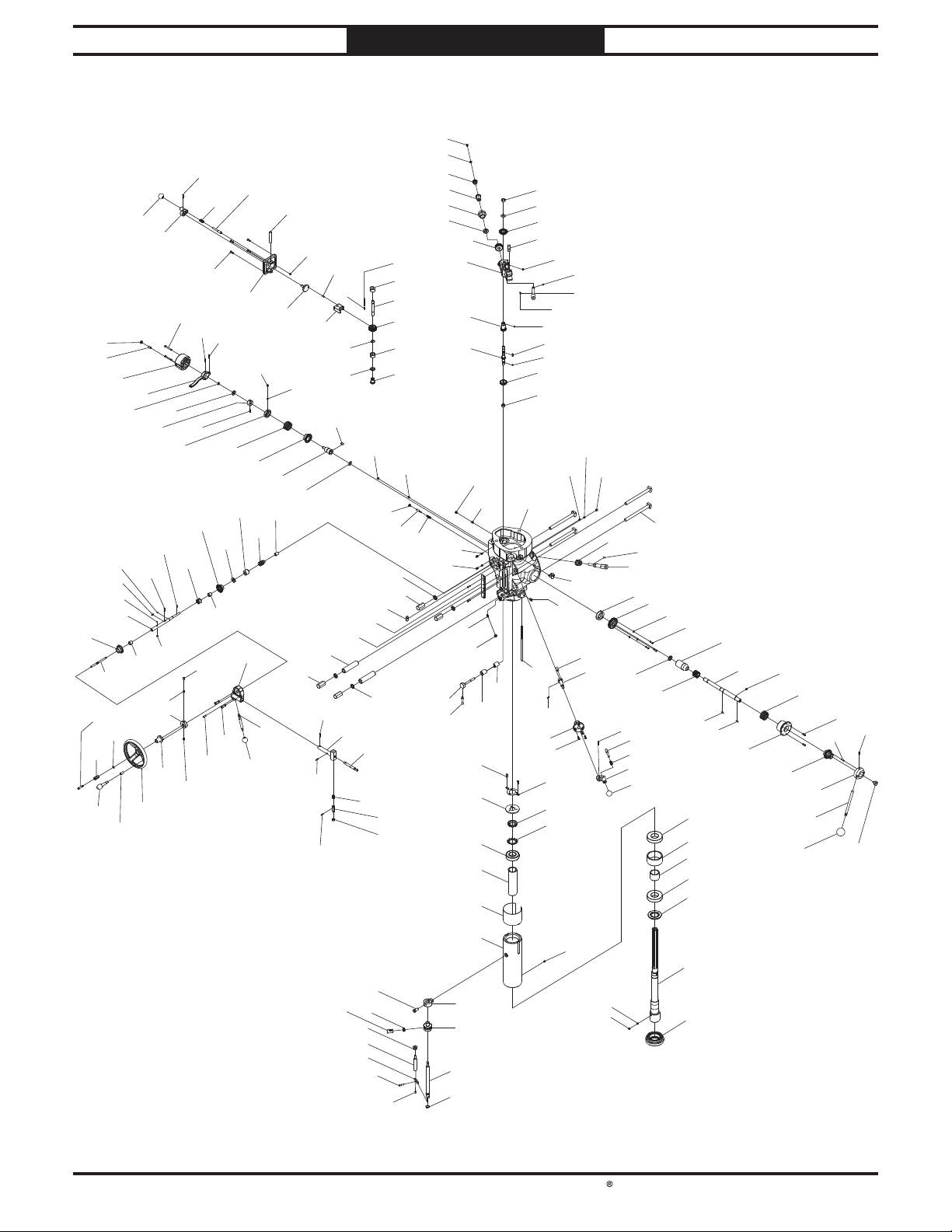

Headstock

PARTS

For Machines Mfd. Since 11/22

272

278

248

310

330

329

327

249

312

240

322

313

315

328

326

224

253

309

324

250

254

305

225

321

323

226

257

314

325

246

251

311

247

225

229

251

310

320

319

227

252

258

308

309

317

228

231

259

307

316

224

255

260

306

318

230

233

262

304

232

256

279

235

280

355

357

362

234

240

241

243

261

334

356

247

333

376

335

354

276

331 279

331

358

239 236

238 237

242

244

210

359 360

206

277

202 203

204 205

247

283

284

207

213

219

210

217

375

336

338

341

342

343

274

275

374

282

281

245

218

303

214 215 216 211

208

220 208

222

223

302

229

210

212

285

221

337

339 340

208 209

210

247

332

301

300

289

263

267

225

288

287

269

228 227 226

224

286

264

265

212

266

273

346

348 347

346 349

268

270

291

271

293

299

290

295

298

292

296

297

294

-78-

363

361

370

371

373

365

364

372

344

367

366

368

369

345

352

353

351

350

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PARTS

Headstock Parts List

REF PAR T # DE SCR IPT ION REF PAR T # DE SCR IPT ION

201 PSB1124F0201 BUTTON HD CA P SCR 10-24 X 3/8 252 PSB1124F0252 ROLL PIN 3/1 6 X 3/4

202 PSB1124F0202 FLAT WASHER 5MM 253 PSB1124F0253 OVERLOAD CLUTCH TRIP LEVER

203 PSB1124F0203 FEED WORM GEAR 254 PSB1124F0254 CLUTCH RING

204 PSB1124F0204 FEED SLEEVE 255 PSB1124F0255 SET SCREW 1/4-20 X 1/4

205 PSB1124F0205 FLANGED BUSHING 256 PSB1124F0256 KEY 4.5 X 2.5 (BRONZE)

206 PSB1124F0206 SPA CER 257 PSB1124F0257 OVERLOAD RIN G

207 PSB1124F0207 FEED WORM GEAR 20T 258 PSB1124F0258 COMPRESSION SPRING 3.5 X 39 X 35. 8

208 PSB1124F0208 KEY 1/8 X 1/8 X 1/4 259 PSB1124F0259 OVERLOAD CLUTCH

209 PSB1124F0209 FEED DRIVE SHAFT 260 PSB1124F0260 OVERLOAD SLEEVE

210 PSB1124F0210 SET SCREW 1 /4-20 X 1/8 261 PSB1124F0261 KEY 3/16 X 5/16 X 9/16

211 PSB1124F0211 FEED PIN 262 PSB1124F0262 EXT RETAINING RING 15MM

212 PSB1124F0212 WOODRUFF KEY 1/8 X 3/4 263 PSB1124F0263 OVERLOAD CLUTCH RIN G

213 PSB1124F0213 WORM GEAR B RACKET 264 PSB1124F0264 OVERLOAD CLUTCH WORM GEA R

214 PSB1124F0214 HEX NUT 3/8 -2 4 265 PSB1124F0265 LOCK WASHER #8

215 PSB1124F0215 FLAT WASHER 10MM 266 PSB1124F0266 PHLP HD SCR 8-32 X 5/8

216 PSB1124F0216 BEVEL GEAR 24T 267 PSB1124F0267 PINION SHAFT WORM GEAR SPACER

217 PSB1124F0217 CLUSTER GEAR 1 8T 268 PSB1124F0268 QUILL PINION SHAFT BUSHING

218 PSB1124F0218 DIAL INDICATOR ROD 269 PSB1124F0269 GEA R 1 6T

219 PSB1124F0219 FEED WORM SHAFT 2 70 PSB1124F0270 FEED SHAFT

220 PSB1124F0220 KEY 1/8 X 1/8 X 5/8 271 PSB1124F0271 FIXED PIN 4.8 X 6.4

221 PSB1124F0221 CAP SCREW 1/4-20 X 1/4 272 PSB1124F0272 HEX N UT 1 /4-20

222 PSB1124F0222 CLUSTER GEAR 23T 273 PSB1124F0273 WOODRUFF KEY 1/8 X 1/2

223 PSB1124F0223 N EEDLE BEARIN G BA66Z 2 74 PSB1124F0274 SET SCREW 5/16-18 X 5/16

224 PSB1124F0224 KNOB 1/4-20, D25, BALL 275 PSB1124F0275 SET SCREW 5/16-18 X 3/16

225 PSB1124F0225 ROLL PIN 3 X 20 276 PSB1124F0276 SPRING PIN

226 PSB1124F0226 SHIFT CRANK 277 PSB1124F0277 COMPRESSION SPRING 1.2 X 6.2 X 38.8

227 PSB1124F0227 COMPRESSION SPRING 1 X 9 X 25 278 PSB1124F0278 SET SCREW 1/4-20 X 5/8

228 PSB1124F0228 GEAR S H IFT PLUN GER 279 PSB1124F0279 CLAMP BOLT NUT 1/2-13 X 1-1/2

229 PSB1124F0229 CAP SCREW 10-24 X 1/2 280 PSB1124F0280 CLAMP B OLT SPACER

230 PSB1124F0230 FEED SH IF T ROD 281 PSB1124F0281 CAM

231 PSB1124F0231 CLUSTER GEAR COVER 282 PSB1124F0282 ECCENTRIC SHAFT

232 PSB1124F0232 SET SCREW 10-24 X 1 /4 283 PSB1124F0283 LOCK SHAFT

233 PSB1124F0233 CLUSTER GEAR SH IFT CRAN K 284 PSB1124F0284 FIXED HANDLE 3/8 X 5/16, 1/4-28 X 1/2

234 PSB1124F0234 LOCATING PIN 3/16 X 7/16 285 PSB1124F0285 S ET S CREW 1/4-28 X 1/8

235 PSB1124F0235 FEED GEAR S H IF TER FORK 286 PSB1124F0286 CLAMP BOLT 1/2-13 X 6-1/4

236 PSB1124F0236 CLUSTER GEAR B EA RIN G 287 PSB1124F0287 WORM SHAFT

237 PSB1124F0237 CLUSTER GEA R 17T/22T 288 PSB1124F0288 WOODRUFF KEY 1/8 X 5/8

238 PSB1124F0238 CLUSTER GEAR SH AFT 289 PSB1124F0289 WORM GEAR

239 PSB1124F0239 KEY 1/8 X 1/8 X 1-3/4 290 PSB1124F0290 F LAT COIL S PRING 0.6 X 25 X 1 350

240 PSB 1124F0240 KEY 1/8 X 1/8 X 1/2 291 PSB1124F0291 RETURN SPRIN G COVER

241 PSB 1124F 0241 EXT RETAIN IN G RING 5/8 292 PSB1124F0292 B UTTON HD CAP SCR 10-24 X 1/2

242 PSB11 24F0242 BUSHING 293 PSB1124F0293 PINION SHAFT HUB SLEEVE

243 PSB1124F0243 SPACER 294 PSB1124F0294 CAP SCREW 5/16-18 X 7/16

244 PSB1124F0244 BEVEL PINION GEAR 12T 295 PSB1124F0295 HANDLE HUB

245 PSB1124F0 245 Q UILL HOUSIN G 296 PSB1124F0296 LOCATING PIN 3/16 X 5/8

246 PS B1124F0246 CAP SCREW 10-24 X 1-1/2 297 PSB1124F0297 SET SCREW 1/4-28 X 1/8

247 PSB1124F0 247 S ET S CREW 1/4-20 X 3/8 2 98 PSB1124F0298 STUD-DE 3/8-16 X 7-1/2, 3/8 BLK

248 PSB 1124F0248 CLUTCH ARM COVER 299 PSB1124F0299 KN OB 3/8 -1 6, D38, B ALL

249 PSB 1124F0249 EXT RETA IN ING RING 3/8 300 PSB1124F0300 FEED WORM GEAR SHAFT

250 PSB1124F0250 CLUTCH SPACER 301 PSB1124F0301 DOWEL PIN 5/16 X 7/8

251 PSB1124F0251 SET S CREW 1 0-32 X 3/16 302 PSB1124F0302 SET SCREW 10-24 X 1 /4

-79-

South Bend Tools

Model SB1124F

PARTS

For Machines Mfd. Since 11/22

Headstock Parts List (Cont.)

REF PAR T # DESCRIPT ION REF PAR T # DESCRIPT ION

303 PSB1124F0303 SHIFT SLEEVE 340 PSB 11 24F0340 EXT TOOTH WASHER 30MM

304 PSB1124F0304 BUSHING 341 PSB1124F0341 B ALL BEARING 620 6-2RS

305 PSB1124F0305 ROLL PIN 2.5 X 12 342 PSB1124F0342 SLEEVE

306 PSB1124F0306 SHAFT WORM GEAR 343 PSB 1124F0343 QUILL SKIRT

307 PSB1124F0307 WORM BUSHING 344 PSB1124F0344 QUILL

308 PSB1124F0308 SPACER 345 PSB 1124F 0345 S ET SCREW 1/4-20 X 1 /4 DOG-PT

309 PSB1124F0309 BUSHING 346 PSB 11 24F0346 ANG CON TACT BEARING 7207C P4

310 PSB1124F0310 FEED REVERSE BEVEL GEAR 347 PSB 1124F0347 BEARING SPACER (SMALL)

311 PSB1124F0311 FEED REVERSE CLUTCH 348 PSB1 124F0 348 BEARING SPACER (LA RGE)

312 PSB1124F0312 ROLL PIN 2.5 X 8 349 PSB 11 24F0349 SPINDLE DIRT SHIELD

313 PSB1124F0313 WORM GEAR SHAFT 350 PSB1124F0350 QUILL EN D CA P

314 PSB1124F0314 KEY 1/8 X 1/8 X 3/8 351 PSB1124F0351 SPIN DLE R8

315 PSB1124F0315 REVERSE CLUTCH ROD 352 PSB1124F0352 SET SCREW 1/4-28 X 1/8 DOG-PT

316 PSB1124F0316 FEED TRIP BRACKET 353 PSB1124F0353 SET SCREW 1/4-28 X 1/4

317 PSB1124F0317 CAP SCREW 1/4-20 X 3/4 354 PSB1124F0354 CA M ROD

318 PSB1124F0318 C A M ROD 355 PSB1124F0355 ROLL PIN 3/16 X 3/4

319 PSB1124F0319 ROLL PIN 5 X 20 356 PSB1124F0356 CAM ROD SLEEVE

320 PSB1124F0320 SET S CREW 5/16-24 X 3/16 SLOTTED 357 PSB1124F0357 ROLL PIN 3 X 14

321 PSB1124F0321 COMPRESSION SPRING 0.4 X 4.8 X 8 358 PSB1124F0358 COMPRESSION SPRING 1.3 X 12 X 22

322 PSB1124F0322 STEEL BALL 3/16 359 PSB1124F0359 TRIP PLUN GER

323 PSB1124F0323 H ANDWHEEL CLUTCH 36 0 PSB1124F0360 FEED TRIP PLUNGER BUS HIN G

324 PSB1124F0324 HANDWHEEL TYPE-19 150D X 12B X 5/16-18 361 PSB1124F0361 TRIP PLUN GER B USHING

325 PSB1124F0325 FLANGED BUSHING 362 PSB1124F0362 ROLL PIN 3 X 12

326 PSB1124F0326 THREADED INS ERT 5/16 -18 X 1/4 363 PSB1124F0363 IN DIC A TOR BLOCK

327 PSB1124F0327 FIXED HANDLE 7/8 X 2-3/4, 5/16-18 X 1/4 364 PSB1124F0364 COMPRESSION SPRING 1.2 X 14.7 X 12.3

328 PSB1124F0328 E-CLIP 5MM 365 PSB1124F0365 QUILL PINION SHAFT

329 PSB1124F0329 KNURLED S LEEVE 366 PSB1124F0366 QUILL MIC RO S TOP

330 PSB11 24F0330 CAPTIVE PIN 367 PSB1124F0367 QUILL S TOP KN OB

331 PSB1124F 0331 SPACER 368 PSB1124F0368 QUILL MICRO STOP SHAFT

332 PSB 11 24F0332 OIL CUP 1/8" PT 90-DEG 369 PSB1124F0369 EXT RETAININ G RING 5/8

333 PSB 1124F 0 333 COMPRESSION SPRING 1.2 X 9 X 17.3 370 PSB1124F0370 FEED TRIP SHAFT

334 PS B 1 124F0334 QUILL DEPTH S CA LE 371 PSB1124F0371 TRIP PLA TE

335 PS B 1 124F0 335 PHLP HD SCR 8-32 X 3/16 372 PSB1124F0372 SET SCREW 8-32 X 3/8

336 PS B 1 1 24F0336 CAP SCREW 8-32 X 3/8 373 PSB1124F0373 FEED PIN 1/4-20

337 PSB11 24F0337 RETAININ G PLATE 374 PSB1124F0374 S LOTTED THUMB SC REW 5/16-24 X 5/1 6

338 PSB11 24F0338 Q UILL WASHER 375 PSB1124F0375 FEED ROD

339 P SB1124F 0 339 SPANNER NUT 376 PSB1124F0376 FEED RETURN ROD

-80-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

406

417

PARTS

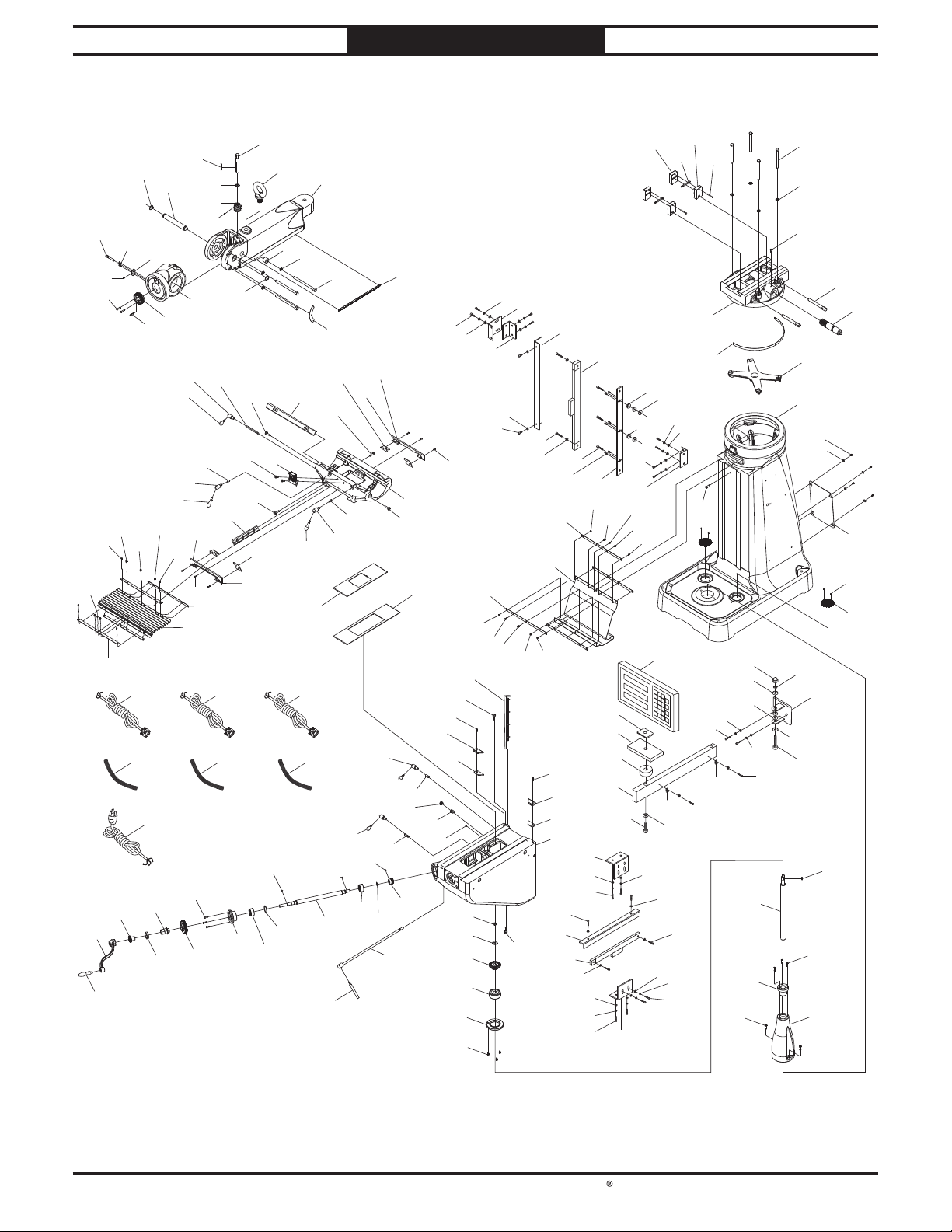

Column, Knee & Ram

500

501

402

487

485

454

455

407

405

414

408 409

410

499

498

403

401

467

468

495

467

468

435

487

480

485

561 562 563

564

567

449

451

453

450

452

405

404

492

460

491

460

488

479

478

486

484

565 566

448

447

490

481

456

505

415

446

412

469

468

477

411

460

457

445

413

503

481

483

467

468

478

459

447

479

467

497

493

504

482

460

476

496

471

458

444

466

470

472

523

480

460

465

439

438

524

434

461

463

443 442

441

440

525

518

433

435

521

519

435

516

435

460

522

517

513

432

431

434

532

533

520

514

465

464

463 462

526 528

529

530

535

539 540

512

434

541

515

435

568 560

559

558

553

509

506

542

510

434

435 434

416

543

555

527

536

418

511 508

554

531

534

537

538

422

502

507

427

551

419

552

556

544 545

429

427

545

550

436

420

412

421

423

424

425

426

475

474

473

489

494

546

547

548

549

557

437

430

428

-81-

South Bend Tools

Model SB1124F

PARTS

For Machines Mfd. Since 11/22

Column, Knee & Ram Parts List

REF PART # D E SCR IPT ION REF PAR T # DESCRIPTION

401 PSB11 24F040 1 ROLL PIN 8 X 25 452 PSB 1124F0452 LOCK RIN G

402 PSB1124F040 2 CAP SCREW 1/4-20 X 1 453 PSB 1124F0453 GEARSHA FT CLUTCH INSERT

403 PSB1124F0403 Q UILL H OUSIN G GEAR 454 PSB1 124F0 454 VERTICAL CRANK

404 PSB1124F0 404 RAM ADAPTER 455 PS B1124F0455 REV HANDLE 1 X 3-3/4, 7/16-14 X 5/16

405 PSB1124F0 405 EXT RETAINING RING 28M M 456 PSB1124F0 456 WOODRUFF KEY 1/8 X 3/4

406 PSB1124F0406 HEAD TILT WORM SHAFT 457 PS B1124F0457 VERTICAL CRANK SHAFT

407 PSB1 124F0407 KEY 3/16 X 3/16 X 2 458 PSB 1124F0458 B EVEL PINION GEAR

408 PS B1124F0408 WORM THRUS T WASHER 18 MM 459 PSB1124F0459 SET SCREW 1/4-20 X 1/4

409 PSB 1124F 0409 HEAD TILT WORM GEAR 460 PSB 1124F0460 GIB SCREW 1/4-20 X 1/4

410 PSB1124F0410 S ET SCREW 10-32 X 3/16 461 PSB 1124F 0461 KNEE GIB

411 PSB1124F0411 RA M 462 PSB1124F0462 KNEE

412 PSB1124F0412 CHAMFERED WASHER 13 X 22.2 X 3.2 463 PSB1124F0463 KNEE WIPER

413 PSB1124F0413 TILT LOCK B OLT 1/2-13 X 7-3/4 464 PSB 1124F 0464 WIPER HOLDER (RIGHT)

414 PSB1124F0414 PIVOT PIN 28.5 X 197 465 PS B1124F0465 PHLP HD SCR 1/4-20 X 1/2

415 PSB1124F0415 SLEEVE 466 PSB1124F0466 WIPER HOLDER (LEFT)

416 PSB1124F0416 RAM CLAMP (UNTAPPED) 467 PSB1124F0467 HANDLE HUB

417 PSB1124F0417 RAM CLAMP (TAPPED) 468 PSB1124F0468 FIXED HANDLE 7/8 X 2-3/4, 5/16-18 X 1/4

418 PSB1124F0418 RAM CLAMP BAR 469 PSB11 24F0469 TA B LE GIB

419 PSB1124F0419 RIVET 4.7 X 50M M BLIND 470 PSB 1124F 0470 LOCK PLUNGER

420 PSB1124F0420 TURRET CLAMP B OLT 1/2-12 X 6 471 PSB1124F0471 LOCK PLUN GER CA P

421 PSB 1124F0421 RAM PINION SCREW 472 PSB1124F0472 SET SCREW 5/16-18 X 3/16 DOG-PT

422 PS B1124F0422 TURRET 473 PS B1124F0473 COLUMN COVER

423 PSB 1124F0423 RAM LOCK B OLT 5/8-11 X 5 474 PS B1124F0474 FLAT WASHER 1/4

424 PSB1 124F0 424 RAM PINION 13T 475 PSB1124F0475 BUTTON H D CAP S CR 1/4-20 X 3/8

425 PSB1124F0425 TURRET B RA CKET 476 PSB 1124F 0476 LOWER CHIP GUARD

426 PSB1124F0426 COLUM N 477 PSB 1124F0477 UPPER CHIP GUARD

427 PSB1124F0427 CAP SCREW 3/8-16 X 1 478 PSB1 124F0 478 FELT WIPER

428 PS B1124F0428 PEDESTAL 479 PSB1124F0479 WAY WIPER PLA TE

429 PSB 1124F0429 VERTICAL LEADSCREW BEVEL NUT 48 0 PSB1124F0480 PHLP HD SCR 10-24 X 1/2

430 PSB11 24F0430 CAP SCREW 1/4-20 X 1 48 1 PSB1124F0481 FELT WIPER

431 PSB 1124F0431 REAR WAY COVER 482 PS B1124F0482 S ADDLE

432 PSB 1124F 0432 UPPER WAY COVER MOUN T 483 PSB 1124F0483 LOCK PLUN GER

433 PSB1 124F0 433 LOWER WAY COVER M OUN T 484 PS B1124F0484 F RON T WAY C OVER

434 PS B1124F0434 RIVET 5.5 X 3.2MM NAMEPLATE 485 PSB1 124F0 485 FRON T WAY COVER MOUN T

435 PSB1124F0435 PHLP HD SCR 1/4-20 X 3/8 486 PSB1 124F0486 REAR WAY COVER MOUN T

436 PSB11 24F0436 VERTICAL LEADSCREW 487 PSB 1124F0487 RIVET 5.5 X 3.2MM NAMEPLATE

437 PSB1124F0437 KEY 3/1 6 X 3/16 X 3/4 488 PSB 1124F0488 SADDLE GIB

438 PSB 1124F 0438 CAP SCREW 1/4-20 X 3/8 489 PS B1124F0489 RIVET 2.5 X 5MM B LIND

439 PSB1124F0439 BEARIN G RETAININ G RIN G 490 PSB1124F0490 POWER FEED LIMIT SWITCH

440 PSB1124F0 440 BALL BEARIN G 6306-2RS 491 PSB1124F0 491 CAP SCREW 3/8-16 X 1/2

441 PSB1124F0441 BEVEL GEAR 36T 492 PSB1124F0492 SADDLE LOCK PLUN GER

442 PSB1 124F0 442 F LA T WA S HER 1 3.5 X 32 X 3M M 493 PS B1124F0493 EXT RETA IN ING RIN G 20 MM

443 PSB 1124F 0443 HEX NUT 1/2-20 494 PSB 1124F0494 SCREEN

444 PSB 1124F0444 KNEE LOCK SHAFT 495 PS B1124F0495 LOCK PLUNGER

445 PSB 1124F 0445 FIXED HAN DLE 5/16 X 4-5/8, 5/16-18 X 4 496 PSB 1124F 0496 LOCK PLUNGER

446 PSB1124F0446 INT RETA IN ING RING 47MM 497 PSB11 24F0497 LOCK PLUNGER

447 PSB 1124F 0447 BA LL B EA RIN G 63204-2RS 498 PSB1 124F0 498 STOP SEAT

448 PSB1124F0 448 BEA RIN G RETAIN IN G RING 499 PSB1124F0 499 CAP SCREW 10-24 X 1/2

449 PSB11 24F0449 CAP SCREW 1/4-20 X 5/8 500 PSB1124F0500 STOP PIN

450 PSB1124F0450 VERTICAL IN DEX RIN G 501 PSB1124F0501 SET S CREW M5-.8 X 6 BA LL-PT

451 PS B1124F0451 BUSHING 502 PSB1124F0502 RAM ROTATION S CALE

-82-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PARTS

Column, Knee & Ram Parts List (Cont.)

REF PART # DE SCRIPTION REF PART # DE SCR IPT ION

503 PSB1124F0503 HEAD TILT S CALE 536 PSB1124F0536 FLAT WASHER 6MM

504 PSB1124F0504 RA M TRAVEL SCA LE 537 PSB1124F0537 LOCK WASHER 6MM

505 PSB1124F0505 EYE BOLT 1-1/2, 3/4-10 X 1-3/16 538 PSB1124F0538 CAP SCREW M6-1 X 20

506 PSB1124F0506 L-B RACKET 2 X 3-1/2 X 3-1/2 539 PSB1124F0539 FLAT WASHER 4MM

507 PSB1124F0507 FLAT WASHER 6MM 540 PSB 1124F 0540 LOCK WASH ER 4MM

508 PSB1124F0508 LOCK WASHER 6MM 541 PSB 1124F 0541 CAP SCREW M4-.7 X 16

509 PSB1124F0509 CAP SCREW M6-1 X 25 542 PSB 1124F 0542 L-BRACKET 2 X 2 X 3-1/2

510 PSB1124F0510 SPACER 6.5 X 32 X 10 543 PSB1124F0543 DRO DISPLAY FAGOR 30iM

511 PSB1124F0511 SPACER 6.5 X 32 X 15 544 PS B1124F0544 A CORN N UT M14-2

512 PSB1124F0512 SCA LE MOUNTING ARM 545 PSB 1124F0545 FLAT WASHER 14MM

513 PSB1124F0513 SET SCREW M6-1 X 1 2 DOG-PT 546 PSB 1124F 0546 LOCK WASHER 14MM

514 PSB1124F0514 SHOULDER SCREW M6-1 X 24, 8 X 21 547 PSB1 124F0547 DRO SWIN G ARM M OUN T

515 PSB1124F0515 DRO Z-AXIS SCALE FAGOR MKT-47 22-3/4" 548 PSB 1124F0548 FLAT WAS HER 14MM THIN

516 PSB1124F0516 FLAT WASHER 4MM 549 PSB1 124F0549 SHOULDER SCREW M14-2 X 35, 14 X 44

517 PSB1124F0517 CAP SCREW M4-.7 X 20 550 PSB1124F0550 LOCK WASHER 1/4

518 PSB1124F0518 CAP SCREW M4-.7 X 14 551 PS B 1124F0551 CAP SCREW 1/4-28 X 1

519 PSB1124F0519 FLAT WASHER 4MM 552 PSB 1124F0 552 FLAT WASHER 1/4

520 PSB 1124F0520 Z-AXIS SCALE COVER 553 PS B11 24F 0553 SHOULDER SCREW 1/4-28 X 1, 1/4 X 1-3/4

521 PSB1124F0521 LOCK WASHER 6MM 554 PSB1124F 0554 FLAT WASHER 1/4

522 PSB1124F0522 L-B RACKET 2 X 4-3/4 X 3-1/2 555 PSB 1124F0555 FLAT WASHER 4MM

523 PSB1124F0523 CAP SCREW M6-1 X 18 556 PS B11 24F 0556 WIRE CLIP 3/8"

524 PSB1124F0524 FLAT WASHER 6MM 557 PSB 1124F0 557 CAP SCREW M4-.7 X 8

525 PSB1124F0525 L-BRACKET 2 X 2 X 3-1/2 558 PSB 1124F0 558 DRO SWING ARM

526 PSB1124F0526 L-BRACKET 2 X 3-1/2 X 3-1/2 559 PSB1 124F0559 SPACER

527 PSB1124F0527 LOCK WASH ER 6MM 560 PSB1124F0560 DRO M OUN T

528 PSB1124F0528 FLAT WASHER 6MM 561 PSB1124F0561 DRO SCALE CORD X-AXIS 6-1/2'

529 PSB1124F0529 CAP SCREW M6-1 X 20 562 PSB1124F0562 DRO S CALE CORD Y-A XIS 8'

530 PSB1124F0530 CAP SCREW M4-.7 X 8 563 PSB1124F0563 DRO S C A LE C ORD Z-A X IS 9'

531 PSB1124F0531 FLAT WASHER 4MM 564 PSB1124F0564 DRO SCALE CORD CONDUIT X-AXIS 6-1/2'

532 PSB1124F0532 Y-AXIS SCALE COVER 565 PSB1124F0565 DRO S C A LE C ORD CONDUI T Y-A XIS 8 '

533 PSB1124F0533 DRO Y-AXIS SCALE FAGOR MKT-37 18-3/4" 566 PSB1124F0566 DRO S C A LE CORD C ON DUIT Z -AX IS 9'

534 PSB1124F0534 CAP SCREW M4-.7 X 20 567 PSB1124F0567 DRO POWER CORD 18G 3W 120" 5-15P

535 PSB1124F0535 FLAT WASHER 4MM 568 PSB1124F0568 MOUN TIN G PLATE

-83-

South Bend Tools

Model SB1124F

633

644

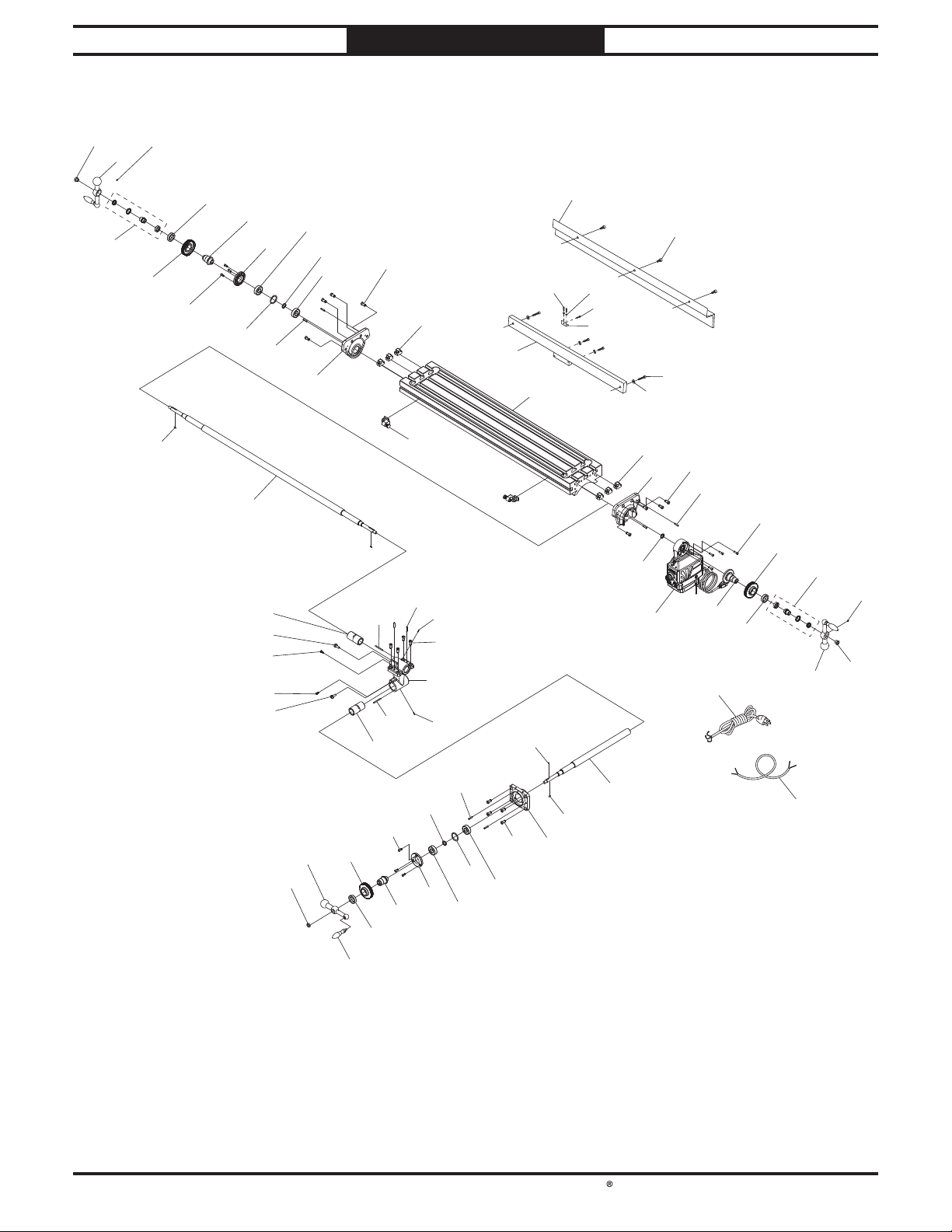

Table

643

PARTS

For Machines Mfd. Since 11/22

639

605

620

607

604

610

606

608

621

623

625

626

626 625

612

609

613

614

609

611

622

628

615

632

631

619

611

627

619

653

616

634

647

645

648

649

650

635

615

618

636

646

652

651

611

612

637

654

624

638

605

639

643

633

644

601

-84-

603

605

602

617

607

606

614

608

612

610

609

611

609

629

655

620

630

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PARTS

Table Parts List

REF PART # DE SCR IPT ION REF PAR T # D E SCR IPTION

601 PSB1124F0601 HEX NUT 1/2-20 627 PSB1124F0627 LEADSCREW NUT BRACKET

602 PSB1124F0602 REV HAN DLE 1 X 3-3/4, 3/8 -1 6 X 5/16 628 PSB1124F0628 CROSS FEED NUT

603 PSB1124F0603 B ALL HAN DLE 629 PSB1124F0629 CROSS FEED LEADSCREW

604 PSB1124F0604 DIAL LOCK NUT 630 PSB1124F0630 CROSS FEED BEARIN G BRACKET

605 PSB1124F0605 X-AXIS GRADUATED DIAL 631 PSB1124F0631 ROLL PIN 5 X 30

606 PSB1124F0606 DIAL RETAINER SHAFT 632 PSB1124F0632 TRA VEL STOP

607 PSB1124F0607 CAP SCREW 1/4-20 X 1/2 633 PSB1124F0633 S ET S CREW M4-.7 X 5

608 PSB1124F0608 BEA RIN G RETAINING RING 634 PSB1124F0634 KEY 3 X 3 X 9

609 PSB1124F0609 BALL BEARING 620 4-2RS 635 PSB1124F0635 SPACER

610 PSB1124F0610 SPA CER 6 36 PSB1124F0636 POWER FEED ALIGN AL-500D

611 PSB1124F0611 CAP SCREW 3/8-16 X 1 637 PSB1124F0637 BEVEL GEAR

612 PSB1124F0612 ROLL PIN 5 X 25 638 PSB1124F0638 BEVEL GEAR NUT 1/4-20

613 PSB1124F0613 BEARING BRACKET 639 PSB1124F0639 TABLE BALL H ANDLE CLUTCH ASSY

614 PSB1124F0614 SPACER 643 PSB 11 24F0643 B ALL HAN DLE

615 PSB1124F0615 TABLE T-SLOT PLUG 644 PSB1124F0644 HEX NUT 1/2-20

616 PSB1124F0616 TAB LE 645 PSB 1124F0645 X-AXIS SCALE COVER

617 PSB1124F0617 DIAL LOCK NUT 646 PSB1124F0 646 CAP SCREW M6-1 X 12

618 PSB1124F0618 BEARING BRACKET 647 PSB 1124F0647 CAP SCREW M3-.5 X 6

619 PSB1124F0619 ROLL PIN 2.5 X 10 648 PSB1124F0648 FLAT WASHER 3MM

620 PSB1124F0620 WOODRUFF KEY 1/8 X 3/4 649 PSB1124F0 649 CAP SCREW M4-.7 X 8

621 PSB1124F0621 LONGITUDINAL LEADSCREW 650 PSB1124F0650 SCA LE S UPPORT BRA CKET

622 PSB1124F0622 KEY 3/16 X 3/16 X 2-1/2 651 PSB1124F0651 CAP SCREW M4-.7 X 20

623 PSB1124F0623 LONGITUDINAL FEED NUT 652 PSB1124F0652 FLAT WASHER 4MM

624 PSB1124F0624 CAP SCREW M6-1 X 20 653 PSB1124F0653 DRO X-AXIS SCALE FAGOR MKT-82 36-1/2"

625 PSB1124F0625 CROSS FEED SCREW 5/16-18 X 7/8 654 PSB1124F0654 POWER FEED POWER CORD 18G 3W 96" 5-15P

626 PSB1124F0626 PHLP HD SCR 10-24 X 5/8 655 PSB1124F0655 LIMIT SWITCH CORD 18G 3W 48"

-85-

South Bend Tools

Model SB1124F

718

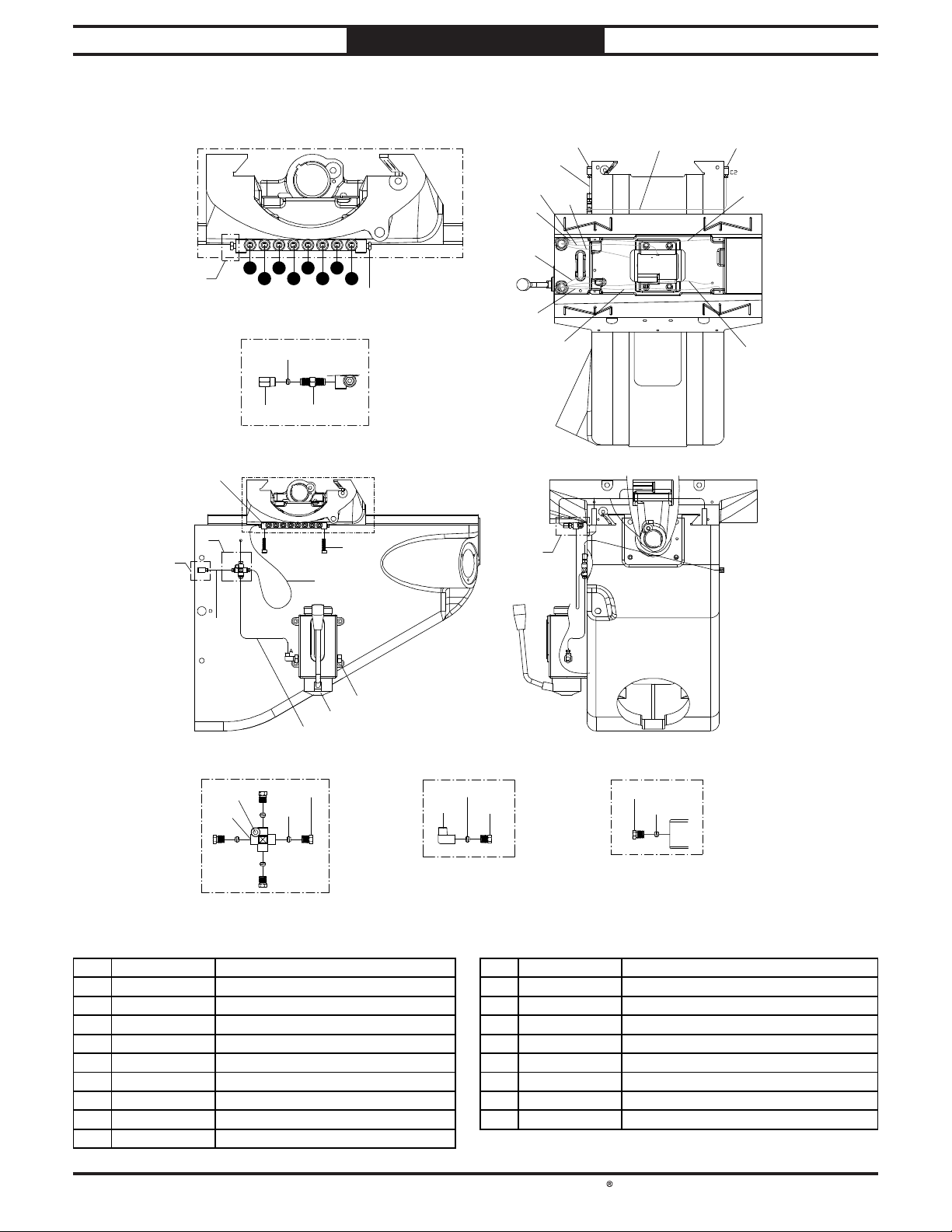

Oil Distributor

One Shot Oiler

D5D3

D4 D6D7D8

702

PARTS

714

719

713

For Machines Mfd. Since 11/22

715

716

705

709

717

704 706

707

703

712

701

708

711

707

710

718

703

701

716

701

703

REF PART # DE SCR IPTION REF PAR T # DE SCRIPT ION

701 PSB1124F0701 HOSE NUT M8-1 711 PSB1124F0711 ONE-SHOT OILER ASSEMBLY ISHAN YML-8

702 PSB1124F0702 PLUG M8 -1 712 PSB1124F0712 NYLON TUBE 4 X 310MM

703 PSB1124F0703 SLEEVE 4MM 713 PSB1124F0713 NYLON TUBE 4 X 320MM

704 PSB1124F0704 ELBOW ADAPTER M8-1 71 4 PSB1124F0714 NYLON TUBE 4 X 200MM

705 PSB1124F0705 OIL MAN IFOLD 8-PORT 71 5 PSB1124F0715 NYLON TUBE 4 X 440MM

706 PSB1124F0706 OIL FITTING M8-1 X 10 716 PSB1124F0716 N YLON TUBE 4 X 470MM

707 PSB1124F0707 CAP SCREW M6-1 X 35 717 PSB1124F0717 OIL DISTRIBUTOR 4-PORT

708 PSB1124F0708 WIRE MESH TUBE 4 X 550MM 718 PSB1124F0718 ELBOW ADAPTER 90-DEG M8-1 X 1/8" PT

709 PSB1124F0709 NYLON TUBE 4 X 70MM 71 9 PSB1124F0719 NYLON TUBE 4 X 18 5MM

710 PSB1124F0710 CAP SCREW M6-1 X 6

-86-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PARTS

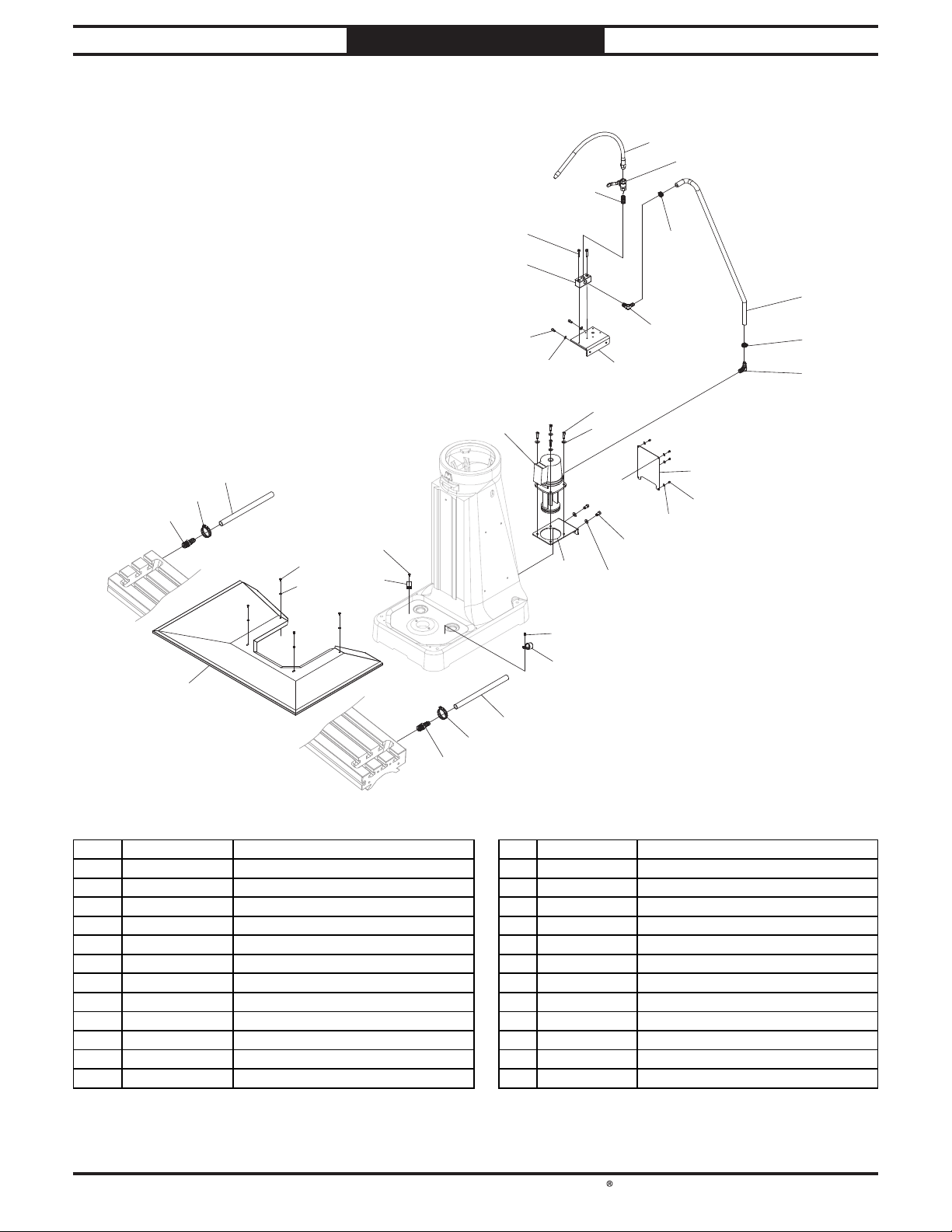

Coolant System

816

818

819

811

812

813

803

802

814

815

820

821

824

806

825

809

814

815

804 805

807

808

826

823

802

822

817

822

823

810

803

801

813

812

811

REF PART # DE SCR IPT ION REF PAR T # DE SCR IPTION

801 PSB1124F0801 TRAY 814 PSB1124F0814 PHLP HD SCR 10-24 X 1/2

802 PSB1124F0802 FLAT WASHER 6MM 815 PSB1124F0815 HOSE CLAMP 3/4"

803 PSB1124F0803 CAP SCREW M6-1 X 16 816 PSB1124F0816 COOLA NT N OZ Z LE 3/8 " X 24"

804 PSB1124F0804 CAP SCREW M6-1 X 16 817 PSB1124F0817 HOSE 1/2" X 48"

805 PSB1124F0805 FLAT WASHER 6MM 818 PSB1124F0818 BALL VALVE 3/8"

806 PSB1124F0806 COOLANT PUMP 1/8HP 220V/440V 3-PH 819 PSB1124F0819 S TRAIGHT C ONNECTOR 3/8 " X 3/8"

807 PSB1124F0807 CA P SCREW 3/8 -1 6 X 3/4 820 PSB1124F0820 CAP SCREW M6-1 X 30

808 PSB1124F0808 FLAT WASHER 3/8 821 PSB1124F0821 MANIF OLD B LOCK

809 PSB1124F0809 COOLANT PUMP M OUN TING PLA TE 822 PSB1124F0822 HOSE CLAMP 3/4"

810 PSB1124F0810 COOLANT PUMP ACCESS COVER 823 PSB1124F0823 ADAPTER 3/8 " X 1/2 " 90 -DEG

811 PSB1124F0811 ADAPTER 1/2" X 1/2" B ARBED 824 PSB1124F0824 CAP SCREW M6-1 X 16

812 PSB1124F0812 HOSE CLAMP 3/4" 825 PSB1124F0825 FLAT WASHER 6MM

813 PSB1124F0813 HOSE 1/2" X 55" 826 PSB1124F0826 M OUNTING PLATE

-87-

South Bend Tools

Model SB1124F

921

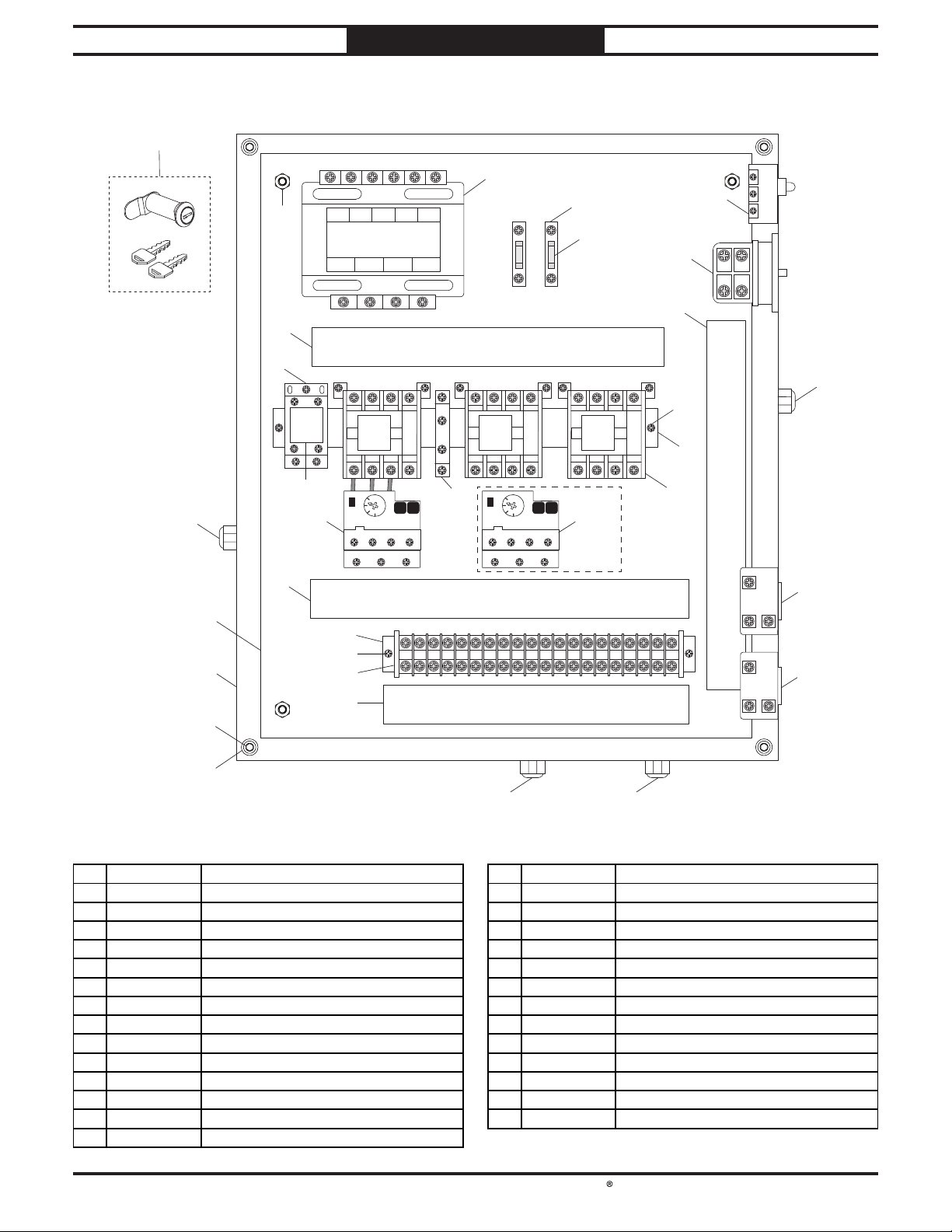

Electrical Cabinet

923

927

906

924

0V 220V 380V 400V 440V

LCPIC-TBSM-100400

110V 0V 24V 0V

Relay

Omron

MY2N-J

5A/110V

Transformer

1/L1 5L3 13NO3L2

Contactor

2T1 6T3

TECO

CU-11

110V

PARTS

For Machines Mfd. Since 11/22

901

LCE

925

902

904

903

SNZ AZ-1309

Safety Switch

15A 125V/250V

1 256

KEDU

905

907

14NO

1/L1 5L3 13NO3L2

Contactor

TECO CU-11

110V

2T1 6T3

4T2

1/L1 5L3 13NO3L2

Contactor

TECO CU-11

14NO

4T2

110V

2T1 6T3

4T2

14NO

910

911

908

913

915

914

TRIP IND.

7.2

TECO OL Relay

TEST RCA

RHU-10/10K1

97NO 98NO 95NC 96NC

97 NO

98 NO

95 NC

2T1 4T2 6T3

TRIP IND.

909

96 NC

4.8A

4.5

3.5

TECO OL Relay

TEST RCA

RHU-10/4.8K1

95NC

97NO 98NO

97 NO

98 NO

95 NC

2T1 4T2 6T3

96NC

96 NC

914X

440V Only

912

120V Outlet

5-15P

R31515

916

922

917

R2 5 0 0 1 3 8 10 12 U4 V4 W4 E U V W E L1 L2 L3

120V Outlet

5-15P

R31515

916

920

910 918

919

926

928

REF PAR T # DE SCR IPT ION REF PAR T # DE SCR IPT ION

901 PSB1124F0901 TRANS F ORMER LCE LCPIC-TBSM-100400 915 PSB1124F0915 WIRE LOOM 8"

902 PSB1124F0902 FUSE 5A 250V 0.25" FAST-ACTING, GLASS 916 PSB1124F0916 ELECTRICA L OUTLET 120V R31515

903 PSB1124F0903 SAFETY SWITCH SNZ AZ-1309 15A 125V/250V 917 PSB1124F0917 DIN RAIL 10"

904 PSB1124F0904 MASTER POWER SWITCH KEDU ZH-HD-2 918 PSB1124F0918 TERMINAL B AR 20P

905 PSB1124F0905 WI RE LOOM 10-1/4" 91 9 PSB1124F0919 WIRE LOOM 9"

906 PSB1124F0906 WIRE LOOM 9" 920 PSB1124F0920 ELECTRICAL CA BIN ET W/DOOR

907 PSB1124F0907 S TRAIN RELIEF TYPE-3 PG11A 921 PSB1124F0921 STRA IN RELIEF TYPE-3 M20 -1.5

908 PSB1124F0908 RELAY OMRON MY2N-J 5A 110V 922 PSB1124F0922 BACK PLATE

909 PSB1124F0909 AUXILIARY CONTACT BLOCK TECO CNI-18 923 PSB1124F0923 ELECTRICAL CAB INET LOCK W/KEYS

910 PSB1124F0910 FLANGE SCREW M4-.7 X 10 924 PSB1124F0924 RELAY LB2H N

911 PSB1124F0911 DIN RAIL 8-1/2" 925 PSB1124F0925 FUSE HOLDER

912 PSB1124F0912 CON TACTOR TECO CU-11 110V 926 PSB1124F0926 CAP SCREW 1/4-28 X 5/8

913 PSB1124F0913 STRAIN RELIEF TYPE-8 90° KNURLED 3/8" 927 PSB1124F0927 HEX NUT M8 -1 .25

914 PSB1124F0914 OL RELAY TECO RHU-10/K1 7.2-10 A 928 PSB1124F0928 FLAT WASHER 1/4

914 X PSB1124F0914X OL RELAY TECO RHU-4.8K1 3.5-4.8A

-88-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

1011

PARTS

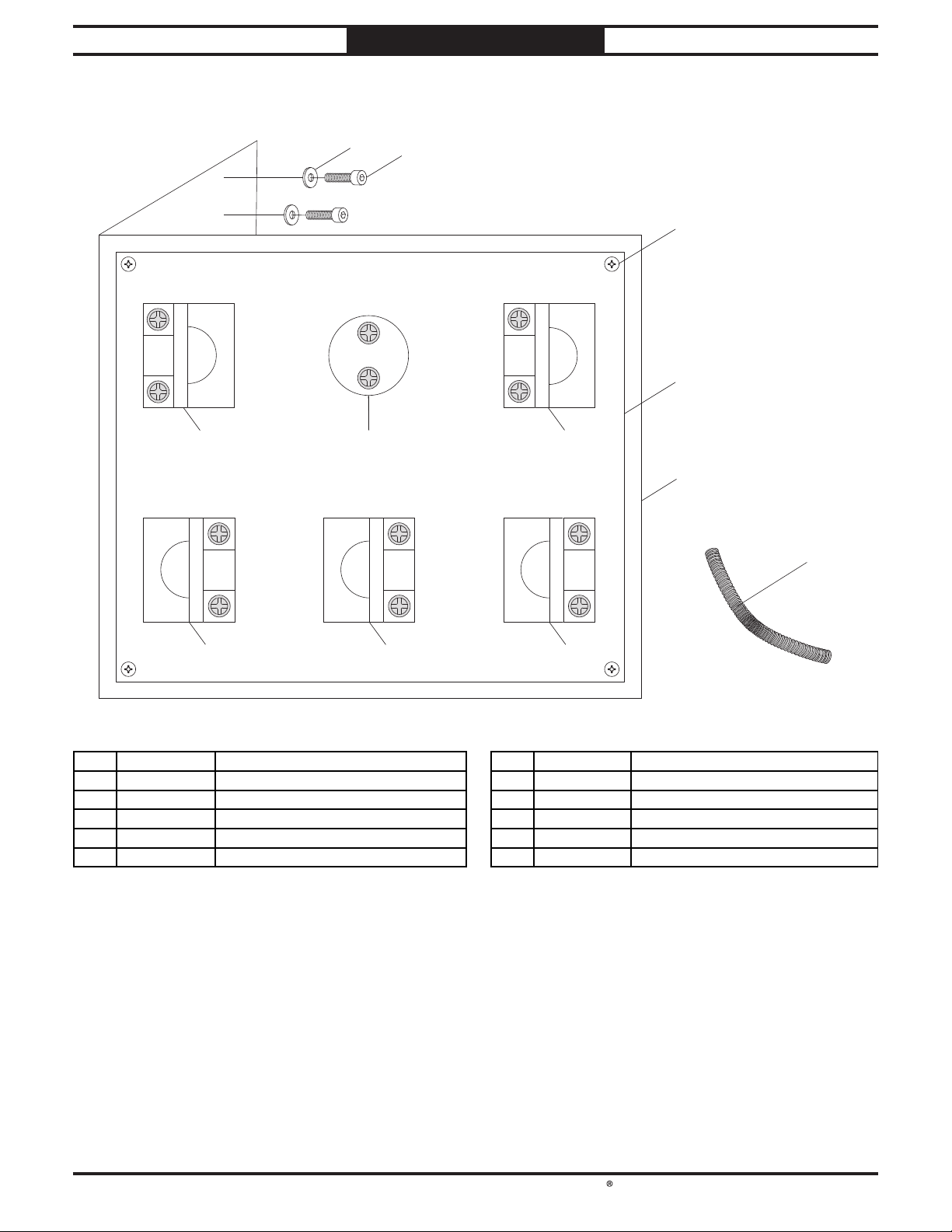

Control Box

1010

1009

EMERGENCY

Pump Switch

KEYON

KB2-BE101

NO3 4

POWER Light

KEYON

KE-22DS

STOP Button

KEYON

KB2-BE102

NC1 2

1001

1002

1003

1004

1012

FWD Button

KEYON

KB2-BE101

NO3 4

1005

REV Button

KEYON

KB2-BE101

1006

NO3 4

STOP Button

KEYON

KB2-BE102

1007

NC 21

REF PART # DE SCR IPT ION REF PAR T # DESCRIPTION

1001 PSB1124F1001 CON TROL PA N EL 1007 PSB1124F1007 STOP BUTTON KEYON KB2-BE102

1002 PSB1124F1002 COOLANT PUMP SWITCH KEYON KB 2-BE101 1008 PSB1124F1008 CON TROL BOX C ON DUIT

1003 PSB1124F1003 POWER LIGHT KEYON KE-22DS 1009 PSB1124F1009 PHLP HD SCR M4-.7 X 6

1004 PSB1124F1004 E-STOP BUTTON KEYON KB2-BE102 1010 PSB1124F1010 CAP SCREW M6-1 X 16

1005 PSB1124F1005 FWD BUTTON KEYON KB2-BE101 1011 PSB1124F1011 FLAT WASHER 6MM

1006 PSB1124F1006 REV BUTTON KEYON KB2-BE1 01 1012 PSB1124F1012 CON TROL BOX

1008

-89-

South Bend Tools

Model SB1124F

Accessories

PARTS

For Machines Mfd. Since 11/22

1101

1106

REF PART # DE SCR IPT ION REF PART # DE SCR IPT ION

1101 PSB1124F1101 B OTTLE F OR OIL 1104 PSB1124F1104 COMB O SCREWDRI VER

1102 PSB1124F1102 H EX WRENCH SET 1.5-10 MM 1105 PSB1124F1105 WRENCH 10 X 12MM OPEN-EN DS

1103 PSB1124F1103 TOOLB OX 1106 PSB1124F1106 WRENCH 19MM COMBO

1102

1105

1104

1103

-90-

South Bend Tools

For Machines Mfd. Since 11/22 Model SB1124F

PARTS

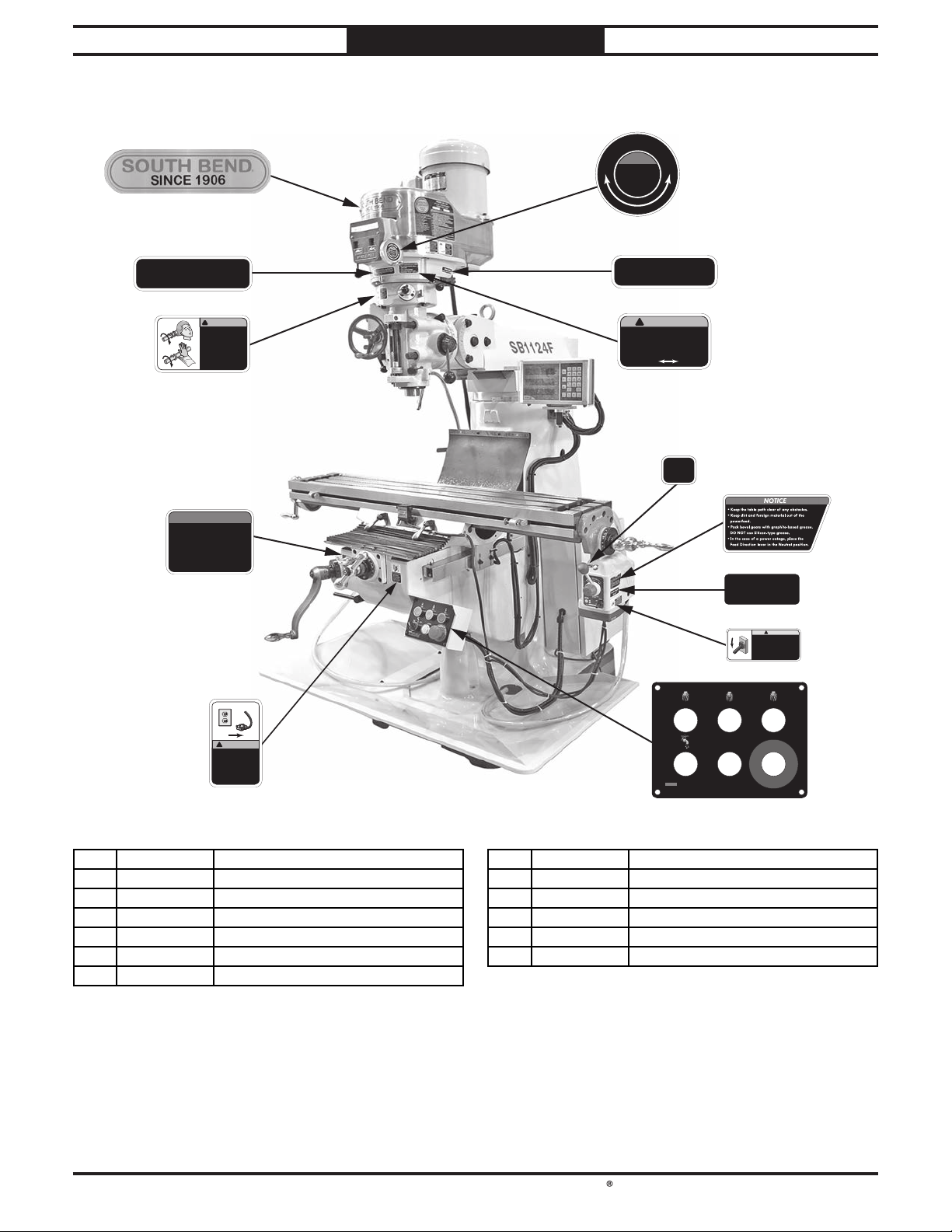

Machine Labels (Front)

NOTICE

1201

DO NOT turn this handwheel unless

the motor is

running

+–

1202

Fill this oil cup before operating the machine, then maintain the oil level

1213

according to the instructions in the owner’s manual.

1212

1211

WARNING!

ENTANGLEMENT

HAZARD Remove or secure loose clothing, hair or jewelry to reduce the risk of serious injury or death.

NOTICE

Only trained and properly supervised personnel are allowed to operate this machine. If safe operation procedures are not clearly understood, request additional training before beginning operation.

1210

WARNING!

INJURY/SHOCK

HAZARD To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

SPEED RANGE

HIGH • NEUTRAL • LOW

WARNING!

• Do not use at speeds above 3000 RPM.

• Stop motor to engage.

• Disengage when not used.

DISENGAGE ENGAGE

1203

1204

1205

RAPID

FEED

1206

South Bend

Tools

Turn switch OFF after every use to prevent unexpected powerfeed movement that may result in personal injury or damage to the machine.

POWER

NOTICE

Coolant pump will

burn out if it is operated

ONOFF

CAUTION

INJURY HAZARD

STOPFWD REV

1207

1208

1209

REF PART # DE SCR IPTION REF PAR T # DE SCR IPT ION

1201 PSB1124F1201 SOUTH B EN D NAMEPLATE 1208 PSB1124F1208 POWER FEED ON /OFF LABEL

1202 PSB1124F1202 SPINDLE SPEED LABEL 1209 PSB1124F1209 CONTROL PAN EL LA B EL

1203 PSB1124F1203 SPEED RANGE LABEL 1210 PSB1124F1210 DISCONNECT POWER LABEL

1204 PSB1124F1204 DOWNFEED WARNING LABEL 1211 PSB1124F1211 TRAINED PERSONNEL LAB EL

1205 PSB1124F1205 RAPID FEED LABEL 1212 PSB1124F1212 ENTAN GLEMENT HAZARD LABEL

1206 PSB1124F1206 POWER FEED NOTICE LABEL 1213 PSB1124F1213 OIL CUP LA BEL

1207 PSB1124F1207 S OUTH B END TOOLS LABEL

-91-

South Bend Tools

Model SB1124F

PARTS

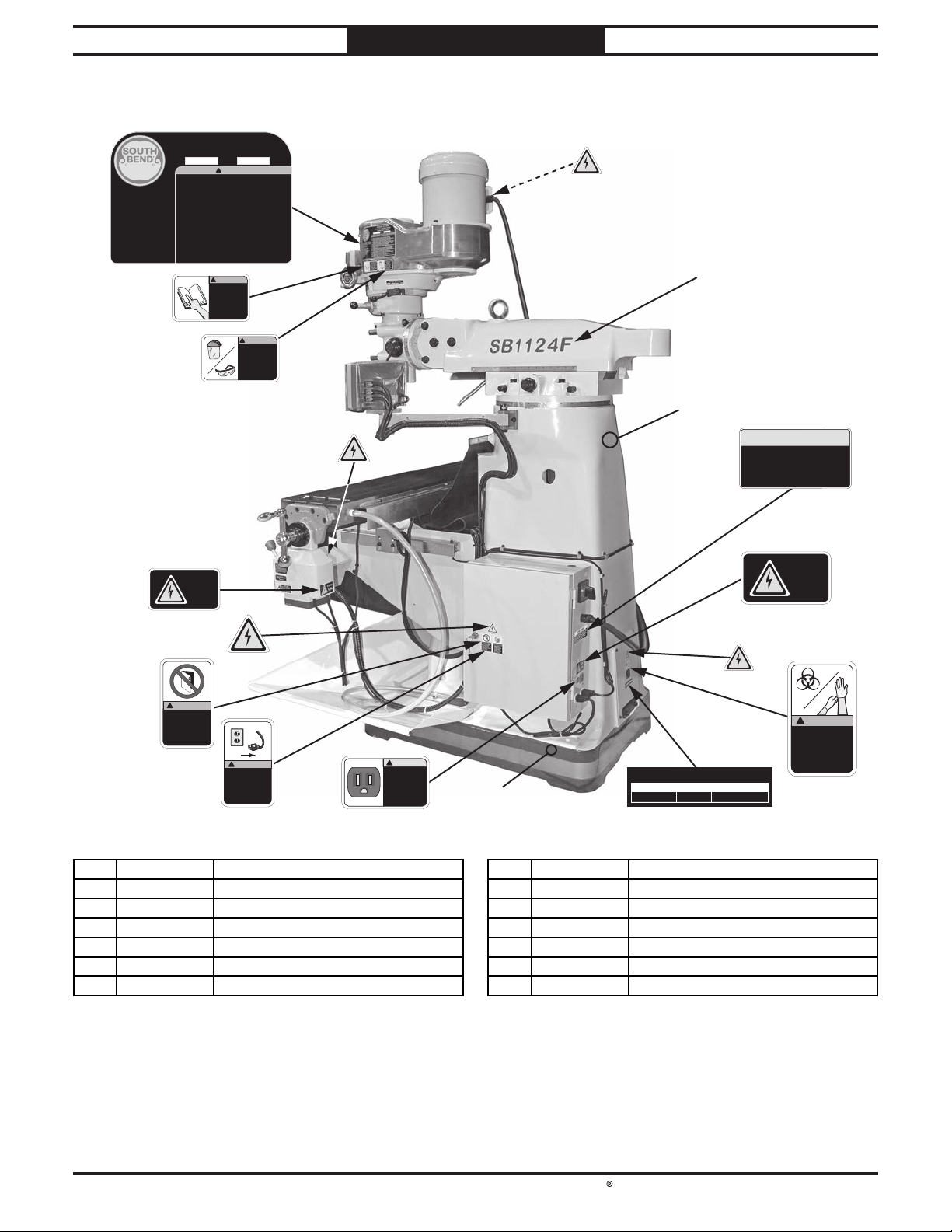

Machine Labels (Side)

MODEL SB1124F

9" X 48" VARIABLE-SPEED

1301

SINCE

1906

Motor: 3 HP, 220V/440V, 3-Ph, 60 Hz Coolant Pump: 1/8 HP, 220V/440V, 3-Ph Pre-Wired Voltage: 220V Full-Load: 9.6A at 220V, 4.8A at 440V Table Size: 9" x 48" Longitudinal Travel: 30-1/4" Cross Travel: 11-1/4" Vertical Travel: 15" Table Weight Capacity: 400 lbs. Spindle Taper: R-8 Spindle Speeds: 60–4200 RPM Max. Dist. Spindle to Column: 19" Spindle to Table: 0"–18-1/4" Drawbar Thread: 7/16" x 20 TPI Spindle Travel: 4-15/16" T-Slot Size: 5/8" Weight: 2150 lbs.

Made in Taiwan to South Bend Specifications

1314

TURRET MILL w/DRO

WARNING!

To reduce the risk of serious personal injury while using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses AND a face shield.

3. Properly ground machine—connect to per manently grounded metal wiring system or an equipment-grounding conductor.

4. Disconnect power before setting up, adjusting, or servicing.

5. Avoid getting entangled in moving parts—tie back long hair, roll up long sleeves, and DO NOT wear loose clothing, gloves, or jewelry.

6. Properly set up machine before star ting.

7. Always remove adjustment tools before star ting.

8. Keep all guards and covers in place during operation.

9. Never use hands to secure workpiece to table during operation—use clamps or a vise.

10. Avoid positioning hands where they could slip into rotating bits or tooling if workpiece unexpectedly shifts or you get distracted.

11. Always use a brush or vacuum to remove metal chips; DO NOT use your hands, rags, or compressed air.

13. Never attempt to slow or stop spindle with hands or tools.

13. Always use proper feeds and speeds for operation and workpiece.

14. Never leave machine running unattended.

15. DO NOT operate when tired or under influence of drugs or alcohol.

16. DO NOT expose to rain or use in wet locations.

17. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

WARNING!

INJURY HAZARD Do not use machine if you have not read the manual. Visit southbendtools.com or call 360-734-1540 to get a manual.

1313

WARNING!

EYE INJURY

HAZARD Always wear ANSIapproveds afety glasses or a face shield when using this equipment.

MFG DateSerial No.

1302

For Machines Mfd. Since 11/22

1302

1303

SB1124F

1304

1305

220 VOLT

This machine is prewired for 220V 3-Phase operation. To operate at 440V, follow crtitical voltage conversion instructions in the user manual included with this machine. Failure to follow these instructions will damage the machine and void the warranty!

110V

1306

110V

1-Ph

1306

1302

1307

1302

WARNING!

1312

INJURY HAZARD Keep door closed while machine is operating. Disconnect power before opening door.

1311

WARNING!

INJURY/SHOCK

HAZARD To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

1310

CAUTION!

FIRE HAZARD To avoid fire or electrical damage, do not connect equipment with a higher amp rating than this receptacle.

1309

Fluid Capacity

Component TypeCapacity

Coolant 20 Liters

1308

Water Soluble Oil

WARNING!

POISON/BIOLOGICAL

HAZARD Cutting fluid develops dangerous toxins. Change regularly and avoid contact with skin.

REF PART # DE SCR IPTION REF PAR T # DE SCR IPT ION

130 1 PSB1124F1301 MACHINE ID LABEL 130 8 PSB1124F1308 FLUID CAPACITY LABEL

130 2 PSB1124F1302 ELECTRICITY LAB EL 1 30 9 PSB1124F1309 TOUCH -UP PAIN T, SOUTH B EN D DARK BLUE

130 3 PSB1124F1303 MODEL NUMBER LABEL 1310 PSB1124F1310 FIRE HAZARD LABEL

130 4 PSB1124F1304 TOUCH-UP PAINT, SOUTH B END GREY 1311 PSB1124F1311 DISCONN ECT POWER LABEL

130 5 PSB1124F1305 PREWIRED 220V LABEL 1312 PSB1124F1312 KEEP DOOR CLOSED LABEL

130 6 PSB1124F1306 110V LABEL 1313 PSB1124F1313 FACE SHIELD/GLASSES LABEL

130 7 PSB1124F1307 POISON HAZARD LABEL 1314 PSB1124F1314 READ MANUAL LABEL

-92-

WARRANTY

This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs. In no event shall we be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act, code, regulation, or standard of any domestic or foreign government, industry, or authority. In no event shall South Bend’s liability under this warranty exceed the original purchase price paid for this machine. Any legal actions brought against South Bend Tools shall be tried in the State of Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by law, including any merchantability or fitness, for any purpose, are hereby limited to the duration of this warranty.

Thank you for your business and continued support.

To take advantage of this warranty, register at can scan the QR code below to be automatically directed to our warranty registration page. Enter all applicable information for the product.

Warranty

https://www.grizzly.com/forms/warranty, or you

WARRANT Y

southbendtools.com

Printed In Taiwan #MN22512

South Bend SB1124F User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Description of Controls & Components

SAFETY

Understanding Risks of Machinery

Basic Machine Safety

Additional Milling Machine Safety

PREPARATION

Preparation Overview Required for Setup

Power Supply Requirements

Converting Voltage to 440V

Unpacking

Inventory

Cleaning & Protecting

Location

Lifting & Moving

Leveling & Mounting

Anchoring to Floor

Assembly

Power Connection (220V)

Power Connection (440V)

Initial Lubrication

Test Run

Spindle Break-In

Inspections & Adjustments

Operation

Operation Overview

Table Movement

Head Movement

Ram Movement

Spindle Speed

Spindle Downfeed

Using Spindle Brake

Loading/Unloading Tooling

Accessories

Maintenance

Maintenance Schedule

Cleaning & Protecting

Lubrication

Machine Storage

Service

Coolant Reservoir

Tramming Spindle

Adjusting Gibs

Adjusting Leadscrew Backlash

TROUBLESHOOTING

ELECTRICAL

Electrical Safety Instructions

Electrical Overview

Electrical Cabinet

Electrical Cabinet Wiring Diagram (220V)

Electrical Cabinet Wiring Diagram (440V)

Control Panel

Main Motor Wiring Diagrams

DRO Wiring Diagram

Power Feed Wiring Diagram

Electrical Component Photos

Parts

Belt Housing

Gearbox

Headstock

Column, Knee & Ram

Table

One Shot Oiler

Coolant System

Electrical Cabinet

Control Box

Accessories

Machine Labels (Front)

Machine Labels (Side)

WARRANTY
