9" X 12" 2 HP METAL-CUTTING BANDSAW

MODEL SB1122

***Keep for Future Reference***

OWNER'S MANUAL

South Bend Tools

A Tradition of Excellence

We stand behind our machines. If you have any service questions, parts requests or general questions about your purchase, feel free to contact us.

South Bend Tools P.O. Box 2027 Bellingham, WA 98227 Phone: (360) 734-1540 Fax: (360) 676-1075 (International) Fax: (360) 734-1639 (USA Only) Email: sales@southbendtools.com

For your convenience, any updates to this manual will be available to download free of charge through our website at:

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control it during operation, and how to keep it in good working condition. We assume the reader has a basic understanding of how to operate this type of machine, but that the reader is not familiar with the controls and adjustments of this specific model. As with all machinery of this nature, learning the nuances of operation is a process that happens through training and experience. If you are not an experienced operator of this type of machinery, read through this entire manual, then learn more from an experienced operator, schooling, or research before attempting operations. Following this advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes happen or the machine design changes after the documentation process—so exactly match your machine. contact our

We highly value customer feedback on our manuals. If you have a moment, please share your experience using this manual. What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

P.O. Box 2027 Bellingham, WA 98227 Email: manuals@southbendtools.com

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

Customer Service

Table of Contents

INTRODUCTION

Identiﬁcation Description of Controls & Components Product Speciﬁcations

SAFETY

Understanding Risks of Machinery Basic Machine Safety Additional Horizontal Metal Bandsaw Safety Additional Hydraulic System Safety

PREPARATION

Preparation Overview Required for Setup Power Supply Requirements Unpacking Inventory Cleaning & Protecting Location Assembly

Initial Lubrication.................................... 17

Test Run Inspections & Adjustments

OPERATION

Operation Overview Disabling Switches Operation Tips Workpiece Inspection Selecting Blades Blade Breakage Blade Care & Break-In Setting Downfeed Rate Changing Blade Speed Blade Speed Chart Chip Inspection Chart Changing Blade Tensioning Blade Adjusting Blade Guides Manual & Automatic Controls Angled Cuts Opening & Closing Vise Adjusting Work Stop Using Cutting Fluid System

...............................................................................7

............................................... 14

................................................. 15

................................................ 16

................................................ 18

..............................................................2

............................................ 2

........... 3

................................ 5

................ 7

.................................. 7

.. 9

............ 10

.............................................................. 11

............................... 11

................................... 11

....................... 12

.............................................. 14

............................... 14

........................ 21

................................................................... 22

.................................. 22

................................... 23

......................................... 23

................................ 24

...................................... 24

........................................ 26

............................... 26

.............................. 27

............................... 27

.................................... 28

............................... 28

....................................... 29

...................................... 31

............................. 32

.................... 32

............................................ 34

............................. 36

................................ 37

....................... 37

MAINTENANCE ............................................................. 40

Maintenance Schedule............................... 40

Cleaning Lubrication Machine Storage Hydraulic System Maintenance Cutting Fluid System Maintenance

SERVICE

Adjusting Headstock Travel Limits Squaring Blade to Table Adjusting Blade Guides & Bearings

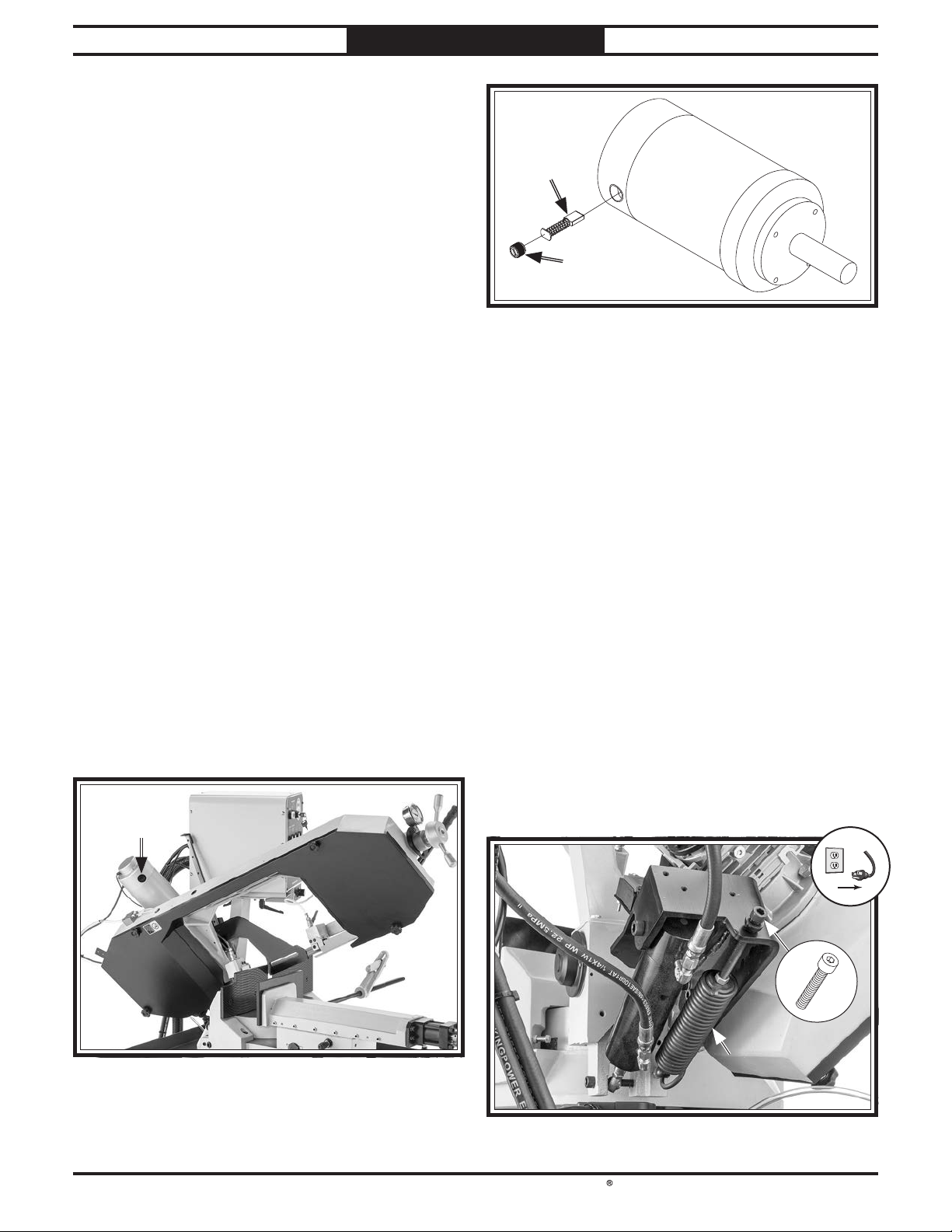

Replacing Motor Brushes........................... 54

Adjusting Downfeed Pressure Calibrating Headstock Angle Scale Adjusting Angle Stops Adjusting Workpiece Contact Safety Switch Adjusting Vise Gib Adjusting Blade Brush

TROUBLESHOOTING

ELECTRICAL

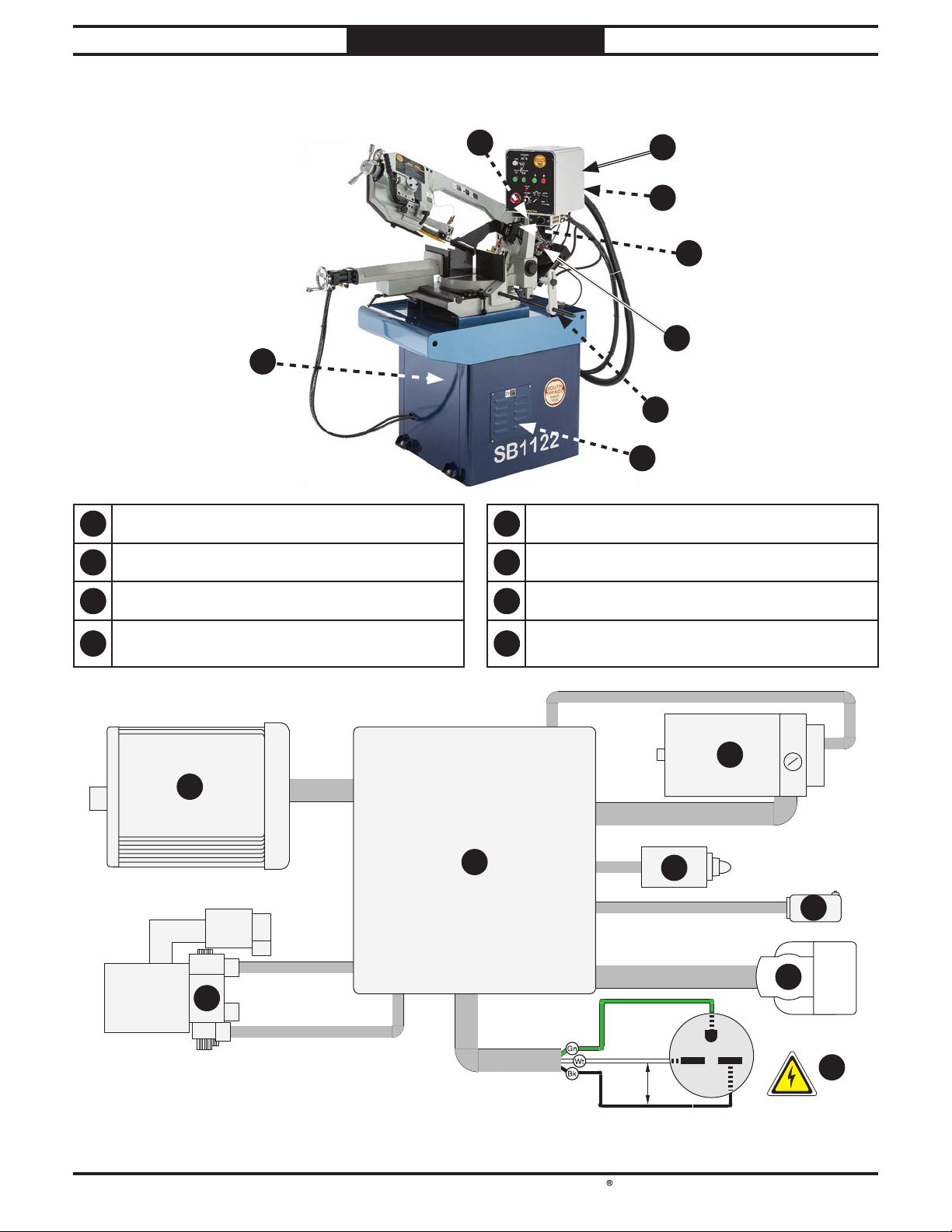

Electrical Safety Instructions Electrical Overview Control Box Bottom Panel Wiring Diagram Control Box Bottom Panel Control Box Rear Panel Wiring Diagram Control Box Rear Panel Control Panel Wiring Diagram Control Panel Motor Wiring Diagrams Electrical Component Wiring Diagrams

HYDRAULICS

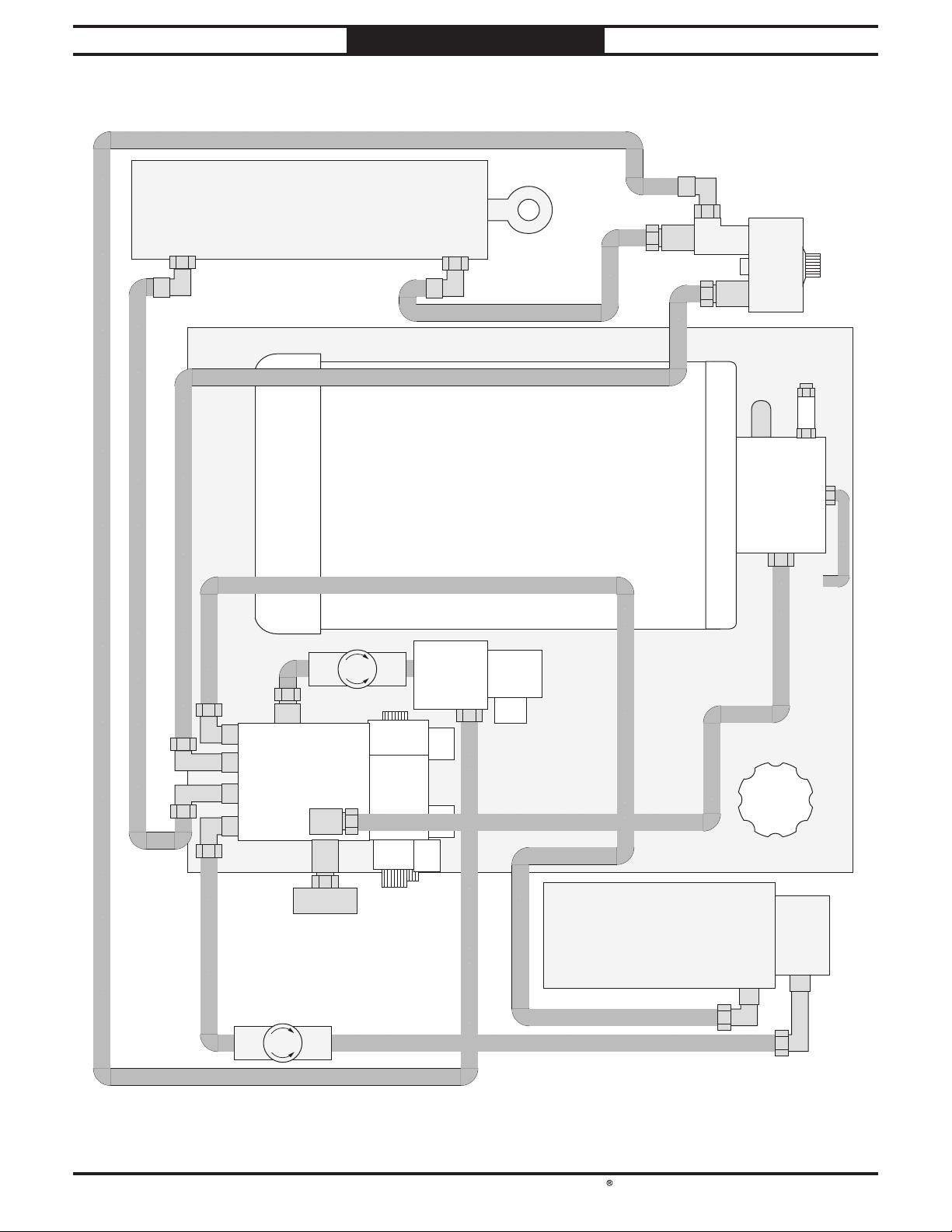

Hydraulic System Diagram

PARTS

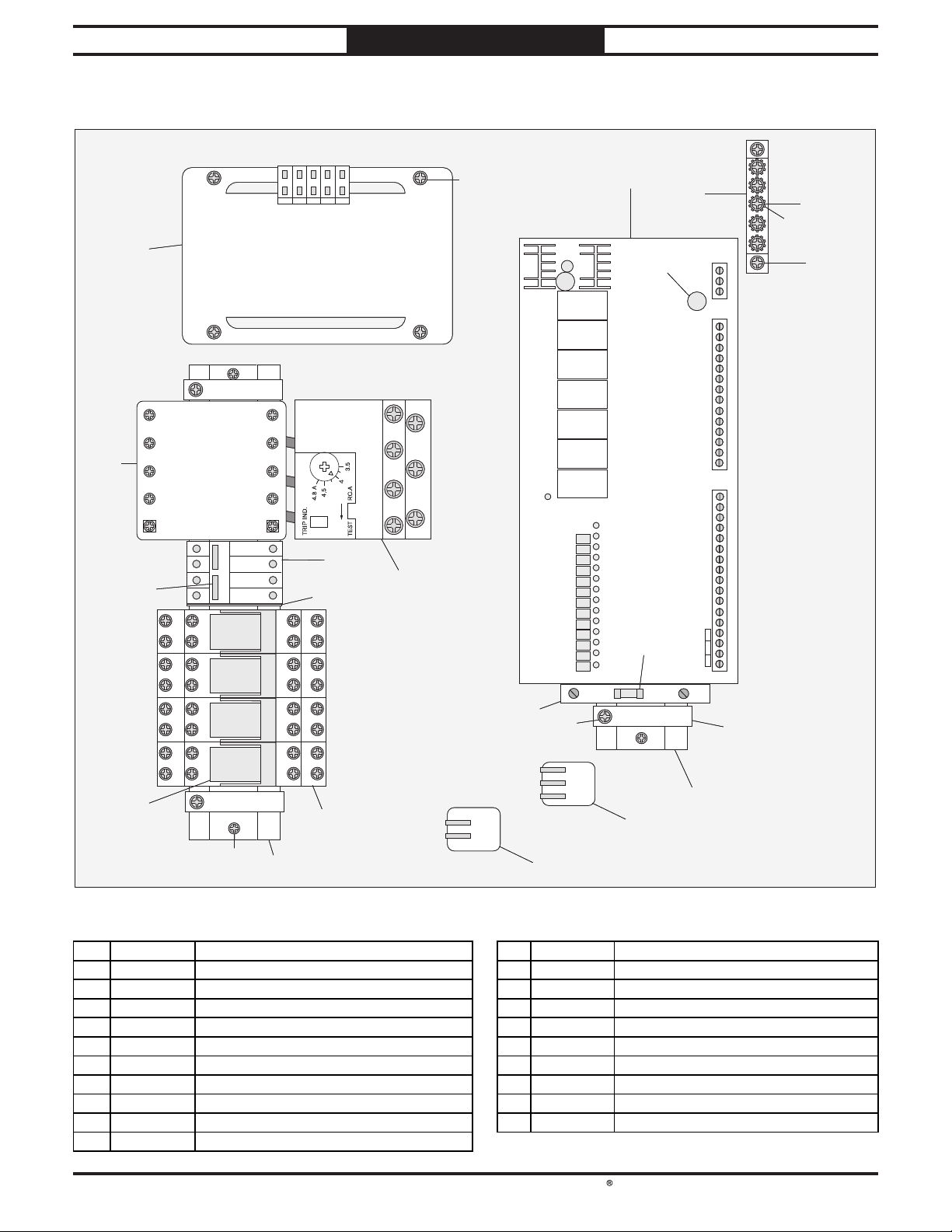

Headstock Base Control Panel Electrical Components Control Box Electrical Components (Bottom) Control Box Electrical Components (Rear)

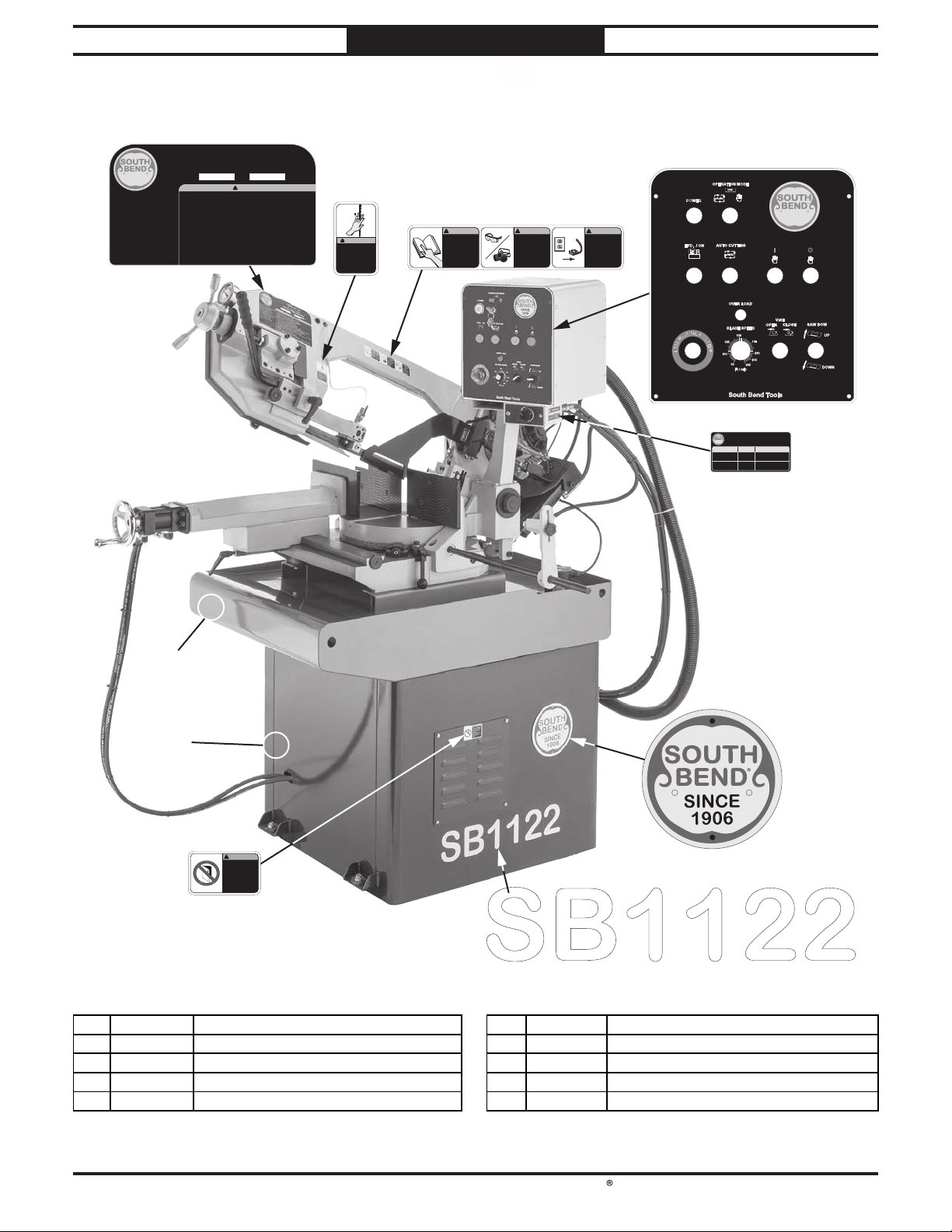

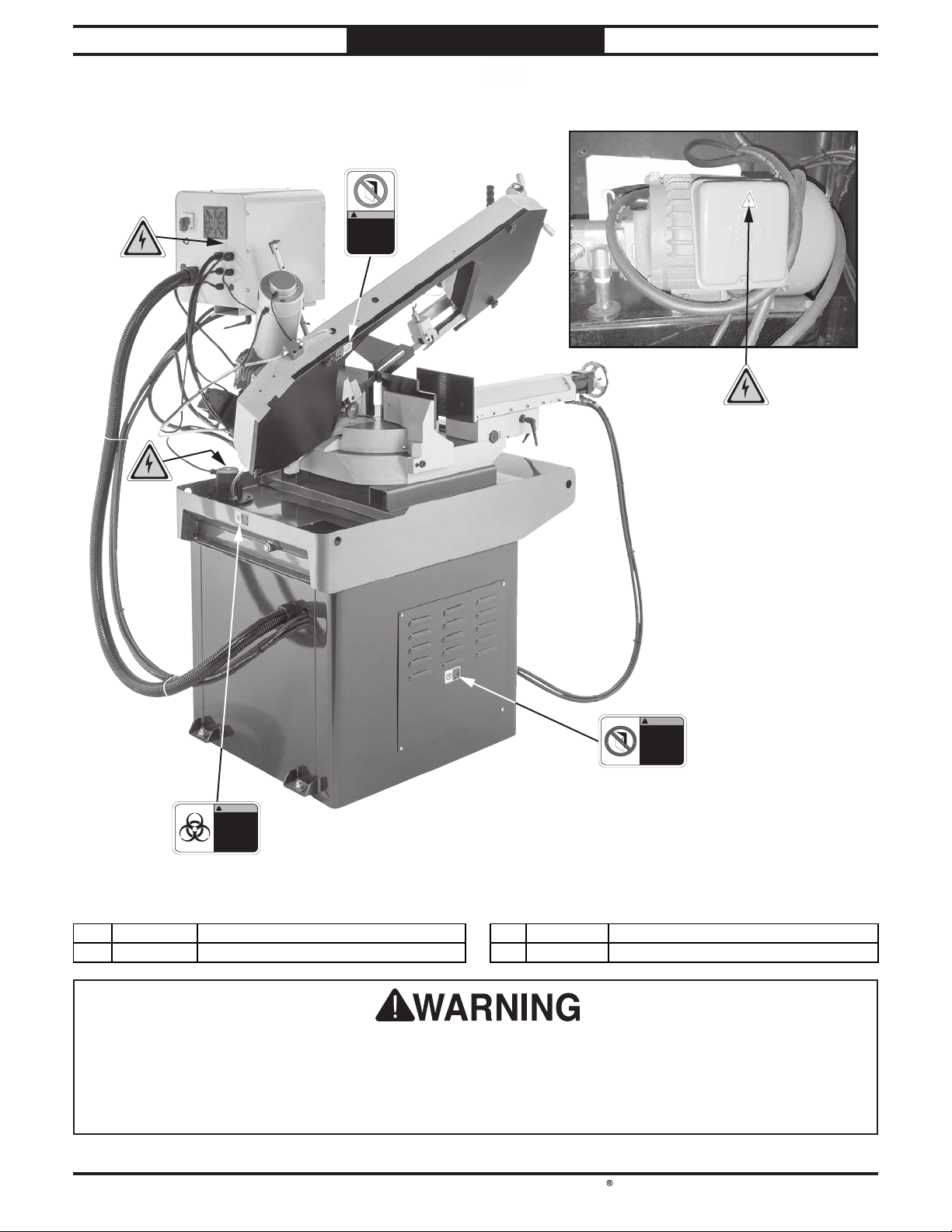

Machine Labels (Front).............................. 83

Machine Labels (Rear)

................................................. 40

............................................. 40

...................................... 42

................... 43

.............. 46

.......................................................................... 48

............. 48

............................ 50

............. 51

..................... 54

.............. 55

.............................. 55

.. 57

................................... 58

.............................. 58

................................................ 59

.................................................................. 63

..................... 63

.................................. 64

... 65

.......................... 66

....... 67

............................. 68

.................... 69

.......................................... 70

............................ 71

........ 72

................................................................ 73

........................ 73

............................................................................... 74

............................................... 74

...................................................... 77

........... 80

. 81

.... 82

............................... 84

ACCESSORIES

............................................................. 39

WARRANTY

.................................................................... 85

South Bend Tools

Model SB1122

INTRODUCTION

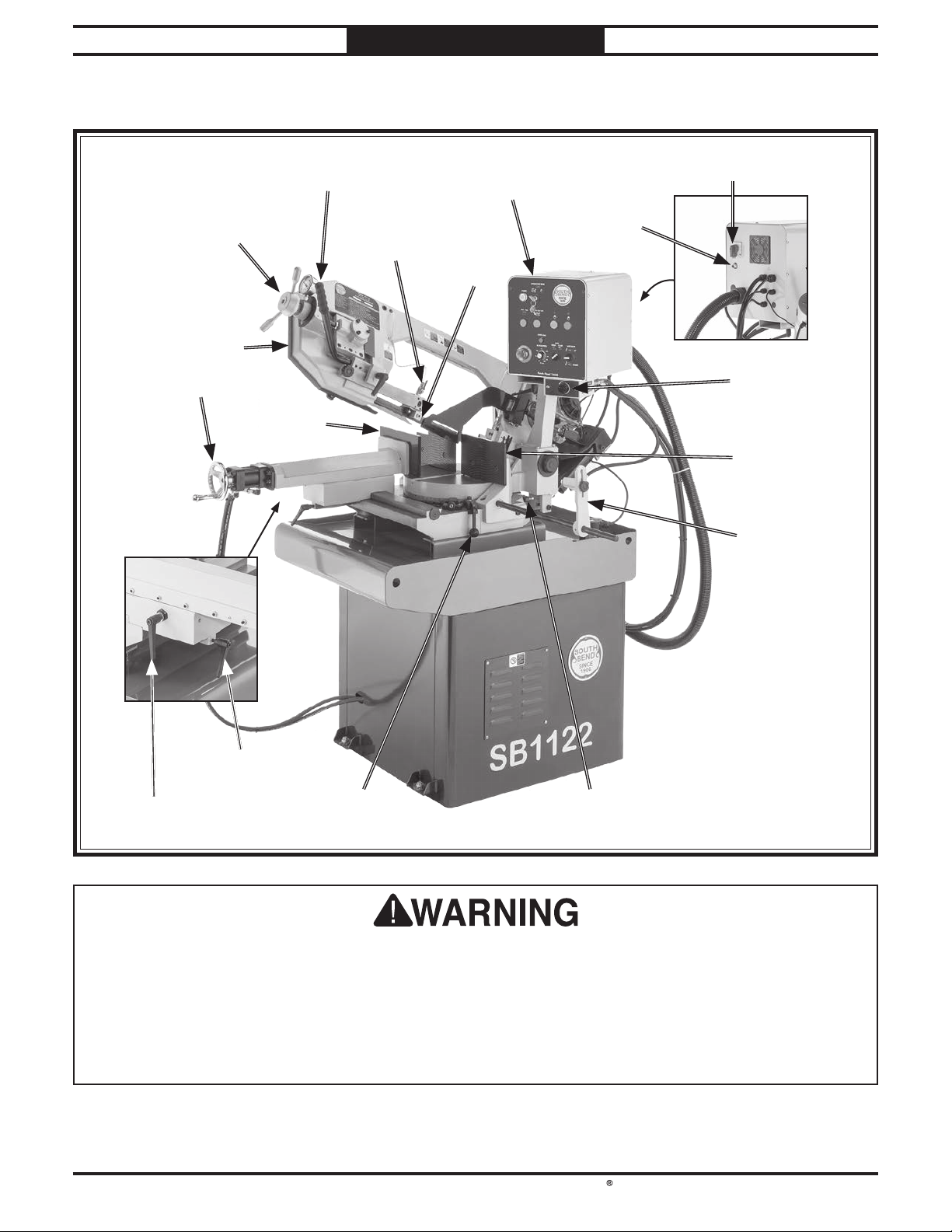

Identiﬁcation

INTRODUCTION

For Machines Mfd. Since 10/22

Blade Tension Blade Tension

HandwheelHandwheel

w/Gaugew/Gauge

Blade CoverBlade Cover

Vise HandwheelVise Handwheel

HeadstockHeadstock

HandleHandle

Movable Movable Vise JawVise Jaw

Cutting Fluid Cutting Fluid

Valve (1 of 2)Valve (1 of 2)

Control PanelControl Panel

BladeBlade

Power Power Switch

CircuitCircuit

BreakerBreaker

Reset Reset

ButtonButton

DownfeedDownfeed

Rate DialRate Dial

Fixed Vise Jaw Fixed Vise Jaw

(1 of 2)(1 of 2)

Work Work Stop

Vise PositionVise Position

Lock HandleLock Handle

Vise Quick-Vise Quick-

Release HandleRelease Handle

Angle Lock Angle Lock

HandleHandle

0° Flip 0° Flip

StopStop

For Your Own Safety Read Instruction Manual Before Operating Saw

a) Wear eye protection and respirator. b) Do not remove jammed cutoff pieces until blade has stopped. c) Maintain proper adjustment of blade tension, blade guides, and thrust bearings. d) Adjust upper guide to just clear workpiece. e) Properly support and secure workpiece with table, vise, or some type of support ﬁxture. Never

hold workpiece with hands during cut.

-2-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

INTRODUCTION

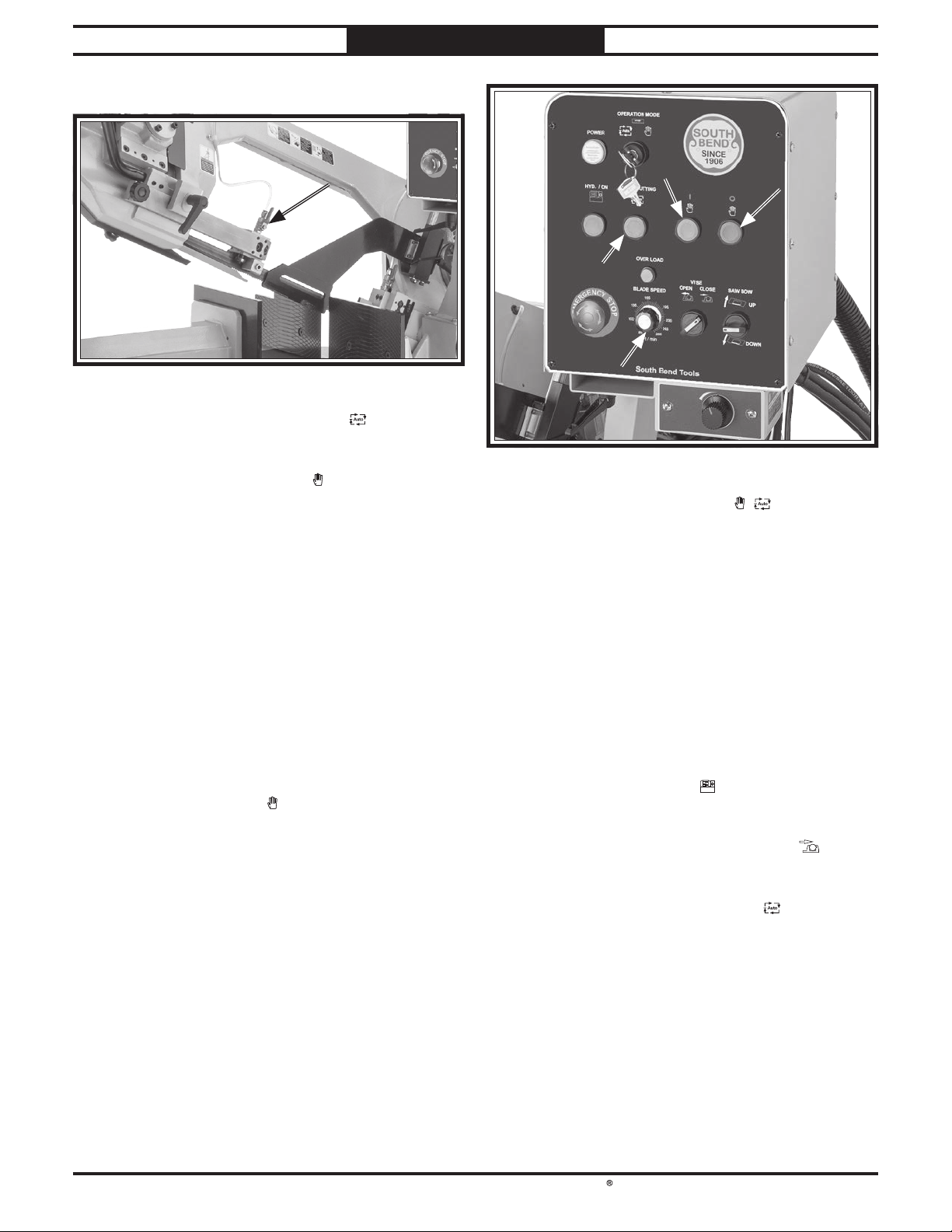

Description of Controls & Components

Refer to Figures 1–5 and the following descriptions to become familiar with the basic controls and components used to operate this machine.

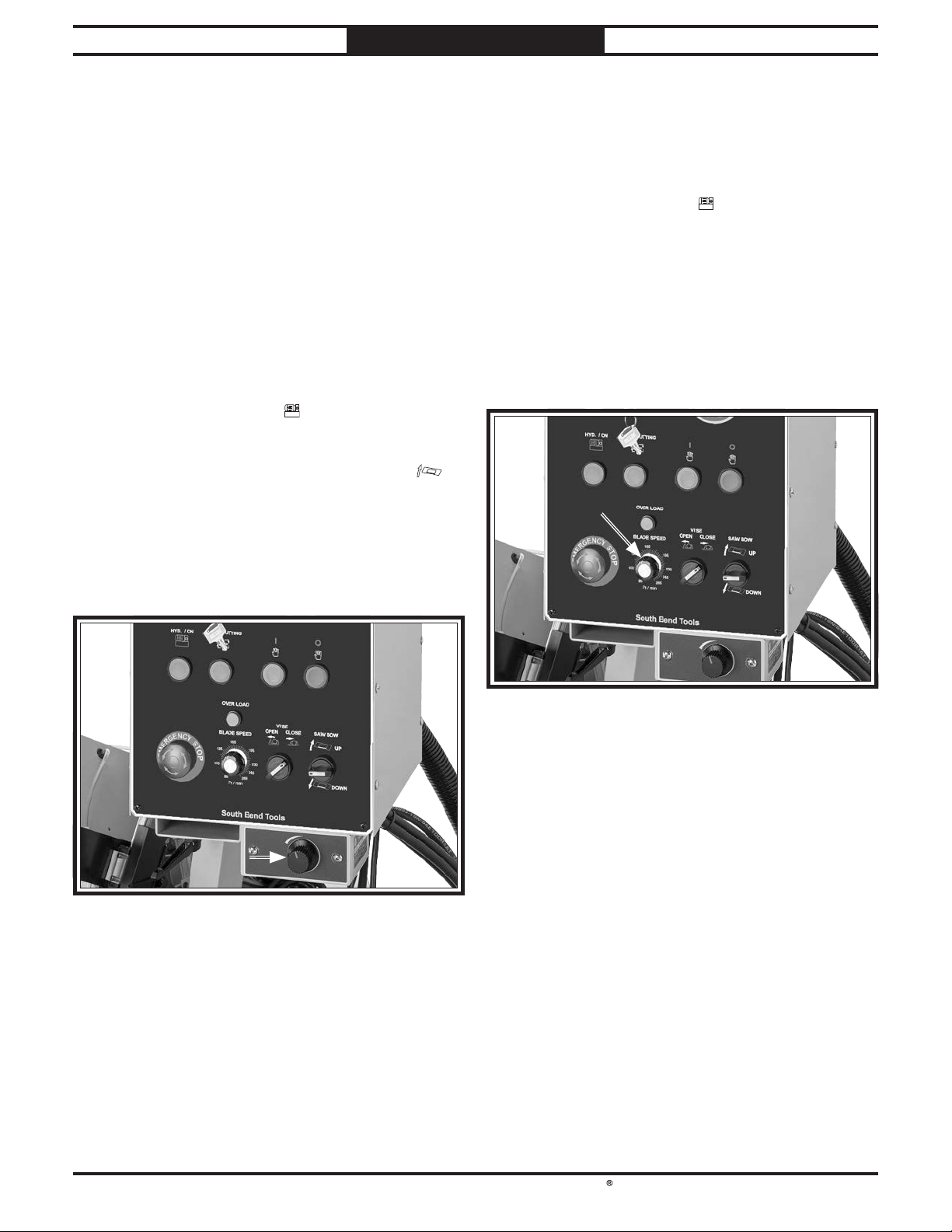

Control Panel

CC DD

F. OFF Button O : Stops blade, hydraulic

pump, and cutting fluid pump.

G. OVERLOAD Lamp: Illuminates when a motor

has overloaded and shut down, or downfeed limit switch is engaged.

H. EMERGENCY STOP Button: Stops all

machine functions and prevents machine from starting until reset. Twist clockwise to reset.

I. Blade Speed Dial: Adjusts blade speed

from 85–265 FPM. Rotate dial clockwise to increase speed or counterclockwise to decrease speed.

J. Vise Switch / : Hydraulically clamps

and unclamps workpiece.

K. SAW BOW Switch / : Raises and

lowers headstock.

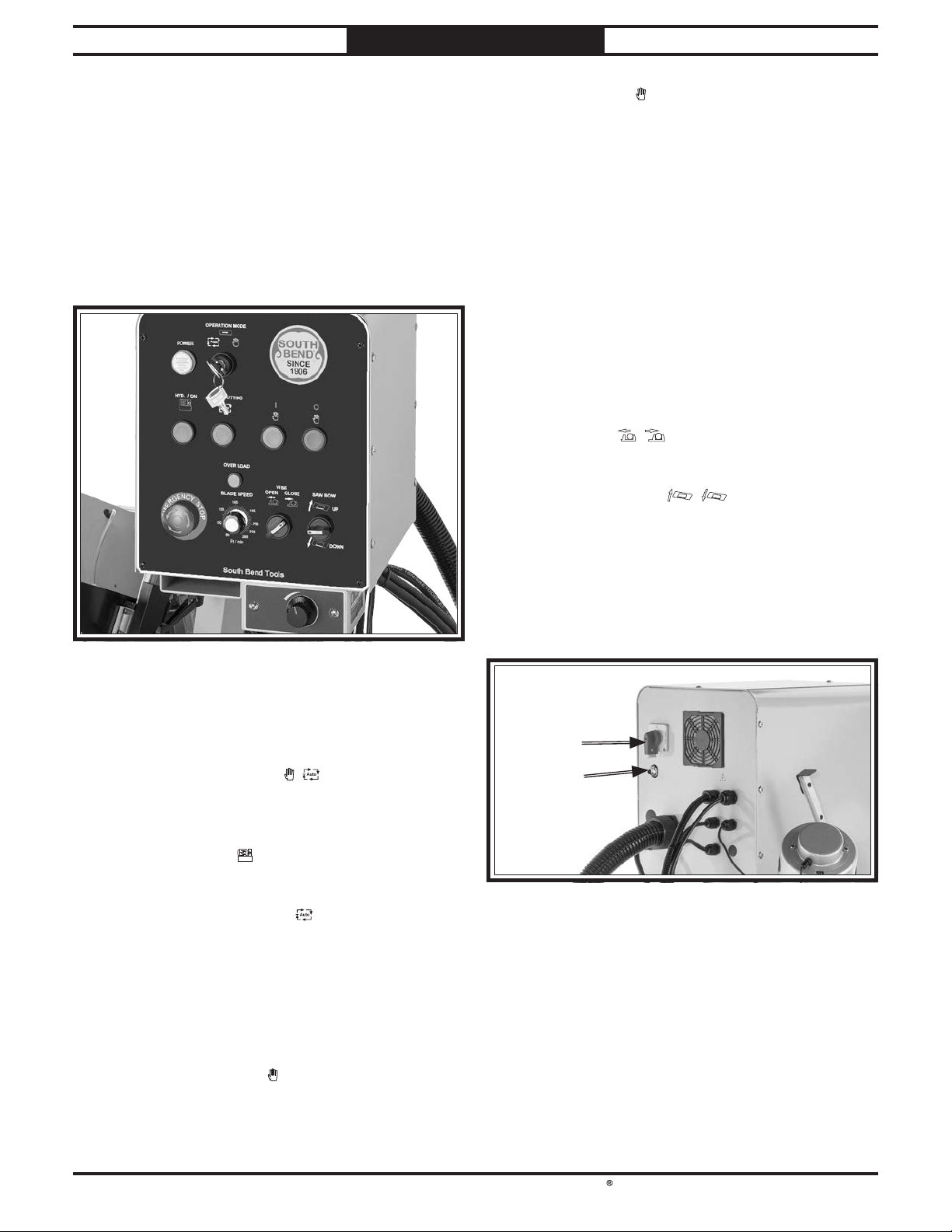

Figure 1.Control panel front.

A. POWER Lamp: Illuminates when machine is

connected to power and power switch is in ON (1) position.

B. Man/Auto Key Switch / : Switches

between manual or automatic operation mode when key is inserted.

C. HYD ON Button : Turns hydraulic pump

ON.

D. AUTO CUTTING Button : When in Auto

mode, starts automatic cutting cycle: vise closes, blade starts, headstock lowers so blade can cut into workpiece, blade stops, headstock rises, and vise opens (if vise switch is in OPEN position). When in manual mode, enables blade start.

E. Manual ON Button I : Starts blade and

cutting fluid pump when machine is in manual operation mode and AUTO CUTTING button has been pressed.

L. Downfeed Rate Dial: Controls rate at

which headstock lowers once workpiece is contacted and blade feeds into workpiece. Turn counterclockwise to increase rate; turn clockwise to decrease.

Figure 2. Control panel rear.

M. Power Switch: Turns incoming power ON (1)

and OFF (0).

N. Circuit Breaker Reset Button: Allows

machine to be restarted after thermal overload protection has tripped. To reset, turn power switch to OFF (0) position, wait a few minutes for machine to cool, then press reset button. If button does not stay depressed, allow motor to cool longer, then try again.

-3-

South Bend Tools

Model SB1122

INTRODUCTION

For Machines Mfd. Since 10/22

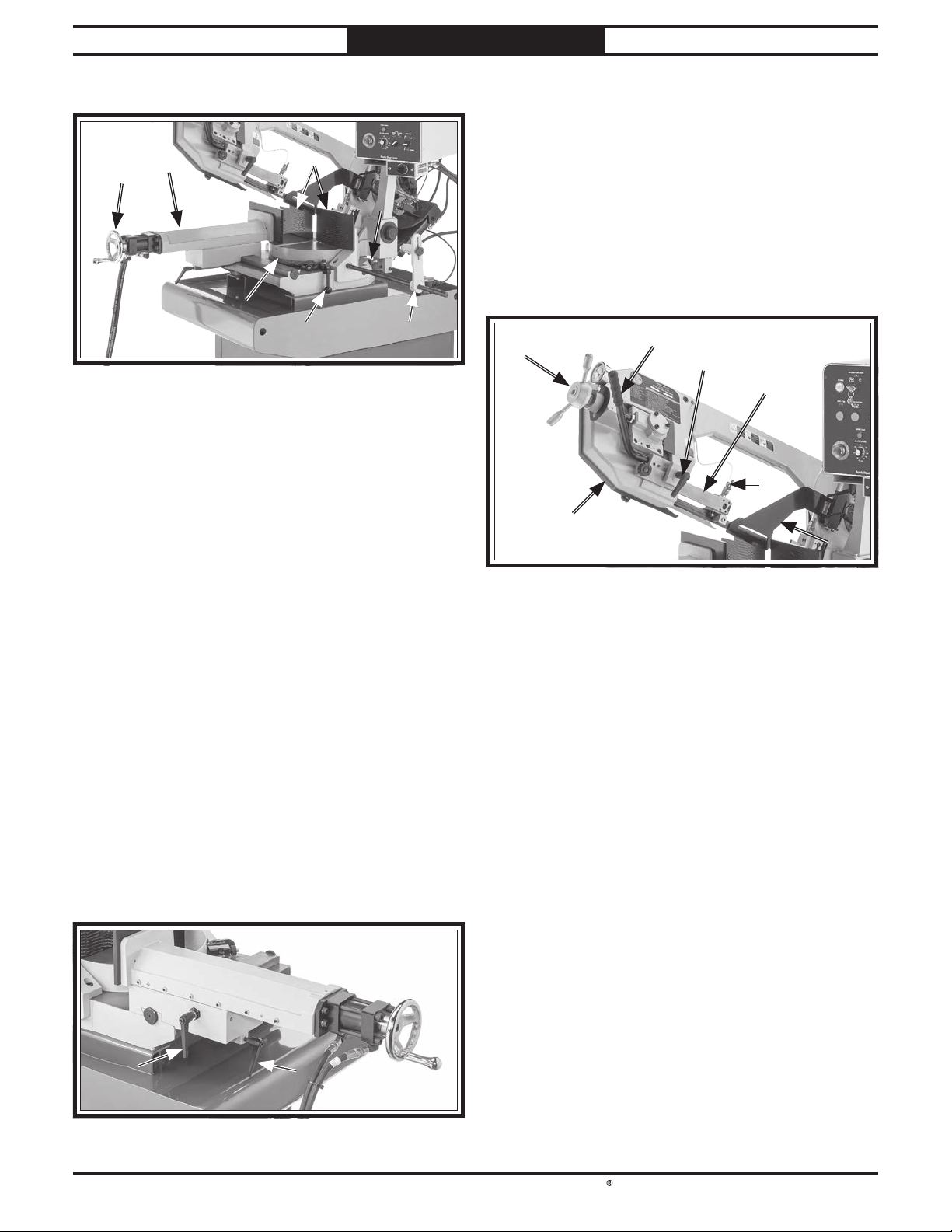

Vise Table

Figure 3. Front vise controls and components.

O. Vise Handwheel: Closes and opens vise to

clamp workpiece.

P. Movable Vise Jaw: Secures workpiece against

fixed vise jaw during cutting operation. Jaw is positioned manually and locked hydraulically.

V. Vise Quick-Release Handle: Tightens

to release vise leadscrew so vise can be adjusted open or closed quickly without vise handwheel; loosens to engage vise leadscrew and activate vise handwheel.

W. Vise Position Lock Handle: Loosens to allow

vise position adjustment along vise track; tightens to secure position.

Headstock

ADAD

AAAA

ABAB

ACAC

Q. Fixed Vise Jaws: Help hold workpiece during

cutting operations.

R. 0° Flip Stop: Flips up to quickly adjust

vise table and headstock angle to 0° when headstock is adjusted between 0°–60° to the right.

S. Work Stop: Adjusts for repetitive cutting

operations.

T. Angle Lock Handle: Loosens to adjust vise

table and headstock angle; tightens to secure angle setting.

U. Vise Table: Rotates left 45° and right 60° with

headstock for angled cuts.

Figure 4. Rear vise controls and components.

Figure 5. Headstock controls and components.

X. Blade Tension Handwheel w/Gauge:

Increases and decreases blade tension. Gauge indicates blade tension measured in PSI.

Y. Headstock Handle: Adjusts headstock and

vise table angle when angle lock components are released.

Z. Top Blade Guide Lock Handle: Loosens

to adjust blade guide position; tightens to secure.

AA. Top Blade Guide: Supports blade. Adjust top

blade guide as close to workpiece as possible to prevent blade from twisting.

AB. Cutting Fluid Valve (1 of 2): Controls flow of

cutting fluid onto blade.

AC. Workpiece Arm: Slows headstock lowering

rate to match downfeed rate once workpiece is contacted.

AD. Blade Cover: Protects operator from blade,

and provides access for blade and wheel maintenance.

-4-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Model SB1122

INTRODUCTION

Product Specifications

P.O. Box 2027, Bellingham, WA 98227 U.S.A.

PHONE: (360) 734-1540 •

www.southbendtools.com

9" x 12" 2 HP MetalCutting Bandsaw

Product Dimensions

Weight.............................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 58 x 30 x 79 in.

Footprint (Length x Width)....................................................................................................................... 34 x 27 in.

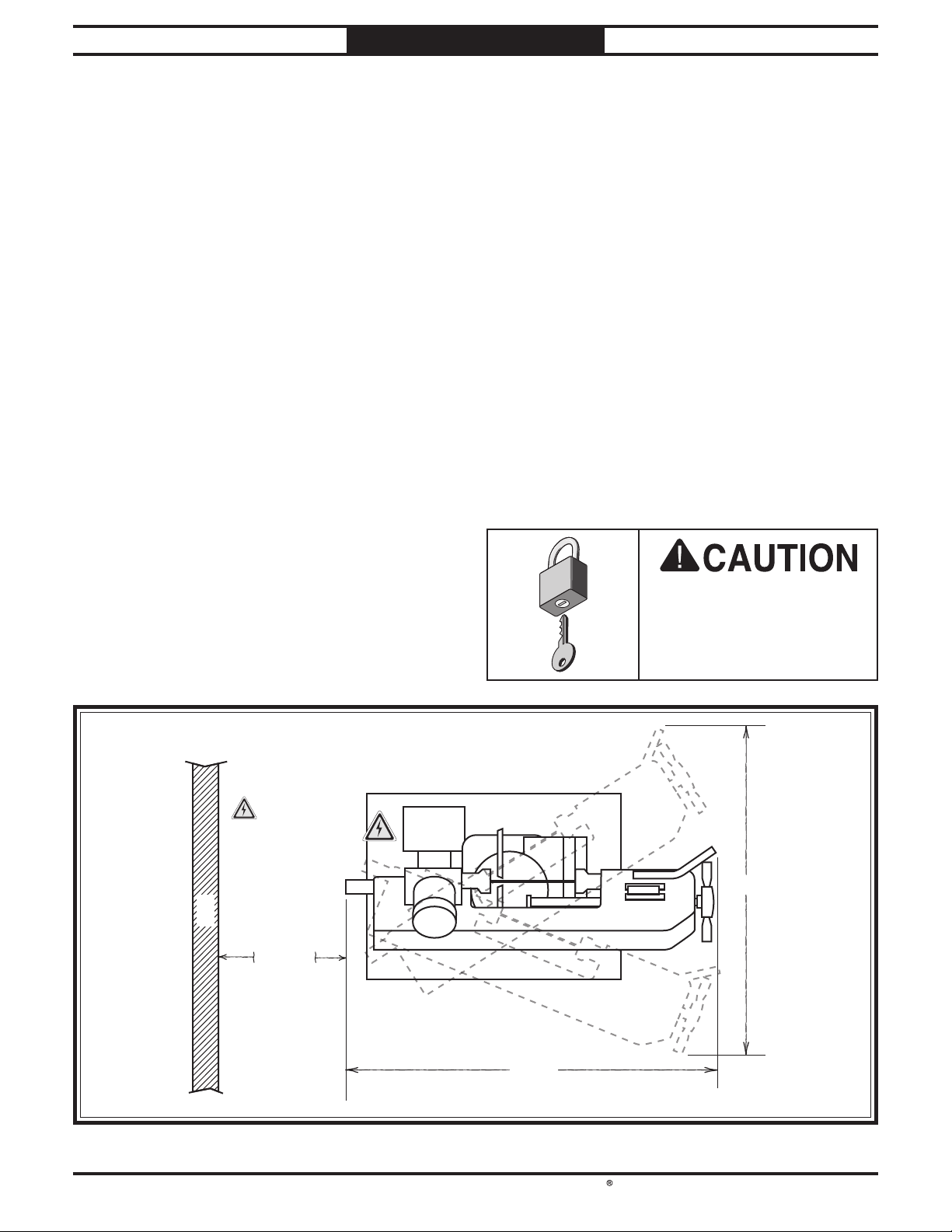

Space Required for Full Range of Movement (Width x Depth)......................................................... 68-1/2 x 36 in.

Shipping Dimensions

Type..................................................................................................................................................

Content..........................................................................................................................................................

Weight........................................................................................................................................................... 1032 lbs.

Length x Width x Height................................................................................................................... 32 x 56 x 68 in.

Must Ship Upright................................................................................................................................................ Yes

965 lbs.

Wood Slat Crate

Machine

Electrical

Power Requirement.........................................................................................................

Full-Load Current Rating....................................................................................................................................

Minimum Circuit Size.......................................................................................................................................... 15A

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length............................................................................................................................................

Power Cord Gauge.........................................................................................................................................

Plug Included........................................................................................................................................................ Yes

Included Plug Type.............................................................................................................................................. 6-15

Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection

Motors

Main

Horsepower...............................................................................................................................................

Phase............................................................................................................................................

Amps............................................................................................................................................................. 5A

Speed................................................................................................................................................ 3600 RPM

Type................................................................................................................................................... DC Brush

Power Transfer .............................................................................................................................

Bearings................................................................................................

Hydraulic Pump

Horsepower............................................................................................................................................ 1/2 HP

Phase............................................................................................................................................ Single-Phase

Amps.......................................................................................................................................................... 4.7A

Speed................................................................................................................................................

Type........................................................................................................................

Power Transfer ...................................................................................................................................... Direct

Bearings................................................................................................ Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type..................................................................................................... Internal

Shielded & Permanently Lubricated

220V, Single-Phase, 60 Hz

Capacitor-Start Induction

10A

72 in.

14 AWG

2 HP

Single-Phase

Worm Gear

1720 RPM

-5-

South Bend Tools

Model SB1122

Cutting Fluid Pump

Horsepower............................................................................................................................................

Phase............................................................................................................................................

Amps.......................................................................................................................................................... 0.3A

Speed................................................................................................................................................ 3440 RPM

Type......................................................................................................................................................... TEFC

Power Transfer ......................................................................................................................................

Bearings................................................................................................

Main Specifications

Operation Info

Blade Speeds............................................................................................................................... 85 - 265 FPM

Std. Blade Length............................................................................................................................ 108-1/4 in.

Std. Blade Width............................................................................................................................... 1-1/16 in.

Head Swivel...................................................................................................................

Cutting Capacities

Cutting Height...........................................................................................................................................

Angle Cuts..................................................................................................................... Left 45, Right 60 deg.

Vise Jaw Depth.................................................................................................................................. 12-5/8 in.

Vise Jaw Height................................................................................................................................... 5-1/2 in.

Max. Capacity Rectangular Height at 90 Deg.........................................................................................

Max. Capacity Rectangular Width at 90 Deg.........................................................................................

Max. Capacity Round at 90 Deg............................................................................................................. 10 in.

Max. Capacity Rectangular Height at 30 Deg................................................................................... 8-1/4 in.

Max. Capacity Rectangular Width at 30 Deg.................................................................................. 10-5/8 in.

Max. Capacity Round at 30 Deg.........................................................................................................

Max. Capacity Rectangular Height at 45 Deg.........................................................................................

Max. Capacity Rectangular Width at 45 Deg........................................................................................... 7 in.

Max. Capacity Round at 45 Deg......................................................................................................... 7-7/8 in.

Max. Capacity Rectangular Height at 60 Deg................................................................................... 6-1/8 in.

Max. Capacity Rectangular Width at 60 Deg....................................................................................

Max. Capacity Round at 60 Deg.........................................................................................................

Max. Capacity Rectangular Height at -45 Deg........................................................................................ 7 in.

Max. Capacity Rectangular Width at -45 Deg................................................................................... 6-3/4 in.

Max. Capacity Round at -45 Deg........................................................................................................ 6-3/4 in.

INTRODUCTION

For Machines Mfd. Since 10/22

1/8 HP

Single-Phase

Direct

Shielded & Permanently Lubricated

Left 45, Right 60 deg.

9 in.

12 in.

8-5/8 in.

7 in.

4-1/2 in. 4-1/2 in.

Construction

Table....................................................................................................................

Upper Wheel......................................................................................................................................

Lower Wheel...................................................................................................................................... Cast Iron

Body................................................................................................................................................... Cast Iron

Base.................................................................................................................................................... Cast Iron

Stand.........................................................................................................................................................

Wheel Cover..............................................................................................................................................

Paint Type/Finish................................................................................................................................. Enamel

Other

Wheel Size........................................................................................................................................ 12-9/16 in.

Blade Guides...................................................................................................... Carbide Steel, Ball Bearings

Coolant Capacity...................................................................................................................................

Hydraulic Capacity..................................................................................................................................

Table Info

Floor To Cutting Area Height........................................................................................................... 38-1/2 in.

-6-

Precision-Ground Cast Iron

Cast Iron

Steel Steel

3.9 gal. 2 gal.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This responsibility includes proper installation in a safe environment, personnel training and usage authorization, regular inspection and maintenance, manual availability and comprehension, application of safety devices, integrity of cutting tools or accessories, and the usage of approved personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property damage from negligence, improper training, machine modiﬁ cations, or misuse. Failure to read, understand, and follow the manual and safety labels may result in serious personal injury, including amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

Understanding Risks of Machinery

Death or catastrophic harm WILL occur.

Death or catastrophic harm COULD occur.

Moderate injury or ﬁ re MAY occur.

Machine or property damage may occur.

Basic Machine Safety

equipment presents serious injury hazards to untrained users. To reduce the risk of injury, anyone who uses THIS item MUST read and understand this entire manual before starting.

Personal Protective Equipment:

servicing this item may expose the user to ﬂ ying debris, dust, smoke, dangerous chemicals, or loud noises. These hazards can result in eye injury, blindness, longterm respiratory damage, poisoning, cancer, reproductive harm or hearing loss. Reduce your risks from these hazards by wearing approved eye protection, respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves or bystanders. Only allow trained and properly supervised personnel to operate this item. Make sure safe operation instructions are clearly understood. If electrically powered, use padlocks and master switches, and remove start switch keys to prevent unauthorized use or accidental starting.

Guards/Covers:

moving parts during operation may cause severe entanglement, impact, cutting, or crushing injuries. Reduce this risk by keeping any included guards/covers/doors installed, fully functional, and positioned for maximum protection.

Accidental contact with

-7-

South Bend Tools

Model SB1122

Entanglement: Loose clothing, gloves, neckties,

Chuck Keys or Adjusting Tools: Tools used to

SAFETY

For Machines Mfd. Since 10/22

jewelry or long hair may get caught in moving parts, causing entanglement, amputation, crushing, or strangulation. Reduce this risk by removing/securing these items so they cannot contact moving parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the risk of accidental injury. Do not let a temporary influence or distraction lead to a permanent disability! Never operate when under the influence of drugs/alcohol, when tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment may result in electrocution; operating near highly ﬂ ammable materials may result in a ﬁ re or explosion. Only operate this item in a dry location that is free from ﬂ ammable materials.

Electrical Connection: With electrically

powered equipment, improper connections to the power source may result in electrocution or fire. Always adhere to all electrical requirements and applicable codes when connecting to the power source. Have all work inspected by a qualified electrician to minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it is connected to the power source greatly increases the risk of injury from accidental startup. Always disconnect power BEFORE any service or adjustments, including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/ rotating parts will become dangerous projectiles if left in place when the machine is started. Reduce this risk by developing the habit of always removing these tools immediately after using them.

Work Area:

the risks of accidental injury. Only operate this item in a clean, non-glaring, and welllighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning equipment has higher risks of causing serious personal injury compared to those that are properly maintained. To reduce this risk, always maintain this item to the highest standards and promptly repair/service a damaged or malfunctioning component. Always follow the maintenance instructions included in this documentation.

Unattended Operation:

equipment that is left unattended while running cannot be controlled and is dangerous to bystanders. Always turn the power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when cutting, may contain chemicals known to the State of California to cause cancer, respiratory problems, birth defects, or other reproductive harm. Minimize exposure to these chemicals by wearing approved personal protective equipment and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can become dangerous projectiles if not secured or if they hit another object during operation. Reduce the risk of this hazard by verifying that all fastening devices are properly secured and items attached to spindles have enough clearance to safely rotate.

-8-

Loose workpieces,

Difﬁ cult Operations:

operations with which you are unfamiliar increases the risk of injury. If you experience difficulties performing the intended operation, STOP! Seek an alternative method to accomplish the same task, ask a qualified expert how the operation should be performed, or contact our Technical Support for assistance.

Attempting difficult

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Blade Condition:

Hand Placement:

Blade Guard Position:

Entanglement Hazards:

Blade Replacement:

Hot Surfaces:

burns.

SAFETY

Additional Horizontal Metal Bandsaw Safety

Serious injury or death can occur from getting ﬁ ngers, hair, or clothing entangled in rotating or moving parts or making direct contact with the moving blade. To minimize risk of injury, anyone operating this machine MUST completely heed hazards and warnings below.

cracked, or badly worn blade. Inspect blades for cracks and missing teeth before each use.

in line with the cut or under bandsaw headstock while lowering or operating. Hands could be cut or crushed.

close to workpiece as possible before cutting to minimize operator exposure to unused portion of blade.

without blade guard in place. Loose clothing, jewelry, long hair and work gloves can be drawn into working parts.

disconnect the machine from power, wear gloves to protect hands and safety glasses to protect eyes.

machine components, ejections of hot chips, swarf, and the workpiece itself can cause

Do not operate with dull,

Never position hands or fingers

Adjust blade guard as

Do not operate this saw

When replacing blades,

Contact with hot surfaces from

Workpiece Handling: Always properly support

workpiece with table, vise, or some type of support fixture. Always secure workpiece in vise before cutting. Never hold the workpiece with your hands during a cut.

Unstable Workpieces: Avoid cutting workpieces

that cannot be properly supported or clamped in a vise or jig, because they can unexpectedly move while cutting and draw the operator’s hands into the blade causing serious personal injury. Examples are chains, cables, round or oblong-shaped workpieces, and those with internal or built-in moving or rotating parts,

etc.

Fire Hazard: Use EXTREME CAUTION if cutting

magnesium. Using the wrong cutting fluid could lead to chip fire and possible explosion.

Cutting Fluid Safety: Cutting fluids are

poisonous. Always follow manufacturer’s cutting-fluid safety instructions. Pay particular attention to contact, contamination, inhalation, storage and disposal warnings. Spilled cutting fluid invites slipping hazards.

Like all machinery, there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

-9-

South Bend Tools

Model SB1122

performing any service or maintenance. Always

hazards.

or death.

SAFETY

For Machines Mfd. Since 10/22

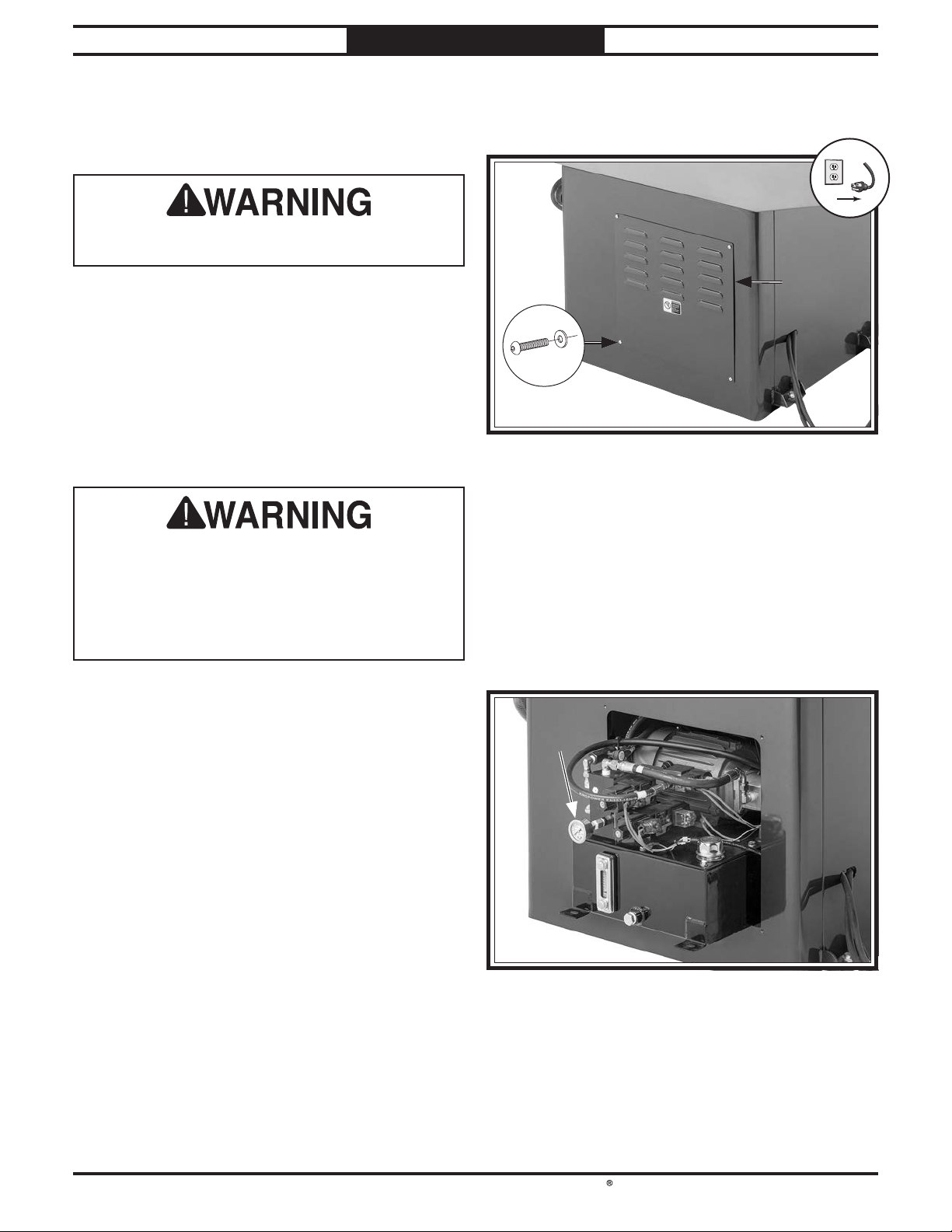

Additional Hydraulic System Safety

Infection, amputation, or death can result from contact with leaking hydraulic ﬂ uid under high pressure. Additionally, leaking hydraulic ﬂ uid is a serious slip hazard and ﬁ re hazard. To reduce these risks, anyone operating this machine MUST completely heed the hazards and warnings below.

Injection Injuries: Immediately seek medical

attention if injection injury occurs. Leaking hydraulic fluid often has enough pressure to penetrate skin, which can lead to infection, amputation, or death. Hydraulic fluid can enter the skin through small wounds that are barely noticeable. Minimizing the time between injury and removal of the injected material is critical to successful treatment.

Check For Leaks: Never use your hands to check for

hydraulic leaks. Small leaks can be invisible to the naked eye. Use a piece of wood or cardboard to find suspected leaks.

Eye Injuries: Safety glasses may not be sufficient

to protect against pressurized hydraulic fluid. Depressurize hydraulic system before approaching a known leak.

Fluid Contamination: Make sure hydraulic system

maintenance is performed in a clean and dustfree work area. Remove all contaminants from near hydraulic system openings and components prior to maintenance, to prevent debris from entering the hydraulic system. Always use lint-free rags when cleaning components. Contaminated hydraulic fluid may damage the machine and cause hydraulic system failure that can result in serious injury

Do Not Operate with Leaks: Immediately stop

machine and depressurize hydraulic system if a leak is discovered or suspected. Operating hydraulic system with leaks may increase the hazard of the situation and damage the machine.

Component Replacement: Only use high-pressure

hydraulic hose and steel hydraulic fittings with compatible threads when replacing components in the hydraulic system. DO NOT overtighten or use soft metal fittings such as brass or aluminum.

Depressurize for Maintenance: Always

depressurize hydraulic system before

stop machine and disconnect power before relieving hydraulic pressure. Verify hydraulic pressure is at 0 PSI before proceeding with maintenance.

Preventing Leaks: Always support and restrain

hydraulic hoses to minimize friction during operation that could lead to machine damage that may result in serious injury. Regularly inspect and perform maintenance on the hydraulic system. Following a regular schedule will decrease the likelihood of damage to the machine and reduce the risk of associated

-10 -

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PREPARATION

Preparation Overview Required for Setup

The purpose of the preparation section is to help you prepare your machine for operation. The list below outlines the basic process. Specific steps for each of these points will be covered in detail later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

Clean the machine and its components.

3. Identify an acceptable location for the

machine and move it to that location.

Level the machine and either bolt it to the

floor or place it on mounts.

Assemble the loose components and make

any necessary adjustments or inspections to ensure the machine is ready for operation.

Connect the machine to the power source.

7. Test run the machine to make sure it

functions properly and is ready for operation.

The items listed below are required to successfully set up and prepare this machine for operation.

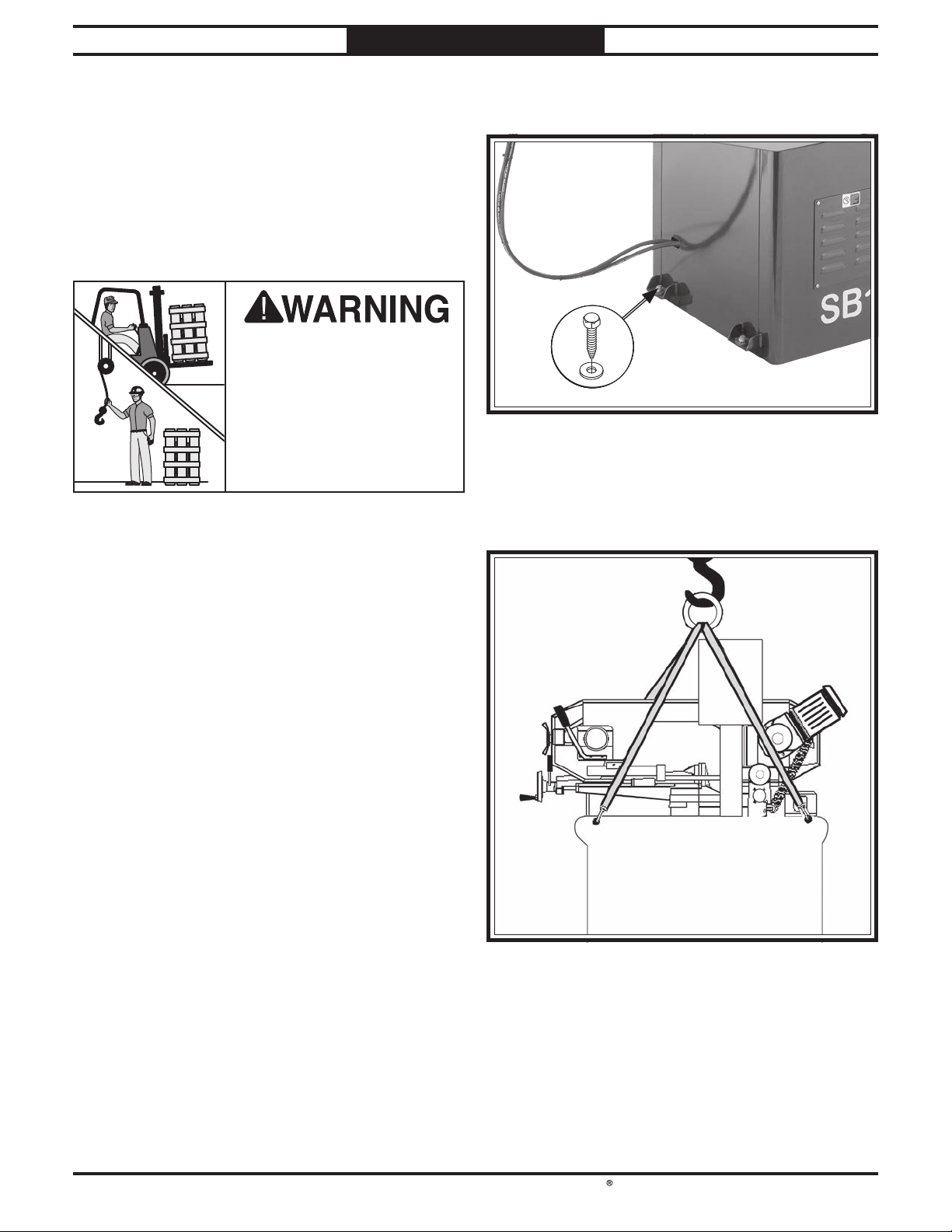

For Lifting

• A forklift or other power lifting device rated for the weight of the machine.

• Lifting strap or chain (rated for at least 1300 lbs.)

• Lifting hooks (4)

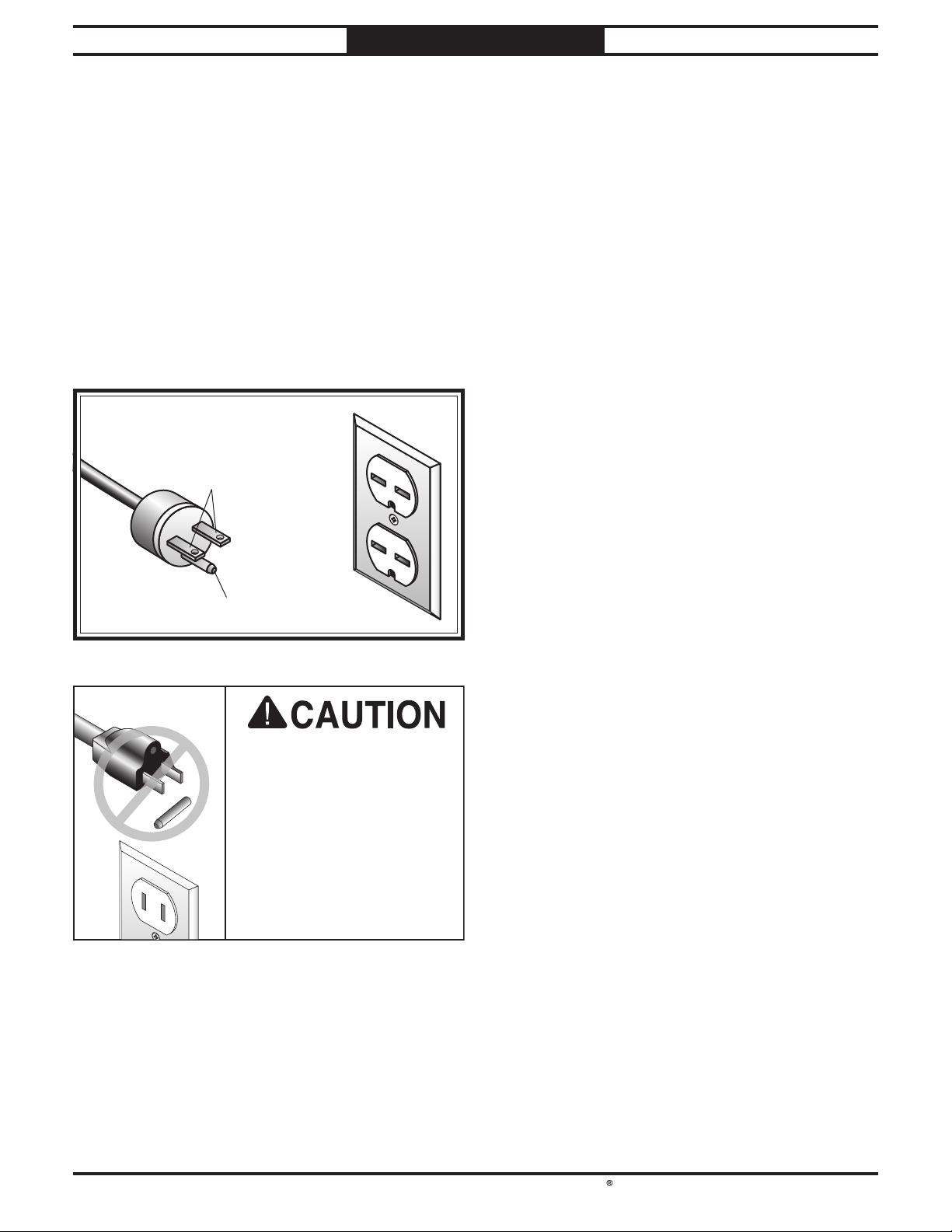

For Power Connection

• A power source that meets the minimum circuit requirements for this machine. (Refer to the Power Supply Requirements section for details.)

• A qualified electrician to ensure a safe and code-compliant connection to the power source.

For Assembly

• Disposable Rags

• Cleaner/Degreaser

• Safety Glasses

• Open-End Wrenches 19mm (2)

• Level

• Hex Wrench 3mm

Incorrect use of this machine can result in death or serious injury. For your own safety, read and understand this entire document before using.

For Test Run

• Carbon Steel Plate (Between 2"–31⁄2" Thick)

IMPORTANT: Test workpiece for Test Run must be long enough to be firmly secured in vise.

Wear safety glasses during the entire setup process!

Avoid chlorine-based solvents when cleaning machine, such as acetone or brake parts cleaner that may damage painted surfaces. Always follow the manufacturer’s instructions when using any type of cleaning product.

-11-

South Bend Tools

Model SB1122

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result—especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

Note: The circuit requirements in this manual are for machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure the circuit is properly sized.

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed.

To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by a or qualified service personnel in accordance with applicable electrical codes and safety standards.

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

This machine is equipped with a power cord that has grounding plug The plug receptacle (outlet) grounded in accordance with all local codes and ordinances.

Power Supply

PREPARATION

For Machines Mfd. Since 10/22

Requirements

Availability

Electrocution or fire may occur if machine is not correctly grounded and attached to the power supply. Use a qualified electrician to ensure a safe power connection.

n electrician

Serious injury could occur if you connect machine to power before completing setup process. DO NOT connect to power until instructed later in this manual.

Circuit Requirements

Nominal Voltage ............ 208V, 220V, 230V, 240V

............................................................. 60 Hz

Cycle Phase Circuit Rating Plug/Receptacle (included)

................................................ Single-Phase

......................................... 15 Amps

............... NEMA 6-15

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

Full-Load Current Rating

Full-Load Current Rating ...................... 10 Amps

-12 -

For your own safety and protection of property, consult an electrician if you are unsure about wiring practices or applicable electrical codes.

a dedicated circuit—where only one

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

This machine must be grounded! In the event of certain types of grounding provides a path of least resistance for electric current electric shock.

This machine is equipped with a power cord that has grounding plug The plug receptacle (outlet) grounded in accordance with all local codes and ordinances.

Improper connection of the equipmentgrounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipmentgrounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with an electrician or qualiﬁ ed service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded.

If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. If you must use one, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle listed in the for the applicable voltage, and meet the following requirements:

PREPARATION

Grounding Requirements

malfunctions or breakdowns,

in order to reduce the risk of

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

Extension Cords

6-15 PLUG

Grounding Prong

Figure 6. NEMA 6-15 plug and receptacle.

DO NOT modify the included plug or use an adapter if it will not fit your receptacle. Instead, have a qualified electrician install the proper receptacle on a power supply circuit that is grounded and meets the requirements for this machine.

Circuit Requirements

Minimum Gauge Size .............................. 14 AWG

Maximum Length (Shorter is Better)

.......... 50 ft.

-13 -

South Bend Tools

Model SB1122

This item was carefully packaged to prevent damage during transport. If you discover any damage, please immediately call Customer Service at need to file a freight claim, so save the containers and all packing materials for possible inspection by the carrier or its agent.

PREPARATION

For Machines Mfd. Since 10/22

Unpacking

(360) 734-1540 for advice. You may

Inventory

Wood Crate (Figure 7) Qty

A. Bandsaw (Not Shown) ............................ 1

Work Stop............................................1

Work Stop Rod .....................................1

Drip Tray ............................................. 1

Hex Bolts M12-1.75 x 50 ......................... 4

Hex Nuts M12-1.75 ............................... 8

Cleaning & Protecting

The unpainted surfaces are coated at the factory with a heavy-duty rust preventative that prevents corrosion during shipment and storage. The beneﬁt of this rust preventative is that it works very well. The downside is that it can be time-consuming to thoroughly remove.

Be patient and careful when cleaning and removing the rust preventative. The time spent doing this will reward you with smooth-sliding parts and a better appreciation for the proper care of the unpainted surfaces.

Although there are many ways to successfully remove the rust preventative, the following process works well in most situations.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (citrus-based degreasers work well and have non-toxic fumes)

• Safety glasses & disposable gloves

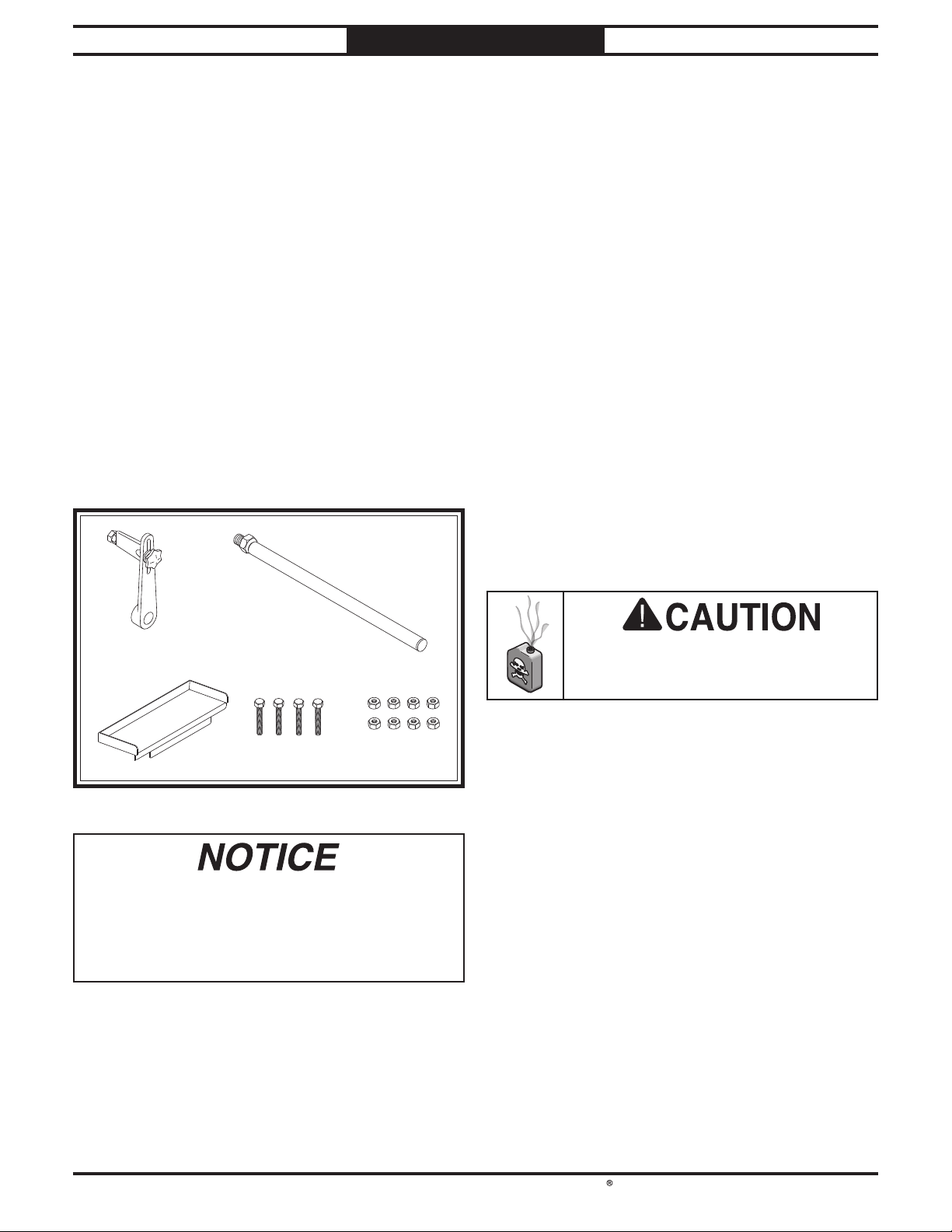

Figure 7. Loose inventory.

If you cannot ﬁnd an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Many cleaning solvents are toxic if inhaled. Minimize risk by using these products in well-ventilated area.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat surfaces that have rust preventative

with cleaner/degreaser and let them soak for few minutes.

Wipe off surfaces. If cleaner/degreaser is

effective, rust preventative will wipe off easily.

Note: To clean thick coats of rust

preventative on ﬂat surfaces, like beds or tables, use PLASTIC paint scraper to scrape off most of coating before wiping it off with rag. (Do not use metal scraper or it may scratch surface.)

-14-

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with quality metal protectant or light oil to prevent rust.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Weight Load

Additionally, consider the weight of the operator

Physical Environment

The physical environment where your machine is operated is important for safe operation and longevity of machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature the relative humidity 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate enough to perform operations safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

PREPARATION

Location

Physical Environment Electrical Installation Lighting Weight Load

Space Allocation

parts. For best results, operate this

is outside the range of 41°–104°F;

is outside the range of

Refer to the Machine Speciﬁ cations for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used.

or flammable

and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

Wall

Electrical

Connection

Min. 30"

Children or untrained people may be seriously

68½"

injured by this machine. Only install in an access restricted location.

36"

Figure 8. Minimum working clearances.

-15 -

South Bend Tools

Model SB1122

PREPARATION

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, see Required for Setup on Page 11 and gather all listed items. To ensure the assembly process goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if applicable).

For Machines Mfd. Since 10/22

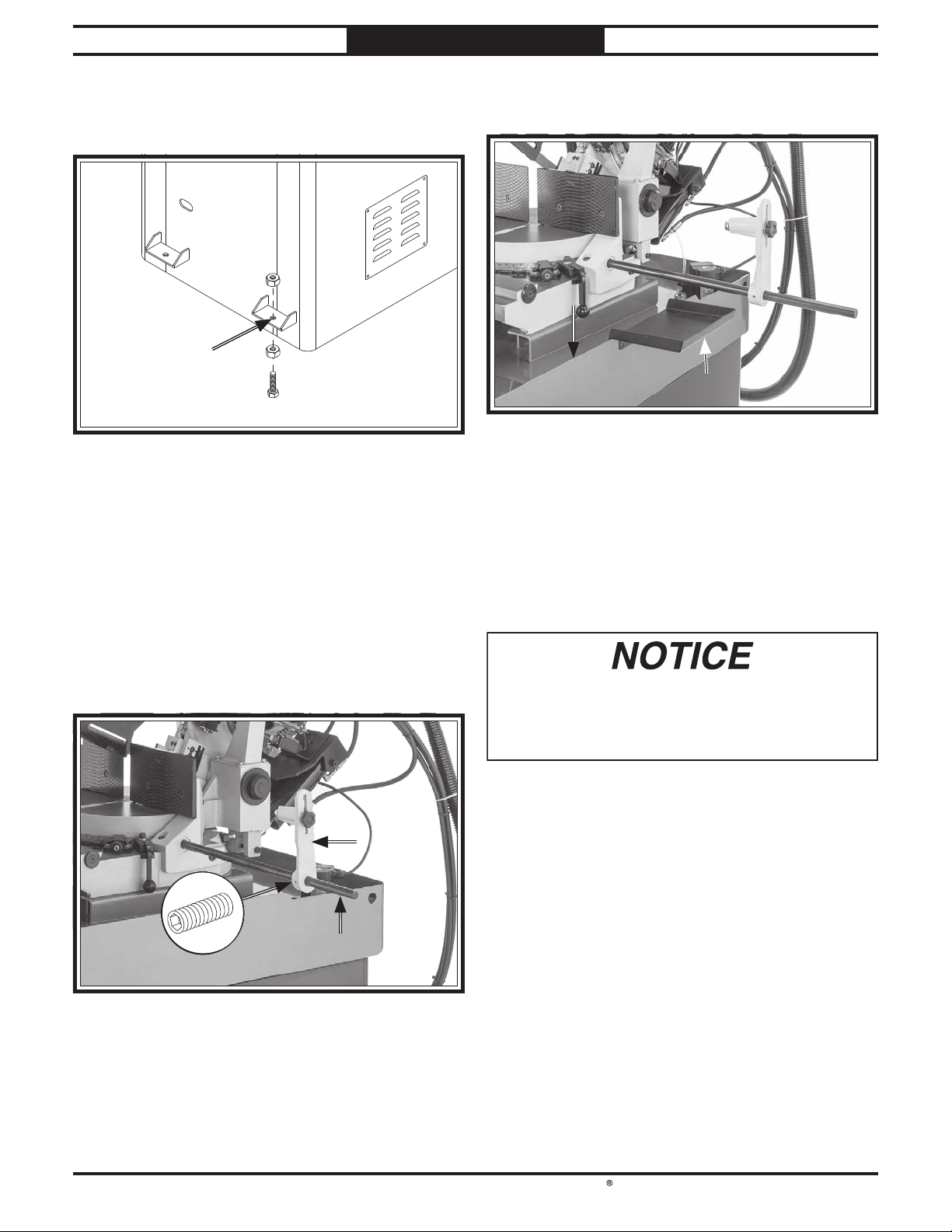

Remove (4) lag screws and flat washers that

secure machine to pallet (see Figure 9).

This machine and its parts are heavy! Serious personal injury may occur if safe moving methods are not used. To reduce the risk of a lifting or dropping injury, ask others for help and use power equipment.

The Model SB1122 requires the use of lifting equipment such as a forklift, engine hoist, or boom crane. DO NOT attempt to lift or move machine without necessary assistance from other people. Each piece of lifting equipment must be rated for at least 1300 lbs. to support dynamic loads that may be applied while lifting.

Review Power Supply Requirements section on Page 12, then prepare a permanent location for machine.

To assemble machine:

1. Move machine to its prepared location while

still inside shipping crate.

x 4

Figure 9. Location of lag screws.

4. Attach (4) lifting hooks to the lifting holes,

as shown in Figure 10, then use forklift (or other lifting equipment) to lift machine just enough to remove pallet.

Remove top and sides of shipping crate, then

place small items aside in safe location.

Note: Do not discard shipping crate and

packaging until after Test Run.

-16-

Figure 10. Example of lifting hooks attached to lifting

holes.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PREPARATION

5. Install (1) M12-1.75 x 50 hex bolt and (2)

M12-1.75 hex nuts at each lag screw hole from Step 3 (see Figure 11).

Lag Screw HoleLag Screw Hole

(1 of 4)(1 of 4)

Figure 11. Installing mounting hex bolts and hex nuts.

6. Lower machine so hex bolt heads from Step 5

rest on floor.

Adjust nuts from Step 5 until machine is

level.

Screw work stop rod into hole in vise table

shown in Figure 12.

10. Position drip tray on cabinet edge, as shown in Figure 13.

CabinetCabinet

EdgeEdge

Drip TrayDrip Tray

Figure 13. Drip tray positioned on cabinet edge.

Initial Lubrication

Your machine was lubricated at the factory, but we strongly recommend that you inspect all lubrication points yourself and provide additional lubrication if necessary. Refer to Lubrication on Page 40 for specific details.

9. Slide work stop onto work stop rod, then

tighten set screw to secure (see Figure 12).

Work StopWork Stop

RodRod

Figure 12. Work stop installed.

Failure to follow reasonable lubrication practices as instructed in this manual for your machine could lead to premature failure of components and void the warranty.

-17-

South Bend Tools

Model SB1122

PREPARATION

For Machines Mfd. Since 10/22

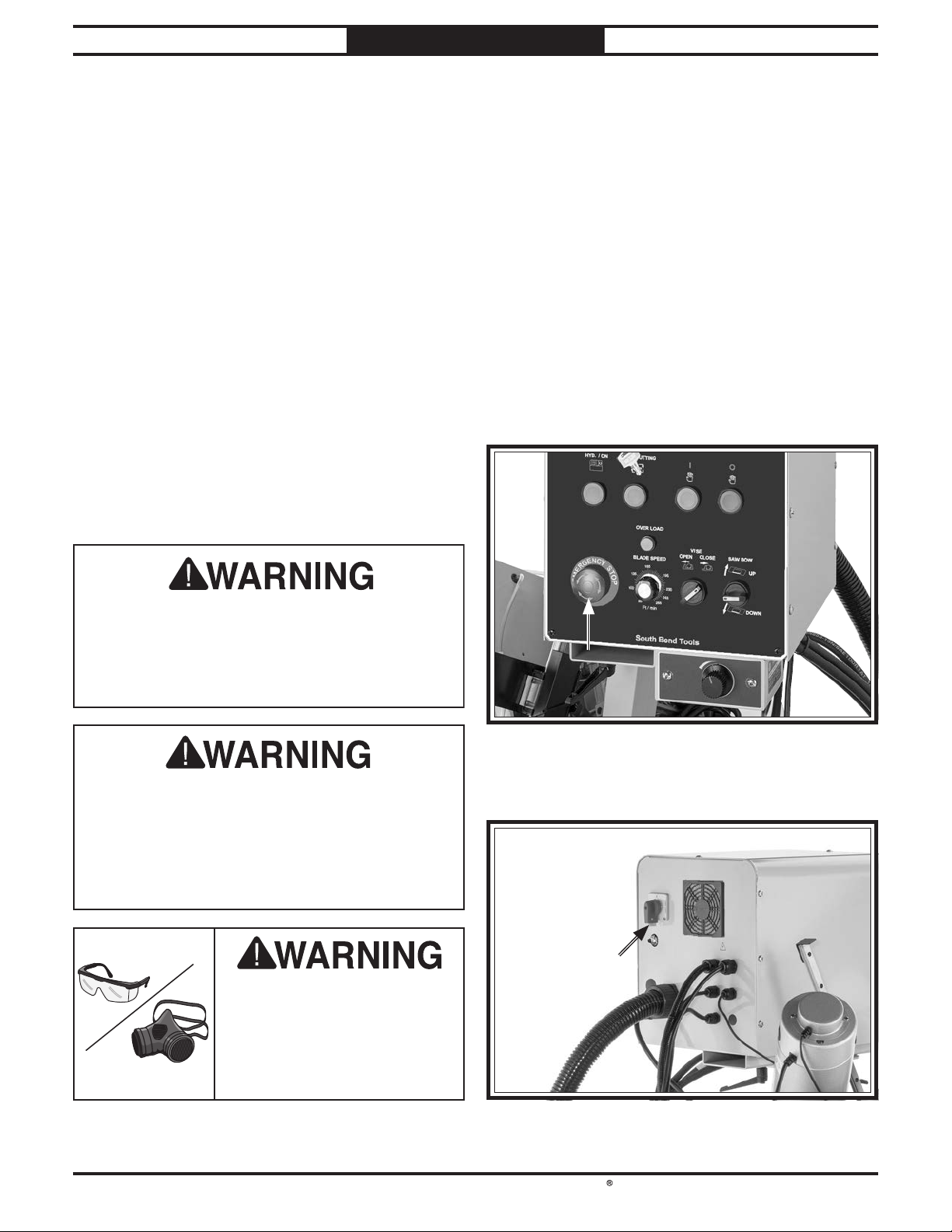

Test Run

After all preparation steps have been completed, the machine and its safety features must be tested to ensure correct operation. If you discover a problem with the operation of the machine or its safety components, do not operate it further until you have resolved the problem.

Note: Refer to Troubleshooting on Page 59 for solutions to common problems that may occur. If you need additional help, contact our Tech Support at (360) 734-1540.

The test run consists of verifying the following:

• Hydraulic system runs correctly.

• All motors power up and run correctly.

• Workpiece contact safety switch works correctly.

• Downfeed limit switch works correctly.

• EMERGENCY STOP button works correctly.

Items Needed Qty

Safety Glasses (For Each Person) ............... 1 Pr.

Respirator (For Each Person) Test Workpiece (Between 2"–3

.........................1

⁄2" Thick) ..........1

To test run machine:

1. Clear all setup tools and objects away from

machine.

Fill cutting ﬂuid reservoir with cutting ﬂuid

(refer to Cutting Fluid System Maintenance on Page 46), if you have not already done so. DO NOT run pump without cutting ﬂuid or you will damage it.

Push EMERGENCY STOP button in (see

Figure 14).

Serious injury or death can result from using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To reduce risk of eye injury from flying chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

EMERGENCY STOPEMERGENCY STOP

ButtonButton

Figure 14. Location of EMERGENCY STOP button.

4. Turn power switch to OFF (0) position (see

Figure 15).

Power SwitchPower Switch

-18 -

Figure 15. Location of power switch.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PREPARATION

5. Connect machine to power source.

Turn power switch from OFF (0) to ON (1)

position. POWER lamp on control panel should illuminate (see Figure 16).

POWERPOWER

LampLamp

HYD ON HYD ON

ButtonButton

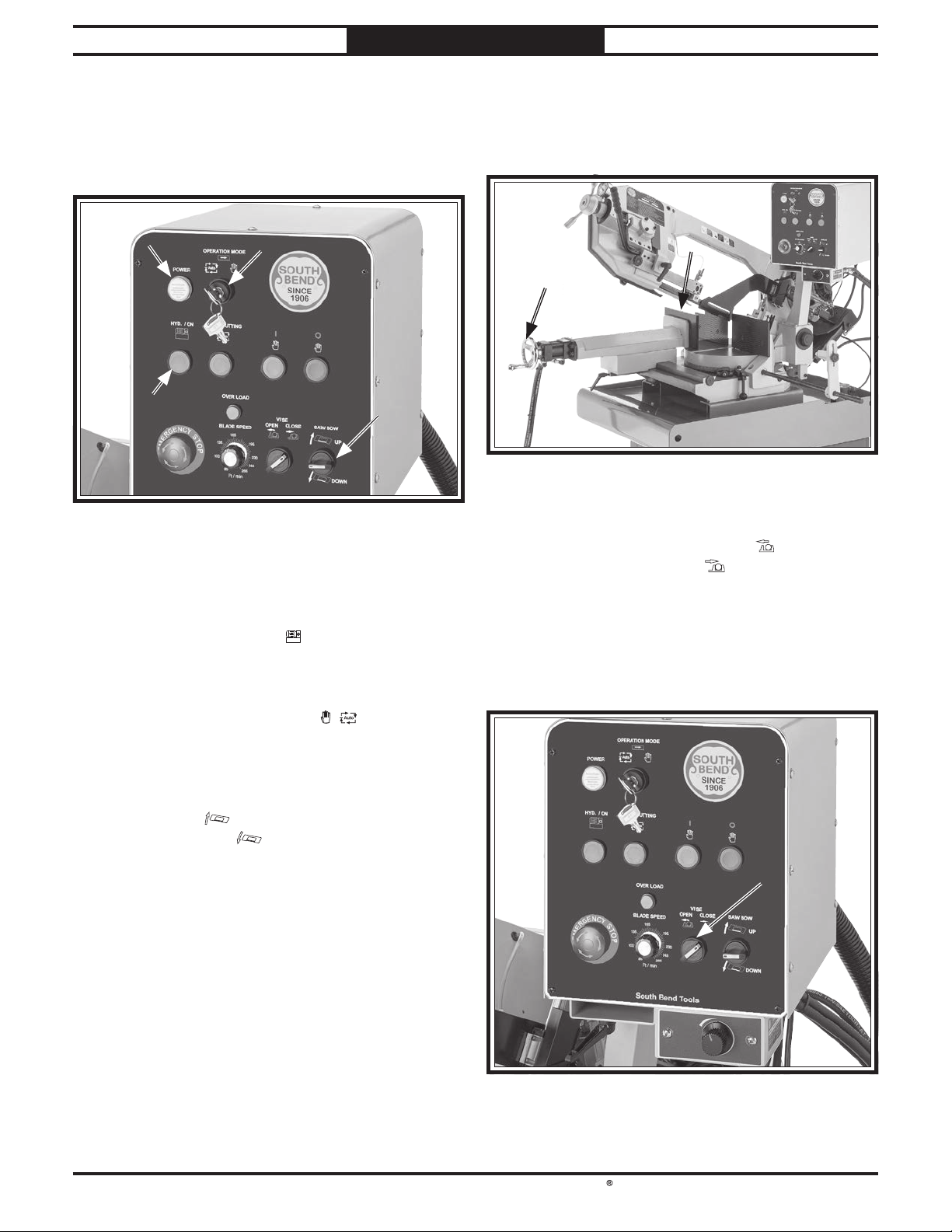

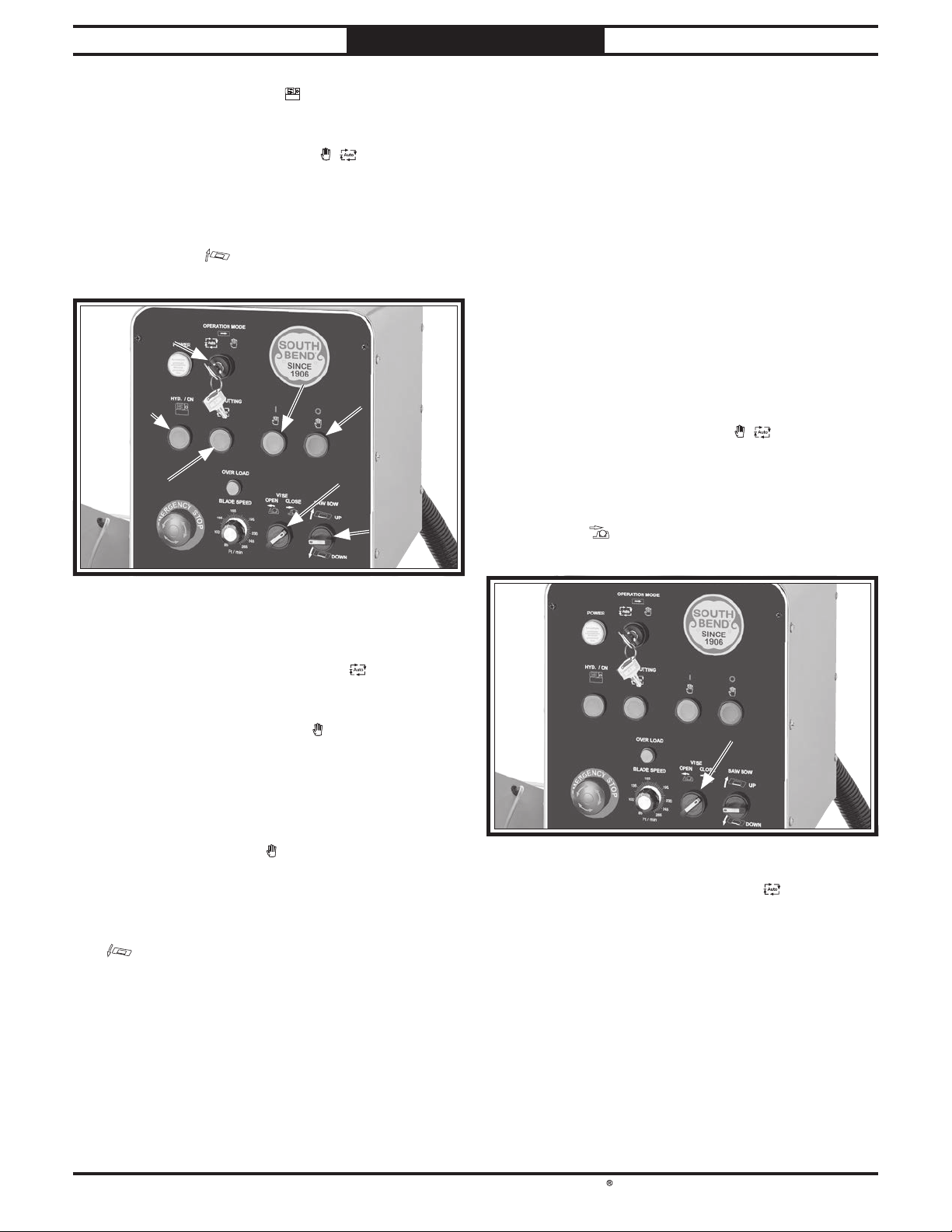

Figure 16. Control panel.

Twist EMERGENCY STOP button clockwise

Man/AutoMan/Auto

Key SwitchKey Switch

SAW BOW SAW BOW

SwitchSwitch

so it pops out. When button pops out, switch is reset, and machine is ready for operation.

12. Use vise handwheel to open adjustable vise

jaw (see Figure 17), place test workpiece in jaws, then close vise until workpiece is secure.

Adjustable Adjustable

Vise JawVise Jaw

ViseVise

HandwheelHandwheel

Figure 17. Location of vise handwheel and adjustable

vise jaw.

13. Check function of vise hydraulics by turning

vise switch to OPEN position and to CLOSE position

to hydraulically

to open vise

clamp workpiece (see Figure 18).

Press HYD ON button (see Figure 16).

You should hear hydraulic pump (located in machine cabinet) turn ON.

Turn man/auto key switch / clockwise

to switch to manual operation mode (see Figure 16).

Turn SAW BOW switch (see Figure 16) to

10.

UP position DOWN position

to raise headstock and to

to lower headstock and

check function of headstock hydraulics.

— If headstock does not raise or lower,

disconnect machine from power and refer to Troubleshooting on Page 59 before proceeding with Test Run.

Raise headstock as high as it will go.

11.

— If vise does not open or close, disconnect

machine from power and refer to Troubleshooting on Page 59 before proceeding with Test Run.

Vise SwitchVise Switch

Figure 18. Control panel.

-19 -

South Bend Tools

Model SB1122

Open (2) cutting ﬂuid valves (see Figure 19).

14.

PREPARATION

For Machines Mfd. Since 10/22

Cutting Fluid ValveCutting Fluid Valve

(1 of 2)(1 of 2)

Figure 19. Cutting fluid valve opened.

15. Press AUTO CUTTING button (see Figure

20) to enable blade start.

Press manual ON button I (see Figure 20)

16.

to start blade. Verify cutting ﬂuid ﬂows through blade guides and onto blade and that blade brush spins. Machine should run smoothly and without unusual problems and noises.

— If machine does not run smoothly,

disconnect machine from power and refer to Troubleshooting on Page 59 before proceeding with Test Run.

Manual ON Manual ON

ButtonButton

AUTO CUTTING AUTO CUTTING

ButtonButton

Blade Speed DialBlade Speed Dial

Figure 20. Control panel.

OFF ButtonOFF Button

19. Turn man/auto key switch /

counterclockwise to switch to automatic operation mode.

Adjust blade speed dial to between 98–177

20.

FPM.

Note: This is correct break-in blade speed

range for carbon steel and pre-installed blade.

Slowly turn blade speed dial clockwise (see

17.

Figure 20). Watch blade and rotate dial back and forth to test variable-speed function.

Press OFF button O (see Figure 20).

18.

Cutting ﬂuid pump, hydraulic pump, and blade should stop.

Turn downfeed rate dial all the way

21.

clockwise, then

Press HYD ON button to turn hydraulic

22.

⁄2" counterclockwise.

pump ON.

Turn vise switch to OPEN position so vise

23.

will open after cut is complete.

Press AUTO CUTTING button .

24.

Automatic cut cycle should begin: vise will close, cutting ﬂuid pump and blade will start, headstock will lower and bandsaw will perform cut. Once cut is complete, blade will stop, headstock will raise out of workpiece, and vise will open.

IMPORTANT: Headstock will lower quickly

until blade contacts workpiece, then it will slow to downfeed rate setting.

-20 -

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PREPARATION

— If downfeed rate slows when workpiece

is contacted, and blade shuts off and headstock raises after cut is complete, workpiece contact safety switch and downfeed limit switch are working properly. Proceed to Step 25.

— If downfeed rate does not slow when

workpiece is contacted, workpiece contact safety switch is NOT working correctly. Safety feature must work properly before proceeding with regular operations. Refer to Page 57 to adjust workpiece contact safety switch.

— If blade does not shut off or headstock

does not raise, downfeed limit switch is not working correctly. This safety feature must work properly before proceeding with regular operations. Refer to Page 48 to adjust downfeed travel limit.

Press EMERGENCY STOP button to stop

25.

machine.

Inspections & Adjustments

The following list of adjustments were performed at the factory before your machine was shipped:

• Hydraulic Pressure ......................... (Page 43)

• Downfeed Stop Bolt ........................ (Page 48)

• Blade Squareness ............................ (Page 50)

• Blade Guide Bearings ..................... (Page 51)

Be aware that machine components can shift during the shipping process. Pay careful attention to these adjustments as you test run your machine. If you ﬁnd that the adjustments are not set according to the procedures in this manual or your personal preferences, re-adjust them.

Without resetting EMERGENCY STOP

26.

button, press HYD ON button close vise using vise switch , and try to lower headstock with SAW BOW switch

— If machine does not start, EMERGENCY

STOP button safety feature is working correctly. Proceed to Step 27.

— If machine does start (with EMERGENCY

STOP button pushed in), immediately disconnect power. EMERGENCY STOP button is NOT working properly and must be replaced before further using machine.

Close cutting ﬂuid valves.

27.

Use power switch to turn incoming power

28.

OFF.

Congratulations! Test Run is complete.

, try to

-21-

South Bend Tools

Model SB1122

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so they can more easily understand the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide for performing actual machine operations. To learn more about speciﬁ c operations and machining techniques, seek training from people experienced with this type of machine, and do additional research outside of this manual by reading "howto" books, trade magazines, or websites.

OPERATION

For Machines Mfd. Since 10/22

OPERATION

Operation Overview

Due to the generic nature of this overview,

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

To complete a typical operation, the operator does the following:

1. Examines workpiece to verify it is suitable

for cutting.

Puts on safety glasses and respirator.

3. Ensures machine has correct type and

amount of cutting fluid for workpiece material.

If necessary, changes blade for workpiece

material.

Verifies blade is tensioned correctly.

Sets up splash guard and work stop if needed

for operation.

Turns power switch and hydraulic pump ON.

Raises headstock to required height for

workpiece.

Securely clamps workpiece in vise, and

ensures workpiece is stable and cutting area is free of obstructions.

To reduce risk of eye injury from flying chips or lung damage from breathing dust, always wear safety glasses and a respirator when

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, South Bend Tools will not be held liable for accidents caused by lack of training.

operating this machine.

Disconnects power and adjusts top blade

10.

guide as close to workpiece as possible.

Adjusts vise position and headstock angle as

11.

desired.

Reconnects to power, turns machine ON,

12.

and sets proper blade speed for workpiece material.

Opens cutting fluid valves.

13.

14. Adjusts downfeed rate.

15. Selects automatic operation mode.

16. Completes cut.

17. Once machine has stopped, turns machine

OFF, then removes workpiece.

-22-

For Machines Mfd. Since 10/22 Model SB1122

OPERATION

Disabling Switches

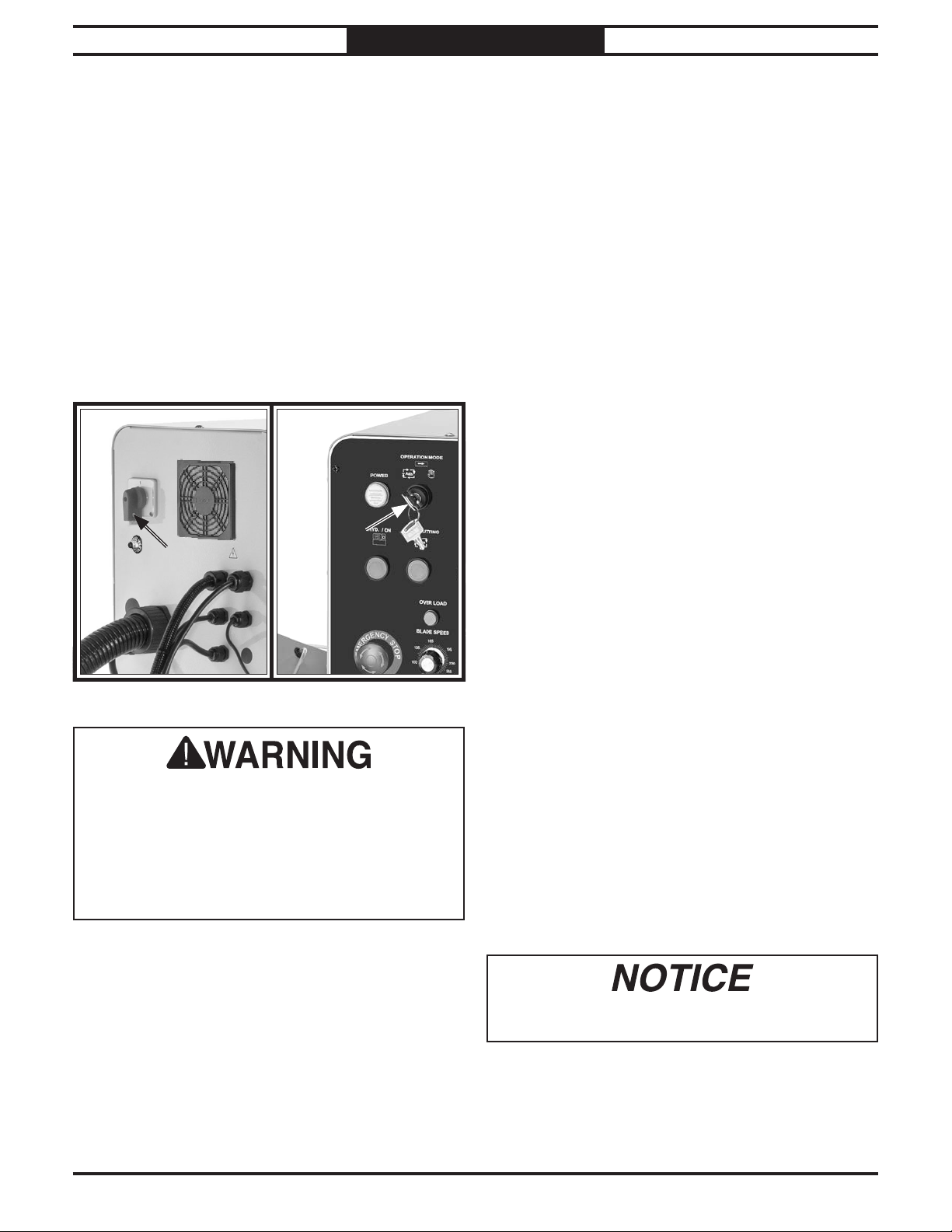

Both the power switch and the man/auto key switch can be disabled. The power switch can be padlocked in the OFF position (0) while the man/ auto key can be removed. Disabling the switches in this manner can prevent unauthorized operation of the machine, which is important if it is not kept inside an access-restricted building or in a location where children may be present.

IMPORTANT: Disabling switches only restricts their function. It is not a substitute for disconnecting machine from power when adjusting or servicing.

Disabling Disabling

DisablingDisabling

Padlock HolePadlock Hole

KeyKey

Operation Tips

The following tips will help you safely and effectively operate your bandsaw, and help you get the maximum life out of your saw blades.

Tips for cutting:

• Use the work stop to quickly and accurately cut multiple pieces of stock to the same length.

• Clamp the workpiece ﬁrmly in the vise jaws to ensure a straight cut through the material.

• Allow the blade to reach full speed before cutting a workpiece. Never start a cut with the blade in contact with the workpiece, and do not start a cut on a sharp edge.

• Chips should be curled and silvery. If the chips are thin and powder-like, increase your downfeed rate.

• Burned chips indicate a need to reduce your blade speed.

Figure 21. Location of disabling functions.

Children or untrained people can be seriously injured by this machine. This risk increases with unsupervised operation. To help prevent unsupervised operation, always disable switch before leaving machine unattended. Make sure to place key in a well-hidden or secure location!

• Wait until the blade has completely stopped before removing the workpiece from the vise. Avoid touching the cut end—it could be very hot!

• Support long pieces so they will not fall when cut. Flag long ends to alert passers-by of the potential danger.

• Adjust the top blade guide as close as possible to the workpiece to minimize sideto-side blade movement.

• Use cutting ﬂuid when possible to increase blade life.

Loosen blade tension when bandsaw is not in use to prolong blade life.

-23-

South Bend Tools

Model SB1122

OPERATION

For Machines Mfd. Since 10/22

Workpiece Inspection

Before cutting, inspect the material for any of the following conditions and take necessary precautions:

• Small or Thin Workpieces: Small or thin

workpieces may be damaged during cutting—avoid cutting these workpieces if possible. If you must cut a small or thin workpiece, attach it to or clamp it between larger scrap pieces that will both support the workpiece through the cut. Some thin sheet metals will not withstand the force from this bandsaw during cutting instead, use a shear, nibblers, or sheet metal nippers to cut these pieces.

• Unstable Workpieces: Workpieces that

cannot be properly supported or stabilized with the vise should not be cut on this bandsaw. Examples are chains, cables, workpieces with internal or built-in moving or rotating parts, etc.

• Material Hardness: Always factor in the

hardness of the metal before cutting it. Hardened metals will take longer to cut, may require lubrication, and may require a different type of blade in order to efﬁciently cut them.

Selecting Blades

Selecting the right blade for the cut requires a knowledge of various blade characteristics.

Blade Terminology

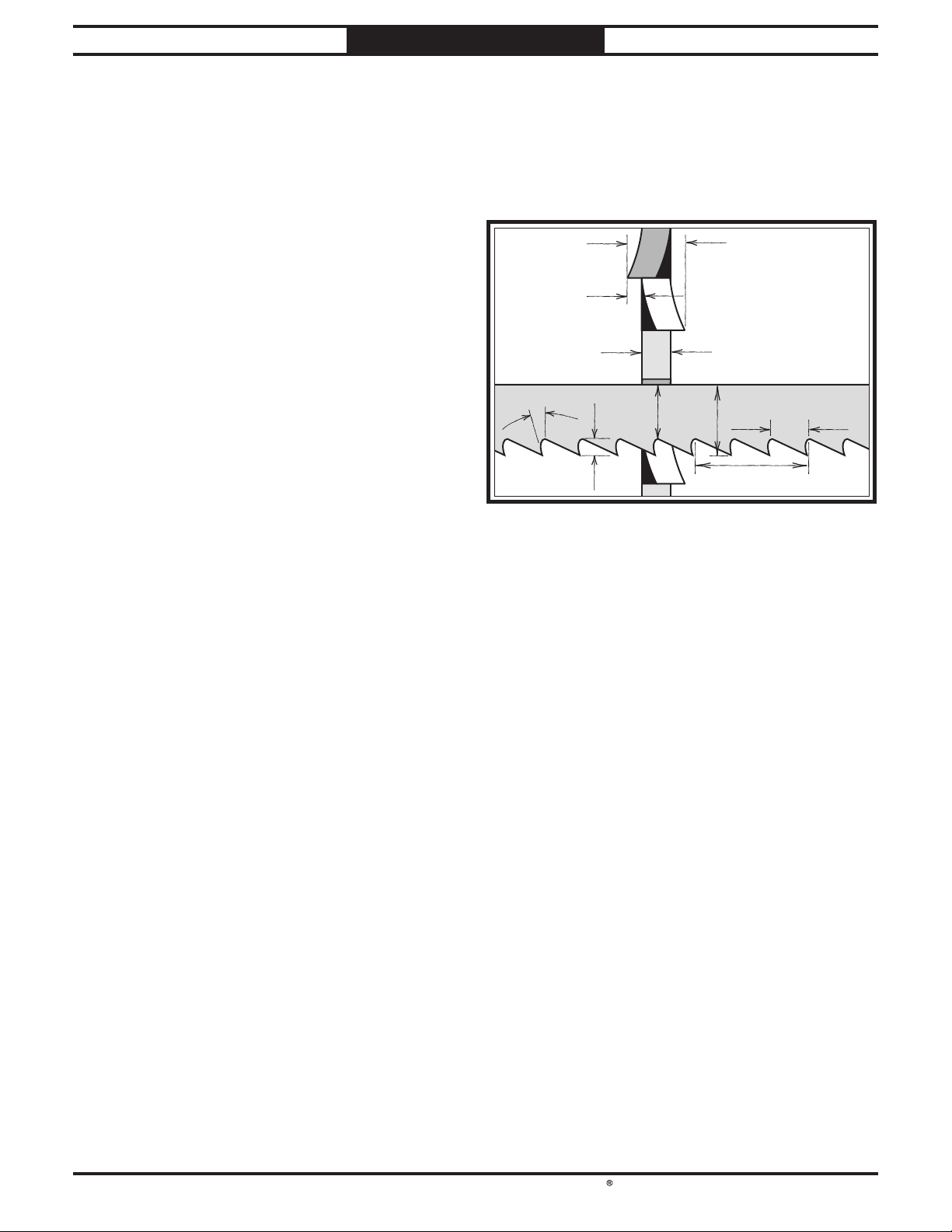

Figure 22. Bandsaw blade terminology.

A. Kerf: Amount of material removed by blade

during cutting.

B. Tooth Set: Amount each tooth is bent left or

right from blade.

C. Gauge: Thickness of blade.

• Tanks, Cylinders, Containers, Valves, Etc.:

Cutting into containers that are pressurized or contain gases or liquids can cause explosions, ﬁres, caustic burns, or machine damage. Avoid cutting any of these types of containers unless you have veriﬁed that the container is empty and it can be properly supported during a cut.

• Magnesium: Pure magnesium burns easily.

Cutting magnesium with a dull blade can create enough friction to ignite the small magnesium chips. Avoid cutting magnesium if possible.

D. Blade Width: Widest point of blade mea-

sured from tip of tooth to back edge of blade.

E. Tooth Rake: Angle of tooth face from line

perpendicular to length of blade.

F. Gullet Depth: Distance from tooth tip to

bottom of curved area (gullet).

G. Tooth Pitch: Distance between tooth tips.

H. Blade Back: Distance between bottom of

gullet and back edge of blade.

I. Blade Pitch or TPI: Number of teeth per

inch measured from gullet to gullet.

-24-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

OPERATION

Blade Length

Measured by the blade circumference, blade lengths are usually unique to the brand of your bandsaw and the distance between the wheels.

Model Blade Length

SB1122 ..............................................108 1⁄4"

Blade Width

Measured from the back of the blade to the tip of the blade tooth (the widest point).

Model Blade Width

SB1122 ................................................ 1 1⁄16"

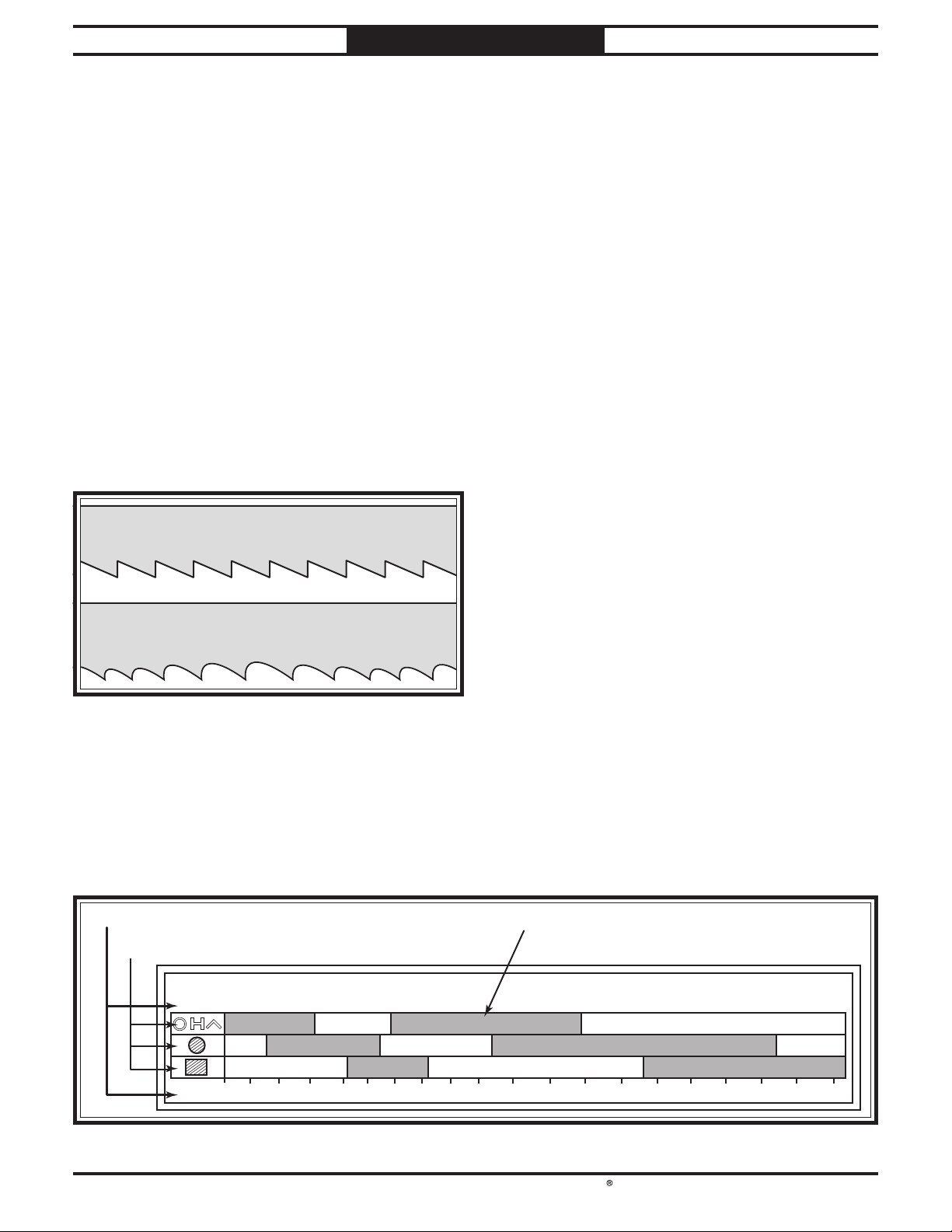

Tooth Type

The most common tooth types are described as follows, and illustrated in Figure 23.

Standard (or Raker)

Variable Pitch (VP)

Figure 23. Bandsaw blade tooth types.

Blade Pitch (TPI)

The chart below is a basic starting point for choosing teeth per inch (TPI) for variable pitch blades and standard raker set bi-metal blades/ HSS blades. However, for exact speciﬁcations of bandsaw blades that are correct for your operation, contact the blade manufacturer.

To select correct blade pitch:

1. Measure the material thickness. This

measurement is distance from where each tooth enters workpiece to where it exits workpiece.

Refer to "Material Width/Diameter" row of

blade selection chart in Figure 24, and read across to find workpiece thickness you need to cut.

Refer to "Material Shapes" row and find

shape of material to be cut.

In applicable row, read across to right

and find box where row and column intersect. Listed in the box is minimum TPI recommended for variable tooth pitch blades.

The TPI range is represented by a "/"

between numbers. For example, 3/4 TPI is the same as 3–4 TPI.

Standard or Raker: Equally spaced teeth set at

a "0" rake angle. Recommended for all purpose use.

Variable Pitch (VP): Varying gullet depth and

tooth spacing, a "0" rake angle, excellent chip removing capacity, and smooth cutting.

Material Width/DiameterMaterial Width/Diameter

Material ShapesMaterial Shapes

TOOTH SELECTION

5/8

4/6

inch

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 192½ 3½

Figure 24. General guidelines for blade selection and speed chart.

75 100 150 200 250 300 350 400

4/6

3/4

2/3 1.4/2.5

Teeth Per Inch (TPI) for Bandsaw BladesTeeth Per Inch (TPI) for Bandsaw Blades

2/3

The Blade Speed Chart on Page 28 offers

speed guidelines for various metals, given in feet per minute (FPM). Choose the speed closest to the number shown in the chart.

450

3/4

1.4/2.5

2/3

1.5/.8

-25-

South Bend Tools

Model SB1122

OPERATION

For Machines Mfd. Since 10/22

Blade Breakage

Many conditions may cause a bandsaw blade to break. Some of these conditions are unavoidable and are the natural result of the stresses placed on the bandsaw; other causes of blade breakage are avoidable.

The most common causes of avoidable blade breakage are:

• Faulty alignment or adjustment of the blade guides.

Forcing blade through the workpiece too

•

fast.

Dull or damaged teeth.

•

• Improperly-tensioned blade.

Top blade guide assembly set too high above

•

the workpiece. Adjust the top blade guide assembly as close to workpiece as possible.

Using a blade with a lumpy or improperly

•

finished braze or weld.

Blade Care & Break-In

Blade Care

To prolong blade life, always use a blade with the proper width, set, type, and pitch for each application. Maintain the appropriate downfeed rate and blade speed (refer to the Blade Speed Chart on Page 28), and pay attention to the chip characteristics (refer to the Chip Inspection Chart on Page 28). Keep your blades clean, since dirty or gummed up blades pass through the cutting material with much more resistance than clean blades, causing unnecessary heat.

Blade Break-In

The tips and edges of a new blade are extremely sharp. Cutting at too fast of a feed rate or too slow of a blade speed can fracture these tips and edges, quickly dulling the blade. Properly breaking-in a blade allows these sharp edges to wear without fracturing, thus keeping the blade sharp longer. Below is a typical break-in procedure. For aftermarket blades, refer to the manufacturer's break-in procedure to keep from voiding the warranty.

Leaving the blade tensioned when not in use.

•

• Using the wrong blade pitch (TPI) for the

workpiece thickness. The general rule of thumb is to have no fewer than three teeth in contact with the workpiece when starting a cut and at all times during cutting.

Use the Chip Inspection Chart on Page 28 as a guide to evaluate the chips and ensure that the optimal blade speed and downfeed rate are being used.

To break in new blade:

1. Choose correct speed for blade and material

type.

2. Reduce downfeed rate by half for first 50–

100 in

To avoid twisting blade when cutting, adjust

downfeed rate when total width of blade is in cut.

of material cut.

-26-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

OPERATION

Setting Downfeed Rate

The speed at which the saw blade will cut through the workpiece is determined by blade type, downfeed rate, and feed pressure. The downfeed rate is controlled by the downfeed rate dial below the control panel.

Note: If a lubricant is used on the cut, the downfeed rate can be increased by approximately 15%.

To set downfeed rate:

1. Press HYD ON button to turn hydraulic

pump ON.

Turn SAW BOW switch to UP position

to raise headstock to required height for workpiece.

Rotate downfeed rate dial (see Figure 25)

counterclockwise to increase downfeed rate and clockwise to decrease downfeed rate.

Changing Blade Speed

Model SB1122 Blade Speeds: 85–265 FPM.

To change blade speed:

1. Press HYD ON button to turn hydraulic

pump ON.

Press AUTO CUTTING and Man ON buttons

to turn blade ON and allow blade motor to reach full speed.

Rotate blade speed dial (see Figure 26)

clockwise to increase blade speed and counterclockwise to decrease blade speed.

Blade SpeedBlade Speed

DialDial

Downfeed Rate DialDownfeed Rate Dial

Figure 25. Location of downfeed rate dial.

Proceed with cutting operation.

Examine metal chips created from cutting

operation, and adjust downfeed rate as necessary for optimum cutting performance (refer to Chip Inspection Chart on Page 28 for more details).

Figure 26. Location of blade speed dial.

-27-

South Bend Tools

Model SB1122

Speed FPM

CUTTING SPEED RATE RECOMMENDATION

thin & curled

short, hard & thick

thin & curled

short, hard & thick

thick, hard & strong

thin & curled

short, hard & thick

thick, hard & strong

thin & curled

short, hard & thick

thick, hard & strong

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

powdery

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

powdery

thin & curled tightly

hard & thin

OPERATION

For Machines Mfd. Since 10/22

Blade Speed Chart

The chart in Figure 27 offers blade speed guidelines for various metals, given in feet per minute (FPM) and meters per minute (M/Min). Choose the closest available speed on the machine, then adjust the downfeed rate as necessary, using the appearance of the chips produced as a guide. Refer to the Chip Inspection Chart that follows for recommendations on adjusting downfeed rate or blade speed based on the appearance of the chips produced.

Material Material Material Material

Carbon

Steel

Angle Steel

Thin

Tube

Aluminum

Alloy

Copper

Alloy

(M/Min)

196~354

(60) (108)

180~220 (54) (67)

180~220

(54) (67)

220~534

(67) (163)

229~482 (70) (147)

Tool Steel

High-Speed

Tool Steel

Cold-Work Tool Steel

Hot-Work

Tool Steel

Oil-Hardened

Tool Steel

(M/Min)

203

(62)

75~118

(25) (36)

95~213

(29) (65)

203

(62)

203~213

(62) (65)

Figure 27. Blade speed chart.

Alloy

Steel

Mold Steel

Water Hardened Tool Steel

Stainless

Steel

CR Stainless

Steel

(M/Min)

111~321

(34) (98)

246 (75)

242 (75)

(26)

85-203

(26) (62)

Free Machining

Stainless Steel

Gray

Cast Iron

Ductile

Austenitic

Cast Iron

Malleable Cast Iron

Plastics

(M/Min)

150~203

(46) (62)

108~225

(33) (75)

65~85

(20) (26)

321

(98)

220

(67)

Chip Inspection Chart

The best method for choosing the cutting speed and downfeed rate for a cutting operation is to inspect the chips created by the cut. These chips are indicators of what is commonly referred to as the "chip load." Refer to the chip inspection chart below to evaluate chip characteristics and determine whether to adjust downfeed rate/pressure, blade speed, or both.

Chip

Appearance

Chip

Description

Chip

Color

Blade

Speed

Feed Rate/

Pressure

Other

Actions

Thin & Curled Silver Good Good

Hard, Thick & Short Brown or Blue Increase Decrease

Hard, Strong &

Hard, Strong,

-28 -

Curled & Thick

Hard, Coiled & Thin Silver Increase Decrease

Straight & Thin Silver Good Increase

Powdery Silver Decrease Increase

Coiled, Tight & Thin Silver Good Decrease

Thick

Brown or Blue Increase Decrease

Silver or Light

Brown

Good

Figure 28. Chip inspection chart.

Decrease

Slightly

Check Blade

Pitch

Check Blade

Pitch

Check Blade

Pitch

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

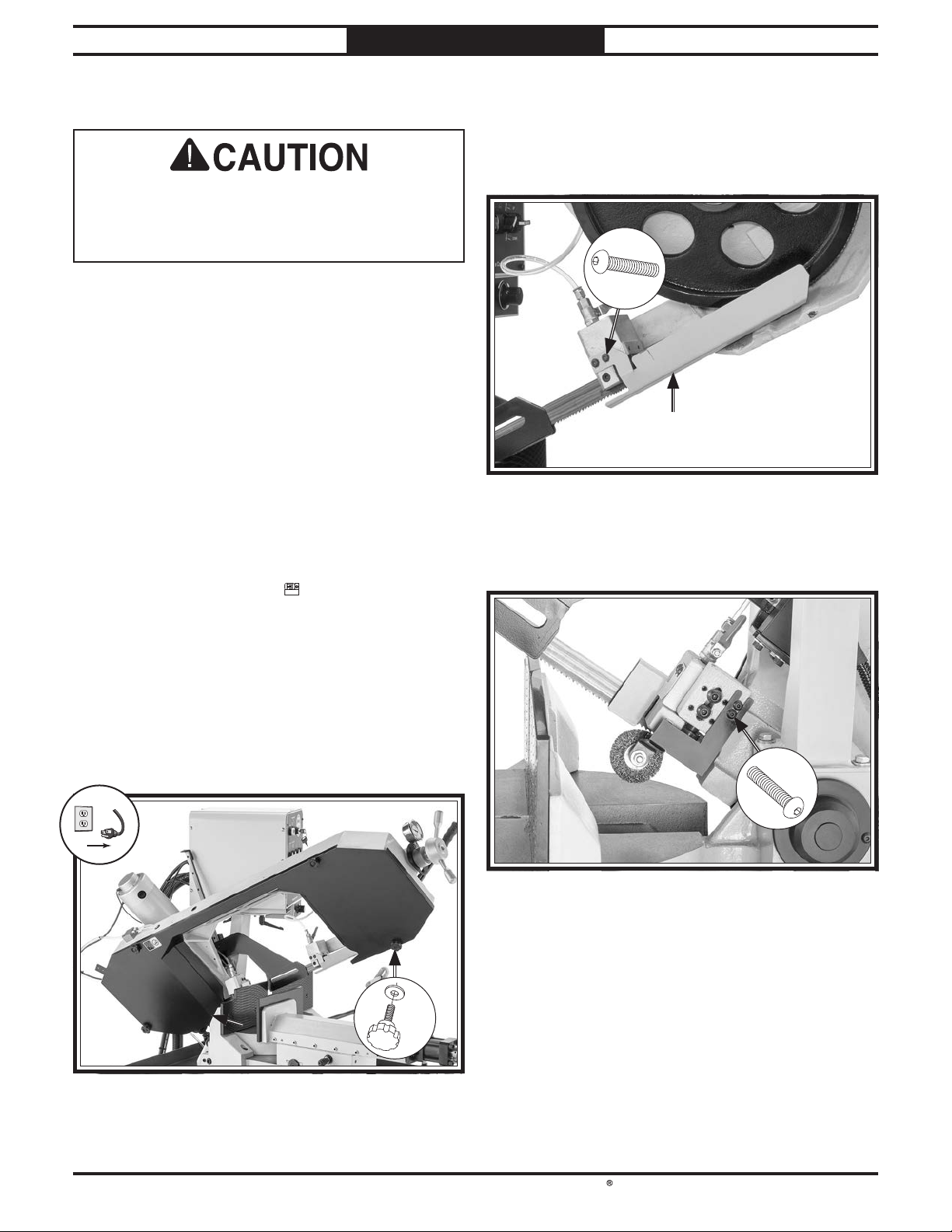

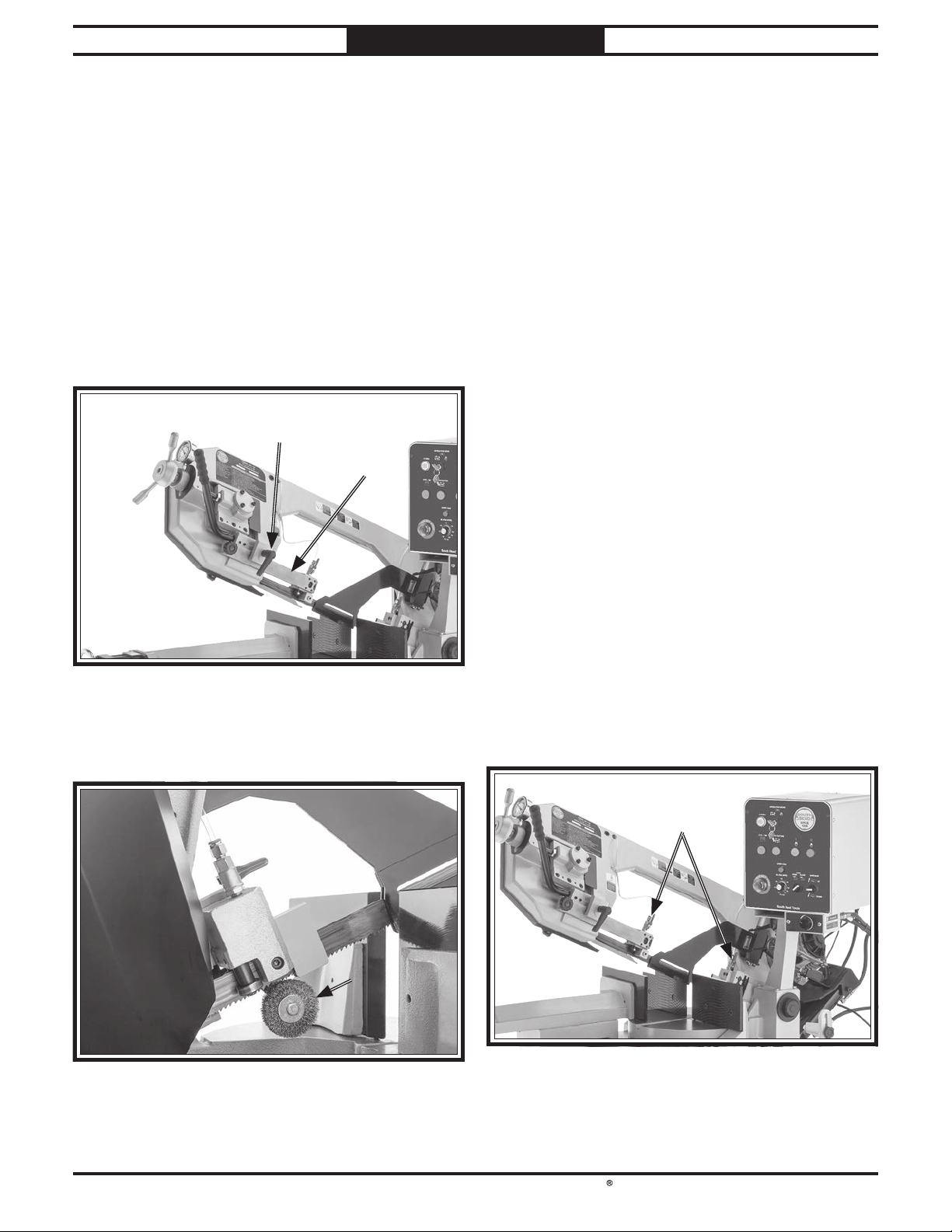

Changing Blade

All saw blades are dangerous and may cause laceration injuries. To reduce the risk of being injured, wear leather gloves when handling and uncoiling saw blades.

OPERATION

Put on safety glasses, then clean out all chips

and shavings with brush and shop vacuum.

Remove (2) button head cap screws and blade

guard shown in Figure 30.

Blades should be changed when they become dull, damaged, or when cutting materials that require a blade of a certain type or tooth count.

Items Needed Qty

Safety Glasses (For Each Person) ............... 1 Pr.

Brush Shop Vacuum Hex Wrenches 3, 4mm Protective Gloves (For Each Person) Another Person Replacement Blade

.......................................................1

.............................................1

............................ 1 Ea.

........... 1 Pr.

..........................................1

......................................1

To change blade:

1. Press HYD ON button to turn hydraulic

pump ON.

Adjust headstock until blade is

approximately 6" above vise table.

DISCONNECT MACHINE FROM POWER!

x 2

Blade GuardBlade Guard

Figure 30. Location of blade guard components.

7. On bottom blade guide, loosen (2) button

head cap screws shown in Figure 31 to remove blade brush assembly.

Remove blade cover by removing (4) knobs

and ﬂat washers shown in Figure 29.

Figure 31. Blade brush assembly screws.

8. Loosen blade guides (refer to Adjusting

Blade Guides and Bearings on Page 51 for detailed instructions).

Loosen top blade guide lock handle, adjust

Blade CoverBlade Cover

Figure 29. Location of blade cover and knobs.

x 4

top blade guide as far up as possible, then tighten top blade guide lock handle to secure (see Figure 32).

x 2

-29-

South Bend Tools

Model SB1122

OPERATION

For Machines Mfd. Since 10/22

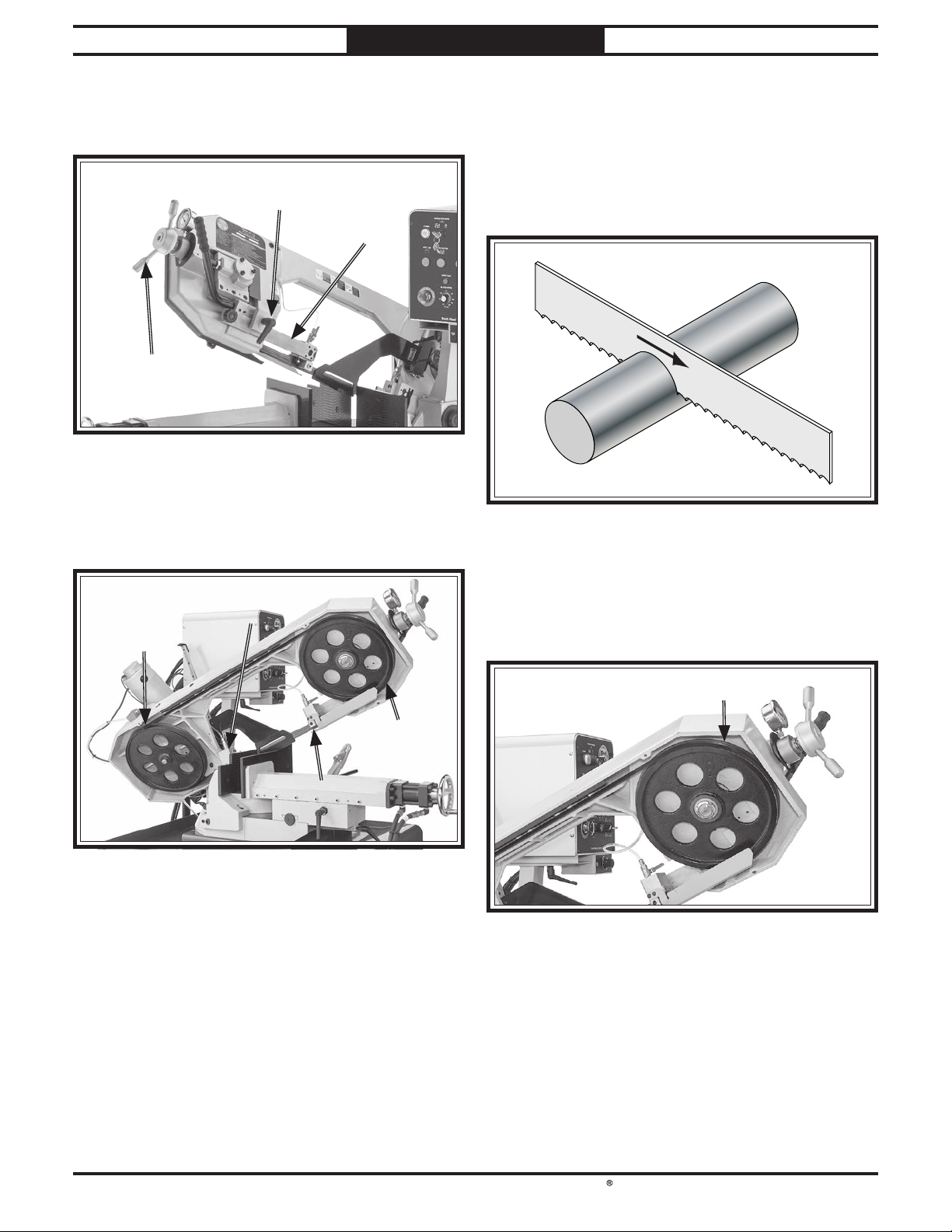

10. Decrease blade tension by turning blade

tension handwheel counterclockwise (see Figure 32).

Top Blade GuideTop Blade Guide

Lock HandleLock Handle

Blade TensionBlade Tension

HandwheelHandwheel

Figure 32. Location of top blade guide components

and blade tension handwheel.

To pTo p

Blade GuideBlade Guide

11. Remove blade from bottom blade wheel and

bottom guide, then remove blade from top wheel and guide (see Figure 33).

BottomBottom

Blade WheelBlade Wheel

Blade GuideBlade Guide

Note: It is sometimes possible to ﬂip the

blade inside out, in which case the blade will be installed in the wrong direction. After installing, check to make sure the blade teeth face the same direction as blade travel (see Figure 34). Some blades will have a directional arrow as a guide.

Blade Travel

Figure 34. Blade cutting direction.

Apply a light amount of tension to hold

14.

blade in place. Work your way around blade to adjust blade position so back of blade is against shoulder of wheels, as shown in Figure 35.

To pTo p

Blade WheelBlade Wheel

To pTo p

Blade GuideBlade Guide

Figure 33. Location of blade wheels and guides.

12. With help from another person, insert new

blade through both blade guides and around bottom blade wheel.

Tip: After blade is inserted in blade guides,

tighten blade guides to make it easier to install blade around wheels.

Hold blade around bottom wheel and slip

13.

other side around top wheel, keeping blade between blade guides.

Wheel ShoulderWheel Shoulder

Figure 35. Back of blade positioned against shoulder

of wheel.

Install blade guard.

15.

16. Install blade brush assembly and refer to

Adjusting Blade Brush on Page 58.

Tension blade (see Steps 5–8 of Tensioning

17.

Blade on Page 31).

-30-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

OPERATION

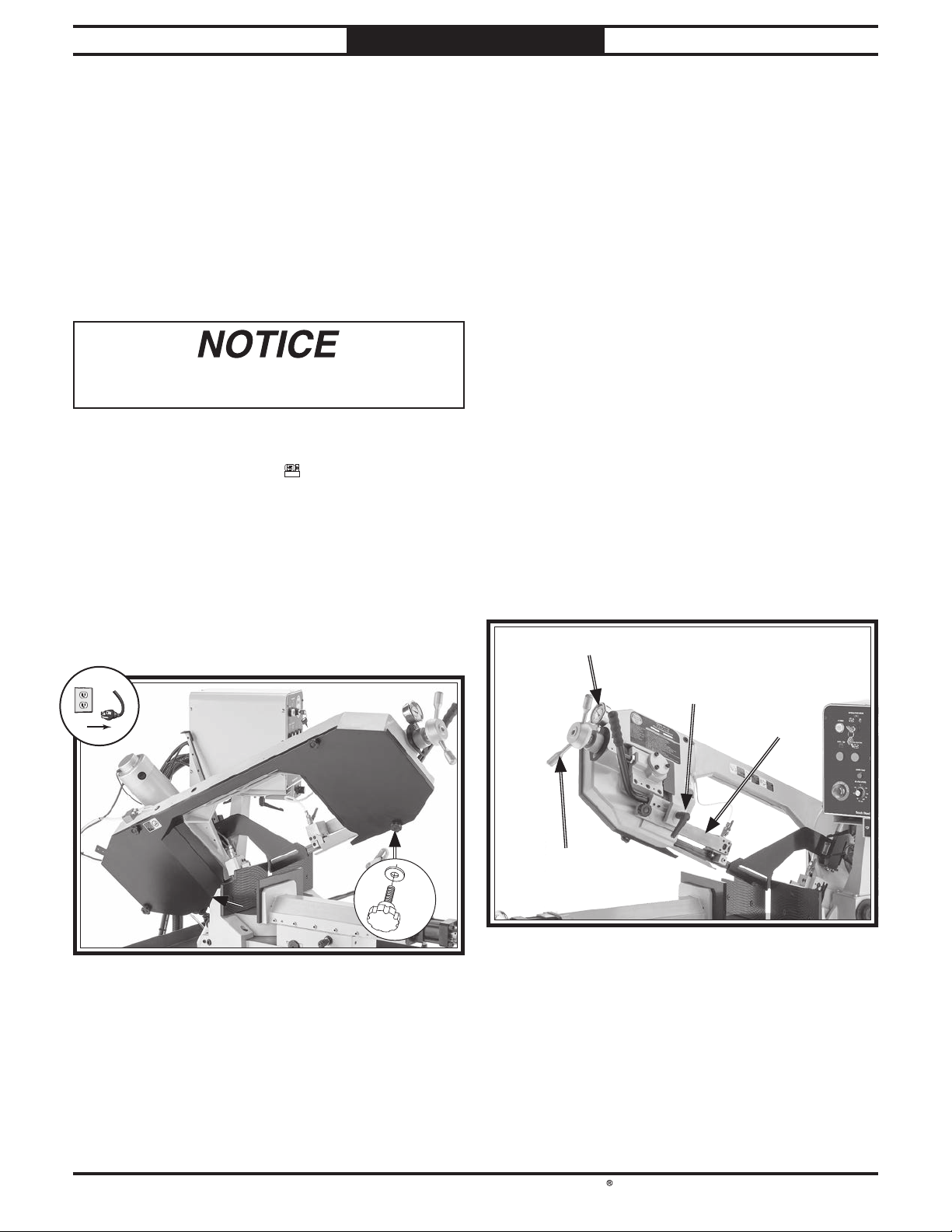

Tensioning Blade

Proper blade tension is essential to avoid blade vibration, twist, or slippage on the wheels. A correctly tensioned blade provides long blade life, straight cuts, and efficient cutting.

The three major signs of incorrect blade tension are: 1) The blade stalls in the cut and slips on the wheels, 2) the blade frequently breaks, and 3) the bandsaw does not make straight cuts.

Loosen blade tension when bandsaw is not in use to prolong blade life.

To tension blade:

1. Press HYD ON button to turn hydraulic

pump ON.

Adjust headstock until blade is

approximately 6" above vise table.

DISCONNECT MACHINE FROM POWER!

5. Check blade placement by sliding ﬁngernail

between end of blade and wheel shoulder.

— If there is just enough space to ﬁt

ﬁngernail, then blade is properly placed. Proceed to Step 6.

— If there is too little or too much space to

ﬁt ﬁngernail, adjust blade on wheels until blade placement is correct.

Loosen top blade guide lock handle, adjust

top blade guide as far up as possible, then tighten top blade guide lock handle to secure (see Figure 37).

Adjust blade tension handwheel clockwise to

tighten blade or counterclockwise to loosen blade (see Figure 37).

— Adjust blade tension handwheel until

indicator on belt tension gauge (see Figure 37) moves to required tension for blade (about 20,000 PSI for carbon blades and 30,000–35,000 PSI for bi-metal blades).

Remove blade cover by removing (4) knobs

and ﬂat washers shown in Figure 36.

Blade CoverBlade Cover

Figure 36. Location of blade cover and knobs.

x 4

Blade Tension GaugeBlade Tension Gauge

Top Blade GuideTop Blade Guide

Lock HandleLock Handle

Blade TensionBlade Tension

HandwheelHandwheel

Figure 37. Location of top blade guide components

and blade tension handwheel.

Install blade cover.

To pTo p

Blade GuideBlade Guide

-31-

South Bend Tools

Model SB1122

OPERATION

For Machines Mfd. Since 10/22

Adjusting Blade Guides

The top blade guide should be as close to the workpiece as possible during cutting operations. This will help ensure straight cuts by keeping the blade from twisting and drifting off the cutting line.

To adjust the top blade guide, loosen the top blade guide lock handle and slide the top blade guide as close to the workpiece as possible, then tighten the lock handle (see Figure 38).

Top Blade GuideTop Blade Guide

Lock HandleLock Handle

To pTo p

Blade GuideBlade Guide

Manual & Automatic Controls

The Model SB1122 has two operation modes: automatic and manual. Manual mode includes all of the controls necessary to prepare the machine for a cut, but will not perform the actual cut. Automatic mode will complete the cut without much user intervention through a series of preestablished settings. After a cut is prepared in manual mode, the automatic mode can be used to carry out the operation and achieve subsequent cuts to help speed production.

See the following steps for the controls required for each to accomplish a typical cutting operation.

Preparing a Cut

Manual mode is most useful when setting up a new cutting configuration. This mode allows you to plan your cut before actually cutting, and to test that a new blade has been installed correctly for the operation.

Figure 38. Location of top blade guide components.

The bottom blade guide has a wire brush that makes contact with the blade to help clear away chips and extend blade life (see Figure 39).

Blade BrushBlade Brush

Figure 39. Blade brush location.

To prepare a cut:

1. Adjust vise position and headstock angle as

desired for operation (see Angled Cuts on Page 34).

Open (2) cutting ﬂuid valves (see Figure 40).

Cutting Fluid Cutting Fluid

ValvesValves

Figure 40. Location of cutting fluid valves.

3. Connect machine to power and turn power

switch to ON (1) position.

-32-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

OPERATION

4. Press HYD ON button to turn hydraulic

pump ON (see Figure 41).

Turn man/auto key switch / clockwise

to switch to manual operation mode (see Figure 41).

Turn SAW BOW switch (see Figure 41) to

UP position enough to clear workpiece.

Man/Auto Man/Auto

Key SwitchKey Switch

HYD ON HYD ON

ButtonButton

AUTOAUTO

CUTTING CUTTING

ButtonButton

to raise headstock high

Manual ON Manual ON

ButtonButton

OFF ButtonOFF Button

Vise SwitchVise Switch

SAW BOW SAW BOW

SwitchSwitch

Performing a Cut

Automatic mode eliminates many steps required by the user to complete a cut, but only if the machine is prepared for workpiece installation. This mode is most useful when you have already established the blade speed, vise position, and overall cutting configuration in manual mode.

To perform a cut:

1. Perform Steps 1–13 of Preparing a Cut to

prepare machine for workpiece.

Use vise handwheel to open adjustable vise

jaw, place workpiece in jaws, then close vise until workpiece is secure.

Turn man/auto key switch /

counterclockwise to switch to automatic operation mode.

Turn vise switch (see Figure 42) to OPEN

position complete.

so vise will open after cut is

Figure 41. Manual controls.

Adjust blade speed as needed for operation.

Press AUTO CUTTING button (see Figure

41) to enable blade start.

Press manual ON button I (see Figure 41).

Cutting ﬂuid pump and blade will start. Conﬁrm that blade tracks smoothly through blade guides and that cutting ﬂuid is running onto blade at blade guides.

Press OFF button O (see Figure 41).

10.

Turn hydraulic pump ON.

11.

Turn SAW BOW switch to DOWN position

12.

to lower headstock and verify there are

no obstructions in the way of the cut.

Note: If blade is running when SAW BOW

switch is engaged in manual mode, blade motor will stop until headstock stops moving.

Raise headstock.

13.

Proceed to Performing a Cut.

14.

Vise Vise

SwitchSwitch

Figure 42. Location of vise switch.

5. Press AUTO CUTTING button .

Automatic cut cycle should begin: vise will close, cutting ﬂuid pump will start, blade will start, headstock will lower, and bandsaw will perform cut. Then blade will stop, headstock will raise out of workpiece, and vise will open.

IMPORTANT: Headstock will lower quickly

until blade contacts workpiece, then it will slow to downfeed rate setting.

Close cutting ﬂuid valves.

-33-

South Bend Tools

Model SB1122

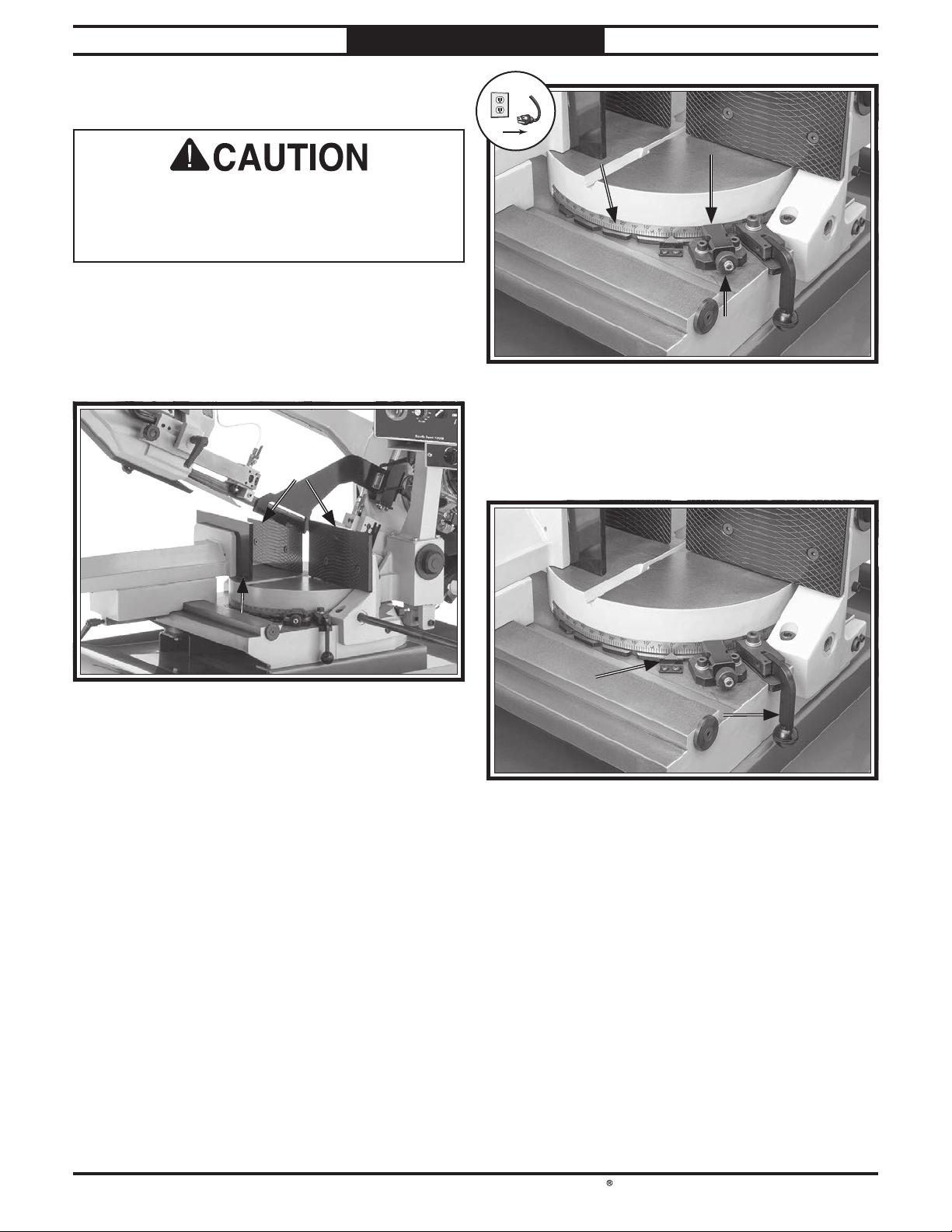

Angled Cuts

OPERATION

For Machines Mfd. Since 10/22

To avoid serious injury, always turn saw OFF and allow blade to come to complete stop before adjusting headstock angle or adjustable vise position.

The headstock and vise table can be swiveled to cu tangles from 0–45° to the left and 0–60° to the right for a total swing of 105°. The vise consists of an adjustable vise jaw and two fixed vise jaws (see Figure 43).

FixedFixed

Vise JawsVise Jaws

ScaleScale

Figure 44. 15° stop components.

3. Pull angle lock handle up and use headstock

handle to rotate headstock and vise table until indicator shows desired angle (see Figure 45).

1515°° Stop Stop

Knurled KnobKnurled Knob

AdjustableAdjustable

Vise JawVise Jaw

Figure 43. Location of adjustable and fixed vise jaws.

When making cuts to the right, the adjustable vise should remain in the left-most position. If you need to make a cut to the left, you will have to move the adjustable vise to the right side of the machine.

Cutting to the Right

1. DISCONNECT MACHINE FROM POWER!

2. Loosen knurled knob shown in Figure 44,

and pull 15° stop away from scale.

IndicatorIndicator

AngleAngle

Lock HandleLock Handle

Figure 45. Angle adjustment components.

Push angle lock handle down to secure.

— If angle is set to 15°, 30°, 45°, or 60°, push

15° stop into scale notch and tighten knurled nut from Step 2. Proceed to Step 5.

— If angle is not set to 15°, 30°, 45°, or 60°,

proceed to Step 5.

Connect machine to power and move

headstock through its full range of motion to make sure blade will not contact vise during operation.

-34-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

OPERATION

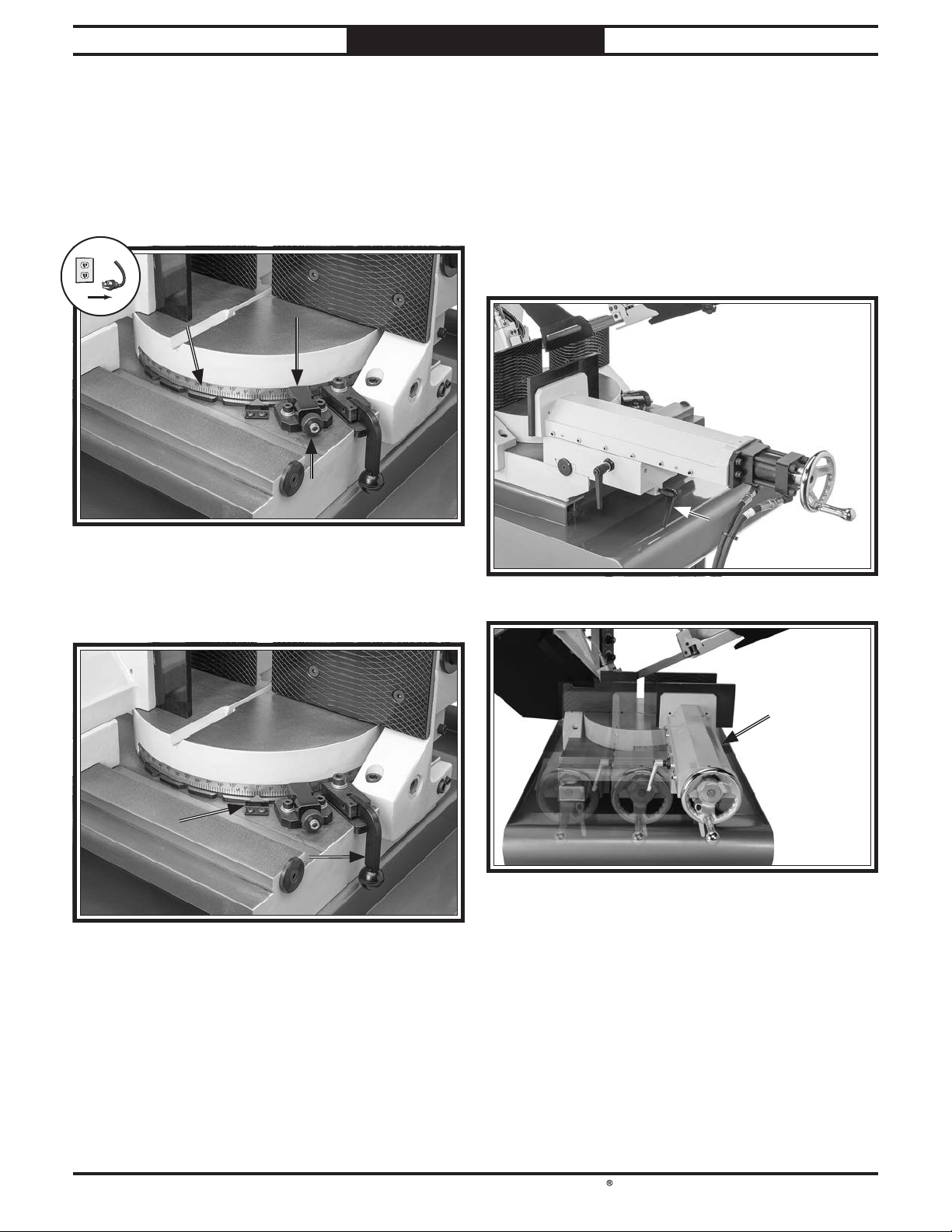

Cutting to the Left

1. Raise headstock as high as it will go.

2. DISCONNECT MACHINE FROM POWER!

3. Loosen knurled knob shown in Figure 46,

and pull 15° stop away from scale.

ScaleScale

Figure 46. 15° stop components.

1515°° Stop Stop

Knurled KnobKnurled Knob

— If angle is set to 15°, 30°, or 45°, push 15°

stop into scale notch and tighten knurled nut from Step 3. Proceed to Step 6.

— If angle is not set to 15°, 30°, or 45°,

proceed to Step 6.

Loosen vise position lock handle (see

Figure 48) and slide adjustable vise jaw right on track until it stops (see Figure 49).

Vise Position Vise Position

Lock HandleLock Handle

Pull angle lock handle up and rotate

headstock and vise table until indicator shows desired angle (see Figure 47).

IndicatorIndicator

AngleAngle

Lock HandleLock Handle

Figure 47. Angle adjustment components.

Push angle lock handle down to secure.

Figure 48. Location of vise position lock handle.

Adjustable Adjustable

Vise JawVise Jaw

Figure 49. Example of moving adjustable vise jaw.

7. Tighten vise position lock handle to secure.

8. Connect machine to power and move

headstock through its full range of motion to make sure blade will not contact vise during operation.

-35-

South Bend Tools

Model SB1122

OPERATION

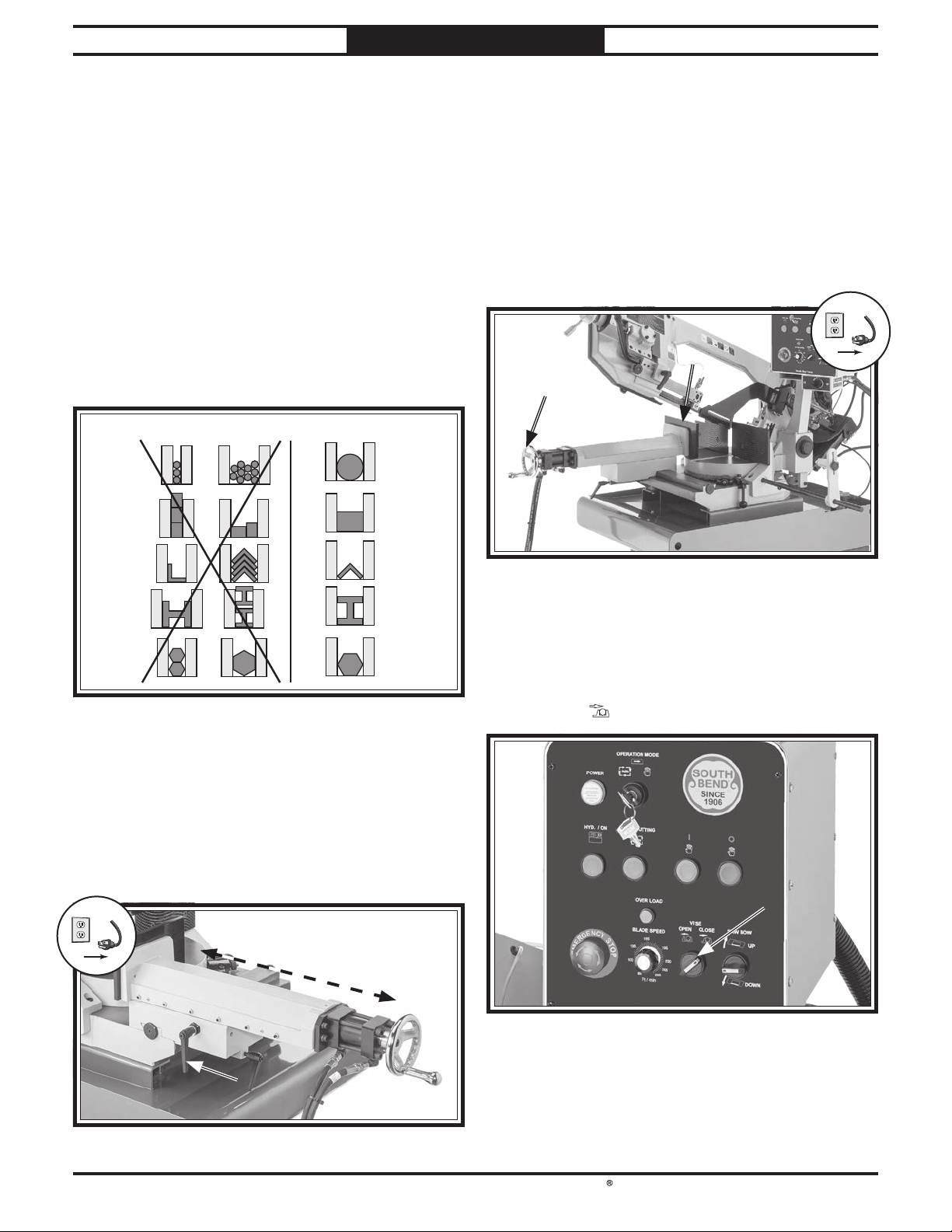

Opening & Closing Vise

For Machines Mfd. Since 10/22

Loosen vise quick-release handle to re-engage

the leadscrew and allow for vise handwheel adjustment.

The Model SB1122 vise has a handwheel to secure a workpiece in the jaws before clamping it tightly with the hydraulic system. The vise also features a quick-release handle to release the leadscrew and quickly move the adjustable jaw.

Figure 50\ shows the correct methods of holding different workpiece shapes. Whether you clamp a workpiece manually or hydraulically, never use more than one workpiece and always consider how a workpiece can be best supported.

INCORRECT CORRECT

Opening & Closing Vise

1. DISCONNECT MACHINE FROM POWER!

2. Use vise handwheel (see Figure 52) to adjust

adjustable vise jaw and secure workpiece in vise jaws.

Adjustable Adjustable

Vise JawVise Jaw

ViseVise

HandwheelHandwheel

Figure 52. Location of vise handwheel and adjustable

vise jaw.

Figure 50. Workpiece holding options by material

shape.

Quick Vise Adjustment

1. DISCONNECT MACHINE FROM POWER!

2. Tighten vise quick-release handle (see Figure

51) and move adjustable vise open or closed as needed.

Vise Quick-Release Vise Quick-Release

HandleHandle

Figure 51. Location of vise quick-release handle.

Connect machine to power and turn machine

and hydraulics ON.

Turn vise switch (see Figure 53) to CLOSE

position

Figure 53. Location of vise switch.

Note: If vise switch is turned to OPEN

position while in automatic cutting mode, vise will automatically open when automatic cycle is complete.

to tightly clamp workpiece.

Vise Vise

SwitchSwitch

-36-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

OPERATION

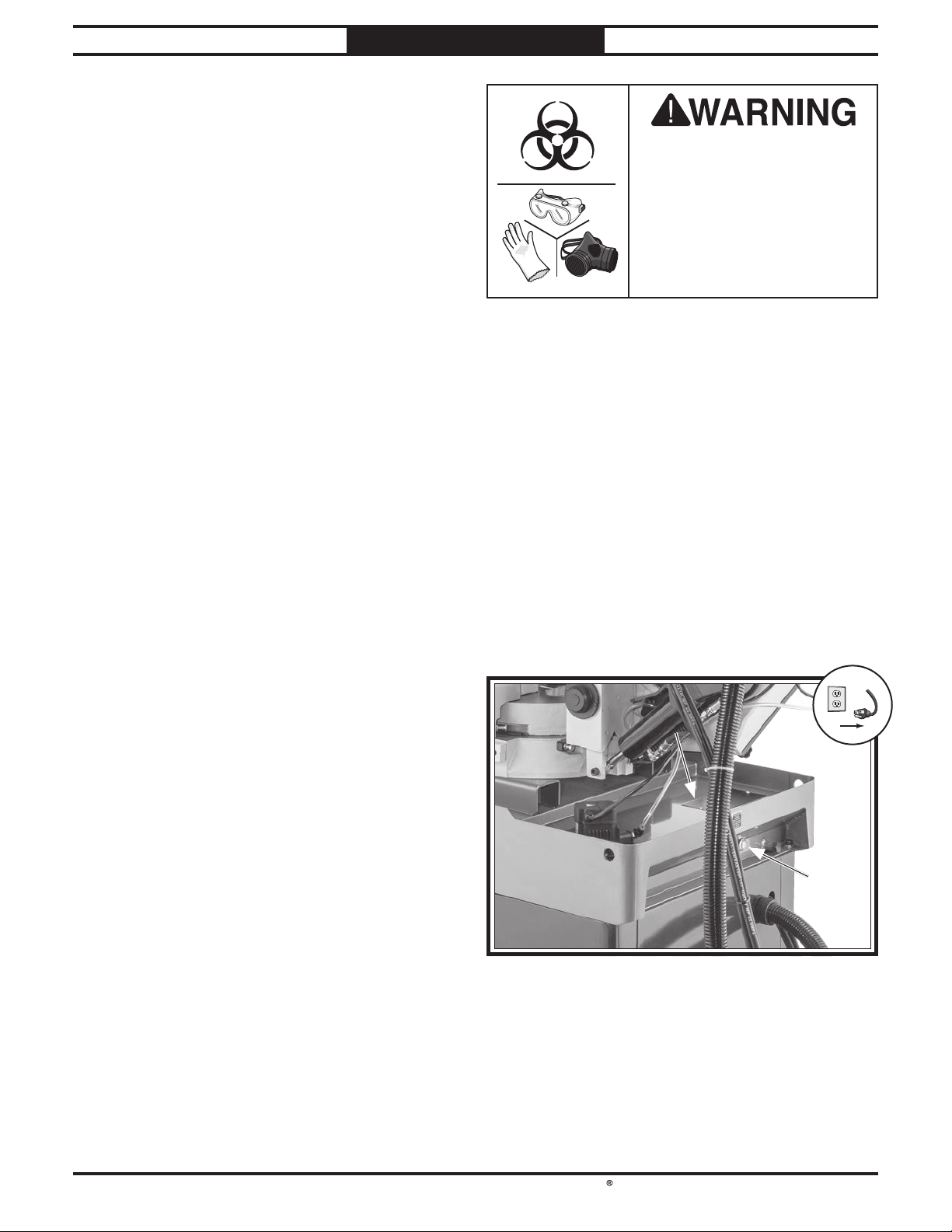

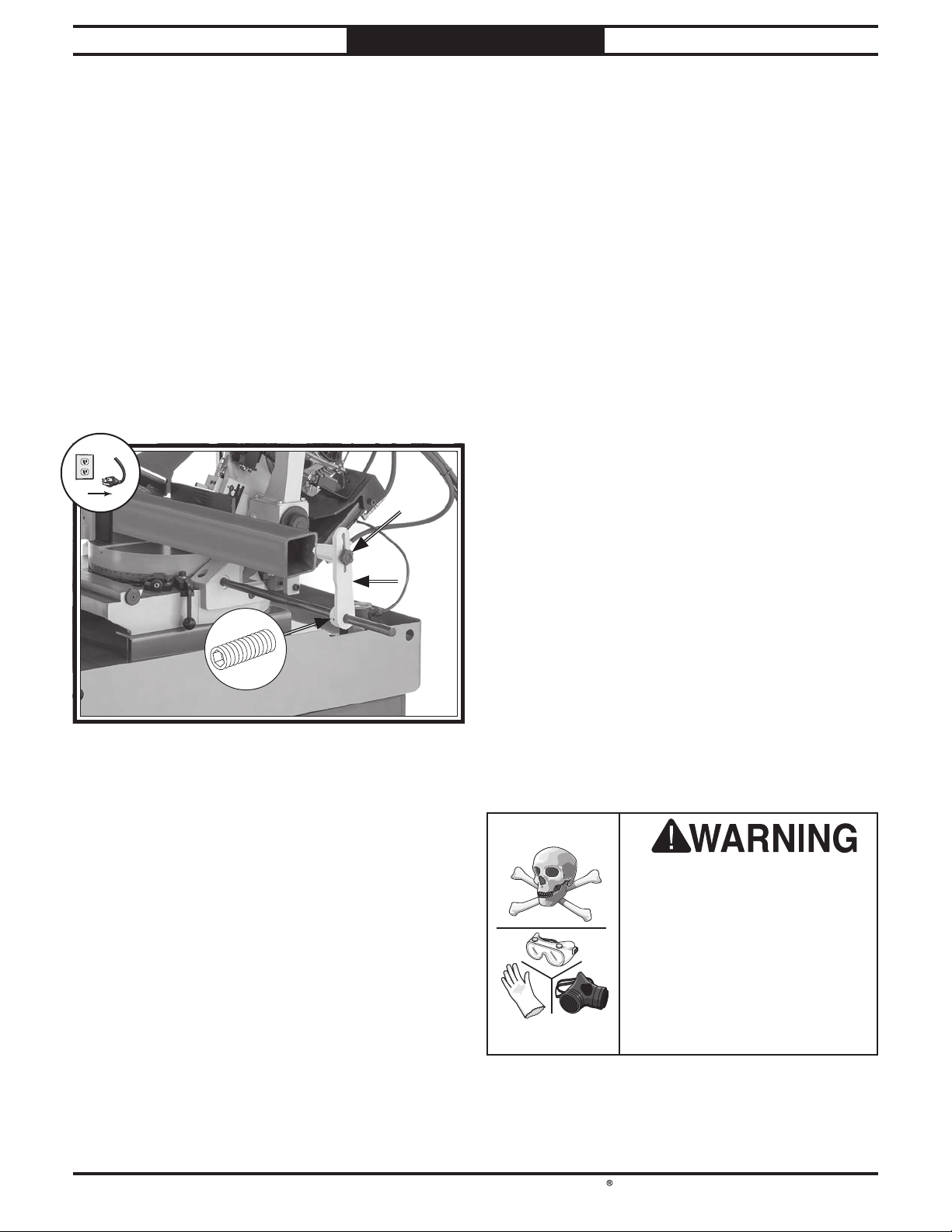

Adjusting Work Stop

The Model SB1122 is equipped with a work stop that can be used to quickly position a workpiece during repetitive cutting operations. This work stop can only be installed when cutting to the right and it will need to be adjusted any time it removed or repositioned.

To adjust work stop:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen work stop lock knob (see Figure

54), and adjust work stop height as needed for workpiece, then tighten knob to secure.

Loosen set screw shown in Figure 54.

Work StopWork Stop

Lock KnobLock Knob

WorkWork StopStop

Using Cutting Fluid System

Cutting fluid is a mixture of cutting fluid and water. While simple in concept and function, many issues must be taken into account to mix and use the correct cutting fluid. Always follow all product warnings and specifications, and contact the cutting fluid manufacturer for unanswered questions.

Use the information below as a guideline to choose the appropriate cutting fluid. Always refer to the cutting fluid manufacturer for specific application and safety information:

• For cutting low alloy, low carbon, and general-purpose category metals with a bi-metal blade —use a water soluble cutting fluid.

• For cutting stainless steels, high carbon, and high alloy metals, brass, copper and mild steels, use "Neat Cutting Oil" (commonly undiluted mineral oils) that have extreme pressure additives (EP additives).

Figure 54. Work stop adjustment components.

Adjust work stop on rod until work stop

contacts workpiece, then tighten set screw to secure.

• For cutting cast iron, cutting fluid is not recommended.

Tip: Using a refractometer or hydrometer to replenish water in water-based cutting fluid can extend the life of blades and cutting fluid, and ensure consistent cutting results.

BIOLOGICAL AND POISON

HAZARD! Use proper personal protection equipment when handling cutting fluid and follow federal, state, and fluid manufacturer requirements to properly dispose of cutting fluid.

-37-

South Bend Tools

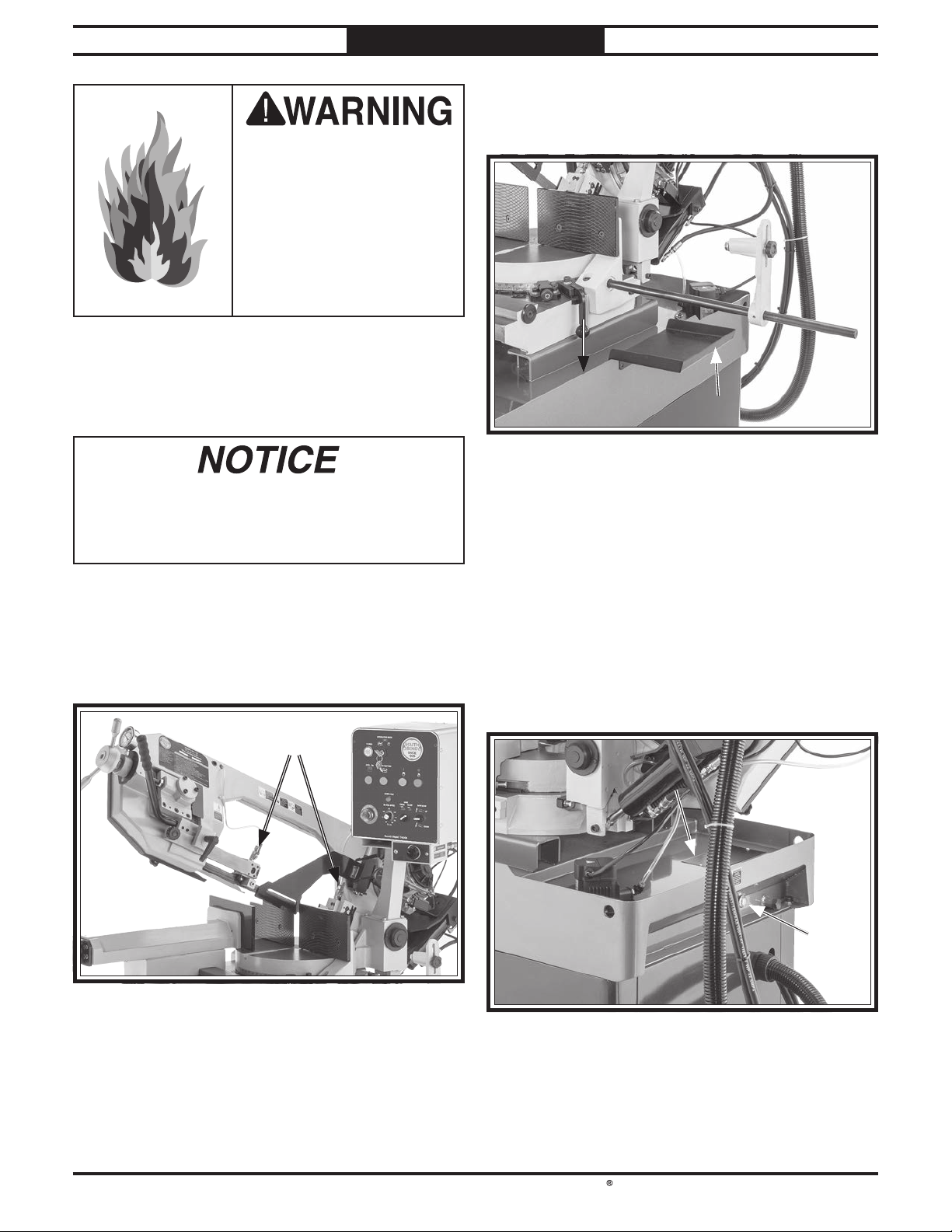

Model SB1122

FIRE HAZARD! DO NOT cut magnesium when using oil-water solutions as cutting fluid! Always use cutting fluid intended for magnesium. Water in the solution could cause a magnesium-chip fire.

This bandsaw has a built-in cutting fluid system that can extend the life of your bandsaw blades by lowering the temperature of the blade and workpiece if used properly when cutting.

OPERATION

For Machines Mfd. Since 10/22

You can also install the drip tray on the cabinet edges (see Figure 56) to catch cutting fluid when an operation creates runoff.

CabinetCabinet

EdgeEdge

Drip TrayDrip Tray

Figure 56. Drip tray installed on cabinet edge.

NEVER run machine without cutting fluid in the reservoir or when cutting fluid is below sight glass or you will overheat pump and void warranty!

Add cutting fluid (refer to Adding Cutting Fluid on Page 46), then open cutting fluid valves (see Figure 55) to control the flow of cutting fluid before turning ON machine and starting blade.

Cutting Fluid ValvesCutting Fluid Valves

Note: Too much ﬂow at the cutting ﬂuid valves

will make a mess and can make the work area unsafe; not enough ﬂuid at the cut will overheat the blade, causing the blade teeth to load up and break.

IMPORTANT: Monitor cutting fluid level frequently to keep system working properly. DO NOT let cutting fluid level fall below sight glass shown in Figure 57. Chip screen shown in Figure 57 must also be kept clear so cutting ﬂuid can recycle to the cutting ﬂuid reservoir.

Chip ScreenChip Screen

SightSight

GlassGlass

Figure 55. Location of cutting fluid valves.

-38-

Figure 57. Location of cutting fluid sight glass and

chip screen.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

Accessories

This section includes the most common accessories available for your machine, which are available through our exclusive dealer, Grizzly Industrial, Inc., at grizzly.com.

Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended by South Bend or Grizzly.

Refer to Grizzly's website or latest catalog for additional recommended accessories.

T30024—Powered Respirator Kit

This respirator kit is a lightweight, comfortable, and easy to carry device for protecting airway from small particulates. Requires 4 AA batteries (not included).

SB1365—South Bend Way Oil

Engineered for the high pressure exerted on horizontal or vertical ways and slides. Protects against rust and corrosion. Ensures stick-free, smooth motion which maximizes finishes and extends the life of your machine. Won't gum up!

Figure 60. SB1365 South Bend Way Oil.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and waterresistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

Figure 59. T26419 Syn-O-Gen Synthetic Grease.

Figure 58. T30024 Powered Respirator Kit.

-39-

South Bend Tools

Model SB1122

Maintenance

MAINTENANC E

For Machines Mfd. Since 10/22

Maintenance Schedule

Always disconnect machine from power before performing maintenance or serious personal injury may result.

For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section.

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

Ongoing

• Check/correct loose mounting bolts.

• Check/correct damaged or dull saw blade.

• Check/correct worn or damaged wires.

• Clean/protect unprotected cast-iron surfaces.

• Clean metal chips from upper and lower wheel areas.

• Correct any other unsafe condition.

Weekly

• Lubricate blade and blade guides.

Lubricate blade tension leadscrew and slides.

•

Clean and lubricate vise leadscrew.

•

Monitor cutting fluid level fill/change as

• needed for operation.

Cleaning

Use a brush and shop vacuum to remove chips and other debris from the working surfaces. Periodically remove the blade and thoroughly clean all metal chips or built-up grease from wheel surfaces and blade housing.

Remove any rust build-up from unpainted cast iron surfaces of your machine and treat with a non-staining lubricant after cleaning.

Keep unpainted cast iron surfaces rust-free with regular applications of a quality metal protectant.

Lubrication

An essential part of lubrication is cleaning the components before lubricating them. This step is critical because dust and chips build up on lubricated components, which makes them hard to move. Simply adding more grease to builtup grime will not result in smooth-moving parts. Clean the components in this section with mineral spirits before applying lubrication.

All bearings are sealed and permanently lubricated. Leave them alone until they need to be replaced.

The following are the main components that need to be lubricated:

• Blade and blade guides

• Blade tension leadscrew

• Vise leadscrew

Monthly

• Monitor hydraulic fluid level and change fluid after first 50 hours of use, then every 6 months.

Change cutting fluid.

•

-40-

Schedules are based on average use. Adjust lubrication frequency according to your level of use.

DISCONNECT POWER TO MACHINE BEFORE CLEANING AND LUBRICATING COMPONENTS.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

MAINTENANC E

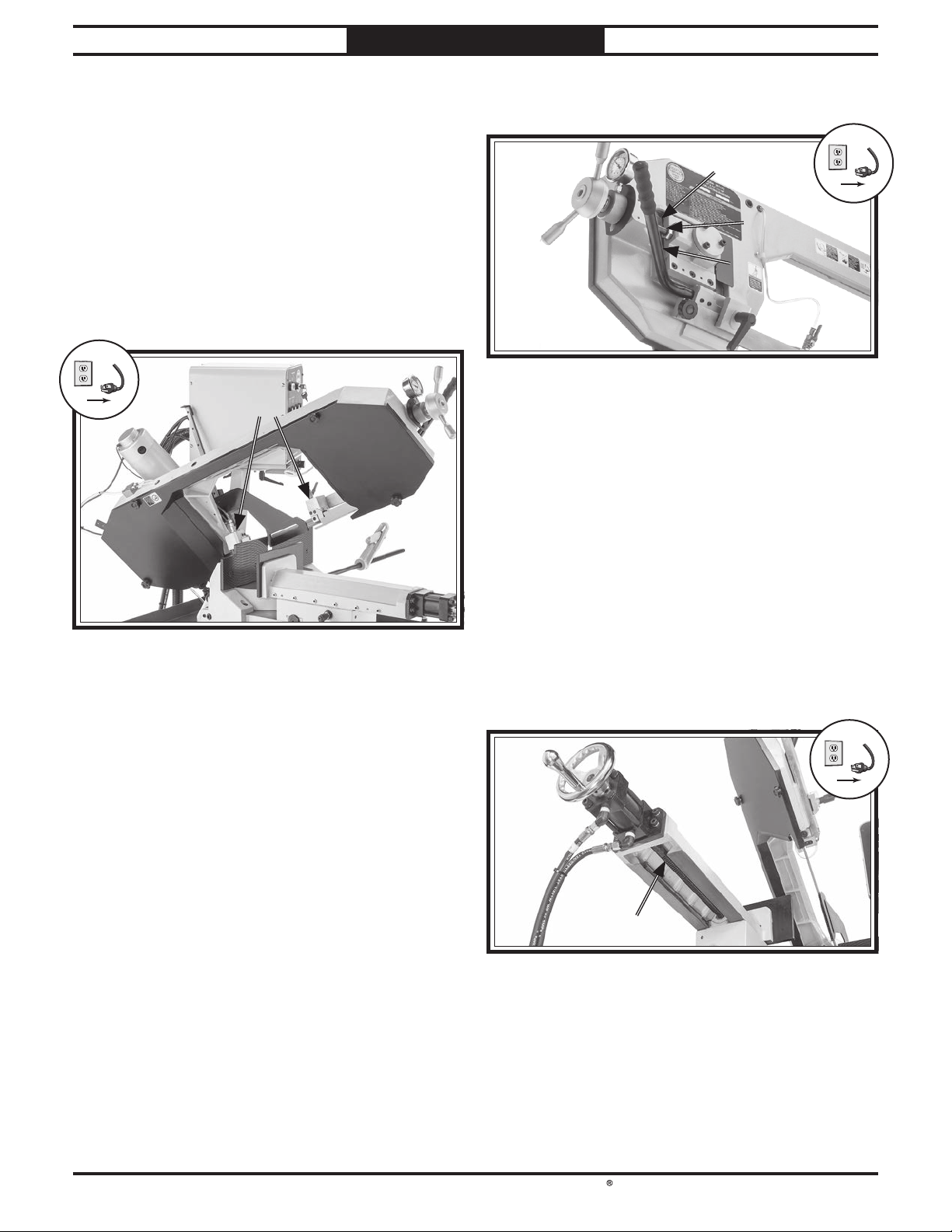

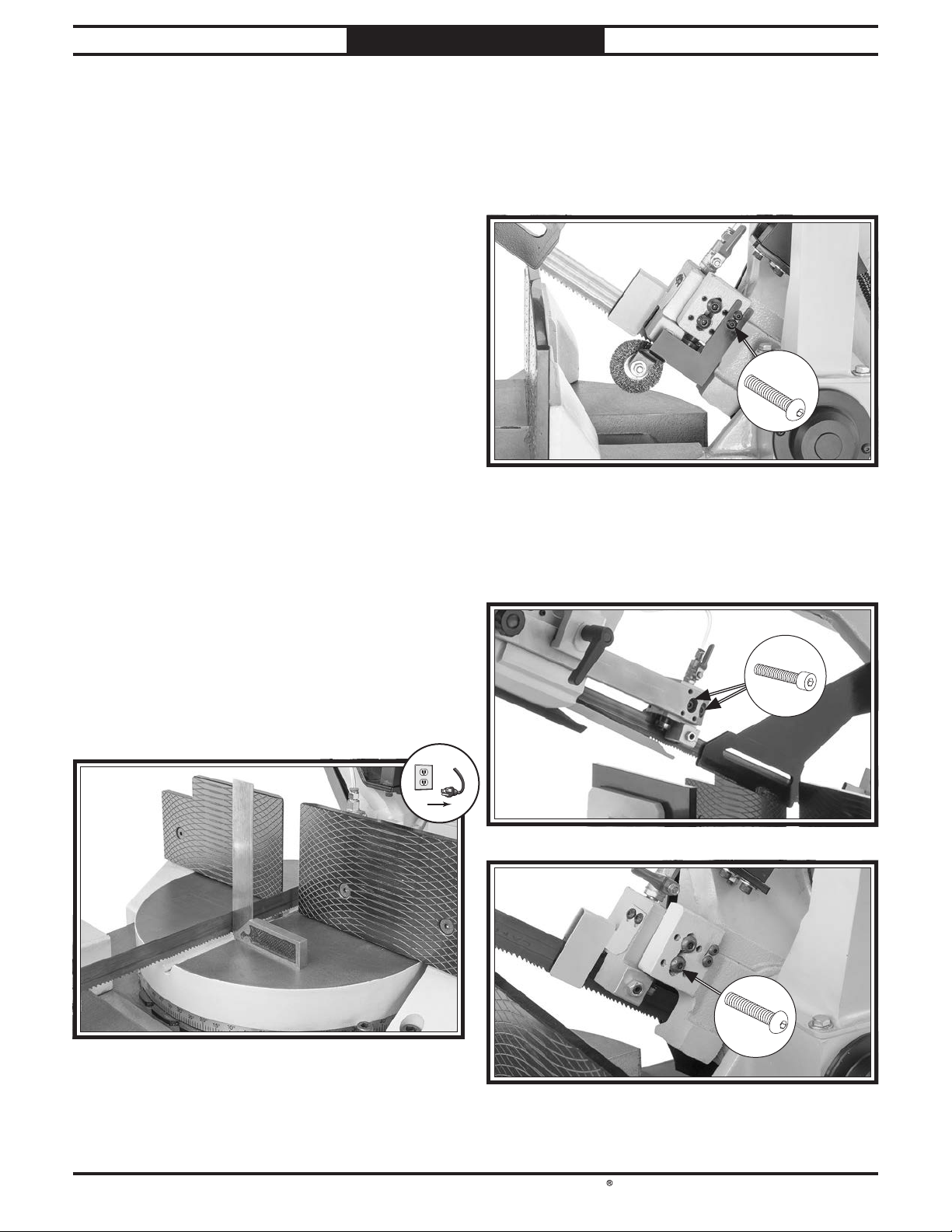

Blade & Blade Guides

Lubrication Type .. SB1365 or ISO 68 Equivalent

Amount.........................................1–2 Drops

Frequency

Item Needed Qty

SB1365 or ISO 68 Equivalent ............1–2 Drops

Place one or two drops of light machine oil where blade contacts blade guides (see Figure 61) daily, especially when cutting cast iron, as no cutting fluid is required when cutting cast iron.

............................................ Daily

Blade GuidesBlade Guides

With headstock raised completely, place 1–2 drops of oil at locations shown in Figure 62.

Figure 62. Location of tension leadscrew and slides.

Vise Leadscrew

Lubrication Type .T26419 or NLGI#2 Equivalent

Amount................ 1–2 Pumps from Grease Gun

Frequency

Items Needed Qty

Mineral Spirits .............................. As Needed

Stiff Brushes T26419 or NLGI#2 Equivalent

.......................................... Weekly

.............................................2

......... 1–2 Pumps

Figure 61. Location of blade guides.

Blade Tension Leadscrew & Slides

Lubrication Type .. SB1365 or ISO 68 Equivalent

Amount.........................................1–2 Drops

Frequency

Item Needed Qty

SB1365 or ISO 68 Equivalent ............1–2 Drops

.......................................... Weekly

Completely open vise and clean leadscrew (see Figure 63) with mineral spirits and a brush. When leadscrew is dry, use a clean brush to apply grease to the threads. Adjust the vise to distribute the grease.

Vise LeadscrewVise Leadscrew

Figure 63. Location of vise leadscrew.

-41-

South Bend Tools

Model SB1122

MAINTENANC E

For Machines Mfd. Since 10/22

Machine Storage

All machinery will develop serious rust problems and corrosion damage if it is not properly prepared for storage. If decommissioning this machine, use the steps in this section to ensure that it remains in good condition.

Wear safety glasses during the following processes to protect against eye injury.

Preparing Machine for Storage

Items Needed Qty

Safety Glasses (For Each Person) ............... 1 Pr.

Control Tags Disposable Shop Rags Mineral Spirits Rust Preventative SB1365 or ISO 68 Equivalent Desiccant Packs Tarp/Plastic Sheet

To prepare machine for storage or decommission it from service:

1. DISCONNECT MACHINE FROM POWER

and lockout/tagout controls.

Thoroughly clean all unpainted, bare metal

surfaces, then coat them with lightweight grease or rust preventative. Take care to ensure surfaces are completely covered but that grease or rust preventative is kept off of painted surfaces.

................................. As Needed

..................... As Needed

.............................. As Needed

.......................... As Needed

............2–3 Drops

............................. As Needed

......................... As Needed

4. Loosen blade tension or remove blade so it

does not stretch or rust while machine is stored.

Place a few moisture-absorbing dessicant

packs inside control box.

Completely cover machine with tarp or

plastic sheet that will keep out dust and resist liquid or moisture. If machine will be stored in/near direct sunlight, use cover that will block sun rays.

Bringing Machine out of Storage

Items Needed Qty

Safety Glasses (For Each Person) ............... 1 Pr.

Disposable Gloves Disposable Shop Rags Cleaner/Degreaser T23963 or ISO 32 Equivalent Cutting Fluid Test Workpiece

To bring machine out of storage:

1. Remove moisture-absorbing desiccant packs

from control box.

Put on safety glasses.

3. Coat rust preventative with cleaner/

degreaser, then let it soak for 5–10 minutes.

Wipe off surfaces. If cleaner/degreaser is

effective, rust preventative will wipe off easily.

Repeat Steps 3–4 as necessary until clean.

........................... As Needed

..................... As Needed

......................... As Needed

..............2 Gallons

............................... 3.9 Gallons

...........................................1

Note: If machine will be out of service for

only short period of time, use way oil or a good grade of medium-weight machine oil (not auto engine oil) in place of grease or rust preventative.

Remove old coolant, then add a few drops of

way oil and clean lines with compressed air.

-42-

Install/tension blade as described on

Pages 29–31.

Refer to Hydraulic System Maintenance to

and check/change hydraulic fluid.

Perform Test Run on Page 18.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

MAINTENANC E

Hydraulic System Maintenance

Always wear safety goggles when servicing the hydraulic system to prevent eye injury.

The hydraulic system must be maintained on a regular basis and kept in good operating condition to avoid premature wear of moving parts, hoses, and valves.

If you have never maintained a hydraulic system before, WE STRONGLY RECOMMEND that you read books, get formal training, or seek the help of a qualiﬁed hydraulic service technician.

Hydraulic systems are highly pressurized and hydraulic fluid is hot after use. Should a leak or malfunction take place, any maintenance to hydraulic lines and valves should only occur when hydraulic pressure has been relieved and fluid has cooled.

4. Remove (4) button head cap screws and ﬂat

washers shown in Figure 64 to remove rear access panel.

RearRear

AccessAccess

PanelPanel

x 4

Figure 64. Location of rear access panel and

fasteners.

5. Check pressure gauge shown in Figure 65.

Gauge should read less than 425 PSI.

— If gauge reads more than 425 PSI,

proceed to Step 6.

— If gauge reads 425 PSI or less, no

adjustment is necessary. Install rear access panel.

Checking Hydraulic Pressure

The hydraulic system pressure should not exceed 425 PSI. Use the following steps to check the system pressure and adjust it as needed.

Tools Needed Qty

Hex Wrenches 4mm, 5⁄32" ......................... 1 Ea.

Open-End Wrench 13mm

To check hydraulic pressure:

1. Raise/lower headstock repeatedly for

approximately 10 minutes to warm up hydraulic ﬂuid.

Lower headstock and open vise completely.

3. DISCONNECT MACHINE FROM POWER!

..............................1

Pressure Pressure

GaugeGauge

Figure 65. Location of pressure gauge (hydraulic

assembly removed from cabinet for clarity).

-43-

South Bend Tools

Model SB1122

MAINTENANC E

For Machines Mfd. Since 10/22

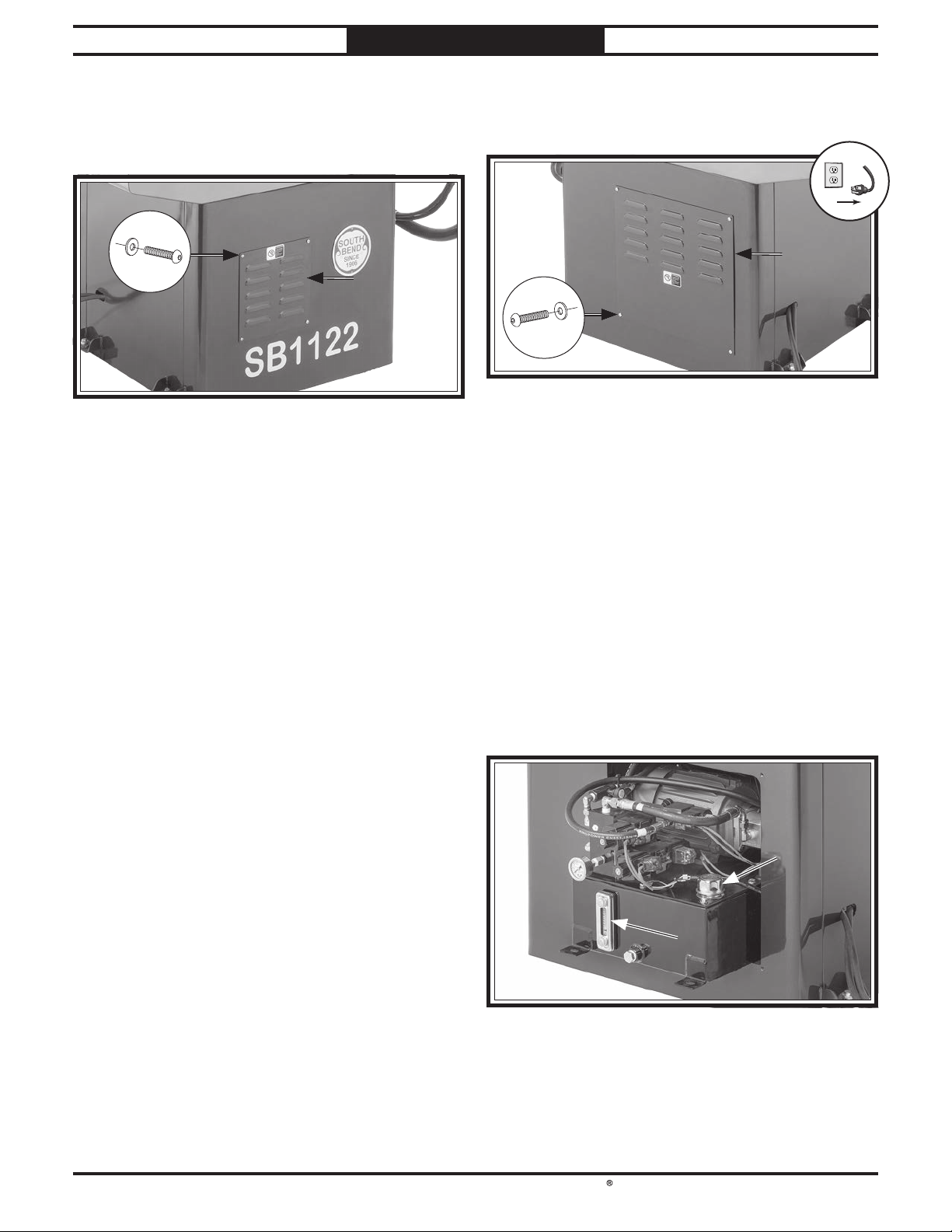

6. Remove (4) button head cap screws and ﬂat washers shown in Figure 66 to remove front access panel and access rear side of hydraulic unit.

x 4

Figure 66. Location of front access panel and

fasteners.

7. Adjust pressure relief valve until pressure

gauge displays 425 PSI or less (see Hydraulic System Diagram on Page 73).

FrontFront

AccessAccess

PanelPanel

Remove (4) button head cap screws and ﬂat

washers shown in Figure 67 to remove rear access panel.

RearRear

AccessAccess

PanelPanel

x 4

Figure 67. Location of rear access panel and

fasteners.

5. Check ﬂuid temperature on thermometer

mounted to hydraulic tank (see Figure 68). The temperature should read between 50– 95°F (10–35°C).

— To adjust valve, loosen jam nut, and

adjust cap screw.

Note: Connect machine to power and

run hydraulic system to check pressure adjustment.

Tighten jam nut to secure setting.

9. Install front and rear access panels.

Checking Hydraulic Fluid

The hydraulic ﬂuid level and temperature should be checked weekly.

Items Needed Qty

Safety Goggles .......................................1 Pr.

Hex Wrench 4mm T23963 or ISO 32 Equivalent Funnel

......................................................1

To check hydraulic ﬂuid:

1. Raise/lower headstock repeatedly for

approximately 10 minutes to warm up hydraulic ﬂuid.

Lower headstock and open vise completely.

3. DISCONNECT MACHINE FROM POWER!

........................................1

............ As Needed

— If ﬂuid temperature exceeds 140°F

(60°C), allow ﬂuid to cool down. Review Troubleshooting on Page 59 for solutions. If you cannot regulate temperature, contact a qualiﬁed hydraulic service technician or Tech Support.

Remove tank cap (see Figure 68) and inspect

for burnt-smelling or tan-colored, watercontaminated hydraulic ﬂuid.

Tank CapTank Cap

ThermometerThermometer

Figure 68. Location of thermometer and tank cap

(hydraulic assembly removed from cabinet for clarity).

— If ﬂuid is contaminated, or ﬂuid has not

been changed in past 6 months, proceed to Changing Hydraulic Fluid.

-44-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

MAINTENANC E

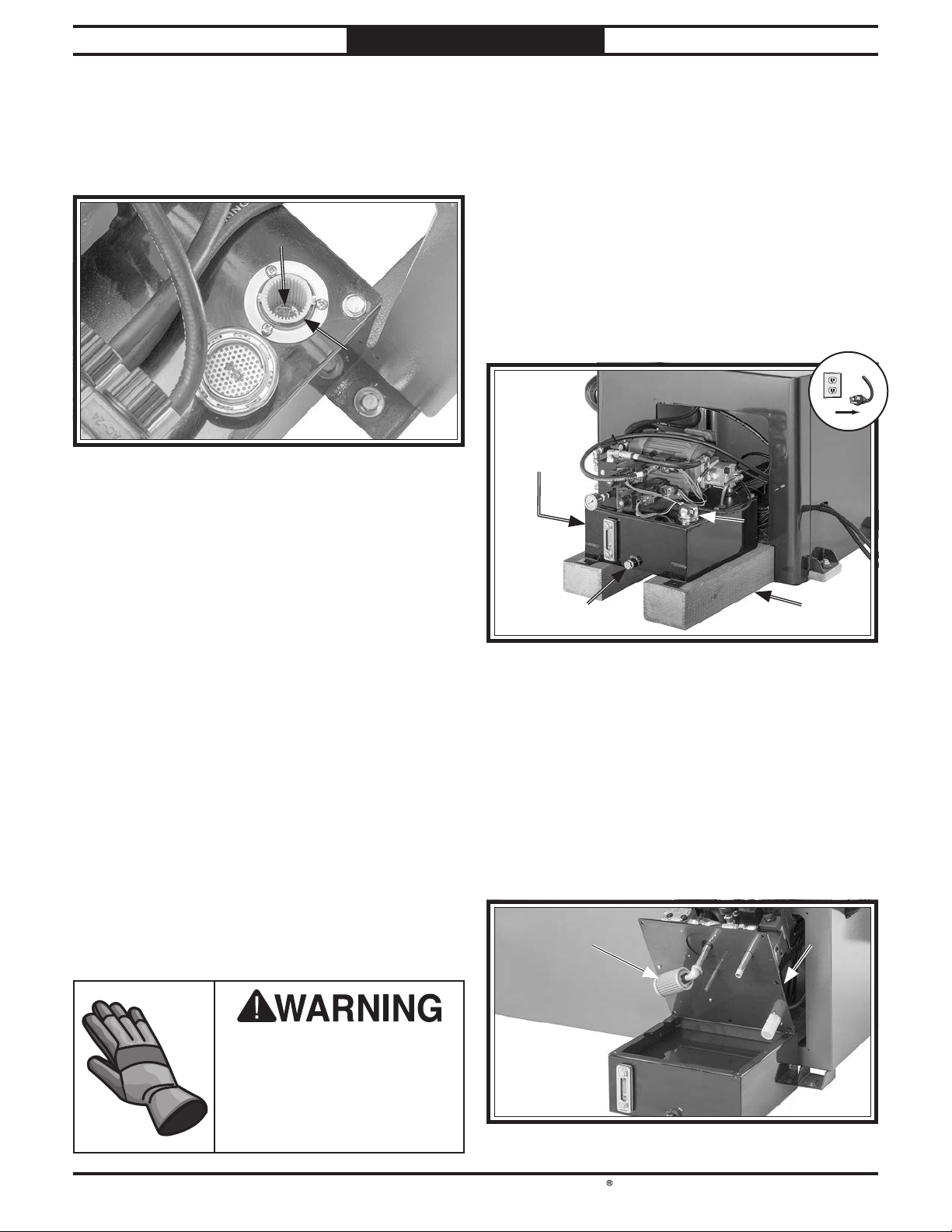

— If ﬂuid is not contaminated, proceed to

Step 7.

Check ﬂuid level. Fluid should just cover

bottom of ﬁll screen (see Figure 69).

Proper Fluid LevelProper Fluid Level

Fill ScreenFill Screen

Figure 69. Example of proper fluid level.

— If ﬂuid level is low, slowly add hydraulic

ﬂuid until it just covers bottom of ﬁll screen.

To change hydraulic ﬂuid:

1. Perform Steps 1–4 of Checking Hydraulic

Fluid beginning on Page 44.

Remove (4) ﬂange nuts securing hydraulic

tank to machine base, then slide hydraulic unit out of machine cabinet and support weight of unit with wood blocks (see Figure 70).

Remove tank cap (see Figure 70), then

remove drain plug and allow tank to empty into drain pan.

HydraulicHydraulic

UnitUnit

Tank CapTank Cap

Install ﬁll cap and rear access panel.

Changing Hydraulic Fluid

The hydraulic ﬂuid should be changed and the ﬂuid tank cleaned after the ﬁrst 50 hours of use, then every 6 months.

Items Needed Qty

Safety Goggles .......................................1 Pr.

Protective Gloves Hex Wrench 4mm Wrench or Socket 13, 21mm Wood Blocks 3-Gallon Drain Pan Mineral Spirits Shop Rags Thread-Sealing Tape T23963 or ISO 32 Equivalent Funnel

.................................... As Needed

......................................................1

...................................1 Pr.

........................................1

.................... 1 Ea.

................................. As Needed

......................................1

.............................. As Needed

....................... As Needed

..............2 Gallons

Drain PlugDrain Plug

Figure 70. Hydraulic unit removed from cabinet.

4. Clean ﬁll cap and ﬁll screen (see Figure 69)

with mineral spirits and allow to air dry.

Open tank by removing (8) hex bolts and ﬂat

washers that secure hydraulic tank lid.

Clean tank and tank screen (see Figure 71)

with mineral spirits. Wipe out as much residual ﬂuid and contaminants as possible. Allow tank and tank screen to air dry.

Tank Tank

ScreenScreen

Wood Wood BlockBlock

Tank LidTank Lid

Hydraulic tank may be hot. Wear protective gloves to protect hands from possible burns and from skin irritation caused by hydraulic fluid.

Figure 71. Example of hydraulic fluid tank lid opened.

-45-

South Bend Tools

Model SB1122

7. Install tank lid and screen.

MAINTENANC E

For Machines Mfd. Since 10/22

8. Clean and wrap drain plug threads with thread-sealing tape, install drain plug, then ﬁll tank with 2 gallons of T23963 or ISO 32 equivalent.

Install ﬁll cap, install hydraulic unit to base

inside cabinet, and install rear access panel.

Cutting Fluid System Maintenance

The cutting ﬂuid system consists of a reservoir, pump, and hoses with valves. The pump pulls cutting ﬂuid from the reservoir and sends it to the valves, which control the ﬂow of cutting ﬂuid. As the cutting ﬂuid leaves the work area, it drains through the machine cabinet, where the swarf and metal chips are screened out, and back into the reservoir.

Although most swarf from machining operations is screened out of the cutting ﬂuid before it returns to the tank, small particles will accumulate in the bottom of the reservoir in the form of sludge. To prevent this sludge from being pulled into the pump and damaging it, the pump's intake is positioned above the bottom of the tank. This works well when the tank is regularly cleaned; however, if excess sludge is allowed to accumulate, the pump will inevitably begin sucking it up.

BIOLOGICAL & POISON

HAZARD! Use correct personal protective equipment when handling cutting fluid. Follow federal, state, and fluid manufacturer requirements for proper disposal.

Adding Cutting Fluid

Items Needed Qty

Safety Wear ................................See Hazards

Cutting ﬂuid Clean Jug or Bucket Disposable Shop Rags

To add cutting ﬂuid:

1. DISCONNECT MACHINE FROM POWER!

2. Mix cutting ﬂuid according to cutting ﬂuid

manufacturer's speciﬁcations.

Pour cutting ﬂuid through chip screen to ﬁll

reservoir until cutting ﬂuid level ﬁlls sight glass shown in Figure 72.

................................. As Needed

.....................................1

..................... As Needed

Chip ScreenChip Screen

Hazards

As cutting ﬂuid ages and gets used, dangerous microbes can proliferate and create a biological hazard. The risk of exposure to this hazard can be greatly reduced by replacing the old cutting ﬂuid on a monthly basis, or as indicated by the manufacturer of the cutting ﬂuid.

When working with the cutting ﬂuid, minimize exposure to your skin, eyes, and lungs by wearing the proper PPE (Personal Protective Equipment), such as long-sleeved waterproof gloves, protective clothing, splash-resistant safety goggles, and a NIOSH-approved respirator.

-46-

SightSight

GlassGlass

Figure 72. Location of cutting fluid sight glass and

chip screen.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

MAINTENANC E

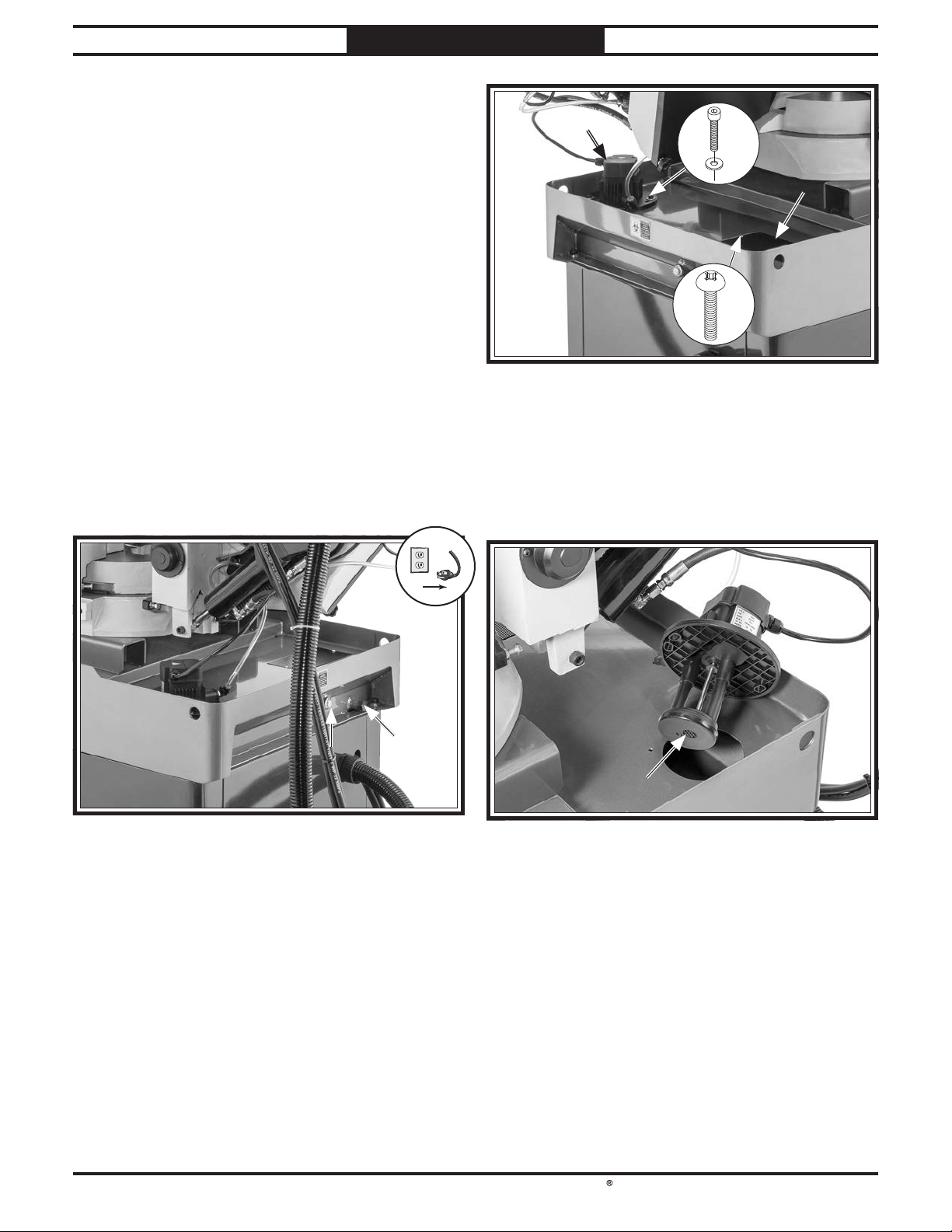

Changing Cutting Fluid

Items Needed Qty

Safety Wear .................See Hazards on Page 46

Wrench or Socket 21mm 5-Gallon Drain Pan Phillips Head Screwdriver #2 Hex Wrench 5mm Water Hose w/Spray Nozzle Antibacterial Soap Disposable Shop Rags Thread-Sealing Tape Clean Jug or Bucket Cutting Fluid

........................................1

............................... 3.9 Gallons

To change cutting ﬂuid:

1. DISCONNECT MACHINE FROM POWER!

2. Remove drain plug (see Figure 73), empty

reservoir into drain pan, and dispose of cutting ﬂuid per federal, state, and manufacturer's requirements.

...............................1

......................................1

........................1

..........................1

......................... As Needed

..................... As Needed

....................................1

.....................................1

Cutting Fluid Cutting Fluid

PumpPump

x 2

Chip ScreenChip Screen

x 2

Figure 74. Location of reservoir cleaning components.

5. Thoroughly clean reservoir through chip

screen and cutting ﬂuid pumps holes with hot, soapy water, then rinse with clean water.

Clean pump intake (see Figure 75).

SightSight

GlassGlass

Figure 73. Location of drain plug and sight glass.

3. Remove (2) Phillips head screws shown in

Figure 74 to remove chip screen.

Remove (2) cap screws and ﬂat washers

shown in Figure 74 to remove cutting ﬂuid pump from cabinet.

Drain Drain

PlugPlug

Pump IntakePump Intake

Figure 75. Location of pump intake.

7. Clean and wrap drain plug threads with

thread-sealing tape, then install drain plug.

Install cutting ﬂuid pump and chip screen.

9. Mix 3.9 gallons of cutting ﬂuid according to

cutting ﬂuid manufacturer's speciﬁcations, then pour cutting ﬂuid through chip screen hole to ﬁll reservoir until cutting ﬂuid level ﬁlls sight glass shown in Figure 73.

-47-

South Bend Tools

Model SB1122

Service

SERVICE

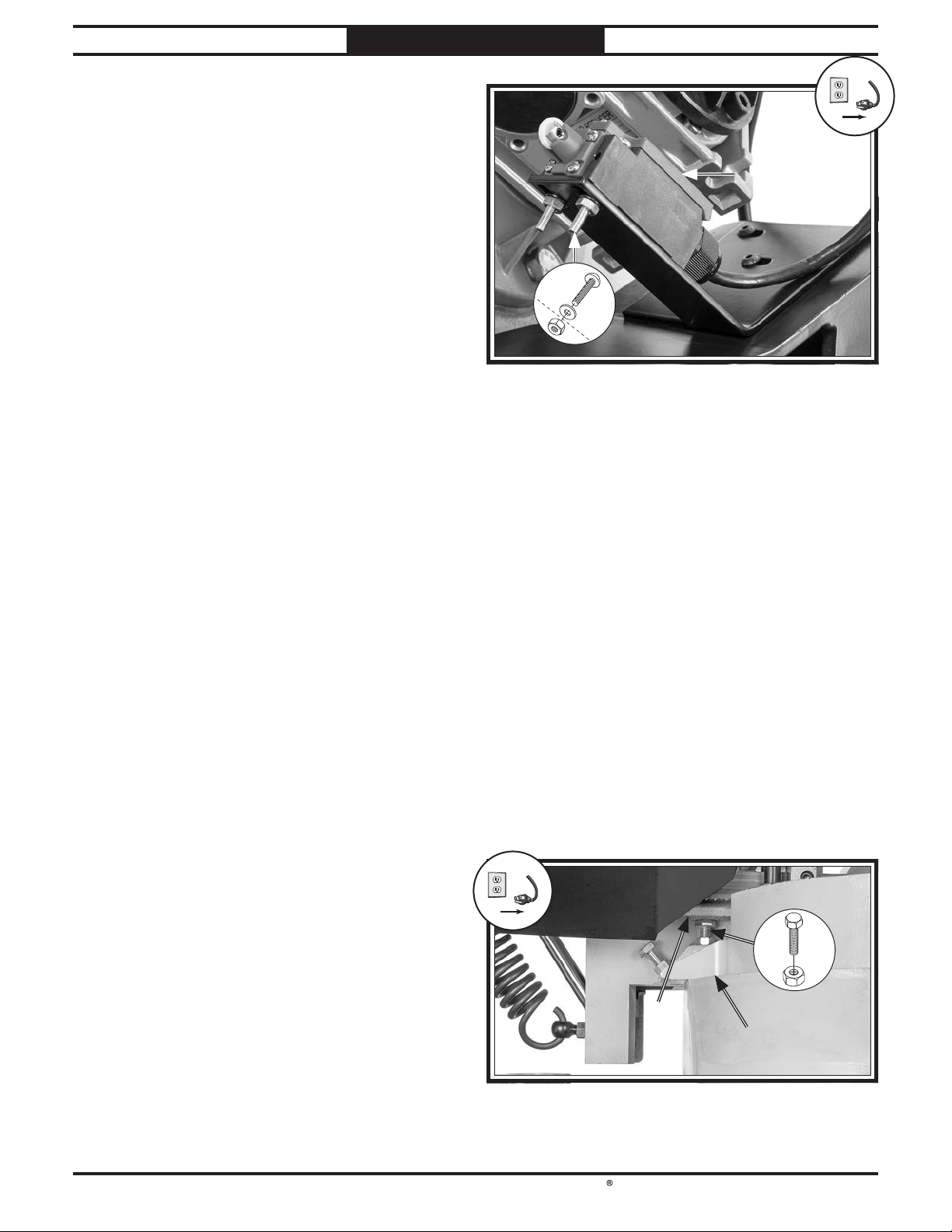

Adjusting Headstock Travel Limits

The Model SB1122 is equipped with a limit switch that stops the blade motor when a cut is finished, a downfeed stop bolt that stops the headstock from lowering when it reaches the end of its travel, and a stop bolt for when the headstock reaches its full height.

For Machines Mfd. Since 10/22

Limit SwitchLimit Switch

If the headstock does not completely cut through a workpiece before it stops lowering or before the blade stops, or if the blade cuts into the vise table, you will need to adjust the limit switch and the downfeed stop bolt.

Testing Downfeed Travel Limit

1. Lower headstock as far as it will go. When

headstock stops, blade should stop and be just below vise table, but not contacting it.

— If blade stops and is just below vise table,

but not contacting it, no adjustment is required.

— If headstock stops when blade is just

below vise table, but not contacting it, but blade does not stop, refer to Adjusting Downfeed Limit Switch.

— If blade contacts vise table, raise

headstock until blade is just below vise table surface. Refer to Raising Downfeed Travel Limit.

— If blade does not reach vise table, refer

to Lowering Downfeed Travel Limit on Page 49.

x 2

Figure 76. Downfeed limit switch adjustment

components.

3. Slide downfeed limit switch toward control

panel column until you hear it click against column, then tighten hex nuts to secure position.

Refer back to Testing Downfeed Travel Limit

to check adjustment.

Raising Downfeed Travel Limit

Tools Needed Qty

Wrench or Socket 17mm ............................... 1

Open-End Wrenches 8, 14mm

To raise downfeed travel limit:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen downfeed stop bolt until head of bolt

contacts bottom of headstock, then tighten jam nut against vise table without moving stop bolt to secure (see Figure 77).

...................1 Ea.

Adjusting Downfeed Limit Switch

Tools Needed Qty

Open-End Wrench 8mm ................................ 1

Phillips Head Screwdriver #2

To adjust downfeed limit switch:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (2) hex nuts shown in Figure 76.

-48-

........................ 1

HeadstockHeadstock

Vise TableVise Table

Figure 77. Location of downfeed stop bolt.

3. Loosen (2) hex nuts shown in Figure 76.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

SERVICE

4. Slide downfeed limit switch toward control

panel column until you hear it click against column, then tighten hex nuts to secure position.

Refer back to Testing Downfeed Travel Limit

on Page 48 to check adjustment.

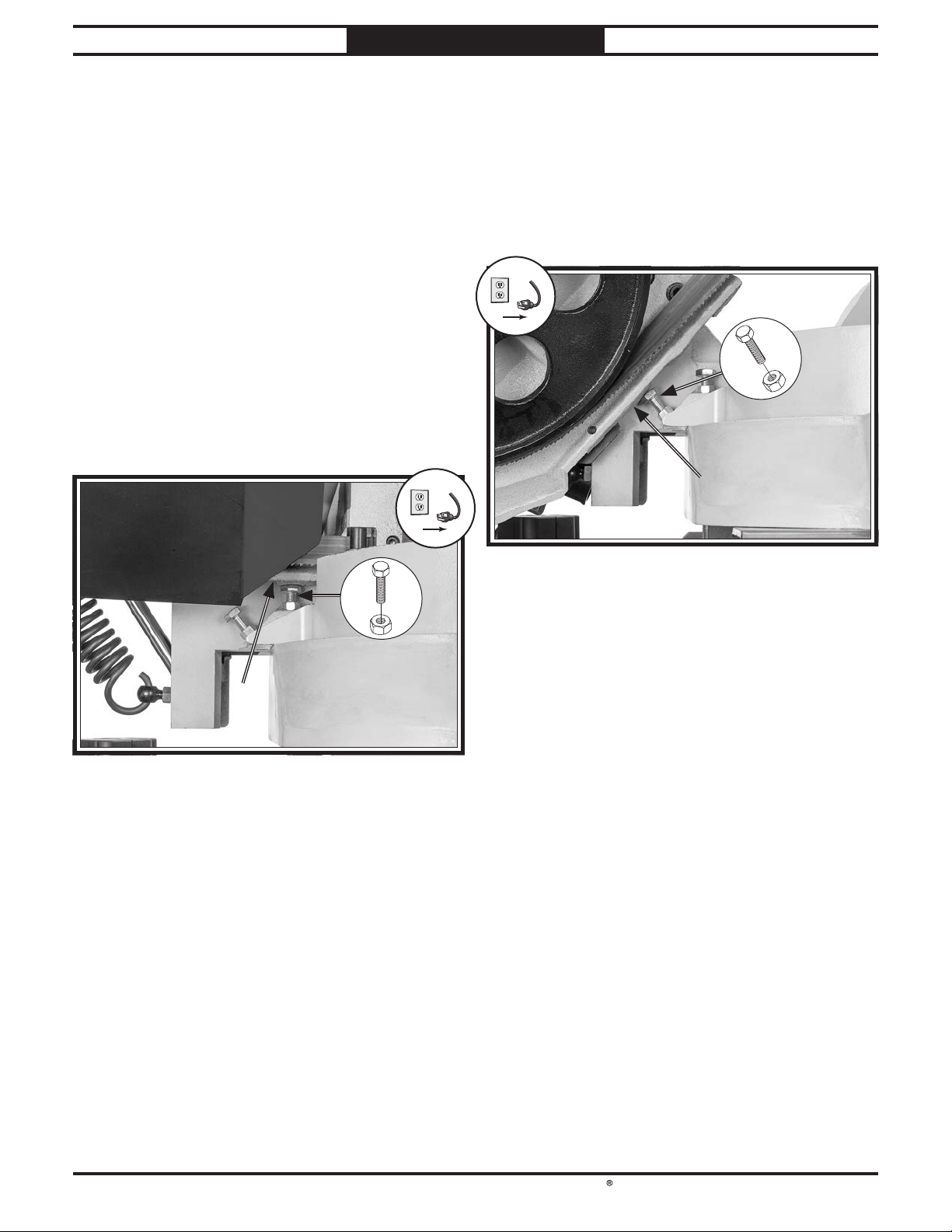

Lowering Downfeed Travel Limit

Tools Needed Qty

Wrench or Socket 17mm ............................... 1

Open-End Wrenches 8, 14mm

To lower downfeed travel limit:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen jam nut and tighten downfeed stop

bolt all the way (see Figure 78).

...................1 Ea.

8. Refer back to Testing Downfeed Travel Limit

on Page 48 to check adjustment.

Adjusting Full-Height Stop Bolt

When the hydraulic cylinder fully raises the headstock, the full-height stop bolt (see Figure 79) should contact the underside of the headstock.

HeadstockHeadstock

Figure 78. Location of downfeed stop bolt.

3. Loosen (2) hex nuts shown in Figure 76 on

Page 48.

Slide downfeed limit switch away from

control panel column as far as it will go.

Lower headstock until blade is just below

vise table surface, but not contacting table.

Loosen downfeed stop bolt until head of bolt

contacts bottom of headstock, then tighten jam nut without moving stop bolt to secure.

Figure 79. Location of full height stop bolt.

Tools Needed Qty

Wrench or Socket 17mm ............................... 1

Open-End Wrench 14mm

.............................. 1

To adjust full height stop bolt:

1. Raise headstock as far as it will go.

— If full height stop bolt is contacting

underside of headstock, no adjustment is required.

— If full height stop bolt is not contacting

underside of headstock, proceed to Step 2.

DISCONNECT MACHINE FROM POWER!

3. Loosen full height stop hex bolt (see Figure

79) until it contacts headstock, then tighten jam nut without moving stop bolt to secure.

Slide downfeed limit switch toward control

panel until you hear it click against column, then tighten hex nuts to secure position.

-49-

South Bend Tools

Model SB1122

Figure 81. Example of lifting hooks attached to lifting

holes.

SERVICE

For Machines Mfd. Since 10/22

Squaring Blade to Table

A blade that is perpendicular to the vise table surface provides the best cutting results with minimal side loading and blade wear. This adjustment has been made at the factory and should not need to be adjusted under normal circumstances. However, if you ﬁnd the saw is not cutting square, you may need to adjust the blade. Only make this adjustment after ruling out other potential factors, such as excessive feed rate or the top blade guide being adjusted too far away from the workpiece.

Tools Needed Qty

Machinist's Square ...................................... 1

Hex Wrenches 3, 4, 5, 6mm

To square blade to table:

1. Lower headstock all the way.

2. DISCONNECT MACHINE FROM POWER!

......................1 Ea.

— If blade is not square to vise table,

proceed to Step 5.

On bottom blade guide, loosen (2) button

head cap screws shown in Figure 81 to remove blade brush assembly.

x 2

Loosen (2) cap screws shown in Figure 82 on

top blade guide and (2) button head screws shown in Figure 83 on bottom blade guide.

3. Adjust top blade guide as far up as possible.

4. Place machinist's square on vise table

surface and against edge of blade (see Figure

80). Check for squareness at different points

along length of vise table between blade guides.

Figure 80. Checking blade squareness to table.

Figure 82. Location of top blade guide cap screws.

x 2

— If blade is square to vise table, no

adjustment is required.

-50-

Figure 83. Location of bottom blade guide button head

cap screws.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

SERVICE

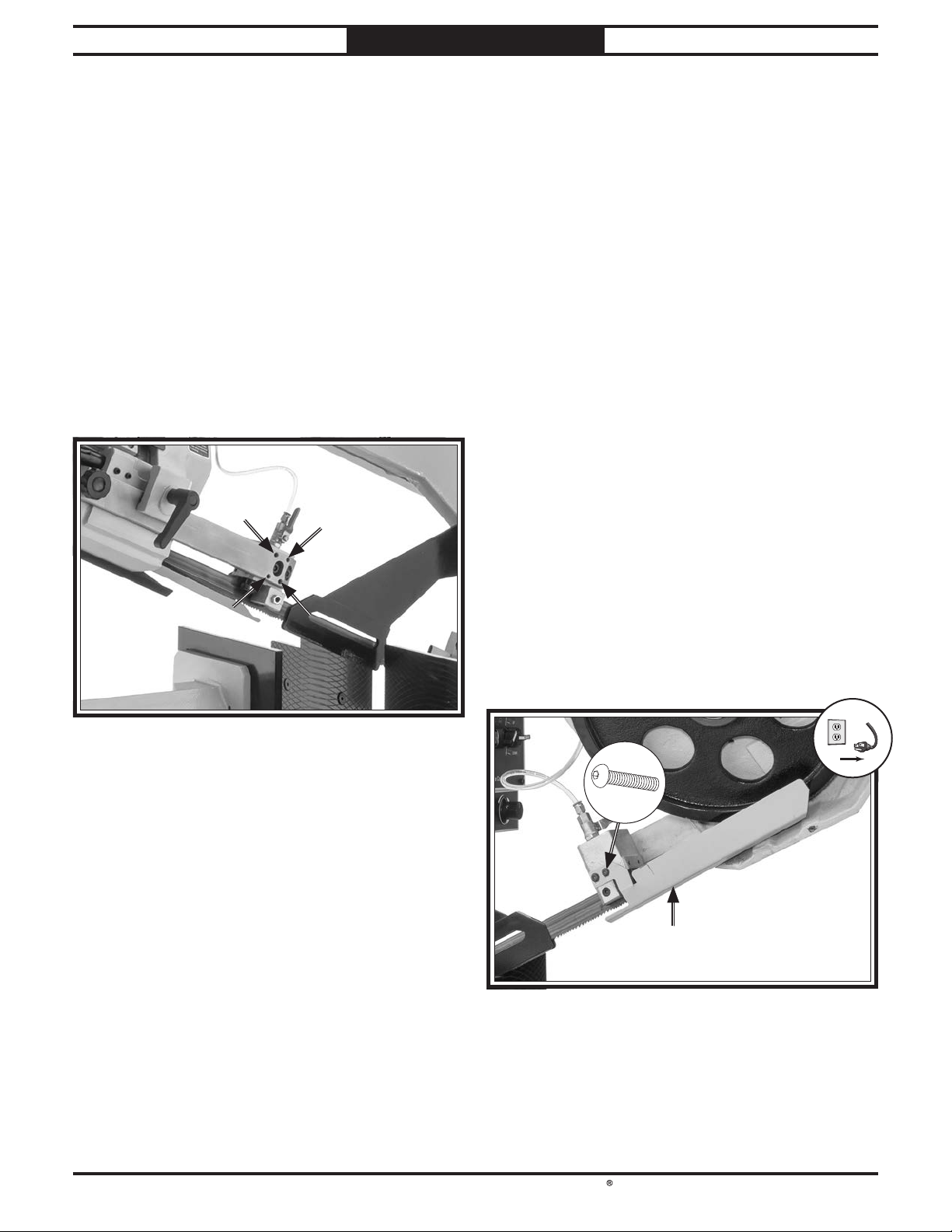

— For top blade guide, if top of blade tilts

away from square, loosen top (2) set screws shown in Figure 84 and tighten bottom (2) set screws an equal amount while observing blade squareness (amount you adjust screws depends on how far blade is from square). Repeat for bottom blade guide.

— For top blade guide, if bottom of blade

tilts away from square, tighten top (2) set screws shown in Figure 84 and loosen bottom (2) set screws an equal amount while observing blade squareness (amount you adjust screws depends on how far blade is from square). Repeat for bottom blade guide.

Adjusting Blade Guides & Bearings

The carbide blade guides and roller bearings come adjusted from the factory, but due to blade changes, shipping, storage, and time, they may need adjustment. Uneven blade wear and crooked cuts may be the result of improper adjustment.

Tools Needed Qty

Hex Wrenches 3, 4, 5, 6mm ......................1 Ea.

Open-End Wrench 13mm Flat Head Screwdriver

Adjusting Carbide Blade Guides

The blade should be properly installed and tensioned before the carbide blade guides are adjusted (see Changing Blade on Page 29 and Tensioning Blade on Page 31).

To adjust carbide blade guides:

1. Raise headstock enough to give you room to

work around blade guides.

.............................. 1

/4" ............................ 1

Figure 84. Location of top blade guide blade

squareness set screws.

7. Tighten screws loosened in Step 6.

Repeat Steps 4–7 as necessary until the

blade is perfectly square to the table.

Install blade brush assembly and refer to

Adjusting Blade Brush on Page 58.

DISCONNECT MACHINE FROM POWER!

3. Remove (2) button head cap screws and top

blade guard shown in Figure 85.

x 2

Blade GuardBlade Guard

Figure 85. Location of top blade guard components

(blade cover removed for clarity).

-51-

South Bend Tools

Model SB1122

SERVICE

For Machines Mfd. Since 10/22

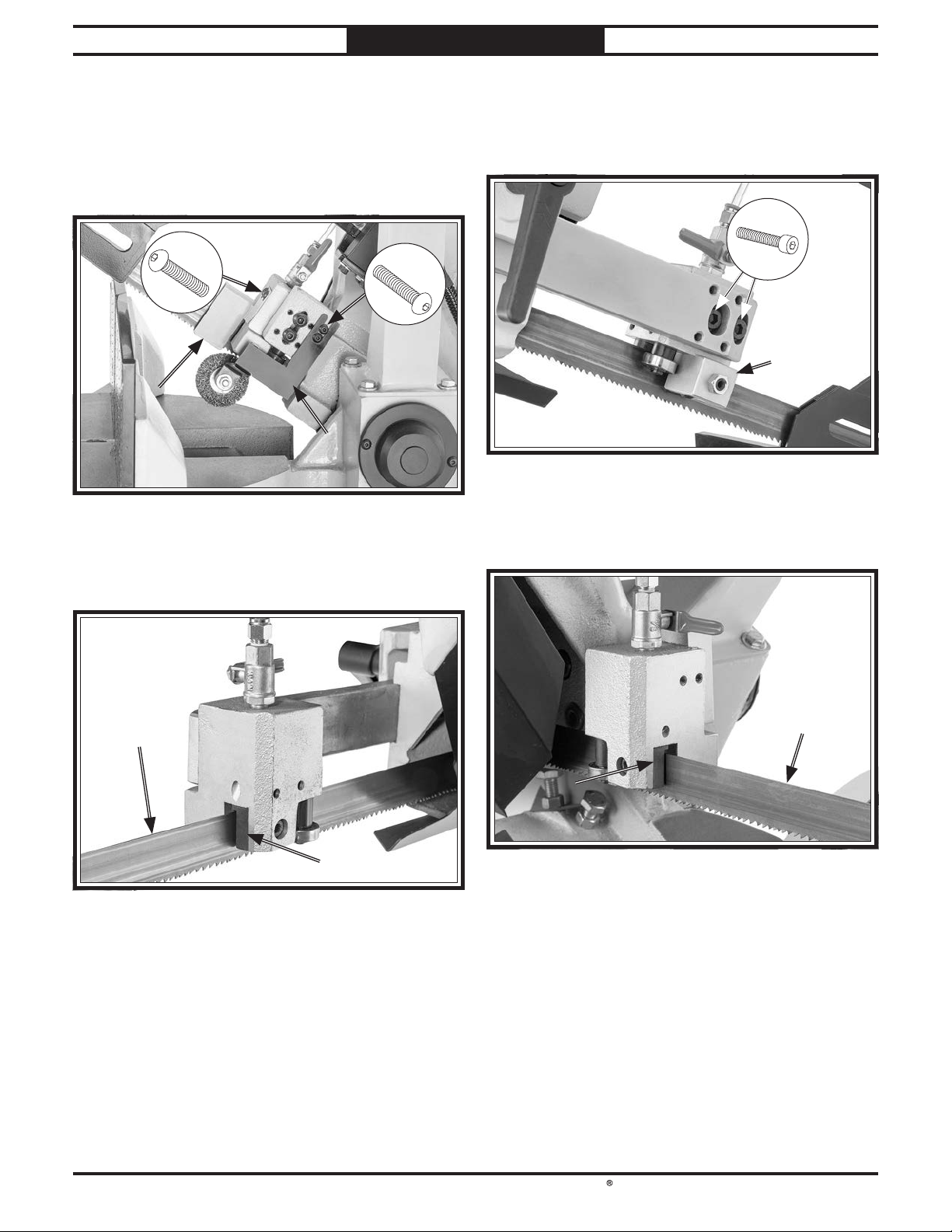

4. Remove (2) button head cap screws and

bottom blade guard shown in Figure 86.

On bottom blade guide, loosen (2) button

head cap screws shown in Figure 86 to remove blade brush assembly.

x 2

Blade GuardBlade Guard

Blade Brush Blade Brush

AssemblyAssembly

Figure 86. Blade brush assembly screws and blade

guard screws.

x 2

6. On top blade guide, verify back of blade

lightly contacts blade guide (see Figure 87).

Loosen (2) cap screws shown in Figure 88 and

adjust blade guide assembly up or down until blade guide lightly touches back of blade, then tighten screws.

Blade Guide Blade Guide

AssemblyAssembly

Figure 88. Location of blade guide assembly

adjustment screws.

8. On bottom blade guide, verify back of blade

lightly contacts blade guide (see Figure 89).

Back ofBack of

BladeBlade

Blade GuideBlade Guide

Figure 87. Blade guide contacting back of blade.

— If blade does not lightly contact blade

guide, proceed to Step 7.

— If blade does lightly contact blade guide,

proceed to Step 8.

Back ofBack of

BladeBlade

BladeBlade GuideGuide

Figure 89. Blade guide contacting back of blade.

— If blade does not lightly contact blade

guide, proceed to Step 9.

— If blade does lightly contact blade guide,

proceed to Step 10.

9. Loosen (2) button head cap screws shown in

Figure 90, adjust blade guide assembly up or down until blade guide lightly touches back of blade, then tighten screws.

-52-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

SERVICE

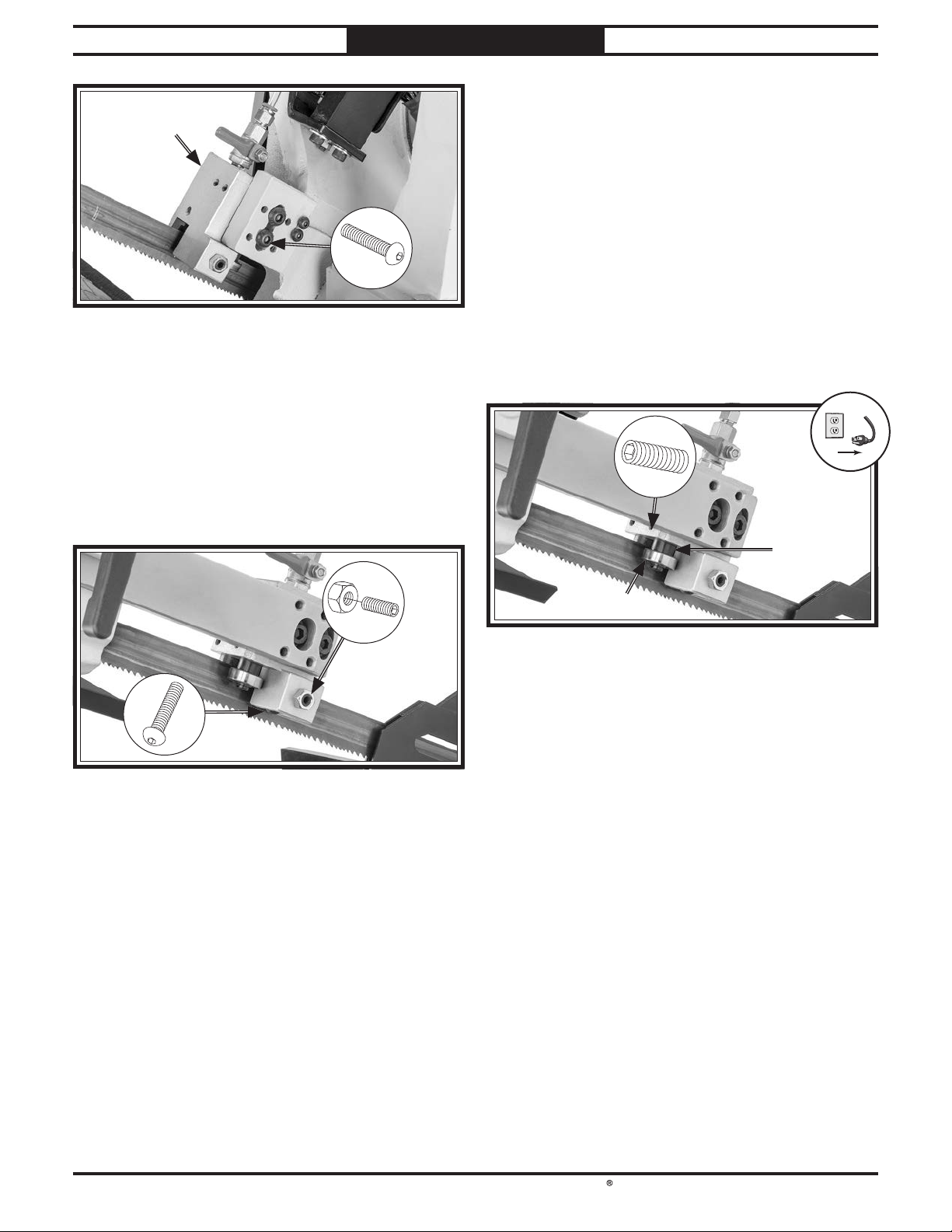

To adjust roller bearings:

Blade Guide Blade Guide

AssemblyAssembly

x 2

Figure 90. Blade guide assembly adjustment screws.

10. On each blade guide, loosen button head cap

screw shown in Figure 91.

On top blade guide, loosen hex nut shown in

11.

Figure 91.

Tighten set screw until carbide blade guides

12.

are snug against blade, then back set screw

/2 turn (see Figure 91).

out

1. Raise headstock enough to give you room to

work around blade guides.

DISCONNECT MACHINE FROM POWER!

3. On top blade guide, loosen set screw shown in

Figure 92.

Turn eccentric shaft clockwise to adjust

roller bearing closer to blade, and counterclockwise to adjust it further from blade (see Figure 92). Roller bearings should lightly contact blade or have a maximum clearance of 0.002".

Eccentric Eccentric

ShaftShaft

Figure 91. Location of carbide blade guide adjustment

fasteners.

13. Tighten hex nut without turning set screw to

secure carbide blade guide adjustment.

Repeat Steps 11–13 on bottom blade guide.

14.

Tighten button head cap screws loosened in

15.

Step 10.

Refer to following section to adjust roller

16.

bearings before resuming operation.

Roller BearingRoller Bearing

Figure 92. Roller bearing adjustment components.

5. Tighten set screw to secure roller bearing

position.

Repeat Steps 3–5 for roller bearing on other

side of top guide.

Note: Since bearings twist blade into

position, it is acceptable if there is 0.001"-

0.002" gap between blade and front or back of bearing. Just make sure not to squeeze blade too tightly with bearings. After guide bearings are set, you should be able to rotate bearings with your fingers (although they will be stiff).

Repeat Steps 4–7 for bottom blade guide.

Install blade guards for both guides.

Adjusting Roller Bearings

Guide roller bearings should only be adjusted after the carbide blade guides (see Adjusting Carbide Blade Guides on Page 51).

Install blade brush assembly and refer to

Adjusting Blade Brush on Page 58.

-53-

South Bend Tools

Model SB1122

Replacing

SERVICE

For Machines Mfd. Since 10/22

Motor Brushes

This bandsaw is equipped with a universal motor that uses two carbon brushes to transmit electrical current inside the motor. These brushes are considered to be regular "wear items" or "consumables" that will need to be replaced during the life of the motor. The frequency of required replacement if often related to how much the motor is used and how hard it is pushed.

Replace the carbon brushes at the same time when the motor no longer reaches full power, or when the brushes measure less than brushes are

If your machine is used frequently, we recommend keeping an extra set of these replacement brushes on-hand to avoid any downtime.

Items Needed Qty

Flat Head Screwdriver 1⁄4" ............................. 1

Replacement Brush Pair (PSB1122071-2)

⁄2" long).

To replace motor brushes:

1. DISCONNECT MACHINE FROM POWER!

2. Remove brush caps and worn brushes from

main motor (see Figures 93–94).

⁄8" long (new

........ 1

BrushBrush

(1 of 2)(1 of 2)

Brush CapBrush Cap

(1 of 2)(1 of 2)

Figure 94. Location of brushes under brush caps.

Replace both motor brushes and install

brush caps.

Adjusting Downfeed Pressure

The spring under the headstock controls the downward pressure of the headstock during cutting operations. The tension of this spring should only be adjusted if tension is too loose, resulting in premature blade dulling or crooked cuts. Consult the Troubleshooting section beginning on Page 59 to conﬁrm this is the source of the problem before adjusting.

Tighten the cap screw shown in Figure 95 to increase the spring tension or loosen the cap screw to decrease the tension.

Brush CapBrush Cap

(1 of 2)(1 of 2)

Figure 93. Location of brush caps on main motor.

-54-

Tool Needed Qty

Hex Wrench 8mm ........................................ 1

SpringSpring

Figure 95. Downfeed pressure components.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

SERVICE

Calibrating Headstock Angle Scale

For accurate cutting results, ensure the headstock angle scale is calibrated. If calibrated correctly, the scale should read 0° when the blade is perpendicular to the fixed vise jaws.

Tools Needed Qty

Machinist's Square ...................................... 1

Hex Wrench 3mm

To calibrate headstock angle scale:

1. Lower headstock completely.

2. DISCONNECT MACHINE FROM POWER!

3. Lift workpiece arm out of the way.

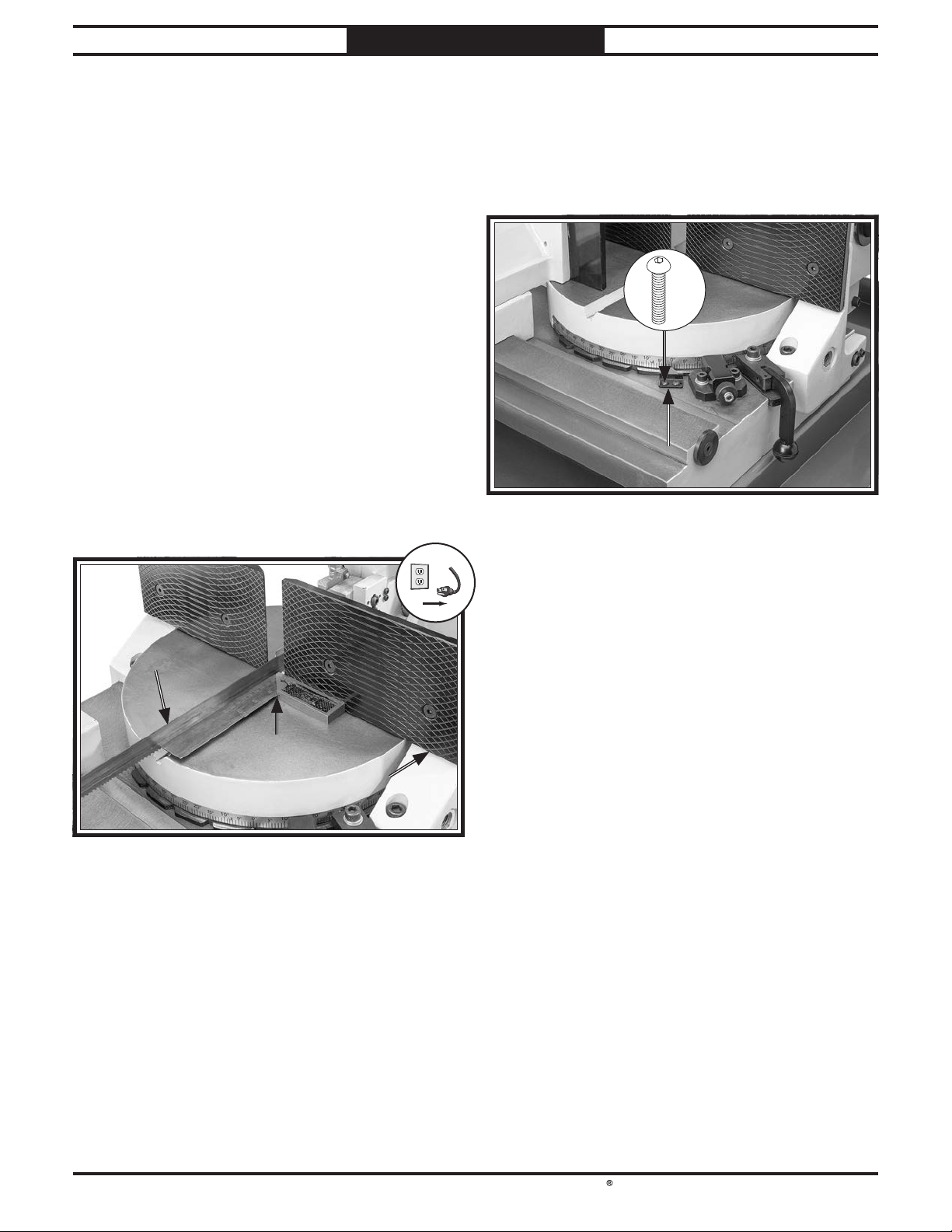

4. Use square to adjust headstock angle until

blade is 90° to fixed vise jaws (see Figure 96).

........................................ 1

5. Loosen (2) button head cap screws shown in

Figure 97.

Adjust indicator (see Figure 97) until it

displays 0°, then tighten button head cap screws to secure.

x 2

IndicatorIndicator

Figure 97. Location of scale indicator button head cap

screws.

BladeBlade

SquareSquare

FixedFixed

Vise JawVise Jaw

Figure 96. Blade square to fixed vise jaws.

— If scale indicator displays 0° when blade

is square to vise jaws, scale is calibrated correctly. No adjustment is needed.

Adjusting Angle Stops

The swivel base is equipped with three angle stops to provide quick adjustments to 0° and 60° to the right and 45° to the left. If cuts made using these stops are not sufficiently accurate, the stops will need to be adjusted.

Tools Needed Qty

Wrenches or Sockets 13mm ........................... 2

To adjust angle stops:

1. Refer to Calibrating Headstock Angle Scale

to calibrate scale before proceeding.

DISCONNECT MACHINE FROM POWER!

-55-

South Bend Tools

Model SB1122

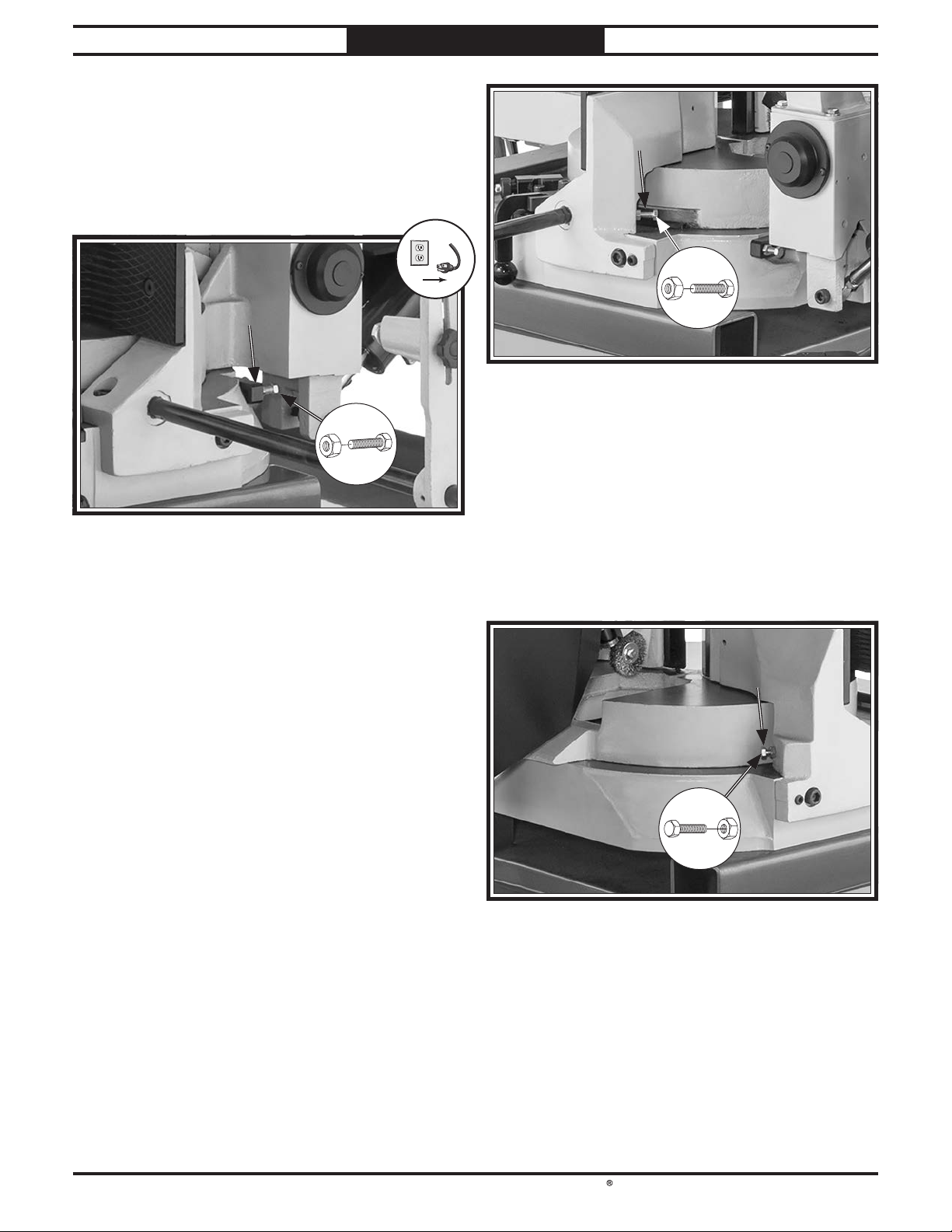

3. Adjust headstock to 0° (see Figure 98) then

flip 0° stop up.

— If stop bolt prevents stop from flipping

up, loosen jam nut and tighten bolt (see

Figure 98) until it can, then proceed to Step 4.

0° Stop0° Stop

SERVICE

For Machines Mfd. Since 10/22

60° Stop60° Stop

Figure 99. Location of 60° stop adjustment

components.

— If scale displays more than 60°, proceed to

Step 7.

Figure 98. Location of 0° stop adjustment

components.

— If stop bolt is snug against headstock base

at 0°, 0° stop does not require adjustment. Proceed to Step 5.

— If stop bolt is not snug against headstock

base at 0°, proceed to Step 4.

Adjust stop bolt until it is snug against

headstock base, then tighten jam nut without turning bolt to secure setting.

Flip 0° stop down.

Adjust headstock as far to the right as it will

go.

— If scale displays 60°, 60° stop does not

require adjustment. Proceed to Step 8.

Adjust 60° stop bolt until it is snug against

vise table, then tighten jam nut without turning bolt to secure setting.

8. Repeat Steps 6–7 for 45° stop (see

Figure 100).

45° Stop45° Stop

Figure 100. Location of 45° stop adjustment

components.

— If scale displays less than 60°, loosen jam

nut and tighten bolt shown in Figure 99 until headstock can adjust to 60°, then proceed to Step 7.

-56-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

SERVICE

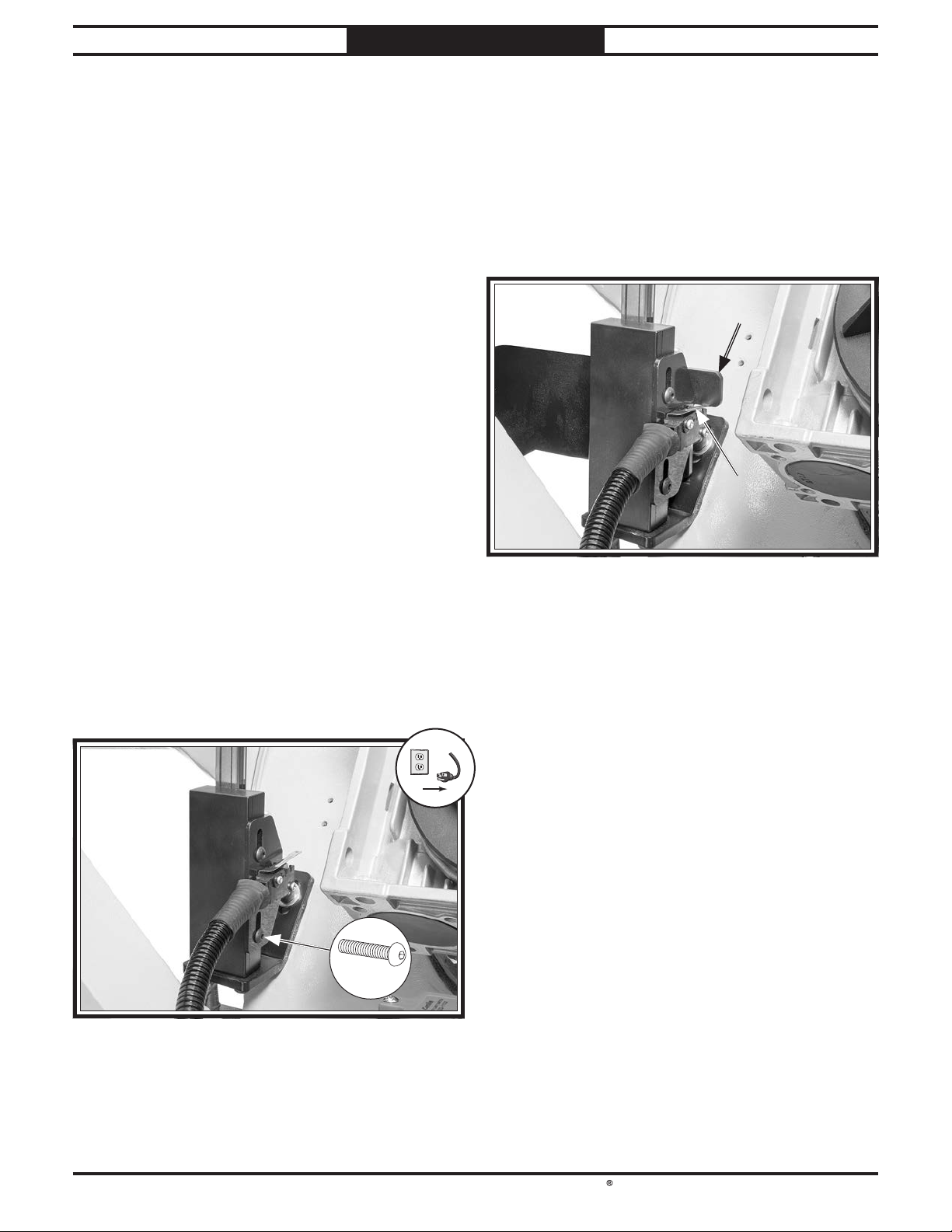

Adjusting Workpiece Contact Safety Switch

The Model SB1122 features a workpiece contact safety switch to prevent the blade from feeding too quickly into a workpiece. This allows the headstock to lower quickly until a workpiece is contacted, so the slower downfeed rate is only activated as needed in order to speed up production.

Items Needed Qty

Scrap Workpiece ......................................... 1

Hex Wrench 3mm

To adjust workpiece contact safety switch:

1. Install workpiece in vise and perform

automatic cutting operation.

— If downfeed rate slows when blade

contacts workpiece, no adjustment is required.

— If downfeed rate does not slow when blade

contacts workpiece, proceed to Step 2.

DISCONNECT MACHINE FROM POWER!

........................................ 1

4. Adjust safety switch position until switch

button is not pressed by workpiece arm while blade is contacting workpiece (see Figure 102).

Note: Safety switch button should still be

close enough to workpiece arm that when blade leaves workpiece, arm presses switch button.

Workpiece ArmWorkpiece Arm

Safety Switch Safety Switch

ButtonButton

Figure 102. Location of safety switch and workpiece

arm.

5. Tighten button head cap screws to secure

safety switch position.

Loosen (2) button head cap screws shown in

Figure 101.

x 2

Figure 101. Location of workpiece contact safety

switch adjustment screws.

Connect machine to power and repeat Step 1

to confirm adjustment is correct.

-57-

South Bend Tools

Model SB1122

SERVICE

For Machines Mfd. Since 10/22

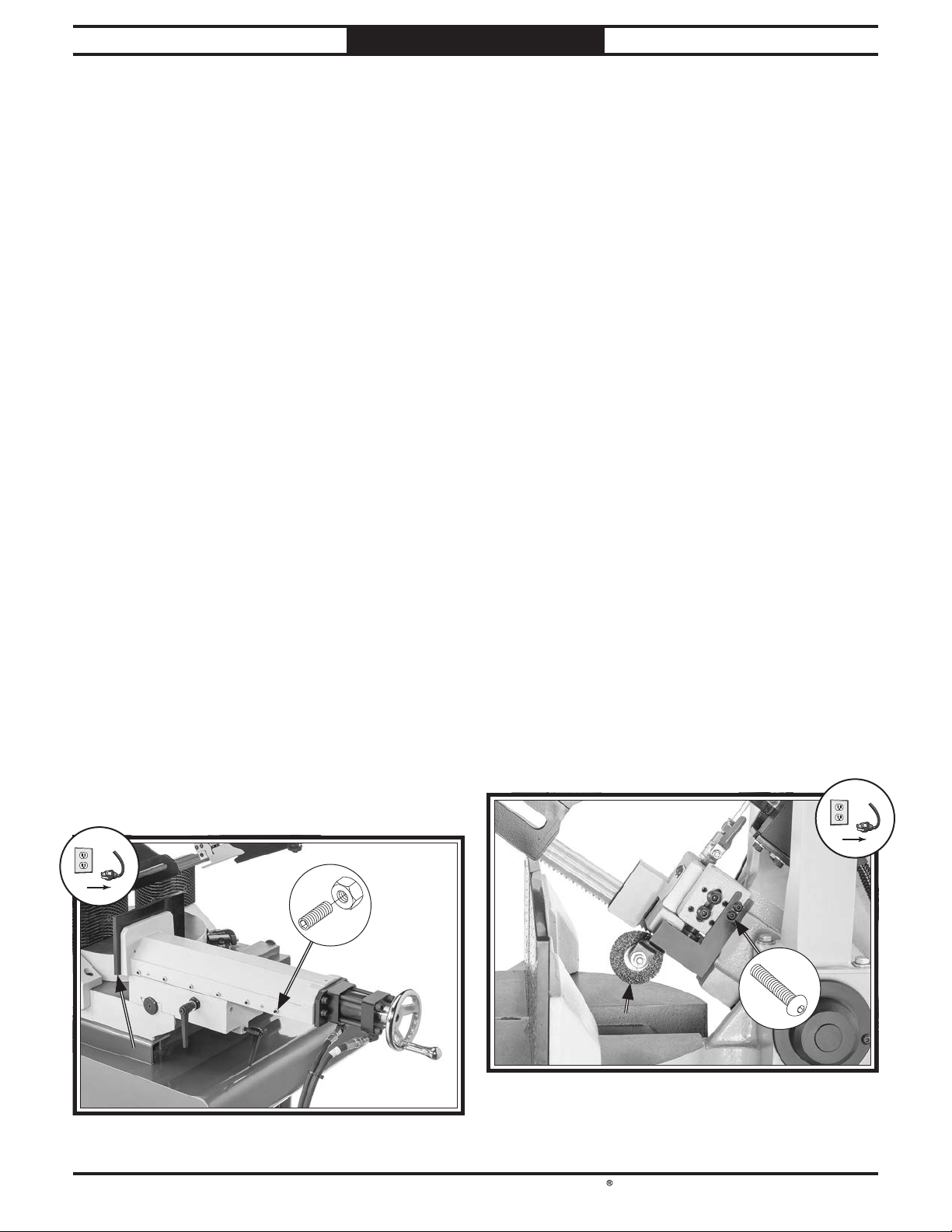

Adjusting Vise Gib

The vise gib adjustment affects the friction between the sliding surfaces of the vise. Tightening the gib too much will make it hard to adjust the vise and cause excessive wear on the slide. Loosening the gib too much will make the vise clamping and movements sloppy.

Tools Needed Qty

Open-End Wrench 10mm ..............................1

Hex Wrench 2.5mm

To adjust vise gib:

1. DISCONNECT MACHINE FROM POWER!

Use vise handwheel to close vise all the way.

— If handwheel smoothly closes vise,

proceed to Step 3.

— If it is difﬁcult to turn handwheel or you

feel resistance from vise slide, gib may need to be loosened. Proceed to Step 4.

Attempt to wiggle adjustable vise jaw (see

Figure 103).

— If there is movement, gib may need to be

tightened. Proceed to Step 4.

— If there is not movement, no adjustment

is necessary.

Loosen (6) jam nuts on gib set screws (see

Figure 103).

..................................... 1

5. Evenly adjust gib set screws in small

amounts then test results using methods in Steps 2–3.

When you are satisfied with gib adjustment,

tighten jam nuts without turning set screws.

Repeat Steps 2–3 to confirm gib adjustment.

If necessary, repeat Steps 4–6.

Adjusting Blade Brush

The Model SB1122 has a blade brush to help keep metal chips off the blade wheels. It will wear over time and require re-adjustment when it no longer contacts the blade. Eventually, the brush will require replacement. This is considered a normal wear item and not covered by warranty.

Tool Needed Qty

Hex Wrench 3mm ........................................ 1

To adjust blade brush:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (2) button head cap screws shown in

Figure 104.

Adjust blade brush (see Figure 104) as

needed so blade extends approximately

⁄8" into bristles of brush. Hold bracket in position, then tighten button head cap screws to secure.

AdjustableAdjustable

Vise JawVise Jaw

Figure 103. Location of jam nuts on gib set screws.

-58-

x 6

x 2

Blade BrushBlade Brush

Figure 104. Blade brush adjustment components.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

TROUBLESHOOTING

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free to call us at (360) 734-1540.

Symptom Possible Cause Possible Solution

Hydraulic pump motor does not start or power supply circuit breaker trips immediately after startup.

Power switch in OFF (0) position/ at fault.

EMERGENCY STOP button depressed/at fault.

Machine circuit breaker tripped.

Blown fuse.

Incorrect power supply voltage or circuit size.

Power supply circuit breaker tripped or fuse blown.

Hydraulic pump motor wires connected incorrectly.

Thermal overload relay has tripped/ at fault.

Start capacitor at fault.

10.

Transformer at fault.

11.

Contactor not energized/at fault.

12.

Wiring broken, disconnected, or corroded.

13.

HYD ON button or circuit breaker at fault.

14.

Circuit board at fault.

15.

Centrifugal switch adjustment/ contact points at fault.

16.

Pump impeller or bearings at fault.

17.

Motor or motor bearings at fault.

Remove padlock (if installed) and turn power switch to ON (1) position/replace if at fault.

Rotate EMERGENCY STOP button head to reset. Replace if at fault.

Reset circuit breaker (Page 3).

Replace fuse/ensure no shorts.

Ensure correct power supply voltage and circuit size.

Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

Correct motor wiring connections.

Reset. Adjust or replace if at fault.

Test/replace if at fault.

10.

Replace.

11.

Test all legs for power; replace if necessary.

12.

Fix broken wires or disconnected/corroded connections.

13.

Replace button/circuit breaker if at fault.

14.

Inspect/replace if at fault.

15.

Adjust centrifugal switch/clean contact points. Replace either if at fault.

16.

Verify pump shaft turns freely; replace if at fault.

17.

Replace motor.

Hydraulic tank fluid burnt or has tan discoloration.

Headstock will not raise or lower.

Headstock will not lower.

Hydraulic ﬂuid is old or contaminated with water.

Wiring broken, disconnected, or corroded.

Headstock hydraulic system is leaking.

SAW BOW switch at fault.

Circuit board at fault.

Headstock hydraulic relay(s) at fault.

Headstock valve solenoids at fault.

Downfeed limit switch engaged.

Wiring broken, disconnected, or corroded.

Downfeed limit switch at fault.

Circuit board at fault.

Hydraulic relay(s) at fault.

Replace hydraulic ﬂuid (Page 45).

Fix broken wires or disconnected/corroded connections.

Test for leaks/repair.

Replace switch.

Inspect/replace if at fault.

Replace relay(s).

Test/repair/replace.

Adjust headstock to disengage limit switch.

Fix broken wires or disconnected/corroded connections.

Replace.

Inspect/replace if at fault.

Replace relay(s) if at fault.

-59-

South Bend Tools

Model SB1122

TROUBLESHOOTING

For Machines Mfd. Since 10/22

Symptom Possible Cause Possible Solution

Blade keeps moving or headstock not raising after cut.

Vise does not hydraulically close/open.

Hydraulics are not functioning.

Main motor and cutting ﬂuid pump do not start.

Downfeed limit switch not engaged/ at fault.

Wiring broken, disconnected, or corroded.

Vise hydraulic system is leaking.

Vise switch at fault.

Circuit board at fault.

Vise hydraulic relay(s) at fault.

Vise valve solenoids at fault.

Hydraulic ﬂuid level is low.

Hydraulic system is leaking.

Pressure relief valve adjusted incorrectly.

Flow blocked or impeded.

Solenoid relays or relay wiring at fault.

Hydraulic pump at fault.

Hydraulic motor not turned ON.

Blade start has not been enabled in manual mode.

Downfeed limit switch engaged.

Blown fuse.

Wiring broken, disconnected, or corroded.

Motor brushes worn out.

AUTO CUTTING or Manual ON button at fault.

Potentiometer at fault.

Circuit board at fault.

10.

Motor or motor bearings at fault.

Adjust downfeed travel limit (Page 48)/replace limit switch if at fault.

Fix broken wires or disconnected/corroded connections.

Test for leaks/repair.

Replace switch.

Inspect/replace if at fault.

Replace relay(s).

Test/repair/replace.

Check/ﬁll hydraulic ﬂuid level (Page 44).

Inspect/test for leaks/repair.

Adjust pressure relief valve until pressure gauge shows 425 PSI (Page 43).

Make sure hydraulic line(s) are not pinched or damaged.

Check that hydraulic pump motor is running and that relays are activating (indicated by red LED in relay). Repair/replace if at fault.

Test/repair/replace.

Press HYD ON button to turn hydraulic motor ON.

Press AUTO CUTTING button, then press Manual ON button to start blade.

Adjust headstock to disengage limit switch.

Replace fuse/ensure no shorts.

Fix broken wires or disconnected/corroded connections.

Remove/replace brushes (Page 54).

Replace button(s) if at fault.

Replace.

Inspect/replace if at fault.

10.

Replace motor.

Main motor starts but cutting ﬂuid pump does not.

Cutting fluid system is pulling sludge from reservoir.

Cutting ﬂuid pump motor wires connected incorrectly.

Wiring broken, disconnected, or corroded.

Circuit board at fault.

Cutting ﬂuid pump motor or motor bearings at fault.

Cutting ﬂuid needs to be changed/ reservoir is dirty.

Cutting ﬂuid level is low.

-60-

Correct motor wiring connections.

Fix broken wires or disconnected/corroded connections.

Inspect/replace if at fault.

Replace motor.

Clean reservoir and change cutting ﬂuid (Page 47).

Check/ﬁll cutting ﬂuid level (Page 46).

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

TROUBLESHOOTING

Symptom Possible Cause Possible Solution

Cutting fluid pump starts but no fluid runs onto blade.

Machine stalls or is underpowered when cutting.

Cutting ﬂuid valves are closed.

Cutting ﬂuid level is low/reservoir is empty.

Cutting ﬂuid system is leaking.

Flow blocked or impeded.

Dull blade.

Wrong workpiece material (metal).

Blade not supported; blade not square to table.

Gearbox at fault.

Blade slipping on wheels or not properly tensioned.

Circuit board at fault.

Motor speed potentiometer at fault.

Motor wires connected incorrectly.

Motor brushes worn out.

10.

Machine undersized for task.

11.

Motor overheated.

12.

Extension cord too long.

13.

Contactor not energized/at fault.

14.

Motor or motor bearings at fault.

Open cutting ﬂuid valves.

Check/ﬁll cutting ﬂuid level (Page 46).

Inspect/test for leaks/repair.

Make sure cutting ﬂuid line(s) are not pinched or damaged.

Replace blade (Page 29).

Use correct size/type of metal.

Move top blade guide closer to workpiece (Page

32); square blade to table (Page 50).

Replace broken or slipping gears.

Clean wheels; adjust blade tension (Page 31).

Inspect and replace if at fault.

Test and replace if at fault.

Correct motor wiring connections.

Replace motor brushes (Page 54).

10.

Use correct (Page 24), sharp blade; reduce feed rate (Page 27)/depth of cut; increase blade speed (Page 27); use cutting ﬂuid if possible.

11.

Clean motor, let cool, and reduce workload.

12.

Move machine closer to power supply; use shorter extension cord.

13.

Test all legs for power; repair/replace if at fault.

14.

Replace motor.

Machine has excessive vibration or noisy operation.

Ticking sound when saw is running.

Cuts not square.

Workpiece loose.

Loose, damaged, or worn blade.

Worn wheel bearing.

Motor or component loose.

Wheels worn or incorrectly installed.

Wheel appears bent.

Motor mount loose or broken.

Motor fan rubbing on fan cover.

Centrifugal switch needs adjustment/at fault.

10.

Motor bearings at fault.

11.

Gearbox at fault.

Blade weld contacting blade guides.

Blade weld may be failing.

Blade teeth missing or broken.

Blade not square to table.

Securely clamp workpiece with vise (Page 36).

Tension blade (Page 31)/replace blade (Page 29).

Check/replace wheel bearing.

Replace damaged or missing bolts/nuts or tighten if loose.

Replace wheels; square blade to table (Page 50).

Check/replace wheel/wheel bearing.

Tighten/replace.

Fix/replace fan cover; replace loose/damaged fan.

Adjust/replace if at fault.

10.

Test by rotating shaft, rotational grinding/loose shaft requires bearing replacement.

11.

Rebuild gearbox for bad gear(s)/bearing(s).

Grind weld down ﬂush with blade.

Cut and reweld blade, or replace blade (Page 29).

Inspect/replace blade (Page 29).

Square blade to table (Page 50).

-61-

South Bend Tools

Model SB1122

TROUBLESHOOTING

For Machines Mfd. Since 10/22

Symptom Possible Cause Possible Solution

Blade wears on one side or shows overheating.

Blade dulls prematurely, or metal sticks to blade.

Excessive blade breakage.

Blade guides worn or mis-adjusted.

Blade not supported.

Dull/incorrect blade.

Incorrect cutting ﬂuid mixture for workpiece/cut.

Blade is bell-mouthed.

Blade improperly broken in.

Blade gullets loading up with chips.

Blade tension is too low.

Blade TPI too ﬁne or course for material; teeth load up and overheat.

Incorrect cutting ﬂuid/cutting ﬂuid mixture for workpiece/cut.

Inadequate feed pressure.

Workpiece loose.

Blade contacting workpiece when started.

Blade too thick/blade gullets too large.

Workpiece too hard for blade.

Blade tension requires adjustment/ blade not square to table.

Blade guide roller bearings require adjustment.

Blade weld may be failing.

Re-adjust guides and bearings (Page 51)/replace.

Move top blade guide closer to workpiece (Page 32).

Replace blade (Page 29).

Use correct cutting ﬂuid mixture.

Replace blade (Page 29).

Replace blade (Page 29); complete blade break-in procedure (Page 26).

Use blade with larger gullets (Page 24).

Increase blade tension (Page 31).

Use coarser-tooth or ﬁner-tooth blade (Page

24); adjust downfeed rate (Page 27); adjust

blade speed (Page 27); make sure blade brush is adjusted correctly (Page 58).

Use correct cutting ﬂuid mixture.

Decrease headstock spring tension (Page 54).

Securely clamp workpiece with vise (Page 36).

Check/adjust workpiece contact safety switch (Page 57).

Use thinner blade/blade with smaller gullets (Page 24).

Use coarser-tooth blade (Page 24); adjust downfeed rate (Page 27); adjust blade speed (Page 27).

Adjust blade tension (Page 31)/square blade to table (Page 50).

Adjust blade guide roller bearings (Page 51).

Cut and reweld blade, or replace blade (Page 29).

Blade tracks incorrectly, or comes off wheels.

Cuts are crooked/ excessively rough.

Feed rate too fast/wrong TPI.

Blade tension requires adjustment/ blade not square to table.

Blade guides need adjustment.

Blade is bell-mouthed.

Feed rate too fast; blade speed incorrect.

Blade is too coarse or dull.

Blade not supported.

Carbide blade guides/roller bearings out of adjustment.

Blade tension requires adjustment/ blade not square to table.

Downfeed pressure is too great.

-62-

Reduce downfeed rate (Page 27)/decrease blade TPI (Page 24).

Adjust blade tension (Page 31)/square blade to table (Page 50).

Adjust blade guides (Page 51).

Replace blade (Page 29).

Reduce downfeed rate (Page 27); adjust blade speed (Page 27).

Replace blade (Page 29).

Move top blade guide closer to workpiece (Page 32).

Adjust carbide blade guides/roller bearings (Page 51).

Adjust blade tension (Page 31)/square blade to table (Page 50).

Increase headstock spring tension (Page 54).

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modiﬁcations:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at (360) 734-1540.

ELECTRICAL

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may make changes to the electrical systems of future machines. Study this section carefully. If you see differences between your machine and what is shown in this section, call Technical Support at (360) 734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the machine is connected to the power source. Touching electriﬁed parts will result in personal injury including but not limited to severe burns, electrocution, or death. For your own safety, disconnect machine from the power source before servicing electrical components or performing any wiring tasks!

All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

Using aftermarket parts or modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or ﬁre.

The motor wiring shown in these diagrams is current at the time of printing, but it may not match your machine. Always use the wiring diagram inside the motor

to an improperly sized circuit will greatly increase the risk of ﬁre. To minimize this risk, only connect the machine to a power circuit that meets the minimum requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious personal injury, ﬁre, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components before completing the task.

Experiencing Difﬁculties: If you are

experiencing difﬁculties understanding the information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

WIRING DIAGRAM COLOR KEY

BLUE WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can see them in color at www.southbendtools.com.

RED

LIGHT BLUE

ORANGE

PINK

PURPLE

TURQUIOSE

WHITE

YEL LOW GREEN

YEL LOW

-63-

South Bend Tools

Model SB1122

ELECTRICAL

Electrical Overview

For Machines Mfd. Since 10/22

Main Motor (Page 71)

Control Panel & Box (Page 65–70)

Downfeed Limit Switch (Page 72)

Cutting Fluid Pump Motor (Page 71)

Power Supply

Workpiece Contact Safety Switch

(Page 72)

Hydraulic Pump Motor (Page 71)

Hydraulic Relays (Page 72)

Ground

Hot

220 VAC

Hot

6-15 Plug

-64-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Panel)

ELECTRICAL

Control Box Bottom Panel Wiring Diagram

(To Control Panel)

Pg. 69

14 14

13NO

L2-1

Contactor

5L3

NHD

C-06D10A7

3L2

1L1

L1 N1 N1

2212A2

Transformer

LCPIC-TBSW-100200

14NO

6T3

4T2

2T1

L1 L1

N1 N1

Relay

SCHRACK

RF1109546

Relay

SCHRACK

RF1109546

Relay

SCHRACK

RF1109546

Relay

SCHRACK

RF1109546

142111

L41715

LCE

TECO

RHU-10/4-BK1

OL Relay

95 NC

97 NO

See Pg. 67 for Rear Panel Component Connections

SA2

Control Box

(Viewed from Top)

6T3

L2-1

4T2

2T1

Circuit Board

RF MET2518-A

POWER

NHD HTF-1

15A 250V

Fuse

6A 250V

LS-DN (NO)

LS UP (NC)

222-412

WAGO

OIL PUMP

WATE R

MOTOR

DOWN (1)

DOWN (2)

OIL PUMP

MANUAL

STOP

START

NC2

DOWN

222-413

WAGO

COM (0V)

AC 24

Pump Relays)

(To Hydraulic

Pg. 72

ACD

SA2

191821

(To Control Panel)

Pg. 69

(To Manual ON

Button On

Control Panel)

Pg. 69

(To AUTO CUTTING Button

on Control Panel)

Pg. 69

(To Hydraulic

Pump Motor)

Pg. 71

(To Downfeed

Limit Switch)

Pg. 72

(To Workpiece Contact

Safety Switch)

Pg. 72

(To Man/Auto Key

Switch on Control Panel)

Pg. 69

2 437

0 11

(To Control

Pg. 69

-65-

South Bend Tools

Model SB1122

ELECTRICAL

Control Box Bottom Panel

For Machines Mfd. Since 10/22

-66-

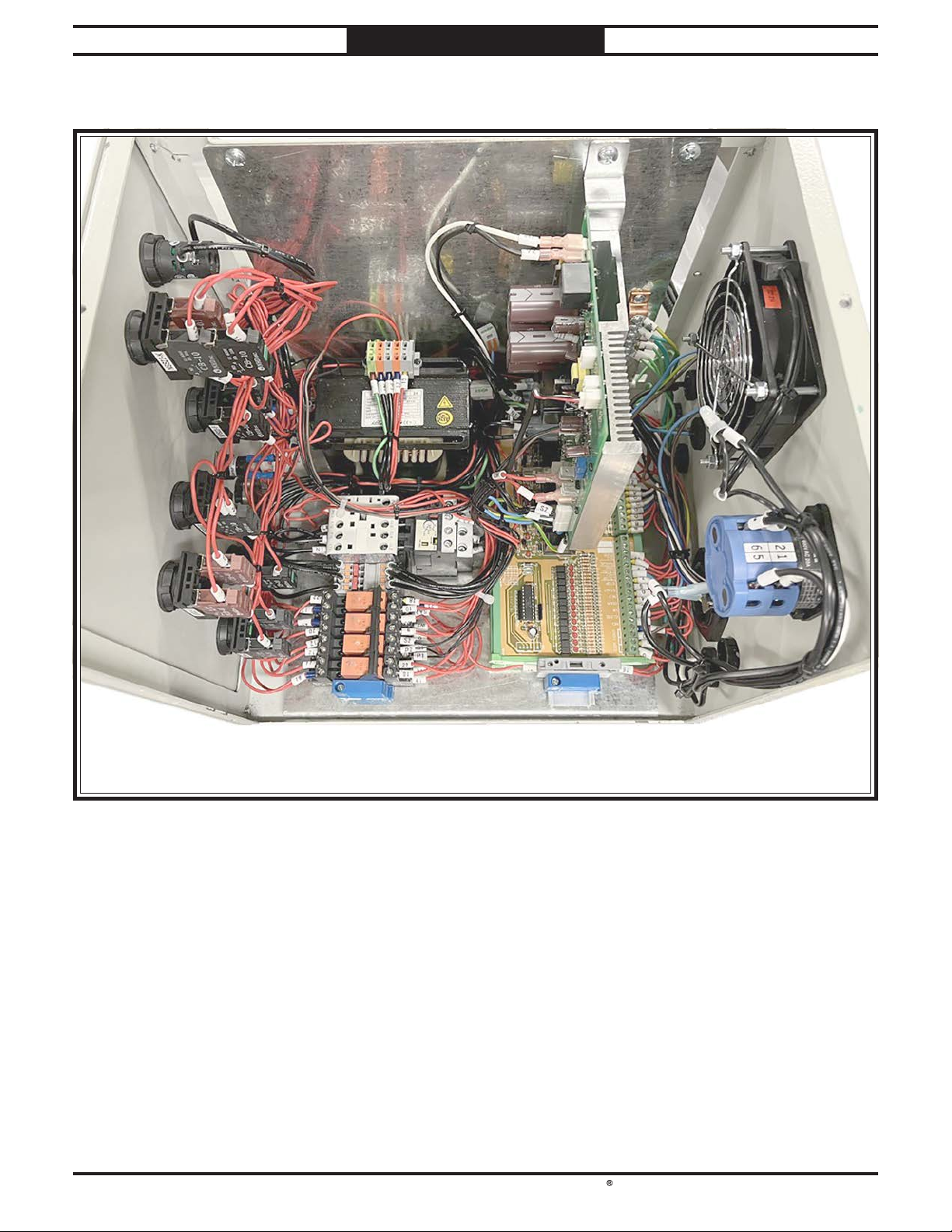

Figure 105. Bottom of control box wiring.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Control Panel

ELECTRICAL

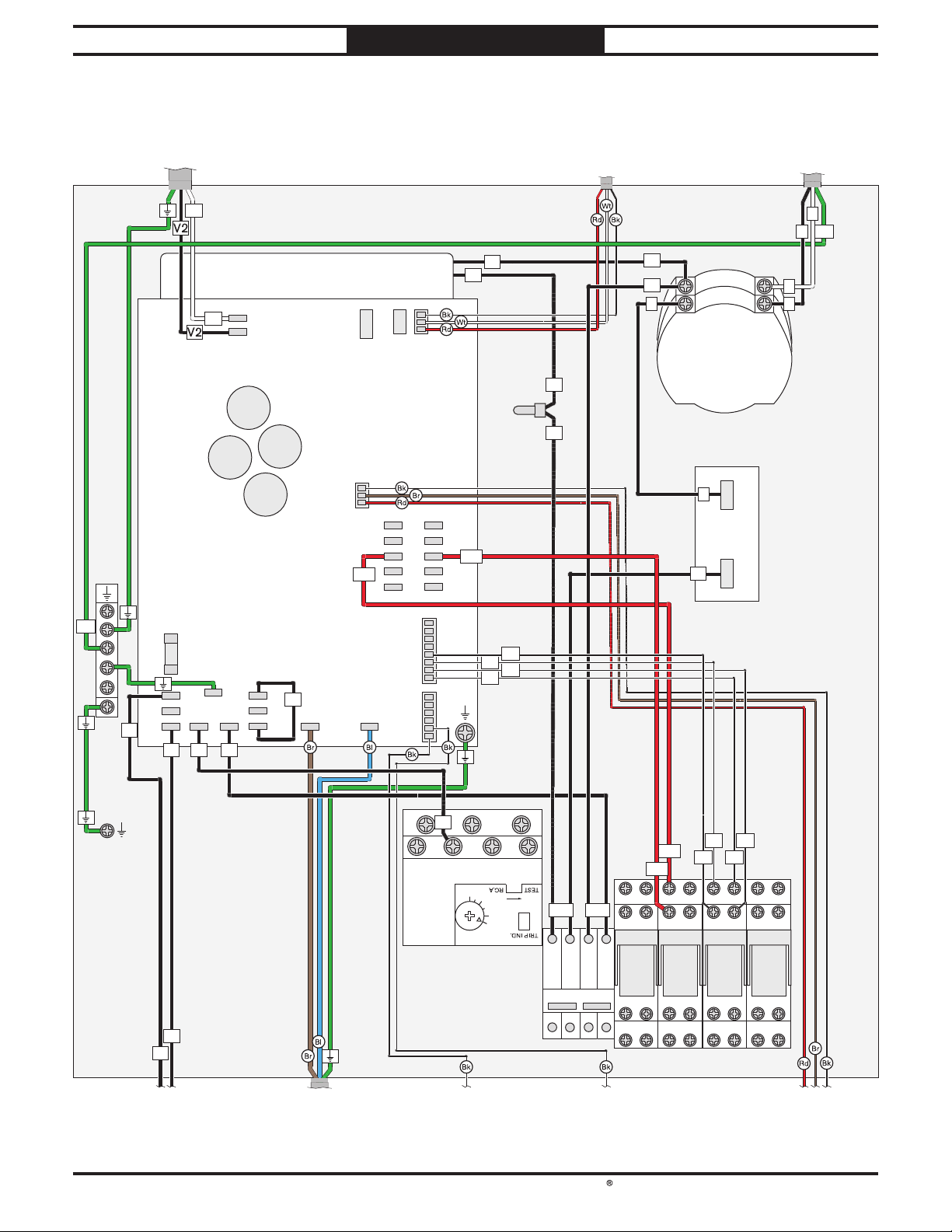

Control Box Rear Panel Wiring Diagram

15A 250V

Pg. 71

Fuse

Coolant Fan

STRIKEFAN SA92255SHT(W)

CN2

CN8

AC2AC1

M- M+

(Viewed from Front)

PANEL RPMOUT

SW1

SW2

SW3

SW4

SW5

HAND

PUMP

OFF

POWER

RUN

ALARM

CN4CN24

CN5

Circuit Board

RFIEBS-03.PCB

Motor

S1 P1

S2 P2

(To Main Motor)

Pg. 71

2 1

6 5

Power Switch

AUSPICIOUS

600V 20A

Circuit Breaker

KUOYUH

98 SERIES

LOAD

LINE

15A

(To Plug)

Pg. 64

N L

(To Control Panel)

(To Main Motor)

6T3 4T2 2T1

96 NC 95 NC 98 NO 97 NO

TECO RHU-10/4-BK1

3.5

Relay

4.5

4.8 A

21 11

24 14

21 11

24 14

21 11

24 14

21 11

24 14

1 2 3 4

SCHRACK

Relay

RF1109546

A2 A1

22 12

Relay

RF1109546

A2 A1

22 12

Pg. 71Pg. 69

Lamp on

(To +OVERLOAD

(To —OVE RLOAD

Lamp on

SCHRACK

Relay

RF1109546

A2 A1

22 12

(To Potentiometer on Control Panel)

Pg. 69

Pg. 69Pg. 69

-67-

South Bend Tools

Model SB1122

ELECTRICAL

Control Box Rear Panel

For Machines Mfd. Since 10/22

-68-

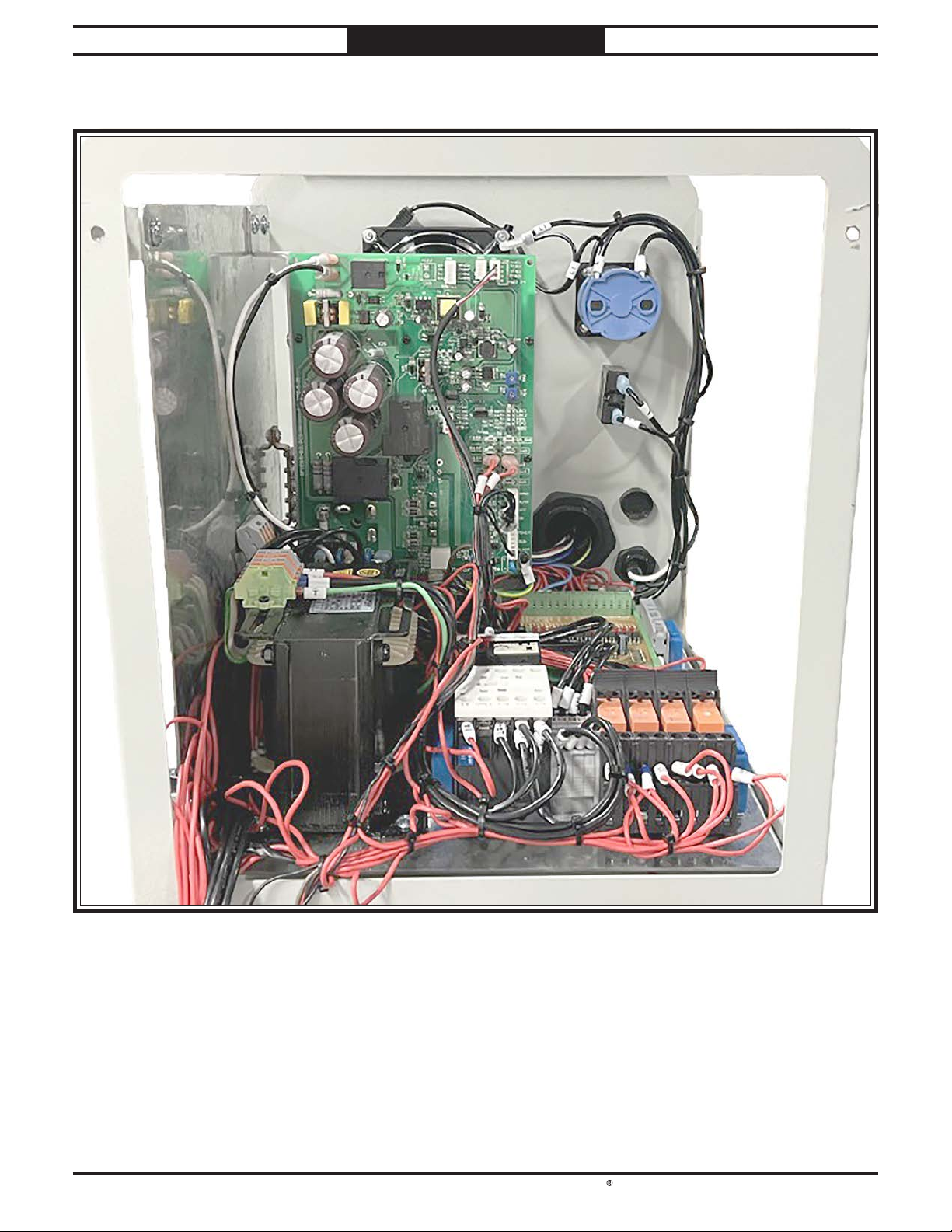

Figure 106. Rear of control box wiring.

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

ELECTRICAL

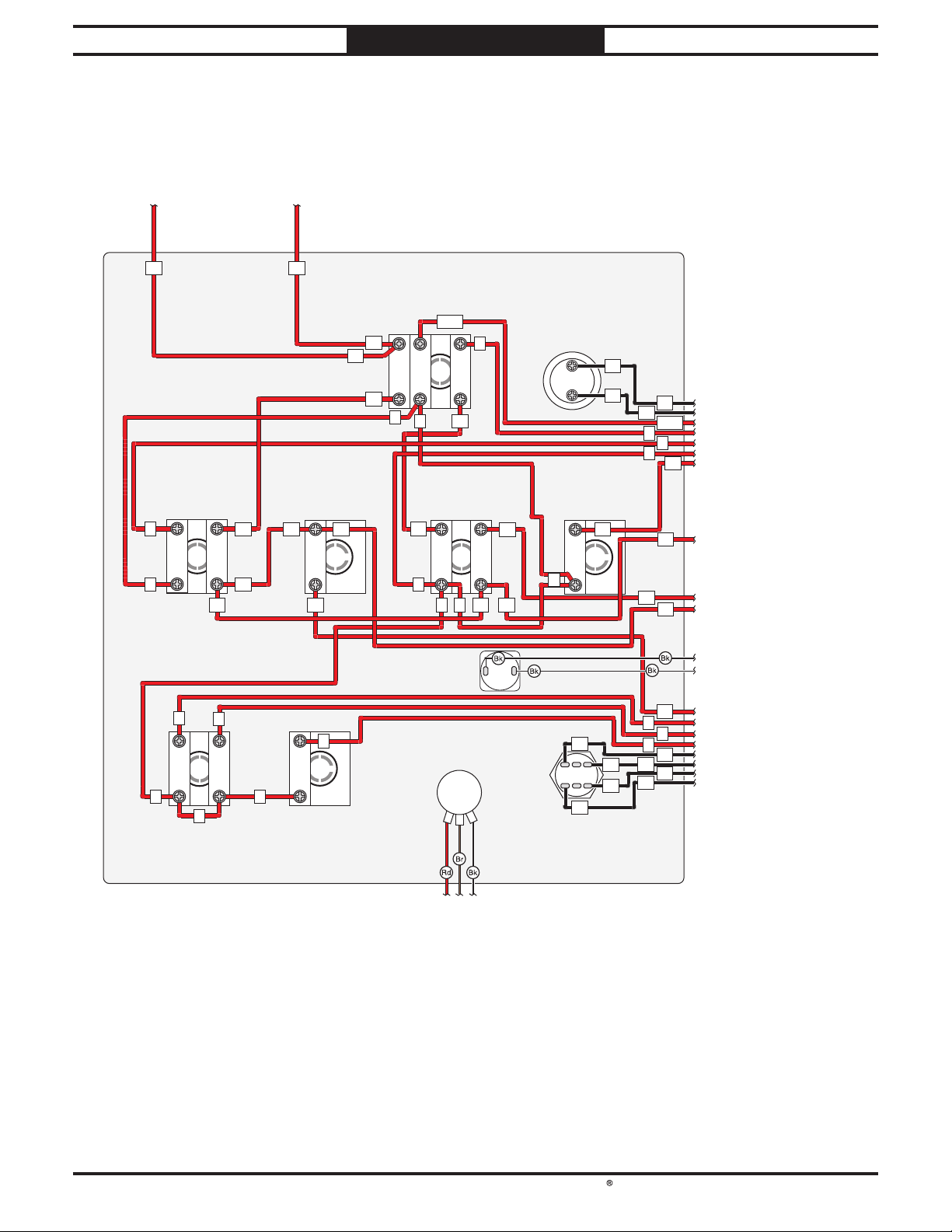

Control Panel Wiring Diagram

(To 3 Terminal

(To Fuse Holder

in Control Box)

Pg. 65

16 16

OFF Button

NHD NPB22-F02R

CB-01

Wire Splice in

Control Box)

CB-01

Pg. 65

Control Panel

Manual ON

Button

NHD NPB22-F10G

CB-10

OVERLOAD Lamp

Man/Auto

Key Switch

NHD NSS22-K221B

SA2

CB-10

CB-01

CB-10

AUTO CUTTING

Button

NHD NPB22-F22G T1

CB-10

TEND TT16-PLR

000

POWER Lamp

NHD NLD-22

SA2

(To Control Box)

Pg. 65

HYD ON Button

NHD NPB22-F10G

(To RELAY1

in Control Box)

CB-10

Pg. 65

(To RELAY4

in Control Box)

Pg. 65

(To ALARM Terminals

in Control Box)

Pg. 67

CB-10

SAW BOW

Switch

NHD NSS22-S120B

44 4

CB-10

333

Vise Switch

NHD NSS22-S210B

Potentiometer

TOCOS

RV24YN20S

B502 224C

123

(To VR Terminals

in Control Box)

Pg. 67

EMERGENCY

STOP Button

HONG POU

HBS1-AGD22-22TS/A

L3 L4

(To Control Box)

Pg. 65, 67

-69-

South Bend Tools

Model SB1122

Control Panel

ELECTRICAL

Man/AutoMan/Auto

Key SwitchKey Switch

For Machines Mfd. Since 10/22

POWERPOWER

LampLamp

OFF ButtonOFF Button

Manual ONManual ON

ButtonButton

AUTO AUTO

CUTTINGCUTTING

ButtonButton

HYD ONHYD ON

ButtonButton

OVERLOADOVERLOAD

LampLamp

SAW BOW SAW BOW

SwitchSwitch

-70 -

ViseVise

SwitchSwitch

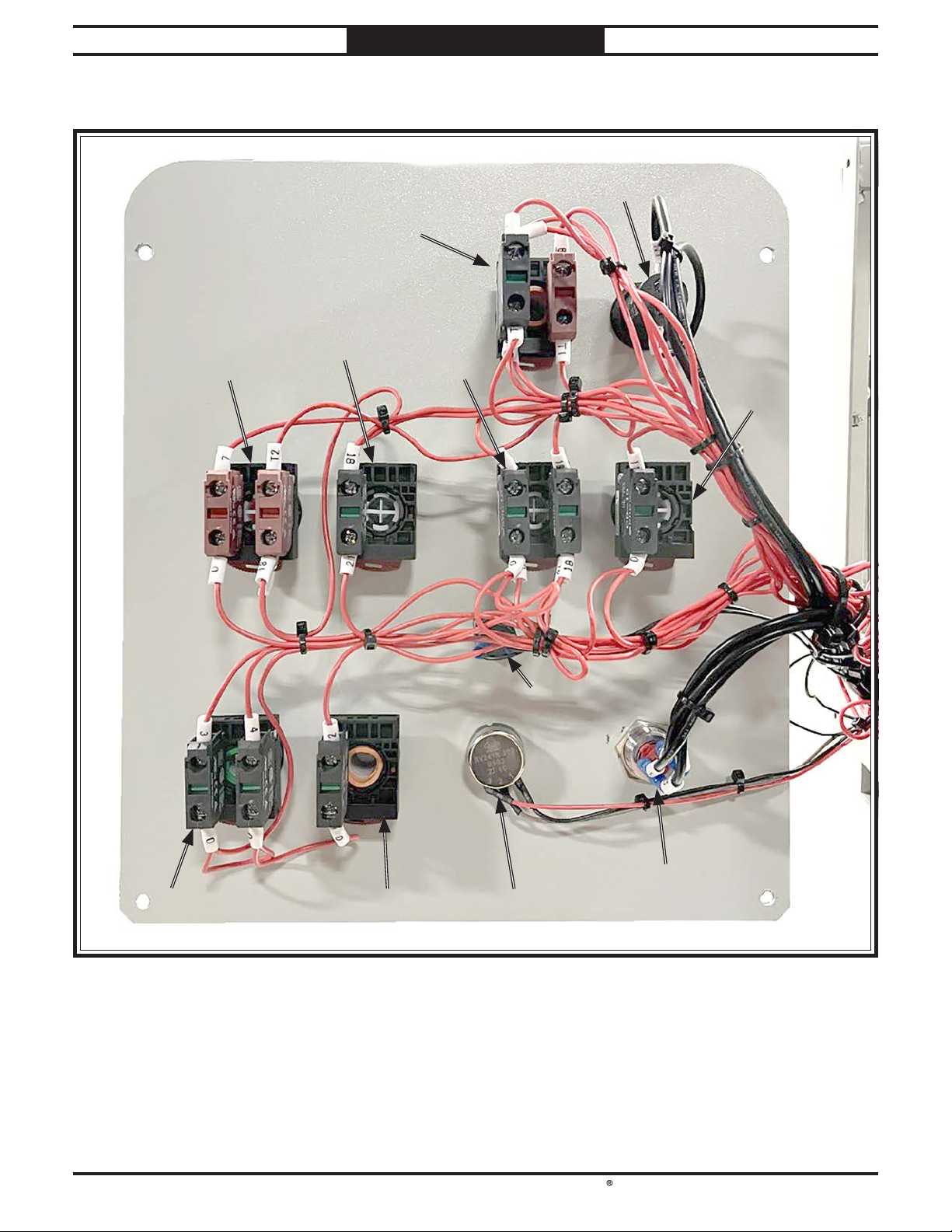

Figure 107. Control panel wiring.

PotentiometerPotentiometer

EMERGENCY EMERGENCY

STOP ButtonSTOP Button

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

ELECTRICAL

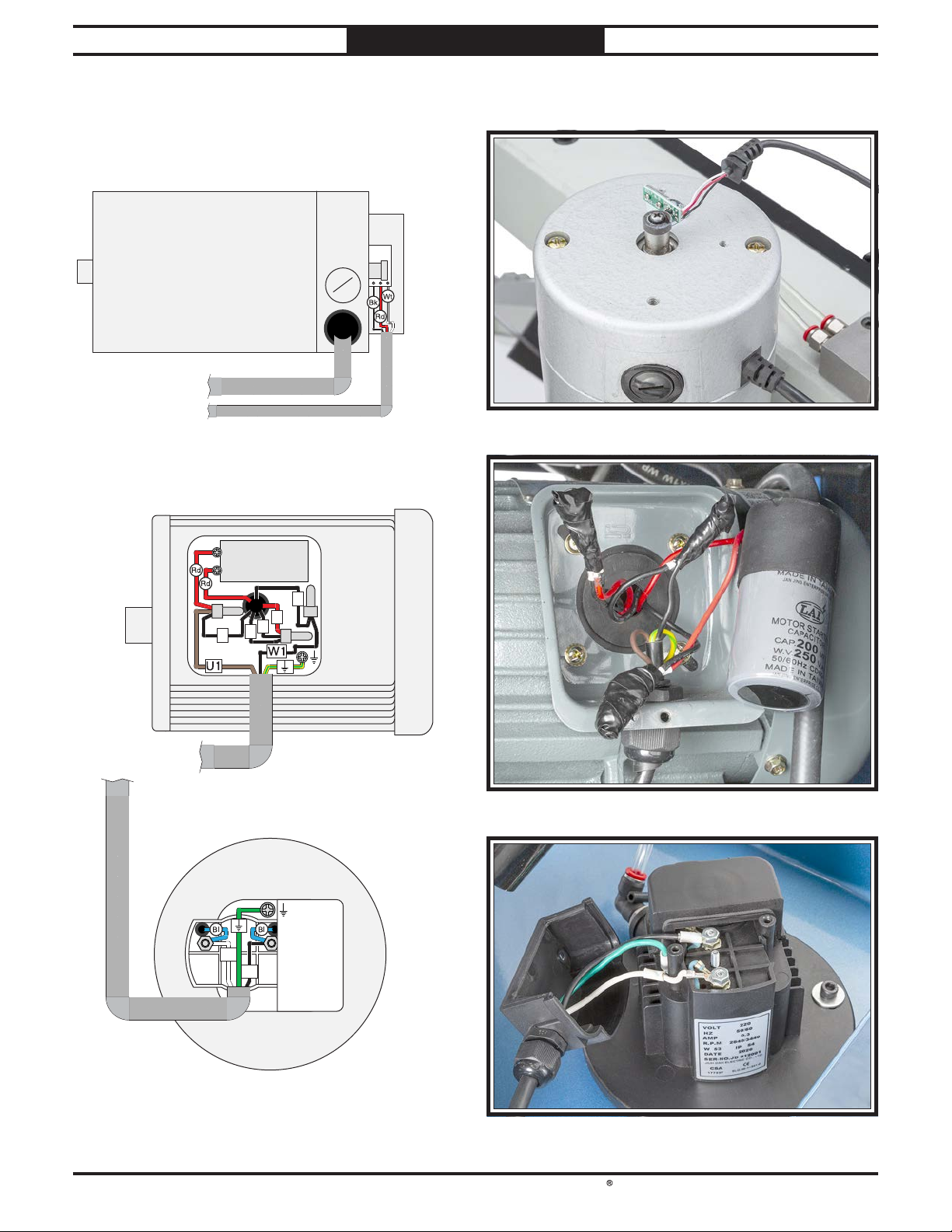

Motor Wiring Diagrams

Main Motor 220V

Circuit

Board

JM01-03

(To Control Box)

Pg. 67

Figure 108. Main motor wiring.

Hydraulic Pump Motor 220V

(To Control Box)

Pg. 65, 67

S. Capacitor

200MFD 250VAC

Figure 109. Hydraulic pump motor wiring.

Cutting Fluid Pump Motor 220V

Figure 110. Cutting fluid pump motor wiring.

-71-

South Bend Tools

Model SB1122

ELECTRICAL

For Machines Mfd. Since 10/22

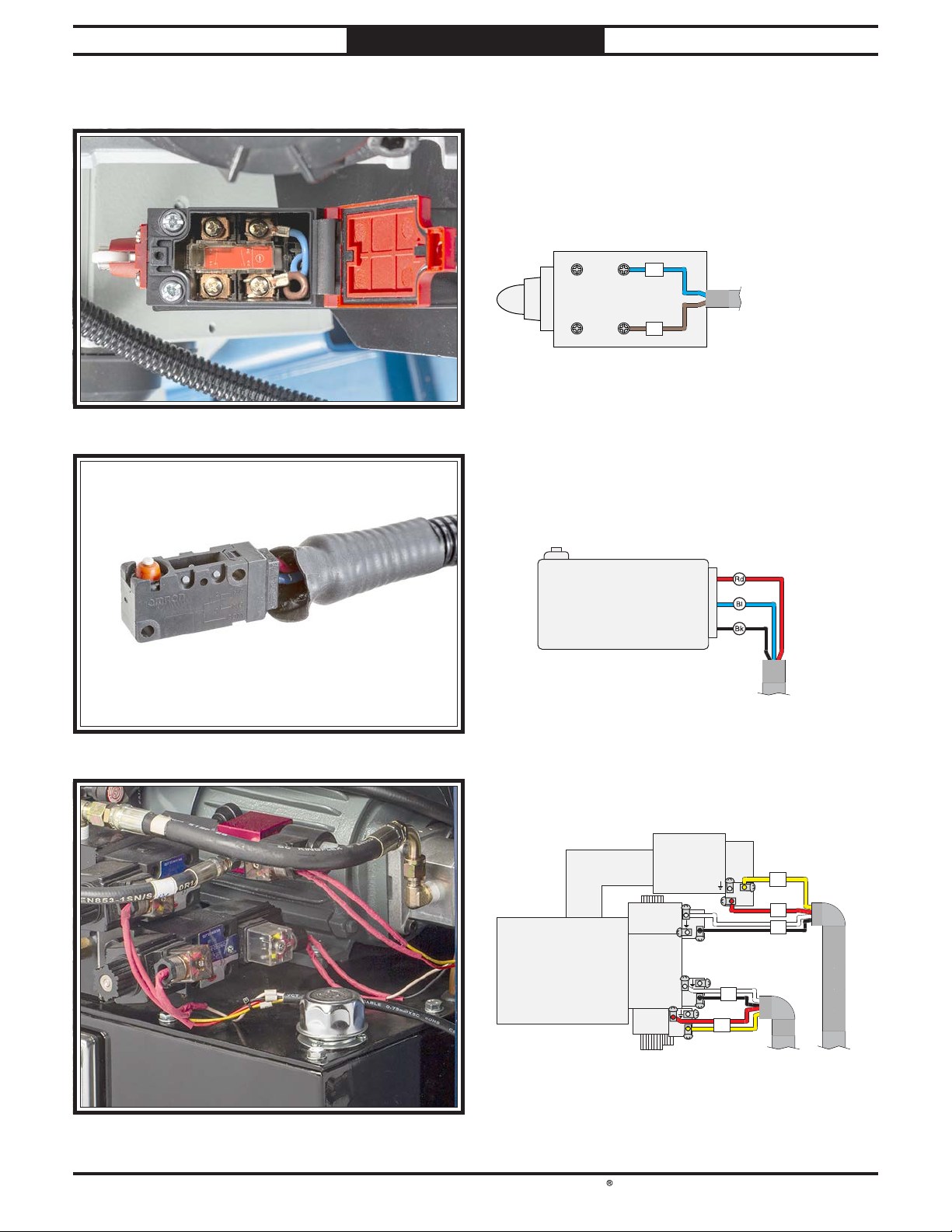

Electrical Component Wiring Diagrams

Downfeed Limit Switch

CANLIE AZD-1122

Figure 111. Downfeed limit switch wiring.

Workpiece Contact

Safety Switch

OMRON D2VW-5-1M

5A 250V

(To Control Box)

Pg. 65

Figure 112. Workpiece contact safety switch wiring.

Hydraulic

Manifold

Relay

AC-24

COM

(To Control Box)

Pg. 65

AC-24

Relay

AC-24

Relay

(To Control Box)

Relay

B A

Pg. 65

AC-24

Figure 113. Hydraulic solenoid wiring.

-72-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

Hydraulics

HYDRAULICS

Hydraulic System Diagram

SAW BOW

HYDRAULIC

CYLINDER

PUMP MOTOR

DOWNFEED RATE

CONTROL VALVE

PRESSURE

RELIEF

FILTER

PUMP

VALVE

Copper

Tube

SUCTION

FLOW CONTROL

TOP

HYDRAULIC

BOTTOM

MANIFOLD

& CYLINDER

CHECK VALVES

TOP

PRESSURE

GAUGE

425 PSI

FLOW CONTROL

VALVE

−

VALVE

−

Directional

Valves

HYDRAULIC RESERVOIR

FILL CAP

VISE JAW

HYDRAULIC

CYLINDER

-73-

South Bend Tools

Model SB1122

119

PARTS

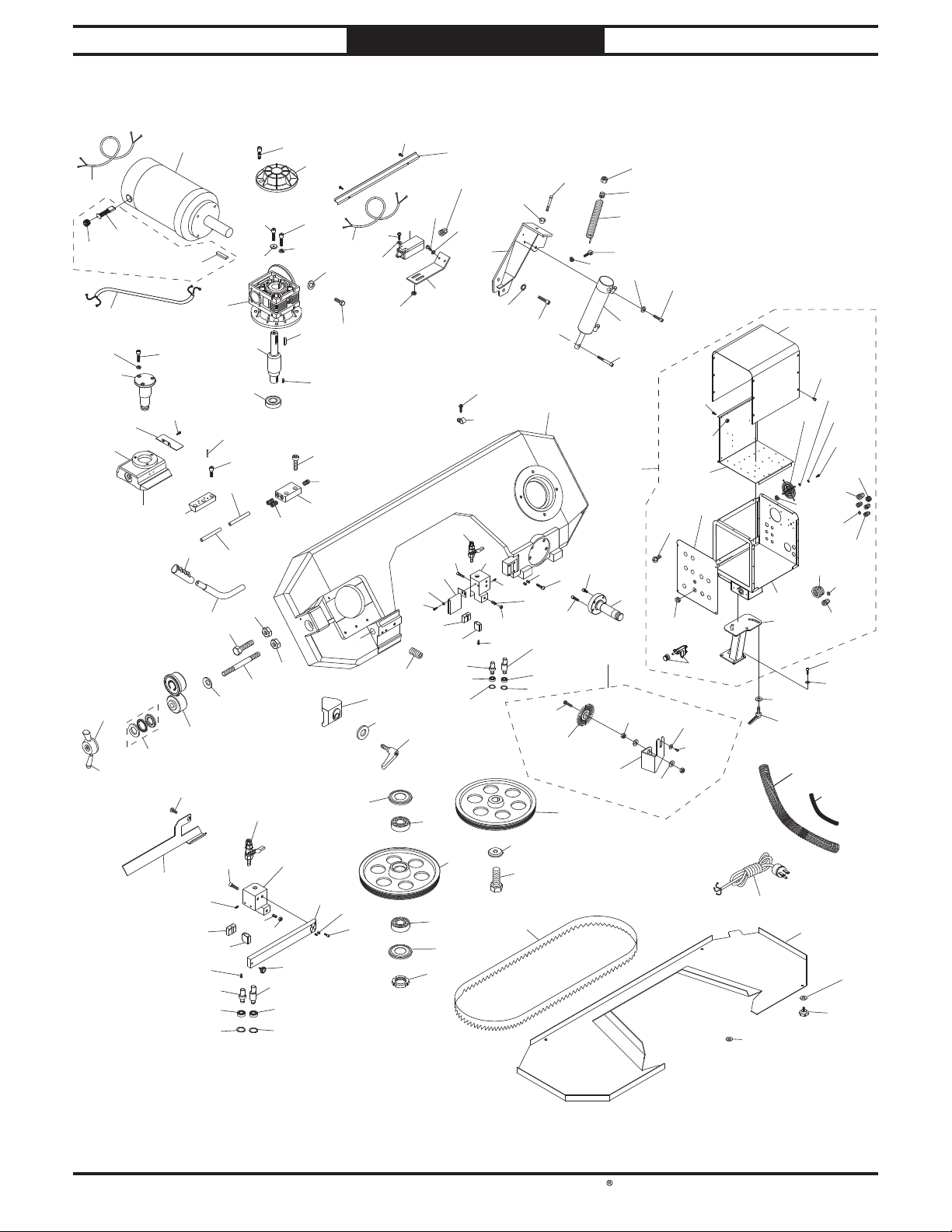

Headstock

PARTS

For Machines Mfd. Since 10/22

71-3

71-2

71-1

43 44

109

326

327

328

325

304

324

118

329

41 43

305

107

108

294-3

102

103

100

294-2

101

294

294-1

202

300

214

294-5

294-4

302

214-18

214-17

214-16

214-15

214-14

214-13

294-6

214-12

294-7

112

214-3

214-10

214-11

214-1

214-2

214-5

214-20

214-7

214-8

104

214-21

214-22

214-4

214-19

214-6

214-9

214-5

192

191

106

105

-74-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PARTS

Headstock Parts List

REF PART # DE SCR IPT ION REF PAR T # D E SCR IPT ION

1 PSB1122001 BODY FRAME 53 PSB1122053 MAIN MOTOR CORD 24G 3W 30 "

2 PSB1122002 ANCH OR BRACKET 54 PSB1122054 BLA DE GUIDE MOUN TIN G B LOCK (RIGH T)

3 PSB1122003 MOUNT SHAFT 56 PSB1122056 BUTTON HD CAP SCR M8 -1.25 X 30

4 PSB1122004 CAP SCREW M8-1.25 X 20 57 PSB1122057

5 PSB1122005 B EARING CHIP COVER 58 PSB1122058 BLA DE GUARD (RIGHT)

6 PSB1122006 TAPER ROLLER BEARING 32006 59 PSB1122059 FLAT WASHER 5MM

7 PSB1122007 LOCK WASHER 8MM 60 PSB1122060 BUTTON H D CA P S CR M5-.8 X 12

8 PSB 1122008 HEX BOLT M8-1.25 X 45 63 PSB1122063 CAP SCREW M10-1.5 X 40

9 PSB1122009 HEX NUT M8 -1 .2 5 64 PSB1122064 CAP SCREW M10-1.5 X 25

10 PSB1122010 PRESSURE GAUGE ASSEMBLY 65 PSB1122065 FRAME PIVOT SHAFT

11 PSB1122011 THRUS T B EA RIN G 5120 3 68 PSB1122068 SPRING CONNECTOR

12 PSB1122012 FIXED HANDLE 24.5 X 96.5, M12-1.75 X 10.5 71 PSB1122071 MOTOR 1-1/2HP 220V 1-PH

13 PSB1122013 HANDWHEEL HUB 83D X M16-2B X M12-1.75 71-1 PSB1122071-1 KEY 6 X 6 X 49 RE

14 PSB1122014 CONICAL LOCK WASHER 12 X 31.5 X 1.8MM 71-2 PSB1122071-2 CARBON BRUS H (2-PC SET)

15 PSB1122015 BLADE TENSION LEADSCREW M16-2 X 265 71-3 PSB1122071-3 CARBON B RUSH COVER

16 PSB1122016 HEX NUT M1 6-2 72 PSB1122072 HEX BOLT M6-1 X 20

17 PSB1122017 CAP SCREW M8-1.25 X 20 73 PSB1122073 LOCK WASHER 6MM

18 PSB1122018 TENSION DOVETA IL BLOCK 74 PSB1122074 GE A RB OX

19 PSB1122019 ROLL PIN 5 X 38 75 PSB1122075 LOCK WASHER 10MM

20 PSB1122020 ADJUSTABLE HANDLE M10-1.5 X 52, 82L 76 PSB1122076 CAP SCREW M10-1.5 X 25

21 PSB1122021 B LADE GUIDE LOCK BLOCK 77 PSB1122077 GEA RBOX COVER

22 PSB1122022 CAP SCREW M8-1.25 X 20 78 PSB1122078 STRAIGHT FITTIN G 1/4" PT X 8 MM

23 PSB1122023 S ET S CREW M6-1 X 16 79 PSB1122079 CAP SCREW M6-1 X 15

24 PSB1122024 ANCHOR PLATE 80 PSB1122080 3-WA Y VALVE

25 PSB1122025 B LA DE GUIDE A RM 81 PSB1122081 CUTTIN G FLUID TUBE 4 X 40 0MM

26 PSB1122026 SET SCREW M8-1.25 X 10 82 PSB1122082 CUTTING FLUID VALVE AS S EMBLY 1/8" PT

27 PSB1122027 KNOB B OLT M6 -1 X 1 5, 12-LOB E, D40 83 PSB1122083 STRAIGHT FITTIN G 1/8" PT X 6M M

28 PSB1122028 HEADSTOCK HANDLE 84 PSB1122084 CUTTIN G FLUID TUBE 4 X 1 050MM

29 PSB1122029 H A N DLE GRIP 86 PSB1122086 SPACER 10.2 X 40 X 6MM

30 PSB1122030 FLAT WASHER 10MM 87 PSB1122087 KEY 8 X 7 X 50 RE

31 PSB1122031 PHLP HD SCR M5-.8 X 10 88 PSB1122088 DRIVE SHAFT

32 PSB1122032 PHLP HD SCR M6-1 X 30 89 PSB1122089 KEY 8 X 7 X 25 RE

33 PSB1122033 FLAT WASHER 10MM 90 PSB1122090 BALL BEARING 620 8ZZ

34 PSB1122034 ADJUSTABLE HANDLE M10-1.5 X 15, 90L 91 PSB1122091 SPRING BRA CKET

35 PSB1122035 CAP SCREW M6-1 X 10 92 PSB1122092 EXTENSION SPRING 6.5 X 43 X 204

37 PSB1122037 CONDUIT 36.6 X 43 X 1 905MM 93 PSB1122093 HEX NUT M10-1.5

38 PSB1122038 BLADE GUIDE MOUNTING BLOCK (LEFT) 94 PSB1122094 CAP SCREW M10-1.5 X 110

39 PSB1122039 SET SCREW M8-1.25 X 20 95 PSB1122095 BOLT CUS H ION 20 X 1 0MM

40 PSB1122040 H EX NUT M8-1.25 96 PSB1122096 IDLER WHEEL

41 PSB1122041 B LADE GUI DE (F RON T) 97 PSB1122097 LOCK WASHER 10 MM

42 PSB1122042 B LADE GUIDE (REAR) 98 PSB1122098 CAP SCREW M10-1.5 X 30

43 PSB1122043 REA R GUIDE ECCEN TRIC SHA FT 99 PSB1122099 SPANNER NUT M30-1.5

44 PSB1122044 BALL B EARING 608Z Z 100 PSB1122100 BLADE 0.035 X 1.06 X 108-5/8 X 5/8" TPI

45 PSB1122045 EXT RETA IN ING RING 8MM 101 PSB1122101 DRIVE WHEEL

46 PSB1122046 FRONT GUIDE ECCEN TRIC SHAF T 102 PSB1122102 SPACER 12.2 X 40 X 6MM

47 PSB1122047 BUTTON HD CAP SCR M6-1 X 1 0 103 PSB1122103 HEX BOLT M12-1.75 X 20

48 PSB1122048 BLADE GUARD (LEFT) 104 PSB1122104 BLADE COVER

49 PSB1122049 CONDUIT 10 X 13.4 X 890MM 105 PSB1122105 KN OB B OLT M6-1 X 1 3, 6-LOB E, D35

50 PSB1122050 DOWN F EED LIM I T S WITC H C ORD 1 8G 2W 40" 106 PSB1122106 FLAT WASHER 6MM

51 PSB1122051 M A IN MOTOR CORD 18G 3W 44" 107 PSB1122107 PHLP HD SCR M5-.8 X 10

52 PSB1122052 S ET S CREW M6-1 X 6 108 PSB1122108 HOSE CLIP 8MM

POWER CORD 14G 3W 72

" 6-15P

-75-

South Bend Tools

Model SB1122

REF PART # D E SCR IPT ION REF PART # DE SCR IPT ION

PARTS

For Machines Mfd. Since 10/22

Headstock Parts List (Cont.)

109 PSB1122109 CAP SCREW M8-1.25 X 12 214-17 PSB1122214-17 HEX NUT M5-.8

112 PSB1122112 FLAT WASHER 7 X 30 X 2.2MM 214-18 PSB1122214-18 PHLP HD SCR M5-.8 X 16

118 PSB1122118 CUTTIN G FLUID HOSE RAIL 214-19 PSB1122214-19 STRA IN RELIEF TYPE-5 PG9

119 PSB1122119 PHLP HD SCR M5-.8 X 10 214-20 PSB1122214-20 HEX NUT M 4-.7

191 PSB1122191 FLAT WASHER 8MM 214-21 PSB1122214-21 FLAT WASHER 4MM

192 PSB1122192 CAP SCREW M8-1.25 X 25 214-22 PSB1122214-22 LOCK WASHER 4MM

202 PSB1122202 S PRIN G CLA M PIN G BOLT M10 -1 .5 X 30 2 94 PSB1122294 BLADE BRUSH ASSEMBLY

214 PSB1122214 CONTROL BOX A S S EMB LY 294-1 PSB1122294-1 BRUS H BRACKET

214-1 PSB1122214-1 CON TROL BOX C OVER 294-2 PSB1122294-2 BLADE BRUSH 7 X 50 X 6

214-2 PSB1122214-2 PHLP HD SCR M5-.8 X 8 294-3 PSB1122294-3 HEX BOLT M6-1 X 30

214-3 PSB1122214-3 FAN VENT 3-1/2" 294-4 PSB1122294-4 FEN DER WASHER 6MM

214-4 PSB1122214-4 PHLP HD SCR M4-.7 X 40 2 94-5 PSB1122294-5 HEX NUT M6-1

214-5 PSB1122214-5 S TRAIN RELIEF TYPE-3 PG13.5 294-6 PSB1122294-6 FLAT WASHER 6MM

214-6 PSB1122214-6 STRAIN RELIEF TYPE-3 PG9 294-7 PSB1122294-7 B UTTON HD CAP SCR M6-1 X 10

214-7 PSB1122214-7 HOLE PLUG 5/8" 300 PSB1122300 HYDRAULIC CYLINDER

214-8 PSB1122214-8 S TRAIN RELIEF TYPE-5 PG36 302 PSB1122302 CAP SCREW M10-1.5 X 75

214-9 PSB1122214-9 HOLE PLUG 7/8" 304 PSB1122304 BUTTON HD CAP SCR M6-1 X 15

214-10 PSB1122214-10 CON TROL BOX F RAM E 305 PSB1122305 FLAT WASHER 6MM

214-11 PSB1122214-11 CONTROL BOX A RM 324 PSB1122324 DOWNFEED LIMIT SWITCH B RACKET

214-12 PSB1122214-12 DOWNFEED SPEED VALVE 325 PSB1122325 LIMIT SWITCH CANLIE AZD-1122

214-13 PSB1122214-13 B LADE SPEED DIAL 326 PSB1122326 PHLP HD SCR M4-.7 X 40

214-14 PSB1122214-14 PHLP HD SCR M5-.8 X 10 32 7 PSB1122327 FLAT WASHER 4MM

214-15 PSB1122214-15 C ON TROL PAN EL 328 PSB1122328 HEX N UT M4-.7

214-16 PSB1122214-16 CON TROL BOX B ASE 329 PSB1122329 STRA IN RELIEF TYPE-3 PG11

-76-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PARTS

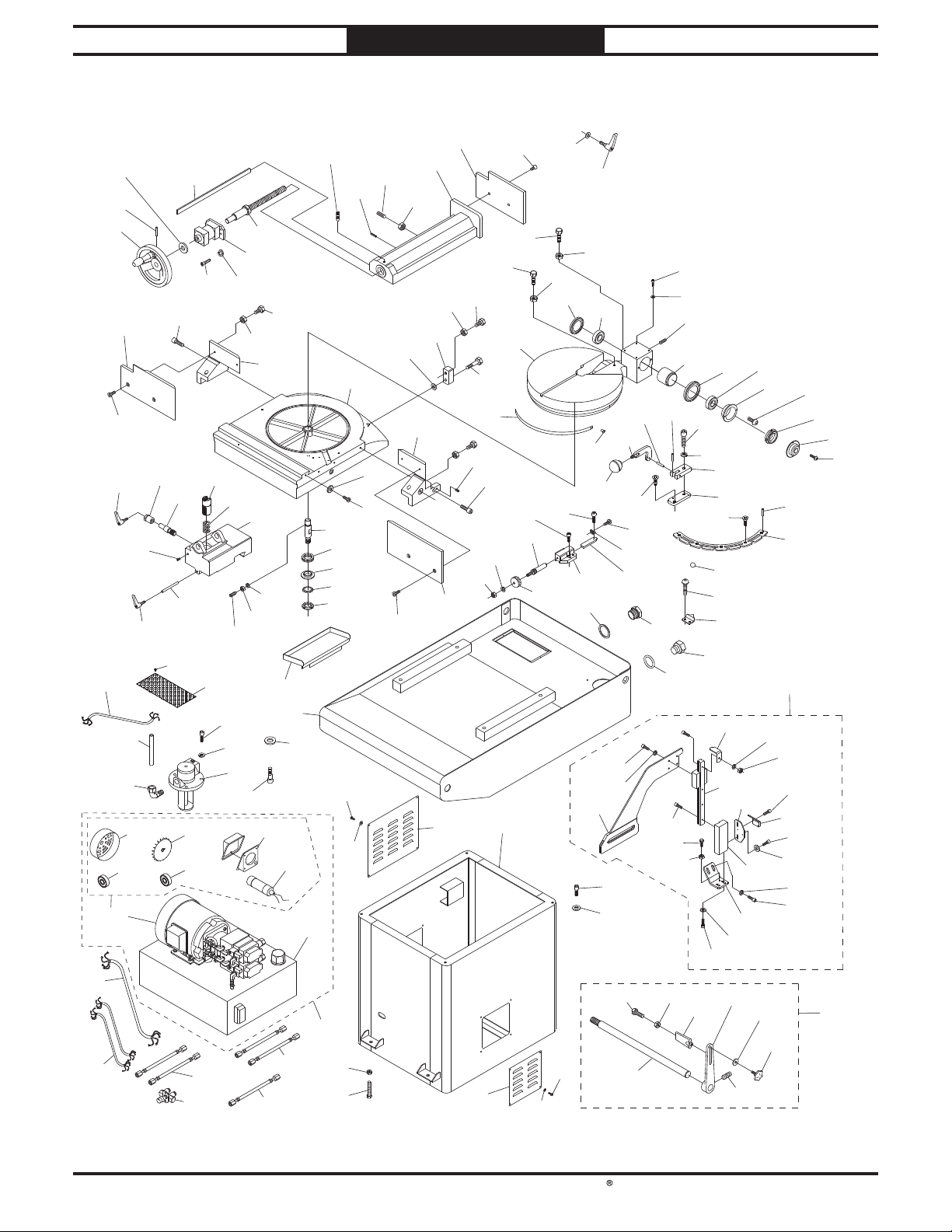

Base

172

171

170

205

243

350

187

182

208

245

350-1

350-4

189

204

212

224

188

223

176

179

350-2

350-5

352

354

222

236237

178

261

241

242

240

256

190

220

219

211

184

255

260

350-3

353

218

248

221

257

350-6

351

355

355A

177

196

253

254

263

262

175

186

251 252

282

281

111

110

173

247

182

180

174

239

209

246

181

185

279

244

213

274

264

198

249

161

212

273

250

182

194

266

197

271

272

281

341

195

269

282

342

195

162

289

265

210

340-3 340-2

340-1

165-8

287

288

290

268

267

235

234

165-2

286

270

217

340-5

340-17

340-16

165-7

215

192

191

193

238

285

284

258

340-19

165-6

283

280

276

278

277

216

340-6

340-4

340-10

340-18

165-5

165-1

200

340

340-7

340-9

340-13

165-4

165-3

207

201

206

203

259

275

340-8

340-21

340-20

340-12

340-11

340-14 340-15

165

-77-

South Bend Tools

Model SB1122

PARTS

For Machines Mfd. Since 10/22

Base Parts List

REF PART # DESCR IPT ION REF PART # D E SCR IPT ION

55 PSB1122055 CUTTIN G FLUID PUMP CORD 18 G 3W 67" 206 PSB1122206 SWIVEL BAS E CAP COVER

61 PSB1122061 HYDRAULIC MOTOR CORD 18G 4W 205" 207 PSB1122207 B UTTON HD CAP SCR M5-.8 X 16

62 PSB1122062 H YDRAULIC S OLEN OID CORD 1 9G 4W 2 0 5" 208 PSB1122208 S ET SCREW M8-1.25 X 16

66 PSB1122066 B EA RIN G DUST COVER 209 PSB1122209 VISE SUPPORT (RIGHT)

67 PSB1122067 TAPER ROLLER B EARING 32007 210 PSB1122210 O-RING 19.5 X 2.2 K14

110 PSB1122110 FLAT HD CAP SCR M8-1.25 X 15 211 PSB1122211 VISE SUPPORT (LEF T)

111 PSB1122111 SPACER 8.5 X 40 X 6 212 PSB1122212 CAP SCREW M12-1.75 X 30

161 PSB1122161 A NGLE SCALE 213 PSB1122213 SET SCREW M12-1.75 X 25

162 PSB1122162 RIVET 2 X 5MM N A MEPLATE 215 PSB1122215 O-RIN G 1 5 X 3. 3

165 PSB1122165 WORK STOP ASSEMBLY 216 PSB1122216 DRA IN PLUG 3/8"PT X 3/8"

165-1 PSB1122165-1 SET SCREW M6-1 X 1 0 217 PSB1122217 OIL SIGHT GLASS

165-2 PSB1122165-2 WORK S TOP ROD 218 PSB1122218 HEX BOLT M8-1.25 X 25

165-3 PSB1122165-3 KNOB B OLT M6 -1 X 1 3, 6-LOB E, D35 219 PSB1122219 HEX N UT M8-1.25

165-4 PSB1122165-4 FENDER WASHER 6MM 220 PSB1122220 VISE HAN DWHEEL BRACKET

165-5 PSB1122165-5 WORK STOP A RM 221 PSB1122221 CUTTING FLUID DRAIN PAN ASSEMBLY

165-6 PSB1122165-6 DISTAN CE B RACKET 222 PSB1122222 CUTTIN G FLUID SCREEN

165-7 PSB1122165-7 HEX NUT M10-1.5 223 PSB1122223 PHLP HD SCR M4-.7 X 10

165-8 PSB1122165-8 HEX BOLT M10-1.5 X 25 224 PSB1122224 GEAR SHAFT

170 PSB1122170 HAN DWHEEL TYPE-23 129D X 16B 234 PSB1122234 FLAT WASHER 10MM

171 PSB1122171 ROLL PIN 5 X 35 235 PSB1122235 CAP SCREW M10-1.5 X 20

172 PSB1122172 FLAT WASHER 16MM 236 PSB1122236 LOCK WASHER 8MM

173 PSB1122173 SET SCREW M6-1 X 35 CONE-PT 237 PSB1122237 CAP SCREW M8-1.25 X 30

174 PSB1122174 HEX N UT M6-1 238 PSB1122238 SWIVEL BASE BUSHING

175 PSB1122175 ROLL PIN 6 X 25 239 PSB1122239 SWIVEL BASE STOP BRACKET

176 PSB1122176 VISE GIB 240 PSB1122240 CUTTING FLUID PUMP 1/8HP 220V 1-PH

177 PSB1122177 SET SCREW M8-1.25 X 5 CONE-PT 241 PSB1122241 CAP SCREW M6-1 X 15

178 PSB1122178 COMPRES S ION S PRING 3.5 X 32 X 37 242 PSB1122242 LOCK WASHER 6MM

179 PSB1122179 PLUNGER 243 PSB1122243 ELB OW FITTING 3/8"PT X 3/8"

180 PSB1122180 VISE JAW ARM 244 PSB 1122244 HEX BOLT M8-1.25 X 25

181 PSB1122181 VIS E JAW (FRON T) 245 PSB1122245 CUTTIN G FLUID TUBE 6 X 140 0 MM

182 PSB1122182 FLAT HD CAP SCR M6-1 X 12 246 PSB1122246 HEX N UT M8-1.25

184 PSB1122184 VISE SLIDE BASE 247 PSB1122247 FLAT WASHER 10MM

185 PSB1122185 VISE JA W (RIGHT REAR) 248 PSB1122248 DRIP TRA Y

186 PSB1122186 SWIVEL BASE 249 PSB1122249 SHOULDER BOLT M10-1.5 X 18, 13 X 16

187 PSB1122187 VISE JAW (LEFT REAR) 250 PSB1122250 CABIN ET

188 PSB1122188 VISE POSITION LOCK SHAFT 251 PSB1122251 N EEDLE TH RUST BEARING AS S3552

189 PSB1122189 ADJUSTABLE HANDLE M10-1.5 X 25, 80L 252 PSB1122252 BUSHING

190 PSB1122190 VISE LEADSCREW M20-2.5 X 458 253 PSB1122253 EXT TOOTH WASH ER 4MM

191 PSB1122191 FLAT WASHER 8MM 254 PSB1122254 SPANNER NUT M20-1

192 PSB1122192 CAP SCREW M8-1.25 X 25 255 PSB1122255 LOCK WASHER 8MM

193 PSB1122193 SET S CREW M8 -1.25 X 16 256 PSB1122256 CAP SCREW M12-1.75 X 110

194 PSB1122194 SWIVEL BA SE CAP 257 PSB1122257 FLAT WASHER 12MM

195 PSB1122195 HEX NUT M10-1.5 258 PSB1122258 FLAT HD CAP SCR M6-1 X 16

196 PSB1122196 SWIVEL BASE SHAFT 259 PSB1122259 ROLL PIN 4 X 16

197 PSB1122197 HEX BOLT M10-1.5 X 35 260 PSB1122260 HEX NUT M8 -1 .25

198 PSB1122198 HEX BOLT M10-1.5 X 45 261 PSB1122261 SET SCREW M8-1.25 X 30 CONE-PT

200 PSB1122200 CAM SLEEVE 262 PSB1122262 HEX BOLT M12-1.75 X 50

201 PSB1122201 SPANNER NUT M35-1.5 263 PSB1122263 HEX NUT M12-1.75

203 PSB1122203 BUTTON H D CA P S CR M5-.8 X 6 264 PSB1122264 ACCESS PANEL (FRONT)

204 PSB1122204 GEAR SHAFT BUSHING 265 PSB1122265 AN GLE STOP BRACKET

205 PSB1122205 ADJUSTABLE HANDLE M10-1.5 X 15, 80L 266 PSB1122266 CAP SCREW M8-1.25 X 30

-78 -

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PARTS

Base Parts List (Cont.)

REF PAR T # D E SCR IPTION REF PART # DE SCR IPT ION

267 PSB1122267 A N GLE STOP B LOCK 340-7 PSB1122340-7 LOCK WASHER 4MM

268 PSB1122268 BLOCK MOUNTIN G BRACKET 340-8 PSB1122340-8 HEX N UT M4-.7

269 PSB1122269 CAP SCREW M5-.8 X 6 340-9 PSB1122340-9 SLIDE BASE

270 PSB1122270 B UTTON HD CA P SCR M5-.8 X 10 340-10 PSB1122340-10 LIMIT SWITCH MOUNTING BRA CKET

271 PSB1122271 ANGLE STOP SHAFT 340-11 PSB1122340-11 FLAT WASHER 8MM

272 PSB1122272 KN OB M6- 1 , D25, ROUN D KD 340 -1 2 PSB1122340-12 CAP SCREW M5-.8 X 16

273 PSB1122273 LOCK WASH ER 6MM 340-13 PSB1122340-13 S EN SOR STRIP MOUNTING BRA CKET (LOWER)

274 PSB1122274 HEX NUT M6-1 340-14 PSB1122340-14 LOCK WASHER 8MM

275 PSB1122275 ANGLE STOP FRAME 340-15 PSB1122340-15 CAP SCREW M8-1.25 X 20

276 PSB1122276 STEEL B ALL 6.35MM 340 -1 6 PSB1122340-16 HEX N UT M6-1

277 PSB1122277 ANGLE POINTER 340-17 PSB1122340-17 HEX BOLT M6-1 X 25

278 PSB1122278 B UTTON HD CA P SCR M5-.8 X 16 340-18 PSB1122340-18 FLAT WASHER 6MM

279 PSB1122279 ACCESS PANEL (REAR) 340-19 PSB1122340-19 CAP SCREW M6-1 X 20

280 PSB1122280 ANGLE LOCK BRACKET (LOWER) 340-20 PSB1122340-20 LIMIT SWITCH OMRON D2VW-5-1M

281 PSB1122281 FLAT WASHER 6MM 340-21 PSB1122340-21 CAP SCREW M4-.7 X 28

282 PSB1122282 BUTTON H D CAP SCR M6-1 X 1 0 341 PSB1122341 FLAT WASHER 10 X 27 X 2MM

283 PSB1122283 ANGLE LOCK BRACKET (UPPER) 342 PSB1122342 ADJUSTABLE HANDLE M10-1.5 X 25, 80L

284 PSB 1122284 LOCK WASHER 10MM 350 PSB1122350 HYDRAULIC PUMP MOTOR 1/2HP 220V 1-PH

285 PSB1122285 CAP SCREW M10-1.5 X 35 350-1 PSB1122350-1 M OTOR FA N COVER

286 PSB1122286 DOWEL P IN 4 X 20 350-2 PSB1122350-2 MOTOR FAN

287 PSB1122287 ROLL PIN 6 X 30 350-3 PSB1122350-3 MOTOR JUN CTION BOX

288 PSB1122288 ANGLE LOCK HAN DLE 350 -4 PSB1122350-4 BALL B EARING 620 5Z Z (FRONT)

289 PSB1122289 KNOB 3/8-16, D1-3/16, BALL 350-5 PSB1122350-5 B ALL BEARING 620 3ZZ (REAR)

290 PSB1122290 FLAT HD CAP SCR M6-1 X 12 350-6 PSB1122350-6 S CAPACITOR 200M 250V 1-1/2 X 2-3/4

340 PSB1122340 WORKPIECE CONTACT SAF ETY ASSEMBLY 351 PSB1122351 HYDRAULIC HOSE 1/4" X 110"

340-1 PSB1122340-1 WORKPIECE CONTACT ARM 352 PSB1122352 HYDRAULIC HOSE 1/4" X 102"

340-2 PSB1122340-2 LOCK WASHER 5MM 353 PSB1122353 HYDRAULIC HOSE 1/4" X 31-1/2"

340-3 PSB1122340-3 CAP SCREW M5-.8 X 16 354 PSB1122354 FLOW VALVE 4.8MM

340-4 PSB1122340-4 SENSOR STRIP TRH1 5F N1-NZ 0-400 L 355 PSB1122355 HYDRAULIC TAN K

340-5 PSB1122340-5 CAP SCREW M4-.7 X 20 355A PS B11 22355A HYDRAULIC PUMP ASSEMBLY

340-6 PSB1122340-6 SENSOR STRIP MOUNTING BRA CKET (UPPER)

-79-

South Bend Tools

Model SB1122

PARTS

For Machines Mfd. Since 10/22

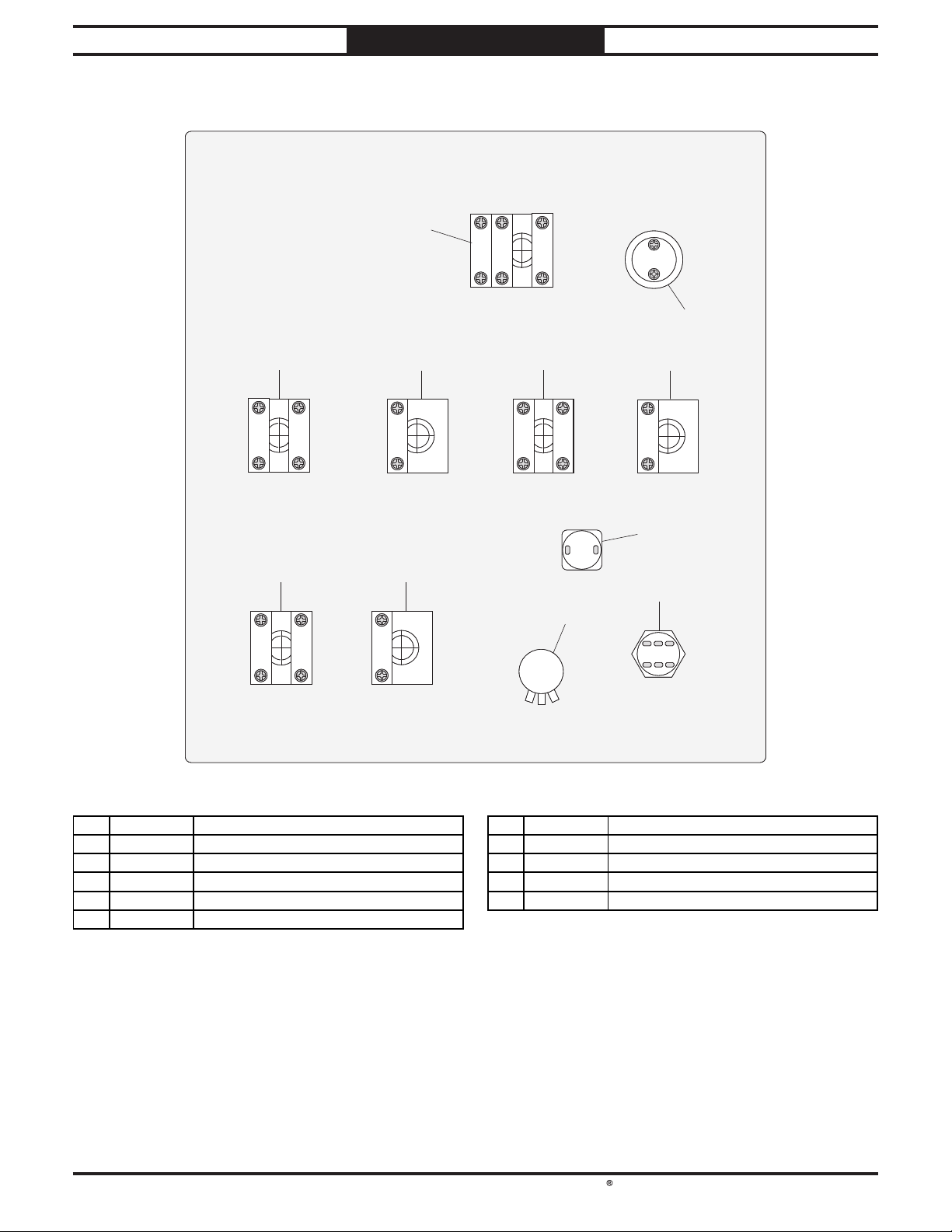

Control Panel Electrical Components

403

401

343

402

406405404

407

410411

408

409

44 4

333

123

REF PAR T # DESCR IPT ION REF PART # DESCRIPTION

401 PSB1122401 MAN/AUTO KEY SWITCH NHD NSS22-K221B 407 PSB1122407 OVERLOAD LAMP TEN D TT16-PLR 1 6M M RED

402 PSB1122402 P OWER LA M P TEN D N HD N LD-22 LED WHITE 408 PSB1122408 EMERGEN CY S TOP B UTTON HON G POU

403 PSB1122403 OFF BUTTON NHD NPB22-F02R 409 PSB1122409 POTENTIOMETER TOCOS RV24YN20S 5K

404 PSB1122404 MANUAL ON BUTTON NHD NPB22-F10G 410 PSB1122410 VISE SWITCH NHD NSS22-S210B

405 PSB1122405 AUTO BUTTON NHD NPB22-F22G 411 PSB1122411 SAW BOW SWITCH NHD NSS22-S120B

406 PSB1122406 HYDRAULIC ON BUTTON NHD NPB22-F10G

-80-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

PARTS

Control Box Electrical Components (Bottom)

505

512

520

508

13NO

5L3

3L2

1L1

2212A2

516

506

524

516

529

525

AC 24

OIL PUMP

WATER

MOTOR

509

DOWN (1)

DOWN (2)

OIL PUMP

MANUAL LS-DN (NO) LS UP (NC)

STOP

START

NC2

DOWN

COM (0V)

514

6T3

14NO

6T3

4T2

2T1

4T2

98 NO

2T1

POWER

521

504

522

142111

503

511

516

513

515

518

516

517

REF PAR T # DE SCR IPTION REF PART # D E SCR IPT ION

503 PSB1122503 FUSE HOLDER NHD HTF-1 1P 516 PSB1122516 PHLP HD SCR M4-.7 X 6

504 PSB1122504 OL RELAY TECO RHU-10/4-BK1 3.5-4.8A 51 7 PSB1122517 DIN RAIL 4-1/2" X 1-1/2"

505 PSB1122505 CONTACTOR NHD C-06D10A7 220V 518 PSB1122518 TERMINAL BAR WAGO 222-413 12-28G

506 PSB1122506 CIRCUIT BOARD RF MET2518-A 519 PSB1122519 TERMINAL BAR WAGO 222-412 12-28G

508 PSB1122508 RELAY SCH RACK RF 110 9546 520 PSB1122520 TERMINA L B RIDGE PH OEN IX FB S 2-5

509 PSB1122509 FUSE 15A 250 V 521 PSB1122521 TERMIN AL BAR 4P DIN38 12-26G

511 PSB1122511 TAP SCREW M 4 X 1 6 522 PSB1122522 TERMINAL BLOCK END COVER

512 PSB1122512 TRANSFORMER LCE LCPIC-TBSW-100200 220V 524 PSB1122524 GROUND TERMIN AL BAR 5P M4 X 67 TM4

513 PSB1122513 DIN RAIL 8-1/2" X 1-1/2" 525 PSB1122525 FUSE 6A 250V

514 PSB1122514 DIN RAIL CLA MP TB R-F ZGX 529 PSB1122529 EXT TOOTH WA SHER 4MM

515 PSB1122515 RELAY SOCKET ERSCE ES 50 10A 400V

519

-81-

South Bend Tools

Model SB1122

123

2212A2

211124

6T3

4T2

2T1

96 NC

95 NC

98 NO

97 NO

3.5

4.5

4.8 A

PARTS

For Machines Mfd. Since 10/22

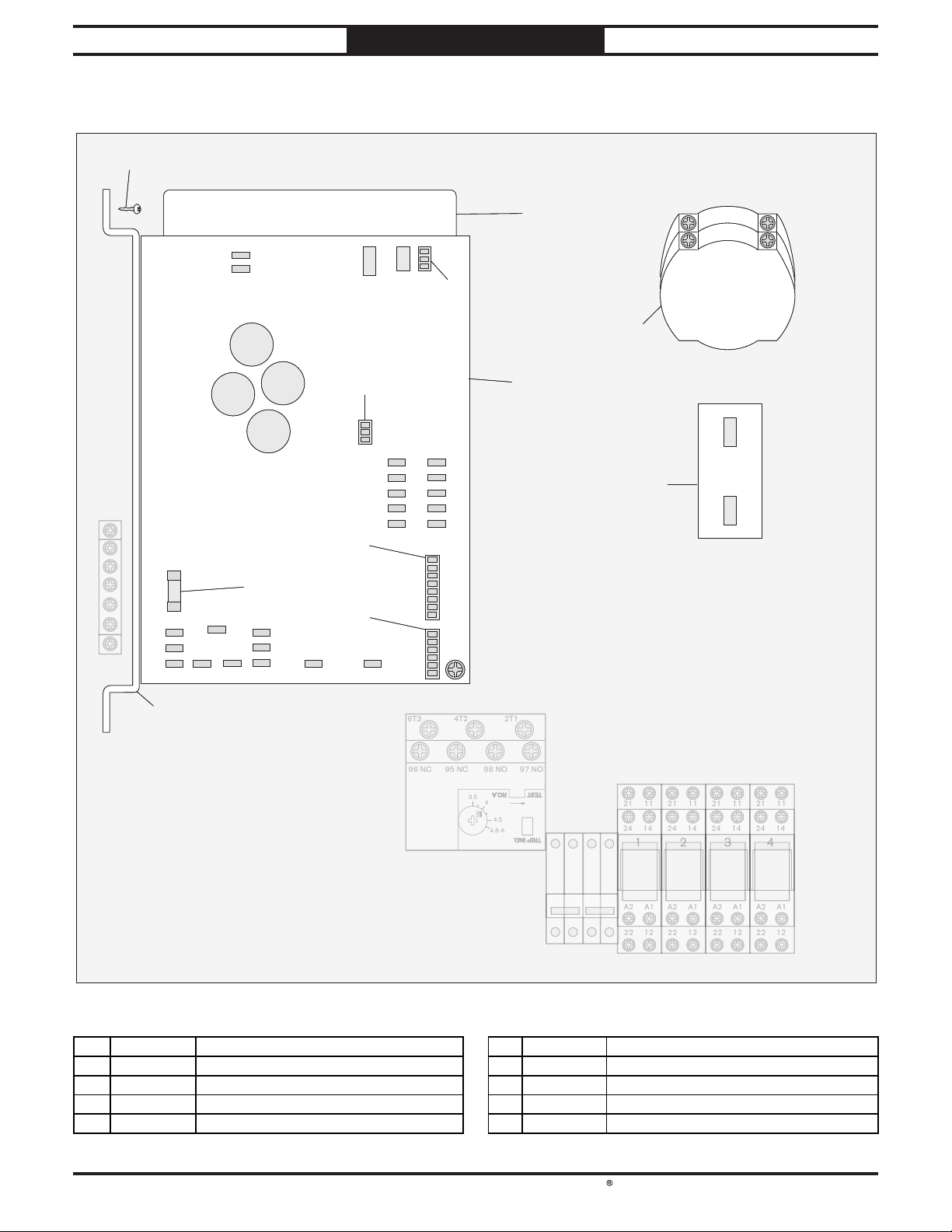

Control Box Electrical Components (Rear)

531

CN2

CN8

PANEL RPMOUT

CN5

CN4CN24

507

528

2 1

6 5

510

528

SW1

SW2

SW3

SW4

SW5

501

LOAD

523

LINE

526

HAND

502

527

AC2AC1

M- M+

Motor

PUMP

OFF

POWER

RUN

ALARM

530

REF PAR T # DE SCR IPT ION REF PART # DE SCR IPT ION

501 PSB1122501 CIRCUIT BOARD RF M B S-3-125 526 PSB1122526 WIRE CABLE CONNECTOR 8P

502 PSB1122502 FUSE 15A 250V 527 PSB1122527 WIRE CA B LE CONN ECTOR 6P

507 PSB1122507 COOLING FAN STRIKEFAN SA922552HT(W) 528 PSB1122528 WIRE CAB LE CONNECTOR 3P

510 PSB1122510 POWER SWITCH AUSPICIOUS 600V 20A 530 PSB1122530 CIRCUIT BOA RD MOUNTIN G BRACKET

523 PSB1122523 CIRCUIT BREAKER KUOYUH 98 SERIES 15A 531 PSB1122531 PHLP HD SCR M5-.8 X 8

-82-

South Bend Tools

For Machines Mfd. Since 10/22 Model SB1122

SB1122

601

SB1122 Machine Labels A

• 1:1 Scale (unless otherwise noted)

PARTS

Machine Labels (Front)

MODEL SB1122

SINCE

1906

Main Motor: 2 HP, 220V, 1-Ph, 60 Hz Hydraulic Motor: 1/2 HP, 220V, 1-Ph, 60 Hz Coolant Motor: 1/8 HP, 220V, 1-Ph, 60 Hz Full-Load Current Rating: 10A Blade Speeds: 85–265 FPM Blade Length: 108-1/4" Max. Round @ 90º: 10" Max. Rectangle @ 90º: 9"H x 12"W Max. Round @ 45º: 7-7/8" Max. Rectangle @ 45º: 7"H x 7"W Vise Jaw Depth: 12-5/8" Vise Jaw Height: 5-1/2" Angle Cuts: Left 45°, Right 60° Weight: 860 lbs.

Made in Taiwan to South Bend Specifications

9" X 12" 2 HP

METAL-CUTTING BANDSAW

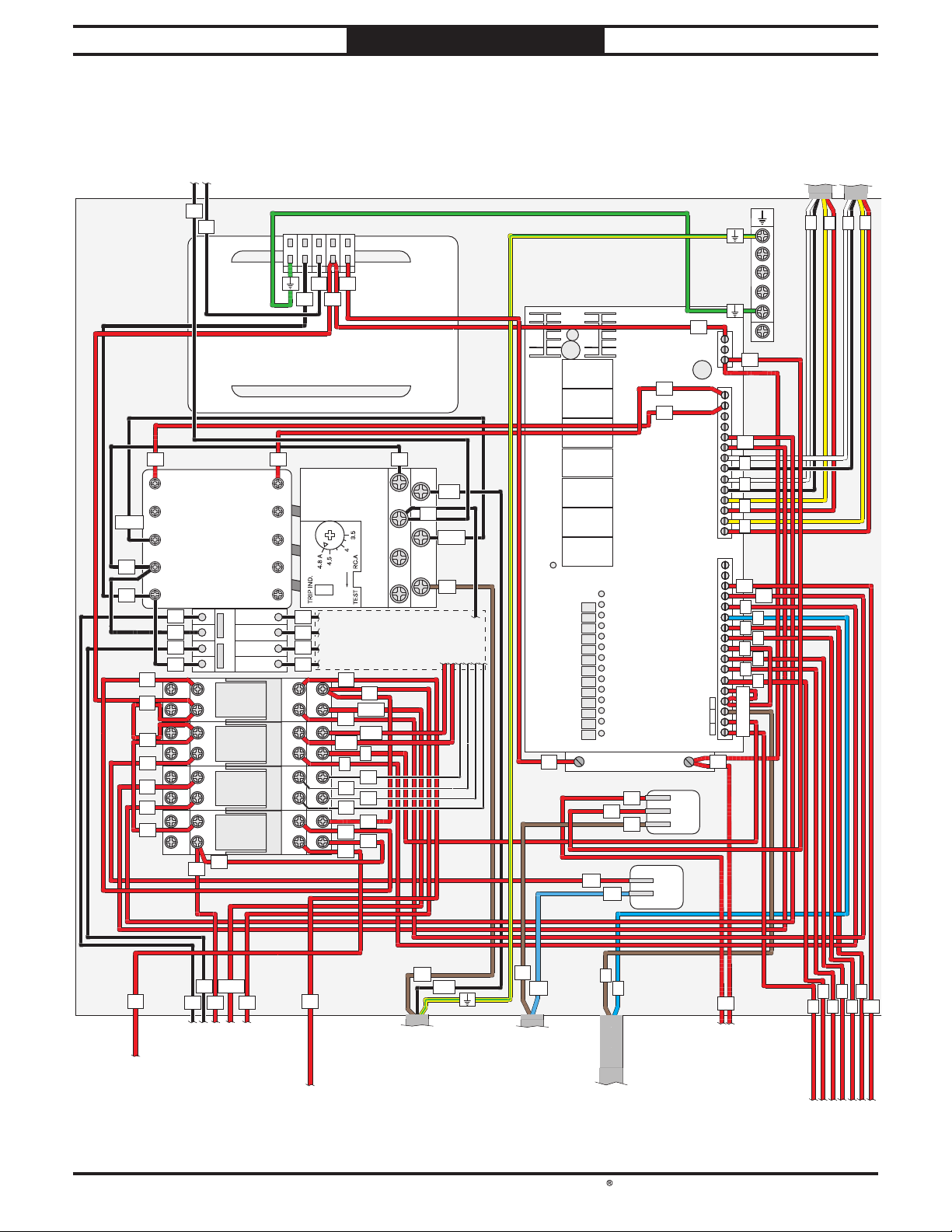

Serial No

To reduce risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Never touch moving blade—keep hands out of blade path.

3. Always wear approved eye protection and respirator.

4. Only plug power cord into a grounded outlet.

5. Ensure machine is correctly set up before starting.

6. Only remove jammed cutoff pieces when blade is stopped.

7. Disconnect power before changing blades, making adjustments, or servicing.

8. Maintain proper adjustment of blade tension, tracking, and guides.

9. Always ensure workpiece is securely clamped in vise while cutting.

10. Only run saw with wheel covers closed and guards in place.

11. DO NOT wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

12. DO NOT expose to rain or use in wet locations.

13. DO NOT operate under influence of drugs or alcohol.

14. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

WARNING!

MFG Date

610

WARNING!

CUTTING HAZARD

Always keep hands

Always wear safety

and body away from

glasses and

blade when machine

respirator when

is running.

using this equipment.

WARNING!

INJURY HAZARD Do not use machine if you have not read the manual. Visit southbendtools.com or call 360-734-1540 to get a manual.

602

EYE/LUNG INJURY

Always wear ANSIapproved safety glasses and respirator when using this equipment.

WARNING!

HAZARD

WARNING!

INJURY/SHOCK

HAZARD To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

SINCE 1906

Component

Coolant Tank

Hydraulic Tank

603

604

Fluid Capacity

Capacity

Type

Specific to Operation

3.9 gal. and Material

7.9 qt.

ISO 46 Hydraulic Oil or SAE Equivalent

SINCE

1906

609

605

608

607

WARNING!

INJURY HAZARD Keep panel closed while machine is operating. Disconnect power before opening panel.

606

REF PAR T # D E SCR IPTION REF PART # DE SCR IPT ION

601 PSB1122601 MACHINE ID LABEL 606 PSB1122606 MODEL NUMB ER LABEL

602 PSB1122602 COM B O WA RNING LABEL 607 PSB1122607 KEEP PAN EL CLOSED LABEL

603 PSB1122603 CONTROL PAN EL LA B EL 608 PSB1122608 TOUCH -UP PAIN T, SB DARK BLUE

604 PSB1122604 FLUID CAPACITY LABEL 609 PSB1122609 TOUCH -UP PA IN T, SB LIGHT B LUE

605 PSB1122605 SOUTH BEND NAMEPLATE 152MM 610 PSB1122610 CUTTING HAZARD LABEL

-83-

South Bend Tools

Model SB1122

613

PARTS

Machine Labels (Rear)

612

WARNING!

INJURY HAZARD Keep door closed while machine is operating. Disconnect power before opening door.

611

For Machines Mfd. Since 10/22

611

607

WARNING!

INJURY HAZARD Keep panel closed while machine is operating. Disconnect power before opening panel.

WARNING!

POISON/

BIOHAZARD Refer to the cutting fluid manufacturer’s Material Safety Data Sheets (MSDS) for safety information.

REF PART # DE SCRIPTION REF PART # DE SCR IPTION

607 PSB1122607 KEEP PAN EL CLOSED LABEL 612 PSB1122612 KEEP DOOR CLOSED LABEL

611 PSB1122611 ELECTRICITY LAB EL 613 PSB1122613 P OISON/B IOHA Z A RD LAB EL

The safety labels provided with your machine are used to make the operator aware of the machine hazards and ways to prevent injury. The owner of this machine MUST maintain the original location and readability of these safety labels. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact South Bend Tools at (360) 734-1540 or www.southbendtools.com to order new labels.

-84-

This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs. In no event shall we be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act, code, regulation, or standard of any domestic or foreign government, industry, or authority. In no event shall South Bend’s liability under this warranty exceed the original purchase price paid for this machine. Any legal actions brought against South Bend Tools shall be tried in the State of Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by law, including any merchantability or fitness, for any purpose, are hereby limited to the duration of this warranty.

Thank you for your business and continued support.

For further information about this warranty, visit

, or scan

the QR code below to be automatically directed to our warranty page.

WARRANTY

Warranty

https://www.grizzly.com/forms/warranty

WARRANT Y

southbendtools.com

Printed In Taiwan #CS22069

South Bend SB1122 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Description of Controls & Components

Product Specifications

SAFETY

Understanding Risks of Machinery

Basic Machine Safety

Additional Horizontal Metal Bandsaw Safety

Additional Hydraulic System Safety

PREPARATION

Preparation Overview Required for Setup

Unpacking

Inventory

Cleaning & Protecting

Location

Assembly

Initial Lubrication

Test Run

Inspections & Adjustments

OPERATION

Operation Overview

Disabling Switches

Operation Tips

Workpiece Inspection

Selecting Blades

Blade Breakage

Blade Care & Break-In

Setting Downfeed Rate

Changing Blade Speed

Blade Speed Chart

Chip Inspection Chart

Changing Blade

Tensioning Blade

Adjusting Blade Guides

Manual & Automatic Controls

Angled Cuts

Opening & Closing Vise

Adjusting Work Stop

Using Cutting Fluid System

ACCESSORIES

Maintenance

Maintenance Schedule

Cleaning

Lubrication

Machine Storage

Hydraulic System Maintenance

Cutting Fluid System Maintenance

Service

Adjusting Headstock Travel Limits

Squaring Blade to Table

Adjusting Blade Guides & Bearings

Adjusting Downfeed Pressure

Calibrating Headstock Angle Scale

Adjusting Angle Stops

Adjusting Workpiece Contact Safety Switch

Adjusting Vise Gib

Adjusting Blade Brush

TROUBLESHOOTING

ELECTRICAL

Electrical Safety Instructions

Electrical Overview

Control Box Bottom Panel Wiring Diagram

Control Box Bottom Panel

Control Box Rear Panel Wiring Diagram

Control Box Rear Panel

Control Panel Wiring Diagram

Control Panel

Motor Wiring Diagrams

Electrical Component Wiring Diagrams

Hydraulics

Hydraulic System Diagram

PARTS

Headstock

Base

Control Panel Electrical Components

Control Box Electrical Components (Bottom)

Control Box Electrical Components (Rear)
