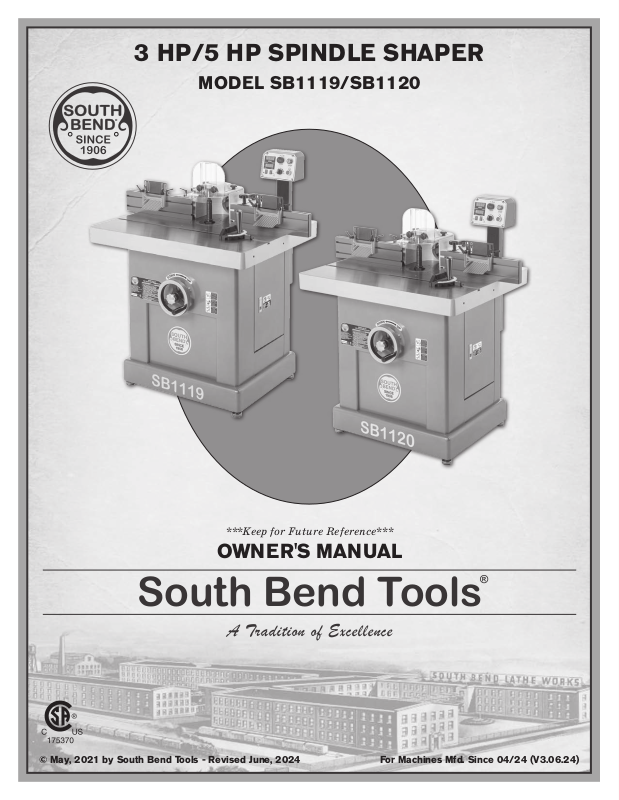

South Bend SB1120, SB1119 User guide

3 HP/5 HP SPINDLE SHAPER

MODEL SB1119/SB1120

***Keep for Future Reference***

OWNER'S MANUAL

®

South Bend Tools

A Tradition of Excellence

© May, 2021 by South Bend Tools - Revised June, 2024 For Machines Mfd. Since 04/24 (V3.06.24)

We stand behind our machines. If you have any service questions, parts requests or general questions
about your purchase, feel free to contact us.

South Bend Tools
P.O. Box 2027
Bellingham, WA 98227
Phone: [phone]
Fax: [phone] (International)
Fax: [phone] (USA Only)
Email: [e-mail]

For your convenience, any updates to this manual will be available to download free of charge

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control
it during operation, and how to keep it in good working condition. We assume the reader has a basic
understanding of how to operate this type of machine, but that the reader is not familiar with the
controls and adjustments of this specific model. As with all machinery of this nature, learning the
nuances of operation is a process that happens through training and experience. If you are not an
experienced operator of this type of machinery, read through this entire manual, then learn more
from an experienced operator, schooling, or research before attempting operations. Following this
advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes
happen or the machine design changes after the documentation process—so
exactly match your machine.
contact our

We highly value customer feedback on our manuals. If you have a moment, please share your
experience using this manual. What did you like about it? Is there anything you would change to
make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

C

P.O. Box 2027
Bellingham, WA 98227
Email: [e-mail]

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

through our website at:

Customer Service

Table of Contents

INTRODUCTION

Identification
Description of Controls & Components
SB1119 Product Specifications
SB1120 Product Specifications

SAFETY

Understanding Risks of Machinery
Basic Machine Safety
Additional Shaper Safety

PREPARATION

Preparation Overview
Required for Setup
Power Supply Requirements
Unpacking
Inventory
Cleaning & Protecting
Location
Lifting & Moving
Assembly
Dust Collection
Test Run

OPERATION

Operation Overview
Workpiece Inspection
Using Featherboards
Changing Cutter Rotation
Changing Spindle Speed
Adjusting Cutterhead Guard
Installing Cutters
Using Push Sticks

Using Table Inserts................................... 30

Adjusting Spindle Height
Operating Spindle Height Digital Readout
Adjusting Fence
Straight Shaping
Using Rub Collars
Irregular Shaping
Pattern Work
Shaping Small Stock

............................................................................ 10

............................................... 16

................................................. 18

................................................ 19

................................................ 22

..............................................................2

............................................ 2

........... 3

..................... 6

..................... 8

.............. 10

................................ 10

........................... 12

.............................................................. 13

............................... 13

................................... 13

....................... 14

.............................................. 16

............................... 17

..................................... 19

........................................ 21

................................................................... 24

.................................. 24

................................ 25

................................. 25

.......................... 26

............................ 27

...................... 28

..................................... 28

.................................... 29

.......................... 30

.... 31

....................................... 31

..................................... 32

.................................... 35

.................................... 36

.......................................... 38

................................. 39

ACCESSORIES ............................................................. 40

Shop-Made Safety Accessories
Other Accessories

MAINTENANCE

Maintenance Schedule............................... 47

Cleaning & Protecting
Machine Storage
Lubrication
Checking & Replacing V-Belt

SERVICE

Replacing Spindle Bearings........................ 51

Adjusting Table Inserts
Calibrating Fence Scales
Aligning Fence Faces
Truing Wooden Fences
Aligning Pulleys
Adjusting Spindle Gib
Squaring Spindle

TROUBLESHOOTING

ELECTRICAL

Electrical Safety Instructions
SB1119 Wiring Diagram
SB1120 Wiring Diagram
Electrical Component Photos

PARTS

Table

..................................................... 66

Cabinet
Motor & Handwheel
Accessories
Machine Labels

WARRANTY

............................................. 48

.......................................................................... 51

............................................................................... 66

.................................................. 68

............................................. 71

.................................................................... 73

..................................... 44

............................................................. 47

............................... 47

...................................... 48

............................. 51

............................ 52

................................ 53

.............................. 54

...................................... 55

............................... 56

..................................... 57

................................................ 59

.................................................................. 61

.................................. 69

........................................ 72

.................... 40

...................... 50

..................... 61

........................... 62

........................... 63

...................... 64

South Bend Tools

Model SB1119/SB1120

Identification

INTRODUCTION

For Machines Mfd. Since 04/24

Hold-Down Hold-Down

FeatherboardFeatherboard

(1 of 2)(1 of 2)

CutterCutter
GuardGuard

SpindleSpindle

Control Control

PanelPanel

Cabinet DoorCabinet Door

4" Dust Port4" Dust Port

Fence Guard Fence Guard

AssemblyAssembly

Work TableWork Table

FenceFence

Spindle Spindle

Height Height

HandwheelHandwheel

Miter GaugeMiter Gauge

Machine FootMachine Foot

(1 of 4)(1 of 4)

4" Dust Port4" Dust Port

Cabinet Access Cabinet Access

PanelPanel

For Your Own Safety Read Instruction Manual Before Operating Shaper

a) Wear eye protection.
b) Be sure two-piece keyed washer is installed directly under cap screw and cap screw is tight.
c) Feed workpiece against rotation of cutter.
d) Do not use awkward hand positions.
e) Keep fingers away from revolving cutter–use fixtures when necessary.
f) Use overhead guard when adjustable fence is not in place.

-2-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

INTRODUCTION

Description of Controls & Components

Serious personal injury could occur if
you connect the machine to power before
completing the setup process. DO NOT
connect power until instructed to do so later
in this manual.

Untrained users have an increased risk
of seriously injuring themselves with this
machine. Do not operate this machine until
you have understood this entire manual and
received proper training.

Refer to Figures 1–9 and the following
descriptions to become familiar with the basic
controls and components used to operate this
machine.

BB

AA

HH

GG

FF

Figure Figure 1. Control panel.. Control panel.

I. Starting Pin: Supports workpiece during

freehand cuts until it contacts rub collar
(refer to Page 36).

II

EE

CC

DD

A. RPM Digital Readout Screen: Displays

spindle RPM.

B. RPM Adjustment Knob: Adjusts spindle

speed between 5,000–10,000 RPM.

C. STOP Button: Turns machine OFF and

prevents it from starting.

D. ON Button: Turns machine ON.

E. Forward/Reverse (FOR/REV) Switch:

Starts, stops, and reverses spindle rotation.

F. Unit (mm/in.) Button: Switches spindle

height display to either inches or
millimeters.

G. Zeroing (0" Set) Button: Adjusts spindle/

cutter height to 0 in./mm.

H. Spindle Height Digital Readout Screen:

Displays spindle/cutter height in either
inches or millimeters.

Figure Figure 2. Starting pin.. Starting pin.

J. Miter Gauge: Supports workpiece for

controlled straight or angled cuts as it slides
along the work table miter slot.

K. Spindle Height Handwheel: Raises and

lowers spindle and cutter to desired height.

JJ

KK

Figure Figure 3. Cabinet components.. Cabinet components.

-3-

South Bend Tools

Model SB1119/SB1120

INTRODUCTION

L. Guard Height Lock Knobs: Loosen to adjust

front cutter guard height and tighten to
secure.

For Machines Mfd. Since 04/24

OO

PP

M. Cutter Guard: Adjusts to protect user from

accidental cutter contact or chips thrown by
cutterhead.

N. Guard Position Lock Knob (1 of 2): Loosen to

adjust cutter guard forward or backward and
tighten to secure.

LL

MM

NN

Figure Figure 4. Cutter guard controls and components.. Cutter guard controls and components.

PP

OO

RR

RR

Figure Figure 5. Fence controls and components.. Fence controls and components.

QQ

S. Guard/Fence Base Adjustment Knob:

Adjusts guard/fence base forward and
backward on table using rack and pinion. One

5

turn is approximately 1

⁄8" of movement.

T. Guard/Fence Base Lock Knobs: Loosen to

allow for guard/fence base adjustment and
tighten to secure.

O. Fence: Adjusts side to side and forward

and backward to support workpiece during
operation. Each fence is independently
adjustable and both can be removed and
replaced with a zero-clearance or other
custom-made fence.

P. Fence Lock Handles: Loosen to allow for

independent fence micro-adjustment and
tighten to secure.

Q. Fence Lock Knob (1 of 2): Loosens to allow

for independent fence adjustment in relation
to cutterhead (side to side) and tightens to
secure.

R. Fence Micro-Adjustment Knobs: Move each

fence independently forward and backward
(i.e., cutting depth). One turn moves each

1

fence approximately

⁄64" (.015").

U. Guard/Fence Base: Adjusts forward and

backward on table to provide safety and
support as required by operation. Assembly
can be removed or adjusted to use custom­made box guard for small stock or irregular
shaping.

SS

Figure Figure 6. Guard/fence base controls and components.. Guard/fence base controls and components.

TT

TT

UU

-4-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

INTRODUCTION

V. Featherboard Position Lock Handle: Loosen

to adjust featherboard closer or farther away
from cutterhead along fence (i.e., workpiece
length) and tighten to secure.

W. Featherboard Height Lock Handle: Loosen to

adjust featherboard closer or farther away
from table (i.e., workpiece thickness) and
tighten to secure.

X. Featherboard: Guides and supports

workpiece as it moves past cutterhead.

VV

VV

WW

XX

WW

Z. Spindle Assembly Lock Handle: Locks/

unlocks spindle seat to change spindles.

AA. Motor Bracket Handle: Engages and releases

V-belt tension.

ZZ

AAAA

Figure Figure 7. Featherboard controls and components.. Featherboard controls and components.

Y. Cabinet Door: Allows access to inside cabinet

for maintenance, service, or to change
spindles.

YY

Figure Figure 8. Cabinet door location.. Cabinet door location.

Figure Figure 9. Inside cabinet controls.. Inside cabinet controls.

-5-

South Bend Tools

Model SB1119/SB1120

Model SB1119

INTRODUCTION

For Machines Mfd. Since 04/24

Product Specifications

P.O. Box 2027, Bellingham, WA 98227 U.S.A.

PHONE: [phone] •

www.southbendtools.com

3 HP Single-Phase Variable-Speed Spindle

Shaper

Product Dimensions

Weight............................................................................................................................................................. 660 lbs.

Width (side-to-side) x Depth (front-to-back) x Height......................................................... 39-1/2 x 34 x 51-1/2 in.

Footprint (Length x Width)................................................................................................................. 25-1/2 x 31 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content.......................................................................................................................................................... Machine

Weight............................................................................................................................................................. 780 lbs.

Length x Width x Height................................................................................................................... 44 x 39 x 58 in.

© South Bend Tools

Electrical

Power Requirement......................................................................................................... 230V, Single-Phase, 60 Hz

Full-Load Current Rating.................................................................................................................................... 20A

Minimum Circuit Size.......................................................................................................................................... 20A

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 120 in.

Power Cord Gauge......................................................................................................................................... 12 AWG

Plug Included........................................................................................................................................................ Yes

Included Plug Type.............................................................................................................................................. 6-20

Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection

Inverter (VFD) Type............................................................................................................................. Delta ME300

Inverter (VFD) Size............................................................................................................................................ 3 HP

Motors

Main

Horsepower............................................................................................................................................... 3 HP

Phase.................................................................................................................................................... 3-Phase

Amps............................................................................................................................................................. 8A

Speed................................................................................................................................................ 3450 RPM

Type........................................................................................................................................ TEFC Induction

Power Transfer .......................................................................................................................................... Belt

Bearings................................................................................................ Shielded & Permanently Lubricated

-6-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

INTRODUCTION

Main Specifications

Operation Info

Max. Cutter Height.................................................................................................................................... 5 in.

Max. Cutter Diameter............................................................................................................................... 7 in.

Spindle Sizes................................................................................................................................. 3/4, 1-1/4 in.

Spindle Lengths......................................................................................................................... 3-7/8, 5-7/8 in.

Exposed Spindle Length........................................................................................................... 3-7/8, 5-7/8 in.

Spindle Cap. Under the Nut..................................................................................................... 3-1/2, 5-1/8 in.

Spindle Speeds................................................................................................................... 5000 - 10,000 RPM

Spindle Travel............................................................................................................................................ 4 in.

Spindle Openings........................................................................................................ 2-1/2, 4-1/8, 5-3/4, 7 in.

Table Info

Number of Table Inserts................................................................................................................................. 3

Table Insert Sizes I.D..................................................................................................... 2-1/2, 4-1/8, 5-3/4 in.

Table Insert Sizes O.D.................................................................................................... 4-5/8, 6-1/4, 8-3/8 in.

Table Counterbore Diameter.............................................................................................................. 8-1/4 in.

Table Counterbore Depth..................................................................................................................... 3/16 in.

Table Size Length.............................................................................................................................. 39-1/4 in.

Table Size Width............................................................................................................................... 31-1/2 in.

Table Size Thickness........................................................................................................................... 3-1/4 in.

Floor to Table Height........................................................................................................................ 36-1/4 in.

Table Fence Length........................................................................................................................... 44-1/2 in.

Table Fence Width............................................................................................................................... 1-1/4 in.

Table Fence Height.............................................................................................................................. 4-3/4 in.

Miter Gauge Info

Miter Angle................................................................................................................................ 0 - 60 deg. L/R

Miter Gauge Slot Type............................................................................................................................ T-Slot

Miter Gauge Slot Width......................................................................................................................... 3/4 in.

Miter Gauge Slot Height........................................................................................................................ 3/8 in.

Construction

Table.................................................................................................................... Precision-Ground Cast Iron

Cabinet........................................................................................................................................ Formed Steel

Fence................................................................................................................................................ Aluminum

Miter Gauge..................................................................................................................................... Aluminum

Guard......................................................................................................................................... Polycarbonate

Spindle Bearings............................................................................................................. Sealed & Lubricated

Paint Type/Finish................................................................................................................................. Enamel

Other

Number of Dust Ports..................................................................................................................................... 2

Dust Port Size............................................................................................................................................ 4 in.

Other

Country of Origin ........................................................................................................................................... Taiwan

Warranty ........................................................................................................................................................ 2 Years

Approximate Assembly & Setup Time ................................................................................................... 30 Minutes

Serial Number Location .............................................................................................................................. ID Label

Sound Rating .................................................................................................................................................... 85 dB

ISO 9001 Factory ................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) ................................................................... Yes

-7-

South Bend Tools

Model SB1119/SB1120

Model SB1120

INTRODUCTION

For Machines Mfd. Since 04/24

Product Specifications

P.O. Box 2027, Bellingham, WA 98227 U.S.A.

PHONE: [phone] •

www.southbendtools.com

5 HP 3-Phase Variable-Speed Spindle Shaper

Product Dimensions

Weight............................................................................................................................................................. 682 lbs.

Width (side-to-side) x Depth (front-to-back) x Height......................................................... 39-1/2 x 34 x 51-1/2 in.

Footprint (Length x Width)................................................................................................................. 25-1/2 x 31 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content.......................................................................................................................................................... Machine

Weight............................................................................................................................................................. 800 lbs.

Length x Width x Height................................................................................................................... 44 x 39 x 58 in.

© South Bend Tools

Electrical

Power Requirement................................................................................................................. 230V, 3-Phase, 60 Hz

Full-Load Current Rating................................................................................................................................. 16.5A

Minimum Circuit Size.......................................................................................................................................... 20A

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 120 in.

Power Cord Gauge......................................................................................................................................... 12 AWG

Plug Included........................................................................................................................................................ Yes

Included Plug Type.......................................................................................................................................... L15-20

Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection

Inverter (VFD) Type............................................................................................................................. Delta ME300

Inverter (VFD) Size............................................................................................................................................ 5 HP

Motors

Main

Horsepower............................................................................................................................................... 5 HP

Phase.................................................................................................................................................... 3-Phase

Amps........................................................................................................................................................... 16.5

Speed................................................................................................................................................ 3450 RPM

Type........................................................................................................................................ TEFC Induction

Power Transfer .......................................................................................................................................... Belt

Bearings................................................................................................ Shielded & Permanently Lubricated

-8-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

INTRODUCTION

Main Specifications

Operation Info

Max. Cutter Height.................................................................................................................................... 5 in.

Max. Cutter Diameter............................................................................................................................... 7 in.

Spindle Sizes................................................................................................................................. 3/4, 1-1/4 in.

Spindle Lengths......................................................................................................................... 3-7/8, 5-7/8 in.

Exposed Spindle Length........................................................................................................... 3-7/8, 5-7/8 in.

Spindle Cap. Under the Nut..................................................................................................... 3-1/2, 5-1/8 in.

Spindle Speeds................................................................................................................... 5000 - 10,000 RPM

Spindle Travel............................................................................................................................................ 4 in.

Spindle Openings........................................................................................................ 2-1/2, 4-1/8, 5-3/4, 7 in.

Table Info

Number of Table Inserts................................................................................................................................. 3

Table Insert Sizes I.D..................................................................................................... 2-1/2, 4-1/8, 5-3/4 in.

Table Insert Sizes O.D.................................................................................................... 4-5/8, 6-1/4, 8-3/8 in.

Table Counterbore Diameter.............................................................................................................. 8-1/4 in.

Table Counterbore Depth..................................................................................................................... 3/16 in.

Table Size Length.............................................................................................................................. 39-1/4 in.

Table Size Width............................................................................................................................... 31-1/2 in.

Table Size Thickness........................................................................................................................... 3-1/4 in.

Floor to Table Height........................................................................................................................ 36-1/4 in.

Table Fence Length........................................................................................................................... 44-1/2 in.

Table Fence Width............................................................................................................................... 1-1/4 in.

Table Fence Height.............................................................................................................................. 4-3/4 in.

Miter Gauge Info

Miter Angle................................................................................................................................ 0 - 60 deg. L/R

Miter Gauge Slot Type............................................................................................................................ T-Slot

Miter Gauge Slot Width......................................................................................................................... 3/4 in.

Miter Gauge Slot Height........................................................................................................................ 3/8 in.

Construction

Table.................................................................................................................... Precision-Ground Cast Iron

Cabinet........................................................................................................................................ Formed Steel

Fence................................................................................................................................................ Aluminum

Miter Gauge..................................................................................................................................... Aluminum

Guard......................................................................................................................................... Polycarbonate

Spindle Bearings............................................................................................................. Sealed & Lubricated

Paint Type/Finish................................................................................................................................. Enamel

Other

Number of Dust Ports..................................................................................................................................... 2

Dust Port Size............................................................................................................................................ 4 in.

Other

Country of Origin ........................................................................................................................................... Taiwan

Warranty ........................................................................................................................................................ 2 Years

Approximate Assembly & Setup Time ................................................................................................... 30 Minutes

Serial Number Location .............................................................................................................................. ID Label

Sound Rating .................................................................................................................................................... 85 dB

ISO 9001 Factory ................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) ................................................................... Yes

-9-

South Bend Tools

Model SB1119/SB1120

Operating all machinery and machining equipment can be dangerous or relatively safe depending
on how it is installed and maintained, and the operator's experience, common sense, risk awareness,
working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This
responsibility includes proper installation in a safe environment, personnel training and usage
authorization, regular inspection and maintenance, manual availability and comprehension,
application of safety devices, integrity of cutting tools or accessories, and the usage of approved
personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property
damage from negligence, improper training, machine modifications, or misuse. Failure to read,
understand, and follow the manual and safety labels may result in serious personal injury, including
amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

For Machines Mfd. Since 04/24

Understanding Risks of Machinery

Death or catastrophic
harm WILL occur.

Death or catastrophic
harm COULD occur.

Moderate injury or fire
MAY occur.

Machine or property
damage may occur.

Basic Machine Safety

equipment presents serious injury hazards
to untrained users. To reduce the risk of
injury, anyone who uses THIS item MUST
read and understand this entire manual
before starting.

Personal Protective Equipment:

servicing this item may expose the user
to flying debris, dust, smoke, dangerous
chemicals, or loud noises. These hazards
can result in eye injury, blindness, long­term respiratory damage, poisoning,
cancer, reproductive harm or hearing loss.
Reduce your risks from these hazards
by wearing approved eye protection,
respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves
or bystanders. Only allow trained and
properly supervised personnel to operate
this item. Make sure safe operation
instructions are clearly understood. If
electrically powered, use padlocks and
master switches, and remove start switch
keys to prevent unauthorized use or
accidental starting.

Guards/Covers:

moving parts during operation may cause
severe entanglement, impact, cutting,
or crushing injuries. Reduce this risk by
keeping any included guards/covers/doors
installed, fully functional, and positioned
for maximum protection.

Accidental contact with

-10 -

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

Entanglement: Loose clothing, gloves, neckties,

rotate.

Chuck Keys or Adjusting Tools:

Tools used to

our Technical Support for assistance.

SAFETY

jewelry or long hair may get caught in
moving parts, causing entanglement,
amputation, crushing, or strangulation.
Reduce this risk by removing/securing
these items so they cannot contact moving
parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the
risk of accidental injury. Do not let a
temporary influence or distraction lead to a
permanent disability! Never operate when
under the influence of drugs/alcohol, when
tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment
may result in electrocution; operating near
highly flammable materials may result in a
fire or explosion. Only operate this item in
a dry location that is free from flammable
materials.

Electrical Connection: With electically powered

equipment, improper connections to the
power source may result in electrocution
or fire. Always adhere to all electrical
requirements and applicable codes when
connecting to the power source. Have all
work inspected by a qualified electrician to
minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it
is connected to the power source greatly
increases the risk of injury from accidental
startup. Always disconnect power
BEFORE any service or adjustments,
including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/
rotating parts will become dangerous
projectiles if left in place when the machine
is started. Reduce this risk by developing
the habit of always removing these tools
immediately after using them.

Work Area:

the risks of accidental injury. Only operate
this item in a clean, non-glaring, and well­lighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning
equipment has higher risks of causing
serious personal injury compared to
those that are properly maintained.
To reduce this risk, always maintain
this item to the highest standards and
promptly repair/service a damaged or
malfunctioning component. Always follow
the maintenance instructions included in
this documentation.

Unattended Operation:

equipment that is left unattended while
running cannot be controlled and is
dangerous to bystanders. Always turn the
power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when
cutting, may contain chemicals known to
the State of California to cause cancer,
respiratory problems, birth defects,
or other reproductive harm. Minimize
exposure to these chemicals by wearing
approved personal protective equipment
and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can
become dangerous projectiles if not
secured or if they hit another object during
operation. Reduce the risk of this hazard
by verifying that all fastening devices are
properly secured and items attached to
spindles have enough clearance to safely

Loose workpieces,

Difficult Operations:

operations with which you are unfamiliar
increases the risk of injury. If you
experience difficulties performing the
intended operation, STOP! Seek an
alternative method to accomplish the
same task, ask a qualified expert how the
operation should be performed, or contact

Attempting difficult

-11-

South Bend Tools

Model SB1119/SB1120

SAFETY

For Machines Mfd. Since 04/24

Additional Shaper Safety

Serious cuts, amputation, entanglement, or death can occur from contact with rotating cutter. Cutters
or other parts improperly secured to spindle can fly off and strike nearby operators with great force.
Flying debris can cause eye injuries or blindness. To minimize risk of getting hurt or killed, anyone
operating shaper MUST completely heed hazards and warnings below.

Avoiding Cutter Contact: Keep unused portion of

cutter below table. Use smallest table insert
possible. Adjust fences and guards as close
as practical to cutter, or use zero-clearance
fence or box guard. Always keep some type
of guard or other protective device between
your hands and cutter at all times!

Protect Hands/Fingers: While feeding workpiece,

avoid awkward hand positions. Never pass
hands directly over, or in front of, cutter.
As one hand approaches 6-inch radius point
from cutter, move it in arc motion away from
cutter, and reposition it on outfeed side.

Feeding Workpiece: To reduce risk of accidental

cutterhead contact, always use push blocks
or some type of fixture, jig, or hold-down
device to safely feed workpiece while
cutting. Use outfeed support table if shaping
long workpieces to ensure proper support
throughout entire cutting procedure.
ALWAYS feed workpiece AGAINST rotation
of cutter. NEVER start shaper with
workpiece contacting cutter!

Small Workpieces: There is a high risk of

accidental cutter contact with small
workpieces, because they are closer to cutter
and more difficult to control. To reduce
risk, only feed small workpieces using jigs
or holding fixtures that allow hands to stay
safely away from cutter. When possible,
shape longer stock and cut to size.

Safe Cutter Clearances: Operator or bystanders

may be hit by flying debris if cutter contacts
fence, guard, or table insert upon startup.
Always ensure any cutter setup has proper
cutter rotational clearance before startup.

Safe Cutter Installation: Improperly secured

knives/inserts, cutters, or rub collars may
become dangerous projectiles if they come
loose. Always ensure keyed washer is directly
under cap screw and cap screw is very secure.
If spindle does not use a keyed washer,
always tighten two spindle nuts together,
and ensure BOTH are very secure. Never use
cutters/bits rated for an RPM lower than
spindle speed.

Safety Guards: To reduce risk of unintentional

contact with cutter, always ensure included
cutter guard, or properly dimensioned
box guard, or some other type of guard is
installed and correctly positioned before
operation.

Workpiece Condition: Shaping workpiece with

knots, holes, or foreign objects increases
risk of kickback and cutter damage/
breakage. Thoroughly inspect and prepare
workpiece before shaping. Always “square
up” workpiece before shaping or flatten
workpiece edges with jointer or planer.
Rough, warped, or wet workpieces increase
risk of kickback.

Cutter Positioning: Whenever possible, make

shaping cuts with cutter on underside of
workpiece to reduce operator exposure to
cutter.

-12 -

Avoiding Climb Cuts: Feeding workpiece in same

direction of cutter rotation is a “climb
cut.” Climb cutting can aggressively pull
workpiece—and hands—into cutter. Always
first verify direction of cutter rotation
before starting, and always feed workpiece
AGAINST cutter rotation.

Cutting Depth: Never attempt to remove too

much material in one pass. Doing this
increases risk of kickback. Instead, make
several light passes—this is a safer way to
cut and it leaves a cleaner finish.

Contour Shaping: To reduce risk of unintentional

cutter contact while freehand shaping
or using rub collar as guide, always use
overhead or “ring” type guard. To reduce
kickback risk, always use starting pin or
pivot board when starting cut. NEVER start
shaping at a corner!

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

PREPARATION

Preparation Overview Required for Setup

The purpose of the preparation section is to help
you prepare your machine for operation. The list
below outlines the basic process. Specific steps
for each of these points will be covered in detail
later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

Clean the machine and its components.

2.

3. Identify an acceptable location for the

machine and move it to that location.

Level the machine and either bolt it to the

4.

floor or place it on mounts.

Assemble the loose components and make

5.

any necessary adjustments or inspections to
ensure the machine is ready for operation.

Connect the machine to the power source.

6.

7. Test run the machine to make sure it

functions properly and is ready for
operation.

The items listed below are required to
successfully set up and prepare this machine for
operation.

For Lifting

• A forklift or other power lifting device rated
for the weight of the machine.

• Lifting Straps or Chain (rated for at least
1000 lbs.)

For Power Connection

• A power source that meets the minimum
circuit requirements for this machine. (Refer
to the Power Supply Requirements section
for details.)

• A qualified electrician to ensure a safe and
code-compliant connection to the power
source.

For Assembly

• Disposable Rags

• Cleaner/Degreaser

• Safety Glasses

• Disposable Gloves

• Straightedge 12"

• Socket or Wrench 13⁄16"

• Precision Level

• Dust Collection System

• Dust Hose 4"

• Hose Clamp 4"

Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine with
respect and caution to decrease the risk of
operator injury. If normal safety precautions
are overlooked or ignored, serious personal
injury may occur.

No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so may result in serious personal
injury or property damage.

-13 -

South Bend Tools

Model SB1119/SB1120

Before installing the machine, consider the
availability and proximity of the required power
supply circuit. If an existing circuit does not
meet the requirements for this machine, a new
circuit must be installed.

To minimize the risk of electrocution, fire,
or equipment damage, installation work and
electrical wiring must be done by a
or qualified service personnel
applicable electrical codes and safety standards.

The full-load current rating is the amperage
a machine draws at 100% of the rated output
power. On machines with multiple motors, this is
the amperage drawn by the largest motor or sum
of all motors and electrical devices that might
operate at one time during normal operations.

The full-load current is not the maximum
amount of amps that the machine will draw. If
the machine is overloaded, it will draw additional
amps beyond the full-load rating.

If the machine is overloaded for a sufficient
length of time, damage, overheating, or fire may
result—especially if connected to an undersized
circuit. To reduce the risk of these hazards,
avoid overloading the machine during operation
and make sure it is connected to a power supply
circuit that meets the requirements in the
following section.

This machine must be grounded! In the event
of
grounding provides a path of least resistance
for electric current
electric shock.

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without
yellow stripes) is the equipment-grounding wire.
If repair or replacement of the power cord or
plug is necessary, do not connect the equipment­grounding wire to a live (current carrying)
terminal.

Check with an electrician or qualified service
personnel if you do not understand these
grounding requirements, or if you are in doubt
about whether the tool is properly grounded.

If you ever notice that a cord or plug is
damaged or worn, disconnect it from power, and
immediately replace it with a new one.

Note: The circuit requirements in this manual
are for
machine will be running at a time. If this
machine will be connected to a shared circuit
where multiple machines will be running at
the same time, consult a qualified electrician to
ensure the circuit is properly sized.

A power supply circuit includes all electrical
equipment between the main breaker box or fuse
panel in your building and the incoming power
connections inside the machine. This circuit
must be safely sized to handle the full-load
current that may be drawn from the machine for
an extended period of time. (If this machine is
connected to a circuit protected by fuses, use a
time delay fuse marked D.)

PREPARATION

For Machines Mfd. Since 04/24

Power Supply Requirements

Availability

in accordance with

Electrocution or fire may
occur if machine is not
correctly grounded and
attached to the power
supply. Use a qualified
electrician to ensure a safe
power connection.

n electrician

Circuit Information

For your own safety and protection of property,
consult an electrician if you are unsure about
wiring practices or applicable electrical codes.

a dedicated circuit—where only one

Grounding Requirements

Full-Load Current Rating

Full-Load Rating (SB1119) .................... 20 Amps

Full-Load Rating (SB1120) ................. 16.5 Amps

-14-

certain types of malfunctions or breakdowns,

in order to reduce the risk of

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

This machine is prewired to operate on a power
supply circuit that has a verified ground and
meets the following requirements:

Serious injury could occur if you connect

This machine is equipped with a power cord
that has
grounding plug
The plug
receptacle (outlet)
grounded in accordance with all local codes and
ordinances.

We do not recommend using an extension cord
with this machine. If you must use one, only
use it if absolutely necessary and only on a
temporary basis.

Extension cords cause voltage drop, which may
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
contain a ground wire, match the required plug
and receptacle listed in the
for the applicable voltage, and meet the following
requirements:

This machine is prewired to operate on a power
supply circuit that has a verified ground and
meets the following requirements:

This machine is equipped with a power cord
that has
grounding plug
The plug
receptacle (outlet)
grounded in accordance with all local codes and
ordinances.

PREPARATION

SB1120 Circuit Requirements

the machine to power before completing the
setup process. DO NOT connect to power until
instructed later in this manual.

DO NOT modify the
included plug or use an
adapter if it will not fit your
receptacle. Instead, have a
qualified electrician install
the proper receptacle on a
power supply circuit that
is grounded and meets
the requirements for this
machine.

Nominal Voltage ........... 208V/220V/230V/240V

............................................................. 60 Hz

Cycle
Phase
Circuit Rating
Plug/Receptacle (included)

.........................................................3-Phase

......................................... 20 Amps

........... NEMA L15-20

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

L15-20 RECEPTACLE

SB1119 Circuit Requirements

Nominal Voltage ........... 208V/220V/230V/240V

............................................................. 60 Hz

Cycle
Phase
Circuit Rating
Plug/Receptacle (included)

................................................ Single-Phase

......................................... 20 Amps

............... NEMA 6-20

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

Grounding Prong

is Hooked

L15-20

PLUG

Current Carrying Prongs

Figure Figure 11. NEMA L15-20 plug and receptacle.. NEMA L15-20 plug and receptacle.

Extension Cords

6-20 PLUG

Grounding Prong

Figure Figure 10. NEMA 6-20 plug and receptacle.. NEMA 6-20 plug and receptacle.

Circuit Requirements

Minimum Gauge Size .............................. 10 AWG

Maximum Length (Shorter is Better)

.......... 50 ft.

-15 -

South Bend Tools

Model SB1119/SB1120

This item was carefully packaged to prevent
damage during transport. If you discover any
damage, please immediately call Customer
Service at
need to file a freight claim, so save the containers
and all packing materials for possible inspection
by the carrier or its agent.

Unpacking

[phone] for advice. You may

PREPARATION

For Machines Mfd. Since 04/24

CCBB DD

Inventory

Inventory (Figure 12) Qty

A. Shaper (Not Shown) ............................... 1

Spindle 11⁄4" w/Spacers ........................... 1

B.

Spindle 3⁄4" w/Spacers ............................ 1

C.

Drawbar .............................................. 1

D.

Starting Pin ......................................... 1

E.

Combo Screwdriver #1, 1⁄4" ...................... 1

F.

Hex Wrenches 3, 6mm .......................1 Ea.

G.

Spindle Wrench 50mm ...........................1

H.

Open-End Wrench 22 x 24mm .................. 1

I.

Open-End Wrench 14 x 17mm .................. 1

J.

Miter Gauge ......................................... 1

K.

NOTICE

If you cannot fi nd an item on this list, carefully
check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or
they are pre-installed at the factory.

EE

FF

HH

KK

Figure Figure 12. Inventory.. Inventory.

GG

II

JJ

-16-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

The unpainted surfaces are coated
with a heavy-duty rust preventative that
prevents corrosion during shipment and
The benefi t of this rust preventative is that it
works very well. The downside is that it
time-consuming

Be patient and do a careful job when
removing the rust preventative
spend doing this will reward you with smooth
sliding parts and a better appreciation for the
proper care of

Although there are many ways to successfully
remove the rust preventative, the
process works well in most situations

Before cleaning, gather the following:

• Disposable

• Cleaner/degreaser

• Safety glasses & disposable gloves

Note:

WD•40 can be used to remove rust preventative.
Before using these products, though, test them
on an inconspicuous area of a painted surface to
make sure they will not damage it.

GAS

Order online at

Call 1-800-523-477

PREPARATION

Cleaning & Protecting

at the factory

to thoroughly remove.

degreasers work extremely well and they
have non-toxic fumes)

Automotive degreasers, mineral spirits, or

the unpainted surfaces.

rags

(certain citrus-based

. The time you

following

storage.

can be

cleaning and

-

.

Avoid chlorine-based solvents, such as
acetone or brake parts cleaner that may
damage painted surfaces. Always follow the
manufacturer’s instructions when using any
type of cleaning product.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat all surfaces that have rust preventative

with a liberal amount of your cleaner or
degreaser and let them soak for a few
minutes.

3. Wipe off the surfaces. If your cleaner or
degreaser is effective, the rust preventative
will wipe off easily.

Note: To clean off thick coats of rust

preventative on fl at surfaces, such as beds
or tables, use a PLASTIC paint scraper to
scrape off the majority of the coating before
wiping it off with your rag. (Do not use a
metal scraper or it may scratch the surface.)

4. Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a
quality metal protectant or light oil to
prevent rust.

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used for
cleaning. Avoid using these
products to remove rust
preventative.

Many cleaning solvents are
toxic if inhaled. Minimize
your risk by only using
these products in a well
ventilated area.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping
grease from the non-painted parts of the
machine during clean up.

www.grizzly.com

OR

7

Figure Figure 13.. T23692 Orange Power Degreaser.

-17-

South Bend Tools

Model SB1119/SB1120

Weight Load

equipment that may be installed on the machine,

Physical Environment

The physical environment where your machine
is operated is important for safe operation and
longevity of
machine in a dry environment that is free from
excessive moisture, hazardous
chemicals, airborne abrasives, or extreme
conditions. Extreme conditions for this type
of machinery are generally those where the
ambient temperature
104°F; the relative humidity
of
is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power
source. Make sure all power cords are protected
from traffic, material handling, moisture,
chemicals, or other hazards. Make sure to leave
access to a means of disconnecting the power
source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate
enough to perform operations safely. Shadows,
glare, or strobe effects that may distract or
impede the operator must be eliminated.

PREPARATION

For Machines Mfd. Since 04/24

Location

Physical Environment
Electrical Installation
Lighting
Weight Load

Space Allocation

20–95% (non-condensing); or the environment

parts. For best results, operate this

or flammable

is outside the range of 41°–

is outside the range

Refer to the Machine Specifications for the
weight of your machine. Make sure that the
surface upon which the machine is placed will
bear the weight of the machine, additional

and the heaviest workpiece that will be used.
Additionally, consider the weight of the operator
and any dynamic loading that may occur when
operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation
of auxiliary equipment. With permanent
installations, leave enough space around
the machine to open or remove doors/covers
as required by the maintenance and service
described in this manual.

34"

Min. 30"

Electrical

=

Connection

Children or untrained
people may be seriously

Wall

39½"

injured by this machine.
Only install in an access
restricted location.

13"

-18 -

Figure 14. Minimum working clearances.Figure 14. Minimum working clearances.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

PREPARATION

Lifting & Moving

This machine and its
parts are heavy! Serious
personal injury may occur
if safe moving methods are
not used. To reduce the
risk of a lifting or dropping
injury, ask others for help
and use power equipment.

The Model SB1119/SB1120 can be lifted with
one of the following methods:

• Lifting Straps & Safety Hooks: Connect two
safety hooks to chains or web straps that are
capable of securely hooking underneath the
table edge at the locations shown in Figure

15. Then attach the chains or web straps to
a center safety chain secured to the power
lifting equipment.

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to Required for Setup on Page
13 and gather all listed items. To ensure the
assembly process goes smoothly, first clean any
parts that are covered or coated in heavy-duty
rust preventative (if applicable).

Assembly of the Model SB1119/SB1120
consists of checking the table insert flushness,
assembling the spindle and drawbar, and leveling
the machine

Incorrect assembly of spindle and drawbar
can cause the spindle and cutter to fly off
machine, causing injury or death. Make
certain spindle is properly assembled before
operating machine. If you are uncertain of any
aspect of assembly, please review instructions
again or contact customer service.

Forklift Forks: Position the forks under the

•
table and close to the cabinet (see Figure

15). Use cardboard to protect the table and
cabinet from the forks.

Figure 15. Lifting location example.Figure 15. Lifting location example.

To assemble machine:

1. Remove (2) inner inserts from table opening

(see Figure 16).

Outer InsertOuter Insert

Figure Figure 16. Location of two inner inserts (front cutter . Location of two inner inserts (front cutter

guard removed for clarity).guard removed for clarity).

Inner InsertsInner Inserts

-19 -

South Bend Tools

Model SB1119/SB1120

PREPARATION

For Machines Mfd. Since 04/24

2. Lay straightedge across outer insert and
table surface in pattern shown in Figure 17.

Flat Head

Table Surface

+

Screws (1 of 3)

+

Table Insert

+

Straightedge

Figure Figure 17. Straightedge and surface pattern.. Straightedge and surface pattern.

3. Adjust flat head screws so ends of

straightedge lay flat on table surface at all
positions of pattern above.

6. Insert spindle base into spindle cartridge

(see Figure 19). Thread spindle nut onto
cartridge approximately 1 turn.

Spindle

Base

Figure Figure 19. Inserting spindle into place.. Inserting spindle into place.

7.

Insert drawbar into bottom of spindle base

Spindle

Cartridge

assembly, up through spindle pulley and
assembled parts, and rotate approximately
10-15 turns (see Figure 20).

IMPORTANT: Table insert and surface must

be aligned evenly to ensure workpiece does
not catch on table insert or surface and kick
back.

Open cabinet door.

4.

5. Unlock spindle seat by pulling spindle

assembly lock handle and turning 1/4 turn
(see Figure 18). Turn V-belt and pulleys until
you hear a click.

V-BeltV-Belt

Spindle AssemblySpindle Assembly

Lock HandleLock Handle

Spindle Base Spindle Base

AssemblyAssembly

DrawbarDrawbar

10-15 Turns10-15 Turns

Figure Figure 20. Drawbar inserted into bottom of spindle . Drawbar inserted into bottom of spindle

base assembly.base assembly.

Make sure spindle and drawbar are aligned
and properly seated before tightening drawbar
nut. Improper assembly can create an unsafe
condition and possible injury to operator and
bystanders.

Figure Figure 18. Location of spindle lock components.. Location of spindle lock components.

-20 -

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

PREPARATION

8. Secure spindle nut with spindle wrench and
tighten drawbar nut (see Figure 21). DO
NOT use excessive force.

Figure Figure 21. Tightening drawbar nut (guard/fence . Tightening drawbar nut (guard/fence

assembly removed for clarity).assembly removed for clarity).

9. Lock spindle seat by returning spindle

assembly lock handle to original position.
Spindle should rotate freely in both
directions.

Dust Collection

This machine creates a lot of wood chips/
dust during operation. Breathing airborne dust
on a regular basis can result in permanent
respiratory illness. Reduce your risk by
wearing a respirator and capturing the dust
with a dust-collection system.

Recommended CFM: 400 CFM at Each Port

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine
the CFM at the dust port, you must consider
these variables: (1) CFM rating of the dust
collector, (2) hose type and length between the
dust collector and the machine, (3) number of
branches or wyes, and (4) amount of other open
lines throughout the system. Explaining how
to calculate these variables is beyond the scope
of this manual. Consult an expert or purchase
a good dust collection "how-to" book.

Using precision level, adjust machine feet

10.

until table is level (see Figure 22).

Machine FootMachine Foot

(1 of 4)(1 of 4)

Figure 22. Location of machine feet.Figure 22. Location of machine feet.

To connect dust collection system to
machine:

1. Fit 4" dust hose connected to dust collector

over each dust port and secure each in place
with hose clamp (see Figure 23).

Figure Figure 23. Example of dust hoses attached to ports.. Example of dust hoses attached to ports.

2.

Tug hoses to make sure they do not come off.

Note: A tight fit is necessary and ensures

proper performance during operation.

-21-

South Bend Tools

Model SB1119/SB1120

PREPARATION

For Machines Mfd. Since 04/24

Test Run

After all preparation steps have been completed,
the machine and its safety features must be
tested to ensure correct operation. If you
discover a problem with the operation of the
machine or its safety components, do not operate
it further until you have resolved the problem.

Note: Refer to Troubleshooting on Page 59 for
solutions to common problems that may occur.
If you need additional help, contact our Tech
Support at [phone].

The test run consists of verifying the following:

• Motor powers up and runs correctly.

• Spindle rotates in correct direction (SB1120

only).

• STOP button disables the machine properly.

Serious injury or death can result from using
this machine BEFORE understanding its
controls and related safety information. DO
NOT operate, or allow others to operate,
machine until the information is understood.

4. Turn FOR/REV switch to OFF position (see

Figure 24).

RPM Adjustment KnobRPM Adjustment Knob

FOR/REV SwitchFOR/REV Switch

Figure Figure 24. Control panel controls.. Control panel controls.

5. Connect machine to power.

. Twist STOP button clockwise until it springs

6

out (see Figure 25). This resets the switch so
machine can start.

STOP ButtonSTOP Button

ON ButtonON Button

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine may
result in malfunction or unexpected results
that can lead to serious injury, death, or
machine/property damage.

To test run machine:

1. Clear away all tools and objects used during

preparation and assembly.

Press STOP button (see Figure 24).

2.

Turn RPM adjustment knob all the way

3.

counterclockwise (see Figure 24).

-22-

Figure Figure 25. Resetting the switch.. Resetting the switch.

7. Press ON button to turn machine ON (see

Figure 24).

Turn FOR/REV switch to FOR position (see

8.

Figure 24). Verify motor starts up and runs
smoothly without any unusual problems or
noises.

— For SB1119: Proceed to Step 14.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

PREPARATION

— For SB1120: Verify spindle rotates

counterclockwise when viewed
from above. If spindle rotates
counterclockwise, power supply polarity
is correct, proceed to Step 14. If spindle
rotates clockwise, proceed to Step 9 to
correct polarity.

Turn FOR/REV switch to OFF position and

9.

allow spindle to come to a complete stop (see
Figure 24).

DISCONNECT MACHINE FROM POWER!

10.

11. Remove (4) Phillips head screws and

electrical box shown in Figure 26).

Electrical BoxElectrical Box

13. Install electrical box and screws removed in

Step 10, and reconnect machine to power
before proceeding to Step 15.

Turn FOR/REV switch to OFF position and

14.

allow spindle to come to a complete stop (see
Figure 28).

Turn FOR/REV switch to REV position.

15.

Verify motor starts up and runs smoothly
without any unusual problems or noises (see
Figure 28).

Verify speed controls by slowly turning RPM

16.

adjustment knob clockwise (see Figure 28).
Rotate dial back and forth to test variable­speed function.

Press STOP button to turn machine OFF (see

17.

Figure 28).

WITHOUT resetting STOP button, try to

18.

start machine by pressing the ON button (see
Figure 28). The machine should not start.

x 4

Figure Figure 26. Location of electrical box and Phillips head . Location of electrical box and Phillips head

screws.screws.

Swap red wire connected to L1/1 terminal

12.

with blue wire connected to L2/3 terminal on
contactor (see Figure 27).

Red L1/1Red L1/1

WireWire

ConnectionConnection

Blue L2/3Blue L2/3

WireWire

ConnectionConnection

RPM Adjustment KnobRPM Adjustment Knob

FOR/REV SwitchFOR/REV Switch

Figure Figure 28. Control panel controls.. Control panel controls.

STOP ButtonSTOP Button

ON ButtonON Button

— If machine does not start, safety feature

of STOP button is working correctly.
Congratulations! Test run is complete.

— If machine does start, immediately turn it

OFF and disconnect power. Safety feature
of STOP button is NOT working properly
and must be replaced before further using
machine. Contact Technical Support.

Figure Figure 27. Power supply wire terminals.. Power supply wire terminals.

-23-

South Bend Tools

Model SB1119/SB1120

The purpose of this overview is to provide
the novice machine operator with a basic
understanding of how the machine is used during
operation, so they can more easily understand
the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide for
performing actual machine operations. To learn
more about specifi c operations and machining
techniques, seek training from people experienced
with this type of machine, and do additional
research outside of this manual by reading "how­to" books, trade magazines, or websites.

at all times. Entanglement

tation, or severe crushing

OPERATION

Operation Overview

Due to the generic nature of this overview,

To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning any
operations.

For Machines Mfd. Since 04/24

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects.
Regardless of the content in this section,
South Bend Tools will not be held liable for
accidents caused by lack of training.

To complete a typical operation, the operator
does the following:

1. Examines the workpiece to make sure it is

suitable for cutting.

2. Installs cutter onto spindle and adjusts

spindle height for operation.

3. Correctly adjusts cutter guard and fence for

operation and locks them in place.

4. Checks outfeed side of machine for proper

support and to make sure workpiece can
safely move past cutter without interference.

To reduce risk of short and
long term injury, wear eye,
ear, and lung protection
when using this machine.

Keep hair, clothing, and jew­elry away from moving parts

can result in death, ampu-

injuries!

5. Places workpiece on infeed side of machine

and stabilizes it with featherboards, jigs, or
other safety workpiece holding devices.

6. Removes any clothing, apparel, or jewelry

that may become entangled in shaper.

7. Ensures RPM adjustment knob is turned

all the way counterclockwise and FOR/REV
switch is in the OFF position.

8. Turns machine ON.

9. Verifies cutter rotation and feed directions.

10. Sets spindle speed for operation.

11. Feeds workpiece through cut while

maintaining firm pressure on workpiece
against both table and fence, while always
keeping hands and fingers out of the cutting
path.

-24-

12. Turns machine OFF.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

OPERATION

Using FeatherboardsWorkpiece Inspection

Some workpieces are not safe to cut or may
require modification before they are safe to cut.

Before cutting, inspect all workpieces for the
following:

• Material Type: This machine is intended
for cutting natural and man-made wood
products, laminate covered wood products,
and some plastics. Cutting drywall or
cementitious backer board creates extremely
fine dust and may reduce the life of the
bearings. This machine is NOT designed to
cut metal, glass, stone, tile, etc.; cutting
these materials may lead to injury.

• Foreign Objects: Nails, staples, dirt, rocks
and other foreign objects are often embedded
in wood. While cutting, these objects can
become dislodged and hit the operator, cause
kickback, or break the blade, which might
then fly apart. Always visually inspect your
workpiece for these items. If they cannot be
removed, DO NOT cut the workpiece.

Featherboards are used to hold the workpiece
flat on the table and snug against the fence.
The Model SB1119/SB1120 includes two
fence featherboards: one for infeed and one for
outfeed. An arrow on each featherboard indicates
the direction of workpiece travel.

Using Fence Featherboards

Fence featherboards come pre-installed, allowing
table clearance between 1" and 5
infeed and outfeed featherboards to fully support
the workpiece throughout the cut.

To adjust featherboards closer to or farther from
the cutter, loosen position lock handles, adjust,
then tighten (see Figure 29).

To adjust featherboards closer to or farther from
the table, loosen height lock handles, adjust,
then tighten (see Figure 29).

PositionPosition

Lock HandlesLock Handles

3

⁄4". Position

• Large/Loose Knots: Loose knots can become
dislodged during the cutting operation.
Large knots can cause kickback and machine
damage. Choose workpieces that do not have
large/loose knots or plan ahead to avoid
cutting through them.

• Wet or "Green" Stock: Cutting wood with
a moisture content over 20% causes
unnecessary wear on the blades, increases
the risk of kickback, and yields poor results.

• Excessive Warping: Workpieces with
excessive cupping, bowing, or twisting are
dangerous to cut because they are unstable
and often unpredictable when being
cut. DO NOT use workpieces with these
characteristics!

• Minor Warping: Workpieces with slight
cupping can be safely supported if the
cupped side is facing the table or the fence.
On the contrary, a workpiece supported on
the bowed side will rock during a cut and
could cause kickback or severe injury.

HeightHeight

Lock HandlesLock Handles

Figure Figure 29. Featherboard controls and components.. Featherboard controls and components.

Changing Featherboard Clearance
Range

3

For 0"–2
featherboard from the L-bracket it comes
installed on and install it directly on the fence
face.

⁄4" clearance, you can remove the

-25-

South Bend Tools

Model SB1119/SB1120

OPERATION

For Machines Mfd. Since 04/24

To change featherboard clearance range:

1. Remove hardware securing featherboard to

L-bracket (see Figure 30).

L-BracketL-Bracket

x 2

Figure Figure 30. L-bracket and securing hardware.. L-bracket and securing hardware.

2. Install hardware removed in Step 1 to

featherboard, then slide carriage bolts into
upper T-slot on fence face (see Figure 31).

Changing Cutter Rotation

The Model SB1119/SB1120 is equipped with a
FOR/REV (forward/reverse) switch, as shown in
Figure 32. In most cases, the shaper should run
in the FOR direction.

FOR/REV SwitchFOR/REV Switch

Figure Figure 32. Location of FOR/REV switch.. Location of FOR/REV switch.

Figure Figure 31. Example of featherboard installed on fence . Example of featherboard installed on fence

face.face.

Incorrectly feeding stock—feeding WITH
rotation of cutter—creates potentially
uncontrollable feed situation that may pull
stock from hands and draw hands into cutter.
Always check direction of cutter rotation
before any shaping operation. Always feed
stock opposite to cutter rotation.

Most cutters are designed to rotate
counterclockwise and mill the stock from
underneath, keeping the cutter away from the
operator and preventing tearout.

Some cutters are designed to shape the top of
the workpiece. However, this method creates
a hazard to the operator. Using the FOR/REV
switch, you can mount the cutter upside down,
reverse the feed direction and cutter rotation,
and mill the workpiece safely from the bottom.

-26-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

OPERATION

Changing Spindle Speed

The spindle speed on your shaper is controlled by
the RPM adjustment knob and displayed on the
digital readout screen (see Figure 33). Turning
the knob clockwise will increase the speed while
turning it counterclockwise will decrease the
speed.

RPM Digital RPM Digital

Readout ScreenReadout Screen

RPM AdjustmentRPM Adjustment

KnobKnob

• Use slower speeds for larger cutters because

the knives on the outside of the cutter rotate
faster on larger cutters than on smaller
cutters for the same spindle speed (see
Figure 34).

Much

Faster

Same Spindle Speed

Figure Figure 34. Relative speeds of cutter knives at the . Relative speeds of cutter knives at the

same spindle speed.same spindle speed.

Slightly

Faster

Figure Figure 33. Location of RPM adjustment knob.. Location of RPM adjustment knob.

Here are some tips to keep in mind when
selecting a speed for your workpiece:

• Use scrap stock to find the right cutter speed
and feed rate so the resulting cut is smooth
and requires very little sanding to finish.

• Reduce cutter speed or feed rate if your
workpiece becomes glazed or burned.

• Increase cutter speed or feed rate if your
workpiece shows a rough or washboard-like
surface.

Note: Since the cutter is mounted on the

spindle, the terms "spindle speed" and "cutter
speed" are often used interchangeably.

-27-

South Bend Tools

Model SB1119/SB1120

!

OPERATION

For Machines Mfd. Since 04/24

Adjusting Cutterhead Guard

The cutterhead guard protects the user from
exposure to the cutter and chips thrown by
it. To minimize the risk of injury, the guard
must be adjusted so it encloses as much of the
spindle area as possible, while still allowing the
workpiece to pass through the cut. Typically,
this means the guard is positioned to just clear
the top of the workpiece.

To adjust cutterhead guard:

1. DISCONNECT MACHINE FROM POWER!

Loosen guard position lock knobs, adjust

2.

guard forward or backward as needed, and
tighten knobs (see Figure 35).

Loosen guard height lock knobs, adjust front

3.

guard up or down, and tighten knobs (see
Figure 35).

Cutter Cutter

Guard Height Guard Height

Lock KnobsLock Knobs

GuardGuard

Guard Position Guard Position

Lock KnobLock Knob

(1 of 2)(1 of 2)

Installing Cutters

Large cutters (31⁄2" or greater) must be operated
at a lower speed than smaller cutters. Cutters
are advertised with and should not exceed their
rated RPM. Always use the largest spindle size
possible, and never use a cutter bore more than
one size larger than the spindle size.

Tools Needed Qty

Spindle Wrench 50mm .................................1

Hex Wrench 8mm

To install a cutter:

1. DISCONNECT MACHINE FROM POWER!

Raise cutter guard out of the way, and raise

2.

spindle to maximum height.

Remove spindle cap screw, two-piece keyed

3.

washer, and any unneeded spacers (see
Figure 36).

Place cutter on spindle (see Figure 36).

4.

Make sure cutter rotation will be correct for
application.

Use spacers to suit your particular

5.

application (see Figure 36).

Place spindle two-piece keyed washer above

6.

cutter and spacers, and secure with cap
screw (see Figure 36).

........................................1

Figure Figure 35. Guard position adjustment components.. Guard position adjustment components.

All guards MUST be installed on shaper before
operation. Shapers can quickly cause serious
injury if some kind of guard is not used. To
reduce risk of injury, read and follow entire
Owner's Manual carefully and do research on
shop-made guards and safety jigs.

Note: To make your own box guard, see Making

Box Guards on Page 43 to find instructions and
tips.

-28 -

Two-Piece Two-Piece

SpacerSpacer

CutterCutter

Figure Figure 36. Typical cutter and fasteners installed.. Typical cutter and fasteners installed.

KeyedKeyed

WasherWasher

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

!

OPERATION

7. Tighten cap screw with hex wrench while
holding spindle stationary with spindle
wrench (see Figure 37).

Figure Figure 37. Tightening spindle cap screw.. Tightening spindle cap screw.

8. Lower spindle to desired height and adjust

cutter guard for operation.

Using Push Sticks

When used correctly, push sticks reduce the
risk of injury by keeping hands away from the
cutter. In the event of an accident, a push stick
can absorb damage that would have otherwise
happened to hands or fingers. Use push sticks
whenever your hands will get within 12" of the
cutter. To make your own push sticks, refer to
Making Push Sticks on Page 42. To maintain
control when shaping large workpieces, start by
feeding with your hands then use push sticks to
finish the operation, so your hands are not on
the end of the workpiece as it passes through the
cutter.

Feeding: Place the notched end of the push stick
against the end of the workpiece (see Figure 38),
and move the workpiece into the cutter with
steady downward and forward pressure.

Figure Figure 38. Side view of push stick in use.. Side view of push stick in use.

Supporting: A second push stick can be used to
keep the workpiece firmly against the fence while
cutting (see Figure 39). When using this method,
only apply pressure against the fence before
the cutter; otherwise, pushing the workpiece
against or behind the cutter will increase the
risk of kickback (see "Supporting Push Stick
Prohibition Zone" in Figure 39).

Supporting

Push Stick
Prohibition

Zone

Push Stick

Supporting

Push Stick

Feeding

Figure Figure 39. Supporting with second push stick.. Supporting with second push stick.

-29-

South Bend Tools

Model SB1119/SB1120

OPERATION

For Machines Mfd. Since 04/24

Using Table Inserts

Your shaper includes three table inserts with
inside openings of 2

40). The table counterbore with all three inserts

removed is 8

Figure Figure 40. Table inserts (front of cutter guard removed . Table inserts (front of cutter guard removed

1

⁄4" in diameter.

1

⁄2", 41⁄8", and 53⁄4" (see Figure

Table InsertsTable Inserts

for clarity).for clarity).

Adjusting Spindle Height

The spindle height is adjusted with the spindle
height handwheel and can be quickly returned to
0" by pressing the zeroing button on the control
panel.

To adjust spindle height:

1. Move spindle up or down with height

handwheel until desired position is achieved
and displayed on spindle height digital
readout screen (see Figure 41).

Spindle Height Spindle Height

Digital Readout Digital Readout

ScreenScreen

Use the smallest opening that the cutter will
allow without interfering with its rotation.
This offers more support for the workpiece and
reduces the amount of chips that can fall into
the machine. Also, make sure the spindle is
large enough to allow any unused portion of the
cutter to remain below the table surface, which
increases operator protection.

If necessary, refer to Adjusting Table Inserts on
Page 51 for detailed instructions on leveling the
inserts with the table.

Spindle Height Spindle Height

HandwheelHandwheel

Figure Figure 41. Location of spindle height handwheel.. Location of spindle height handwheel.

2. Return spindle height to 0" by pressing

zeroing (0" Set) button on control panel (see
Figure 42).

-30-

Zeroing ButtonZeroing Button

Figure Figure 42. Location of zeroing button.. Location of zeroing button.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

OPERATION

Operating Spindle Height Digital Readout

The Model SB1119/SB1120 is equipped with
a readout for spindle height which, unlike the
speed readout, has interactive controls. The
zeroing button will return the spindle height to
zero while the unit button will change to display
either inches or millimeters.

To operate spindle height digital readout:

1. Use zeroing (0" Set) button to precisely

return spindle elevation height to 0" (see
Figure 43).

Press unit (mm/in.) button to display height

2.

in either inches or millimeters (see Figure

43). Unit indicator light will illuminate over

selected unit.

Use spindle height handwheel to change

3.

spindle height, observing spindle height
digital readout screen until desired height is
achieved (see Figure 43).

Adjusting Fence

The fence is a two-piece adjustable system. Each
fence is independently adjustable to compensate
for different cutting thicknesses and special
shaping applications. One full turn of the
knurled micro-adjustment knob moves the split
fence approximately
fence assembly can also be adjusted as a whole
by turning the guard/fence base adjustment
knob, with each full revolution equalling
approximately 1

Adjusting Individual Fence

1.

Loosen fence lock handle (see Figure 44).

Turn fence micro-adjustment knob on same

2.

side (see Figure 44) until fence is set to
desired position.

1

⁄64" (.015"). The guard/

5

⁄8" of movement.

FenceFence

Lock HandleLock Handle

FenceFence

Lock KnobLock Knob

Spindle Height Spindle Height

Digital Readout Digital Readout

ScreenScreen

UnitUnit

IndicatorIndicator

LightsLights

Zeroing Zeroing

ButtonButton

Figure Figure 43. Spindle height digital readout components.. Spindle height digital readout components.

UnitUnit

ButtonButton

Fence Micro-AdjustmentFence Micro-Adjustment

KnobKnob

Figure Figure 44. Individual fence controls.. Individual fence controls.

3. Tighten fence lock handle.

Loosen fence lock knob (see Figure 44) to

4.

move fence closer to or further from cutter.
Tighten when desired position is achieved.

-31-

South Bend Tools

Model SB1119/SB1120

OPERATION

For Machines Mfd. Since 04/24

Adjusting Guard/Fence Base

1. Loosen guard/fence base lock knobs (see

Figure 45).

Turn guard/fence base adjustment knob (see

2.

Figure 45) until assembly is set to desired
position.

Guard/Fence Guard/Fence

Base Lock KnobsBase Lock Knobs

Guard/Fence BaseGuard/Fence Base

Adjustment KnobAdjustment Knob

Figure Figure 45. Guard/fence base control components.. Guard/fence base control components.

Straight Shaping

Since the fence is a two-piece adjustable system,
the outfeed fence can be adjusted to provide
support for the workpiece as it passes over the
cutter when removing material from the whole
face of your workpiece, or it can be set up for
partial face removal.

Attempting to operate shaper without proper
knowledge of machine could cause serious
injury or death! Read entire manual carefully
before attempting to make any cuts.

All guards MUST be installed on shaper before
operation. Shapers can quickly cause serious
injury if some kind of guard is not used. To
reduce risk of injury, read and follow entire
Owner's Manual carefully and do research on
shop-made guards and safety jigs.

3. Tighten guard/fence base lock knobs.

Note: More detailed information concerning

fence adjustments is covered in Straight
Shaping.

Shapers are often quieter than other machines
in the shop (e.g., dust collector), which may
be running at the same time. Because of this,
it may be difficult to determine if machine is
ON merely by listening. Verify machine is OFF
before attempting any setup or adjustments.
Otherwise, serious personal injury could
occur.

-32-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

Always cut end grain first when putting
an edge around perimeter of workpiece to
minimize tearout (see Figure 46).

1

OPERATION

5. Loosen both guard/fence lock knobs (see

Figure 48).

Adjust infeed fence by turning guard/fence

6.

base adjustment knob (see Figure 48) until
workpiece contacts cutter in desired location
when pressed against infeed fence.

Guard/Fence Guard/Fence

Base Lock KnobsBase Lock Knobs

4

2

Direction of Feed

Figure Figure 46. Cut end grain first.. Cut end grain first.

3

Removing Material from Entire
Board Face

1. DISCONNECT MACHINE FROM POWER!

Loosen both fence lock handles (see

2.

Figure 47).

Set both infeed and outfeed fences to 0" by

3.

turning micro-adjustment knob all the way
counterclockwise (see Figure 47).

FenceFence

Lock HandleLock Handle

Fence ScaleFence Scale

FenceFence

Micro-AdjustmentMicro-Adjustment

KnobKnob

Guard/Fence BaseGuard/Fence Base

Adjustment KnobAdjustment Knob

Figure Figure 48. Guard/fence base adjustment components.. Guard/fence base adjustment components.

7. Tighten both guard/fence lock knobs to

secure.

Turn machine ON and advance a test sample

8.

(at least 24" long) of desired cut about 8",
then stop. Swing test piece away from cutter
and turn machine OFF.

Miter gauge should not be used to feed
material along fence face when edge shaping.
Use push stick and featherboards to keep
workpiece in position. Fence may not always
be perfectly parallel to miter slot; therefore,
using miter gauge can cause binding and
possible kickback of workpiece towards
operator. Serious personal injury could occur
if this happens.

Figure Figure 47. Fence zeroing components.. Fence zeroing components.

4. Tighten both fence lock handles to secure.

-33-

South Bend Tools

Model SB1119/SB1120

OPERATION

For Machines Mfd. Since 04/24

9. When cutter comes to complete stop, adjust
outfeed fence using technique used in

Steps 2–4 to support new profiled edge (see
Figure 49).

End View

Outfeed

Fence

Direction of Feed

Supported

Figure Figure 49. Support workpiece as it is fed through cut.. Support workpiece as it is fed through cut.

Infeed

Fence

Removing Material from Part of
Board Face

1. Follow Steps 1–5 of Removing Material from

Entire Board Face on Page 33.

3. Tighten lock knobs when fence faces will best

support workpiece.

Adjust outfeed fence face to same plane as

4.

infeed face.

Turn shaper ON.

5.

Run a test piece through shaper (see

6.

Figure 51).

End View

Outfeed

Fence

Direction of Feed

Figure Figure 51. Partial feed fence adjustment.. Partial feed fence adjustment.

Infeed

Fence

Loosen fence lock knobs to move fence faces

2.

so they barely clear cutter on each side (see
Figure 50). This allows maximum support
possible for workpiece when passing cutter.

FenceFence

Lock KnobLock Knob

(1 of 2)(1 of 2)

Figure Figure 50. Fence clearance controls.. Fence clearance controls.

7. Turn machine OFF.

-34-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

OPERATION

Using Rub Collars

Rub collars are used when shaping curved or
irregular workpieces, such as arched doors or
round table tops, and to limit the depth of your
cut.

There are two types of rub collars—solid and
ball-bearing. We recommend using ball bearing
collars and our exclusive dealer, Grizzly
Industrial, Inc., carries an extensive line that is
designed for use with South Bend shapers. See
Grizzly's current catalog or website for listings.

Rub collars may be used in any of the
following positions:

1. Rub collar below cutter: When rub collar

is placed below cutter, as shown in Figure
52, progress of the cut can be observed.

However, any unintentional movement may
lift workpiece into the cutter, damaging your
work and creating a dangerous situation. We
DO NOT recommend using rub collar in this
position.

Not

Recommended!

2. Rub collar above cutter: When rub collar is

used above cutter, cut cannot be seen (see
Figure 53). This offers some advantage—
stock is not affected by slight variations
in thickness and accidental lifting will
not damage workpiece. Simply correct any
change in height by repeating operation.

Rub

Collar

Figure Figure 53. Cutting with rub collar above cutter.. Cutting with rub collar above cutter.

3. Rub collar between two cutters: Using a rub

collar between two cutters has the distinct
advantage of performing two cuts at once
or eliminating the need to change cutters
for two different operations (see Figure 54).
Notice that part of the edge is left uncut.
The uncut portion rides on the rub collar.

Rub

Collar

Figure Figure 52. Cutting with rub collar below cutter.. Cutting with rub collar below cutter.

Rub

Collar

Figure Figure 54. Cutting with rub collar between cutters.. Cutting with rub collar between cutters.

-35-

South Bend Tools

Model SB1119/SB1120

Irregular Shaping

OPERATION

For Machines Mfd. Since 04/24

Irregular or freehand shaping takes a high
degree of skill and dexterity. The fence assembly
is not used in irregular shaping, so rub collars
must be used (see Using Rub Collars on Page 35).

When doing freehand work, a starting pin must
be used. The purpose of the starting pin is to
support the workpiece during the beginning of
the cut. Your shaper is supplied with a starting
pin that can be placed in one of the holes located
in the shaper table. The work should be placed in
the starting position using the starting pin for
support, as shown in Figure 55.

Swing

Starting Pin

t

a

i

t

o

o

Rub

Collar

Figure Figure 55. Using starting pin for irregular shaping.. Using starting pin for irregular shaping.

n

R

Workpiece

Feed Direction

All guards MUST be installed on shaper before
operation. Shapers can quickly cause serious
injury if some kind of guard is not used. To
reduce risk of injury, read and follow entire
Owner's Manual carefully and do research on
shop-made guards and safety jigs.

Using Starting Pin

1. DISCONNECT MACHINE FROM POWER!

Remove fence assembly.

2.

Install appropriate cutter for your

3.

application (see Installing Cutters on
Page 28).

Check cutter rotation (see Changing Cutter

4.

Rotation on Page 26).

Incorrectly feeding stock—feeding WITH
rotation of cutter—creates potentially
uncontrollable feed situation that may pull
stock from hands and draw hands into cutter.
Always check direction of cutter rotation
before any shaping operation. Always feed
stock opposite to cutter rotation.

Next, swing the work into the cutter while
holding the workpiece firmly against the
starting pin. After the cut has been started,
the workpiece should be swung away from the
starting pin and is supported just by the rub
collar, as shown by the broken line positions
shown in Figure 55.

Freehand shaping greatly increases chance
that operator may lose control of workpiece,
which could result in serious personal injury.
Therefore, starting pin or support MUST be
used to start irregular shaping operation.

-36-

5. Adjust spindle height to align cutter to

workpiece (see Adjusting Spindle Height on
Page 30).

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

!

OPERATION

6. Insert starting pin into table surface, using
pin location that best supports your work
(see Figure 56).

Figure Figure 56. Inserting starting pin.. Inserting starting pin.

7.

Use some type of hold-down fixture and

guard when doing freehand work (see Figure

57).

Using Clamped Board

Sometimes the starting pin will not be in the
most advantageous position. If so, firmly
clamp a board in the desired position to act as a
starting pin (see Figure 58). Some type of pivot
point must be used. Notice in Figures 57–58 the
operator is not exposed to the cutting edge of the
cutter. Cutters are removing material from the
bottom of the workpiece.

Figure Figure 57. Example of using guard when doing . Example of using guard when doing

freehand work (portion of guard removed for clarity).freehand work (portion of guard removed for clarity).

8. Make a sample cut on a piece of scrap wood.

If everything is correct, feed workpiece along

9.

cutter, using firm pressure to keep work
against rub collar. Only feed against cutter
rotation.

Figure Figure 58. Example of using starting pin substitute . Example of using starting pin substitute

when needed (guard removed for clarity).when needed (guard removed for clarity).

-37-

South Bend Tools

Model SB1119/SB1120

OPERATION

For Machines Mfd. Since 04/24

Pattern Work

When using a pattern, a rub collar or ball bearing
can be positioned either above, below, or between
cutters.

The pattern is usually used when the entire edge
is to be shaped or when many duplicate pieces are
needed. Pattern work is particularly useful when
rough cutting irregular shapes oversize and then
shaping the edge in a simple two-step operation.
A pattern, when attached to a workpiece by
adding toggle clamps, hand-holds, or other
safety devices, make a fixture. Figure 59 shows
the proper setup of a pattern and bearing rub
collar.

Rub

Template

Collar

Things to consider when making a pattern or
fixture:

Use a material that will smoothly follow rub

•

collar, ball bearing, or fence.

• Secure workpiece to a pattern (on sides that
will not be cut) with toggle clamps, or fasten
with wood screws.

• Make your fixture stable! Use proven
methods and materials, and attach hand­holds for operator comfort and safety.

• Ensure clamps and hidden screws do not
come into contact with cutter.

• Design your fixture so that all cutting occurs
beneath workpiece.

• Always consider rub collar diameter for
correct depth-of-cut when designing your
pattern.

Workpiece

Figure Figure 59. Position of pattern on workpiece and . Position of pattern on workpiece and

bearing size determine depth of cut.bearing size determine depth of cut.

You have greater flexibility when choosing the
correct diameter rub collar for pattern work than
for non-pattern work. If you look at Figure 59,
you will notice that the position of the pattern
determines the depth of cut. In other words,
your pattern size is dependent upon the inter­relationship of the rub collar cutting diameter
and the desired amount of material removed.
Changing either the cutter or the rub collar
will change the amount of material removed.
Planning ahead, you can best decide which rub
collars are best suited for your application.

• Make sure your workpiece rests flat on work
table, not on work fixture.

• Remember, there are tremendous cutting
forces involved. Fixtures must be solid and
stable, and any workpiece must be firmly
secured.

Use care in designing and making fixtures.
Clamps and screws cannot touch cutter, and
fixtures must be stable in use, with workpiece
resting on shaper table, not on fixture.
Workpiece must be fixed securely to the jig.

Always perform test cuts on scrap stock to ensure
the pattern works as required.

-38-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

Shaping Small Stock

Feeding small stock through a shaper is always
dangerous. If you must shape small stock, use a
zero-clearance fence. This will provide greater
protection for the operator, better workpiece
support, and reduced tearout on narrow or
fragile stock.

ALWAYS use hold-downs or featherboards
and push sticks when shaping small or narrow
stock. These devices keep hands away from
spinning cutter and sufficiently support stock
to allow a safe and effective cut, reducing risk
of personal injury.

OPERATION

Mount/clamp shop-made or included fence

5.

featherboards to zero-clearance fence.
Adjust to width of workpiece, positioning
them as close to cutter as possible to support
workpiece against fence through cut.

Connect machine to power.

6.

Use push sticks to push workpiece through

7.

cut (see Making Push Sticks on Page 42 to
make your own).

To shape small stock:

1. DISCONNECT MACHINE FROM POWER!

Create zero-clearance fence suitable for your

2.

application (see Making a Zero Clearance
Fence on Page 40) and install on shaper.

Position safety guard as low as possible while

3.

still clearing cutter or create custom box
guard (see Making Box Guards on Page 43).

Adjust infeed and outfeed table

4.

featherboards to width of workpiece,
positioning them as close to cutter as
possible to support workpiece against fence
through cut.

Note: When using zero-clearance fence,

fence-mounted featherboards that come
with Model SB1119/SB1120 must either
be clamped/mounted to zero-clearance
fence or appropriate featherboards must
be constructed. Please refer to Making
Featherboards on Page 41 for instructions
on making shop-made featherboards.

-39-

South Bend Tools

Model SB1119/SB1120

!

ACCESSORIES

Shop-Made Safety Accessories

Shop-made safety accessories provide support
and various options for different operations.
These accessories can reduce the risk of kickback
and keep fingers and hands away from the cutter
rotation.

Making a Zero-Clearance Fence

A shop-made zero-clearance fence provides
more support than a standard fence and reduces
tearout on narrow or fragile stock. Using a zero­clearance fence is the best way to reduce the risk
associated with shaping inherently dangerous
small stock.

For Machines Mfd. Since 04/24

Remove (2) cap screws shown in Figure 61

3.

from each fence mounting bracket.

x 2

Figure Figure 61. Fence mounting bracket cap screw . Fence mounting bracket cap screw

location.location.

Tool Needed Qty

Hex Wrench 5mm ........................................1

Straight, Smooth Stock 30"
Marker or Pencil
Straight, Smooth Stock 30"
Wood Cutting Tool
Drill & Drill Bits for Countersinking
Fence Mounting Hardware

.........................................1

......................................1

..........................1

..........................1

. As Needed

............... As Needed

To make a zero-clearance fence:

1. DISCONNECT MACHINE FROM POWER!

Remove fence faces and mounting brackets

2.

from guard/fence base by loosening fence
lock knobs (see Figure 60).

Fence FaceFence Face

(1 of 2)(1 of 2)

4. Select piece of straight and smooth stock

that is same height and thickness as fence
faces and approximately 30" long.

Position board over length of guard/fence

5.

assembly and mark mounting holes and
outline cutter and spindle profile.

Cut an outline of spindle and cutter from

6.

center of stock, as illustrated in Figure 62.

Drill two-step

holes

Cut out profile

of cutter & spindle

3

/4" or thicker

wood stock

Mount with

existing hardware

FenceFence

Lock KnobLock Knob

(1 of 2)(1 of 2)

Fence Mounting BracketFence Mounting Bracket

Figure Figure 60. Fence face removal components.. Fence face removal components.

-40-

(1 of 2)(1 of 2)

Figure Figure 62. Example of a zero-clearance fence.. Example of a zero-clearance fence.

Note: Make outline as close as possible to

cutter and spindle without interfering with
rotation.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

ACCESSORIES

7. Drill countersunk mounting holes in zero-

clearance fence so fasteners from split fences
can be used to secure it to fence supports in
the same manner.

Note: Drilling these holes is a two-step

process. Drill first holes all the way through
board with a diameter little larger than
shaft of mounting screw. Drill second holes
halfway through boards with a diameter
little larger than screw head. Drill these
second holes deep enough that screw heads
will be well below surface of board.

Secure zero-clearance fence to fence

8.

mounting brackets, check for proper
clearance, then run test piece through cutter
to verify results.

Making Featherboards

Featherboards flex with minor height or width
variations from stock as it passes through.
Because of the consistent pressure featherboards
place on the stock, cuts are more consistent,
the risk of kickback is greatly reduced, and
the operator's hands do not need to get near
the cutter to maintain feeding pressure. If a
kickback does occur, featherboards will also slow
down or stop the workpiece.

To install a featherboard, feed a piece of stock
halfway through the machine, then turn the
machine OFF. Place the featherboard against
the stock so all the fingers touch the edge of the
stock, then use T-slot mounting hardware to
secure the featherboard. For best results, place
featherboards just before and just after the
cutter.

IMPORTANT: Cuts made across the grain
result in weak fingers that easily break when
flexed. When made correctly, the fingers should
withstand flexing from moderate pressure. To
test the finger flexibility, push firmly on the ends
with your thumb. If the fingers do not flex, they
are likely too thick (the cuts are too far apart).

Figure 63 shows the dimensions of a basic
featherboard. The ultimate size is flexible and
should be built around the size of stock you are
shaping. The fingers can be cut with a bandsaw
or table saw.

30°-45°

4"-6"

15"-18"

3

/4"

Wood

stock

Figure Figure 63. Basic featherboard construction.. Basic featherboard construction.

Cut fingers

1

/8"-1/4" thick

Drill or rout hole for

T-slot mounting

4"-6"

-41-

South Bend Tools

Model SB1119/SB1120

ACCESSORIES

For Machines Mfd. Since 04/24

Making Push Sticks

When used correctly, push sticks reduce the
risk of injury by keeping hands away from the
cutter. In the event of an accident, a push stick
can absorb damage that would have otherwise
happened to hands or fingers. Use push sticks
whenever your hands will get within 12" of the
cutter. To maintain control when shaping large
workpieces, start by feeding with your hands
then use push sticks to finish the operation, so
your hands are not on the end of the workpiece as
it passes through the cutter.

Feeding: Place the notched end of the push stick
against the end of the workpiece (see Figure 65),
and move the workpiece into the cutter with
steady downward and forward pressure.

Making a Push Stick

Use this template to make

your own push stick.

Supporting: A second push stick can be used to
keep the workpiece firmly against the fence while
cutting. When using this method, only apply
pressure before the cutter; otherwise, pushing
the workpiece against or behind the cutter will
increase the risk of kickback.

Figure Figure 64. Side view of push stick in use.. Side view of push stick in use.

90º

Cut here to
push

Cut here to push 1⁄2" stock

Notch for placing on
corners of workpieces

MATERIAL: Only use hardwood,
sturdy plywood, or high-density
plastic. Do not use softwood
that may break under pressure
or metal that can break teeth

1

⁄2" Grid

from the blade!

1

⁄4" stock

15

3

/

4

" Minimum Length

Notch to help
prevent hand
from slipping

SIZING: Push stick must
be at least 15
Use

SANDING: Sand
edges to remove
rough edges and
increase comfort.

3

1

⁄2"–3⁄4" thick material.

⁄4" long.

Figure Figure 65. Template for a basic shop-made push stick (not shown at actual size).. Template for a basic shop-made push stick (not shown at actual size).

-42-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

ACCESSORIES

Making Box Guards

Shop-made box guards are an excellent way
to enclose the cutter to virtually eliminate
accidental contact with the cutter during
operation. Having the cutter enclosed also helps
increase the efficiency of dust collection. The
drawback to box guards is that one size does not
fit all. Often, professional woodworkers who
use box guards make multiple guards that are
different sizes.

Figure 66 shows one way to make and attach a
box guard to the Model SB1119/SB1120. This
guard replaces the vertical clear plastic guard
that is included with the shaper. For durability
and strength, use a hardwood when making box
guards. When installing the box guard, adjust
the box guard approximately
you will shape and use featherboards on both
sides.

1

1

⁄4" above the stock

Note: DO NOT use the box guard as a hold-
down or featherboard; instead, use the provided
featherboard that has the ability to flex with the
minor height variations of your stock.

Tips for making a custom box guard:

The thickness of your workpiece will determine
the height of the box guard. Therefore, you
will need to build a separate box guard for each
workpiece of a different thickness. A box guard
can be used with or without a zero-clearance
fence (see Making Zero-Clearance Fence on Page
40 for instructions).

The box guard can either attach directly to
wooden fence boards (or board) with screws (as
shown in Figure 67) or attach directly to the
guard fence assembly with the plastic guard
hardware (as shown in Figure 66). In either case,
featherboards should also be used on either side
to support the workpiece. Construct the box
guard in a way that it extends out over the cutter
area while leaving enough distance between the
guard and the table for the workpiece to easily
pass by the cutter. Refer to Figure 67 for an
example.

2

3

Figure Figure 66. Box guard attached instead of included . Box guard attached instead of included

clear plastic guard (fence and guard components clear plastic guard (fence and guard components

removed for clarity).removed for clarity).

Fence
Board

Box

Guard

Workpiece

Figure Figure 67. Example of custom box guard attached to . Example of custom box guard attached to

wooden fence boards.wooden fence boards.

-43-

South Bend Tools

Model SB1119/SB1120

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

Other Accessories

This section includes the most common
accessories available for your machine, which
are available through our exclusive dealer,
Grizzly Industrial, Inc., at grizzly.com.

Installing unapproved accessories may
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended by South Bend or Grizzly.

Refer to Grizzly’s website or latest catalog for
additional recommended accessories.

For Machines Mfd. Since 04/24

3

W1164—Spacer
W1165—Spacer
W1166—Spacer
W1167—Spacer
W1168—Spacer

⁄4" Bore, 11⁄4" OD, 1⁄4" High

3

⁄4" Bore, 11⁄4" OD, 3⁄8" High

3

⁄4" Bore, 11⁄4" OD, 1⁄2" High

3

⁄4" Bore, 11⁄4" OD, 3⁄4" High

3

⁄4" Bore, 11⁄4" OD, 1" High

Spacers allow you to position your shaper cutter
anywhere on the spindle. Use them between
cutters or stack them above the cutter to bear
against the spindle nut. Every shaper owner
needs a set of these on-hand.

G0826—Easy Feeder Power Feeder

This all-purpose power feeder boasts a 2⁄3 HP
motor that provides high-torque from a single­phase power supply. It has 7-72 FPM variable­speed control and automatically compensates for

3

variations in workpiece thickness up to

⁄4" via a

roller spring mechanism.

Figure Figure 69. Shaper spindle spacers.. Shaper spindle spacers.

W1114—3⁄4" Rub Collar, 15⁄8" OD

3

W1116—
W1118—
W1119—
W1120—
W1122—

⁄4" Rub Collar, 13⁄4" OD

3

⁄4" Rub Collar, 17⁄8" OD

3

⁄4" Rub Collar, 2" OD

3

⁄4" Rub Collar, 21⁄8" OD

3

⁄4" Rub Collar, 25⁄8" OD

If you do any kind of irregular shaping, rub
collars are a must! Rub collars are used for
shaping curved work such as cathedral doors, as
well as many custom shapes. They are also used
for limiting depth-of-cut, like guide bearings on
router bits.

Figure Figure 68. Model G0826 Easy Feeder Power Feeder.. Model G0826 Easy Feeder Power Feeder.

Figure Figure 70. Ball bearing rub collars.. Ball bearing rub collars.

-44-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

SB1092—2 HP Cyclone Dust Collector

The Model SB1092 features a 2 HP motor, a
whopping 1132 CFM of airflow capacity at

1.1" static pressure, and a 28-gallon collection
capacity. It's packed with features like a built-in
sound muffler, an automatic filter paddle brush
for easy cleaning, a remote-controlled magnetic
switch, and a quick-release lift handle for easy
sawdust disposal.

T28172—14" x 39" Heavy-Duty Roller Table
T28369—14" x 78" Heavy-Duty Roller Table
T28370—14" x 118" Heavy-Duty Roller Table

Increase material handling and processing effi­ciency with one or more of these heavy-duty
roller tables.

Figure 73. Model T28369 Heavy-Duty Roller Table. Model T28369 Heavy-Duty Roller Table.

Figure 71. Model SB1092 2 HP Cyclone Dust Model SB1092 2 HP Cyclone Dust

Collector.Collector.

T28923—Bear Crawl "Papa Bear" Mobile Base

We took years of input and months of testing
and design to come out with the Grizzly “Bear
Crawl” Mobile Base. Its 1200 lb. capacity, steel
and rubber heavy-duty ball bearing wheels, and
toe flip-stops are only a few of the features that
will make this mobile base a staple under your
machines for years to come. Adjusts from 19" x

1

26" to 29

⁄2" x 341⁄2"!

D4206—Clear Flexible Hose 4" x 10'
D4256—45° Elbow 4"
D4199—Black Flexible Hose 4" x 50'
W1007—Plastic Blast Gate 4"
W1053—Anti-Static Grounding Kit
W1317—Wire Hose Clamp 4"
W1017—90° Elbow 4"

Hand-picked selection of commonly used dust
collection components for 4" dust ports.

D4206D4206

D4256D4256

W1053W1053

W1007W1007

W1317W1317

D4199D4199

W1017W1017

Figure 72. Model T28923 Bear Crawl "Papa Bear" Model T28923 Bear Crawl "Papa Bear"

Mobile Base.Mobile Base.

Figure 74. Dust collection accessories. Dust collection accessories.

-45-

South Bend Tools

Model SB1119/SB1120

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

For Machines Mfd. Since 04/24

C2026—1⁄8" & 3⁄8" Quarter Round & 1⁄4" Bead

3

⁄4" Bore, 25⁄8" Diameter, 1" Cutter Height

C2028—Tongue

3

⁄4" Bore, 25⁄8" Diameter, 1" Cutter Height

C2042—Drawer Joint

3

⁄4" Bore, 25⁄8" Diameter, 3⁄4" Cutter Height

C2097Z—Ogee Moulding

1

⁄4" Bore, 4" Diameter, 5⁄8" Cutter Height

1

C2091Z—Bead & Cove

1

1

⁄4" Bore, 4" Diameter, 7⁄8" Cutter Height

C2204Z—Crown Moulding

1

1

⁄4" Bore, 4" Diameter, 31⁄2" Cutter Height

C2083—Vertical Panel Raising

3

⁄4" Bore, 25⁄8" Diameter, 11⁄2" Cutter Height

C2085—Female Sash

3

⁄4" Bore, 25⁄8" Diameter, 5⁄8" Cutter Height

C2089Z—30° Bevel

1

⁄4" Bore, 4" Diameter, 1" Cutter Height

1

C2092Z—Double Flute

1

⁄4" Bore, 4" Diameter, 7⁄8" Cutter Height

1

-46-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

!

MAINTENANC E

Maintenance Schedule

Always disconnect
machine from power before
performing maintenance or
serious personal injury may
result.

For optimum performance from this machine,
this maintenance schedule must be strictly
followed.

Ongoing

To minimize your risk of injury and maintain
proper machine operation, shut down the
machine immediately if you ever observe any
of the items below, and fix the problem before
continuing operations

• Loose mounting bolts.

• Worn or damaged cutters.

• Clean/lubricate/protect table and miter
gauge.

Worn or damaged wires.

•

Any other unsafe condition.

•

Cleaning & Protecting

Cleaning the Model SB1119/SB1120 is relatively
easy. Vacuum excess wood chips and sawdust,
and wipe off the remaining dust with a dry
cloth. Blow out any hard-to-reach areas with
compressed air, and keep the spindle clear of
wood dust and chips. If any resin has built up,
use a resin dissolving cleaner to remove it.

Protect the unpainted cast iron table by wiping
it clean after every use—this ensures moisture
from wood dust does not remain on bare metal
surfaces. Keep the table rust-free with regular
applications of products like SLIPIT®.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT® 11 Oz. Spray

Weekly

• Clean/vacuum dust buildup from in and
around cabinet and off of motor.

Monthly

• Check/lubricate spindle slide, leadscrew, and
fence rack & pinion (Page 48).

• Check V-belt tension and condition
(Page 50).

Figure Figure 75. Recommended products for protecting . Recommended products for protecting

unpainted cast iron/steel parts on machinery.unpainted cast iron/steel parts on machinery.

-47-

South Bend Tools

Model SB1119/SB1120

MAINTENANC E

For Machines Mfd. Since 04/24

Machine Storage

All machinery will develop serious rust problems
and corrosion damage if it is not properly
prepared for storage. If decommissioning this
machine, use the steps in this section to ensure
that it remains in good condition.

To store machine:

1. Disconnect all power sources to machine.

2. Thoroughly clean all unpainted, bare metal

surfaces, then coat them with light weight
grease or rust preventative. Take care to
ensure surfaces are completely covered but
that grease or rust preventative is kept off of
painted surfaces.

Note: If machine will be out of service for

only short period of time, use way oil or good
grade of medium-weight machine oil (not
auto engine oil) in place of grease or rust
preventative.

Lubrication

Since all bearings on the Model SB1119/SB1120
are sealed and permanently lubricated, simply
leave them until they need to be replaced. DO
NOT lubricate them.

Below is a list of components that require
periodic lubrication. Do not over-lubricate these
components. Large amounts of lubricant will
attract sawdust, causing the metal components
to gum up and bind.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized
hydrocarbon basestocks that are compounded
with special thickeners and additives to
make Syn-O-Gen non-melt, tacky, and water­resistant. Extremely low pour point, extremely
high temperature oxidation, and thermal
stability produce a grease that is unmatched in
performance.

Loosen or remove V-belt so it does not

3.

become stretched while machine is not in
use.

Completely cover machine with tarp or

4.

plastic sheet that will keep out dust and
resist liquid or moisture. If machine will be
stored in/near direct sunlight, use cover that
will block sun's rays.

Figure Figure 76. Model T26419 Syn-O-Gen Synthetic . Model T26419 Syn-O-Gen Synthetic

Grease (NLGI#2 equivalent).Grease (NLGI#2 equivalent).

-48-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

!

MAINTENANC E

Elevation Leadscrew & Spindle
Slides

Lubrication Type ...... T26419 or NLGI#2 Equiv.

Amount
Frequency

Items Needed Qty

Mineral Spirits .............................. As Needed

Shop Rags
Wire Brushes
NLGI#2 Grease

Lower spindle housing assembly fully by turning
handwheel counterclockwise. Clean the leadscrew
threads and slides with a wire brush, rag, and
mineral spirits (see Figure 77). Brush new grease
on slides and leadscrew with a clean wire brush
and move the spindle assembly up and down a few
times to evenly distribute the grease.

......................................... Thin Coat

..................................... As Needed

.................................... As Needed

.............................................2

.............................. As Needed

Fence Rack & Pinion

Lubrication Type .......T26419 or NLGI#2 Equiv.

Amount......................................... Thin Coat

Frequency

Items Needed Qty

Mineral Spirits .............................. As Needed

Shop Rags
Wire Brushes
NLGI#2 Grease

Adjust guard/fence base fully forward then push
the assembly forward off the front end of the
fence racks to fully reveal the racks (see Figure

78). Use a rag and mineral spirits to wipe off any
built-up grease and saw dust. Apply a thin coat of
lubricant to the racks using a wire brush before
replacing the guard/fence assembly. Adjust the
assembly forward and back to distribute the
grease.

..................................... As Needed

.................................... As Needed

.............................................1

.............................. As Needed

LeadscrewLeadscrew

SlideSlide

Figure Figure 77. Location of spindle slides and leadscrew.. Location of spindle slides and leadscrew.

RacksRacks

Figure Figure 78. Location of fence racks.. Location of fence racks.

-49-

South Bend Tools

Model SB1119/SB1120

!

!

!

MAINTENANC E

For Machines Mfd. Since 04/24

Checking & Replacing V-Belt

The V-belt transfers power from the motor to the
spindle. If the V-belt does not have the proper
tension or is damaged in any way, the shaper will
not operate optimally, and unnecessary wear on
the moving parts will occur. Regularly check the
V-belt tension and replace it when necessary.

Items Needed Qty

Wrench or Socket 19mm ..............................1

Replacement V-Belt (#PSB1119122)

To check & replace V-belt:

1. DISCONNECT MACHINE FROM POWER!

2. Open cabinet door and examine V-belt for

wear or cracks (see Figure 79).

..............1

4. Replace old V-belt with a new one and use

motor bracket handle to tension belt.

Check V-belt tension by pressing center of

5.

belt with your thumb (see Figure 80).

Pulley

Deflection

1

⁄4"

Pulley

Figure Figure 80. Checking V-belt tension.. Checking V-belt tension.

V-BeltV-Belt

Motor BracketMotor Bracket

HandleHandle

Figure Figure 79. Location of V-belt and motor bracket . Location of V-belt and motor bracket

handle.handle.

— If belt is not worn or cracked, belt does

not need to be replaced. Proceed to Step 5.

— If there is 1⁄4" deflection when belt is

pressed, no adjustment is required.
Proceed to Step 7.

— If there is not 1⁄4" deflection when belt is

pressed, proceed to Step 6.

Loosen hex nut on motor tension block

6.

and adjust hex bolt until there is 1⁄4" belt
deflection, then tighten hex nut to secure
(see Figure 81).

Motor TensionMotor Tension

BlockBlock

— If belt is worn or cracked, belt needs to be

replaced. Proceed to Step 3.

Release V-belt tension by pulling motor

3.

bracket handle (see Figure 79).

-50-

Figure Figure 81. Location of belt tension adjustment . Location of belt tension adjustment

hardware.hardware.

7. Spin pulley by hand to ensure proper

tracking before closing cabinet door.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

!

SERVICE

Replacing Spindle Bearings

Should a bearing fail, your shaper will develop
a noticeable rumble, worse so when the machine
is put under load. If the bad bearing is not
replaced, it will eventually seize—possibly doing
damage to the machine. Bearings are standard
sizes and can be replaced through our exclusive
dealer, Grizzly Industrial, Inc.

Items Needed Qty

Hex Wrench 8mm ........................................1

Towel or Protective Pad
Flat Head Screwdriver (

To replace spindle bearings:

1. DISCONNECT MACHINE FROM POWER!

2. Open cabinet door and remove V-belt (see

Checking & Replacing V-Belt on Page 50).

Place pad or towel beneath spindle housing,

3.

then loosen cap screw on spindle housing (see
Figure 82).

................................1

1

⁄4" or Smaller) ............1

5. Remove spindle and replace bearings inside

bearing housing. If you need pointers
regarding bearing replacement, call
Technical Support.

Slide spindle into spindle housing and

6.

tighten in place with cap screw from Step 3.

Rotate spindle by hand to test bearings. If

7.

spindle does not rotate smoothly, repeat
Steps 5–7.

Close cabinet door.

8.

Adjusting Table Inserts

The two inner table inserts are held in place by a
large, outer insert ring, which should be adjusted
level with the table top. This is necessary to
avoid the workpiece catching on the insert rings
during operation, causing an unsafe condition
and poor cutting results.

Tools Needed Qty

Phillips Head Screwdriver #2 ........................1

Hex Wrench 2mm
Precision Straightedge 12"

........................................1

...........................1

Figure Figure 82. Location of spindle housing cap screw.. Location of spindle housing cap screw.

Carefully spread the casting to reduce the risk
of the bearing housing falling and pinching
fingers. The casting will break if too much
pressure is applied in the next step.

4. If bearing housing does not drop down when

spindle housing is loosened, carefully spread
housing casting with flat head screwdriver.

To adjust table inserts:

1. DISCONNECT MACHINE FROM POWER!

2. Remove (2) inner inserts from table opening

(see Figure 83).

Outer InsertOuter Insert

Figure Figure 83. Location of inner two inserts (front cutter . Location of inner two inserts (front cutter

guard removed for clarity).guard removed for clarity).

Inner InsertsInner Inserts

-51-

South Bend Tools

Model SB1119/SB1120

!

SERVICE

For Machines Mfd. Since 04/24

3. Lay straightedge across outer insert and
table surface in pattern shown in Figure 84.

Flat Head

Table Surface

+

Figure Figure 84. Straightedge and surface pattern.. Straightedge and surface pattern.

4. Adjust flat head screws so ends of

straightedge lay flat on table surface at all
positions of pattern above (see Figure 85).

Screws (1 of 3)

+

Table Insert

+

Straightedge

Calibrating Fence Scales

The Model SB1119/SB1120 features forward and
reverse spindle rotation; either fence face can
function as the infeed or outfeed fence. However,
the scales indicating the fence face placement
on the fence assembly need to be accurately
calibrated to allow for accurate micro-adjusting.
The factory made these adjustments during
production, but you may need to adjust the
settings if they have been altered.

Tools Needed Qty

Hex Wrench 3mm ........................................1

Wrench or Socket 10mm

To calibrate fence scales:

1. DISCONNECT MACHINE FROM POWER!

2. Unlock both fence lock handles and

turn micro-adjustment knobs fully
counterclockwise (see Figure 86).

...............................1

Figure Figure 85. Example of adjusting table inserts.. Example of adjusting table inserts.

IMPORTANT: Table insert and surface must

be aligned evenly to ensure workpiece does
not catch on table insert or surface and kick
back.

Replace inner table inserts, one at a time,

5.

then use straightedge to re-check inserts. If
necessary, adjust set screws in inner inserts
to seat them level with table in all directions
using technique from Step 3.

FenceFence

Lock HandleLock Handle

FenceFence

Micro-AdjustmentMicro-Adjustment

KnobKnob

Figure Figure 86. Fence adjustment components.. Fence adjustment components.

— If fence scales both indicate 0", no

calibration is required.

— For each fence scale that does not indicate

0", perform Steps 3–6 before proceeding
to Aligning Fence Faces to ensure
fence faces are parallel before resuming
operation.

-52-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

SERVICE

3. Loosen (2) gib lock set screws shown in

Figure 87.

Gib Lock Gib Lock

Set ScrewsSet Screws

Figure Figure 87. Location of fence gib lock set screws.. Location of fence gib lock set screws.

4. Loosen gib jam nut shown in Figure 88.

Aligning Fence Faces

For safe and accurate shaping, the fence faces
must be parallel with one another so that they
properly support the workpiece through the
entire cutting operation.

Tools Needed Qty

Hex Wrench 6mm ........................................1

Precision Straightedge 24"

To align fence faces:

1. DISCONNECT MACHINE FROM POWER!

2. Raise and lock cutter guard so it is out of the

way.

Unlock both fence lock handles and turn

3.

micro-adjustment knobs fully counter-

clockwise (see Figure 89).

...........................1

Figure Figure 88. Location of gib adjustment hardware.. Location of gib adjustment hardware.

5. Adjust fence gib until scale displays 0".

— If fence is too far forward on table,

manually push fence toward back of table
until scale displays 0".

— If fence is too far backward on table,

tighten gib set screw until scale displays
0".

Tighten gib jam nut from Step 4 and gib lock

6.

set screws from Step 3.

FenceFence

Lock HandleLock Handle

FenceFence

Micro-AdjustmentMicro-Adjustment

KnobKnob

Figure Figure 89. Fence adjustment components.. Fence adjustment components.

-53-

South Bend Tools

Model SB1119/SB1120

!

!

SERVICE

For Machines Mfd. Since 04/24

4. Place straightedge against both fence faces
(see Figure 90).

Figure Figure 90. Example of aligning fence faces.. Example of aligning fence faces.

— If there are no gaps anywhere between

straightedge and fence faces, no
adjustment is necessary.

— If there is a gap between straightedge and

fence faces, proceed to Step 5.

Truing Wooden Fences

A flat and properly aligned fence creates a safer,
smoother cutting operation. A damaged or worn
fence should be replaced. If choosing to replace
or use wooden boards as fence faces, follow the
instructions below to ensure each is properly
flattened and aligned correctly.

Items Needed Qty

Hex Wrench 5mm ........................................1

Straight, Smooth Stock 30"
Marker or Pencil
Straight, Smooth Stock 30"
Wood Cutting Tool
Drill & Drill Bits for Countersinking
Fence Mounting Hardware
Precision Straightedge 12"
Jointer

......................................................1

.........................................1

......................................1

To true wooden fences:

1. Refer to Making a Zero-Clearance Fence

on Page 40 for instructions on replacing
aluminum fence faces with wood.

..........................1

..........................1

. As Needed

............... As Needed

...........................1

With straightedge against fence faces, adjust

5.

fence set screws in small increments until
any gaps are bridged (see Figure 91).

x 8

Figure Figure 91. Location of fence face set screws.. Location of fence face set screws.

DISCONNECT MACHINE FROM POWER!

2.

3. Ensure bolts through wood fence facing

on each side are tight and adequately
countersunk.

Follow Steps 2–3 of Aligning Fence Faces on

4.

Page 53.

Place straightedge against both fence faces

5.

(see Figure 92).

-54-

Figure Figure 92. Example of aligning fence faces.. Example of aligning fence faces.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

!

SERVICE

— If there are no gaps anywhere between

straightedge and fence faces, no truing is
necessary.

— If there is a gap between straightedge and

fence faces, proceed to Step 6.

Remove both fences and resurface as one

6.

unit. You can perform this operation on a
jointer as shown in Figure 93.

Aligning Pulleys

Pulley alignment is important to the
performance of your shaper. If the pulleys are
just slightly out of alignment, the shaper may
suffer from power loss and decreased V-belt life.
When the pulleys are parallel and aligned with
each other, they are said to be coplanar—in the
same plane.

Tools Needed Qty

Precision Straightedge .................................1

Precision Level
Wrench or Socket 16mm

To align pulleys:

1. DISCONNECT MACHINE FROM POWER!

2. Open cabinet door.

3. Hold straightedge up to pulleys to determine

if they are both aligned and parallel, as
shown in Figure 94.

...........................................1

...............................1

Figure Figure 93. Example of resurfacing fences on a jointer.. Example of resurfacing fences on a jointer.

Make sure screws are countersunk deep
enough so cutter will not come in contact
with heads of screws! Check screw depth
after each pass to ensure that screws will not
contact cutter!

Figure Figure 94. Example of checking pulley alignment with . Example of checking pulley alignment with

straightedge.straightedge.

— If pulleys are aligned and parallel, no

adjustment is necessary.

— If pulleys are not aligned and parallel,

proceed to Step 4.

-55-

South Bend Tools

Model SB1119/SB1120

!

SERVICE

For Machines Mfd. Since 04/24

4. Loosen (4) Phillips head screws enough to
remove motor access panel (see Figure 95).

MotorMotor

AccessAccess

PanelPanel

x 4

Figure Figure 95. Location of motor access panel and . Location of motor access panel and

securing screws.securing screws.

5. Loosen (4) hex bolts securing motor mount

to bracket (see Figure 96). It may be easier to
access back bolts from cabinet door.

Adjusting Spindle Gib

The gib controls the smoothness of the slide
movement, as well as the run-out or end play of
the spindle. Tightening the gib too much will
make it hard to adjust the height of the spindle
and cause excessive wear on the slide. Loosening
the gib too much will introduce spindle end play
and cause poor cutting results and excessive wear
on the spindle bearings.

Tools Needed Qty

Open-End Wrench 30mm ..............................1

Hex Wrench 10mm

To adjust spindle gib:

1. DISCONNECT MACHINE FROM POWER!

2. Use spindle height handwheel to raise

spindle to its highest position.

— If it is difficult to turn handwheel or you

feel resistance from spindle slide, gib may
need to be loosened. Proceed to Step 4.

......................................1

x 4

Figure Figure 96. Location of motor mounting bolts.. Location of motor mounting bolts.

6. Using straightedge as guide, adjust height/

angle of motor until pulleys are aligned, then
re-tighten hex bolts.

Install motor access panel and tighten screws

7.

loosened in Step 4.

Attempt to wiggle top of spindle.

3.

— If there is movement, proceed to Step 4.

— If there is no movement, no adjustment is

necessary.

Open cabinet door.

4.

-56-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

!

!

!

SERVICE

5. Loosen (4) jam nuts on gib set screws (see

Figure 97).

Figure Figure 97. Location jam nuts on gib set screws.. Location jam nuts on gib set screws.

6. Evenly adjust set screws in small amounts

then test results using methods in Steps
2–3.

When you are satisfied with gib adjustment,

7.

tighten jam nuts without turning set screws.

To square spindle:

1. DISCONNECT MACHINE FROM POWER!

2. Remove guard/fence assembly from table.

3. Remove any cutters or spacers from spindle.

4. Use spindle height handwheel to raise

spindle to its highest position.

Position machinist's square against spindle

5.

and table to check squareness (see Figures
98–99).

Machinist’s

Square

Spindle

Front of Table

90°

Repeat Steps 2–3 to confirm gib adjustment.

8.

If necessary, repeat Steps 5–8.

Close cabinet door.

9.

Squaring Spindle

To reduce the risk of kickback and to increase the
quality of cuts, it is important to make sure the
spindle and table are perpendicular, or "square",
to each other in all directions. This process will
require taking measurements at many different
positions.

To get a perpendicular alignment between
the table and spindle, it will be necessary to
take multiple readings and make multiple
adjustments to the adjusting hex bolt at each
corner of the spindle housing.

Tools Needed Qty

Machinist's Square ......................................1

Open-End Wrench 30mm

..............................1

Figure Figure 98. Illustration of using machinist's square to . Illustration of using machinist's square to

square spindle to table.square spindle to table.

Spindle

Machinist’s

Square

Figure Figure 99. Illustration of machinist's square measuring . Illustration of machinist's square measuring

spindle squareness at different directions.spindle squareness at different directions.

— If there are no gaps anywhere between

square and table or spindle, no adjustment
is necessary.

— If there is a gap anywhere between square

and table or spindle, proceed to Step 6.

-57-

South Bend Tools

Model SB1119/SB1120

!

!

SERVICE

For Machines Mfd. Since 04/24

6. Open cabinet door and loosen (4) Phillips
head screws enough to remove motor access
panel (see Figure 100).

MotorMotor

AccessAccess

PanelPanel

x 4

Figure Figure 100. Location of motor access panel and . Location of motor access panel and

securing screws.securing screws.

7. Loosen (4) jam nuts shown in Figure 101.

8. Adjust hex stand-offs shown in Figure 102

by small increments until spindle is square
to table in all directions.

Hex Stand-OffHex Stand-Off

(1 of 4)(1 of 4)

Figure Figure 102. Location of spindle tilt hex stand-offs.. Location of spindle tilt hex stand-offs.

9. When spindle is squared to table, re-tighten

jam nuts without turning hex stand-offs.

Jam Nut Jam Nut

(1 of 4)(1 of 4)

Figure Figure 101. Location of spindle tilt jam nuts.. Location of spindle tilt jam nuts.

Repeat Step 5 to confirm squareness. If

10.

necessary, repeat Steps 7–9.

Install motor access panel and close cabinet

11.

door.

-58-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

TROUBLESHOOTING

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free
to call us at [phone].

Symptom Possible Cause Possible Solution

Machine does not
start or power
supply breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

1.

STOP button depressed/at fault.

2.

Incorrect power supply voltage or
circuit size.

3.

Cabinet door open/door limit
switch at fault.

4.

Power supply circuit breaker
tripped or fuse blown.

5.

Motor wires connected incorrectly.

6.

Contactor not energized/at fault.

7.

Wiring broken, disconnected, or
corroded.

8.

ON button at fault.

9.

FOR/REV switch at fault.

10.

Potentiometer/circuit board at
fault.

11.

VFD at fault.

12.

Motor or motor bearings at fault.

1.

Workpiece material unsuitable for
machine.

2.

Feed rate/cutting speed too fast.

3.

Workpiece crooked; fence loose or
misadjusted.

4.

Machine undersized for task.

5.

Belt slipping/pulleys misaligned.

6.

Motor wires connected incorrectly.

7.

Pulley/sprocket slipping on shaft.

8.

Motor overheated.

9.

Extension cord too long.

10.

Contactor not energized/at fault.

11.

FOR/REV switch at fault.

12.

Potentiometer/circuit board at
fault.

13.

Motor or motor bearings at fault.

1.

Rotate STOP button to reset. Replace if at fault.

2.

Ensure correct power supply voltage and circuit size
(Page 14).

3.

Close door/replace limit switch.

4.

Ensure circuit is free of shorts. Reset circuit
breaker or replace fuse.

5.

Correct motor wiring connections (Pages 62–63).

6.

Test all legs for power; replace if necessary.

7.

Fix broken wires or disconnected/corroded
connections (Pages 62–63).

8.

Test/replace button.

9.

Test/replace switch.

10.

Inspect/test/replace if at fault.

11.

Inspect VFD; replace if at fault.

12.

Replace motor.

1.

Only cut wood/ensure moisture is below 20%
(Page 25).

2.

Decrease feed rate/cutting speed (Page 27).

3.

Straighten or replace workpiece; adjust fence
(Page 31).

4.

Use sharp cutter/reduce feed rate or depth of cut.

5.

Clean/tension/replace belt (Page 50); ensure
pulleys are aligned.

6.

Correct motor wiring connections (Pages 62–63).

7.

Tension/replace loose pulley/shaft.

8.

Clean motor, let cool, and reduce workload.

9.

Move machine closer to power supply; use shorter
extension cord.

10.

Test all legs for power; repair/replace if at fault.

11.

Test/replace switch.

12.

Inspect/test/replace if at fault.

13.

Replace motor.

Machine has
vibration or noisy
operation.

1.

Motor or component loose.

2.

Machine feet not adjusted properly.

3.

V-belt worn, loose, pulleys
misaligned or belt slapping cover.

4.

Cutter, spindle, or spindle bearings
at fault.

5.

Elevation housing loose or
damaged.

1.

Replace damaged or missing bolts/nuts or tighten
if loose.

2.

Adjust machine feet to stabilize machine.

3.

Inspect/replace belt (Page 50). Align pulleys if
necessary (Page 55).

4.

Replace cutter; tighten loose spindle; replace
defective spindle or spindle cartridge; replace
spindle bearings (Page 51).

5.

Tighten elevation housing gibs (Page 56); replace
cracked elevation housing.

-59-

South Bend Tools

Model SB1119/SB1120

TROUBLESHOOTING

For Machines Mfd. Since 04/24

Symptom Possible Cause Possible Solution

Machine has
vibration or noisy
operation. (Cont.)

Workpiece is
burned when cut.

Divots in edge of
cut.

Fuzzy grain.

6.

Pulley loose.

7.

Motor mount loose/broken.

8.

Workpiece loose.

9.

Motor fan rubbing on fan cover.

10.

Motor bearings at fault.

1.

Dull cutter.

2.

Too slow of feed rate.

3.

Pitch build-up on cutter.

4.

Feeding workpiece in same direction
as cutterhead rotation.

5.

Taking too deep of cut.

1.

Inconsistent feed speed.

2.

Inconsistent workpiece pressure
against fence and/or rub collar.

3.

Fence not adjusted correctly.

1.

Wood may have high moisture
content or surface wetness.

2.

Dull cutter.

6.

Secure pulley on shaft.

7.

Tighten/replace.

8.

Use correct holding fixture; support workpiece.

9.

Fix/replace fan cover; replace loose/damaged fan.

10.

Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.

1.

Replace cutter, or have it professionally sharpened.

2.

Increase feed speed.

3.

Clean cutter with blade and bit cleaning solution.

4.

Reverse direction of cutter rotation (Page 26)/
reverse feed direction.

5.

Make several passes of light cuts. (Always reduce
cutting depth when working with hard woods.)

1.

Move smoothly or use a power feeder.

2.

Apply constant, even pressure to workpiece
throughout cut and use featherboards/power
feeder.

3.

Adjust fence (Page 31).

1.

Check moisture content and allow to dry if moisture
is more than 20% (Page 25).

2.

Replace cutter, or have it professionally sharpened.

Chipping.

Workpiece kicks
back toward
operator.

Workpiece pulls
forward/ejects
from operator's
hands.

Workpiece hits
outfeed fence.

1.

Cutting against grain of wood.

2.

Nicked or chipped cutter.

3.

Feeding workpiece too fast.

4.

Taking too deep of cut.

5.

Knots in wood.

1.

Taking too deep of cut.

2.

Workpiece is warped, rough, has
high moisture content, or loose/
large knots.

3.

Workpiece pinched between cutter
and table or cutter and guard.

1.

Feeding workpiece in same direction
as cutterhead rotation.

1.

Fence not adjusted correctly.

1.

Cut with grain of wood.

2.

Replace cutter, or have it professionally sharpened.

3.

Decrease feed rate.

4.

Make several passes of light cuts. (Always reduce
cutting depth when working with hard woods.)

5.

Inspect workpiece (Page 25); use a different
workpiece if necessary.

1.

Make several passes of light cuts. (Always reduce
cutting depth when working with hard woods.)

2.

Inspect workpiece (Page 25); only use smooth, dry
stock without loose/large knots.

3.

Ensure proper clearance between cutter, guard, and
table.

1.

Reverse direction of cutter rotation (Page 26)/
reverse feed direction.

1.

Adjust fence to support workpiece as it passes
cutterhead (Page 31). Align fence boards with
straightedge, verify parallelism (Page 53).

1.

Excessive snipe
(gouge in end
of board that is
uneven with rest of
cut).

Fence not adjusted correctly.

2.

Incorrect workpiece pressure
against fence and/or rub collar.

-60-

1.

Adjust fence to support workpiece as it passes
cutterhead (Page 31). Align fence boards with
straightedge, verify parallelism (Page 53).

2.

Apply constant, even pressure to workpiece through
cut and use featherboards/power feeder.

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modifications:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at [phone].

ELECTRICAL

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may
make changes to the electrical systems of future machines. Study this section carefully. If you see
differences between your machine and what is shown in this section, call Technical Support at (360)
734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the
machine is connected to the power source.
Touching electrified parts will result in
personal injury including but not limited to
severe burns, electrocution, or death. For
your own safety, disconnect machine from
the power source before servicing electrical
components or performing any wiring tasks!

All connections must be
tight to prevent wires from loosening during
machine operation. Double-check all wires
disconnected or connected during any wiring
task to ensure tight connections.

Using aftermarket parts or
modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.

The motor wiring shown in these
diagrams is current at the time of printing,
but it may not match your machine. Always
use the wiring diagram inside the motor

to an improperly sized circuit will greatly
increase the risk of fire. To minimize
this risk, only connect the machine to a
power circuit that meets the minimum
requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected
from the power source. To reduce the risk of
being shocked, wait at least this long before
working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious
personal injury, fire, or machine damage. If
you notice that any wires or components are
damaged while performing a wiring task,
replace those wires or components before
completing the task.

Experiencing Difficulties: If you are

experiencing difficulties understanding the
information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

WIRING DIAGRAM COLOR KEY

BLUE
WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can
see them in color at www.southbendtools.com.

RED

LIGHT
BLUE

ORANGE

PINK

PURPLE

TUR­QUIOSE

WHITE

YEL LOW
GREEN

YEL LOW

-61-

South Bend Tools

Model SB1119/SB1120

Ground

Ground

Ground

ELECTRICAL

SB1119 Wiring Diagram

For Machines Mfd. Since 04/24

RPM Sensor

Circuit Board

00273838

Height Sensor

!

Circuit Board

00273838

!

WARNING!

SHOCK HAZARD!

Disconnect power
before working on
wiring.

1

32

PE

Control Panel

X2

X1

C

13

14

4

3

4

P4

P3

P2

Circuit

Board

W6

PE

FOR/REV Switch

4

T2

T2

T1

T1

3 4NO

KB2-BE101

3 4NO

43

B10K

Potentiometer

KB2-BE101

3

4

NC

14

X2

X1

X1 X2

X1

13

ON Button

RENY

250V

NO

NC

STOP Button

W4

YK A600

21 22

13 14

13

C

C

6-20 Plug

Limit Switch

Motor 230V

Ground

G

Hot

MJ2-1306

Hot

230

VAC

NC

NO

COM

NO

COM

PE

RC

RA

IN: 1PH 230V 27.5A

OUT: 3PH 0-230V 12.5A

MI1 MI2 MI3 MI4 MI5 +24 +24 D CM DCM

RA

RA RB RC

+10V ACM AVI AFM MO1 MCM PE

RC

S/L2 U/T1 V/T2 W/T3

R/L1

L1 L2

T1

T2

T3

PE

PE

PE

L3

13

14

T1

T3

NO

COM

Electrical Box

ME300

VFD

DCM

MI4

MI2

MI1

MI3

ACM

+10V

AVI

T3T2T1

53

54

54

T1

+10V

MI2

MI1

ACM

AVI

A

A

L1

L1/1 L2/3 L3/5 NO13

53 61

SDE

AP2-11

62

54

T1/2 T2/4 T3/6 NO14

T3

62

MA-18

Contactor

SDE

14

NO
COM

13L3

54

NC21

NC22

B

-62-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

Ground

Ground

Ground

ELECTRICAL

SB1120 Wiring Diagram

RPM Sensor

Circuit Board

00273838

Height Sensor

!

Circuit Board

00273838

!

WARNING!

SHOCK HAZARD!

Disconnect power
before working on
wiring.

1

32

PE

Control Panel

X2

X1

C

13

14

4

3

4

P4

P3

P2

Circuit
Board

W6

PE

FOR/REV Switch

4

T2

T2

T1

T1

3 4NO

KB2-BE101

3 4NO

43

B10K

Potentiometer

KB2-BE101

X1

3

4

NC

14

X2

X1

X1 X2

13

ON Button

RENY

250V

NO

NC

STOP Button

W4

YK

A600

YK A600

21 22

13 14

13

C

C

Motor 230V

230 VAC

L15-20 PLUG

= For phase

converter wild

wire (if used)

Limit Switch

MJ2-1306

Hot

Hot

Ground

Hot

NC

NO

COM

NO

COM

PE

RC

RA

IN: 3PH 230V 23.4A

OUT: 3PH 0-230V 19.5A

MI1 MI2 MI3 MI4 MI5 +24 +24 D CM DCM

RA

RA RB RC

+10V ACM AVI AFM MO1 MCM PE

RC

S/L2 U/T1 V/T2 W/T3

R/L1

L1 L2

T1

PE

T2

T/L3

L3

T3

PE

PE

L3

13

14

T1

T3

NO

COM

Electrical Box

ME300

VFD

DCM

MI4

MI2

MI1

MI3

ACM

+10V

AVI

T3T2T1

53

54

54

T1

+10V

MI2

MI1

ACM

AVI

A

A

L1

L1/1 L2/3 L3/5 NO13

53 61

SDE

AP2-11

54

T1/2 T2/4 T3/6 NO14

T2

Contactor

62

62

SDE

MA-18

T3

14

NO
COM

54

13L3

NC21

NC22

B

-63-

South Bend Tools

Model SB1119/SB1120

ELECTRICAL

Electrical Component Photos

For Machines Mfd. Since 04/24

Figure Figure 103. Control panel wiring.. Control panel wiring.

Figure Figure 104. Spindle RPM and height sensors.. Spindle RPM and height sensors. Figure Figure 105. Cabinet door limit switch.. Cabinet door limit switch.

-64-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

ELECTRICAL

Electrical Component Photos (Cont.)

Figure Figure 106. SB1119 electrical box wiring.. SB1119 electrical box wiring.

Figure Figure 107. Motor junction box wiring.. Motor junction box wiring.

Figure Figure 108. SB1120 electrical box wiring.. SB1120 electrical box wiring.

Figure Figure 109. RPM and height sensor wiring.. RPM and height sensor wiring.

-65-

South Bend Tools

Model SB1119/SB1120

Table

PARTS

For Machines Mfd. Since 04/24

25-4

25-5

25-2

25

25-2

25-3

25-3

67

25-6

25-1

158

148

159

24

148

149

157

23

21

20

22

26

31

30

1

9

39

38V2

37

4

5

11

7

12

13

7

12

9

19

27

10

16

18

9

35

36

9

8

7

6

15

14

1

34

22

21

2

3

1

9

18

191

27

26

12

15

4

14

5

7

12

13

9

16

7

17

32

28

33

29

7

6

8

9

10

11

66

59-11

59-3

59-13

59-12

59-2

59

59-5

59-14

65

59-4

64

59-18

59-6

59-7

59-9

59-17

25

59-10

59-16

59-8

23

24

59-19

59-15

59-1

-66-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

REF PART # DE SCR IPT ION REF PAR T # DESCRIPTION

PARTS

Table Parts List

1 PSB1119001 KN OB B OLT M6-1 X 20, 6 -LOB E, D40 32 PSB1119032 FLAT WASHER 5MM

2 PSB1119002 TOP CUTTER GUARD 33 PSB1119033 FENCE BASE RACK SLIDE BLOCK

3 PSB1119003 FRONT CUTTER GUARD 34 PSB1119034 FEN CE B RACKET (R)

4 PSB1119004 KNOB B OLT M1 2-1 .75 X 42, 9-LOB E, D8 0 35 PSB1119035 EXT RETAINING RING 15MM

5 PSB1119005 FLAT WASHER 12MM 36 PSB1119036 FENCE BASE LOCK SH AFT

6 PSB1119006 FENCE B RACKET STOP PLATE 37 PSB1119037 ROLL PIN 4 X 18

7 PSB1119007 HEX N UT M6-1 38V2 PSB1119038V2 KNOB M12-1.75, 9-LOBE, D63 V2.04.24

8 PSB1119008 SET SCREW M6-1 X 20 39 PSB1119039 SPIN DLE DUST PORT 4"

9 PSB1119009 PHLP HD SCR M6-1 X 12 59 PSB1119059 CONTROL PANEL ASS EMBLY

10 PSB1119010 KN OB 3/4-16, 1-5/8 D, ROUN D KD 59-1 PSB1119059-1 CONTROL PA N EL BOX

11 PSB1119011 SET SCREW M6-1 X 8 59-2 PSB1119059-2 C ON TROL PANEL

12 PSB1119012 SET SCREW M6-1 X 30 59-3 PSB1119059-3 FOR/REV SWITCH KEYON KB2-ED33(2A)

13 PSB1119013 ADJUSTABLE HANDLE M6-1 X 32, 50L 59-4 PSB1119059-4 DRO LCM CIRCUIT BOARD

14 PSB1119014 SET SCREW M12-1.75 X 12 59-5 PSB1119059-5 STANDOFF-HEX MF M3-.5 X 8, M3-.5 PLASTIC

15 PSB1119015 GIB 59-6 PSB1119059-6 H EX N UT M3-.5 PLASTIC

16 PSB1119016 SCALE INDICATOR 59-7 PSB1119059-7 ON BUTTON YK A600 22MM GRN

17 PSB1119017 GUARD/FENCE BASE 59-8 PSB1119059-8 E-STOP BUTTON RENY 250 V, 22MM

18 PSB1119018 FENCE SCALE 59-9 PSB1119059-9 POTEN TIOMETER W/CORD 10K OHM 24G 3W 45"

19 PSB1119019 FLAT WASHER 6MM 59-1 0 PSB1119059-10 GROUND LA BEL

20 PSB1119020 FEN CE B RACKET (L) 59-1 1 PSB1119059-11 S PEED CON TROL DI A L, D33.5, ROUN D KD

21 PSB1119021 SLIDIN G BLOCK 59-1 2 PSB1119059-12 SET SCREW M4-.7 X 8

22 PSB1119022 CAP SCREW M6-1 X 12 59-13 PSB1119059-13 B UTTON HD CAP SCR M3-.5 X 8

23 PSB1119023 FENCE 59-1 4 PSB1119059-14 B UTTON H D CAP S CR M5-.8 X 10

24 PSB1119024 FENCE SIDE COVER 59-15 PSB1119059-15 PHLP HD SCR M4-.7 X 8

25 PSB1119025 FEATHERBOARD ASSEMBLY 59-1 6 PSB1119059-16 EXT TOOTH WA SHER 4MM

25-1 PSB1119025-1 CARRIAGE BOLT M5-.8 X 30 59-1 7 PSB1119059-17 HEX NUT M4-.7

25-2 PSB1119025-2 ADJUSTABLE HANDLE M5-.8, 44L 59-1 8 PSB1119059-18 SEN S OR EXTEN S ION CORD 22 G 5W 57"

25-3 PSB1119025-3 FEN DER WASHER 5MM 59-19 PSB1119059-19 SENSOR CORD 22G 5W 18"

25-4 PSB1119025-4 FEATHERBOARD MOUN TIN G BRACKET 64 PSB1119064 CAP SCREW M8-1.25 X 16

25-5 PSB1119025-5 F EA THERB OARD 65 PSB1119065 LOCK WASHER 8MM

25-6 PSB1119025-6 CARRIAGE BOLT M5-.8 X 16 66 PSB1119066 TABLE

26 PSB1119026 EXT RETAININ G RING 20MM 67 PSB1119067 STARTING PIN

27 PSB1119027 FENCE ADJUSTMENT SHAFT 148 PSB1119148 SET SCREW M 4-.7 X 4

28 PSB1119028 FENCE BASE SLIDE BLOCK 149 PSB1119149 TAB LE INSERT RIN G 2-1/2" ID

29 PSB1119029 CAP SCREW M5-.8 X 16 157 PSB1119157 TA B LE INS ERT RING 4-1/8" ID

30 PSB1119030 CAP SCREW M5-.8 X 12 158 PSB1119158 FLAT HD SCR M5-.8 X 1 2

31 PSB1119031 RACK 159 PSB1119159 TAB LE INSERT RING 5-3/4" ID

-67-

South Bend Tools

Model SB1119/SB1120

Cabinet

PARTS

For Machines Mfd. Since 04/24

160

193

194

95
107

142

144

143

125

191

190

195

190

192

137

190

189

137

141

138

162

163

165

140

136

139

164

146

166

161

145

167

168

135

169

61V2

171

170

(SB1119 Only)

170

(SB1120 Only)

REF PART # DE SCRIPTION REF PART # DESCRIPTION

61 V2 PSB1119061V2 PHLP HD SCR M5-.8 X 10 V2.07.22 162 PSB1119162 INVERTER MOUN TIN G BOARD

95 PSB1119095 FENDER WASHER 10 MM 163 PSB1119163 PHLP HD SCR M5-.8 X 20 PLASTIC

107 PSB1119107 LOCK WASHER 10MM 164 PSB1119164 HEX N UT M5-.8

125 PSB1119125 HEX BOLT M10-1.5 X 25 165 PSB1119165 FLAT WASHER 6.1 X 12.5 X 3.5MM

135 PSB1119135 ELECTRICAL B OX 166 PSB1119166 CONTA CTOR SDE MA -1 8 230V

136 PSB1119136 GROMMET 29 X 38.1 X 11.4MM 167 PSB1119167 AUX CONTACTOR SDE AP2-11

137 PSB1119137 CABLE CHAIN 168 PSB1119168 JUMPER M919

138 PSB1119138 PHLP HD SCR M5-.8 X 10 169 PSB1119169 PHLP HD SCR M4-.7 X 10

139 PSB1119139 PHLP HD SCR M4-.7 X 8 170 PSB1119170 POWER CORD 12G 3W 138" 6-20P (SB1119)

140 PSB1119140 EXT TOOTH WAS HER 4MM 170 PSB1120170 POWER CORD 12G 4W 138" L15-20P (SB1120)

141 PSB1119141 DOOR S TOP 171 PSB1119171 STRA IN RELIEF TYPE-3 M25-1.5

142 PSB1119142 CAB INET 189 PSB1119189 PHLP HD SCR M4-.7 X 8

143 PSB1119143 MOTOR ACC ES S PA NEL 190 PSB1119190 FLAT WASHER 4MM

144 PSB1119144 F OOT M 12-1.75 X 50 191 PSB1119191 LOCK N UT M4-.7

145 PSB1119145 LATCH 192 PSB1119192 LIMIT SWITCH MOUNTING BRA CKET

146 PSB1119146 CABIN ET DOOR 193 PSB1119193 LIMIT SWITCH COVER

160 PSB1119160 PHLP HD SCR M6-1 X 12 1 94 PSB1119194 LIMIT SWITCH MOUJEN MJ2-1306

161 PSB1119161 INVERTER/VFD 11AME21ANNAA (SB1119) 195 PSB1119195 PHLP HD SCR M4-.7 X 35

161 PSB1120161 INVERTER/VFD 17AME23ANNAA (SB1120)

-68-

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

134

PARTS

Motor & Handwheel

40

41

48

52

55

60

176

175

174

43

45

42

44

46

47

122

173

125

124

86

181

87

82

84

73

85

186

80

186

79

83

187

79

78

182

88

81

76

75V2

93

172

54

92
91

180

90

68

72

69

70
71

58

C

74

77

78

180

196

58

57

56

89

42

41

57

62

44

50

51

53

42

49

54

56

73

188

104

105

C

100

96

182

102

79

101

92

183

99

94

98

97

103

95

106

107

107

111

119

108

109

110

112

120

113

133

132

119

181

130

187

116

115

114

116

129

132

118

117

127

131

126

128

184

121

184

123

123-1

123-3

123-5

107

179

178

177

123-2

123-4

REF PART # DESCRIPTION REF PART # DESCRIPTION

40 PSB1119040 EXT RETAIN IN G RIN G 40MM 46 PSB1119046 KEY 8 X 7 X 43 RE

41 PSB1119041 BUTTON H D CA P S CR M6-1 X 20 47 PSB1119047 QUILL

42 PSB1119042 LOCK WASHER 6MM 48 PSB1119048 BEARING RETAINING PLATE (LOWER)

43 PSB1119043 B EA RIN G RETAIN ING PLATE (UPPER) 49 PSB1119049 SPACER 40 X 46 X 30

44 PSB1119044 BALL B EARING 6008 -2RS 50 PSB1119050 RPM SENSOR PLATE

45 PSB1119045 SPINDLE BASE 51 PSB1119051 S PINDLE PULLEY

-69-

South Bend Tools

Model SB1119/SB1120

PARTS

For Machines Mfd. Since 04/24

Motor & Handwheel Parts List (Cont.)

REF PART # DESCRIPTION REF PAR T # DESCRIPTION

52 PSB1119052 EXT TOOTH WASHER 25MM 111 PSB1119111 CAP SCREW M10-1.5 X 40

53 PSB1119053 BEARING RETAIN ING NUT M25-1.5 112 PSB1119112 ROLL PIN 4 X 20

54 PSB1119054 TAP S CREW M3 X 6 113 PSB1119113 COMPRESSION SPRING 1 X 12 X 38

55 PSB1119055 DUST COVER 114 PSB1119114 FIXED H AN DLE 2 5 X 90

56 PSB1119056 SENSOR B OX 115 PSB1119115 LOCK NUT M20-1.5

57 PSB1119057 MA GNETIC HEAD 116 PSB1119116 FLAT WASHER 20MM

58 PSB1119058 TAP SCREW M2 X 6 117 PSB1119117 MOTOR BRA CKET

60 PSB1119060 GROMMET 12.3 X 18 X 10.4MM 118 PSB1119118 MOTOR BRACKET PIVOT SHAF T

62 PSB1119062 DRAWBAR 5/8-11 X 10-5/16 119 PSB1119119 HOSE CLAMP 3"

68 PSB1119068 HEX N UT M20-1.5 120 PSB1119120 DUST CHUTE 3" X 11-3/4"

69 PSB1119069 STANDOFF-HEX MF M20-1.5 X 44, M12-1.75 121 PSB1119121 TENSION PIVOT SHAFT

70 PSB1119070 FLAT WASHER 12MM 122 PSB1119122 POLY V-BELT 10 V X 25L RIBBED

71 PSB1119071 LOCK WASHER 12MM 123 PSB1119123 M OTOR 3HP 2 30V 3-PH (S B 1 119)

72 PSB1119072 CAP SCREW M12-1.75 X 80 123-1 PSB1119123-1 MOTOR JUN CTION BOX (SB1119)

73 PSB1119073 BUSHING 123-2 PSB1119123-2 M OTOR F AN COVER (S B 111 9)

74 PSB1119074 GAS STRUT B RACKET 123-3 PSB1119123-3 MOTOR FAN (SB1119)

75V2 PSB1119075V2 E LEVA TI ON HOUS IN G V2 .07.22 12 3-4 PSB1119123-4 B ALL BEARING 620 6-2N SE (F RONT) (SB1 119)

76 PSB1119076 S ET S CREW M5-.8 X 5 123-5 PSB1119123-5 BALL B EARING 620 4-2NSE (REAR) (SB1119)

77 PSB1119077 B EVEL GEAR 123 PSB1120123 MOTOR 5HP 230V 3-PH (SB1120)

78 PSB1119078 FLAT WASHER 19.1 X 25.4 X 1.6MM 1 23-1 PSB1120123-1 MOTOR JUN CTION BOX (S B 1 120)

79 PSB1119079 KEY 5 X 5 X 12 RE 1 23-2 PSB1120123-2 M OTOR FAN COVER (S B 112 0 )

80 PSB1119080 WOODRUFF KEY 5 X 20 12 3-3 PSB1120123-3 MOTOR F A N (S B1120 )

81 PSB1119081 HANDWHEEL SHAFT 123-4 PSB1120123-4 B ALL BEARING 6206-2N SE (FRON T) (S B1120)

82 PSB1119082 SET SCREW 5/16-18 X 5/16 123-5 PSB1120123-5 BALL BEARING 6204-2NS E (REAR) (SB 1120 )

83 PSB1119083 COLLAR 124 PSB1119124 F ENDER WASHER 10 MM

84 PSB1119084 FLAT HD CAP SCR M6-1 X 12 125 PSB1119125 HEX BOLT M10-1.5 X 25

85 PSB1119085 HANDWHEEL TYPE-24 200D X 20B -N X M10-1.5 126 PSB1119126 HEX BOLT M10-1.5 X 55

86 PSB1119086 FOLDI N G HAN DLE 30 X 90, M 6-1 X 12 127 PSB1119127 HEX NUT M10-1.5

87 PSB1119087 KN OB B OLT M1 0-1.5 X 2 5, 8-LOB E, D60 128 PSB1119128 FIXED HANDLE 38 X 110, M10-1.5 X 15

88 PSB1119088 ELEVA TION HOUS ING PLA TE 129 PSB1119129 TEN S ION B LOCK

89 PSB1119089 SENSOR MOUNTING BRA CKET 130 PSB1119130 HEX BOLT M8-1.25 X 45

90 PSB1119090 CAP 131 PSB1119131 TENSION BRACKET

91 PSB1119091 SET S CREW M8-1.25 X 35 132 PSB1119132 LOCK NUT M8-1.25

92 PSB1119092 HEX N UT M8-1.25 133 PSB1119133 TENSION ASSEMBLY MOUNTIN G BRACKET

93 PSB1119093 CAP SCREW M10-1.5 X 20 134 PSB1119134 BUTTON HD CAP SCR M8-1.25 X 20

94 PSB1119094 LOCK NUT M10-1.25 172 PSB1119172 PHLP HD SCR M5-.8 X 10

95 PSB1119095 FENDER WASHER 10MM 173 PSB1119173 KEY 5 X 5 X 25 RE

96 PSB1119096 HEIGHT SENSOR PLATE 174 PSB1119174 MOTOR PULLEY

97 PSB1119097 SPACER 10.8 X 20 X 50 175 PSB1119175 FENDER WASHER 8MM

98 PSB1119098 BEVEL GEAR 1 76 PSB1119176 CAP SCREW M8-1.25 X 20

99 PSB1119099 THRUS T B EARIN G 51202 177 PSB1119177 WIRE N UT 10-22 AWG

100 PSB1119100 GASKET 178 PSB1119178 STRAIN RELIEF TYPE-3 M25-1.5

101 PSB1119101 BUSHING 179 PSB1119179 MOTOR CORD 14G 4W 35"

102 PSB1119102 ELEVATION LEADSCREW 180 PSB1119180 PHLP HD SCR M6-1 X 12

103 PSB1119103 ELEVATION GIB 181 PSB1119181 SET SCREW M6-1 X 8

104 PSB1119104 GAS STRUT 182 PSB1119182 FLAT WASHER 6MM

105 PSB1119105 DUST TRAY 183 PSB1119183 CAP SCREW M6-1 X 12

106 PSB1119106 SPINDLE HOUSING 184 PSB1119184 EXT RETAIN IN G RING 20MM

107 PSB1119107 LOCK WASHER 10MM 186 PSB1119186 CAP SCREW M8-1.25 X 30

108 PSB1119108 CAP SCREW M10-1.5 X 55 187 PSB1119187 LOCK WASHER 8MM

109 PSB1119109 SPINDLE LOCK SHAFT SEAT 188 PSB1119188 CAP SCREW M8-1.25 X 30

110 PSB1119110 SPINDLE LOCK SHAFT 196 PSB1119196 CORD LOOP C LA MP

-70 -

South Bend Tools

For Machines Mfd. Since 04/24 Model SB1119/SB1120

PARTS

Accessories

63-3

63-5

63-6

63-6

63-6

63-7

63-1

63-2

63-4

63-5

63-5

63-5

63-5

63

156-3

156-4

156-5

156-5

156-7

156-1

156-2

156-4

156-4

156-4

156-6

147-1

147-2

147-3

147-17

150

152

147-5

147-7

147-4

147-6

147-1

147

147-9

147-8

154

147-10

147-12

147-13

147-14

147-15

147-16

151

63-8

156

REF PART # DE SCRIPTION REF PART # DESCRIPTION

63 PSB1119063 SPINDLE ASSEMBLY 1-1/4" 147-12 PSB1119147-12 FLAT WASHER 8 X 18 X 3MM

63-1 PSB1119063-1 CAP SCREW M10-1.5 X 30 147-13 PSB1119147-13 MITE R GA UGE BODY

63-2 PSB1119063-2 ROLL PIN 4 X 20 147-14 PSB1119147-14 MITER BAR

63-3 PSB1119063-3 SPINDLE WASHER 10.5 X 45 X 5 147-15 PSB1119147-15 T-S LOT WASH ER 7.8 X 22.5 X 3MM

63-4 PSB1119063-4 SPIN DLE LOCK COLLAR 147-16 PSB1119147-16 FLAT H D SCR M6-1 X 8

63-5 PSB1119063-5 SPACER 1-1/4"ID X 2"OD X 3/4"L 147-17 PSB1119147-17 O-RING 4.8 X 1.9 P5

63-6 PSB1119063-6 SPACER 1-1/4"ID X 2"OD X 1/2"L 150 PSB1119150 SPINDLE WRENCH 50MM

63-7 PSB1119063-7 SPINDLE 1-1/4" 151 PSB1119151 COMBO SCREWDRIVER #1 X 1 /4"

63-8 PSB1119063-8 HEX NUT M42-2, M40-2.5 152 PSB1119152 HEX WRENCH 3MM

147 PSB1119147 MITER GAUGE ASSEMB LY 153 PSB1119153 HEX WRENCH 6MM

147-1 PSB1119147-1 PHLP HD SCR 10-24 X 3/8 154 PSB1119154 WRENCH 22 X 24MM OPEN-ENDS

147-2 PSB1119147-2 POINTER 155 PSB1119155 WRENCH 14 X 17MM OPEN-ENDS

147-3 PSB1119147-3 POIN TER MOUNTING BLOCK 156 PSB1119156 S PIN DLE ASSEMBLY 3/4"

147-4 PSB1119147-4 POIN TER S H AFT 156-1 PSB1119156-1 CAP SCREW M10-1.5 X 30

147-5 PSB1119147-5 SCALE 1 56-2 PSB1119156-2 SPINDLE WASHER 10.1 X 28 X 5MM

147-6 PSB1119147-6 PHLP HD SCR 8-32 X 5/8 1 56-3 PSB1119156-3 SPIN DLE LOCK COLLAR

147-7 PSB1119147-7 HEX NUT 8-32 156-4 PSB1119156-4 SPACER 19ID X 31.3OD X 12.7MM

147-8 PSB1119147-8 SHOULDER SCR 1/4-20 X 7/16, 5/16 X 3/16 156-5 PSB1119156-5 SPACER 19ID X 31.3OD X 19MM

147-9 PSB1119147-9 S ET S CREW M5-.8 X 12 156-6 PSB1119156-6 S PIN DLE 3/4"

147-10 PSB1119147-10 FIXED HANDLE 38 X 115, M8-1.25 X 45 156-7 PSB1119156-7 HEX NUT M42-2, M40-2.5

153

155

-71-

South Bend Tools

Model SB1119/SB1120

Machine Labels

PARTS

For Machines Mfd. Since 04/24

REF PART # D E SCR IPT ION REF PAR T # DE SCR IPT ION

201 PSB1119201 CUTTER WARN ING LABEL 207 PSB1119207 MODEL NUMB ER LA BEL (S B11 19)

202 PSB1119202 ELECTRICITY LABEL 207 PSB1120207 M ODEL NUMBER LABEL (SB1 120 )

203 PSB1119203 TOUCH-UP PAINT, S B DARK BLUE 208 PSB1119208 SOUTH BEND NAMEPLATE 152MM

204 PSB1119204 TOUCH-UP PA IN T, SB LIGHT BLUE 20 9V2 PSB1119209V2 MACHINE ID LABEL V2.04.24 (SB1119)

205 PSB1119205 DISCON NEC T POWER COM B O LA BEL 20 9V2 PSB1120209V2 MACHINE ID LABEL V2.04.24 (SB1120)

206 PSB1119206 OP ERATION AL WA RN ING C OMB O LA B EL

The safety labels provided with your machine are used to make the operator aware of the
machine hazards and ways to prevent injury. The owner of this machine MUST maintain the
original location and readability of these safety labels. If any label is removed or becomes
unreadable, REPLACE that label before using the machine again. Contact South Bend Tools at
[phone] or www.southbendtools.com to order new labels.

-72-

Warranty

This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date
of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse,
abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for
third party repairs. In no event shall we be liable for death, injuries to persons or property, or for
incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act,
code, regulation, or standard of any domestic or foreign government, industry, or authority. In
no event shall South Bend’s liability under this warranty exceed the original purchase price paid
for this machine. Any legal actions brought against South Bend Tools shall be tried in the State of
Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by law,
including any merchantability or fitness, for any purpose, are hereby limited to the duration of this
warranty.

Thank you for your business and continued support.

For further information about this warranty, visit

, or scan

the QR code below to be automatically directed to our warranty page.

https://www.grizzly.com/forms/warranty

WARRANT Y

southbendtools.com

southbendtools.com

Printed In Taiwan #CS21788
