South Bend SB1115, SB1116 User guide

21" VARIABLE-SPEED GEARHEAD DRILL PRESS

MODEL SB1115/SB1116

SB1115

SB1116

OWNER'S MANUAL

®

South Bend Tools

A Tradition of Excellence

© November, 2021 by South Bend Tools For Machines Mfd. Since 1/21 (V1.11.21)

We stand behind our machines. If you have any service questions, parts requests or general questions
about your purchase, feel free to contact us.

South Bend Tools
P.O. Box 2027
Bellingham, WA 98227
Phone: [phone]
Fax: [phone] (International)
Fax: [phone] (USA Only)
Email: [e-mail]

For your convenience, any updates to this manual will be available to download free of charge

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control
it during operation, and how to keep it in good working condition. We assume the reader has a basic
understanding of how to operate this type of machine, but that the reader is not familiar with the
controls and adjustments of this specific model. As with all machinery of this nature, learning the
nuances of operation is a process that happens through training and experience. If you are not an
experienced operator of this type of machinery, read through this entire manual, then learn more
from an experienced operator, schooling, or research before attempting operations. Following this
advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes
happen or the machine design changes after the documentation process—so
exactly match your machine.
contact our

We highly value customer feedback on our manuals. If you have a moment, please share your
experience using this manual. What did you like about it? Is there anything you would change to
make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

C

P.O. Box 2027
Bellingham, WA 98227
Email: [e-mail]

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

through our website at:

Customer Service

Table of Contents

INTRODUCTION ............................................................... 2

Identification ........................................................ 2

Description of Controls & Components ..............3

Product Specifications SB1115 ............................6

Product Specifications SB1116 ............................9

SAFETY ............................................................................. 12

Understanding Risks of Machinery .................. 12

Basic Machine Safety ........................................12

Additional Drill Press Safety ............................14

PREPARATION .............................................................. 15

Preparation Overview ........................................15

Required for Setup ............................................. 15

Power Supply Requirements ............................. 16

Unpacking ..........................................................18

Inventory ............................................................ 18

Cleaning & Protecting .......................................20

Location .............................................................. 21

Lifting & Moving ................................................22

Leveling & Mounting ......................................... 22

Assembly ............................................................23

Checking Headstock Oil Level ..........................28

Test Run ............................................................. 28

Spindle Break-In ................................................32

Inspections & Adjustments ...............................32

OPERATION .................................................................... 33

Operation Overview ........................................... 33

Master Power Switch .........................................34

Table Movement.................................................34

Head Tilt ............................................................36

Installing/Removing Tooling (SB1115) ............. 37

Installing/Removing Tooling (SB1116) ............. 39

Spindle Downfeed ..............................................41

Setting Depth Stop ............................................41

Spindle Speed .....................................................42

Calculating Spindle Speed for Drilling ............. 43

ACCESSORIES ..............................................................44

MAINTENANCE ............................................................. 48

Maintenance Schedule .......................................48

Cleaning & Protecting .......................................48

Lubrication ......................................................... 49

SERVICE...........................................................................54

Adjusting Gibs (SB1116) ...................................54

Adjusting Leadscrew Backlash (SB1116) ......... 55

Tramming Spindle ............................................. 56

Tensioning Return Spring ................................. 58

Calibrating Depth Stop .....................................58

TROUBLESHOOTING ................................................. 59

ELECTRICAL ................................................................... 62

Electrical Safety Instructions ...........................62

Wiring Diagram .................................................63

Electrical Component Pictures .........................64

Power Feed Wiring Diagram (SB1116) ............65

PARTS................................................................................66

Headstock ........................................................... 66

Gearbox ..............................................................69

SB1115 Column & Table ................................... 70

SB1116 Column & Table ................................... 72

SB1116 Z-Axis Power Feed ...............................74

Electrical Components .......................................75

Machine Labels .................................................. 76

WARRANTY ..................................................................... 77

South Bend Tools

Model SB1115/ SB1116

Identification

INTRODUCTION

For Machines Mfd. Since 1/21

Depth ScaleDepth Scale

& Pointer& Pointer

Quill LockQuill Lock

LeverLever

Drawbar CoverDrawbar Cover

Spindle SpeedSpindle Speed

Range LeverRange Lever

Fine Downfeed Fine Downfeed

HandwheelHandwheel

Control PanelControl Panel

w/Digital Readoutw/Digital Readout

Coarse DownfeedCoarse Downfeed

LeverLever

QuillQuill

& Spindle& Spindle

HeadstockHeadstock

Tilt ScaleTilt Scale

Downfeed Downfeed

Selector KnobSelector Knob

Cross Slide Cross Slide

TableTable

Z-AxisZ-Axis

Power FeedPower Feed

X-AxisX-Axis

Power FeedPower Feed

TableTable

Y-AxisY-Axis

HandwheelHandwheel

Table LocksTable Locks

SB1115 SB1116

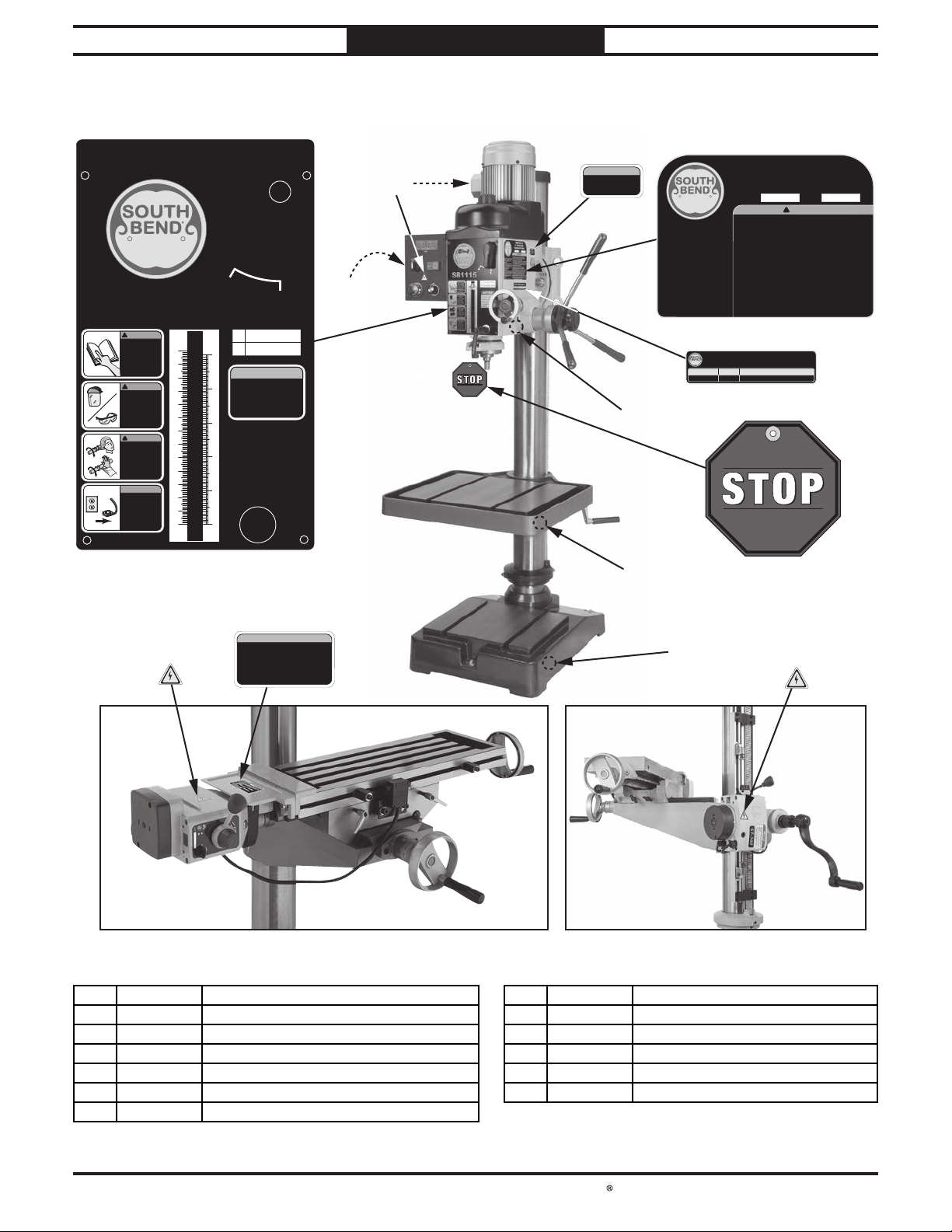

For You Own Safety Read Instruction Manual Before Operating Drill Press
a) Wear eye protection.
b) Do not wear gloves, necktie, or loose clothing.
c) Clamp workpiece or brace against column to prevent rotation.
d) Use recommended speed for drill accessory and workpiece material.

X-Axis X-Axis

HandwheelHandwheel

Z-AxisZ-Axis

Crank HandleCrank Handle

-2-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

INTRODUCTION

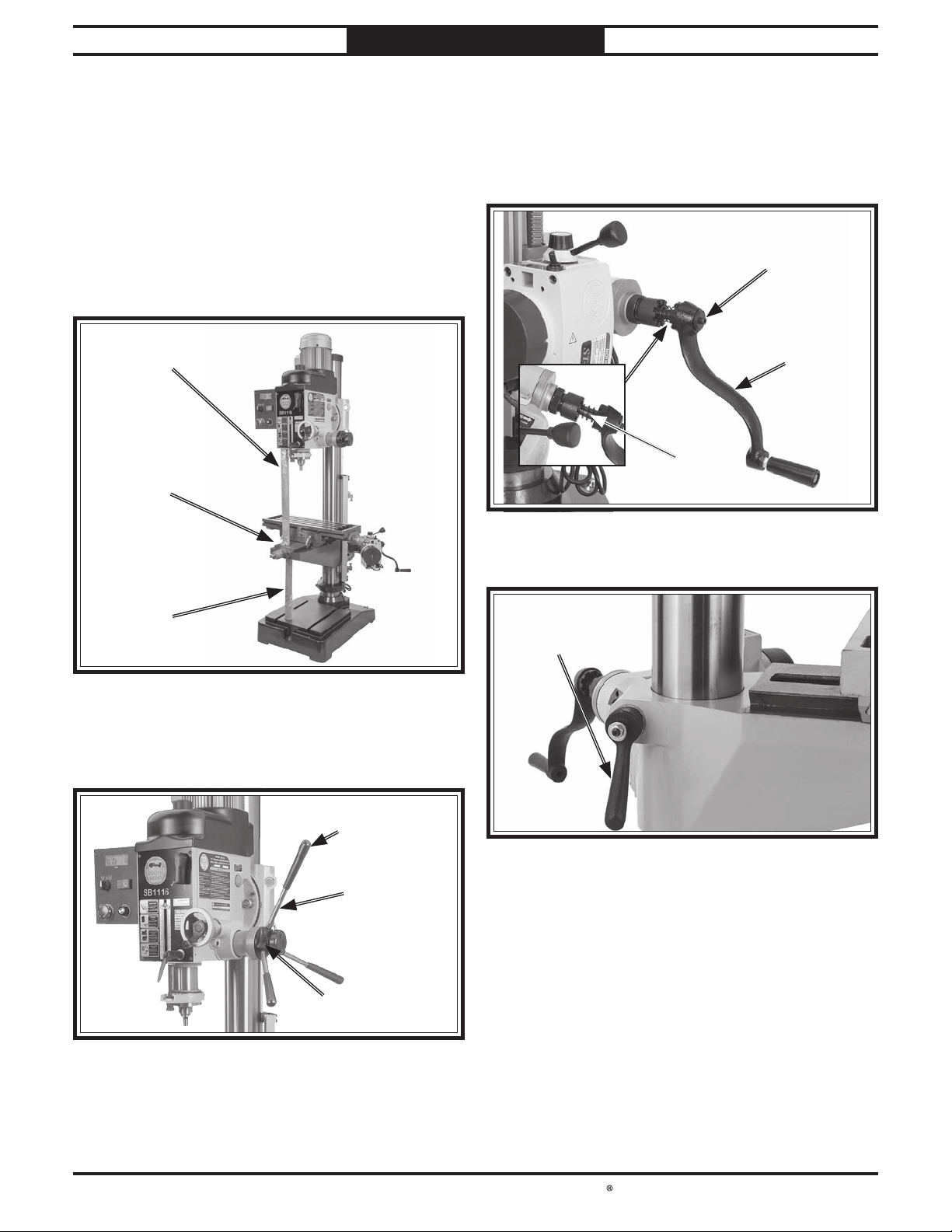

Description of Controls & Components

Refer to Figures 1–7 and the following
descriptions to become familiar with the basic
controls and components used to operate this
machine.

Control Panel

AA

BB

CC

DD

Figure 1. Control panel controls.Figure 1. Control panel controls.

EE

Headstock

FF

OO

NN

Figure 2. Headstock controls.Figure 2. Headstock controls.

F. Depth Stop Scale and Pointer: Indicates

depth of cut.

G. Spindle Speed Range Lever: Selects between

low and high spindle speed ranges.

H. Headstock Tilt Locking Nut (1 of 3): Secures

headstock tilt setting.

GG

II

HH

JJ

KK

LL

MM

A. Digital Readout: Displays spindle RPM.

B. Spindle Direction Switch: Selects direction of

spindle rotation.

C. EMERGENCY STOP Button: Stops all

machine functions. Twist clockwise to reset.

D. Spindle Speed Dial: Selects spindle speed

from 0–2500 RPM.

E. ON/OFF Buttons: Starts and stops spindle

rotation.

I. Headstock Tilt Scale: Indicates angle of

headstock tilt from 90° left to 30° right.

J. Coarse Downfeed Levers: Provide coarse

control over vertical spindle travel.

K. Downfeed Selector Knob: Engages/

disengages fine downfeed handwheel.

L. Fine Downfeed Handwheel: Provides fine

control over vertical spindle travel.

M. Spindle and Quill: Holds tooling for drilling

operations.

N. Depth Stop Adjustment Knob: Determines

depth of cut.

O. Quill Lock: Locks quill in position.

-3-

South Bend Tools

Model SB1115/ SB1116

INTRODUCTION

For Machines Mfd. Since 1/21

Master Power Switch SB1116 X- and Z-Axis Cross-

Table Controls

PP

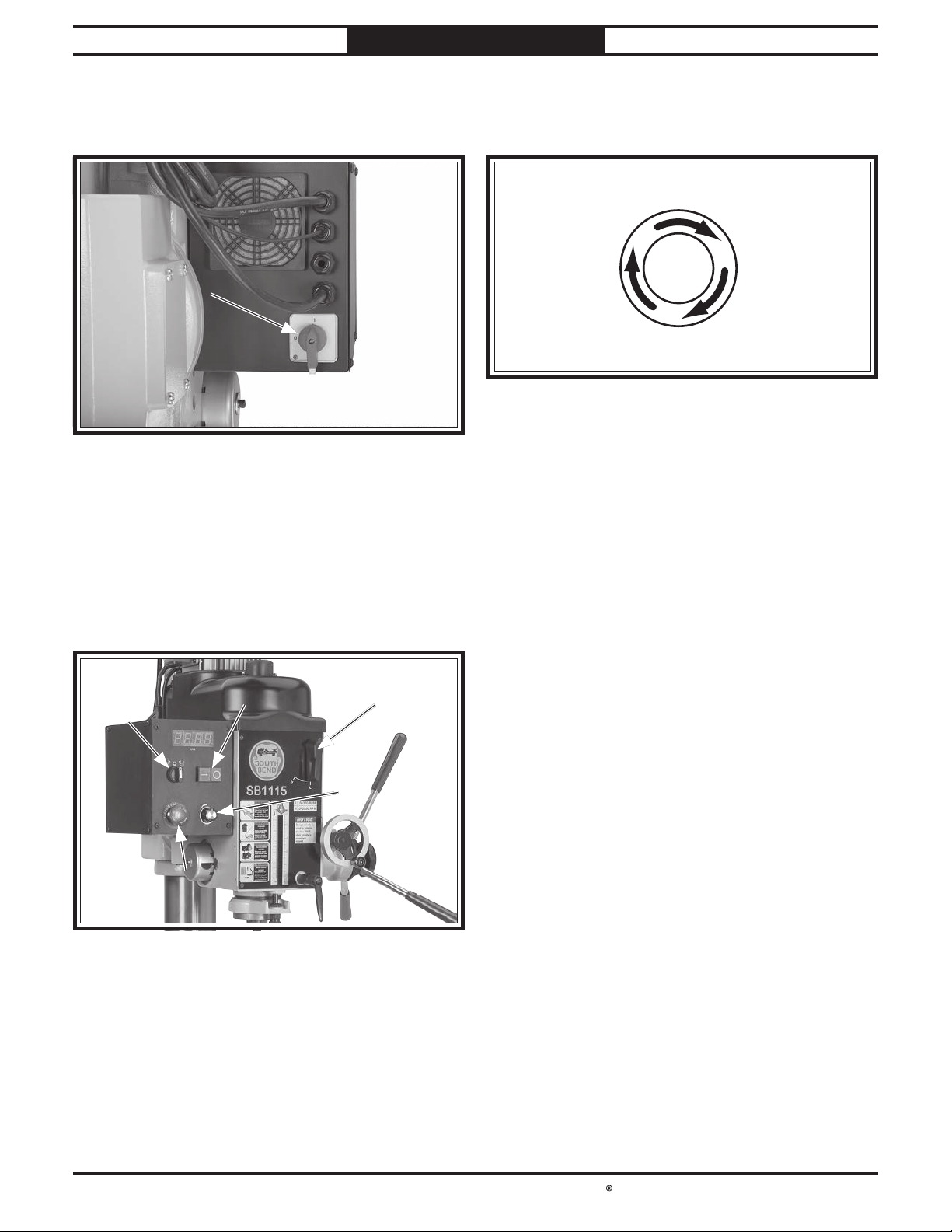

Figure 3. Master Power Switch.Figure 3. Master Power Switch.

P. Master Power Switch: Toggles incoming

power ON or OFF. Vertical position toggles
incoming power ON. Horizontal position,
(see Figure 3) toggles incoming power OFF.

Note: Master power switch can be locked

in OFF position with a padlock to prevent
unauthorized usage.

SB1115 Z-Axis Controls

SS

ZZ

Figure 5. Table controls and components.Figure 5. Table controls and components.

S. X-Axis Power Feed: Moves table along X-axis

(left and right) when turned ON (see Page 5
for more information).

T. Table: Equipped with four

mounting workpiece. Adjusts in X-(left and
right), Y-(front to back), and Z-(up and down)
axes.

TT

XX

YY

U U

WW

1

⁄2" T-slots for

VV

QQ

Figure 4. SB1115 Z-axis table controls.Figure 4. SB1115 Z-axis table controls.

Q. Z-Axis Crank Handle: Manually moves table

along Z-axis (up and down).

R. Z-Axis Table Lock: Tightens to secure table

height setting and ensure rigidity when
milling.

RR

U. Z-Axis Power Feed: Moves table along Z-axis

(up and down) when turned ON (see Page 5
for more information).

V. Z-Axis Crank: Manually moves table along

Z-axis (up and down); disengages for power
feed use.

W. X-Axis Handwheel: Manually moves table

along X-axis (left and right); handle folds for
power feed use.

X. Y-Axis Table Locks (1 of 2): Tighten to

prevent Y-axis table movement for increased
rigidity during operations where the Y-axis
should not move.

Y. X-Axis Table Locks: Tighten to prevent

X-axis table movement for increased rigidity
during operations where the X-axis should
not move.

Z. Y-Axis Handwheel: Manually moves table

along Y-axis (front and back).

-4-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

INTRODUCTION

SB1116 X- and Z-Axis Power
Feed Controls

Model SB1116 is equipped with power feed
units for X- and Z-axis table movement. Refer
to Figures 6–7 and the following descriptions
to understand the functions of the various
components of the power feed system.

ABAB

AAAA

AGAG

AFAF

Figure Figure 6. X-axis power feed controls and limit stops.. X-axis power feed controls and limit stops.

AEAE

ACAC

ADAD

AA. Reset Button: Resets internal circuit breaker

if unit is overloaded and shuts down.

AB. Directional Lever: Selects direction of table

movement. Center position is neutral.

AC. X-Axis Limit Stop (1 of 2 Shown): Limits

X-axis table travel.

AD. Limit Switch: Stops powered table movement

when switch comes in contact with either
limit stop.

AE. Rapid Traverse Button: When pressed, moves

table at full speed when already in motion.

AF. Speed Dial: Controls speed of table

movement. Turning dial clockwise causes
table to move faster.

Note: Feed rates for table travel are

extremely difficult to precisely calculate. We
recommend that you combine research and
experimentation to find feed rates that best
work for your operations.

AHAH

ADAD

AFAF

AAAA

AGAG

Figure 7. Z-axis power feed controls.Figure 7. Z-axis power feed controls.

ABAB

AEAE

AG. ON/OFF Switch: Enables/disables power to

unit.

AH. Z-Axis Limit Stop (1 of 2 Shown): Limits

Z-axis table travel.

-5-

South Bend Tools

Model SB1115/ SB1116

INTRODUCTION

Product Specifications SB1115

Model SB1115

21" VariableSpeed Gearhead Drill Press

Product Dimensions

Weight.............................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 42 x 35 x 69 in.

Footprint (Length x Width)................................................................................................................. 26 x 18-1/2 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content..........................................................................................................................................................

Weight.............................................................................................................................................................

Length x Width x Height................................................................................................................... 36 x 34 x 78 in.

Must Ship Upright................................................................................................................................................ Yes

For Machines Mfd. Since 1/21

617 lbs.

Machine

683 lbs.

Electrical

Power Requirement......................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating...................................................................................................................................

Minimum Circuit Size..........................................................................................................................................

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length............................................................................................................................................ 84 in.

Power Cord Gauge.........................................................................................................................................

Plug Included........................................................................................................................................................

Included Plug Type.............................................................................................................................................. 6-15

Switch Type......................................................................................................... Control Panel w/Magnetic Switch

Inverter (VFD) Type...................................................................................................................................... KB-26D

Motors

Main

Horsepower.........................................................................................................................................

Phase....................................................................................................................................................

Amps.......................................................................................................................................................... 5.5A

Speed................................................................................................................................................ 1720 RPM

Type........................................................................................................................................ TEFC Induction

Power Transfer ..............................................................................................................................

Bearings................................................................................................

Shielded & Permanently Lubricated

5.5A
15A

14 AWG

Yes

1-1/2 HP

3-Phase

Gear Drive

-6-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

ISO 9001 Factory ................................................................................................................................................. Yes

INTRODUCTION

Main Specifications

Operation Information

Type...........................................................................................................................................................

Swing..................................................................................................................................................

Spindle Taper.......................................................................................................................................... MT#3

Spindle Travel............................................................................................................................................ 5 in.

Max. Distance From Spindle to Column........................................................................................ 10-7/16 in.

Max. Distance From Spindle to Table..............................................................................................

Range of Spindle Speeds............................................................................................................

Max. Head Tilt (Left/Right)............................................................................................................. 90/30 deg.

Drilling Capacity (Mild Steel)........................................................................................................... 1-9/16 in.

Drilling Capacity (Cast Iron)............................................................................................................ 1-9/16 in.

End Milling Capacity..............................................................................................................................

Face Milling Capacity......................................................................................................................

Drill Chuck Type..................................................................................................................... JT6 Key Chuck

Drill Chuck Size............................................................................................................................ 1/64 - 5/8 in.

Spindle Information

Distance From Spindle to Base......................................................................................................... 35-3/4 in.

Quill Diameter....................................................................................................................................

Drawbar Thread Size............................................................................................................................

0 - 2500 RPM

Floor

20-3/4 in.

17-3/8 in.

3/4 in.

3-15/16 in.

2.938 in.
3/8"-16

Table Information

Table Swivel Around Column............................................................................................................. 360 deg.

Longitudinal Travel........................................................................................................................... 14-1/2 in.

Cross Travel............................................................................................................................................... 7 in.

Table Length......................................................................................................................................

Table Width.......................................................................................................................................

Table Thickness................................................................................................................................... 2-1/4 in.

Vertical Table Travel......................................................................................................................... 22-1/4 in.

Number of T-Slots........................................................................................................................................... 2

T-Slot Size...............................................................................................................................................

T-Slot Centers............................................................................................................................................

Floor-To-Table Height.......................................................................................................... 18-1/2 - 39-1/2 in.

Construction

Table................................................................................................................................................... Cast Iron

Column............................................................................................................................................... Cast Iron

Spindle Housing................................................................................................................................

Head...................................................................................................................................................

Base.................................................................................................................................................... Cast Iron

Paint Type/Finish................................................................................................................................. Enamel

Other Related Information

Base Length............................................................................................................................................. 26 in.

Base Width.........................................................................................................................................

Column Diameter................................................................................................................................

Quill Flange/Collar Diameter............................................................................................................. 3-3/4 in.

19-1/2 in.
21-3/4 in.

5/8 in.

9 in.

Cast Iron
Cast Iron

18-1/2 in.

4-1/2 in.

Other

Country of Origin ........................................................................................................................................... Taiwan

Warranty ........................................................................................................................................................ 2 Years

Approximate Assembly & Setup Time .......................................................................................................... 1 Hour

Serial Number Location .............................................................................................................................. ID Label

Sound Rating ............................................................................................................................................. 82 - 84 dB

-7-

South Bend Tools

Model SB1115/ SB1116

Features

Variable Frequency Drive for 3-Phase Speed Control with Single-Phase Power
Manual Table Elevation
Coarse and Fine Downfeed Controls
Cast-Iron Base with Two 1/2" T-Slots, 8-7/8" on Center
360 Deg. Table Positioning Around Column
360 Deg. Head Positioning Around Column
Digital Speed Display
Front-Mounted E-Stop Button
Forward/Reverse Spindle Switch
Headstock Features 2.6 Qt. Capacity

Included Accessories

Socket Wrench 13/23mm
Hex Wrenches 3, 4, 5mm

INTRODUCTION

For Machines Mfd. Since 1/21

-8-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

INTRODUCTION

Model SB1116

21" VariableSpeed Gearhead Drill Press With

CrossSlide Table

Product Dimensions

Weight.............................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 42 x 35 x 69 in.

Footprint (Length x Width)................................................................................................................. 26 x 18-1/2 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content..........................................................................................................................................................

Weight.............................................................................................................................................................

Length x Width x Height................................................................................................................... 36 x 34 x 78 in.

Must Ship Upright................................................................................................................................................ Yes

672 lbs.

Machine

739 lbs.

Electrical

Power Requirement......................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating...................................................................................................................................

Minimum Circuit Size..........................................................................................................................................

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length............................................................................................................................................ 84 in.

Power Cord Gauge.........................................................................................................................................

Plug Included........................................................................................................................................................

Included Plug Type.............................................................................................................................................. 6-15

Switch Type......................................................................................................... Control Panel w/Magnetic Switch

Inverter (VFD) Type...................................................................................................................................... KB-26D

Motors

Main

Horsepower.........................................................................................................................................

Phase....................................................................................................................................................

Amps.......................................................................................................................................................... 5.5A

Speed....................................................................................................................................................... 1720A

Type........................................................................................................................................ TEFC Induction

Power Transfer ..............................................................................................................................

Bearings................................................................................................

Shielded & Permanently Lubricated

5.5A
15A

14 AWG

Yes

1-1/2 HP

3-Phase

Gear Drive

-9-

South Bend Tools

Model SB1115/ SB1116

Main Specifications

Operation Information

Type...........................................................................................................................................................

Swing..................................................................................................................................................

Spindle Taper.............................................................................................................................................. R-8

Spindle Travel............................................................................................................................................ 5 in.

Max. Distance From Spindle to Column........................................................................................ 10-7/16 in.

Max. Distance From Spindle to Table..............................................................................................

Number of Spindle Speeds.................................................................................................................

Range of Spindle Speeds............................................................................................................ 0 - 2500 RPM

Max. Head Tilt (Left/Right)............................................................................................................. 90/30 deg.

Drilling Capacity (Mild Steel)........................................................................................................... 1-9/16 in.

Drilling Capacity (Cast Iron)............................................................................................................

End Milling Capacity..............................................................................................................................

Face Milling Capacity...................................................................................................................... 3-15/16 in.

Drill Chuck Type..................................................................................................................... JT6 Key Chuck

Drill Chuck Size............................................................................................................................ 1/64 - 5/8 in.

Spindle Information

Distance From Spindle to Base.........................................................................................................

Quill Diameter....................................................................................................................................

Drawbar Thread Size........................................................................................................................ 7/16" x 20

INTRODUCTION

For Machines Mfd. Since 1/21

Floor

20-3/4 in.

17-3/8 in.

Variable

1-9/16 in.

3/4 in.

35-3/4 in.

2.938 in.

Table Information

Table Swivel Around Column............................................................................................................. 360 deg.

Longitudinal Travel........................................................................................................................... 14-1/2 in.

Cross Travel.........................................................................................................................................

Table Length............................................................................................................................................

Table Width......................................................................................................................................... 7-1/2 in.

Table Thickness................................................................................................................................... 1-3/4 in.

Vertical Table Travel....................................................................................................................... 17-3/16 in.

Number of T-Slots...........................................................................................................................................

T-Slot Size...............................................................................................................................................

T-Slot Centers...................................................................................................................................... 1-1/2 in.

Floor-To-Table Height.......................................................................................................... 18-1/2 - 39-1/2 in.

Construction

Table................................................................................................................................................... Cast Iron

Column...............................................................................................................................................

Spindle Housing................................................................................................................................

Head................................................................................................................................................... Cast Iron

Base.................................................................................................................................................... Cast Iron

Paint Type/Finish................................................................................................................................. Enamel

Other Related Information

Base Length.............................................................................................................................................

Base Width.........................................................................................................................................

Column Diameter................................................................................................................................ 4-1/2 in.

Quill Flange/Collar Diameter............................................................................................................. 3-3/4 in.

7-1/4 in.

23 in.

4

1/2 in.

Cast Iron
Cast Iron

26 in.

18-1/2 in.

-10-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

INTRODUCTION

Other

Country of Origin ...........................................................................................................................................

Warranty ........................................................................................................................................................

Approximate Assembly & Setup Time ..........................................................................................................

Serial Number Location ..............................................................................................................................

Sound Rating .............................................................................................................................................

ISO 9001 Factory .................................................................................................................................................

Taiwan
2 Years

1 Hour

ID Label

83 - 85 dB

Yes

Features

Variable Frequency Drive for 3-Phase Speed Control with Single-Phase Power
Longitudinal Power Feed on Precision-Ground Cast-Iron Table with Independent Power Supply
Powered or Manual Table Elevation
Coarse and Fine Downfeed Controls
Cast-Iron Base with Two 1/2" T-Slots, 8-7/8" on Center
360 Deg. Table Positioning Around Column
360 Deg. Head Positioning Around Column
Digital Speed Display
Front-Mounted E-Stop Button
Forward/Reverse Spindle Switch
Headstock Features 2.6 Qt. Capacity

Included Accessories

Socket Wrench 13/23mm
Hex Wrenches 3, 4, 5mm

-11-

South Bend Tools

Model SB1115/ SB1116

Operating all machinery and machining equipment can be dangerous or relatively safe depending
on how it is installed and maintained, and the operator's experience, common sense, risk awareness,
working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This
responsibility includes proper installation in a safe environment, personnel training and usage
authorization, regular inspection and maintenance, manual availability and comprehension,
application of safety devices, integrity of cutting tools or accessories, and the usage of approved
personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property
damage from negligence, improper training, machine modifications, or misuse. Failure to read,
understand, and follow the manual and safety labels may result in serious personal injury, including
amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

SAFETY

For Machines Mfd. Since 1/21

Understanding Risks of Machinery

Death or catastrophic
harm WILL occur.

Death or catastrophic
harm COULD occur.

Moderate injury or fire
MAY occur.

Machine or property
damage may occur.

Basic Machine Safety

equipment presents serious injury hazards
to untrained users. To reduce the risk of
injury, anyone who uses THIS item MUST
read and understand this entire manual
before starting.

Personal Protective Equipment:

servicing this item may expose the user
to flying debris, dust, smoke, dangerous
chemicals, or loud noises. These hazards
can result in eye injury, blindness, long­term respiratory damage, poisoning,
cancer, reproductive harm or hearing loss.
Reduce your risks from these hazards
by wearing approved eye protection,
respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves
or bystanders. Only allow trained and
properly supervised personnel to operate
this item. Make sure safe operation
instructions are clearly understood. If
electrically powered, use padlocks and
master switches, and remove start switch
keys to prevent unauthorized use or
accidental starting.

Guards/Covers:

moving parts during operation may cause
severe entanglement, impact, cutting,
or crushing injuries. Reduce this risk by
keeping any included guards/covers/doors
installed, fully functional, and positioned
for maximum protection.

Accidental contact with

-12-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

Entanglement: Loose clothing, gloves, neckties,

rotate.

Chuck Keys or Adjusting Tools:

Tools used to

our Technical Support for assistance.

SAFETY

jewelry or long hair may get caught in
moving parts, causing entanglement,
amputation, crushing, or strangulation.
Reduce this risk by removing/securing
these items so they cannot contact moving
parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the
risk of accidental injury. Do not let a
temporary influence or distraction lead to a
permanent disability! Never operate when
under the influence of drugs/alcohol, when
tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment
may result in electrocution; operating near
highly flammable materials may result in a
fire or explosion. Only operate this item in
a dry location that is free from flammable
materials.

Electrical Connection: With electically powered

equipment, improper connections to the
power source may result in electrocution
or fire. Always adhere to all electrical
requirements and applicable codes when
connecting to the power source. Have all
work inspected by a qualified electrician to
minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it
is connected to the power source greatly
increases the risk of injury from accidental
startup. Always disconnect power
BEFORE any service or adjustments,
including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/
rotating parts will become dangerous
projectiles if left in place when the machine
is started. Reduce this risk by developing
the habit of always removing these tools
immediately after using them.

Work Area:

the risks of accidental injury. Only operate
this item in a clean, non-glaring, and well­lighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning
equipment has higher risks of causing
serious personal injury compared to
those that are properly maintained.
To reduce this risk, always maintain
this item to the highest standards and
promptly repair/service a damaged or
malfunctioning component. Always follow
the maintenance instructions included in
this documentation.

Unattended Operation:

equipment that is left unattended while
running cannot be controlled and is
dangerous to bystanders. Always turn the
power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when
cutting, may contain chemicals known to
the State of California to cause cancer,
respiratory problems, birth defects,
or other reproductive harm. Minimize
exposure to these chemicals by wearing
approved personal protective equipment
and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can
become dangerous projectiles if not
secured or if they hit another object during
operation. Reduce the risk of this hazard
by verifying that all fastening devices are
properly secured and items attached to
spindles have enough clearance to safely

Loose workpieces,

Difficult Operations:

operations with which you are unfamiliar
increases the risk of injury. If you
experience difficulties performing the
intended operation, STOP! Seek an
alternative method to accomplish the
same task, ask a qualified expert how the
operation should be performed, or contact

Attempting difficult

-13 -

South Bend Tools

Model SB1115/ SB1116

Serious injury or death can occur from getting clothing, jewelry, or long hair entangled in rotating
spindle or bit/cutting tool. Contact with rotating bit/cutting tool can result in severe cuts or
amputation of fingers. Flying metal chips can cause blindness or eye injuries. Broken bits/cutting
tools, unsecured workpieces, chuck keys, or other adjustment tools thrown from rotating spindle can
strike nearby operator or bystanders with deadly force. To reduce the risk of these hazards, operator
and bystanders MUST completely heed hazards and warnings below.

starting spindle. Never start spindle with bit

tool/bit, tighten all table and headstock locks

Damaged bits/cutting

Eye/Face/Hand Protection.

Avoiding Entanglement.

Removing Adjustment Tools.

Correct Spindle Speed.

Securing Bit

SAFETY

Additional Drill Press Safety

For Machines Mfd. Since 1/21

Flying chips
created by drilling can cause eye injuries
or blindness. Always wear a face shield
in addition to safety glasses. Always keep
hands and fingers away from drill bit/cutting
tool. Avoid awkward hand positions, where
a sudden slip could cause hand to move into
bit/cutting tool.

DO NOT wear loose
clothing, gloves, or jewelry. Tie back long
hair. Keep all guards in place and secure.
Always allow spindle to stop on its own. DO
NOT stop spindle using your hand or any
other object.

Chuck key,
wrenches, and other tools left on machine
can become deadly projectiles when spindle
is started. Remove all loose items or tools
used on spindle immediately after use.

Using wrong spindle
speed can cause bits/cutting tools to break
and strike operator or bystanders. Follow
recommended speeds and feeds for each
size/type of bit/cutting tool and workpiece
material.

/Cutting Tool. Firmly secure bit/

cutting tool in chuck so it cannot fly out of
spindle during operation or startup.

Drilling Preparation. To avoid loss of drilling

control or bit breakage, only drill into a flat
surface that is approximately perpendicular
to bit. Clear table of all objects before

pressed against workpiece.

Securing Table and Headstock. To avoid loss of

control leading to accidental contact with

before operating drill press.

Workpiece Control. An unsecured workpiece may

unexpectedly shift, spin out of control, or
be thrown if bit/cutting tool “grabs” during
operation. Clamp workpiece to table or in
table-mounted vise, or brace against column
to prevent rotation. NEVER hold workpiece
by hand during operation. NEVER start
machine with bit/cutting tool touching
workpiece; allow spindle to gain full speed
before drilling.

Inspecting Bit/Cutting Tool.

tools may break apart during operation
and hit operator or bystanders. Dull bits/
cutting tools increase cutting resistance
and are more likely to grab and spin/throw
workpiece. Always inspect bits/cutting tools
for sharpness, chips, or cracks before each
use. Replace dull, chipped, or cracked bits/
cutting tools immediately.

-14-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PREPARATION

PREPARATION

Preparation Overview Required for Setup

The purpose of the preparation section is to help
you prepare your machine for operation. The list
below outlines the basic process. Specific steps
for each of these points will be covered in detail
later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

2. Clean the machine and its components.

3. Identify an acceptable location for the

machine and move it to that location.

4. Level the machine and bolt it to the floor.

5. Assemble the loose components and make

any necessary adjustments or inspections to
ensure the machine is ready for operation.

6. Connect the machine to the power source.

7. Test run the machine to make sure it

functions properly and is ready for operation.

Incorrect use of this
machine can result in
death or serious injury.
For your own safety, read
and understand this entire
document before using.

The items listed below are required to
successfully set up and prepare this machine for
operation.

For Lifting

• A forklift or other power lifting device rated
for at least 1000 lbs.

• Lifting sling rated for at least 1000 lbs.

For Power Connection

• A power source that meets the minimum
circuit requirements for this machine. (Refer
to the Power Supply Requirements
section for details.)

• A qualified electrician to ensure a safe and
code-compliant connection to the power
source.

For Assembly

• Additional Person

• Safety Glasses for Each Person

• Cleaner/Degreaser

• Disposable Gloves

• Disposable Shop Rags

• Precision Level

• Floor Mounting Hardware

• Open-End Wrench 22mm

• ISO 32 Equivalent Oil

• Dial Test Indicator & Holder

• Parallel Block (9" Long)

For SB1116 Only:

• Hex Wrench

• Hex Wrench

• Hex Wrench

• Open-End Wrench

• Hex Wrench 6mm

• Flat Head Screwdriver 1/4"

• T-Handle Hex Wrench 5mm

1

3

1

⁄8"
⁄16"
⁄4"

9

⁄16"

-15 -

South Bend Tools

Model SB1115/ SB1116

Before installing the machine, consider the
availability and proximity of the required power
supply circuit. If an existing circuit does not meet
the requirements for this machine, a new circuit
must be installed.

To minimize the risk of electrocution, fire,
or equipment damage, installation work and
electrical wiring must be done by a
or qualified service personnel
applicable electrical codes and safety standards.

The full-load current rating is the amperage
a machine draws at 100% of the rated output
power. On machines with multiple motors, this is
the amperage drawn by the largest motor or sum
of all motors and electrical devices that might
operate at one time during normal operations.

The full-load current is not the maximum
amount of amps that the machine will draw. If
the machine is overloaded, it will draw additional
amps beyond the full-load rating.

If the machine is overloaded for a sufficient
length of time, damage, overheating, or fire may
result—especially if connected to an undersized
circuit. To reduce the risk of these hazards,
avoid overloading the machine during operation
and make sure it is connected to a power supply
circuit that meets the requirements in the
following section.

This machine is prewired to operate on a power
supply circuit that has a verified ground and
meets the following requirements:

Note: The circuit requirements in this manual
are for
machine will be running at a time. If this
machine will be connected to a shared circuit
where multiple machines will be running at
the same time, consult a qualified electrician to
ensure the circuit is properly sized.

A power supply circuit includes all electrical
equipment between the main breaker box or fuse
panel in your building and the incoming power
connections inside the machine. This circuit
must be safely sized to handle the full-load
current that may be drawn from the machine for
an extended period of time. (If this machine is
connected to a circuit protected by fuses, use a
time delay fuse marked D.)

Serious injury could occur if you connect

Power Supply

PREPARATION

For Machines Mfd. Since 1/21

Requirements

Availability

Electrocution or fire may
occur if machine is not
correctly grounded and
attached to the power
supply. Use a qualified
electrician to ensure a safe
power connection.

n electrician

in accordance with

the machine to power before completing the
setup process. DO NOT connect to power until
instructed later in this manual.

Circuit Requirements

Nominal Voltage ........ 208V, 220V, 230V, 240V

Cycle .............................................................60 Hz

Phase ..............................................Single-Phase

Circuit Rating....................................... 15 Amps

Plug/Receptacle (included) ...........NEMA 6-15

Full-Load Current Rating

Full-Load Rating at 220V .................. 5.5 Amps

-16 -

For your own safety and protection of property,
consult an electrician if you are unsure about
wiring practices or applicable electrical codes.

a dedicated circuit—where only one

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

This machine must be grounded! In the event
of
grounding provides a path of least resistance
for electric current
electric shock.

This machine is equipped with a power cord
that has
grounding plug
The plug
receptacle (outlet)
grounded in accordance with all local codes and
ordinances.

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without
yellow stripes) is the equipment-grounding wire.
If repair or replacement of the power cord or
plug is necessary, do not connect the equipment­grounding wire to a live (current carrying)
terminal.

Check with an electrician or qualified service
personnel if you do not understand these
grounding requirements, or if you are in doubt
about whether the tool is properly grounded.

If you ever notice that a cord or plug is
damaged or worn, disconnect it from power, and
immediately replace it with a new one.

We do not recommend using an extension cord
with this machine. If you must use one, only
use it if absolutely necessary and only on a
temporary basis.

Extension cords cause voltage drop, which may
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine
must contain a ground wire, match the required
plug and receptacle listed in the

Requirements

meet the following requirements:

PREPARATION

Grounding Requirements

certain types of malfunctions or breakdowns,

in order to reduce the risk of

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Grounding Prong

Figure Figure 8. NEMA 5-15 plug and receptacle.. NEMA 5-15 plug and receptacle.

DO NOT modify the
included plug or use an
adapter if it will not fit your
receptacle. Instead, have a
qualified electrician install
the proper receptacle on a
power supply circuit that
is grounded and meets
the requirements for this
machine.

Extension Cords

Circuit

for the applicable voltage, and

Minimum Gauge Size ............................14 AWG

Maximum Length (Shorter is Better) ....50 ft.

-17-

South Bend Tools

Model SB1115/ SB1116

This item was carefully packaged to prevent
damage during transport. If you discover any
damage, please immediately call Customer
Service at
need to file a freight claim, so save the containers
and all packing materials for possible inspection
by the carrier or its agent.

NOTICE

PREPARATION

For Machines Mfd. Since 1/21

Unpacking

[phone] for advice. You may

Inventory

SB1115

Wood Crate (Figure 9) Qty

A. SB1115 Drill Press (Not Shown) ................... 1

B. Coarse Downfeed Lever Shafts ..................... 3

C. Coarse Downfeed Lever Handles .................. 3

D. Wrench 13mm/23mm ..................................... 1

E. Z-Axis Crank Handle ..................................... 1

F. Z-Axis Revolving Handle ............................... 1

G. Drift Key ......................................................... 1

H. Hex Wrenches 3, 4, 5mm ........................ 1 Ea.

SB1116

Wood Crate (Figure 10) Qty

I. SB1116 Drill Press (Not Shown) ................... 1

J. X-/Y- Axis Handwheels .................................. 3

K. Hex Wrenches 3, 4, 5mm ........................ 1 Ea.

L. Revolving Handles .........................................3

M. X-Axis Folding Handle ...................................1

N. Wrench 13mm/23mm ..................................... 1

O. Coarse Downfeed Lever Shafts .....................3

P. Coarse Downfeed Lever Handles ..................3

JJ

NN

KK

OO

LL

MM

PP

BB CC

EE

FF GG

Figure 9. SB1115 Inventory.Figure 9. SB1115 Inventory.

DD

If you cannot find an item on this list, carefully
check around/inside the machine and
packaging materials. Often, these items get

HH

lost in packaging materials while unpacking or
they are pre-installed at the factory.

Figure 10. SB1116 Inventory.Figure 10. SB1116 Inventory.

-18 -

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PREPARATION

X-Axis Power Feed (Figures 11–12) Qty

Q. X-Axis Power Feed Bracket ........................... 1

R. X-Axis Power Feed Unit ................................1

S. X-Axis Power Feed Gear Guard .................... 1

RR

T. Direction Lever Knob .....................................1

U. Limit Switch Mounting Block ....................... 1

QQ

V. Limit Switch Mounting Hardware

Cap Screws M8-1.25 x 12 ............................... 2

Flat Washers 8mm ......................................... 2

W. X-Axis Leadscrew Gear 56T ..........................1

X. X-Axis Limit Stop Assemblies ....................... 2

1

Cap Screws
Flat Washers
Slide Nuts
Y. X-Axis Power Feed Hardware

⁄4"-20 x 11⁄2" ................................2

1

⁄4" ............................................. 2

1

⁄4"-20 ............................................2

SS

Figure 11. SB1116 X-axis power feed.Figure 11. SB1116 X-axis power feed.

Cap Screws M6-1 x 25 .................................... 2

Flat Washers 6mm ......................................... 2

TT

UU

VV

WW

Figure 12. SB1116 X-axis power feed components.Figure 12. SB1116 X-axis power feed components.

XX

YY

-19 -

South Bend Tools

Model SB1115/ SB1116

The unpainted surfaces are coated
with a heavy-duty rust preventative that
prevents corrosion during shipment and
The benefi t of this rust preventative is that it
works very well. The downside is that it
time-consuming

Be patient and do a careful job when
and removing the rust preventative
you spend doing this will reward you with
smooth
for the proper care of

Although there are many ways to successfully
remove the rust preventative, the
process works well in most situations

Before cleaning, gather the following:

• Disposable

• Cleaner/degreaser

• Safety glasses & disposable gloves

Note:

WD•40 can be used to remove rust preventative.
Before using these products, though, test them
on an inconspicuous area of a painted surface to
make sure they will not damage it.

GAS

PREPARATION

Cleaning & Protecting

For Machines Mfd. Since 1/21

at the factory

to thoroughly remove.

-sliding parts and a better appreciation
the unpainted surfaces.

rags

(certain citrus-based
degreasers work extremely well and they
have non-toxic fumes)

Automotive degreasers, mineral spirits, or

. The time

following

storage.

can be

cleaning

.

Avoid chlorine-based solvents, such as
acetone or brake parts cleaner that may
damage painted surfaces. Always follow the
manufacturer’s instructions when using any
type of cleaning product.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat all surfaces that have rust preventative

with a liberal amount of your cleaner or
degreaser and let them soak for a few
minutes.

3. Wipe off the surfaces. If your cleaner or

degreaser is effective, the rust preventative
will wipe off easily.

Note: To clean off thick coats of rust

preventative on fl at surfaces, such as beds
or tables, use a PLASTIC paint scraper to
scrape off the majority of the coating before
wiping it off with your rag. (Do not use a
metal scraper or it may scratch the surface.)

4. Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a
quality metal protectant or light oil to
prevent rust.

-20-

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used for
cleaning. Avoid using these
products to remove rust
preventative.

Many cleaning solvents are
toxic if inhaled. Minimize
your risk by only using
these products in a well
ventilated area.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping
grease from the non-painted parts of the
machine during clean up.

Figure 13. T23692 Orange Power Degreaser.Figure 13. T23692 Orange Power Degreaser.

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

Weight Load

equipment that may be installed on the machine,

Physical Environment

The physical environment where your machine
is operated is important for safe operation and
longevity of
machine in a dry environment that is free from
excessive moisture, hazardous
chemicals, airborne abrasives, or extreme
conditions. Extreme conditions for this type
of machinery are generally those where the
ambient temperature
104°F; the relative humidity
of
is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power
source. Make sure all power cords are protected
from traffic, material handling, moisture,
chemicals, or other hazards. Make sure to leave
access to a means of disconnecting the power
source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate
enough to perform operations safely. Shadows,
glare, or strobe effects that may distract or
impede the operator must be eliminated.

PREPARATION

Location

Physical Environment
Electrical Installation
Lighting
Weight Load

Space Allocation

20–95% (non-condensing); or the environment

parts. For best results, operate this

or flammable

is outside the range of 41°–

is outside the range

Refer to the Machine Specifi cations for the
weight of your machine. Make sure that the
surface upon which the machine is placed will
bear the weight of the machine, additional

and the heaviest workpiece that will be used.
Additionally, consider the weight of the operator
and any dynamic loading that may occur when
operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation
of auxiliary equipment. With permanent
installations, leave enough space around
the machine to open or remove doors/covers
as required by the maintenance and service
described in this manual.

35"

Wall

Min. 30"

for Maintenance

42"

SB1115

Figure 14. Minimum working clearances.Figure 14. Minimum working clearances.

Children or untrained
people may be seriously

for Maintenance

35"

= Electrical Connection

injured by this machine.
Only install in an access
restricted location.

Wall

Min. 30"

42"

56½"

SB1116

-21-

South Bend Tools

Model SB1115/ SB1116

Leveling machinery helps precision components,
such as bed ways, remain straight and flat
during the lifespan of the machine. Components
on an unleveled machine may slowly twist due to
the dynamic loads placed on the machine during
operation.

For best results, use a precision level that
is at least 12" long and sensitive enough to
show a distinct movement when a 0.003" shim
(approximately the thickness of one sheet of
standard newspaper) is placed under one end of
the level.

See the figure below for an example of a high
precision level.

Generally, you can either bolt your machine
to the floor or mount it on machine mounts.
Although not required, we recommend that you
secure the machine to the floor and level it while
doing so. Because this is an optional step and
floor materials may vary, hardware for securing
the machine to the floor is not included.

PREPARATION

For Machines Mfd. Since 1/21

Lifting & Moving

This machine and its
parts are heavy! Serious
personal injury may occur
if safe moving methods are
not used. To reduce the
risk of a lifting or dropping
injury, ask others for help
and use power equipment.

To lift and place machine:

1. Move shipping crate next to intended

location of drill press, then remove top
portion of crate from shipping pallet.

2. To help balance machine when moving, move

table as close to base as possible and center
table in X-axis.

Leveling & Mounting

We strongly recommend securing your
machine to the floor if it is hardwired to the
power source. Consult with your electrician to
ensure compliance with local codes.

Leveling

3. Place lifting sling around headstock as

shown in Figure 15, and attach it securely
to forklift (or other power lifting equipment).

Note: To avoid sudden shifts that could

unbalance machine, tighten all locks that
restrict moving parts before lifting.

Figure 15. Example of correct lifting sling position.Figure 15. Example of correct lifting sling position.

4. Unbolt machine from pallet.

5. With another person to help to steady

machine, lift it just enough to clear pallet
and any floor obstacles, then place it in its
final position on shop floor.

Figure 16. Example of a precision level.Figure 16. Example of a precision level.

-22-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

This machine must be fully assembled before it
can be operated.
process, refer to

and gather
all
goes smoothly, first clean any
covered or coated in heavy-duty rust preventative
(if applicable).

Anchoring machinery to the fl oor prevents
tipping or shifting and reduces vibration that
may occur during operation, resulting in a
machine that runs slightly quieter and feels more
solid.

If the machine will be installed in a
commercial or workplace setting, or if it is
permanently connected (hardwired) to the
power supply, local codes may require that it be
anchored to the fl oor.

If not required by any local codes, fastening the
machine to the fl oor is an optional step. If you
choose not to do this with your machine, we
recommend placing it on machine mounts, as
these provide an easy method for leveling and
they have vibration-absorbing pads.

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a
concrete fl oor, because the anchors sit fl ush with
the fl oor surface, making it easy to unbolt and
move the machine later, if needed. However,
anytime local codes apply, you MUST follow the
anchoring methodology specifi ed by the code.

PREPARATION

Anchoring to Concrete Floors

Number of Mounting Holes ............................. 3

Diameter of Mounting Hardware ................

5

⁄8"

Assembly

Before beginning the assembly

Required for Setup

listed items. To ensure the assembly process

parts that are

Assembling SB1115

1. Install Z-axis crank handle and tighten

set screw, then install revolving handle
onto crank handle and tighten as shown in
Figure 18.

Revolving HandleRevolving Handle

Set ScrewSet Screw

Lag Screw

Machine Base

Concrete

Figure 17. Popular method for anchoring machinery to Figure 17. Popular method for anchoring machinery to

a concrete floor.a concrete floor.

Flat Washer

Lag Shield Anchor

Drilled Hole

Z-Axis Crank HandleZ-Axis Crank Handle

Figure 18. Z-axis crank handle installed.Figure 18. Z-axis crank handle installed.

2. Loosen Z-axis table lock (see Figure 19).

Z-Axis Table LockZ-Axis Table Lock

Figure 19. SB1115 Location of Z-axis table lock.Figure 19. SB1115 Location of Z-axis table lock.

-23-

South Bend Tools

Model SB1115/ SB1116

PREPARATION

For Machines Mfd. Since 1/21

3. Use Z-axis crank handle to slightly lower

table.

Note: Exert only mild pressure when lowering

table during Step 4, otherwise you could
damage knee by forcing it down against
lower brace (see Figure 20).

4. Remove upper wooden brace, raise table,

then remove lower wooden brace (see
Figure 20).

UpperUpper

Wooden Wooden

BraceBrace

KneeKnee

Assembling SB1116

1. Remove cap screw and washer that secure

Z-axis crank, then remove crank, turn it
around, and re-install it with compression
spring, as shown in Figure 22.

Cap Screw Cap Screw

& Washer& Washer

Z-AxisZ-Axis

CrankCrank

CompressionCompression

SpringSpring

Figure 22. Z-axis crank handle installed correctly.Figure 22. Z-axis crank handle installed correctly.

LowerLower

Wooden Wooden

BraceBrace

Figure 20. Wooden shipping braces to be removed Figure 20. Wooden shipping braces to be removed

during assembly (SB1116 shown).during assembly (SB1116 shown).

5. Install coarse downfeed lever shafts and

handles onto downfeed hub (see Figure 21).

Lever HandleLever Handle

(1 of 3)(1 of 3)

Lever ShaftLever Shaft

(1 of 3)(1 of 3)

Downfeed HubDownfeed Hub

2. Loosen Z-axis table lock (see Figure 23).

Z-Axis Table LockZ-Axis Table Lock

Figure 23. SB1116 Location of Z-axis table lock.Figure 23. SB1116 Location of Z-axis table lock.

Figure 21. Coarse downfeed lever shafts and handles Figure 21. Coarse downfeed lever shafts and handles

installed (SB1116 shown).installed (SB1116 shown).

SB1115 Assembly is complete. Continue to
Checking Headstock Oil Level on Page 28.

-24-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PREPARATION

3. Use Z-axis crank handle to slightly lower

table.

Note: Exert only mild pressure when lowering

table during Step 4, otherwise you could
damage knee by forcing it down against
lower brace (see Figure 24).

4. Remove upper wooden brace, raise table,

then remove lower wooden brace (see
Figure 24).

UpperUpper

Wooden Wooden

BraceBrace

KneeKnee

6. Slide X-axis leadscrew gear onto X-axis

leadscrew and tighten set screw (see
Figure 26).

Set ScrewSet ScrewX-Axis X-Axis

LeadscrewLeadscrew

GearGear

X-AxisX-Axis

LeadscrewLeadscrew

Figure 26. Installing X-axis leadscrew gear.Figure 26. Installing X-axis leadscrew gear.

7. Install X-axis power feed bracket assembly

onto left end of table, then tighten pre­installed mounting bolts (see Figure 27).

LowerLower

Wooden Wooden

BraceBrace

Figure 24. Wooden shipping braces to be removed Figure 24. Wooden shipping braces to be removed

during assembly.during assembly.

5. Install coarse downfeed lever shafts and

handles onto downfeed hub (see Figure 25).

Lever HandleLever Handle

(1 of 3)(1 of 3)

Lever ShaftLever Shaft

(1 of 3)(1 of 3)

X-Axis Power FeedX-Axis Power Feed

Bracket AssemblyBracket Assembly

Figure 27. X-axis power feed bracket assembly Figure 27. X-axis power feed bracket assembly

mounted to table.mounted to table.

Mounting BoltsMounting Bolts

Figure 25. Coarse downfeed lever shafts and handles Figure 25. Coarse downfeed lever shafts and handles

installed.installed.

Downfeed HubDownfeed Hub

-25-

South Bend Tools

Model SB1115/ SB1116

PREPARATION

For Machines Mfd. Since 1/21

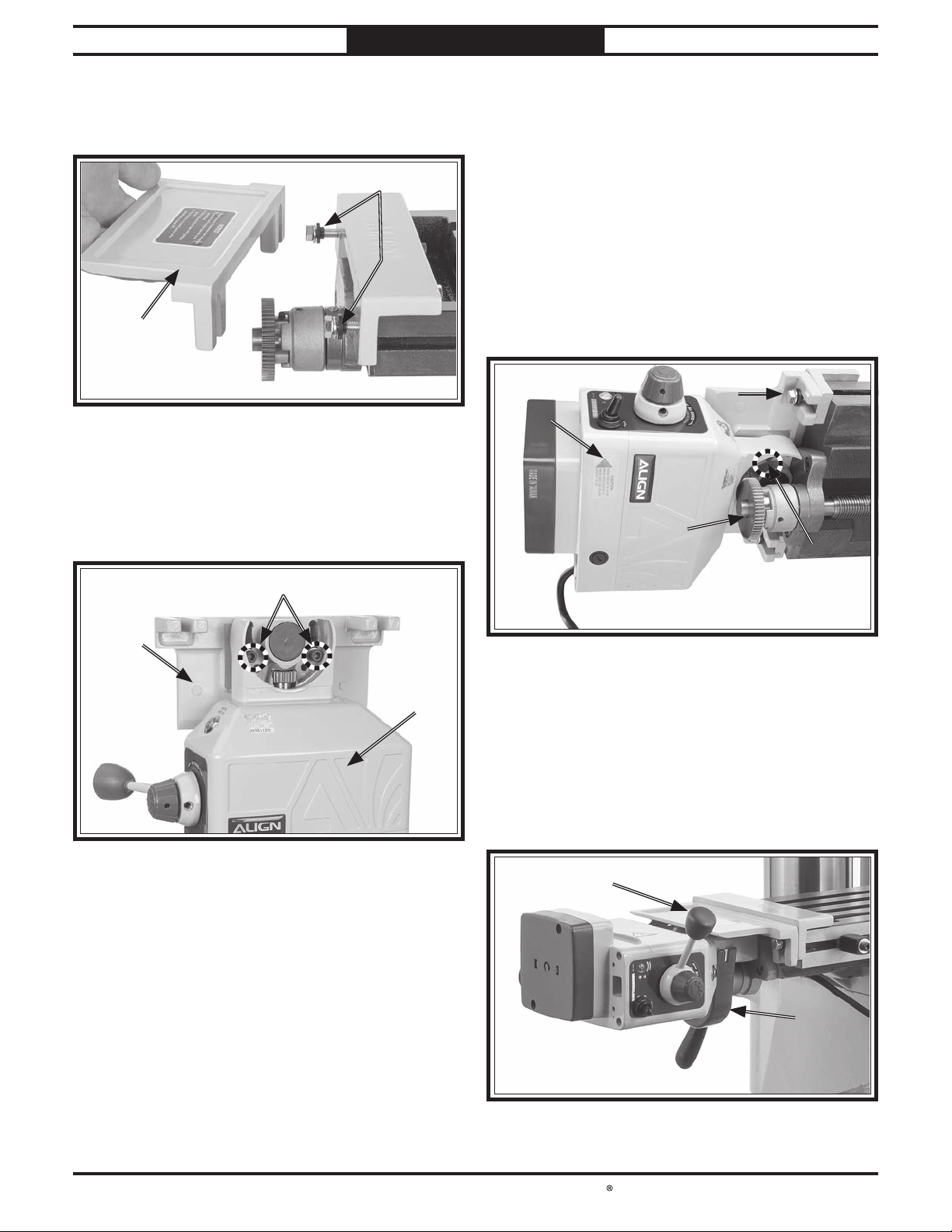

8. Loosen hex bolts shown in Figure 28, then

remove left side of X-axis power feed bracket
assembly.

Hex BoltsHex Bolts

Left SideLeft Side

of Bracketof Bracket

AssemblyAssembly

Figure 28. Left side of X-axis power feed bracket Figure 28. Left side of X-axis power feed bracket

assembly removed.assembly removed.

9. Install left side of bracket assembly onto

X-axis power feed unit with (2) M6-1 x 25
cap screws and (2) 6mm flat washers (see
Figure 29). Do not fully tighten cap screws.

Left SideLeft Side

of Bracketof Bracket

AssemblyAssembly

Cap ScrewsCap Screws

PowerPower

FeedFeed

UnitUnit

10. Install power feed unit onto right side of

bracket assembly and temporarily tighten
hex bolts (see Figure 30).

11. Move power feed unit until power feed gear

teeth align with X-axis leadscrew gear teeth,
then tighten hex bolts from Step 8 (see
Figure 30).

12. Loosen hex bolts from Step 10, adjust power

feed unit until power feed gear meshes with
X-axis leadscrew gear, then fully tighten hex
bolts (see Figure 30).

Power FeedPower Feed

GearGear

X-AxisX-Axis

Leadscrew Leadscrew

GearGear

Figure 30. Left side of power feed bracket with Figure 30. Left side of power feed bracket with

attached power feed unit mounted to right side of attached power feed unit mounted to right side of

Hex BoltHex Bolt

(1 of 2)(1 of 2)

Cap ScrewCap Screw

(1 of 2)(1 of 2)

bracket.bracket.

13. Install direction lever knob, as shown in

Figure 31.

Figure 29. Left side of bracket assembly mounted to Figure 29. Left side of bracket assembly mounted to

power feed unit.power feed unit.

-26-

14. Remove adhesive backing from gear guard

and install over X-axis table gear, as shown
in Figure 31.

HandleHandle

Gear Gear

GuardGuard

Figure 31. Gear cover and direction lever installed.Figure 31. Gear cover and direction lever installed.

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PREPARATION

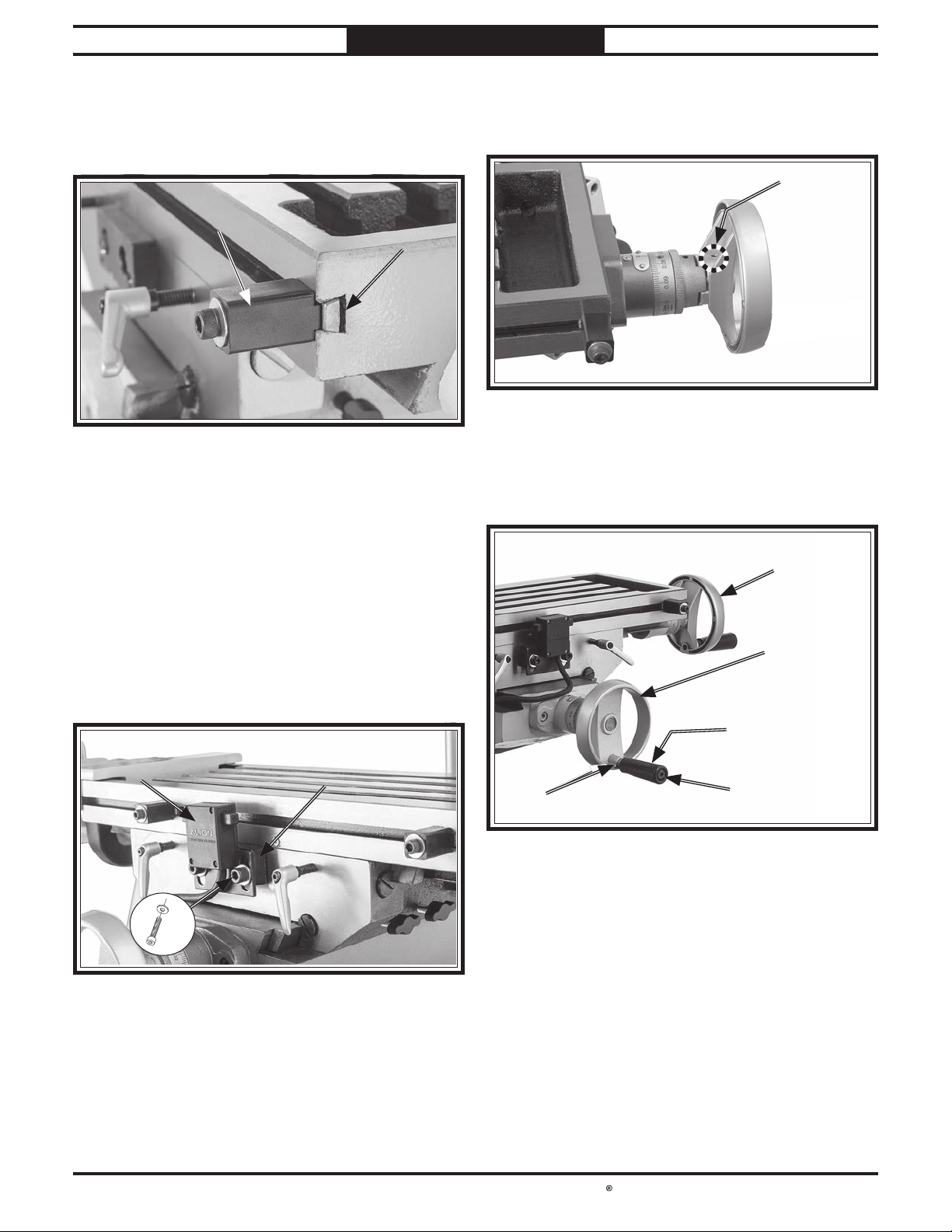

15. Loosen and remove factory-installed limit

stops, then insert both accessory limit stop
assemblies into groove in table, as shown in
Figure 32.

X-Axis Limit StopX-Axis Limit Stop

Assembly (1 of 2)Assembly (1 of 2)

GrooveGroove

Figure 32. Accessory limit stop assembly mounted in Figure 32. Accessory limit stop assembly mounted in

table groove (1 of 2 shown).table groove (1 of 2 shown).

16. Slide one limit stop all the way to left end of

table, and slide the other stop all the way to
right end.

1 7. Remove factory-installed stop plate, then use

its mounting screws to install limit switch
mounting block in its place (see Figure 33).

18. Install X-axis limit switch to mounting block

using (2) M8-1.25 x 12 cap screws and 8mm
flat washers (see Figure 33).

X-AxisX-Axis

Limit SwitchLimit Switch

Mounting Mounting

BlockBlock

19. Mount handwheel to right end of X-axis

leadscrew and tighten set screw on base of
handwheel to secure it (see Figure 34).

Set ScrewSet Screw

Figure 34. Set screw on base of handwheel (X-axis Figure 34. Set screw on base of handwheel (X-axis

shown).shown).

20. Thread folding handle assembly into X-Axis

handwheel, then tighten jam nut against
handwheel to secure handle (see Figure 35).

X- Axis X- Axis

HandwheelHandwheel

w/Foldingw/Folding

HandleHandle

Y-AxisY-Axis

HandwheelHandwheel

RevolvingRevolving

Handle Handle

AssemblyAssembly

JamJam
NutNut

ScrewScrew

x 2

Figure 33. X-axis limit switch installed.Figure 33. X-axis limit switch installed.

Figure 35. Table handwheels installed.Figure 35. Table handwheels installed.

21. Mount one of the remaining handwheels

to Y-axis leadscrew (see Figure 35), and
tighten set screw on base of handwheel (see
Figure 34).

22. Follow Step 20 to install one of the revolving

handles onto Y-axis handwheel.

Note: One extra handwheel and revolving

handle is provided in case the X-axis power
feed is not installed.

-27-

South Bend Tools

Model SB1115/ SB1116

PREPARATION

For Machines Mfd. Since 1/21

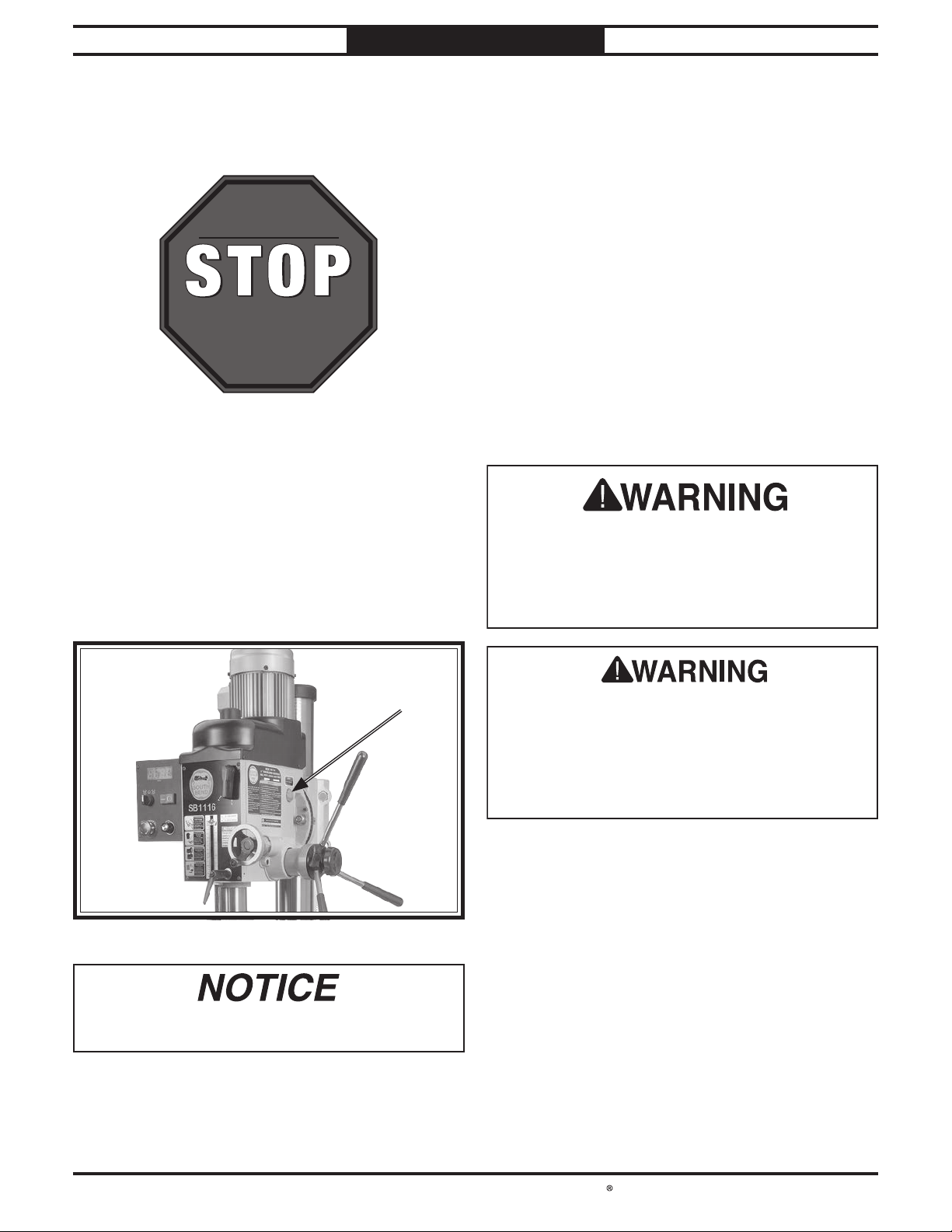

Checking Headstock Oil Level

GEARBOX MUST

BE FILLED WITH OIL!

OIL MAY NOT BE

SHIPPED WITH MACHINE!

Refer to Lubrication Section

for Correct Oil Type.

This machine was shipped from the factory
with oil in it, but the headstock oil reservoir
level must be verified before the machine can be
operated for the first time.

The headstock has the proper amount of oil when
the sight glass is halfway full (see Figure 36).

Note: If oil level is not sufficient, see Page 50 for
instructions to fill headstock oil.

Test Run

After all preparation steps have been completed,
the machine and its safety features must be
tested to ensure correct operation. If you discover
a problem with the operation of the machine or
its safety components, do not operate it further
until you have resolved the problem.

Note: Refer to Troubleshooting on Page 59 for
solutions to common problems that occur with all
metal lathes. If you need additional help, contact
our Tech Support at [phone].

The test run consists of verifying the following:

• Motors power up and run correctly.

• EMERGENCY STOP button works correctly.

Serious injury or death can result from using
this machine BEFORE understanding its
controls and related safety information. DO
NOT operate, or allow others to operate,
machine until the information is understood.

Sight GlassSight Glass

Figure 36. Oil level sight glass.Figure 36. Oil level sight glass.

Damage caused by running drill press without
oil will not be covered by warranty.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine may
result in malfunction or unexpected results
that can lead to serious injury, death, or
machine/property damage.

To test run machine:

1. Clear away all tools and objects used during

assembly and preparation.

-28-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PREPARATION

2. Press EMERGENCY STOP button in and

turn master power switch to ON position as
shown in Figure 37.

Master Power Master Power

SwitchSwitch

Figure 37. Master Power Switch in ON ("1") position.Figure 37. Master Power Switch in ON ("1") position.

3. Move spindle direction switch to neutral

(middle) position (see Figure 38).

4. Rotate spindle speed dial counterclockwise to

"0" (see Figure 38).

5. Move spindle speed range lever to "L" (see

Figure 38).

SpindleSpindle

DirectionDirection

SwitchSwitch

ON & OFFON & OFF

ButtonsButtons

Spindle SpeedSpindle Speed

Range LeverRange Lever

SpindleSpindle

Speed DialSpeed Dial

7. Twist EMERGENCY STOP button clockwise

until it pops out (see Figure 39). This resets
switch and machine can now start.

s

i

t

w

T

t

e

s

e

R

o

T

C

l

o

c

k

w

i

s

e

EMERGENCY STOP Button

Figure 39. Resetting EMERGENCY STOP button.Figure 39. Resetting EMERGENCY STOP button.

8. Press green ON button to turn machine ON

(see Figure 38).

9. Move spindle direction switch to the right

(see Figure 38); slowly rotate spindle speed
dial clockwise to full speed, then rotate
counterclockwise back to "1". Verify motor
starts up and runs smoothly without any
unusual vibrations or noises.

— When operating correctly, machine runs

smoothly with little or no vibration or
rubbing noises.

— Investigate and correct any unusual

noises or vibrations before operating any
further. ALWAYS disconnect machine
from power when investigating or
correcting potential problems.

EMERGENCY STOP EMERGENCY STOP

ButtonButton

Figure 38. Location of controls necessary for test run.Figure 38. Location of controls necessary for test run.

6. Plug machine into power source. Digital

readout and ON/OFF buttons will
illuminate.

10. Press EMERGENCY STOP button to turn

machine OFF.

-29-

South Bend Tools

Model SB1115/ SB1116

11. WITHOUT resetting Emergency Stop

button, try to start machine by pressing the
ON button. The machine should not start.

— If the machine does not start, the safety

feature of the Emergency Stop button is
working correctly.

— If the machine does start, immediately

turn it OFF and disconnect power. The
safety feature of the EMERGENCY STOP
button is NOT working properly and
must be replaced before further using the
machine. Call Tech Support for help.

Congratulations! The SB1115 Test Run is

complete. Proceed to Page 32 to perform
the Spindle Break-In and Inspections
& Adjustments procedures.

For Model SB1116, proceed to Power

Feed Test Run.

PREPARATION

Power Feed Test Run

Model SB1116 comes with power feed units for
X- and Z-axis table travel. Proper operation of
the limit switches (attached to the front middle of
the table and at the base of the Z-axis power feed
unit) is important to the operation of the power
feed units. Refer to SB1116 X- and Z-Axis
Power Feed Controls on Page 5 to understand
the names and locations of components
referenced in this section.

For Machines Mfd. Since 1/21

During power feed operation, handwheels/
cranks will spin rapidly if engaged. To reduce
risk of entanglement or impact injury, always
fold in the X-axis handwheel handle and
disengage the Z-axis elevation crank when
using power feed. Failure to do so could lead
to entanglement or impact injuries.

To test run power feed units:

1. Make sure all tools, cables, and other

items are well clear of table movement and
potential direction of travel.

2. Refer to Operating Power Feed section,

beginning on Page 35, to understand how
power feeds, table locks, and limit switches
function.

3. Adjust X-axis limit stops and loosen X-axis

table locks to allow for maximum table
movement in following steps, shown in
Figure 40.

X-Axis X-Axis

Table LocksTable Locks

Z-Axis Z-Axis

Limit StopsLimit Stops

Both X- and Z-axis power feed units operate
in a similar way. Therefore, use the following
instructions to test run both units. If either
power feed does not operate as expected during
the following steps, disconnect it from power and
contact our Tech Support at [phone] for
assistance.

-30-

X-Axis X-Axis

Limit StopsLimit Stops

Figure 40. Locations of limit stops and table locks.Figure 40. Locations of limit stops and table locks.

4. Plug X-axis power feed power cord into a

matching power supply receptacle.

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PREPARATION

5. Make sure power feed direction lever is in

neutral (middle) position, turn speed dial
counterclockwise to lowest setting, then
move ON/OFF switch to ON position (see
Figure 41).

ResetReset

ButtonButton

ON/OFFON/OFF

SwitchSwitch

Figure 41. Power feed controls (X-axis shown).Figure 41. Power feed controls (X-axis shown).

6. Move direction lever to left, slowly turn

speed dial clockwise to increase speed, then
confirm that table is moving to the left.

7. Press and hold Rapid Traverse button for

a few moments to confirm rapid traverse
is operating correctly. Table should move
rapidly to the left.

SpeedSpeed

DialDial

Direction Direction

LeverLever

Rapid TraverseRapid Traverse

ButtonButton

10. Move direction lever through neutral

(middle) position and all the way to the
right. Table should begin moving in opposite
direction.

11. Allow table limit stop to hit limit switch.

Table movement should stop.

— If table movement does not stop, Turn

OFF power feed and DISCONNECT
POWER IMMEDIATELY. Contact Tech
Support.

12. Move direction knob to neutral (middle)

position, turn speed dial to lowest setting,
and press OFF button.

13. Retighten table locks.

14. Loosen Z-axis table lock, then repeat this

same Test Run process with Z-axis power
feed unit.

Congratulations! The SB1116 Test Run

is complete. Continue to the next page
to perform the Spindle Break-In and
Inspections & Adjustments procedures.

8. Release Rapid Traverse button. Table should

resume normal speed.

9. Allow table limit stop to hit limit switch.

Table movement should stop.

— If table movement does not stop, Turn

OFF power feed and DISCONNECT
POWER IMMEDIATELY. Contact Tech
Support.

-31-

South Bend Tools

Model SB1115/ SB1116

The spindle break-in procedure distributes
lubrication

reduce the

risk of early

if there are any "dry"
spots or areas where lubrication has settled in
the bearings. You

before

for the first time when the machine is new or if it
has been sitting idle for longer than 6 months.

Always start the spindle break-in at the lowest
speed to minimize wear if there are dry spots.
Allow the spindle to run long enough to warm
up and distribute the bearing grease, then
incrementally increase spindle speeds and repeat
this process at each speed until reaching the
maximum spindle speed. Following the break­in procedure in this progressive manner helps
minimize any potential wear that could occur
before lubrication is fully distributed.

OPERATION

For Machines Mfd. Since 1/21

Spindle Break-In

You must complete this procedure to maintain
the warranty. Failure to do this could cause
rapid wear-and-tear of spindle bearings once
they are placed under load.

throughout the bearings to

bearing failure

must complete this procedure

placing operational loads on the spindle

Inspections & Adjustments

The following list of adjustments were performed
at the factory before your machine was shipped:

• Gib Adjustment ...............................Page 54

• Leadscrew Backlash Adjustment

• Tramming Spindle Adjustment .... Page 56

Be aware that machine components can shift
during the shipping process. Pay careful
attention to these adjustments as you test run
your machine. If you find that the adjustments
are not set according to the procedures in this
manual or your personal preferences, re-adjust
them.

Your machine was lubricated at the factory,
but we strongly recommend that you inspect all
lubrication points yourself and provide additional
lubrication if necessary. Refer to Lubrication on

Page 43 for specific details.

...Page 55

To perform spindle break-in procedure:

1. Set spindle speed range lever to low and

rotate spindle speed dial to "0" (see Page 3).

2. Slowly rotate spindle speed dial to "1"

and run spindle for 10 minutes, then turn
machine OFF.

3. Reverse spindle rotation direction, then

run spindle at same speed for another 10
minutes, then turn machine OFF.

4. Repeat Steps 2–3 with spindle speed dial set

to "4" and "8" for 5 minutes in each direction.

5. Set spindle speed range lever to high, then

repeat Steps 2–4 at 5 minutes each.

Congratulations, the Spindle Break-In is

now complete!

-32-

Since the drill head may have moved during
shipping, you will need to tram the spindle
with the table to ensure 90° alignment.
Refer to the Tramming Spindle section on
Page 56 for detailed instructions.

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

The purpose of this overview is to provide
the novice machine operator with a basic
understanding of how the machine is used during
operation, so they can more easily understand
the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide
for performing actual machine operations.
To learn more about specific operations and
machining techniques, seek training from people
experienced with this type of machine, and do
additional research outside of this manual by
reading "how-to" books, trade magazines, or
websites.

South Bend Tools

OPERATION

OPERATION

Operation Overview

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects.
Regardless of the content in this section,

Due to the generic nature of this overview,

To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning
any operations.

South Bend Tools will not be held liable for
accidents caused by lack of training.

To complete typical operation, operator does
following:

1. Examines workpiece to make sure it is

suitable for drilling.

2. Installs correct tooling for operation.

3. Firmly secures workpiece to table using a

vise or T-slot clamps.

4. Adjusts table height, then locks it in place.

5. Puts on required safety glasses and face

shield.

Loose hair, clothing, or
jewelry could get caught
in machinery and cause
serious personal injury.
Keep these items away
from moving parts at all
times to reduce this risk.

During operation, small
metal chips may become
airborne, leading to serious
eye injury. Wear safety
glasses and face shield to
reduce this risk.

6. Connects machine to power.

7. Turns Master Power Switch to ON ("1")

position, then selects spindle direction,
range, and speed, then turns machine ON.

8. Begins drilling operations.

9. When finished, turns machine OFF, turns

Master Power Switch to OFF ("0") position,
and disconnects machine from power.

-33-

South Bend Tools

Model SB1115/ SB1116

OPERATION

For Machines Mfd. Since 1/21

Master Power Switch

The Master Power Switch (see Figure 42)
toggles the incoming power ON and OFF. It can
be locked in the OFF ("0") position to prevent
unauthorized use.

To lock the switch in the OFF position, rotate the
switch to the OFF position, press the locking tab
in, then insert a padlock with a maximum shank
diameter of
switch body (see Figure 42).

Master Power Master Power

3

⁄16" through the hole in the tab and

SwitchSwitch

Figure 42. Master power switch.Figure 42. Master power switch.

Locking TabLocking Tab

with with 33⁄⁄1616" Hole" Hole

Graduated Collars (SB1116)

The table handwheels have graduated collars
(see Figure 44) that are used to determine table
movement in 0.001" increments with one full
revolution equaling 0.100" of travel.

Additionally, each collar has a thumb screw that
is used to adjust the dial to "0".

GraduatedGraduated

CollarsCollars

Figure 44. Locations of graduated collars.Figure 44. Locations of graduated collars.

Table Locks (SB1116)

Use table locks to increase the rigidity of the
table when movement in that axis is not required
for the operation.

Table Movement

The Model SB1115 Z-axis is controlled by the
Z-axis crank handle. The table can also be moved
360° around the column.

The Model SB1116 table travels in three
directions (see Figure 43). This travel is
controlled by table handwheels and the Z-axis
crank handle or Z-axis power feed. Additionally,
the table can be moved along the X-axis with the
power feed and manually rotated 360° around
the column.

X-Axis or Longitudinal Travel

(Left & Right)

Y-Axis or
Cross Travel
(In & Out)

Z-Axis or

Vertical Elevation

(Up & Down)

Figure 43. The directions of SB1116 table movement.Figure 43. The directions of SB1116 table movement.

Refer to Figure 45 to identify the locks for each
table axis.

X-Axis LocksX-Axis Locks

Z-Axis Z-Axis

LockLock

Figure 45. Location of SB1116 table locks.Figure 45. Location of SB1116 table locks.

Always keep table locked in place unless table
movement is required. Unexpected table and
workpiece movement could cause tooling
to bind with workpiece, which may damage
tooling or workpiece.

Y-Axis Y-Axis

LocksLocks

-34-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

OPERATION

Limit Stops (SB1116)

Use X- and Z-axis limit stops, as shown in
Figures 46–47, in conjunction with each power
feed to set the total amount of travel. The limit
stops come into contact with the limit switch and
stop power feed motion.

When not in use, position stops as far away from
limit switches as possible, so as not to interfere
with table movement.

Tools Needed Qty

Hex Wrench 5mm .................................................1

Hex Wrench 12mm ...............................................1

To adjust the position of the X-axis limit stops
(see Figure 46), loosen cap screws that secure
stops, move stops to desired positions, then
tighten securely.

X-AxisX-Axis

Limit SwitchLimit Switch

X-AxisX-Axis

Limit StopLimit Stop

(1 of 2)(1 of 2)

Operating Power Feed (SB1116)

The X- and Z-axis power feed units operate in
a similar way. Use the following instructions to
operate both units. For additional component

details, refer to Power Feed Identification
Page 5.

To operate X-axis power feed:

1. Loosen table lock(s).

2. Turn speed dial (see Figure 48) all the way

counterclockwise to slowest setting.

3. Move direction lever to neutral (middle)

position, then move ON/OFF switch (see
Figure 48) to ON position.

4. With your hand poised over ON/OFF switch

in case you need to suddenly turn unit OFF,
move direction lever (see Figure 48) to
select desired direction of table travel.

5. Use speed dial (see Figure 48) to slowly

bring speed of movement up to desired rate.

on

Figure 46. X-axis limit switch and stops.Figure 46. X-axis limit switch and stops.

To adjust the position of the Z-axis limit stops,
loosen the stop bracket cap screws, raise or
lower the stops to the desired positions, then
retighten the cap screws (see Figure 47).

Stop Bracket Stop Bracket

Cap Screw Cap Screw

(1 of 2)(1 of 2)

Z-AxisZ-Axis

Limit StopLimit Stop

(1 of 2)(1 of 2)

Figure 47. Location of Z-axis limit switch and upper Figure 47. Location of Z-axis limit switch and upper

stop with stop bracket cap screw.stop with stop bracket cap screw.

To cause table to instantly move at full

speed when already in motion, press and
hold rapid traverse button (see Figure 48).
The table will resume previous speed when
button is released.

ResetReset

ButtonButton

ON/OFFON/OFF

SwitchSwitch

Figure 48. Power feed controls (X-axis shown).Figure 48. Power feed controls (X-axis shown).

6. When you are finished using power feed,

turn unit OFF, rotate speed dial all the way
counterclockwise, and move direction lever to
neutral (middle) position to avoid unexpected
table movement later.

SpeedSpeed

DialDial

Direction Direction

LeverLever

Rapid TraverseRapid Traverse

ButtonButton

-35-

South Bend Tools

Model SB1115/ SB1116

OPERATION

For Machines Mfd. Since 1/21

Head Tilt

The head tilts from 90° left to 30° right. The 0°
index pin locks the head perpendicular to the
table and must be removed before tilting the
head. A scale on the side of the head indicates
the angle of tilt (see Figure 49).

ScaleScale

Lock NutLock Nut

(1 of 3)(1 of 3)

Figure 49. Head tilting controls.Figure 49. Head tilting controls.

When positioning head back to 0° after tilting,
you will need to tram it to ensure spindle is
precisely perpendicular to table for proper
drilling accuracy. Refer to Tramming Spindle
on Page 56 section for instructions.

0° Index0° Index

PinPin

Hex NutHex Nut

3. Remove cover plate from bottom of headstock

(see Figure 50).

Lock NutLock Nut

(1 of 3)(1 of 3)

Figure 50. Cover plate removed from bottom of Figure 50. Cover plate removed from bottom of

headstock (headstock tilted 90° for clarity).headstock (headstock tilted 90° for clarity).

4. Loosen three lock nuts (one on each side of

head and one inside head) that secure head
tilt setting (see Figures 49–50).

5. With assistance from another person to

support head, tilt head to desired position.

— If tilting head to an angle other than 0°

(perpendicular to table), use scale (see
Figure 49) as a guide for setting tilt
angle.

Cover PlateCover Plate

RemovedRemoved

Tools Needed Qty

Screwdriver Phillips #2 ........................................1

Open-End Wrench 10mm .....................................1

Open-End Wrench or Socket 24mm ..................... 1

Small Hammer/Mallet .......................................... 1

To tilt head:

1. DISCONNECT MACHINE FROM POWER!

2. Tighten hex nut on 0° index pin (see Figure

49) against headstock, which will force pin
out. Pull pin out of hole to allow head to tilt
in following steps.

— If returning head to 0° (perpendicular to

table), use scale as a guide. When head
is at 0°, re-insert index pin with hex nut,
and gently tap it with a small hammer or
mallet to seat it.

6. Retighten lock nuts from Step 4.

-36-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

!

!

OPERATION

Installing/Removing Tooling (SB1115)

Model SB1115 features an MT#3 spindle taper
and a
lever is set to "L" to prevent spindle rotation
when installing/removing tooling.

Installing/Removing Threaded
Tooling

Threaded tooling is held in the spindle by the
combination of a drawbar and a press fit or
"friction fit" when the tooling taper matches the
spindle taper.

3

⁄8"-16 drawbar. Make sure the speed range

Cutting tools are sharp and
can easily cause laceration
injuries. Always protect your
hands with leather gloves
or shop rags when handling
cutting tools.

4. Clean any debris or oily substances from

mating surfaces of tooling.

Note: Debris or oily substances can prevent

tooling and spindle from properly mating.
This condition can cause excessive vibration,
poor cutting results, or tool/workpiece
damage.

5. Insert drawbar through top of spindle, as

shown in Figure 52.

Insert Insert

DrawbarDrawbar

DrawbarDrawbar

Figure 52. Inserting drawbar.Figure 52. Inserting drawbar.

Tools Needed: Qty

Phillips Screwdriver #2 ........................................1

Wrench or Socket 17mm ....................................... 1

Deadblow Hammer ...............................................1

To install threaded tooling:

1. DISCONNECT MACHINE FROM POWER!

2. Set spindle speed range lever to "L".

3. Remove (2) M4-.7 x 10 Phillips head screws,

then remove drawbar cover (see Figure 51).

Phillips Head Phillips Head

Screw (1 of 2)Screw (1 of 2)

Drawbar Drawbar

CoverCover

Figure 51. Location of drawbar cover.Figure 51. Location of drawbar cover.

6. Insert MT#3 tooling into spindle while

maneuvering until it engages with slot in
end of spindle, then thread drawbar into tool
by hand until it is snug (see Figure 53).

Figure 53. Threading drawbar into tooling.Figure 53. Threading drawbar into tooling.

7. Use wrench to tighten drawbar additional 1⁄4

turn.

Note: Do not overtighten drawbar.

Overtightening makes tool removal difficult
and may damage arbor and threads.

8. Reinstall drawbar cover.

-37-

South Bend Tools

Model SB1115/ SB1116

!

!

OPERATION

For Machines Mfd. Since 1/21

To remove threaded tooling:

1. DISCONNECT MACHINE FROM POWER!

2. Set spindle speed range lever to "L".

3. Remove (2) M4-.7 x 10 Phillips head screws,

then remove drawbar cover (see Figure 54).

Phillips Head Phillips Head

Screw (1 of 2)Screw (1 of 2)

Drawbar Drawbar

CoverCover

Figure 54. Location of drawbar cover.Figure 54. Location of drawbar cover.

Installing/Removing Tanged
Tooling

Tanged tooling (see Figure 56) is held in the
spindle by a press fit or "friction fit" when the
tooling taper meets the spindle taper. The tang
engages with a slot in the spindle to prevent the
tool from spinning freely.

The Model SB1115 is equipped with a drift key
and drift holes in the spindle and quill to assist
in the removal of tanged tooling (see Figure 56).

TangedTanged

ToolingTooling

TangTang

Drift Key HolesDrift Key Holes

4. Loosen drawbar 1–2 full rotations.

Note: Make sure drawbar has at least three

threads engaged with tooling, or drawbar
and tool threads could be damaged in next
step.

5. Tap top of drawbar with deadblow hammer

to unseat taper (see Figure 55).

Figure Figure 55. Tapping drawbar to unseat taper.. Tapping drawbar to unseat taper.

5. Support tool with one hand and fully

unthread drawbar from tool.

Drift KeyDrift Key

Figure 56. Example of tanged MT#3 tooling, drift key, Figure 56. Example of tanged MT#3 tooling, drift key,

and drift key holes in quill/spindle.and drift key holes in quill/spindle.

Tools Needed Qty

Deadblow Hammer ...............................................1

Hex Wrench 3mm .................................................1

Drift Key ................................................................ 1

To install tanged tooling:

1. DISCONNECT MACHINE FROM POWER!

2. Remove drawbar cover, then remove

drawbar.

3. Clean any debris or oily substances from

mating surfaces of spindle taper and tooling.

Note: Debris or oily substances can prevent

tooling and spindle from properly mating.
This condition can cause excessive vibration,
poor cutting results, or tool/workpiece
damage.

4. Insert MT#3 tooling into spindle, and engage

tang (see Figure 56) with slot inside spindle.

-38-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

!

!

OPERATION

5. Use deadblow hammer to seat tooling into

spindle by firmly tapping from bottom.

Note: If installing a drill chuck, retract jaws

to prevent damage to chuck when tapping
with hammer.

6. Re-install drawbar cover.

To remove tanged tooling:

1. DISCONNECT MACHINE FROM POWER!

2. Lower quill and rotate spindle by hand

until drift key holes in spindle and quill are
aligned (see Figure 56).

3. Insert drift key into aligned holes (see

Figure 57) and allow quill to rise, trapping
drift key.

4. Use deadblow hammer (see Figure 57) to

softly tap end of key while holding arbor/
chuck assembly until it separates from
spindle.

Installing/Removing Tooling (SB1116)

7

Model SB1116 features a spindle and a
drawbar that accepts R-8 tooling. Make sure
speed range lever is set to "L" to prevent spindle
rotation when installing/removing tooling.

Cutting tools are sharp and
can easily cause laceration
injuries. Always protect your
hands with leather gloves
or shop rags when handling
cutting tools.

Tools Needed: Qty

Phillips Screwdriver #2 ........................................1

Wrench or Socket 17mm ....................................... 1

Deadblow Hammer ...............................................1

Installing Tooling

1. DISCONNECT MACHINE FROM POWER!

⁄16"-20

Figure 57. Example of using drift key and deadblow to Figure 57. Example of using drift key and deadblow to

remove tanged tooling.remove tanged tooling.

2. Set spindle speed range lever to "L".

3. Remove (2) M4-.7 x 10 Phillips head screws,

then remove drawbar cover (see Figure 58).

Phillips Head Phillips Head

Screw (1 of 2)Screw (1 of 2)

Drawbar Drawbar

CoverCover

Figure 58. Location of drawbar cover.Figure 58. Location of drawbar cover.

4. Clean any debris or oily substances from

mating surfaces of tooling.

Note: Debris or oily substances can prevent

tooling and spindle from properly mating.
This condition can cause excessive vibration,
poor cutting results, or tool/workpiece
damage.

-39-

South Bend Tools

Model SB1115/ SB1116

!

!

OPERATION

For Machines Mfd. Since 1/21

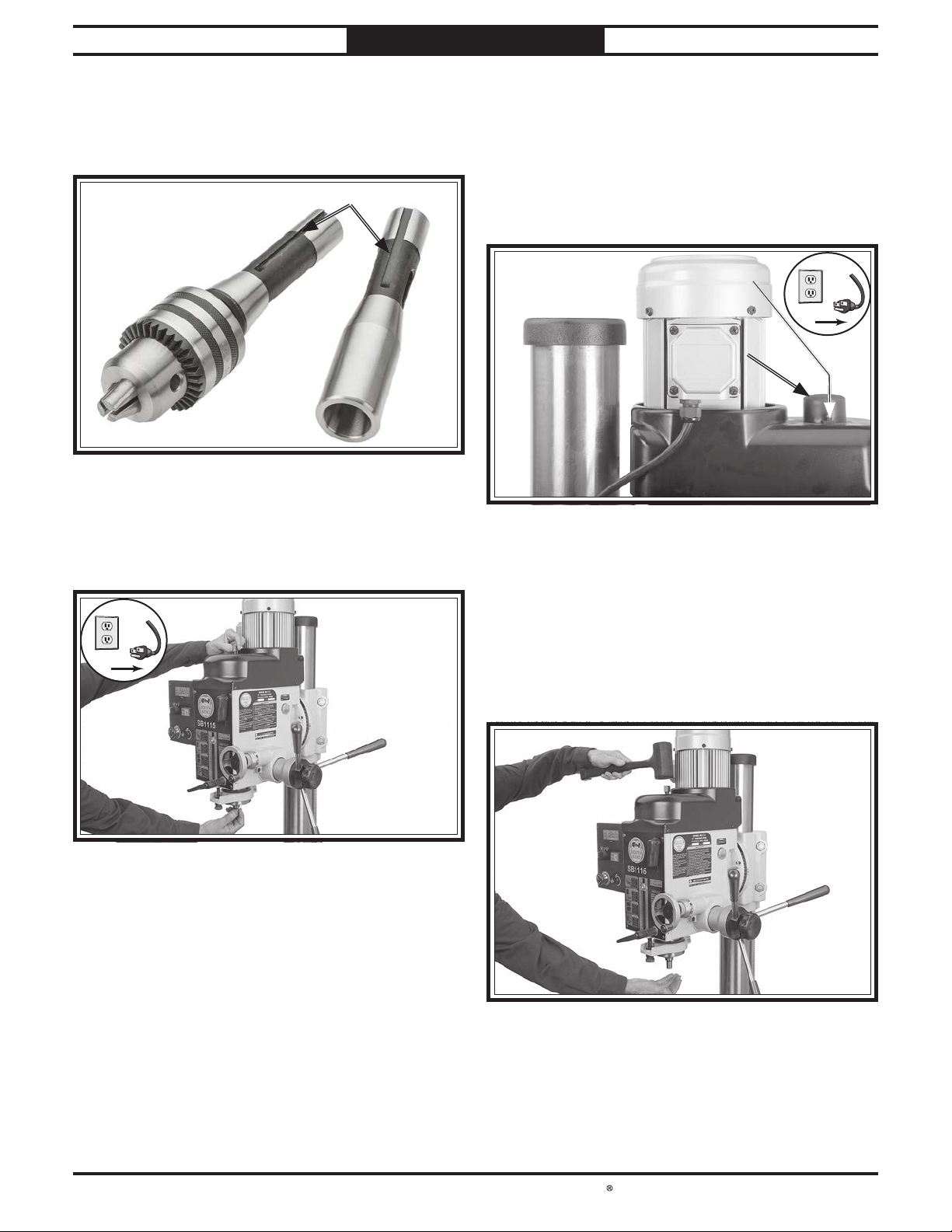

5. Insert tool into spindle and rotate to align

tool slot (see Figure 59) with pin inside
spindle, then insert tooling all the way into
spindle.

Alignment SlotAlignment Slot

Figure 59. Example of R-8 tooling with alignment slot.Figure 59. Example of R-8 tooling with alignment slot.

6. With one hand holding tool in place, insert

drawbar into spindle from top of headstock,
then thread it into tool by hand until snug,
as shown in Figure 60.

Removing Tooling

1. DISCONNECT MACHINE FROM POWER!

2. Set spindle speed range lever to "L".

3. Remove (2) M4-.7 x 10 Phillips head screws,

then remove drawbar cover (see Figure 54).

Phillips Head Phillips Head

Screw (1 of 2)Screw (1 of 2)

Drawbar Drawbar

CoverCover

Figure 61. Location of drawbar Cover.Figure 61. Location of drawbar Cover.

4. Loosen drawbar 1–2 full rotations.

Figure 60. Threading drawbar into tooling.Figure 60. Threading drawbar into tooling.

7. Use wrench to tighten drawbar an additional

1

⁄4 turn.

Note: Do not overtighten drawbar.

Overtightening makes tool removal difficult
and may damage arbor and threads.

8. Re-install drawbar cover.

Note: Make sure drawbar has at least three

threads engaged with tooling or drawbar and
tool threads could be damaged in next step.

5. Tap top of drawbar with deadblow hammer

to unseat taper (see Figure 55).

Figure 62. Tapping drawbar to unseat tool taper.Figure 62. Tapping drawbar to unseat tool taper.

6. Support tool with one hand and fully

unthread drawbar from tool.

-40-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

OPERATION

Spindle Downfeed

Spindle downfeed movement on the drill
press is controlled by two mechanisms: 1)
The coarse downfeed lever, and 2) the fine
downfeed handwheel (see Figure 63). Refer
to Controls & Components on Page 3 for
detailed descriptions of all downfeed controls and
components.

Fine DownfeedFine Downfeed

HandwheelHandwheel

QuillQuill

Lock LeverLock Lever

Figure 63. Downfeed control locations.Figure 63. Downfeed control locations.

Using Coarse Downfeed

Coarse downfeed is typically used for drilling,
because it allows you to quickly lower the
spindle with varying speed/pressure, and it
automatically retracts the spindle back to the top
position when released.

GraduatedGraduated

DialDial

Coarse Coarse

DownfeedDownfeed

LeversLevers

Downfeed Downfeed

SelectorSelector

KnobKnob

In order to ensure the milled surface remains
flat, the quill lock lever should be tightened after
each adjustment to ensure the spindle height
cannot move until the entire milling operation is
complete.

To engage fine downfeed, make sure the
spindle is completely stopped, and tighten the
downfeed selector knob. Rotate the fine downfeed
handwheel to raise or lower the spindle (see
Figure 63).

Setting Depth Stop

The depth stop limits the drilling depth or
downward movement of the cutting tool. The
maximum depth is 5". This is useful when
performing the same operation multiple times.

To set depth stop:

1. DISCONNECT MACHINE FROM POWER!

2. Install tooling (refer to Page 37 for SB1115

or Page 39 for SB1116), then make sure
spindle is drawn all the way up into
headstock.

3. Loosen Z-axis table lock, and raise table
until it is approximately

1

⁄8" below tooling.

To engage coarse downfeed, make sure the
spindle is completely stopped, and loosen the
downfeed selector knob shown in Figure 63.

Note: To maintain control of the upward spindle
travel, always continue holding the coarse
downfeed levers until the spindle returns to the
top position. Letting go of the levers too soon will
cause the spindle to retract too quickly and slam
up into the headstock.

Using Fine Downfeed

Fine downfeed is typically used for precise,
non-retractable Z-axis positioning of a cutter
or end-mill when milling a flat surface across
the face of a workpiece. The fine downfeed
handwheel is equipped with a graduated collar
(see Figure 63) with 0.001" increments. Each
complete revolution of the handwheel equals

0.100".

4. Rotate depth stop adjustment knob until top
of depth stop pointer is level with desired
depth as listed on scale (see Figure 64).

Note: The depth stop scale functions as a

general guide only. It is not intended for
tight-tolerance, precision results. To calibrate
the depth stop see Calibrating Depth Stop
on Page 58.

Depth Stop Depth Stop

PointerPointer

Depth Stop Depth Stop

Adjustment KnobAdjustment Knob

Figure 64. Location of depth stop controls.Figure 64. Location of depth stop controls.

-41-

South Bend Tools

Model SB1115/ SB1116

OPERATION

For Machines Mfd. Since 1/21

Spindle Speed

Using the correct spindle speed is important
for safe and satisfactory results, as well as
maximizing tool life.

To set the spindle speed for your operation, you
will need to: 1) Determine the best spindle speed
for the cutting task, and 2) configure the spindle
speed range lever and spindle speed dial to
produce the required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed
to use for any given operation, but the two most
important are the recommended cutting speed
for the workpiece material and the diameter of
the cutting tool, as noted in the formula shown in
Figure 65.

*Recommended

Cutting Speed (FPM) x 12

Tool Dia. (in inches) x 3.14

*Double if using carbide cutting tool

Figure 65. Spindle speed formula for milling.Figure 65. Spindle speed formula for milling.

Cutting speed, typically defined in feet per
minute (FPM), is the speed at which the edge of a
tool moves across the material surface.

Spindle

=

Speed
(RPM)

Setting Spindle Speed

Use the chart below or the one on the headstock
when setting the spindle speed.

Spindle Speed Range Range Lever

0–350 RPM L

0–2500 RPM H

Change spindle speed range ONLY when the
spindle is completely stopped. Otherwise,
machine damage could occur.

To set spindle speed:

1. With spindle completely stopped, position

spindle speed range lever (see Figure 66) to
high or low ("H" or "L") range.

Note: If necessary, rotate the spindle by

hand to mesh the gears when changing speed
range.

2. Rotate spindle speed dial (see Figure 66)
to approximate desired spindle speed, then
turn machine ON. If necessary, adjust
spindle speed dial with machine running to
fine-tune spindle speed.

Spindle SpeedSpindle Speed

Range leverRange lever

A recommended cutting speed is an ideal speed
for cutting a type of material in order to produce
the desired finish and optimize tool life.

The books Machinery’s Handbook or Machine
Shop Practice, and some internet sites, provide
excellent recommendations for which cutting
speeds to use when calculating the spindle speed.
These sources also provide a wealth of additional
information about the variables that affect
cutting speed and they are a good educational
resource.

Also, there are a large number of easy-to-use
spindle speed calculators that can be found on
the internet. These sources will help you take
into account the applicable variables in order
to determine the best spindle speed for the
operation.

-42-

Spindle SpeedSpindle Speed

DialDial

Figure 66. Spindle speed controls.Figure 66. Spindle speed controls.

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

OPERATION

Calculating Spindle Speed for Drilling

The chart shown in Figure 67 is intended as
a guide only. Always follow the manufacturer's
speed recommendations if provided with your
drill bits, cutters, or hole saws. Exceeding the
recommended speeds may be dangerous to the
operator or cause damage to the tooling.

The speeds shown here are intended to get you
started. The optimum speed will always depend
on various factors, including tool diameter,
drilling pressure, material hardness, material
quality, and desired finish.

Often, when drilling materials other than wood,
some type of lubrication is necessary.

Lubrication Suggestions

Wood ............................................................... None

Plastics ................................................Soapy Water

Brass .................................Water-Based Lubricant

Aluminum ..................... Paraffin-Based Lubricant

Mild Steel .............................. Oil-Based Lubricant

Larger bits turning at slower speeds tend to
grab the workpiece aggressively. This can
result in the operator's hand being pulled into
the bit or the workpiece being thrown with
great force. Always clamp the workpiece to
the table to prevent injuries.

Twist/Brad Point Drill Bits Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

1

⁄16" – 3⁄16"

13

⁄64" – 3⁄8"

25

⁄64" – 5⁄8"

11

⁄16" – 1"

3000 2500 2500 2500 3000 2500

2000 1500 2000 1250 2500 1250

1500 750 1500 750 1500 600

750 500 1000 400 1000 350

Spade/Forstner Bits Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

1

⁄4" – 1⁄2"

9

⁄16" – 1"

1 1⁄8" – 1 7⁄8"

2" – 3"

2000 15000

1500 1250

1000 750

500 350

Hole Saws Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

1

⁄2" – 7⁄8"

1" – 1 7⁄8"

2" – 2 7⁄8"

3" – 3 7⁄8"

4" – 5"

500 500 600 600 600 500

400 400 500 500 500 400

300 300 400 400 400 300

200 200 300 300 300 200

100 100 200 200 200 100

Rosette Cutters Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

Carbide Insert Type

One-Piece Type

350 250

1800 500

Tenon/Plug Cutters Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

3

⁄8" – 1⁄2"

5

⁄8" – 1"

1200 1000

800 600

Figure 67. Drilling speed chart.Figure 67. Drilling speed chart.

-43-

South Bend Tools

Model SB1115/ SB1116

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

For Machines Mfd. Since 1/21

Accessories

This section includes the most common
accessories available for your machine through
our exclusive dealer, Grizzly Industrial, Inc., at
grizzly.com.

Installing unapproved accessories may
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended by South Bend or Grizzly.

Refer to Grizzly’s website or latest catalog for
additional recommended accessories.

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96

®

12 oz Spray

®

T-9 12 oz Spray

®

®

®

T-9 4 oz Spray
Gun Treatment 12 oz Spray
Gun Treatment 4.5 oz Spray

SB1365—South Bend Way Oil-ISO 68
T26419—Syn-O-Gen Synthetic Grease
T26685 Moly-D Machine Oil-ISO 32

SB1365SB1365 T26419T26419 T26685T26685

Figure 69. Recommended products for machine Figure 69. Recommended products for machine

lubrication.lubrication.

Basic Eye Protection

T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S. Glasses
T20456—DAKURA Safety Glasses, Black/Clear

Figure 68. Recommended products for protecting Figure 68. Recommended products for protecting

unpainted cast iron/steel part on machinery.unpainted cast iron/steel part on machinery.

T20502T20502

T20503T20503

T20456T20456

Figure 70. Assortment of basic eye protection.Figure 70. Assortment of basic eye protection.

T20452T20452

T20451T20451

-44-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

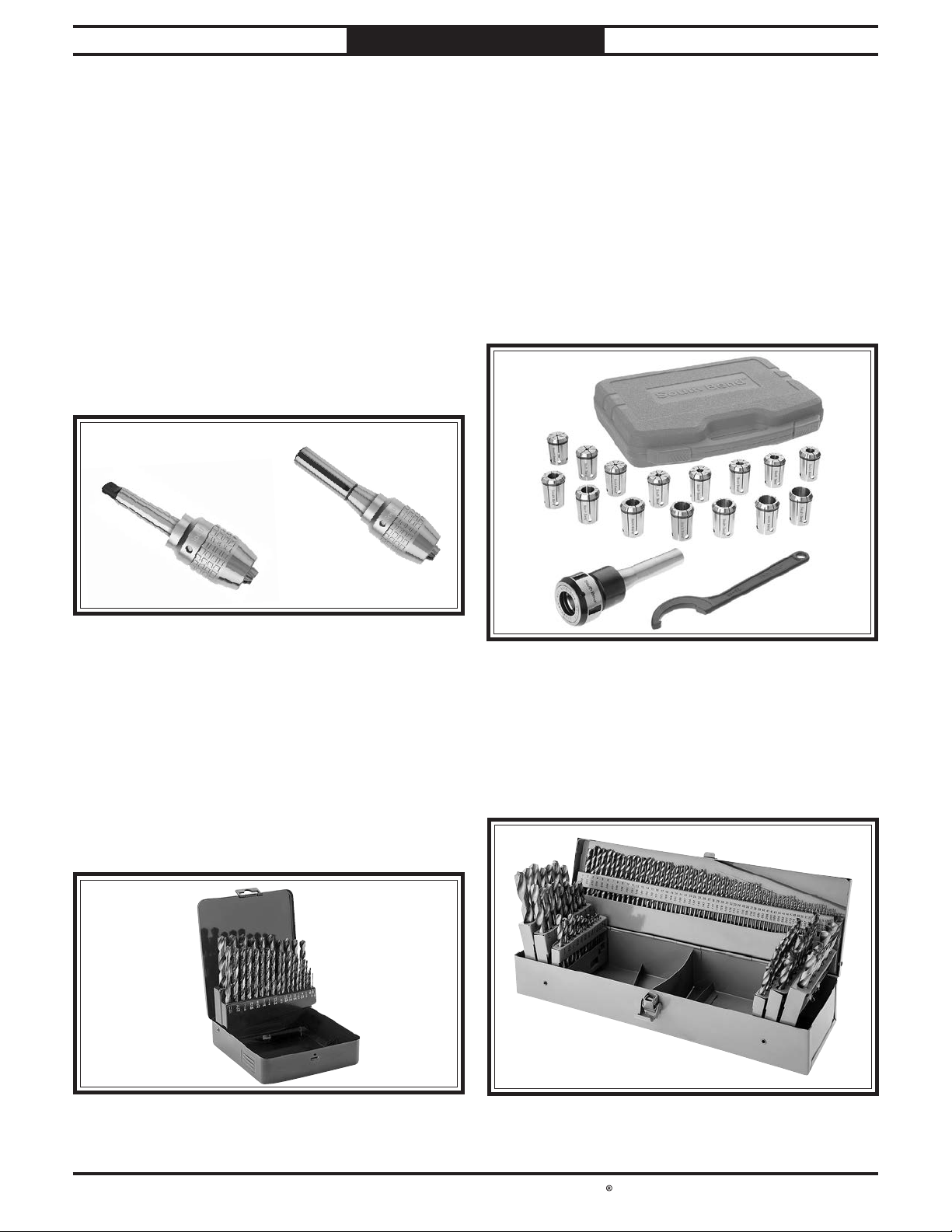

South Bend Keyless Integral
Chucks

For SB1115
SB1379–MT#3
SB1380–MT#3
For SB1116
SB1382–R-8
SB1383–R-8

These keyless chucks are produced with an
integral shank to maximize concentricity
between the body, shank and jaws. They start as
a one-piece high alloy body which is turned, then
finish ground throughout, making them as close
to zero TIR (Total Indicated Runout) as can be. A
spanner is provided to ease jaw opening.

1

⁄32"–1⁄2"

1

⁄32"–5⁄8"

1

⁄32"–1⁄2"

1

⁄32"–5⁄8"

SB1380SB1380

SB1383SB1383

8 Piece Quick Change Collet Set

For SB1115
SB1350–South Bend 8-Pc. MT#3 Collet Set
SB1351–South Bend 16-Pc. MT#3 Collet Set
For SB1116
SB1348—South Bend
SB1349—South Bend 16-Pc. R-8 Collet Set

Get true South Bend quality and precision with
one of these quick-change collet sets. Each set
includes hardened and precision-ground spring
collets for maximum holding power, collet chuck,
spanner wrench, and protective moulded case.

8-Pc. R-8 Collet Set

Figure 71. South Bend Keyless Integral Drill Chucks.Figure 71. South Bend Keyless Integral Drill Chucks.

D2140—Cobalt Alloy Drill Bits 1⁄16"–1⁄2", 29-Pc.

These cobalt alloy bits are resistant to heat and
stress, allowing them to turn faster without
overheating. The 135° split point enables the drill
to use less thrust and eliminates the tendency of
the drill point to walk, which makes these great
for use in portable drills or drill presses. Cobalt
Alloy bits retain their edge sharpness longer
than normal HSS bits, resulting in a significant
saving of time and money in the workshop.

Figure 73. SB1349 South Bend 16-Pc. R-8 Collet Set.Figure 73. SB1349 South Bend 16-Pc. R-8 Collet Set.

G3658—Tin-Coated 115-Pc. Drill Bit Set

Titanium nitride-coated bits last up to six times
as long as uncoated bits. This 115-pc. set features

1

29 fractional bits, from

1

⁄64", letter bits from A–Z, and 60 number bits.

⁄6"–1⁄2" in increments of

Housed in a rugged steel case.

Figure 72. D2140 29-Pc. Cobalt Alloy Drill Bits.Figure 72. D2140 29-Pc. Cobalt Alloy Drill Bits.

Figure 74. Model G3658 115-Pc. Drill Bit Set.Figure 74. Model G3658 115-Pc. Drill Bit Set.

-45-

South Bend Tools

Model SB1115/ SB1116

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

For Machines Mfd. Since 1/21

G1075—58-Pc. Clamping Kit
(For SB1116 Only)

This kit includes 24 studs, 6 step block pairs,
6 T-nuts, 6 flange nuts, 4 coupling nuts, and 6
end hold-downs. The rack is slotted so it can be
mounted close to the machine for easy access.

1

Made for

⁄2" T-slots.

Figure 75. G1075 58-Pc. Clamping Kit.Figure 75. G1075 58-Pc. Clamping Kit.

T10440—Precision 3-Way Drill Press Vise

This Precision 3-Way Drill Press Vise is made
from graded cast-iron and features a prismatic
fixed jaw for holding round material, stepped
jaws for holding thin material, and precision­ground right angle faces for horizontal and
vertical positioning. Includes a sturdy lip
along both sides of the base, allowing vise to
be mounted to nearly any machine table, using
common T-slot clamps.

G9761–2 Flute 10-Pc. TiN End Mill Set
G9762–4 Flute 10-Pc. TiN End Mill Set

Coated in extra-durable titanium nitride, this
10-piece assortment of high-speed steel end mills

3

features the following sizes:

1

⁄2", 9⁄16", 5⁄8", 11⁄16" and 3⁄4". Finely-crafted mills are

⁄16", 1⁄4", 5⁄16", 3⁄8", 7⁄16",

single-ended cutters. Includes molded plastic
case.

Figure 77. G9762 10-Pc. TiN End Mill Set.Figure 77. G9762 10-Pc. TiN End Mill Set.

H5608—V-Block Pair w/Clamps 15⁄8"

3

H5609—V-Block Pair w/Clamps 1

⁄4"

H5610—V-Block Pair w/Clamps 2"

3

H5611—V-Block Pair w/Clamps 2

⁄4"

Each V-Block pair is precision-ground and
numbered to match for accuracy.

Figure 76. T10440 Precision 3-Way Drill Press Vise.Figure 76. T10440 Precision 3-Way Drill Press Vise.

Figure 78. H5611 V-Block Pair w/Clamps.Figure 78. H5611 V-Block Pair w/Clamps.

-46-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

T27480–Dial Indicator 3-Axis 7" Universal Clamp
+ 0.03/0.0005" Test Indicator Set

The perfect tool for tramming mill spindles, this
indicator set features a satin chrome finished
dial indicator with a measuring range of 0-0.03"
in 0.0005" graduations and includes and
universal clamp.

Figure 79. T27480 Dial Indicator and Mounting Clamp.Figure 79. T27480 Dial Indicator and Mounting Clamp.

H7527– 6" Rotary Table w/ Div. Plates

Use this 6" rotary table in either the horizontal
or vertical position for a variety of milling
applications and with the set of dividing
plates and adjustable tailstock, your milling
applications are nearly unlimited. With 4 degree
table movement per handle rotation and 20
second vernier scale, control is very accurate and
precise. Also includes a
4-slot table. Everything you need in one great
set!

3

⁄8" clamping set for the

T24799—1-2-3 Precision Parallel Blocks
T24800—2-4-6 Precision Parallel Blocks

These blocks are extremely handy for layout and
set up work. Matched blocks are hardened and
precision ground so all six sides are square to
within 0.0003".

T24799T2479 9

T24800T24800

Figure 81. T24799 and T24800 Precision Parallel Figure 81. T24799 and T24800 Precision Parallel

Blocks.Blocks.

H6572—Grease-Resistant Mat 3' x 3' x 3⁄4"

These Black Grease Resistant Mats are
engineered for proper back and leg support. The
non-slip surface features a modular interlock
design, which enables the user to create a custom
floor. Mats measure 36" x 36" x

3

⁄4".

Figure 82. H6572 Grease-Resistant Mat.Figure 82. H6572 Grease-Resistant Mat.

Figure 80. H7527 6" Rotary Table w/Div. Plates.Figure 80. H7527 6" Rotary Table w/Div. Plates.

-47-

South Bend Tools

Model SB1115/ SB1116

!

MAINTENANC E

For Machines Mfd. Since 1/21

MAINTENANCE

Maintenance Schedule

Always disconnect
machine from power before
performing maintenance or
serious personal injury may
result.

For optimum performance from your machine,
follow this maintenance schedule and refer to
any specific instructions given in this section.

Ongoing

To help minimize your risk of injury and
maintain proper machine operation, if you
ever observe any of the items below shut the
machine down immediately, disconnect it from
power, and fix the problem before continuing
operations.

• Loose mounting bolts or fasteners.

• Worn, frayed, cracked, or damaged wires.

• Any other unsafe condition.

Before Beginning Operations

• Turn the spindle direction switch to the
OFF (middle) position to prevent spindle
startup when connected to power (see
Page 3).

• (SB1116) Make sure the X- and Z-axis
power feed units are turned OFF to
prevent unintentional table movement
when connected to power (see Page 35).

• Perform lubrication tasks as directed in
the Lubrication section, beginning on
Page 49.

• Check table movement in all three axis
directions for loose/tight gibs. Adjust the
gibs if necessary (see Page 54).

Daily, After Operations

• Disconnect the machine from power.

• Vacuum/clean all debris from table, slides,
and base.

• Wipe down all unpainted or machined
surfaces with a good quality rust
preventative.

Cleaning & Protecting

Regular cleaning is one of the most important
steps in taking good care of this machine. Each
operator is responsible for cleaning the machine
immediately after using it or at the end of the
day. We recommend that the cleaning routine
be planned into the workflow schedule, so that
adequate time is set aside to do the job right.

Typically, the easiest way to clean debris from
the ways and table is to use a wet/dry shop
vacuum that is dedicated for this purpose only.
Small metal chips leftover after vacuuming can
be wiped up with a slightly oiled rag. Avoid using
compressed air to blow off metal chips, as this
may drive them deeper into moving surfaces and
could cause sharp chips to fly into your face or
hands.

Besides the ways and elevation leadscrew, all
other unpainted and machined surfaces should
be wiped down daily to keep them rust-free and
in top condition. This includes any surface that
could be vulnerable to rust if left unprotected
(this especially includes any parts that may be
exposed to water soluble cutting fluids). Typically
with these parts, a thin film of oil is all that is
necessary for protection.

Keep tables rust-free with ISO 68 way oil (see
Page 44).

-48-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

MAINTENANC E

Lubrication

This machine has numerous moving metal-to­metal contacts that require regular and proper
lubrication to ensure efficient and long-lasting
operation, and to protect your investment.

Other than the lubrication points covered in
this section, all other bearings are internally
lubricated and sealed at the factory. Simply leave
them alone unless they need to be replaced.

Before performing any lubrication task,
DISCONNECT MACHINE FROM POWER!

IMPORTANT: Before adding lubricant, clean any
debris and grime from the fill hole/grease fitting
and the immediate area to prevent contamination
of the new lubricant.

Use the schedule and information shown in
Figure 83 as a guide for lubrication tasks.
Follow the referenced sections on the following
pages for detailed instructions.

Failure to follow reasonable lubrication
practices as instructed in this manual could
lead to premature failure of the machine and
will void the warranty.

Quill, Column, & Column Rack

Oil Type ....... Model T23962 or ISO 68 Equivalent

Oil Amount ............................................. Thin Coat

Lubrication Frequency ............8 Hrs. of Operation

Use the controls to access all surfaces (see
Figures 84–85), then clean them with mineral
spirits, shop rags, and, where appropriate,
brushes.

When dry, apply a thin coat of oil to the surfaces.
Use clean brushes to apply oil to the grooves
of the column rack. Move each component
through the entire path of travel several times to
distribute the lubricant.

Note: Take care not to remove the quill rack
grease without re-applying it.

The following recommended lubrication
schedule is based on light to medium
usage. You may need to lubricate some of
these items more frequently depending on
individual usage.

Frequency

Lubrication Task

Quill, Column, and
Column Rack

Headstock Reservoir 8 Hrs.

X- and Y-Axis
Leadscrews (SB1116)

Quill Rack and Pinion 90 Hrs.

Power Feed Gears
(SB1116)

Figure 83. Recommended lubrication tasks, Figure 83. Recommended lubrication tasks,
schedules, and instruction page references.schedules, and instruction page references.

(Hours of

Operation)

8 Hrs.

40 Hrs.

160 Hrs.

Page

Ref.

This

Page

50

52

52

53

Figure 84. Outside surface of quill.Figure 84. Outside surface of quill.

ColumnColumn

QuillQuill

ColumnColumn

RackRack

Figure 85. Column and rack.Figure 85. Column and rack.

-49-

South Bend Tools

Model SB1115/ SB1116

!

!

MAINTENANC E

For Machines Mfd. Since 1/21

Headstock Reservoir

Oil Type ....... Model T26685 or ISO 32 Equivalent

Oil Amount ...................................................2

Check/Add Frequency ............. 8 Hrs. of Operation

Change Frequency ........................Every 180 Days

Items Needed Qty

Screwdriver Phillips #2 ........................................1

Open-End Wrench 22mm .....................................1

Hex Wrench 3mm .................................................1

Drain Pan (1-Gallon or Larger) ............................ 1

The headstock has the proper amount of oil when
the sight glass is halfway full (see Figure 86).
If oil level is not visible in sight glass, follow
Steps 2–5 to access oil fill plug and top off with
fresh ISO 32 equivalent oil until oil sight glass is
halfway full.

Oil Level Oil Level

Sight GlassSight Glass

1

⁄2 Qt.

3. Remove (4) hex head screws, then remove

motor junction box cover (see Figure 87).

Figure 87. Motor junction box cover.

4. Remove Phillips head screw to disconnect

ground wire and unplug (3) wires from left
side of terminal, as shown in Figure 88.

Figure 86. Location of headstock oil sight glass and fill Figure 86. Location of headstock oil sight glass and fill

plug.plug.

To change headstock oil:

1. Run spindle at approximately 500 RPM

for approximately 10 minutes to warm
headstock oil.

2. DISCONNECT MACHINE FROM POWER!

-50-

Figure 88. Motor junction box cover removed.

Note: Make a note of wire locations so

that they are plugged back into the proper
locations.

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

MAINTENANC E

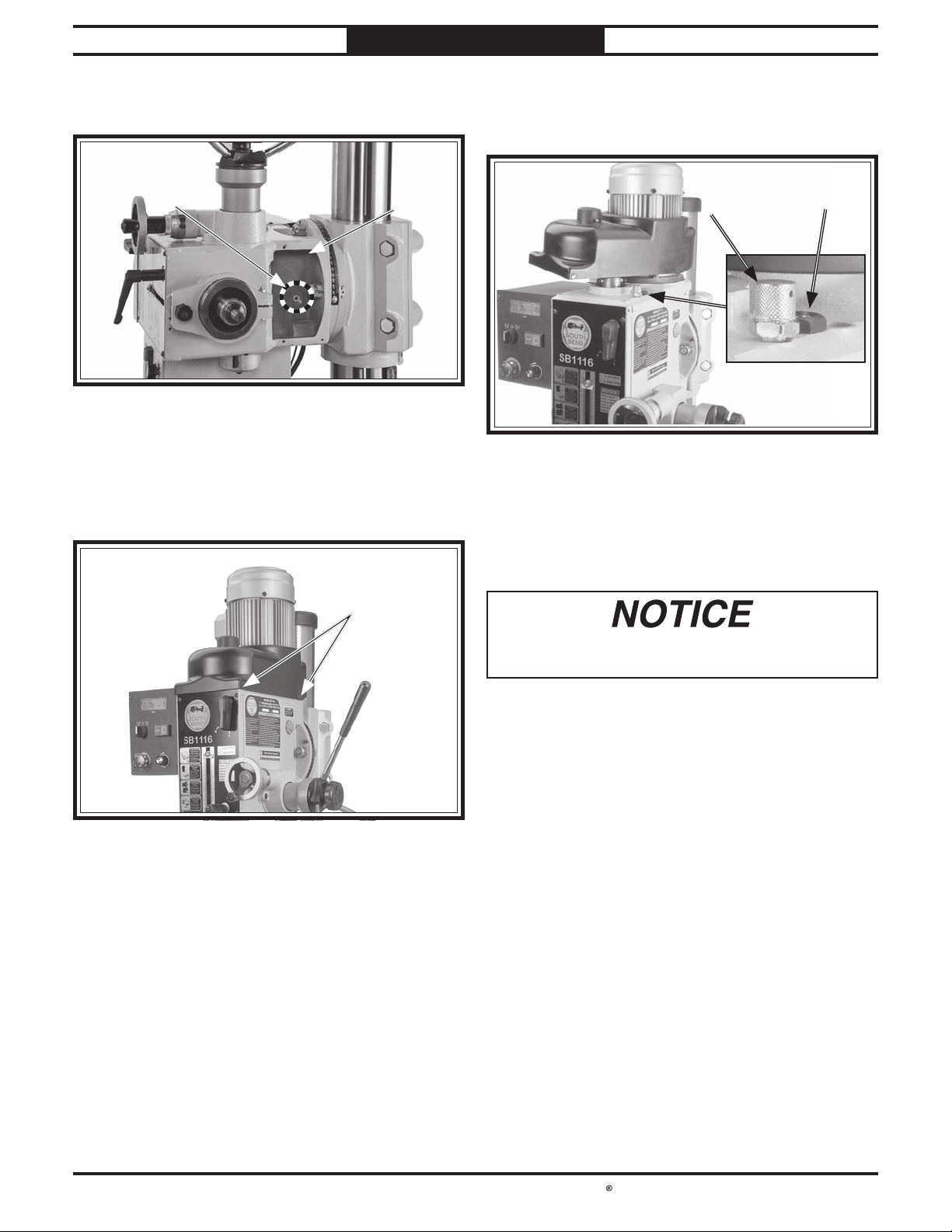

5. Remove cover plate from bottom of headstock

(see Figure 89).

DrainDrain

PlugPlug

Figure 89. Headstock drain plugFigure 89. Headstock drain plug
(headstock tilted 90° for clarity).(headstock tilted 90° for clarity).

Cover PlateCover Plate

RemovedRemoved

6. Remove (4) button head cap screws securing

headstock cover, then carefully lift and
rotate headstock cover to expose oil fill plug
(see Figure 90).

Button Head Button Head

Cap Screws Cap Screws

(2 of 4)(2 of 4)

7. Remove oil fill plug (see Figure 91).

Note: Do not remove gearbox vent.

Gear Box VentGear Box Vent

Figure 91. Oil fill plug exposed.

Oil Fill PlugOil Fill Plug

8. Place drain pan on table under headstock.

9. Remove drain plug (see Figure 89) from

underneath headstock and allow oil to drain
into pan.

Figure 90. Location of headcover button head cap Figure 90. Location of headcover button head cap

screws.screws.

Follow federal, and state, and local
requirements for proper disposal of used oil.

10. Replace drain plug.

11. Add oil at fill plug hole until sight glass is

halfway full, then re-install fill plug and
cover plate.

12. Re-install headstock cover.

13. Re-connect motor wires, then re-install

motor junction box cover.

Note: Refer to Pages 63–64 for correct wiring

configuration.

14. Clean up any spilled oil to prevent slipping

hazards.

-51-

South Bend Tools

Model SB1115/ SB1116

MAINTENANC E

For Machines Mfd. Since 1/21

Quill Rack & Pinion

Oil Type .................NLGI#2 Grease or Equivalent

Oil Amount ............................................. Thin Coat

Lubrication Frequency ..........90 Hrs. of Operation

Items Needed Qty

Double-Sided Adhesive Tape ................ As Needed

Mineral Spirits and Shop Rags ............ As Needed

Wire Brush ............................................................1

Remove cover plate from bottom of headstock,
then move the quill up and down to gain
full access to the quill rack and pinion (see
Figure 92). Clean the teeth with mineral spirits,
shop rags, and a brush.

PinionPinion

CoverCover

PlatePlate

RemovedRemoved

SB1116 X-Axis & Y-Axis
Leadscrews

Grease Type .......................NLGI #2 or Equivalent

Grease Amount ...................................... Thin Coat

Check/Add Frequency ........... 40 Hrs. of Operation

Items Needed Qty

Double-Sided Adhesive Tape ................ As Needed

Mineral Spirits and Shop Rags ............ As Needed

Wire Brush ............................................................1

Use mineral spirits to clean any debris and
built-up grime from the leadscrews shown in
Figures 93–94, then wipe them dry. Brush
a thin coat of lubricant on the threads of the
leadscrews, then rotate each leadscrew through
its full path to distribute the grease.

QuillQuill

RackRack

Figure 92. Quill rack and pinion.Figure 92. Quill rack and pinion.

When dry, use a brush to apply a thin coat of
grease to the teeth, then raise/lower the quill
several times to distribute the grease. Re-install
cover plate when finished.

Note: Re-apply oil to the quill smooth outside
surface that was removed during the cleaning
process.

X-AxisX-Axis

LeadscrewLeadscrew

Figure 93. X-axis leadscrew as viewed from Figure 93. X-axis leadscrew as viewed from

underneath right side of table.underneath right side of table.

Y-AxisY-Axis

LeadscrewLeadscrew

Figure 94. Y-axis leadscrew as viewed from Figure 94. Y-axis leadscrew as viewed from

underneath knee.underneath knee.

-52-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

!

MAINTENANC E

SB1116 Power Feed Gears

Grease Type .......................NLGI #2 or Equivalent

Grease Amount ...........Two Pumps of Grease Gun

Check/Add Frequency ......... 160 Hrs. of Operation

Items Needed Qty

Double-Sided Adhesive Tape ................ As Needed

Mineral Spirits and Shop Rags ............ As Needed

Wire Brush ............................................................1

To lubricate the Z-axis power feed gears, always
make sure column rack has adequate lubrication
(see Page 49), which will disburse throughout
the Z-axis power feed gears.

To lubricate the X-axis power feed gears, follow
the instructions below.

To lubricate X-axis power feed gears:

1. DISCONNECT MACHINE FROM POWER!

2. Remove gear guard (see Figure 95).

3. Brush a light coat of grease on teeth of

power feed gear and X-axis table gear (see
Figure 96).

X-AxisX-Axis

Table GearTable Gear

Figure 96. Lubrication points for X-axis power feed Figure 96. Lubrication points for X-axis power feed

gears.gears.

4. Use rubbing alcohol or other appropriate

solvent/cleaner to thoroughly clean grease/
residue from mating surfaces of gear guard,
then re-install guard using double-sided
adhesive tape.

Gear Gear

GuardGuard

Figure 95. Location of gear guard.Figure 95. Location of gear guard.

-53-

South Bend Tools

Model SB1115/ SB1116

ServiceService

SERVICE

Adjusting Gibs (SB1116)

Gibs are tapered lengths of metal that are
sandwiched between two moving surfaces. Gibs
control the gap between these surfaces and how
they slide past one another. Correctly adjusting
the gibs is critical to producing good milling
results.

Tight gibs make table movement more
accurate but stiff. Loose gibs make moving the
table sloppy but easier to do. The goal of gib
adjustment is to remove unnecessary sloppiness
without causing the ways to bind.

Gibs are adjusted with gib screws (see Figures
97–98) that move the tapered gib back-and-forth
to increase or decrease the friction pressure
between the sliding surfaces. The process of
properly adjusting the gibs requires trial-and­error and patience.

For Machines Mfd. Since 1/21

X-Axis GibX-Axis Gib

Adjustment ScrewAdjustment Screw

Figure 97. X-axis gib adjustment screw (1 of 2).Figure 97. X-axis gib adjustment screw (1 of 2).

Y-Axis GibY-Axis Gib

Adjustment ScrewAdjustment Screw

Refer to the figures on this page to identify
the locations of the gibs, and one of the two
adjustment screws for each.

Note: It will be necessary to remove small parts,
such as way wipers and covers, to access the gib
adjustment screws.

Tool Needed Qty

Flat Head Screwdriver #2 .....................................1

To adjust each gib:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen locks for component you are

adjusting.

3. Loosen one gib adjustment screw, then

tighten the other the same amount to move
the gib.

4. Use handwheel/crank (if applicable) to move

component until you feel a slight drag in
the path of movement. Repeat Steps 3–4 as
necessary.

Figure 98. Y-axis gib adjustment screw (1 of 2).Figure 98. Y-axis gib adjustment screw (1 of 2).

-54-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

GapCap

Screws

GapCap

Screws

SERVICE

Adjusting Leadscrew Backlash (SB1116)

Leadscrew backlash is the amount of motion or
"play" in leadscrew rotation before the attached
device begins to move. Leadscrews will always
have a certain amount of backlash that will
increase with normal wear.

Generally, 0.005"–0.010" leadscrew backlash
is acceptable to ensure smooth movement and
reduce the risk of premature thread wear.
However, if you find it necessary to adjust
leadscrew backlash, perform the procedures
listed below.

Tool Needed Qty

T-Handle Hex Wrench 5mm .................................1

To adjust leadscrew backlash:

Tighten or loosen the cap screws on the
leadscrew nuts shown in Figures 99–100, then
test the amount of backlash by slowly rocking the
handwheels back-and-forth. Repeat if necessary.

X-Axis X-Axis

Leadscrew NutLeadscrew Nut

Figure 99. X-axis leadscrew nut located under right Figure 99. X-axis leadscrew nut located under right

side of table.side of table.

Y-AxisY-Axis

Leadscrew NutLeadscrew Nut

Figure 100. Y-axis leadscrew nut located inside knee.Figure 100. Y-axis leadscrew nut located inside knee.

-55-

South Bend Tools

Model SB1115/ SB1116

SERVICE

For Machines Mfd. Since 1/21

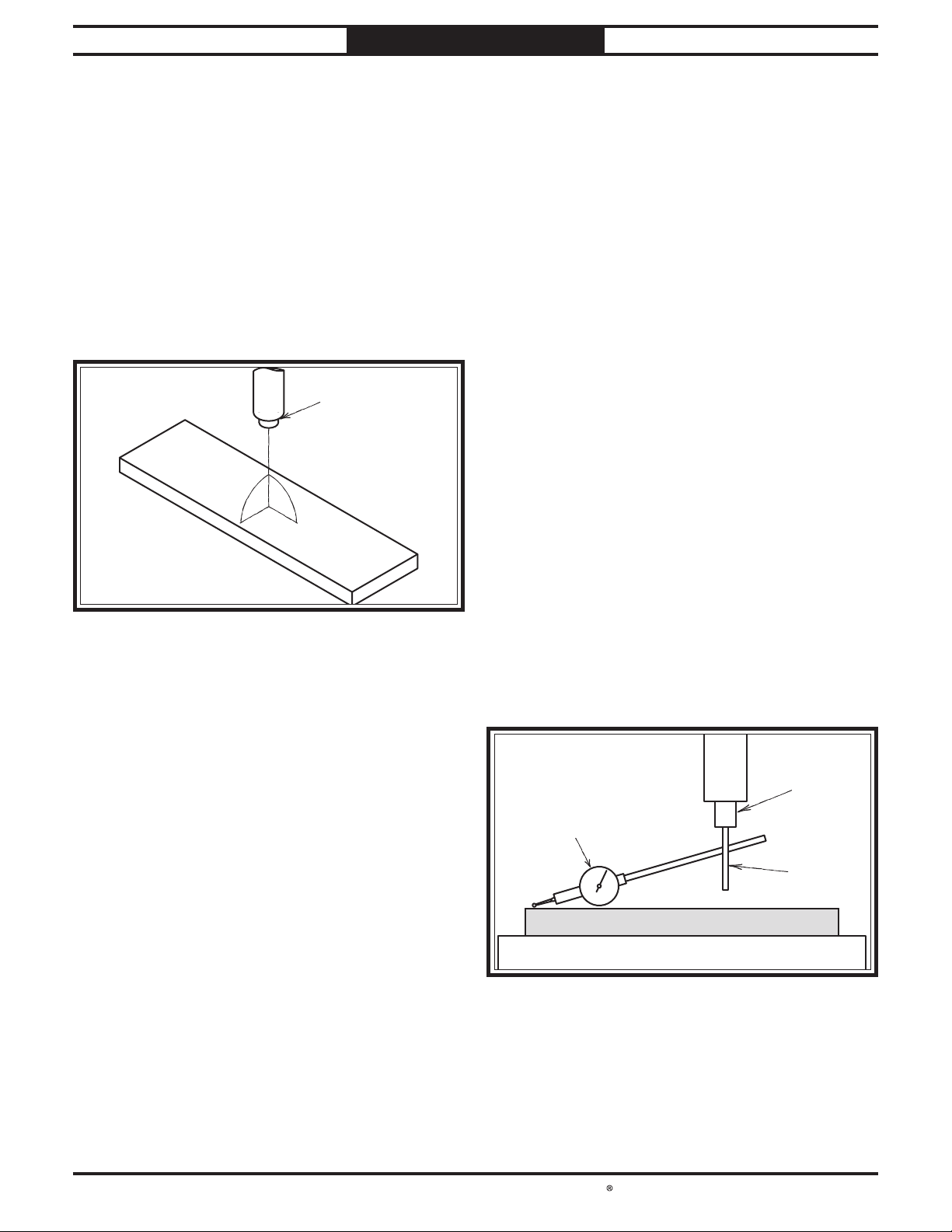

Tramming Spindle

After positioning the head at an angle and when
your operation requires that the spindle axis be
precisely perpendicular to the table, you must
tram or align the spindle with the table to ensure
the spindle is exactly 90° to the table.

This procedure involves mounting a dial test
indicator to the quill or spindle, rotating it
around the table, and adjusting the spindle
axis (Z-axis) 90° to the table X- and Y-axis, as
illustrated in Figure 101 below.

Spindle

Z-Axis

Y-Axis

90º

90º

X-Axis

Table

Note: A precision-ground plate can be substituted
for the parallel blocks. Keep in mind that the
farther the indicator point can be placed from
the spindle axis, the more accurate the alignment
measurements will be.

To tram spindle to table:

1. DISCONNECT MACHINE FROM POWER!

2. Prepare machine for tramming by

performing following tasks:

• Verify the table is clean by running your
hand over the top of it. If necessary, stone
the table to remove all nicks and burrs,
then clean off all debris.

• Position the table for the operation you
intend to perform after tramming—
preferably centered with the saddle.

• Tighten any table, knee, quill, or ram
locks that should be tight during the
intended operation.

Figure 101. Spindle Z-axis perpendicular to the table Figure 101. Spindle Z-axis perpendicular to the table

X- and Y-axis.X- and Y-axis.

We encourage you to research the many
variations of spindle tramming to find the one
that works best for you. If you do not already
have a preference for performing this operation,
use the following widely-used procedure for
accurately tramming the spindle to the table.

Keep in mind that all workpiece top surfaces are
not exactly parallel with the table top. You may
choose to tram the spindle to the top surface of
the workpiece after it is mounted rather than
tramming the spindle to the table.

Tools Needed Qty

Dial Test Indicator

(with at least 0.0005" resolution) .................. 1

Indicator Holder

(mounted on the quill/spindle) ...................... 1

Precision Parallel Block

(at least 9" in length) ..................................... 1

3. Place parallel block underneath spindle.

4. Install indicator holder in spindle or on quill,

then mount indicator so that point is as
parallel to block as possible as illustrated in
Figure 102.

Spindle

Dial Test

Indicator

Indicator

Holder

Parallel Block

Table

Figure 102. Dial test indicator mounted.Figure 102. Dial test indicator mounted.

-56-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

SERVICE

5. To measure spindle alignment along X-axis,

place parallel block directly under spindle
and indicator across length of table, as
illustrated in figure below.

Note: If you must re-position the quill or the

knee to accommodate the above step, then
review the tasks in Step 2 to make sure the
machine is properly prepared for tramming.

Table (Top View)

Parallel Block

Indicator Spindle

Figure 103. Parallel block and indicator positioned for Figure 103. Parallel block and indicator positioned for

the X-axis measurementthe X-axis measurement

(top view).(top view).

Note: Your general goal in the next steps

should be to get the difference of the indicator
readings between the ends of the parallel bar
down to 0.0005". However, the acceptable
variance will depend on the requirements for
your operation.

Note: Keep one of the rotation lock bolts just

snug so the head does not move loosely while
you adjust it. Remember to tighten all the
rotation lock bolts after adjusting the head.

8. Place parallel block directly under spindle

and across width of table, as illustrated in
figure below.

Table (Top View)

Indicator

Spindle

Parallel Block

Figure 104. Parallel block and indicator positioned for Figure 104. Parallel block and indicator positioned for

the Y-axis measurementthe Y-axis measurement

(top view).(top view).

9. Rotate spindle so indicator point rests on

parallel bar, as illustrated in figure above,
then zero the dial.

10. Rotate spindle so that indicator point rests

on other end of bar in same manner, then
read dial.

6. Rotate spindle by hand so that indicator

point rests on one end of parallel block, then
zero the dial.

7. Rotate spindle so that indicator point rests

in same manner on other end of block, then
read dial.

— If the indicator dial still reads zero or is

within the acceptable variance, continue
on with Step 8.

— If the indicator dial has moved from zero

beyond the acceptable variance, you will
need to compensate for that amount by
rotating the head left or right. Repeat
Steps 6–7 until you are satisfied with the
spindle axis alignment along the table
X-axis.

— If the indicator dial still reads zero or

is within the acceptable variance, the
spindle is precisely perpendicular to the
table in both the X- and Y-axis, and the
tramming procedure is complete.

— If the indicator dial has moved from zero

beyond the acceptable variance, you will
need to compensate for that amount by
tilting the head forward or backward.
Repeat Steps 9–10 until you are satisfied
with the spindle axis alignment along the
table Y-axis.

Note: Keep one of the tilt lock bolts just snug

so the head does not move loosely while you
adjust it. Remember to tighten all the tilt lock
bolts after adjusting the head.

-57-

South Bend Tools

Model SB1115/ SB1116

!

!

SERVICE

For Machines Mfd. Since 1/21

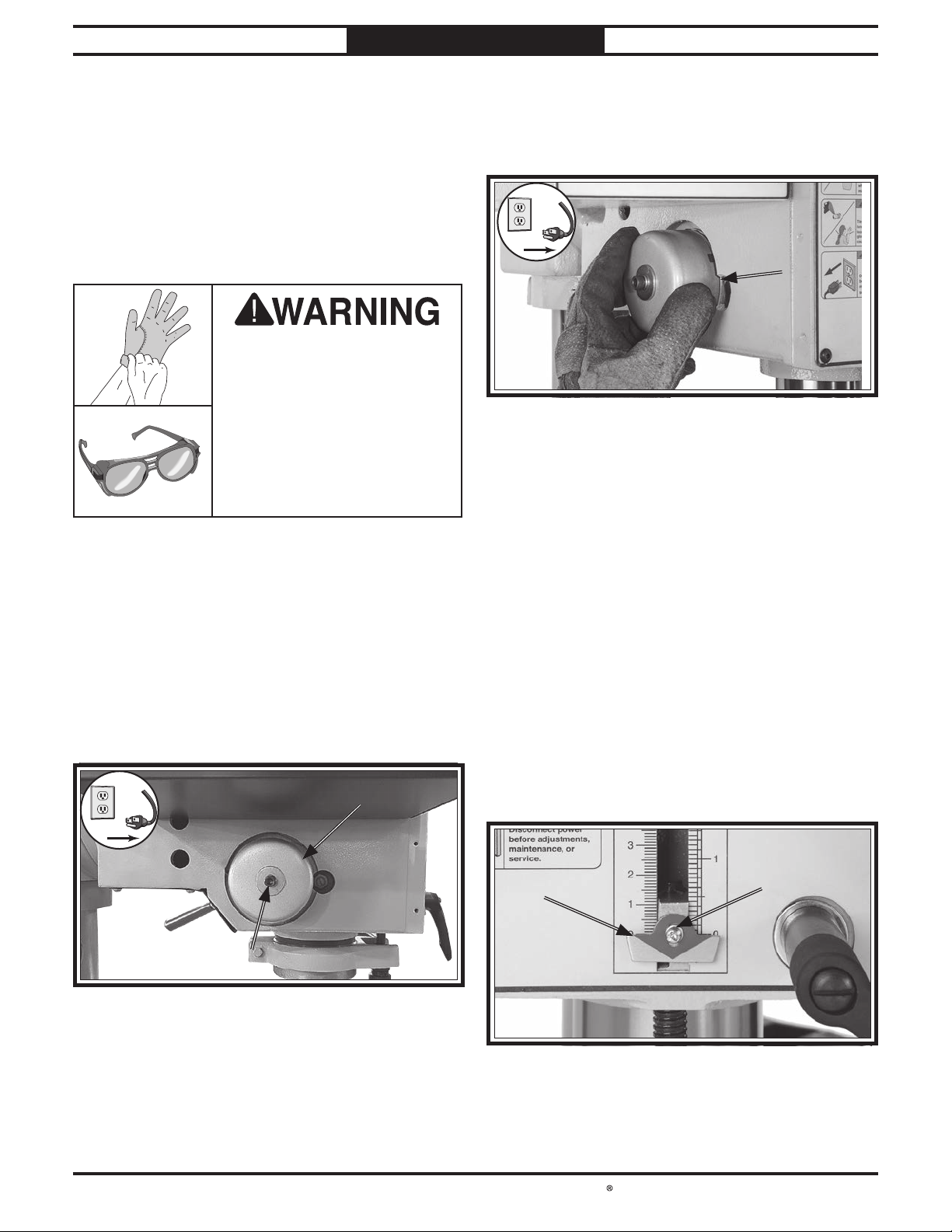

Tensioning Return Spring

The spring tension for automatic quill recoil has
been pre-set at the factory. It should not need
adjustment under most normal circumstances.
If it does need adjustment, the spring housing is
located on the left side of the headstock.

If the return spring should
come loose from the spring
cap and rapidly unwind,
laceration or impact injuries
could occur. Always wear
heavy leather gloves
and safety glasses when
adjusting the return spring
tension.

Tool Needed Qty

Hex Wrench 5mm .................................................1

5. Rotate cover counterclockwise to increase

tension, then push cover back in to engage
roll pin with one of the notches, as shown in
Figure 106, then retighten cap screw.

NotchNotch

EngagedEngaged

w/Roll Pinw/Roll Pin

Figure 106. Example of adjusting spring tension.Figure 106. Example of adjusting spring tension.

Calibrating Depth Stop

The depth stop can be calibrated to improve
accuracy. Make sure the spindle is retracted
all the way into the quill, then follow the steps
below.

To tension return spring:

1. DISCONNECT MACHINE FROM POWER!

2. PUT ON SAFETY GLASSES!

3. Loosen cap screw shown in Figure 105

2–3 turns (DO NOT completely remove it).

Spring CoverSpring Cover

Cap ScrewCap Screw

Figure 105. Spring tension components.Figure 105. Spring tension components.

4. Wearing heavy leather gloves, pull spring

cover out enough so notches just clear roll
pin (see Figure 106). HOLD SPRING
COVER TIGHTLY during this step, or force
of spring will cause cover to spin out of your
hands.

Tool Needed Qty

Screwdriver Phillips #2 ........................................1

To calibrate depth stop:

1. Lower depth stop (see Figure 107) until

pointer reaches bottom of its travel.

2. Loosen Phillips head screw shown in Figure

107, and position pointer so its upper edge

aligns with zero, then re-tighten screw.

Phillips HeadPhillips Head

ScrewScrew

PointerPointer

Figure 107. Depth stop calibrated.Figure 107. Depth stop calibrated.

-58-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

TROUBLESHOOTING

TROUBLESHOOTING

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free
to call us at [phone].

Symptom Possible Cause Possible Solution

Machine does not
start, or power
supply breaker
immediately trips
after startup.

Machine stalls or is
underpowered.

1.

Master power switch in OFF
position.

2.

Emergency Stop button depressed/
at fault.

3.

Blown machine fuse.

4.

Incorrect power supply voltage or
circuit size.

5.

Power supply circuit breaker
tripped or fuse blown.

6.

Motor wires connected incorrectly.

7.

Wiring broken, disconnected, or
corroded.

8.

ON/OFF switch at fault.

9.

Circuit board at fault.

10.

Spindle rotation switch at fault.

11.

Potentiometer at fault.

12.

Inverter/control box at fault.

13.

Motor or motor bearings at fault.

1.

Workpiece material unsuitable for
machine.

2.

Gearbox at fault.

3.

Motor wired incorrectly.

4.

Machine undersized for task.

5.

Motor overheated.

6.

Extension cord too long.

7.

Spindle rotation switch at fault.

8.

Potentiometer at fault.

9.

Inverter/control box at fault.

10.

Motor or motor bearings at fault.

1.

Turn master power switch to ON position (Page 4).

2.

Rotate button head to reset; replace if at fault.

3.

Replace fuse/ensure no shorts.

4.

Ensure correct power supply voltage and circuit size
(Page 16).

5.

Ensure circuit is free of shorts. Reset circuit breaker
or replace fuse.

6.

Correct motor wiring connections (Page 62).

7.

Fix broken, disconnected, or corroded wires.

8.

Replace switch.

9.

Replace curcuit board.

10.

Test/replace switch.

11.

Test/replace potentiometer.

12.

Inspect inverter/controller box; replace if at fault.

13.

Replace motor.

1.

Use proper material type for machine.

2.

Select appropriate speed range; replace broken or
slipping gears.

3.

Wire motor correctly (Page 62).

4.

Use correct cutter/bit; reduce feed rate; reduce
spindle speed; use cutting fluid if possible.

5.

Clean motor, let cool, and reduce workload.

6.

Move machine closer to power supply; use shorter
extension cord.

7.

Test/replace switch.

8.

Test/replace potentiometer.

9.

Inspect inverter/control box; replace if at fault.

10.

Replace motor.

-59-

South Bend Tools

Model SB1115/ SB1116

TROUBLESHOOTING

For Machines Mfd. Since 1/21

Symptom Possible Cause Possible Solution

Machine has
vibration or noisy
operation.

Tool falls out or
loose in spindle.

Breaking tools or
cutters.

1.

Motor or component loose.

2.

Spindle loose, improperly installed,
or damaged.

3.

Workpiece loose.

4.

Motor fan rubbing on fan cover.

5.

Spindle bearings at fault.

6.

Chuck or cutter at fault.

7.

Gearbox at fault.

8.

Machine incorrectly mounted to
floor.

9.

Motor bearings at fault.

1.

Tool is not fully drawn up into
spindle taper.

2.

Debris on tool or in spindle taper.

3.

Excessive feed pressure.

1.

Spindle speed/feed rate is too fast.

2.

Excessive feed pressure.

3.

Improper cutting technique or type
of cut for tool/machine.

4.

Cutting tool is too small.

5.

Cutting tool getting too hot.

6.

Spindle extended too far down at
beginning of operation.

1.

Replace damaged or missing bolts/nuts; retighten if
loose.

2.

Remove and inspect spindle; clean and reinstall
(Page 37).

3.

Use the correct holding fixture/reclamp workpiece.

4.

Fix/replace fan cover; replace loose/damaged fan.

5.

Test by rotating spindle; rotational grinding/loose
shaft requires bearing replacement.

6.

Replace unbalanced chuck; replace/resharpen
cutter; use correct feed rate.

7.

Rebuild gearbox; replace bad gears/bearings.

8.

Tighten mounting bolts; relocate/shim machine.

9.

Replace motor.

1.

Tighten drawbar (Page 37).

2.

Clean tool and spindle taper, then re-install.

3.

Decrease feed pressure and allow chips to clear.

1.

Reduce spindle speed (Page 42); reduce feed rate.

2.

Decrease feed pressure and allow chips to clear.

3.

Use right technique, tool or machine for job.

4.

Use larger cutting tool and slower feed rate.

5.

Use coolant or oil for appropriate application/reduce
cutting speed.

6.

Fully retract spindle (this increases rigidity), and
raise table (Pages 34 & 41).

Workpiece or tool
vibrates or chatters
during operation.

Table is hard to
move.

1.

Table locks not tight.

2.

Workpiece not secure.

3.

Spindle speed/feed rate is too fast.

4.

Spindle extended too far down at
beginning of operation.

5.

Quill lock lever not tight.

6.

Gibs too loose in table (SB1116).

1.

Table locked.

2.

Chips loaded up on ways.

3.

Ways dry and need lubrication.

4.

Table limit stops interfering.

5.

Gibs too tight (SB1116).

1.

Tighten table locks (Page 34).

2.

Properly clamp workpiece on table or in vise.

3.

Reduce spindle speed (Page 42); reduce feed rate.

4.

Fully retract spindle (this increases rigidity), and
raise table (Pages 34 & 41).

5.

Tighten quill lock lever (Page 41).

6.

Tighten gibs (Page 54).

1.

Disengage table locks (Page 34).

2.

Frequently clean away chips that load up during
operations.

3.

Lubricate ways.

4.

Adjust table limit stops out of the way (Page 35).

5.

Adjust gibs (Page 54).

-60-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

TROUBLESHOOTING

Symptom Possible Cause Possible Solution

Bad surface finish.

Cutting/drilling
results not square.

Spindle overheats.

Lack of power at
spindle.

Spindle does not
fully retract.

Drill bit/cutter
drifts

1.

Spindle speed/feed rate too fast.

2.

Dull or incorrect cutting tool/bit.

3.

Wrong rotation direction of cutting
tool.

4.

Workpiece not secure.

5.

Spindle extended too far down at
beginning of operation.

1.

Table and spindle not at 90° to each
other.

2.

Table travel is inconsistent.

1.

Machine operated at high speeds
for extended period.

1.

Wrong voltage.

1.

Poorly adjusted return spring.

2.

Debris on spindle/quill rack.

3.

Worn return spring.

1.

Dull/incorrectly sharpened drill bit.

2.

Tool/bit/chuck incorrectly installed.

3.

Bit being ran in wrong direction.

1.

Reduce spindle speed (Page 42); reduce feed rate.

2.

Sharpen cutting tool or select one that better suits
the operation.

3.

Reverse cutting tool rotation.

4.

Properly clamp workpiece on table or in vise.

5.

Fully retract spindle (this increases rigidity), and
raise table (Pages 34 & 41).

1.

Tram spindle (Page 56).

2.

Adjust gibs (SB1116) (Page 54).

1.

Allow machine to cool; avoid operating at high
speeds for extended amount of time.

1.

Ensure correct voltage (Page 16).

1.

Increase return spring tension (Page 58).

2.

Clean spindle/quill rack.

3.

Replace return spring.

1.

Correctly sharpen drill bit.

2.

Correctly re-install tool/bit/chuck.

3.

Reverse direction of spindle.

Drill bit/cutter
stuck in workpiece.

Workpiece thrown
from table.

Excessive runout
or wobbling in
chuck/drill bit.

Backside of
workpiece
splinters.

Power Feed

Power feed does
not move table or is
slipping.

1.

Workpiece squeezing drill bit, or
feed rate too fast.

2.

Spindle speed/feed rate too slow.

1.

Workpiece not secure; tool/bit too
large for feed speed.

1.

Debris between chuck-to-spindle
mating surface.

2.

Tool/bit bent.

3.

Tool/bit installed incorrectly.

4.

Spindle bearings worn.

1.

Scrap board not installed between
table and workpiece.

1.

Table locked.

2.

Direction lever not engaged.

3.

Gears not meshing or teeth missing.

4.

Motor shaft and gear shaft not
engaged.

1.

Properly clamp workpiece on table or in vise;
decrease feed rate.

2.

Increase spindle speed; increase feed rate.

1.

Properly clamp workpiece on table or in vise.

1.

Remove chuck, clean, deburr tapered chuck and
spindle mating surfaces, reassemble.

2.

Replace with straight tool/bit.

3.

Correctly re-install tool/bit/chuck.

4.

Replace spindle bearings.

1.

Install scrap board between tabe and workpiece.

1.

Disengage table locks (Page 34).

2.

Select speed, engage direction lever (Page 35).

3.

Check gears and adjust/replace.

4.

Replace clutch.

1.

Operates at high
speed only or is
inconsistent.

Rapid traverse button at fault.

2.

Wiring harness unplugged from
circuit board.

1.

Inspect/replace rapid traverse button.

2.

Reconnect wiring harness.

-61-

South Bend Tools

Model SB1115/ SB1116

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modifications:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at [phone].

ELECTRICAL

ELECTRICAL

For Machines Mfd. Since 1/21

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may
make changes to the electrical systems of future machines. Study this section carefully. If you see
differences between your machine and what is shown in this section, call Technical Support at (360)
734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the
machine is connected to the power source.
Touching electrified parts will result in
personal injury including but not limited to
severe burns, electrocution, or death. For
your own safety, disconnect machine from
the power source before servicing electrical
components or performing any wiring tasks!

All connections must be
tight to prevent wires from loosening during
machine operation. Double-check all wires
disconnected or connected during any wiring
task to ensure tight connections.

Using aftermarket parts or
modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.

The motor wiring shown in these
diagrams is current at the time of printing,
but it may not match your machine. Always
use the wiring diagram inside the motor

to an improperly sized circuit will greatly
increase the risk of fire. To minimize
this risk, only connect the machine to a
power circuit that meets the minimum
requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected
from the power source. To reduce the risk of
being shocked, wait at least this long before
working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious
personal injury, fire, or machine damage. If
you notice that any wires or components are
damaged while performing a wiring task,
replace those wires or components before
completing the task.

Experiencing Difficulties: If you are

experiencing difficulties understanding the
information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

-62-

WIRING DIAGRAM COLOR KEY

BLUE
WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can
see them in color at www.southbendtools.com.

RED

LIGHT
BLUE

ORANGE

PINK

PURPLE

TUR­QUIOSE

WHITE

YEL LOW
GREEN

YEL LOW

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

ELECTRICAL

Wiring Diagram

!

WARNING!

P1

P2

DEC/B

COMP

P3

MAX

MIN

ACC

!

(Viewed from Side)

11

3

COM

21

S2

S2

CL

200V

1500MFD

C3

SHOCK HAZARD!

Disconnect power
before working on
wiring.

Headstock

1

4

14

SCHRACK

NO

RT424730

10A 250V

24

1.5HP - POWER S UPPLY #2
A57560 REV-A05

Circuit Board

C5 C4

200V

1500MFD

200V

1500MFD

4

200V

1500MFD

S1

COIL

Wiring Diagram

220V 3-Ph Motor

220V Motor

DRO Sensor

DRH

DA-1805NO-3M

10-30VDC

12

22

WAGO 264

L1

L2

L2

L2

L2
L1

Back of Control Panel

L1

FA2FUSE

CN1

CN2

L1

L2

A1

L2

A2

4

L1

L1

115VAC

W

230VAC

C2

V

MOTOR

U

RPM DRO

Circuit Board

ON/OFF Button

NHD NLB22-D

4

3

L2

3

R

3

4

3

4

3

G

1

4

U1

V1

W1

Rotation Switch

2

1

S3

Top Mark

E2MOPA07

D21H15

NHD NSS22- S

S2

S2

S1

L2

L1

AUSPICIOUS

600V 20A

L1

L2

7

3

1

5

6

2

8

4

L1

Master Power Switch

(Top View)

L2

S3

P1P2P3

Potentiometer

A60212

Ground

Hot

220
VAC

Hot

Emergency Stop/

Reset Button

KEDU HY57B

1

2

G

6-15 Plug

-63-

South Bend Tools

Model SB1115/ SB1116

ELECTRICAL

Electrical Component Pictures

For Machines Mfd. Since 1/21

Electrical Electrical

BoxBox

Control Control

PanelPanel

Figure Figure 108. Electrical component wiring overview.

MotorMotor

Figure Figure 110. Electrical box wiring.

Figure Figure 109. Motor wiring.

-64-

Figure Figure 111. Control panel wiring.

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

ELECTRICAL

Power Feed Wiring Diagram (SB1116)

X-/Y-Axis Limit Switch

DC2

10.1A 250V

DC2

10.1A 250V
¼HP 125V

11332

¼HP 125V

2

X-AxisX-Axis

Power FeedPower Feed

Figure Figure 113. SB1116 additional electrical components.

X-AxisX-Axis

Limit SwitchLimit Switch

X-/Y-Axis Power Feed Unit

ALIGN AL-500D

Figure 112. X-/Y- Axis Power Feed Wiring.

Figure Figure 114. X-axis limit switch wiring.. X-axis limit switch wiring.

-65-

South Bend Tools

Model SB1115/ SB1116

PARTS

Headstock

PARTS

For Machines Mfd. Since 1/21

1

40

39

36-1

23

2

38

21

88

35

22

1-15

83

4

21

GEAR DRIVEN INFINITY VARIABLE SPEED

CHANGE SPEED ONLY WHEN
MACHINE IS STOPPED

NUR IM STILLSTAND SCHALTEN

CHANGER LA VITESSE QU,EN
POSITION D,ARRET

13

12

11

10

9

8

7

6

5

4

3

2

1

0

CM

36-2

20-2

1-19

H

5

L

4

0 - 350 RPM

H

0 - 2500 RPM

3

MILL

2

1

0

IN

20

L

DRILL

26

82

1-11

79

20-1

1-8

34

19

27

80

28

17-2

25

1-13

1-7

84

17

17-1

29

35

3

24

1-14

1-12

12

16

14

1-6

13

7

1-5

1-2

1-1

41

1-17

1-16

9

10

11-1
11-1
11-2

11-3

11-4

15

6

8

1-21

1-3

31

1-18

54-3

1-4

1-20

32

54-5

42

60-3

33

6-3

54-3

54-4

60-2

11-5

68

70-2

30

54-2

60-1

6-1

70-1

52

51

54-1

60-4

11

69

53

60

6-2

50

70

58-2

54

58-1

58

57

78

6-4

6-5

49

55

43

62

56

47

48

44

45

46

66

67

64

65

63

73

36

-66-

11-8

11-7

11-6

75

85

86

87

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

REF PART # DE SCRIPT ION REF PART # DE SCRIPT ION

1 PSB1115001 HEADSTOCK ASSEMBLY 16 PSB1115016 Q UILL DEPTH S TOP B LOCK

1-1 PSB1115001-1 HEADSTOCK CASTING 17 PSB1115017 SPRING BASE ASSEMBLY

1-2 PSB1115001-2 HEADSTOCK COVER 17-1 PSB1115017-1 SPRING BASE

1-3 PSB1115001-3 VENT PLUG 1/8" NPT 17-2 PSB1115017-2 DOWEL PIN 3 X 1 2

1-4 PSB1115001-4 OIL F ILL PLUG 3/8" NPT 19 PSB1115019 PHLP HD SCR 10-24 X 3/4

1-5 PSB1115001-5 TA PER PIN 10.3 X 30 20 PSB1115020 RETURN SPRIN G ASS EMBLY

1-6 PSB1115001-6 CAP SCREW 5/16-18 X 1-1/4 20-1 PSB1115020-1 FLAT COILED SPRIN G

1-7 PSB1115001-7 SPEED RANGE SHIFT LEVER 20-2 PSB1115020-2 RETURN SPRIN G COVER

1-8 PSB1115001-8 SPEED RANGE SHIFT SHAFT 21 PSB1115021 LOCK WASHER 1/4

1-11 PSB1115001-11 EXT RETA IN ING RING 12MM 22 PSB1115022 FENDER WASHER 1/4

1-12 PSB1115001-12 CAP SCREW 1/4-20 X 1/2 23 PSB1115023 CAP SCREW 1/4-20 X 5/8

1-13 PSB1115001-13 S PEED RAN GE SHIFT FORK 24 PSB1115024 ALIGNMENT PIN 3/8-16 X 38

1-14 PSB1115001-14 DOWEL P IN 4 X 1 6 25 PSB1115025 HEX NUT 3/8 -1 6

1-15 PSB1115001-15 OIL SEAL 12 X 22 X 7 26 PSB1115026 ADJUSTAB LE HAN DLE 9"L, 1/2-13 X 2-3/4

1-16 PSB1115001-16 OIL DRAIN PLUG 1/4" N PT 27 PSB1115027 FLAT WASHER 1/2

1-17 PSB1115001-17 OIL SIGHT GLASS 30MM 28 PSB1115028 LOCK PLUNGER SLEEVE

1-18 PSB1115001-18 O-RING 28 X 2.6 29 PSB1115029 OUTSIDE LOCK PLUNGER

1-19 PSB1115001-19 OIL SEA L C OVER 12M M 30 PSB1115030 INSIDE LOCK PLUNGER

1-20 PSB1115001-20 CAP SCREW 5/16-18 X 2 31 PSB1115031 LOCK N UT 5/8 -11

1-21 PSB1115001-21 TAPER PIN 1 0.3 X 50 32 PSB1115032 DOCK WASHER 5/8 X 1-9/16 X 1/8

2 PSB1115002 S PIN DLE COVER 33 PSB1115033 HEX BOLT 5/8-11 X 5-1/2

3 PSB1115003 DRAWBAR MT#3 3/8-16 (SB1115) 34 PSB1115034 HEADSTOCK FACEPLATE

3 PSB1116003 DRAWBAR R8 7/16-20 X 16-5/16 (SB1116) 35 PSB1115035 BUTTON HD CAP SCR 10-24 X 3/8

4 PSB1115004 PHLP HD SCR M4-.7 X 10 36 PSB1115036 SPEED RANGE LEVER ASSEMBLY

6 PSB1115006 MOTOR 1 H P 220V/440 V 3-PH 36-1 PSB1115036-1 S PEED RANGE LEVER

6-1 PSB1115006-1 MOTOR F AN COVER 36-2 PSB1115036-2 SET SCREW M5-.8 X 1 6 CONE-PT

6-2 PSB1115006-2 MOTOR FAN 38 PSB1115038 DEPTH IN DICA TOR

6-3 PSB1115006-10 MOTOR JUN CTION BOX 39 PSB1115039 FLAT WASHER 1/8

6-4 PSB1115006-3 B ALL BEARING 620 3ZZ (REAR) 40 PSB1115040 PHLP HD SCR 1/8 X 1/4

6-5 PSB1115006-4 B ALL BEARING 6204Z Z (FRONT) 41 PSB1115041 DUST SHIELD

7 PSB1115007 CAP SCREW 3/8-16 X 1 42 PSB1115042 PHLP HD SCR 10-24 X 3/8

8 PSB1115008 KEY 6 X 6 X 30 RE 43 PSB1115043 HEAD ADAPTER

9 PSB1115009 Q UILL S EAL (RUBBER) 44 PSB1115044 HEAD TILT SCALE

10 PSB1115010 DEPTH ROD MOUN T 45 PSB1115045 TILT S CA LE INDICATOR

11 PSB1115011 PINION ASSEMBLY MT#3 (SB1115) 46 PSB1115046 RIVET 2 X 4M M, STEEL

11 PSB1116011 PINION ASSEMBLY R8 (SB1116) 47 PSB1115047 PHLP HD SCR 10-24 X 3/8

11-1 PSB1115011-1 SPANNER NUT M30-1.5 48 PSB1115048 HEX BOLT 5/8-11 X 5-1/2

11-2 PSB1115011-2 EXT TOOTH WASH ER 30MM 49 PSB1115049 DOCK WASHER 5/8 X 1-9/16 X 1/8

11-3 PSB1115011-3 TAPERED ROLLER BEA RIN G E3020 6J 50 PSB1115050 H EX NUT 5/8 -11

11-4 PSB1115011-4 QUILL MT#3 (SB1115) 51 PSB1115051 PINION SHAFT

11 -4 PSB1116011-4 QUILL R8 (SB1116) 52 PSB1115052 FLAT H D SCR 10-2 4 X 1 /2

11-5 PSB1115011-5 TA PERED ROLLER BEARING 3020 7J 53 PSB1115053 KEY 7 X 7 X 20 RE

11-6 PSB1115011-6 SPINDLE MT#3 (SB1115) 54 PSB1115054 WORM SHAFT ASSEMBLY

11 -6 PSB1116011-6 SPINDLE R8 (SB1116) 54-1 PSB1115054-1 WORM SHAFT HOUSING

11-7 PSB1115011-7 S PIN DLE EN D CAP 54-2 PSB1115054-2 WORM SHAFT

11-8 PSB1115011-8 S ET S CREW 8-32 X 1/4 54-3 PSB1115054-3 B ALL BEA RIN G 6202ZZ

12 PSB1115012 QUILL DEPTH LEADSCREW ASSY 1/2-10 X 8.5 54-4 PSB1115054-4 EXT RETA IN IN G RING 15MM

13 PSB1115013 Q UILL DEPTH S UPPORT NUT 1/2-1 0 54-5 PSB1115054-5 BEARIN G SPA CER 34 X 27.5 X 30

14 PSB1115014 HEX BOLT 1/4-20 X 2 55 PSB1115055 CAP SCREW 5/16-18 X 3/4

15 PSB1115015 HEX NUT 1/4-20 56 PSB1115056 WORM SHAF T END C OVER

PARTS

Headstock Parts List

-67-

South Bend Tools

Model SB1115/ SB1116

REF PART # DE SCRIPTION REF PAR T # DE SCR IPT ION

PARTS

For Machines Mfd. Since 1/21

Headstock Parts List (Continued)

57 PSB1115057 CAP SCREW 10-24 X 1/2 70 PSB1115070 INDEX PIN ASSEMBLY

58 PSB1115058 FIN E DOWNFEED DIAL ASSEMBLY 70-1 PSB1115070-1 INDEX PIN M6-1 X 18, 6.5 X 34

58-1 PSB1115058-1 FIN E DOWN F EED GRADUA TED DIA L 70-2 PSB1115070-2 HEX N UT 6-1

58-2 PSB1115058-2 SET SCREW 1/4-20 X 5/16 73 PSB1115073 L-WRENCH 13MM X 23MM

60 PSB1115060 FIN E DOWNFEED HAN DWHEEL ASSEMBLY 75 PSB1115075 CHUCK A RB OR MT#3 X JT6 (SB 1115)

60-1 PSB1115060-1 HAN DWHEEL TYPE-24 4D X 1/2B X 5-16-18 75 PSB1116075 CH UCK ARB OR R8 X JT6 (SB11 16)

60-2 PSB1115060-2 HOLLOW HA N DLE 5/1 6, 1 X 1 ALUMINUM 78 PSB1115078 DRIFT KEY (SB 1115)

60-3 PSB1115060-3 SHOULDER SCREW 5/16-18 X 1/4, 3/8 X 1 79 PSB1115079 RPM S EN SOR BRA CKET

60-4 PSB1115060-4 SET SCREW 5/16-18 X 5/16 80 PSB1115080 PHLP HD SCR M3-.5 X 5

62 PSB1115062 WORM GEAR 82 PSB1115082 PHLP HD SCR M3-.5 X 20

63 PSB1115063 COMPRESSION SPRING 2.4 X 17.5 X 25 83 PSB1115083 RPM SEN SOR DRH DA -1805N O-13 10 -30VDC

64 PSB1115064 COARSE DOWNFEED LEVER HUB 84 PSB1115084 HEADSTOCK COVER

65 PSB1115065 KN OB BOLT 3/ 8 -1 6 X 1 5/8 , 6-LOBE 85 PSB1115085 HEX WRENCH 3MM

66 PSB1115066 FIXED HANDLE 1/2-13, 1-1/4 X 4-3/8 86 PSB1115086 HEX WRENCH 4MM

67 PSB1115067 SHAFT 1/2-13 X 3/4, 6 -3/4L 87 PSB1115087 HEX WRENCH 5MM

68 PSB1115068 HEADSTOCK ADAPTER COVER PLA TE 88 PSB1115088 C ON TROL PAN EL BOX

69 PSB1115069 PHLP HD SCR 1/4-20 X 3/8

-68-

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PARTS

Gearbox

121

101

102

103

104

132

108

109

110

111

115

130

116

108

109

110

118

121

124

125

126

127

104

131

105

110

117

122

110

106

110

107

REF PAR T # DE SCR IPTION REF PART # DE SCR IPT ION

101 PSB1115101 OIL SEAL 40 X 68 X 8 117 PSB1115117 BUSHING

102 PSB1115102 INT RETAINING RING 68MM 118 PSB1115118 GEAR SHAFT

103 PSB1115103 EXT RETAIN IN G RIN G 40MM 121 PSB1115121 EXT RETAIN IN G RING 20MM

104 PSB1115104 BA LL B EA RIN G 60 08ZZ 122 PSB1115122 GEA R 31T

105 PSB1115105 GEA R 53T 124 PSB1115124 OIL SEAL 35 X 62 X 8

106 PSB1115106 OIL S EA L 35 X 45 X 8 125 PSB1115125 IN T RETA IN ING RING 62MM

107 PSB1115107 OIL SEAL RIN G 126 PSB1115126 B ALL BEARING 6007ZZ

108 PSB1115108 BEA RIN G COVER 35MM 127 PSB1115127 GEAR SHAFT

109 PSB1115109 IN T RETAINING RING 35MM 129 PSB1115129 GEA R 28 T

110 PSB1115110 BALL BEARING 620 2ZZ 130 PSB1115130 COMPRESSION SPRING 0.8 X 7 X 15

111 PSB1115111 GEAR SHAFT ASSEMBLY 15T/41T 131 PSB1115131 CAP SCREW M6-1 X 8

115 PSB1115115 STEEL B ALL 5/16 132 PSB1115132 H EX NUT M6-1

116 PSB1115116 COMBO GEA R 1 6 T/42 T

129

-69-

South Bend Tools

Model SB1115/ SB1116

PARTS

SB1115 Column & Table

216

240

213

For Machines Mfd. Since 1/21

241

239

224

219

220

221

225

212

222

223

211

209

208

210

207

206

205

204

240

202

218

228

229

227

234

239

226

230

233

232

235

235-1

235-2

235-3

232

231

-70-

201

236

237

238

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PARTS

SB1115 Column & Table Parts List

REF PAR T # D E SCR IPT ION REF PAR T # D E SCR IPT ION

201 PSB1115201 BASE 225 PSB1115225 Z-AXIS LOCK S HAF T 1/2-13 X 5/8, 4-3/8L

202 PSB1115202 COLUMN COLLAR (LOWER) 226 PSB1115226 WORM GEA R 33T

204 PSB1115204 RACK RING B ASE 227 PSB1115227 WORM S HAFT

205 PSB1115205 S TEEL B ALL 10MM 228 PSB1115228 THRUST BEARING 511 03

206 PSB1115206 ROLL PIN 5 X 38 229 PSB1115229 Z-AXIS CRANK BRACKET

207 PSB1115207 RACK RING 230 PSB1115230 CAP SCREW 5/16-18 X 1

208 PSB1115208 HEX NUT 5/16-18 231 PSB1115231 SHAFT

209 PSB1115209 SET SCREW 5/16-18 X 13/16 DOG-PT 232 PSB1115232 SET SCREW 1 /4 X 3/8

210 PSB1115210 COLUMN 233 PSB1115233 Z-AXIS CRANK

211 PSB1115211 RA CK 234 PSB1115234 LOCK WASHER 5/16

212 PSB1115212 TAB LE 235 PSB1115235 Z-AXIS CRANK HANDLE

213 PSB1115213 COLUMN COLLAR (UPPER) 235-1 PSB1115235-1 CAP S CREW 3/8-16 X 3-1/2

216 PSB1115216 COLUMN CAP 235-2 PSB1115235-2 HOLLOW HANDLE 3/8, 1D X 2-3/4L (A LUMINUM)

218 PSB1115218 SCREEN 235-3 PSB1115235-3 HEX N UT 3/8-1 6

219 PSB1115219 H EX NUT 3/8 -1 6 236 PSB1115236 U-BOLT 1/2-13

220 PSB1115220 FLAT WASHER 3/8 237 PSB1115237 U-BOLT RETAIN ING BLOCK

221 PSB1115221 Z-A XIS LOCK H A NDLE 16D X 4 5L 238 PSB1115238 HEX NUT 1/2-13

222 PSB1115222 HEX NUT 5/8-11 239 PSB1115239 SET SCREW 1/2-13 X 5/8

223 PSB1115223 FLAT WASHER 5/8 240 PSB1115240 BUSHING (BRASS)

224 PSB1115224 LOCK PLUNGER Z-A XIS 241 PSB1115241 SET SCREW 5/16-18 X 5/16

-71-

South Bend Tools

Model SB1115/ SB1116

PARTS

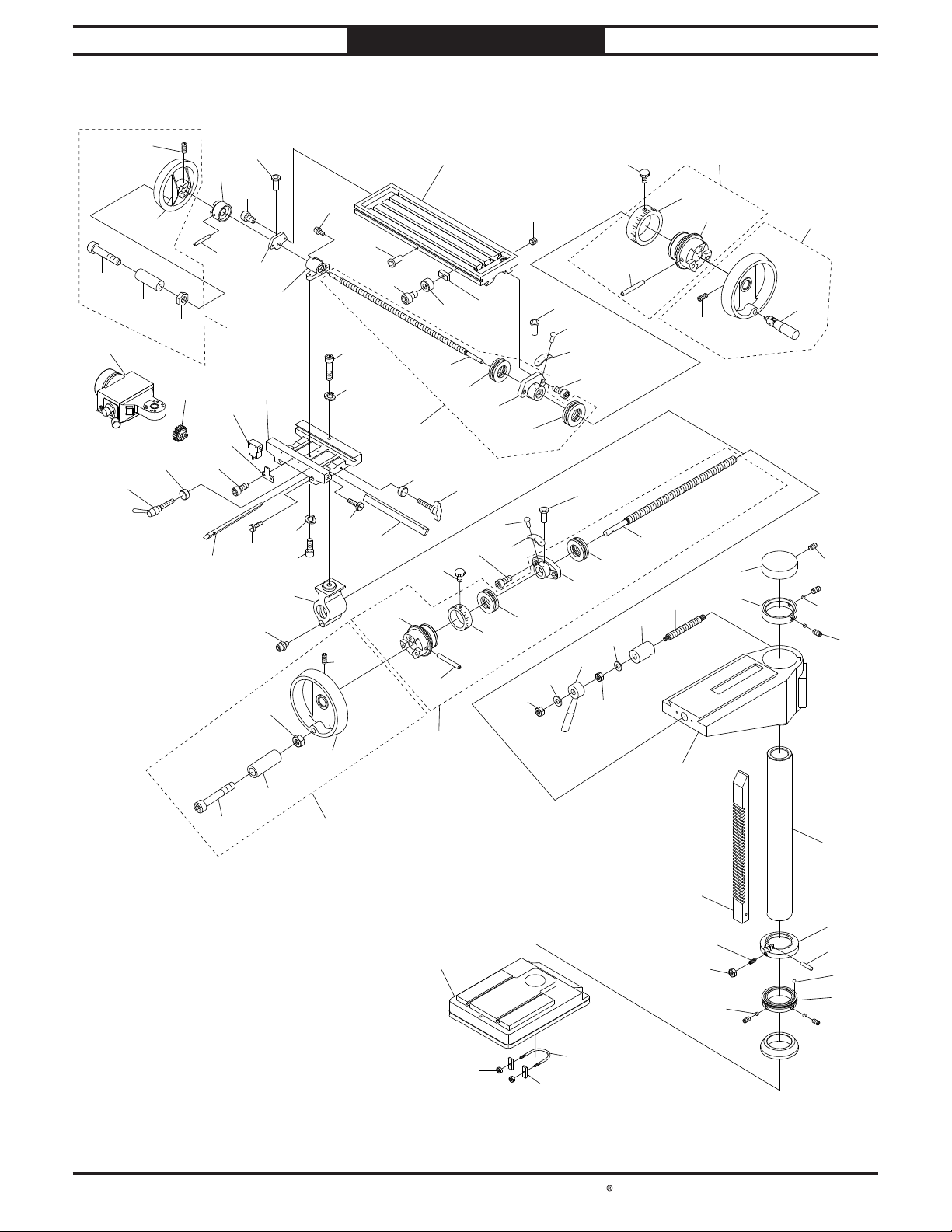

SB1116 Column & Table

For Machines Mfd. Since 1/21

306-2

306-5

372

327

306-1

306-4

326

306-3

374

324

309

323

322

310

373

305

312

306

325

314

311

313

320

369

329

331

306-3

314

325

306-2

305

330

369

304

321

332-5

316-1

316

326

332-6

301

303

317

302

316-2

328

312

0

316-3

319

318

332-4

370

316-2

0

332-2

354

353

0

305

319

318

355

312

305

332-2

332-3

357

356

317

0

316-6

358

332-1

359

316-4

316-5

307-2

316

333

335

307

307-1

307-3

334

371

336

-72-

306-5

306-4

306-1

306

332

349

352

351

350

338

340

344

343

371

339

341
342

345

346

347

348

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PARTS

SB1116 Column & Table Parts List

REF PART # DE SCRIPTION REF PART # DE SCRIPTION

301 PSB1116301 TA B LE 330 PSB1116330 CAP SCREW 5/16-18 X 2-1/4

302 PSB1116302 SLIDE N UT 1/4-2 0 331 PSB1116331 Y-AXIS LEADSCREW NUT 23-1/2 X 10

303 PSB1116303 LIMIT STOP 332 PSB1116332 Y-AXIS LEADSCREW ASS EMB LY

304 PSB1116304 CAP SCREW 1/4-20 X 1/2 332-1 PSB1116332-1 Y-AXIS LEADSCREW 23-1/2 X 10

305 PSB1116305 B ALL OILER 1/4 PRESS -IN 332-2 PSB1116332-2 TH RUST BEARING 511 03

306 PSB1116306 Y-AXIS HANDWHEEL ASSEMBLY 332-3 PSB1116332-3 Y-AXIS LEADSCREW BRACKET

306 -1 PSB1116306-1 H ANDWHEEL TYPE-22 120D X 17B-S X 3/8-16 332-4 PSB1116332-4 GRADUATED COLLAR (IN CH )

306 -2 PSB1116306-2 S ET S CREW M6-1 X 8 332 -5 PSB1116332-5 Y-AXIS LEADSCREW CLUTCH

306 -3 PSB1116306-3 H EX NUT 3/8-16 332-6 PSB1116332-6 ROLL PIN 5 X 38

306 -4 PSB1116306-4 HOLLOW HAN DLE 3/8 , 1 D X 2-3/4L ALUMIN UM 333 PSB1116333 COLUMN CAP

306 -5 PSB1116306-5 CA P SC REW 3/ 8-16 X 3-1/2 334 PSB1116334 SET SCREW 5/16-18 X 5/16

307 PSB1116307 X-AXIS HANDWHEEL ASSEMBLY 335 PSB1116335 COLUMN COLLAR (UPPER)

307-1 PSB1116307-1 HANDWHEEL TYPE-22 120D X 17B-S X M10-1.5 336 PSB1116336 SET SCREW 1/2-13 X 5/8

307-2 PSB1116307-2 SET SCREW 1 /4-20 x 3/8 338 PSB1116338 KNEE

307-3 PSB1116307-3 FOLDING HANDLE M10-1.5 X 12, 23 X 90 339 PSB1116339 COLUM N

309 PSB1116309 X-AXIS LEADSCREW CLUTCH (LEFT) 340 PSB1116340 RACK

310 PSB1116310 ROLL PIN 5 X 38 341 PSB1116341 RA CK RIN G

311 PSB1116311 X-AXIS LEADSCREW BRACKET (LEFT) 342 PSB1116342 ROLL PIN 5 X 38

312 PSB1116312 CAP SCREW 5/16-18 X 1 343 PSB1116343 SET SCREW 5/16-18 X 13/16 DOG-PT

313 PSB1116313 X-AXIS LEADSCREW NUT 23-1/2 X 10 344 PSB1116344 HEX NUT 5/16-18

314 PSB1116314 CAP SCREW M5-.8 X 16 345 PSB1116345 STEEL B ALL 10 MM

316 PSB1116316 X-AXIS LEADSCREW ASSEMBLY 346 PSB1116346 RACK RIN G BAS E

316 -1 PSB1116316-1 X-AXIS LEADSCREW 23-1/2 X 10 347 PSB1116347 SET SCREW 1 /2 -13 X 5/8

316 -2 PSB1116316-2 THRUST B EARING 511 03 348 PSB1116348 COLUMN COLLAR (LOWER)

316 -3 PSB1116316-3 X-AXIS LEADSCREW BRA CKET (RIGHT) 349 PSB1116349 BASE

316 -4 PSB1116316-4 GRADUATED COLLAR (IN CH) 350 PSB1116350 U-B OLT 1/2-13

316 -5 PSB1116316-5 X-AXIS LEADSCREW CLUTCH (RIGHT) 351 PSB1116351 U-B OLT RETAIN IN G BLOCK

316 -6 PSB1116316-6 ROLL PIN 5 X 38 352 PSB1116352 HEX NUT 1/2-13

317 PSB1116317 KNURLED THUMB SCREW 1/4-20 X 1/2, 1/2D 353 PSB1116353 HEX N UT 3/8-16

318 PSB1116318 DIAL INDICATOR 354 PSB1116354 FLAT WASHER 3/8

319 PSB1116319 RIVET 2 X 4MM, S TEEL 355 PSB1116355 Z-AXI S LOCK H AN DLE 1 6D X 45L

320 PSB1116320 TABLE BASE 356 PSB1116356 HEX N UT 5/8-1 1

321 PSB1116321 GIB (X-AXIS) 357 PSB1116357 FLAT WASHER 5/8

322 PSB1116322 GIB (Y-AXIS) 358 PSB1116358 LOCK PLUNGER (Z-AXIS)

323 PSB1116323 LIMIT S TOP B RACKET 359 PSB1116359 Z -AXIS LOCK SHAFT 1 /2-13 X 5/8, 4-3/8L

324 PSB1116324 CAP SCREW 5/16-18 X 1/2 369 PSB1116369 LOCK WASHER 5/16

325 PSB1116325 GIB BOLT 5/16-18 X 1 370 PSB1116370 DRAIN PLUG 1/4 NPT

326 PSB1116326 BUSHING 371 PSB1116371 BUSHING (BRASS)

327 PSB1116327 ADJUSTABLE HAN DLE 2L, 5/16-1 8 X 1-3/8 372 PSB1116372 POWER FEED UNIT ALIGN AL-500D

328 PSB1116328 T-KNOB 5/16-18 X 1-5/8 373 PSB1116373 LIMIT SWITCH ALIGN DC2

329 PSB1116329 CAP SCREW 5/16-18 X 1 374 PSB1116374 X-AXIS LEADSCREW GEAR 56T

-73-

South Bend Tools

Model SB1115/ SB1116

PARTS

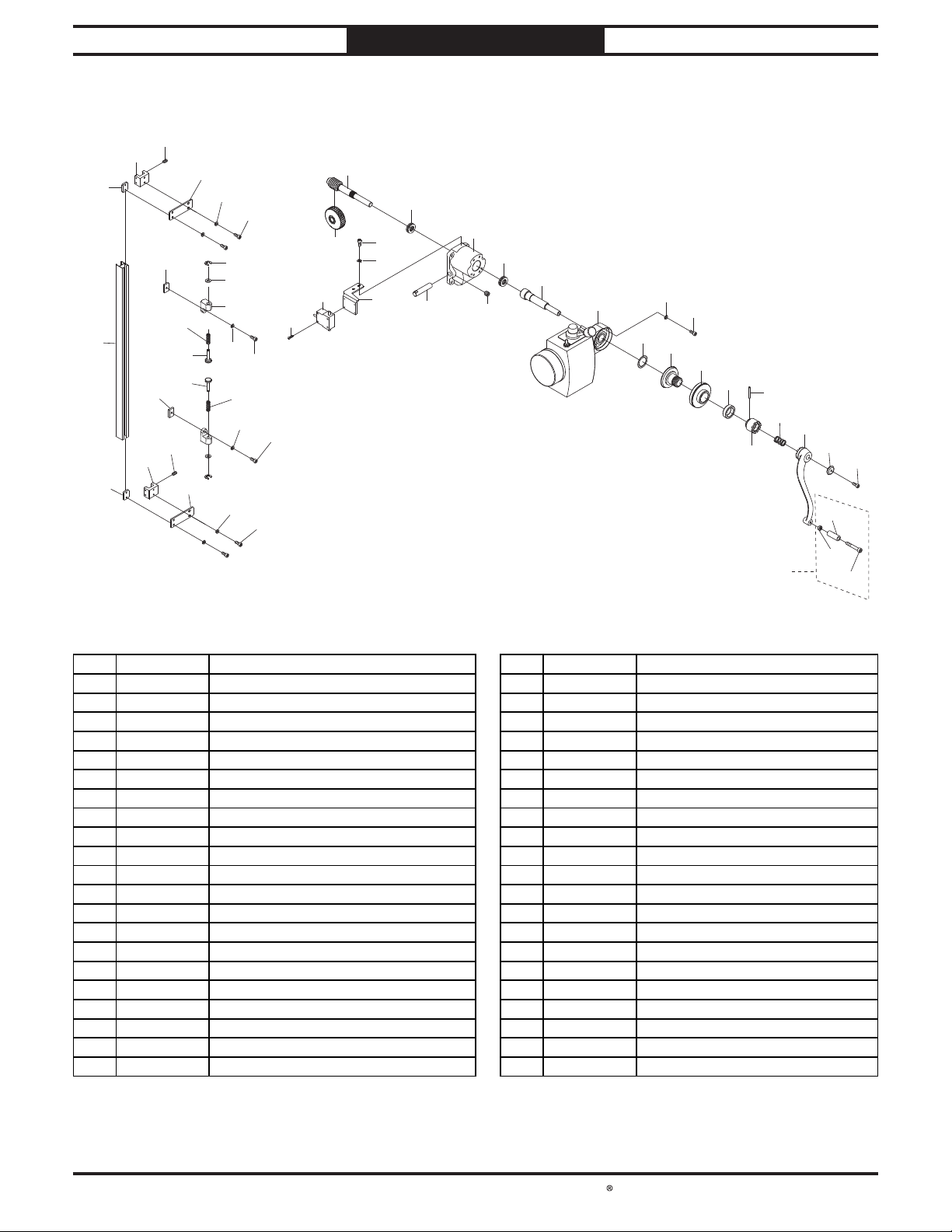

SB1116 Z-Axis Power Feed

437

435

434

436

436

429

429

432

433

437

433

438

439

441

427

428

430

432

441

440

426

431

431

402

401

422
423

424

403

405

404

403

407

406

408

For Machines Mfd. Since 1/21

409425

410

411

412

413

414

415

417

418

416

419

420

435

438

439

440

421

421-1

421-3

421-2

REF PAR T # D E SCR IPT ION REF PART # DESCR IPTION

401 PSB1116401 WORM SHAF T 421-2 PSB1116421-2 CA P SCREW 3/8 -1 6 X 3-1/2

402 PSB1116402 WORM GEAR 33T 421-3 PSB1116421-3 HEX NUT 3/8 -1 6

403 PSB1116403 THRUST B EARING 511 04 422 PSB1116422 CAP SCREW M6-1 X 15

404 PSB1116404 Z-AXIS CRANK B RACKET 423 PSB1116423 LOCK WASHER 6MM

405 PSB1116405 SHAFT 424 PSB1116424 Z-AXIS LIMIT SWITCH BRACKET

406 PSB1116406 S ET S CREW M6-1 X 10 425 PSB1116425 LIMIT SWITCH TIGER HIGHLY VS10N021C

407 PSB1116407 Z-AXIS POWER FEED SHAFT 426 PSB1116426 PHLP HD SCR M3-.5 X 20

408 PSB1116408 Z-AXIS POWER FEED ASSY ALIGN AL-500D 427 PSB1116427 E-CLIP 6MM

409 PSB1116409 LOCK WASHER 8MM 428 PSB1116428 FLAT WASHER 8MM

410 PSB1116410 CAP SCREW M8-1.25 X 35 429 PSB1116429 LIMIT S TOP CLAM P PLATE

411 PSB1116411 SPACER 430 PSB1116430 Z-AXIS LIMIT STOP BLOCK

412 PSB1116412 BEVEL GEAR 431 PSB1116431 CAP SCREW M8-1.25 X 15

413 PSB1116413 BEVEL GEAR COVER 432 PSB1116432 COMPRESSION SPRING 1 X 11 X 34

414 PSB1116414 KN URLED COLLAR 433 PSB1116433 LIMIT STOP PLUN GER

415 PSB1116415 ROLL PIN 5 X 30 434 PSB1116434 GUIDE SHAFT

416 PSB1116416 DETENT COLLAR 435 PSB1116435 LIM IT S TOP ASSEMB LY CLAM P PLATE

417 PSB1116417 COMPRESSION SPRING 1.5 X 10 X 37 436 PSB1116436 LIMIT S TOP ASSEMB LY MOUNT B LOCK

418 PSB1116418 Z-AXIS CRANK 437 PSB1116437 SET SCREW M6-1 X 10

419 PSB1116419 BEVELED WASH ER 6 X 30 X 5 438 PSB1116438 LIMIT S TOP ASSEMB LY MOUNT BRACKET

420 PSB1116420 CAP SCREW M6-1 X 20 439 PSB1116439 CAP SCREW M6-1 X 15

421 PSB1116421 Z-AXIS CRANK HANDLE ASSEMBLY 440 PSB1116440 LOCK WASHER 6MM

421-1 PSB1116421-1 HOLLOW HAN DLE 3/8 , 1 D X 2-3/4L (ALUMINUM) 441 PSB1116441 LOCK WASHER 8MM

-74 -

South Bend Tools

For Machines Mfd. Since 1/21 Model SB1115/ SB1116

PARTS

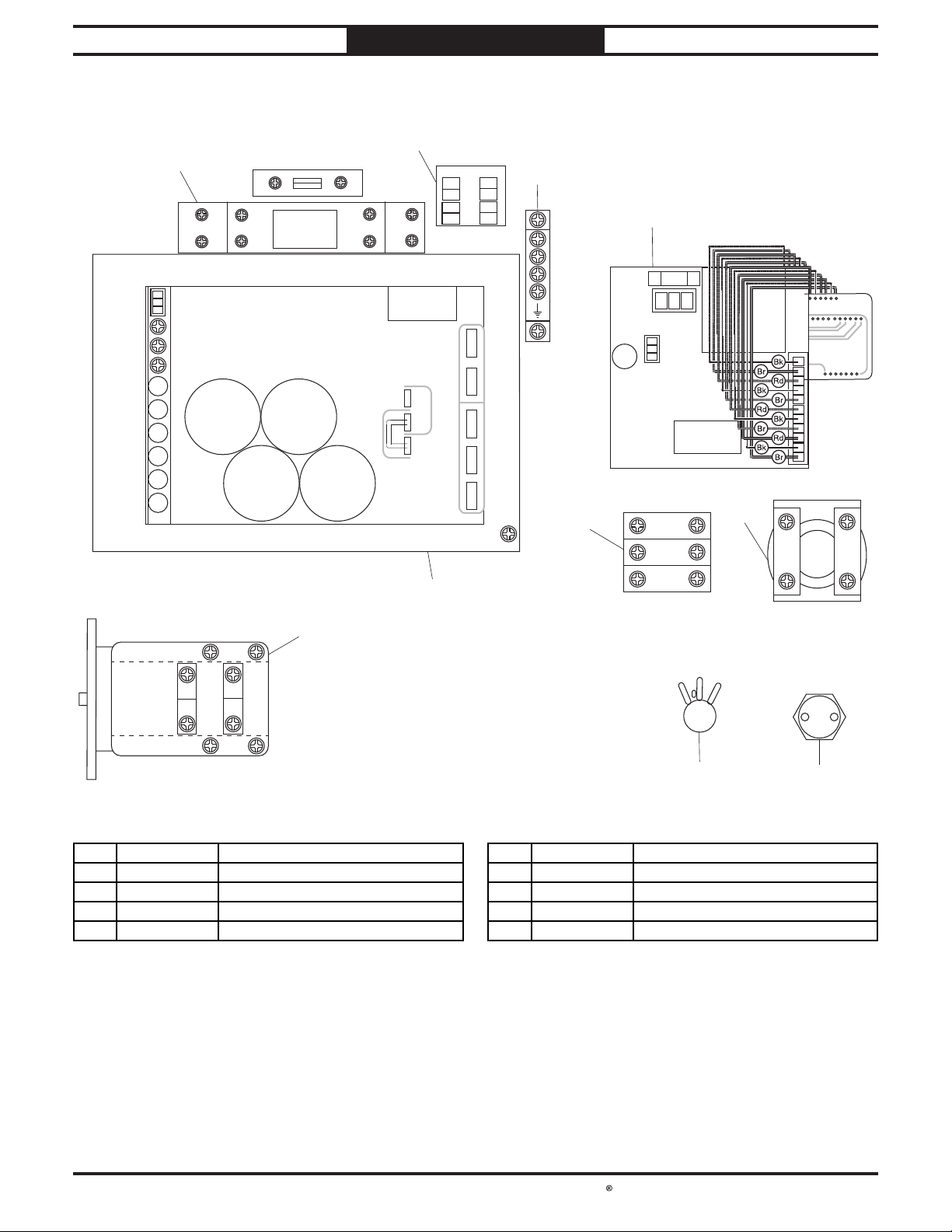

Electrical Components

502

501

11

COM

21

NO

14

SCHRACK
RT424730

10A 250V

24

A1

COIL

A2

12

22

WAGO 264

503

506

FA2FUSE

CL

MAX

MIN

DEC/B

ACC

COMP

AUSPICIOUS

600V 20A

1

2

1.5HP - POWER S UPPLY #2
A57560 REV-A05

C5 C4

200V

1500MFD

C3

200V

1500MFD

7

3

5

6

8

4

200V

1500MFD

505

200V

1500MFD

CN1

L2

L1

115VAC

W

230VAC

C2

V

MOTOR

U

507

CN2

3

NHD NLB22-D

3

3

508

4

4

4

Top Mark

E2MOPA07

D21H15

NHD NSS22- S

504

A60212

KEDU HY57B

REF PAR T # DE SCR IPTION REF PART # DE SCR IPT ION

501 PSB1115501 RELAY RT424730 10A 250V 506 PSB1115506 DRO TOP MARK E2MOP A 0 7 D21H15

502 PSB1115502 WIRE JUN CTION TERMINAL 507 PSB1115507 ON/OFF SWITCH NHD CB-10 22MM

503 PSB1115503 GROUND TERMINA L 4P 508 PSB1115508 ROTARY SWITCH NHD CB-10 22MM

504 PSB1115504 CIRCUIT BOARD REV-A0 5 A57560 509 PSB1115509 POTENTIOMETER A60212 0 249

505 PSB1115505 ROTARY SWITCH AUSP AC-21A 600 V 20A 510 PSB1115510 E-STOP KEDU HY57B 18A 125V/12A 250V

509 510

-75-

South Bend Tools

Model SB1115/ SB1116

Machine Labels

PARTS

For Machines Mfd. Since 1/21

SINCE

1906

SB1115

!

WARNING!

INJURY HAZARD

!

Do not use machine
if you have not read
the manual. Visit
southbendlathe.com
or call 360-734-1540
to get a manual.

!

Always wear ANSI­approved safety
glasses or a face
shield when using
this equipment.

!

ENTANGLEMENT

Remove or secure
loose clothing, hair
or jewelry to reduce
the risk of serious
injury or death.

!

To avoid shock or
accidental starting,
disconnect power
before adjusting or
servicing machine.

WARNING!

EYE INJURY

HAZARD

WARNING!

HAZARD

WARNING!

INJURY/SHOCK

HAZARD

602

13

12

11

10

9

8

7

6

5

4

3

2

1

0

CM IN

H

0–350 RPM

HL0–2500 RPM

5

NOTICE

Change spindle speed

4

or rotation direction
ONLY when spindle is
completely stopped.

3

2

1

0

607
SB1116 Only

1. Rapid traverse. Keep area clear during use.

2. Keep dirt and foreign material out of
powerfeed.

3. Only lubricate bevel gear with graphite
grease.

4. Place handle in neutral position when
powerfeed is turned OFF.

L

NOTICE

601

608

602

CHECK OIL

LEVEL BEFORE USING!

REFER TO
OWNER’S MANUAL
FOR OIL TYPE AND

AMOUNT.

603

NOTICE

Do not fill gearbox beyond
center of oil sight glass
below.

609

610

604

SINCE

1906

Power Req.: 220V, 1-Ph, 60 Hz, 15A
Motor: 1-1/2 HP, 220V, 3-Ph, 60 Hz
Full-Load Current Rating: 5.5A
Swing: 20-3/4"
Dist. Spindle-to-Column: 10-7/16"
Max. Dist. Spindle-to-Table: 17-3/8"
Max. Dist. Spindle-to-Base: 35-3/4"
Spindle Taper: R-8
Spindle Travel: 5"
Number of Spindle Speeds: Variable
Spindle Speed Range: 0 – 2500 RPM
Drilling Capacity (Steel): 1-9/16"
Gearhead Fluid Capacity: 2.6 Qt.
Weight: 672 lbs.

Made in Taiwan to South Bend Specifications

605

SINCE
1906

Component

Gearhead

611

MODEL SB1116

21" VARIABLE-SPEED GEARHEAD

DRILL PRESS w/CROSS SLIDE TABLE

Serial No: MFG Date:

!

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses and a face shield.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before setting up, servicing, or changing bits.

5. Avoid entanglement with spindle—tie back long hair, roll up long
sleeves, and DO NOT wear loose clothing, gloves, or jewelry.

6. Properly set up machine before starting.

7. Keep all guards and covers in place during operation.

8. Clamp workpiece to table to prevent unexpected rotation.

9. Avoid positioning hands where they could slip into rotating bits.

10. Always remove chuck keys and other tools before starting.

11. Never attempt to slow or stop spindle with hands or tools.

12. Use correct speeds for drill bits and workpiece material.

13. Do not operate when tired or under influence of drugs or alcohol.

14. Do not expose to rain or use in wet locations.

15. Prevent unauthorized use by children or untrained users; restrict
access or disable machine when unattended.

SB1116 Fluid Capacity

Capacity

Type

Grizzly T26685 or ISO 32 Equivalent

2.6 Qt.

WARNING!

606

CHECK OIL

LEVEL BEFORE USING!

REFER TO
OWNER’S MANUAL
FOR OIL TYPE AND

AMOUNT.

602

REF PAR T # DE SCRIPT ION REF PART # DESCR IPTION

601 PSB1115601 FACEPLATE/WARNING COMBO LABEL (SB1115) 606 PSB1115606 S TOP CHEC K OI L TA G

601 PSB1116601 FACEPLATE/WARNING COMBO LABEL (SB1116) 607 PSB1116607 RAPID TRAVERSE N OTICE

602 PSB1115602 ELECTRICITY LABEL 608 PSB1115608 TOUCH-UP PAINT, B LACK

603 PSB1115603 GEA RBOX F ILL N OTICE 609 PSB1115609 TOUCH -UP PAIN T, GREY

604 PSB1115604 MACHINE ID LABEL (SB1115) 610 PSB1115610 TOUCH -UP PAIN T, LIGHT BLUE

604 PSB1116604 MACHINE ID LABEL (SB1116) 611 PSB1115611 TOUCHUP PAIN T, DARK B LUE

605 PSB1115605 FLUID CAPACITY LABEL

-76-

WARRANTY

This quality product is warranted by South Bend Tools to the original buyer for 2 years from the
date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of
misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse
for third party repairs. In no event shall we be liable for death, injuries to persons or property, or for
incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act,
code, regulation, or standard of any domestic or foreign government, industry, or authority. In no
event shall South Bend’s liability under this warranty exceed the original purchase price paid for
this machine. Any legal actions brought against South Bend Tools shall be tried in the State of
Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by
law, including any merchantability or fitness, for any purpose, are hereby limited to the duration of
this warranty.

Thank you for your business and continued support.

To take advantage of this warranty, register at
can scan the QR code below to be automatically directed to our warranty registration page. Enter all
applicable information for the product.

Warranty

https://www.grizzly.com/forms/warranty, or you

WARRANT Y

southbendtools.com

southbendtools.com

Printed In Taiwan #JP21366
