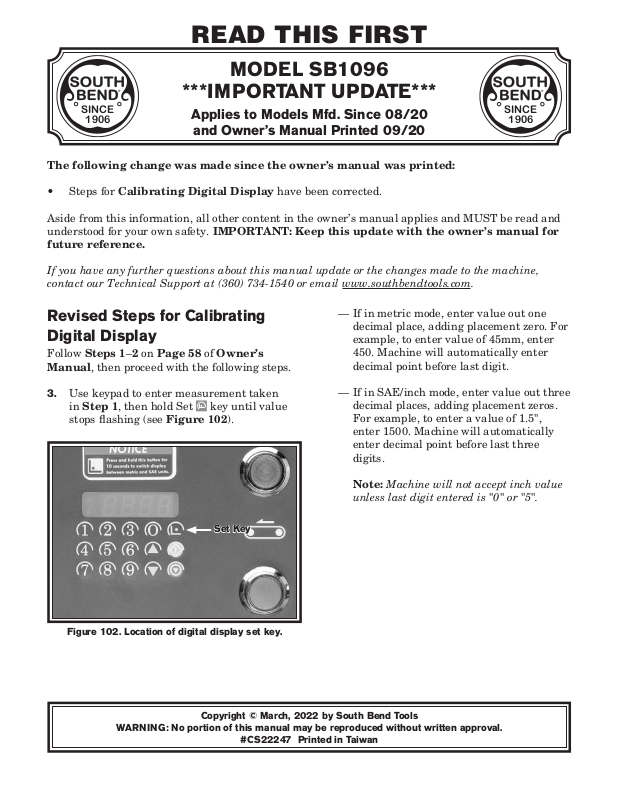

READ THIS FIRST

MODEL SB1096

***IMPORTANT UPDATE***

SINCE

1906

Applies to Models Mfd. Since 08/20

and Owner’s Manual Printed 09/20

The following change was made since the owner’s manual was printed:

• Steps for Calibrating Digital Display have been corrected.

Aside from this information, all other content in the owner’s manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the owner’s manual for

future reference.

If you have any further questions about this manual update or the changes made to the machine, contact our Technical Support at (360) 734-1540 or email www.southbendtools.com.

SINCE

1906

Revised Steps for Calibrating Digital Display

Follow Steps 1–2 on Page 58 of Owner’s Manual, then proceed with the following steps.

Use keypad to enter measurement taken

in Step 1, then hold Set stops ﬂashing (see Figure 102).

key until value

Set KeySet Key

— If in metric mode, enter value out one

decimal place, adding placement zero. For example, to enter value of 45mm, enter

450. Machine will automatically enter decimal point before last digit.

— If in SAE/inch mode, enter value out three

decimal places, adding placement zeros. For example, to enter a value of 1.5", enter 1500. Machine will automatically enter decimal point before last three digits.

Note: Machine will not accept inch value

unless last digit entered is "0" or "5".

Figure 102. Location of digital display set key.Figure 102. Location of digital display set key.

WARNING: No portion of this manual may be reproduced without written approval.

#CS22247 Printed in Taiwan

37" 15 HP 3-PHASE

WIDE-BELT SANDER

MODEL SB1096

OWNER'S MANUAL

South Bend Tools

A Tradition of Excellence

We stand behind our machines. If you have any service questions, parts requests or general questions about your purchase, feel free to contact us.

South Bend Tools P.O. Box 2027 Bellingham, WA 98227 Phone: (360) 734-1540 Fax: (360) 676-1075 (International) Fax: (360) 734-1639 (USA Only) Email: sales@southbendtools.com

For your convenience, any updates to this manual will be available to download free of charge

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control it during operation, and how to keep it in good working condition. We assume the reader has a basic understanding of how to operate this type of machine, but that the reader is not familiar with the controls and adjustments of this specific model. As with all machinery of this nature, learning the nuances of operation is a process that happens through training and experience. If you are not an experienced operator of this type of machinery, read through this entire manual, then learn more from an experienced operator, schooling, or research before attempting operations. Following this advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes happen or the machine design changes after the documentation process—so exactly match your machine. contact our

We highly value customer feedback on our manuals. If you have a moment, please share your experience using this manual. What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

P.O. Box 2027 Bellingham, WA 98227 Email: manuals@southbendtools.com

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

through our website at:

Customer Service

Table of Contents

INTRODUCTION

Identiﬁcation Description of Controls & Components Product Speciﬁcations

SAFETY

Understanding Risks of Machinery Basic Machine Safety Additional Wide Belt Sander Safety

PREPARATION

Preparation Overview Required for Setup Power Supply Requirements Unpacking Inventory Cleaning & Protecting Location Lifting & Placing Leveling & Mounting Assembly Dust Collection Power Connection Test Run Inspections & Adjustments

OPERATION

Operation Overview Sanding Workpieces Workpiece Inspection Sanding Tips

Installing/Changing Sanding Belts...................31

Adjusting Platen Changing Feed Rate Reading Amp Meter Using EMERGENCY STOP Plate

ACCESSORIES

MAINTENANCE

Maintenance Schedule Machine Storage Cleaning & Protecting Lubrication

Emptying Dust and Water Traps......................40

Cleaning Sanding Belt Pneumatic System

................................................................................ 8

............................................................ 14

.............................................................. 16

............................................................19

............................................................. 24

............................................................... 2

........................................................ 2

..............3

.........................................6

.................... 8

..........................................8

................. 10

.............................................................. 11

........................................11

............................................. 11

............................. 12

..........................................................14

.......................................15

................................................17

......................................... 18

...................................................21

..............................................22

...............................26

.................................................................... 27

........................................... 27

..........................................28

.........................................29

......................................................30

................................................32

..........................................33

........................................... 34

....................34

.............................................................. 35

............................................................. 37

.......................................37

................................................37

.......................................38

......................................................... 38

.......................................40

.............................................40

SERVICE........................................................................... 41

Adjusting Oscillation Timing & Speed Servicing Platen Checking/Replacing Brake Pads Checking/Adjusting Table Parallelism Checking/Adjusting Pressure Rollers Checking/Adjusting V-Belt Tension Changing V-Belts Adjusting Conveyor Belt Tension Adjusting Conveyor Belt Tracking Replacing Conveyor Belt Conveyor Belt Removal Sequence Calibrating Digital Display Adjusting Belt Tracking Limit Switches

TROUBLESHOOTING

PNEUMATIC SYSTEM

Pneumatic System Diagram..............................62

ELECTRICAL

Electrical Safety Instructions Electrical Overview Electrical System Schematic Electrical Cabinet Electrical Cabinet Wiring Diagram (220V) Electrical Cabinet Wiring Diagram (440V) Control Panel Wiring Main Motor & Conveyor Feed Motor Wiring

Table Elevation Motor Wiring...........................71

Air Pressure Limit Switch Wiring Sanding Belt & Table Limit Switch Wiring

PARTS................................................................................73

Tool Box & Accessories Sanding Motor System Table Lift System Conveyor System Feed Roller Sanding Drum Upper Roller System Cabinet Assembly Electrical Cabinet & Control Panel Belt Oscillation Pneumatic System Machine Labels

WARRANTY

................................................. 43

....................... 44

............................................... 52

...................................56

............................... 58

................................................. 59

................................................. 62

................................................................... 63

...........................63

............................................64

............................. 65

..............................................66

......................................... 69

...................................... 73

......................................74

...............................................76

...............................................78

.........................................................79

.................................................... 80

..........................................82

..............................................84

.................................................. 88

.....................................................................89

.............41

............. 47

............... 50

..................51

.....................54

....................55

.....................57

.......... 58

...... 67

...... 68

...70

.................... 71

.....72

..................85

..................87

South Bend Tools

Model SB1096

INTRODUCTION

Identiﬁcation

INTRODUCTION

For Machines Mfd. Since 9/20

Table Elevation

Handwheel

Dust Ports

EMERGENCY

STOP Plate

Control

Panel

Feed Motor

Gearbox

Conveyer

Feed Motor

Air

Regulator

Conveyer

Belt

Electrical

Cabinet

Conveyer

Table

Upper Roller

Oscillation

Timing Knob

Belt Tension

Knob

Lock Post

Release Lever

Inside Left Door Inside Right Door

Diaphragm Valve

Oscillation Speed Adjustment Knob

Platen

Adjustment

Lever

Platen Adjustment

Lock Lever

Air Fork

and Air Jet

Belt Tension Limit Switch

Belt Tracking

Limit Switch

Oscillation Airflow

Adjustment Knob

Assembly

-2-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Description of Controls

INTRODUCTION

E. Key Pad: Sets table height/workpiece

thickness.

& Components

Refer to Figures 1–8 and the following descriptions to become familiar with the basic controls and components used to operate this machine.

Incorrect use of this machine can result in death or serious injury. For your own safety, read and understand this entire document before using.

Control Panel

A. Amp Meter: Indicates amp load of sanding

belt motor during sanding operation. Used to determine maximum depth of cut sander can handle.

B. Sanding Belt ON Button: Turns sanding belt

motor ON and illuminates when pressed.

F. Table Up and Down Keys : Raise/lower

table by 0.005" (0.125mm) increments.

G. Set Key : Inputs table position and

switches between standard/metric display. Calibrates table position when pressed with Table Stop Key

H. Table Start Key : Activates inputted table

height/workpiece thickness.

I. Table Stop Key : Immediately stops table

from moving up and down and cancels key pad entry. Calibrates table position when pressed with Set Key

J. Conveyor Belt ON Button: Turns feed motor

ON and illuminates when pressed.

K. Conveyor Belt OFF Button: Turns feed motor

OFF when pressed.

L. Power Indicator: Illuminates when machine

is connected to power.

C. Sanding Belt OFF Button: Turns sanding

belt motor OFF and illuminates when pressed.

D. Digital Display: Shows table position in

relation to drum (i.e. workpiece thickness).

M. Emergency Stop Button: Turns all machine

functions OFF when pressed; engages emergency brake to stop rotation of sanding drum. Twist clockwise to reset in order to start sander again.

Figure 1. Control panel.

-3-

South Bend Tools

Model SB1096

INTRODUCTION

For Machines Mfd. Since 9/20

Feed Rate

N. Feed Rate Adjustment Knob: While conveyor

is moving, turn knob clockwise to speed up feed rate, and turn it counterclockwise to slow it down.

Figure 2. Conveyor feed rate adjustment knob.

Table

O. Conveyer Belt: Feeds workpiece across

conveyer table during sanding operations.

Belt Oscillation and Tension

S. Belt Limit Switches: Stop sanding drum

motor if sanding belt tension or tracking is incorrect.

T. Air Fork and Air Jet: Directs sanding belt to

reverse direction when it passes through air fork.

U. Oscillation Airﬂow Adjustment Knob:

Controls amount of airflow to pneumatic cylinder.

V. Oscillation Speed Adjustment Knob: Controls

oscillation speed of sanding belt as it moves left and right.

P. Conveyer Table: Supports workpiece during

operations; can be raised and lowered according to workpiece thickness.

Q. Table Elevation Handwheel: Manually raises

and lowers conveyer table. Rotate clockwise to lower table; rotate counterclockwise to raise table. One full rotation moves table approximately 0.20".

R. EMERGENCY STOP Plate: Stops all machine

functions when pressed; engages emergency brake to stop rotating drum.

Figure 4. Location of limit switches, air fork, and

adjustment knobs.

W. Oscillation Timing Knob: Adjusts timing of

sanding belt oscillation from left to right.

X. Belt Tension Knob: Increases or decreases

sanding belt tension.

Figure 3. Table components.

-4-

Figure 5. Location of oscillation timing and belt

tension knobs.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

INTRODUCTION

Air Regulation

Y. Air Regulator Knob: Adjusts incoming air

pressure. Lift knob to rotate right/left to increase/decrease PSI shown on air regulator gauge.

Z. Air Regulator Gauge: Displays air pressure

entering pneumatic system. Use air regulator knob to adjust pressure until gauge reads approximately 75 PSI.

AA. Air Inlet: Connects to compressed air supply

of 75 PSI with a incoming air pressure for sanding belt oscillation when handle is in open position.

⁄8" air hose. Regulates

Platen

AC. Platen Adjustment Lever: Adjusts platen

height for three basic types of sanding: initial heavy sanding pass, intermediate finishing pass, and final sanding pass. Each turn of knob equals 0.2mm of platen movement.

AD. Platen Adjustment Lock Lever: Loosen to

adjust platen height with platen adjustment lever. Tighten to secure platen height setting.

AE. Lock Post Release Lever: Unlocks to remove

spacer block that holds platen and sanding belt in place. Most frequently used when changing sanding belts.

Figure 6. External air regulation components.

AB. Diaphragm Valve Assembly: Directs air for

tracking and tension and collects and traps dust within.

Figure 7. Location of diaphragm valve assembly.

ADAE

Figure 8. Platen adjustment and lock post release

lever components.

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

Untrained users have an increased risk of seriously injuring themselves with this machine. Do not operate this machine until you have understood this entire manual and received proper training.

-5-

South Bend Tools

Model SB1096

INTRODUCTION

Product Speciﬁcations

Model SB1096

37" 15 HP 3Phase WideBelt Sander

Product Dimensions

Weight...........................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 81 x 50 x 66-1/2 in.

Footprint (Length x Width)........................................................................................................... 21-1/2 x 51-1/2 in.

Shipping Dimensions

Type.................................................................................................................................................. Wood Slat Crate

Content..........................................................................................................................................................

Weight...........................................................................................................................................................

Length x Width x Height................................................................................................................... 53 x 58 x 77 in.

For Machines Mfd. Since 9/20

1715 lbs.

Machine

1826 lbs.

Electrical

Power Requirement................................................................................................... 220V or 440V, 3-Phase, 60 Hz

Prewired Voltage................................................................................................................................................ 220V

Full-Load Current Rating..........................................................................................

Minimum Circuit Size.....................................................................................................

Connection Type...................................................................................... Permanent (Hardwire to Shutoff Switch)

Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection

Motors

Main

Horsepower............................................................................................................................................. 15 HP

Phase....................................................................................................................................................

Amps..............................................................................................................................................

Speed................................................................................................................................................ 1760 RPM

Type........................................................................................................................................ TEFC Induction

Power Transfer .......................................................................................................................................... Belt

Bearings....................................................................................................

Table Elevation

Horsepower............................................................................................................................................

Phase.................................................................................................................................................... 3-Phase

Amps.................................................................................................................................................. 1.2A/0.6A

Speed................................................................................................................................................ 1650 RPM

Type........................................................................................................................................

Power Transfer ..........................................................................................................................................

Bearings.................................................................................................... Sealed & Permanently Lubricated

40.1A at 220V, 20.1A at 440V 50A at 220V, 30A at 440V

Sealed & Permanently Lubricated

TEFC Induction

3-Phase

36.7A/18.4A

1/4 HP

Belt

-6-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Feed

Horsepower...............................................................................................................................................

Phase....................................................................................................................................................

Amps.................................................................................................................................................. 3.4A/1.7A

Speed................................................................................................................................................ 1700 RPM

Type........................................................................................................................................ TEFC Induction

Power Transfer ..........................................................................................................................................

Bearings....................................................................................................

INTRODUCTION

1 HP

3-Phase

Belt

Sealed & Permanently Lubricated

Main Specifications

Operation Information

Number of Sanding Heads.............................................................................................................................. 1

Maximum Board Width........................................................................................................................... 36 in.

Minimum Board Width............................................................................................................................. 2 in.

Maximum Board Thickness................................................................................................................

Minimum Board Thickness....................................................................................................................

Minimum Board Length.......................................................................................................................... 14 in.

Sandpaper Speed............................................................................................................................. 2600 FPM

Sanding Belt Oscillations............................................................................................................. 5/16 - 5/8 in.

Conveyor Feed Rate......................................................................................................................

Sandpaper Length...................................................................................................................................

Sandpaper Width..................................................................................................................................... 37 in.

5-3/4 in.

1/8 in.

15 - 49 FPM

60 in.

Drum Information

Infeed Sanding Drum Type........................................................................................ Spiral Grooved Rubber

Infeed Sanding Drum Size........................................................................................................................ 4 in.

Shore Hardness (Durometer).............................................................................................................

Platen Information

Platen Type......................................................................................................................................

Platen Length.................................................................................................................................... 37-3/4 in.

Platen Width........................................................................................................................................ 3-1/2 in.

Platen Travel....................................................................................................................................... 0 - 2mm

Construction

Conveyor Belt........................................................................................................................................

Body...........................................................................................................................................................

Paint Type/Finish.................................................................................................................... Powder Coated

Other Related Information

Floor To Table Height...................................................................................................................... 32 - 36 in.

Belt Tracking................................................................................................................................... Pneumatic

Sanding Belt Tension......................................................................................................................

Number of Pressure Rollers...........................................................................................................................

Pressure Roller Type............................................................................................................................ Rubber

Pressure Roller Size................................................................................................................................... 2 in.

Conveyor Belt Length.............................................................................................................................. 83 in.

Conveyor Belt Width.........................................................................................................................

Belt Roller Size..........................................................................................................................................

Number of Dust Ports..................................................................................................................................... 3

Dust Port Size............................................................................................................................................ 5 in.

Air Requirement.................................................................................................................................... 75 PSI

65 Shore

Adjustable

Rubber

Steel

Pneumatic

36-1/2 in.

4 in.

-7-

South Bend Tools

Model SB1096

Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This responsibility includes proper installation in a safe environment, personnel training and usage authorization, regular inspection and maintenance, manual availability and comprehension, application of safety devices, integrity of cutting tools or accessories, and the usage of approved personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property damage from negligence, improper training, machine modiﬁcations, or misuse. Failure to read, understand, and follow the manual and safety labels may result in serious personal injury, including amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

For Machines Mfd. Since 9/20

Understanding Risks of Machinery

Death or catastrophic harm WILL occur.

Death or catastrophic harm COULD occur.

Moderate injury or ﬁre MAY occur.

Machine or property damage may occur.

Basic Machine Safety

equipment presents serious injury hazards to untrained users. To reduce the risk of injury, anyone who uses THIS item MUST read and understand this entire manual before starting.

Personal Protective Equipment:

servicing this item may expose the user to ﬂying debris, dust, smoke, dangerous chemicals, or loud noises. These hazards can result in eye injury, blindness, longterm respiratory damage, poisoning, cancer, reproductive harm or hearing loss. Reduce your risks from these hazards by wearing approved eye protection, respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves or bystanders. Only allow trained and properly supervised personnel to operate this item. Make sure safe operation instructions are clearly understood. If electrically powered, use padlocks and master switches, and remove start switch keys to prevent unauthorized use or accidental starting.

Guards/Covers:

moving parts during operation may cause severe entanglement, impact, cutting, or crushing injuries. Reduce this risk by keeping any included guards/covers/doors installed, fully functional, and positioned for maximum protection.

Accidental contact with

-8-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Entanglement: Loose clothing, gloves, neckties,

rotate.

Chuck Keys or Adjusting Tools:

Tools used to

our Technical Support for assistance.

SAFETY

jewelry or long hair may get caught in moving parts, causing entanglement, amputation, crushing, or strangulation. Reduce this risk by removing/securing these items so they cannot contact moving parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the risk of accidental injury. Do not let a temporary influence or distraction lead to a permanent disability! Never operate when under the influence of drugs/alcohol, when tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment may result in electrocution; operating near highly ﬂammable materials may result in a ﬁre or explosion. Only operate this item in a dry location that is free from ﬂammable materials.

Electrical Connection: With electically powered

equipment, improper connections to the power source may result in electrocution or fire. Always adhere to all electrical requirements and applicable codes when connecting to the power source. Have all work inspected by a qualified electrician to minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it is connected to the power source greatly increases the risk of injury from accidental startup. Always disconnect power BEFORE any service or adjustments, including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/ rotating parts will become dangerous projectiles if left in place when the machine is started. Reduce this risk by developing the habit of always removing these tools immediately after using them.

Work Area:

the risks of accidental injury. Only operate this item in a clean, non-glaring, and welllighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning equipment has higher risks of causing serious personal injury compared to those that are properly maintained. To reduce this risk, always maintain this item to the highest standards and promptly repair/service a damaged or malfunctioning component. Always follow the maintenance instructions included in this documentation.

Unattended Operation:

equipment that is left unattended while running cannot be controlled and is dangerous to bystanders. Always turn the power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when cutting, may contain chemicals known to the State of California to cause cancer, respiratory problems, birth defects, or other reproductive harm. Minimize exposure to these chemicals by wearing approved personal protective equipment and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can become dangerous projectiles if not secured or if they hit another object during operation. Reduce the risk of this hazard by verifying that all fastening devices are properly secured and items attached to spindles have enough clearance to safely

Loose workpieces,

Difﬁcult Operations:

operations with which you are unfamiliar increases the risk of injury. If you experience difficulties performing the intended operation, STOP! Seek an alternative method to accomplish the same task, ask a qualified expert how the operation should be performed, or contact

Attempting difficult

-9-

South Bend Tools

Model SB1096

remove a large amount of flesh quickly. Keep

sandpaper.

SAFETY

For Machines Mfd. Since 9/20

Additional Wide Belt Sander Safety

Serious injury or death can occur from getting hands trapped between workpiece and conveyor table and being pulled into machine, or becoming entangled in rotating parts inside machine. Workpieces thrown by sander can strike nearby operator or bystanders with signiﬁ cant force. Long-term respiratory damage can occur from using sander without proper use of respirator. To reduce the risk of these hazards, operator and bystanders MUST completely heed the hazards and warnings below.

Feeding Workpiece. Placing fingers between

workpiece and conveyor can result in pinching injuries, or possibly getting fingers trapped and pulled into sanding area of machine. DO NOT place fingers under bottom of workpiece while feeding it into sander.

Sanding Dust. Sanding creates large amounts of

fine airborne dust that can lead to eye injury or serious respiratory illness. Reduce your risk by always wearing approved eye and a respirator when sanding. Never operate without adequate dust collection system in place and running. However, also remember a dust collection system is not a substitute for using a respirator.

Avoiding Entanglement. Tie back long hair,

remove jewelry, and do not wear loose clothing or gloves. These can easily get caught in moving parts. Never reach inside machine or try to clear jammed workpiece while machine is operating. Keep all guards in place and secure.

Power Disconnect. An accidental startup

while changing sanding belts or performing adjustments or maintenance can result in entanglement or abrasion injuries. Make sure machine is turned OFF, disconnected from power and air, and all moving parts are completely stopped before changing belts, doing adjustments, or performing maintenance.

Kickback. Occurs when a workpiece is ejected

out the front of sander at a high rate of speed toward operator or bystanders. To reduce risk of kickback-related injuries, always stay out of workpiece path, only feed one board at a time, and always make sure pressure rollers are properly adjusted below sanding roller. Never sand workpiece below minimum specifications listed in Product Specifications.

Sandpaper Contact. Rotating sandpaper can

hands away from rotating sanding drum(s) during operation. Never touch moving

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

-10-

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so may result in serious personal injury or property damage.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PREPARATION

Preparation Overview Required for Setup

The purpose of the preparation section is to help you prepare your machine for operation. The list below outlines the basic process. Specific steps for each of these points will be covered in detail later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

Clean the machine and its components.

3. Identify an acceptable location for the

machine and move it to that location.

Level the machine and bolt it to the floor.

5. Assemble the loose components and make

any necessary adjustments or inspections to ensure the machine is ready for operation.

Connect the machine to the power source.

7. Test run the machine to make sure it

functions properly and is ready for operation.

The items listed below are required to successfully set up and prepare this machine for operation.

For Lifting

• A forklift or other power lifting device (rated for at least 2800 lbs.).

For Power Connection

• A power source that meets the minimum circuit requirements for this machine. (Refer to the Power Supply Requirements section for details.)

• A qualified electrician to ensure a safe and code-compliant connection to the power source.

For Assembly

• An Assistant

• Safety Glasses (for each person)

• Disposable Rags

• Disposable Gloves

• Cleaner/Degreaser

• Prybar

• Precision Level

• Floor Mounting Hardware (As Needed)

• Open-End Wrench 14, 18mm

• Compressed Air Hose 3⁄8" and Hose Clamp

• 42" Long 2x4

• 6' Long 2x4

• Gear Oil

• Dust Collection System

Dust Collection Hoses 5"

•

• Hose Clamps 5"

-11-

South Bend Tools

Model SB1096

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed.

To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by a or qualified service personnel applicable electrical codes and safety standards.

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result—especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

Note: The circuit requirements in this manual are for machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure the circuit is properly sized.

A power supply circuit includes all electrical equipment between the main breaker box or fuse panel in your building and the incoming power connections inside the machine. This circuit must be safely sized to handle the full-load current that may be drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

This machine can be converted to operate on a

Voltage Conversion

this have a verified ground and meet the requirements:

PREPARATION

For Machines Mfd. Since 9/20

Power Supply Requirements

Availability

in accordance with

Electrocution or fire may occur if machine is not correctly grounded and attached to the power supply. Use a qualified electrician to ensure a safe power connection.

n electrician

Circuit Information

For your own safety and protection of property, consult an electrician if you are unsure about wiring practices or applicable electrical codes.

a dedicated circuit—where only one

Circuit Requirements for 220V

Full-Load Current Rating

Full-Load Rating at 220V ................ 40.1 Amps

Full-Load Rating at 440V ................ 20.1 Amps

-12-

Nominal Voltage ..................... 220V/230V/240V

Cycle Phase

Circuit Rating....................................... 50 Amps

.............................................................60 Hz

....................................................... 3-Phase

Circuit Requirements for 440V

440V power supply. To do this, follow the

instructions included in

manual. The intended 440V circuit must

following

Nominal Voltage ............................... 440V/480V

Cycle Phase

Circuit Rating....................................... 30 Amps

.............................................................60 Hz

....................................................... 3-Phase

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

This machine must be grounded! In the event of grounding provides a path of least resistance for electric current electric shock.

Power supply connections that are hardwired to the power source must be connected to a grounded metal permanent wiring system, or to a system having an equipment-grounding conductor.

Serious injury could occur if you connect

PREPARATION

Connection Type

A permanently connected (hardwired) power supply is typically installed with wires running through mounted and secured conduit. A disconnecting means, such as a locking switch (see following figure) must be provided to allow the machine to be disconnected (isolated) from the power supply when required. This installation must be preformed by an electrician in accordance with all applicable electrical codes and ordinances.

LOCKING

DISCONNECT SWITCH

Power Source

Conduit

Ground Ground

Conduit

Machine

the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

Extension Cords

Since this machine must be permanently connected to the power supply, an extension cord cannot be used.

Voltage Conversion

The voltage conversion MUST be performed by a qualified electrician. To perform the voltage conversion, rewire the motors to the new voltage according to the provided wiring diagram. If the

diagram included on the motor conflicts with the one in this manual, the motor may have changed since the manual was printed. Use the diagram provided on the motor.

Figure 9. Typical setup of a permanently connected

machine.

Grounding Requirements

certain types of malfunctions or breakdowns,

in order to reduce the risk of

You can find the Model G7978, a compatible phase converter from our exlusive dealer, Grizzly Industrial, Inc., at www.grizzly.com.

G7978—15 HP Rotary Phase Converter

This rotary phase converter allows you to operate 3-phase machinery from a single-phase power source at 100% power and 95% efficiency.

Figure 10. G7978 15 HP Rotary Phase Converter.

-13 -

South Bend Tools

Model SB1096

This item was carefully packaged to prevent damage during transport. If you discover any damage, please immediately call Customer Service at need to file a freight claim, so save the containers and all packing materials for possible inspection by the carrier or its agent.

PREPARATION

For Machines Mfd. Since 9/20

Unpacking

(360) 734-1540 for advice. You may

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packing materials while unpacking or they are pre-installed at the factory.

Inventory

Inventory (Figure 11) Qty

A. Wide Belt Sander (Not Shown) ..................... 1

Toolbox (Not Shown) ...................................... 1

Sanding Belt 37" x 60" 100-Grit .................... 1

Sanding Belt 37" x 60" 180-Grit .................... 1

Graphite Pads ................................................ 2

Felt Pad .......................................................... 1

Hex Wrench Set (1.5-10mm) ......................... 1

Open-End Wrench 17/19mm ......................... 1

Open-End Wrench 12/14mm .........................1

Open-End Wrench 8/10mm ...........................1

Door Keys ....................................................... 2

Fuses 4A 600V ................................................ 2

Limit Switch Tips .......................................... 2

Flexible Grease Gun Extension ..................... 1

Platen Removal Tool ...................................... 1

Phillips Screwdriver #2 .................................1

Flat Head Screwdriver #2 ............................. 1

-14-

Figure 11. Inventory.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

The unpainted surfaces are coated with a heavy-duty rust preventative that prevents corrosion during shipment and The beneﬁ t of this rust preventative is that it works very well. The downside is that it time-consuming

Be patient and do a careful job when and removing the rust preventative you spend doing this will reward you with smooth for the proper care of

Although there are many ways to successfully remove the rust preventative, the process works well in most situations

Before cleaning, gather the following:

• Disposable

• Cleaner/degreaser

• Safety glasses & disposable gloves

Note:

WD•40 can be used to remove rust preventative. Before using these products, though, test them on an inconspicuous area of a painted surface to make sure they will not damage it.

GAS

PREPARATION

Cleaning & Protecting

at the factory

to thoroughly remove.

-sliding parts and a better appreciation the unpainted surfaces.

rags

(certain citrus-based degreasers work extremely well and they have non-toxic fumes)

Automotive degreasers, mineral spirits, or

. The time

following

storage.

can be

cleaning

Avoid chlorine-based solvents, such as acetone or brake parts cleaner that may damage painted surfaces. Always follow the manufacturer’s instructions when using any type of cleaning product.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat all surfaces that have rust preventative

with a liberal amount of your cleaner or degreaser and let them soak for a few minutes.

3. Wipe off the surfaces. If your cleaner or

degreaser is effective, the rust preventative will wipe off easily.

Note: To clean off thick coats of rust

preventative on ﬂ at surfaces, such as beds or tables, use a PLASTIC paint scraper to scrape off the majority of the coating before wiping it off with your rag. (Do not use a metal scraper or it may scratch the surface.)

4. Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant or light oil to prevent rust.

Gasoline and petroleum products have low flash points and can explode or cause fire if used for cleaning. Avoid using these products to remove rust preventative.

Many cleaning solvents are toxic if inhaled. Minimize your risk by only using these products in a well ventilated area.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

Figure 12. T23692 Orange Power Degreaser.

-15 -

South Bend Tools

Model SB1096

Weight Load

equipment that may be installed on the machine,

Physical Environment

The physical environment where your machine is operated is important for safe operation and longevity of machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature 104°F; the relative humidity of is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate enough to perform operations safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

PREPARATION

For Machines Mfd. Since 9/20

Location

Physical Environment Electrical Installation Lighting Weight Load

Space Allocation

20–95% (non-condensing); or the environment

parts. For best results, operate this

or flammable

is outside the range of 41°–

is outside the range

Refer to the Machine Speciﬁcations for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional

and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

Wall

= Electrical

Connection

Keep Outfeed Area

Unobstructed

Min. 30"

for Maintenance

Keep Loading Area

Unobstructed

Children or untrained people may be seriously

81"

injured by this machine. Only install in an access restricted location.

14"

50"

Min. 30"

for Maintenance

Wall

-16 -

Figure 13. Clearances.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Lifting & Placing

This machine and its parts are heavy! Serious personal injury may occur if safe moving methods are not used. To reduce the risk of a lifting or dropping injury, ask others for help and use power equipment.

Do not attempt to lift or move this machine without using the proper lifting equipment (such as forklift or crane). Each piece of lifting equipment must be rated for at least 2800 lbs. to support dynamic loads that may be applied while lifting.

PREPARATION

Remove (4) lag screws and flat washers

securing machine to pallet (see Figure 15).

Figure 15. Location of lag screws.

Carefully place forklift forks under sander

(see Figure 16).

Lag Screws

(2 of 4)

To lift and place machine:

1. Remove shipping crate top and sides, then

remove small components from shipping pallet.

Move machine to prepared location while it

is still attached to shipping pallet.

Remove (8) flat head screws and (2) access

panels (see Figure 14).

x 8

Access

Panel

(1 of 2)

Figure 16. Placing fork lift forks under sander.

6. Lift sander off pallet, remove pallet, then

slowly lower sander into position.

Figure 14. Location of access panels and flat head

screws.

-17-

South Bend Tools

Model SB1096

Leveling machinery helps precision components, such as bed ways, remain straight and ﬂat during the lifespan of the machine. Components on an unleveled machine may slowly twist due to the dynamic loads placed on the machine during operation.

For best results, use a precision level that is at least 12" long and sensitive enough to show a distinct movement when a 0.003" shim (approximately the thickness of one sheet of standard newspaper) is placed under one end of the level.

See the ﬁgure below for an example of a high precision level.

Generally, you can either bolt your machine to the ﬂoor or mount it on machine mounts. Although not required, we recommend that you secure the machine to the ﬂoor and level it while doing so. Because this is an optional step and ﬂoor materials may vary, hardware for securing the machine to the ﬂoor is not included.

Lag screws and anchors, or anchor studs ( machinery to a concrete ﬂoor. We suggest you research the many options and methods for securing your machine and choose the best one for your speciﬁc application.

PREPARATION

For Machines Mfd. Since 9/20

Leveling & Mounting

We strongly recommend securing your machine to the floor if it is hardwired to the power source. Consult with your electrician to ensure compliance with local codes.

Leveling

Leveling machinery helps precision components, such as conveyor tables, remain straight and ﬂat during the lifespan of the machine. Components on a machine that are not level may slowly twist due to the dynamic loads placed on the machine during operation.

Bolting to Concrete Floors

below), are two popular methods for securing

Anchor

Stud

Lag Screw

and Anchor

Figure 18. Common types of fasteners for bolting

machinery to concrete floors.

See the ﬁgure below for an example of a high precision level.

Figure 17. Example of a precision level.

-18 -

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Assembly

PREPARATION

Lift regulator knob to unlock (see Figure 20)

and rotate it until gauge reads 75 PSI.

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to Required for Setup and gather all the items listed. To ensure the assembly process goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if applicable).

Assembly of the Model SB1096 consists of installing the air line and the sanding belt, and verifying the factory-set pressure roller settings.

To assemble machine:

1. Connect compressed air line to air inlet on

regulator (see Figure 19) and secure with hose clamp.

Start air compressor or open air valve at

compressor.

Make sure red ON/OFF handle on regulator

is in open position (see Figure 19).

ON/OFF

Handle in

Open Position

Note: Rotate knob clockwise to increase air

pressure and counterclockwise to decrease.

Decrease

Increase

Unlock

Figure 20. Regulator knob.

Push knob down until it snaps to lock knob.

With machine connected to air, open left door

and turn belt tension knob to detensioned position (see Figure 21).

Remove lock post release lever by turning it

counterclockwise and pulling it up and out of mounting hole (see Figure 21).

Remove spacer block (see Figure 21).

Air Inlet

Figure 19. Air regulator inlet and ON/OFF handle.

Lock Post

Release Lever

Figure 21. Components for changing sanding belt.

Belt Tension

Knob

(Detensioned)

Spacer Block

-19 -

South Bend Tools

Model SB1096

Directional arrows on back of sanding belt must be pointing in a counterclockwise direction during installation. Failure to install sanding belt correctly will result in damage to sanding belt.

9. Install sanding belt on upper roller and

lower roller, starting with upper, making sure rotation arrows on sanding belt point in same direction as those shown in Figure 22,

Note: Sanding belt must be centered between

limit switch tips and edge of sanding belt must be between tongs of belt oscillation controller fork, as shown in Figures 22–23. Damage to sanding belt may occur if sander is tensioned and turned ON before sanding belt is correctly positioned.

PREPARATION

For Machines Mfd. Since 9/20

10. Replace spacer block and lock post release

lever.

With hands clear of all moving parts, turn

11.

belt tension knob to tension sanding belt.

Pressure rollers must be set below level of sanding roller. If pressure rollers are even, or higher than sanding roller, workpiece may be propelled from machine at high rate of speed toward front of machine, causing serious kickback injury to operator or bystanders.

12. Joint 42" 2x4 so one side is ﬂat, then use

ﬂat side on table saw, against fence, to cut opposite side parallel.

IMPORTANT: 2x4 MUST have uniform

thickness for following steps to be completed correctly.

Belt Rotation

Limit Switch

Tip

Figure 22. Sanding belt placement components.

(Back)

Oscillation Controller Fork

Sanding Belt

Limit Switch Tip

Place 2x4 across one side of conveyor table so

13.

it spans both front and rear pressure rollers (see Figure 24).

Figure 24. 2x4 positioned to check pressure roller

height.

14. Manually raise conveyor table and verify

that board touches both pressure rollers before touching sanding belt.

Figure 23. Sander outline (top view) of proper

position of belt.

-20-

(Front)

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

14. Repeat Steps 12–13 on other side of

conveyor belt.

Note: If board did not touch both pressure

rollers before touching sanding belt on either side, or if board was difﬁcult to place between rollers and table, then pressure rollers MUST be adjusted before operation. See Page 50 for instructions.

Check sight glass shown in Figure 25 to

15.

make sure gear oil is present.

Sight Glass

PREPARATION

Dust Collection

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Minimum CFM for Model SB1096: 1800 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

Figure 25. Sight glass location on gearbox.

— If gearbox level is below sight glass level,

refer to Lubrication on Page 38 to add gear oil.

To connect dust collection system to machine:

1. Fit a 5" dust hose over each dust port, and

secure them in place with hose clamps (see Figure 26).

Figure 26. Dust hoses attached.

2. Tug hoses to make sure they do not come off.

Note: A tight ﬁt is necessary for proper

performance.

-21-

South Bend Tools

Model SB1096

PREPARATION

For Machines Mfd. Since 9/20

Power Connection

Electrocution or fire may occur if machine is ungrounded, incorrectly connected to power, or connected to an undersized circuit. Use a qualified electrician to ensure a safe power connection.

Once your machine is set up and assembled as previously described in this manual, it is ready to be connected to the power supply.

Note About 3-Phase Power: DO NOT use a static phase converter to create 3-phase power—it can quickly decrease the life of electrical components on this machine. If you must use a phase converter, only use a rotary phase converter and connect the manufactured leg to the correct power connection terminal, shown in the wiring diagrams on Pages 67–68.

To convert SB1096 for 440V operation:

1. DISCONNECT MACHINE FROM POWER!

2. Open electrical cabinet.

3. Remove wire labeled "1" at 220V terminal of

control power transformer (see Figure 27) and connect it to 440V terminal.

"1" Wire

440V Terminal

Figure 27. Location of "1" wire and terminals.

Remove main motor overload relay, replace

it with LR3D325 (17-25A) relay (see Figure

28), and set dial to 18A.

220V Terminal

440V Conversion

The Model SB1096 is prewired to operate on 220V power, but it can be converted for 440V operation using the optional conversion kit (#PSB10968134), which contains two replacement overload relays. 440V conversion consists of: 1) disconnecting the machine from the power source, 2) moving a wire on the transformer from the 220V to the 440V terminal,

3) replacing the main and feed motor overload relays, and 4) rewiring the motors for 440V operation. Wiring diagrams are provided in the back of this manual showing the Model SB1096 wired for both 220V and 440V. Refer to these when following this procedure.

All wiring changes must be done by an electrician or qualified service personnel. If, at any time during this procedure assistance is needed, call Grizzly Tech Support at (570) 546-9663.

Items Needed Qty

Phillips Head Screwdriver #2 ...............................1

Schneider LR3D325 Overload Relay....................1

Schneider LR3D07 Overload Relay......................1

Remove feed motor overload relay, replace

it with LR3D07 (1.6-2.5A) relay (see Figure

28), and set dial to 1.7A.

Feed Motor

Relay

Main Motor

Relay

Figure 28. Location of overload relays.

Wire sanding belt, conveyor belt, and table

elevation motors as shown in diagrams starting on Page 70.

Close motor junction boxes and electrical

cabinet before reconnecting power supply.

-22-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PREPARATION

Hardwiring to Power Supply

Hardwire setups require power supply lines to be enclosed inside of conduit, which is securely mounted and constructed in adherence to applicable electrical codes.

A hardwire setup for this machine must be equipped with a locking disconnect switch as a means to disconnect the power during adjustments or maintenance, which is a typical requirement for many lock-out/tag-out safety programs.

Figure 29 shows a simple diagram of a hardwire setup with a locking disconnect switch between the power supply and the machine.

Locking

Power Supply

Disconnect Switch

Machine

2. Open the electrical cabinet.

3. Insert incoming power conduit through

strain relief in electrical box (see Figure 30).

Incoming Power

Strain Relief

Figure 30. Location of power supply strain relief.

Conduit Conduit

Figure 29. Typical hardwire setup with a locking

disconnect switch.

Due to the complexity required for planning, bending, and installing the conduit necessary for a code-compliant hardwire setup, an electrician or other qualified person MUST perform this type of installation.

Connecting Power Supply Wires to Machine

Connecting power supply wires to machine without first disconnecting power supply may result in serious injury or death.

During next step, make sure incoming ground wire is connected to correct terminal to ensure machine will be properly grounded (see "Ground Terminal" in Figure 31). An ungrounded or improperly grounded machine can cause electrocution if live electrical wires make contact with frame or other parts touched by operator.

4. Connect ground wire to bottom of ground

terminal E, then connect incoming power wires to bottom "R", "S", and "T" terminals shown in Figure 31. If using a phase converter, connect wild wire to "T" terminal.

Ground

Terminal

To connect power supply wires to machine:

1. DISCONNECT POWER SUPPLY WIRES

OR LOCK DISCONNECT SWITCH BOX IN OFF POSITION!

Incoming

Power Terminals

Figure 31. Incoming ground and power wire terminals.

-23-

South Bend Tools

Model SB1096

— Make sure wires have enough slack inside

electrical cabinet so they are not pulled tight or stretched.

Close electrical cabinet, connect power

supply to machine, and proceed to Test Run.

PREPARATION

Correcting Phase Polarity

This sub-section is only provided for troubleshooting 3-phase power connections. If you discover during the test run that the machine will not operate, or that the motor runs backwards, the power supply connection may be wired "out of phase," meaning that the polarity is incorrect as wired. This is a common situation with 3-phase power, and it is easy to correct.

To correct polarity of incoming power supply connection:

1. DISCONNECT MACHINE FROM POWER!

2. Open the electrical box and swap wires

connected to "R" and "S" terminals (see Figure 32).

For Machines Mfd. Since 9/20

Test Run

After all preparation steps have been completed, the machine and its safety features must be tested to ensure correct operation. If you discover a problem with the operation of the machine or its safety components, do not operate it further until you have resolved the problem.

Note: Refer to Troubleshooting on Page 59 for solutions to common problems that occur with all wide-belt sanders. If you need additional help, contact our Tech Support at (360) 734-1540.

The test run consists of verifying the following:

• Sanding belt tensions when tension switch is turned ON.

• Power supply polarity is correct.

• Motors power up and run correctly.

• Emergency Stop button works correctly.

• EMERGENCY STOP! plate works correctly.

Serious injury or death can result from using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

Figure 32. Location of "R" and "S" terminals.

Close and latch electrical box, and reconnect

machine to power.

Follow Test Run to ensure that machine

functions properly.

-24-

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PREPARATION

To test run machine:

1. Clear all setup tools away from machine.

2. Press Emergency Stop button in (see

Figure 33).

Turn air compressor ON and verify

pressure gauge on air regulator is set to approximately 75 PSI.

Connect machine to power. Power indicator

4. should illuminate (see Figure 33).

Power

Indicator

— If table moves in same direction as key

description, power supply polarity is correct.

— If table moves in opposite direction

as key description, stop machine and DISCONNECT FROM POWER. Phase polarity of incoming power is reversed. Refer to Correcting Phase Polarity on Page 24 before proceeding with remainder of Test Run.

You MUST verify that table moves in expected direction according to buttons pressed on control panel, otherwise all controls will function in reverse. Conveyor and sanding belt MUST rotate in correct direction or serious personal injury and machine damage could occur.

Emergency Stop

Button

Figure 33. E-Stop button and power indicator.

5. Twist Emergency Stop button clockwise until

it springs out. This resets switch so machine can start.

6. Verify power supply is connected to machine with correct polarity by pressing Table Up

) and Table Down ( ) keys, respectively

( (see Figure 34).

Table Up Key

Table Down Key

Press sanding belt ON button to turn main

motor ON (see Figure 35). Verify motor starts up and runs smoothly without any unusual problems or noises.

Sanding

Belt ON

Button

Figure 35. Sanding and conveyor belt ON buttons.

Press Emergency Stop button to turn

Conveyor

Belt ON

Button

machine OFF.

Figure 34. Table Up and Down key locations.

WITHOUT resetting Emergency Stop

button, try to start machine by pressing same start button from Step 7. The machine should not start.

-25-

South Bend Tools

Model SB1096

— If machine does not start, safety feature

of the Emergency Stop button is working correctly. Proceed to next step.

— If machine does start, immediately turn

it OFF, disconnect power, and contact customer service for assistance. The safety feature of the Emergency Stop button is NOT working properly and must be replaced before further using machine.

Reset Emergency Stop button and repeat

10.

Steps 7–9 with conveyor belt ON button (see Figure 35) to test feed motor. Motor should

run smoothly without unusual problems or noises and belt should move away from operator and toward sanding drum.

Reset Emergency Stop button.

11.

12. Press both sanding belt and conveyor belt

ON buttons, then press EMERGENCY STOP plate (see Figure 36).

PREPARATION

For Machines Mfd. Since 9/20

Inspections & Adjustments

The following list of adjustments were performed at the factory before your machine was shipped:

• Table Display Calibration ............Page 58

• Table Parallelism............................Page 47

• Conveyor Belt Tension ..................Page 54

• Conveyor Belt Tracking ................Page 55

• Oscillation Timing ..........................Page 41

• Oscillation Speed ............................Page 41

• Pressure Rollers .............................Page 50

• V-Belt Adjustment ..........................Page 51

Be aware that machine components can shift during the shipping process. Pay careful attention to these adjustments as you test run your machine. If you ﬁnd that the adjustments are not set according to the procedures in this manual or your personal preferences, re-adjust them.

EMERGENCY STOP

Plate

Figure 36. EMERGENCY STOP plate location.

— If sanding and conveyor belt do not

come to a complete stop, immediately disconnect power. The safety feature of the EMERGENCY STOP plate is NOT working correctly. This must be ﬁxed before machine can be used further.

— If sanding and conveyor belt do come

to a complete stop, safety feature of the EMERGENCY STOP plate is working correctly.

Test Run is complete!

-26-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so they can more easily understand the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide for performing actual machine operations. To learn more about speciﬁc operations and machining techniques, seek training from people experienced with this type of machine, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

OPERATION

Operation Overview

Due to the generic nature of this overview,

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

To complete a typical operation, the operator does the following:

1. Examines the workpiece to verify it is

suitable for sanding and determines which sanding belt grit size to start with.

2. Installs and tensions sanding belts. Adjusts

platen as necessary.

Checks pressure regulator setting is between

57-75 PSI.

Verifies outfeed clearance and support.

Adjusts conveyor table height to approximate

thickness of workpiece.

Puts on safety glasses and respirator.

Starts dust collector.

Connects machine to power, starts sanding

belt motor, then starts feed motor.

Feeds workpiece into sander by placing front

end on infeed side of conveyor table and supporting back end until workpiece engages with pressure rollers.

To reduce risk of eye injury from flying chips or lung damage from breathing dust,

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, South Bend Lathe Company will not be held liable for accidents caused by lack of training.

always wear safety glasses and a respirator when operating this machine.

Note: During initial pass with new

workpiece, operator adjusts table height as necessary so workpiece only makes light contact with sanding belt and does not overload sander.

Receives workpiece from outfeed side of

10.

conveyor table.

Raises height of conveyor table a small

11.

amount, then repeats feeding process of workpiece through sander.

Changes sandpaper to finer grit.

12.

Repeats Steps 9–12 as needed, turns all

13.

motors OFF, disconnects machine from power, then turns OFF air compressor once machine is at rest.

-27-

South Bend Tools

Model SB1096

OPERATION

For Machines Mfd. Since 9/20

Sanding Workpieces

The sanding process is influenced by the feed rate, sanding depth, grit size and material type of sandpaper, platen position, and oscillation speed. We strongly recommend that you experiment with these variables, or research best practices for achieving your desired sanding results with the type of material you have. Also, to avoid unnecessary wear on belts, always make sure the workpiece has been surface planed with a jointer or planer before sanding.

Typically, no more than 0.020" (one full rotation of handwheel) of material should be removed during a single sanding pass. The maximum sanding depth can also be influenced by the thickness of the sanding belt, which can vary from 0.010" (fine sandpaper) to 0.060" (coarse sandpaper).

Attempts to remove too much material at one time can cause jamming, wood burning, rapid sandpaper wear or tearing, poor finish, short motor life, and belt slippage. The operator usually makes a pass, raises the table a little, and repeats until the entire surface is sanded to satisfaction. Before sanding, ensure you review Workpiece Inspection and put on the required safety glasses and respirator.

IMPORTANT: As you sand, observe the amp meter (see Figure 1 on Page 3). If the load meter indicates motor overload, slightly lower the table or reduce the feed rate.

Use the following tables to determine the approximate maximum depth-of-cut (DOC) for relative conveyor feed rates.

After selecting the appropriate feed rate chart, find the grit size you plan to use. Locate the correct DOC for that grit by selecting the correct wood hardness of the workpiece, and note the maximum DOC for the platen setting (up, even, or down).

Note: These numbers are approximate values only. They are provided with the intent of giving you a "ballpark" idea of what to expect for material removal rates from this machine. Many additional factors can influence the maximum depth-of-cut or removal rates that can be achieved with each pass (i.e. oscillation speed settings, depth-of-cut taken on previous pass, actual hardness of workpiece, etc.), so don’t be surprised if you experience slightly different results.

Note: It may take more than one pass to achieve the full sanding depth.

The overall sanding process consists of the operator starting sanding with the platen in the up position with a coarse grit sandpaper, such as #60, and then repeating this for subsequent grit sizes from #80–#100 until the workpiece is evenly smooth. The operator then sets the platen level with the drum and performs intermediate sanding passes using #100–#150 grit sandpaper. For the final sanding pass, the operator sets the platen in the down position and sands the workpiece using #180 grit or finer sandpaper. Refer to Adjusting Platen on Page 32 for more information about platen positions.

-28-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Down 0.5mm

Wood Hardness

Platen Settings

Down 0.5mm

Wood Hardness

Platen Settings

Grit Size

Max DOC

Down 0.5mm

Wood Hardness

Platen Settings

OPERATION

Approximate Max Depth-of-Cut for 15" Stock

16 FPM

Grit Size Hard Soft Max DOC Position

60 0.030" 0.040" n/a Up 1.5mm

80 0.025" 0.035" n/a Up 1.5mm 100 0.020" 0.030" 0.010" Even 120 *0.015" *0.020" 0.010" Even 150 *0.010" *0.015" 0.007" Even 180 0.005" *0.010" 0.005" 240 *0.003" *0.005" 0.002" Down 1mm

23 FPM

Grit Size Hard Soft Max DOC Position

60 0.025" 0.035" n/a Up 1.5mm

80 0.020" 0.030" n/a Up 1.5mm 100 0.015" 0.020" 0.007" Even 120 *0.010" *0.015" 0.007" Even 150 0.005" *0.010" 0.005" Even 180 *0.003" *0.005" 0.002" 240 *0.002" *0.004" 0.001" Down 1mm

Workpiece Inspection

Some workpieces are not safe to cut or may require modification before they are safe to cut.

Before sanding, inspect all workpieces for the following:

• Material Type: This machine is intended

for sanding natural and man-made wood products. This machine is NOT designed to sand metal, glass, stone, tile, plastics, drywall, cement backer board, laminate products, etc.

Sanding improper materials increases risk of

respiratory harm to operator and bystanders due to especially ﬁne dust inherently created by all types of sanding operations—even if a dust collector is used. Additionally, life of machine and sanding belts will be greatly reduced (or immediately damaged) from sanding improper materials or from exposure to ﬁne dust created when doing so.

33 FPM

Hard Soft

60 0.020" 0.030" n/a Up 1.5mm

80 0.015" 0.025" n/a Up 1.5mm

100 0.010" 0.015" 0.005" Even 120 *0.007" *0.010" 0.005" Even 150 *0.005" *0.007" 0.003" Even 180 *0.003" *0.005" 0.002" 240 0.001" *0.003" 0.001" Down 1mm

Position

* These numbers assume the platen is raised up during the sanding pass.

• Foreign Objects: Nails, staples, dirt, rocks

and other foreign objects are often embedded in wood. While sanding, these objects can become dislodged and tear sanding belt Always visually inspect your workpiece for these items. If they cannot be removed, DO NOT sand the workpiece.

• Wet or "Green" Stock: Sanding wood

with a moisture content over 20% causes unnecessary clogging and wear on the sanding belt, increases the risk of kickback, and yields poor results.

• Excessive Warping: Workpieces with

excessive cupping, bowing, or twisting can be dangerous to sand because they are unstable and unpredictable when being sanded. DO NOT use workpieces with these characteristics!

• Minor Warping: Workpieces with slight

cupping can be safely supported if the cupped side is facing the table. On the contrary, a workpiece supported on the bowed side will rock during sanding and could cause kickback injury.

-29-

South Bend Tools

Model SB1096

OPERATION

For Machines Mfd. Since 9/20

Sanding Tips

• Avoid sanding a workpiece more than is necessary, since doing so will unnecessarily decrease belt life and cost you more money over time.

• Only sand with as slow of feed speeds as necessary to meet your sanding goals. In other words, avoid running the sander faster than is necessary. Increasing feed speeds beyond the required level can decrease the quality of the finished product and the lifespan of sanding belts.

• As a general rule, use the sanding drum for the initial heavy sanding pass, then use a combination of the platen and drum for the intermediate pass, and the platen alone for the final sanding passes.

• As a rule-of-thumb, sand with progressively higher grit numbers in increments of 50 or less.

• Replace sandpaper with a higher grit to achieve a ﬁner ﬁnish (refer to Installing/ Changing Sanding Belts on Page 31).

• When making multiple passes on the workpiece, avoid raising the conveyor table more than 0.015" (nearly one turn of the height handle or 3 touches of the Table Up key) per each pass.

• Reduce snipe when sanding more than one board of the same thickness by feeding them into the machine with the front end of the second board touching the back end of the ﬁrst board (aka "Butt Feeding").

• DO NOT sand boards smaller than 14" long, 2" wide and to the workpiece and the sander (see Figure 37).

2" Min.

Figure 37. Minimum dimensions for sanding.

• Extend the life of the sandpaper by regularly cleaning the sanding belt (refer to Cleaning Sanding Belt on Page 40).

• DO NOT edge-sand boards. This can cause boards to kickback, causing serious personal injury, or damage to the conveyor and sanding belt.

• Only use the load meter to keep the motor from overloading—that is its main purpose. Avoid using the load meter to monitor how much material is being removed, as this can lead to problems, including belts loading, burning, and poor quality sanding results.

• Make sure to adjust platen position accordingly when changing grit sizes.

• The faster the feed rate you use, the faster your sanding belts will wear out.

⁄8" thick to prevent damage

14" Min.

/8" Min.

• Feed boards into the machine at different points on the conveyor to maximize sandpaper life and prevent uneven belt wear.

-30-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Installing/Changing

OPERATION

4. Rotate sanding belt tension knob to release sanding belt tension (see Figure 38).

Sanding Belts

Required Sanding Belt Size ........................ 37" x 60"

Included 37" x 60" Belts Qty.

100-Grit .................................................................1

180-Grit

The Model SB1096 only accepts 37" wide by 60" long sanding belts. For additional sanding belt selections beyond those included with the machine, refer to Accessories on Page 35.

We recommend using aluminum-oxide sanding belts for best results. The grit you

choose will depend on the condition and species of wood, and the level of finish you wish to achieve.

When choosing sanding belts, use these grit numbers as a general guide:

Grit Type

60 or less ...................................................... Course

80–100........................................................ Medium

120–150............................................................ Fine

180+

The general rule of thumb is to sand a workpiece with progressively higher grit numbers—in increments of 50 or less.

Note: Sandpaper ﬁner than 180-grit will easily load up or burn workpieces.

.................................................................1

.............................................................. Finish

5. Loosen lock post release lever and remove it and spacer block (see Figure 38).

Lock Post

Release Lever

Figure 38. Components for changing sanding belt.

6. Remove existing belt.

You must install sanding belt with directional arrows on sanding belt pointing in counterclockwise direction (from left door position). Failure to install sanding belt correctly could result in damage to sanding belt or machine itself.

7. Making sure rotation arrows on sanding

belt point in same direction as those shown in Figure 39, install sanding belt on upper roller and lower roller, starting with upper.

Belt Tension

Knob

(Detensioned)

Spacer Block

To install/change sanding belt:

1. Start air compressor.

2. DISCONNECT MACHINE FROM POWER.

Open left door.

Belt Rotation

Figure 39. Sanding belt placement components.

-31-

South Bend Tools

Model SB1096

Note: Sanding belt must be centered between

limit switches on either side, as shown in Figure 40, before belt is tensioned. Damage to sanding belt and sander may occur if sander is turned ON before sanding belt is correctly positioned.

Tracking Limit

Switch

(1 of 2)

Figure 40. Location of sanding belt limit switches.

OPERATION

For Machines Mfd. Since 9/20

Adjusting Platen

This sander is equipped with an adjustable platen (see Figure 41) with a graphite pad that is designed to be used during finish sanding to create a polished-type finish and to prepare the workpiece for orbital sanding or a finish coat.

Figure 41. Platen removed from machine.

The platen position allows for 3 basic types of sanding: up, even, and down, which is adjusted with the platen adjustment lever (see Figure 42) to the desired position. The platen adjustment lock lever must be unlocked to adjust the platen.

8. Replace spacer block and lock post release

lever.

9. Keeping hands clear of moving parts, tension

belt by rotating belt tension knob to vertical position.

10. Close and secure left door.

Platen

Adjustment

Lever

Figure 42. Platen height components.

Unlike the sanding drums, which typically produce short but deep scratch patterns, the platen produces long and shallow scratch patterns that create a smoother finish. Due to the cushioned-construction, the platen is less likely to leave belt-splice or chatter marks.

Platen Adjustment

Lock Lever

-32-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

However, we do not recommend lowering the platen depth more than 2mm (about one complete turn of the lever) or over-using the platen by expecting it to remove marks beyond its ability to do so, since this can reduce the life of the sanding belt and platen, and result in premature streaking.

Tip: Given the short life-span of most graphite pads, keep replacement pads on hand.

Platen Up: The platen is raised above the drum (typically set at 1.5mm up), so only the sanding drum is making contact with the workpiece. This position is typically used for heavy sanding passes or dimensioning. The drum does all the work, but you will have a rough finish. Typically platens are used in this position with #100 or coarser grit.

OPERATION

Changing Feed Rate

The conveyor belt is variable-speed, which is controlled by the knob located on the front of the feed belt gearbox (see Figure 43).

Conveyor Speed Rate

............................... 15–49 FPM

Feed Rate

Adjustment

Knob

Platen Even: The platen is set level with the

drum. This position is used for intermediatefin ishing passes. The depth of cut should not exceed 0.010". This position typically uses #100-#150 grit.

Platen Down: The platen is set below the drum so it is the primary contact point while performing finish sanding.

The platen should be lowered to 0.2 to 0.5mm (maximum) below the sanding drums, but not more than 0.2mm per pass. You can lower the platen up to 2 mm below the drums for short inter vals, but streaking, burn marks, and premature graphite/platen wear can occur if this setting is abused or over-used.

It is not necessary to use the table height handwheel or Table Up key depth during the final sanding pass—the platen movement alone will take care of the depth of cut. Typically the final-sanding pass position uses #180 or finer grit.

Note: The platen scale is broken down in millimeter increments.

to adjust the sand ing

Figure 43. Feed rate adjustment knob location.

As a general rule, slower feed rates are more beneﬁcial than faster feed rates since they allow a belt to remove more material. We recommend you always start with the slowest feed rate and only increase the feed speed as needed to meet your sanding goals. Always test the feed rate using scrap wood similar to your workpiece.

Softwoods typically require a faster feed rate than hardwoods; however, there is no deﬁnitive rule to follow when determining the best feed rate to use for any type of wood.

Also, keep in mind that an increase in feed rate will increase the amperage load for a given sanding depth. This means you need to use shallower sanding depths at higher feed rates to avoid overloading the sanding motor.

To change feed rate:

1. Turn conveyor belt ON. Conveyor belt must

be running to adjust feed rate.

If workpiece has straight notches across it, graphite cloth and felt have worn out and need to be replaced.

Turn knob counterclockwise to increase feed

rate. Turn knob clockwise to decrease feed rate.

Note: Turn knob in 1⁄8" increments.

-33-

South Bend Tools

Model SB1096

OPERATION

For Machines Mfd. Since 9/20

Reading Amp Meter

The amp meter (see Figure 44) is used to keep the motor from overloading during sanding operations. It should not be used as the main method for controlling sanding belt material removal rates—doing so can result in belt loading, burning, and even breaking—because there are many different variables that affect optimum removal rates and these will affect the amp load in different ways.

Amp load is directly affected by many factors such as feed rate, depth of cut, wood type, sandpaper grit, and workpiece width. If the amp load is in the red load range, the machine is overloaded and motor damage may soon occur. Adjust the table height accordingly to reduce the load, and use the amp load chart near the meter to keep the amp load in the green, SAFE range during operation.

Using EMERGENCY STOP Plate

The EMERGENCY STOP plate can help reduce the amount of damage to internal components during an emergency and can prevent operator injury. Pushing the EMERGENCY STOP plate (see Figure 45) causes the disc brake to stop the sanding belt motor, immediately stopping the sanding belt.

EMERGENCY STOP

Plate

Amp Meter

Figure 44. Location of amp meter.

As a general rule, always start with a small load and work your way up. DO NOT work the machine to its maximum load, or to where you can hear the motor lose RPM; instead, make multiple light passes or install a coarser grit sandpaper.

Keep amp draw within GREEN load range shown on the AMP LOAD CHART on the control panel. If you operate machine in RED load range, motor damage may occur and will not be covered under warranty.

Figure 45. Location of EMERGENCY STOP plate.

An operator should be careful when loading a workpiece not to trap fingers between workpiece and conveyor table, but in the event that it might happen, the EMERGENCY STOP plate can be pressed by operator while their hands are otherwise engaged.

Keep sanding drum V-belt correctly tensioned (refer to Page 51) to ensure proper functionality of EMERGENCY STOP plate. Otherwise, pulleys can slip when emergency stop brake is applied and not immediately stop the machine in the event of an emergency!.

-34-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

Accessories

This section includes the most common accessories available for your machine through our exclusive dealer, Grizzly Industrial, Inc., at grizzly.com.

Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended by South Bend or Grizzly.

Refer to Grizzly's website or latest catalog for additional recommended accessories.

D3378—Pro-Stik 12" x 15" Cleaning Pad D3003—Pro-Stik 15" x 20" Cleaning Pad

The perfect accessory for wide-belt sanders, just set your table and feed this cleaning pad through for longer lasting abrasive belts. Pads are thick.

⁄4"

D2274—5 Roller Stand

Adjusts from 26" to 44 These super heavy-duty roller stands feature convenient hand knobs for fast height adjustment.

Figure 47. D2274 5-Roller Stand.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and waterresistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

⁄8". 250 lb. capacity.

Figure 46. PRO-STIK cleaning pad.

Figure 48. T26419 Syn-O-Gen Synthetic Grease.

-35-

South Bend Tools

Model SB1096

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

For Machines Mfd. Since 9/20

Sanding Belts 37" x 60" X-Weight Aluminum Oxide

T21042—60-Grit T21043—80-Grit T21044—100-Grit T21045—120-Grit T21046—150-Grit T21092—60-Grit (5-Pk.) T21093—80-Grit (5-Pk.) T21094—100-Grit (5-Pk.) T21095—120-Grit (5-Pk.) T21096—150-Grit (5-Pk.)

These belts feature touch aluminum oxide grain on an "X" weight paper backing. This product has more "body" than other "X" weight products, making it well-suited for wide belts. While it will not take the abuse of the "Y" weight aluminum oxide belts, the do-it-yourselfer will find it affordable and effective.

Sanding Belts 37" x 60" Y-Weight Aluminum Oxide

G7998—60-Grit G7999—80-Grit G8000—100-Grit G8001—120-Grit G8002—150-Grit H8817—60-Grit (3-Pk.) H8818—80-Grit (3-Pk.) H8819—100-Grit (3-Pk.) H8820—120-Grit (3-Pk.) H8821—150-Grit (3-Pk.)

These belts use tough aluminum oxide grain, open-coated on a very heavy "Y" weight polyester backing with a Resin Bond system that no equivalent product can outperform. The superior backing more than justifies the additional cost over lesser "X" weight backings in their longer belt life and their ability to be washed, furthering the savings.

Figure 49. 37" x 60" X-Weight Sanding Belts.

Figure 50. 37" x 60" Y-Weight Sanding Belts.

-36-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

MAINTENANCE

Maintenance Schedule

Always disconnect machine from power before performing maintenance or serious personal injury may result.

MAINTENANCE

Machine Storage

All machinery will develop serious rust problems and corrosion damage if it is not properly prepared for storage. If decommissioning this machine, use the steps in this section to ensure that it remains in good condition.

To prepare machine for storage or decommission it from service:

For optimum performance from your machine, follow this maintenance schedule and refer to any speciﬁc instructions given in this section.

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

Ongoing

• Check for/tighten loose mounting bolts.

• Check for/replace worn or damaged sanding belts.

Check for/repair worn or damaged wires.

•

• Check for/replace worn or damaged platen graphite pad.

Check for any other unsafe condition.

•

Weekly

• Drain water in air ﬁlter collection cup (Page 40).

• Empty and clean dust trap bowl (Page 40).

• Lubricate grease ﬁttings on conveyor belt roller axles and sanding belt axles (Page 38).

Monthly

• V-belt tension, damage, or wear.

• Clean/vacuum dust build-up from inside cabinet and off motors.

• Check gearbox sight glass for oil level, if oil is below sight glass, ﬁll (Page 39).

• Grease table elevation chain, leadscrews, and sprockets (Page 39).

1. Disconnect all power sources to machine.

2. Thoroughly clean all unpainted, bare metal

surfaces, then coat them with light weight grease or rust preventative. Take care to ensure these surfaces are completely covered but that grease or rust preventative is kept off of painted surfaces.

Note: If machine will be out of service for

only a short period of time, use way oil or a good grade of medium-weight machine oil (not auto engine oil) in place of grease or rust preventative.

Loosen or remove belts so they do not become

stretched while machine is not in use.

Fill gearbox with recommended gear oil so

components above normal oil level do not develop rust. (Make sure to put a tag on controls as a reminder for re-commissioning process to adjust gear oil level before starting machine.)

Note: If machine will be out of service for only

a short period of time, start machine once a week and run all gear-driven components for a few minutes. This will put a fresh coat of gear oil on gearing components inside gearbox.

Completely cover machine with tarp or

plastic sheet that will keep out dust and resist liquid or moisture. If machine will be stored in/near direct sunlight, use cover that will block sun's rays.

Yearly

• Replace white moisture ﬁlters in air regulator.

-37-

South Bend Tools

Model SB1096

MAINTENANCE

For Machines Mfd. Since 9/20

Cleaning & Protecting

Cleaning the Model SB1096 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it.

Lubrication

An essential part of lubrication is cleaning the components before lubricating them. This step is critical because dust and chips build up on lubricated components, which makes them hard to move. Simply adding more grease to built-up grime will not result in smooth moving parts. Clean the components in this section with an oil/ grease solvent cleaner or mineral spirits before applying lubrication.

All other bearings are sealed and permanently lubricated. Leave them alone until they need to be replaced.

Grease Fittings

Lubrication Type ..........T26419 or NLGI#2 Equiv.

Amount Frequency

Items Needed Qty

Rag ........................................................................1

Grease Gun

Wipe the fitting clean with a rag. Add one or two pumps of grease to the grease fitting located on the conveyor belt roller axles and the sanding belt roller axles (see Figures 51 and 52). They are identified with yellow labels.

....................1–2 Pumps from Grease Gun

....................................................Weekly

............................................................1

The following are the main components that need to be lubricated:

• Grease Fittings

• Table Elevation Leadscrews, Chain, and Sprockets

• Feed Motor Gearbox

Schedules are based on average use. Adjust lubrication frequency according to your level of use.

DISCONNECT POWER TO MACHINE BEFORE CLEANING AND LUBRICATING COMPONENTS!

Figure 51. Location of conveyor belt roller axle grease

fitting.

-38-

Figure 52. Locations of sanding belt roller axle grease

fittings.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

MAINTENANCE

Table Elevation Leadscrews, Chain, & Sprockets

Lubrication Type ..........T26419 or NLGI#2 Equiv.

Amount Frequency

Items Needed Qty

Rag ........................................................................1

Mineral Spirits Wire Brush

Lower table all the way, then remove the flat head screws shown in Figure 53 to remove each access panel.

................................................... Thin Coat

.................................................. Monthly

...................................... As Needed

............................................................1

x 8

Feed Belt Gearbox

Gear Oil Type ........ T28042 or ISO-VG 320 Equiv.

Amount Frequency

Items Needed Qty

Drain Pan ..............................................................1

Wrench 14mm

If gearbox oil is low, remove fill plug (see Figure

55) and add new oil until sight glass is full, then re-install fill plug.

If gearbox oil needs to be changed, run machine to warm gearbox before removing fill plug and drain plug (see Figure 55), draining oil, then re-installing drain plug. Add new oil until sight glass is full, then re-install fill plug.

.................................................. As Needed

......After ﬁrst 300 hrs., every 2500 hrs.

.......................................................1

Fill Plug

Sight

Glass

Figure 53. Location of securing flat head screws.

Use shop rags and mineral spirits to remove the old lubricant and built-up grime from the leadscrews, chain, and sprockets (see Figure

54). Brush new lubricant onto the leadscrews,

chain, and sprockets, being careful to not get grease on the V-belts. This could cause the V-belts to slip on the pulleys. If you do get grease on the V-belts, replace them. Raise the table up and down a few times to evenly distribute the lubricant.

Sprocket

(1 of 4)

Leadscrew

(1 of 4)

Chain

Drain Plug

Figure 55. Gearbox lubrication components.

Figure 54. Table elevation lubrication components.

-39-

South Bend Tools

Model SB1096

MAINTENANCE

For Machines Mfd. Since 9/20

Emptying Dust and Water Traps

Two collection traps on this sander need to be emptied regularly. DO NOT allow any of these traps to become full or you risk serious damage to the machine.

The air pressure regulator water trap (see Figure 56) is attached to the air pressure regulator and traps condensation in the incoming air supply.

With the system under air pressure, push the lower drain valve and empty the regulator water trap (see Figure 56). Also, replace the internal white moisture ﬁlters annually.

Cleaning Sanding Belt

To increase the working life of your sanding belts, clean them whenever they decrease in performance due to heavy loading of material. Use a Model D3003 PRO-STIK® Cleaning Pad as shown in Figure 58.

Figure 58. PRO-STIK cleaning pad in use.

Water Trap

Drain Valve

Figure 56. Location of regulator water trap and drain

valve.

There is a dust trap bowl inside the right door (see Figure 57). To empty this bowl, turn the air pressure OFF, allow the pressure to bleed out, then unscrew and empty the bowl.

Dust Trap

Bowl

To clean sanding belt:

1. Set table to thickness of cleaning pad.

Run pad through sander two or three times.

DO NOT take too deep of a cut—belt should barely touch cleaning pad.

Pneumatic System

The air system is durable and reliable; however, components do wear with age. If you suspect that an item in your air system may be having problems, see the Pneumatic System Diagram on Page 62.

• Adjust regulator to approximately 75 PSI.

• Carefully inspect all air lines for cracks, chafing, or hardening. Replace faulty hoses.

Check air connections for leaks. A small

• amount of soapy water in a questionable area will bubble if there is a leak.

Figure 57. Location of dust trap bowl.

-40-

• Make sure lines are not clogged. Remove a questionable line and blow through it as a test.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

SERVICE

Adjusting Oscillation Timing & Speed

The oscillation adjustments have been performed at the factory and should require no further attention. However, we recommend verifying the settings.

When the oscillation is correctly adjusted, the sanding belt oscillates to the left and to the right at the same speed. If the sanding belt makes contact with a limit switch, as shown in Figure 59, the emergency braking system will activate and stop the sander immediately.

Sander Outline (Top View)

Limit Switch

Sanding Belt

— If belt tracks away from air fork and air

jet, colliding into limit switch, proceed to Setting Correct Airﬂow.

Setting Correct Airﬂow

An adequate stream of air through the air fork gap is essential for proper oscillation (see Figure

60). If airﬂow is weak through the gap, the belt

will track away from the controller and into the limit switch on the opposite end of the roller. The pivot action of the upper roller and the resulting oscillation of the belt are dependent upon adequate airﬂow through the air fork gap.

Oscillation

Controller Gap

Air Fork

and Air Jet

Figure 59. Improper oscillation.

These adjustments should be made with care, as current sanding belt oscillation and timing settings can only be observed when the doors are open and the sanding belts are moving.

Checking Sanding Belt Oscillation

1. Confirm sanding belt is properly installed

and belt tension knob and air supply are ON.

Turn sanding belt ON.

— If belt oscillates without contacting limit

switches, but oscillation time to left and right is not equal, proceed to Equalizing Oscillation Speed on Page 42.

Figure 60. Oscillation components.

To set correct airﬂow through air fork:

1. With sanding belt removed, turn belt tension

knob to tensioned position.

Loosen lock nut on airﬂow adjustment knob

(see Figure 61).

Turn airﬂow adjustment knob (see Figure

61) clockwise until airﬂow is completely

OFF. Upper roller should pivot to the right.

Lock Nut

Airflow Adjustment

Knob

Figure 61. Airflow adjustment components.

-41-

South Bend Tools

Model SB1096

SERVICE

For Machines Mfd. Since 9/20

4. Slowly turn airflow adjustment knob

counterclockwise, and continue turning up air pressure until roller pivots left.

Tighten lock nut to secure airﬂow

adjustment knob.

Restrict airﬂow across air fork gap with piece

of cardboard. Roller should pivot to the right. When cardboard is removed, roller should pivot back to the left.

Proceed to Equalizing Oscillation Speed

to ensure oscillation speed from left to right and right to left are the same.

Equalizing Oscillation Speed

1. Test oscillation by running sander. Make

note of time it takes for belt to oscillate from left to right and from right to left. When correctly timed, oscillation should take similar amount of time to move in each direction.

Adjusting Oscillation Speed

Oscillation speed of the sanding belt is adjustable. Different oscillating speeds yield different sanding results. We recommend trying various speeds on a scrap piece of wood similar to ﬁnal workpiece.

To adjust oscillation speed:

1. Loosen lock nut on speed adjustment knob

(see Figure 63).

Lock Nut

Speed Adjustment

Knob

— If oscillation time to the left is longer

than time to the right, loosen oscillation timing knob (see Figure 62) and move it left until proper tracking is achieved. Tighten down knob when satisﬁed.

— If oscillation time to the right is longer

than to the left, loosen oscillation timing knob (see Figure 62) and move it right until proper tracking is achieved. Tighten down knob when satisﬁed.

Oscillation Timing

Knob

Figure 63. Speed adjustment components.

Turn speed adjustment knob clockwise

to decrease oscillation speed and counterclockwise to increase.

Tighten lock nut to secure speed adjustment.

Figure 62. Location of oscillation timing knob.

-42-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Servicing Platen

Always disconnect machine from power before performing maintenance or serious personal injury may result.

The platen graphite pad and felt pad should be inspected on a daily basis and replaced when they become worn or damaged.

Due to its function, it is very important for the graphite pad to be ﬂat, smooth, and free of grooves or low spots. It is also important that no dust or chips get trapped between the graphite pad and felt pad of the platen.

If surface defects are found, lightly hand-sand the platen to make the surface ﬂat again. If surface defects are more serious, the graphite pad may need to be replaced. If you notice a lot of streaking, this can also be a sign that the graphite pat or felt pad needs to be replaced.

Tools Needed Qty

Platen Removal Tool ............................................. 1

Phillips Head Screwdriver #2 Graphite Pad

........................................................................ 1

Drill Drill Bit Solvent Cleaner Putty Knife Felt Pad Contact Cement or Spray Adhesive

......................................................... 1

⁄16" ........................................................... 1

..................................... As Needed

............................................................ 1

.................................................................1

Replacing Graphite Pad

1. DISCONNECT MACHINE FROM POWER!

...............................1

..... As Needed

SERVICE

Use platen removal tool to remove platen

from sander as shown in Figure 64.

Figure 64. Removing platen with platen removal tool.

4. Remove (7) Phillips head screws and

pressure plate that secure graphite pad (see Figure 65).

(Hidden Under

5. Install new graphite pad onto platen and

secure pad with pressure plate and screws removed in Step 4.

x 7

Felt Pad

Platen)

Figure 65. Platen components.

Graphite Pad

Pressure

Plate

Open left door and detension/remove sanding

belt. Keep lock post release lever and stop block removed.

Tip: If new pad does not have mounting holes,

use old pad as a template for drilling new holes in new pad.

Insert platen in same manner it was

removed, making sure open end of graphite pad points toward front of machine.

Install sanding belt, stop block, and lock post

release lever, then close left door

-43-

South Bend Tools

Model SB1096

SERVICE

For Machines Mfd. Since 9/20

Replacing Felt Pad

1. Follow Steps 1–3 of Replacing Graphite

Pad on Page 43.

Thoroughly soak felt pad in solvent to loosen

glue securing pad to platen, then lift felt pad off and let platen dry. Use putty knife to scrape off any remaining felt and glue.

Use spray adhesive or contact cement to

secure new felt pad to platen.

Follow Steps 6–7 of Replacing Graphite

Pad on Page 43.

Checking/Replacing Brake Pads

The disc brake assembly uses brake pads to stop the rotor (see Figure 66) when the Emergency Stop button or EMERGENCY STOP plate is pressed or if one of the limit switches is activated. Eventually the brake pads will wear out. Both the inner and outer brake pad should be changed at the same time.

Items Needed Qty

Phillips Head Screwdriver #2 ...............................1

Fine Ruler Open-End Wrench 14mm Hex Wrench 4, 5mm Inner Brake Pad (#PSB10961302) Outer Brake Pad (#PSB10961315)

..............................................................1

.....................................1

...................................... 1 Ea.

....................... 1

......................1

To check/replace brake pads:

1. DISCONNECT MACHINE FROM POWER!

Disconnect machine from air, then release

all air pressure in machine by opening air valve on regulator (see Figure 67). This will cause disc brake assembly to open, allowing removal.

Air Valve

Checking and replacing these is a simple procedure that can be done in the shop.

Rotor

Disc Brake

Assembly

Figure 66. Location of disc brake assembly and rotor.

Figure 67. Air supply valve opened for brake service.

3. Remove (4) flat head screws and right access

panel (see Figure 68).

x 4

Right

Access Panel

Figure 68. Location of access panel and securing flat

head screws.

-44-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

SERVICE

4. Remove (2) mounting bolts, lock washers,

and flat washers that secure disc brake assembly to machine motor plate (see Figure 69), then pull disc brake assembly away from rotor.

Mounting Bolt

(1 of 2)

Figure 69. Location of disc brake assembly mounting

bolts.

5. Measure thickness of each brake pad. The

brake pads consist of a metal plate with a composite pad. Measure thickness of composite pads only (see Figure 70).

6. Loosen lock nut and remove air line (see Figure 71).

Lock Nut

Air Line

Connection

Figure 71. Location of air line connection lock nut.

7. Remove inner brake pad cap screw, then

remove inner brake pad (see Figure 72).

Inner

Brake Pad

— If thickness of both pads is greater than

⁄8" (see Figure 70), pads do not need to be

replaced. Proceed to Step 15.

— If thickness of either pad is less than 1⁄8"

(see Figure 70), proceed to Step 6 to replace both pads.

Figure 70. Close-up of brake pads.

Figure 72. Location of inner brake pad and mounting

cap screw.

8. Install new inner brake pad and replace cap

screw.

-45-

South Bend Tools

Model SB1096

SERVICE

For Machines Mfd. Since 9/20

9. Remove (1) brake mount stud hex nut and

lock washer (see Figure 73).

Stud

Fasteners

Figure 73. Location of brake mount stud fasteners.

10. Remove (1) brake mount stud, (6) cap

screws, front brake guard, and gasket (see Figure 74).

x 6

Front

Brake

Guard

Stud

11. Remove (1) flat head screw, brake mounting

plate, compression spring, bushing, and outer brake pad (see Figure 75).

Outer

Brake Pad

Brake

Mounting Plate

Figure 75. Location of brake mounting plate,

compression spring, bushing, outer brake pad, and

securing screw (inner brake pad removed for clarity).

Note: Be careful when removing these com-

ponents. They are under pressure from the compression spring and could ﬂy apart unexpectedly.

Install new outer brake pad then secure with

12.

bushing, spring, mounting plate, and flat head screw (see Figure 76). Make sure to reinstall components the same way they were removed.

Note: The countersunk end of the bushing

faces the mounting plate.

Gasket

Figure 74. Outer brake pad fastening components.

-46-

Countersunk End

of Bushing

Mounting

Plate

Figure 76. Order of assembly for outer brake pad

components.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

SERVICE

13. Re-install gasket, front brake guard, screws,

and stud removed in Step 10.

Re-install lock washer and hex nut removed

14.

in Step 9.

Install disc brake assembly around rotor

15.

on motor base using (2) mounting bolts, lock washers, and flat washers removed in Step 4.

Connect air line removed in Step 6 and

16.

secure with lock nut.

Install right access panel and secure with

1 7.

screws removed in Step 3.

Connect air supply to air regulator and

18.

machine to power and start sander to test Emergency Stop system to make sure brake works.

The four corners of the table can be independently adjusted up or down to achieve parallelism with the frame by adjusting the elevation leadscrew ﬂanges (see Figure 77) or repositioning the table elevation sprockets (see Figure 78).

Table Elevation

Leadscrew Flanges

Figure 77. Table elevation leadscrew flanges located

on underside of table.

Checking/Adjusting Table Parallelism

Table parallelism has been adjusted at the factory and should not require adjustment when the machine is new.

We only recommend adjusting table parallelism if absolutely necessary due to factors that may cause the factory settings to change. Adjusting the table parallelism can take a fair amount of patience.

IMPORTANT: DO NOT adjust the table unless you are having trouble sanding your workpiece to a uniform thickness and have eliminated all other possible causes. For instance, a sanding or conveyor belt that is unevenly worn should be replaced before adjusting table parallelism.

Table Elevation

Sprocket

(1 of 4)

Figure 78. Location of table elevation sprockets

(1 of 4) shown.

If a table adjustment is needed, take precise notes on the positioning of the table elevation ﬂanges, sprockets, and leadscrews by marking them. This will allow the original setting to be restored if needed.

Tools Needed Qty

Vacuum Cleaner ....................................................1

Shop Rags Wood Block Approx. 4" Long Fine Ruler Open-End Wrench 12, 14mm Phillips Head Screwdriver #2 White Marker or Correction Fluid

.............................................. As Needed

................................1

..............................................................1

........................ 1 Ea.

...............................1

....... As Needed

-47-

South Bend Tools

Model SB1096

SERVICE

For Machines Mfd. Since 9/20

Checking Table Parallelism

1. DISCONNECT MACHINE FROM POWER!

2. Use vacuum cleaner and shop rag to clean

table and frame at each corner so sawdust will not interfere with measurements during following steps.

Adjust table elevation until it is

approximately 6" below sanding belt.

Take precise measurement of wood

block (approximately 4" long) and record measurement.

Place wood block on edge of table at rear left

corner, then raise table until wood block just touches upper frame (see Figure 79). Do not allow table to squeeze or compress wood block.

Note: Make sure wood block does not touch

conveyor belt.

— If measurement of any corner from Step

6 is not exactly the same as length of

wood block measured in Step 4, table is not parallel to frame. DO NOT remove wood block. Proceed to Adjusting Table Parallelism.

Adjusting Table Parallelism

1. DISCONNECT MACHINE FROM POWER!

2. With wood block still positioned at rear left

corner of conveyor table, locate elevation leadscrew flange (see Figure 80) at corner that needs to be adjusted.

Loosen table mounting bolts on flange (see

Figure 80). Rotate flange a small amount to adjust that corner of table until it is within

0.003" of measurement of wood block.

Note: Each leadscrew ﬂange can be adjusted

up to 0.015" between right and left sides. Rotating left will lower table and rotating right will raise table.

Wood Block

Figure 79. Example of wood block placed for checking

table parallelism.

Take precise measurements at each of

the three remaining corners, between the conveyor table and the upper frame.

— If measurements from all corners in

Step 6 are exactly the same as length of wood block measured in Step 4, table is parallel to frame and no adjustment is necessary. Remove wood block.

Tip: It may help to rotate elevation leadscrew

ﬂange with a vise grip if it is difﬁcult to move.

Elevation

Leadscrew

Flange

Table

Mounting Bolt

(1 of 4)

Figure 80. Location of table mounting bolts.

4. Tighten table mounting bolts to secure

adjustment.

-48-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

SERVICE

5. Repeat Steps 1–4 for any remaining corners

that are not parallel with wood block corner.

— If all corners of conveyor table are exactly

same distance from upper frame, table is parallel and no further adjustment is necessary.

— If any corners are still higher or lower

than corner with wood block by more than 0.003", you will need to adjust the elevation leadscrew sprocket at that speciﬁc corner. Proceed to Step 6.

Remove (4) flat head screws and left access

panel (see Figure 81).

x 4

8. Loosen chain tension sprocket adjustment

nut on sprocket wheel shaft and loosen jam nut on chain tension rod (see Figure 83).

Jam Nut

Sprocket

Adjustment

Nut

Chain Tension

Rod

Figure 83. Table elevation chain tension components.

9. Push sprocket adjustment rod toward frame

(or away from you) to loosen chain tension.

Left

Access

Panel

Figure 81. Location of access panel and securing flat

head screws.

7. Mark one tooth of sprocket (see Figure 82)

that you are adjusting and its location on frame.

Remove chain from sprocket you want to

10.

adjust so only that sprocket can be moved independent of chain.

Carefully rotate sprocket just enough to

11.

position next tooth at marked location from Step 7, then fit chain around sprocket again.

Note: Rotate sprocket counterclockwise to

raise table; rotate sprocket clockwise to lower table.

Pull chain tension rod toward you, tighten

12.

jam nut until chain is moderately tight, then tighten sprocket nut to secure (see Figure 83).

Check table parallelism (refer to Checking

13.

Table Parallelism on Page 48) and, if necessary, repeat Steps 2–12 until all corners of table are the same distance from upper frame.

Sprocket

Tooth

Figure 82. Sprocket tooth location.

Remove wood block and install left access

14.

panel with securing screws.

-49-

South Bend Tools

Model SB1096

SERVICE

Checking/Adjusting Pressure Rollers

The pressure rollers have been adjusted at the factory and should not require routine maintenance.

Ideally, the pressure rollers should be positioned slightly lower than the sanding drum. However, we recommend verifying this setting. If the pressure rollers are incorrectly adjusted, you can end up with burned sanding belts, streaking, and poor workpiece results.

Factory Settings

Pressure Roller Setting Below Bottom of Sanding Drum

Items Needed Qty

6' Long 2x4 Cut in Half .........................................1

Phillips Head Screwdriver #2 Open-End Wrench 12, 19mm

.........................................................0.035"

...............................1

........................ 1 Ea.

For Machines Mfd. Since 9/20

3. Open right door and remove (4) flat head screws and right access panel (see Figure 85).

x 4

Right

Access

Panel

Figure 85. Location of access panel and securing flat

head screws.

Remove V-belts from main motor and

sanding drum (refer to Changing V-Belts on Page 52).

To check/adjust pressure rollers:

1. DISCONNECT MACHINE FROM POWER!

Use jointer and table saw to cut 6' long 2x4

to uniform thickness then cut it in half. Place one board along length of conveyor belt on right-hand side, and place other board on left-hand side, as shown in Figure 84.

Figure 84. Example of 2x4s placed on conveyor belt

under sanding drum.

5. Rotate sanding drum by hand, and manually

raise table until you hear sandpaper contact surface of wood. DO NOT continue to raise table beyond this point.

Connect machine to power and make note

of workpiece thickness, then lower table

0.035". This is how much lower infeed and outfeed pressure rollers should be compared to sanding surface of sanding drum.

DISCONNECT MACHINE FROM POWER!

Open right and left doors.

-50-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Loosen infeed pressure roller jam nuts on

either side of infeed pressure roller, rotate adjustment bolts to lower infeed pressure roller until it just touches boards, then retighten jam nuts to secure (see Figure 86)

Note: DO NOT continue to lower pressure

roller beyond this point.

SERVICE

Checking/Adjusting V-Belt Tension

The V-belts must be tensioned properly for best performance, and to ensure the sanding drum stops when the emergency brake is applied. Always check all V-belts at the same time.

Adjustment

Bolts

Jam Nut

Pressure Roller

Figure 86. Pressure roller adjustment components.

10.

Repeat Steps 7–8 for outfeed pressure roller.

Note: Variables such as feed rate, depth

of cut, and type of sanding belt can play a big part in determining proper amount of downward pressure exerted by rollers. Some experimentation may be necessary to achieve desired results. However, under no circumstances should pressure rollers be set even with, or higher than, sanding rollers.

IMPORTANT: Loose belts will not allow the sanding drum to stop immediately if the EMERGENCY STOP! plate or Emergency Stop button is pushed.

Tools Needed Qty

Phillips Head Screwdriver #2 ...............................1

Open-End Wrench 19mm

.....................................1

To check/adjust V-belt tension:

1. DISCONNECT MACHINE FROM POWER!

Remove (8) flat head screws and both access

panels (see Figure 87).

x 4

Right

Access

Panel

11. Install V-belts (refer to Changing V-Belts

on Page 52).

Lower table and remove 2x4s.

12.

13. Close and secure all doors and install access

right panel.

Figure 87. Location of access panel and securing flat

head screws.

-51-

South Bend Tools

Model SB1096

SERVICE

For Machines Mfd. Since 9/20

3. Check belt tension: Each belt is correctly

tensioned when there is approximately

⁄2"–3⁄4" deflection when it is pushed with

moderate pressure, as shown in Figure 88.

Pulley

Deflection

⁄2"–3⁄4"

Pulley

Figure 88. Checking V-belt tension.

— If there is approximately 1⁄2"–3⁄4" deﬂection

when V-belts are pushed with moderate pressure, V-belts are properly tensioned, and no adjustment is necessary.

Rotate V-belt tension adjustment nuts

to raise or lower motors until there is approximately V-belts are pushed with moderate pressure, then tighten jam nut to secure.

— Rotate adjustment nuts clockwise to

allow motors to drop and apply tension to V-belts.

— Rotate adjustment nuts counterclockwise

to raise motors and release V-belt tension.

Install access panels and secure with screws

removed in Step 2.

⁄2"–3⁄4" deflection when

Changing V-Belts

Check the V-belts periodically for signs of glazing, cracking, fraying, oil/grease on belts, or any other evidence of damage or wear. If any of these conditions are present, replace the V-belt. If any of the main motor V-belts show these conditions, replace the V-belts as a matched set.

— If there is not approximately 1⁄2"–3⁄4"

deﬂection when V-belts are pushed with moderate pressure, V-belts are not properly tensioned. Proceed to Step 4.

Loosen applicable V-belt tension jam

nuts to allow motors to raise or lower (see Figure 89).

V-Belt

Jam Nut

Adjustment Nut

Figure 89. V-belt tension adjustment components.

Changing Table Elevation V-Belt

Tools Needed Qty

Phillips Head Screwdriver #2 ...............................1

Open-End Wrench 19mm

To change table elevation V-belt:

1. DISCONNECT MACHINE FROM POWER!

Remove (4) flat head screws and left access

panel (see Figure 90).

x 4

Left

Access

Panel

.....................................1

-52-

Figure 90. Location of left access panel.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

SERVICE

3. Loosen V-belt tension jam nut to allow motor

to raise or lower (see Figure 91).

Rotate V-belt tension adjustment nut

counterclockwise to release V-belt tension (see Figure 91) until you can remove V-belt from pulleys.

V-Belt

Jam Nut

Adjustment

Nut

Figure 91. Table elevation motor V-belt tension

components.

Changing Main Motor V-Belts

Tools Needed Qty

Phillips Head Screwdriver #2 ...............................1

Open-End Wrench 19mm

To change main motor V-belts:

1. DISCONNECT MACHINE FROM POWER!

Open right door and remove (4) flat

head screws and right access panel (see Figure 93).

.....................................1

x 4

Right

Access

Panel

5. Place new V-belt onto table pulley and then

loop other end of V-belt around motor pulley (see Figure 92).

Motor Pulley

Figure 92. Location of table and motor pulleys.

6. Properly tension V-belt (refer to Checking/

Adjusting V-Belt Tension on Page 51 for more information).

Install left access panel.

Table Pulley

Figure 93. Location of panel and securing screws.

3. Loosen V-belt tension jam nut to allow motor

to raise or lower (see Figure 94).

Rotate V-belt tension adjustment nut

counterclockwise to release V-belt tension (see Figure 94) until you can remove V-belts from pulley.

Jam Nut

Adjustment Nut

Figure 94. Main motor V-belt tension components.

-53-

South Bend Tools

Model SB1096

5. Loosen (2) Phillips head screws holding

pulley cover in place (see Figure 95).

Pulley Cover

x 2

Figure 95. Location of pulley cover and Phillips head

screws.

6. Remove V-belts from sanding drum pulley.

SERVICE

For Machines Mfd. Since 9/20

Adjusting Conveyor Belt Tension

The conveyor belt tension has been adjusted at the factory and should require no further attention. However, adjust the conveyor belt tension if you notice that your conveyor belt is slipping or is tracking off center.

The conveyor belt tension is adjusted by rotating two adjustment bolts, located on each side of the conveyor table (see Figure 97).

Tools Needed Qty

Open-End Wrench 19mm .....................................1

To adjust conveyor belt tension:

1. DISCONNECT MACHINE FROM POWER!

7. Place new set of V-belts onto sanding drum

pulley and then loop other end of V-belts around motor pulley (see Figure 96).

Sanding Drum Pulley

Motor Pulley

Figure 96. Location of sanding drum and main motor

pulley.

8. Install pulley cover and screws from Step 6.

Properly tension V-belt (refer to Checking/

Adjusting V-Belt Tension on Page 51 for more information).

Find adjustment ports in safety guard

at front end of conveyor table to access adjustment bolts inside (see Figure 97).

Rotate both left and right adjustment bolts

(see Figure 97) equally to adjust conveyor belt tension. When tensioned properly, you should not be able to lift the conveyor belt off of table surface or slide it back and forth.

— Rotate adjustment bolts clockwise to

increase conveyor belt tension.

— Rotate adjustment bolts counterclockwise

to decrease conveyor belt tension.

Safety Guard

Adjustment Port

Adjustment Bolt

(1 of 2)

Install right access panel and close right

10.

door.

-54-

Figure 97. Location of conveyor belt adjustment bolts.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

SERVICE

Adjusting Conveyor

Adjust conveyor belt tension before adjusting

Belt Tracking

The conveyor belt is tracking properly when it stays centered on its rollers during operation and does not wander from side to side. The tracking is adjusted by rotating either the left or right conveyor belt tension adjustment bolt

(see Figure 98), depending on the needs of the

adjustment.

Adjustment Bolt

(1 of 2)

conveyor belt tracking.

Tools Needed Qty

Phillips Head Screwdriver #2 ...............................1

Open-End Wrench 19mm

.....................................1

To adjust conveyor belt tracking:

1. Remove safety guard at front of conveyor

belt by removing (4) Phillips head screws shown in Figure 100.

x 4

Figure 98. Location of conveyor belt adjustment bolts.

In addition, two guide wheels (see Figure 99) protect the conveyor belt from damage if the tracking is out of adjustment, by preventing it from rubbing against the inside surfaces of the conveyor table.

Guide Wheel

(1 of 2)

Figure 99. Conveyor belt guide wheels (safety guard

removed for clarity).

Safety Guard

Figure 100. Location of safety guard and Phillips head

screws.

Turn conveyor belt ON.

— If conveyor belt is tracking to the

right, rotate right adjustment bolt (see

Figure 98) clockwise.

— If conveyor belt is tracking to the

left, rotate left adjustment bolt (see

Figure 98) clockwise.

Run conveyor belt for 3–5 minutes and

recheck tracking.

Repeat Steps 2–3, as necessary, until

conveyor belt is properly tracking.

Note: Edge of conveyor belt should just touch

guide wheels as shown in Figure 99.

Install safety guard and securing screws

removed in Step 1.

-55-

South Bend Tools

Model SB1096

Replacing Conveyor Belt

SERVICE

Insert two 2x4 x 8' wooden studs under

table for support, then have assistant help lift table slightly and move it out of rear of machine.

For Machines Mfd. Since 9/20

Replace the conveyor belt if it becomes damaged or you are not able to adjust the conveyor belt tracking due to excessive wear (refer to Adjusting Conveyor Belt Tracking, beginning on Page 55).

Items Needed Qty

Open-End Wrenches 10, 14, 17mm ............... 1 Ea.

Lifting Assistants Phillips Head Screwdriver #2 Hex Wrench 8mm Permanent Marker 8' 2x4s

....................................................................2

.................................. As Needed

...............................1

.................................................1

...............................................1

To replace conveyor belt, match steps below to Figure 101 on following page:

1. Raise table up so conveyor belt is

approximately two-inches away from sanding roller or platen, and then DISCONNECT MACHINE FROM POWER!

Remove gearbox mounting bracket. Then

with an assistant's help, slide motor and gearbox from roller shaft and lower it to floor.

Turn both tracking adjustment bolts

counter-clockwise five turns, remove one roller support, and slide drum out of table assembly.

Remove old conveyor belt, inspect rollers,

10.

bearings, and table for wear and replace as required.

Install new conveyor belt.

11.

Note: Belt is non-directional.

Install front roller, roller support, and

12.

turn both tracking adjustment bolts clockwise equally so conveyor belt becomes taught and does not hang loose. DO NOT OVERTIGHTEN belt tension.

With lifting assistant, install table from rear.

13.

Install table guides and access panels.

14.

Align leadscrew flanges with marks made in

15.

Step 6, then install hex bolts.

Note: Do not loosen two vibration dampening

washers shown in Figure 101.

Remove two table height limit switches.

Remove both access panels.

Remove left and right table guides.

Using permanent marker, mark all four

leadscrew flange positions and remove all hex bolts from flanges. Try not to turn flanges during following steps.

Remove EMERGENCY STOP! push panel

limit switch from table, remove all mounting screws, and remove front guard.

Install table height limit switches so upper

16.

switch clicks when conveyor surface is away from sandpaper, and lower switch clocks when conveyor table is its lowest position. Make sure to test settings with handwheel manually so table does not crash if incorrectly set at first use.

With assistant, install gearbox and mounting

1 7.

bracket.

Install front guard and EMERGENCY

18.

STOP! push panel limit switch.

Refer to Adjusting Conveyor Belt

19.

Tracking on Page 55 to adjust belt tracking.

⁄4" higher than

⁄4"

-56-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

SERVICE

Conveyor Belt Removal Sequence

WARNING

DISCONNECT POWER!

Table Guide

Figure 101. Conveyor belt removal sequence.

Tracking

Adjustment

Bolts

-57-

South Bend Tools

Model SB1096

SERVICE

For Machines Mfd. Since 9/20

Calibrating Digital Display

For the digital display to be accurate, it must be calibrated. We recommend calibrating your scale pointer anytime you adjust the table elevation leadscrews.

Items Needed Qty

3' Long 2x4 .............................................................1

Digital Calipers

To calibrate digital display:

1. Sand planed 2x4 and measure workpiece

thickness.

Check digital display reading.

— If digital display matches measurement

taken in Step 1, no calibration is required.

.....................................................1

Adjusting Belt Tracking Limit Switches

Sanding belt tracking limit switches are placed on both sides of the sanding belt to act as emergency machine stops if the belt travels too far to one side or the other during oscillation (see Figure 103).

Adjustment Bolt

Ceramic Rod

— If digital display does not match

measurement taken in Step 1, proceed to

Step 3.

Press any number button on keypad.

Current height setting will blink on digital display.

Use keypad to enter measurement taken in

Step 1, then hold both Table Stop Set keys together for 3 seconds to set new input (see Figure 102).

Set Key

Table Stop Key

and

Figure 103. Tracking limit switch adjustment bolt

(1 of 2).

Tool Needed Qty

Open-End Wrench 12mm .....................................1

To adjust sanding belt tracking limit switches:

1. Make sure sanding belts are tracking and

oscillation is adjusted properly (refer to Adjusting Oscillation Timing & Speed on Page 41).

DISCONNECT MACHINE FROM POWER!

Release belt tension, center sanding belts on

top rollers, then re-tension belts.

Measure distance from edge of sanding belts

to limit switch ceramic rod (see Figure 103).

Loosen adjustment bolt shown in Figure 103,

and move switch so belt and ceramic rod are approximately

⁄4" apart.

Figure 102. Digital display calibration keys.

-58-

Tighten bolt and repeat adjustment with

limit switch on other side if necessary.

Start machine and make sure it is working

properly.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

TROUBLESHOOTING

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free to call us at (360) 734-1540.

Symptom Possible Cause Possible Solution

Machine does not start or a breaker trips immediately after startup.

Emergency Stop button depressed/ at fault.

Incorrect power supply voltage or circuit size.

Machine fuse blown.

Power supply circuit breaker tripped or fuse blown.

EMERGENCY STOP plate limit switch stuck/at fault.

Table limit switch engaged/at fault.

Sanding belt tracking limit switch engaged/at fault.

Sanding belt tension limit switch engaged/at fault.

Motor wires connected incorrectly.

10.

ON/OFF button at fault.

11.

Contactor not energized/at fault.

12.

Thermal overload relay has tripped/ at fault.

13.

Wiring broken, disconnected, or corroded.

14.

Controller at fault.

15.

Motor at fault.

Rotate Emergency Stop button head to reset. Replace if at fault.

Ensure correct power supply voltage and circuit size (Page 12).

Replace fuse/ensure no shorts.

Ensure circuit is sized correctly and free of shorts. Reset circuit breaker or replace fuse.

Free stuck switch/replace.

Adjust table to correct height/replace switch.

Center sanding belt so it is not touching limit switches/adjust limit switch(es) (Page 58)/replace switch(es).

Turn on air pressure and tension sanding belt/ replace limit switch.

Correct motor wiring connections.

10.

Replace button.

11.

Test all legs for power; replace if necessary.

12.

Reset. Adjust or replace if at fault.

13.

Fix broken wires or disconnected/corroded connections.

14.

Inspect/replace if at fault.

15.

Test/repair/replace.

Main motor stalls or is underpowered.

Table moves up when it should move down and down when it should move up.

Machine slows when operating.

Workpiece material not suitable for machine.

Feed rate too fast/cutting depth too deep.

V-belt(s) worn/loose.

Pulley/sprocket slipping on shaft or misaligned.

Motor wired incorrectly.

Machine undersized for task.

Motor overheated.

Contactor not energized/at fault.

Motor or motor bearings at fault.

Power connections wired out of phase.

Feed rate too high.

Excessive depth of cut.

Sanding belt grit too ﬁne for job.

Only sand wood/ensure moisture is below 20%.

Decrease feed rate (Page 33)/cutting depth.

Inspect/replace belt(s) (Page 52).

Tighten/replace loose pulley/shaft, check for/correct alignment.

Wire motor correctly (Page 70).

Clean/replace sandpaper; reduce feed rate/depth of cut.

Clean motor, let cool, and reduce workload.

Test all legs for power/repair/replace if at fault.

Test/repair/replace.

Correct phase polarity (Page 24).

Reduce feed rate (Page 33).

Reduce depth of cut.

Replace with coarser grit sanding belt (Page 31).

-59-

South Bend Tools

Model SB1096

TROUBLESHOOTING

For Machines Mfd. Since 9/20

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

Loud, repetitive noise coming from machine.

Machine is loud, overheats or bogs down during operation.

Uneven thickness from left to right of board.

Motor or component loose.

V-belt(s) worn, loose, or pulleys misaligned.

Machine not secured to ﬂoor.

Motor fan rubbing on fan cover.

Motor bearings at fault.

Conveyor gearbox at fault.

Pulley set screws or keys missing or loose.

Motor fan rubbing on fan cover.

V-belt(s) defective or damaged.

Excessive depth of cut.

Sanding belt worn/clogged.

Sanding belt worn unevenly.

Feed table not parallel to upper frame.

Conveyor belt worn.

Replace damaged or missing bolts/nuts or tighten if loose.

Inspect/replace belts with a new matched set (Page

52). Realign pulleys if necessary.

Tighten mounting bolts; relocate/shim machine.

Fix/replace fan cover; replace loose/damaged fan.

Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Rebuild gearbox for bead gear(s)/bearing(s).

Inspect pulley keys and set screws. Replace or tighten if necessary.

Fix/replace fan cover; replace loose/damaged fan.

Replace V-belt(s) (Page 52).

Decrease depth of cut.

Clean/replace sanding belt (Page 40 & 31).

Replace sanding belt (Page 31). Feed workpieces evenly across sanding belt, not just on one side.

Adjust feed table (Page 47).

Replace conveyor belt (Page 56).

Workpiece slips on conveyor belt.

Grooves down length of workpiece.

Snake-shaped marks on workpiece.

Lines across width of workpiece.

Sanding belt clogs quickly.

Rounded workpiece edges.

Sanding belt does not tension correctly; rollers slip under belt.

Pressure rollers set too high.

Dirty/worn conveyor belt.

Pressure rollers dirty/damaged.

Platen set too low.

Platen graphite pad damaged.

Sanding belt dirty/damaged.

Pressure rollers dirty/damaged.

Sanding belt seam open/damaged.

Platen set too low.

Sanding belt grit too ﬁne for particular job.

Excessive depth of cut.

Wood is too moist.

Using amp load meter to establish material removal amount.

Excessive depth of cut.

Low air pressure

Air leaks in system.

Air cylinder shaft worn/damaged.

Lower pressure rollers (Page 50).

Clean/replace conveyor belt (Page 56).

Clean/repair/replace pressure rollers.

Raise platen to reduce pressure (Page 32).

Replace graphite pad (Page 43).

Clean/replace sanding belt (Page 40 & 31).

Clean/repair pressure rollers.

Replace sanding belt (Page 31).

Raise platen to reduce pressure (Page 32).

Replace with coarser grit sanding belt (Page 31).

Reduce depth of cut.

Allow wood to dry to below 20% moisture content.

Use alternate methods to establish material removal amount (Page 30).

Reduce depth of cut.

Adjust air pressure to 75 PSI at primary regulator.

Inspect all hoses and connections for leaking air; use a water/soap mixture on suspected area to detect bubbles.

Repair/replace air cylinder.

-60-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

TROUBLESHOOTING

Symptom Possible Cause Possible Solution

Glossy spots or streaks on workpiece.

Sanding belt runs off to one side, stopping sander.

Poor, nonaggressive sanding results.

Sanding belt will not start, but conveyor will.

Worn sanding belt.

Rear pressure roller too low.

Feed rate too low.

Platen set too low.

Graphite or felt pad worn/damaged.

Using amp load meter to establish material removal amount.

Power connections wired out of phase.

Airﬂow adjustment knob closed.

Belt tracking incorrect.

Air fork gap/air lines clogged.

Solenoid valve/air manifold at fault.

Sanding belt worn/clogged.

Sanding belt grit too ﬁne for particular job.

No air pressure to sander.

Airﬂow adjustment valve closed.

Limit switches engaged.

Sanding belt not tensioned.

Replace sanding belt (Page 31).

Raise rear pressure roller (Page 50).

Increase feed rate (Page 33).

Raise platen to reduce pressure (Page 32).

Replace graphite or felt pad (Page 43).

Use alternate methods to establish material removal amount (Page 30).

Correct phase polarity (Page 24).

Turn valve all the way out, then back in 3

Adjust belt tracking (Page 41).

Clean air fork gap/air lines.

Test/repair/replace.

Clean/replace sanding belt (Page 40 & 31).

Replace with coarser grit.

Connect sander to compressed air system (Page 19).

Open airﬂow adjustment valve.

Center sanding belt so it is not touching limit switches.

Tension sanding belt.

⁄2 turns.

Conveyor belt not tracking in center.

Conveyor belt slipping.

Emergency brake stops slowly.

Grinding noise when braking.

Air leaking from sander.

Conveyor belt moved out of adjustment.

Conveyor belt has incorrect tension.

Conveyor rollers contaminated with dirt or dust.

Low air pressure.

Air leaks in system.

Brake rotor contaminated with oil.

Brake pads worn.

Brake pads severely worn.

Compressed air release typical of pneumatic systems.

Water ﬁlter/trap drain cock left open.

Air line ruptured or air leaking at a connection point.

Adjust conveyor adjustment bolts (Page 55).

Adjust conveyor belt tension (Page 54).

Clean conveyor rollers.

Adjust incoming air pressure to 75 PSI.

Inspect all hoses and connections for leaking air; use water on suspected area to detect bubbles.

Clean brake rotor with automotive brake parts cleaner.

Replace brake pads (Page 44).

Replace brake pads (Page 44), have rotor turned/ trued by a machine shop. Replace rotor.

Unless there is clear evidence of air leak or performance issue with belt oscillation or braking speed, take no action. Air release sound is normal.

Ensure water ﬁlter/trap drain cock is tight.

Locate source of sound and determine likely cause based on what you visual evidence.

-61-

South Bend Tools

Model SB1096

PNEUMATIC SYSTEM

PNEUMATICS

Pneumatic System Diagram

For Machines Mfd. Since 9/20

Regulator

Cylinder

Switch

Piston

Cylinder

To Solenoid

Fork

Manifold

Diaphragm

Solenoid

Brake

Solenoid

Compressed

Air

Figure 104. Regulator.

Diaphragm

Fork

From

Manifold

Figure 105. Fork and diaphragm.

-62-

To Manifold

From Fork

Brake

To Manifold

Figure 106. Brake and solenoid.

From

Cylinder Switch

From

Manifold

Figure 107. Piston and cylinder.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modiﬁcations:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at (360) 734-1540.

ELECTRICAL

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may make changes to the electrical systems of future machines. Study this section carefully. If you see differences between your machine and what is shown in this section, call Technical Support at (360) 734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the machine is connected to the power source. Touching electriﬁed parts will result in personal injury including but not limited to severe burns, electrocution, or death. For your own safety, disconnect machine from the power source before servicing electrical components or performing any wiring tasks!

All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

Using aftermarket parts or modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or ﬁre.

The motor wiring shown in these diagrams is current at the time of printing, but it may not match your machine. Always use the wiring diagram inside the motor

to an improperly sized circuit will greatly increase the risk of ﬁre. To minimize this risk, only connect the machine to a power circuit that meets the minimum requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious personal injury, ﬁre, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components before completing the task.

Experiencing Difﬁculties: If you are

experiencing difﬁculties understanding the information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

WIRING DIAGRAM COLOR KEY

BLUE WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can see them in color at www.southbendlathe.com.

RED

LIGHT BLUE

ORANGE

PINK

PURPLE

TURQUIOSE

WHITE

YEL LOW GREEN

YEL LOW

-63-

South Bend Tools

Model SB1096

ELECTRICAL

Electrical Overview

For Machines Mfd. Since 9/20

Control Panel (Page 69)

EMERGENCY STOP Plate Limit Switch

(Page 72)

Main Motor (Page 70)

Air Pressure Limit Switch & Solenoid

(Page 71)

Sanding Belt Tracking Limit Switches

(Page 72)

Conveyor Feed Motor (Page 70)

Electrical Cabinet (Page 67 & 68)

Power Supply Input (Page 66)

Table Elevation Motor (Page 71)

Table Elevation Limit Switches (Page 72)

Table Elevation Sensors (Page 69)

Sanding Belt Tension Limit Switch

(Page 72)

-64-

AIR

Component

also has

pneumatic

connection.

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

ELECTRICAL

Electrical System Schematic

-65-

South Bend Tools

Model SB1096

Electrical Cabinet

ELECTRICAL

For Machines Mfd. Since 9/20

Contactors

OL Relays

Current

Sensor

Contactors

Terminal Bar

Transformer

Fuses

Electrical Cabinet

Pg. 67 & 68

Figure 108. Electrical cabinet.

Ground

Hot

(Rewired for 440V)

DISCONNECT

SWITCH

(as recommended

Ground

Hot

3-PHASE

220 VAC

3-PHASE

440 VAC

)

-66-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

ELECTRICAL

Electrical Cabinet Wiring Diagram (220V)

1L1 5L3 3L2

LC1D40A

Schneider

2T1 6T3 4T2

1L1 5L3 3L2

LC1D40A

Schneider

LR3D340

97NO 98NO

S T

21 NC A1

13 NO

Contactor

22 NC A2

14 NO

Set to 37

2T1 4T2 6T3

RESET

OL Relay

STOP

95NC

96NC

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

1L1 5L3 3L2

LC1D40A

Schneider

LR3D08

2.5

97NO 98NO

2T1 4T2 6T3

U1 V1

13 NO

Contactor

14 NO

Set to 3.4

11 11

21 NC A1

22 NC A2

RESET

OL Relay

STOP

95NC

ELECTRICAL CABINET

Current Sensor

NITECH R CT-35

96NC

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

U2 V2 W2

13 NO

Contactor

14 NO

21 NC A1

22 NC A2

0 440 0 200 220

Transformer

SUENN S P-TBS-20250

13 NO

Contactor

14 NO

21 20

21 NC A1

22 NC A2

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

13 NO

Contactor

14 NO

21 NC A1

22 NC A2

61213

DF-101

Fuse

BUSSMAN

KTK-4 4A

600V

BUSSMAN

KTK-4 4A

600V

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

V W

Pg. 70

= For phase

converter wild

wire (if used)

To Main Motor

To Conveyor Feed Motor

To Table Elevation Motor

To Lower Table Elevation Limit Switch

To Upper Table Elevation Limit Switch

Air Pressure Limit Switch

U1 V1 W1 E U2 V2 W2 16 17 18 19 13 12 11 10 9 8 6 5 5 3 3 2 14 15

U1V1W1

Pg. 70

Pg. 71

Pg. 72

Pg. 71

10211

To Control Panel,

To EMERGENCY STOP

Limit Switch

To Sanding Belt

Limit Switches

To Power Supply

Pg. 69

R S T E

Pg. 72

Pg. 72 Pg. 66

353

-67-

South Bend Tools

Model SB1096

ELECTRICAL

For Machines Mfd. Since 9/20

Electrical Cabinet Wiring Diagram (440V)

1L1 5L3 3L2

LC1D40A

Schneider

2T1 6T3 4T2

1L1 5L3 3L2

LC1D40A

Schneider

LR3D325

97NO 98NO

S T

21 NC A1

13 NO

Contactor

22 NC A2

14 NO

Set to 18

2T1 4T2 6T3

RESET

OL Relay

STOP

95NC

96NC

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

1L1 5L3 3L2

LC1D40A

Schneider

LR3D07

1.6

97NO 98NO

2T1 4T2 6T3

U1 V1

13 NO

Contactor

14 NO

2.5

Set to 1.7

11 11

21 NC A1

22 NC A2

RESET

OL Relay

STOP

95NC

ELECTRICAL CABINET

Current Sensor

NITECH R CT-35

96NC

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

U2 V2 W2

13 NO

Contactor

14 NO

21 NC A1

22 NC A2

0 440 0 200 220

Transformer

SUENN S P-TBS-20250

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

13 NO

Contactor

14 NO

21 20

21 NC A1

22 NC A2

1L1 5L3 3L2

LC1D09

Schneider

2T1 6T3 4T2

13 NO

Contactor

14 NO

21 NC A1

22 NC A2

61213

DF-101

Fuse

BUSSMAN

KTK-4 4A

600V

DF-101

Fuse

BUSSMAN

KTK-4 4A

600V

V W

Pg. 70

= For phase

converter wild

wire (if used)

To Main Motor

To Conveyor Feed Motor

To Table Elevation Motor

To Lower Table Elevation Limit Switch

To Upper Table Elevation Limit Switch

Air Pressure Limit Switch

U1 V1 W1 E U2 V2 W2 16 17 18 19 13 12 11 10 9 8 6 5 5 3 3 2 14 15

U1V1W1

Pg. 70

Pg. 71

Pg. 72

Pg. 71

10211

To Control Panel,

To EMERGENCY STOP

Limit Switch

To Sanding Belt

Limit Switches

To Power Supply

Pg. 69

R S T E

Pg. 72

Pg. 72 Pg. 66

353

-68-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

TABLE HEIGHT SENSORS

ELECTRICAL

Control Panel Wiring

CONTROL PANEL BACK

Conveyor Belt

ON Button

YK A600

10A 250VAC

Conveyor Belt

OFF Button

YK A600

FAST SLOW RUN EN D BRAKE NO+ COM NO- NO COM NO NO COM NO COM NO

12 13 14 15 16 17 18 19 20 21 22

Controller

ETEK CH-525

11 10 9 8 7 6 5 4 3 2 1

12V B A 0V COM RES LS2 L S1 220V 110V AC0V ENCODER I NPUT POWER

12V

10211

Power

Indicator

YK A600

10A 250VAC

E-Stop Button

YK A600

To Electrical Cabinet,

Sanding Belt

ON Button

YK A600

Sanding Belt

OFF Button

YK A600

Pg. 67 & 68

10A 250VAC

Amp Meter

90-260V

(LO)

(HI)

10A 250VAC

1415

POWER

ETEK PL-05N B-S

Table Elevation Sensor

(1 of 2)

Figure 109. Controller. Figure 110. Table elevation sensors.

-69-

South Bend Tools

Model SB1096

ELECTRICAL

For Machines Mfd. Since 9/20

Main Motor & Conveyor Feed Motor Wiring

MAIN MOTOR (220V)

To Electrical Cabinet

Pg. 67 & 68

MAIN MOTOR (440V)

(Motor Rewired for 440V)

Figure 111. Main motor junction box (shown wired for

220V operation).

FEED MOTOR (220V)

(Motor Rewired for 440V)

To Electrical Cabinet

Pg. 67 & 68

-70-

Figure 112. Feed motor junction box (shown wired for

220V operation).

FEED MOTOR (440V)

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

TABLE ELEVATION

ELECTRICAL

Table Elevation Motor Wiring

To Electrical Cabinet

Pg. 67 & 68

MOTOR (220V)

(Motor Rewired for 440V)

MOTOR (440V)

Figure 113. Table elevation motor junction box

(shown wired for 220V operation).

Air Pressure Limit Switch Wiring

To Electrical Cabinet

Pg. 67 & 68

AIR PRESSURE

LIMIT SWITCH

Air Pressure Limit Switch

Figure 114. Air pressure limit switch.

-71-

South Bend Tools

Model SB1096

EMERGENCY STOP Plate

To Electrical Cabinet

Sanding Belt

Upper

Lower

ELECTRICAL

For Machines Mfd. Since 9/20

Sanding Belt & Table Limit Switch Wiring

Limit Switch

TEND TZ-5101

EMERGENCY STOP

Plate

Limit Switch

Figure 115. EMERGENCY STOP plate limit switch

(hidden behind safety guard).

Tension

Limit Switch

MOUJEN ME-8166

Tracking (Left)

Limit Switch

MOUJEN ME-8166

Tracking (Right)

Limit Switch

MOUJEN ME-8166

Pg. 67 & 68

To Electrical Cabinet

Pg. 67 & 68

Tension Limit Switch

Tracking Limit Switch

(1 of 2)

Figure 117. Belt tension and tracking limit switches.

Table Elevation

Limit Switch

MOUJEN ME-8111

Table Elevation

Limit Switch

MOUJEN ME-8111

Figure 116. Table elevation limit switches.

-72-

Table Elevation

Limit Switches

To Electrical Cabinet

Pg. 67 & 68

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PARTS

Tool Box & Accessories

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PSB10960001 PLA TEN REMOVAL TOOL 8 PSB10960008 PHILLIPS SCREWDRIVER #2

2 PSB10960002 LIMIT SWITCH TIP 9 PSB10960009 FLAT SCREWDRIVER #2

3 PSB10960003 TOOL BOX 10 PSB10960010 WRENCH 8 X 10MM OPEN-ENDS

4 PSB10960004 FELT PAD 37-3/4" X 1-3/4" X 3/8" 11 PSB10960011 WRENCH 12 X 14MM OPEN-ENDS

5 PSB10960005 GRAPH ITE PAD 37-3/4" X 3-1 /2 " 12 PSB10960012 WRENCH 17 X 19MM OPEN-ENDS

6 PSB10960006 DOOR KEY 13 PSB10960013 HEX WRENCH SET 1.5-10MM 10PC

7 PSB10960007 SANDING BELT 37" X 60" 100-GRIT 14 PSB10960014 S AN DIN G BELT 37" X 60 " 180 -GRIT

-73-

South Bend Tools

Model SB1096

PARTS

Sanding Motor System

For Machines Mfd. Since 9/20

1125

1124

1127

1132

1128

1129

1126

1133

1131

1302

1304

1305

1315

1310

1312

1301

1303

1123

1301-1

1311

1122

1306

1313

1308

1310

1307

1121

1109-2

1101

1109-1

1107

1102

1104

1310

1106

1109

1314

1130

1104

1105

1316

1113

1108

1116

1114

1115

1110

1118

1112

1119

1111

-74 -

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PARTS

Sanding Motor System Parts List

REF PART # DESCRIPTION REF PAR T # DESCRIPTION

1101 PSB10961101 MACHINE FRAME 1126 PSB10961126 LIMIT SWITCH MOUJEN ME-8111

1102 PSB10961102 MOTOR MOUN TIN G PLATE 1127 PSB10961127 LIMIT SWITCH PLATE

1104 PSB10961104 HEX NUT 1/2-12 1128 PSB10961128 HEX BOLT 1/4-20 X 1/2

1105 PSB10961105 B ELT TEN SION A DJUSTMEN T ROD 1129 PSB10961129 FLAT WASHER 1/4

1106 PSB10961106 LOCK WASHER 1/2 1130 PSB10961130 SET SCREW 5/1 6-1 8 X 3/4

1107 PSB10961107 HEX BOLT 3/8-16 X 1-1/4 1131 PSB10961131 LOCK COLLAR

1108 PSB10961108 FLAT WASHER 1/2 1132 PSB10961132 FLAT H D SCR M6-1 X 2 5

1109 PSB10961109 MOTOR 15H P 22 0 V/440 V 3-PH 1133 PSB10961133 LOCK WASHER 1/4

1109-1 PSB10961109-1 MOTOR FA N 130 1 PSB10961301 BRAKE CALIPER

1109-2 PSB10961109-2 M OTOR F AN COVER 1301-1 PSB10961301-1 B RAKE CA LIPER FRONT GUARD

1110 PSB10961110 MAIN MOTOR PULLEY 130 2 PSB10961302 INNER BRAKE PA D

1111 PSB10961111 CAP SCREW 5/16-18 X 1-1/4 130 3 PSB10961303 BRA KE A RBOR

1112 PSB10961112 LOCK WASHER 5/16 130 4 PSB10961304 COMPRESSION SPRING 22 X 25

1113 PSB10961113 KEY 8 X 10 X 75 130 5 PSB10961305 BRAKE MOUN TIN G PLATE

1114 PSB10961114 HEX BOLT 5/16-18 X 1 130 6 PSB10961306 FLAT HD SC R 1/4-20 X 1/2

1115 PSB10961115 LOCK WASHER 5/16 1307 PSB10961307 STUD-SE M14-2 X 125, 13

1116 PSB10961116 BRAKE ROTOR 130 8 PSB10961308 CAP SCREW M5-.8 X 15

1118 PSB10961118 B USHING 38 X 80 X 34 1310 PSB10961310 LOCK WASHER 3/8

1119 PSB10961119 V-B ELT A 71 1311 PSB10961311 HEX N UT 3/8-1 6

1121 PSB10961121 B RAKE BRACKET 1312 PSB10961312 CAP SCREW 1/4-20 X 5/8

1122 PSB10961122 FLAT WASHER 3/8 1313 PSB10961313 BRAKE CALIPER GASKET

1123 PSB10961123 HEX B OLT 3/8-1 6 X 3/4 1314 PSB10961314 HEX NUT 5/16-18

1124 PSB10961124 F LA NGED B USH ING 2" X 1 " 1315 PSB10961315 OUTER BRA KE PAD

1125 PSB10961125 CAP SCREW 1/4-20 X 3/4 1316 PSB10961316 MA IN MOTOR J UN CTION BOX

-75-

South Bend Tools

Model SB1096

Table Lift System

PARTS

2101

2103

2104

2102

For Machines Mfd. Since 9/20

2331-2

2411

2322

2331-1

2331

2111

2408

2315

2108

2409

2405

2402

2329

2324

2410

2407

2335

2317

2406

2403

2337

2406

2404

2336

2314

2401

2334

2338

2308

2109

2110

2201

2204

2317

2307

2301

2303

2340

2309

2313

2203

2107

2206

2202

2406

2306

2312

2318

2319

2105

2307

2339

2302

2303

2106

2310

2311

2321

2332

2320

2326

2327

2325

2328

2327

-76-

2332 2324

2323

2333

2304

2341

2305

2316

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PARTS

Table Lift System Parts List

REF PART # DESCRIPTION REF PAR T # DE SCRIPTION

2101 PSB10962101 ELEVATION SCREW 1 X 5 X 280 2319 PSB10962319 HEX BOLT 5/16-18 X 3/4

2102 PSB10962102 HEX BOLT 5/16-18 X 1 2320 PSB10962320 SET SCREW 1/4-20 X 1/2

2103 PSB10962103 FLAT WASHER 5/16 2321 PSB10962321 HANDWHEEL TYPE-10 165D X 14B

2104 PSB10962104 LOCK WASHER 5/16 2322 PSB10962322 MOTOR MOUN TIN G PLATE

2105 PSB10962105 LOCK WASHER 3/8 2323 PSB10962323 HEX BOLT 1/4-20 X 1

2106 PSB10962106 HEX BOLT 3/8-16 X 1 2324 PSB10962324 LOCK WASHER 1/4

2107 PSB10962107 ELEVATION SLIDE 2325 PSB10962325 BELT TEN SION A DJUS TMEN T ROD

2108 PSB10962108 ELEVA TION SC REW DUST BOOT 2326 PSB10962326 FLAT WASHER 1/2

2109 PSB10962109 HEX BOLT 5/16-18 X 3/4 2327 PSB10962327 HEX NUT 1/2-12

2110 PSB10962110 LOCK WASHER 5/16 2328 PSB10962328 LOCK WASH ER 1/2

2111 PSB10962111 ELEVATION SCREW CHAIN 2331 PS B10 962 331 MOTOR 1/4HP 220V/440V 3-PH

2201 PSB10962201 NUT HOUSING 2331 -1 PSB 1096 2331 -1 MOTOR FAN

2202 PSB10962202 COLUMN NUT 2331-2 PS B10 962 331-2 MOTOR F AN COVER

2203 PSB10962203 THRUST BEA RIN G 511 07 2332 P SB1 0962332 H EX N UT 1/4-20

2204 PSB10962204 EXT RETA IN IN G RING 35MM 2333 PS B 10962333 HEX BOLT 1/2-12 X 4-1/2

2206 PSB10962206 SPROCKET 35T 2334 PSB10 962 334 PROXIMITY SWITCH PLATE

230 1 PSB10962301 ELEVA TION GEAR BOX 2335 PSB 1096 2335 HEX BOLT 1/4-20 X 1/2

230 2 PSB10962302 WORM GEAR 2336 PSB1 0962336 PROXIMITY SWITCH ETEK PL-05N B-S

230 3 PSB10962303 BALL B EARING 600 5Z 2337 P SB1 0962337 FLA T HD SCR M3-. 5 X 35

230 4 PSB10962304 WORM GEAR BEARIN G CAP 2338 PSB1 0962338 HEX NUT M3-.5

230 5 PSB10962305 CAP SCREW 1/4-20 X 3/4 2339 PS B10 962 339 KEY 8 X 8 X 20 RE

230 6 PSB10962306 WORM SHAFT 2340 PS B 1 0962 340 KEY 4 X 4 X 20 RE

230 7 PSB10962307 BA LL BEARING 60 02Z 2341 PSB 10962 341 KEY 4 X 4 X 16 RE

230 8 PSB10962308 GEARBOX BEARING CAP 2401 PSB10962401 CHAIN TENSIONING BLOCK

230 9 PSB10962309 CAP SCREW 10-24 X 5/8 2402 PSB10962402 SPROCKET SHAFT

2310 PSB10962310 HANDWHEEL BEARING CAP 2403 PSB10962403 B ALL BEA RIN G 6003ZZ

2311 PSB10962311 CAP SCREW 1/4-20 X 5/8 2404 PSB10962404 S PROCKET 35T

2312 PSB10962312 S PROCKET 25T 2405 PSB10962405 CHA IN TEN SION A DJUSTMEN T ROD

2313 PSB10962313 SET SCREW 5/16-18 X 1/2 2406 PSB10962406 FLAT WASHER 3/8

2314 PSB10962314 TAB LE PULLEY 2407 PSB10962407 HEX N UT 3/8-1 6

2315 PSB10962315 V-B ELT A 37 2408 PSB10962408 HEX NUT 5/16-18

2316 PSB10962316 TAB LE ELEVATION MOTOR PULLEY 2409 PSB10962409 LOCK WASHER 5/16

2317 PSB10962317 S ET SCREW 1/4-20 X 1/2 2410 PSB10962410 HEX BOLT 5/16-18 X 3/4

2318 PSB10962318 LOCK WASH ER 5/16 2411 PSB10962411 TAB LE ELEVATI ON MOTOR JUNCTI ON BOX

-77-

South Bend Tools

Model SB1096

3136

3202

3203

REF PART # DESCRIPT ION REF PART # DESCRIPT ION

Conveyor System

3117

3113

3114

3102

3206

3133

PARTS

3130

3121

3115

3113

3205

3112

3116

3107

3129

3119

3105

For Machines Mfd. Since 9/20

3118

3113

3103

3105

3126

3104

3128

3106

3105

3123

3124

3127

3207

3123-2

3105

3113

3117

3123-1

3142

3108

3113

3138

3208

3141

3143

3201

3144

3204

3140

310 1 PSB10963101 C ONVEYOR TABLE 312 6 PSB10963126 V-BELT 1422V-290

310 2 PSB10963102 CONVEYOR BELT 312 7 PSB10963127 HEX BOLT M10-1.5 X 25

310 3 PSB10963103 GEARBOX MOUNTING BRACKET 3128 PSB10963128 SPEED UNIT BASE PLATE

310 4 PSB10963104 CUSHION 10 X 13 X 1.5 3129 PSB10963129 SPEED UNIT COVER

310 5 PSB10963105 FLAT WASHER 3/8 3130 PSB 10963130 HEX BOLT M8-1.25 X 20

310 6 PSB10963106 HEX BOLT 3/8-16 X 1 31 31 PS B10 9631 31 INF EED ROLLER BRACKET (RH )

310 7 PSB10963107 REA R CON VEYOR ROLLER 3132 PSB1 0963132 CA P SCREW 3/8 -1 6 X 3/4

310 8 PSB10963108 PILLOW BEARIN G UCF205 3133 PS B10 963133 INFEED ROLLER BRACKET (LH)

3109A PS B1096 31 0 9A GEARBOX REDUCER ASSEMBLY 3135 PS B 10 963135 CONVEYOR BELT POSITION WHEEL

310 9 PSB10963109 GEARBOX REDUCER 31 36 PSB 1 0963136 CAP SCREW 5/16-18 X 2

3110 PSB10963110 PLUG BOLT 3/8-16 X 1-3/16 3137 PS B 10963137 LOCK WASHER 5/16

3111 PSB10963111 GEARB OX PLUG 3138 PSB1 0963138 HEX NUT 5/16-18

3112 PSB10963112 PILLOW BEARIN G UCF205 3140 PSB10963140 C ON VEYOR BELT F RON T COVER

3113 PSB10963113 LOCK WASHER 3/8 31 41 PSB10963141 PHLP HD SCR 1/4-20 X 1/2

3114 PSB10963114 HEX BOLT 3/8-16 X 1-1/4 3142 PSB10963142 LIMIT SWITCH TEND TZ-5101

3115 PSB10963115 BEARING CAP 3143 PSB10963143 PHLP HD SCR 10-24 X 1-1/2

3116 PSB10963116 IDLER PULLEY 3144 PSB10963144 HEX BOLT 1/2-13 X 3

3117 PSB10963117 HEX BOLT 3/8-16 X 1-1/2 3201 PSB10963201 FRONT CONVEYOR ROLLER SHAFT

3118 PSB10963118 DRIVE PULLEY 320 2 PSB10963202 FRONT CON VEYOR ROLLER

3119 PSB10963119 KEY 7 X 7 X 55 RE 3203 PSB10963203 BALL B EARING 6206-2RS

3120 PSB10963120 HEX BOLT M8-1.25 X 25 32 04 PSB10963204 EXT RETAIN IN G RING 30MM

3121 PSB10963121 LOCK WASH ER 8MM 3205 PSB10963205 ELEVATION LIMIT B LOCK

3123 PSB10963123 MOTOR 1 HP 220V/440 V 3-PH 320 6 PSB10963206 CAP SCREW 1/4-20 X 1/2

3123-1 PS B 10963123-1 MOTOR FAN COVER 3207 PSB10963207 CON VEYOR FEED MOTOR J UN CTION B OX

3123-2 PSB10 9631 23-2 M OTOR F A N 3208 PSB10963208 FLAT WASHER #10

3124 PSB10963124 LOCK WASHER 10MM

3137

3132

3131

3135

3114

3110

3109A

3111

3109

3121

3120

3101

-78-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PARTS

Feed Roller

4106

4105

4107

4102

4104

4109

4101

4103

REF PART # DESCRIPT ION REF PART # DESCRIPTION

4101 PSB10964101 OUTER PISTON BRACKET 4108 PSB10964108 HEX BOLT 5/16-18 x 1-1/4

4102 PSB10964102 INNER PIS TON BRA CKET 410 9 PSB10964109 LOCK WASHER 5/16

4103 PSB10964103 COMPRESSION SPRING 3 X 15.6 X 57 4201 PSB10964201 PRES SURE ROLLER SH AFT

4104 PSB10964104 PIN 10 X 35MM 4202 PSB10964202 PRESS URE ROLLER

4105 PSB10964105 CAP SCREW 1/4-20 x 1/2 4203 PSB10964203 B ALL BEA RIN G 6001 ZZ

4106 PSB10964106 HEX BOLT 5/16-18 x 1-1/4 4204 PSB10964204 SHAFT BEARING COLLAR

4107 PSB10964107 HEX NUT 5/16-18 4205 PSB10964205 S ET SCREW 1/4-20 x 3/8

4204

4205

4108

4202

4203

4201

4203

4204

-79-

South Bend Tools

Model SB1096

Sanding Drum

PARTS

For Machines Mfd. Since 9/20

5112

5114

5113

5119

5318

5320

5323

5109

5114

5205

5317

5201

5319

5211

5112

5304

5102

5206

5303

5113

5302

5119

5109

5301

5305

5325

5116

5110

5111

5202

5311

5324

5314

5310

5309

5104

5306

5103

5107

5307

5315

5316

5312

5313

5108

5321

5108

5322

5101

5203

5204

5114

5203

5115

5117

5105

5108

5118

5106

-80-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PARTS

Sanding Drum Parts List

REF PART # DE SCR IPTION REF PART # DESCRIPTION

5101 PSB10965101 BEARING HOUSING (RH) 5211 PSB10965211 B RACKET PAD 50 X 53.5

5102 PSB10965102 RUB B ER ROLLER 5301 PSB10965301 GRAPHITE BRA CKET (MALE)

5103 PSB10965103 FASTENING TUBE 5302 PSB10965302 GRAPHITE BRACKET (FEMALE)

5104 PSB10965104 PILLOW BEARING UCC206 5303 PSB10965303 FELT PLATEN PAD

5105 PSB10965105 SA NDING DRUM PULLEY 5304 PSB10965304 PLATEN GRAPHITE

5106 PSB10965106 CAP SCREW 5/16-18 X 1-1/4 5305 PSB10965305 PHLP HD SCR 10-24 X 1/2

5107 PSB10965107 KEY 5/16 X 5/16 X 1-3/16 RE 5306 PSB10965306 GRAPHITE RETAINER PLATE

5108 PSB10965108 LOCK WAS HER 5/16 5307 PSB10965307 PLATEN BRACKET

5109 PSB10965109 B ALL BEA RIN G 6205-2RS 5309 PSB10965309 LOCK COLLAR

5110 PSB10965110 LOCK WASHER 1/2 5310 PSB10965310 S ET SCREW 1 /4-20 X 3/8

5111 PSB10965111 HEX BOLT 1/2-13 X 1-1/2 5311 PSB10965311 KEY 5 X 5 X 20 RE

5112 PSB10965112 CAP SCREW 1/4-20 X 1/2 531 2 PSB10965312 COMPRESSION SPRING 3 X 27 X 60

5113 PSB10965113 SANDING DRUM BEARING CAP 5313 PSB10965313 PLATEN HEIGHT SHAFT HOUSING

5114 PSB10965114 GREASE FITTING 1/8PT 67.5-DEG 5314 PSB10965314 PLATEN HEIGHT SHAFT

5115 PSB10965115 GREASE F ITTING EXTENS ION 1/8PT 90-DEG 5315 PSB10965315 HEX B OLT 3/8-1 6 X 3/4

5116 PSB10965116 B EARI N G H OUS ING PLUG 5316 PSB10965316 FLAT WASHER 3/8

5117 PSB10965117 PULLEY COVER 5317 PSB10965317 CEN TERIN G WAS HER 1-1 /2 X 10

5118 PSB10965118 PHLP HD SCR 1/4-20 X 3/8 5318 PSB10965318 F IX ED H AN DLE 3/8-1 6 X 5/1 6

5119 PSB10965119 BEARIN G RETAINING N UT M38 -16 531 9 PSB10965319 SET SCREW 5/16-18 X 1/2

5201 PSB10965201 BEARING HOUSING (LH) 5320 PS B 1 0965320 GRADUATED COLLAR

5202 PSB10965202 S TEEL ROLLER 5321 PS B 1 0 965321 HEX BOLT 5/16-18 X 1

5203 PSB10965203 S ET SCREW M6-1 X 6 5322 PSB 1 0 965322 FLAT WASHER 5/16

5204 PSB10965204 PILLOW BEARING UCC205 5323 P S B 1096 5323 ADJUSTABLE HANDLE 3/8-16 X 1, 2-1/2L

5205 PSB10965205 FIXED H AN DLE 3/8 -16 X 3/8 5324 PS B 1 0965324 LOCK WASHER 3/8

5206 PSB10965206 HANDLE SCREW 25 X 125 5325 P SB1096 532 5 PLATEN SUPPORT SH AFT

-81-

South Bend Tools

Model SB1096

Upper Roller System

6205

6208

6204

6203

PARTS

For Machines Mfd. Since 9/20

6105

6104

6301

6302

6305

6207

6206

6304

6108

6310

6107

6106

6101

6320

6131

6111

6306

6116

6132

6131

6130

6131

6323

6303

6304

6327

6115

6131

6201

6322

6137

6112

6326

6128

6139

6113

6131

6111

6131

6116

6115

6202

6130

6131

6132

6120

6130

6118

6117

6324

6129

6203

6204

6124

6127

6135

6125

6119

6108

6205

6136

6109

6208

6121

6122

6133

6126

6123

6322

6134

6125-1

6326

6131

6130

6105

6115

-82-

6114

6103

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PARTS

Upper Roller System Parts List

REF PART # DESCRIPTION REF PART # DE SCRIPTION

6101 PSB10966101 SQUARE FRAME 61 31 PSB10966131 LOCK WASHER 5/16

6103 PSB10966103 SQ UARE FRAME S EAL (RIGHT) 6132 PSB10966132 HEX BOLT 5/16-18 X 3/4

6104 PSB10966104 SQUARE FRAME SEAL (LEFT) 61 33 PSB10966133 CAP SCREW 10-24 X 3/4

6105 PSB10966105 FLA T HD SCR 1 /4-20 X 1/2 6134 PSB10966134 HEX N UT 10-24

6106 PSB10966106 LOCK WASHER 3/8 61 35 PSB10966135 DUST TRAP CONNECTOR

6107 PSB10966107 HEX BOLT 3/8-16 X 1 61 36 PSB10966136 DUST TRAP SHAFT

6108 PSB10966108 LOCK WASHER 1/2 6137 PSB10966137 FLAT WASHER 5MM

6109 PSB10966109 HEX BOLT 1/2-13 X 1 61 39 PSB10966139 HEX BOLT 5/16-18 X 1-1/2

6111 PSB10966111 CAP SCREW 5/16-18 X 3/4 6201 PSB10966201 UPPER ROLLER M OUNTING B AR

6112 PSB10966112 HEX BOLT M8-1.25 X 20 6202 PSB10966202 UPPER ROLLER

6113 PSB10966113 BELT TENSION AIR CYLINDER 6203 PSB10966203 UPPER ROLLER BRA CKET

6114 PSB10966114 LIMIT SWITCH MOUNTING BRACKET 6204 PSB10966204 CARTRIDGE BEARING UCC205

6115 PSB10966115 LIMIT SWITCH MOUJEN ME-8166 6205 PSB10966205 SET SCREW M6 -1 X 6

6116 PSB10966116 LIMIT SWITCH TIP 6206 PSB10966206 CAP S CREW 3/8 -16 X 3/4

6117 PSB10966117 LIMIT S WITCH MOUNTIN G BRACKET 6207 PSB10966207 LOCK WASHER 3/8

6118 PSB10966118 A IR FORK JET 6208 PSB10966208 GREASE F ITTIN G 1/4-28, 1/16

6119 PSB10966119 AIR FORK 6 301 PSB10966301 OSCILLATION ADJUSTMENT KN OB

6120 PSB10966120 AIR FORK RECEIVER 630 2 PSB10966302 ECCEN TRIC ROD

6121 PSB10966121 TH ROTTLE VALVE 630 3 PSB10966303 CAP SCREW 1/2-13 X 3-1/2

6122 PSB10966122 THROTTLE VALVE BASE 6304 PSB10966304 FLAT WASHER 1/2

6123 PSB10966123 DIAPHRAGM 6 305 PSB10966305 ECCENTRIC CAM

6124 PSB10966124 ALUMINUM DISC HOUS IN G 6306 PSB10966306 UNIVERSA L JOINT F ORK AS SY

6125 PSB10966125 DUST TRA P B OWL 6310 PSB10966310 HEX NUT 1/2-12

6125-1 PSB10966125-1 O-RIN G 26 .7 X 1.78 6320 PSB10966320 ECCEN TRIC SHAF T FRAME

6126 PSB10966126 A LUMINUM PLA TE 6322 PSB10966322 LOCK WASHER #10

6127 PSB10966127 PHLP HD SCR M4-.7 X 20 6323 PSB10966323 HEX NUT 5/16-18

6128 PSB10966128 LIMIT SWITCH SH UTDOWN B RACKET 6324 PSB10966324 PLHP HD SCR M3-.5 X 12

6129 PSB10966129 H EX NUT 3/8-24 6326 PSB10966326 PHLP HD SCR M5-.8 X 10

61 30 PSB10966130 FLAT WASHER 5/16 6327 PSB10966327 OSCILLATION AIR CYLINDER 30 X 4

-83-

South Bend Tools

Model SB1096

Cabinet Assembly

7104

PARTS

For Machines Mfd. Since 9/20

7101

7105

7103

7111

7107

7108

7204

7114

7106

7112

7115

7110

REF PART # DESCRIPTION REF PART # DESCRIPTION

710 1 PSB10967101 UPPER FRAME COVER 71 09 PSB10967109 CABINET ACCESS PANEL

710 3 PSB10967103 PHLP HD SCR M6-1 X 12 7110 PSB10967110 FLAT H D SCR 1/4-20 X 1/2

710 4 PSB10967104 LEF T DOOR 7111 PSB10967111 DEPTH LIMITER PLA TE

710 5 PSB10967105 RIGHT DOOR 7112 PSB10967112 LOCK WASHER 5/16

710 6 PSB10967106 DOOR LOCK 7114 PSB10967114 LOCK WASHER 1/4

710 7 PSB10967107 HEX B OLT 5/16-18 X 3/4 7115 PSB10967115 HEX BOLT 1/4-20 X 1

710 8 PSB10967108 FLAT WASHER 5/16 7204 PSB10967204 FLAT WASHER 1/4

-84-

7109

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

PARTS

Electrical Cabinet & Control Panel

8102

8101

8124

8122

8123

8103

8126

8107

8129

8132

8111

8112

8128

8114

8129

8133

8115

8118

8128

8108

8115

8117

8130

8131

8110

8116

8105

8109

8113

8125

8106

8104

8134-1

1L1 3L2 5L3

Relay

RESET

LR3D325

STOP

2T1

6T3

4T2

U W

8121

8134

8120

8134-2

1L1 3L2 5L3

Relay

RESET

LR3D07

STOP

2T1

6T3

4T2

U W

8119

-85-

South Bend Tools

Model SB1096

PARTS

For Machines Mfd. Since 9/20

Electrical Cabinet & Control Panel Parts List

REF PART # DESCRIPTION REF PART # DE SCRIPTION

8101 PSB10968101 ELECTRICAL CAB INET 8119 PSB10968119 FLAT WASHER 1/4

8102 PSB10968102 HINGE PIN 8120 PSB10968120 LOCK WASH ER 1/4

8103 PSB10968103 ELECTRICA L CABINET DOOR 8121 PSB10968121 HEX BOLT 1/4-20 X 1/2

8104 PSB10968104 ELECTRICAL COMPONENT BA SE PLATE 8122 PSB10968122 STRA IN RELIEF TYPE-3 1/2-13

8105 PSB10968105 H EX N UT 1/4-20 8123 PSB10968123 STRA IN RELIEF TYPE-3 3/4-10

8106 PSB10968106 LOCK WASHER 1/4 8124 PSB10968124 S TRAIN RELIEF TYPE-3 1-8

8107 PSB10968107 CONTROL PANEL 8125 PSB10968125 FUSE BUSS MAN KTK-4 4A 60 0V

8108 PSB10968108 PHLP HD SCR M4-.7 X 8 8126 PSB10968126 AMP METER NONI NI-729

8109 PSB10968109 CURREN T SENS OR NITECH RCT-35 8128 PSB10968128 B UTTON SWITCH YK A600 220V GREEN

8110 PSB10968110 TRAN SFORMER SUEN N SP-TBS-20350 440V 8129 PSB10968129 B UTTON S WITCH YK A600 220V RED

8111 PSB10968111 CONTACTOR SCHN LC1D40A 220V 81 30 PSB10968130 POWER IN DICATOR YK A6 00 22 0V

8112 PSB10968112 OVERLOA D RELA Y S CH N LR3D340 30-40A 81 31 PSB10968131 E-S TOP B UTTON YK A600 22V 30MM

8113 PSB10968113 FUSE HOLDER SCHN DF101 8132 PSB10968132 WIRE LOOM

8114 PSB10968114 OVERLOAD RELAY SCHN LR3D08 2.5-4V 8 133 PSB10968133 CIRCUIT BOARD DP-515

8115 PSB10968115 CONTACTOR SCHN LC1D09 220V 8134 PSB10968134 440 V CONVERSI ON KIT

8116 PSB10968116 TERMINAL BLOCK ENTRELEC M16/12 8 134-1 PSB10968134-1 OL RELAY SCHN LR3D325 17-25A

8117 PSB10968117 PHLP HD SCR M4-.7 X 30 81 34-2 PSB10968134-2 OL RELAY SCHN LR3D07 1.6-2.5A

8118 PSB10968118 TERMINAL BLOCK ENTRELEC M4/6

-86-

South Bend Tools

For Machines Mfd. Since 9/20 Model SB1096

9113

PARTS

Belt Oscillation Pneumatic System

9103

9126

9122

9111

9118

9111

9132

9120

9131

9115

9133

9113

9138

9111

9112

9136

9119

9134

9118

9135

9114

9125

9111

9128

9111

9117

9111

9104

9137

9129

9102

9101

9109

9107

9106

9105

9125

9110

9108

9127

REF PART # DESCRIPTION REF PART # DESCRIPTION

9101 P S B 109691 0 1 REGULATOR W/FILTER 9119 PSB10969119 STRAIGHT FITTING 1/4N X PT X 90-DEG

9102 P SB1096 91 02 PRES S URE GAUGE 91 20 PS B 1 096912 0 STRAIGHT FITTING 1/4N X 3/8T

9103 PS B 1 0 96910 3 STRA IGHT FITTING 5/16N X 1/4T BRON ZE 91 22 PS B 1 096912 2 MECHANICAL VALVE SWITCH POSU 1/8

9104 PSB10 96 9104 FLEXIBLE HOSE 8 X 900MM 9125 PSB10 96 9125 BUFFER 1/8

9105 PSB10 969105 B ALL VALVE 9126 PSB10 96 9126 BUFFER 1/8 PLASTIC

9106 P SB1096 91 06 ELB OW FITTING 1/4T X 1/4T 90-DEG 912 7 PS B 109691 27 ELBOW FITTIN G 5/16N X 1/8T 90-DEG

9107 PSB 1 0 969107 PHLP HD SCR 10-24 X 5/8 912 8 PSB10 96 9128 FLEXIBLE HOSE 8 X 700MM

9108 PS B 109691 0 8 ELB OW FITTING 5/16 N X 1/4T 90-DEG 912 9 PS B 109691 29 FLEXIBLE HOSE 8 X 140 0MM

9109 PS B 1 096910 9 SOLEN OID VALVE A MIS CO EVI 1/8 220 V 9131 PSB 109691 31 FLEXIBLE HOSE 6 X 1420MM

9110 PSB10969110 T-F ITTIN G 5/16N X 1/8T X 5/1 6N MALE 91 32 PSB10 96 9132 FLEXIBLE HOSE 6 X 620MM

9111 PSB10969111 ELBOW FITTING 1/4T X 1 /8T 90-DEG 91 33 PS B 109691 33 FLEXIBLE HOSE 6 X 560MM

9112 PSB10969112 AIR MANIFOLD 4-PORT 9134 PS B 1 09691 34 FLEXIBLE HOSE 6 X 250MM

9113 PSB10969113 S TRAIGHT FITTIN G 1/4N X 1/4T 9135 PS B 109691 35 FLEXIB LE HOSE 6 X 650MM

9114 PSB10969114 ELBOW FITTIN G 1/4T X 1/8T 90 -DEG BRONZE 9136 PS B 1 0969136 FLEXIBLE HOSE 6 X 300MM

9115 PSB10969115 S TRAIGHT FITTIN G 5/16N X 1/4T 91 37 PS B 109691 37 FLEXIB LE HOSE 6 X 650MM

9117 PSB10969117 FLOW CONTROL VA LVE P OSU GRO-1 /8 91 38 P SB1096 91 38 FLEXIBLE HOSE 6 X 1350MM

9118 PSB10969118 S TRAIGHT FITTIN G 1/4N X 1/8T

-87-

South Bend Tools

Model SB1096

9203

• 1:1 Scale (Labels are

Machine Labels

PARTS

For Machines Mfd. Since 9/20

9216

NOTICE

Press and hold this button for 10 seconds to switch display between metric and SAE units.

AMPERAGE LOAD CHART

220V:

440V:

9214

Fraction Conversion Chart

Fraction D ecimal mm

1/64 0.016 0.40 1/32 0.031 0.79 3/64 0.047 1.19 1/16 0.063 1.59

5/64 0.078 1.98 3/32 0.094 2.38 7/64 0.109 2.78 1/8 0.125 3.18 9/64 0.141 3.57 5/32 0.156 3.97

11/64 0.172 4.37

3/16 0.188 4.76

13/64 0.203 5.16

7/32 0.219 5.56

15/64 0.234 5.95

1/4 0.250 6.35

17/64 0.266 6.75

9/32 0.281 7.14

19/64 0.297 7.54

5/16 0.313 7.94 21/64 0.328 8.33 11/32 0.344 8.73 23/64 0.359 9.13

3/8 0.375 9.53 25/64 0.391 9.92 13/32 0.406 10.32 27/64 0.422 10.72

7/16 0.438 11.11

29/64 0.453 11.51 15/32 0.469 11.91 31/64 0.484 12.30

1/2 0.500 12.70

Fraction D ecimal mm

33/64 0.516 13.10 17/32 0.531 13.49 35/64 0.547 13.89

9/16 0.563 14.29 37/64 0.578 14.68 19/32 0.594 15.08 39/64 0.609 15.48

5/8 0.625 15.88 41/64 0.641 16.27 21/32 0.656 16.67 43/64 0.672 17.07 11/16 0.688 17.46 45/64 0.703 17.86 23/32 0.719 18.26 47/64 0.734 18.65

3/4 0.750 19.05 49/64 0.766 19.45 25/32 0.781 19.84 51/64 0.797 20.24 13/16 0.813 20.64 53/64 0.828 21.03 27/32 0.844 21.43 55/64 0.859 21.83

7/8 0.875 22.23 57/64 0.891 22.62 29/32 0.906 23.02 59/64 0.922 23.42 15/16 0.938 23.81 61/64 0.953 24.21 31/32 0.969 24.61 63/64 0.984 25.00

1.000 1.000 25.40

9213

KICKBACK HAZARD

Do not insert more than one board at a time. Stock may be ejected at a high rate of speed from this machine.

MODEL SB1096

37" WIDE-BELT SANDER

Sanding Motor: 15 HP, 220V/440V, 3-Ph, 60 Hz Feed Motor: 1 HP, 220V/440V, 3-Ph, 60 Hz Table Elevation Motor: 1/4 HP, 220V/440V, 3-Ph, 60 Hz Full-Load Current Rating: 40.1A @ 220V, 20.1A @ 440V Drum Surface Speed: 2600 FPM Feed Rate: 15–49 FPM Maximum Board Width: 36-1/2" Maximum Board Thickness: 5-3/4" Minimum Board Thickness: 1/8" Minimum Board Length: 14" Sanding Belt Size: 37" x 60" Drum Diameter: 4" Required Air Pressure: 75 PSI Weight: 1715 lbs.

MFG Date: Serial No:

Made in Taiwan to South Bend Specifications

9201

SB1096

9215

Model: SB1096

36A

25A

34A

CAUTION

SAFE

DAMAGE

18A

11A

16A

CAUTION

SAFE

DAMAGE

WARNING!

9212

To reduce the risk of serious injury while using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Properly ground machine—connect to permanently grounded metal wiring system or an equipment grounding conductor.

4. Keep hands clear of moving parts during operation.

5. Never touch moving sandpaper or conveyor belt.

6. Never sand more than one board at a time.

7. Make sure sander is properly assembled, adjusted, and stable before operating. Only operate with doors and panels closed and secured.

8. Be aware of pinch points located at the edge of conveyor and while lifting and lowering conveyor table.

9. Only remove jammed pieces when machine is stopped and disconnected from power.

10. Keep all guards and covers in place during operation.

11. Never allow anyone to stand directly in front of or near outfeed end of machine.

12. Turn motor OFF, disconnect power, and make sure machine has come to complete stop before changing sandpaper or servicing.

13. Do not wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

14. Do not expose to rain or use in wet locations.

15. Do not operate under influence of drugs or alcohol, or if tired.

16. Prevent unauthorized use by children or untrained users; restrict access to machine when unattended.

WARNING!

9211

9202

WARNING!

INJURY HAZARD Do not use machine if you have not read the manual. Visit southbendlathe.com or call 360-734-1540 to get a manual.

WARNING!

EYE/LUNG INJURY

HAZARD Always wear ANSIapproved safety glasses and respirator when using this equipment.

9206

9207

9208

NOTICE

Position of this plate is factory set to allow maximum safe sanding depth. DO NOT adjust or remove. Failure to do so could seriously damage machine.

9205

WARNING!

INJURY HAZARD Keep door closed while machine is operating. Disconnect power before opening door.

WARNING!

INJURY/SHOCK

HAZARD To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

9205

WARNING!

INJURY HAZARD Keep door closed while machine is operating. Disconnect power before opening door.

This machine is prewired for 220V operation. To operate at 440V, follow crtitical voltage conversion instructions in the user manual included with this machine. Failure to follow these instructions will damage the machine and void the warranty!

9204

WARNING!

PINCH HAZARD Keep hands away from pinch points during operation. Severe injury could occur if hands get caught between feed belt and stock or between pressure roller and stock.

9209

220 VOLT

9207

REMOVE SANDING BELT(S) AND

CLEAN RUST PREVENTATIVE

FROM UPPER DRUM(S)

BEFORE USING THIS

MACHINE.

9210

REF PART # DESCRIPTION REF PART # DESCRIPTION

920 1 PS B 10969201 MODEL NUMBER LABEL 9209 PS B 109692 09 220V LABEL

920 2 PSB10 96 9202 READ MANUAL LABEL 9210 PSB 1 0 96921 0 RUS T PREVENTATIVE HAN G TAG

920 3 PS B 1 096920 3 EYE/LUNG INJURY LABEL 9211 PSB10 96 9211 SOUTH BEND NAMEPLATE 203MM

920 4 PSB 1 0 96920 4 PINCH HAZARD LABEL 9212 PSB1096 9212 MACHINE ID LABEL

920 5 PS B 1 0 96920 5 KEEP DOOR CLOSED LABEL 92 13 PS B 109692 13 KICKBACK HAZARD LAB EL

920 6 P S B 10969206 DISCONNECT POWER LABEL 921 4 PSB 109692 14 FRAC TION CON VERSION LABEL

920 7 PSB 1 0 96920 7 ELECTRICITY LABEL 9215 P SB1096 9215 AMPERAGE LOAD LABEL

920 8 PSB1096 9208 PLATE PLACEMENT LABEL 921 6 P SB1096 9216 DISPLAY UN IT LA BEL

The safety labels provided with your machine are used to make the operator aware of the machine hazards and ways to prevent injury. The owner of this machine MUST maintain the original location and readability of these safety labels. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact South Bend Tools at (360) 734-1540 or www.southbendtools.com to order new labels.

-88-

WARRANTY

This quality product is warranted by South Bend Tools to the original buyer for one year from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs. In no event shall we be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act, code, regulation, or standard of any domestic or foreign government, industry, or authority. In no event shall South Bend’s liability under this warranty exceed the original purchase price paid for this machine. Any legal actions brought against South Bend Tools shall be tried in the State of Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by law, including any merchantability or fitness, for any purpose, are hereby limited to the duration of this warranty. To take advantage of this warranty, contact us by mail or phone to give us the details of the problem you are having.

Thank you for your business and continued support.

Warranty

southbendtools.com

Printed In Taiwan #CS21225

South Bend SB1096 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

SAFETY

Understanding Risks of Machinery

Basic Machine Safety

Additional Wide Belt Sander Safety

PREPARATION

Preparation Overview Required for Setup

Power Supply Requirements

Unpacking

Inventory

Cleaning & Protecting

Location

Lifting & Placing

Leveling & Mounting

Assembly

Dust Collection

Power Connection

Test Run

Inspections & Adjustments

OPERATION

Operation Overview

Sanding Workpieces

Workpiece Inspection

Sanding Tips

Adjusting Platen

Changing Feed Rate

Reading Amp Meter

Using EMERGENCY STOP Plate

ACCESSORIES

MAINTENANCE

Maintenance Schedule

Machine Storage

Cleaning & Protecting

Lubrication

Emptying Dust and Water Traps

Cleaning Sanding Belt

Pneumatic System

SERVICE

Adjusting Oscillation Timing & Speed

Servicing Platen

Checking/Replacing Brake Pads

Checking/Adjusting Table Parallelism

Checking/Adjusting Pressure Rollers

Checking/Adjusting V-Belt Tension

Changing V-Belts

Adjusting Conveyor Belt Tension

Replacing Conveyor Belt

Conveyor Belt Removal Sequence

Calibrating Digital Display

Adjusting Belt Tracking Limit Switches

TROUBLESHOOTING

PNEUMATIC SYSTEM

Pneumatic System Diagram

ELECTRICAL

Electrical Safety Instructions

Electrical Overview

Electrical System Schematic

Electrical Cabinet

Electrical Cabinet Wiring Diagram (220V)

Electrical Cabinet Wiring Diagram (440V)

Control Panel Wiring

Main Motor & Conveyor Feed Motor Wiring

Table Elevation Motor Wiring

Air Pressure Limit Switch Wiring

Sanding Belt & Table Limit Switch Wiring

PARTS

Tool Box & Accessories

Sanding Motor System

Table Lift System

Conveyor System

Feed Roller

Sanding Drum

Upper Roller System

Cabinet Assembly

Electrical Cabinet & Control Panel

Belt Oscillation Pneumatic System
