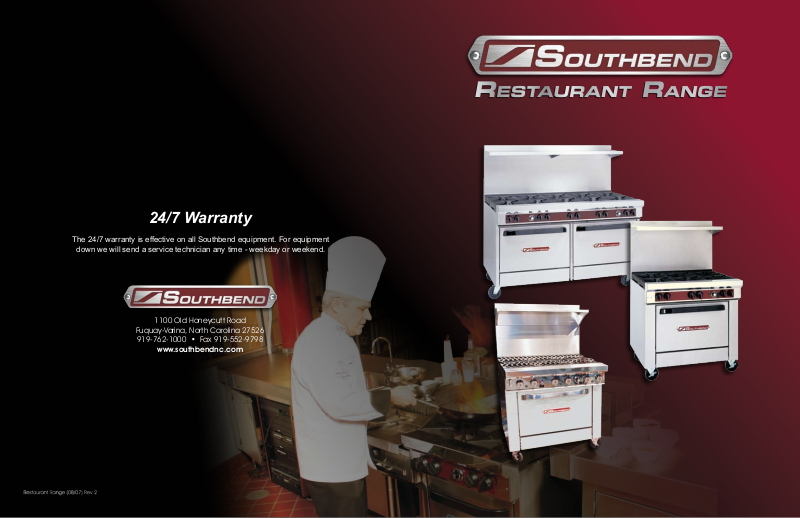

Southbend Restaurant Range User Manual

24/7 Warranty

The 24/7 warranty is effective on all Southbend equipment. For equipment

down we will send a service technician any time - weekday or weekend.

R

estaurant

R

ange

Restaurant Range (08/07) Rev 2

1100 Old Honeycutt Road

Fuquay-Varina, North Carolina 27526

919-762-1000 • Fax [phone]

www.southbendnc.com

400 S

eries

500 S

eries

PATENTED• 33,000 BTU non-clogging burners with
lifetime warranty

Individual cast iron grates with 15” rear sections•
45,000 BTU standard oven base/32,000 BTU •
convection oven base
Large oven capacity with coved interior - fits sheet •
pans front to back and left to right

StandardFeatures

Stainless steel construction•
4” bright anneal plate shelf with colored valve •
panel
2” ergonomically designed “Cool Touch” handle•
Factory installed regulator•
On/Off control for convection fan motor •
allowing use as a standard oven
Fully front serviceable with lift-out oven bottom•

OptionalUpgrades

• 6” casters

• Additional oven racks

• 3” restraining device

St a n d a r d Fe a t u r e s
400 se r i e s re s t a u r a n t ra n g e

Stainless steel front & sides Yes Yes Yes No No Yes Yes Yes

Stainless steel backsplash Yes Yes Yes Yes Yes Yes Yes Yes

Lifetime warranty on open top burners Yes No No No No No No No

15” deep rear grate to allow for 14” stock pot Yes No No No No No No No

18” x 26” pan ts either way (standard) Yes No Yes No Yes No No No

On/Off switch for fan on convection oven Yes No No No No No No No

Individual cast iron split grates Yes No Yes No No No Yes No

Open top BTU (NAT) 33K 24K 28K 27.5K 25K 32K 26K 26K

Oven BTU (NAT, standard oven) 45K 30K 35K 27.5K 35K 35K 35K 30K

Universal gas regulator factory installed YEs No No No No No No No

Depth of standard oven 2.5” 22” 26” 24” 26” 22” 22” 22”

One piece, anti-clog burners with built-in port

protectors

24/7 Warranty Yes No No No No

so u t h b e n d

436d

Yes No Yes No No No No No

400 Se r i e s Re s t a u r a n t Ra n g e - Av a i l a b l e Co n f i g u r a t i o n s

Garland

H286

Imperial

IR-6

Jade

JSR-6-36

Montague

G26-6

US Range

PS-6-26

Vulcan

36L

Wolf

CHR-6-29

PATENTED• 27,000 BTU non-clogging burners with lifetime
warranty

Individual cast iron wavy grates with 15” rear sections•
45,000 BTU standard oven base/32,000 BTU convection •
oven base
Large oven capacity with coved interior - fits sheet pans •
front to back and left to right

StandardFeatures

Wavy Grates •

Electronic ignition•
Manual gas shut-off to entire range•

Full blue porcelain oven interior•
6” Casters standard•
22-1/2” riser with stainless steel removable shelf•
5” bright annealed front rail •
Stainless steel crumb tray•
Five oven rack positions•
Chrome oven handle and knobs•

2 year warranty•
Factory installed regulator•

Fully front serviceable with life-out coved oven bottom•
On/Off control for convection oven•

OptionalUpgrades

• Tubular style, lift off shelving

• 24” griddle on 60” models

• Additional oven racks

Blue Porcelain Interior

500 Se r i e s Re s t a u r a n t Ra n g e - Av a i l a b l e Co n f i g u r a t i o n s

Tubular shelf

Manual Gas Shutoff
