PARTS
LIST
DIRECT STEAM POWER TILTING OR STATIONARY
20. 30. 40. 60 GALLON
DMT
DMS
southbend
A MIDDLEBY COMPANY
1100 Old Honeycutt Road
Fuquay-Varina. NC 27526
(919) 552-9161
FAX (919) 552-9798
(800) 348-2558
PARTS LIST
Cabinet DMT & DMS
PART NUMBER DESCRIPTION QUANTITY
8-1305 Side Panel 2
8-1303 R.H. Door 1
8-1303-1 R.H. Door (Tilt Models) 1
8-1304 L.H. Door 1
5-MC02 Magnetic Catch 2
1-11C2 Catch Screws 8
5-FS67 Flanged Foot Leg Assy. 2
5-FS68 Hex Foot Leg Assy. 2
PARTS LIST
ITEM NUMBER PART NUMBER DESCRIPTION QUANTITY
1 3-SCE6 Steam Control Valve 1
3-SC06 Knob 1
2 4-MS 03 Tilt Switch 1
3 4-S101 Power Switch 1
4 4-PL06 Pilot Light 1
5 5-FS67 Flanged Adjustable Leg 2
6 5-FS68 Leg, Hex Feet 2
7 ( * ) ** 3-SRV8-1 Safety Relief Valve 35 PSI 1
3-SRV9-1 Safety Relief Valve 50 PSI 1
8 ( * ) 4-TST4 Steam Trap 1
9 9-3106 Riser Mounting Base 1
10 9-3105-1 6" Swing Spout 1
11 9-3107-1 Swivel 1
12 ** 9-3447 Riser 3/8 x 9" 1
** 9-3447-1 Riser 3/8 x 12" 1
13 9-3448 Mixing Valves 1
* NOT SHOWN
** SELECT AS REQUIRED
PARTS LIST
ITEM PART NUMBER DESCRIPTION QUANTITY
1 * * 4101-1 1/2 HP Motor 115/208/230/1/60 1
4101-2 1/2 HP Motor 380/480 1 OPT
4101-3 1/2 HP Motor 220/50 1 OPT
2 4106-1 Directional Valve 1
3 9-3032 Pump 1
4 9-3033 Tank 1 Gallon 1
5 9-3034 Breather 1
6 4107-1 Flow Control 1
7 9-3046 Sub Plate 1
8 4108-1 Hose Assy. 2
9 4109-1 Street Elbow 2
10 4110-1 Elbow 1
11 4111-1 Nipple 1
12 4112-1 9-3318 Cylinder Cylinder Kit 1
13 9-3035 Clevis 1
14 9-3036 Pin 1
15* 4076-1 Adaptor 1
16* 4077-1 Nipple 1
17* 9-3005 Swing Funnel Assy 1
18* 9-3006 Drain & Funnel Assy 1
19* 9-3007 Strainer for funnel 1
20 9-3039 Pin 1
* NOT SHOWN
** SELECT AS REQUIRED

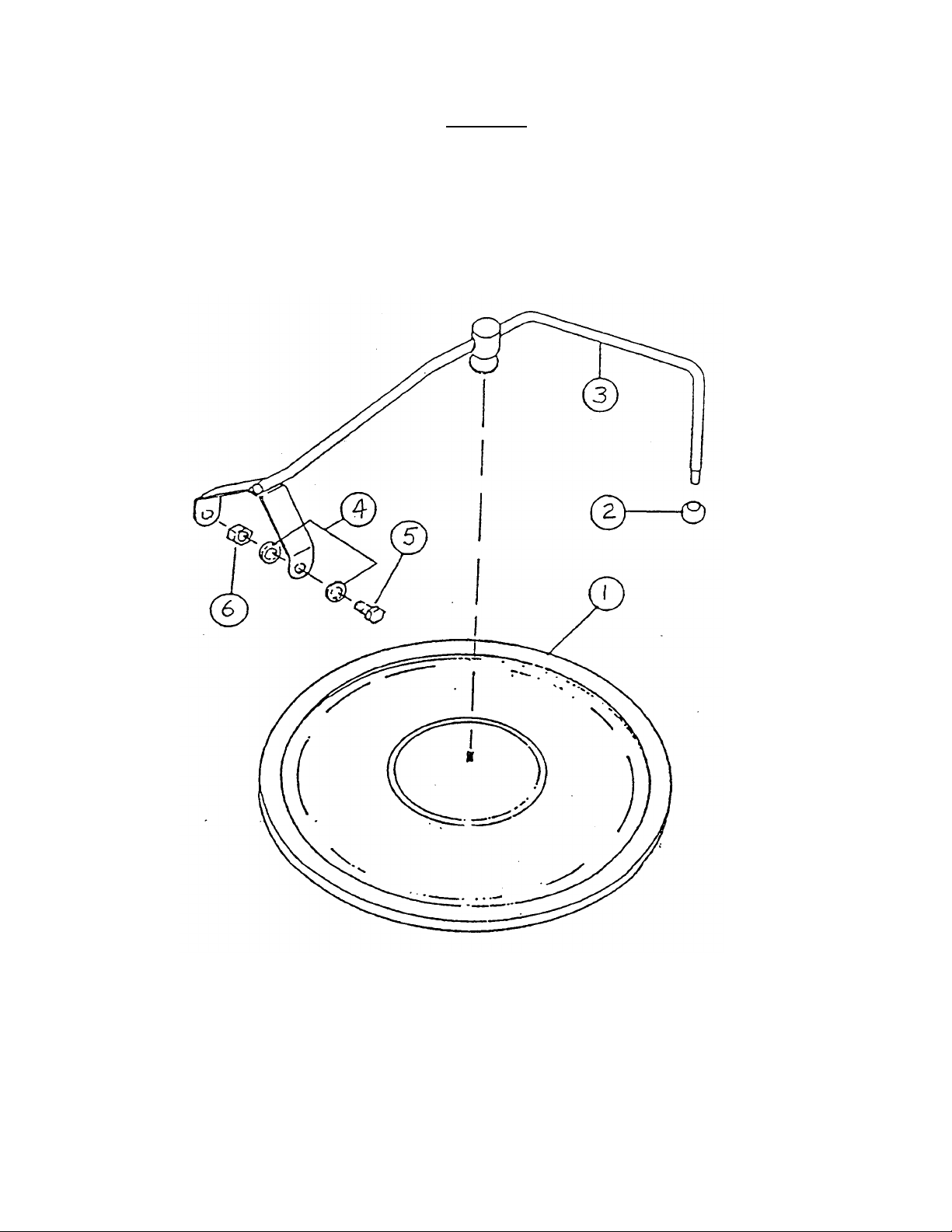

PARTS LIST
FIG: 2
COUNTERBALANCED
HINGED COVER
PARTS LIST
FROM FIGURE 2
ITEM PART NUMBER DESCRIPTION QUANTITY
1 8-2.003
2 2-KB01
3** 9-3231M
4 1-WOV6
5 1-85S8
6 1-89S0
8-2004
8-2005
8-2006
8-2007
8-2008
9-3231-1M
9-3231-2M
9-3231-3M
Cover 20 Gallon Kettle
Cover 30 Gallon Kettle
Cover 40 Gallon Kettle
Cover 60 Gallon Kettle
Cover 80 Gallon Kettle
Cover 100 Gallon Kettle
Knob
Handle Assy. 20 Gallon Kettle
Handle Assy. 30 Gallon Kettle
Handle Assy. 40 Gallon Kettle
Handle Assy. 60 Gallon Kettle
Fiber Washer
Bolt
Nut
1
1
1
1
1
1
1
1
1
1
1
4
2
2
** SELECT AS REQUIRED

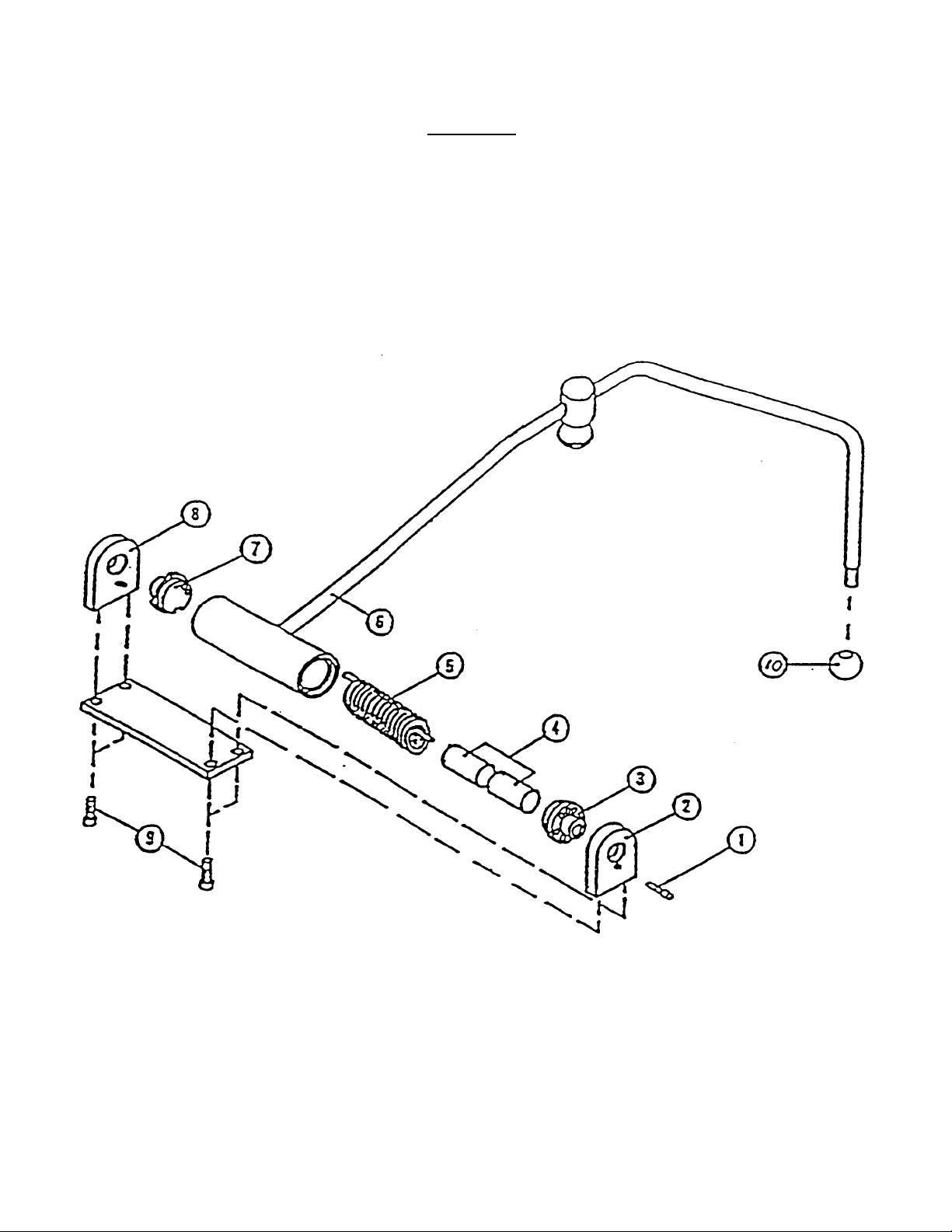

PARTS LIST
OPTIONAL
SPRING ASSIST
HINGE ASSEMBLY
FIG: 3
PARTS LIST
FROM FIGURE 3
ITEM NO. PART NO. DESCRIPTION (20 TO 40 GAL. KETTLE) QTY
1 8-2029 Lock Pin 1
2 8-2035 End Lock Plate 1
3 8-2036 Stationary Disc 1
4 8-2025S Cores 2
5 8-2026S Spring 1
6** 8-2028-M Handle Assy. 20 Gal. Unit 1
8-2028-1M Handle Assy. 30 Gal. Unit 1
7 8-2037 Rotary Disc 1
8 8-2034 End Stop Plate 1
9 1-56S6 Cap Screws 4
10 2-KB01 Knob 1
9-3184 Hinge Assy
8-2028-2 M Handle Assy. 40 Gal. Unit 1
9-3185 Hinge Assy. (60 Gallon Kettle)
1 8-2029 Lock Pin 1
2 8-2035L End Lock Plate 1
3 8-2023 Stationary Disc 1
4 8-2025 Cores 2
5 8-2026 Spring 1
6 8-2027-M Handle Assy. 60 Gallon Kettle 1
7 8-2024 Rotary Disc 1
8 8-2021 End stop plate 1
9 1-66S6 Cap Screws 4
10 2-KB01 Knob 1
** SELECT AS REQUIRED
PARTS LIST
COVERS FIG: 4
ITEM PART NUMBER DESCRIPTION
1 8-2003 Covers 20 Gallon Kettle
2 8-2004 Covers 30 Gallon Kettle
3 8-2005 Covers 40 Gallon Kettle
4 8-2006 Covers 60 Gallon Kettle
5 8-2007 Covers 80 Gallon Kettle
6 8-2008 Covers 100 Gallon Kettle
7
6 STEM ASSEMBLY
4222 1 5 O-RING 3-DV16 1
3 BONNET
4220 1 2 HANDLE. STAINLESS STEEL
4115-1 1 1 WING NUT
10-24UNC
3-DV01 1 ITM DESCRIPTION
PART
DWG.#
QTY
1
6 STEM ASSEMBLY
4217 1 5 O-RING 3-DV26 1
3 BONNET
4215 1 2 HANDLE, STAINLESS STEEL
4115-1 1 1 WING NUT
10-24UNC
3-DV01 1 ITM DESCRIPTION
PART/DWG#
QTY
2"
DRAW OFF VALVE
1
6 STEM ASSEMBLY
3999 1 5 O-RING 3-DV36 1 4 GLAND NUT
3998 1
2 HANDLE. STAINLESS STEEL
3996 1 1 ACORN NUT,
7/16-14
UNC 3-DV31 1 ITM DESCRIPTION
PN/DWG
QTY
VALVE BODY 4223

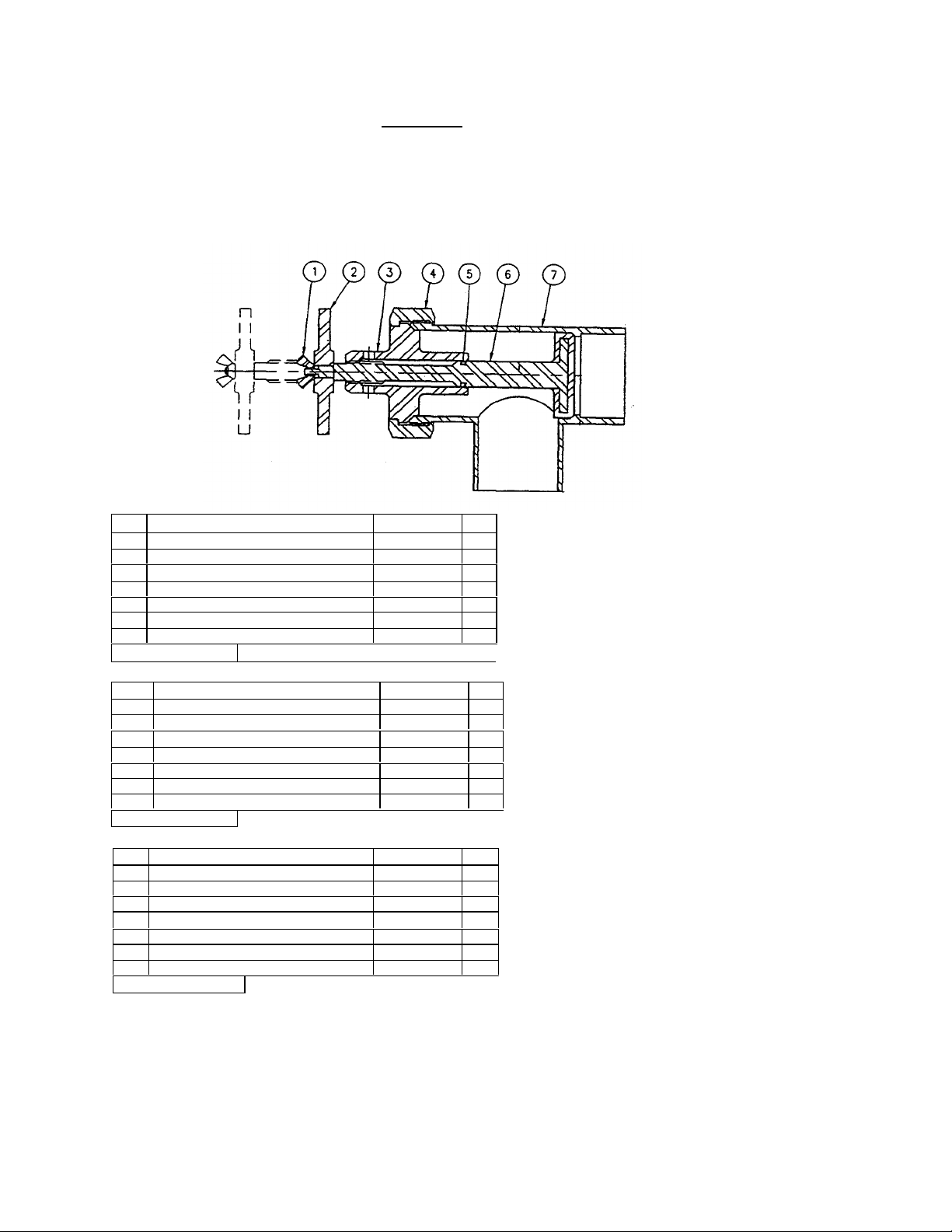

PARTS LIST
DRAW OFF VALVES
1
4 GLAND NUT 4221 1
PART NO. 3-D015
7 VALVE BODY
4 GLAND NUT 4216 1
3-D080
7 VALVE BODY
3 BONNET 3997 1
PART NO. 3-0030
4218
4000
1-1/2" DRAW OFF VALVE
3" DRAW OFF VALVE
