PARTS
A
MIDDLEBY COMPANY
1100
Old Honeycutt Road
Fuquay
-
Varina. NC
27526
(919) 552
-
9161 FAX
(919) 552
-
9798 (800) 348
-
2558
LIST
ELECTRIC COUNTER TILTING SKILLET
ECTS-12
southbend
PARTS LIST
ITEM PART NUMBER DESCRIPTION QUANTITY
1 2-KB01 Knob 1
2 8-3093 Tilt Handle 1
3 1-7850 Acorn Nut 1
4 8-3092 Tilt Knob 1
5 4-S101 Power Switch 1
6 4-PL08 Pilot Light 1
7 4-TB05 Bezel 1
8 4-TB01 Dial 1
9 * * SF12 DF12 Single Pantry Faucet Double Pantry Faucet 1
10(*) 7-70580 Element Block 208V 1
7-70581 Element Block 240V, 240/416 1
7-70582 Element Block 220 / 380V, 380V 1
7-70583 Element Block 480V 1
7-70584 Element Block 230V 1
11 9-1003 Bottom Cover (Not Shown) 1
12 9-3303 Strainer (Not Shown) 1
13 3931-1 Faucet Bracket (Not Shown) 1
(*) SELECT AS REQUIRED
** OPTIONAL
PARTS LIST

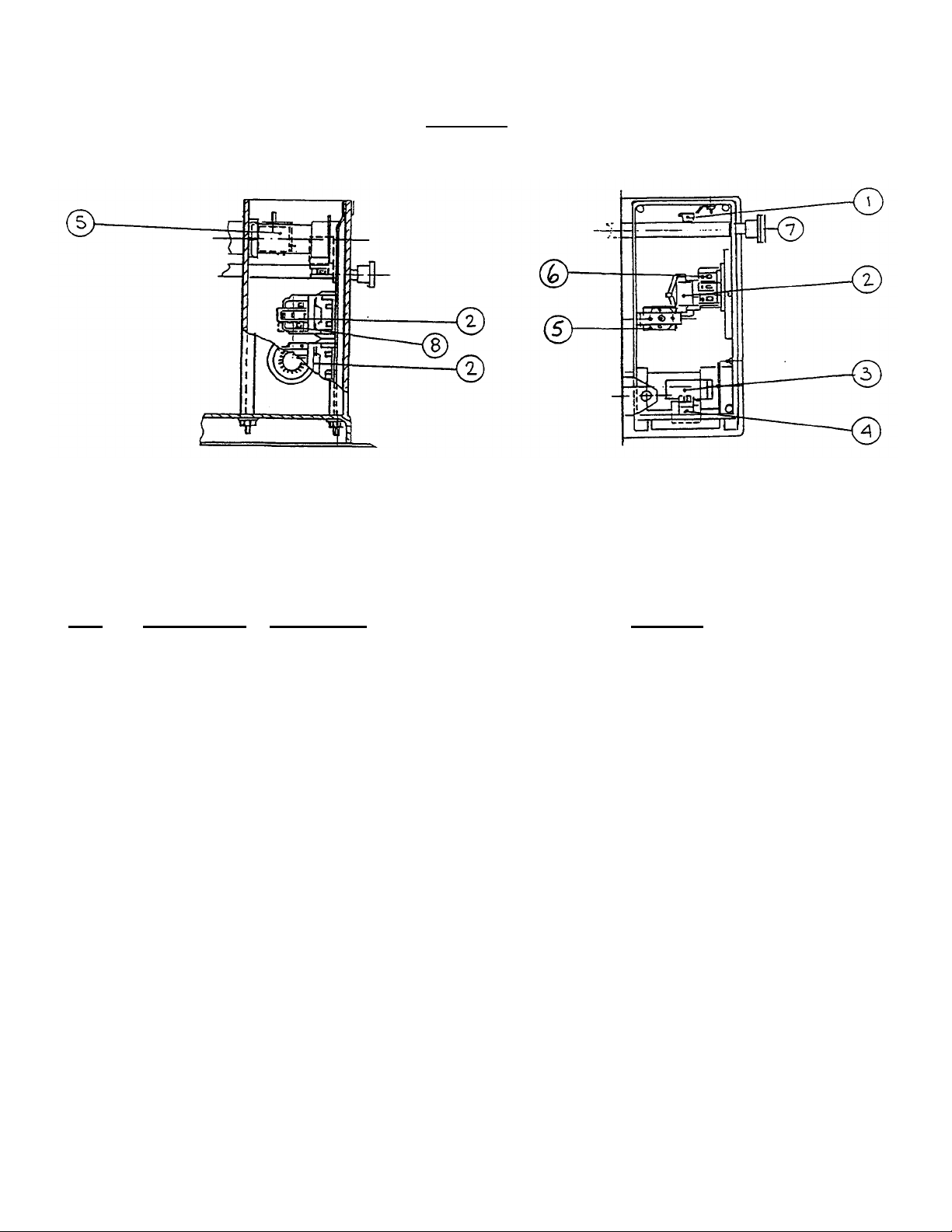

RIGHT HAND CONSOLE
CONSOLE FRONT VIEW TOP VIEW
ITEM PART NUMBER DESCRIPTION QUANTITY
1 4-70EU Ground Lug 1
2** 4-NG41 Contactor (208, 240, 480V) 2
4-NG41 Contactor (380,416,220/380,240/416) 1
3 4-TH47 Thermostat 1
4 4-S101 Power Switch 1
5 4-TH45 Hi-Limit Thermostat 1
6** 4-22TB Terminal Block (208, 240, 480V, 380, 416) 2
4-22ES End Section 1
7 8-3092 Tilt Knob 1
8 4-PL08 Pilot Light 1
** SELECT AS REQUIRED
4-22TB Terminal Block (240/416, 220/380V) 3
PARTS LIST
ITEM PART NUMBER DESCRIPTION QUANTITY
1 9-3217 Component Mtg. Plate 1
2** 4-T251 Transformer 416V 1
3** 4-NG41 Contactor (208V, 240V, 480V) 2
4 4-22TB Terminal Block (208,240,380, 416,480V) 2
5** 4-FU60 Fuse (1 amp 600 V) (380, 416, 480V) 2
6** 8-6037 Fuse Holder (380, 416, 480V) 2
** Select As Required
4-T252 Transformer 380V 1
4-T255 Transformer 480V 1
4-NG41 Contactor (380,416,220/380, 240/416V) 1
4-22ES End Section 1
4-22TB Terminal Block (220/380, 240/416V) 3
