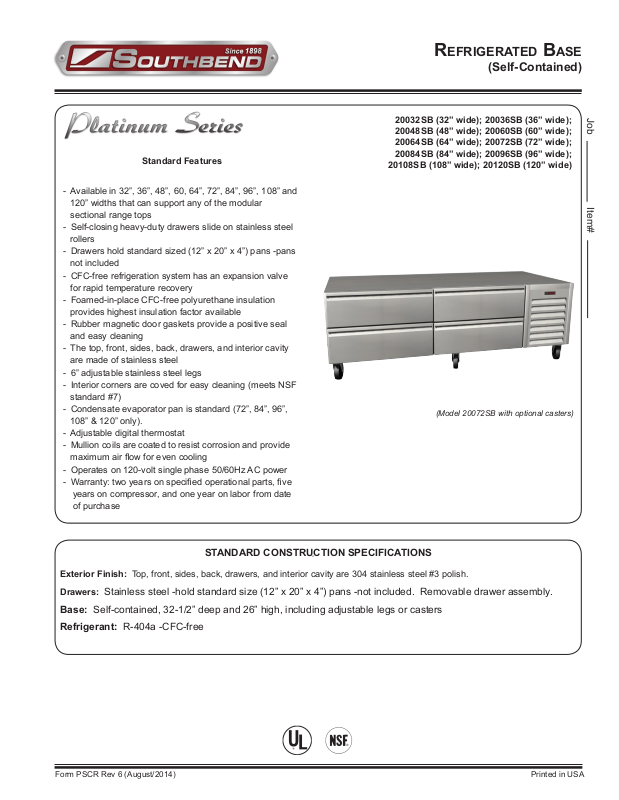

Southbend 20032SB User Manual

RefRigeRated Base

(Self-Contained)

Standard Features

- Available in 32”, 36”, 48”, 60, 64”, 72”, 84”, 96”, 108” and 120” widths that can support any of the modular sectional range tops

- Self-closing heavy-duty drawers slide on stainless steel rollers

- Drawers hold standard sized (12” x 20” x 4”) pans -pans not included

- CFC-free refrigeration system has an expansion valve for rapid temperature recovery

- Foamed-in-place CFC-free polyurethane insulation provides highest insulation factor available

- Rubber magnetic door gaskets provide a positive seal and easy cleaning

- The top, front, sides, back, drawers, and interior cavity are made of stainless steel

- 6” adjustable stainless steel legs

- Interior corners are coved for easy cleaning (meets NSF standard #7)

- Condensate evaporator pan is standard (72”, 84”, 96”, 108” & 120” only).

- Adjustable digital thermostat

- Mullion coils are coated to resist corrosion and provide

maximum air ow for even cooling

- Operates on 120-volt single phase 50/60Hz AC power

- Warranty: two years on specied operational parts, ve

years on compressor, and one year on labor from date of purchase

20032SB (32” wide); 20036SB (36” wide); 20048SB (48” wide); 20060SB (60” wide); 20064SB (64” wide); 20072SB (72” wide); 20084SB (84” wide); 20096SB (96” wide);

20108SB (108” wide); 20120SB (120” wide)

(Model 20072SB with optional casters)

Job Item#

STANDARD CONSTRUCTION SPECIFICATIONS

Exterior Finish: Top, front, sides, back, drawers, and interior cavity are 304 stainless steel #3 polish.

Drawers: Stainless steel -hold standard size (12” x 20” x 4”) pans -not included. Removable drawer assembly.

Base: Self-contained, 32-1/2” deep and 26” high, including adjustable legs or casters

Refrigerant: R-404a -CFC-free

Form PSCR Rev 6 (August/2014)

www.yatesgd.com www.yatesgraphicdesign.com

Printed in USA

Models:

72" (1829) 84" (2134)

64" (1524)

48" (1219)

108" (2743)

96" (2438)

36" (914)

120" (3048)

25"

(635)*

Each 18" drawer

holds one pan

18" (457)*

Each 26" drawer holds

two pans front-to-back

26" (686)*

Each 31" drawer holds

two pans side-by-side

31" (787)*

TOP VIEW Showing Extended Drawers

32" (813)

RIGHT SIDE

26"

(660)

32.5" (826)*

6" (152)

Power cord and condensate drain tube located behind compressor area.

1" (25)

Tubing Cover for 60” and larger units.

The drawer-front width, drawer-extension distance, and overall depth may vary (the maximum values are specied and shown)

UTILITY INFORMATION

Model Width

20032SB

20036SB

20048SB

20060SB 60” - - 2 4 10 (0.28) 1802 8

20064SB

20072SB

20084SB

20096SB

20108SB

20120SB

All models have a six foot power cord with a grounded plug to recieve 50Hz or 60Hz single-phase AC. Condensate drain is a 1/2” inside diameter vinyl tube.

# of Drawers

18” 26” 31”

32” 2 - - 2

36” 2 - - 2

48” - 2 - 4

64” - - 2 4

72” - 4 - 8

84” - - 4 8

96” 2 4 - 10

108” - 6 - 12

120” 4 4 - 12

Amperage is approximate and is for compressor only. Do not use for breaker sizing.

# of

Cooled Volume

Pans

cu. ft (cu. m.)

4 (0.11) 1450 8

6.7 (0.19) 1670 8

10 (0.28) 1802 8

13 (0.37) 1875 10.1

16 (0.45) 1920 10.1

18 (0.51) 1955 20

22 (0.62) 1955 20

25.5 (0.72) 2000 20

Cooling Cap

BTU/hour

Electricity

120V Amps

Compressor

Motor

1/4 H.P.

1/4 H.P. 410 lbs

1/4 H.P.

1/3 H.P.

1/2 H.P.

1/2 H.P

Shipping

Weight

340 lbs

(154 kg)

340 lbs

(154 kg)

(186 kg)

550 lbs

(249 kg)

550 lbs

(249 kg)

650 lbs

(295 kg)

745 lbs

(338 kg)

855 lbs

(388 kg)

960 lbs

(435 kg) 1075 lbs

(488 kg)

- If casters are used with ex hose, a restraining

device should be used to eliminate undue strain on

the ex hose.

- Minimum clearance on rear is 2” (51 mm)

- Modular range top sections can be mounted directly on top using an insulated base adapter.

- Can be part of sectional battery, provided that the adjoining base sections are insulated, or do not produce heat.

- Avoid locating where the temperature will drop below 55°F or rise above 90°F

- Check local codes for re and sanitary regulations.

NOTICE:

Southbend has a policy of continuous product research and improvement. We reserve the right to

change specications and product design without

notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

OPTIONS AND ACCESSORIES

 Electric condensate evaporator pan (32”, 36”, 48”, 60”

& 64”)

 Cable restraint kit (to restrict movement when on casters)

 Casters -front two casters lock  Open-frame base with casters

MISCELLANEOUS

Form PSCR Rev 6 (August/2014)

INTENDED FOR COMMERCIAL USE ONLY.

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
