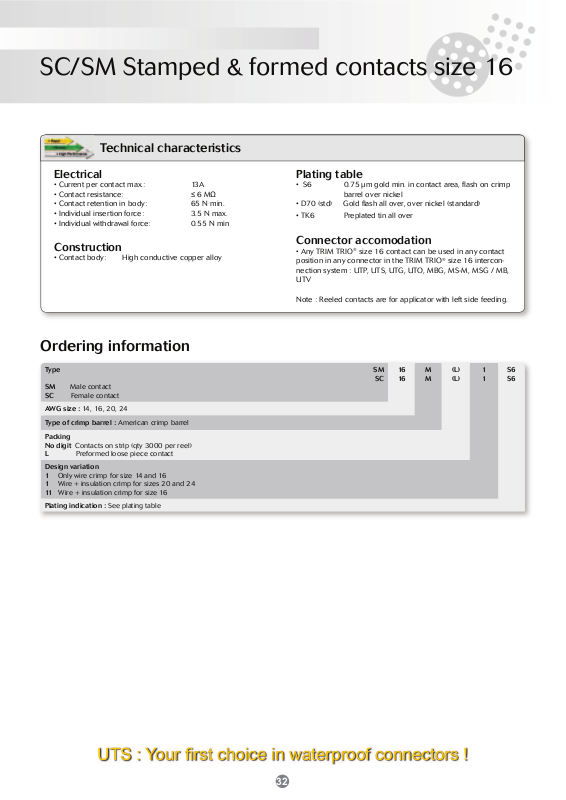

Page 1
32
SC/SM Stamped & formed contacts size 16
UTS : Your first choice in waterproof connectors !
Technical characteristics
Ordering information
Type
SM Male contact
SC Female contact
SMSC16
16
M
M
(L)
(L)
1
1
S6
S6
AWG size : 14, 16, 20, 24
Type of crimp barrel : American crimp barrel
Packing
No digit Contacts on strip (qty 3000 per reel)
L Preformed loose piece contact
Design variation
1 Only wire crimp for size 14 and 16
1 Wire + insulation crimp for sizes 20 and 24
11 Wire + insulation crimp for size 16
Plating indication :
See plating table
Plating table
• S6 0.75 µm gold min. in contact area, flash on crimp
barrel over nickel
• D70 (std) Gold flash all over, over nickel (standard)
• TK6 Preplated tin all over
Connector accomodation
• Any TRIM TRIO® size 16 contact can be used in any contact
position in any connector in the TRIM TRIO® size 16 interconnection system : UTP, UTS, UTG, UTO, MBG, MS-M, M SG / MB,
UTV
Note : Reeled contacts are for applicator with left side feeding.
Electrical
• Current per contact max.: 13A
• Contact resistance: ≤ 6 MΩ
• Contact retention in body: 65 N min.
• Individual insertion force: 3.5 N max.
• Individual withdrawal force: 0.55 N min
Construction
• Contact body: High conductive copper alloy
Page 2
33
SC/SM Stamped & formed contacts size 16
UTS : Your first choice in waterproof connectors !
Dimensional table
Part numbers : contacts on strip
Loose pieces
Wire size
Insulation
diameter
Wire strip
length
Male contacts Fig. Female contacts Fig. AWG mm²
SM24M1S6
SM24ML1S6
1
SC24M1S6
SC24ML1S6
2 26 - 24
0.13 - 0.25
0.89 - 1.58 4.0
SM20M1S6
SM20ML1S6
3
SC20M1S6
SC20ML1S6
4 22 - 20 0.35 - 0.50 1.17 - 2.08 4.0
SM16M1S6
SM16ML1S6
5
SC16M1S6
SC16ML1S6
6 18 - 16
0.80 - 1.50
3.0 6.35
SM16M11S6
SM16ML11S6
7
SC16M11S6
SC16ML11S6
8 18 - 16
0.80 - 1.50
2.0 - 3.0 4.65
SM14M1S6
SM14ML1S6
9
SC14M1S6
SC14ML1S6
10 14
2.0
3.2 6.35
For other platings : See plating table
Crimptooling table
Size
Hand crimp tooling for loose
contacts
Automatic crimp tooling for contacts on strip
Extraction tools
Y14MTV / Y16SCM2
die set included
P107 Press
Mini applicator
(not incl.)
(Stripper - crimper)
24
Y14MTV
or
Y16SCM2
MLS0318B
SC11 RX2025GE1
20 MLS0555A
16M(L)11 MLS0356A
16M(L)1 MLS1579
14 MLS1047
For detailed information on crimp tooling: See crimp tooling section

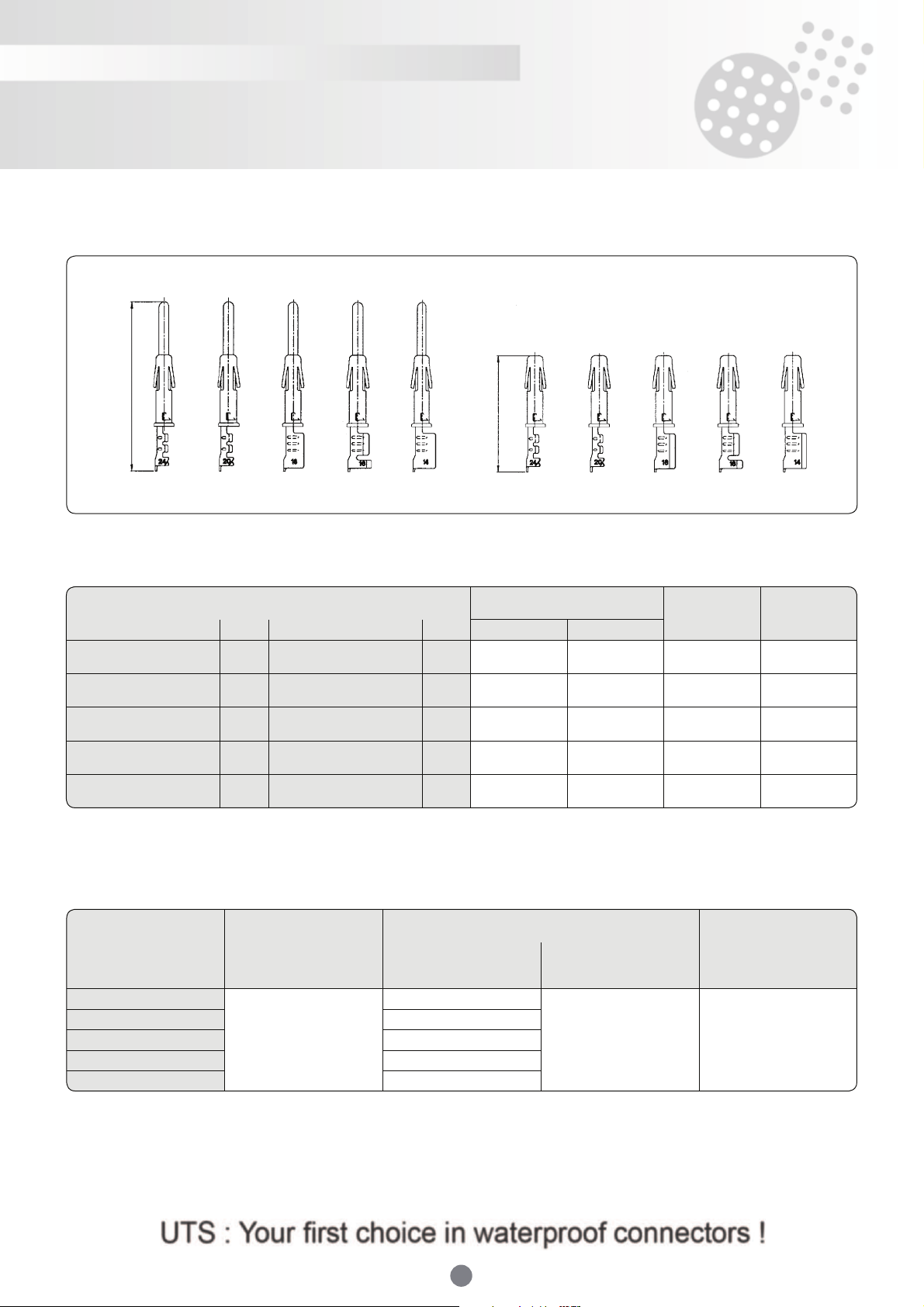

Standard SM/SC crimp contacts: Contact size 16 - Pin Ø1.6mm (.063’’)
FIG.1 FIG.2FIG.3 FIG.4FIG.5 FIG.6FIG.7 FIG.8FIG.9 FIG.10
28 REF.
19 REF.
Note : all dimensions are in mm
