Motion Controlled Wah Filters
Users Guide
Please Read This First
Contents
Important Safety Information
• WARNING! Before using unit, be sure to read the owners manual and
other warnings below.
• CAUTION! All electronic devices should be out of reach of children.
• CAUTION! If used improperly, batteries may explode or leak and cause
damage or injury.
4 Welcome
5 Overview of Features
6 Quick Start
9 Features
11 Knobs
13 Connections
15 Pedals
16 Saving Presets
17 Hot Hand Theory of Operation
18 Wah Types
20 Hidden Features and Controls
22 Specifications
22 Trouble Shooting
23 Warranty
| 3
Overview of Features | 5
Welcome!
Overview of Features
Thank you for purchasing The Hot Hand™ Motion
Controlled Wah Filters. We hope to help you discover a whole new world of musical expression.
Hot Hand products may be completely new, but
they are easy to use. We have worked hard to
bring you as much power and as many features
as possible while keeping the controls simple and
intuitive.
This manual is organized so that you can get
started quickly. Read over the first few pages and
you will be ready to go. If you would like to know
more about the product, move on to the following sections. It is certainly recommended that you
quickly read the Theory of Operation section. A
few quick insights into how it works will allow you
better control of the sounds you create.
Enjoy!
MOTION CONTROL
Motion control with Hot Hand™, which uses
patent-pending technology to translate your body
movement into sound.
INTUITIVE
An innovative and simple interface that makes it
easy to access all features.
MODERN DESIGN
A thoughtfully designed box, which features
rugged construction and sleek design.
DIVERSE SOUND PALETTE
A wide palette of sounds: some new, some
classics, and all customizable.
STATE-OF-THE-ART DSP
Our proprietary state-of-the-art 56 bit Digital
Signal Processing chip, the SA601, and crystal
clear 24 bit converters.
—The Source Audio team
4 | Welcome
ULTRA-CLEAN SIGNAL
“Active Analog Bypass” which routes the signal
around the entire signal processing path to
ensure your signal is clean when the effect is
not engaged.
Quick Start
�
Your Hot Hand comes with the following components.
Carrying Case
Hot Hand Extension
Hot Hand Arm Band
4 AA Batteries
01 : Power
The first thing you will need is power. Your Hot Hand
™
unit comes with 4 AA
batteries to get you started. The batteries will typically last about 15 to 20
hours. To avoid concerns about battery life, we recommend you buy a Source
Audio 9V DC power supply (A) (see power supply note on page 14 for exact
requirements).
02 : SENSOR IN connection
Next, connect the supplied EXTENSION CABLE to the SENSOR IN jack (B). Later,
you’ll plug the other end into the wire that trails from the Hot Hand, but hold
off on that for now.
B A
Hot Hand Control Box
03 : Guitar/Audio Connections
Now, you’ll need to make the audio connections. Plug a regular ¼-inch
guitar cable from your guitar into the GUITAR IN jack (C). Connect your amp
(or other audio device) to the GUITAR OUT jack, again with a regular ¼-inch
cable (D).
Note: Plugging a cable into the input will turn the unit on, causing the LEDs
Hot Hand Rings (5 sizes)
Hot Hand Motion Sensor
to light up briefly. Don’t forget to turn off the unit by unplugging this cord—
otherwise the battery will continue to drain.
C D
Quick Start | 76 | Quick Start
SAVE
PRESET
03
PRESET
04
EFFECT MOTION
PRESET
02
PRESET
01
ON/OFF
VOLUME SWELL
STRUM
FLAIL
PICK
BAND PASS
LOW PASS
AUTO WAH
01
02
03
04
LO
HI
LO
HI
CALIBRATE INVERT SENSOR
FREQUENCY
CLASSIC WAH
MULTI PEAK
MOTION CONTROLLED WAH FILTERS
ON/OFF
SELECT

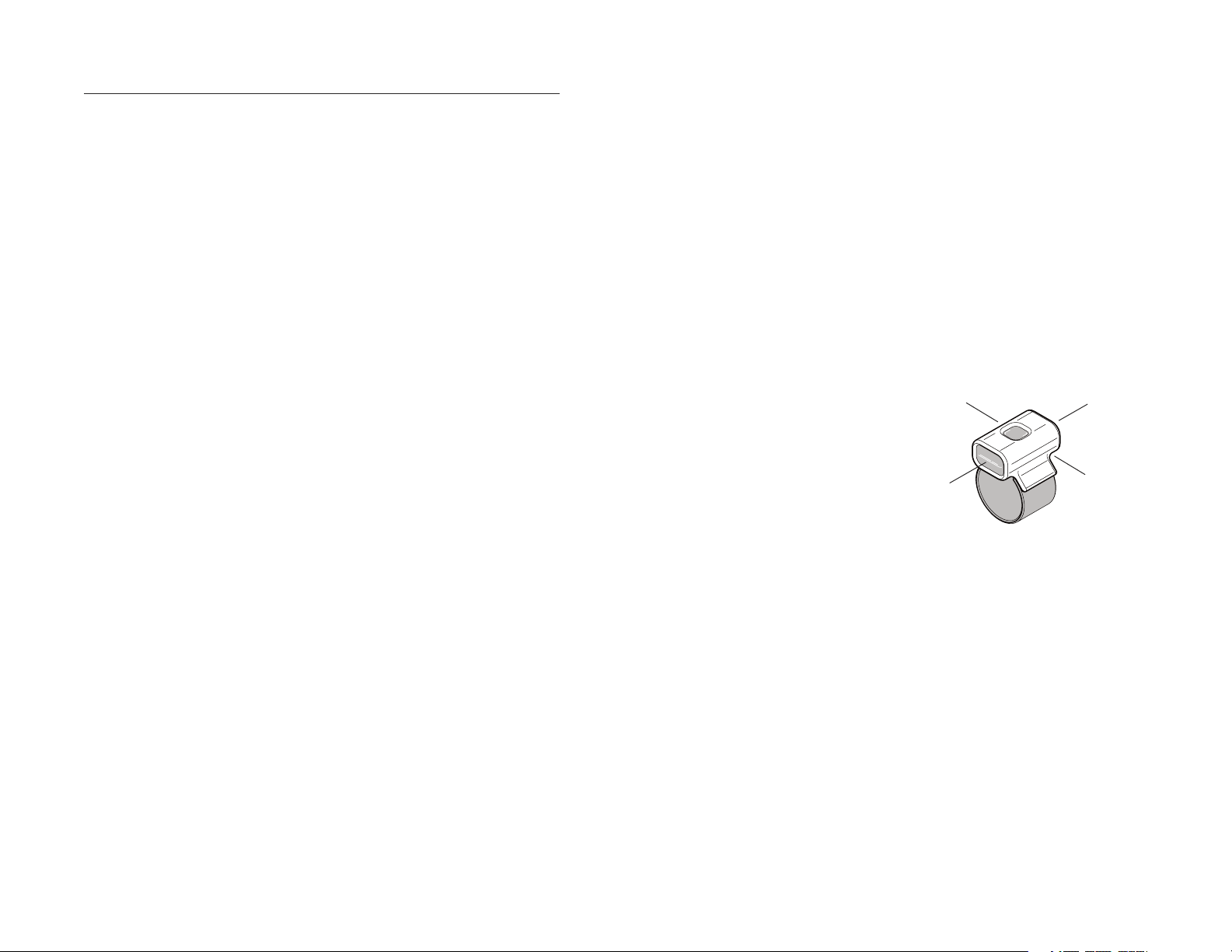

04 : Attaching the Hot Hand Motion Sensor
Choose the ring size which fits most comfortably. This is ideally placed on the
middle or ring finger of your strumming hand (A). Put your guitar on and take
out the Hot Hand sensor. Insert the Hot Hand into the ring as shown. To prevent the sensor cord from interfering with your playing, use the provided arm
band (B) to hold it up near your elbow as shown. Once everything is comfortable, attach the wire that comes from the Hot Hand into the EXTENSION CABLE.
Note: the extension cable is not required for operation, but it is almost certainly required for using the product in the standing position. When the Hot
Hand is connected, and the control box is powered-on, a blue LED will glow in
the sensor to indicate is it ready to be used (C).
A
05 : Calibration (optional)
Calibration is recommended, but not required. See page 11 for additional
information.
Calibration is easy. Just turn the Effect Selector knob to the Calibrate (A)
position and hold your strumming hand in its normal playing position over
the strings. Your hand should be held relatively still. Then, tap the On/Off
pedal once (B). The On/Off LED will blink for a few seconds. When the LEDs
are off, you are calibrated and ready to go. Turn the Effect Selector knob away
from the Calibrate position to select an effect.

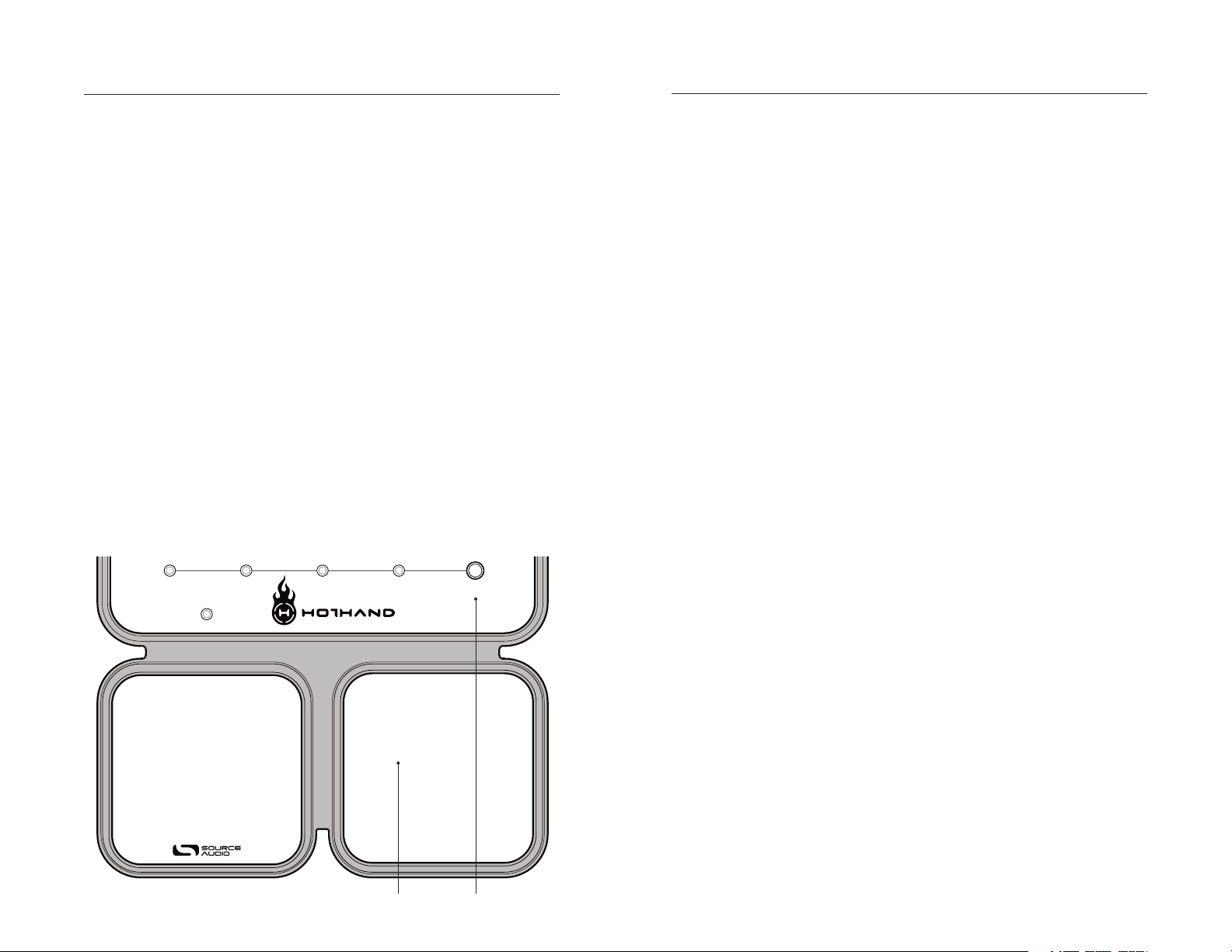

06 : Brief Knob, Pedal, and Button Descriptions
(see pages 11-15 for more detail.)
• EFFECT Knob: Selects the desired effect.
• FREQUENCY Knob: Adjusts the filter characteristics of the effect.
• MOTION Knob: Adjusts the sensitivity of the motion sensor.
• ON/OFF Pedal: Use this to engage or bypass the effect.
• SELECT Pedal: Scrolls though the presets.
• SAVE Button: Hold down this button to save your sound on
the preset location.
A
C
LED
Hot Hand Ring
Hot Hand Motion Sensor
B
B
Quick Start | 98 | Quick Start
EFFECT
VOLUME SWELL
BAND PASS
LOW PASS
AUTO WAH
01
02
03
04
LO
HI
LO
HI
CALIBRATE
CLASSIC WAH
MULTI PEAK
EFFECT
VOLUME SWELL
BAND PASS
LOW PASS
AUTO WAH
01
02
03
04
LO
HI
LO
HI
CALIBRATE
CLASSIC WAH
MULTI PEAK
Features
Knobs
The Hot Hand Concept
The concept of Hot Hand is to provide a new way to control effects. Our first
product, the Hot Hand Motion Controlled Wah Filters, is focused on controlling the response of one of more filter types. Until now, the only way to do
it was with your feet on an expression pedal or with an auto-wah effect.
The downside of the expression pedals in that you’re rooted to one spot on
the stage and there are limits on how fast the pedal can move up and down.
The shortcoming of auto-wah effects is they can only follow the amplitude
envelope of the sound.
With Hot Hand, you’re not glued to your pedals and you have more control
over the wah sound than with previous solutions. Plus, it adds the potential
for additional showmanship in live performances. The movement of your
hand up and down as you play the guitar becomes the expression pedal.
It is worth noting that the Hot Hand sensor can be mounted on any part of the
body that moves. We have experimented with both mounting to shoes as well
as to head bands. The latter is very fun to watch!
The Controls
The Hot Hand Control Box is where all of the effects are created and controlled. The product contains 11 different wah/filter effects. Some sounds are
classics, others are new, and all have been carefully modeled and created by
real musicians. And by using the PRESETS, you can switch between FOUR of
those sounds without ever bending down to tweak a knob on stage.
Note that the Hot Hand control box uses rotary encoder knobs and LED
rings. This allows you not only see the knob locations in low light situations,
but you can also jump from one preset to the next and see the setting of each
knob quickly.
The product also gives you control over the FREQUENCY of the wah and the
sensitivity of the Hot Hand. These features allow you to make adjustments to
how the Hot Hand interacts with the effect that you have selected.
There are three other features related to external “expression” control. First,
the EXPRESSION IN allows you to control the effects in the Control Box with
an external expression pedal. The EXPRESSION OUT allows you to take the Hot
Hand signal and use it to control other effects boxes that have an Expression
Input feature. Finally, the SENSOR OUT jack allows you to send the Hot Hand
signal to other Source Audio Hot Hand products and control them with a
single motion sensor.

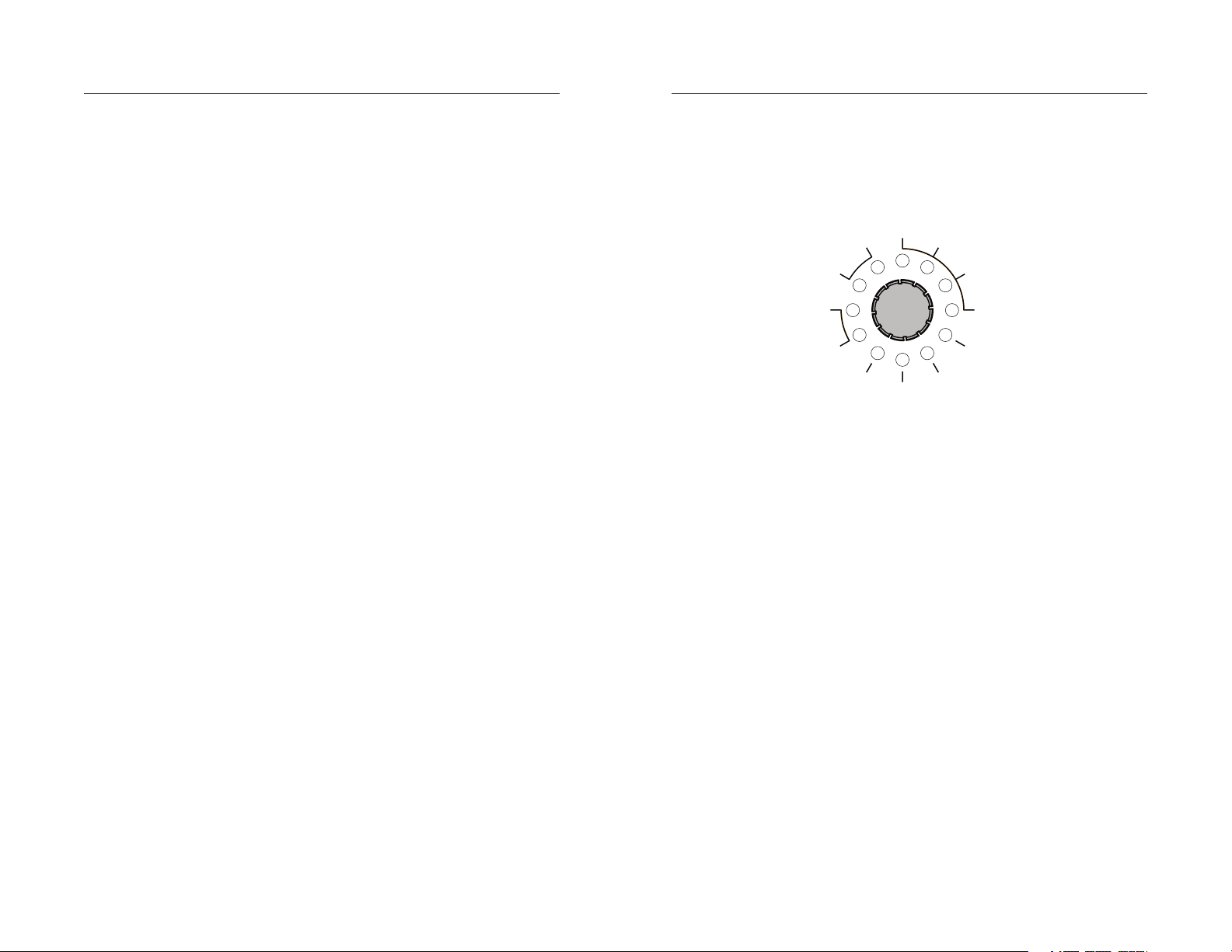

EFFECT Knob
The EFFECT knob switches between different types of wah sounds. Note that
AUTO WAH is not impacted by the Hot Hand signal. The VOLUME SWELL setting
allows you to use the Hot Hand for volume swell or tremolo effects. For a
description of each effect, please see page 18.
Calibration (optional)
Your use of Hot Hand will benefit from the unit being calibrated to your playing position and style. In effect, you are telling the control box where your
hand is when it is centered over the strings. Calibration is recommended
when using for the first time or when your playing position changes due to
guitar strap changes or when moving from standing to sitting. If you do not
calibrate, the “zero” or center point of the Hot Hand signal may not match the
natural resting position of your hand.
To calibrate, turn the EFFECT knob to the CALIBRATE position and hold your
strumming hand in its normal playing position over the strings. Then, tap
the ON/OFF pedal once. The LEDs will blink for a few seconds. When the LEDs
are off, you are calibrated and ready to go. Please note that the effect will be
muted when the selector is in the calibrate position.
ADVANCED USER NOTES
1) The calibration “zero” point does not necessarily need to be in the middle of your arm stroke.
By setting the zero point higher or lower it is possible to span a different range of the effect.
Also, calibration may be required if the Hot Hand sensor is mounted to some other part of your
body (head, foot, etc.)
2) One calibration setting is typically used across all presets. However, it may desirable to create
a different calibration setting for each preset. When the function selector is turned to calibrate all
the preset LEDs will be lit. If, before depressing the ON/OFF pedal, one hits the SELECT pedal, the
light from the last preset selected turns on. Successive SELECT pedal depressions cycle through
all the preset LEDs. If only one preset LED is lit, then only that preset gets the new calibration data.
The remaining presets are unaffected, even if the last calibrate applied to all presets.
Knobs | 1110 | Features

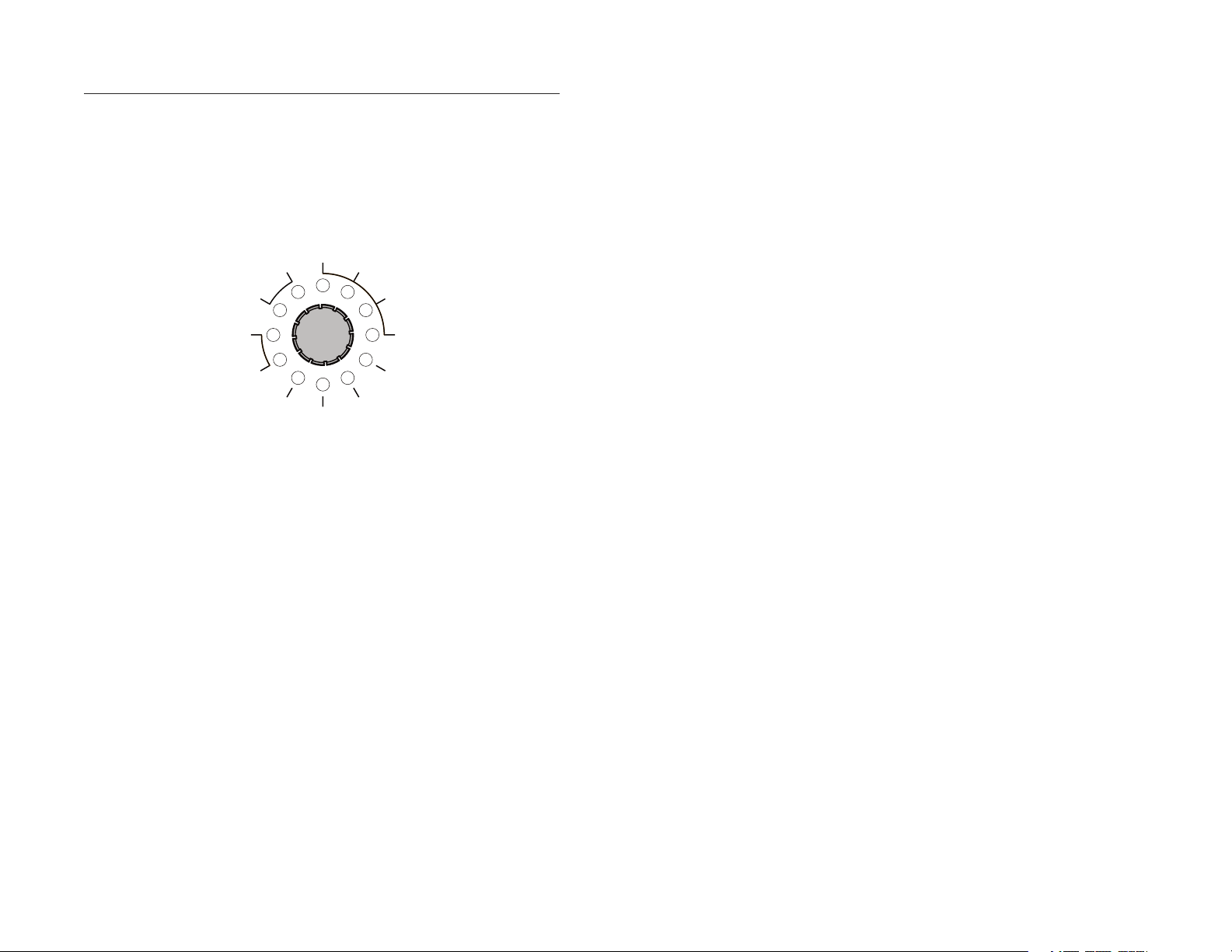

FREQUENCY Knob
FREQUENCY
MOTION
STRUM
FLAILPICK
INVERT SENSOR
The FREQUENCY knob selects the frequency of sound on which the wah effect
acts most strongly. In more technical terms, the FREQUENCY knob specifies
the starting frequency of the filter sweep. Turning this clockwise will make
the wah sound higher and thinner, and turning it counter-clockwise will make
is sound darker and thicker.

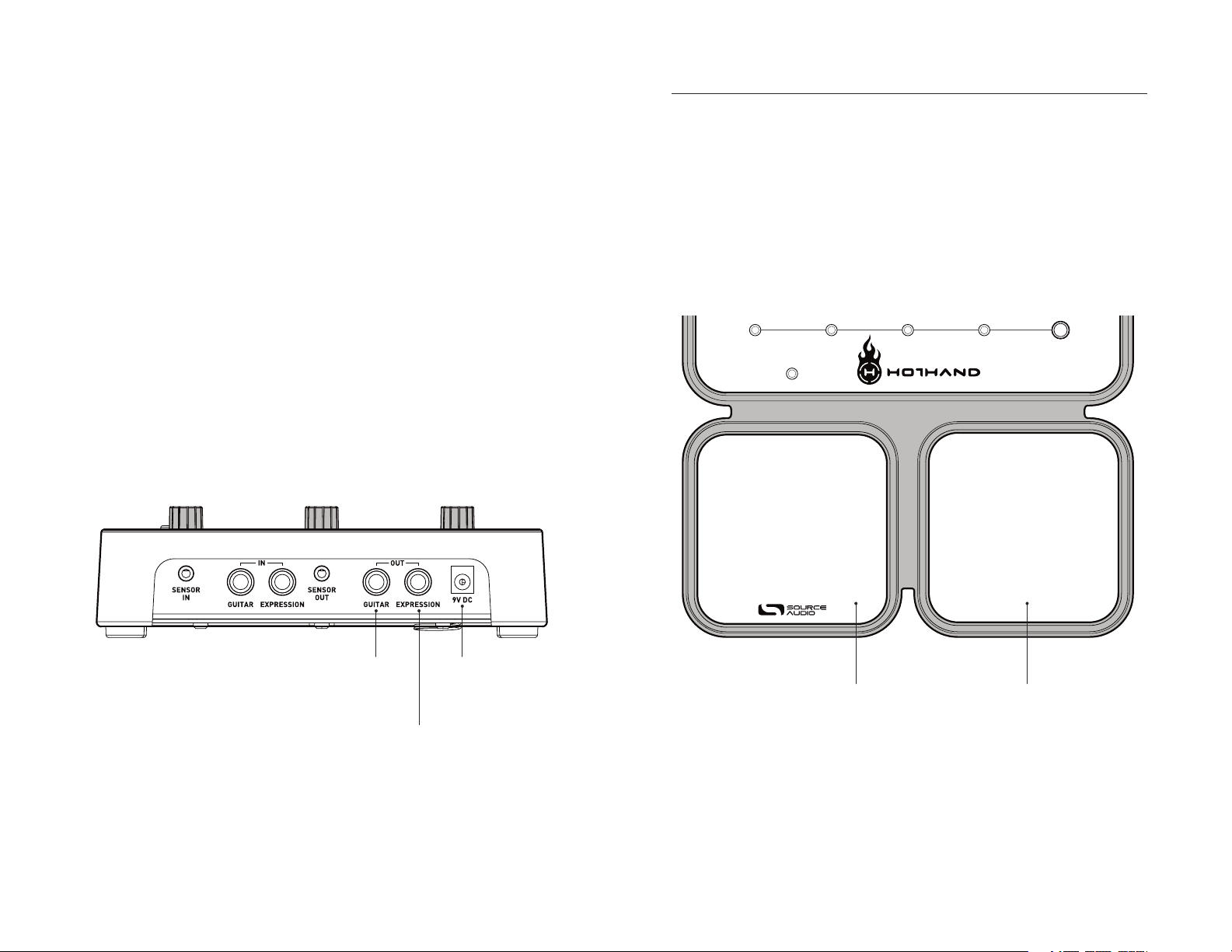

Connections
SENSOR IN
Connect the Hot Hand here directly or using the supplied EXTENSION CABLE.
When the EFFECT knob is set to VOLUME SWELL, the FREQUENCY knob controls
the gain applied to the Hot Hand signals. Increasing the gain will allow you to
get larger volume changes with smaller motions of your hand.
ADVANCED USER NOTE
For information on how to adjust the gain of the Hot Hand signals for effects other than volume
swell, see the Hidden Feature and Controls section on page 20.
MOTION Knob/INVERT Sensor
The MOTION knob essentially determines how sensitive the Hot Hand is. Setting this knob towards “pick” will make the Hot Hand more sensitive so that
even the smallest motions will be picked up. Setting it to near “strum” is best
for strumming, and “flail” will reduce the sensitivity so that more dramatic
motions are required to produce a noticeable effect. Alternatively, the motion
knob can be thought of as setting the amount of “smoothing” of the Hot Hand
signal. “Pick” having the least smoothing, while “flail” has the most.
GUITAR IN
This is where you connect your guitar to the box, using a standard ¼-inch
guitar cable.
EXPRESSION IN
This input allows you to connect any standard expression pedal to the product. If the EXPRESSION IN and the Hot Hand are connected at the same time,
the control box will take the sum of their positions to control the wah. If the
Hot Hand is disconnected, then the pedal will have exclusive control and the
product will function like a traditional wah pedal.
Technical Note: The pedal needs to be a potentiometer, from 10K to 100K, with one side connected
to ring, and the other to ground, and the wiper connected to the tip of the TRS ¼-inch connector.
We have found that the Moog and M Audio EXP pedals work well.
SENSOR OUT
This output can be used to “pass on” the Hot Hand signal to future Source
Audio Hot Hand Products so that one Hot Hand Sensor will control multiple
effects. This application is also known as “Daisy Chaining”.
• WARNING! Do not connect this to any device other than the SENSOR IN jack
on another Source Audio product. Damage may result.
Turning the MOTION knob all the way around past the six o’clock position
causes the Hot Hand to invert its axis—up is down and down is up. When the
INVERT SENSOR light is off, the product is in normal mode (hand up boosts
higher frequencies), while on indicates inversion (hand up boosts lower
frequencies).
When the EFFECT knob is set to Auto-Wah, the Hot Hand signals are not used
and the MOTION knob controls the speed of the envelope follower.
Sensor In
Jack
Expression In
Guitar In
Jack
Jack
Sensor Out
Jack
Connections | 1312 | Knobs
SAVE
PRESET
03
PRESET
04
EFFECT MOTION
PRESET
02
PRESET
01
ON/OFF
VOLUME SWELL
STRUM
FLAIL
PICK
BAND PASS
LOW PASS
AUTO WAH
01
02
03
04
LO
HI
LO
HI
CALIBRATE INVERT SENSOR
FREQUENCY
CLASSIC WAH
MULTI PEAK
MOTION CONTROLLED WAH FILTERS
ON/OFF
SELECT
GUITAR OUT
This ¼-inch output is where you connect your amp or the next pedal in
your chain.
EXPRESSION OUT
This jack allows you to send the Hot Hand control signals to other effects
devices that accept an expression input. This output signal defaults to an
analog voltage ranging from zero to 3.3VDC. This signal is “tip hot”. The maximum voltage can be adjusted up to 4.5VDC to accommodate other devices
that require higher voltages. For details on adjusting the voltage range see
the Hidden Features and Controls section on page 20. Note that this output
is active at all times when the Control Unit power is On. BE SURE TO READ
THE DOCUMENTATION ON ANY DEVICE YOU USE WITH THE HOT HAND IN THIS
CONFIGURATION.
9V DC
Connect a 9V DC power supply here if you do not wish to use batteries. Batteries will not be used while the power supply is connected. Power supply must
be REGULATED, minimum 200mA, and use a NEGATIVE tip plug. Use of a non-
Source Audio approved supply may cause damage and void the warranty. See
our website for a list of approved supplies, www.sourceaudio.net.
Pedals
ON/OFF (left) Pedal
Pressing this pedal once engages the effect that is selected. Touch the pedal
again, the effect is turned off and bypass is on. There is an ON/OFF LED right
above the pedal that notifies you when the effect is turned on.
SELECT (right) Pedal
The SELECT pedal cycles through 4 PRESETS in a repeating pattern. The 4 LEDs
above this pedal indicate which preset has been selected.
Guitar Out
Jack
Expression Out
Jack
9V DC
Power Supply
Jack
ON/OFF pedal Select pedal
Pedals | 1514 | Connections
SAVE
PRESET
03
PRESET
04
EFFECT MOTION
PRESET
02
PRESET
01
ON/OFF
VOLUME SWELL
STRUM
FLAIL
PICK
BAND PASS
LOW PASS
AUTO WAH
01
02
03
04
LO
HI
LO
HI
CALIBRATE INVERT SENSOR
FREQUENCY
CLASSIC WAH
MULTI PEAK
MOTION CONTROLLED WAH FILTERS
ON/OFF
SELECT
Saving Presets
Hot Hand Theory of Operation
The PRESET feature of this product has been designed to be simple. This
product allows you to save 4 different configurations so that they may be easily recalled from the standing position. When you receive your product from
the factory, we have selected what we think are 4 useful configurations. You
may either keep these or replace any of them with your own settings. Should
you wish to return to the original factory presets, the configurations and other
ideas are located on our website, www.sourceaudio.net.
01 : Select and edit a preset
By stepping on the SELECT pedal you can select one of four user presets. Edit
a preset by changing values for FREQUENCY, EFFECT or MOTION. Any time that
you change the knob positions of a given preset, that LED will blink slowly to
indicate that the preset is being edited.
02 : Press and hold the SAVE button for two seconds
The LED will blink rapidly to signal that the saving process has begun. When
the light becomes solid, the save process is complete. Note that this process
will over-write any setting that we previously stored in this location.
ADVANCED USER NOTE
It is possible to save different calibration settings for each preset. The procedure is described in the
CALIBRATE section on page 10.
While it is certainly possible to use Hot Hand without much technical background, a few words about how it works will allow you to quickly understand
how hand position and hand motion impact the sound.
The Hot Hand sensor senses acceleration. This means that both hand
position and hand motion will cause the Hot Hand to react and send signals
to the control box.
Hand Position
Since gravity is an acceleration, the Hot Hand is always measuring the pull
of the Earth’s gravitational force. To illustrate this, try strumming a chord
and pointing your hand with the sensor attached straight at the ground. By
bending your arm at the elbow, slowly move your forearm up until your hand
is pointing at the ceiling. You should hear the filter sweep from low to high
following the position of your arm. When the INVERT light is on, the opposite
will be true and the same gesture will sweep the filter from high to low. You
don’t need to move your entire arm to accomplish this. The same effect can
be achieved changing your hand position by bending at the wrist or by leaning
back and moving your hand and the guitar together. Hand position can range
from subtle movement to the not so subtle. If subtlety is not your thing, dramatic motions will open the door for showmanship as your hand shapes the
sounds from your guitar. We must point out that the Hot Hand will respond
differently in Outer Space!
When you are using hand position and larger hand or arm motions to control
the Hot Hand, we recommend turning the MOTION knob towards FLAIL. This
will prevent the Hot Hand from responding to small variations and sounding
too “jittery”.
01 02
Hand Motion
In addition to measuring gravitational force, the sensor also measures
movement. The more the hand moves, the more the signal will change. To
illustrate this, strum a chord and shake your hand quickly. You should hear
the filter sweep back and forth following your hand motion. Experiment with
moving your hand in different directions and at different speeds to find the
method that works best for you. Use the MOTION knob to control how quickly
an effect will respond to your hand motion. In the most sensitive position
(PICK) the Hot Hand will detect even the slightest motion of the picking hand
and the result will sound like an auto-wah. In the STRUM position, the Hot
Hand will react more slowly. Try strumming some chords normally and listen
to how the Hot Hand reacts.
Hot Hand Theory of Operation | 1716 | Saving Presets
Wah Types
EFFECT
VOLUME SWELL
BAND PASS
LOW PASS
AUTO WAH
01
02
03
04
LO
HI
LO
HI
CALIBRATE
CLASSIC WAH
MULTI PEAK
EFFECT
VOLUME SWELL
BAND PASS
LOW PASS
AUTO WAH
01
02
03
04
LO
HI
LO
HI
CALIBRATE
CLASSIC WAH
MULTI PEAK
Following are descriptions of the different types of wah filters we programmed
into the Hot Hand box. Note that each sound interacts differently with both
the Hot Hand hand motions as well as the settings on the FREQUENCY and
MOTION knobs. It is suggested that one experiment a bit to find just the right
sound for different playing styles.
BAND PASS – LO
• Technical: Single Peak Band Pass Filter with low Q and parametric
equalization.
• Description: Simple band pass filter with a wide resonant peak at the center
frequency. Use the FREQUENCY KNOB to control the center frequency.
BAND PASS - HI
• Technical: Single Peak Band Pass Filter with high Q and parametric
equalization.
• Description: Simple band pass filter with a narrow resonant peak at the
center frequency. Use the FREQUENCY KNOB to control the center frequency.
MULTI-PEAK 01-04
• Technical: Various Advanced Multi-Peak Filter with multiple peaks and dips
moving in independent directions under Hot Hand control.
• Description: Each quite different. Some have phasing qualities and some
have more vocal characteristics. Give them a listen!
CLASSIC WAH
• Technical: Modified band pass filter
• Description: Classic wah pedals remain very popular and have a very well-
recognized sound. We have invested significant effort to model this sound in
our product. To be a true Classic Wah model, the FREQUENCY KNOB should
be set to the middle position.
LOW PASS - LO
• Technical: Single Peak Low Pass Filter with a low Q
• Description: Simple low pass filter with a wide resonant peak near the cutoff
frequency. Use the FREQUENCY KNOB to control the cut-off point.
LOW PASS - HI
• Technical: Single Peak Low Pass Filter with a high Q
• Description: Simple low pass filter with a narrow peak near the cutoff
frequency. Use the FREQUENCY KNOB to control the cut-off point.
AUTO-WAH
• Technical: Automatic Wah Filter
• Description: This effect is a typical auto-wah effect. The wah effect is
triggered by the amplitude of the guitar signal. Note that neither the Hot
Hand nor the EXPRESSION IN controls the signal in this mode. When the
EFFECT knob is set to Auto-Wah, the MOTION knob controls how quickly the
effect will react and reset.
VOLUME SWELL
• Technical: Volume Control or Tremolo
• Description: Use the Hot Hand to create volume swells as you raise (nor-
mal) or lower (INVERT SENSOR) your hand. Bounce or shake your hand to
create tremolo effects. The FREQUENCY knob controls how fast the volume
rises as you raise or move your hand. Note the calibration is very important
in this mode to establish the exact points where the fade begins/ends.
Wah Types | 1918 | Wah Types
Hidden Features and Controls
We have tried to balance the conflicting requirements of flexibility and
simplicity in this unit. As such, most of the key features of the product are
found using the control knobs as they are labeled and defined in this manual.
However, we recognize that many of you will want to experiment beyond the
typical user, thus we have created a list of controls which are accessible via a
special start-up mode. To avoid getting into trouble, simply read the last point
in this section to get back to the factory settings.
To get into the special setup mode, power up the unit while holding down the
SELECT pedal and wait two seconds. The FREQUENCY and EFFECT knobs will
now reflect the current settings. This mode may be exited by power cycling
the unit (without depressing the pedal), or by turning the function selector to
the Calibrate position.
The EFFECT knob now chooses what special parameter to edit.
Accelerometer x and y-axis interchange
The Hot Hand sensor uses a two axis accelerometer. By default, the Hot
Hand senses acceleration along the x-axis. The x-axis runs parallel to your
arm and the long dimension of the sensor ring. The y-axis is perpendicular
to x, while still being in the plane of an outstretched hand wearing the ring.
We generally find that the x-axis gives better control than the y-axis, but feel
free to experiment, especially if your playing technique is somewhat unconventional. (Lefties—no, you still want to use x, but the normal and inverted
settings are effectively switched.)
Please note that if you are using the y-axis that you may need to re-calibrate
with your hand and the sensor parallel to the ground (palm down). This will
allow you to set a useful “zero” point for the y-axis.
The use of the x-axis sensor is indicated by the center LED. The next LED, in
either direction, indicates use of an axis midway between x and y (a 45 degree
angle.) Another step in either direction gets us to the y-axis. The complete set
of 9 choices, from counter-clock-wise:
• Calibrate: Exit special setup mode
• Classic: Input gain trim
• Low Pass Lo: Accelerometer gain trim
• Low Pass Hi: Accelerometer x and y axis interchange
• Band Pass Lo: Expression control output gain trim
• Band Pass Hi: Restore all special settings to default values
The FREQUENCY control will display the value of the selected parameter and
turning the knob will adjust the value. There are only 9 values per parameter; there are no in-between values. Once a value is changed it will be saved
automatically.
Input gain trim
This is a gain adjustment applied to the guitar signal immediately after A/D
conversion. The possible values are -8, -6, -4, -2, 0, 2, 4, 6, and 8 dB. Positive
values may be helpful for low level signals. If the input signal is particularly
hot, some attenuation may be required in order that the output of the filter
does not clip.
Accelerometer gain trim
This adjusts the gain multiplier applied to the Hot Hand signals relative to
the zero point from calibration. The lowest gain is .5, and the highest is 2.0.
The default of 1.0 is in the center position. The higher gains may be useful if
you like to use small hand motions and the lower gains if you prefer larger
hand motions.
1. -x
y
x
2. Halfway between -x and -y
3. -y
4. Halfway between -y and x
5. x
6. Halfway between x and y
x
y
7. y
8. Halfway between y and -x
9. -x
The INVERT setting on the MOTION control will act to invert whichever axis
direction is chosen.
Expression control output gain trim
This allows adjustment of the level of the signal on the EXPRESSION OUT jack.
The default is position 2. This will result in a signal that varies between
zero and 3.3VDC. The maximum output voltage is 4.5VDC. Note that greater
changes in signal can also be produced by faster motion of your hand. Higher
gain will allow you to use slower motions to achieve the desired signal levels.
Check our website for additional usage tips, www.sourceaudio.net.
Restore defaults
When the EFFECT knob is set to restore (BAND PASS HI) in the special setting
mode, depressing the SELECT pedal will reset all of the special parameters to
their default settings.
20 | Hidden Features and Controls Hidden Features and Controls | 21
Specifications
Dimensions
• L: 7.125 inches (18.1cm)
• W: 7.125 inches (18.1cm)
• H: 1.75 inches (4.5cm)
Total including knobs:
• H: 2.125 inches (5.5cm)
Weight
• 3lbs/1.36kg (floor unit only)
• 5lbs/2.27kg (total, including case)
Power
• 130mA @ 9 VDC
• 15-20 hours of battery life
• NEGATIVE tip power jack
Audio Performance
• 115dB audio ADC
• 24 bit audio conversion
• 56 bit digital data path
• Active analog bypass utilized
when effect not engaged
Troubleshooting
Noise
Low Power Change batteries or plug in a DC power supply.
Near noise source Move control box away from power supplies and other equipment.
Other equipment Remove other boxes from signal chain, see if noise persists.
Bad cables Swap out audio cables.
Low volume
Low power Change batteries or plug in a DC power supply.
Hot Hand doesn’t work
Low power Change batteries or plug in a DC power supply.
Not calibrated Calibrate the Hot Hand - see page 11.
Set to Auto-Wah Change FUNCTION knob position.
Not connected Check data cable connections.
Knobs don’t work /light up
Low power Change batteries or plug in a DC power supply.
Wrong power supply Use correct power supply as defined on page 14.
For additional assistance, please visit www.sourceaudio.net.
LIMITED WARRANTY
Source Audio, LLC (hereinafter “Source Audio”)
warrants that your new Source Audio Hot
Hand Control Box, when purchased at an
authorized Source Audio dealer in the United
States of America (“USA”), shall be free from
defects in materials and workmanship under
normal use for a period of one (1) year from
the date of purchase by the original purchaser.
Source Audio further warrants that the Hot
Hand Ring Sensor shall be free from defects
in materials and workmanship under normal
use for a period of ninety (90) days from the
date of purchase by the original purchaser.
This Limited Warranty does not extend to the
batteries, wires, and other components sold
as part of the product, which are purchased as
is. Please contact your dealer for information
on warranty and service outside of the USA.
Under this Limited Warranty, Source Audio’s
sole obligation and the purchaser’s sole remedy shall be repair, replacement, or upgrade,
at Source Audio’s sole discretion, of any
product that, if properly used and maintained,
proves to be defective upon inspection by
Source Audio. Source Audio reserves the right
to update any unit returned for repair and to
change or to improve the design of the product
at any time without notice. Source Audio
reserves the right to use reconditioned parts
and assemblies as warranty replacements
for authorized repairs. Any product repaired,
replaced, or upgraded pursuant to this Limited
Warranty will be warranted for the remainder
of the original warranty period.
This Limited Warranty is extended to the
original retail purchaser. This Limited Warranty
can be transferred to anyone who may subsequently purchase this product provided that
such transfer is made within the applicable
warranty period and Source Audio is provided
with all of the following information: (i) all
warranty registration information (as set forth
on the registration card) for the new owner, (ii)
proof of the transfer, within thirty (30) days of
the transfer, and (iii) a photocopy of the original
sales receipt. Warranty coverage shall be determined by Source Audio in its sole discretion.
This is your sole warranty. Source Audio does
not authorize any third party, including any
dealer or sales representative, to assume any
liability on behalf of Source Audio or to make
any warranty on behalf of Source Audio.
WARRANTY INFORMATION
Source Audio may, at its option, require proof
of the original purchase date in the form of
a dated copy of original authorized dealer’s
invoice or sales receipt. Service and repairs
of Source Audio products are to be performed
only at the Source Audio factory or a Source
Audio authorized service center. Prior to service or repair under this Limited Warranty, the
purchaser must request from Source Audio a
return authorization, which is available at:
Source Audio LLC
120 Cummings Park, Woburn, MA 01801
(781) 932-8080 or at www.sourceaudio.net.
Unauthorized service, repair, or modification
will void this Limited Warranty.
DISCLAIMER AND LIMITATION OF WARRANTY
DO NOT OPEN THE FLOOR BOX UNDER ANY CIRCUMSTANCE. THIS WILL VOID THE WARRANTY
THE FOREGOING LIMITED WARRANTY IS THE ONLY
WARRANTY GIVEN BY SOURCE AUDIO AND IS IN LIEU
OF ALL OTHER WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF
THIS LIMITED WARRANTY ARE HEREBY DISCLAIMED
AND EXCLUDED FROM THIS LIMITED WARRANTY.
UPON EXPIRATION OF THE APPLICABLE EXPRESS
WARRANTY PERIOD, SOURCE AUDIO SHALL HAVE
NO FURTHER WARRANTY OBLIGATION OF ANY KIND,
EXPRESS OR IMPLIED. SOURCE AUDIO SHALL IN NO
EVENT BE LIABLE FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES SUFFERED BY THE
PURCHASER OR ANY THIRD PARTY, INCLUDING
WITHOUT LIMITATION, DAMAGES FOR LOSS OF
PROFITS OR BUSINESS OR DAMAGES RESULTING
FROM USE OR PERFORMANCE OF THE PRODUCT,
WHETHER IN CONTRACT OR IN TORT. SOURCE
AUDIO SHALL NOT BE LIABLE FOR ANY EXPENSES,
CLAIMS OR SUITS ARISING OUT OF OR RELATING
TO ANY OF THE FOREGOING. Some states do not
allow the exclusion or limitation of implied
warranties so some of the above limitations
and exclusions may not apply to you. This Limited Warranty gives you specific legal rights,
and you may also have other rights, which
vary, from state to state. This Limited Warranty
only applies to products sold and used in the
USA. Source Audio shall not be liable for dam-
ages or loss resulting from the negligent or
intentional acts of the shipper or its contracted
affiliates. You should contact the shipper for
proper claims procedures in the event of damage or loss resulting from shipment.
Warranty | 2322 | Specifications / Troubleshooting
About Source Audio
Source Audio was founded in January 2005 by former engineers, scientists,
and executives of Analog Devices, Kurzweil Music Systems, and Thomas H.
Lee Partners. With over 80 years of broad combined industry experience,
we bring to the audio effects market a powerful team with skills in analog
and digital circuit design, algorithm and effects development, and marketing
and business management.
© Source Audio LLC
120 Cummings Park, Woburn, MA 01801 www.sourceaudio.net
Loading...
