Source Audio HOTHAND3 User Manual

USER’S GUIDE

SA115

Universal Wireless Effects Controller

2 | Welcome

Welcome

Thank you for purchasing this Hot Hand 3 Universal Wireless Effects
Controller. We hope that the new functionality of the Hot Hand 3 unit
gives you even greater freedom of use and expressive control over all
of your effects. Please save this manual for your reference.

Your Hot Hand 3 kit includes:

• Hot Hand wireless sensor ring

• Receiver base station

• DC adapter power supply (used for ring charging and external
power for receiver unit)

• SA160 sensor cable

If possible, dispose of the device at a recycling center. Do not dispose of
the device with the household waste.

Charging the ring | 3

Charging the ring

Before using your new Hot Hand 3 Universal Wireless Effects Controller
you should fully charge the ring battery. The ring uses a small and
lightweight Lithium Polymer rechargeable battery. To charge the ring
battery, first plug the DC adapter power supply into a standard electri­cal outlet. Next plug the DC adapter into the small jack on the plastic
end of the ring. When fully charged, the ring will operate for around
6 hours. Charging time will be between 1 and 1.5 hours. While the ring
is charging, the blue LED on the top will blink quickly. When the charge
is completed the LED will turn off.

Status LED

DC Adapter
Jack

ON/OFF Button

4 | Connections

Connections

The receiver can be connected to any effects pedal that has the ap­propriate input jacks. This includes the Sensor Input or Multi-Function
Input on all Soundblox pedals and any other manufacturer’s pedal
that has a 1⁄4-inch expression input. If the receiver is connected via
the SA160 sensor cable, it will be powered through this connection. In
order to send an output signal on the Expression Output, the receiver
unit will need powered by the included DC adapter power supply.

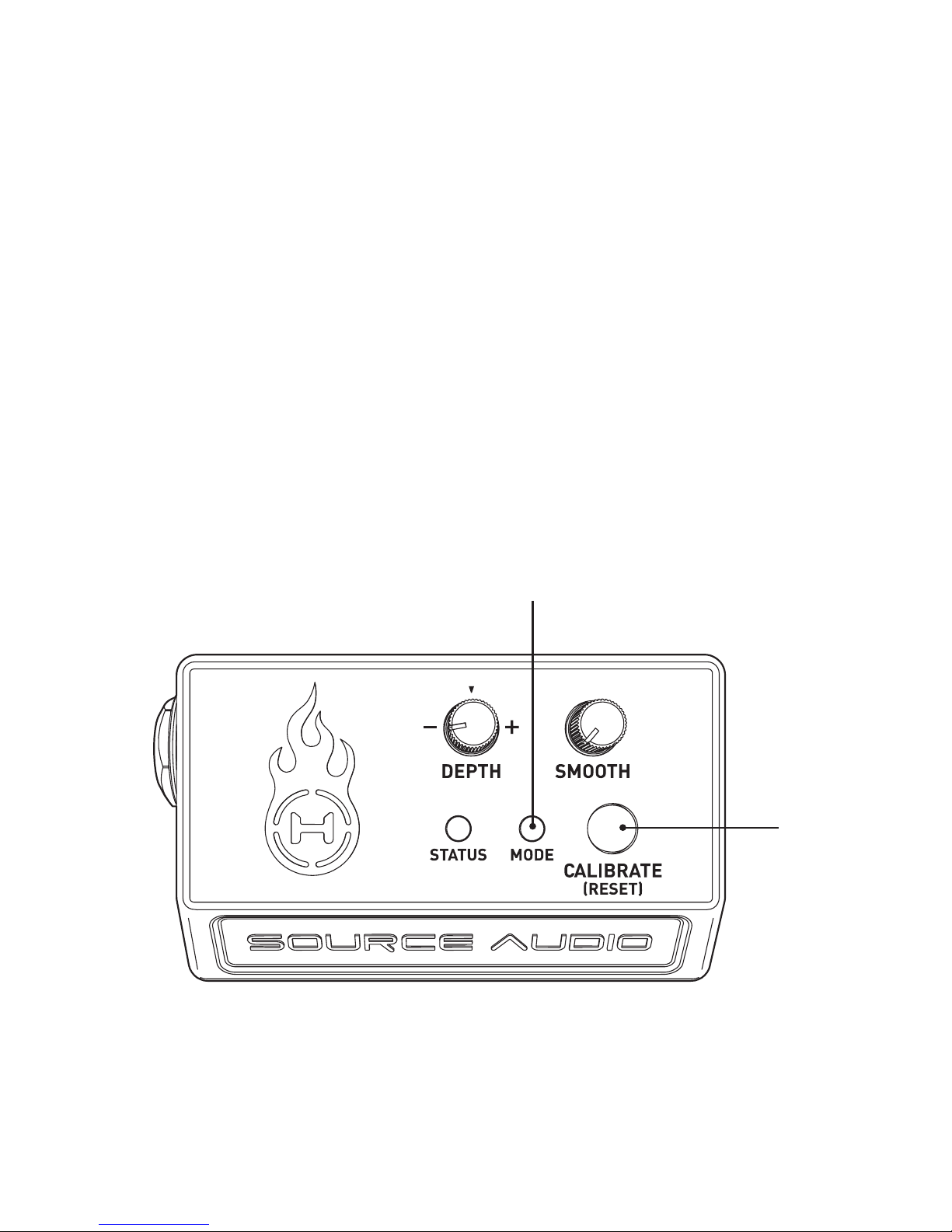

The knobs and MODE LED will be illuminated when the receiver is
powered. The blue STATUS LED on the face of the receiver will blink
indicating that the receiver is looking for a ring to pair up with.

1

⁄4-inch

Expression
OUTPUT

1

⁄8-inch Sensor

OUTPUT

1

⁄4-inch Expression

Cable (TRS)

Connecting a Third-Party pedal

Connections | 5

Connecting a Soundblox® pedal

Hot Hand 3
Receiver

DC Adapter

Soundblox® Pedal

Third-Party Pedal

1

⁄8-inch Sensor Cable

Hot Hand 3
Receiver
