Soundstream Technologies Airbass Wireless Subwoofer Volume Control System User Manual

REFERENCE

AIRBASS™

Wireless Subwoofer

Volume Control System

This device complies with F.C.C. Rules part 15. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference and, (2) This device must accept any interference that
may be received, including interference that may cause undesired

SOUNDSTREAM TECHNOLOGIES

120 Blue Ravine Road  Folsom  California 95630 USA

ph 916.351.1288  fax [phone]

rev A - 5.21.96

12

OWNERS MANUAL AND

INSTALLATION GUIDE

1

CONGRATULATIONS!

You now own the REFERENCE AIRBASS™ Wireless Subwoofer
Remote System, the product of an uncompromising design and

engineering philosophy. Your Soundstream REFERENCE accessory
will undoubtedly increase the performance of your audio system.

To maximize the performance of your system, we recommend that you
thoroughly acquaint yourself with its capabilities and features. Please
retain this manual and your sales and installation receipts for future
reference. Also, to ensure its proper operation, we recommend that
you have AIRBASS installed by an Authorized Soundstream Dealer.

Soundstream products are the result of American craftsmanship and
the highest quality control standards, and when properly installed, will
provide you with many years of listening pleasure. Should your
accessory ever need service or replacement due to theft, please record
the following information, which will help protect your investment.

Model ________________________________________
Serial # _______________________________________
Dealer’s Name ________________________________
Date of Purchase ______________________________
Installation Shop _______________________________

TROUBLESHOOTING

PROBLEM CAUSE

AIRBASS in-
stalled, the LED is
FLASHING, but
the unit is not
functioning

• Make sure the AIRBASS switch on the amplifier's main

pc board is in the "IN" position, and that the low pass
filter in the amplifier has been engaged. (Read the am­plifier's owner's manual to see how AIRBASS affects
your particular amplifier.)

• Make sure the AIRBASS receiver board has been pro-

grammed to the remote.

• Make sure the AIRBASS transmitter is set to the bank

the receiver board has been programmed to. (See page
9 for bank programming.)

The AIRBASS
Maximum level is
not as loud as the
amplifier without

AIRBASS.
AIRBASS is work-

ing, but the range
is poor.

• The "M" button level has been programmed to some

level other than the +24 dB output level. Use the é ar­row to set the AIRBASS level to its maximum output
level (+24 dB). Follow the steps on page 10 to program
the "M" button to be the Maximum output level.

• Making sure the antenna is up high away from the am-

plifier, and if necessary, away from other AIRBASS an­tennas

• The batteries in the transmitter may be low. Replace

them with fresh batteries.

SPECIFICATIONS

2

THD
Signal to Noise
Frequency Response

Attenuation
Functional Range
Transmitter Batteries

<0.01%
>100 dB

20 Hz to 20 kHz ± 0.5 dB

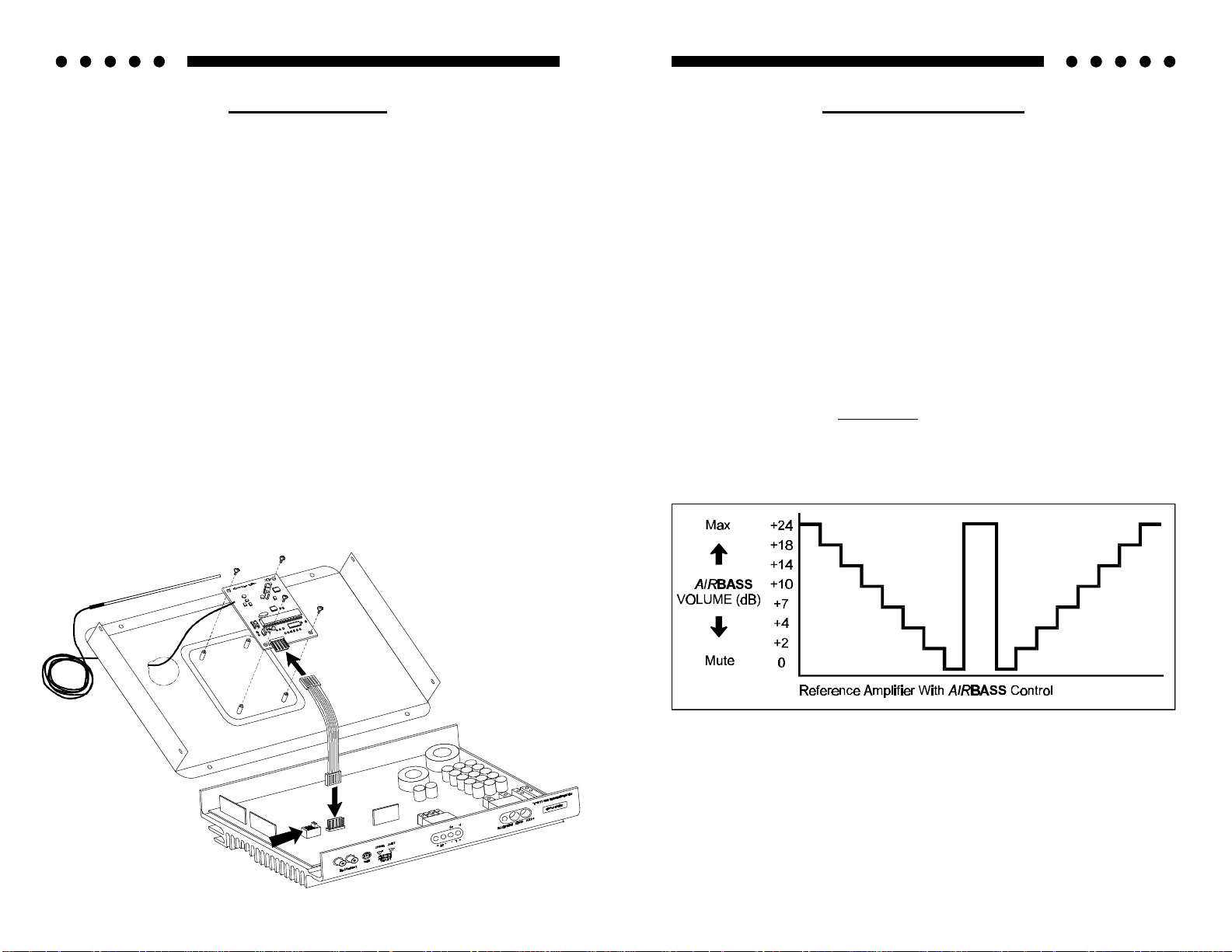

24 dB of range with 8 steps
5 to 30 feet with proper antenna location
Two 3 Volt Lithium (not covered by Warranty)

Receiver Board Dimensions: 2.75" L x 2.0" W x 0.5" H

11
