Soundstream TARANTULA RS.3 User's Operation Manual
FCC ID NOTICE
This device complies with Part 15 of the FCC rules. Operation is s
ubject to the following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including inte
rference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance void the user’s authority to operate
www.security.soundstream.com
this device.

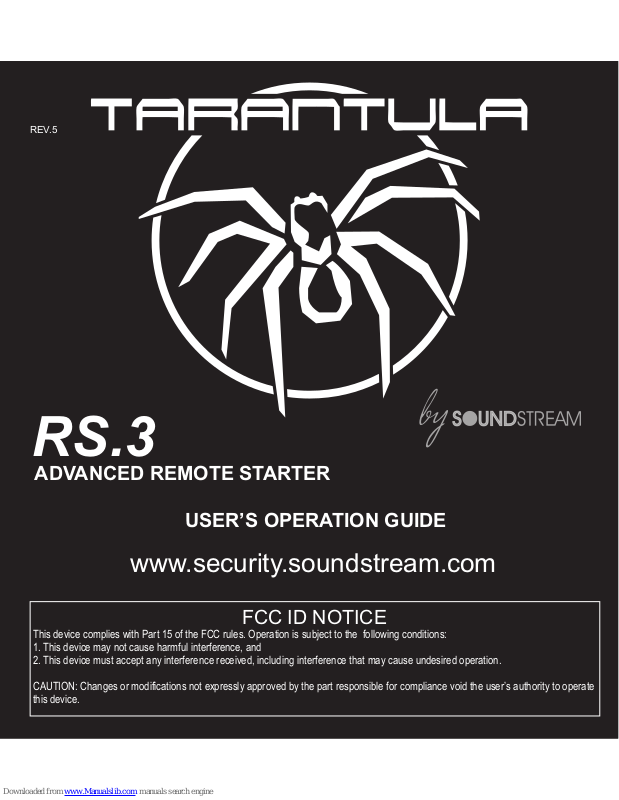

RS.3
ADVANCED REMOTE STARTER
USER’S OPERATION GUIDE
REV.5
PAGE 2
RS.3
OWNER'S MANUAL
TABLE OF CONTENTS
Important Notes.......................................................................Page 3
Quick View Operations...........................................................Pages 4-5
Remote Start Operations........................................................Pages 6-7
Remote Start Key Takeover
Remote Shutdown Idle Mode
Extended Runtime Turbo Timer Mode
Remote Start Optional Operations.........................................Pages 8-10
Lock Door’s Unlock Door’s
Trunk Release Auxiliary Output’s
Panic Mode Silent Lock/Unlock
Car Finder Mode
Service Mode............................................................................Page 11
Activate Service Mode
Deactivate Service Mode
Timer Mode/ Cold Start...........................................................Page 12
Enter and Select Start Interval
Exit Timer Mode
User Notes................................................................................Page 13
Diagnostics..............................................................................Page 14
Diagnostic Chart
Warranty...................................................................................Page 15
Contact.....................................................................................Page 16
PAGE 3
RS.3
OWNER'S MANUAL
IMPORTANT NOTES
ATTENTION
Please take a moment to review the safety precautions before
operating your system.
1) For safety reasons, the owner/user of this system MUST INSTALL
a CARBON MONOXIDE DETECTOR in the living area near to where
the vehicle is being stored or parked.
2) It is the sole responsibility of the owner/user to keep the remote
transmitters away from the reach of children and handle with care
so that the system does not unintentionally start.
3) When the vehicle is parked in an enclosed/partially enclosed area
(ex: garage, car port...), being serviced (ex: oil change) or the
vehicle is loaned to an operator not familiar with a remote starter,
the system MUST BE placed Service Mode.
NEVER REMOTE START THE SYSTEM IN AN ENCLOSED/
PARTIALLY ENCLOSED AREA!
4) MANUAL TRANSMISSION STARTERS Never install a automatic
remote start module into a manual transmission vehicle. Doing so
could result in EXTENSIVE DAMAGE TO YOUR VEHICLE,
PROPERTY DAMAGE AND POSSIBLY CAUSE SERIOUS INJURIES
OR EVEN DEATH. IF THIS SYSTEM WAS INSTALLED IN A MANUAL
TRANSMISSION VEHICLE, RETURN TO YOUR DEALER AND HAVE
IT DISABLED UNTIL THE CORRECT MODEL CAN BE INSTALLED.
5)
PAGE 4
OWNER'S MANUAL
QUICK VIEW CHART
RS.3
1 SECOND 1 LOCK DOOR’S
3 SECONDS 1 ACTIVATE PANIC MODE
PRESS THEN
RELEASE THEN
PRESS & HOLD
1
ACTIVATE CONSTANT LOCK
OUTPUT **
LOCK
BUTTON PRESS
CHIRP /
FLASH
SYSTEM FUNCTION
BUTTON
1 SECOND
2
UNLOCK DOOR’S
1 SECOND - 1 SECOND 3
DRIVER’S DOOR PRIORITY
(OPTIONAL / PROGRAMMABLE)
UNLOCK
HOLD FOR 3 SECONDS 2 DEACTIVATE REMOTE STARTER
PRESS AND HOLD
FOR 3 SECONDS
2-1 ACTIVATES TRUNK RELEASE
PRESS TOGETHER
THEN RELEASE
PRESS TOGETHER
THEN RELEASE
1
2
ACTIVATES SILENT LOCK
ACTIVATES SILENT UNLOCK
+
NO HORN HONKS - ACTS AS A TOGGLE - IF LOCK WILL UNLOCK, IF UNLOCK WILL LOCK.
HOLD FOR 3 SECONDS 1 ACTIVATES CAR FINDER MODE
+
1 SECOND 1 ACTIVATES REMOTE STARTER
START
TRUNK
PAGE 5
OWNER'S MANUAL
QUICK VIEW CHART
RS.3
HOLD FOR 1 SECOND 1 LOCK DOOR’S
HOLD FOR 3 SECONDS 1 ACTIVATE PANIC MODE
BUTTON PRESS
CHIRP /
FLASH
SYSTEM FUNCTION
BUTTON
HOLD FOR 1 SECOND
2
UNLOCK DOOR’S
HOLD FOR 1 SECOND 2
DRIVER’S DOOR PRIORITY
(OPTIONAL / PROGRAMMABLE)
HOLD FOR 1 SECOND
1 ACTIVATES REMOTE START
SECOND CAR OPERATION ALLOWS YOU TO CONTROL 2 VEHICLES WITH ONE REMOTE
TRANSMITTER. THIS WILL
(CONTACT YOUR DEALER FOR MORE INFORMATION)
PADLOC- THIS FEATURE REQUIRES THAT YOU PRESS 2 BUTTONS AT THE SAME TIME
FOR EACH COMMAND TO YOUR VEHICLE. THIS FEATURE HELPS PREVENT ACCIDENTAL
REMOTE ACTIVATION. (SOME COMMANDS ARE NOT AVAILABLE WITH PADLOC)
SEE TRANSMITTER PROGRAMMING FOR MORE INFORMATION.
REQUIRE THAT YOU PRESS 2 BUTTONS AT THE SAME FOR
THE SECOND VEHICLE CONTROL.
HOLD FOR 3 SECONDS
2 DEACTIVATES REMOTE START
2ND CAR OPERATION AND PADLOCK
+
+
+
