Soundstream Tarantula RS.2 Installation Manual
FCC ID NOTICE
This device complies with Part 15 of the FCC rules. Operation is s
ubject to the following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including inte
rference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance void the user’s authority to operate
www.security.soundstream.com
this device.
RS.2
REMOTE VEHICLE STARTER
INSTALLATION GUIDE
REV.5
SYSTEM PROGRAMMING - Menu 1
PAGE 2
INSTALL MANUAL
TABLE OF CONTENTS
WIRING DIAGRAM.......................................................................Page 3-4
Connector Pin Configuration
Antenna Connection
Door Lock Connector
Bypass Connector
Data Port Connector
Tach Learning..................................................................................Page 5
Auto Tach/ Tachless Learning
Hybrid Mode
Low Idle Learn
Wire Description.............................................................................Page 6-7
6-Pin Ignition Connector
2-Pin Park Light & Ground Connector
3-Pin Lock & Unlock Connector
3-Pin Bypass Module Connector
9-Pin Connector
Transmitter Programming..............................................................Page 8
Programming Remote Transmitters
Program Mode.................................................................................Page 9
Enter Program Mode
Selecting Program Menu
Selecting The Programmable Setting
Changing The Programmable Setting
System Reset
Program Menus.........................................................................Page 10-11
Programming Menus 1-4
Diagnostics....................................................................................Page 12
I2 Button Remote Notes................................................................Page 13
****How to use the 2 button remote for programming and other functions.
Door Lock Diagrams................................................................Page 14-15
Contact Info...................................................................................Page 16
RS.2
SYSTEM PROGRAMMING - Menu 1
PAGE 3
RS.2
INSTALL MANUAL
WIRE DIAGRAM
(+/-) GLOW PLUG/ WAIT TO START TIMER/ TRIGGER TO START
1
5
3
2
4
6
1
2
3
4
5
6
7
8
9
1
2
SYSTEM GROUND INPUT/ CHASSIS GROUND
SELECTABLE PARK LIGHT OUTPUT (DEFAULT POSITIVE)
STATUS LED
PROGRAM / VALET BUTTON
BLACK
WHITE
OUTPUT TO ACTIVATE IGNITION CIRCUITTHE PRIMARY
PINK
SELECTABLE OUTPUT* (DEFAULT 2ND IGNITION)
PINK/WHITE
12VOLT/ 30 AMP MAIN POWER INPUT RED
OUTPUT TO ACTIVATE THE STARTER CIRCUIT
PURPLE
12VOLT/ 30 AMP MAIN POWER INPUT RED
OUTPUT TO ACTIVATE ACCESSORY CIRCUITTHE
ORANGE
(-) AUX 1 OUTPUT - (HOLD UNLOCK & TRUNK)
ORANGE/BLACK
(-) TRUNK RELEASE OUTPUT
RED/WHITE
(-) REARM OUTPUT - (PULSE WITH LOCK AND AFTER START)
GREEN/WHITE
(-) DISARM OUTPUT (PULSE WITH UNLOCK & BEFORE START)
GREEN/BLACK
(AC) TACH DETECTION INPUT (CONNECT TO COIL, INJECTOR...)
PURPLE/WHITE
(-) HOOD PIN SWITCH INPUT (GROUND WHEN HOOD IS OPENED)
GRAY
(+) BRAKE SWITCH INPUT (12VOLT WHEN BRAKE IS PRESSED)
BROWN
GRAY/BLACK
(-) HORN OUTPUT - PROGRAMMABLE
BROWN/WHITE
DO NOT INSTALL THIS SYSTEM INTO A MANUAL TRANSMISSION VEHICLE!!
SYSTEM PROGRAMMING - Menu 1
PAGE 4
INSTALL MANUAL
WIRE DIAGRAM
1
2
3
1
2
3
1
2
3
4
Position 1 or Position 2
GREEN
BLUE
N/A*
N/A
BLACK
ORANGE
SELECTABLE PARK LIGHT OUTPUT
OUTPUT TO ACTIVATE DOOR LOCK CIRCUIT (-)
OUTPUT TO ACTIVATE DOOR UNLOCK CIRCUIT (-)
OUTPUT FOR VOLTAGE INVERTER*
N/A
GROUND FOR BYPASS MODULE
GROUND WHEN RUNNING (BYPASS TURN ON)
* THE CENTER PIN OF THE KEYLESS CONNECTOR IS LOW CURRENT AND
IS DESIGNED TO SUPPLY POWER TO DOOR LOCK MODULES (DO NOT
CONNECT TO RELAYS) OVERLOADING THIS OUTPUT WILL DAMAGE THE
MODULE!
** FOR USE WITH COMPATIBLE BYPASS MODULES ONLY.
BY DEFAULT THE SYSTEM COMES WITH THE PARK
LIGHT JUMPER SET FOR POSITIVE PARK LIGHT
OUTPUT. TO CHANGE THE SYSTEM TO A NEGATIVE
PARK LIGHT OUTPUT, PLACE THE JUMPER IN THE
NEGATIVE PARK LIGHT POSITION SHOWN IN THE
DIAGRAM. (Position 2)
*THE PARK LIGHT RELAY WILL NOT “CLICK” WHEN
SET FOR NEGATIVE PARK LIGHTS.
POSITIVE
PARK LIGHT
NEGATIVE
PARK LIGHT
RS.2
BYPASS MODULE DATA COMMUNICATION PORT
The default setting is set for FORTIN™ Bypass Modules.

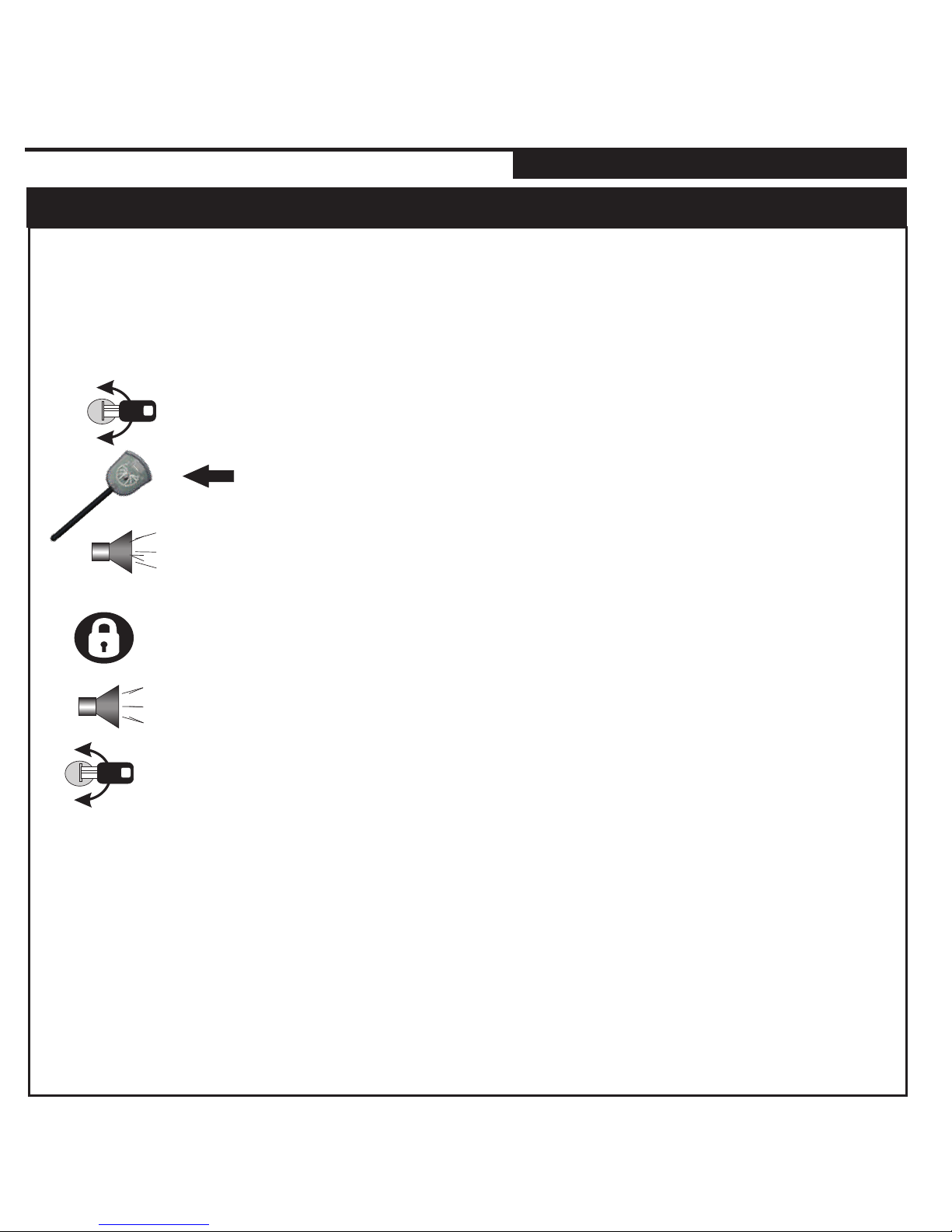

AUTO TACH/ TACHLESS LEARNING
HYBRID MODE‘S
Start the vehicle with
the ignition key.
2 CHIRPS/ 2 FLASHES = TACH MODE
NOTES:
When tach learning the system first sends out a request for tach from the data port. If it gets a
valid rpm response over 750 rpm then it goes into data tach mode (3 flashes). If there is no
response, the unit will look for the tach/tachless.
Once the starter goes on then off, the unit will learn tach, if there is no tach detected within a few
seconds after starting, the system will learn in Tachless mode after 20 seconds.
If there is no starter detected, the system learns tach after 30 seconds. If no tach is detected the
system will learn tachless after an additional 10 seconds.
Hybrid mode 1 - This option requires a tach connection. Once the vehicle starts the system will not monitor
the tach input and stay running for 15 minutes.
Hybrid Mode 2- (No Tach wire connection)This setting will power up the ignition wires, pulse the start output
for 2 seconds then stay on/ run for 15 minutes. See Program Menu 4, Hybrid Mode 1& 2. Hybrid mode 2 was
designed for hybrid vehicles that may not actually start until the battery voltage
drops.
**Hybrid Mode 2 is also ideal for vehicles with no starter wire or “Automatic Starting”. This is when the
vehicle’s starter motor will continue to crank and start the vehicle even if the key is only turned to the start
position momentarily.
“Push to Start” systems and
Hold the brake then start the vehicle with the key. Place the transmission into reverse to lower the
RPM. Press and release the button on the antenna twice. The system will chirp the Horn and
flash the park lights two times to confirm Tach Mode or chirp 4 times/ 4 flashes to indicate
Tachless Mode re-learn.
LOW IDLE LEARNING
4 CHIRPS/ 4 FLASHES = TACHLESS MODE
3 CHIRPS/ 3 FLASHES = DATA TACH MODE
