Car Audio companies come and go. Few have survived over a quarter of
a century! Most companies are downsizing and offering fewer products
each year. Soundstream continues to grow with the addition of 4 new se­ries of subwoofers, 5 new series of amplifiers, and much more, including
over 60 new products for 2009! Each series is different, not just a bunch
of the same stuff in a different outfit. Staying away from the OEM products
that many companies buy, and engineering all products from the ground
up is what sets Soundstream apart for the “competition”. Whether you’re
an audiophile, a SPL competition fanatic, or just a hardcore street banger,
Soundstream has the largest variety of truly engineered, quality products
available for any budget, period!
Listen & Feel…

AMP
WOOFER

AMPLIFIERS

HUMAN REIGN UNLEASHED 4-5
XXX WOOFERS & AMPS 6-7
REFERENCE 8-9
D-TOWER 10-11
STEALTH 12-13
TARANTULA 14-15
RUBICON 16-17
PICASSO 18-19

WOOFERS

R-1 REFERENCE 20
STEALTH - 13 21
TARANTULA SQUARE 22
SPLX 23
T5 TARANTULA 24
REFERENCE 25
RUBICON 26
PICASSO 27
WOOFER GRILLS 28

TWEETERS 28

SPEAKERS

PRO 29

COMPONENT SYSTEMS

REFERENCE 30
TARANTULA 30
PICASSO 31
RUBICON 31

FULL RANGE SPEAKERS

TARANTULA 32
RUBICON 33
PICASSO 34

MARINE SPEAKER/WOOFER 35

SIGNAL PROCESSORS 36-38

CAPCELL 39

CAPACITORS 40

VIDEO

OTHER

SOURCE UNITS

DVD PLAYER 46

PORTABLE NAVIGATION 47

CI MONITORS 47

CEILING MONITOR
DVD COMBO 48-49

CEILING MONITORS 50

PRE-INSTALLED HEADREST
W/ DVD PLAYER PACKAGE 51

WEARABLES P.O.P. 55

41-45

HEADREST/SUNVISOR
MONITOR 52

VIDEO ACCESSORIES 53

HEADPHONES 54

contents

(

HUMAN REIGN

UNLEASHED

AMPLIFIERS

You say you want one of the highest regarded ampliers ever made? You say you don’t want to spend a
bazillion dollars? You spoke and we listened. Human Reign ampliers are back! The original were very pricey
due to the extraordinary heatsink. The guts are the same, high end parts you loved in the original , but now,
at about half the price!

blt

bALANCED LINE TRANSMITTER

Human Reign ampliers accept low level and balanced line inputs via our BLT Balanced Line Transmitters and
the long-biased transistor period yield unparalleled sound quality. With a pre-amp section that is unrivaled by
any other brand, the Human Reign ampliers are the ultimate audiophile products for the ultimate audiophile

system…

COMMON FEAtURES

• Regulated MOSFET Power Supply

• RUBI (Rapid-Use Branched Impulse) Proprietary Power Supply Topology

• STACT (Stabilized Apex Current Topology) Reduces Power Supply Stress by 50%

• Auto High-Current, Regulates Power Supply for Load Application

• Chassis-Sink Technology Transistor Placement for Optimum Thermal Transfer

• Triple Darlington Output Circuitry

• Hawkins Bass Control Proprietary Bass Equalization

• Harmonic Bass Alignment Tighter and Accurate Bass Reproduction

• IDI (Inteligent Distress Indicator) Visual Indication of Protection Status

• Drive Dealy II Eliminates Turn-On & Turn-Off Pops

• Ultra-Low ESR Capacitors for Rapid Power Delivery & Dynamic Transient Peaks

• Built-in Bi-Linear Crossovers Including Pre-Amp Outputs

• 4-Way Protection Topology (Thermal, DC Offset, Direct Short & Impedance)

• Iindividually Selectable Balanced Inputs for Highest Level of Noise Reduction

• 6dB Rear Channel De-Emphasis @ 7KHz

• 0-9dB 50-70Hz Bass Boost

• 12dB 13-30Hz Subsonic Filter

• Input Selection

• Pre-Amp Output

4

• 180o Phase Control

TM

TM

TM

TM

TM

TM

Magazine Review

Auto hi, Germany’s premier autosound magazine had this to say about the Human Reign ampliers…
“ The American amplier blacksmiths, Soundstream, have created a monster to stir up the world with their 2
channel amplier. The Americans have a top-of-the-line amplier that has gone into the class of excellence.
They let William Boddy hand design the heatsink – a solid chunk of aluminum with a bronzed nish. All the
engineering efforts showed well in the laboratory. A signal-to-noise ration of 99dB and a damping factor of
1800 in the bass region are two of the amplier’s best features. A distortion factor of 0.005% takes second
place to nobody.
According to the laboratory results, impressing in every aspect, we congratulate the amplier on being in
the Reference Class!”

Measurement results:

Output Power (13.8V @ 1% THD)
2x501 Wrms @ 4-Ohms (109 Amps current draw)
2x894 Wrms @ 2-Ohms (232 Amps current draw)
1x1788 Wrms @ 4-Ohms Bridged(232 Amps current draw)
Distortion Factor (1/2 power @ 4-Ohms) 0.005%
Distortion Factor (5 WRMS @ 4-Ohms) 0.005%
Signal-To-Noise Ratio 99dB
Damping Factor
100Hz / 10kHz 1800 / 963

50Hz / 30Hz 1801 / 1805

Efciency 53.4%

Assessment translated:

Sound – 27 out of 30
Performance – 25 out of 30
Processing Quality – 18 out of 20
Aesthetics – 11 out of 20

HUMAN REIGN AMP

Overall Results:

Reference Class – 81 points (highest score of all top
rated ampliers)

Price/Performance – 6 Stars (perfect score)

HRU.2 HRU.4
Channels 2 4

RMS @ 4Ω 500x2 140x4

RMS @ 2Ω 900x2 240x4

Bridged @ 4Ω 1800x1 480x2

THD (%) 0.005% 0.005%

Freq. Response (Hz) 10-40KHz 10-40KHz

S/N Ratio (dB) 105 105

Damping Factor 1800 1800

Input Sensitivity (V) 300mV-5V 300mV-5V

Current Draw 200 140

Dimensions: (in)

(2.75"hx11.125"w) 22.125" 22.125"

Channels 1&2 12dB 50-500Hz, 12dB 50-500Hz,

Variable High Pass or 500-5KHz or 500-5KHz

Channels 1&2 24dB 40-160Hz -

Variable Low Pass

Channels 3&4 - 12dB 50-500Hz,

Variable High Pass

Channels 3&4 - 24dB 40-160Hz

Variable Low Pass

5

XXX

(

AMPLIFIERS / WOOFERS

To beat the competition in SPL, you have to think smarter , buy smarter

and build smarter. The success of the XXX-6500D is almost overwhelm-

ing. 6500 watts of hardcore competition power, or 13,000 watts if you
strap 2 together to a 2 Ohm load! For the more modest systems, we
added the XXX-4000D. And nally, for you psychotic bassheads out
there, the insane XXX-15000D has your name on it. Regardless of

which Class D beast you decide to use, you’ll be amongst the tough-

est Soundstream SPL competitors in the world collecting trophies and
destroying the competition…

COMMON FEAtURES

• Gunmetal nish w/ brushed accents

• Non-regulated mosfet pwm power supply

• Three-way protection circuitry (thermal, short,
impedance)

• Twin stack technology TM(strap amps together
for double power)

• Delayed on/off circuit

• Variable low pass crossovers

• Variable bass boost

• Variable subsonic lter

• 180 O phase control

• Pre-amp outputs

• Dash mount remote gain control

• Direct wire 0 ga. Power, 4 ga. Speaker terminals

6

XXX-4000D XXX-6500D XXX-15000D

Channels 1 ch. Class D 1 ch. Class D 1 ch. Class D

RMS @ 2Ω, 14.4V 2,200 3,300 9,300

RMS @ 1Ω, 14.4V 3,300 5,300 14,800

RMS @ 1Ω, 16V 4,000 6,500 16,800

Harmonic Distortion 5.00% 5.00% 10.00%

Frequency Response 15-150 15-150 15-275

Signal-to-Noise Ratio 80 80 87

Damping Factor 350 350 1000

Signal Voltage 500mV-10V 500mV-10V 200mV-7V

Potential Current Draw 280A 460A 1400A

Dimensions: 2.625”h x 11.375”w 2.625”h x 11.375”w 2.75”h x 12.625”w

(2.625”hx11.375”w) x 22.125”L x 25.75”L x 32.75”L

Low Pass Filter 18dB 50-150Hz 18dB 50-150Hz 24dB 40-275

Remote Gain Control Y Y Y

Bass Boost 0-18dB 45Hz 0-18dB 45Hz 0-18dB 40-120Hz

Subsonic Filter 18dB 15-40Hz 18dB 15-40Hz 24dB 15-50Hz

Phase Control 180o 0-180o -

When it comes to high power subwoofers, there’s “good”, “great”, and then “simply badass!” The XXX subs are
obviously in the latter category! The 15” is alone no more with the release of the XXX-18 earlier this year. With
quad-1.2 Ohm voice coils, the applications are endless and appropriate.

The 120 pound wooden shipping crate is a nightmare to move, but when you and a friend heave out the 91

pound beast, nirvana will overwhelm you…

Now, for a word from our attorneys: “Insane amounts of SPL are

healthy! However, if you shred your esh, crush your skull, launch

your eyeballs or pulverize your brain, SOUNDSTREAM IS NOT LI-

ABLE, PERIOD!!!” Be safe - use with caution…

XXX AMP & SUB

XXX-15 Woofer Features

• Nickel Plated 8 ga. Compression Wire Terminal

• Non-Pressed UV Coated Paper

• Flared Machined Pole Piece

• Chrome Top & Bottom Plates

• Die-Cast Aluminum Basket

• Aluminum Voice Coil Former

• Copper Clad Aluminum Voice Coil

• UV Coated Foam Surround

• Dual NOMEX Spiders

• Suspension Integrated Tinsel Leads

XXX-18 Woofer Features

• Hardwired OFC 10ga. Copper Wire Leads

• Non-Pressed UV Coated Paper

• Flared Machined Pole Piece

• Chrome Top & Bottom Plates

• Die-Cast Aluminum Basket

• Aluminum Voice Coil Former

• Copper Clad Aluminum Voice Coil

• UV Coated Foam Surround

• Dual NOMEX Spiders

• Suspension Integrated Tinsel Leads

Model XXX-15 XXX-18

RMS Power (watts) 8,500 10,000

Voice Coil Conguration 4” QVC 1Ω 4” QVC 1Ω

Efciency (1w/1m) 90.8dB 91.4dB

Enclosure (sealed/vented) V V

Mounting Depth 9.75” 11”

Cutout Diameter 14” 16.75”

Overall Weight 89lbs. 91lbs.

7

REFERENCE

(

It has been over a decade since the Reference ampliers graced the car industry. Car audio veterans loved
them. New-schoolers have dreamed about them. Only the privileged have heard them!

Improving on the best of anything requires new technologies and new applications. We are immensely proud to
re-introduce you to the new Reference ampliers. Not “dream” ampliers that will never be seen, but a full line
of the nest ampliers that will be available in early 2009!

Reference ampliers boast damping factors over 1000 and up to 3000+. That is up to, or more than 10 times,
that of normal ampliers! There has been a theory for many years that says that the human ear cannot hear the
difference between ampliers. Anybody who believes this obviously hasn’t auditioned the long awaited return
of the Reference ampliers!

Sometimes the best things are worth waiting for…

AMPLIFIERS

blt

bALANCED LINE TRANSMITTER

8

COMMON FEAtURES

• RUBI TM (Rapid-Use Branched Impulse) Proprietary Power Supply Topology

• STACT TM (Stabllized Apex Current Topology) Reduces Power Supply Stress b y 50%

• Trident TMAmplier Protection Topology

• Ultra Low ESR Capacitance Bank Ensures Rapid Power Delivery for Dynamic Peaks

• Hawkins Bass Control TM Proprietary Bass Equalization

• Regulated MOSFET Power Suuply

• Triple Darlington Output Circuitry

• BIP TM Bias Input Protection

• Rail Stabilization Protection Circuitry

• Bi-Linear Variable High, Low, & Band Pass Crossovers

• Balanced Line Inputs for Highest Noise Rejection (requires BLT)

REFERENCE AMP

• Tri-Mode Operation

• Multi-Channel Input Selection (4 & 5 ch. models)

• 4ga. Power & 8ga Direct Wire Terminals

• ≤ 0.02%Total Harmonic Distortion

• >110dB Signal-to-Noise Ratio

• >1000 Damping Factor

• 200mV-9V Input Voltage

• 30-80Hz Hawkins Bass Boost

• 180 o Phase Control

REF2.370 REF2.640 REF4.760 REF4.920 REF5.900 REF1.500 REF1.1000

Channels 2 2 4 4 5 1 1

RMS @ 4Ω 2 x 110 2 x 190 4 x 125 4 x 160 4 x 85 & 1 x 200 - -

RMS @ 2Ω 2 x 185 2 x 320 4 x 190 4 x 230 4 x 130 & 1 x 380 500 1000

Bridged @ 4Ω 1 x 370 1 x 640 2 x 380 2 x 460 2 x 260 - -

RMS @ 1Ω - - - - - 500 1000

Freq. Response (Hz) 10-50kHz 10-50kHz 10-50kHz 10-50kHz 10-50kHz 50-200Hz 50-200Hz

Dimensions: (in)

(2.25"h x 9.875"w) 14.5" 14.875" 21.25" 23.75" 23.75" 15" 19.125"

Ch. 1&2 High Pass 15-270Hz, or 15-270Hz, or 15-4kHz 15-270Hz, or 15-4kHz - -

(12dB/octave) 225-4kHz 225-4kHz 225-4kHz

Ch. 1&2 Low Pass 50-500Hz, or 50-500Hz, or - - 50-4kHz 50-200Hz 50-200Hz

(12dB/octave) 250-4Khz 250-4Khz

Ch. 3&4 High Pass - - 15-4kHz 15-2570Hz, or 15-4kHz - -

(12dB/octave) 225-4kHz

Ch. 3&4 Low Pass - - 50-4kHz 50-800Hz, or 50-4kHz - -

(12dB/octave) 250-4kHz 50-200Hz (ch.5)

Remote Gain Control - - - - Included Included Included

9

D-TOWER

(

AMPLIFIERS

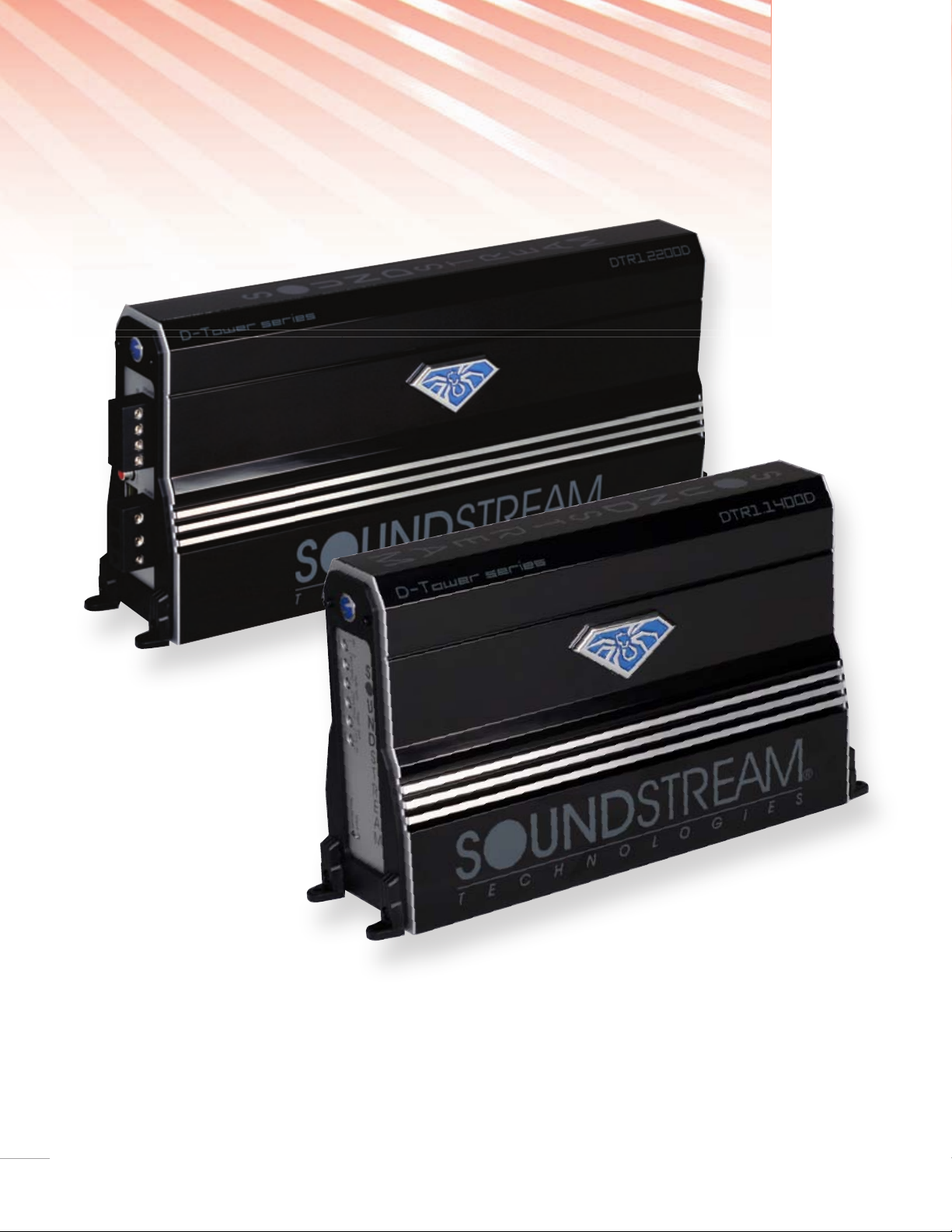

Tired of the same ol’ thing? Like to be different? So do we! Check out the D-Tower ampliers for something
truly revolutionary. When you don’t have a lot of oor space to give up, go vertical! The DTR1.2200D yields over
2000 watts of power in only 52 square inches. By comparison, our Tarantula TRX2000D takes up 250.8 square
inches. You can t almost FIVE DTR1.2200D ampliers in the same area. Available in models from 900 to 3400
watts, the Class Ds can be complimented with the DTR4.500 full range 4-channel amplier. All ampliers have all
of the controls facing rearwards and all of the wiring facing backwards, making installation easy and clean. For
those of you who change your mind a lot, the ampliers come with an extra set of feet to mount the ampliers

horizontally as well…

10

COMMON FEAtURES

• The worlds rst vertical automotive stereo amplier

• Gloss black nish w/ brushed accents

• Double sided pcb w/ smd components

• Aluminum alloy heat-sink

• Regulated mosfet pwm power supply

• Three-way protection circuitry (thermal, short, impedance)

• Delayed on/off circuit

• Variable crossovers (hpf/full/lpf)

• Variable bass boost

• Variable subsonic lter

• Variable phase control

• High level input

• Dash mounted remote gain control

• Direct wire 4 ga. Power, 8 ga. Speaker terminals

• Horiziontal mounting feet included

D-TOWER AMP

DTR1.900D DTR1.1400D DTR1.1700D DTR1.2200D DTR1.3400D DTR4.500

Channels 1 ch. Class D 1 ch. Class D 1 ch. Class D 1 ch. Class D 1 ch. Class D 4 ch. Class A/B

RMS @ 4Ω - - - - - 80 x 4

RMS @ 2Ω 600 900 1,100 1,400 - 125 x 4

RMS @ 1Ω 900 1,400 1,700 2,200 2,200 250 x 2 Bridged @ 4Ω

RMS @ .5Ω - - - - 3,400 -

Harmonic Distortion 0.50% 0.50% 0.50% 0.50% 0.50% 0.05%

Frequency Response 10-220Hz 10-220Hz 10-220Hz 10-220Hz 10-220Hz 15-25kHz

Signal-to-Noise Ratio 92dB 89dB 91dB 82dB 85dB 100dB

Damping Factor >200 >200 >200 >200 >200 >200

Signal Voltage 200mV-5V 200mV-5V 200mV-5V 200mV-5V 200mV-5V 200mV-5V

Dimensions:

(7.5"h x 3.375"w) 11.5" 11.625" 14.625" 15.875" 17.75" 11.5"

Channels 1&2 HPF - - - - - 50-4KHz

(12dB/octave)

Channels 1&2 LPF 40-220Hz 40-220Hz 40-220Hz 40-220Hz 40-220Hz 50-4Khz

(18dB/octave)

Channels 3&4 APF - - - - - 15-500Hz

(12dB/octave)

Channels 3&4 LPF - - - - - 50-800Hz,

(18dB/octave) or 250-4KHz

Remote Gain Control Included Included Included Included Included -

Bass Boost 0-12dB 30-90Hz 0-12dB 30-90Hz 0-12dB 30-90Hz 0-12dB 30-90Hz 0-12dB 30-90Hz 6/12dB @ 50Hz

Subsonic Filter 12dB 10-50Hz 12dB 10-50Hz 12dB 10-50Hz 12dB 10-50Hz 12dB 10-50Hz -

Phase Control 0-180o 0-180o 0-180o 0-180o 0-180o -

11

(

STEALTH

AMPLIFIERS

Not everybody wants an amplier that they can surf on. People need space, have kids and lease cars. The new

Stealth of ampliers not only have the smallest footprint for big power, they are also stackable. Having 5 chan-

nels of amplication with over 1000 watts can be the size of an average shoebox! There are 2 sizes with 3 models
each to t every application. While most small amps these days are Class D, the Stealth ampliers are all Class
A/B for the purest, uncolored sound reproduction. Diamond quality sound and dynamite power prove that some
of the best things come in small packages!

COMMON FEAtURES

• Stackable Chassis for Multiple Amplier Applications

• Black Anodized Finish w/ Chrome Accents

• Double Sided PCB w/ SMD Components

• Aluminum Alloy Heat-sink

• MOSFET Pulse Width Modulated Power Supply

• Three-Way Protection Circuitry (thermal, short, impedance)

12

• Delayed On/Off Circuit

• Tri-Mode Operation

• Variable Crossovers (HPF/Full/LPF/Band)

• Variable Bass Boost

• Variable Subsonic Filter

• High Level Input

• Direct Wire 4 ga. Power, 8 ga. Speaker Terminals

STL2.350 STL2.560 STL4.320 STL4.500 STL1.600D STL1.1200D

Channels 2 ch. Class A/B 2 ch. Class A/B 4 ch. Class A/B 4 ch. Class A/B 1 ch. Class A/B 1 ch. Class A/B

RMS @ 4Ω 100 x 2 150 x 2 50 x 4 80 x 4 400 -

RMS @ 2Ω 175 x 2 280 x 2 80 x 4 125 x 4 600 700

Bridged @ 4Ω 350 x 1 560 x 1 160 x 2 250 x 2 - -

RMS @ 1Ω - - - - - 1,200

Harmonic Distortion 0.03% 0.03% 0.03% 0.03% 0.30% 0.30%

Frequency Response 15-25kHz 15-25kHz 15-25kHz 15-25kHz 10Hz-220Hz 10Hz - 220Hz

Signal-to-Noise Ratio 91dB 100dB 96dB 100dB 87dB 69dB

Damping Factor >200 >200 >200 >200 >200 >200

Signal Voltage 200mV-5V 200mV-5V 200mV-5V 200mV-5V 200mV-5V 200mV-5V

Dimensions: Size A Size B Size A Size B Size A Size B

(2.125"h x 6.5"w) 9.625" 11.25" 9.625" 11.25" 9.625" 11.25"

Channels 1&2 15-200Hz 15-200Hz 50-4KHz 50-4KHz - -

(12dB/octave)

Channels 1&2 50-200Hz 50-200Hz 50-4KHz 50-4KHz 40-220Hz 40-220Hz

(12dB/octave)

Channels 3&4 - - 15-500Hz 15-500Hz - -

(12dB/octave)

Channels 3&4 - - 50-800Hz, 50-800Hz, - -

(12dB/octave) or 250-4KHz or 250-4KHz

Remote Gain Control - - - - Included Included

Bass Boost 0-12dB 30-90Hz 0-12dB 30-90Hz 6/12dB @ 50Hz 6/12dB @ 50Hz 0-12dB 30-90Hz 0-12dB 30-90Hz

Subsonic Filter 12dB 15-200 12dB 15-200 - - 12dB 10-50Hz 12dB 10-50Hz

Phase Control - - - - 0-180

0

0-180

0

STEALTH AMP

STL6.900

Channels 6 ch. Class A/B

RMS @ 4Ω 70 x 4 & 130 x 2

RMS @ 2Ω 115 x 4 & 220 x 2

Bridged @ 4Ω 230 x 2 & 440 x1

Harmonic Distortion 0.30%

Frequency Response 10-25KHz

Signal-to-Noise Ratio 75

Damping Factor >200

Signal Voltage 200mV-5V

Dimensions: (in) 4.25"h x 6.5"w x 11.25"L (Size B)

Ch. 1&2 High Pass 20-500Hz or 200-5KHz

Ch. 3&4 High Pass 20-500Hz

Ch. 3&4 Low Pass 200-5KHZ

Channel 5 (in 5.1 mode) HPF 20-500Hz

Channel 6 (in 5.1 mode) HPF 0-200Hz LPF 50-500Hz

Channel 5&6 (in 6 ch. Mode) HPF 0-200Hz, LPF 50-500Hz

Subsonic Filter Ch. 6 (in 5.1 mode) & Ch. 5 & 6 (in 6 ch. mode)

Re-Positional logo for any installiation application

13

TARANTULA

AMPLIFIERS

(

The new Tarantula ampliers… Redesigned from the ground up, these phenomenal new ampliers pack
everything you need into one chassis. The naked eye can see the piano black nish with concealing end caps.
What you can’t see is the guts that make the new Tarantula amps more powerful with a 3:1 power supply and
cleaner than ever before! Whether you’re building a competition Sound Quality vehicle, or just want to get

brain damage cruising down the boulevard, Tarantula ampliers have you covered…

Class D Common Features:

• Gloss Black Finish w/ Silver End Caps

• Regulated MOSFET PWM Power Supply

• Three-Way Protection Circuitry (thermal, short, impedance)

• Twin Stack Technology TM (strap amps together for double power)

• Delayed On/Off Circuit

• Variable Low Pass Crossovers

TRX700D TRX1000D TRX1500D TRX2000D

Channels 1 ch. Class D 1 ch. Class D 1 ch. Class D 1 ch. Class D
RMS @ 4Ω 350 500 800 1,100
RMS @ 2Ω 520 800 1,100 1,500
RMS @ 1Ω 700 1,000 1,500 2,000
Harmonic Distortion 0.50% 0.50% 0.50% 0.50%
Frequency Response 15Hz - 250Hz 15Hz - 250Hz 15Hz - 250Hz 15Hz - 250Hz
Signal-to-Noise Ratio 85dB 85dB 85dB 85dB
Damping Factor >200 >200 >200 >200
Signal Voltage 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V
Dimensions:
(2.5"h x 10.625"w) 15.875" 17.5" 19.875" 22.625"
12dB Low Pass Filter 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Remote Gain Control Included Included Included Included
Bass Boost 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz
Subsonic Filter 15Hz - 40Hz 15Hz - 40Hz 15Hz - 40Hz 15Hz - 40Hz
Phase Control 1800 1800 1800 1800

14

Remote Gain Control

• Variable Bass Boost

• Variable Subsonic Filter

• 180 o Phase Control

• Pre-Amp Outputs

• Direct 4 ga. Power & 8 ga. Speaker Terminals

• Dash Mount Remote Gain Control

Class A/b Common Features:

• Gloss Black Finish w/ Silver End Caps

• MOSFET Pulse Width Modulated Power Supply

• Three-Way Protection Circuitry (thermal, short, impedance)

• Delayed On/Off Circuit

• Tri-Mode Capable

• Variable Crossovers (HPF/Full/LPF)

TRX2.210 TRX2.320 TRX2.440 TRX2.550 TRX2.640 TRX2.820

Channels 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B
RMS @ 4Ω 70 x 2 100 x 2 130 x 2 175 x 2 210 x 2 250 x 2
RMS @ 2Ω 105 x 2 160 x 2 220 x 2 275 x 2 320 x 2 410 x 2
Bridged @ 4Ω 210 x 1 320 x 1 440 x 1 550 x 1 650 x 1 820 x 1
Harmonic Distortion 0.05% 0.05% 0.05% 0.05% 0.05% 0.05%
Frequency Response 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz
Signal-to-Noise Ratio 105dB 105dB 105dB 105dB 105dB 105dB
Damping Factor >300 >300 >300 >300 >300 >300
Signal Voltage 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V
Dimensions:
(2.5"h x 10.625"w) 12.75" 14.75" 16.625" 18.625" 22.625" 24.625"
Channels 1&2 12dB HPF 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz
Channels 1&2 12dB LPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Remote Gain Control - - Included Included Included Included
Bass Boost 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz

Phase Control 0-180

0

0-1800 0-1800 0-1800 0-1800 0-180

• Variable Phase Control

• Variable Bass Boost

• Pre-Amp Outputs

• Dash Mount Remote Gain Control (larger 2 ch. models)

• Direct 4 ga. Power & 8 ga. Speaker Terminals

0

TARANTULA AMP

TRX4.300 TRX4.420 TRX4.640 TRX4.880

Channels 4 ch. Class A/B 4 ch. Class A/B 4 ch. Class A/B 4 ch. Class A/B
RMS @ 4Ω 50 x 4 70 x 4 100 x 4 130 x 4
RMS @ 2Ω 75 x 4 105 x 4 160 x 4 220 x 4
Bridged @ 4Ω 150 x 2 210 x 2 320 x 2 440 x 2
Harmonic Distortion 0.05% 0.05% 0.05% 0.05%
Frequency Response 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz
Signal-to-Noise Ratio 105dB 105dB 105dB 105dB
Damping Factor >300 >300 >300 >300
Signal Voltage 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V
Dimensions:
(2.5"h x 10.625"w) 16" 17.5" 19.875" 22.625"
Channels 1&2 12dB HPF 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz
Channels 1&2 12dB LPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Channels 3&4 12dB HPF 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz 50Hz - 500Hz
Channels 3&4 12dB LPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Bass Boost 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz 0-18dB 60 Hz

Phase Control 0-180

0

0-1800 0-1800 0-180

0

15

RUBICON

AMPLIFIERS

(

Sometimes when history repeats itself, it’s a wonderful thing! The Rubies are back! Boasting a gorgeous, yet aggressive
blue hairline nish, there’s no mistaking the fact that the new Rubicon ampliers stand for what Soundstream
intended many years ago… Strong quality and strong identity – only these bad boys are at the top of their game
with the most modern technology available! With a more modest footprint, the ampliers do not sacrice anything
except for gobs of gaudy chrome and worthless do-dads. Rubicon brings the famous Soundstream quality into a

no-nonsense, yet fully loaded, timeless ampliers.

16

ClASS A/b MUlti-ChANNEl COMMON FEAtURES

• Tri-Mode Capable

• Variable Crossovers (HPF/Full/LPF/Band)

• Midnight Blue Finish w/ Brushed Accents

• MOSFET Pulse Width Modulated Power Supply

• Three-Way Protection Circuitry (thermal, short, impedance)

• Variable Bass Boost

• High Level Input

• Direct Wire 4 ga. Power, 8 ga. Speaker Terminals

• Delayed On/Off Circuit

RUB2.250 RUB2.450 RUB2.600 RUB4.500 RUB4.600 RUB5.800

Channels 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B 4 ch. Class A/B 4 ch. Class A/B 5 ch. Class A/B
RMS @ 4Ω 75 x 2 130 x 2 180 x 2 75 x 4 100 x 4 70 x 4 & 200 x 1
RMS @ 2Ω 125 x 2 225 x 2 300 x 2 124 x 4 150 x 4 115 x 4 & 340 x 1
Bridged @ 4Ω 250 x 1 450 x 1 600 x 1 250 x 2 300 x 2 230 x 2
Harmonic Distortion 0.02% 0.02% 0.02% 0.02% 0.02% 0.02%
Frequency Response 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz 10Hz - 35kHz
Signal-to-Noise Ratio 105dB 105dB 105dB 105dB 105dB 105dB
Damping Factor >250 >250 >250 >250 >250 >250
Signal Voltage 200mV - 6V 200mV - 6V 200mV - 6V 200mV - 6V 200mV - 6V 200mV - 6V
Dimensions:
(2."h x 8"w) 9.875" 17.75" 19.75" 13.875" 15.5" 19.75"
Ch. 1&2 High Pass 15-225Hz 15-225Hz 15-225Hz 50-4KHz 50-4KHz 50-800Hz
(12dB/octave) or 255-3.8KHz or 255-3.8KHz or 255-3.8KHz
Ch. 1&2 Low Pass 50-800Hz 50-800Hz 50-800Hz 50-4KHz 50-4KHz -
(12dB/octave) or 250-4KHz or 250-4KHz or 250-4KHz
Ch. 3&4 High Pass - - - 15-50Hz 15-50Hz 15-500Hz
(12dB/octave)
Ch. 3&4 Low Pass - - - 50-800Hz 50-800 Hz 50-800Hz or 250-4KHz,
(12dB/octave) or 250-4KHz or 250-4KHz Ch. 5 45-450Hz
Remote Gain Control - Included Included - - -

Bass Boost 0, 6, 12dB @ 50Hz 0, 6, 12dB @ 50Hz 0, 6, 12dB @ 50Hz 0, 6, 12dB @ 50Hz 0, 6, 12dB @ 50Hz 0, 6, 12dB @ 50Hz

RUBICON AMP

MONO-blOCk COMMON FEAtURES

• Midnight Blue Finish w/ Brushed Accents

• Regulated MOSFET Pulse Width Modulated Power Supply

• Three-Way Protection Circuitry (thermal, short, impedance)

• Twin Stack Technology TM (strap amps together for double power)

• Delayed On/Off Circuit

• Variable Bass Boost

• Variable Subsonic Filter

• 180 o Phase Control

• Pre-Amp Output

• Dash Mounted Remote Gain Control

• Direct Wire 4 ga. Power, 8 ga. Speaker Terminals

• Direct Wire 0 ga. Power, 4 ga. Speaker Terminals (2500D)

• Variable Low Pass Crossover

RUB1.400 RUB1.700 RUB1.1000D RUB1.1600D RUB1.2500D

Channels 1 ch. Class A/B 1 ch. Class A/B 1 ch. Class D 1 ch. Class D 1 ch. Class D
RMS @ 4Ω 250 x 1 400 x 1 - - ­RMS @ 2Ω 400 x 1 700 x 1 800 x 1 1,100 x 1 1,700 x 1
RMS @ 1Ω - - 1,000 x 1 1,600 x 1 2,500 x 1
Harmonic Distortion 0.02% 0.02% 0.50% 0.50% 0.50%
Frequency Response 10Hz - 35kHz 10Hz - 35kHz 15Hz-150Hz 15Hz-150Hz 15Hz-150Hz
Signal-to-Noise Ratio 105dB 105dB 95dB 95dB 95dB
Damping Factor >250 >250 >300 >300 >300
Signal Voltage 200mV - 6V 200mV - 6V 100mV-2V or 2V-8V 100mV-2V or 2V-8V 100mV-2V or 2V-8V
Dimensions:
(2.”h x 8”w) 13.875” 19.75” 20.875” 15.75” 13.375”
12db Low Pass Filter 45-450Hz 45-450Hz 50-150Hz 50-150Hz 50-150Hz
Remote Gain Control Included Included Included Included Included
Bass Boost 0, 6, 12dB @ 50Hz 0, 6, 12dB @ 50Hz 0-18dB @ 45Hz 0-18dB @ 45Hz 0-18dB @ 45Hz
Subsonic Filter 12dB @ 35Hz 12dB @ 35Hz 12dB 10-40Hz 12dB 10-40Hz 12dB 10-40Hz
Phase Control 180

0

1800 1800 1800 180

0

17

PICASSO

AMPLIFIERS

(

Picasso ampliers are 100% new, inside and out! The new heatsink and end cap design is aggressive
looking and durable. If you need to get the most bang for your buck, don’t resort to cheap ea market
brands - Picasso ampliers pack a massive amount of power with a 2.5:1 power supply and the circuitry to

keep it all clean.

Remote Gain Control

18

Class A/b Common Features

• Fully Regulated PWM Mosfet Power Supply

• Tri-Guard Amplier Protection

• Bi-Linear Selectable, Innitely Variable Crossovers for Inputs and

Outputs (HP/Full/LP)

• Platinum RCA and Power Inputs

• Tri-Mode Capable

• Shinny Black Hairline Anodized Heatsink

• End Caps for Professional Installation

• Variable Bass Boost

PCX2.180 PCX2.270 PCX2.350 PCX2.440 PCX2.540 PCX2.700

Channels 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B 2 ch. Class A/B
RMS @ 4Ω 60 x 2 80 x 2 110 x 2 150 x 2 180 x 2 220 x 2
RMS @ 2Ω 90 x 2 135 x 2 175 x 2 220 x 2 270 x 2 350 x 2
Bridged @ 4Ω 180 x 1 270 x 1 350 x 1 440 x 1 540 x 1 700 x 1
Harmonic Distortion 0.10% 0.10% 0.10% 0.10% 0.10% 0.10%
Frequency Response 10Hz - 3.5kHz 10Hz - 3.5kHz 10Hz - 3.5kHz 10Hz - 3.5kHz 10Hz - 3.5kHz 10Hz - 3.5kHz
Signal-to-Noise Ratio 95dB 95dB 95dB 95dB 95dB 95dB
Damping Factor >200 >200 >200 >200 >200 >200
Signal Voltage 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V
Dimensions:
(2.5"h x 9.875"w) 12.125" 14.125" 16" 18" 22" 24"
Channels 1&2 12dB HPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Channels 1&2 12dB LPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Remote Gain Control - - Included Included Included Included
Bass Boost 0-18dB 60Hz 0-18dB 60Hz 0-18dB 60Hz 0-18dB 60Hz 0-18dB 60Hz 0-18dB 60Hz
Phase Control 0-180

0

0-180

0

0-180

0

0-180

0

0-180

0

0-180

PCX4.240 PCX4.360 PCX4.540

Channels 4 ch. Class A/B 4 ch. Class A/B 4 ch. Class A/B
RMS @ 4Ω 40 x 4 60 x 4 80 x 4
RMS @ 2Ω 60 x 4 90 x 4 135 x 4
Bridged @ 4Ω 120 x 2 180 x 2 270 x 2
Harmonic Distortion 0.10% 0.10% 0.10%
Frequency Response 10Hz - 3.5kHz 10Hz - 3.5kHz 10Hz - 3.5kHz
Signal-to-Noise Ratio 95dB 95dB 95dB
Damping Factor >200 >200 >200
Signal Voltage 200mV - 8V 200mV - 8V 200mV - 8V
Dimensions:
(2.5"h x 9.875"w) 12.25" 16.875" 19.25"
Channels 1&2 12dB HPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Channels 1&2 12dB LPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Channels 3&4 12dB HPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Channels 3&4 12dB LPF 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Bass Boost 0-18dB 60Hz 0-18dB 60Hz 0-18dB 60Hz
Phase Control 0-180

0

0-1800 0-180

0

PICASSO AMP

0

Class D Common Features

• TSTTM (Twin Stack Technology) Allows 2 ampliers to power single load

• FR4 Circuit Board

• Mono-block Mosfet Class D Circuitry

• Continuously Variable Low-Pass Crossover

• Continuously Variable Subsonic Filter

• Variable 18dB Bass Boost

PCX700D PCX1000D PCX1500D PCX2000D

Channels 1 ch. Class D 1 ch. Class D 1 ch. Class D 1 ch. Class D
RMS @ 4Ω 650 500 800 1,100
RMS @ 2Ω 520 800 1,100 1,500
RMS @ 1Ω 700 1,000 1,500 2,000
Harmonic Distortion 0.50% 0.50% 0.50% 0.50%
Frequency Response 15Hz - 250Hz 15Hz - 250Hz 15Hz - 250Hz 15Hz - 250Hz
Signal-to-Noise Ratio 85dB 85dB 85dB 85dB
Damping Factor >200 >200 >200 >200
Signal Voltage 200mV - 8V 200mV - 8V 200mV - 8V 200mV - 8V
Dimensions:
(2.5"h x 9.875"w) 15.25" 16.875" 19.25" 22"
12dB Low Pass Filter 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz 50Hz - 150Hz
Remote Gain Control Included Included Included Included
Bass Boost 0-18dB 60Hz 0-18dB 60Hz 0-18dB 60Hz 0-18dB 60Hz
Subsonic Filter 12dB 15Hz - 40Hz 12dB 15Hz - 40Hz 12dB 15Hz - 40Hz 12dB 15Hz - 40Hz
Phase Control 180

0

1800 1800 180

• Platinum RCA and Power Inputs

• 1 Ohm Stability

• Accepts up to 16V DC Power Input

• Glossy Black Hairline Anodized Heatsink

• End Caps for Professional Installation

.260 PCA2.360

0

19

(

REFERENCE R1

WOOFERS

COMMON FEAtURES

•

Dual 3” Flat Wire Wound Voice Coil

•

Copper Clad Aluminum Voice Coil Wire

•

Dual Layer Aluminum Voice Coil Former for Extreme Strength

•

All-in-One Discrete Mount Terminals

•

Tall Motor Gap for Extended XMax

•

Dual Large High Temp Ferrite Magnets

•

Integrated Aluminum Motor Heat Sink

•

Aluminum Cone & Dust Cap for Added Heat Dissipation and Strength

•

High-Roll Surround for Added Cone Surface Area & Xmax

•

Dual Mirror Stacked Spiders w/ Integrated Tinsel Leads

•

Secondary Stamped Steel Basket for Easy Re-coning (not included)

Soundstream’s agship sound quality subwoofer, the “R1” is probably the most revolutionary woofer you will ever
see. These very unique subwoofers encompass technologies that no other American car audio companies are
using. With features only found in high-end European subs and components, the R1s are extremely advanced.

Getting away from the traditional overhung motor, our underhung motor yields much less distortion and quality

sound… The heatsink-cooled Dual Flux Plates create a very tall magnetic gap and is complimented by a sec-

ondary magnet on top of the structure which acts as a “bucking” magnet and strengthens the gap. While this
driver is the ultimate Sound Quality subwoofer, it can still generate massive amounts of bass due to the 46.8mm
of peak-to-peak mechanical excursion!

Model R1-12 R1-15

RMS Power (watts) 800 900

Voice Coil Conguration 3” Dual 4Ω 3” Dual 4Ω

Efciency (1w/1m) 84.2dB 86.4dB

Enclosure (sealed/vented) S/V S/V

Mounting Depth 7.375” 8.625”

Cutout Diameter 11” 14”

Whether you chill to smooth Jazz, bang your head to Hard Core, or split your ears with pounding Rap music, the
R1 subwoofers will blow away even the most critical listener…

20

STEALTH-13

WOOFER

(

Acoustic engineers want 3 things out of a woofer: high SPL, low frequency response, and small air requirements.
No woofer can be optimized for all 3, so some sacrices always have to be be made if a woofer has a very
specic design goal…

Many vehicles do not have tons of airspace available for a big, bulky enclosure. Some vehicles, like some crew­cab trucks have no space for a subwoofer. Until now… The STEALTH-13 is now the shallowest woofer on the
market! Coming in at a mere 2” of depth, they will behind rear crew-cab truck seats, under many front seats,
or even in a friggin’ door with some custom fabrication! While other “shallow mount” subwoofers are available,
they typically require traditional airspace. The STEALTH-13 is 13.25” in diameter and boasts a huge 5” coil with
reversed motor. Not only does it play well in ½ cubic foot (typical for most 8”-10” woofers), but it reproduces
more lower frequency response than most 12” woofers in much larger enclosures.

Our engineers were willing to sacrice a couple of dB of volume to bring you a truly phenomenal, application
specic subwoofer. No more whining about not having a subwoofer available that will t in virtually every
vehicle! STEALTH-13 has you covered…

STEALTH-13 & R1 WOOFERS

FEAtURES

•

Proprietary Cast Aluminum Basket

•

Inverted Motor Assembly

•

Solid Aluminum Cone

•

2” Mounting Depth

•

5” Voice Coil

•

12 ga. Direct Wire Terminal

•

Aluminum Voice Coil Former

•

Semi-Circular Basket Venting

MoDEL STEALTH-13

RMS Power (watts) 200

Voice Coil Conguration 5" Single 4Ω

Efciency (1w/1m) 80.8dB

Enclosure (sealed/vented) S

Mounting Depth 2"

Cutout Diameter 11.375"

Semi-Circular Basket Venting

21

TARANTULA

(

Several shapes of subwoofers have been created in
the last several years. Fact is that a square woofer

makes the most sense. It maximizes cone area for high-

er output on the same size bafe as a round subwoofer.
The TSQ subs are not just another square subwoofer, but
rather a well engineered product capable of wearing
the Soundstream logo…

SQUARE WOOFERS

COMMON FEAtURES:

• 28% More Cone Area Than Round Woofer

• Stamped Steel Basket w/ Rolled Edges

• Aluminum Voice Coil Former

• Direct Wire Terminal Design

• Injection Molded Polypropylene Dust Cap

• Clear TPX Honeycomb Cone

• Multi-Roll NBR Rubber Surround

• Vented Back Plate

• Suspension Integrated Tinsel Leads

22

Model TSQ-102 TSQ-104 TSQ-122 TSQ-124

RMS Power (watts) 500 500 600 600

Voice Coil Conguration 2” Dual 2Ω 2” Dual 4Ω 2” Dual 2Ω 2” Dual 4Ω

Efciency (1w/1m) 84.2dB 84.1dB 87.2dB 86.9dB

Enclosure (sealed/vented) S/V S/V S/V S/V

Mounting Depth 7.125” 7.125” 7.375” 7.375”

Cutout Diameter 9.25” 9.25” 11.125” 11.125”

SPLX

(

WOOFERS

The new and radically improved SPLX-HX subs are welcomed by SPL competitors

worldwide. While the changes may only appear to be cosmetic, the cool stuff is on the inside. The new coil

costs nearly 8 times as much as the original coil, but the results are unfathomable. Gaining a tenth of a dB
sometimes can cost a fortune, but it may be what is needed to win a competition. Gaining several dB is like
hitting the lottery! For the competitor or everyday basshead that does not have unlimited funds, this monster
is for you!

SPLX HX & TSQ WOOFERS

COMMON FEAtURES

• Aluminum Voice Coil Former

• Pressed Paper Cone

• UV Coated Foam Surround

• Dual NOMEX Spiders

• ABS Injection Dust Cap

• Suspension Integrated Tinsel Leads

• Cast Aluminum Basket

• Copper Clad Aluminum Voice Coil

• 8 ga. Compression Wire Terminal

• 94 oz. Strontium Ferrite Magnet

• Embossed back plate

SPLX-122HX SPLX-152HX

RMS Power (watts) 1,000 1,250

Voice Coil Conguration 3” Dual 2Ω 3” Dual 2Ω

Efciency (1w/1m) 86.2dB 89.5dB

Enclosure (sealed/vented) V V

Mounting Depth 7” 8.375”

Cutout Diameter 11” 14.125”

23

TARANTULA T5

(

The T5 woofers are in a constant state of evolution. Materials change,

WOOFERS

technology changes and so must the T5s. We stiffened up the spider by

30% allowing higher power handling and longer life before the suspension

fatigues. The rest of the driver remains unchanged. How much different

does it sound and perform? Nearly identical, you won’t notice the

difference, but they’ll take a harder beating…

COMMON FEAtURES

• Cast Aluminum Basket

• Aluminum Voice Coil Former

• Hand Laid Paper Pulp Cone

• High Roll Rubber Surround

• Polypropylene Injection Dust Cap

• Vented Back Plate

• Suspension Integrated Tinsel Leads

• Nickel Plated 8 ga. Compression Wire Terminal

24

Model T5-10 T5-12 T5-15

RMS Power (watts) 800 900 1,000

Voice Coil Conguration 3” Dual 2Ω 3” Dual 2Ω 3” Dual 2Ω

Efciency (1w/1m) 84.5dB 85dB 87.3dB

Enclosure (sealed/vented) S/V S/V S/V

Mounting Depth 6.375” 7.125” 9.125”

Cutout Diameter 9.375” 11” 14.125”

REFERENCE

(

WOOFERS

T5 & RW WOOFERS

Reference woofers… Designed with the audiophile

in mind. Perfected to a high tolerance of t and nish, these woofers are

engineered to produce accurate, uncolored bass. Dual 2.5” 4 Ohm

voice coils wound on aluminum formers keep the moving assembly

cool while taking the power you throw at ‘em. The 1-piece

rubber gasket/surround and the Nomex spider keep everything

aligned and straight to make sure you only hear what you’re

supposed to. Treat yourself to an audition of the Reference

subwoofers today…

COMMON FEAtURES

• Cast Aluminum Basket

• Aluminum Voice Coil Former

• Hand Laid Paper Pulp Cone

• High Roll Rubber Surround

• Polypropylene Injection Dust Cap

• Vented Back Plate

• Suspension Integrated Tinsel Leads

• Nickel Plated 8 ga. Compression Wire Terminal

Model RW-10 RW-12

RMS Power (watts) 500 600

Voice Coil Conguration 2.5" Dual 4Ω 2.5" Dual 4Ω

Efciency (1w/1m) 82.1dB 84.2dB

Enclosure (sealed/vented) S/V S/V

Mounting Depth 6" 6.5"

Cutout Diameter 9.25" 11"

25

(

RUBICON

WOOFERS

Back for 2009 is the rejuvenated of Rubicon subwoofers!
Modernized with today’s technologies, the Rubies
awesome cosmetics are only a cool shell for the good
stuff inside. Molded polypropylene/mica cones yield

the structural integrity required for woofers of this caliber.

Convoluted NBR rubber surrounds yield superior strength

and reliability. The dual voice coils are wound around

Kapton formers for strength and sufcient cooling.

I you loved the old-school Rubicon woofers, the new Rubies

will blow you away with their vast improvements…

COMMON FEAtURES

• Dual 4 Ohm KEISV Kapton Voice Coils

• Polypropylene Injection Molded Cone

• NBR-Rubber Surround

• Nickel Plated 8 ga. Compression Wire Terminal

• Conex/Cotton Composite Spider

• Texture Coat Finish on Stamped Steel Basket

• Suspension Integrated Tinsel Leads

• Vented Back Plate

26

Model RBW-10 RBW-12 RBW-15

RMS Power (watts) 450 600 800

Voice Coil Conguration 2” Dual 4Ω 2.5” Dual 4Ω 2.5” Dual 4Ω

Efciency (1w/1m) 84.8dB 84.6dB 86.8dB

Enclosure (sealed/vented) S/V S/V S/V

Mounting Depth 5.75” 6.5” 8.125”

Cutout Diameter 9.25” 11.125” 14”

PICASSO

WOOFERS

(

Continuing into 2009 are the Picasso Subwoofers. These
aggressive new subs are engineered from the ground up. The
new motors yield more power handling than the previous drivers
and are specic per size. Past experience proves that one-size-ts­all motors for 10”-15” subs does not yield top performance. The drivers
feature polypropylene cones and NBR rubber surrounds for durability.
The PXW subwoofers are available in dual 4-ohm coils or dual 2-ohm coils
for versatility.

RBW & PXW WOOFERS

COMMON FEAtURES

• Dual 2 or Dual 4 Ohm KSV Kapton Voice Coils

• Polypropylene Injection Molded Cone

• NBR-Rubber Surround

• Nickel Plated 8 ga. Compression Wire Terminal

• Conex/Cotton Composite Spider

• Texture Coat Finish on Stamped Steel Basket

• Suspension Integrated Tinsel Leads

• Vented Back Plate

Model PXW-10 PXW-10/2 PXW-12 PXW-12/2 PXW-15 PXW-15/2

RMS Power (watts) 350 350 400 400 500 500

Voice Coil Conguration 2" Dual 4Ω 2" Dual 2Ω 2" Dual 4Ω 2" Dual 2Ω 2.5" Dual 4Ω 2.5" Dual 2Ω

Efciency (1w/1m) 83.6dB 83.3dB 85.3dB 83.8dB 88.4dB 87dB

Enclosure (sealed/vented) S/V S/V S/V S/V S/V S/V

Mounting Depth 5.75" 5.75" 6.5" 6.5" 8.125" 8.125"

Cutout Diameter 9.25" 9.25" 11.125" 11.125" 14" 14"

27

(

GRill-10X GRill-12X GRill-15X

WOOFER GRILLS

TWEETERS

tWt.2

1” Horn Loaded Titanium Dome Tweeter

• Flush mount aluminum housing

• Ferro uid cooled

• Neodymium magnet

• 12dB/Octave passive crossover included

• Rated Input Power: 120W

• Impedance: 4 ohm

• Freq. Resp. 3KHz - 22KHz

• SPL 94dB

tWS.3

1” PEI dome tweeter

• Tri-Mounting - ush, surface or angle

• Adjustable eyeball design

• 12 dB In-Line Crossover Network

• Rated Input Power: 110W

• Impedance: 4 ohm

• Freq. Resp. 2KHZ-21KHZ

• SPL 94dB

tWS.1

1” Soft Dome Tweeter

• Ferrouid cooled

• Neodymium magnet

• Tri-Mounting - ush, surface or angle

• 12dB/Octave passive crossover included

• Rated Input Power: 110W

• Impedance: 4ohm

• Freq. Resp. 3KHz - 20KHz

• SPL 93dB

tWS.4

1” Tantalum Dome tweeter

• Polished aluminum housing

• Dual-Mounting – surface or angle

• 12 dB In-Line Crossover Network

• Rated Input Power: 110W

• Impedance: 4 ohm

• Freq. Resp. 5KHZ-25KHZ

• SPL 95dB

28

300 watts

PRO

SERIES FULL RANGE SPEAKERS

®

50oz

PRO AUDIO

PRO & TWEETER

29

REFERENCE

TARANTULA

COMPONENTS

(

6.5” Mid-Woofer

Cast Aluminum Basket•
Treated and Pressed Paper Cone•
Butyl Rubber Surround•
Large Diameter Poly/Cotton Spider•
Chrome Motor Cover•
3” Voice Coil•
Aluminum Voice Coil Former•
Nickle Plated Push Terminals•
4 Ohm System Impedance•

tweeter

25mm Silk Dome•
Neodymium Magnet•
Ferrouid Cooled•

Crossover

2 Way Passive Network•
18dB per Octave Tweeter Output•
12dB Low-Pass for Midbass•
4 Different Attenuation Points for Tweeter•
Selectable 2.5 khz or 2.8 khz crossover for woofer•

COMPONENTS

6.5” Mid-Woofer

Die Cast Aluminum Basket•
High Grade 12oz Ferrite Magnet w/ Rubber Trim•
Direct Wire 12ga. Terminal •
Woven Fiber/Paper Composite Cone•
Butyl Rubber Surround •
Progressive CONEX Spider •
1” CCA Coil On Aluminum Former •

tweeter

Flush, Surface, & Angle Mounting•
Vented Motor Structure•
Neodymium Magnet •
1” Silk Dome Tweeter•
1” CCA Coil On Aluminum Former•

Crossover

2-way Passive Networking•
12dB 2kHz Low-Pass •
12dB 2kHz High Pass •
Overload Bulb & Poly Switch Tweeter Protection•
3dB +/- Tweeter Attention •

SPECIFICATIONS RF-60C

MAX POWER (Watts) : 180
MAGNET WEIGHT (Oz.) : 20

CROSSOVER FREQUENCIES: High-Pass (Hz) 3.5k

LOW PASS (Hz) 2.5 or 2.8 khz

CROSSOVER SLOPE: 12/18dB

SENSITIVITY (dB) : 90

FREQUENCY RESPONSE (Hz) : 50 - 20k

VOICE COIL SIZE (INCHES) : 3
WOOFER MOUNTING DEPTH (INCHES) : 2.625

30

SPECIFICATIONS TRC.60C

MAX POWER (Watts) : 200
MAGNET WEIGHT (Oz.) : 15

CROSSOVER FREQUENCIES: High-Pass (Hz) 3.8k

LOW PASS (Hz) 2.5 or 2.8 khz

CROSSOVER SLOPE: 12dB

SENSITIVITY (dB) : 91

FREQUENCY RESPONSE (Hz) : 40 - 20k

VOICE COIL SIZE (INCHES) : 1.25
WOOFER MOUNTING DEPTH (INCHES) : 2.6

PICASSO

COMPONENTS

RUBICON

COMPONENTS

COMPONENTS

COMMON FEAtURES

Brushed Stainless Steel Finish Stamped Steel Baskets

•

Woven Glass Fiber/Spruce Pulp Laminate Cones

•

Inverted Polypropylene Dust Caps

•

NBR Rubber Surrounds

•

Black Progressive Conex Spiders

•

1” Copper Voice Coil on Aluminum Former with Reinforced Neck Joint

•

Nickel Plated Binding Posts

•

Rubber Motor Cover with Logos

•

Vented Pole Pieces

•

4 Ohm Impedance

•

1” Teon/Silk Dome with Resin Coating Tweeters

•

Neodymium Tweeters Magnets

•

Ferrouid Cooling

•

Multi-Function Mounting Set

•

Passive Crossover with 12dB Low-Pass and Presence Switch for Midbass,

•

18dB High-Pass with 3-Way Sensitivity Switch for Tweeter, Tweeter Protection
Circuit
Grills and Mounting Hardware Included

•

SPECIFICATIONS PCC.6 N (6.5”)

RMS POWER (WATTS) 125
MAGNET WEIGHT (Oz.) 13
CROSSOVER FREQUENCIES

High-Pass (Hz) 3.3K

Low-Pass (Hz) 3K
CROSSOVER SLOPE 18dB
SENSITIVITY 91dB
FREQUENCY RESPONSE (Hz) 50 - 20K
VOICE COIL SIZE (INCHES) 1
WOOFER MOUNTING DEPTH (INCHES) 2.6

COMMON FEAtURES

Die-Cast Baskets With Diamond Cut

•

Cast Aluminum Basket

•

Polypropylene Cone

•

Butyl Rubber Surround

•

1.25” 4 Ohm Voice Coil

•

1” Silk Dome Tweeter

•

Neodymium Magnet

•

Swivel, Flush, or Surface Mounting

•

Passive 12dB Crossover w/ Tweeter Protection

•

-3, -6dB Tweeter Attenuation

•

Ferro Fluid Tweeter Cooling

•

Vented Voice Coil Former

•

Neodymium Tweeter Magnet

•

SPECIFICATIONS RBC.6 (6.5”)

Power Handling (watts) 150

Magnet Weight 13oz

Frequency Response 65-20kHz

Crossover 3kHz

Efciency 90dB

Top Mount Depth 2.375” w / 1” t

Bottom Mount Depth 2.5”

Cutout Diameter 6.625” w / 2” t

Overall Diameter 6.5” w / 2.25” t

Grill Diameter 7.125”

31

TARANTULA

(

FULL RANGE SPEAKERS

Black Zirconium coated cones, Ferrouid cooling, 1-inch silk dome
tweeters and progressively slanted surrounds all combine to make
the Tarantula line of coaxial mounted component speakers the

best bet for those who want to use no more room than a standard

coaxial, but insist on the sound quality of a component system. The
Tarantula coaxials have separate connectors for the woofer and
tweeter, and include a pair of tweeter 12dB per octave passive

crossover for precise frequency splitting.

SSt6.9

(6x9" 2-Way)

SSt5.7

(5x7" 2-Way)

SSt6.5

COMMON FEAtURES

• Bi-Ampable Operation

• 1" Kapton Coil Former

• Zolon Coated Stamped Steel Basket

• Black Zirconium Cone

• 1" Swivel Silk Dome Tweeter

• Butyl Rubber Surround

• 3 ohm impedance

• Passive Crossovers Included

• CONEX Spider

(6.5" 2-Way)

2-Way Crossovers Included in all models

SST6.9 SST6.5 SST5.7 SST5.2 SST4.6 SST4.0

Size & Type 6"x9" 2-way 6.5" 2-way 5"x7" 2-way 5.25" 2-way 4"x6" 2-way 4" 2-way

Power Handling (watts) 150 120 130 100 100 85

Magnet Weight 22oz. 12oz. 12oz. 10oz. 10oz. 8oz.

Frequency Response 45-22kHz 68-22kHz 60-22kHz 72-22kHz 70-22kHz 88-22kHz

Efciency 90dB 90dB 90dB 89dB 89dB 88dB

Top Mount Depth 3.375" 2.75" 2.5" 2.375" 2.125" 2"

Bottom Mount Depth 3.75" 3" 3.125" 2.75" 2.5" 2.25"

Cutout Dimension 6" x 8.375" 5.5" 4.875" x 7.125" 4.75" 3.5" x 5.5" 3.75"

Overall Dimension 6.75" x 9.5" 6.5" 5.5" x 8.625" 5.125" 3.75" x 6" 4"

Grill Dimension 7" x 10.25" 6.75" 6.25" x 9.125" 6.5" 4.875" x 7.25" 5.375"

32

SSt5.2

(5.25" 2-Way)

SSt4.6

(4x6" 2-Way)

SSt4.0

(4" 2-Way)

RUBICON

FULL RANGE SPEAKERS

SST & RBT SPEAKERS

Rbt.693

Rbt.462

6"x9" 3-way

4"x6" 2-way

Rbt.653

6.5" 3-way

Rbt.573

Rbt.402

5"x7" 3-way

Rbt.502

4"x6" 2-way

5.25" 2-way

COMMON FEAtURES

•

•

•

Size & Type 6"x9" 3-way 6.5" 3-way 5"x7" 3-way 5.25" 2-way 4"x6" 2-way 4" 2-way

Power Handling (watts) 140 100 120 85 85 70

Magnet Weight 25oz. 15oz. 15oz. 12oz. 10oz. 10oz.

Frequency Response 50-20kHz 70-20kHz 65-20kHz 75-20kHz 75-20kHz 90-20kHz

Efciency 93dB 92dB 92dB 92dB 91dB 91dB

Top Mount Depth 3.375" 2.5" 2.375" 2.125" 2" 1.875"

Bottom Mount Depth 3.75" 2.75" 2.75" 2.375" 2.25" 2.125"

Cutout Dimension 5.875" x 8.625" 5.5" 4.875" x 7.125" 4.625" 3.5" x 5.625" 3.625"

Overall Dimension 6.5" x 9.25" 6.5" 5.5" x 7.625" 5.125" 3.75" x 6" 4"

Grill Dimension 7.25" x 10.375" 7" 6.25" x 9" 6.25" 4.625" x 7.25" 5.375"

1" KAPTON COIL FORMER

STAMPED STEEL BASKET

CARBON INJECTION CONE

RBT.693 RBT.653 RBT.573 RBT.502 RBT.462 RBT.402

•

•

•

•

•

POLYMIDE MIDRANGE AND TWEETER

TPU SURROUND

3 OHM IMPEDANCE

2" POLYMIDE MIDRANGE (693, 653, & 573)

1" POLYMIDE TWEETER

33

(

PICASSO

FULL RANGE SPEAKERS

PCt.693

PCt.462

6"x9" 3-way

4"x6" 2-way

PCt.653

6.5" 3-way

PCt.502

PCt.402

PCt.573

4"x6" 2-way

5"x7" 3-way

5.25" 2-way

COMMON FEAtURES

•

•

•

•

34

1” ALUMINUM COIL FORMER

STAMPED STEEL BASKET

CARBON INJECTION CONE

MYLAR MIDRANGE AND TWEETER

PCT.693 PCT.653 PCT.573 PCT.502 PCT.462 PCT.402

Size & Type 6"x9" 3-way 6.5" 3-way 5"x7" 3-way 5.25" 2-way 4"x6" 2-way 4" 2-way

Power Handling (watts) 130 90 110 80 75 65

Magnet Weight 30oz. 15oz. 15oz. 10oz. 10oz. 10oz.

Frequency Response 50-20kHz 70-20kHz 65-20kHz 75-20kHz 80-20kHz 90-20kHz

Efciency 92dB 90dB 90dB 90dB 89dB 89dB

Voice Coil Diameter 1" 1" 1" 1" 1" 1"

Top Mount Depth 3.25" 2.25" 2" 1.875" 1.75" 1.625"

Bottom Mount Depth 3.75" 2.375" 2.625" 2.125" 2.125" 2"

Cutout Dimension 6.625" x 8.375" 5.625" 4.875" x 7.125" 4.5" 3.5" x 5.625" 3.625"

Overall Dimension 6.5"x 9.25" 6.5" 5.5" x 7.625" 5.125" 3.875" x 6" 4"

Grill Dimension 7.5" x 10.375" 6.75" 6.625" x 8.875" 6.5" 5.25" x 7" 5.25"

•

•

•

•

•

BUTYL-RUBBER SURROUND

3 OHM IMPEDANCE

2” MYLAR MIDRANGE (693)

1” MYLAR TWEETER

.75” MYLAR SUPER TWEETER (653 & 573)

34

MARINE

SPEAKERS and WOOFER

Who said music could only be heard on land? We introduce to you a NEW series of speakers and woofer
designed to t the marine industry.

Let’s start with the speakers, available in 6.5” 2-way and 6X9 2-way, both are equipped with a black PP
cone, rubber surround, and dust cap to reject heavy water splashes. Even the tweeter is designed to endure
the elements. No system is complete, with out a woofer, add one to yours. All of these are assembled with in
a durable plastic basket. Outt your boat with a complete system of TRUE marine speakers.

SMS.692

6”x9” 2-WAy MARINE SPEAKERS

• high quality black polypropylene cone

• butyl rubber surround

• water-resistant construction

• high strength 1 piece plastic basket

• detachable grill design

• 1.25” high temperature aluminum voice coil

• 1/2” PP diaphragm tweeter

• neodymium tweeter magnet

• 30 oz magnet

• 120 Watts RMS

• frequency response: 50 HZ – 20 KHz

• impedance: 4 ohm

• sensitivity: 92dB

• one pair of speakers with all stainless steel mounting hardware

SMS.652

6-1/2” 2-WAy MARINE SPEAKERS

• high quality black polypropylene cone

• butyl rubber surround

• water-resistant construction

• high strength 1 piece plastic basket

• detachable grill design

• 1” high temperature aluminum voice coil

• 1/2” PP diaphragm tweeter

• neodymium tweeter magnet

• 20oz magnet assembly

• 90 watts RMS

• frequency response: 60 HZ – 20 KHz

• impedance: 4 ohm

• sensitivity: 91dB

• one pair of speakers with all stainless steel mounting hardware

MARINE SPEAKERS

Features:

PLASTIC bASKET

•

PoLyPRoPyLENE CoNE

•

bUTyL RUbbER SURRoUND

•

ENCLoSED MoToR STRUCTURE

•

SUSPENSIoN INTERGRATED TINSEL LEADS

•

GoLD PLATED DISCoNNECT WIRE TERMINALS

•

GRILL INCLUDED

•

Model SM-10W

RMS Power (watts) 250

Voice Coil Conguration 2" Single 4Ω

Efciency (1w/1m) 85.3dB

Enclosure (sealed/vented) S/V

Mounting Depth 4.375"

Cutout Diameter 9.125"

Overall Weight 7lbs

3534

(

SIGNAL PROCESSORS

DiGi-Q

Digital Equalizer with SUB woofer output

DIGI-Q (DiGital-EQ) does more than just alter your music. It gives you 7 bands of equalization, subwoofer crossover and level controls as well
as an extra audio input for a secondary source. You can control all this from the DIGI-Q with only one knob. A few clicks and turns of the knob
and you can scroll through all the EQ settings, level controls, system voltage meter. Imagine the innovation involved in this one little half din unit.
Extend your function…get DiGi-Q.

• Output Voltage Up to 8 V

• Subwoofer Output Voltage Up to 10 V

• Frequency Response 15HZ ~ 30KHZ

• THD+n (1vrms output) = 0.002%

• Input sensitivity = 0.3 ~ 1.5 Vrms

• Channel separation (L – R) = 79db

• Source voltage range = 9.5 ~ 14.2

• Current consumption (all outputs @ max.)

MPQ-7XO

7 Band Parametric EQ with crossover and sub volume

• Isolated PWM power supply

• 7 bands parameteic equalizer with 18db boost Cut

• Volume control with up to 8 volts RMS of output

• Specic bandwidth for each band

• Low noise BI-FET op-amp design yields minimum distortion

• Subwoofer outputs and level controls

• Subwoofer frequency selection switch (32Hz / 64Hz / 128Hz)

• Input selector for Aux or CD

• Universal half-din chassis for ease of installation

2 amperes

• B/C control range = 20 db (+10 to -10db)

• Sub woofer output frequency range
= 180 ~ 550 (LP)

• Frequency bands: #1 57HZ, #2 134HZ, #3
400HZ, #4 1KHZ, #5 2.2 KHZ, #6 6.3KHZ and
#7 16KHZ

• Gold-plated RCA input / output connectors

• 20dB headroom eliminates signal overload

• S/N Ratio 110dB @1V

• Maximum output voltage 8V

• THD:0.01%

36

MPQ-5XO

Parametric EQ with crossover and sub volume

• Master volume control with up to 10 volts RMS of output

• Front/rear fader control

• Four band parametric equalizer with 18dB boost per Cut.

• Variable bandwidth for each band

• Low noise Bi-Fet op-amp design yields minimum distortion

• 30V bi-polar switching power supply

• Subwoofer output and level control

• Subwoofer frequencies adjustable 50Hz-250Hz

• AUX/CD input selector

• Universal half-Din chassis for ease of installation

• Gold-plated RCA input/output connectors

• 20dB headroom eliminates signal overload

• 4 band parametric range: Sub 20-70Hz/

• Low 150-400Hz/Mid 1.5-4KHz/HI 4-20KHz

• Subwoofer Crossover: 50-250Hz

• Boost/Cut: 18dB

• S/N Ratio: >120dB Ref 1V Input

• Frequency Response: 10Hz-15KHz, + / -1dB

• Stereo Separation: 90dB/1KHz

• Maximum Output Voltage: 10V RMS

• THD: <0.005%

• Headroom: >20dB

• Input Impedance: >50k Ohm

• Output Impedance: <10K Ohm

bX-4EO

4 band Parametric EQ w/ Bass Processor & Aux Input

• Backlighted Control Knobs

• Parametric Bass Control

• PFM Subsonic Filter

• Balanced Inputs

• Bass Maximizer Indicator

• Bass Output Control

• PWM High Head Room Power Supply

• Frequency Bands: 45Hz (sub) 150 (low)

1.2kHz (mid) 15kHz (hi)

• Frequency Response: 10-100kHz

• Output Signal Voltage: 13.5V

• THD: .003%

• Signal-to-Noise Ratio: 130dB

• 7”w x 4.375”d x 1.125”h

SIGNAL PROCESSORS

bX-10

Digital Bass Reconstruction processor

• Max. Bass Control

• Dash Mount Remote Control

• Bass Restoration Lighted Display

• Parametric Bass Control

• PFM Subsonic Filter

• Balanced Inputs

• Bass Output Control

• PWM High Head Room Power Supply

• Output Level: 13.5 volt

• Frequency Response: 10Hz 100KHz

• THD: 0.003%

• S/N Ratio: 130dB

• Balanced Input Noise Rejection: 60 dB

bX-12

Digital Bass Reconstruction processor

• Max. Bass Control

• Dash Mount Remote Control

• PFM Subsonic Filter & bass level Control

• Chrome Logo Plate

• Bass Restoration Lighted Display

• Parametric Bass Control

• PFM Subsonic Filter

• Balanced Inputs

• Bass Output Control

• PWM High Head Room Power Supply

• Output Level: 13.5 volt

• Frequency Response: 10Hz 100KHz

• thD: 0.002%

• S/N Ratio: 132db

• Balanced Input Noise Rejection: 60 dB

37

bX-15

Digital bass Reconstruction processor

• Max. Bass Control

• Dash Mount Remote Control

• PFM Subsonic Filter & bass level Control

• illuminated logo and knobs

• brushed Aluminum Case & handles

• Chrome Logo Plate

• Bass Restoration Lighted Display

• Parametric Bass Control

• PFM Subsonic Filter

• Balanced Inputs

• Bass Output Control

• PWM High Head Room Power Supply

• Output Level: 13.5 volt

• Frequency Response: 10Hz 100KHz

• thD: 0.002%

• S/N Ratio: 132db

• Balanced Input Noise Rejection: 60 dB

bX-20Z

• Max. Bass Control

• Dash Mount Remote Control

• PFM Subsonic Filter & bass level Control

• illuminated logo and knobs

• brushed Aluminum Case

• Chrome Logo Plate

• Bass Restoration Lighted Display

• Parametric Bass Control

• PFM Subsonic Filter

• Balanced Inputs

• Bass Output Control

• PWM High Head Room Power Supply

• Output Level: 13.5 volt

• Frequency Response: 10Hz 100KHz

• thD: 0.002%

• S/N Ratio: 132db

• Balanced Input Noise Rejection: 60 dB

XbP-10

Digital bass Reconstruction processor

SPL Competition Signal Processor

38

• 2 Signal Paths – Sound Quality & Sound Pressure Level

• Individual Level Control for each Signal Path

• 5Volt or 10Volt Signal Voltage Switch

• 50Hz Tone Generator for Tuning

• Variable 25-85Hz Bass EQ

• Dash Remote with Boost Level, Subsonic Filter, and SQ-to-SPL
Signal Path Switch

• 4 Pairs of Outputs – 1 Main and 3 w/ Variable Delay for Time
Alignment of Subwoofers

• Through Pass Outputs

• Turn On/Off Delay to Eliminate Pops

CAPCELL

tO CAP OR tO CEll… thAt iS thE QUEStiON!

AFTER YEARS OF LARGE CAPACITORS BEING ON THE MARKET, THEY STILL REMAIN A MYSTERY TO MANY…
OFTEN CALLED A “POWER CAP” OR “STIFFENING CAP”, SOME PEOPLE PREFER CAPS OVER ADDING A SECOND
BATTERY AND VICE VERSA. SO, WHICH PRODUCT IS A SMARTER CHOICE? NEITHER!
A SECOND BATTERY IS A GREAT OPTION FOR HIGH POWER SYSTEMS, BUT SHOULD BE ACCOMPANIED BY AN
UPGRADED ALTERNATOR THAT CAN EFFICIENTLY CHARGE BOTH BATTERIES. THIS CAN GET REALLY EXPENSIVE.
A CAPACITOR IS SIMILAR TO A BATTERY BUT CAN CHARGE AND DISCHARGE IN A FRACTION OF A SECOND
DEPENDING ON SIZE. THE CAP HAS THE ABILITY TO EMPTY ITSELF ALMOST INSTANTLY ON TRANSIENT NOTES IN

MUSIC MATERIAL. HOWEVER, IT DOES NOT HAVE THE STAMINA THAT A BATTERY HAS AND IS NOT AN EQUIVA-

LENT SUBSTITUTE.
OUR CAP CELLS ARE A FUSION OF BOTH PRODUCTS. THE CAP CELL OFFERS AUXILIARY POWER WITH THE ABILITY
TO ENHANCE THE TRANSIENT NOTES, OFTEN SUPPRESSED IN CAR AUDIO SYSTEMS WITH AN OEM BATTERY, WHILE
BEING ABLE TO REINFORCE THE BATTERY DURING LONG, INTENSE BASS NOTES. A SECOND ALTERNATOR IS NOT

NECESSARY, MAKING THE CAP CELL A PERFECT ADDITION AND AN AFFORDABLE WAY TO SUPPLY THE NECES-

SARY POWER FOR A SYSTEM.

SCEll-300

300 Amp CAPCELL

Satin Chrome Finish
16 Volts DC
3-6 Year Cycle Life
Digital Volt Meter
¼” Bolt Terminal

4.5 Milliohm Int. Resistance
5 Amp/Hour
Surge 300 amp x 3 seconds

SCEll-400

400 Amp CAPCELL

Satin Chrome Finish
16 Volts DC
3-6 Year Cycle Life
Digital Volt Meter
¼” Bolt Terminal

4.5 Milliohm Int. Resistance
6 Amp/Hour
Surge 400 amp x 3 seconds

CAPCELL

SCEll-600

600 Amp CAPCELL

Satin Chrome & Aluminum Finish
16 Volts DC
3-6 Year Cycle Life
Digital Volt Meter
Distribution Block Terminals
3 Milliohm Int. Resistance
7 Amp/Hour
Surge 600 amp x 3 seconds

PowerPlant

Power/Ground Inputs 1
Power/Ground Input Wire Size 1/0
Power/Ground Outputs 4
Power/Ground Output Wire Size 4 A
Max Current Input/Output 400 amps
Max Fuse Size (x 4) 10
Max Turn-on Relay Current 20

SCEll-1000

1000 Amp CAPCELL

Satin Chrome & Aluminum Finish
16 Volts DC
3-6 Year Cycle Life
Digital Volt Meter
Distribution Block Terminals

1.6 Milliohm Int. Resistance
21 Amp/Hour
Surge 1000 amp x 3seconds

PowerPlant 2

Power/Ground Inputs 1
Power/Ground Input Wire Size 4 Awg
Power/Ground Outputs 2
Power/Ground Output Wire Size 8 Awg
Max Current Input/Output 200 amps
Max Fuse Size (x 2) 100 amps

39

POWER

(

SCX-2

2.0 Farad Storage Capacity

•

•

•

•

•

CAPACITORS

24VDC Surge Rated
PCB with Blue LED Display
Flashing LEDs
Mounting Brackets
Chrome plated

Bolt Post for Ring Terminal•

SCX-4

4.0 Farad Storage Capacity

24VDC Surge Rated

•

PCB with Blue LED Display

•

Flashing LEDs

•

Mounting Brackets

•

Chrome plated

•

Bolt Post for Ring Terminal•

SCX-6

6.0 Farad Hybrid Super Capacitor

Amperage Meter

•

Voltage Meter

•

24VDC Surge Rated

•

PCB with Blue LED Displays

•

Charging Status Indicator

•

Bolt Post for Ring Terminal•

SCX-8

8.0 Farad Hybrid Super Capacitor

Amperage Meter

•

Voltage Meter

•

24VDC Surge Rated

•

PCB with Blue LED Displays

•

Charging Status Indicator

•

Bolt Post for Ring Terminal•

SC-8CA

8 Farad Hybrid Super Capacitor

Volt & Amperage Meter

•

24VDC Surge Rated

•

PCB with Blue LED Display

•

Charging Status Indicator

•

24 Status LED s

•

Metal Mounting Bracket

•

Extruded Aluminum Housing

•

Chrome Die-cast end Caps

•

Chrome Plated Rectangular Low Prole Case

•

Plexiglas Viewing Window

•

Wooden Display Box

•

Delayed Amp Turn-on

•

0 ga Input and 4 ga output

•

SC-20CA

20 Farad Hybrid Super Capacitor

Volt & Amperage Meter

•

24VDC Surge Rated

•

PCB with Blue LED Display

•

Charging Status Indicator

•

24 Status LED s

•

Metal Mounting Bracket

•

Extruded Aluminum Housing

•

Chrome Die-cast end Caps

•

Chrome Plated Rectangular Low Pro le Case

•

Plexiglas Viewing Window

•

Wooden Display Box

•

Delayed Amp Turn-on

•

0 ga Input and 4 ga output

•

SC-40CA

40 Farad Hybrid Super Capacitor

Volt & Amperage Meter

•

24VDC Surge Rated

•

PCB with Blue LED Display

•

Charging Status Indicator

•

36 Status LED s

•

Metal Mounting Bracket

•

Extruded Aluminum Housing

•

Chrome Die-cast end Caps

•

Chrome Plated Rectangular Low Prole Case

•

Plexiglas Viewing Window

•

Wooden Display Box

•

Delayed Amp Turn-on

•

0 ga Input and 4 ga output

•

40

SOURCE UNITS

(

ViR-7355N
ViR-7355NR
ViR-7355NRbt

Exact Double Din A/V Source Unit w/ 7” TFT-LCD Touch Screen

• Motorized TFT-LCD w/ 4 Pre-Set Angles & Last Angle Memory

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• i-Pod Input Connection (requires IC-1)

• Mini-USB Connection for MP3 & MP4 Playback From 4gb Flash Drive

• SD Card Reader for MP3, MP4, DiviX & Xvid Playback

• 18 FM / 12 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• A/V Inputs for Secondary Source

• Front Panel 3.5mm Auxiliary A/V Input

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 432 x 242 Screen Resolution

• 400 NIT Backlight Brightness

Navigation Input (requires NAVIBOX-1)

Bluetooth & Navigation Input (requires NAVIBOX-1)

Bluetooth Features

• Work with Most Bluetooth V2.0 Enabled Phones

• Noise & Echo Cancellation

• Contacts List Transferred for Easy Access Dialing

• Caller ID Shows Name and Number from Contacts List

• Recent Calls & Talk Time Logs

• A2DP for MP3 Playback

SOURCE UNITS

ViR-6500
ViR-6500t

Double Din A/V Source Unit w/ 6.5” TFT-LCD Touch Screen

• Motorized TFT-LCD w/ 5 Pre-Set Angles & Last Angle Memory

• Front Panel Feather Touch Sensor Controls

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• DualZone

• i-Pod Input Connection (requires IC-1)

• SD Card Reader for MP3, MP4, DiviX & Xvid Playback

• 12 FM / 6 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• 2 A/V Inputs for Secondary Source

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 432 x 242 Screen Resolution

• 400 NIT Backlight Brightness

Analog TV Tuner

41

ViR-7870NRb

Single Din A/V Source Unit w/ 7” Flip-Up TFT-LCD Touch Screen & Bluetooth Connection

• Motorized TFT-LCD Telescopes Forwards/Backwards w/ Pre-Set Angles

• Detachable Theft Deterrent Front Panel Flips Down for DVD Loading

• Accepts Add-On GPS Navigation Module, NAVIBOX-1

• Accepts Add-On Digital TV Tuner Module, DTV-1

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW, Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• i-Pod Input Control (requires IC-1)

• Mini-USB Connection for MP3 & MP4 Playback from 4gb Flash Drive or SD Card

• 1 gb Internal Memory for Background & Screen Saver Images

• 18 FM / 12 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• A/V Inputs for Secondary Source

• Front Panel 3.5mm Auxiliary A/V Input

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 480 x 234 Screen Resolution

• 350 NIT Backlight Brightness

Bluetooth & Navigation Input (requires NAVIBOX-1)

Bluetooth Features

• Work with Most Bluetooth V2.0 Enabled Phones

• Noise & Echo Cancellation

• Contacts List Transferred for Easy Access Dialing

• Caller ID Shows Name and Number from Contacts List

• Recent Calls & Talk Time Logs

• A2DP for MP3 Playback

42

ViR-7840N
ViR-7840NR
ViR-7840NRbt
ViR-7840Nt
ViR-7840NRt

Single Din A/V Source Unit w/ 7” Flip-Up TFT-LCD Touch Screen

• Motorized TFT-LCD Telescopes Forwards/Backwards w/ Pre-Set Angles

• Detachable Theft Deterrent Front Panel Flips Down for DVD Loading

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW, Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• I-Pod Input Connection (requires IC-1)

• Mini-USB Connection for MP3 & MP4 Playback from 4gb Flash Drive or SD Card

• 18 FM / 12 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• A/V Inputs for Secondary Source

• Front Panel 3.5mm Auxiliary A/V Input

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 480 x 234 Screen Resolution

• 350 NIT Backlight Brightness

Navigation Input (requires NAVIBOX-1)

Bluetooth & Navigation Input (requires NAVIBOX-1)

Analog TV Tuner

Analog TV Tuner & Navigation Input (requires NAVIBOX-1)

Bluetooth Features

• Work with Most Bluetooth V2.0 Enabled Phones

• Noise & Echo Cancellation

• Contacts List Transfer red for Easy Access Dialing

• Caller ID Shows Name and Number from Contacts List

• Recent Calls & Talk Time Logs

• A2DP for MP3 Playback

NEW GUI

ViR-7022NR

Single Din A/V Source Unit w/ Detachable 7” TFT-LCD Touch Screen

Navigation Input (requires NAVIBOX-1)

• Motorized Front Panel w/ 4 Pre-Set Angles & Last Angle Memor y

• Theft Deterrent Detachable Faceplate

• Accepts Add-On GPS Navigation Module, NAVIBOX-1

• Accepts Add-On Digital TV Tuner Module, DTV-1

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW, Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• I-Pod Input Connection (requires IC-1)

• Mini-USB Connection for MP3 & MP4 Playback from 4gb Flash Drive or SD Card

• 1 gb Internal Memory for Background & Screen Saver Images

• 18 FM / 12 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• A/V Inputs for Secondary Source

• Front Panel 3.5mm Auxiliary A/V Input

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 480 x 234 Screen Resolution

• 450 NIT Backlight Brightness

SOURCE UNITS

NEW GUI

ViR-7011N
ViR-7011Nbt
ViR-7011Nt

Double Din A/V Source Unit w/ 7” TFT-LCD Touch Screen

• Motorized TFT-LCD w/ 4 Pre-Set Angles & Last Angle Memory

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• i-Pod Input Connection (requires IC-1)

• Mini-USB Connection for MP3 & MP4 Playback from 4gb Flash Drive or SD Card

• 18 FM / 12 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• A/V Inputs for Secondary Source

• Front Panel 3.5mm Auxiliary A/V Input

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 1440 x 234 Screen Resolution

• 350 NIT Backlight Brightness

Bluetooth

Analog TV Tuner

Bluetooth Features

• Work with Most Bluetooth V2.0 Enabled Phones

• Noise & Echo Cancellation

• Contacts List Transferred for Easy Access Dialing

• Caller ID Shows Name and Number from Contacts List

• Recent Calls & Talk Time Logs

• A2DP for MP3 Playback

43

ViR-5850N
ViR-5850NR
ViR-5850Nt
ViR-5850NRt

Single Din A/V Source Unit w/ Detachable 5.8” TFT-LCD Touch Screen

• Motorized Front Panel w/ 4 Pre-Set Angles & Last Angle Memory

• Theft Deterrent Detachable Faceplate

• Accepts Add-On GPS Navigation Module, NAVIBOX-1

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• i-Pod Input Control (requires IC-1)

• Mini-USB Connection for MP3 & MP4 Playback From 4gb Flash Drive

• 4 gb SD Card Reader for MP3, MP4, DiviX & Xvid Playback

• 18 FM / 12 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• A/V Inputs for Secondary Source

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

Navigation Input (requires NAVIBOX-1)

Navigation Input (requires NAVIBOX-1)

Analog TV Tuner & Navigation Input (requires NAVIBOX-1)

Analog TV Tuner & Navigation Input (requires NAVIBOX-1)

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 480 x 234 Screen Resolution

• 450 NIT Backlight Brightness

ViR-4344NRb

EXACT Single Din A/V Source Unit w/ Digital 4.3” TFT-LCD Touch Screen & Bluetooth Connection

• Motorized TFT-LCD w/ 4 Pre-Set Angles & Last Angle Memory

• Front Panel Feather Touch Sensor Controls

• Theft Deterrent Detachable Faceplate

• Accepts Add-On GPS Navigation Module, NAVIBOX-1

• Accepts Add-On Digital TV Tuner Module, DTV-1

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Playback from DVDR/RW & CDR/RW Including VCD, MP3, MP4 & DiviX

• Recall Memory for Last DVD Position

• I-Pod Connection Input (requires IC-1)

• Mini-USB Connection for MP3 & MP4 Playback From 4gb Flash Drive

• 4 gb SD Card Reader for MP3, MP4, DiviX & Xvid Playback

• 1 gb Internal Memory for Background & Screen Saver Images

• 18 FM / 12 AM Station Memory

• 50w x 4 MOSFET Powered Speaker Level Outputs

• Front & Rear Pre-Amp Outputs

• Variable Subwoofer Pre-Amp Output w/ LPF (80, 120, 160Hz)

• A/V Outputs for Multiple Components

• A/V Inputs for Secondary Source

• Front Panel 3.5mm Auxiliary A/V Input

• Reverse Camera Input w/ Trigger

• Custom & Pre-Set EQ Settings

• Audio Staging Controls

• 12/24 Hour Clock

• USA/European Frequency Stepping

• NTSC/PAL Auto Selection

• 432 x 242 Screen Resolution

• 400 NIT Backlight Brightness

Bluetooth & Navigation Input (requires NAVIBOX-1)

Bluetooth Features

• Work with Most Bluetooth V2.0 Enabled Phones

• Noise & Echo Cancellation

• Contacts List Transferred for Easy Access Dialing

• Caller ID Shows Name and Number from Contacts List

• Recent Calls & Talk Time Logs

• A2DP for MP3 Playback

NEW GUI

44

ViR-8007 / ViR-8006t

Analog TV Tuner

3.6” Wide Razor Look Din Size In-Dash Fully Motorized TFT Monitor/DVD/AM/FM/TV

• Amplifier trigger wire

• Brake screen safety trigger

• Telephone Mute trigger wire for Blue Tooth adaptation

• AM/FM with 30 pre-sets (18/FM – 12AM)

• 4-channel high power 50 x 4 channels (mosfet power)

• 1-Auxiliary Input for Back-up Camera

• Fully Motorized detachable 5 position drop screen with
last angle memory

• Razor front panel with back-lit EL sheet for night viewing

• DVD, CD, MP-4, MP-3, CDR, CDRW Player NTSC/PAL compatible

• All functions are displayed on screen via OSD (sixteen languages)

• 30-second electronic anti-shock mechanism

• SD Card Slot for MP-3 Music or MP-4 Movies
(memor y not included)

• Accessor y I-Pod Input Connection (Cable not Included)

• USB mini input for MP-3 Music or MP-4 Movies

• Antenna trigger wire

• 1-A/V in for secondary source input

• 1-RCA Output

• LO/DX and stereo mono selector switch

• Electronic (Bass, Treble, Volume, Balance, Fader)

• Pre-set EQ functions (Rock, Pop, Classic)

• Digital Clock

• DVD, PAL/NTSC selectable

• Panel brightness 300 NIT

• ISO/DIN Mount

• Full function remote control

• 4 screen modes

NAVibOX-1

Plug-n-play small Navigation Box module with Navteq map works with compatible head units by touch screen control

• touch screen contro l w i t h co m pa t i b l e h e ad u n i t s

• Plug-n-play easy installation & mounting

• 2 Gigabyte SD card with all USA and Canada map and 12 million points of interest

• 8 Meg flash memory, 64 Meg SDRAM

• 20 parallel receiving channels

• OS 2.6.x Linux based software 400MHz. processor for fast recalculation times

• The absolute latest in technology “Sirf Star III chip set”

• Turn by turn instructions (Male & Female, Southern accent, Urban accent)

• Choice of Quickest Route or Shortest Route

• 2-D & 3-D viewing of the maps on screen

• Including GPS antenna

ON BOARD

• 15 foot A/V interface cable

• Dimensions: 4.1” x 4.2” x 1”

SOURCE UNITS

Navigation Ready versions that accept NAVIBOX-1 GPS navigation module work with all “NR” modes.

DtV-1

ATSC Digital TV Receiver Module for all "NR" Models

• Receiving full bank frequency rang: 57MHz-803MHz (center frequency)

• Compliant with ATSC A/52 and QAM ITU-T J.83 ANNEX B 64/256QAM

• Use high performance ATSC /QAM demodulator

• Support OSD language Options: English, Spanish, and And French

• Electronic program guide (EPG) and on screen channel information

• Program channel list

• Favorite channel list

• Closed caption supported (CCD)

• Video aspect ratio: 4:3/16:9

• SDTV 720*480P or 480i video output

• 2 channel stereo audio output

• Antenna included

iC-1

iPod Cable

iPod Connection Cable
For all models with iPod ready feature

45

DVD PLAYER

(

VDVD-312

In-Dash DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX and AM/FM

• Drop door Detachable Front panel for invisible CD/DVD insertion slot

• DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX

• SD Card Slot for MP-3 Music or MP-4 Movies (memory not included)

• Full Size USB Input for MP-3 Music, DivX, Xvid & MP-4 Movies
Car-Spec DVD Transport for Extreme Temperature Exposure

•

• Front Panel Aux-in for Earphone Output of MP-3 players

• Menus can be displayed on screen via OSD (fourteen languages)

• 30-second electronic anti-shock mechanism

• Flash, Last Position Memory Recall

• Dolby pro-logic/DTS compatible

• IR Repeater for External Remote Eye

• Antenna trigger wire

• Amplier trigger wire

• AM/FM with 30 pre-sets (18/FM – 12AM)

• Auto Store pre-set scan

• 4-channel high power 50 x 4

• Dual RCA outputs (Front & Rear)

• 1-Aux input for secondary source

• 1-RCA Video Output

• LOC/DX and stereo mono selector switch

• Electronic (Bass, Treble, Volume, Balance, Fader)

• Pre-set EQ functions (Rock, Pop, Classic, Jazz, User)

• Digital Clock

• DVD, PAL/NTSC selectable

• USA/Europe frequency stepping

• ISO/DIN

• Full function remote control

• Last position DVD memory

46

VDVD-155

In-Dash DVD, DVD-R, MP4, MP3, DivX, CD, CDR, CDRW Player

• In-Dash, Floor & Under Dash Mounting Brackets

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Front Panel A/V RCA Inputs

• Flash Memory Recall

• Remote Control

• Accessory Remote Eye

• OSD On Screen Display

• Digital Anti-shock

• NTSC/PAL Selectable

• DIN Size Trim Ring For Dash Mounting

• Cigarette Lighter Plug

VDVD-200

Half Din In-Dash DVD, DVD-R, MP4, MP3, CD, CDR, DivX, CDRW Player

• Slot Loading DVD for Multiple Angle Mounting

• Car-Spec DVD Transport for Extreme Temperature Exposure

• In-Dash, Floor & Under Dash Mounting Brackets

• Last Position Memory

• Dolby Pro-logic/DTS Compatible

• Remote Control

• Accessory Remote Eye

• OSD On Screen Display

• Digital Anti-shock

• NTSC/PAL Selectable

• Optical & Coaxial Outputs

with

when

wants

ways

wide

with

with

with

with

windshield

with

 housing

PORTABLE NAVIGATION

SNAV-20

Portable Navigation (4.8”)

ON BOARD

CUST OM INSTALL MONIT ORS

Ci-104NC

10.4” Custom Install “NC” Monitor

• 10.4” TF T-LCD NC model

• On screen Display with Remote Control

• 2 Video Inputs

• NTSC/PAL Auto select

• 4:3 Viewing Aspect Ratio

Ci-112NC

11.2” Wide Custom Install “NC” Monitor

• 11.2” TFT-LCD NC model

• On screen Display with Remote Control

• 2 Video Inputs

• NTSC/PAL Auto select

• 16:9 Viewing Aspect Ratio

• Resolution: 2400*480

Ci-150NC

15.1” Custom Install “NC” Monitor

• Resolution: 1920*480

• Contrast Ratio: 250

• Brightness: 350cd/m2

• View Angle: 40/60/40/40

• Dimensions: 10.5” (L) x 7.4” (W) x1.7” (H)

• Contrast Ratio: 350

• Brightness: 400cd/m2

• View Angle: 45/60/40/40

• Dimensions: 11” (L) x 7.7” (W) x 1.7” (H)

• 15.1”TFT-LCD NC model

• On screen Display with Remote Control

• 2 Video Inputs

• NTSC/PAL Auto select

• 4:3 Viewing Aspect Ratio

• Resolution: 2400*600

• Contrast Ratio: 30 0

• Brightness: 400cd/m2

• View Angle: 50/60/70/70

• Monitor Dimensions: 15.4” (L) × 10.5” (W) × 1.8” (H)

47

CEILING MONITOR

(

VCM-123DbG
VCM-123DGR

Ceiling Mount 12.1” TFT-LCD Monitor & DVD Player Combo

• Low Reflection, High Resolution TFT-LCD Monitor

• Video Playback from DVD, CDR/RW of VCD, SVCD, MP3, MP4

• Soft Touch LED Control Buttons

• 4GB SD Reader and USB Connection

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Multi-Angle & Swivel Screen

• FM Transmitter for OEM Integration

• IR Transmitter for Wireless IR Headphones

• On-Board Dome Lights

• 2 Additional A/V Inputs for Auxiliar y Source

• A/V Output for Multiple Components

• NTSC / PAL Auto Selection

• 4:3 Aspect Ratio

• 800 x 600 Screen Resolution

• Dimensions: 15”w x 12.25”d x 2.5”h

DVD COMBO

(Beige)

(Gray)

VCM-11DXX

Ceiling Mount 11.2” TFT-LCD Monitor & DVD Player Combo

• Interchangeable Color Skins for Universal Vehicle Application (beige, black, grey)

• Extra Trim Ring for Sculptured Ceilings Included

• Video Playback from DVDR/RW, CDR/RW of VCD. SVCD, DivX, & MP4

• Car-Spec DVD Transport for Extreme Temperature Exposure

• NTSC / PAL Auto Selection

• On-Board Dome Lights

• Swivel Screen for Angled Viewing

• FM Transmitter for OEM Integration

• IR Transmitter for Wireless IR Headphones

• Flash Memory for Last Position Memory

• 4 gb SD Card Reader for MP4 Playback

• USB Input for DivX & MP-4 Playback from Flash Drive

• 2 A/V Inputs for Auxiliary Sources (one at rear panel)

• 1 A/V Output for Multiple Components

• 4:3 Aspect Ratio

• 800 x 480 Screen Resolution (SVGA)

• 400 NIT Panel Brightness

• Dimensions: 2.5”h x 14.5”w x 12.5”d

48

VCM-14DGR
VCM-14DbG

Ceiling Mount 10.4” TFT-LCD Monitor & DVD Player Combo

Grey

Beige

• Video Playback from DVDR/RW, CDR/RW of VCD. SVCD, MP4, & DivX

• Car-Spec DVD Transport for Extreme Temperature Exposure

• 4 gb SD Card Reader for MP4 Playback

• USB input for DivX & MP-4 Playback

• NTSC / PAL Auto Selection

• Swivel Screen for Angled Viewing

• On-Board Dome Lights

• FM Transmitter for OEM Integration

• IR Transmitter for Wireless IR Headphones

• 2 A/V Inputs for Auxiliary Sources (one at rear panel)

• A/V Output for Multiple Components

• NTSC / PAL Auto Selection

• 4:3 Aspect Ratio

• 1024 x 768 Screen Resolution (XGA)

• 250 NIT Backlight Brightness

VCM-88DGR
VCM-88DbG

Ceiling Mount 8.8” TFT-LCD Monitor & DVD Player Combo

• Low Reflection, High Resolution TFT-LCD Monitor

• Car-Spec DVD Transport for Extreme Temperature Exposure

• Video Playback from DVD, CDR/RW of VCD. SVCD, MP3

• NTSC / PAL Auto Selection

• On-Board Dome Lights

• FM Transmitter for OEM Integration

• IR Transmitter for Wireless IR Headphones

• 1 Additional A/V Inputs for Auxiliary Source

• Input Connection for GAME-10 Module (not included)

• A/V Output for Multiple Components

• NTSC / PAL Auto Selection

• 16:9 Aspect Ratio

• 480 x 234 Screen Resolution

• 400 NIT Backlight Brightness

• Dimensions: 10.5”w x 9.75”d x 2.25”h

Grey

Beige

CEILING MONITOR/DVD

GAME10

GAME JOYSTICK USB TYPE CONNECTIO

• Pre-loaded with 64 exciting games

• Insert cable into USB Mini port on these models new models: VCM-88

• Simple Plug and play system draws its power from the mini USB port

N

49

CEILING MONITOR

(

VCM-151

15.2” Universal Ceiling Mount Monitor

• Amorphous Active Matrix Digital TFT/LCD

• Remote Control

• OSD On Screen Display

• Dual A/V Inputs

• Built-in IR Transmitter

• NTSC / PAL Auto Switchable

• Resolution: 1024 x 768

• Brightness: 400 NIT

• Dimensions: 1.6”(W) x 14.7”(D) x 15.2”(H)

VCM-112

11.2” Wide 16:9 Universal Ceiling Mount Monitor (3-snap-on color skins: Gray, beige, black)

1502GM

GM SUV Vehicle specic overhead for VCM-151

• Slim and Compact Design

• Easy Installation

• On Screen Display with Remote Control

• Swivelscreen

• 2 Video/Audio Inputs

• Rear panel (Auxiliar y Input)

• NTSC/PAL Auto Select

• Built-in IR transmitter for wireless headphones

• Dome lights

• Extra Trim Ring for Sculptured Ceilings Included

• Resolution: 800 x 48 0 (WXGA)

• Brightness: 400 NIT

• Dimensions: 2.3” x 14.4” x 12.5”

VCM-108GR

10.4” Swivel universal Ceiling Mount Monitor

• Slim and Compact Design

• Easy Installation

• NTSC/PAL switchable

• On Screen Display with Remote Control

• 2 Video/Audio(R/L) Inputs

• 1 A/V Output

• 2 Screen modes (letter boxed & full screen)

• Rear panel (Auxiliar y Input)

• Built-in IR transmitter for wireless headphones

• Dome lights

• Resolution: 1024 x 768 (SVGA)

• Brightness: 380 NIT

(Gray)

VCM-108bG

(beige)

50

PRE-INSTALLED HEADREST

(

W/ DVD PLAYER PACKAGE

VhD-9GR (Gray), VhD-9GRDk (Dark Gray), VhD-9bG (Beige), VhD-9bk (Black)

1-Pair Pre-Loaded 8.8” Wide 16:9 Touch Screen Universal Replacement Headrest Monitors, Twin DVD Combo with 2 RF Headphones

MONITOR & HEADREST

• Playback System (DVD, DVD-R, VCD, SVCD, CD-DA, CD, CD-R/RW, MP-3,Divx)

• Active Matrix TFT/LCD

• 3.5 mini front panel Audio/Video input on both headrests

• Selectable DVD or A/V input from other headrest

• 1 Video/Audio Output

• Built-in 900Mhz. 2-ch Transmitter

• 2 RF 2-ch Wireless Headphones Included in Package

• Built-in 8-channel FM Transmitter

• SD Card reader & USB Input

• Touch Screen controls for all features (Monitor & DVD)

• OSD on Screen Display

• 2 Remote Controls

• Swivel Screen Adjustment for Better Viewing Angle

• 4 Screen Modes (Full, Wide , Cinema, Zoom)

• NTSC/PAL auto-select

• Pole Diameter Options 5/8 or 7/16

• Pole width Adjustments 4” ~ 8”

• Panel Brightness: 400 NIT (ultra high resolution)

• Resolution: 1440 x 234

• Dimensions: 8.9” H x 13.9” W

51

HEADREST/SUNVISOR
MONITOR

VhR-76

7” Wide (16:9) Headrest Module

• Amorphous Active Matrix TFT/LCD

• Including pre-curved headrest Adapter

• Adjustable Installation Depth Headrest Shroud

• 1 Video Input

• OSD On Screen Display

• Remote Control

VhR-78

7” Wide (16:9) Headrest Module

• Amorphous Active Matrix TFT/LCD

• 2 Video inputs

• iR Repeater Fun c t i o ns , con t ro l s

(VDVD -155, 160, 161t, 200 & 312)

• OSD on Screen Display

• Panel Brightness: 400NIT

• 4 Screen Mode (Full, Wide, Cinema, Zoom)

• NTSC/PAL switchable

• Resolution: 1440 x 234

• Dimensions: 7“ x 5” x .9”

• Direct Power ON/OFF

• Remote Control

• 4 screen Modes

• Injection Molded Case

• NTSC/PAL switchable

• Panel Brightness: 350 (high resolution)

• Resolution: 1440 x 234

• Dimensions: 6 ¾ x 4 1/8 x 1 3/16

VhR-79tS

7” Wide (16:9) Touch Screen Monitor

• Amorphous Active Matrix TFT/LCD

• 2 Video inputs

• iR Repea t e r Fu n c t i on s, con trols

(VDVD -155, 160, 161t, 200 & 312)

• touch Screen, con trols
(VDVD -155, 160, 161t, 200 & 312)

VhR-61

6.2” Wide (16:9) Headrest Monitor

• Amorphous Active Matrix TFT/LCD

• 2 Video inputs

• iR Repeater Fun c t i o ns , con t ro l s

(VDVD -155, 160, 161t, 200 & 312)

• OSD on Screen Display

VhR-62tS

6.2” Wide (16:9) Touch Screen Monitor

• Amorphous Active Matrix TFT/LCD

• 2 Video Inputs

• IR Repeater Functions, controls
(VDVD-155, 160, 161T, 200)

• Touch Screen, controls
(VDVD-155, 160, 161T, 200 & 312)

• OSD on Screen Display

• Remote Control

• 4 screen Modes

• Injection Molded Case

• NTSC/PAL switchable

• Panel Brightness: 350 (high resolution)

• Resolution: 1440 x 234

• Dimensions: 6 ¾ x 4 1/8 x 1 3/16

• Remote Control

• 4 screen Modes

• Injection Molded Case

• NTSC/PAL switchable

• Panel Brightness: 350 (high resolution)

• Resolution: 1440 x 234

• Dimensions: 6 3/8 x 3 5/8 x 1 3/16

• OSD on Screen Display

• Remote Control

• 4 screen Modes

• Injection Molded Case

• NTSC/PAL switchable

• Panel Brightness: 350 (ultra high resolution)

VSV-78

7” Wide (16:9) Sun visor Monitor

• Amorphous Active Matrix TFT/LCD

• 1 Video Input

• OSD On Screen Display

• Remote Control

• Panel Brightness: 400NIT

52

• 4 Screen Mode (Full, Wide, Cinema, Zoom)

• NTSC/PAL switchable

• Resolution: 1440 x 234

• Dimensions: 9“ x 5” x .9”

• Direct Power ON/OFF

VIDEO ACCESSORIES

VDtV-2U

Universal ATSC Digital TV Receiver Module

• Receivingfullbankfrequencyrang:57MHz-803MHz(centerfrequency)

• CompliantwithATSCA/52andQAMITU-TJ.83ANNEXB64/256QAM

• UsehighperformanceATSC/QAMdemodulator

• SupportOSDlanguageOptions:English,Spanish,andAndFrench

• Electronic program guide (EPG) and on screen channel information

• Programchannellist

VAV-4

Wireless Audio/Video Controller

• 4A/V inputs & 4A/V outputs

• All Outputs Independently Selectable Via Remote

• 18’ Accessory Remote Eye & Remote Control

• Four 12volt output Triggers on Molex connectors

• Favoritechannellist

• Closedcaptionsupported(CCD)

• Videoaspectratio:4:3/16:9

• SDTV720*480Por480ivideooutput

• 2channelstereoaudiooutput

• Antennaincluded

MONITORS & ACCESSORIES

VVb-2

One In & Five Output Video Signal Booster

• Five Individual Output Trimmer Gain Controls

• Shielded Metal Housing For Noise Rejection

• Video Output Gain control

VlP-1CA

License Plate Color Camera

• 1/3" CCD 1 LUX Low Light Color Camera

• Multiple Camera Angle

• Din Connector & RCA Outputs

• Reversed Image

VFM-5

PLL FM Modulator

• PLL Phase Lock Loop Tuner Outputs

• 8 Frequency Settings On Selectable DIP Switches

• Shielded Metal Housing For Noise Rejection

CCD-4XS

Extra Small Rear View Color Camera

• 1/4” CCD 0.3 Lux Low Light Color Camera

• Ultra Small Connections for Stealth Mounting

• Din Connector & RCA Outputs

• Reversed Image for Rear Mounting

• Wide angle 161 degree

• Electronic Auto Iris

• Adjustable mounting bracket

• Dimensions: ¾” x ¾” x 1”

VFt-6

FM Transmitter

• Wireless 3 CH FM Transmitter

• Easy Installation

• Shielded Housing For Noise Rejection

VCCD-1

Weather proof Color Camera

• 1/3" CCD 1 LUX Low Light Color Camera

• Din Connector & RCA Outputs

• Operating Temperature: -14F to 131F

• Reversed Image

VCCD-2

Bullet Style Color Camera

•

Flush and Angle Mount

•

1/3" CCD 1 LUX Low Light Color Camera

•

Din Connector & RCA Outputs

•

Reversed Image

VCCD-3

Bullet Style Color Camera

• Built-In 12 LEDs For Excellent Night Vision

• 1/3" CCD 1 LUX Low Light Color Camera

• Din Connector & RCA Outputs

• Reversed Image

53

HEADPHONES

VhP-10

Foldable Single Channel IR Wireless Headphone

• EVA hard carrying case included

• Adjustable Headphone Straps for Comfort

• Receives Broadcasts up to 180 Degrees from Transmitter

• On/Off Switch Saves Battery Life

• Auto Power Off Function

• Auto Mute Function

• Variable Volume Control

• ALC Auto Level Control

• Works w/ VHP-22

VhP-11

Swivel Ear Pad Single Channel IR Wireless Headphone

• Ear Pads fold at for seat pocket storage

• EVA hard carry case included

• Adjustable Headphone Straps for Comfort

• Receives Broadcasts up to 180 Degrees from Transmitter

• Mute Control

• MP-3 Player Input Via 3.5mm Jack

• On/Off Switch Saves Battery Life

• Auto Power Off Function

• Auto Mute Function

• Variable Volume Control

• ALC Auto Level Control

• Replacement for VHP-22

VhP-22

2 Swivel Ear Pad Single Channel IR Wireless Headphones with Transmitter

• Ear Pads fold flat for seat pocket storage

• EVA hard carry case included

• Adjustable Headphone Straps for Comfort

• Receives Broadcasts up to 180 Degrees from Transmitter

• Mute Control

• MP-3 Player Input Via 3.5mm Jack

• On/Off Switch Saves Battery Life

• Auto Power Off Function

• Auto Mute Function

• Variable Volume Control

• ALC Auto Level Control

• VHP-11 Replacement headphone

54

VhP-900

Swivel Ear Pad 2-Ch RF 900MHz Wireless Headphone

• Ear Pads fold flat for seat pocket storage

• Operational distance 100ft.

• Selectable Program Source Inputs

• EVA hard carry case included

• Adjustable Headphone Straps for Comfort

• Auto Mute Control

• Built-in Monitoring Function

• MP-3 Player Input Via 3.5mm Jack

• On/Off Switch Saves Battery Life

• Auto Power Off Function

• Variable Volume Control

• ALC Auto Level Control

• Replacement for VHP-90 02

VhP-9002

2 Swivel Ear Pad 2-Ch RF 900MHz Wireless Headphones with Transmitter

• Ear Pads fold flat for seat pocket storage

• Operational distance 100ft.

• Selectable Program Source Inputs

• EVA hard carry case included

• Adjustable Headphone Straps for Comfort

• Auto Mute Control

• Built-in Monitoring Function

• MP-3 Player Input Via 3.5mm Jack

• On/Off Switch Saves Battery Life

• Auto Power Off Function

• Variable Volume Control

• ALC Auto Level Control

• VHP-900 Replacement headphone

WEARABLES - P.O.P

t-ShiRtS

Soundstream T-shirts
Available in M, L, XL, XXL

CAPS

Soundstream caps, 1 size ts all

POlO ShiRtS

Soundstream Polo Shirts
Available in S, M, L, XL, XXL

SS bANNERS

Soundstream color banners

DRESS ShiRtS

Soundstream dress shirts
Available in S, M, L, XL

POStER bANNERS

Soundstream color poster banners

SliNG bAG

Soundstream sling bag
available in red or blue colors

PlAQUE

Soundstream dealer plagues,
black piano nish wood and
chrome Tarantula logo

biG SS tENt

Soundstream 10’ x 20’ tent for
out door shows & other occasions

SM StiCkER

Soundstream small sticker

lANYARD

Soundstream Lanyard

WiNDOW StiCkER

Soundstream large window sticker

55

56
