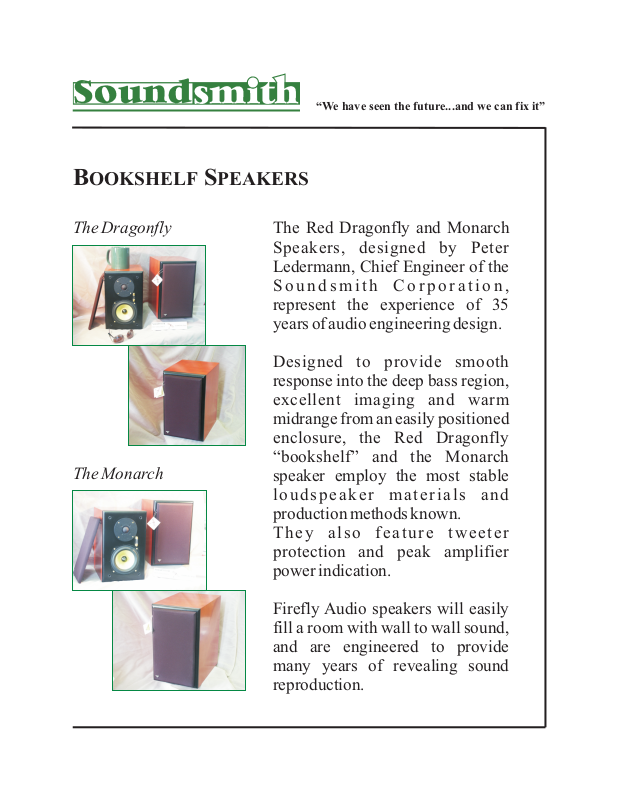

Page 1
BOOKSHELF SPEAKERS
“We have seen the future...and we can fix it”
The Dragonfly
The Monarch
The Red Dragonfly and Monarch
Speakers, designed by Peter
Ledermann, Chief Engineer of the
S o u n d s m i t h C o r p o r a t i o n ,
represent the experience of 35
years of audio engineering design.
Designed to provide smooth
response into the deep bass region,
excellent imaging and warm
midrange from an easily positioned
enclosure, the Red Dragonfly
“bookshelf” and the Monarch
speaker employ the most stable
loudspeak e r m a t e r i a l s and
production methods known.
They a l s o featur e t w eeter
protection and peak amplifier
power indication.
Firefly Audio speakers will easily
fill a room with wall to wall sound,
and are engineered to provide
many years of revealing sound
reproduction.
Page 2
TECHNICAL SPECIFICATIONS:
Soundsmith Bookshelf Speakers
DRAGONFLY MONARCH
Height
Width
Depth
Driver complement
Response
12 “
7.5 “
10.5 “
4.5 “ long throw woofer
wide bandwidth
1” diameter
wide bandwidth
dome tweeter
56 Hz - 22 KHz;
SPL 87 dB
(1 Meter 1/W on axis)
14 “
8.5 “
12.5 “
6 “ long throw woofer
wide bandwidth
1” diameter modified
wide bandwidth
dome tweeter
56 Hz - 22 KHz;
SPL 88 dB
(1 Meter 1/W on axis)
Both Loudspeakers can be upgraded
with Ribbon Tweeters
Available in Cherry or Beech true wood veneers
Sound
Peter Ledermann, President & Founder
8 John Walsh Blvd., Suite 417, Peekskill, NY 10566
Phone: (914) 739-2885 w Fax: (914)-739-5204
WWW.SOUND-SMITH.COM
