Sound
“We have seen the future...and we can fix it”

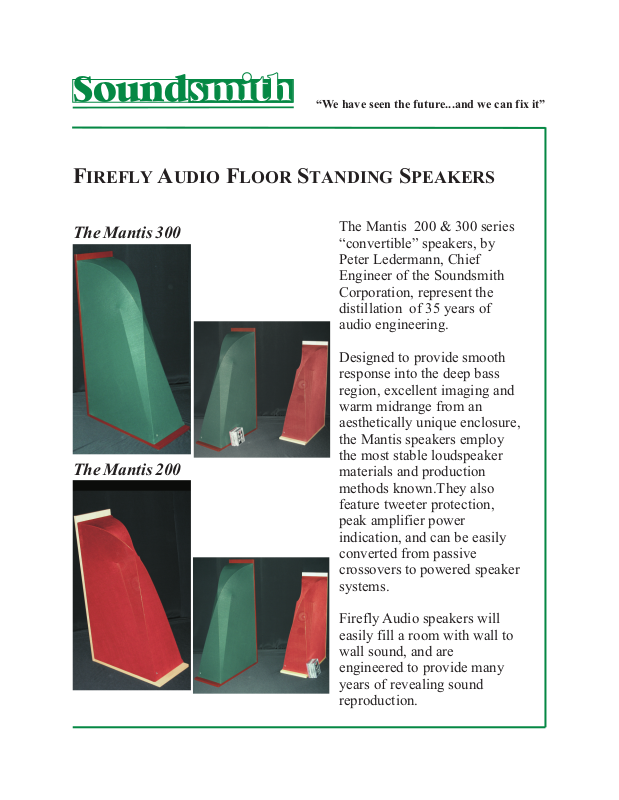

FIREFLY AUDIO FLOOR STANDING SPEAKERS
The Mantis 300
The Mantis 200
The Mantis 200 & 300 series
“convertible” speakers, by
Peter Ledermann, Chief
Engineer of the Soundsmith
Corporation, represent the
distillation of 35 years of
audio engineering.
Designed to provide smooth
response into the deep bass
region, excellent imaging and
warm midrange from an
aesthetically unique enclosure,
the Mantis speakers employ
the most stable loudspeaker
materials and production
methods known.They also
feature tweeter protection,
peak amplifier power
indication, and can be easily
converted from passive
crossovers to powered speaker
systems.
Firefly Audio speakers will
easily fill a room with wall to
wall sound, and are
engineered to provide many
years of revealing sound
reproduction.
Page 2
TECHNICAL SPECIFICATIONS:
Soundsmith Floor Standing Speakers
Height
Width
Depth
Driver complement
MANTIS 200
35.875 “
10.625 “
21.5 “
Dual 8” high power
woofers
with neoprene surrounds
4“ long throw ultra-wide
bandwidth midrange
1” diameter modified
wide bandwidth
dome tweeter
MANTIS 300
42.25 “
11.75 “
24.75 “
Dual 10” high power
woofers
with neoprene surrounds
6“ long throw ultra-wide
bandwidth midrange
1” diameter modified
wide bandwidth
dome tweeter
Response
Available in Cherry or Maple true wood veneers in 10 fabric color choices.
Both models can be easily converted to powered, tri-amped versions simply
by unplugging the rear external crossover and plugging in our tri-amp
amplifier/EQ module.
48 Hz - 22 KHz;
SPL 90 dB
(1 Meter 1/W on axis)
Sound
Peter Ledermann, President & Founder
8 John Walsh Blvd., Suite 417, Peekskill, NY 10566
Phone: (914) 739-2885 w Fax: (914)-739-5204
WWW.SOUND-SMITH.COM
42 Hz - 22 KHz;
SPL 91 dB
(1 Meter 1/W on axis)
