WF-U11
Plug & Play Wireless
Microphone System
BATT
ON
MUTE
OFF
UHF PLUG & PLAY WIRELESS SYSTEM
POWER RF
0 10
VOLUME
USER MANUAL
MANUALE utente
Please read this manual carefully and proper take care of this manual.
Leggete questo manuale e conservatelo per future consultazioni!
Dear customer,
First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument, professional audio and lighting users offering
a wide range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible improvements to introduce in the next future. Go to our website www.soundsationmusic.
com and send an e-mail with your opinion, this will help us to build instruments ever
closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
Gentile Cliente,
Grazie per aver scelto un prodotto SOUNDSATION®. La nostra missione è quella di
offrire ai nostri utenti una vasta gamma di strumenti musicali ed apparecchiature audio
e lighting con tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, saremmo
lieti di ricevere un vostro feedback sulla qualità del prodotto al ne di migliorare costantemente la nostra produzione. Visitate il nostro sito www.soundsationmusic.com ed
inviateci una mail con la vostra opinione, questo ci aiuterà a sviluppare nuovi prodotti
quanto più vicini alle vostre esigenze.
Un’ultima cosa, leggete il presente manuale al ne di evitare danni alla persona ed al
prodotto, derivanti da un utilizzo non corretto.
Il Team SOUNDSATION
ENGLISH
TABLE OF CONTENTS
1. UNPACKING ...............................................................................................................6
2. ACCESSORIES .............................................................................................................6
3. OVERVIEW .................................................................................................................. 6
4. MAIN FEATURES ........................................................................................................7
5. RECEIVER CONTROLS AND FUNCTIONS .................................................................7
6. HANDHELD MICROPHONE FUNCTIONS ................................................................8
6.1. Hand-held Microphone Using Technique ....................................................................................................9
7. POCKET TRANSMITTER AND HEADSET..................................................................9
8. SYSTEM INSTALLATION ..........................................................................................10
9. AUDIO CABLES .........................................................................................................11
10. SPECIFICATIONS ......................................................................................................12
11. WARRANTY AND SERVICE .....................................................................................13
12. WARNING.................................................................................................................13
3
ENGLISH
IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sufcient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING:
CAUTION:
Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
Describes precautions that should be observed to prevent danger of
the apparatus.
WF-U11 User manual
TAKING CARE OF YOUR PRODUCT
f Read these instructions
f Keep these instructions
f Heed all warning
f Follow all instructions
Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat.
4
ENGLISH
WF-U11 User manual
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Do not defeat
the safety purpose of the polarized or grounding-type plug. A polarized plug has two
poles; a grounding-type plug has two poles and a third grounding terminal. The third
prong is provided for your safety. If the provided plug does not t into your outlet, refer
to an electrician for replacement.
Power Supply
In case of external power supply, the apparatus should be connected to the power supply only of the type as marked on the apparatus or described in the manual. Failure to
do could result in damage to the product and possibly the user. Unplug this apparatus
during lightning storms or when unused for long periods of time.
Fuse
To prevent the risk of re and damaging the unit, please use only of the recommended fuse type as described in the manual. Before replacing the fuse, make sure the unit
turned off and disconnected from the AC outlet.
Electrical Connection
Improper electrical wiring may invalidate the product warranty.
Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzol or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
Warning
Please remember the high sound pressure do not only temporarily damage your sense
of hearing, but can also cause permanent damage. Be careful to select a suitable volume.
Interference from cell phone
Using a cell phone near the wireless system can induce noise. If this occurs, move the
cell phone further away from the components of the wireless system.
5
ENGLISH
WF-U11 User manual
1. UNPACKING
WF-U11 system is composed by following parts:
WF-U11H WF-U11P
f 1x Receiver
f 1x External Power Adapter
f 1x Hand Transmitter
f 2x 1.5V AA-type batteries
f This User Manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep
in a safe place the original packaging material for future use.
2. ACCESSORIES
SOUNDSATION can supply a wide range of quality accessories that you can use with
your WIREFREE Series wireless microphone systems, like Cables, Mixers, Speakers, Am-
pliers, Stands, etc.
All products in our catalogue has been long tested with this device so we recommend
to use Genuine SOUNDSATION Accessories and Spare Parts.
f 1x Receiver
f 1x External Power Adapter
f 1x Pocket Transmitter
f 1x Headset Microphone
f 2x 1.5V AA-Type Batteries
f This User Manual
Ask your SOUNDSATION dealer for any accessories you could need to ensure best
performance of the product.
3. OVERVIEW
SOUNDSATION WF-11 is the answer to all those who need a reliable, high-quality
sound, and easy to use wireless microphone system. Ideal in educational, Portable
Sound, Public Address, and DJ contexts, the WF-11 impresses with its brilliant and warm
sound, thanks to the quality of components and the capsule designed for all applica-
tion. WF-U11 systems are available in 2 congurations:
WF-U11H
• 1x UHF Receiver
• 1x Hand Transmitter with Dynamic Cardioid Capsule
WF-U11P
• 1x UHF Receiver
• 1x Pocket Transmitter
• 1x Headset Microphone with Dynamic Cardioid Capsule
6
ENGLISH
WF-U11 User manual
4. MAIN FEATURES
f UHF Transmission with SMD Technology
f 4 available Frequencies in free-license ISM Europe Band (see “10. SPECIFICATIONS”
at page 12 for details).
f Simple user Interface for plug and play setup
f 30m ideal distance (without obstacles)
f Handheld microphone with high-quality dynamic cardioid capsule (WF-U11H only)
f Strong yet lightweight bodypack with professional headset microphone (WF-U11P
only)
f Professional and Lightweight Headset with high-sensibility dynamic cardioid capsule
(WF-U11P only)
5. RECEIVER CONTROLS AND FUNCTIONS
5
1
UHF PLUG & PLAY WIRELESS SYSTEM
POWER RF
7 86
1. Power Switch: It switches on and off the receiver.
432
0 10
VOLUME
7
ENGLISH
WF-U11 User manual
2. Power ON LED: When the unit in switched on it is lit.
3. RF LED: When lit, it means that a transmitter is active and the unit receive a ra-
dio-frequency signal. If this LED is off even though the transmitter is powered on, it
means that batteries are low, or transmitter and receiver frequency aren’t matched.
4. Volume Knob: It increases or decreases the output level of BALANCED and MIX
outputs.
5. Antenna: It receives RF signals from the transmitter.
6. Mix Output: It is the unbalanced audio line output with ¼” Jack to use in case of
connection to mixers or audio equipment with unbalanced connections.
7. Balance Output: It is the balanced XLR audio line output to connect to your mixer
or audio system. For more details about the internal wiring of balanced cables,
refer to paragraph “9. AUDIO CABLES” at page 11.
8. DC Input: Connect here the external power supply (12V – 500mA).

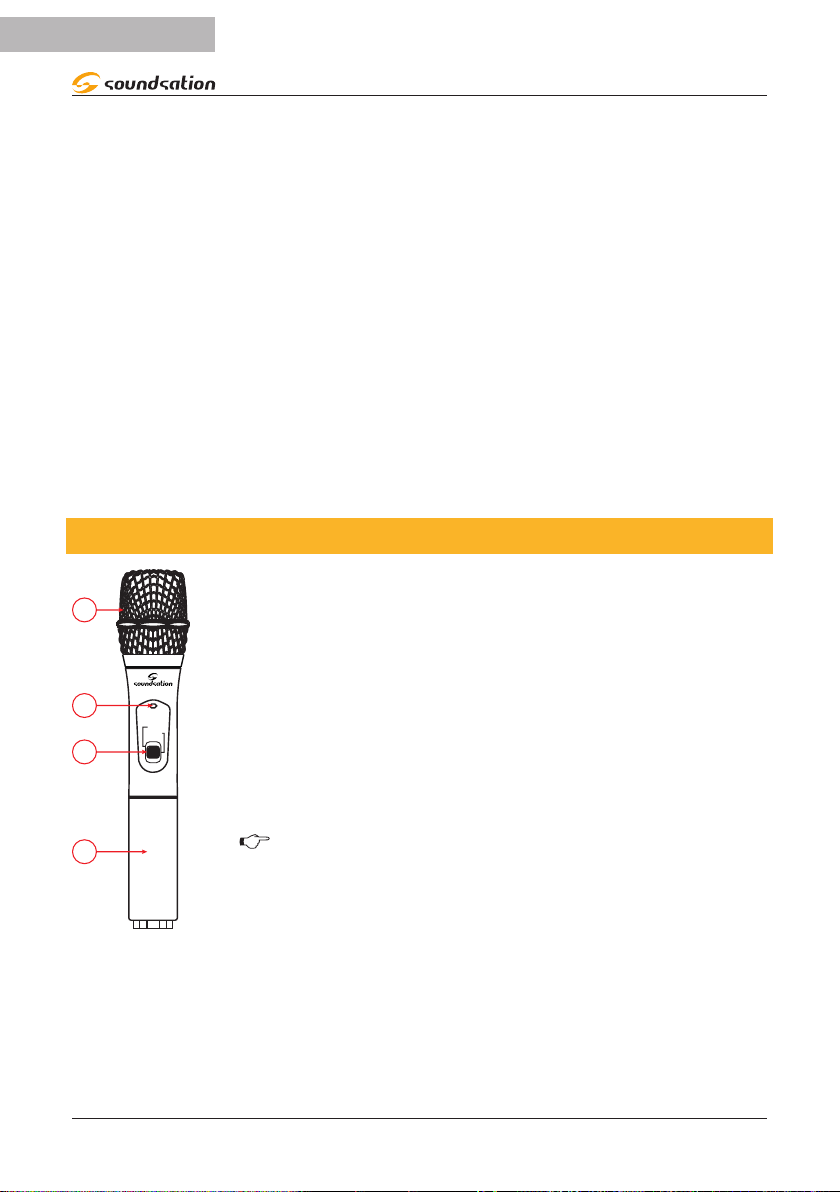

6. HANDHELD MICROPHONE FUNCTIONS
WF-U11H system features a handheld transmitter with profession-
9
al dynamic cardioid capsule. Below there’s a quick description of
main parts.
9. Grille: It protects the microphone capsule. Never remove it to
prevent damage to the internal parts of the microphone.
11
10
BATT
MUTE
ON
10. ON/MUTE/OFF Selector: This selector has 3 positions.
When it’s all to the OFF position, the microphone is turned
OFF
off; when it is MUTE position, the microphone is active but
the audio is disabled; nally, when it’s all to ON position, the
microphone is working and the audio is active.
12
NOTE: Standby central position allows the unit to
transmit without audio. This option is important to prevent
interference in the receiver due to the absence of a radio
transmitting signal. It is, therefore, suggested to ALWAYS use
this standby position when you temporarily don’t sing or play
but the wireless microphone is connected to an audio system
(e.g. during a pause in a show). You can move the switch to OFF position (all
down) only when you are sure that the sound system volume is low.
11. Power LED: It briey lights up when the transmitter is on. In case of battery low,
it keeps on lighting, warning that you need to replace the batteries as soon as
possible.
8
ENGLISH
WF-U11 User manual
12. Battery Slot: unscrew the cover to access battery-compartment and insert or
replace the batteries. Use two 1.5V AA-Type batteries, paying attention to correct
polarity (indicated on bottom of this battery compartment).
6.1. Hand-held Microphone Using Technique
f Don’t hold the microphone grill.
BATT
ON
MUTE
OFF
BATT
ON
MUTE
OFF
BATT
ON
MUTE
OFF
f Avoid holding the microphone on antenna position.
BATT
ON
MUTE
OFF
Antenna
position
BATT
ON
MUTE
OFF
Antenna
position
BATT
ON
MUTE
OFF
f Don’t hold two microphones together
BATT
ON
BATT
MUTE
ON
MUTE
OFF
OFF
ATTENTION: Operating distance between microphone grill and mouth must be
less than 15cm
f Avoid direct the microphone toward a speaker to avoid Larsen effect, which could
damage your audio system.
7. POCKET TRANSMITTER AND HEADSET
13. Microphone Input: Plug here the headset audio connector.
14. Power LED: It lights up when the transmitter is on.
15. ON/MUTE/OFF Selector: This selector has 3 positions. When it’s all to the OFF
position, the microphone is turned off; when it is MUTE position, the microphone
9
