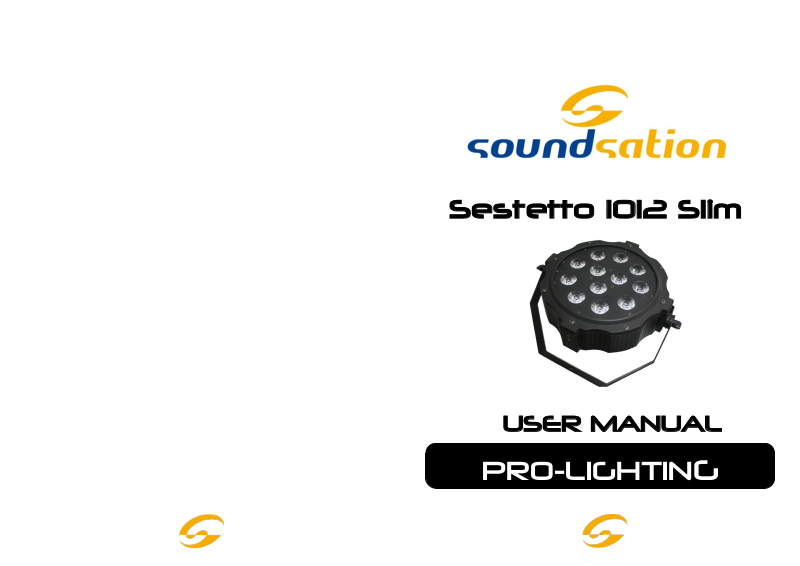

Page 1
PRO-LIGHTING
Sestetto 1012 Slim
USER MANUAL
Page 2
Dear customer，
first of all thanks for purchasing a SOUNDSATION® product. Our
mission is to satisfy all the possible needs of musical instrument and
professional audio users offering a wide range of products using the
latest technologies for a reasonable price.
We hope you will be satisfied with this item and, if you want to
collaborate, we are looking for a feedback from you about the
operation of the product and for possible improvements to introduce
in the next future. Go to our website www.soundsationmusic.com and
send an e-mail with your opinion, this will help us to build instruments
ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an
incorrect operation can cause damages to you and to the unit. Take
care!
The SOUNDSATION Team
WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household
waste, according to the WEEE Directive ( 2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an
authorized one-for-one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic equipment (WEEE) .
Improper handling of this type of waste could have a possible negative impact on the
environment and human health due to potentially hazardous substances that are
generally associated with EEE. At the same time , your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for
recycling , please contact your local city office , waste authority , approved WEEE
scheme or your household waste disposal service.
Contents and images shown on this manual can be changed without any notice.
Please visit our website www.soundsationmusic.com to check latest version.
DESIGNED IN ITALY BY SOUNDSATION®
All the Trademarks are property of their respective owners
SOUNDSATION® is a registered trademark of
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati – Italy
© SOUNDSATION 2012 – All rights reserved – All total or partial reproduction of this
manual by any other company or person without express authorization of
SOUNDSATION is strictly forbidden
Page 3
WARRANTY & SERVICE
GENERAL WARNINGS
To prevent possible damages read the following list of actions:
- Do not place the product in wet or dirty environments.
- Do not remove the protective coverings.
-Do not cover any of the productss ventilation holes.
- Air must circulate freely around the product.
- Do not set the product on a surface with excessive vibration.
- Do not expose the product to high electro-magnetic interference.
- Do not expose the product to heat, cold, wet in improper way in
respect to its IP grade
- Do not leave the product in direct sunlight.
- Do not expose the product to electrostatic forces.
- Do not place items with flames, such as candles or lighters, on the
product.
- Do not place the product on anything containing water or other
fluids.
All SOUNDSATION products feature a limited two-year warranty.
This two-year warranty is specific to the date of purchase as shown
on your purchase receipt.
The following cases/components are not covered from the above
warranty :
Any accessories supplied with the product
Improper use
Fault due to wear and tear
Any modification of the product effected by the user or a third
party
SOUNDSATION shall satisfy the warranty obligations by remedying
any material or manufacturing faults free of charge at
SOUNDSATION’s discretion either by repair or by exchanging
individual parts or the entire appliance. Any defective parts removed
from a product during the course of a warranty claim shall become
the property of SOUNDSATION
While under warranty period, defective products may be returned to
your local SOUNDSATION dealer together with original proof of
purchase. To avoid any damages in transit, please use the original
packaging if available. Alternatively you can send the product to
SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017
Porto Recanati - Italy . In order to send a product to service center you
need an RMA number. Shipping charges have to be covered by the
owner of the product.
For further information please visit www.soundsationmusic
If any foreign objects enter the instrument, please contact
your dealer or an authorized SOUNDSATION center.
The serial number, electrical features and international
standards are printed on a label located in the bottom
of the instrument.
In case of problems remember to give the serial number
to the responsible of the technical assistance.
Page 4
Contents
Section 1.Getting Started
² Unpacking
² Safety Instruction
Section 2. Set Up
² Installation
² Controlling Board
² Machine Connection
Section 3. Troubleshooting
² Troubleshooting
Section 4. Reference
² Control Menu
Specification:
Voltage：AC110V-240V
Frequency：50/60Hz
Rated Power：150W
LED: 10WX12 RGBWA+UV
Control：DMX512
Beam angle: 25°(40
Channel: 11/7 channels (switchable)
Control Mode：
DMX/sound active/auto/ master-slave/manual
Level of Protection: IP20
Stock: Clean and Dry place
Running Temp.: 0°C~40°C
Weight: 2.8kg
Size:26*26*11.5cm(excluding bracket)
o
option)
² DMX Protocol
² Specification
Page 5
CH
Function
Description
CH1
Dimmer
RGBWA-UV linear dimmer, from dark to bright
CH2
R Dimmer
Red linear dimmer, from dark to bright
CH3
G Dimmer
Green linear dimmer, from dark to bright
CH4
B Dimmer
Blue linear dimmer, from dark to bright
CH5
A Dimmer
Amber linear dimmer, from dark to bright
CH6
U Dimmer
UV linear dimmer, from dark to bright
CH7
W Dimmer
White linear dimmer, from dark to bright
CH
Function
Description
CH1
Dimmer
RGBAW-UV dimmer, from dark to bright
CH2
R Dimmer
Red linear dimmer, from dark to bright
CH3
G Dimmer
Green linear dimmer, from dark to bright
CH4
B Dimmer
Blue linear dimmer, from dark to bright
CH5
A Dimmer
Amber linear dimmer, from dark to bright
CH6
U Dimmer
UV linear dimmer, from dark to bright
CH7
W Dimmer
White linear dimmer, from dark to bright
CH8
Flash
Color flash speed adjust, from slow to fast
CH9
ColorMix
Color mixing adjusting
CH10
Stand alone
0-60: shade 61-120: skip 121-180: shade, skip
181-240: sound active flash 241-255: skip by
sound
CH11
Stand alone
Speed
DMX 9 stand alone speed and sound active
speed adjusting, from slow to fast
DMX Protocol (7CH）
Section 1. Getting Started
² Unpacking
² Safety Instruction
Unpacking
" 1pc Fixture
" 1pc User Manual
DMX Protocol (11CH）
" 1pc Power Cable /4 fixtures
" 1pc Signal Cable
" 1pc daisy chain power cable
Thanks for using our range. Carefully unpack the box and check the contents to ensure that
all parts are present and in good conditions. If anything looks as if it has been damaged in
transit, notify the shipper immediately and keep the packing material for inspection. Again,
please save the carton and all packing materials. If a fixture must be returned to manufacturer,
it is important that the fixture be returned in the original manufacturer box and packing.
Page 6
No.
Menu
Function（press ENTER button）
1
r ---
r000-r255: R dimmer，from dark to light
2
g---
g000-g255:G dimmer， from dark to
light
The 6-
color’s
different
brightness
can mix
out all
kinds of
color
3
b---
b000-b255: B dimmer，from dark to
light
4
A---
A000-A255 ： Amber dimmer， from
dark to light
5
U---
u000-u255:uv dimmer，from dark to
light
6 n---
n000-n255:W dimmer，from dark to
light
7
F---
F000-F255:flash speed，from slow to
fast
8
C---
C000-C255:color shade speed，from slow to fast
9
J---
J000-J255: color skip speed，from slow to fast
10
S---
S000-S255:sound active speed, from slow to fast
11
d---
DMX11 channel mode, should link to DMX
controller
12
d.---
DMX7 channel mode, should link to DMX controller
For your safety，please read this user manual carefully before
operation. The machine should be operated by qualified engineer！
Safety Instruction
Section 4. Reference
² Control Menu
# Please conserve this manual as operation guidance. If you sell this product to other user,
please make sure that they also receive this user manual.
# Always make sure that you are connecting to the proper voltage and that the line voltage
you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
# The fixture is intended to indoor use only. To prevent risk of fire or shock, do not expose
fixture to rain or moisture. Make sure there are no flammable, explosive or corrosive
materials surrounded in 0.5 meter while operating.
# The unit must be installed in a location with adequate ventilation, at least 50CM away from
adjacent surfaces. Be sure that no ventilation slots are blocked.
# Do not operate at ambient temperatures higher than 104℉ (40℃).
# Safe wire should be used to install machine. Bearing of safe wire should be 3 times of the
machine weight. Complimentary signal cable transmits signals to 20 unit fixtures at most.
Signal amplifier is a must to connect more fixtures. Sectional area of complimentary power
cable is 1 ㎡. In daisy chain model, it allows to connect to 4 fixtures at most.
# Always disconnect from the power source before servicing or replacing fuse/lamp and be
sure to replace with same fuse/lamp size and type. Cut off power before moving, repairing
and cleaning the machine.
# Secure fixture using a safety chain and carrying handles. Never carry the fixture by its cord.
# In case of failure or misfunction occurred, stop using the unit immediately.
# Repairs carried out by unskilled people can lead to damage or malfunction. Buy the same
spare parts/components from manufacturer directly.
# To a vo id el e ct r ic shock, all fixtures must be connected to circuits with a suitable ground.
Make sure the power cord is never crimped or damaged. Do not power on and power off the
fixture in a short time. For your safety, do not touch fixture when running.
# When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source)
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact your local
distribution or after-sale service center.
² DMX Protocol
² Specification
Control Menu
Page 7
Probable cause(s)
Remedy
No response from
fixture when power is
applies
No power to fixture
Check power cables
Primary fuse blown
Replace fuse
Secondary fuse blown
Replace fuse
Fixture resets but does
not respond correctly to
controller(DMX mode
operation)
Controller not connected
Connect controller
Incorrect addressing of the
fixtures
Check address setting on fixture
and controller
Bad data link connection
Inspect cables and correct poor
connections and/or broken cables.
Conflict between tracking
and vector control
Eliminate scene cross-fade on
controller
Data link not terminated
Insert termination plug in output of
last fixture
Defective fixture or 2
devices transmitting on link
Bypass fixtures one at a time until
normal operation is regained:unplug
both connectors and connect them
directly together
Colors cannot be mixed
Random color mixing is on
Turn off random color mixing
Fixture does not reset
correctly
Electronic or mechanical
failure
Contact service technician
No light, lamp cuts out
intermittently,or burns
out too quickly
Lamp missing or blown
Disconnect fixture and replace lamp
Fixture or lamp is too hot
Allow fixture to cool. If problem
persists,contact service technician
Section 3. Troubleshooting
Section 2. Set Up
² Installation
² Controlling Board
² Machine Connection
Installation
This machine should be mounted through the screw holes of truss. Safety wire is a must to
fix fixture well. Make sure truss and safety wire have strong load capacity to bear 3 times
weight than fixture at least. This machine should be installed by qualified technician.
Controlling Board
Front display panel
1. Display
Display menu and selected function.
2. Button
Page 8
MENU
switch menu function
UP
On function: page up
On numerical value: increase value
DOWN
On function: page down
On numerical value: reduce value
ENTER
Settle selected function and value
Maximum 8 PCS fixtures connected by Daisy chain connection.
3. DMX signal input
Control model by DMX signal，please use 3pin XLR signal cable.
4. DMX Signal output
Transfer DMX signal to next model, please use 3pin XLR signal cable.
5. Power output
Connect to obtain power (attention：please use connect to stated voltage.)
6．Power input
Connect to obtain power
Machine Connection
A word on termination: DMX is a resilient communication protocol,
however errors still occasionally occur. Termination reduces signal errors, and therefore best
practices include use of a terminator in all circumstances. If you are experiencing problems
with erratic fixture behavior, especially over long signal cable runs, a terminator may help
improve performance.
To build your own DMX Terminator: Obtain a 120-ohm, 1/4-watt
resistor, and wire it between pins 2&3 of the last fixture. They are also readily available from
specialty retailers.
Master-Slave control model：
Set up one fixture as Master fixture(triggering),other fixtures as slave fixtures(receiving
trigger signals).Set up all fixtures same address value or following DMX controller
performance(Attention: all fixtures use the same DMX channel-7 or 11CH)
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connector on the other
end.
Loading...
