WARNING
PRO-LIGHTING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household
waste, according to the WEEE Directive ( 2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an
authorized one-for-one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic equipment (WEEE) .
Improper handling of this type of waste could have a possible negative impact on the
environment and human health due to potentially hazardous substances that are
generally associated with EEE. At the same time , your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for
recycling , please contact your local city office , waste authority , approved WEEE
scheme or your household waste disposal service.
Contents and images shown on this manual can be changed without any notice.
Please visit our website www.soundsationmusic.com to check latest version.
DESIGNED IN ITALY BY
All the Trademarks are property of their respective owners
SOUNDSATION® is a registered trademark of
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati – Italy
© SOUNDSATION 2012 – All rights reserved – All total or partial reproduction of this
manual by any other company or person without express authorization of
SOUNDSATION is strictly forbidden.
SOUNDSATION®

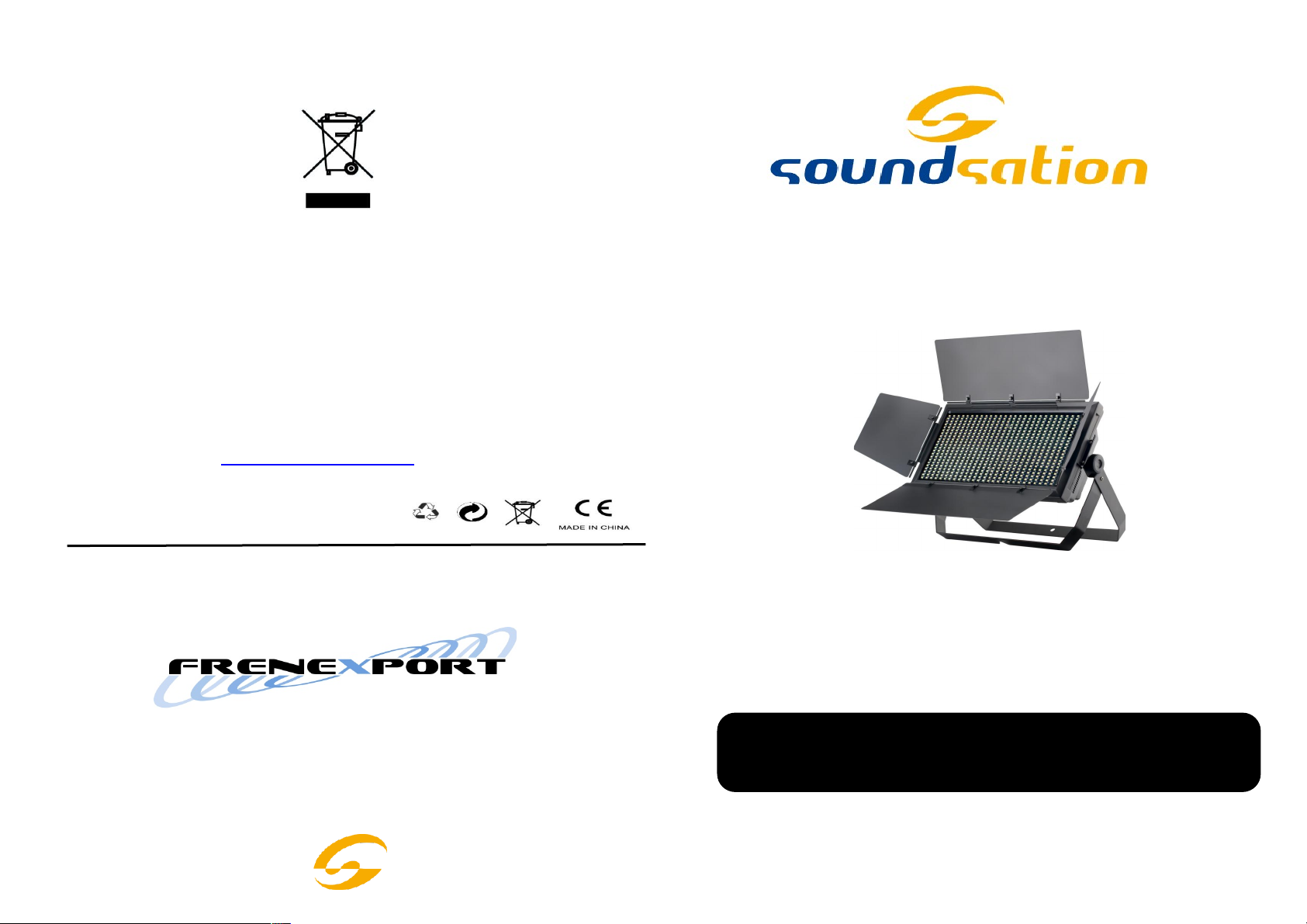

LIGHTBLASTER 616 LED
USER MANUAL
WA R R A N T Y & S E R V I C E
Dear customer，
first of all, thanks for purchasing a SOUNDSATION® product. Our
mission is to satisfy all the possible needs of musical instrument
and professional audio users offering a wide range of products
using the latest technologies for a reasonable price.
We hope you will be satisfied with this item and, if you want to
collaborate, we are looking for a feedback from you about the
operation of the product and for possible improvements to
introduce in the next future. Go to our website
www.soundsationmusic.com and send an e-mail with your opinion,
this will help us to build instruments ever closer to customer’s real
requirements.
One last thing: read this manual before using the instrument, an
incorrect operation can cause damages to you and to the unit. Take
care!
The SOUNDSATION Team
All SOUNDSATION products feature a limited two-year
warranty. This two-year warranty is specific to the date of
purchase as shown on your purchase receipt.
The following cases/components are not covered from the
above warranty :
Any accessories supplied with the product
Improper use
Fault due to wear and tear
Any modification of the product effected by the user or a third
party
SOUNDSATION shall satisfy the warranty obligations by
remedying any material or manufacturing faults free of charge at
SOUNDSATION’s discretion either by repair or by exchanging
individual parts or the entire appliance. Any defective parts
removed from a product during the course of a warranty claim
shall become the property of SOUNDSATION
While under warranty period, defective products may be returned to
your local SOUNDSATION dealer together with original proof of
purchase. To avoid any damages in transit, please use the original
packaging if available. Alternatively you can send the product to
SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017
Porto Recanati - Italy . In order to send a product to service center you
need an RMA number. Shipping charges have to be covered by the
owner of the product.
For further information please visit www.soundsationmusic
Specification
GENERAL WA R N I N G S
To p rev en t p os si ble d am ag es rea d th e fol low in g li st of a ct io ns :
- Do not place the product in wet or dirty environments.
- Do not remove the protective coverings.
-Do not cover any of the productss ventilation holes.
- Air must circulate freely around the product.
- Do not set the product on a surface with excessive vibration.
- Do not expose the product to high electro-magnetic
interference.
- Do not expose the product to heat, cold, wet in improper way
in respect to its IP grade
- Do not leave the product in direct sunlight.
- Do not expose the product to electrostatic forces.
- Do not place items with flames, such as candles or lighters, on
the product.
- Do not place the product on anything containing water or
other fluids.
LED source specification
Led source: 616*0.5W (warm white 3200K/pure white 6500K/cool whie 7500K)
Beam Angle： 110°
Control specification
Strobe: 0~30Hz
Dimmer : 1 standard +4 kinds of dimmer methods
Channel：9/7/2CH（switchable）
Control Mode：DMX512/Manual/Master-Slave/Sound active
Cooling way: 1pcs temperature detect fan
Over heat protection:
When temperature up to 80°C, power consumption reduce to 50%; when temp.
down to 65°C,will recover full power consumption to be 100% .
Noise:
Fan speed automatically adjust according machine temperature. The maximum
noise is 43.3dB(1m distance)
Working Specification
Voltage：AC110V-240V
Frequency：50/60Hz
Machine Power：300W
Machine Specification
Display:LED Display
DMX: 3 pin or 5 pin
4 barn-door: movable
IP: IP20
Net weight:4.5kg
Size:43*22*8.4 cm
If any foreign objects enter the instrument, please contact
your dealer or an authorized SOUNDSATION center.
The serial number, electrical features and international
standards are printed on a label located in the bottom
of the instrument.
In case of problems remember to give the serial number
to the responsible of the technical assistance.
Contents
Ramp Effect
Menu
Tup (ms )
Tdo wn( ms)
Standard Dimmer
Curve
dr-0 0 0
Dimmer Curve 1
dr-1
980
1010
Dimmer Curve 2
dr-2
1210
1320
Dimmer Curve 3
dr-3
1600
1710
Dimmer Curve 4
dr-4
1850
1980
Section 1.Getting Started
² Unpacking
² Safety Instruction
Section 2. Set Up
² Installation
² Controlling Board
² Machine Connection
Section 3. troubleshooting
² Troubleshooting
Section 4. Reference
² Control Menu
² DMX Protocol
Dimmer Curves
：
² Dimmer Curve
² Specification
Section 1.Getting Started
² Unpacking
² Safety Instruction
7CH：
CH
Function
Specification
CH1
DIMMER
0-255：dimmer linear adjustment，from dark to bright。
CH2
W1dimmer
0-255：W1 linear adjustment，from dark to bright
CH3
W2dimmer
0-255：W2 linear adjustment，from dark to bright
CH4
W3dimmer
0-255：W3 linear adjustment，from dark to bright
CH5
W4dimmer
0-255：W4 linear adjustment，from dark to bright
CH6
Strobe
0-5： no use 6-55 ： random strobe 56-105： pulse strobe
106-155：average strobe 156-205：thunder strobe 206-255：
standard strobe
CH7
Dimmer
mode/Macro
function
0-20：standard dimmer；21-40 dimmer curve 1;41-60： dimmer
curve 2;61-80： dimmer curve 3;81-100: dimmer curve 4；
101-149:no use ;150-155(stay 3 sec):half power when high
temperature function OFF;106-199: no use;200-205(stay 3
sec):half power when high temperature function ON; 206-255
no use
CH
Function
Specification
CH1
W dimmer
0-255：white linear adjustment，from dark to bright
CH2
Strobe
0-5：no use 6-55：random strobe 56-105：pulse strobe 106-155：
average strobe 156-205：thunder strobe 206-255 ： standard
strobe
For your safe, please read this user manual carefully before turn on
the fixture. This machine should be operated by qualified engineer！
2CH：
Unpacking
1pc Fixture
1pc User Manual
Thanks for choosing our LED strobe serial products. Carefully unpack the box and
check the contents to ensure that all parts are present and in good conditions. If
anything damaged in transit, notify the shipper immediately and keep the packing
material for inspection. Again, please save the carton and all packing materials. If a
fixture must be returned to manufacturer, it is important that the fixture be returned in
the original manufacturer box and packing.
Safety
Instruction
Please conserve this manual as operation guidance. If you sell this product to other
user, please make sure that they also receive this user manual.
" Always make sure that you are connecting to the proper voltage and that the line
voltage you are connecting to is not higher than that stated on the decal or rear
panel of the fixture.
" If the fixture is intended to indoor use only. To prevent risk of fire or shock, do not
expose fixture to rain or moisture. Make sure there are no flammable, explosive or
corrosive materials surrounded in 10 meters while operating.
" The unit must be installed in a location with adequate ventilation, at least 5 m away
from adjacent surfaces. Be sure that no ventilation slots are blocked.
" Some fixture may carry high heat, do not aim at objective more than 2 minutes.
" Safe rope should be used to install machine. Bearing of safe rope should be more
than 3 times of the machine weight. Complimentary signal cable transmits signals
to 20 unit fixtures at most. Signal amplifier is a must to connect more fixtures. And a
terminal should be added at the end of last fixtures’ DMX sockets, 120 Ohm, 1/4W
resistance need welding between Pin 2 and Pin 3.
" Always disconnect from the power source before servicing or replacing fuse/lamp
CH
Function
Specification
CH1
DIMMER
0-255：dimmer linear adjustment，from dark to bright。
CH2
W1dimmer
0-255：W1 linear adjustment，from dark to bright
CH3
W2dimmer
0-255：W2 linear adjustment，from dark to bright
CH4
W3dimmer
0-255：W3 linear adjustment，from dark to bright
CH5
W4dimmer
0-255：W4 linear adjustment，from dark to bright
CH6
Strobe
0-5 ： no use 6-55 ： random strobe 56-105： pulse strobe
106-155：average strobe 156-205：thunder strobe 206-255：
standard strobe
CH7
Auto/voice-
control
0-10：no use ；11-40：fade 1；41-70：fade 2；71-100：fade 3；
101-130：pulse change 1；131-160：pulse change 2；161-190：
pulse change 2；191-220：strobe by voice control；221-255：
pulse change by voice control.
CH8
Auto speed
0-255：adjustment of speed of Auto and voice-control, from slow
to fast。
CH9
Dimmer
mode/Macr
o function
0-20：standard dimmer；21-40 dimmer curve 1;41-60： dimmer
curve 2;61-80： dimmer curve 3;81-100: dimmer curve 4；
101-149:no use ;150-155(stay 3 sec):half power when high
temperature function OFF;106-199: no use;200-205(stay 3
sec):half power when high temperature function ON; 206-255 no
use
and be sure to replace with same fuse/lamp size and type. Cut off power before
moving, repairing and cleaning the machine.
" To avoid electric shock, all fixtures must be connected to circuits with a suitable
earth connection.
" Always secure fixture using a safety chain and carrying handles.
" Do not operate at ambient temperatures higher than 104℉(40℃).
" The power cable for this fixture is 1 ㎡， please mind the safety requirements in
actual using, if any wrong operation, our company takes no responsibility for any
loss. Also, make sure the power cord is never crimped or damaged.
" In case of failure or mis-function occurred, stop using immediately. Never try to
repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Buy the same spare parts/components from manufacturer directly.
" Avoid direct eye exposure to the light source while it is on.
" Do not power on and power off the fixture frequently
" When use DMX controller, please make sure that there is no interference
sources(e.g. intercom, high frequency radio waves and radiation source)
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your local distribution or after-sale service center.
DMX protocol
9CH：
Section 2. Set Up
² Installation
² Controlling Board
² Machine connection
Installation
l This machine should be mounted through the screw holes of truss. Safety rope
is a must to fix fixture well. Make sure truss and safety rope have strong load
capacity to bear more than 3 times of machine weight .
l This machine should be installed by qualified technician.
Section 4. Reference
No.
Menu
Function
1
D9--
DMX 9 channel control(need connecting controller)
2
D.7--
DMX 7 channel control(need connecting controller)
3
A2--
DMX 2 channel control(need connecting controller)
4
n---
n000 to n255：white from dark to bright
5
F---
F000 to F255：strobe，from slow to fast
6
C---
C000 to C255：fade，from slow to fast。
7
J---
J000 to J255：pulse change，from slow to fast
8
S---
S000 to S255：voice-control speed，from slow to fast
9
T---
half power when high temperature function ON，half power when
high temperature function OFF.（non business of fan）； When
temperature up to 80°C, power consumption reduce to 50%; when
temp. down to 65°C,will recover full power consumption to be
100% .
10
dr--
dr-0：standard dimmer；dr-1：dimmer curve 1；dr-2：dimmer
curve2；dr-3：dimmer curve 3；dr-4：dimmer curve 4；
Menu
Switch menu function
UP
Scroll upwards
DOWN
Scroll downwards
ENTER
Confirm by pressing ENTER
² Control Menu
² DMX Protocol
² Dimmer Curve
² Specification
Controlling Board
Control Menu
MENU UP DOWN ENTER
Front display panel
1. LED Display Panel
2. Buttons
3. DMX Signal Input
3 PIN XRL port for DMX512 signal input ( daisy chain);
4. DMX signal output
3 PIN XRL Port for DMX512 signal output ( daisy chain);
5. Power Input
AC power cable port input
6. Fuse
7. On/Off Switch
Problem
Probable Cause(s)
Remedy
No response from
fixture when power
is applies
No power to fixture
Check power cables
Primary fuse blown
Replace fuse
Secondary fuse
blown
Replace fuse
Fixture resets but
does not respond
correctly to
controller(DMX
mode operation)
Controller not
connected
Connect controller
Incorrect
addressing of the
fixtures
Check address setting on fixture and controller
Bad data link
connection
Inspect cables and correct poor connections
and/or broken cables.
Conflict between
tracking and vector
control
Eliminate scene cross-fade on controller
Data link not
terminated
Insert termination plug in output of last fixture
Defective fixture or
2 devices
transmitting on link
Bypass fixtures one at a time until normal
operation is regained: unplug both connectors
and connect them directly together
Colors cannot be
mixed
Random color
mixing is on
Turn off random color mixing
Fixture does not
reset correctly
Electronic or
mechanical failure
Contact service technician
No light, lamp cuts
out intermittently, or
burns out too
quickly
Lamp missing or
blown
Disconnect fixture and replace lamp
Fixture or lamp is
too hot
Allow fixture to cool. If problem persists,
contact service technician
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connector on the other
end.
A word on termination: DMX is a resilient communication protocol, however errors still
occasionally occur. Termination reduces signal errors, and therefore best practices include use
of a terminator in all circumstances. If you are experiencing problems with erratic fixture
behavior, especially over long signal cable runs, a terminator may help improve performance.
To bu i ld yo ur o wn DM X Te rm i na t or: Obtain a 120-ohm, 1/4-watt resistor, and wire it between
pins 2&3 of the last fixture. They are also readily available from specialty retailers.
Master and slave: select one machine as master, press the menu to choose the
function you want. Press other machines’ address to be DMX state. Use signal
cable to connect machines one by one. Then slave machines will run the same
as master machine.
Use controller to control lot of machines: if all machines are set the same menu
data, or different manual data, after use signal cable to connect to controller, all
machines will be controlled by controller. (before connect to controller, all
machines should be in the same channel mode 9 CH,7 CH or 2 CH).
Section 3. Troubleshooting
Loading...
