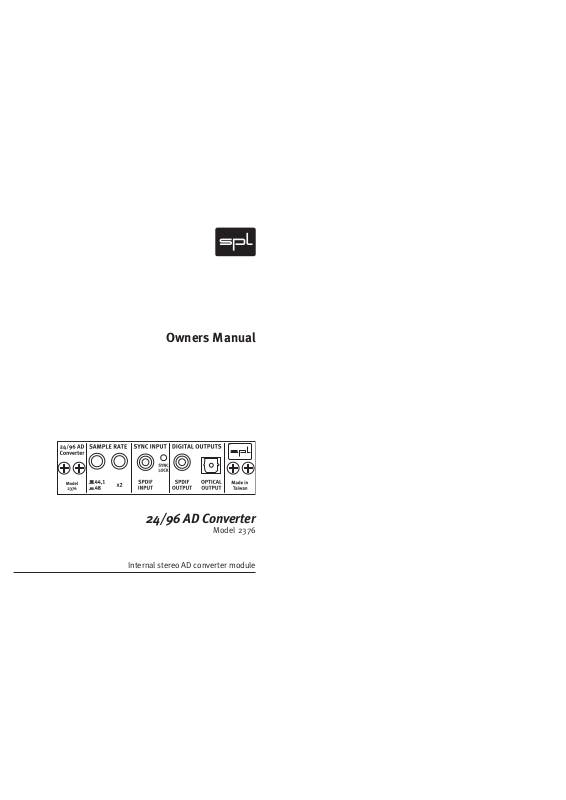

Owners Manual
24/96 AD Converter
Model 2376
Internal stereo AD converter module
Owners Manual 24/96 AD-Converter
Versi on 1.0 – 6/2003
Designer: Ruben Tilgner
This manual contains a description of the product. It in no
way represents a guarantee of particular characteristics
or results of use. The information in this document has
been carefully compiled and verified and, unless otherwise
stated or agreed upon, correctly describes the product at
the time of packaging with this document.
Sound Performance Lab (SPL) continuously strives to
improve its products and reserves the right to modify the
product described in this manual at any time without prior
notice. This document is the property of SPL and may not
be copied or reproduced in any manner, in part or fully,
without prior authorization by SPL.
SPL electronics GmbH
Sohlweg 55
41372 Niederkruechten
Germany
Tel . +49 ( 0)2163 983 40
Fax +49 ( 0)2163 983 420
Email: info@soundperfor mancelab.com
www.soundperformancelab.com
© 2003 SPL electronics GmbH. All rights reserved. Names of other
companies and their products are trademarks of their respective
owners.
Model 2376
2
24/96 AD Converter 2376
Safety instructions 4
Product features 4
Packing list 5
Installation – general instructions/adapter plate 5
Installation – step-by-step 6
Connections - inputs and outputs 8
Operation 9
Tec hnic al s pec ifi cat ions 10
Warrant y 11
Contents
24/96 AD Converter 2376
3
Safety instructions
Product features
• Please refer to the safety instructions in the manual of the
unit in which you will be installing the converter.
• When installing the converter, carefully follow the instructions beginning on page 5. If you are uncertain, plea se ask
a qualified technician or your SPL dealer for assistance.
The 24/96 AD Converter module is an optional digital output
for compatible SPL devices* with a plug-and-play design
for easy installation. It offers an S/P-DIF output with both
coaxial and optical connectors in par allel.
The heart of the module is a 24-bit converter by AKM® with
a variable sample rate of up to 96 kHz. The sample rate
can be switched between 44.1, 48, 88.2 and 96 kHz. Highly
accurate quart z oscillators ensure a clean, low-jitter master
clock.
The converter can be synced to other digital devices via
the SYNC input. If a valid signal is present, the converter
automatically conforms to the sample rate received at the
SYNC input. A yellow LED illuminates to display a valid sync
signal. The internal oscillators are automatically disabled
when an external clock signal is present to prevent interference.
An extremely effective voltage stabilizing circuit ensures
that the converter continuously receives sufficient and
stable voltage – an important prerequisite for clean, transparent audio.
The compact design of the input stage guarantees the
shortest possible signal path to the converter. Oversized
grounding surfaces on both sides of the circuit board effectively reduce interference and ensure optimal separation
between analog and digital components.
* Currently Track One Model 2058, Channel One Model
9945, GainStation 1 Model 2272, Kultube Model 2049
4
24/96 AD Converter 2376
• 24/96 AD Converter Module
• Two each M3 screws, nuts and washers
• Adapter plate
• Manual
Packing list
General instructions/adapter plate
The SPL AD Converter Module Model 2376 (falsch in deutschem Text) is designed strictly as an option for compatible SPL devices. If you are not a technician or do not have
sufficient experience with electronic repairs or modifications, we highly recommend that you ask a technician or
your SPL dealer for assistance.
• Before installing the module, discharge any static electricity by deactivating the ground lift switch on the rear
panel of the respective SPL device and touching the unit‘s
casing.
• Disconnect the power cable as well as any other cables
from the SPL unit.
• Handle the converter module with care, avoiding contact
with the components. Hold the module by the panel or
the edges of the circuit board only. Do not use force or
exert excess pressure when connecting the module to the
device.
Adapter plate
Most converter-ready SPL devices are designed to accept
one of two various converter modules. The 2376 is the
smaller of the two, so that in most cases it must be attached
to the adapter plate using the included M3 screws, washers
and nuts before it can be mounted in the rear-panel option
slot on the SPL device.
24/96 AD Converter 2376
Installation
5
Installation
Steps 1 & 2 (example shown: Channel One)
Step 1: Lay the converter module on the top of the device
as illustrated. Loosen the screws and remove the cover of
the option slot on the dev ice‘s rear panel.
Socket
Step 2: Remove the strap holding the cable from the inside
of the option slot cover. You may have to (carefully) cut
through the drop of silicone.
Socket
Plug
6
24/96 AD Converter 2376
Steps 3 & 4 (example shown: Channel One)
Step 3: Carefully and without twisting it, plug the cable
from the device into the slot on the converter module. The
plug only fits one way into the slot.
Step 4: Without turning it, insert the module into the device
(circuit board up) and fasten it using the screws from
the option slot cover. Cong ratula tions! Your new converter
module is now ready for operation.
Installation
24/96 AD Converter 2376
7
Connections
Inputs & Outputs
Input: SYNC INPUT
The SYNC input allows you to feed an external signal into
the converter to control the sample rate. Connect an S/P-DIF
output from your master source (e.g. sound card) to the
SYNC input. The 2376 is not equipp ed to a ccept Word Cl ock
for synchronization.
The yellow SYNC LOCK LED illuminates when a valid sync
signal is present at the SYNC input, and the converter is
automatically synchronized to the external sample rate.
The internal oscillators are automatically disabled when an
external clock signal is present to prevent interference. If
the sync signal is no longer present (e.g. in the case of a
dropout), the converter automatically reverts to the sample
rate selected via the buttons (see page 9).
Additional input with single-channel devices
If the 24/96 AD Converter is installed in a single-channel
SPL device such as the GainStation 1, Channel One or Track
One, the second channel of the stereo converter can be
used via the additional analog AD converter input on the
device‘s rear panel. This allows you to „daisy-chain“ two
preamps or channel strips through one converter, or route
any other single-channel analog signal to the converter‘s
second channel. For additional information please see the
manual for the SPL device you are upgrading.
Double S/P-DIF output: RCA and optical
The converted signal is routed in parallel to the RCA and
optical outputs. The digital signal is transferred in professional S/P-DIF format without sample rate data in the status
block.
We recommend that you check the documentation on your
receiving device to ensure that it can process the professional S/P-DIF format (some devices only accept consumer
format). If your receiving device does not identify the
sample rate, it most likely needs the status-block data
and does not automatically recognize the incoming sample
rate.
8
24/96 AD Converter 2376
Sample Rate
Sample rate selection
The 24/96 AD converter module allows you to select
between the four most common sample rates: 44.1, 48,
88.2 and 96 kHz.
Using the 44.1/48 button, select one of the two basic
sample rates (out: 44.1 kHz; in: 48 kHz). The x2 button
doubles these sample rates to select 88.2 or 96 kHz respectively.
Operation
24/96 AD Converter 2376
9
Technical specifi cations
Sample rates: 44.1, 48, 88.2, 96 kHz
Dynamic range: 104 dB (A-weighted)
THD+N (@-1 dBFS/1 kHz): 95 dB
Frequency response (48 kHz): 10 Hz-22kHz, ±0.2 dB
Jitter (average; 70 0 Hz-100 kHz): < 300 ps
Power consumption +15 V: max. 94 mA
Power consumption -15 V: max. 5 mA
Dimensions (W x H x D): 100 x 27 x 76 mm
(3.94 x 1.06 x 3 in.)
Weight: 74 g (2.6 oz.)
10
24/96 AD Converter 2376
SPL products are manuf actured using carefully selec ted components
and materials and state-of-the-ar t production technology. Every SPL
product is thorough inspected and tested before leaving the factory,
including acoustic and elect ronic testing.
SPL warrantees the SPL 24/96 AD Conver ter Model 2376 to be free of
defects in materials or workmanship for a period of 24 months after
the date of purchase. Should any trouble caused by defects in materials or workmanship develop during this period, SPL will repair or, at
our option, replace the product at no charge. Should SPL choose to
replace the product, we reser ve the right to replace it with a newer
model.
In order to validate your war ranty, you must either return the enclosed
warranty registration card, completely filled out, to SPL, or reg ister
your product online within 14 days of purchase. You may register your
product online at ww w.soundperfor mancelab.com or, in the USA or
Canada at www.spl-usa.com.
The warranty period begins on the date of purchase. The warranty is
non-transferable. Repairs or replacements do not extend the warranty
period.
This warranty does not apply if:
• the product was not purchased from an authorized SPL dealer
• repairs are required due to normal wear and tear
• the product has been abused, misused or improperly maintained,
or if repairs or alterations have been made or attempted by any
other than authorized SPL service personnel
• the serial number has been removed or defaced
In no event shall SPL be liable for any indirect, incidental or consequential damages from the sale or use of this product, either during
or after the warrant y period.
SPL disclaims liability for any implied warranties, including implied
warranties of merchantability and/or fitness for a specific purpose,
after the warranty period.
This warranty gives you specific legal rights. You may have other
rights, which vary from country to country and state to state. Some
of the above limitations may not apply to you.
Warranty
SPL electronics GmbH
41372 Niederkr uechten, Germany
24/96 AD Converter 2376
11
