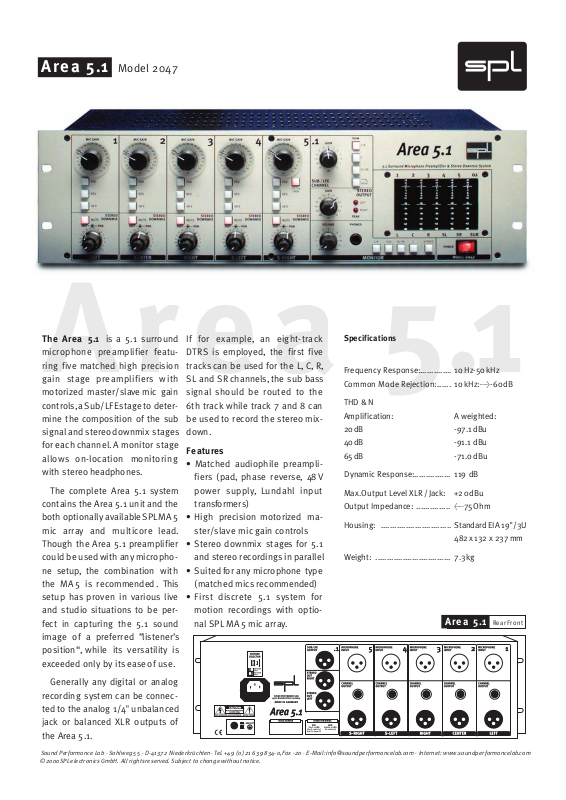

Sound Performance Lab 2047 User Manual

Area 5.1 Model 2047

The Area 5.1 is a 5.1 surround

microphone preamplifier featu­ring five matched high precision

Area 5.1

gain stage preamplifiers with
motorized master/slave mic gain
controls,a Sub/LFE stage to deter­mine the composition of the sub
signal and stereo downmix stages
for each channel. A monitor stage
allows on-location monitoring
with stereo headphones.

The complete Area 5.1 system
contains the Area 5.1 unit and the
both optionally available SPL MA 5
mic array and multicore lead.
Though the Area 5.1 preamplifier
could be used with any micropho­ne setup, the combination with
the MA 5 is recommended. This
setup has proven in various live
and studio situations to be per­fect in capturing the 5.1 sound
image of a preferred ”listener’s
position“, while its versatility is
exceeded only by its ease of use.

If for example, an eight-track
DTRS is employed, the first five
tracks can be used for the L, C, R,
SL and SR channels, the sub bass
signal should be routed to the
6th track while track 7 and 8 can
be used to record the stereo mix­down.

Features

• Matched audiophile preampli­fiers (pad, phase reverse, 48 V
power supply, Lundahl input
transformers)

• High precision motorized ma­ster/slave mic gain controls

• Stereo downmix stages for 5.1
and stereo recordings in parallel

• Suited for any microphone type
(matched mics recommended)

• First discrete 5.1 system for
motion recordings with optio­nal SPL MA 5 mic array.

Specifications

Frequency Response:.............. 10 Hz-50 kHz

Common Mode Rejection:...... 10 kHz:>- 60dB

THD & N

Amplification: A weighted:

20dB -97.1 dBu

40dB -91.1 dBu

65dB -71.0 dBu

Dynamic Response:................ 119 dB

Max.Output Level XLR / Jack: +20 dBu

Output Impedance: ............... <75 Ohm

Housing: ............................... Standard EIA 19"/3U

482 x 132 x 237 mm

Weight: ................................. 7.3 kg

Area 5.1 Rear Front

Generally any digital or analog
recording system can be connec­ted to the analog 1/4" unbalanced
jack or balanced XLR outputs of
the Area 5.1.
