sound ordnance
p-35
p-40
coaxial and component speakers
p-46
p-52
p-57
p-65
p-67
p-69
p-52c
p-65c
p-67c
Thank you for purchasing Sound Ordnance
You’re now ready to win the battle for great sound.
To ensure safe operation, always follow the instructions and guidelines
in this manual.
Keep this manual handy for reference.
www.soundordnance.com
All rights reserved.
TABLE OF CONTENTS
Safety Instructions ................................................... 3
Dimensions ............................................................ 3
Installation .......................................................... 4
Full-range and Woofer Mounting ........................................ 6
Wiring ................................................................ 6
Specifications ......................................................... 7
2
!
SAFETY INSTRUCTIONS
The product’s warranty is rendered void in cases of damage resulting
from failure to comply with safety and operating instructions. We do
not accept any liability for consequential damages. We do not accept
any liability for personal injury or damage to property caused by incorrect handling of the device or failure to observe the safety and operating
instructions. In such cases the warranty is rendered void.
High volume levels can cause hearing damage or loss. Use care when
setting the volume of your subwoofer. Obey any local noise laws or ordinances.
To prevent injury or damage to the speakers, please read and follow the
instructions in the manual.
If you have questions about installing your speakers, call us at
1-800-955-9094.
mounting
height
top-
mounting
depth
Disconnect the cable to your car battery’s negative terminal
before starting the installation. For some newer cars this may require a
reset of some functions. Consult with your dealer or mechanic.
DIMENSIONS
tweeter
protrusion
bottommounting
depth
cut-out diameter
3
!
INSTALLATION
These installation instructions do not cover all possible installation issues. If
you’re not confident about installing your speakers, have a qualified audio
technician install them.
1. Read and understand the instructions before attempting to install
these speakers.
2. Disconnect the negative terminal
from the battery prior to starting
the installation.
3. For easier installation run any
extra speaker wire before starting
the speaker installation.
4. For the best possible sound, use
high-quality connectors and wiring.
5. Exercise caution before doing any
drilling or cutting in your car.
Be careful of fuel lines, electrical wiring, vacuum lines, or fuel
tanks in your vehicle.
6. Never run speaker wires underneath
your vehicle. Protect the wires by
keeping them inside the vehicle.
7. Avoid running speaker wires over,
near, or through sharp-edged
surfaces. Use rubber grommets
to protect wires running through
openings in metal.
8. If running speaker wires from an
amplifier, avoid placing them near
sources of high current like wiring harnesses or battery cables.
4
FULL-RANGE AND WOOFER MOUNTING
metal
mesh
grill
mounting
screws
speaker
grill ring
1. Pick a location for mounting your
speakers. Make sure the area is
large enough and deep enough for
the speaker to fit into.
2. Refer to the specifications chart
to determine the proper diameter
hole to cut for your speaker
model.
3. If you’ll be using the grille,
use it as a template to mark the
locations for the mounting screws.
Drill the holes with a 3/32" drill
bit.
baffle
V-steel
nuts
4. Be sure to observe proper polarity
when connecting the speaker wires
to the speaker. The speaker’s
positive terminal is indicated
with a “+” symbol.
5. Place the speaker into the cut-out
and mount it in place with the
supplied screws. If the speaker
grille is to be used, insert
screws into the grille ring holes
and then mount the speaker.
5

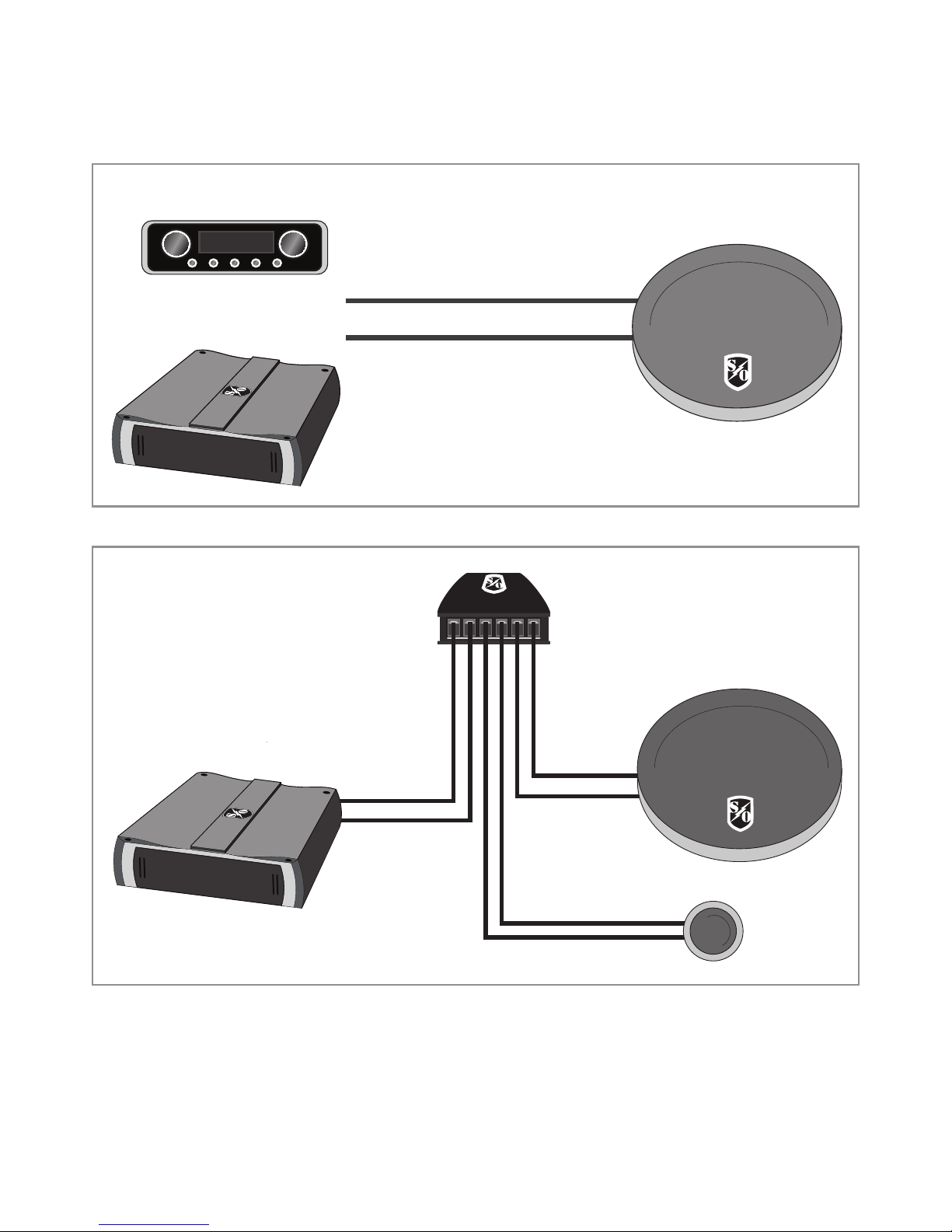

Full-range Speakers
CAR STEREO
RECEIVER
WIRING
car receiver
or amp
Component Systems
+–+–+
–
++
––
woofer
amp
+
–
–
+
+
tweeter
–
6
7
P-35 P-40 P-46 P-52 P-57 P-65 P-67 P-69 P-52C P-65C P-67C
RMS power
handling (watts)
25 30 35 40 40 50 50 55 50 55 55
Peak power
handling (watts)
50 60 70 80 80 100 100 110 100 110 110
Impedance
(ohms)
44444444444
Frequency
Response (Hz)
90-20K 90-20K 80-20K 70-21K 60-21K 60-21K 60-21K 40-21K 60-22K 50-22K 50-22K
Sensitivity (dB)
84 84 86 88 88 88 88 90 86 88 88
Installation depth
(in.)
1.46 1.57 1.85 1.90 2.16 2.05 2.16 2.91 1.90 2.05 2.16
Cut-out diameter
(in.)
3.21 3.66
5.82 x
3.52
4.74
7.12 x
5.04
5.12 5.71
8.62 x
5.86
4.74 5.12 5.71
Grilles included?
No No No Yes No Yes Yes Yes Yes Yes Yes
TECHNICAL SPECIFICATIONS
To ensure safe operation, always follow the instructions and guidelines
in this manual.
Keep this manual handy for reference.
www.soundordnace.com
All rights reserved.
Virtual Gateways LLC™ Limited Warranty
(Valid Only in the U.S.A. and Canada)
Virtual Gateways LLC (“Virtual”) warrants this Product (expressly excluding any accessories) against defects in
material or workmanship as follows:
Terms of warranty coverage: is warranty covers the product during the warranty period so long as the
product is owned by the same individual whose name appears on the invoice received upon purchase of the
product. Product must be purchased from an authorized dealer or this Warranty will not be honored. Transferring possession of the product to a subsequent owner will void this warranty. In the event service is required
the product must be delivered within the warranty period, transportation prepaid by you to Virtual Gateways
LLC, 1 Crutcheld Park, Charlottesville, VA 22911. Prior to returning the product you must rst obtain a return
authorization number from Virtual by calling 1-800-955-9094. You will need to carefully package the product
using adequate packing material to prevent damage in transit and include in the package your Return Authorization Number, name, address, telephone number where you can be reached during business hours, a copy of
your dated sales receipt, and a detailed description of the problem. You are responsible for removal and installation of the product. Proof of purchase in the form of a bill of sale which is evidence that the product is within
the warranty period MUST be presented to obtain warranty service. Virtual will pay the cost of returning the repaired or replacement product to you within the United States of America or Canada within 8 to 12 weeks from
the time of receipt of a product which is determined to be covered under this warranty by Virtual. Any removal
or defacement of the unit’s serial number will void this warranty.
Warranty Period: For a period of 3 years for parts and 3 years for labor from date of the original purchase from
an authorized dealer, if this Product is determined by Virtual to be defective Virtual will repair or replace the
Product with a new, rebuilt or refurbished unit of comparable value, at Virtual’s sole option, without charge to
you for parts or actual repair work. Parts and/or replacement units supplied under this warranty may be new,
rebuilt or refurbished at the option of Virtual.
What’s Not Covered: is warranty does not cover any product used in any trade, business, industrial or commercial application; customer instruction, installation, set up adjustments, signal reception problems, cabinet,
cosmetic or appearance items, any damage to recordings, or recordings of tapes or discs, any damage to product
resulting from alterations, modications, accident, misuse, negligence or abuse, damage due to lightning or
power surges; subsequent damage from leaking, damaged or inoperative batteries or the use of batteries dierent from those specied in the owner instructions; speakers subjected to power in excess of published power
rating; damage due to improper operation or maintenance, connection to improper voltage supply; attempted
repair by anyone other than Virtual; damage from improper maintenance; damage incurred in transit; damage
or defects caused by the use of unauthorized parts or labor. is warranty does not cover consumables, (fuses,
batteries, etc.).
is warranty does not cover the cost of parts and labor which would be otherwise provided without charge
under this warranty, obtained from any source other than Virtual.
is warranty is invalid if the factory applied serial number has been modied, altered or removed from the
Product.
is warranty is only valid in the United States of America and Canada.
Your Rights: REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. VIRTUAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY. Some states or provinces do not allow limitations
on how long an implied warranty lasts, and some states or provinces do not allow the exclusion or limitation of
incidental or consequential damages. e above limitations or exclusions may not apply to you. is warranty
gives you specic legal rights, and you may have other rights which vary from state to state or province.
Ver1/11/13/09VG
