• 1 RemoteCam4™ Head End Module (RC4-HE) which provides
the camera & one HDMI video output for the codec.
• Specific cables (Part number according to the following chart)
PrecisionHD 1080p 12X,
4xS1 & 720p
RCC-C001/RCC-C002/RCC-C003
RCC-H01/RCC-H003/RCC-H004
PrecisionHD 1080p
4xS2, 2.5x
RCC-C009
RCC-H001/RCC-H003
PrecisionHD 1080p
4xS2, 2.5x
RCC-C001/RCC-C006/RCC-C008
RCC-H001/RCC-H010/RCC-H004

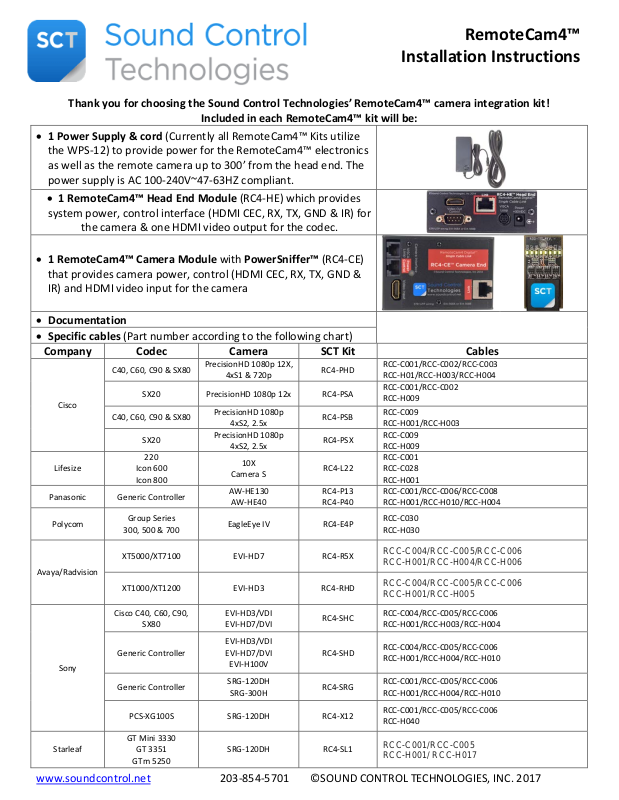

Thank you for choosing the Sound Control Technologies’ RemoteCam4™ camera integration kit!
Included in each RemoteCam4™ kit will be:
• 1 Power Supply & cord (Currently all RemoteCam4™ Kits utilize
the WPS-12) to provide power for the RemoteCam4™ electronics
as well as the remote camera up to 300’ from the head end. The
power supply is AC 100-240V~47-63HZ compliant.
system power, control interface (HDMI CEC, RX, TX, GND & IR) for
• 1 RemoteCam4™ Camera Module with PowerSniffer™ (RC4-CE)
that provides camera power, control (HDMI CEC, RX, TX, GND &
IR) and HDMI video input for the camera
RemoteCam4™
Installation Instructions
C40, C60, C90 & SX80
SX20 PrecisionHD 1080p 12x RC4-PSA
Cisco
C40, C60, C90 & SX80
SX20
Lifesize
Panasonic Generic Controller
Polycom
Avaya/Radvision
Sony
Icon 600
Group Series
300, 500 & 700
XT5000/XT7100 EVI-HD7 RC4-R5X
XT1000/XT1200 EVI-HD3 RC4-RHD
Cisco C40, C60, C90,
SX80
Generic Controller
Generic Controller
RC4-PHD
RC4-PSB
RC4-PSX
10X
Camera S
EagleEye IV RC4-E4P
EVI-HD3/VDI
EVI-HD7/DVI
EVI-HD3/VDI
EVI-HD7/DVI
EVI-H100V
SRG-120DH
SRG-300H
RC4-L22
RC4-SHC
RC4-SHD
RC4-SRG
RCC-H009
RCC-C028
RCC-C030
RCC-H030
RCC-C004/RCC-C005/RCC-C006
RCC-H001/RCC-H004/RCC-H006
RCC-C004/RCC-C005/RCC-C006
RCC-H001/RCC-H005
RCC-C004/RCC-C005/RCC-C006
RCC-H001/RCC-H003/RCC-H004
RCC-C004/RCC-C005/RCC-C006
RCC-H001/RCC-H004/RCC-H010
RCC-C001/RCC-C005/RCC-C006
RCC-H001/RCC-H004/RCC-H010
PCS-XG100S SRG-120DH RC4-X12
Starleaf
www.soundcontrol.net 203-854-5701 ©SOUND CONTROL TECHNOLOGIES, INC. 2017
GTm 5250
GT 3351
SRG-120DH RC4-SL1
RCC-C001/RCC-C005/RCC-C006
RCC-H040
RCC-C001/RCC-C005
RCC-H001/ RCC-H017

• Step 1
• Test and verify the Cat5e or Cat6 cable for UTP 568A or 568B wiring.
• Wait to connect the cable to the RC4-CE until steps 3 & 4 are completed.
Disconnect the power supply from the RC4-HE
Connect the CAT5e or CAT6 cable to the RJ45 connector labelled on the RC4-CE Camera Module.
Connect provided cables between codec and RC4-HE module.
Camera Module: LED will be Red until Link is established, Solid Green when is Active
To proceed with the installation, insure that you have installed one CAT5e or CAT6 cable between the
camera installation site and the codec installation site.
Minimum distance should be approximately 30’/9M.
The cable must be wired for either UTP 568A or UTP 568B. Please use the following scheme:
To install the RemoteCam4™ Kit, follow this step-by-step guide:
• Install the RC4-HE Head-End Module at the rack/equipment location.
• Connect the Cat5e or Cat6 cable to the RJ45 connector labelled on the RC4-HE module.
• Connect the power supply to the RC4-HE Module.
• Step 3
At the camera location connect the PowerSniffer™ to the CAT5e or CAT6 cable.
If the cable is properly terminated it will display 8 green LEDs. See Image at left.
Any other result, please re-terminate.
•
•
•
•
• Connect provided cables between camera and RC4-CE module.
• Visca
• The Visca loop, or daisy chain, supports up to seven cameras. On supported applications SCT supplies a
Visca Out cable. This cable should be connected from the camera to the RC4-CE only when there is a
proceeding camera in the daisy chain. Utilizing this cable on the last camera in the chain will terminate
• Connect the power supply to the RC4-HE module
• LED Behavior:
• Head-End Module HDCP LED: Blinking = HDCP Inactive, Solid = HDCP Active
• Head-End Module LED: Blinking Red = No Link, Blinking Red to Green = Active
•
