Page 1
Part # LPBAA4
Part # LPBAA3
Stop
Part # LPBAA3
Stop
Part # LPBAA4
Screw at
10 O’clock
Spacer for
2” Doors Only
Spacer for
2” Doors Only
Chassis faces
3 O’clock Position
Unirose Set Up for
Right Hand Door (Chassis Rotated 180°)
Screw at
4 O’clock
Spacer Locations

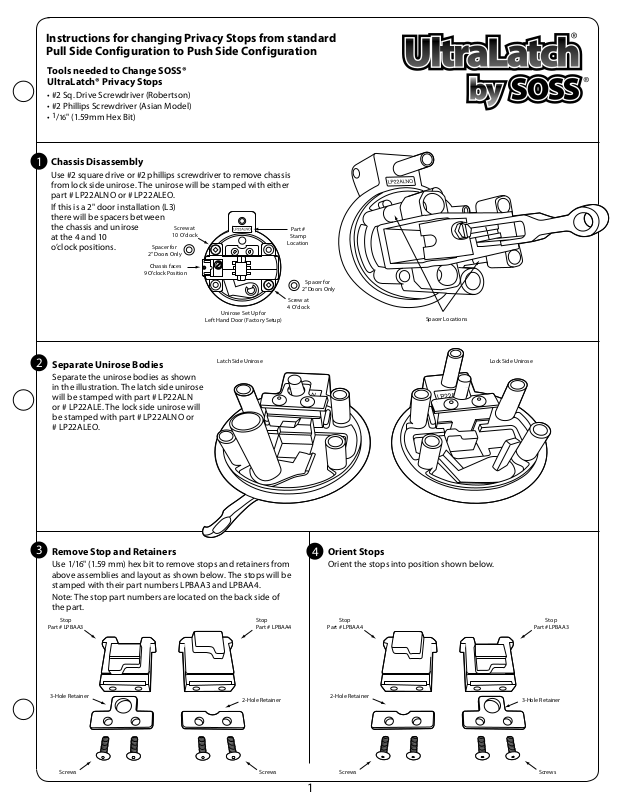

Instructions for changing Privacy Stops from standard
Pull Side Configuration to Push Side Configuration
Tools needed to Change SOSS®
UltraLatch® Privacy Stops
• #2 Sq. Drive Screwdriver (Robertson)
• #2 Phillips Screwdriver (Asian Model)
1
•
/16" (1.59mm Hex Bit)

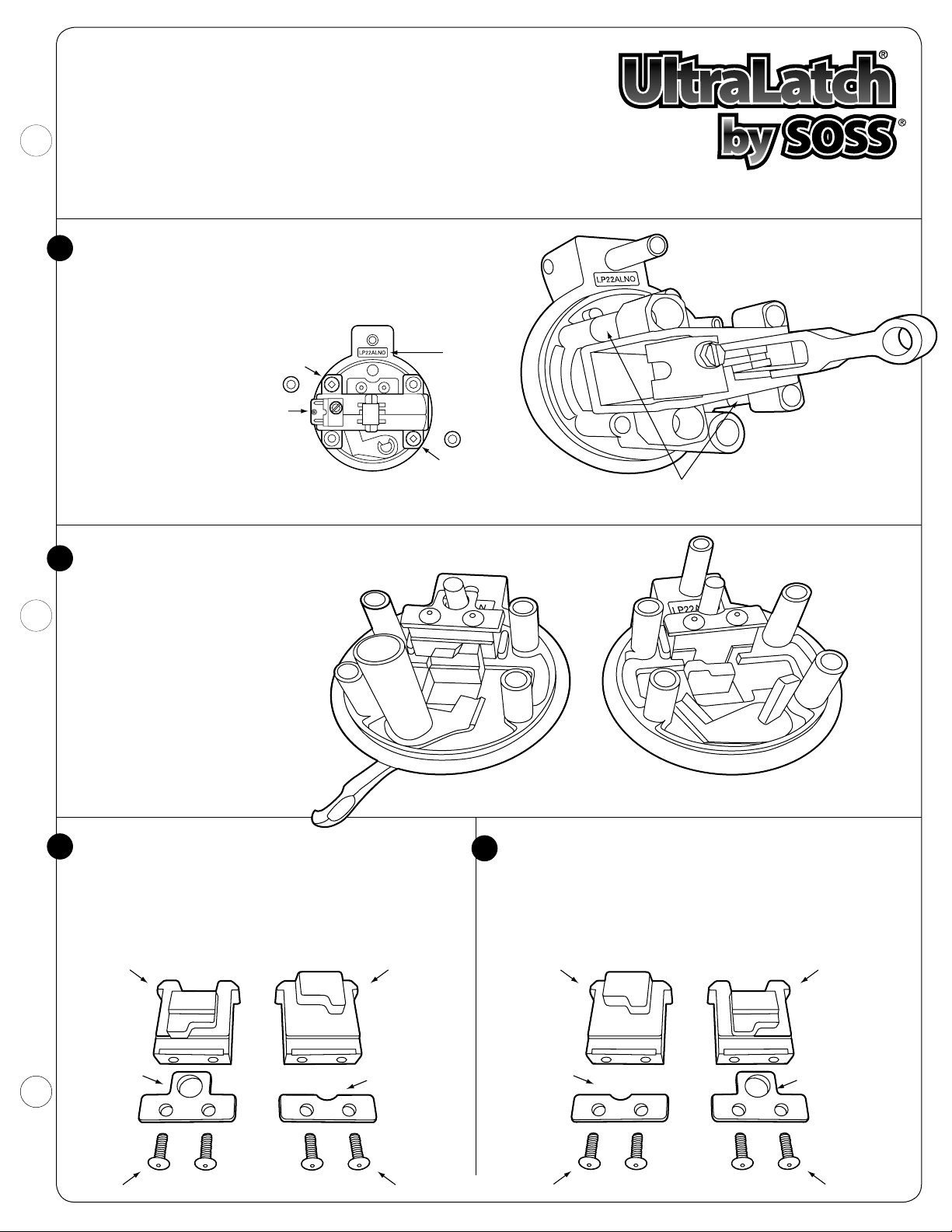

Chassis Disassembly
1
Use #2 square drive or #2 phillips screwdriver to remove chassis
from lock side unirose. The unirose will be stamped with either
part # LP22ALNO or # LP22ALEO.
If this is a 2" door installation (L3)
there will be spacers between
the chassis and unirose
at the 4 and 10
o’clock positions.
9 O’clock Position
10 O’clock
Spacer for
2” Doors Only
Chassis faces
Screw at
Unirose Set Up for
Left Hand Door (Factory Setup)
Part #
Stamp
Location
2” Doors Only
Screw at
4 O’clock
Spacer for
2
Separate Unirose Bodies
Separate the unirose bodies as shown
in the illustration. The latch side unirose
will be stamped with part # LP22ALN
or # LP22ALE. The lock side unirose will
be stamped with part # LP22ALNO or
# LP22ALEO.
3
Remove Stop and Retainers
Use 1/16" (1.59 mm) hex bit to remove stops and retainers from
above assemblies and layout as shown below. The stops will be
stamped with their part numbers LPBAA3 and LPBAA4.
Note: The stop part numbers are located on the back side of
the part.
Stop
Stop
Orient Stops
4
Orient the stops into position shown below.
Lock Side UniroseLatch Side Unirose
3-Hole Retainer
2-Hole Retainer
ScrewsScrews
1
2-Hole Retainer
3-Hole Retainer
ScrewsScrews
Page 2
2”
osition
Unirose Set Up for

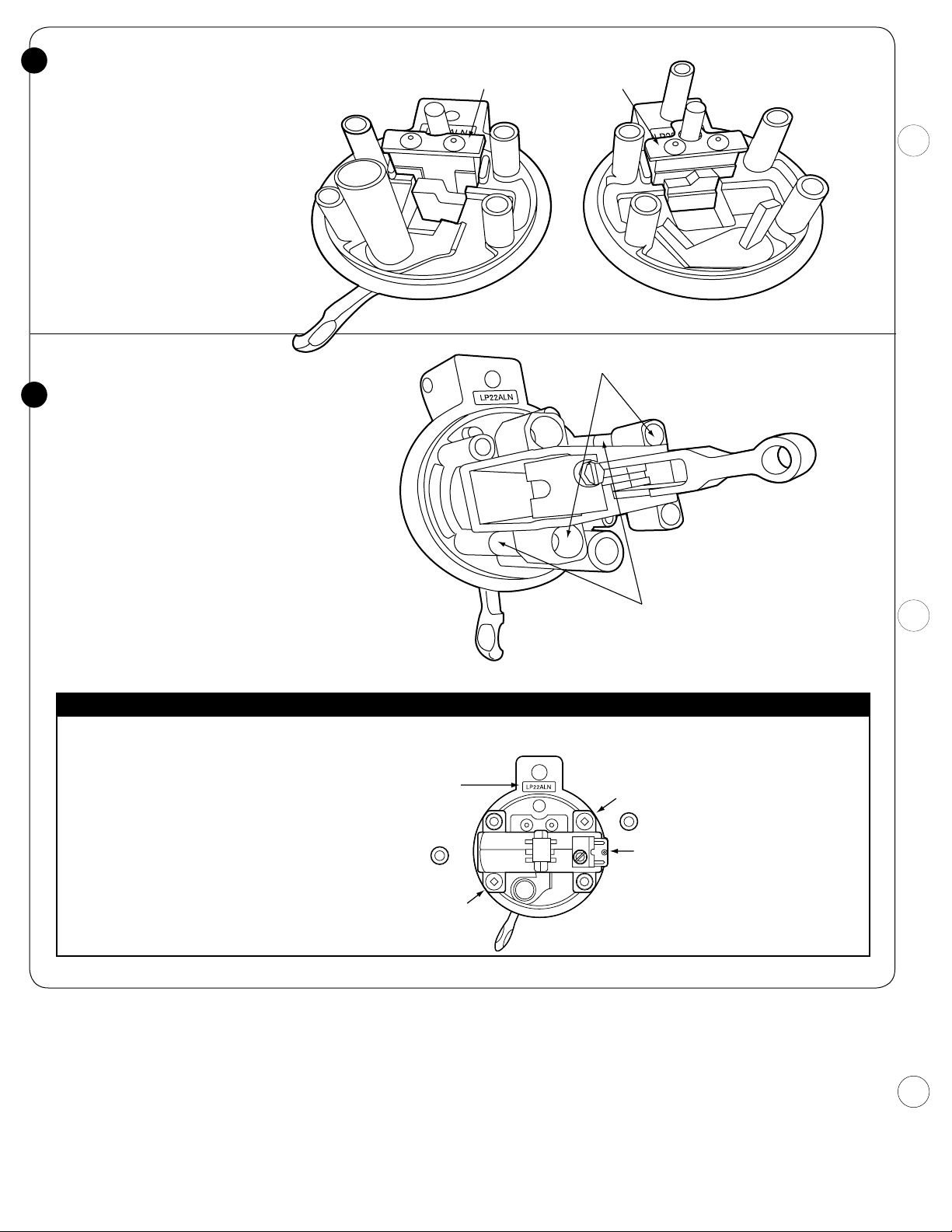

Re-assemble the Stops
5
Using the 1/16" (1.59 mm) hex bit
re -assemble the stops into the order
shown in the illustration.
Re-assemble Chassis to Latch Side Unirose
6
(Part # LP22ALN or # LP22ALE)
Using the #2 square drive or #2 phillips screwdriver
re-assemble the chassis to the latch side unirose as
shown in the diagram.
If this is a 2” door installation (L3) then you must
also reinstall the spacers between the Chassis and
Unirose at the 2 and 8 o’clock positions.
Stop Part # LPBAA4
2-Hole Retainer
Stop Part # LPBAA3
3-Hole Retainer
Fasten Here
Lock Side UniroseLatch Side Unirose
Spacer Locations
Note
To switch to a right hand out swing application,
simply rotate the chassis 180 degrees and assemble
to the latch side unirose (part # LP22ALN or # LP22ALE)
as shown in the diagram.
Right Hand Door (Chassis Rotated 180°)
Part #
Stamp
Location
Spacer for
Doors Only
Screw at
8 O’clock
Screw at
2 O’clock
Spacer for
2” Doors Only
Chassis faces
3 O’clock P
®
SOSS
Door Hardware
UltraLatch® is made in the U.S.A. of domestic and imported components.
Universal Industrial Products, Inc.
Phone: (419) 737-2324 (800) 922-6957
Email: [email protected] Internet: www.soss.com
One Coreway Drive
Pioneer, OH, USA 43554-0628
FAX: (419) 737-2130
Part #:LPUXAY2D © Copyright 2017, Universal Industrial Products, Inc.
