Page 1
Website: www.sorellefurniture.com

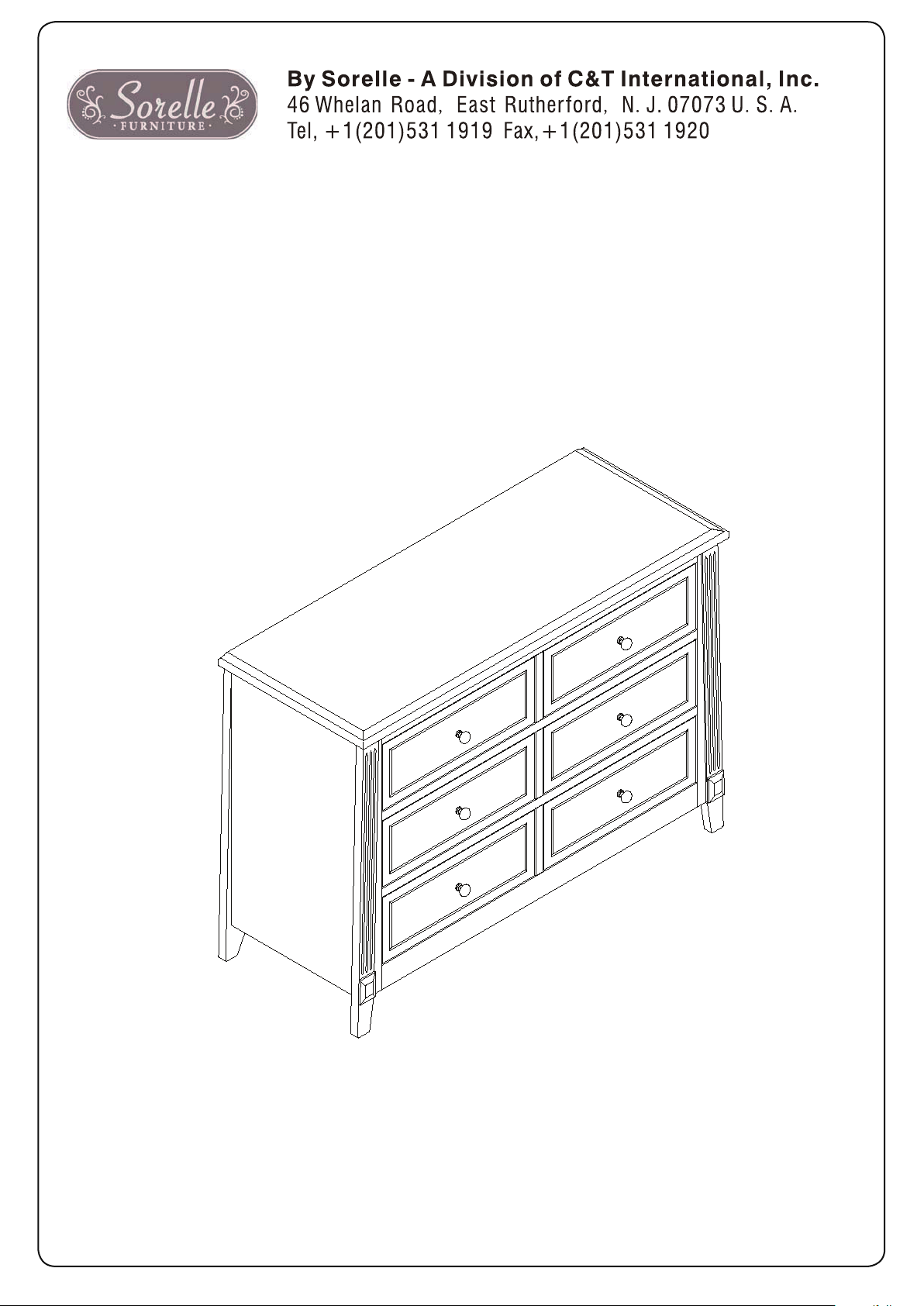

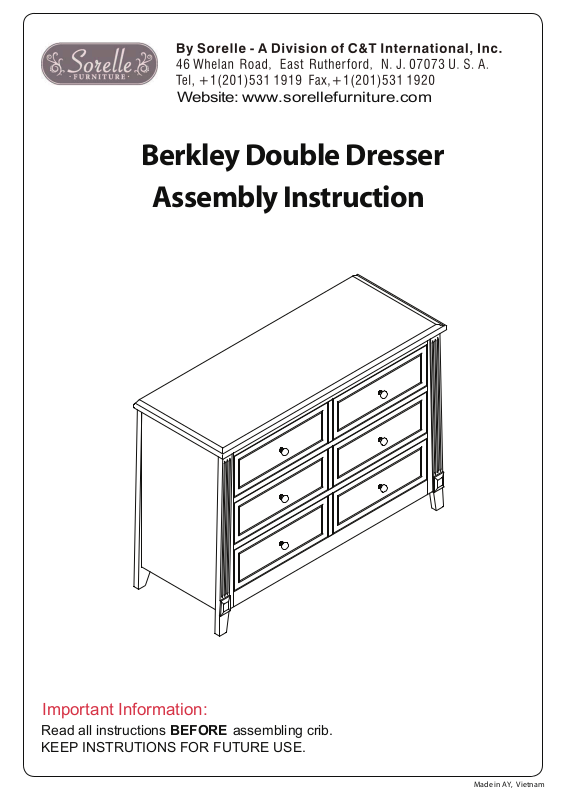

Berkley Double Dresser
Assembly Instruction
Important Information:
Read all instructions BEFORE assembling crib.
KEEP INSTRUTIONS FOR FUTURE USE.
Made in AY, Vietnam
Page 2
SORELLE

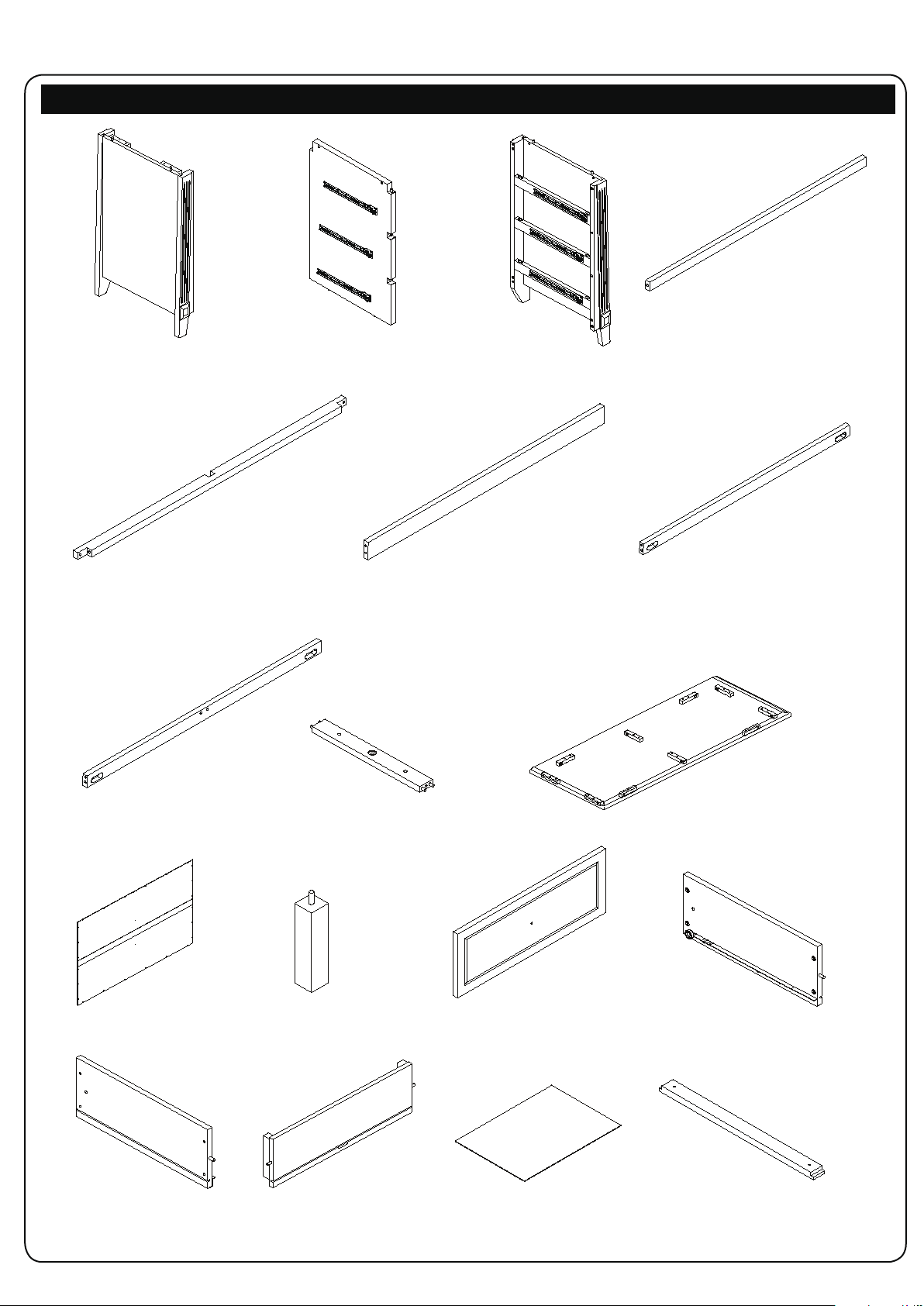

Assembly Parts
(A) Left Side Panel (x1)
(E) Front- Middle Rail (x2) (F) Front- Bottom Rail (x1)
(B) Middle Panel (x1)
(C) Right Side Panel (x1)
(D) Front - Top Rail(x1)
( G ) Rear - Top Rail (x1)
( H) Rear - Bottom Rail (x1) ( I ) Support Rail (x1) ( J ) Top Panel (x1)
( K ) Back Panel(x1)
(R2) Drawer Right (x6)
(L ) feet (x1)
(R3) Drawer Back (x6)
( R ) Drawer Front (x6)
(R4) Drawer Bottom (x6)
(R1) Drawer Left (x6)
(R5) Drawer Support (x6)
Page 2
Page 3
Assembly Parts

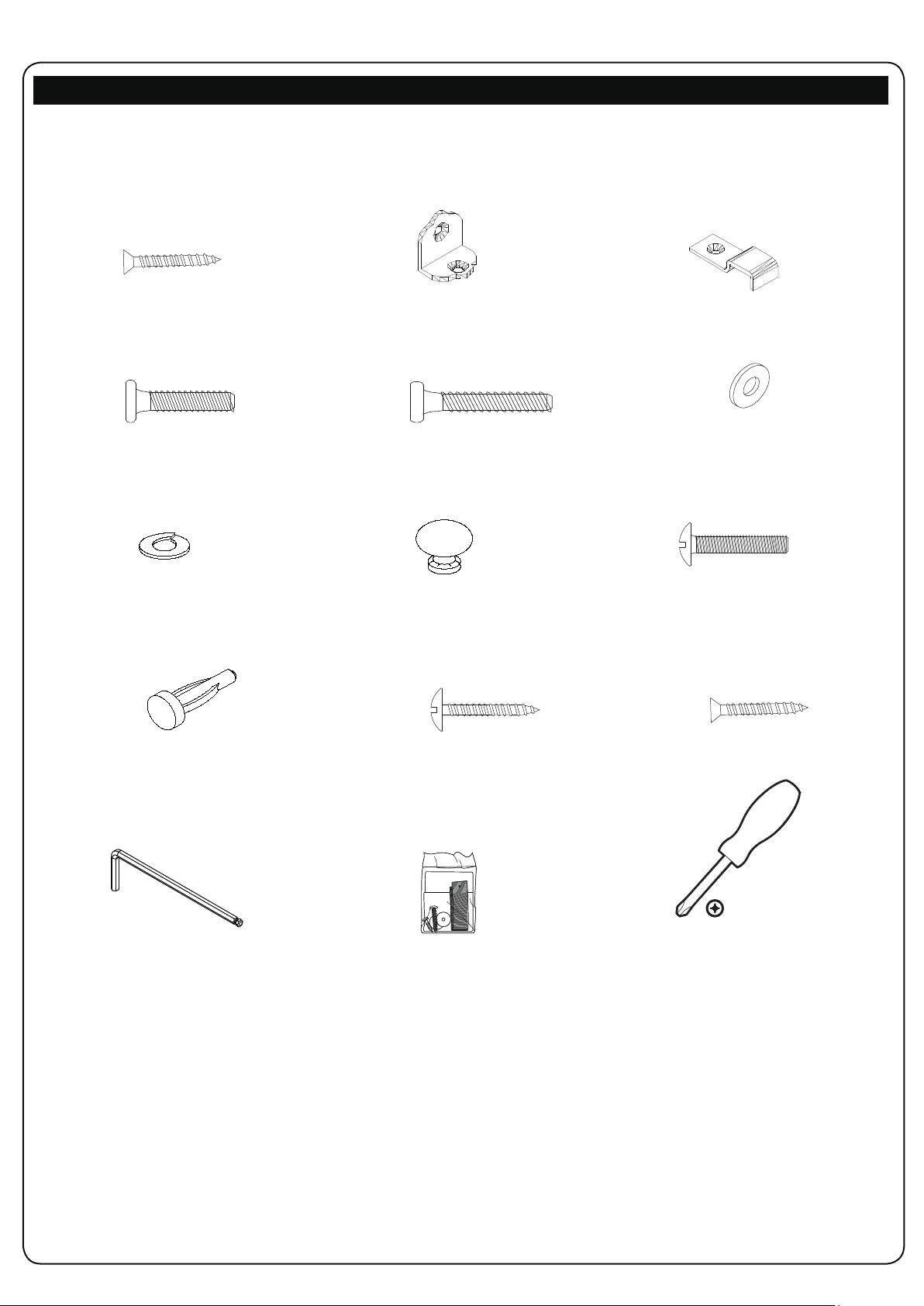

Hardware list
SORELLE
( n ) Drawer Screw (18 pcs)
(c). Spring Washer ( 14 pcs)
( j ) Plastic Connector (10 pcs)
( l ) Metal Connector A (6pcs)
(a) 1/4” x 1-3/8”mm Allen bolt (10 pcs)(b) 1/4 x 1-1/8”mm Allen bolt (4 pcs)
( h ) Knob (x6)
( d ) Ø3.5 X 15mm Phillips Screw (26 pcs)
( m ) Metal Connector B (6 pcs)
(o) Falt Washer (14 pc)
( e ) 5/32 x 1”mm Allen bolt (6pcs)
(g)
Drawer Screw
(48 pcs)
(k) Allen Key (1 pc)
( i ) Wall Strap Kit (1 pc)
Page 3
( f ) Screwdriver (1 pc)
Page 4
X2
Berkley Double Dresser Assembly

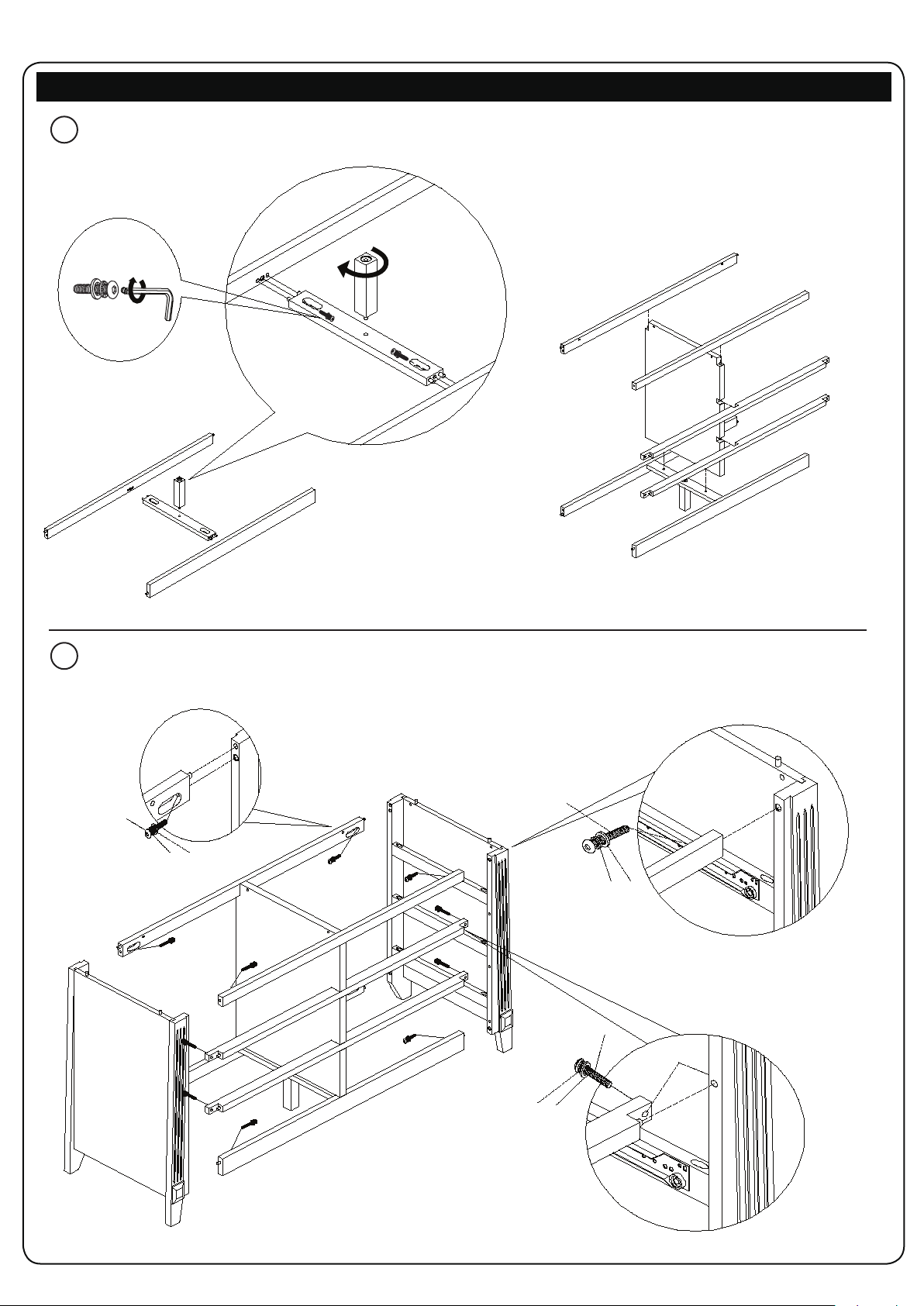

Attach Front Top rail (D) & Front Middle rail (E) & Front bottom rail (F) & Rear Top rail (G) and Rear
1
bottom Rail (H) to Middle Panel (B) as Figure 1.
H
o+c
L
a
SORELLE
D
I
G
X2
B
F
H
F
Figure 1
Attach left side panel (A) and right side panel (C) to Front Top rail (D) & Front Middle rail (E) & Front
2
bottom rail (F) & Rear Top rail (G) and Rear bottom Rail (H)
by using 8 Bolts( a )& 8 Spring washer (c) and 4 Bolts (b) & 4 Spring washer (c ) as Figure 2.
X4
a
a
E
E
A
c+o
Figure 2
Page 4
C
c+o
X4
b
c+o
X4
Page 5
Berkley Double Dresser Assembly

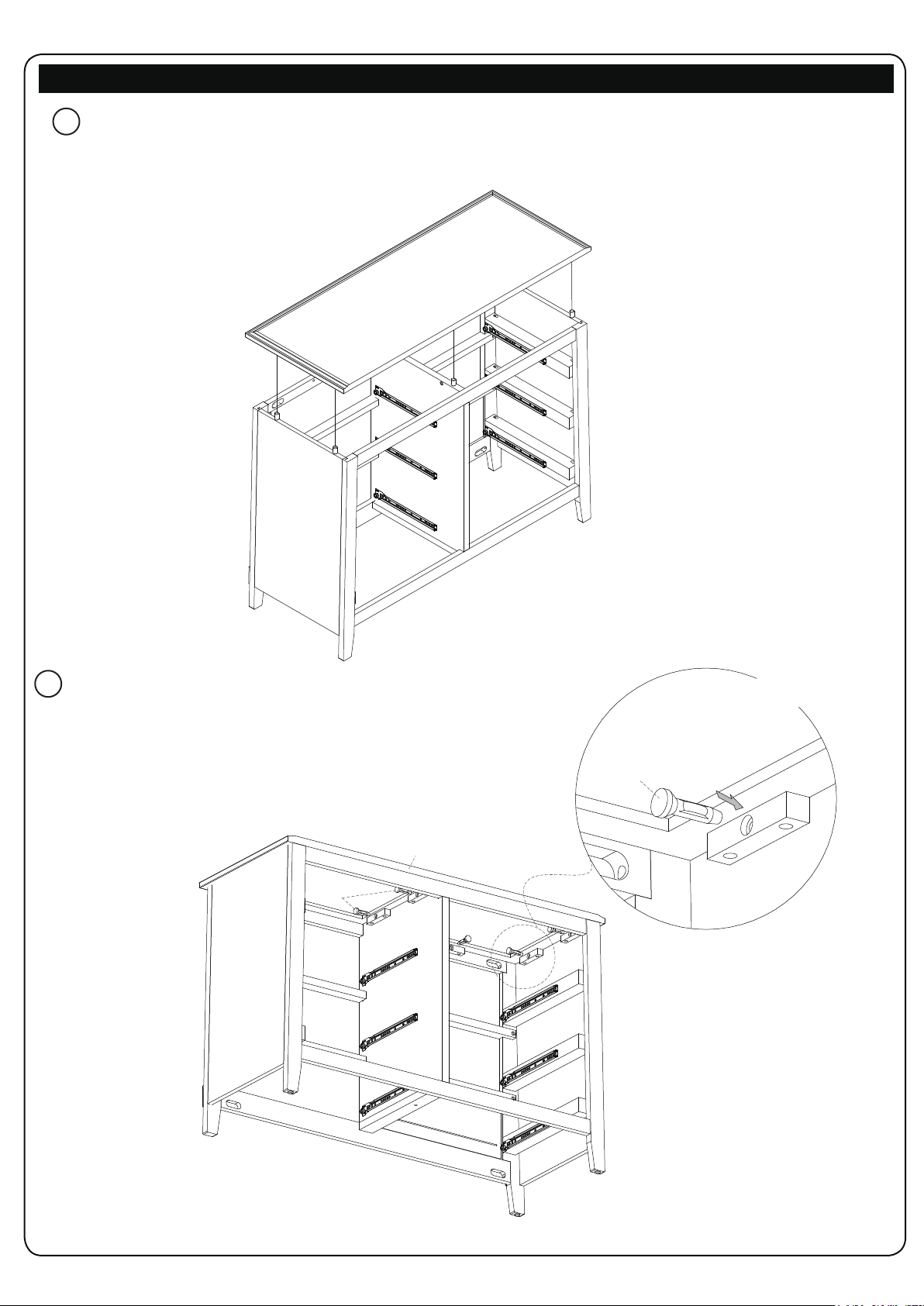

Attach Top Panel ( J ) to Send panel as Figure 3.
3
SORELLE
J
B
A
Figure 3
Attach Top Panel (J ) to Send panel by using 10 Plastic Connector ( j )
4
as Figure 4.
J
j
X 10
J
j
C
A
B
Figure 4
Page 5
Page 6

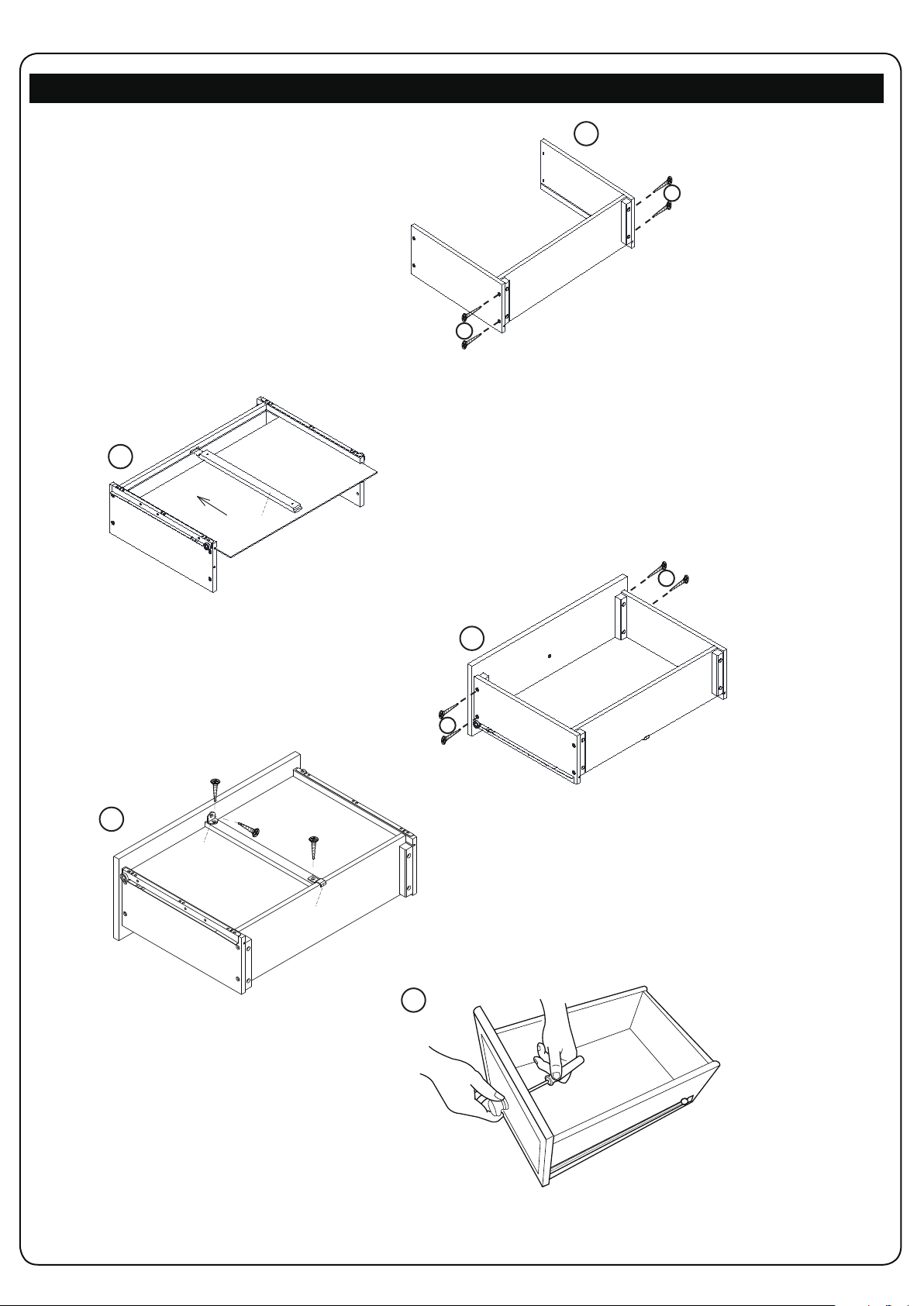

1. Working on a padded
fl at surface, attach Drawer
Sides (R1&R2) to Drawer
Back (R3) with Philips Head
Screw(g).
2
Figure 1
(R4)
Drawer Assembly
(R2)
g
2. Slide Drawer Bottom (R4) and into drawer Bottom
Support (R5) assembly.
(R3)
1
(R1)
SORELLE
g
Figure 2
(R5)
3. Secure both sides of
Drawer Front (R) to drawer
assembly with four (4)
Screws (g). Figure 3.
(n)
4
(l)
(n)
(m)
(n)
3
g
(R)
4. Attach Matel Connector A (l)and
Matel Connector B (m).
g
Figure 4
5. Using Drawer Knob
Screw ( e ), install one (1)
Knob ( h ) on Drawer.
Figure 5.
Repeat for all drawers.
Set drawers aside for
later use.
5
( f )
( e )
( h )
Check all screws for
tightness.
Page 12
Page 7

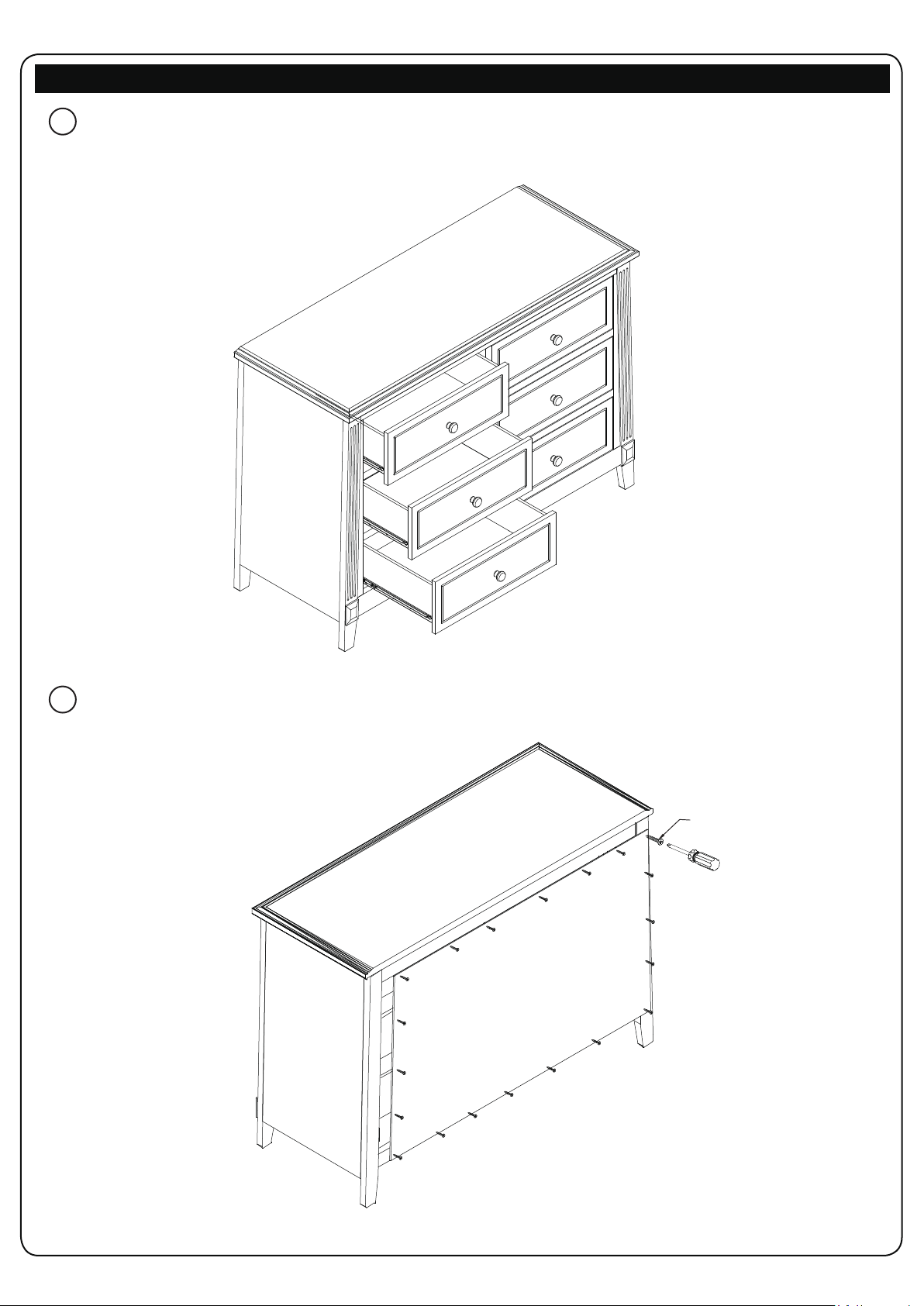

Assembly the drawer as Figure 6.
6
SORELLE
Berkley Double Dresser Assembly
J
R
R
A
R
Figure 6
Use 26 pcs Wood Screws (d) to attach the Back Panel (K) to the dresser
7
As shown in Figure 7..
J
K
d (26x)
A
Figure 7
Page 7
