Website: www.sorellefurniture.com
Princeton Elite Double Dresser
Assembly Instruction
Important Information:
Read all instructions BEFORE assembling crib.
KEEP INSTRUTIONS FOR FUTURE USE.
Made in AY, Vietnam
SORELLE
Assembly Parts
(A) Left Side Panel (x1)
(E1) Front- Middle Upper Rail (x1)
(B) Middle Panel (x1)
(E2) Front- Middle lower Rail (x1)
(C) Right End (x1)
(F) Front- Bottom Rail (x1)
(D) Front - Top Rail(x1)
( G ) Rear - Top Rail (x1)
( H) Rear - Bottom Rail (x1) ( J ) Top Panel (x1)
( K ) Back Panel(x2)
(R1) Drawer Left (x6)
( R ) Drawer Front (x6)
(R2) Drawer Right (x6)
( I ) Support rail (x 1)
( L ) support legs (x1)
(R3) Drawer Back (x6)
(R5) Drawer support (x6)
(R4) Drawer Bottom (x6)
Page 2
Assembly Parts
Hardware list
SORELLE
(a) M6 x 45mm Allen bolt (10 pcs)
(b) M6 x 35mm Allen bolt (5 pcs)
( e ) M4 x 19mm Allen bolt (6pcs)
(g) 25mm Wood Screw (48 pcs)
(c). Metal Connector B ( 6 pcs)
(d) M6 x 28mm Allen bolt (7 pcs)
(f ) 8 x 30 mm Wood Dowels (29 pcs)
(n ) 6 x 30 mm Wood Dowels (24 pcs)
( h ) Knob (x6)
( j )
Metal Connector A (6 pcs)
(k) Allen Key (1 pc)
( o) 15mm Phillips Screw (26 pcs)
( p ) 12mm Phillips Screw (18 pcs)
( i ) Wall Strap Kit (1 pc)
Page 3
SORELLE
Double Dresser Assembly
Assembly the support rail (I) and support legs (L) .
1
Assembly the support rail (I) and front-bottom rail (F) and rear-bottom rail (H) , by using 4 wood dowels
and 1 Bolt (d)&1Bolt(b). as Figure 1.
d
H
f x 4
f x 4
I
b
F
L
I
b
f
2
Attach middle panel (B) to support rail (I) , by using 2 wood dowels( f ) as Figure 2.
F
Figure 1
f x 2
B
Figure 2
Page 4
SORELLE
Double Dresser Assembly

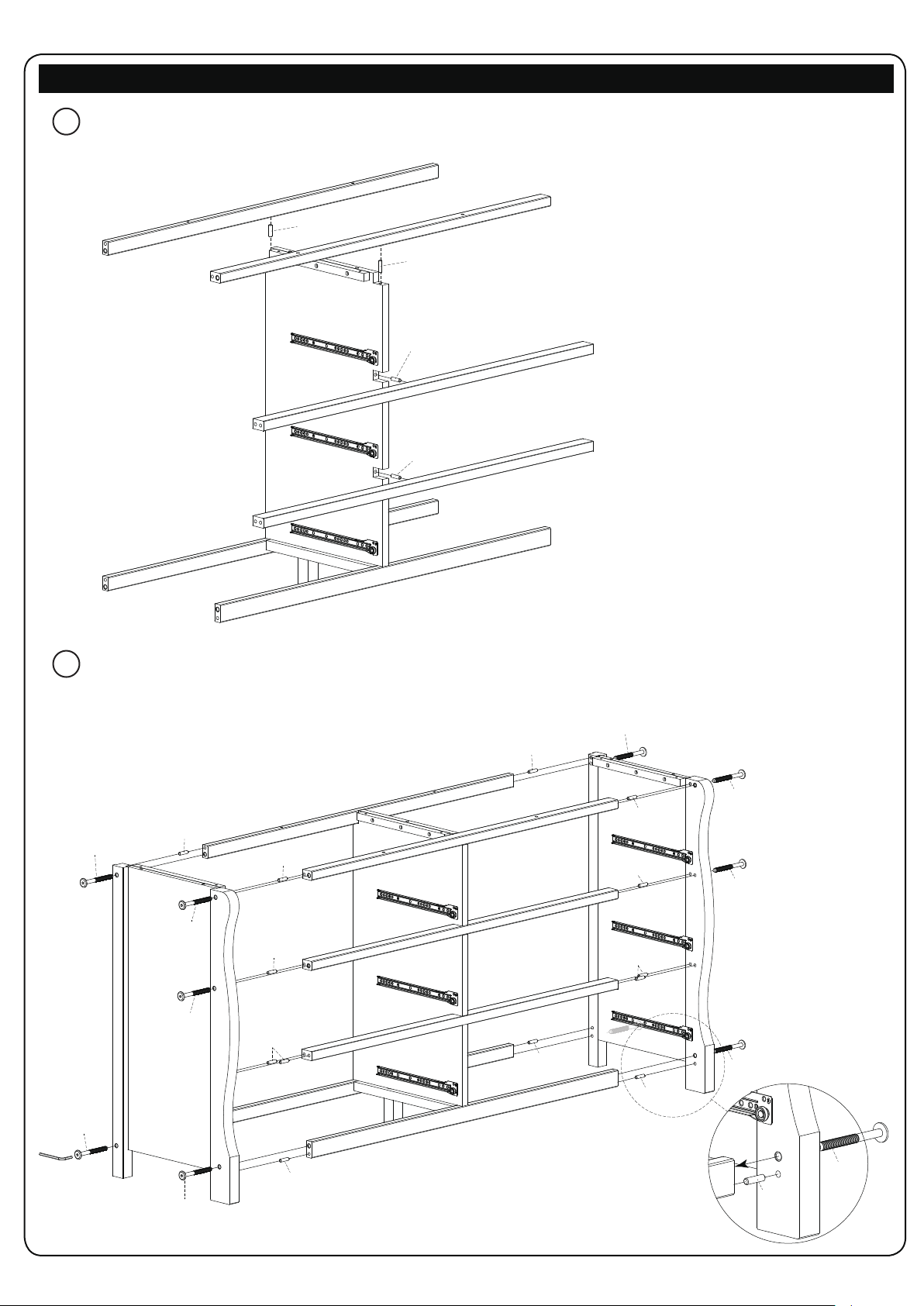

Attach Front Top rail (D) & Front Middle Upper rail (E1) & Front Middle lower rail (E2) & Rear Top rail (G)
3
to Middle Panel (B) , By using 4 wood dowels (f) as Figure 3.
D
G
f
f
B
f X 4
f
H
Attach left side panel (A) and right side panel (C) to Front Top rail (D) & Front Middle rail (E) & Front
4
bottom rail (F) & Rear Top rail (G) and Rear bottom Rail (H)
by using 10 Bolts( a ) & 14 wood dowels(f) . as Figure 4.
f
E1
E2
F
Figure 3
a
a
f
f
a
f
B
f
a
C
a
f
f
A
a
f
f
a
f X 14
a
Figure 4
a
a x 10
f
C
F
f
a x 10
Page 5
Double Dresser Assembly
Attach Top Panel (J) to Send panel by using 5 wood dowels ( f ) and 4 Bolts( b) and 6 Bolts (d) .
5
as Figure 3.
SORELLE
f x 5
J
f
f
d
b
d
d
b
f
d
b
d
b
f
d x 6
bx 4
C
A
B
Figure 5
J
b
G
Page 6
1. Working on a padded
fl at surface, attach Drawer
Sides (R1&R2) to Drawer
Back (R3) with Philips Head
Screw. Figure 1
Drawer Assembly
(n)
1
(g)
(g)
(R1)
(R3)
(g)
(g)
(n)
SORELLE
(R2)
2. Slide Drawer
Bottom (R4) into drawer
assembly.
Figure 2.
3. Secure both sides of
Drawer Front (R) to drawer
assembly with four (4)
Screws (g). Figure 3.
Check all screws for
tightness.
(R4)
2
(n)
(g)
(p)
3
(p)
(c)
(j)
(R5)
(n)
(R)
(g)
(g)
4. Using Drawer Knob
Screw ( f ), install one (1)
Knob ( j ) on Drawer.
Figure 4.
Repeat for all drawers.
Set drawers aside for
later use.
4
( e )
( h )
Page 7
SORELLE
Double Dresser Assembly
Assembly the drawers as Figure 6.7
J
R
A
R
R
Figure 6
Use 26 pcs Wood Screws (o) to attach the Back Panel (K) to the dresser As Figure 7..
8
o (26x)
J
A
K
Figure 7
