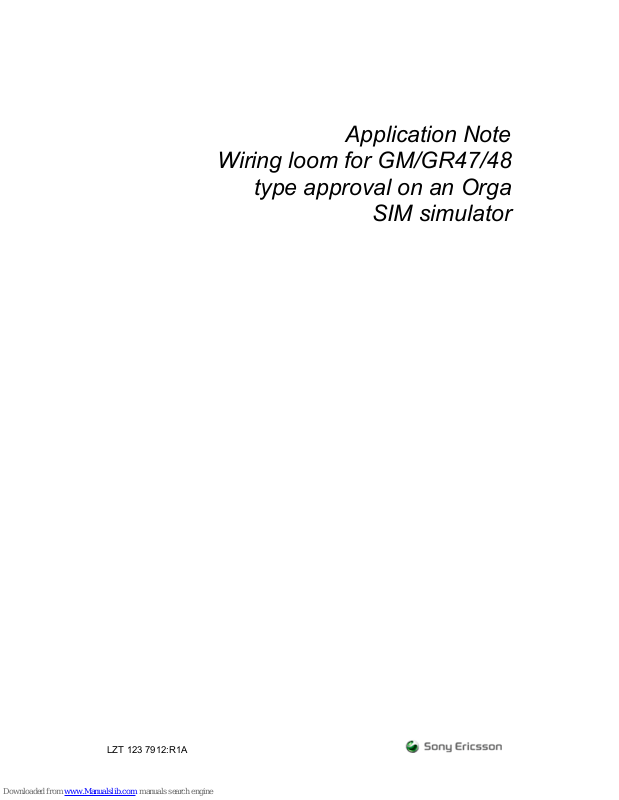

Page 1
Application Note
Wiring loom for GM/GR47/48
type approval on an Orga
SIM simulator
LZT 123 7912:R1A
Page 2
First edition (May 2004)
Sony Ericsson Mobile Communications. publishes this manual without making any warranty as to the
content contained herein. Further Sony Ericsson Mobile Communications. reserves the right to make
modifications, additions and deletions to this manual due to typographical errors, inaccurate information,
or improvements to programs and/or equipment at any time and without notice. Such changes will,
nevertheless be incorporated into new editions of this manual.
All rights reserved.
© Sony Ericsson Mobile Communications., 2004
LZT 123 7912:R1A
Page 3
Wiring loom for type approval on an Orga SIM simulator
Contents
INTRODUCTION ................................................................................................................. 4
1
2 WIRING LOOM ................................................................................................................... 5
LZT 123 7912:R1A 3
Page 4
Wiring loom for type approval on an Orga SIM simulator
1 Introduction
Most Type Approval houses will use an ORGA tester to test SIM
functionality. In order to pass these tests the application developer must
provide the unit under test wired for the ORGA tester (see next page).
LZT 123 7912:R1A 4
Page 5
Wiring loom for type approval on an Orga SIM simulator
2 Wiring loom
The application developer can do this in one of 3 three ways:
1. Layout the board with a male connector on it and the proper lines
run to the connector. Run a female-to-female ribbon connector to
the ORGA tester.
2. Bring the necessary lines to one part of the board so that is easy to
attach a ribbon cable which is terminated by the female connector.
3. Bring out the lines from any place on the board and properly wire it
to the 16 pin female connector.
LZT 123 7912:R1A 5
