LCD Monitor
3-113-855-12 (1)
Operating Instructions
LMD-2030W
© 2007 Sony Corporation
Owner’s Record
WARNING
The model and serial numbers are located at the rear.
Record these numbers in the spaces provided below.
Refer to these numbers whenever you call upon your
Sony dealer regarding this product.
Model No. ____________________
Serial No. ____________________
Important Safety Instructions
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
• Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
• Only use attachments/accessories specified by the
manufacturer.
• Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
WARNING
THIS APPARATUS MUST BE EARTHED.
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the
appliance.
WARNING
Make sure the surface is wide enough so that this
apparatus’s width and depth don’t exceed the surface’s
edges.
If not, this apparatus may lean or fall over and cause an
injury.
2
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch
circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.
5. Install the equipment while taking the
operating temperature of the equipment into
consideration
For the operating temperature of the equipment, refer
to the specifications of the Operation Manual.
6. When performing the installation, keep the
following space away from walls in order to
obtain proper exhaust and radiation of heat.
Lower, Upper: 4.4 cm (1.75 inches) or more
For the customers in the USA
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
WARNING
Using this unit at a voltage other than 120 V may require
the use of a different line cord or attachment plug, or
both. To reduce the risk of fire or electric shock, refer
servicing to qualified service personnel.
For the customers in the USA
Lamp in this product contains mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronic
Industries Alliance (www.eiae.org).
For the customers in Europe
This product with the CE marking complies with both
the EMC Directive and the Low Voltage Directive
issued by the Commission of the European Community.
Compliance with these directives implies conformity to
the following European standards:
• EN60065 : Product Safety
• EN55103-1 : Electromagnetic Interference(Emission)
• EN55103-2 : Electromagnetic
Susceptibility(Immunity)
This product is intended for use in the following
Electromagnetic Environments:
E1 (residential), E2 (commercial and light industrial),
E3 (urban outdoors), E4 (controlled EMC environment,
ex. TV studio)
For the customers in Europe
The manufacturer of this product is Sony Corporation,
1-7-1 Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Germany. For any service or
guarantee matters please refer to the addresses given in
separate service or guarantee documents.
For kundene i Norge
Dette utstyret kan kobles til et ITstrømfordelingssystem.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
3
Table of Contents
Precaution................................................ 5
On Safety................................................... 5
On Installation ...........................................5
Handling the LCD Screen .........................5
Note on faulty pixels on the LCD panel.... 5
About the Fluorescent Tube ...................... 5
On Cleaning............................................... 5
On Repacking ............................................5
On Mounting on a Rack ............................5
On Replacing the Parts ..............................6
Features.................................................... 6
Location and Function of Parts and
Controls ................................................ 8

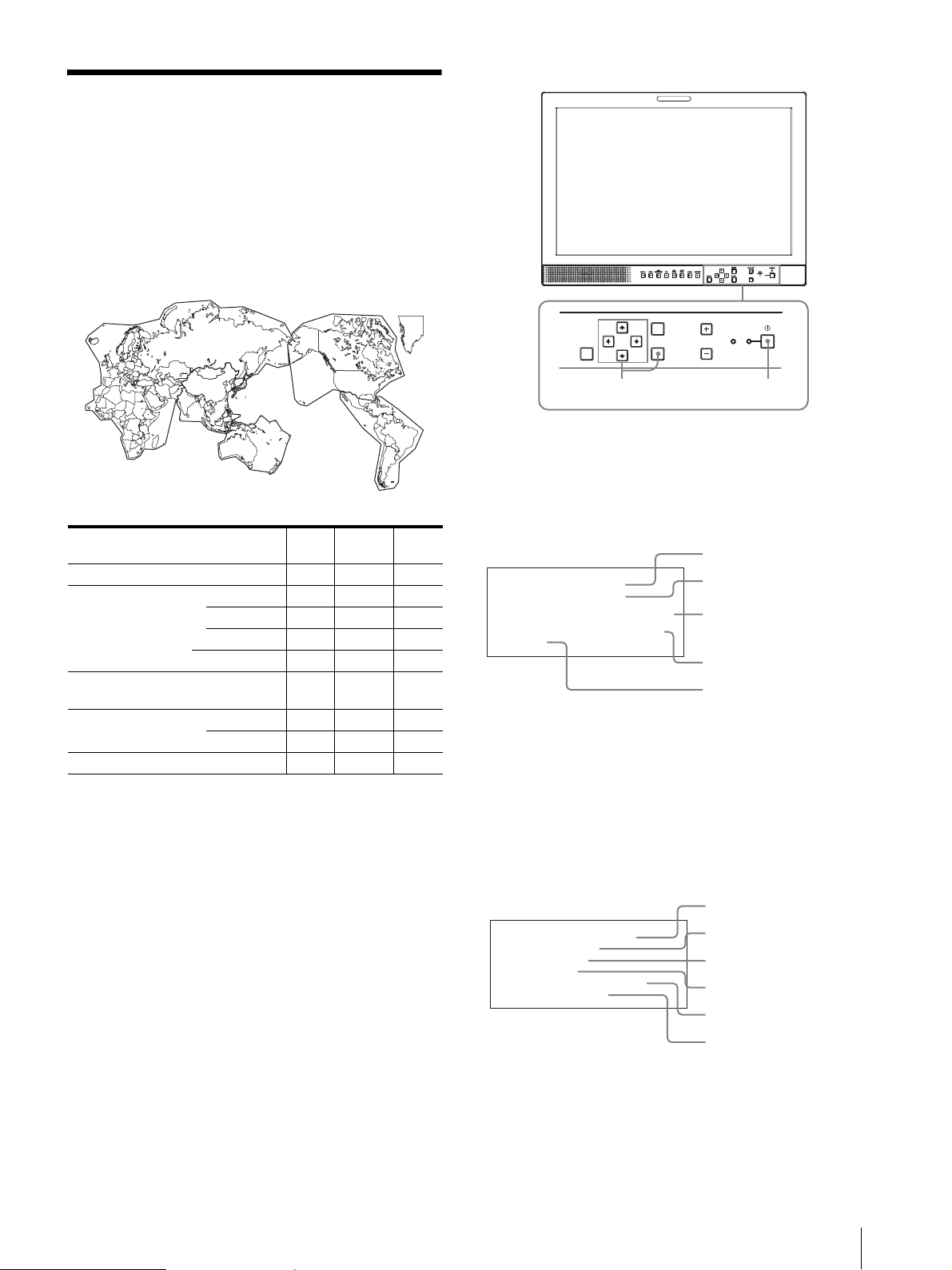

Front Panel.................................................8
Input Signals and Adjustable/
Setting Items ..........................................9

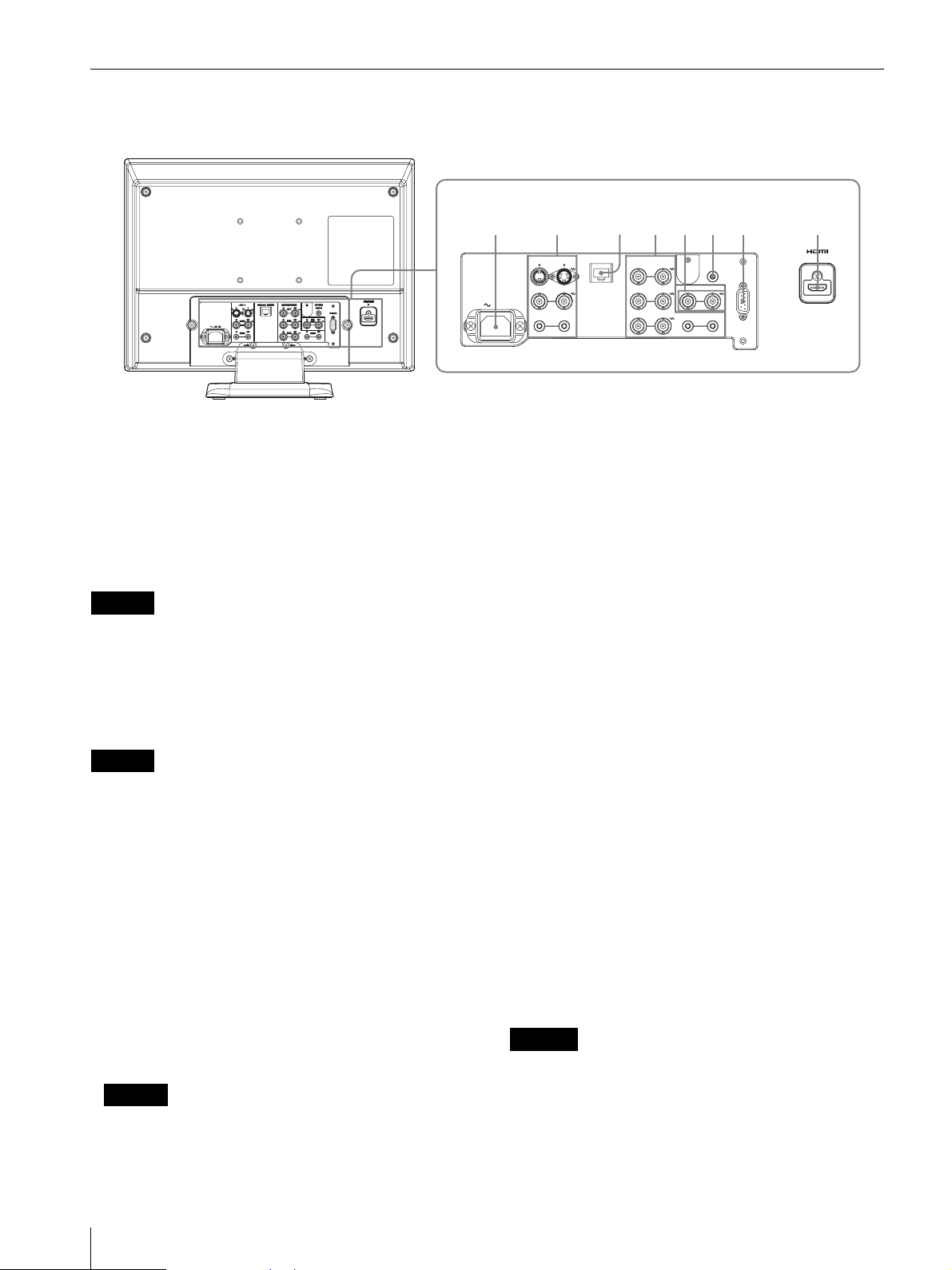

Rear Panel................................................ 10

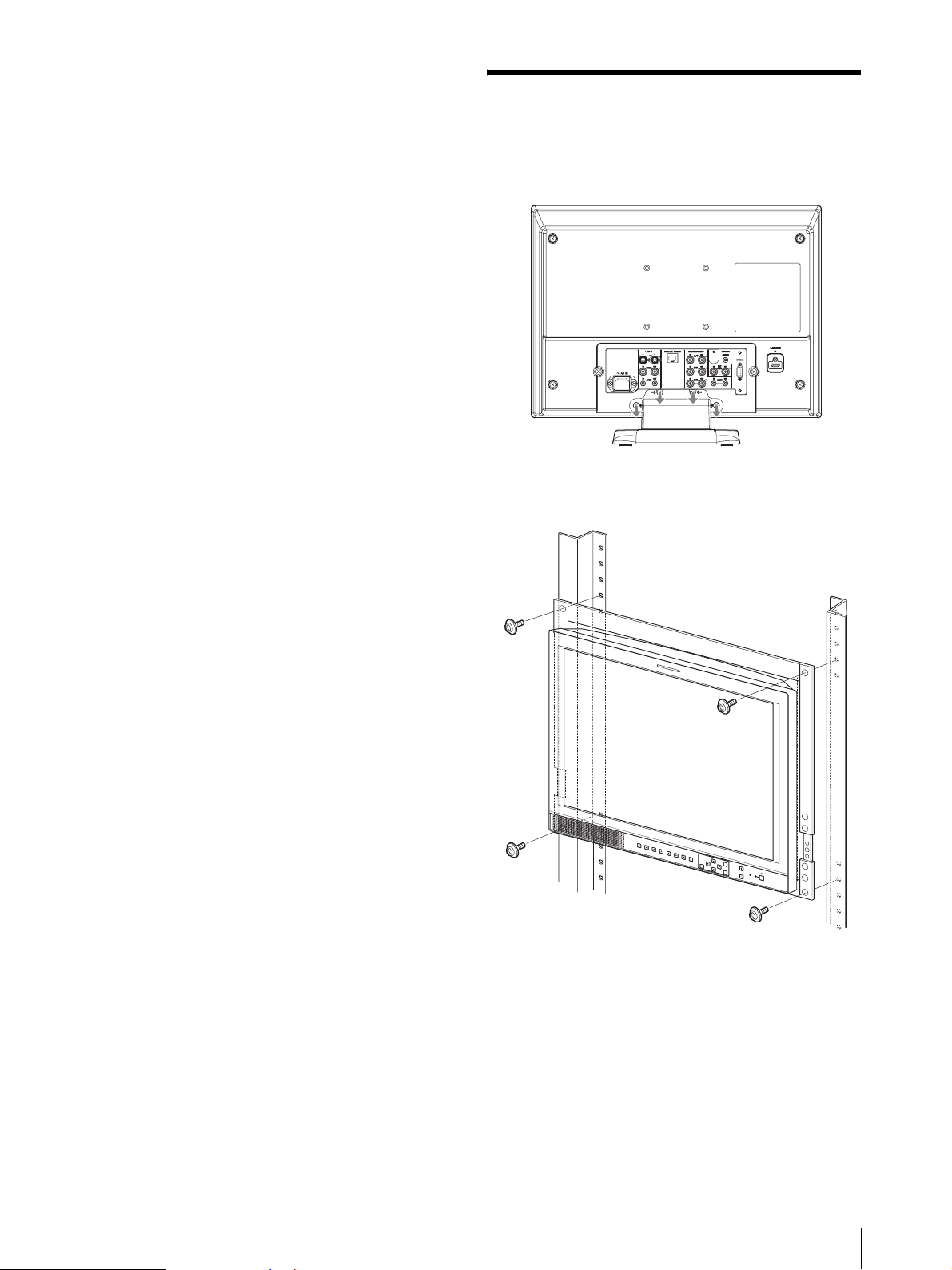

Installing to the Rack ............................ 11

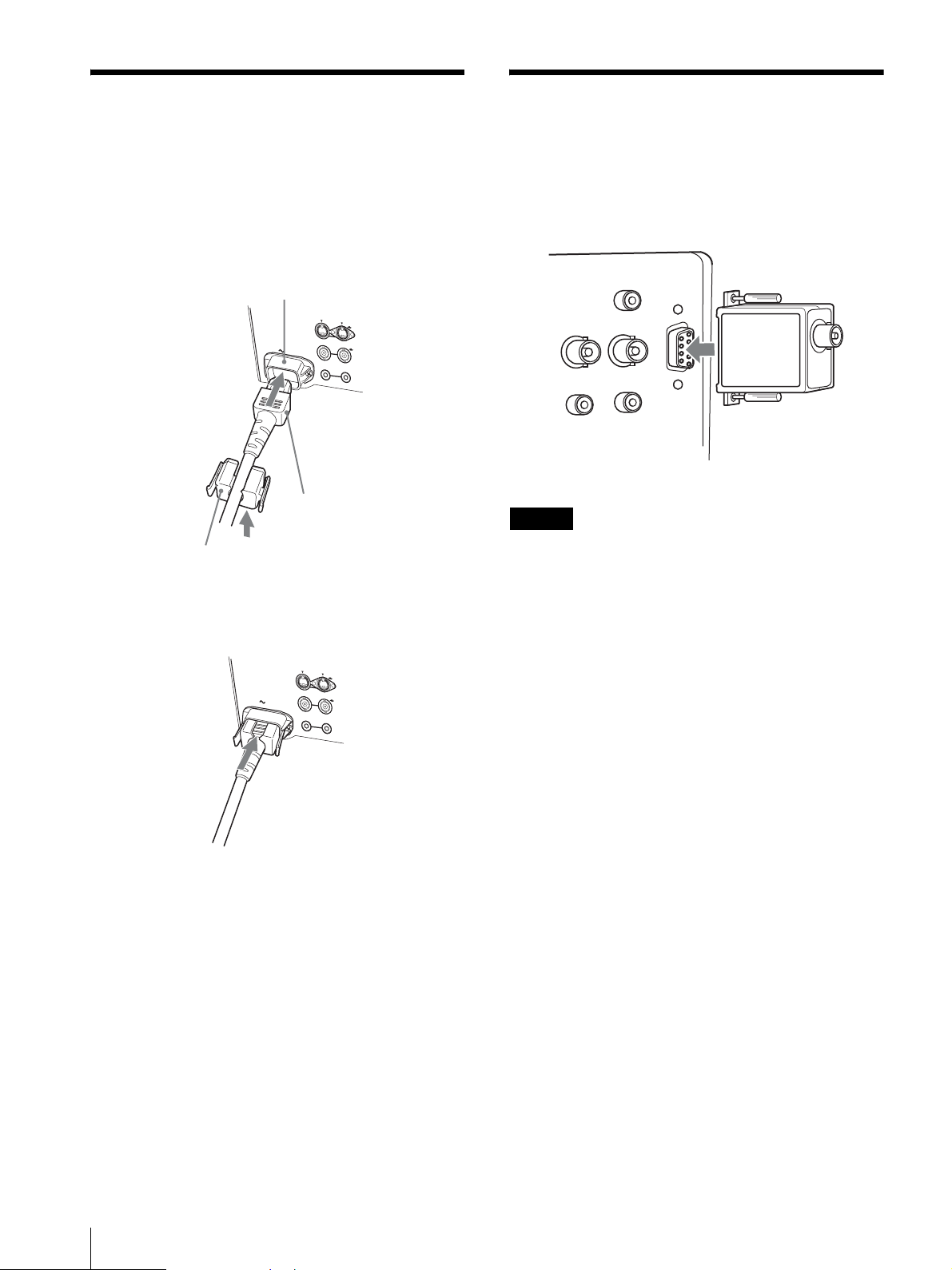

Connecting the AC Power Cord ........... 12
Attaching the Input Adaptor................. 12

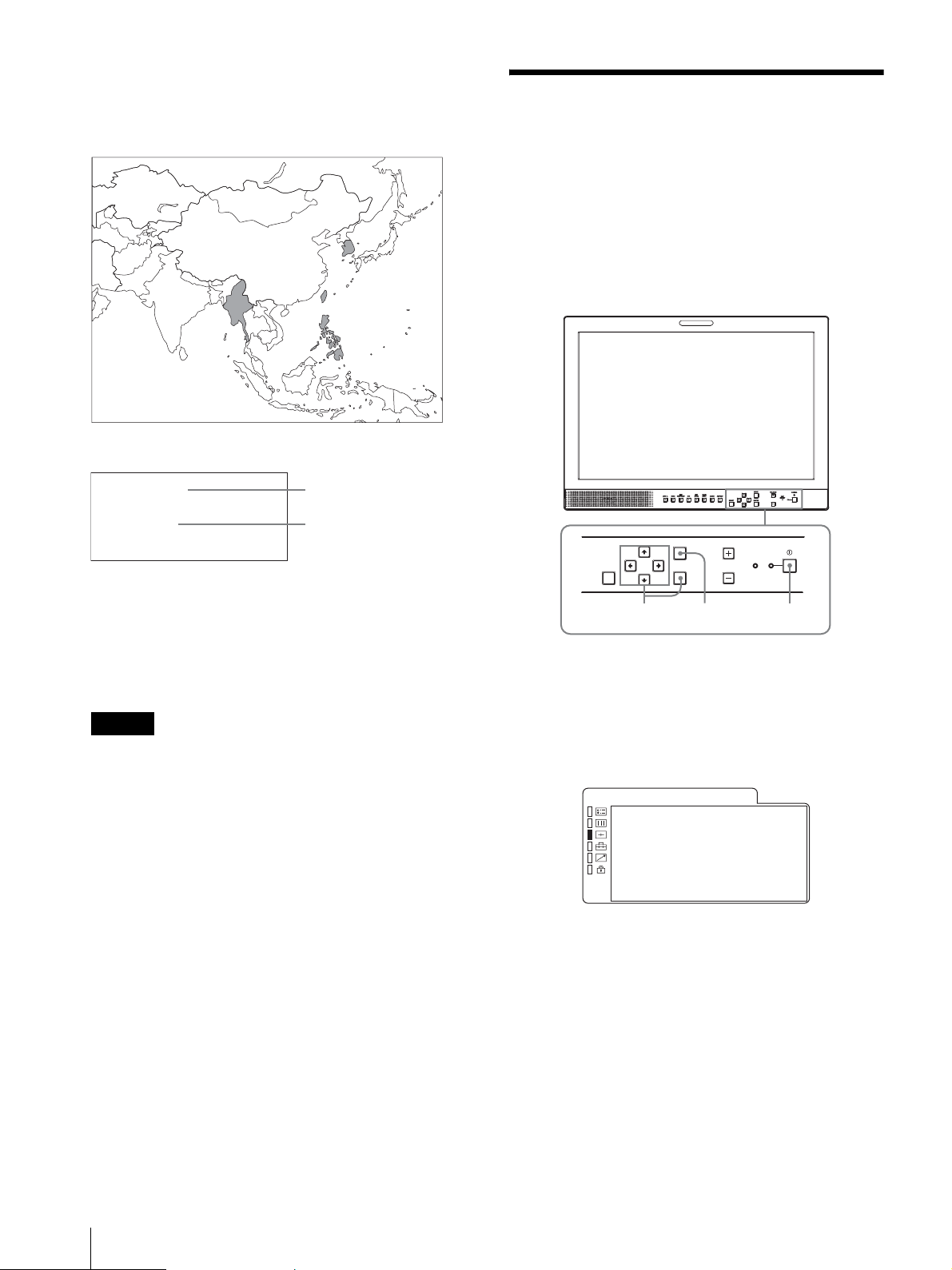

Selecting the Default Settings.............. 13

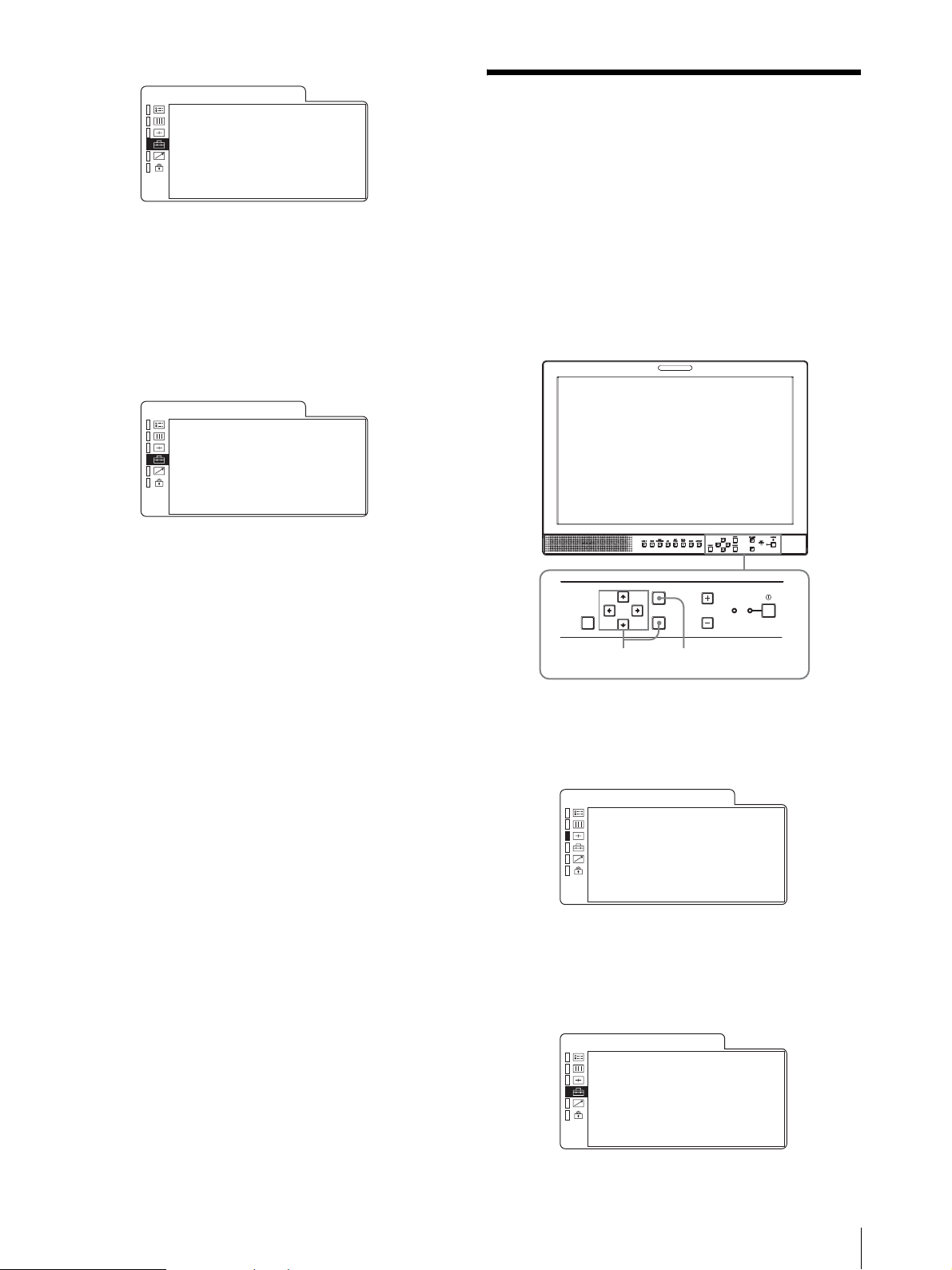

Selecting the Menu Language.............. 14

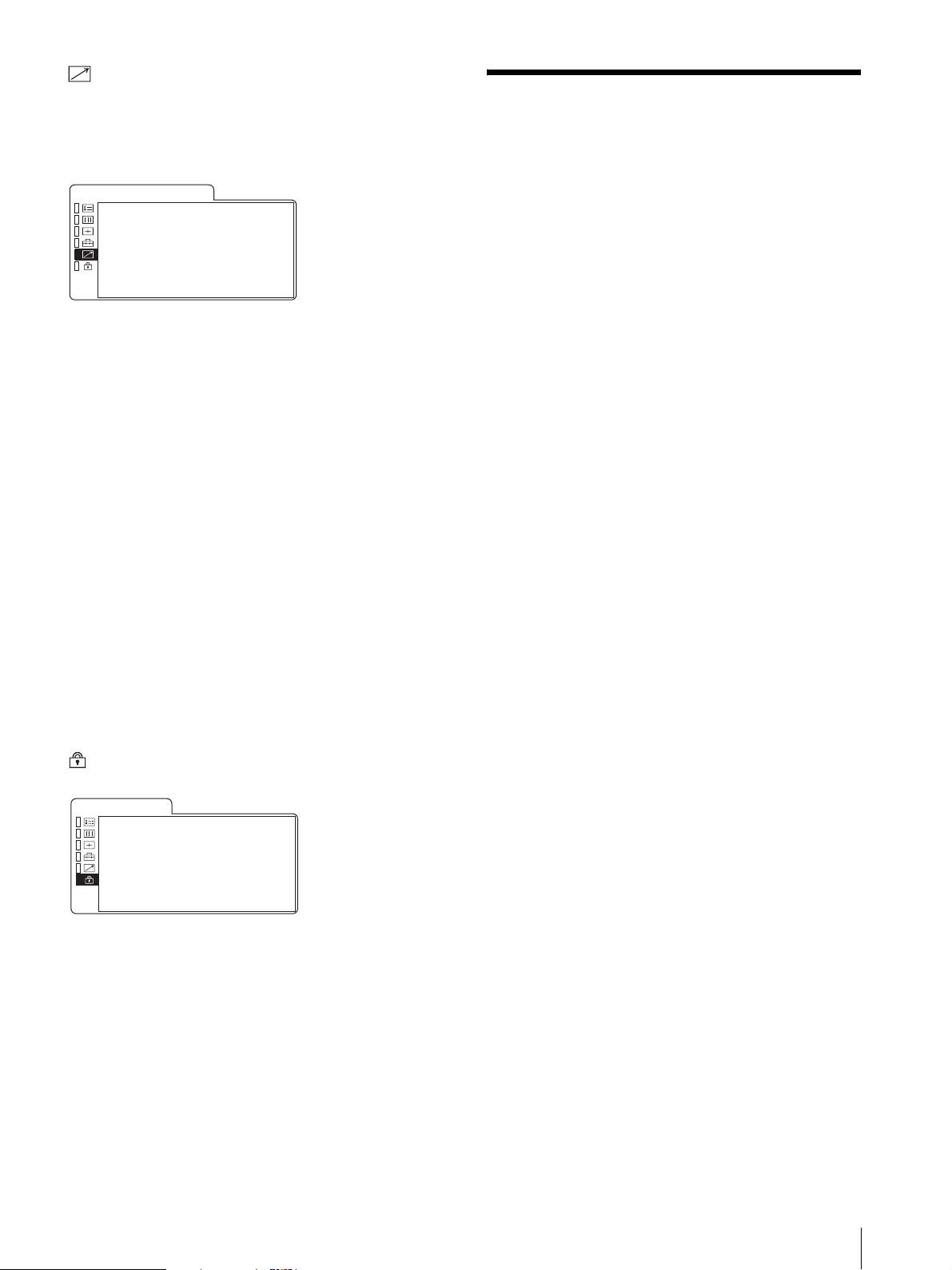

Using the Menu...................................... 15
Adjustment Using the Menus............... 16
Items ........................................................ 16
Adjusting and Changing the Settings ......17
STATUS menu .................................17
COLOR TEMP/BAL menu ............. 17
USER CONTROL menu..................17
USER CONFIG menu .....................17
REMOTE PARALLEL menu .......... 19
KEY INHIBIT menu .......................19
Troubleshooting..................................... 19
Specifications........................................ 20

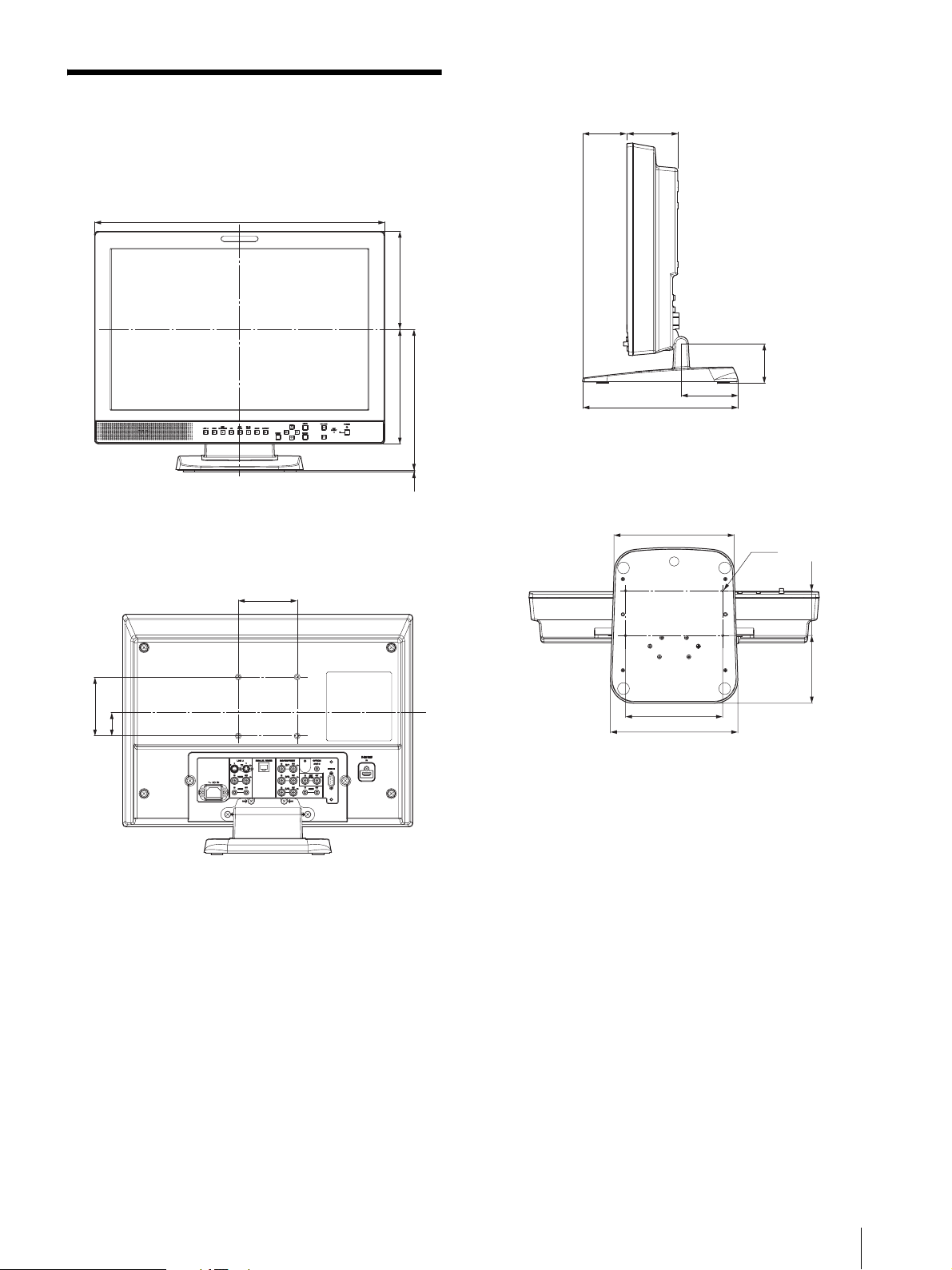

Dimensions ............................................ 23
Table of Contents
4
Precaution
flashing. In addition, over a long period of use, because of the
physical characteristics of the liquid crystal display, such “stuck”
pixels may appear spontaneously. These problems are not a
malfunction.
On Safety
• Operate the unit only with a power source as specified in the
“Specifications” section.
• A nameplate indicating operating voltage, etc., is located on the
rear panel.
• Should any solid object or liquid fall into the cabinet, unplug
the unit and have it checked by qualified personnel before
operating it any further.
• Do not drop or place heavy objects on the power cord. If the
power cord is damaged, turn off the power immediately. It is
dangerous to use the unit with a damaged power cord.
• Unplug the unit from the wall outlet if it is not to be used for
several days or more.
• Disconnect the power cord from the AC outlet by grasping the
plug, not by pulling the cord.
• The socket-outlet shall be installed near the equipment and
shall be easily accessible.
On Installation
• Allow adequate air circulation to prevent internal heat build-up.
Do not place the unit on surfaces (rugs, blankets, etc.) or near
materials (curtains, draperies) that may block the ventilation
holes.
• Do not install the unit in a location near heat sources such as
radiators or air ducts, or in a place subject to direct sunlight,
excessive dust, mechanical vibration or shock.
Handling the LCD Screen
• Do not leave the LCD screen facing the sun as it can damage the
LCD screen. Take care when you place the unit by a window.
• Do not push or scratch the LCD monitor’s screen. Do not place
a heavy object on the LCD monitor’s screen. This may cause
the screen to lose uniformity.
• If the unit is used in a cold place, horizontal lines or a residual
image may appear on the screen. This is not a malfunction.
When the monitor becomes warm, the screen returns to normal.
• If a fixed picture such as a frame of a divided picture or time
code, or a still picture is displayed for a long time, an image
may remain on the screen and be superimposed as a ghosting
image.
• The screen and the cabinet become warm during operation.
This is not a malfunction.
About the Fluorescent Tube
A specially designed fluorescent tube is installed as the lighting
apparatus for this unit. If the LCD screen becomes dark, unstable
or does not turn on, consult your Sony dealer.
On Cleaning
Before cleaning
Be sure to disconnect the AC power cord from the AC outlet.
On cleaning the monitor screen
The monitor screen surface is especially treated to reduce
reflection of light. As incorrect maintenance may impair the
performance of the monitor, take care with respect to the
following:
• Wipe the screen gently with a soft cloth such as a cleaning cloth
or glass cleaning cloth.
• Stubborn stains may be removed with a soft cloth such as a
cleaning cloth or glass cleaning cloth lightly dampened with
water.
• Never use solvent such as alcohol, benzene or thinner, or acid,
alkaline or abrasive detergent, or chemical cleaning cloth, as
they will damage the screen surface.
On cleaning the cabinet
• Clean the cabinet gently with a soft dry cloth. Stubborn stains
may be removed with a cloth lightly dampened with mild
detergent solution, followed by wiping with a soft dry cloth.
• Use of alcohol, benzene, thinner or insecticide may damage the
finish of the cabinet or remove the indications on the cabinet.
Do not use these chemicals.
• If you rub on the cabinet with a stained cloth, the cabinet may
be scratched.
• If the cabinet is in contact with a rubber or vinyl resin product
for a long period of time, the finish of the cabinet may
deteriorate or the coating may come off.
On Repacking
Do not throw away the carton and packing materials. They make
an ideal container which to transport the unit.
Note on faulty pixels on the LCD panel
The LCD panel fitted to this unit is manufactured with high
precision technology, giving a functioning pixel ratio of at least
99.99%. Thus a very small proportion of pixels may be “stuck”,
either always off (black), always on (red, green, or blue), or
On Mounting on a Rack
Leave 1U space empty above and below the monitor to ensure
adequate air circulation or install a fan to maintain the monitor’s
performance.
If you have any questions about this unit, contact your authorized
Sony dealer.
Precaution
5
On Replacing the Parts
Note that if service personnel changes some parts during repair,
these parts may be retained.
Features
The LMD-2030W (20-inch) is a multiple format LCD monitor for
broadcast/professional use featuring a precise image and high
performance. Supporting digital/analog main broadcast signals,
and HDMI
conditions.
1) HDMI, the HDMI logo and High-Definition Multimedia Interface are
High brightness LCD panel
Because of precise image, wide viewing angle technology and
high speed response, real color image can be reproduced.
Multi-format
The monitor supports the video, Y/C, RGB, component and
HDMI input signals.
SDI signals can be available when input adaptor BKM-320D
(optional) is used.
Both NTSC and PAL color systems are supported, and the
appropriate color system is selected automatically.
For more information, see “Video signal formats” (page 22).
1)
input, it can be used under various lighting
trademarks or registered trademarks of HDMI Licensing LLC.
External sync input
When the EXT SYNC button is in the on position, the unit can be
operated on the sync signal supplied from an external sync
generator.
Automatic termination (connector with mark
only)
The input connector is terminated internally at 75 ohms when
nothing has been connected to the output connector. If a cable is
connected to the output connector, the internal terminal is
automatically released and the signals input to the input connector
are output to the output connector (loop-through).
External remote control function
You can directly select the input signal, aspect, etc., by operating
the equipment connected to the PARALLEL REMOTE
connector.
Monitor stand with tilt function
A monitor stand with tilt function is equipped for desk top use. It
shall be removed when mounted on the rack.
Rack mount
The monitor supports the VESA (100 × 100 mm) standard.
It can be mounted on an EIA standard 19-inch rack (using an
optional mounting bracket).
For more information, see “Installing to the Rack” (page 11).
3-color tally lamp
The tally lamp lights in red, green or amber to monitor each input
picture and check the on-air mode.
Features
6
Blue only mode
In the blue only mode, a monochrome display is obtained with all
the three R/G/B picture elements driven with a blue signal.
This mode is convenient for chroma and phase adjustments and
monitoring of VCR noise.
Marker function
CENTER MARKER, 16:9 MARKER for the 4:3 aspect ratio or
4:3 MARKER for the 16:9 aspect ratio can be displayed.
Scan setting
You can set the display size to under scan, over scan or full screen
mode.
Select color temperature and gamma mode
You can select the color temperature from among two (HIGH and
LOW) settings.
You can select the gamma mode from among five settings.
Aspect setting
You can set the monitor to 4:3 or 16:9 display mode according to
the input video signal.
On-screen menus
You can set the appropriate settings according to the connected
system by using the on-screen menus.
Select language display
You can select from seven display languages English, French,
German, Italian, Spanish, Japanese and Chinese.
Key inhibit function
You can inhibit a key, function to prevent misoperation.
Features
7
Location and Function of Parts and Controls
Front Panel
1
MENU
VOLUME
ENTER
qf
EXT
RGB/
LINE A HDMI SDI SCAN ASPECT
COMPONENT
qd
qs qa 0 9 8 7 6 5 4 3 2
BLUE
SYNC
ONLY
RESET
INHIBIT
POWER
KEY
a Tally lamp
You can check the status of the monitor by the color of the tally
lamp.
The tally lamp lights in red, green or amber depending on the
setting of the REMOTE PARALLEL menu.
b POWER switch and indicator
Press to turn on the power. The indicator turns on. Press again to
turn off the power.
c KEY INHIBIT indicator
Lights when the key inhibit function works.
For details on the key inhibit, see “KEY INHIBIT menu” (page 19).
d VOLUME buttons
Press the + button to increase the volume or the – button to
decrease it.
e Menu operation buttons
Displays or sets the on-screen menu.
M/m/</, (arrow) buttons
Select the menu or make various adjustments.
MENU button
Press to display the on-screen menu.
Press again to clear the menu.
RESET button
Resets the value of an item back to the previous value.
This button functions when the menu item is adjusted
(displayed) on the screen.
ENTER button
Press to confirm a selected item on the menu.
f ASPECT select button
Sets the aspect ratio of the picture, 4:3 or 16:9.
g SCAN select button
You can change the scan size of the picture.
Press to change the scan size among over (5 % over scan), under
(–3 % under scan) and full screen set on the SCAN menu
(page 18).
h BLUE ONLY button
Press to eliminate the red and green signals. Only blue signal is
displayed as a monochrome picture on the screen. This mode is
convenient for chroma and phase adjustments and monitoring of
VCR noise.
i EXT SYNC (external sync) button
Press to operate the unit on an external sync signal through the
EXT SYNC IN connector.
The EXT SYNC button works when the component/RGB signals
are input.
j SDI button
Press to monitor the signal through the OPTION IN connector.
k RGB/COMPONENT button
Press to monitor the signal through the RGB/COMPONENT
input connector.
l HDMI button
Press to monitor the signal through the HDMI IN connector.
Location and Function of Parts and Controls
8
m LINE A button
Press to monitor the signal through the LINE A input connector.
n Speaker
The audio signal selected by the input select button (j SDI
button, k RGB/COMPONENT button, l HDMI button or
m LINE A button) on the front panel is output.
Input Signals and Adjustable/Setting Items
Input signal
Item Video, Y/C B & W Component RGB SDI
SD HD SD HD D1 SD HD DVI
CONTRAST aaaaaaaaaa
BRIGHT aaaaaaaaaa
CHROMA a × aa ××aaa ×
PHASE a
APERTURE aaaa ××aaa ×
COLOR TEMP aaaaaaaaaa
COMP LEVEL
NTSC SETUP a
GAMMA aaaaaaaaaa
SCAN aaaaaaaaa ×
ASPECT aaaa
MARKER aaaaaaaaa ×
BLUE ONLY a × aaaaaaa×
PIC DELAY MIN
EXT SYNC ××aaaa ××××
*1
(NTSC)
××
(NTSC)a(480/60I)
*3
aaaa*5aa*5aaa
a : Adjustable/can be set
× : Not adjustable/cannot be set
ЧЧЧЧЧЧЧЧЧ
a
(480/60I)
ЧЧЧЧЧЧЧ
ЧЧЧЧЧЧЧЧ
*2
aa*2aaa
*1 When a component signal (480/60I) is input, this can be switchable.
*2 When a 480/60P or 576/50P signal is input, this can be switchable.
*3 When an interlace signal is input, this can be switchable.
*4 When BKM-320D is used, SDI signals can be input.
*5 When a 1080I signal is input, this cannot be switched.
(PIC DELAY MIN is set to “ON” only.)
*6 When a PC signal is input to the HDMI IN connector using a DVI conversion
cable, this can be adjusted.
*4
HDMI
*2
*5
*6
×
×
Location and Function of Parts and Controls
9
Rear Panel
AC IN
LINE A
IN OUT
IN OUT
VIDEO
IN OUT
AUDIO
PARALLEL REMOTE
RGB/COMPONENT
IN OUT
G/Y
IN OUT
B/P
B
IN OUT
R/P
R
32 145678
OPTION
IN OUT
EXT
SYNC
ININOUT
AUDIO
AUDIO IN
OPTION IN
a HDMI IN connector
HDMI (High-Definition Multimedia Interface) is an interface that
supports both video and audio on a single digital connection,
allowing you to enjoy high quality digital picture and sound. The
HDMI specification supports HDCP (High-bandwidth Digital
Content Protection), a copy protection technology that
incorporates coding technology for digital video signals.
Note
Use HDMI compliant cable (optional) with HDMI logo.
b OPTION IN connector (D-sub 9-pin, female)
Inputs SDI signals when optional Sony input adaptor BKM-320D
is connected.
Press the SDI button to select the signal.
Note
Do not connect the equipment other than BKM-320D. It causes
damage to the unit or the equipment.
c OPTION AUDIO IN connector (phono jack)
Inputs an audio signal if the BKM-320D is connected to the
OPTION IN connector.
Press the SDI button to monitor the audio signal.
d EXT SYNC IN/OUT (external sync) connectors
(BNC)
Press the EXT SYNC button to use the sync signal through this
connector.
IN connector
When this unit operates on an external sync signal, connect the
reference signal from a sync generator to this connector.
Note
When inputting a video signal with the jitters, etc. the picture
may be disturbed. We recommend using the TBC (time base
corrector).
OUT connector
Loop-through output of the IN connector. Connect to the
external sync input of video equipment to be synchronized with
this unit.
When the cable is connected to this connector, the 75-ohms
termination of the input is automatically released, and the
signal input to the IN connector is output from this connector.
e RGB/COMPONENT connectors
Analog RGB signal or component (Y/P
connectors and their loop-through output connectors.
Press the RGB/COMPONENT button to monitor the signal input
through these connectors.
G/Y, B/P
B, R/PR IN/OUT (BNC)
These are the input/output connectors for an analog RGB and a
component (Y/PB/PR) signal. Unless an external sync signal is
input, the monitor is synchronized with the sync signal
contained in the G/Y signal.
AUDIO IN/OUT (phono jack)
When using an analog RGB or a component signal as a video
signal, use these jacks for the input/output of an audio signal.
Connect them to the audio input/output jacks on equipment
such as a VCR.
B/PR) signal input

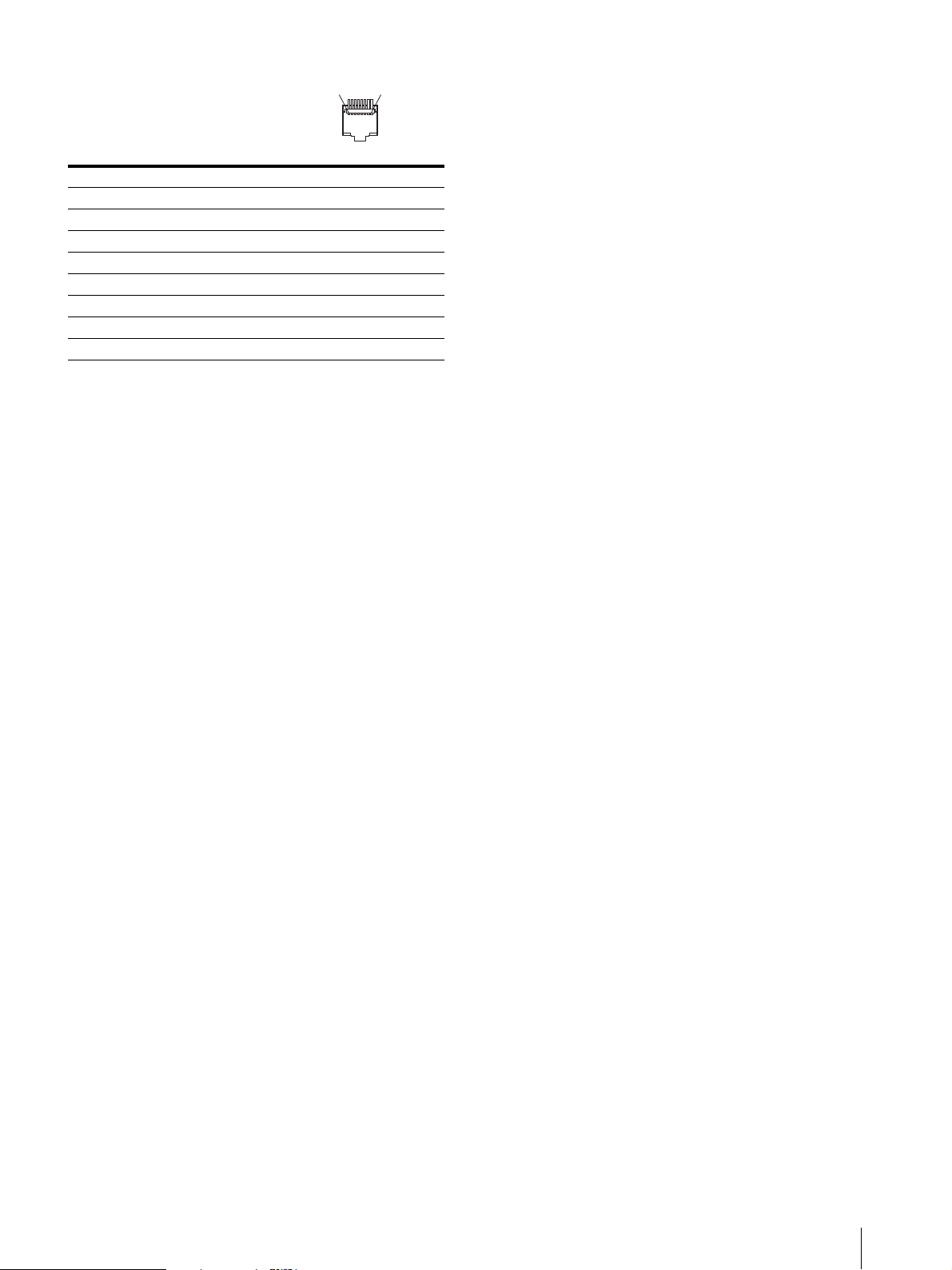

f PARALLEL REMOTE connector (modular
connector, 8-pin)
Forms a parallel switch and controls the monitor externally.
For details on the pin assignment and factory setting function assigned to
each pin, see page 21.
CAUTON
For safety, do not connect the connector for peripheral device
wiring that might have excessive voltage to this port. Follow the
instructions for this port.
10
Location and Function of Parts and Controls
g LINE A connectors
Line input connectors for Y/C separate, composite video and
audio signals and their loop-through output connectors.
Press the LINE A button to monitor the signal input through these
connectors.
If you input signals to both Y/C IN and VIDEO IN, the signal
input to the Y/C IN is selected.
Y/C IN/OUT (4-pin mini-DIN)
These are the input/output connectors for a Y/C separate signal.
Connect them to the Y/C separate input/output connectors on
equipment such as a VCR, video camera, or another monitor.
VIDEO IN/OUT (BNC)
These are the input/output connectors for a composite video
signal. Connect them to the composite video input/output
connectors on equipment such as a VCR, video camera, or
another monitor.
AUDIO IN/OUT (phono jack)
These are the input/output jacks for an audio signal. Connect
them to the audio input/output jacks on equipment such as a
VCR.
Installing to the Rack
1 Remove the screws (4) to remove the stand.
h AC IN socket
Connect the supplied AC power cord.
2 Attach the mounting bracket, then attach the unit to the rack.
L
I
N
E
A
L
I
N
E
R
G
B
B
/
C
O
M
P
O
N
E
N
T
S
D
E
I
X
T
S
Y
N
B
C
L
U
E
O
N
L
Y
S
C
A
N
A
S
P
E
C
T
M
E
N
U
R
E
S
E
T
V
O
L
U
M
E
E
N
T
E
R
P
O
W
E
R
K
E
Y
I
N
H
I
B
I
T
Installing to the Rack
11
Connecting the AC
Attaching the Input
Power Cord
1 Plug the AC power cord into the AC IN socket on the rear
panel. Then, attach the AC plug holder (supplied) to the AC
power cord.
AC IN socket
L
IN
E
A
IN O
U
T
VIDEO
A
C
IN
IN O
U
T
AUDIO
AC power cord
AC plug holder (Supplied)
2 Slide the AC plug holder over the cord until it locks.
Adaptor
Before attaching the input adaptor, disconnect the power cord.
Note
Do not connect the equipment other than BKM-320D. It causes
damage to the unit or the equipment.
L
IN
E
A
I
N
O
U
T
VIDEO
AC IN
I
N
O
U
T
AUDIO
To disconnect the AC power cord
Pull out the AC plug holder while pressing the lock levers.
12
Connecting the AC Power Cord / Attaching the Input Adaptor
Selecting the Default Settings
When you turn on the unit for the first time after purchasing it,
select the area where you intend to use this unit from among the
options.
The default setting values for each area
3
RESET
MENU
ENTER
VOLUME
KEY
INHIBIT
POWER
5
1
4
3
3
COLOR
TEMP
1NORTH AMERICA LOW BETA7.5 7.5
2LATIN AMERICA
PAL& PAL-N AR EA
NTSC&PAL-M AREA OTHER AREA LOW BETA7.5 7.5
3AFRICA AUSTRALASIA
EUROPE MIDDLE-EAST
4ASIA EXCEPT JAPAN
ARGENTINA LOW SMPTE 0
PARAGUAY LOW SMPTE 0
URUGUAY LOW SMPTE 0
LOW SMPTE 0
NTSC AREA LOW BETA7.5 7.5
PAL AREA L OW SMPTE 0
5JAPAN HIGH SMPTE 0
2
COMP
LEVEL
NTSC
SETUP
2~3 1
1 Press the POWER switch.
The power is turned on and the SELECT SETTING screen
appears.
1North America
S E L E C T S E T T I N G
x N O R T H A M E R I C A
• L A T I N A M E R I C A
• A F R I C A A U S T R A L A S I A
E U R O P E M I D D L E - E A S T
• A S I A E X C E P T J A P A N
• J A P A N
2Latin America
3Africa, Australia/New
Zealand, Europe, Middle
East, Russia
4Asia Except Japan
5Japan
2 Press the M or m button to select the area where you intend
to use the unit and press the , or ENTER button.
If you select either LATIN AMERICA or ASIA EXCEPT
JAPAN, one of the following screens appears.
2 If LATIN AMERICA is selected:
L A T I N A M E R I C A
x P A L & P A L - N A R E A
A R G E N T I N A
P A R A G U A Y
U R U G U A Y
• N T S C & P A L - M A R E A
O T H E R A R E A
PAL&PAL-N area
Argentina
Parag uay
Uruguay
NTSC&PAL-M area
Other area
Selecting the Default Settings
13
4 If ASIA EXCEPT JAPAN is selected:
Customers who will use this unit in the shaded areas shown
in the map below should select NTSC AREA.
Other customers should select PAL AREA.
Selecting the Menu Language
You can select one of seven languages (English, French, German,
Spanish, Italian, Japanese, Chinese) for displaying the menu and
other on-screen displays.
The current settings are displayed in place of the x marks on the
illustrations of the menu screen.
A S I A E X C E P T J A P A N
x N T S C A R E A
• P A L A R E A
NTSC area
PAL area
3 Press the M or m button to narrow the area further and then
press the , or ENTER button.
The SELECT SETTING screen disappears and the menu
item settings suitable for the selected area are applied.
Note
When you have selected the wrong area, set the following items
using the menu.
COLOR TEMP (on page 17)
COMP LEVEL (on page 18)
NTSC SETUP (on page 18)
See “The default setting values for each area” (page 13) on the setting
value.
MENU
RESET
VOLUME
ENTER
INHIBIT
POWER
KEY
3~5 2 1
1 Press the POWER switch to turn on the unit.
2 Press the MENU button.
The menu appears.
The menu presently selected is shown as a yellow button.
USER CONTROL
CONTROL
· CONTRAST x
· BRIGHT x
· CHROMA x
· PHASE x
· APERTURE xxx
· BACKLIGHT x
14
3 Press the M or m button to select the USER CONFIG 1/2
(User Configuration 1/2) menu, then press the , or
ENTER button.
The setting items (icons) in the selected menu are displayed
in yellow.
Selecting the Menu Language
USER CONFIG (1/2) Rr
· RGB/COMP SEL xxxx
· COMP LEVEL xxxxx
· NTSC SETUP x
· GAMMA x
· FORMAT DISP xxxx
xLANGUAGE ENGLISH
4 Press the M or m button to select the “LANGUAGE”, then
press the , or ENTER button.
The selected item is displayed in yellow.
5 Press the M or m button to select a language, then press the
ENTER button.
The menu changes to the selected language.
USER CONFIG (1/2) Rr
· RGB/COMP SEL xxxx
· COMP LEVEL xxxxx
· NTSC SETUP x
· GAMMA x
· FORMAT DISP xxxx
xLANGUAGE ENGLISH
To clear the menu
Press the MENU button.
The menu disappears automatically if a button is not pressed for
one minute.
Using the Menu
The unit is equipped with an on-screen menu for making various
adjustments and settings such as picture control, input setting,
setting change, etc. You can also change the menu language
displayed in the on-screen menu.
To change the language display, see “Selecting the Menu Language”
(page 14).
The current settings are displayed in place of the x marks on the
illustrations of the menu screen.
MENU
RESET
VOLUME
ENTER
INHIBIT
POWER
KEY
2~4 1
1 Press the MENU button.
The menu appears.
The menu presently selected is shown as a yellow button.
USER CONTROL
CONTROL
· CONTRAST x
· BRIGHT x
· CHROMA x
· PHASE x
· APERTURE xxx
· BACKLIGHT x
2 Press the M or m button to select a menu, then press the ,
or ENTER button.
The menu icon presently selected is shown in yellow and
setting items are displayed.
USER CONFIG (1/2) Rr
· RGB/COMP SEL xxxx
· COMP LEVEL xxxxx
· NTSC SETUP x
· GAMMA x
· FORMAT DISP xxxx
xLANGUAGE ENGLISH
Using the Menu
15
3 Select an item.
Press the M or m button to select the item, then press the ,
or ENTER button.
The item to be changed is displayed in yellow.
Note
If the menu consists of multiple pages, press M or m to go to
the desired menu page.
4 Make the setting or adjustment on an item.
When changing the adjustment level:
To increase the number, press the M button.
To decrease the number, press the m button.
Press the ENTER button to confirm the number, then restore
the original screen.
When changing the setting:
Press the M or m button to change the setting. Press the
ENTER button to confirm the setting.
Notes
• An item displayed in blue cannot be accessed. You can
access the item if it is displayed in white.
• If the key inhibit has been turned on, all items are
displayed in blue. To change any of the items, turn the key
inhibit to OFF first.
Adjustment Using the Menus
Items
The screen menu of this monitor consists of the following items.
STATUS (the items indicate the
current settings.)
FORMAT
COLOR TEMP
GAMMA
COMP LEVEL
NTSC SETUP
RGB/COMP SEL
SCAN MODE
DISPLAY
OPTION
COLOR TEMP/BAL
COLOR TEMP
MANUAL ADJ
For details on the key inhibit, see “KEY INHIBIT menu” (page 19).
To clear the menu
Press the MENU button.
The menu disappears automatically if a button is not pressed for
one minute.
About the memory of the settings
The settings are automatically stored in the monitor memory.
To reset items that have been adjusted
Pressing the RESET button while you are adjusting any of the
menu items resets the menu item to the previous setting.
USER CONTROL
CONTROL
USER CONFIG
RGB/COMP SEL
COMP LEVEL
NTSC SETUP
GAMMA
FORMAT DISP
LANGUAGE
MARKER
CENTER MARKER
MARKER LEVEL
SCAN
PIC DELAY MIN
REMOTE PARALLEL
1PIN
2PIN
3PIN
4PIN
6PIN
7PIN
8PIN
16
KEY INHIBIT
KEY INHIBIT
Adjustment Using the Menus
Adjusting and Changing the Settings
STATUS menu
The STATUS menu is used to display the current status of the unit.
The following items are displayed:
STATUS (1/2) Rr
FORMAT xxxxx
xxxxxxxx
COLOR TEMP xxxx
GAMMA x
COMP LEVEL xxxxx
NTSC SETUP xx
RGB/COMP SEL xxxx
SCAN MODE xxxx
STATUS (2/2) Rr
DISPLAY
LMD-2030W
OPTION
BKM-320D
• Signal format
• Color temperature
• Gamma
• Component level
• NTSC setup
• RGB/Component select
• Scan mode
• Display
• Option
COLOR TEMP/BAL menu
The COLOR TEMP/BAL menu is used for adjusting the picture
white balance.
You need to use the measurement instrument to adjust the white
balance.
Recommended: Konica Minolta color analyzer CA-210
COLOR TEMP/BAL
xCOLOR TEMP xxxx
MANUAL ADJ
· ADJUST GAIN···
· ADJUST BIAS···
· COPY FROM xxx
Submenu Setting
MANUAL ADJ If you set the COLOR TEMP to “USER”
setting, the item displayed is changed from blue
to white, which means you can adjust the color
temperature.
• ADJUST GAIN…: Adjusts the color
balance (GAIN).
• ADJUST BIAS…: Adjusts the color
balance (BIAS).
• COPY FROM: If you select “HIGH” or
“LOW”, the white balance data for the
selected color temperature will be
copied in the “USER” setting.
USER CONTROL menu
The USER CONTROL menu is used for adjusting the picture.
Items that cannot be adjusted depending on the input signal are
displayed in blue.
USER CONTROL
CONTROL
xCONTRAST x
· BRIGHT x
· CHROMA x
· PHASE x
· APERTURE xxx
· BACKLIGHT x
Submenu Setting
CONTROL You can adjust the picture.
• CONTRAST: Adjusts the picture contrast.
• BRIGHT: Adjusts the picture brightness.
• CHROMA: Adjusts color intensity. The
higher the setting, the greater the
intensity. The lower the setting, the lower
the intensity.
• PHASE: Adjusts color tones. The higher the
setting, the more greenish the picture. The
lower the setting, the more purplish the
picture.
• APERTURE: Adjusts the picture sharpness.
The higher the setting, the sharper the
picture.
• BACKLIGHT: Adjusts the backlight. The
brightness of the backlight changes when
the setting changes.
For details of input signals and adjustable/setting items, see page 9.
Submenu Setting
COLOR TEMP Select the color temperature from among
“HIGH”, “LOW” and “USER” setting.
USER CONFIG menu
You can select a language, etc.
Items that cannot be adjusted depending on the input signal are
displayed in blue.
Adjustment Using the Menus
17

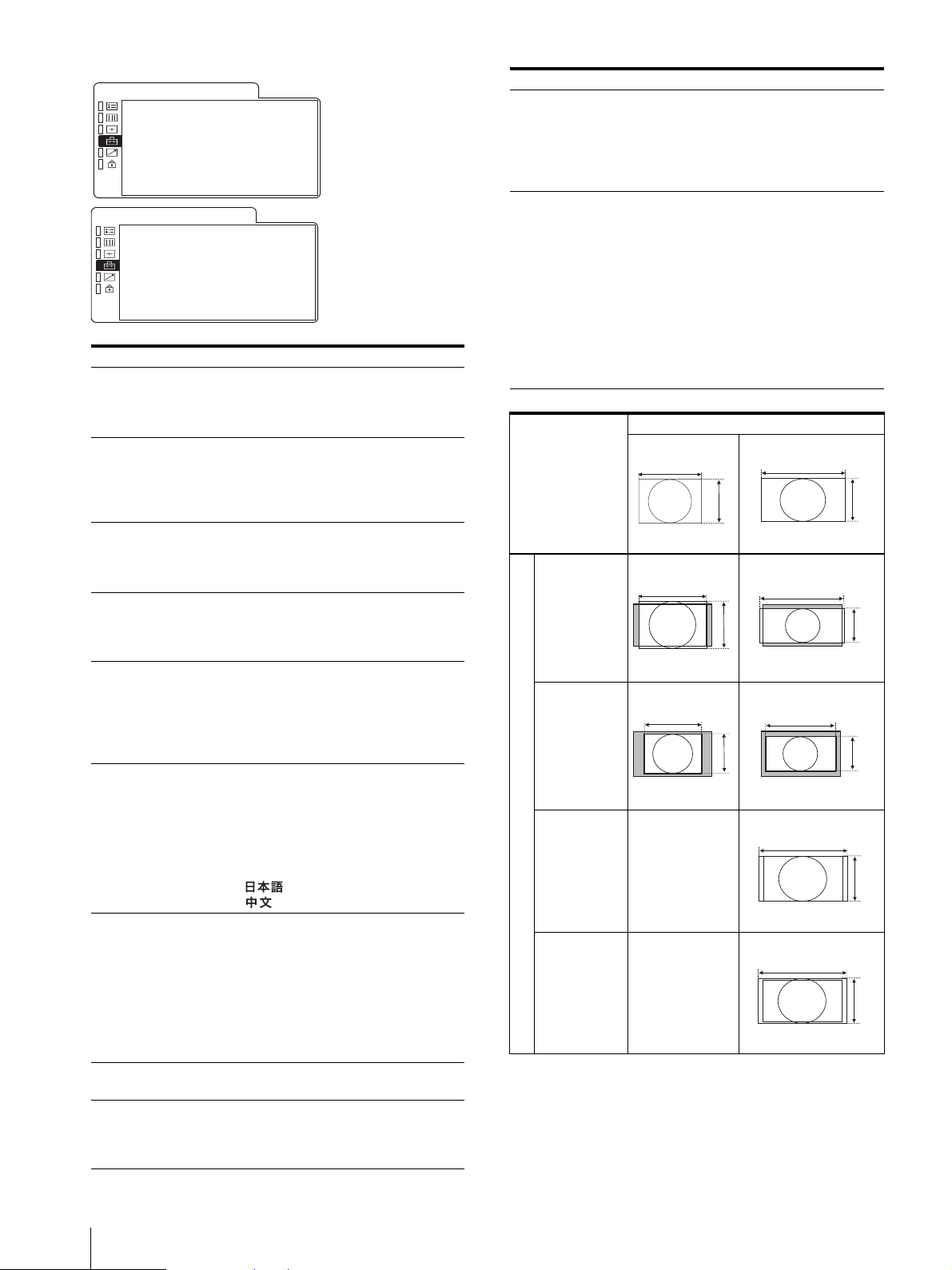

USER CONFIG (1/2) Rr
xRGB/COMP SEL xxxx
· COMP LEVEL xxxxx
· NTSC SETUP x
· GAMMA x
· FORMAT DISP xxx
· LANGUAGE xxx
USER CONFIG (2/2) Rr
xMARKER xxx
·CENTER MARKER xxx
·MARKER LEVEL x
·SCAN xxxx
·PIC DELAY MIN xxx
Submenu Setting
RGB/COMP SEL When a signal input via the RGB/
COMPONENT connector is being monitored,
based on the signal being input, select “RGB”
or “COMP” (component).
COMP LEVEL Select the component level from among three
modes.
• SMPTE: for 100/0/100/0 signal
• BETA0: for 100/0/75/0 signal
• BETA7.5: for 100/7.5/75/7.5 signal
NTSC SETUP Select the NTSC setup level from two modes.
The 7.5 setup level is used mainly in North
America. The 0 setup level is used mainly in
Japan.
GAMMA Select the appropriate gamma mode. You can
select from among five settings. When “3” is
selected, the setting is roughly same as the
gamma mode of the CRT (2.2).
FORMAT DISP Select the display mode of the signal format.
• ON: The format is always displayed.
• OFF: The display is hidden.
• AUTO: The format is displayed for about 10
seconds when the input of the signal
starts.
LANGUAGE You can select the menu or message language
from among seven languages.
• ENGLISH: English
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish
• ITALIANO: Italian
• : Japanese
• : Chinese
MARKER When the frame of the film is displayed on the
screen, select the aspect ratio according to the
film.
When 16:9 aspect ratio is selected with
the ASPECT select button
You can select either 4:3 or OFF.
When 4:3 aspect ratio is selected with
the ASPECT select button
You can select either 16:9 or OFF.
CENTER MARKER Select “ON” to display the center mark of the
picture and “OFF” not to display.
MARKER LEVEL Sets the luminance to display the “MARKER”
and “CENTER MARKER”.
When the setting is low, the marker is displayed
dark.
Submenu Setting
SCAN Sets the scan size of the picture. Select from
“OFF” and “FULL” mode.
• OFF: Changes between over scan and under
scan.
• FULL: Changes to over scan, under scan or
full screen.
PIC DELAY MIN Select to set the delay by the picture processing
to the minimum level when the signal is input.
When 1080I signal is input, “OFF” cannot be
selected.
• OFF: Mode for giving precedence to the
picture quality (recommended mode). It
takes longer than “ON” for processing
the picture.
• ON: The processing time is short. As the line
flicker is displayed in this mode, it is
available for checking the line flicker of
the telop work and so on.
Input
4
3
16
9
OVER SCAN
(5 % OVER
SCAN)
4
3
16
9
UNDER SCAN
(–3 % UNDER
SCAN)
FULL
Output
4
3
–
16
9
16
9
FULL (1080)
1920
–
1080
18
Adjustment Using the Menus
REMOTE PARALLEL menu
Select the PARALLEL REMOTE connector pins for which you
want to change the function.
You can assign various functions to 1 to 4 pins and 6 to 8 pins. The
following lists the functions you can assign to the pins.
REMOTE PARALLEL
x1PIN xxxxx
· 2PIN xxxxx
· 3PIN xxxxxxx
· 4PIN xxxxxxx
· 6PIN xxxxxxxx
· 7PIN xxxxxxxxx
· 8PIN xxxx
REMOTE PARALLEL
• ––– (“–––”: No function is assigned.)
• LINE A
• HDMI
• RGB/COMP
• 16:9
• 4:3
• UNDER
• OVE R
• TAL LY R
• TAL LY G
• EXT SYNC
• BLUE ONLY
• 16:9 MARKER
• 4:3 MARKER
• CENTER MARKER
• FULL
• SDI
Troubleshooting
This section may help you isolate the cause of a problem and as a
result, eliminate the need to contact technical support.
• The display is colored in green or purple t Select the
correct input from the RGB/COMP SEL setting in the USER
CONFIG menu (page 17).
• The unit cannot be operated t The key protection function
works. Set the KEY INHIBIT setting to OFF in the KEY
INHIBIT menu.
If you use the PARALLEL REMOTE function, you need to
connect cables.
For more details, see page 21.
KEY INHIBIT menu
KEY INHIBIT
xKEY INHIBIT xxx
You can lock the setting so that they cannot be changed by an
unauthorized user.
Select OFF or ON.
If you set “ON”, all items are displayed in blue, indicating the
items are locked.
Troubleshooting
19
Specifications
Picture performance
LCD panel a-Si TFT Active Matrix
Picture size 20.1 type
433 × 271 × 511 mm
(W/H/Diagonal)
(17 1/8 × 10 3/4 × 20 1/8 inches)
Resolution 1,680 × 1,050 dots (WSXGA+)
Viewing angle 89° / 89° / 89° / 89° (typical)
Scan Under –3 %
Over 5 %
Aspect 16 : 10
Display color 16,700,000
Input/output connectors
Input
LINE A input connectors
Y/C input 4-pin mini-DIN (1)
VIDEO input BNC type (1), 1 Vp-p ±3 dB, negative
synchronization
AUDIO input Phono jack (1), –5 dBu 47 kilohms or
higher
RGB/COMPONENT input connectors BNC type (3)
RGB input 0.7 Vp-p ±3 dB, (Sync On Green,
0.3 Vp-p negative sync.)
Component input
0.7 Vp-p ±3 dB, (75 % chrominance
standard color bar signal)
AUDIO input Phono jack (1), –5 dBu 47 kilohms or
higher
OPTION IN connector
D-sub 9-pin (1), female
OPTION AUDIO IN connector
Phono jack (1), –5 dBu 47 kilohms or
higher
External synchronized input connector
BNC type (1), 0.3 to 4 Vp-p negative
polarity binary
HDMI IN connector
HDMI (1)
PARALLEL REMOTE input connector
Parallel remote Modular connector 8-pin (1)
Output
LINE A output connectors
Y/C output 4-pin mini-DIN (1), Loop-through,
with 75 ohms automatic terminal
function
VIDEO output BNC type (1), Loop-through, with
75 ohms automatic terminal
function
AUDIO output Phono jack (1), Loop-through
RGB/COMPONENT output connectors
RGB/Component output
BNC type (3), Loop-through, with
75 ohms automatic terminal
function
AUDIO output Phono jack (1), Loop-through
External synchronized output connector
BNC type (1), Loop-through, with
75 ohms automatic terminal function
Built-in speaker output
0.5 W (mono)
General
Power AC100 – 240 V, 50/60 Hz
Power consumption Maximum: approx. 72 W, 0.8 A – 0.4 A
Peak inrush current (1) Power ON, current probe method: 34A
(100V), 64 A (240V)
(2) Hot switching inrush current,
measured in accordance with European
standard EN55103-1: 55 A (230V)
Dimensions Approx. 493 × 408 × 264 mm
(not including the projection parts)
1
/2 × 16 1/8 × 10 1/2 inches)
(19
(w/h/d)
Mass Approx. 9.6 kg (21 lb 3 oz)
Operating conditions
Temperature 0 °C to 35 °C (32 °F to 95 °F)
Recommended temperature
20 °C to 30 °C (68 °F to 86 °F)
Humidity 30% to 85% (no condensation)
Pressure 700 to 1060 hPa
Storage and transport conditions
Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Humidity 0% to 90%
Pressure 700 hPa to 1060 hPa
Accessories supplied AC power cord (1)
AC plug holder (1)
Operating Instructions (1)
CD-ROM (1)
Using the CD-ROM Manual (1)
Warranty book (1)
Optional accessories
Mounting bracket MB-529
SDI input adaptor BKM-320D
Design and specifications are subject to change without notice.
Note
Always verify that the unit is operating properly before use.
SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY
KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON ACCOUNT
OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS
DUE TO FAILURE OF THIS UNIT, EITHER DURING THE
WARRANTY PERIOD OR AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER REASON
WHATSOEVER.
20
Specifications
Pin assignment
18
PARALLEL REMOTE connector
Modular connector
(8-pin)
Pin number Functions
1 Designate LINE A input signal
2 Designate HDMI input signal
3 Designate RGB/COMPONENT input signal
4 16:9
5GND
64:3
7 Selecting UNDER
8 Selecting OVER
For details on function allocations, see “REMOTE PARALLEL menu”
(page 19).
Wiring required to use the Remote Control
Connect the function you want to use with a Remote Control to
the Ground (Pin 5).
Specifications
21
Video signal formats
The unit is applicable to the following signal formats.
System Total lines Active lines Frame rate Scanning format Aspect ratio Signal standard
575/50I (PAL) 625 575 25 2:1 interlace 16:9/4:3 EBU N10
480/60I (NTSC)
576/50P 625 576 50 Progressive 16:9/4:3 ITU-R BT.1358
480/60P 525 483 60 Progressive 16:9/4:3 SMPTE-293M
1080/24P
1080/25P 1125 1080 25 Progressive 16:9 SMPTE-274M
1080/30P
1080/50I 1125 1080 25 2:1 interlace 16:9 SMPTE-274M
1080/60I
720/50P 750 720 50 Progressive 16:9 SMPTE-296M
720/60P
*1 Also supports frame rate 1/1.001.
*1
*1
*1
*1
*1
525 483 30 2:1 interlace 16:9/4:3 SMPTE-253M
1125 1080 24 Progressive 16:9 SMPTE-274M
1125 1080 30 Progressive 16:9 SMPTE-274M
1125 1080 30 2:1 interlace 16:9 SMPTE-274M/BTA S-001B
750 720 60 Progressive 16:9 SMPTE-296M
Applicable DVI input signals
When a PC signal is input to the HDMI IN connector using a DVI conversion cable
Resolution Dot clock (MHz) fH (kHz) fV (Hz)
720 × 400 70Hz 28.322 31.469 70.087
800 × 600 56Hz 36.000 35.156 56.250
800 × 600 60Hz 40.000 37.879 60.317
1024 × 768 60Hz 65.000 48.363 60.004
1360 × 768 60Hz 85.500 47.712 60.015
(PAL: ITU-R BT.624)
(NTSC: SMPTE-170M)
Note
The sides of the displayed picture may be invisible depending on
the input signal.
When an optional input adaptor is conneted, the unit is applicable
to the following signal formats.
When BKM-320D is connected
Input
System Signal standard BKM-320D
575/50I ITU-R BT.656
480/60I SMPTE-259M a
a
22
Specifications
Dimensions
Front
493 (19 1/2)
)194.5 (7
8
/
5
166.5 (6
)
4
/
3
)2.5
2
/
1
239.4 (9
)
8
/
1
(
Side
Bottom
75.2
(3)
87 (3 1/2)
264.4 (10 1/2)
96.8 (3 7/8)
3
67.7
/4)
(2
Rear
)
8
/
5
100 (4)
40 (1
100 (4)
204.3 (8 1/8)
165.1 (6
216.3 (8
4-M5
(3)
76.2
/8)
5
(4
114.6
1
/2)
5
/8)
Unit: mm (inches)
Dimensions
23
Sony Corporation
